UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
751
User Manual
Designed and manufactured by Austin Hughes
1U LCD Console Drawer
RKP1617 / RKP1619
Options :
- AV / DVI-D / HDMI / Audio
- Touchscreen
- DC power
dedicated KVM switch and rackmount screen technology
17” / 19” LCD
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
< Part. 3 >
Options
3.1 HDMI, DVI-D, S-Video + BNC & Audio
3.2 17” / 19” Touchscreen : Resistive, Capacitive
3.3 DC Power : 12V / 24V / 48V / 110 ~ 125V
P.10
P. 11
P.12
< Part. 2 >
Specifi cations / OSD
2.1 Product Specifi cations
2.2 Keyboard / Mouse Specifi cations
2.3 On-screen Display Operation ( OSD )
P.5 - 6
P.7
P.8 - 9
< Part. 1 >
RKP1617 / RKP1619
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
1.4 Connection
Contents
P. 1
P.1 - 2
P.3
P. 4
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifi cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the fi nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfi ber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfi ber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfi ber cloth fi rst, not directly on the parts you are cleaning.
3
4
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
Installation Slide
LCD membrane
LCD interchangeable module kit
1
2
3
4
3
5
Full “Unix style” keyboard with numerial pad
Carry handle to release the 2-pt lock
4
RKP1617 or RKP1619 unit X 1
- CE-6 6ft Combo KVM cable X 1
- Power adapter & Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the single console models.
It varies with options such as HDMI, DVI-D, AV, audio, touchscreen
& DC power.
< 1.1 > Package Content
P. 1
< Part 1 >
< 1.2 > Structure Diagram
1
2
3
RKP1617 / 1619
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
RKP1617 series
441.6 x 700 x 44 mm
17.4 x 27.6 x 1.73"
595 x 910 x 140 mm
23.4 x 35.8 x 5.5”
12 kg
26 lb
16.5 kg
36 lb
RKP1619 series
441.6 x 700 x 44 mm
17.4 x 27.6 x 1.73"
595 x 910 x 140 mm
23.4 x 35.8 x 5.5”
13 kg
29 lb
17.5 kg
39 lb
The weight is only for the single console models. It varies with accessories & options
such as HDMI, DVI-D, AV, audio, touchscreen & DC power.

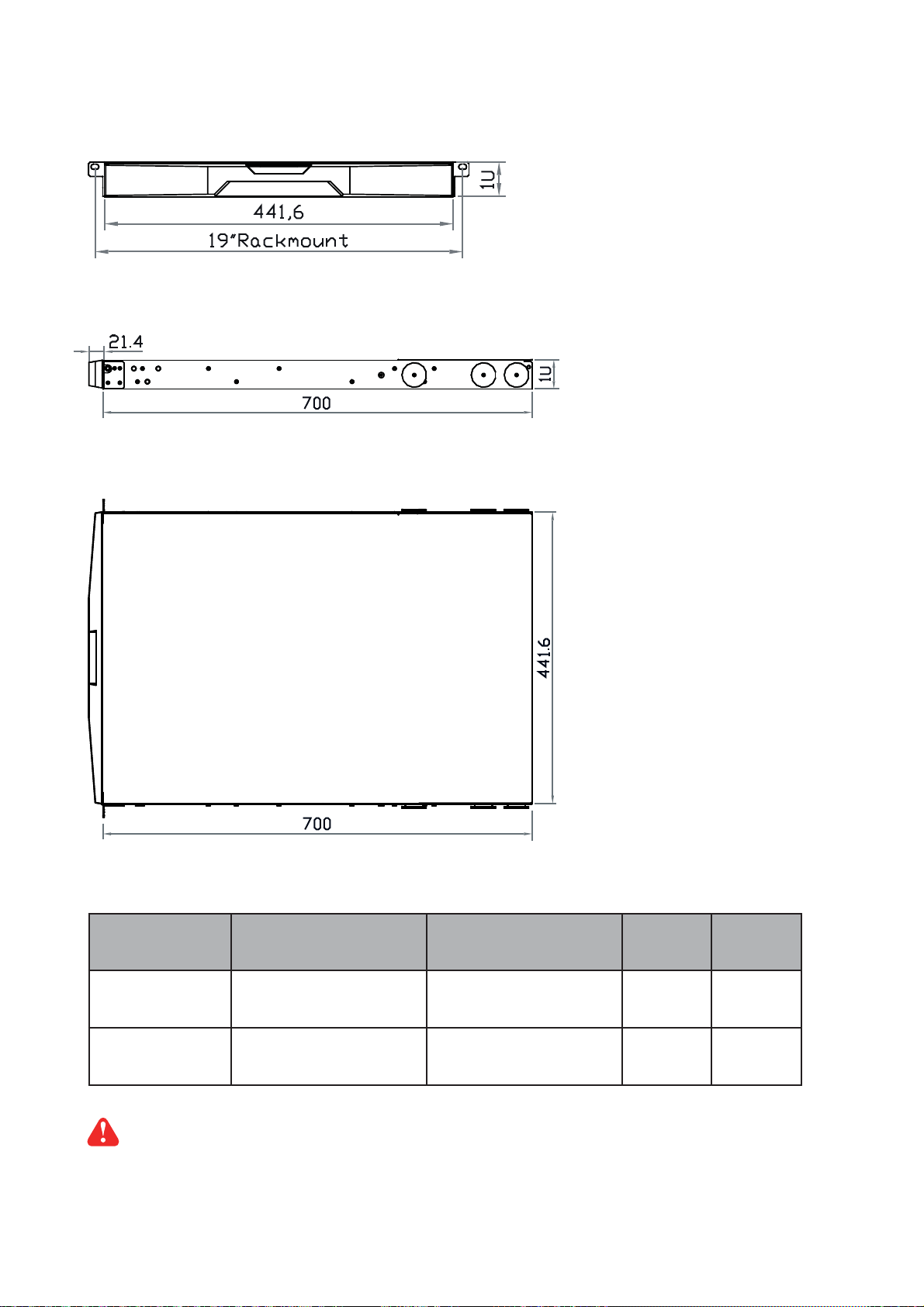

< 1.2 > Dimension
P. 2
Front View
Side View
UNIT : mm
1mm = 0.03937 inch
Top View
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com

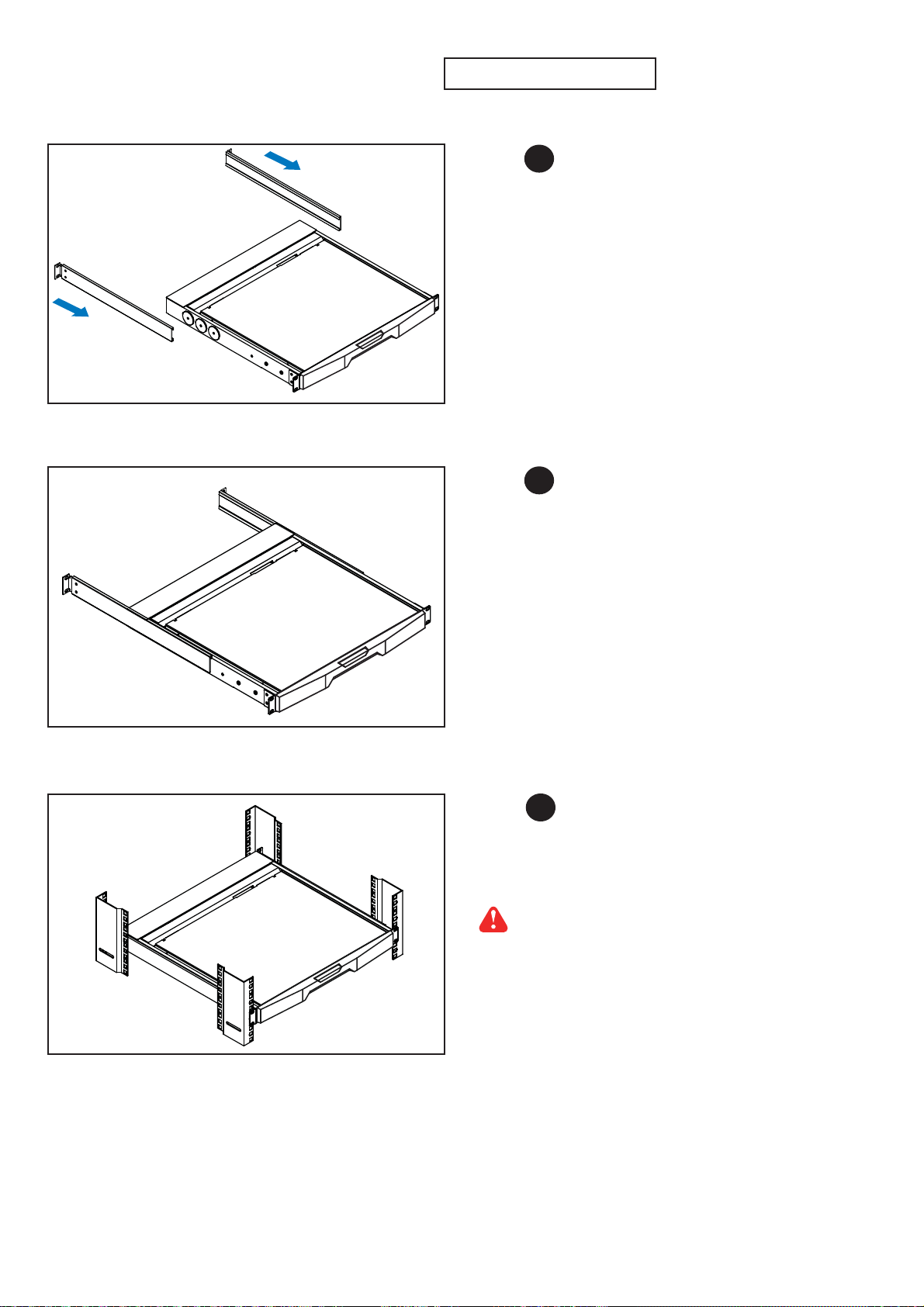

■ Fix the LCD console drawer into the rack.
Complete the installation
Step
3
■ Insert the left and right rear mounting brackets into
the LCD console drawer.
Step
1
< 1.3 > Installation - How to install Installation Slides
P. 3
Step
2
■ Measure the depth of the front and rear mounting rails.
■ Align each rear mounting bracket to a suitable length.
M6 screw, cage nut & cup washer x 8 are provided.
RKP1617 / 1619
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
P. 4
KVM
CE-6 Combo
KVM cable
KVM
PS/2 server USB server
CE-6 Combo
KVM cable
LCD console drawer LCD console drawer
< 1.4 > Connection to PS/2 or USB Server
< 1.4 > Connection to external KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
CE-6 Combo
KVM cable
CE-6 Combo
KVM cable
PS/2 console KVM
LCD console drawer LCD console drawer
USB console KVM
KVM KVM
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
RKP1617 / 1619
< 2.1 > Product Specifi cations
LCD
Panel
RKP1617 RKP1619
Manufacturer
Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD
Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024
Brightness ( typ. ) 250 250
Contrast Ratio ( typ. ) 1000:1 1000:1
Color 16.7 M 16.7 M
Viewing Angle ( L/R/U/D ) 80/80/80/80 85/85/80/80
Response Time ( ms ) 5 5
Dot pitch ( mm ) 0.264 0.294
Display Area ( mm ) 337.92H x 270.33V 376.32H x 301.06V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H 3H
Backlight Type CCFL LED
MTBF ( hrs ) 50,000 30,000
P. 5
< Part 2 >
Video
Connectivity
Digital HDMI HDMI 1.1, CEA-861-D
DVI DVI-D, TMDS single link
Analog
VGA Analog 0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio
Connectivity
Audio Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ / 750mV
Audio Output
Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
Speaker Output Power 2 x 2W
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption
Screen display ON 25W or less
Power saving mode 4W or less
Power button OFF 1W or less
Regulatory Safety FCC & CE certifi ed
Environmental RoHS2 & REACH compliant
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
Physical
Specifi cation
RKP1617 RKP1619
Product ( W x D x H )
441.6 x 700 x 44 mm 441.6 x 700 x 44 mm
17.4 x 27.6 x 1.73 inch 17.4 x 27.6 x 1.73 inch
Packing ( W x D x H )
595 x 910 x 140 mm 595 x 910 x 140 mm
23.4 x 35.8 x 5.5 inch 23.4 x 35.8 x 5.5 inch
Net Weight 12 kgs / 26 lbs 13 kgs / 29 lbs
Gross Weight 16.5 kgs / 36 lbs 17.5 kgs / 39 lbs
Applicable
Format
VGA Input PC Signal 1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
P. 6
Environmental
Conditions
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Storage
Temperature -5 to 60°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com

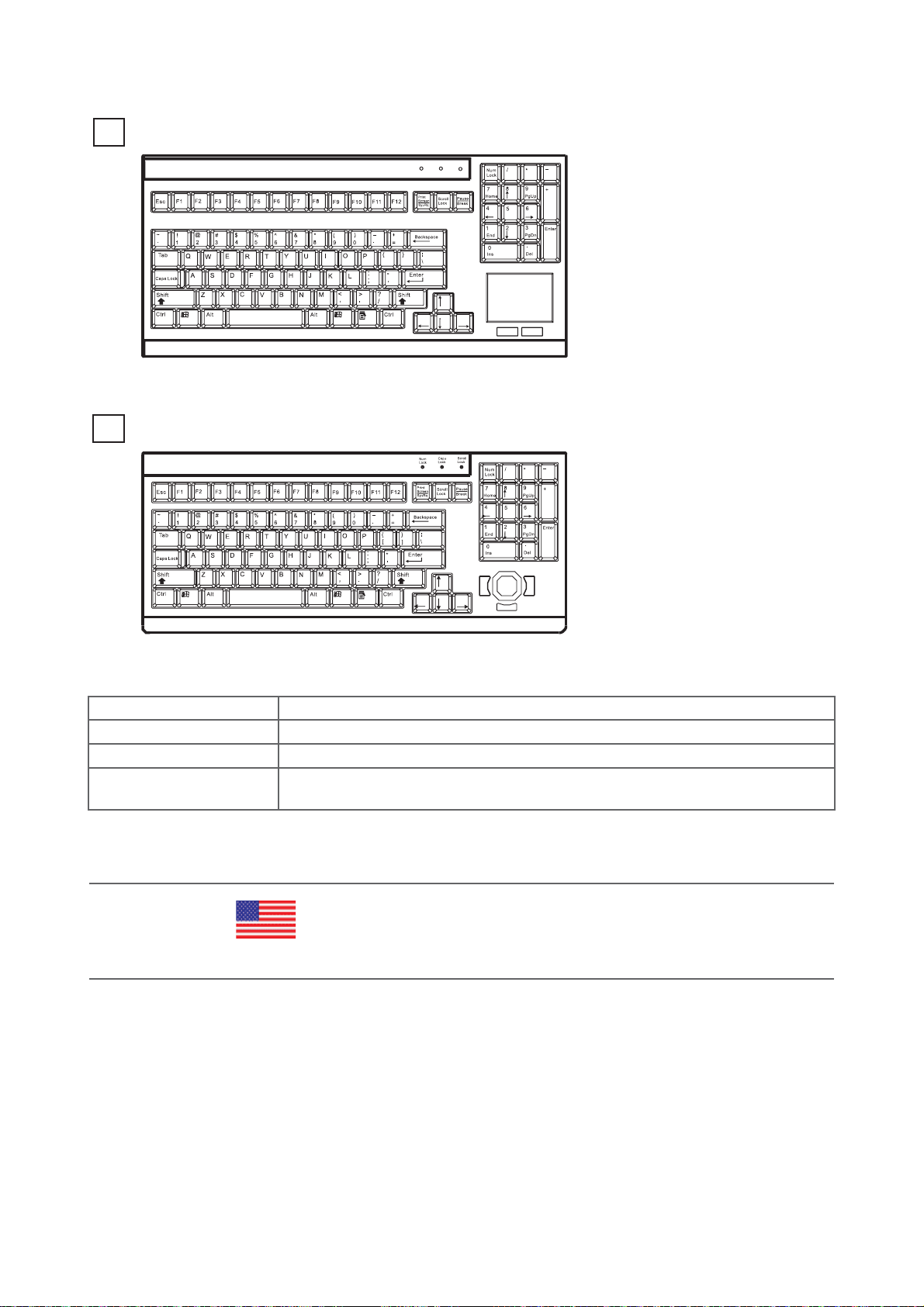

Supporting layouts
America
United States
Compact keyboard integrated with trackball
d
Compact keyboard integrated with touchpad
t
Key force 90 ± 7g
Travelling distance 4.0mm
Switch life > 3 million life cycle time
Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux / Mac
< 2.2 > Keyboard / Mouse Specifi cations
RKP1617 / 1619
P. 7
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Scroll through menu options and adjust
the displayed control
Display the OSD menu
Act as an Enter key to select screen setting options
Turn the monitor on or off
Membrane Switch Function
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will fl ash continuously when there is no signal input.
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
1
2
P. 8
< 2.3 > On-screen Display Operation ( OSD )
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
< 2.3 > On-screen Display Operation ( OSD )
RKP1617 / 1619
P. 9
OSD Confi guration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
Audio
Power
KVM
DVI-DHDMI
S-Video BNC
in - in - out
PC Video
- A V
- DVI-D
- HDMI
- Audio
( HDMI 1.1, CEA-861-D )
( DVI-D TMDS single link )
( S-Video + Composite, BNC )
( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
Either HDMI or DVI-D can be selected.
< 3.1 > Options :
< Part 3 >
P.10
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
USB Touchscreen
■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ For detailed information, please refer to the attached CD disc
■ As the touchscreen unit is not made of toughened glass, please handle it carefully
Model
17’ 19”
17” 19”
TRB e-Resistive TCB e-Capacitive
Technology
5-Wire Resistive Capacitive
Touch Point
Single Single
Method
Stylus or Finger Finger
Activation Force
≤ 50g / Stylus=R0.8 ≤ 50g
Durability
35 million touches 300 million touches
Response Time
15 ms 20 ms
Optical Transmittance
80% ± 3% 93% ±2%
Surface Hardness
3H 9H
Haze
8% ± 3% 7%
Glass
1.4 ±0.2 mm 3.2 ±0.2 mm 2.8 mm ±10% 2.8 mm ±10%
Connector
USB Type A USB Type A
Compatibility
Windows 7 / XP / Vista, Linux Windows 7 / XP / Vista, Linux
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/downloads/KBDDL/software.html
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to fi nish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please follow the below steps to setup the touch screen:-
Please do the initial calibration
after the fi rst setup
P. 11
< 3.2 > Options : Touchscreen & driver
17” / 19" USB Touchscreen Specifi cation
RKP1617 / 1619
Power
KVM
UM-CV-751-RKP1617-Q215V1 www.austin-hughes.com
Model 12V 24V 48V 110 ~ 125V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V
Input current
- No load 50 mA 50 mA 50 mA 40 mA
- Full load 4950 mA 2450 mA 1220 mA 993 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 8.4A
Effi ciency 84% 85% 85% 92%
< 3.3 > Options : DC Power
P.12
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved.
DC power
KVM
Option excludes 1 x power cord and 1 x AC power adapter
***
Loading...
