Austin Hughes IP-S101 User Manual

UM-CV-751-IP-S101-Q215V2 www.austin-hughes.com

IP-S101

Combo KVM Extender

Designed and manufactured by Austin Hughes

751

User Manual

dedicated KVM switch and rackmount screen technology

UM-CV-751-IP-S101-Q215V2 www.austin-hughes.com

Legal Information

First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.

Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.

■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with

temperatures not exceeding 40º Celsius (104º Fahrenheit).

■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing

damage to other equipment or injury to persons nearby.

■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the

power supply. Proper air convection is necessary to keep it from overheating.

■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current

labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.

■ Observe all precautions and warnings attached to the equipment.

■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being

damaged by transient over-voltage.

■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power

supply or on other hardware may cause damage, fi re or electrical shock.

■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment and

invalidate its warranty.

■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service personnel.

What the warranty does not cover

■ Any product, on which the serial number has been defaced, modifi ed or removed.

■ Damage, deterioration or malfunction resulting from:

□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.

■ Removal, installation, and set-up service charges.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:

■ Re-position or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-CV-751-IP-S101-Q215V2 www.austin-hughes.com

< Part. 3 >

IP-S101 unit X 1

- CE-6 6ft Combo KVM cable X 1

- Power adapter w/ power cord ( for receiver ) X 1

IP Initial Setup

P.5 - 6

< Part. 2 >

Application

2.1 Connection to KVM console port over IP

2.2 Connection to computer over IP

P. 3
P.4

< Part. 1 >

IP-S101

1.1 Package Contents

1.2 Specifi cation

Contents

P. 1
P. 2

■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.

■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive

dust, dirt, heat, water, moisture and vibration.

The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.

Unpacking

Before Installation

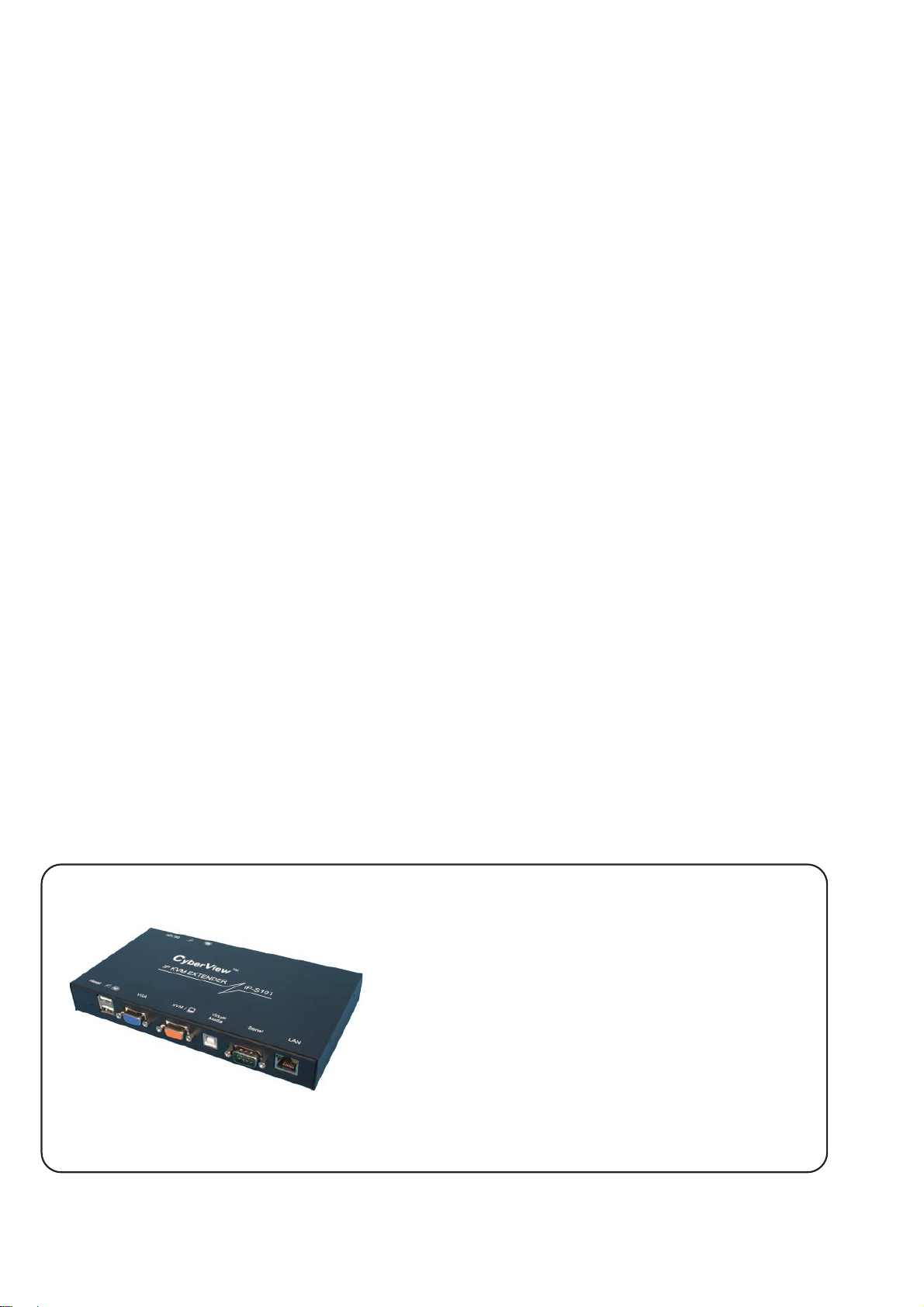

< 1.1 > Package Contents

IP-S101

< Part 1 >

P. 1

UM-CV-751-IP-S101-Q215V2 www.austin-hughes.com

P. 2

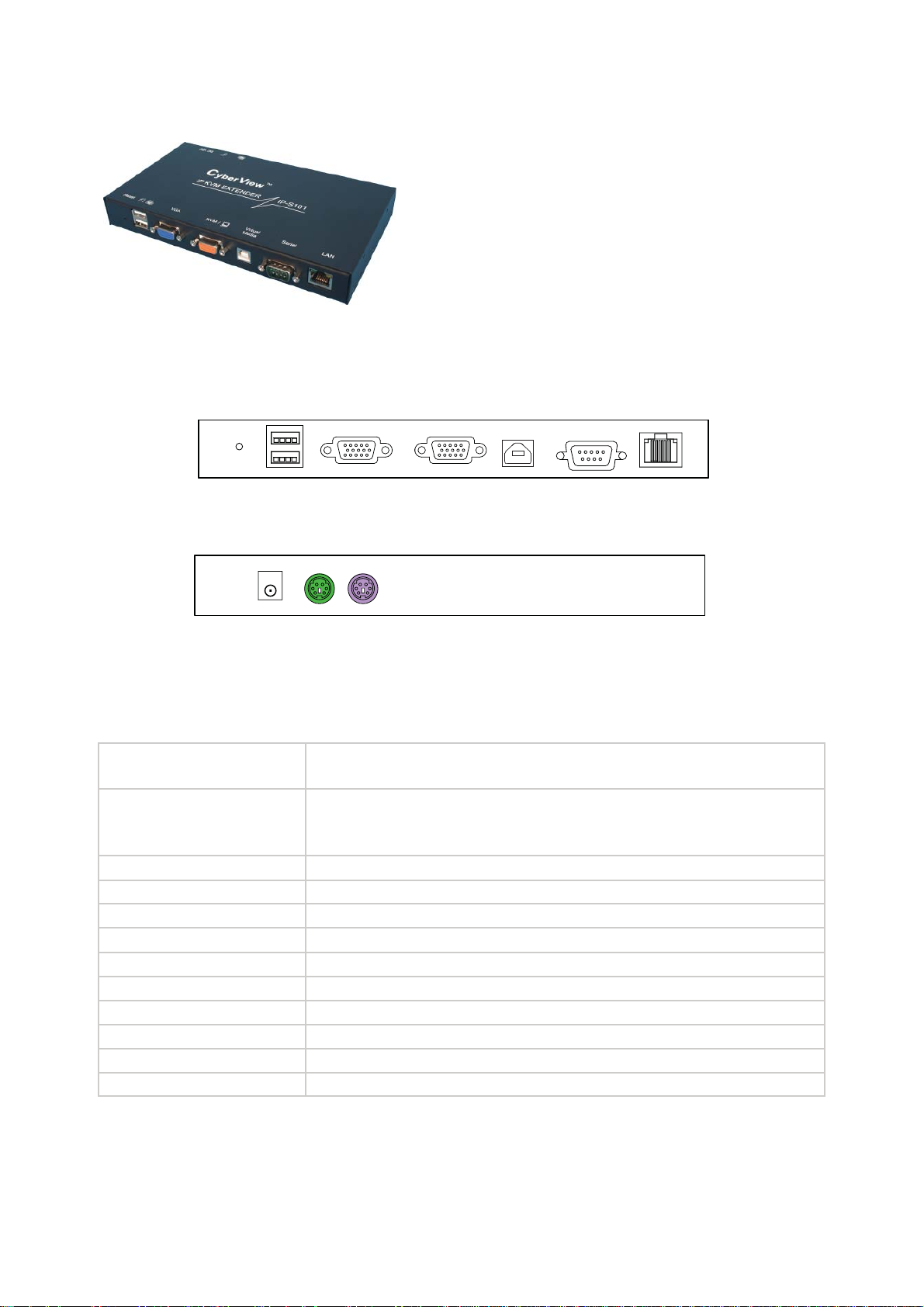

< 1.2 > Specifi cation

IP-S101

IP-S101 Specifi cation

IP Connection

1 x RJ-45 Ethernet 10/100

Console connection

1 XDB-15 VGA, up to 1600 x 1200
2 x USB type connector for keyboard & mouse
2 x PS/2 mini Din 6-pin for keyboard & mouse

PC connection 1 x DB-15 combo KVM port
Virtual Media USB type B receptacle
Serial 1 x DB9 male
Power 12V power adapter
Operation Temperature 0 ~ 55 °C
Storage Temperature -5 ~ 60 °C
Humidity 0~80%, Non-Condensing
Dimension 203.5W x 113.3D x 27.3H mm
Weight 1.7 kg / 3.74 lb
Environmental RoHS2 & REACH compliant

KBMouse

Power

PS/2

VGA KVM / PC Serial

Virtual
Media LAN

KBMouse

USB

Front

Rear

UM-CV-751-IP-S101-Q215V2 www.austin-hughes.com

P. 3

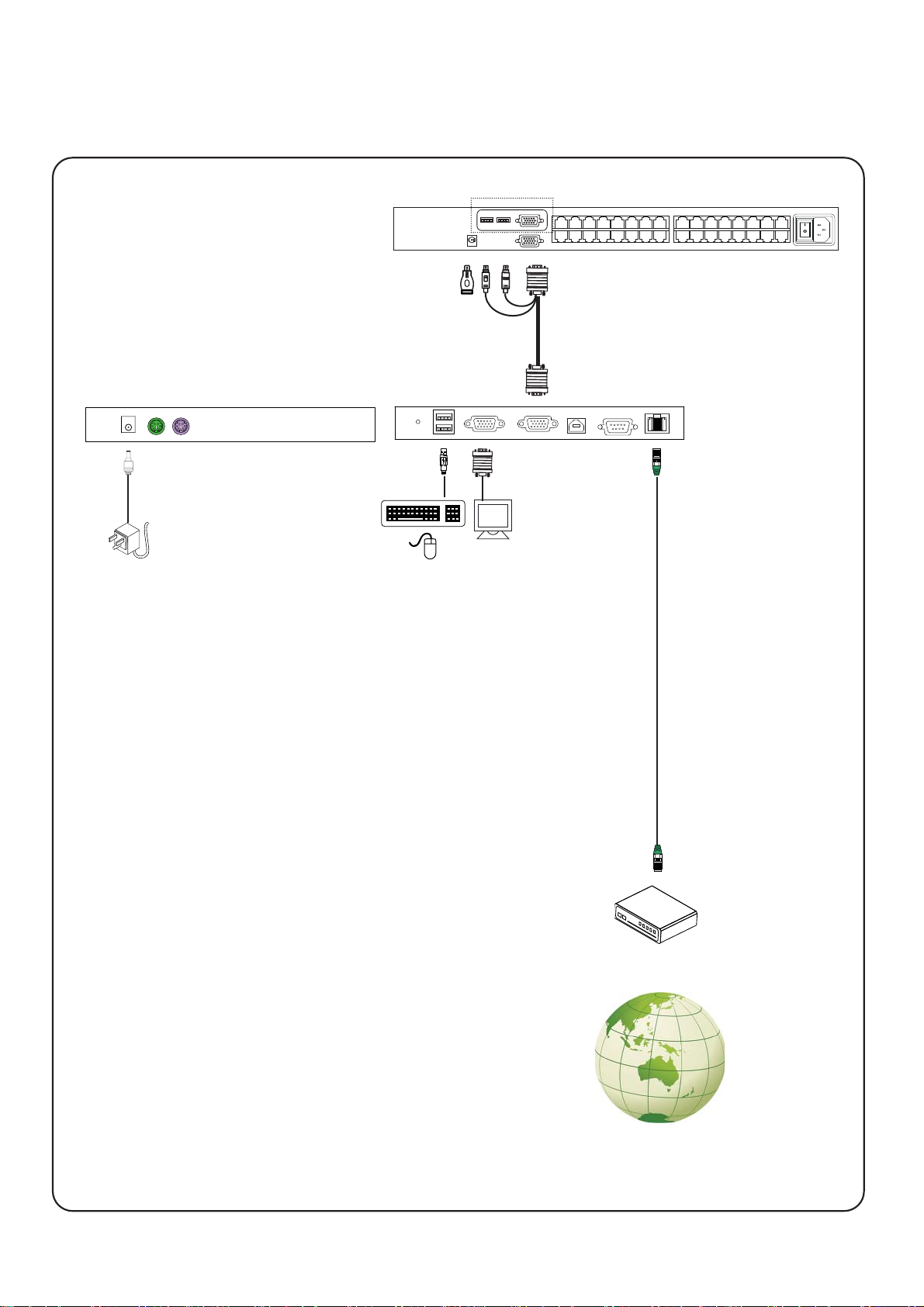

< 2.1 > Connection to KVM console port over IP

IP-S101

< Part 2 > Application

USB Console

2468

10121416

1357

9111315

18202224

26283032

17192123

25272931

KVM switch

CE-6 combo

KVM cable

CAT 5 / 6 cable

max. 100m

I

n

t

e

r

n

e

t

Network device

hub or router

Monitor

FrontRear

UM-CV-751-IP-S101-Q215V2 www.austin-hughes.com

Computer

P. 4

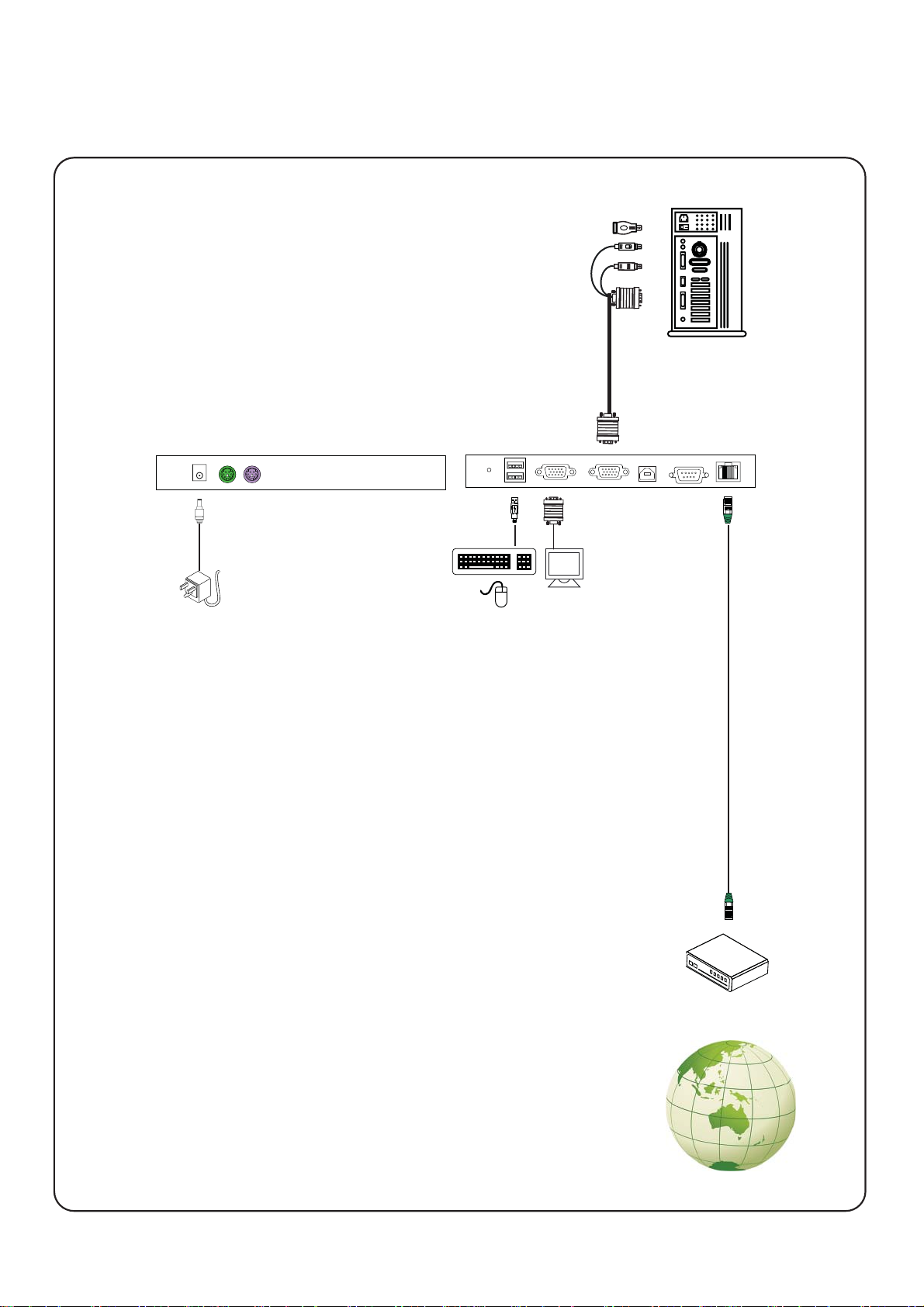

< 2.2 > Connection to computer over IP

IP-S101

CE-6 combo

KVM cable

CAT 5 / 6 cable

max. 100m

I

n

t

e

r

n

e

t

Network device

hub or router

Monitor

FrontRear

UM-CV-751-IP-S101-Q215V2 www.austin-hughes.com

< Part 3 > IP Initial setup

IP-S101

P. 5

After the cable connection, please take the following steps to confi gure the IP KVM Extender :

1. Download IPKVMsetup.exe from the link:

www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe

2. Double click IPKVMsetup.exe to confi gure the IP KVM Extender by device setup as below.

11. Open Internet Explorer ( I.E. ), version 6.0 or above

12. Enter the IP KVM Extender address into the address bar

- For Single IP - http://192.168.1.22

13. Enter username ( default is super )

Password ( default is pass )

14. After successful login to IP KVM Extender, the user will enter the main page of IP KVM Extender

The setting is enough for intranet.
If the users access KVM GUI via internet, please ask MIS for assistance and
download IP KVM user manual from the link :
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-IP.pdf

3. Click Refresh Device to search the connected IP KVM Extender

4. Select the M.A.C. address, which you want to setup, then click Query Device

5. Enter Super user login. The default is super

6. Enter Super user password. The default is pass

7. Enter the new super user password

8. Re-enter the new password

9. Change the desired IP address / Subnet mask / Gateway, then click Setup Device to

confi rm the setting to IP KVM Extender

10. The default address is http://192.168.1.22

UM-CV-751-IP-S101-Q215V2 www.austin-hughes.com

Due to the changes from Java security, customer may facing the "JAVA Block" message while
accessing the remote console over IP.

If it said so, here is the workaround solution :
Customer can use the "Exception Site list" feature to run the applications blocked by security setting.
Adding the URL of the blocked application to the Exception Site list allows it to run with some warnings.

Steps to Add URLs to the Exception Site list :

■ Go to the Java Control Panel ( On Windows Click Start and then Confi gure Java )

■ Click on the Security tab

■ Click on the Edit Site List button

■ Click Add in the Exception Site List window

■ Click in the empty fi eld under the Location fi eld to enter the URL ( URL should begin with http:// or https:// )

IP-S101

Java Security Issue

Attention

P. 6

UM-CV-751-IP-S101-Q215V2 www.austin-hughes.com

The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.

All brand names, logo and registered trademarks are properties of their respective owners.

Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved.
