UM-CV-751-DS117-Q215V1 www.austin-hughes.com
751
User Manual
Designed and manufactured by Austin Hughes
1U Dual Slide SUN LCD Console Drawer
DS117 / DS119
17” / 19” LCD 1152 x 900 Native Resolution
Options :
- DC power
dedicated KVM switch and rackmount screen technology
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
< Part. 3 >
Options
3.1 DC Power : 12V / 24V / 48V / 110 ~ 125V
P.13
< Part. 2 >
Specifi cations / OSD
2.1 Product Specifi cations
2.2 Keyboard / Mouse Specifi cations
2.3 On-screen Display Operation ( OSD )
P.8 - 9
P.10 - 11
P.12
< Part. 1 >
DS117 / DS119
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
1.4 Connection
Contents
P. 1
P.1 - 2
P.3 - 5
P.6 - 7
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
Matrix
DB-15 KVM
Local Remote 8-port 16-port 32-port
111
-MIP813 -MIP1613 -
112
-MIP824 -MIP1624 -
110
-M802 -M1602 -
120
-M803 -M1603 -
1 3 0 -M804 -M1604 -
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MKVM-KIT.pdf
Matrix
Cat6 KVM
Local Remote 8-port 16-port 32-port
111
- -MUIP1613 -MUIP3213
112
- -MUIP1624 -MUIP3224
110
- -MU1602 -MU3202
120
- -MU1603 -MU3203
1 3 0 - -MU1604 -MU3204
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf
DVI-D
KVM
Local Remote 12-port - -
1 0 0 -1201D - -
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf
< Part. 4 >
KVM Integration
Contents
Combo
Cat6 KVM
Local Remote 8-port 16-port 32-port
101
-UIP802 -UIP1602 -UIP3202
110
-U802 -U1602 -U3202
1 0 0 -U801 -U1601 -U3201
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf
Combo
DB-15 KVM
Local Remote 8-port 16-port 32-port
101
-IP802 -IP1602 -
110
-802 -1602 -
1 0 0 -S801 -S1601 -
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-SKVM-KIT.pdf
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifi cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the fi nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfi ber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfi ber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfi ber cloth fi rst, not directly on the parts you are cleaning.
3
4
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
5
Carry handle to release the 2-pt lock
LCD interchangeable module kit
Installation Slides
LCD membrane
1
2
4
6
7
8
1
2
3
5
6
7
Membrane switch (KVM option)
Keyboard interchangeable module kit
Touchpad mouse module
1U dual slide for LCD console drawer
4
3
8
5
< 1.1 > Package Content
P. 1
< Part 1 >
DS117 or DS119 unit X 1
- CX-6 6ft DVI-D console cable X 1
( Alternative : CB-6 6ft VGA console cable )
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
< 1.2 > Structure Diagram
The above package content is only for the single console models.
It varies with options such as KVM & DC power.
DS117 / 119
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
Front View
Top View
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
DS117 series
441.6 x 650 x 44 mm
17.4 x 25.6 x 1.73"
595 x 860 x 140 mm
23.4 x 33.9 x 5.5”
12.6 kg
27.7 lb
18.4 kg
40.5 lb
DS119 series
441.6 x 650 x 44 mm
17.4 x 25.6 x 1.73"
595 x 860 x 140 mm
23.4 x 33.9 x 5.5”
13.2 kg
29 lb
19 kg
41.8 lb
The weight is only for the single console models. It varies with accessories & options
such as KVM & DC power.
< 1.2 > Dimension
P. 2
UNIT : mm
1mm = 0.03937 inch
Side View
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
■ Fix the LCD console drawer into the rack.
Complete the installation
Step
3
■ Insert the left and right rear mounting brackets into
the LCD console drawer.
Step
1
< 1.3 > Installation - How to install Installation Slides
P. 3
Step
2
■ Measure the depth of the front and rear mounting rails.
■ Align each rear mounting bracket to a suitable length.
M6 screw, cage nut & cup washer x 8 are provided.
DS117 / 119
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
■ Press the handle button and gently slide out
the drawer.
■ Flip up the LCD to a suitable angle.
■ Operate the LCD console drawer.
P. 4
< 1.3 > Installation - How to Use the Dual Slides
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
DS117 / 119
P. 5
< 1.3 > Installation - How to Use the Dual Slides
■ Flip down the front panel.
■ Press the handle button and gently push
back the drawer into the rack.
■ Return the LCD console drawer to park
position.
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
DVI-D KVM
DVI-D
LCD Console Drawer
USB server
P. 6
< 1.4 > Connection to USB Server via CX-6 cable
< 1.4 > Connection to external KVM via CX-6 cable
DVI console KVM
LCD Console Drawer
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
KVM
CX-6 DVI-D
console cable
Power
Power
DVI-DUSB
CX-6 DVI-D
console cable
DVI-D USB
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
DS117 / 119
USB server
P. 7
KVM
KVM
LCD Console Drawer

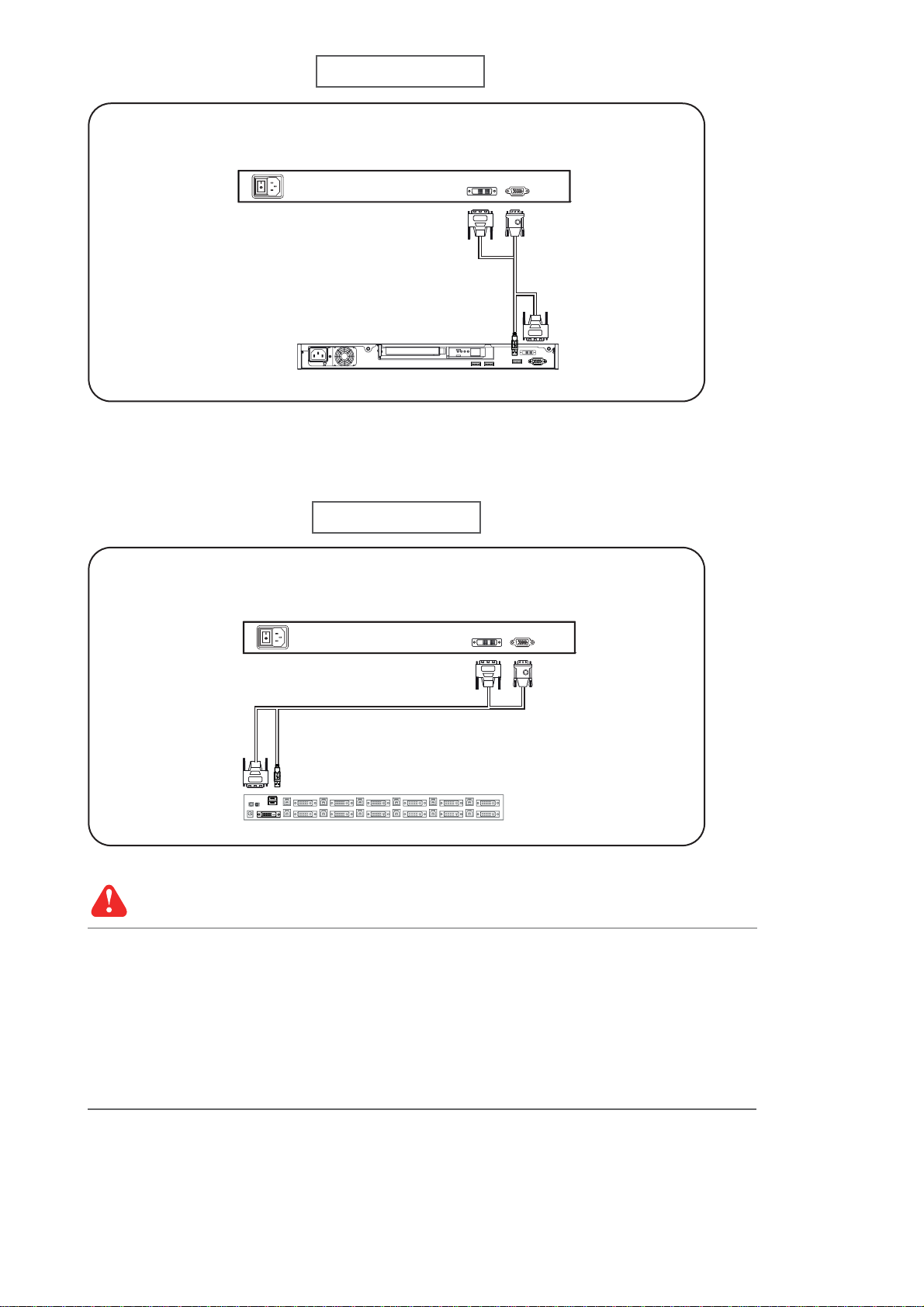

< 1.4 > Connection to USB Server via CB-6 cable
< 1.4 > Connection to external KVM via CB-6 cable
LCD Console Drawer
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
CB-6 VGA
console cable
Power
Power
USB console KVM
VGAUSB
USB VGA
CB-6 VGA
console cable
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
Audio
Connectivity
Audio Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ / 750mV
Audio Output
Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
Speaker Output Power 2 x 2W
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption
Screen display ON 25W or less
Power saving mode 4W or less
Power button OFF 1W or less
Video
Connectivity
Digital DVI DVI-D, TMDS single link
Analog
VGA Analog 0.7Vp-p
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
< 2.1 > Product Specifi cations
LCD
Panel
DS117 DS119
Manufacturer
Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD
Display pixel ( dots x lines )
1152 x 900 ( Direct ) 1152 x 900 ( Direct )
1280 x 1024 ( Native ) 1280 x 1024 ( Native )
Brightness ( typ. ) 250 250
Contrast Ratio ( typ. ) 1000:1 1000:1
Color 16.7 M 16.7 M
Viewing Angle ( L/R/U/D ) 80/80/80/80 85/85/80/80
Response Time ( ms ) 5 5
Dot pitch ( mm ) 0.264 0.294
Display Area ( mm ) 337.92H x 270.33V 376.32H x 301.06V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H 3H
Backlight Type CCFL LED
MTBF ( hrs ) 50,000 30,000
P. 8
< Part 2 >
Regulatory Safety cUL, FCC & CE certifi ed
Environmental RoHS2 & REACH compliant
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
DS117 / 119
Physical
Specifi cation
DS117 DS119
Product ( W x D x H )
441.6 x 650 x 44 mm 441.6 x 650 x 44 mm
17.4 x 25.6 x 1.73 inch 17.4 x 25.6 x 1.73 inch
Packing ( W x D x H )
595 x 860 x 140 mm 595 x 860 x 140 mm
23.4 x 33.9 x 5.5 inch 23.4 x 33.9 x 5.5 inch
Net Weight 12.6 kgs / 27.7 lbs 13.2 kgs / 29 lbs
Gross Weight 18.4 kgs / 40.5 lbs 19 kgs / 41.8 lbs
Applicable
Format
DVI-D / VGA Input PC Signal 1152 x 900 x 66Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
P. 9
Environmental
Conditions
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Storage
Temperature -5 to 60°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
Num Caps Scroll Compos e
Supporting layouts
America
United States
Key force 55 ± 5g
Travelling distance 3 ± 0.3mm
Switch life > 10 million life cycle time
Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux / Mac / SUN system
■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help
■ 104 key notepad keyboard with full numerical pad and SUN function
■ USB interface
S keyboard integrated with touchpad
< 2.2 > Keyboard / Mouse Specifi cations
P.10
S keyboard integrated with touchpad
Se
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
< 2.2 > Keyboard / Mouse Specifi cations
P. 11
DS117 / 119
Audio / Display Keys * Please ask your supplier for full details
F9
Audio : Mute
Display : Degauss
F11
Audio : Decrease volume
Display : Decrease contrast
F12
Audio : Increase volume
Display : Increase contrast
Num LED in Green mode
Key pad behaves as a normal key
pad mode
Num LED in Off mode
Key pad behaves as a SUN Solar
system administration command mode
How to Use "S" Keyboard
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
< 2.3 > On-screen Display Operation ( OSD )
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button for 5 seconds)
Display the OSD menu
Power on / off LCD
Power light
Green = On
Orange = Power saving
Membrane Switch Function
OSD Confi guration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
P.12
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
Model 12V 24V 48V 110 ~ 125V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V
Input current
- No load 50 mA 50 mA 50 mA 40 mA
- Full load 4950 mA 2450 mA 1220 mA 993 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 8.4A
Effi ciency 84% 85% 85% 92%
KVM
DVI-D
Option excludes 1 x power cord and 1 x AC power adapter
***
DC power
DS117 / 119
< 3.1 > Options : DC Power
P.13
< Part 3 >
UM-CV-751-DS117-Q215V1 www.austin-hughes.com
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved.
Loading...
