UM-UV-621-K17-Q119V2 www.austin-hughes.com
NAP-K17
Aluminum front bezel
OP-K17
Universal open frame
AP-K17
Front NEMA4 / IP65
User Manual
dedicated LCD display solutions
Designed and manufactured by Austin Hughes
17” 4K 3480 x 2160 LCD
DP-K17
Aluminum front cover
UM-UV-621-K17-Q119V2 www.austin-hughes.com
Legal Information
First English printing, March 2019
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
UM-UV-621-K17-Q119V2 www.austin-hughes.com
Contents
< Part. 1 > AP-17 / NAP-17
1.1 Package Content P.1
1.2 Structure Diagram & Dimension P.2 - 3
1.3 Mounting Hardware & Installation P.4
< Part. 2 > DP-K17
2.1 Package Content P.5
2.2 Structure Diagram & Dimension P.6 - 7
2.3 Mounting Hardware & Installation P.8
< Part. 3 > OP-K17
3.1 Package Content P.9
3.2 Structure Diagram & Dimension P.10 - 11
3.3 Mounting Hardware & Installation P.12
< Part. 4 > Specifi cations / OSD
4.1 Product Specifi cations P.13 - 14
4.2 On-screen Display Operation ( OSD ) P.15 - 17
4.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.18
< Part. 5 > Options
5.1 Option Table P.20
5.2 Remote Controller ( RC-2 ) P.21
5.3 3G / HD / SD-SDI input P.22
5.4 MCS Multi-display control solution P.23
5.5 Touchscreen & driver P.24 - 25
5.6 DC Power : 12V / 24V / 48V / 125V P.26

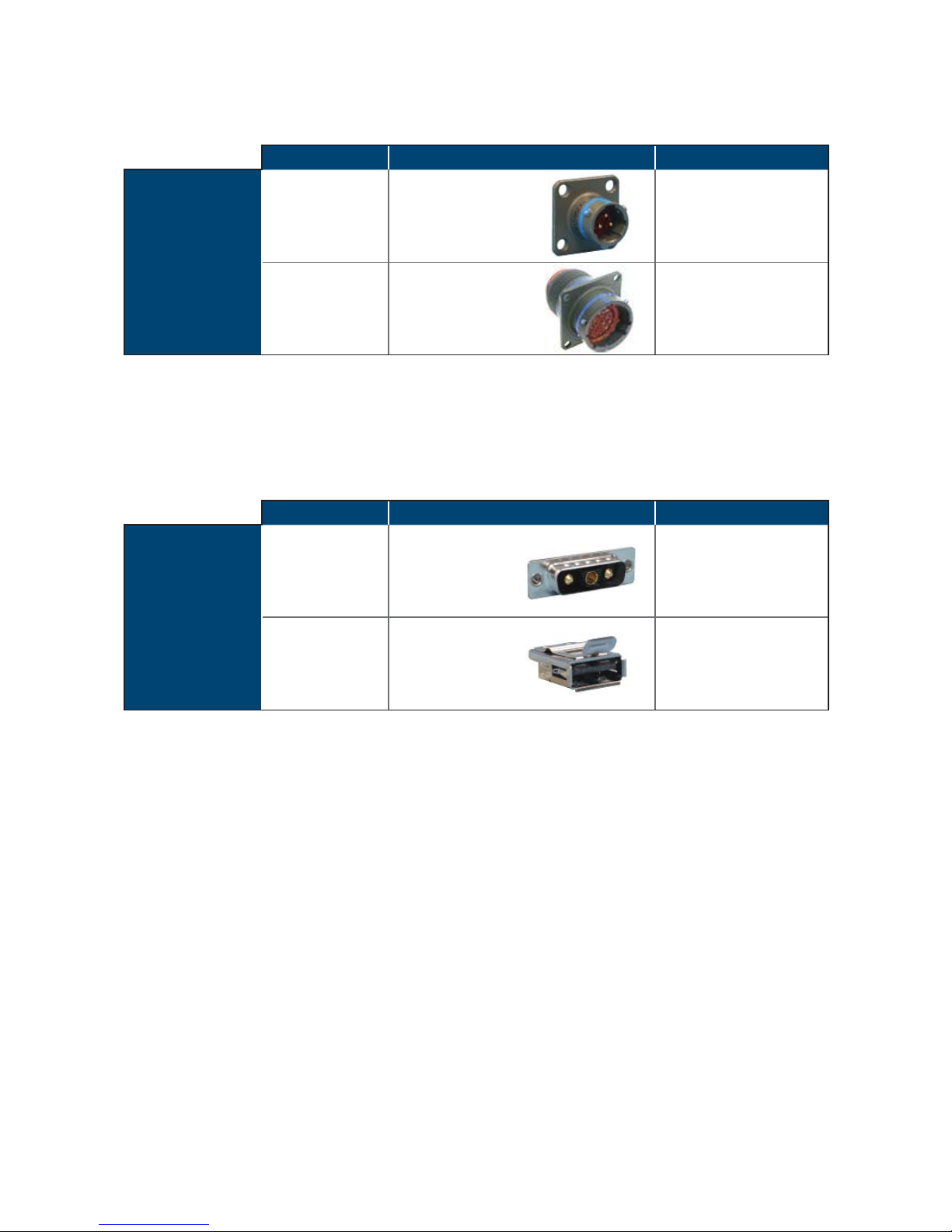

5.7 MIL-type or lockable connector P.27
UM-UV-621-K17-Q119V2 www.austin-hughes.com
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
3
4
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifi cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the fi nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood
based paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfi ber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfi ber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfi ber cloth fi rst, not directly on the parts you are cleaning.
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P. 1
Mounting hardware X 1 pack
- Mounting bracket x 4 pcs
- M4* 6mm screw x 8 pcs
- M4* 50mm screw x 8 pcs
17” 4K LCD Display X 1
6ft DP cable X 1
Power adapter X 1
Power cord X 1
AP-K17 / NAP-K17
< Part 1 > AP-K17 / NAP-K17
< 1.1 > Package Content
Basic I/O
Power
out
Audio
HDMI 2.0HDMI 1.4 DP
UM-UV-621-K17-Q119V2 www.austin-hughes.comP. 2
Rear case
LCD panel
6mm aluminum front bazel
Audio speaker, pair
LCD membrane
1
2
3
4
5
1
2
3
5
4
AP-K17
NAP-K17
< 1.2 > Structure Diagram
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
AP-K17
440.5 x 53.6 x 293 mm
17.3 x 2.1 x 11.5 inch
615 x 113 x 523 mm
24.2 x 4.4 x 20.6 inch
5.2 kg
11.4 lb
8 kg
17.6 lb
NAP-K17
5.9 kg
13 lb
8.7 kg
19.1 lb
Front view
Rear view
Side View
Bottom view
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P. 3
Bottom View
< 1.2 > Dimension
Front View Side View
Rear View
AP-K17
NAP-K17
UNIT : mm
1mm = 0.03937 inch
M6*4pcs
UM-UV-621-K17-Q119V2 www.austin-hughes.comP. 4
1
x 4 pcs
Mounting
bracket
x 8 pcs
M4*6mm screw
2 3
x 8 pcs
M4*50mm screw
Hardware set part no. UV-BK#2
■ Install 4 mounting brackets with 8 x M4*6mm screws
■ Adjust the LCD panel with 8 x M4*50mm screws and fi x it on the surface.
Steps
■ Hardware and M6*4 pcs for VESA mount are not provided
VESA mount ( 100*100mm )
< 1.3 > Installation
( I ) Panel mount
( II ) VESA mount ( 100*100mm )
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P. 5
DP-K17
17” 4K LCD Display X 1
6ft DP cable X 1
Power adapter X 1
Power cord X 1
< Part 2 > DP-K17
< 2.1 > Package Content
Basic I/O
Power
out
Audio
HDMI 2.0HDMI 1.4 DP
UM-UV-621-K17-Q119V2 www.austin-hughes.comP. 6
Front view
Rear view
Side View
Bottom view
1
2
3
5
Rear case
LCD panel
Front cover
Audio speaker, pair
LCD membrane
1
2
3
4
5
< 2.2 > Structure Diagram
DP-K17
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
DP-K17
417.9 x 51.9 x 270.4 mm
16.5 x 2 x 10.6 inch
615 x 113 x 523 mm
24.2 x 4.4 x 20.6 inch
4.3 kg
9.5 lb
7.1 kg
15.6 lb
4
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P. 7
Side View
Rear View

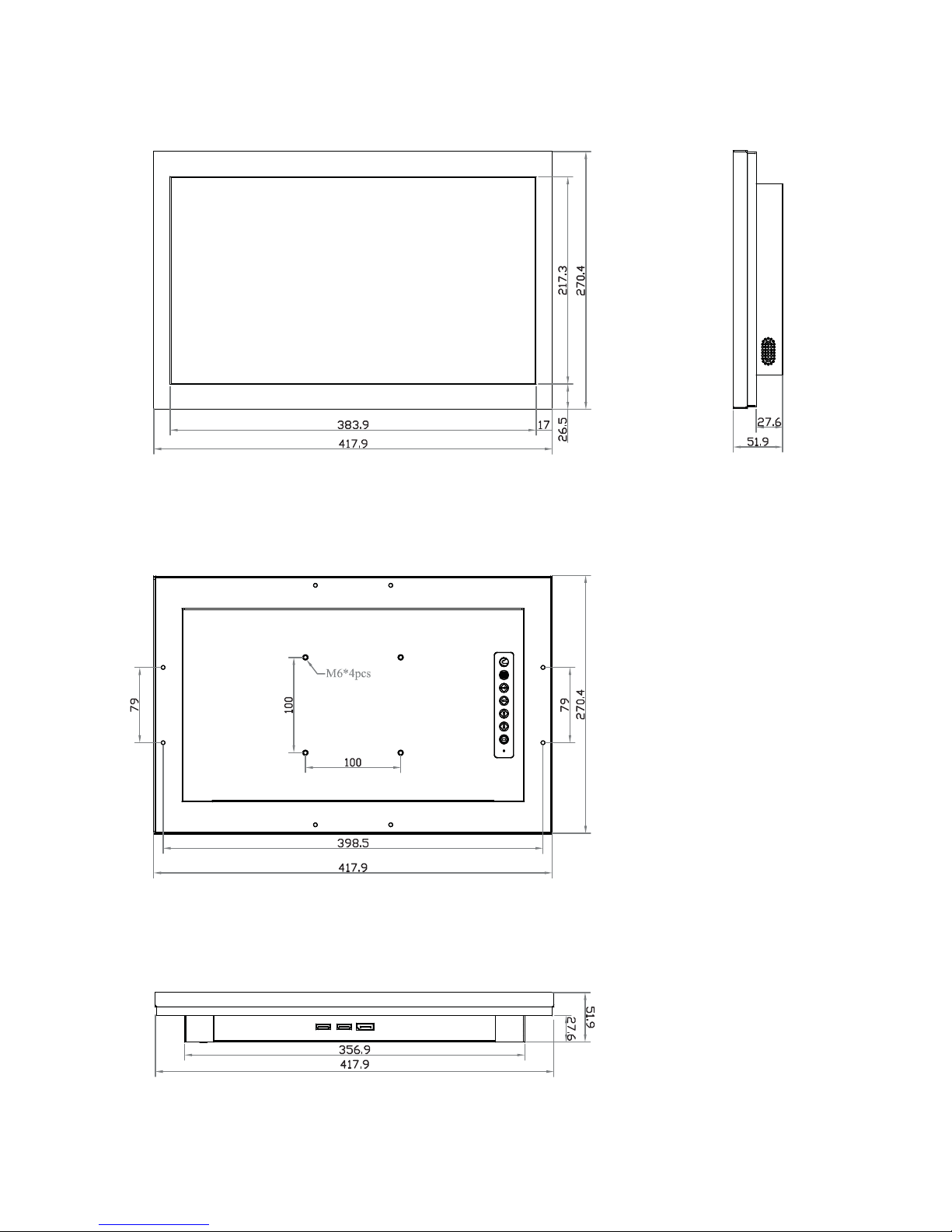

< 2.2 > Dimension
DP-K17
UNIT : mm
1mm = 0.03937 inch
Front View
Bottom View
UM-UV-621-K17-Q119V2 www.austin-hughes.comP. 8
< 2.3 > VESA Installation
■ Hardware and M6*4 pcs for VESA mount are not provided
VESA mount ( 100*100mm )
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P. 9
17” 4K LCD Display X 1
6ft DP cable X 1
Power adapter X 1
Power cord X 1
OP-K17
< Part 3 > OP-17 / HOP-17
< 3.1 > Package Content
Basic I/O
Power
out
Audio
HDMI 2.0HDMI 1.4 DP
UM-UV-621-K17-Q119V2 www.austin-hughes.comP.10
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
OP-K17
437.5 x 47.6 x 290 mm
17.2 x 1.9 x 11.4 inch
615 x 113 x 523 mm
24.2 x 4.4 x 20.6 inch
3.4 kg
7.5 lb
6.2 kg
13.6 lb
1
2
Rear case
LCD panel
Audio speaker, pair
Universal open frame mounting
LCD membrane
1
2
3
4
OP-K17
5
5
4
3
< 3.2 > Structure Diagram
Front view
Rear view
Side View
Bottom view
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P. 11
Front View Side View
Rear View
OP-K17
UNIT : mm
1mm = 0.03937 inch
Bottom View
M6*4pcs
< 3.2 > Dimension
UM-UV-621-K17-Q119V2 www.austin-hughes.comP.12
( I ) Universal mount
( II ) VESA mount ( 100*100mm )
Hardware and M6*4 pcs for VESA mounting are not provided
< 3.3 > Installation
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P.13
< Part 4 >
< 4.1 > Product Specifi cations
Mechanical Design
AP-K17 NAP-K17 DP-K17 OP-K17
Protection 6mm front bezel NEMA 4 / IP65 front cover open frame
Front Panel Black, RAL 9005 -
Rear Casing Black, RAL 9005
VESA mount 100 x 100 mm
Universal mount - - ready
Desktop stand option option -
Panel mount bundled - -
LCD Panel
Panel Size ( diagonal )
17.3-inch Widescreen TFT color LCD
Native Resolution 3840 x 2160
Brightness ( typ. ) 400
Contrast Ratio ( typ. ) 1000:1
Colors 16.7 M, 8-bit
Viewing Angle ( L/R/U/D ) 89/89/89/89
Response Time ( ms ) 16
Dot pitch ( mm ) 0.0995
Display Area ( mm ) 382.12H x 214.94V
Surface treatment Anti-glare
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 20,000
Video
Digital Display port DP 1.2 / HDCP 1.3
HDMI
HDMI 2.0 / HDCP 2.2
HDMI 1.4 / HDCP 1.4
Audio
Output
Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
Speaker:
Dual Stereo 2W x 2
*When the audio output is connected, speaker output is OFF
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption:
Screen ON Max. 29W
Power saving mode Max. 9W
Power button OFF Max. 2W
Compliance
EMC
FCC & CE certifi ed
Safety
CE / LVD certifi ed
Environment
RoHS2 & REACH compliant
UM-UV-621-K17-Q119V2 www.austin-hughes.comP.14
Environmental Conditions
Operating
Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage /
Non-operating
Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration
Physical Specifi cation
AP-K17 NAP-K17 DP-K17 OP-K17
Product ( W x D x H )
mm
440.5 x 53.6 x 293 417.9 x 51.9 x 270.4 437.5 x 47.6 x 290
inch
17.3 x 2.1 x 11.5 16.5 x 2 x 10.6 17.2 x 1.9 x 11.4
Packing ( W x D x H )
mm
615 x 113 x 523
615 x 113 x 523 615 x 113 x 523
inch
24.2 x 4.4 x 20.6 24.2 x 4.4 x 20.6 24.2 x 4.4 x 20.6
Net Weight 5.2 kg / 11.4 lb 5.9 kg / 13 lb 4.3 kg / 9.5 lb 3.4 kg / 7.5 lb
Gross Weight 8 kg / 17.6 lb 8.7 kg / 19.1 lb 7.1 kg / 15.6 lb 6.2 kg / 13.6 lb
Chassis color Dark
Chassis materials Aluminum
Applicable Format
Display Port Input PC Signal 3840 x 2160 x 60Hz
1920 x 1080 x 60Hz
1600 x 1200 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 768 x 60Hz
1024 x 768 x 60 / 70 / 75Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
Audio Signal 2ch Linear PCM
HDMI Input HDMI 2.0 3840 x 2160 x 60Hz
HDMI 2.0 / 1.4 3840 x 2160 x 30Hz
1920 x 1080 x 50 / 60Hz ( 1080p )
1920 x 1080 x 25 / 30Hz ( 1080i )
1280 x 720 x 50 / 60Hz ( 720p )
720 x 480 x 50 / 60Hz ( 576p / 480p )
Audio Signal 2ch Linear PCM
* In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals,
the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display
size to fi x the issue.
< 4.1 > Product Specifi cations
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P.15
< 4.2 > On-screen Display Operation ( OSD )
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button for 5 seconds)
Display the OSD menu
Power on / off LCD
Power light
Green = On
Orange = Power saving
Membrane Switch Function
UM-UV-621-K17-Q119V2 www.austin-hughes.comP.16
< 4.2 > On-screen Display Operation ( OSD )
Brightness : Adjust the screen brightness
Contrast : Adjust the difference between the image background
( black level ) and the foreground ( white level )
Black level : Adjust background black level of the screen
Eco : Screen in power saving mode
1
Position
Picture size : Adjust the image size
- Full Screen / 4:3 / 5:4 / Pixel to Pixel
DP version : Select the DP version
2
Color
Color temperature : User / Warm / Cool / 5400k mode and
Red / Green / Blue color balance
Sharpness : Adjust the image from weak to sharp
Hue : Adjust the screen hue value
Saturation :
Adjust the saturation of the image color
Dynamic
luminous control : Control the dynamic brightness
3
OSD Set
Language : Select the language in which the OSD menu is
displayed - English
OSD H-Position : Align the screen image left or right
OSD V-Position : Align the screen image up or down
OSD time out :
Adjust the screen timeout
OSD transparency : Adjust the screen transparency
OSD size : Adjust the screen size - Normal / Small
OSD rotation : Rotate the screen - 90° / 180° / 270°
4
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P.17
Reset
Reset : Return the adjustment back to factory setting
< 4.2 > On-screen Display Operation ( OSD )
5
PIP
PIP mode : Enter into PIP / PBP setting - PIP MODE /
PBP 2WIN ( Main screen + 1 sub screen ) /
PBP 3WIN ( Main screen + 2 sub screen ) /
PBP 4WIN ( Main screen + 3 sub screen )
Select the signal input of each sub screen
PIP size : Adjust the size of the Sub screen
- Small / Medium / Large / Huge
PIP position : Adjust the position of the Sub screen
- Top Left / Top Right / Bottom Left / Bottom Right
Swap : Swap the input signal of PIP / PBP sub screen
6
MISC
Signal source : Select the signal source - DP / HDMI1 / HDMI2
Mute : Turn off the surrounding sound
Audio in : Auto / Line in / DP
Volume :
Adjust the volume of sound
Sleep mode :
Set the off time - 10 min / 20 min / 30 min /
50 min / 60 min / 120 min / 240 min
7
Options on Reset page
Rotation : Rotate the image in Full screen or 1:1
- 90° / 180° / 270°
Picture size : Adjust the image size in Full screen or 1:1
UM-UV-621-K17-Q119V2 www.austin-hughes.comP.18
< 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
Mode
Display the Sub screen in the Main screen.
OSD Menu → MISC → PIP Mode → Large / Small / OFF
Sub screen
Main screen
Position
Adjust the position of the Sub screen ( top left, bottom left, top right, bottom right )
OSD Menu → MISC → PIP Position → top left / top right / bottom left / bottom right
top left top right
bottom left bottom right
Size
Adjust the size of the Sub screen ( Large / Small )
OSD Menu → MISC → PIP Mode → Large / Small
LCD Monitor Large Sub screen Small Sub screen
1920 x 1200 552 x 414 480 x 360
1920 x 1080 552 x 414 480 x 360
1440 x 900 414 x 310 360 x 270
1366 x 768 392 x 294 340 x 254
1280 x 1024 368 x 276 320 x 240
Size of Sub screen
< 4.3.1 > Picture in Picture ( PIP )
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P.19
Sub screenMain screen
Mode
Display the Sub screen next to the Main screen.
OSD Menu → MISC → PIP Mode → PBP
Size
LCD Monitor Main / Sub screen
1920 x 1200 955 x 716
1920 x 1080 955 x 716
1440 x 900 715 x 536
1366 x 768 678 x 508
1280 x 1024 635 x 476
< 4.3.2 > Picture By Picture ( PBP )
< 4.3.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen.
OSD Menu → MISC → PIP Source → HDMI / SDI
The PIP / PBP is operable in the following table :
Sub
Main
HDMI SDI
HDMI
xo
SDI
ox
UM-UV-621-K17-Q119V2 www.austin-hughes.comP.20
< Part 5 > Options
< 5.1 > Option Table
Options AP / NAP DP OP
Remote controller
SDI
MCS multi-screen control
Touchscreen
MIL-type / lockable connector
DC Power
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P.21
< 5.2 > Remote Controller ( RC-2 )
1
2
3
4
5
6
AUTO
0
-/--
7
8 9
PIP
MENU SELECT
BACK
EXIT
SOURCE
POSITION
SWAP
PIP
AUDIO
ASPECT
SLEEP
PIP
ENTER
CH
FREEZE
MUTEINPUT
VOL
W
a
t
e
r
p
r
o
o
f
1
4
3
2
5
7
6
20
21
8
9
10
11
12
13
15
16
17
18
19
14
INPUT Select the source
Switches on or off the TV
0 - 9
Only use in TV mode. Select channels. For channel numbers 10
and above, enter the second digit within two seconds.
AUTO Auto adjust
MENU Display the menu on the screen or go to the previous menu
▲ / ▼ / ◄ / ► / ENTER
Go to the upper menu or select the previous value /
Go to the next menu or select the next value /
Decrease the setting value /
Increase the setting value or enter to the select item setting
Enter to the select item settings or excude the setting
BACK Back to previous value
MUTE Turn on or off the speaker
Vol + / - Increase or decrease the speaker volume
CH + / - For TV model only, increase or decrease the channel number
FREEZE Reserve for OEM model
- / -- For setting input single or double digits
ASPECT Adjust the screen size
SELECT To select the existing item
SLEEP Select the sleeping time
EXIT Exit the menu or cancel
PIP functions
PIP
Picture in picture
PIP AUDIO To set the audio of in PIP mode
POSITION To set the screen position in PIP mode
SOURCE PIP Source
SWAP Swap screen in PIP mode
1
8
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
18
19
20
21
UM-UV-621-K17-Q119V2 www.austin-hughes.comP.22
< 5.3 > Options : 3G / HD / SD-SDI input
Austin Hughes’ SDI input is an ideal solution for the broadcastgrade video and high resolution CCTV market.
Designed for use with UltraView displays, a SDI input
module can support up to 1080p @60Hz resolution without
using additional space or power and it comes standard with a
2-year warranty.
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
SDI
in - out
Power
out
Audio
HDMI 2.0HDMI 1.4 DP
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P.23
For the 1st and last display,
push the set switch upward
Set switch
For other daisy chain displays,
push the set switch downward
LINK
OUT
IN OUT
RS-232C
Cat5 / 6 cable
max. 300 meters
up to 64 displaysDaisy chain up to 1,000
meters and 64 displays
RJ-45 jack
IN OUT IN OUT
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
15 feet serial cable
( over 15 feet, extender required )
< 5.4 > Options : MCS
More control is always good. Especially when it is necessary and
easy. Austin Hughes provides MCS solution to control the OSD of
various UltraView LCD display up to 64 units.
The RS-232C is used for the communication between the PC and
the fi rst display via a 15 feet serial cable while the CAN bus is
used for the various LCD displays cascade together via CAT 5/6
cable, and daisy chain up to 1,000 meters.
Designed for use with UltraView LCD displays, Austin Hughes
provides a MCS input module without using additional space or
power and it comes standard with a 2-year warranty.
MCS
( Multi-display Control )
ou
Power
out
Audio
HDMI 2.0HDMI 1.4 DP
outinLink set
MCS
UM-UV-621-K17-Q119V2 www.austin-hughes.comP.24
K17" USB Touchscreen Specifi cation
< 5.5 > Options : Touchscreen & driver
■ Dimension will be changed if Multi-touch required
■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ For detailed information, please refer to the attached CD disc
■ As the touchscreen unit is not made of toughened glass, please handle it carefully
Model
TPC-10 Multi-touch
TRB e-Resistive
Technology
Projected Capacitive 5-Wire Resistive
Touch Point
10 Single
Input Type
Finger or Capacitive Stylus Finger or Stylus
Resolution
4096 x 4096 2048 x 2048
Touch Point Accuracy
± 2 mm -
Response Speed
< 5 ms 15 ms
Activation Force
< 5 g ≤ 50 g
Surface Hardness
6H 3H
Light Transmission
> 85% 80% ± 3%
Haze
3% ↓ 8% ± 3%
Durability
50 million touches 10 million touches
Top Layer
3 mm Glass ITO Film
Bottom Layer
0.7 mm Sensor Glass ITO Glass
Thickness
3.9 ± 0.1 mm 2.2 ± 0.2 mm
Connector
USB USB Type A
Compatibility
Linux / Android / Windows / Mac Windows 7 / XP / Vista, Linux
USB Touchscreen
Power
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P.25
< 5.5 > Options : Touchscreen & driver
TRB Driver
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/resources/driver/ultraview
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to fi nish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please follow the below steps to setup the touch screen:-
Please do the initial calibration
after the fi rst setup
Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports
easy Plug-and-Play operations. There is no need to install additional drivers on the computer.
TPC-10 Driver
UM-UV-621-K17-Q119V2 www.austin-hughes.comP.26
Model 12V 24V 48V 125V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V
Input current
- No load 50 mA 50 mA 50 mA 35 mA
- Full load 7183 mA 3551 mA 1755 mA 749 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 6.25A 6.25A 6.25A 6.25A
Effi ciency 87% 88% 89% 91%
< 5.6 > Options : DC Power
( 1 ) If the unit with LCD, earthing may be required
For DC power option :
***
UM-UV-621-K17-Q119V2 www.austin-hughes.com
17” 4K LCD Display
P.27
Input Part no. MIL Standard
MIL - type
Connector
DC Power ***
( Male )
MS3470W8-33P MIL - DTL - 26482
VGA ***
( Male )
MS3470W14-15P MIL - DTL - 26482
Input Part no. Standard
Lockable
Connector
DC Power
( Male )
YM-Ext-461CP001 D-type 3W3
USB LUSB - A111 - 00 -
< 5.7 > Options : MIL-type or Lockable Connector
*** There are several additional MIL DC and VGA connector types with varying design
characteristics to meet cost considerations and to provide users with the most
design fl exibility possible. For more information, please contact us.
*** MIL - type or Lockable connectors above can be integrated with our LCD displays.
Sale service just for connectors not provided.
UM-UV-621-K17-Q119V2 www.austin-hughes.comP.28
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2019 Austin Hughes Electronics Ltd. All rights reserved.
Loading...
