Austin Hughes Cyberview RKP-1015, Cyberview RKP1017 User Manual
User Manual
RKP1015 / 1017 LCD Keyboard Drawer
-
1U dual slide
- 15", 17" screen size
Chapter 1 Getting Started
1.1
Important Safeguards..........................................................1
1.2
Regulatory Notice................................................................2
1.3
Package Contents...............................................................3
1.4
Before Installation...............................................................4
1.5
Unpacking...........................................................................4
1.6
Optional Accessories...........................................................4
1.7
Peripheral Products.............................................................5
1.8
Structure Diagram...............................................................5
1.9
Installation..........................................................................6
1.10
How to Use The Slides.......................................................7
1.11
Locking Bracket for RKP1015 / 1017 series.......................8
1.12
How to Use The Dual Slides...............................................9
1.13
Connect to Server via USB Interface................................10
1.14
Connect to KVM via USB Interface...................................10
1.15

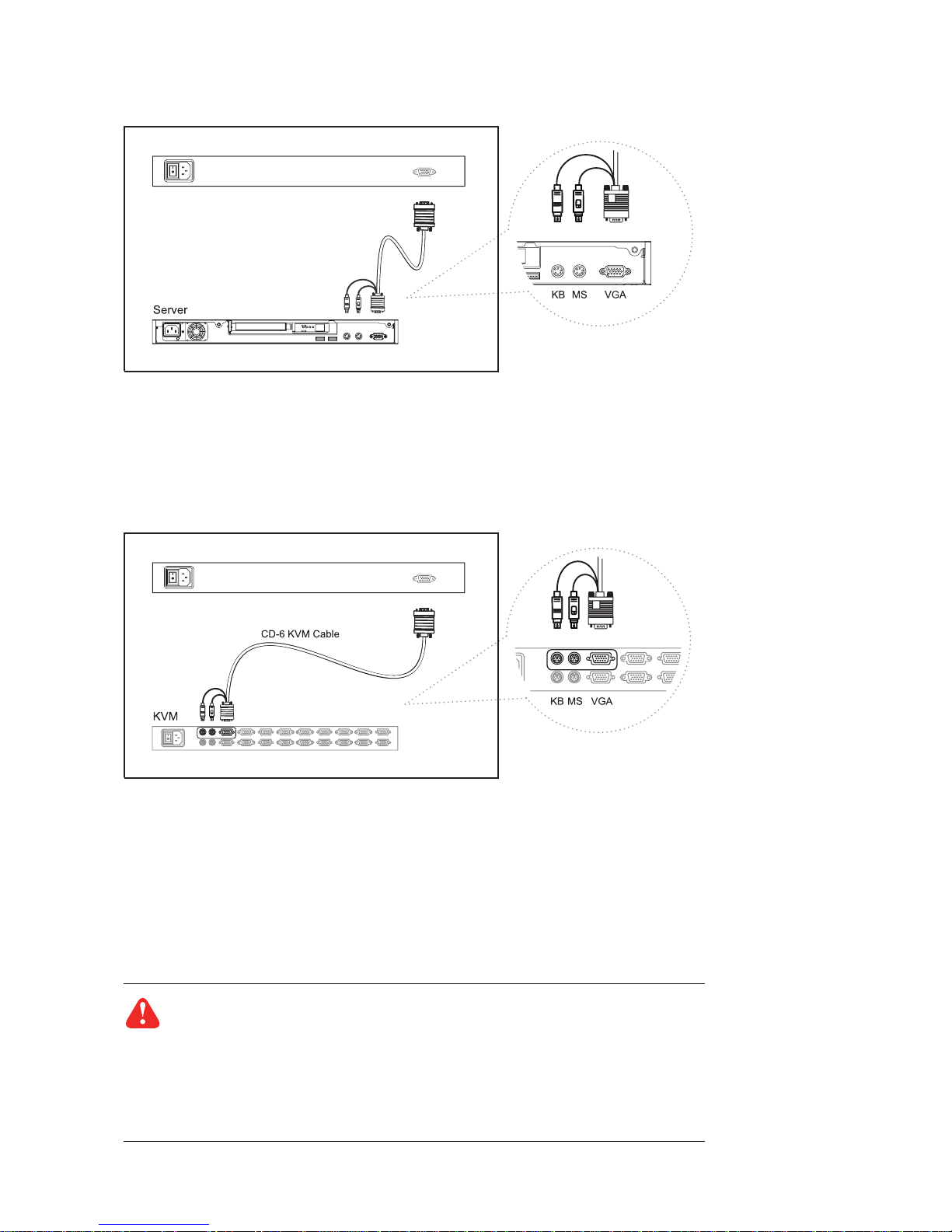

Connect to Server via PS/2 Interface................................11
1.16
Connect to KVM via PS/2 Interface...................................11
Chapter 2 Operation
2.1
On-screen Display Operation............................................12
2.2
On-screen Menu...............................................................13
Chapter 3 Standard Specifi cation
3.1
Specifi cations...................................................................14
3.2
Keyboard & Mouse...........................................................15
Chapter 4 Optional Specifi cation
4.1
KVM Options.....................................................................16
4.2
DVI-D Input Option............................................................16
4.3
S-Video + RCA Input Option.............................................16
4.4
S-Video + BNC Input Option.............................................17
4.5
On-screen Menu for DVI, BNC, S-Video & RCA Input......18
4.6
DC power Options.............................................................19
Chapter 5 Troubleshooting...........................................................20
Chapter 6 Dimensions.......................................................................21
Contents
1.1 Important Safeguards Chapter 1
P. 1
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi -
cation, or failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
P. 2
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is
given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Safety Instructions
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned envi-
ronment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■ When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it
and the power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage
and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be
higher than the one listed on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to
the power supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equip
ment and invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service
personnel.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equip-
ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
1.2 Regulatory Notice Chapter 1
1.3 Package Contents Chapter 1
P. 3
LCD keyboard drawer x 1 pc
Fasteners for rear L-bracket x 4 pcs
330mm rear mounting L-bracket x 1 pair
* Mounting depth-adjustable from 390 to 920mm
CB-6 2-in-1 USB KVM cable x 1 pc or CD-6 3-in-1 PS/2 KVM cable x 1 pc
User manual x 1 pc
Power cord x 1 pc
Auto switch power adapter ( for external power version) x 1pc
5
4
2
6
1
3
7
U
s
e
r
M
a
n
u
a
l
1
6
5
4
32
or
7
1.6 Optional Accessories
■
It is very important to locate the LCD Keyboard Drawer in a suitable environment.
■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable
cabinet.
■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,
water, moisture and vibration.
■ Position LCD Keyboard Drawer with respect to related facilities.
The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure they
are included and in good condition. If anything is missing, or damage, contact the supplier immediately.
1.5 Unpacking
1.4 Before Installation
Chapter 1
P. 4
1. PS/2 3-in-1 KVM cable
1.1 CD-6 6 feet
1.2 CD-10 10 feet
1.3 CD-15 15 feet
1.4 CD-33 33 feet
2. USB 2-in-1 KVM cable
2.1 CB-6 6 feet
2.2 CB-10 10 feet
2.3 CB-15 15 feet
3. SUN / iMAC USB to PS/2 adapter
3.1 SUN-31
4. Extended rear mounting L-bracket
4.1 430mm (16.9") extended rear L-bracket up to 1020mm
*Extended rear L-bracket in tailor-made length on request
5. Power Cord
5.1 IEC power cord
5.2 NEMA 5-15 power cord (US)
5.3 BS 1363 power cord (UK)
5.4 CEE 7/4 power cord (German)
5.5 AS 3112 power cord (Australia)
P. 5
1.7 Peripheral Products Chapter 1
Item Model No. Description
DB-15 KVM
IP-802 / IP-1602
CV-802 / CV-1602
CV-401 / CV-801 / CV-1601
CV-S801 / CV-S1601
8 / 16-port IP PS/2 KVM
8 / 16-port two console PS/2 KVM
4 / 8 / 16-port PS/2 KVM
8 / 16-port USB KVM
Cat5 KVM
UIP-1602 / UIP-3202
U-1602 / U-3202
U1601 / U3201
16 / 32-port IP Cat5 KVM
16 / 32-port two console Cat5 KVM
16 / 32-port high density Cat5 KVM
KVM Extender
IP-101
CV-101
CV-S101
IP KVM extender
Cat5 PS/2 KVM Extender
Cat5 USB KVM Extender
1.8 Structure Diagram
For 15" LCD
SAMSUNG Class A TFT LCD panel
Adjustable rear mounting L-bracket
LCD membrane button
1
1
2
2
3
3
4
4
5
5
Membrane switch (KVM option)
Keyboard & mouse
P. 6
1.9 Installation Chapter 1
■ Install each rear L-bracket using two fasteners shown
in Figure 1.
■ Leaving the fasteners slightly loose.
Figure 1. Installing the rear L-bracket to the LCD keyboard drawer.
■ Measure the front and rear mounting depth of the
rack.
■ Align each rear L-bracket to a suitable length and
tighten the fasteners shown in Figure 2.
Figure 2. Aligning the rear L-brackets to a suitable length for the rack.
■ Fixed the the LCD keyboard drawer into the rack.
* Hardware (screws and cage nuts) for fi xing the
mounting bracket to the rack is not provided.
Figure 3. Fixing the LCD keyboard drawer into the rack.
