Austin Hughes Cyberview LS-120 User Manual

Download

User Manual

1U LCD Keyboard Drawer

20" screen size

Models L-120 Series

- With KVM options

Models LS-120

- With KVM Options

- Designed for SUN Solaris

Chapter 1 Getting Started

1.1

Important Safeguards..........................................................1

1.2

Regulatory Notice................................................................2

1.3

Package Contents...............................................................3

1.4

Before Installation...............................................................4

1.5

Unpacking...........................................................................4

1.6

Optional Accessories...........................................................4

1.7

Peripheral Products.............................................................5

1.8

Structure Diagram...............................................................5

1.9

How to Use L / LS Series LCD Keyboard Drawer...............6

1.10

How to Install “One Man” Installation Slides....................7-8

1.11

LS-120 (Single console)

- Use CB-6 to connect to server via USB interface..........................9

1.12

LS-120 (Single console)

- Use CB-6 to connect to KVM via USB interface............................9

1.13

L-120 (Single console)

- Use CE-6 to connect to server via PS/2 interface.........................10

1.14

L-120 (Single console)

- Use CE-6 to connect to KVM via PS/2 interface..........................10

1.15

L-120 (Single console)

- Use CE-6 to connect to server via USB interface...........................11

1.16

L-120 (Single console)

- Use CE-6 to connect to KVM via USB interface............................11

Chapter 2 Operation

2.1

On-screen Display Operation............................................12

2.2

On-screen Menu...............................................................13

Chapter 3 Standard Speciﬁ cation

3.1

Speciﬁ cations.....................................................................14

3.2

Keyboard & Mouse...........................................................15

3.3

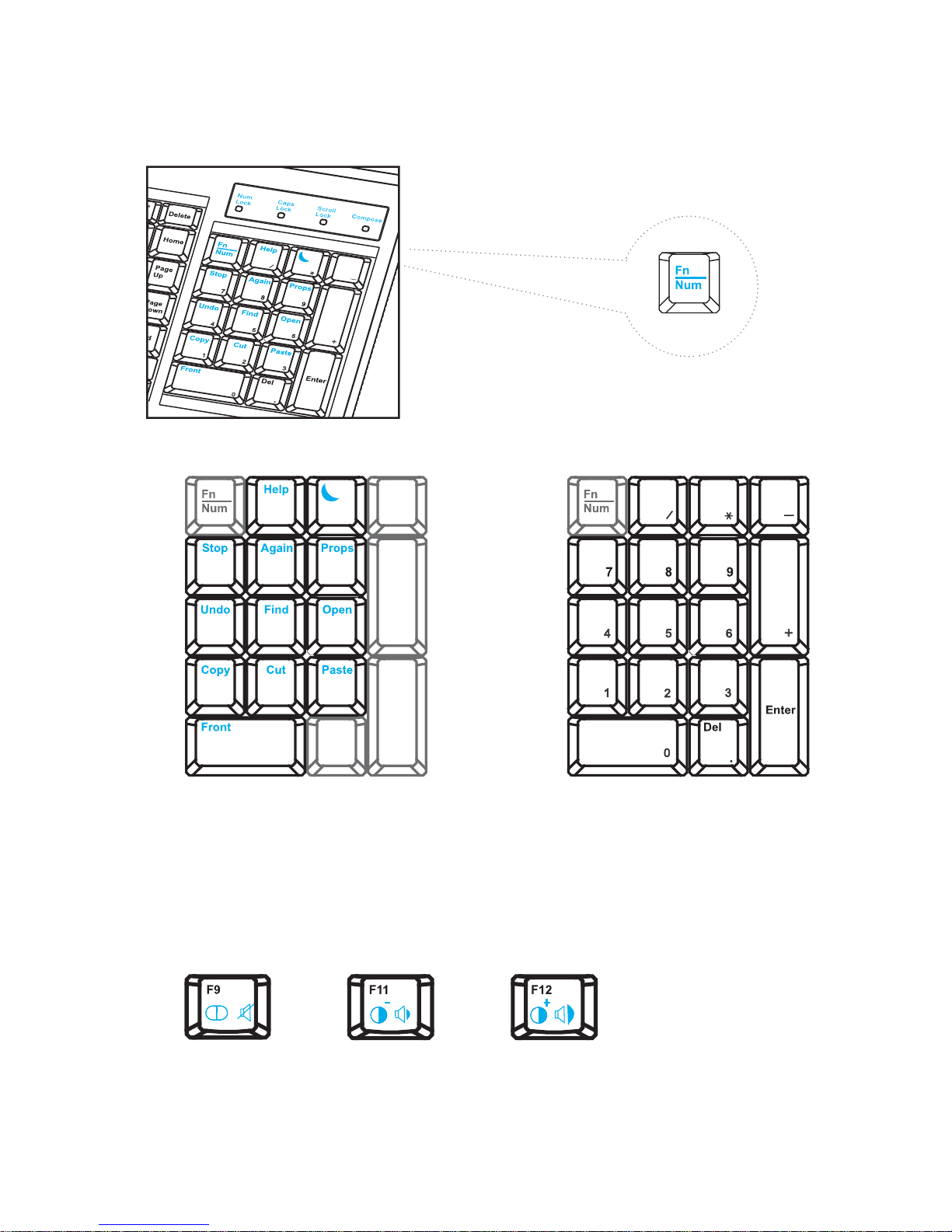

How to Use “NS” Keyboard...............................................16

Contents

Chapter 4 Optional Speciﬁ cation

4.1

KVM Options.....................................................................17

4.2

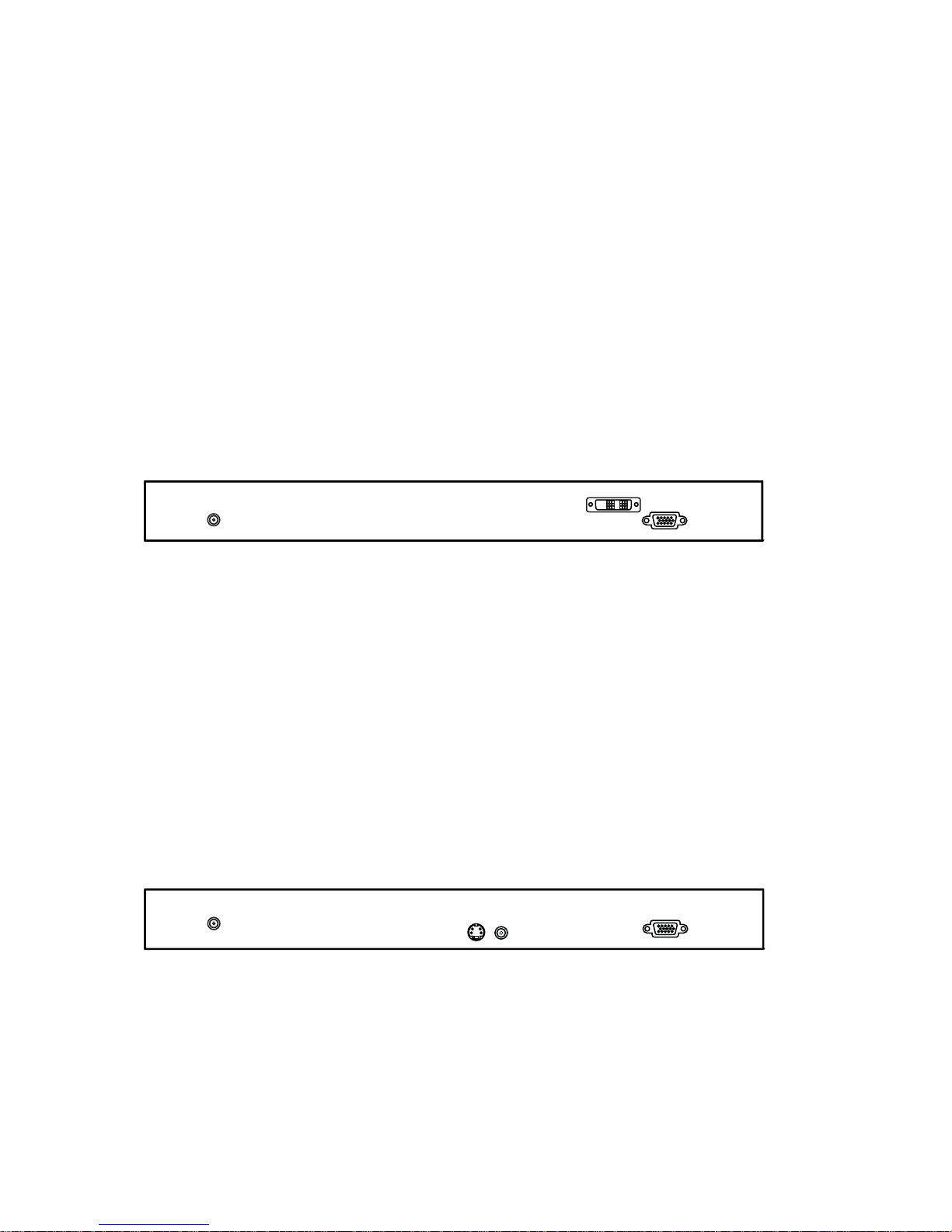

DVI-D Input Option...........................................................17

4.3

BNC + S-Video Option........................................................17

4.4

Audio Option.....................................................................18

4.5

DC power Options............................................................19

4.6

Touchscreen Options........................................................19

Chapter 5 Troubleshooting...........................................................20

Chapter 6 Dimensions.......................................................................21

1.1 Important Safeguards Chapter 1

P. 1

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

■ Any product, on which the serial number has been defaced, modiﬁ ed or removed.

■ Damage, deterioration or malfunction resulting from:

□ Accident, misuse, neglect, ﬁ re, water, lightning, or other acts of nature, unauthorized product modiﬁ - cation, or failure to follow instructions supplied with the product.

□ Repair or attempted repair by anyone not authorized by us. □ Any damage of the product due to shipment. □ Removal or installation of the product. □ Causes external to the product, such as electric power ﬂ uctuation or failure. □ Use of supplies or parts not meeting our speciﬁ cations.

□ Normal wear and tear.

□ Any other causes which does not relate to a product defect.

■ Removal, installation, and set-up service charges.

P. 2

1.2 Regulatory Notice Chapter 1

Legal Information

First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

Safety Instructions

■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned enviro-

nment with temperatures not exceeding 40º Celsius (104º Fahrenheit).

■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and

causing damage to other equipment or injury to persons nearby.

■ When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it and

the power supply. Proper air convection is necessary to keep it from overheating.

■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage

and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be

higher than the one listed on the equipment’s ratings label.

■ Observe all precautions and warnings attached to the equipment.

■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent

being damaged by transient over-voltage.

■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to

the power supply or on other hardware may cause damage, ﬁ re or electrical shock.

■ Only qualiﬁ ed service personnel should open the chassis. Opening it yourself could damage the equip-

ment and invalidate its warranty.

■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualiﬁ ed service

personnel.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modiﬁ cations made to this equipment may void the user’s authority to operate this equip- ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Re-position or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

1.3 Package Contents Chapter 1

P. 3

LCD keyboard drawer x 1 pc

CB-6 USB 2-in-1 KVM cable x 1 pc

(for LS series) or

CE-6 Combo 4-in-1 KVM cable x 1 pc (for L series)

User manual x 1 pc

Power cord x 1 pc

Auto switch power adapter ( for external power version) x 1 pc

Mounting bracket x 2 pcs

M6*15mm screw x 8 pcs M6 cage nut x 8 pcs

M6 washer x 8 pcs

1 6

8 9

■ It is very important to locate the LCD Keyboard Drawer in a suitable environment.

■ The surface for placing and ﬁ xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable

cabinet.

■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,

water, moisture and vibration.

■ Position LCD Keyboard Drawer with respect to related facilities.

The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure they are included and in good condition. If anything is missing, or damage, contact the supplier immediately.

1.5 Unpacking

1.4 Before Installation

Chapter 1

P. 4

1.6 Optional Accessories

1. Combo 4-in-1 KVM cable

1.1 CE-6 6 feet

1.2 CE-10 10 feet

1.3 CE-15 15 feet

2. USB 2-in-1 KVM cable

2.1 CB-6 6 feet

2.2 CB-10 10 feet

2.3 CB-15 15 feet

3. Power Cord

3.1 IEC power cord

3.2 NEMA 5-15 power cord (US)

3.3 BS 1363 power cord (UK)

3.4 CEE 7/4 power cord (German)

3.5 AS 3112 power cord (Australia)

Remarks :

■ CB-6 is for LS series only.

P. 5

1.7 Peripheral Products Chapter 1

1.8 Structure Diagram

Remarks :

■ “LS” Series is for Matrix & Combo KVM only.

Item Model No. Description

Matrix Cat6 KVM

MU-1602 / MU-1603 / MU-1604

MU-IP1613 / MU-IP1614 / MU-IP1624

MU-3202 / MU-3203 / MU-3204

MU-IP3213 / MU-IP3214 / MU-IP3224

Matrix Cat6 16 port KVM

Matrix IP Cat6 16 port KVM

Matrix Cat6 32 port KVM

Matrix IP Cat6 32 port KVM

Matrix DB-15 KVM

M-802 / M-803 / M-804

M-IP813 / M-IP814 / M-IP824

M-1602 / M-1603 / M-1604

M-IP1613 / M-IP1614 / M-IP1624

Matrix DB-15 8 port KVM

Matrix IP DB-15 8 port KVM

Matrix DB-15 16 port KVM

Matrix IP DB-15 16 port KVM

Combo Cat6 KVM

U-801 / U-802 / U-IP802

U-1601 / U-1602 / U-IP1602

U-3201 / U-3202 / U-IP3202

Combo Cat6 8 port KVM

Combo Cat6 16 port KVM

Combo Cat6 32 port KVM

Combo DB-15 KVM

CV-S801 / CV-802 / IP-802

CV-S1601 / CV-1602 / IP-1602

Combo DB-15 8 port KVM

Combo DB-15 16 port KVM

PS/2 DB-15 KVM CV-401 / CV-801 / CV-1601 4 / 8 / 16 port PS/2 DB-15 KVM

Carry handle to release the 2-pt lock

2-point lock

LCD interchangeable module kit

LCD membrane

“One Man” Installation Slide

Micro switch for screen auto power off

Membrane switch (KVM option)

Keyboard

3 button membrane mouse

P. 6

Chapter 1

1.9 How to Use L / LS Series LCD Keyboard Drawer

■ Gently push the tab toward the front of the LCD

shown in Figure 1.

Figure 1. Pushing the tab toward the front of LCD.

■ Operate the LCD keyboard drawer shown in

Figure 3.

Figure 3. Operating the LCD keyboard drawer

Figure 2. Flipping up the LCD to a suitable angle.

■ Flip up the LCD to a suitable angle shown in

Figure 2.

P. 7

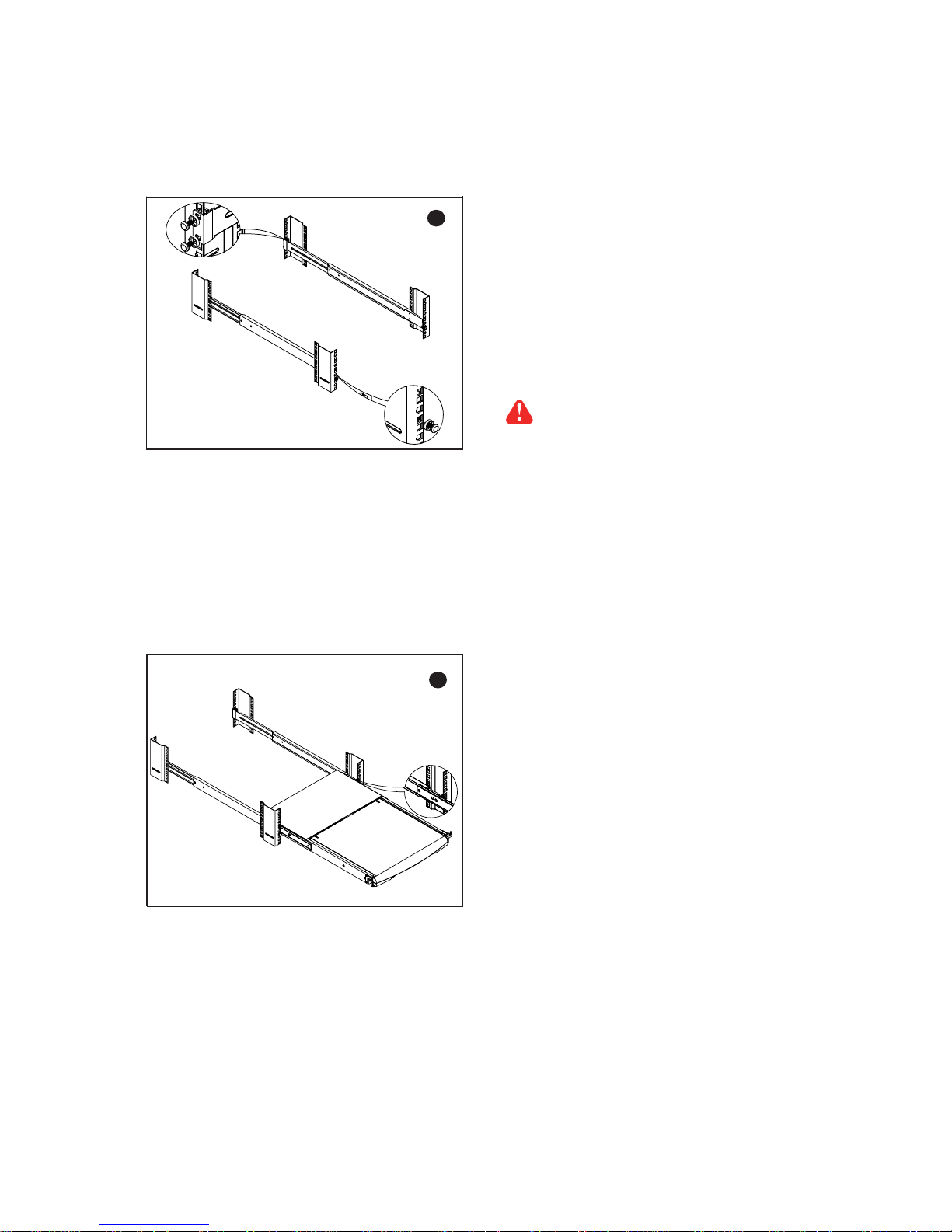

1.10 How to Install "One Man" Installation Slides Chapter 1 Install into rack

■ Attach the mounting bracket to vertical mounting rails.

■ Adjust the rear mouting bracket to ﬁ t your rack.

■ Repeat the above steps for the other side.

Caution : Leaving the screws slightly loose (Not

release).

■ Pick up the chassis.

■ Insert inner members of slides into the already mounted

internal slide members in the rack.

■ Pull the black arrow button on each slide that is installed

on the LCD keyboard drawer to unlock (Push at the same time).

P. 8

1.10 How to Install "One Man" Installation Slides Chapter 1

■ Installation completed.

■ Hold down the black arrow button and push the chassis

to the end.

■ Attach left and right mounting ears to vertical mounting

rails.

■ Tighten the screws on both sides.

P. 9

Remarks :

■ The above connection is only for the LCD keyboard without KVM switch built-in.

■ For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.

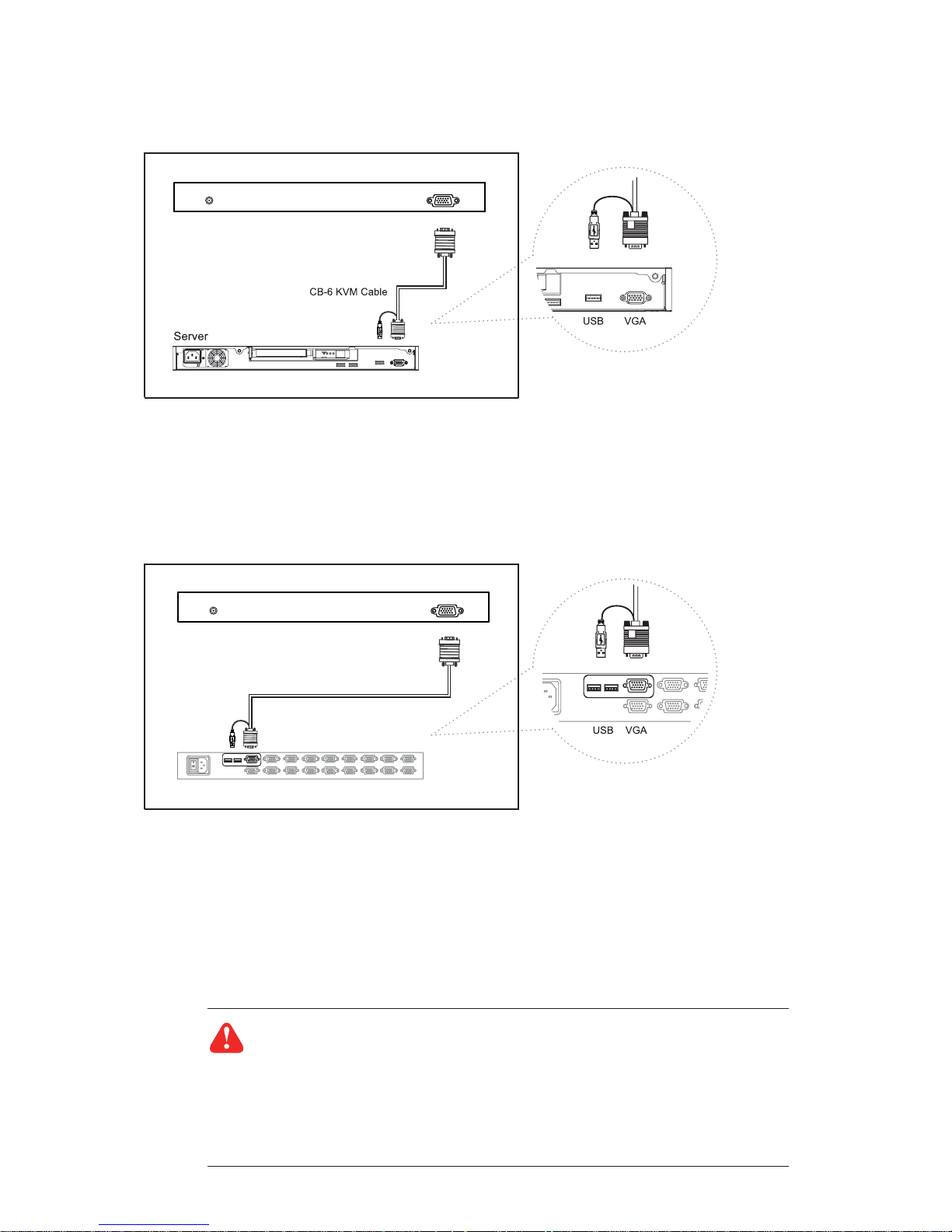

1.11 LS-120 (Single console) Chapter 1

- Use CB-6 to connect to server via USB interface

Figure 4. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface

Caution : The LCD keyboard drawer is hot-pluggable, but components of connected de-

vices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and un-

plugging cables while servers and KVM are powered on may cause irreversible damage to

the servers, KVM and LCD keyboard drawer. Before attempting to connect anything to the

LCD keyboard drawer, we suggest turning off the power to all devices before connecting

them. Apply power to connected devices again only after the LCD keyboard is receiving

power. The company is not responsible for damage caused in this way.

1.12 LS-120 (Single console)

- Use CB-6 to connect to KVM via USB interface

Figure 5. Example of connecting CB-6 2-in-1 USB KVM cable to KVM via USB interface

CB-6 KVM Cable

KVM

P.10
