Austin Hughes Cyberview D-117, Cyberview DS-117, Cyberview DS-119, Cyberview D-119 User Manual

Download

User Manual

1U Dual Slides LCD Keyboard Drawer 17", 19" screen size

- 1U dual slide

- 17", 19" screen size

- With KVM Options

- 1U dual slide

- 17", 19" screen size

- With KVM Options

- Designed for SUN Solaris

Chapter 1 Getting Started

1.1

Important Safeguards..........................................................1

1.2

Regulatory Notice................................................................2

1.3

Package Contents...............................................................3

1.4

Before Installation...............................................................4

1.5

Unpacking...........................................................................4

1.6

Optional Accessories...........................................................4

1.7

Peripheral Products.............................................................5

1.8

Structure Diagram...............................................................5

1.9

How to Use The Slides.......................................................6

1.10

Locking Bracket...................................................................7

1.11

How to Use The Dual Slides...............................................8

1.12

How to Install “One Man” Installation Slides..................9-10

1.13

DS-117 / 119 (Single console)

- Use CB-6 to connect to server via USB interface........................11

1.14

DS-117 / 119 (Single console)

- Use CB-6 to connect to KVM via USB interface..........................11

1.15

D-117 / 119 (Single console)

- Use CE-6 to connect to server via PS/2 interface........................12

1.16

D-117 / 119 (Single console)

- Use CE-6 to connect to KVM via PS/2 interace..........................12

1.17

D-117 / 119 (Single console)

- Use CE-6 to connect to server via USB interface........................13

1.18

D-117 / 119 (Single console)

- Use CE-6 to connect to KVM via USB interface..........................13

Chapter 2 Operation

2.1

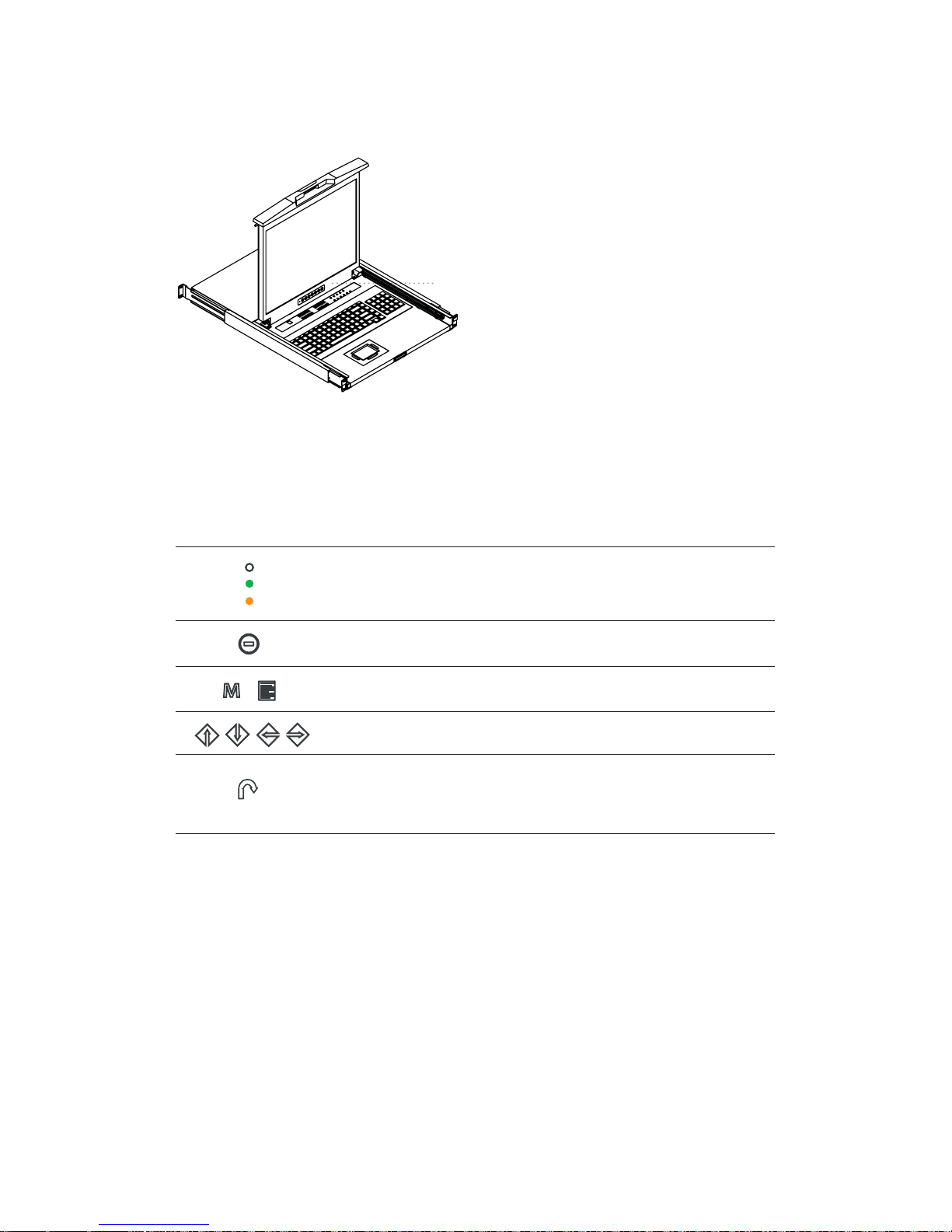

On-screen Display Operation............................................14

2.2

On-screen Menu...............................................................15

Chapter 3 Standard Speciﬁ cation

3.1

Speciﬁ cations.....................................................................16

3.2

Keyboard & Mouse......................................................17-18

3.3

How to Use “NS” keyboard ..............................................19

Contents

Chapter 4 Optional Speciﬁ cation

4.1

KVM Options.....................................................................20

4.2

DVI-D Input Option............................................................20

4.3

BNC + S-Video Option.......................................................20

4.4

Audio Option......................................................................21

4.5

DC power Options.............................................................22

Chapter 5 Troubleshooting...........................................................23

Chapter 6 Dimensions.......................................................................24

1.1 Important Safeguards Chapter 1

P. 1

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

■ Any product, on which the serial number has been defaced, modiﬁ ed or removed.

■ Damage, deterioration or malfunction resulting from:

□ Accident, misuse, neglect, ﬁ re, water, lightning, or other acts of nature, unauthorized product modiﬁ - cation, or failure to follow instructions supplied with the product.

□ Repair or attempted repair by anyone not authorized by us. □ Any damage of the product due to shipment. □ Removal or installation of the product. □ Causes external to the product, such as electric power ﬂ uctuation or failure. □ Use of supplies or parts not meeting our speciﬁ cations. □ Normal wear and tear. □ Any other causes which does not relate to a product defect.

■ Removal, installation, and set-up service charges.

P. 2

Legal Information

First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

Safety Instructions

■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned envi-

ronment with temperatures not exceeding 40º Celsius (104º Fahrenheit).

■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and

causing damage to other equipment or injury to persons nearby.

■ When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it

and the power supply. Proper air convection is necessary to keep it from overheating.

■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage

and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be

higher than the one listed on the equipment’s ratings label.

■ Observe all precautions and warnings attached to the equipment.

■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent

being damaged by transient over-voltage.

■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to

the power supply or on other hardware may cause damage, ﬁ re or electrical shock.

■ Only qualiﬁ ed service personnel should open the chassis. Opening it yourself could damage the equip

ment and invalidate its warranty.

■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualiﬁ ed service

personnel.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modiﬁ cations made to this equipment may void the user’s authority to operate this equip- ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Re-position or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

1.2 Regulatory Notice Chapter 1

1.3 Package Contents Chapter 1

P. 3

LCD keyboard drawer x 1 pc

CB-6 USB 2-in-1 KVM cable x 1 pc

(for DS series) or

CE-6 Combo 4-in-1 KVM cable x 1 pc (for D series)

User manual x 1 pc

Power cord x 1 pc

Auto switch power adapter x 1pc

Mounting bracket x 2 pcs

M6*15mm screw x 8 pcs M6 cage nut x 8 pcs

M6 washer x 8 pcs

1 6

8 9

1.6 Optional Accessories

■

It is very important to locate the LCD Keyboard Drawer in a suitable environment.

■ The surface for placing and ﬁ xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable

cabinet.

■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,

water, moisture and vibration.

■ Position LCD Keyboard Drawer with respect to related facilities.

The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure they are included and in good condition. If anything is missing, or damage, contact the supplier immediately.

1.5 Unpacking

1.4 Before Installation

Chapter 1

P. 4

1. Combo 4-in-1 KVM cable

1.1 CE-6 6 feet

1.2 CE-10 10 feet

1.3 CE-15 15 feet

2. USB 2-in-1 KVM cable

2.1 CB-6 6 feet

2.2 CB-10 10 feet

2.3 CB-15 15 feet

3. Power Cord

3.1 IEC power cord

3.2 NEMA 5-15 power cord (US)

3.3 BS 1363 power cord (UK)

3.4 CEE 7/4 power cord (German)

3.5 AS 3112 power cord (Australia)

Remarks :

■ CB-6 is for DS series only.

P. 5

1.7 Peripheral Products Chapter 1

1.8 Structure Diagram

Remarks :

■ “DS” Series is for Matrix & Combo KVM only.

Item Model No. Description

Matrix Cat6 KVM

MU-1602 / MU-1603 / MU-1604

MU-IP1613 / MU-IP1614 / MU-IP1624

MU-3202 / MU-3203 / MU-3204

MU-IP3213 / MU-IP3214 / MU-IP3224

Matrix Cat6 16 port KVM

Matrix IP Cat6 16 port KVM

Matrix Cat6 32 port KVM

Matrix IP Cat6 32 port KVM

Matrix DB-15 KVM

M-802 / M-803 / M-804

M-IP813 / M-IP814 / M-IP824

M-1602 / M-1603 / M-1604

M-IP1613 / M-IP1614 / M-IP1624

Matrix DB-15 8 port KVM

Matrix IP DB-15 8 port KVM

Matrix DB-15 16 port KVM

Matrix IP DB-15 16 port KVM

Combo Cat6 KVM

U-801 / U-802 / U-IP802

U-1601 / U-1602 / U-IP1602

U-3201 / U-3202 / U-IP3202

Combo Cat6 8 port KVM

Combo Cat6 16 port KVM

Combo Cat6 32 port KVM

Combo DB-15 KVM

CV-S801 / CV-802 / IP-802

CV-S1601 / CV-1602 / IP-1602

Combo DB-15 8 port KVM

Combo DB-15 16 port KVM

PS/2 DB-15 KVM CV-401 / CV-801 / CV-1601 4 / 8 / 16 port PS/2 DB-15 KVM

8 9

Carry handle to release the 2-pt lock

2-point lock

LCD interchangeable module kit

LCD membrane

“One Man” Installation Slides

Membrane switch (KVM option)

Keyboard interchangeable module kit

Mouse interchangeable module kit

1U dual slide for LCD keyboard drawer

1.9 How to Use The Slides Chapter 1

P. 6

■ Hold down the white arrow button until the upper LCD

drawer is located in the rack (shown in Figure 3).

Figure 3. Pushing the upper LCD drawer until it is located in the rack.

Figure 2. Pushing the white arrow button.

■ Push the white arrow button on either side of the up-

per LCD drawer to unlock (shown in Figure 2). Avoid pressing the red button located on either side.

■ A white arrow release button is located on the outside

of each slide (shown in Figure 1).

Figure 1. White arrow button.

Figure 4. Pushing the lower keyboard drawer into the rack.

■ Push the either side of the lower keyboard drawer

until it is located in the rack (shown in Figure 4).

1.10 How to Use The Dual Slides Chapter 1

P. 7

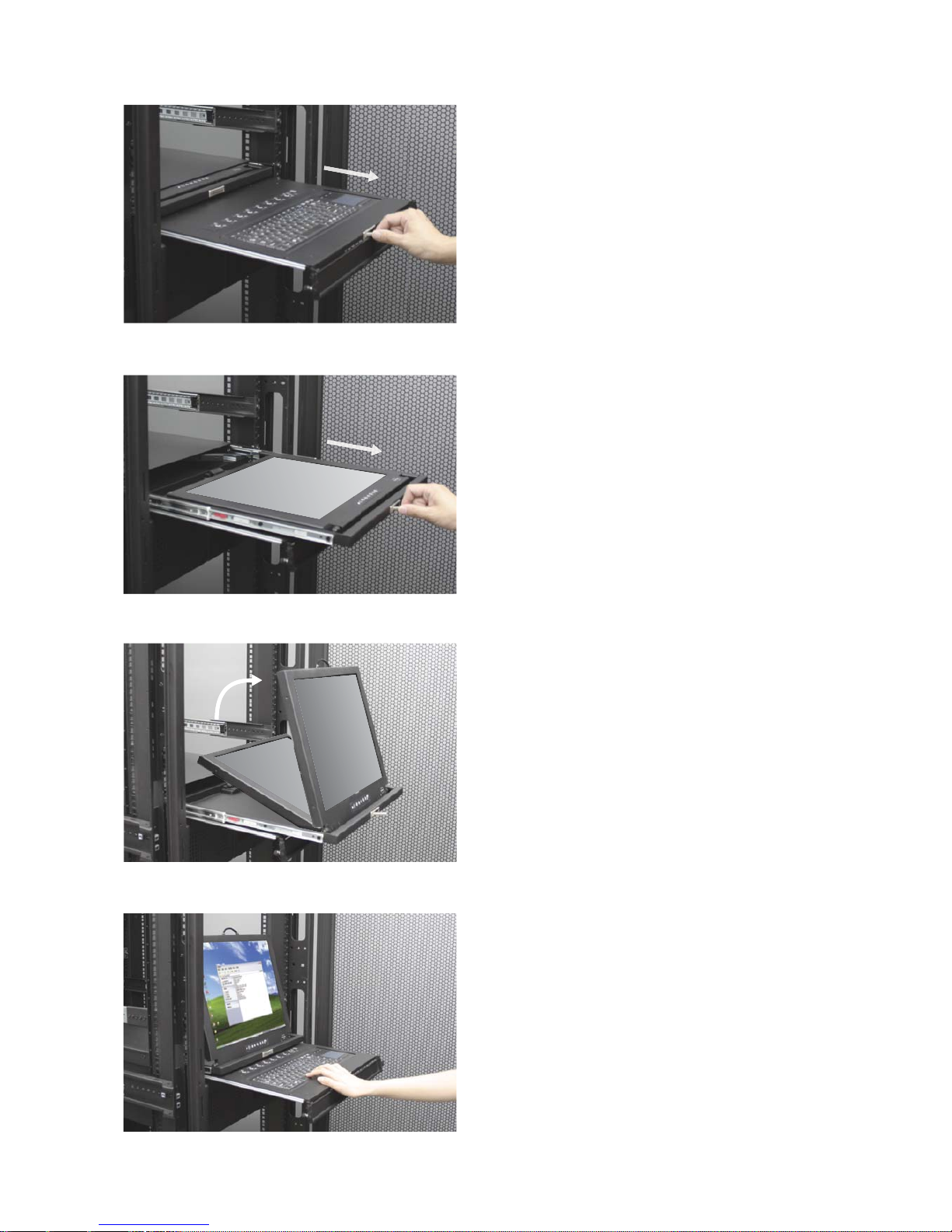

■ Flip up the LCD to a suitable angle shown in Figure 7.

Figure 7. Flipping up the LCD to a suitable angle.

Figure 6. Pulling the handle toward the front of LCD drawer.

■ Push the handle toward the front of the upper LCD

drawer (shown in Figure 6).

■ Gently pull the handle toward the front of the lower

keyboard drawer (shown in Figure 5).

Figure 5. Pulling the handle toward the front of keyboard drawer.

Figure 8. Operating the LCD keyboard drawer.

■ Operate the LCD keyboard drawer shown in Figure 8.

1.11 Locking Bracket Chapter 1

P. 8

■ Release the locking bracket in Figure 9.

Figure 9.

■ The locking bracket will spring open in Figure 10.

Figure 10.

■ Flip up the LCD panel.

Figure 11.

P. 9

1.12 How to Install "One Man" Installation Slides Chapter 1 Install into rack

■ Attach the mounting bracket to vertical mounting rails.

■ Adjust the rear mouting bracket to ﬁ t your rack.

■ Repeat the above steps for the other side.

Caution : Leaving the screws slightly loose (Not

release).

■ Pick up the chassis.

■ Insert inner members of slides into the already mounted

internal slide members in the rack.

■ Pull the black arrow button on each slide that is installed

on the LCD keyboard drawer to unlock (Push at the same time).

P.10

1.12 How to Install "One Man" Installation Slides Chapter 1

Remarks :

■ NBK-01 is for D-117 / 119 & DS-117 / 119 series only.

■ Installation completed.

■ Hold down the black arrow button and push the chassis

to the end.

■ Attach left and right mounting ears to vertical mounting

rails.

■ Tighten the screws on both sides.

P. 11

Remarks :

■ The above connection is only for the LCD keyboard without KVM switch built-in.

■ For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.

Caution : The LCD keyboard drawer is hot-pluggable, but components of connected de-

vices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and KVM are powered on may cause irreversible damage to

the servers, KVM and LCD keyboard drawer. Before attempting to connect anything to the

LCD keyboard drawer, we suggest turning off the power to all devices before connecting them. Apply power to connected devices again only after the LCD keyboard is receiving power. The company is not responsible for damage caused in this way.

1.13 DS-117 / 119 (Single console) Chapter 1

- Use CB-6 to connect to server via USB interface

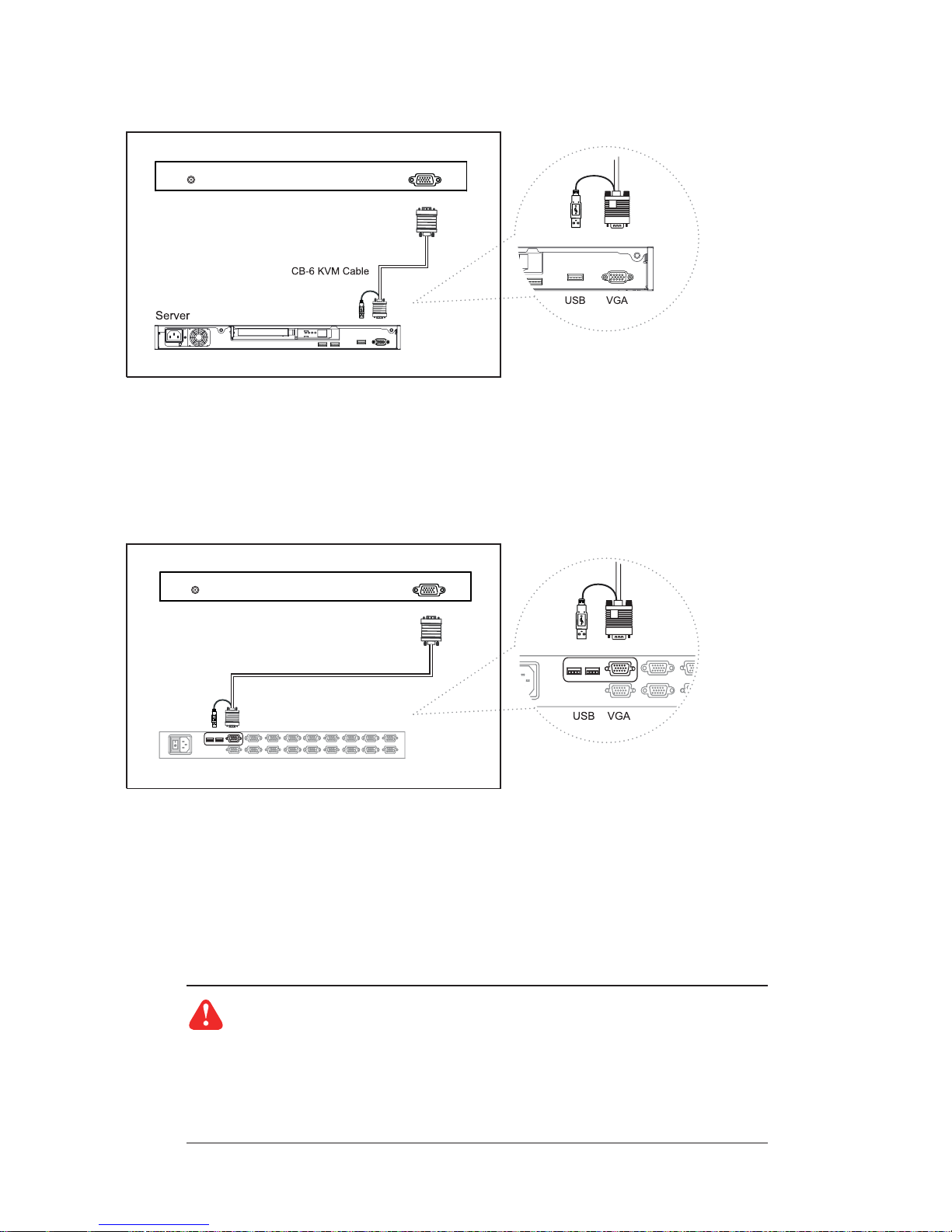

Figure 12. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface

1.14 DS-117 / 119 (Single console)

- Use CB-6 to connect to KVM via USB interface

Figure 13. Example of connecting CB-6 2-in-1 USB KVM cable to KVM via USB interface

CB-6 KVM Cable

KVM

P.12

Remarks :

■ The above connection is only for the LCD keyboard without KVM switch built-in.

■ For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.

Caution : The LCD keyboard drawer is hot-pluggable, but components of connected de-

vices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and KVM are powered on may cause irreversible damage to

the servers, KVM and LCD keyboard drawer. Before attempting to connect anything to the

Figure 15. Example of connecting CE-6 Combo 4-in-1 KVM cable to KVM via PS/2 interface

1.16 D-117 / 119 (Single console)

- Use CE-6 to connect to KVM via PS/2 interface

1.15 D-117 / 119 (Single console) Chapter 1

- Use CE-6 to connect to server via PS/2 interface

Figure 14. Example of connecting CE-6 Combo 4-in-1 KVM cable to server via PS/2 interface

CE-6 KVM Cable

KVM

P.13

Caution : The LCD keyboard drawer is hot-pluggable, but components of connected de-

vices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and KVM are powered on may cause irreversible damage to

the servers, KVM and LCD keyboard drawer. Before attempting to connect anything to the

Remarks :

■ The above connection is only for the LCD keyboard without KVM switch built-in.

■ For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.

1.17 D-117 / 119 (Single console) Chapter 1

- Use CE-6 to connect to server via USB interface

Figure 16. Example of connecting CE-6 4-in-1 Combo KVM cable to server via USB interface

Figure 17. Example of connecting CE-6 4-in-1 Combo KVM cable to KVM via USB interface

1.18 D-117 / 119 (Single console)

- Use CE-6 to connect to KVM via USB interface

CE-6 KVM Cable

KVM

2.1 On-screen Display Operation Chapter 2

P.14

Exit the OSD screen Shortcut key to auto adjustment by pressing the button for 5 seconds or

Toggle analog, digital & video connection (DVI-D and video options only)

Scrolls through menu options and adjusts the displayed control

Display the OSD menu

Power on / off LCD

Power light

Green = On

Orange = Power saving

Membrane Switch

Function

LCD membrane

P.15

2.2 On-screen Menu Chapter 2

OSD Conﬁ guration Page

Image:

To enter into the brighness, contrast, color temp, red, green, and blue

Geometry:

To enter into the auto adjust, H position, V position, phase and clock

Video:

Audio:

To enter into volume, mute and power save

Misc:

To enter into the language, OSD position, graphic mode, OSD time, ratio and reset

Brightness

Contrast

Red 255

Green

Blue


Color Temp

User

1024 x 768 59.8Hz

Select: Adjust: Exit:Set:

255

P.16

3.1 Speciﬁ cations Chapter 3

Item Description

Form Factor 1U rack mounting on slide-out rails LCD Manufacturer -

Series DDS Diagonal Size 17" TFT 19" TFT 17" TFT 19" TFT

Max. Resolution 1280 x 1024 1280 x 1024

1152 x 900 (Direct) 1152 x 900 (Direct)

1280 x 1024 (Native) 1280 x 1024 (Native)

Brightness (cd/m²) 300 300 300 300 Color Support 16.7 M 16.7 M 16.7 M 16.7 M Contrast Ratio (typ.) 1000:1 1000:1 1000:1 1000:1 Viewing Angle (H/V) 160˚ x 160˚ 160˚ x 160˚ 160˚ x 160˚ 160˚ x 160˚ Display Area (mm) 338 x 270 376 x 301 338 x 270 376 x 301 Tr Response Time (ms) 1.3 1.3 1.3 1.3 LCD Panel MTBF (hrs) 50,000 50,000 50,000 50,000 VGA Signal Input Analog RGB, 0.7Vp-p Sync. Type Separate H/V, Composite, SOG

Resolution

720 x 400, 70 Hz

640 x 480, 60/ 70/ 72/ 75 Hz

800 x 600, 60/ 70/ 72/ 75 Hz

1024 x 768, 60/ 70/ 75 Hz

1152 x 864, 60/ 70/ 75 Hz

1280 x 720, 60/ 70/ 75 Hz

1280 x 1024, 60/ 70/ 72/ 75 Hz

- 1152 x 900, 66 /76Hz

Plug & Play DDC EDID 1.3

Console Port

DB-15 connector for VGA / keyboard / mouse

(Combo interface)

DB-15 connector for VGA / keyboard / mouse

Support USB servers or Combo KVM switches

Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Max. 48 Watt, Standby 5 Watt Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs. Regulation Approval FCC, CE

Options

KVM Integration Matrix & combo KVM with IP console and 2-console selection

Keyboard & mouse

Full size keyboard built-in touch-pad

SUN-compatible keyboard integrated with 3-button

touchpad

Graphic Input DVI-D, S-Video & BNC input - DC Power DC power input with 12V, 24V, 48V selection

Environmental

Operation 0˚ to 50˚C Degree Storage -5˚ to 60˚C Degree Relative Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random vibration

P.17

3.2 Keyboard & Mouse Chapter 3

N keyboard integrated with touchpad

For D series

Supporting layouts

3.2 Keyboard & Mouse Chapter 3

P.18

For DS series

NSe

■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help

■ 104 key notepad keyboard with full numerical pad and SUN function

■ USB interface

NS keyboard integrated with touchpad

Supporting layouts

3.3 How to Use "NS" keyboard Chapter 3

■ Press the Fn/Num button to switch the color the Num LED.

■ NS SUN-compatible keyboard incorporates SUN short-cut keys.

Num LED in Off mode

Key pad behaves as a SUN Solaris system administration command mode

Num LED in Green color

Key pad behaves as a normal key pad mode

Three Audio / Display keys are located in the upper-right corner of the NS keyboard:

■ Audio : Mute, decrease in volume and increase in volume.

■ Display : Degauss, decrease contrast and increase contrast.

■ Please ask your supplier for full details

P.19

P.20

4.1 KVM Options Chapter 4

4.2 DVI-D Option

Remarks

■ Package includes 1 x 6ft DVI-D cable and 1 x 6ft 2-in-1 keyboard & mouse cable

■ In DVD-D option, no VGA signal input is included

4.3 BNC + S-Video Option

Remarks:

■ Package includes 1 x 6ft S-Video cable

DVI-D

3-in-1 VGA KB mouse console port

3-in-1

VGA KB mouse

console port

S-Video BNC

Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions:

■ For KVM operation, please refer to KVM user manual

■ Option with Multiple consoles Matrix KVM

■ Option with high density & cost efﬁ cient Combo KVM integration with either 8 / 16 / 32 ports

■ Option with low cost PS/2 KVM

■ Please ask your supplier for full KVM details

Remarks

■ DS series is for Matrix & Combo KVM only.

P.21

4.4 Audio Option Chapter 4

Remarks

■ Audio input is 35mm audio plug

■ The speaker is sharing the same power with LCD.

Power Audio

Speaker

3-in-1

VGA KB mouse

console port

P.22

4.5 DC Power Options Chapter 4

Model 12V 24V 48V

Input rating

Input voltage: 12-Volt 24-Volt 48-Volt

Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V

Input current

- No load 50 mA 50 mA 50 mA

- Full load 4950 mA 2450 mA 1220 mA

Output rating

Output voltage: 12-Volt 12-Volt 12-Volt

Output current: 4.16A 4.16A 4.16A

Efﬁ ciency 84% 85% 85%

Remarks:

■ Package does not include power cord and AC power adapter

P.23

5.1 Troubleshooting Chapter 5

1. How do I adjust the resolution?

To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in

Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter-

mined by the display card in your computer.

1. Is interference signal appeared on LCD normal when shutting down the computer ?

In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered

normal. The image quality can be improved by adjusting the phase or pixel rate automatically or manually.

2. The membrane power light is not ON

Press the power On / Off on LCD membrane to check if the monitor is in the ON mode.

Check the power cord is properly connected to the LCD keyboard drawer and power outlet.

4. Is the LCD keyboard drawer hot-pluggable ?

The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as the servers and KVMs, may

not be hot-pluggable. We suggest turning off the power to all devices before connecting them. Apply power to connected

devices again only after the LCD keyboard receives power.

3. Screen image is not centered or sized properly

Press the button for two seconds to automatically adjust the image.

Adjust the H-position and V-position settings via On-screen menu.

2. How do I adjust the resolution in MS Windows operation system?

To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in

Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter-

mined by the display card in your computer.

4. Is interference signal appeared on LCD normal when shutting down the computer ?

In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered

normal. The image quality can be improved by adjusting the phase or pixel rate automatically or manually.

1. How can I adjust the monitor resolution to 1152 x 900 for SUN Micro system ?

The DS solution LCD keyboard drawer will automatically detect the 1152 x 900 resolution, so no user conﬁ guration should

be necessary.

3. The Stop-A hot key is not work in Trusted Solaris

The keyboard combination Stop-A (L1-A) is not available in Trusted Solaris by default. The security administrator can

change this.

For D series

For DS series

6.1 Dimensions Chapter 6

Model

Product Dimension

(W x D x H)

Packing Dimension

(W x D x H)

Net

Weight

Gross

Weight

D-117 series

442 x 650 x 44 mm

17.4 x 25.6 x 1.73"

589 x 856 x 168 mm

23.2 x 33.7 x 6.6"

16 kg

35 lb

22 kg

48 lb

D-119 series

442 x 650 x 44 mm

17.4 x 25.6 x 1.73"

589 x 856 x 168 mm

23.2 x 33.7 x 6.6”

17 kg

37 lb

23 kg

51 lb

DS-117 series

442 x 650 x 44 mm

17.4 x 25.6 x 1.73"

589 x 856 x 168 mm

23.2 x 33.7 x 6.6"

16 kg

35 lb

22 kg

48 lb

DS-119 series

442 x 650 x 44 mm

17.4 x 25.6 x 1.73"

589 x 856 x 168 mm

23.2 x 33.7 x 6.6”

17 kg

37 lb

23 kg

51 lb

P.24

CV-D32-0109V1

The company reserves the right to modify product speciﬁ cations without prior notice and assumes no responsibility for any error which may appear in this publication.

All brand names, logo and registered trademarks are properties of their respective owners.

Austin Hughes Cyberview D-117, Cyberview DS-117, Cyberview DS-119, Cyberview D-119 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
