www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
User Manual
dedicated KVM switch and rackmount screen technology
CV-1201D
DVI-D KVM
Designed and manufactured by Austin Hughes
751
www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
P. 1
P. 2
P. 3
Contents
< Part 1 > DVI-D KVM CV-1201D
1.1 Package contents
1.2 KVM port connection
1.3 Specifi cations
P. 4
P. 5
< Part 2 > Usage
2.1 KVM Button
2.2 KVM Hotkey
www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
A
B
Figure 1.
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
Installation for standalone KVM
■ Install each bracket using screws
provided shown in Figure 1.
M3.2 x 4.5 mm M4 x 10 mm
■ Fix the KVM into the rack
Screw A: 2 pcs Screw B: 8 pcs
www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
KVM unit
CV-1201D
< 1.1 > Package Contents
P. 1
Part 1. DVI-D KVM
• DVI-D KVM unit x 1
• Mounting set w/ bracket & screws x 1
• Power adapter w/ power cord ( for KVM ) x 1
CV-1201D
Console
DVI-D KVM
1
7
12
3
265 4
9811 1 0
12VDC
Audio
IP console, remote console, daisy-chain and OSD menu are NOT available for this model.
www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
< 1.2 > KVM port connection
P. 2
DVI-D KVM
DVI KVM Cable
CI - 6 : 6 feet DVI KVM cable
CI - 15 : 15 feet DVI KVM cable
( Server end : DVI-D + USB + Audio )
( KVM port : DVI-D + USB3.0 )
1
7
12
3
265 4
9811 10
DVI-D KVM port
USB Servers
USB Servers
www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
P. 3
< 1.3 > Specifi cations
CV-1201D
▀
KVM Port
Number of ports: 12
Connector: DVI-D connector
USB 3.0 connector ( combined for keyboard, mouse & audio )
Connectivity: Combo 4-in-1 KVM cable, 6 or 15 feet
▀
Local Console
Graphic connector: 1 x DVI-D
Resolution: Up to 1920 x 1200
Input device: 2 x USB type A for keyboard & mouse
Audio out: 1 x 3.5mm stereo audio
▀
Management
PC Selection: Front button & keyboard hotkey
▀
Compatibility
Multi-platform: Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support: Windows 7 / Vista / 2003 / XP, Linux, Unix
▀
Power
Input: Auto sensing 100 to 240VAC, 50 / 60 Hz
Consumption: Max. 12 Watt, Standby 5 Watt
▀
Regulatory
Safety: FCC & CE certifi ed
Environment: RoHS2 & REACH compliant
▀
Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58~100Hz / 0.98G (11ms / cycle)
▀
Product Information
Dimension (W x D x H): 443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch
Net weight: 2.5 kg / 5.5 lb
▀
Packing Information
Dimension (W x D x H): 500 x 400 x 90 mm / 19.7 x 15.7 x 3.5 inch
Gross weight: 5.4 kg / 11.9 lb
DVI-D KVM
www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
2.1 KVM Button
P. 4
Part 2. Usage
DVI-D KVM Usage
Power ON
■
Turn off all servers and KVM switches
■ Make sure all cables / connectors are properly connected
■ Recommend Power ON sequence is monitor, KVM switch fi nally computer

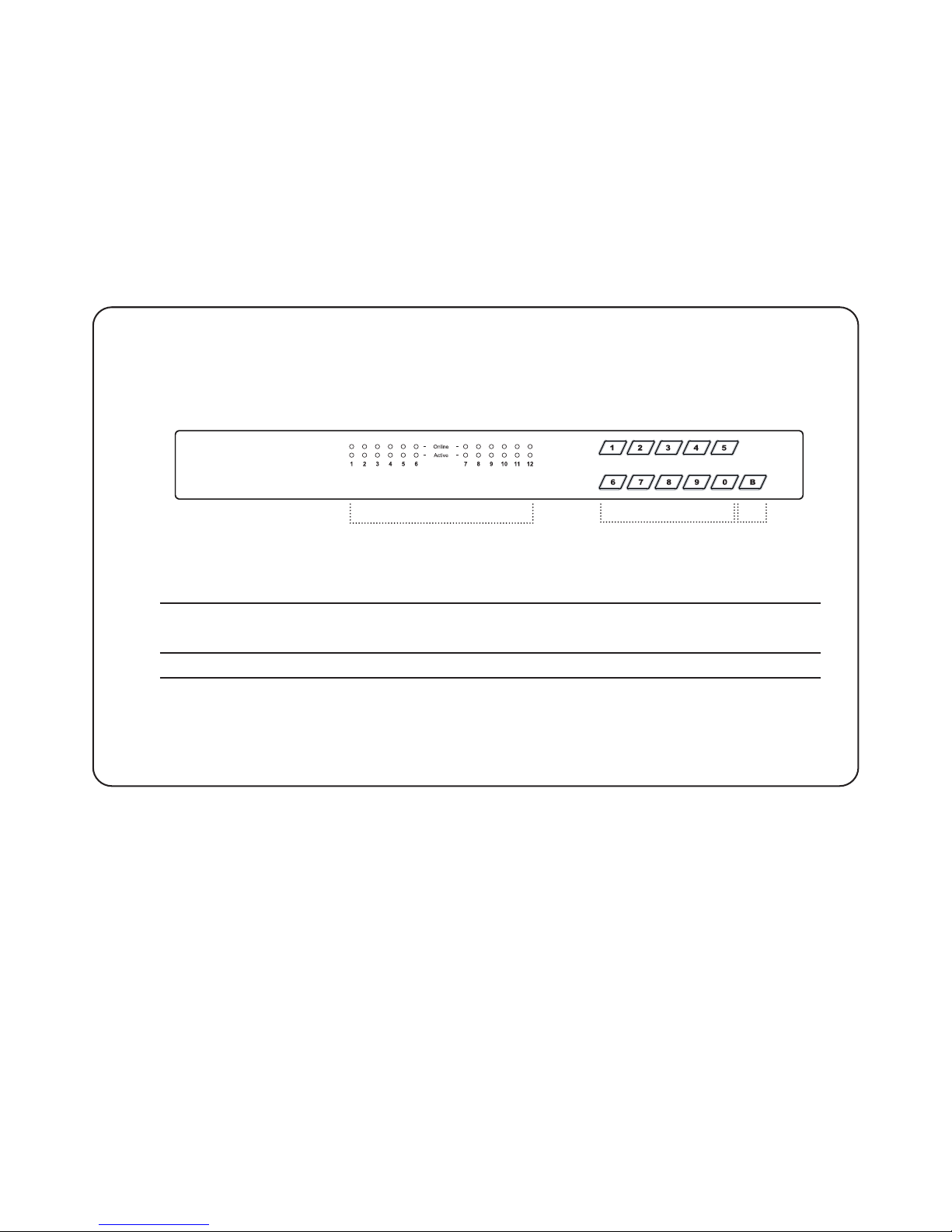

Front Panel - Port LED Indications
DVI-D KVM 12 ports
PC port LEDs Channel
button
PC port LEDs Online : Blue LED on indicating a PC is connecting to the port
Active : Green LED on indicating a selected channel
Channel button Press to select channel from 01 to 12
Button B is
non-functional
www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
Remarks:
■ Example of “Scroll Lock + Scroll Lock + Port no.”
- Port No. : 01 to 12
- e.g. Port 4 : Scroll Lock + Scroll Lock + 0 + 4
- e.g. Port 12 : Scroll Lock + Scroll Lock + 1 + 2
■ You must press the hotkey within 2 seconds
■ A beep sound will be heard for successful entering
2.2 KVM Hotkey
P. 5
Hotkey Function
Scroll Lock + Scroll Lock + Switch to previous port
Scroll Lock + Scroll Lock + Switch to next port
Scroll Lock + Scroll Lock + Port no. Switch to specifi c port
Scroll Lock + Scroll Lock + S Auto scan for powered on PC
Scroll Lock + Scroll Lock + B Enable / Disable beeper sound
DVI-D KVM Usage
Hotkey Label
www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
www.austin-hughes.comUM-CV-751-DVIKVM-Q413V6
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2013 Austin Hughes Electronics Ltd. All rights reserved.
