User manual 186-0080 MD-80 LASER EURO DETECTOR
USER MANUAL MD-80
About this Manual
This manual consists of the following chapters:
Introduction
This chapter introduce the features of the device, list a checklist of items that
are shipped with the package.
Structure
Illustration of the structure of the machine.
Operation
The Operation chapter describes how to make the device work.
Maintenance
Specification
2
Page 3
User manual 186-0080 MD-80 LASER EURO DETECTOR
Introduction
The MD-80 is a reliable, easy operated banknote detector. It recognizes
counterfeit banknotes from genuine ones. With its rechargeable battery cells
inside, it can be brought to anywhere when needed.
For MD-80 we will consider the following precautions:
·Do not approach your eyes to the slot of banknote passage;
·Do not insert any highly reflective object in the scanning area;
·Do not use the device in case of a rupture of the case of the detector, as it
would be possible to see the laser emission directly;
The MD-80 has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
····

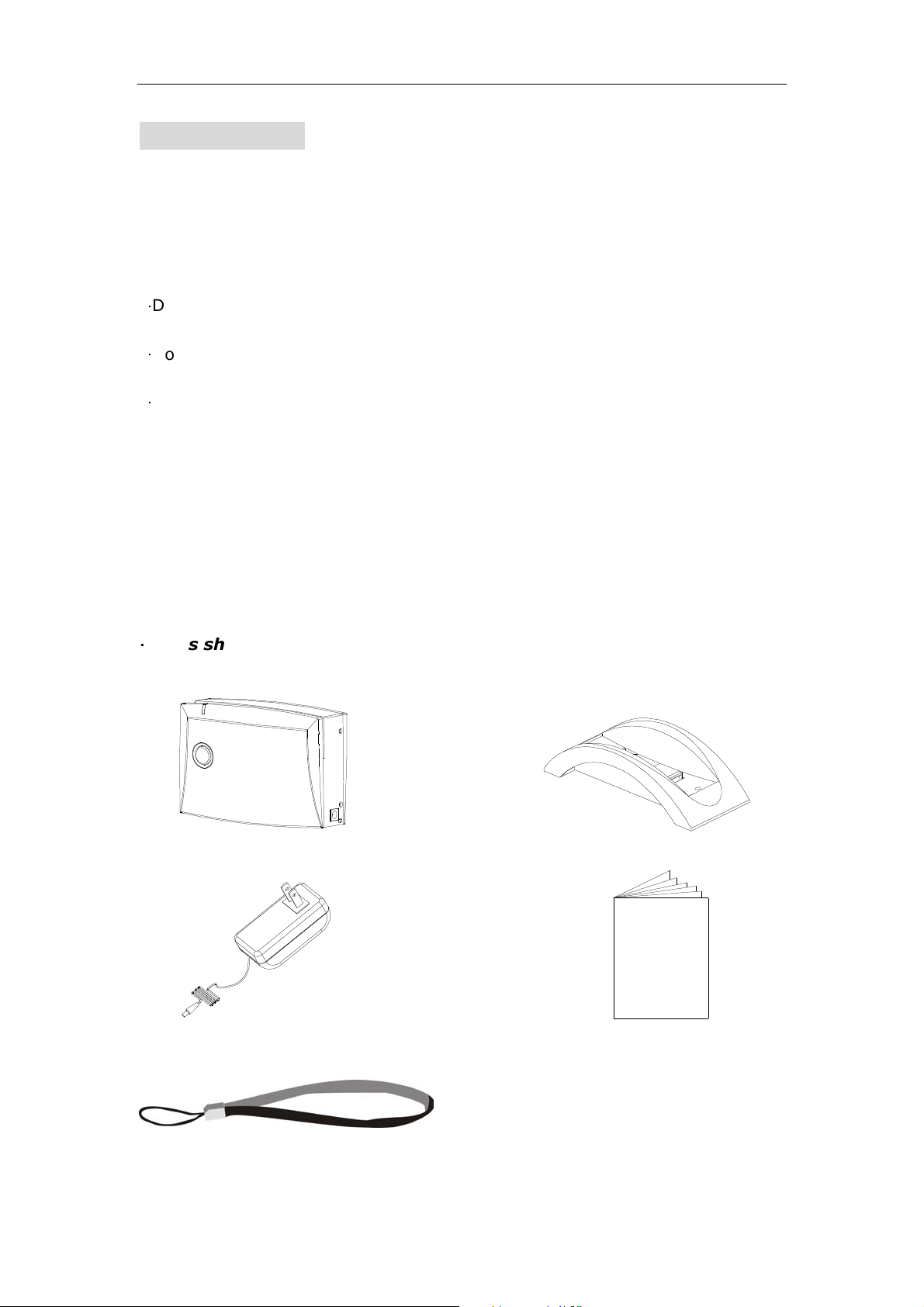

Items shipped with the package
Please check the part list, and inside the box should include the following:
MD-80Banknote detector Pedestal
User'manual
AC/DC adaptor User manual
belt
3
Page 4
User manual 186-0080 MD-80 LASER EURO DETECTOR

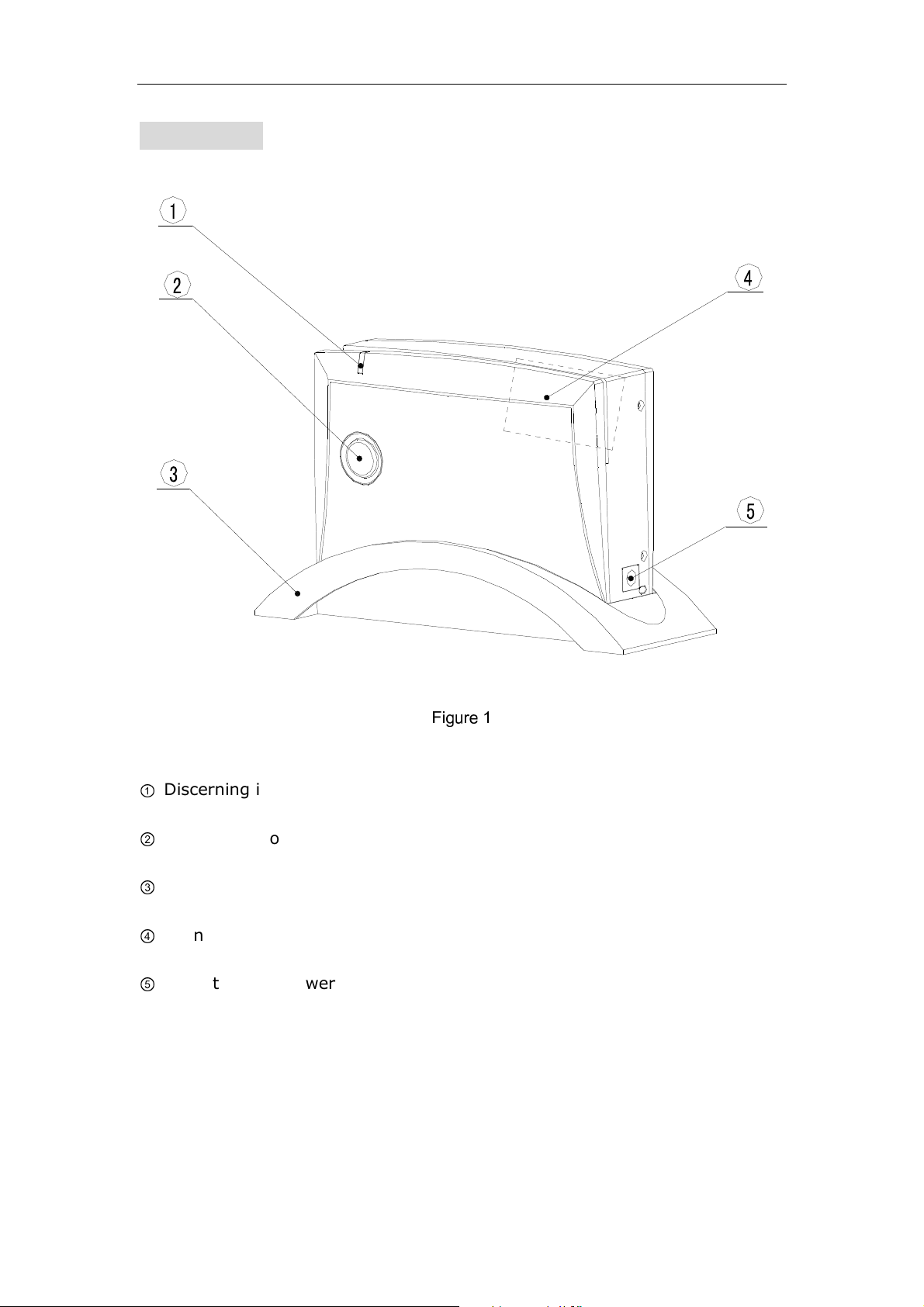

Structure
Figure 1
①
Discerning indicator (blue & red);
②
Power key (containing a blue indicator);
③
Pedestal;
④
Scan area;
⑤
Socket for the power cable;
4
Page 5
User manual 186-0080 MD-80 LASER EURO DETECTOR
Hologr
am
foil patch
Operation
Power Supply
Working with AC/DC adapter:
1. Connect the DC output plug into the DC socket of the MD-80;
2. Insert the adapter into the mains( 230V/110V );
3. The MD-80 will automatically turn on;
Working with built-in battery:
1. By pressing the Power Key and holding on for about 2 seconds, with 2 Bi
sound the MD-80 can be turned on.
2. The machine will turn off itself automatically after 30 minutes, if there is no
operation.
In working mode, pressing the Power Key and holding for about 2 seconds will
turn off the MD-80.
Passing Way of Banknote
A. Make sure that the note goes through the scanning slot correctly. On the
front of the banknotes, there are windows and gateways. Making the front of
the banknote towards you, with the hologram foil stripe or hologram foil
patch on the right side (see figures 2 & 3);

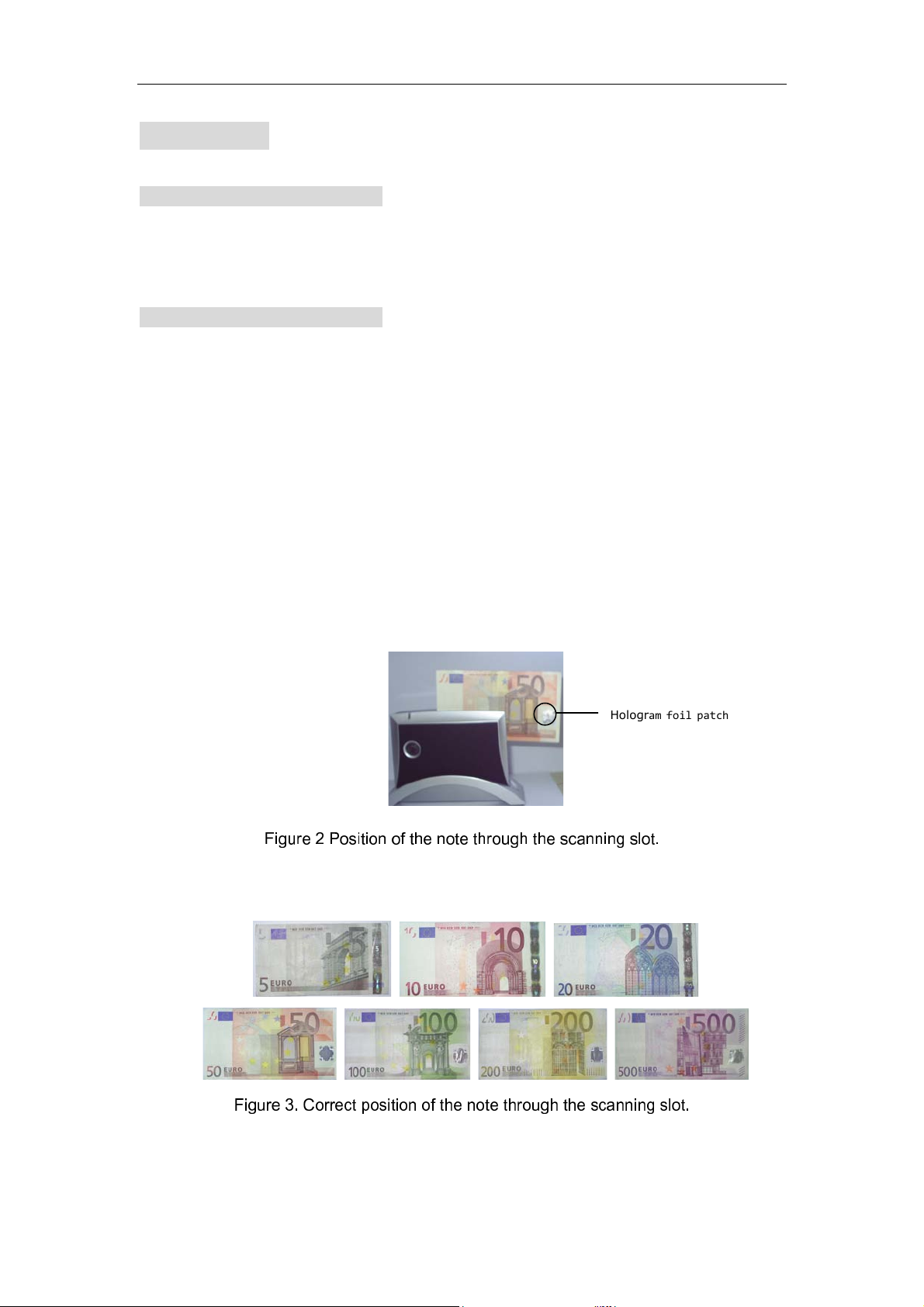

Figure 2 Position of the note through the scanning slot.
Figure 3. Correct position of the note through the scanning slot.
5
Page 6
User manual 186-0080 MD-80 LASER EURO DETECTOR

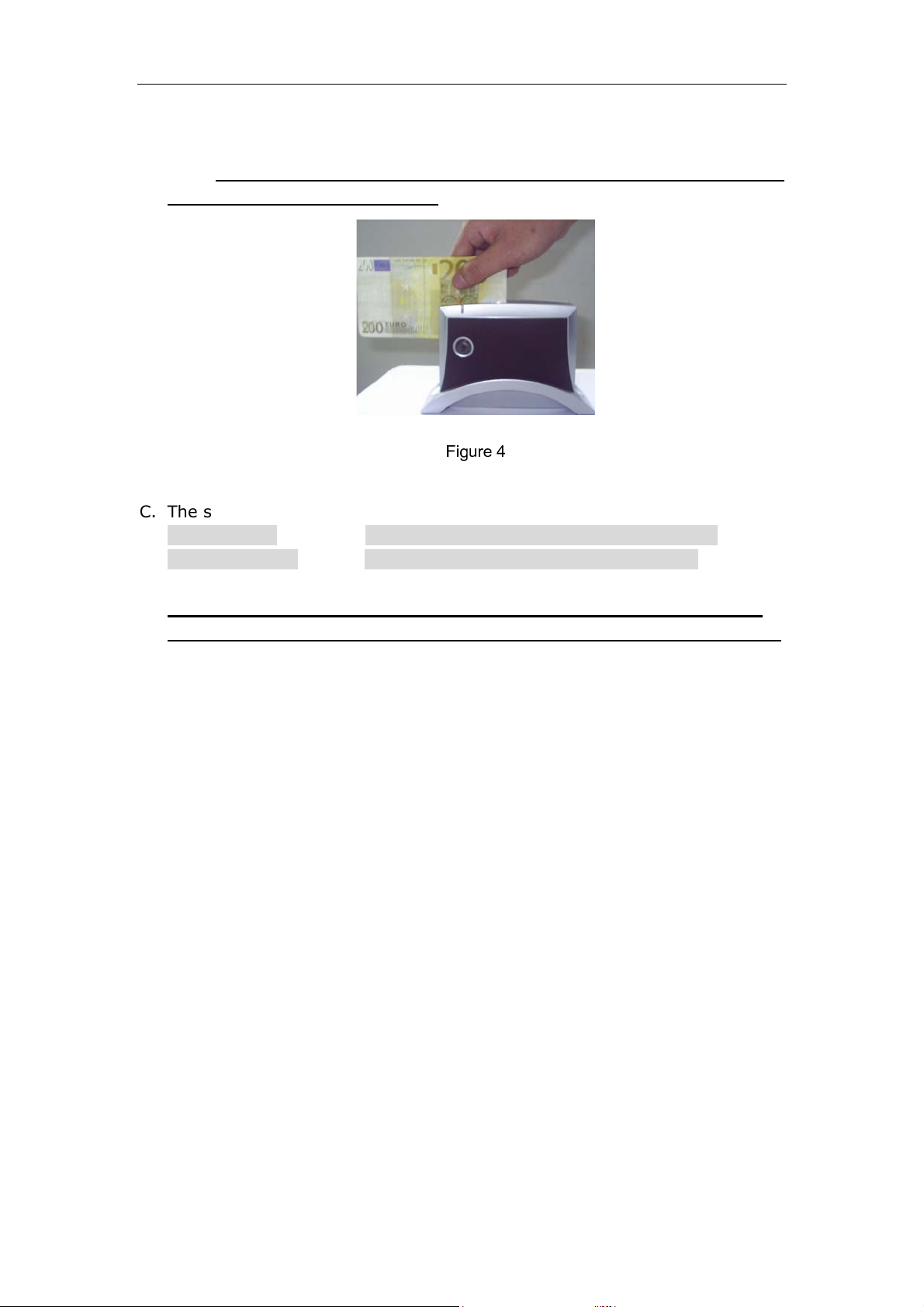

B. The note must go through in a completely horizontal position from left to
right. Trying to keep the lower part of the note always in contact with
the base of the scanning area (see figure 4).
Figure 4
C. The scanning result is obtained when the note has gone through.
Genuine note------------Green indicator turning on and 1 Bi sound;
counterfeit note---------Red indicator turning on and 3 Bi sound;
The time of passing of the note should not exceed the 5 seconds.
If it goes over that time, the MD-80 will not give a scanning signal.
If a note is detected as a false one, pass it again, be sure that you are doing it
on the right position. Remember that false note is reported not only in the case
of a false banknote, but also if you pass a genuine note in a wrong feeding
direction.
Battery Status Message
When the machine is charging the battery, the Power indicator will flash at an
interval to indicate the charging status. Usually it needs about 10 hours or more
to make the battery fully.
6
Page 7
User manual 186-0080 MD-80 LASER EURO DETECTOR
Maintenance
The following indications will help you take profit of the working of the device.
A. Do not expose the device to extreme environmental conditions, where
temperature and humidity are too high.
B. Do not try to disassemble the device.
C. Do not mishandle the device by hitting it or letting it fall, as it could
suffer damages.
D. Do not clean the device with any chemical product or strong solvent. To
clean it just used a soft cloth mildly humidified.
E. In case of damage, get in touch with our Agent or Seller as soon as
possible.
7
Page 8
User manual 186-0080 MD-80 LASER EURO DETECTOR
Specification
Detecting Currency --------------------------- EURO
Detecting Method --------------------------- spectrum
Warning mode ------------------------------- indicator, sound
Mains ---------------------------------------- 220V/ 50Hz or 110V/60Hz
Backup battery (optional)
Power consumption --------------------------- MAX 3W
Battery capacity --------------------------- 7.5V 700mAH
Dimensions ------------------------------- 172x62x105 mm (L x W x H)
Weight ------------------------------------ 460g
Temperature (Storage) ----------------------- -20℃ ~ 70℃
Humidity (Storage) --------------------------- 10% ~ 90%
Temperature (Operation) ------------------- 10℃ ~ 40℃
Humidity (Operation) ----------------------- 20% ~ 80%
Accessories availiable
186-0081 Bag for MD-80
185-0082 Car charging cable 12 volt
