Auria EQ1688 User Manual

16" LCD HDTV

User Guide

MODEL EQ1688

Explanation of WARNING Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence dangerous voltage within the
inside of the product that may be sufficient level to constitute a risk of electric
shock.

The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and servicing instructions.

Safety instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this LCD TV near water.

6) Clean only with dry cloth. Do not use liquid, alcohol, or aerosol cleaners.

7) Do not block any ventilation openings. Install your LCD TV in a well ventilated
area.

8) Keep your LCD TV away from moisture, excessive dust and any heat sources,
such as radiators, heat registers, stoves, or any other apparatus (including
amplifiers) that produce heat.

9) Do not remove the back cover. There are no user-serviceable parts inside.

10) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

11) Protect the power cord from being walked on or pinched particularly at plugs,
receptacles, and the point where they exit from the LCD TV.

12) Never rest objects on the power cord or place it in high traffic areas.

13) Only use attachments/accessories specified by the
manufacturer.

14) Use only with stand, tripod, bracket, or table specified by
the manufacturer, or sold with the LCD TV. When a cart is
used, use caution to avoid injury from tip-over.

15) Unplug this LCD TV during lightening storms or when
unused for long periods of time.

16) Refer all servicing to qualified service personnel-­Servicing may be required if the LCD TV has been damaged in any way, such as
power-supply cord or plug damage, liquid has been spilled or objects have fallen
into the LCD TV, the LCD TV has been exposed to rain or moisture, does not
operate normally, or has been dropped.

17) Do not expose your LCD TV to dripping or splashing, and do not place objects
filled with liquids on it.

18) The Shock Hazard Marking and Associated Graphical Symbol are provided on the
back panel of unit.

19) This product is only to perform the useful function of entertainment and visual
display tasks are excluded.

20) Wall or ceiling mounting: When mounting the product on a wall or ceiling, be sure
to install the product according to the method recommended by the manufacturer.
Use only the mounting hardware recommended by the manufacturer. This is a
safety feature.

21) The readily operable appliance coupler will serve as the disconnect device of this
apparatus.

22) The apparatus must be connected to a mains socket outlet with a protected
earthling connection.

23) Due to safety concerns, if the VESA mounting kit is purchased separately please
make sure the mounting kit is UL-Listed, and replaceable only by service
personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose this
LCD TV to rain or moisture.

CAUTION: Any damage caused by incorrectly attempting to mount this
LCD TV is not covered under the terms of the manufacturers warranty.

Content

ACCESSORIES.................................................................................................................1

INSTALLING THE STAND ................................................................................................. 1

WALL-MOUNT INSTRUCTION .........................................................................................2

FRONT PANEL BUTTONS................................................................................................3

BACK PANEL BUTTONS...................................................................................................4

REMOTE CONTROL.........................................................................................................5

INSTALLATION..................................................................................................................7

Connecting RF antenna and Cable TV .......................................................................7

Connecting to DVD / Set Top Box............................................................................... 7

Connecting to the Headphone ....................................................................................9

Connecting to a Computer..........................................................................................9

Connecting with the power cord ...............................................................................10

BASIC OPERATION ........................................................................................................ 11

Turning on the LCD TV............................................................................................. 11

Power On/Off............................................................................................................ 11

Select input source ................................................................................................... 11

Volume Adjusting...................................................................................................... 11

INFO ......................................................................................................................... 11

Electronic Program Guide (EPG).............................................................................. 12

Channel Select .........................................................................................................12

List ............................................................................................................................12

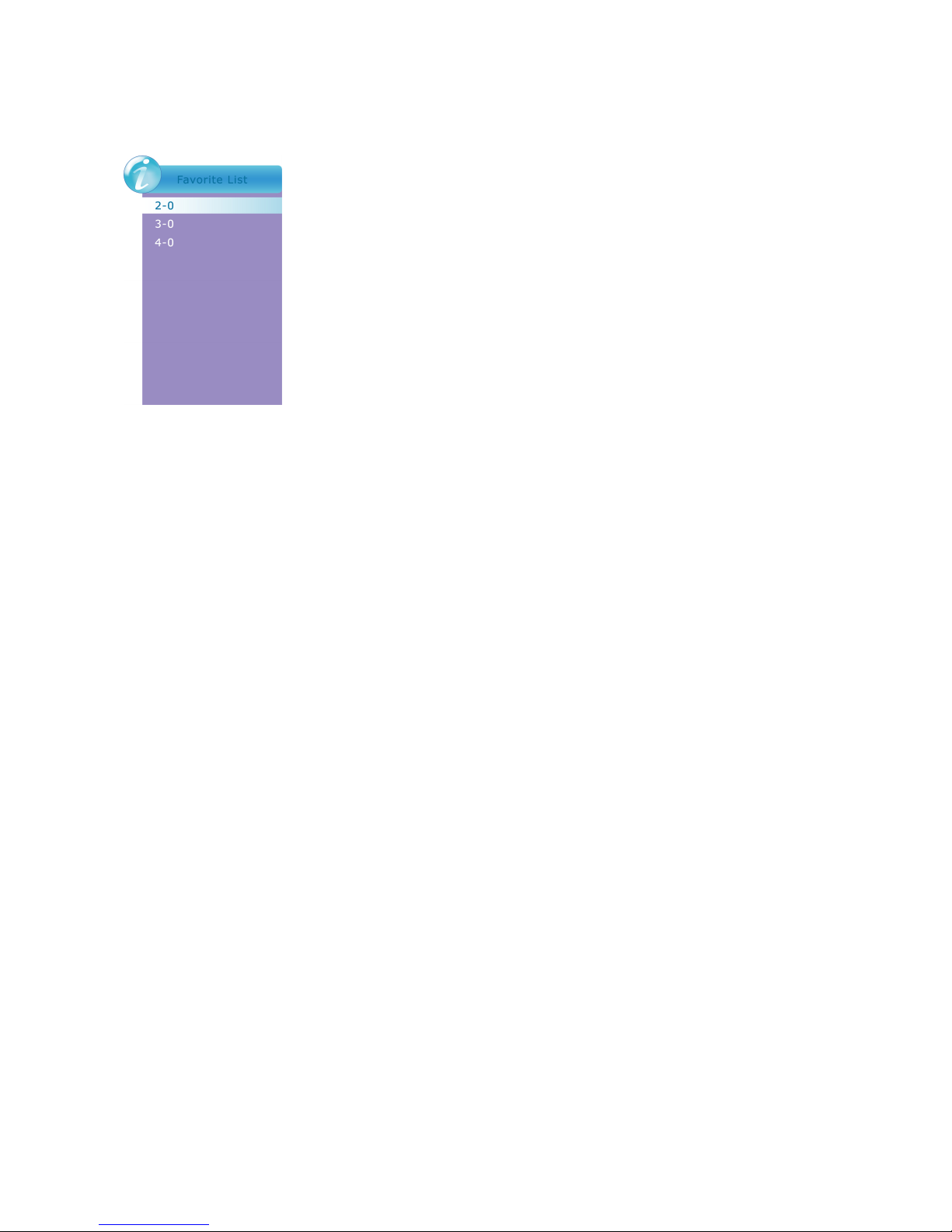

Favorite Channels.....................................................................................................13

Sleep Time Setting....................................................................................................13

Zoom ........................................................................................................................13

MTS Selecting ..........................................................................................................13

C.C Mode .................................................................................................................13

Using the OSD function ............................................................................................13

ADVANCED OPERATION—OSD MENU ........................................................................14

PICTURE Menu........................................................................................................14

AUDIO Menu ............................................................................................................15

TIME Menu ...............................................................................................................16

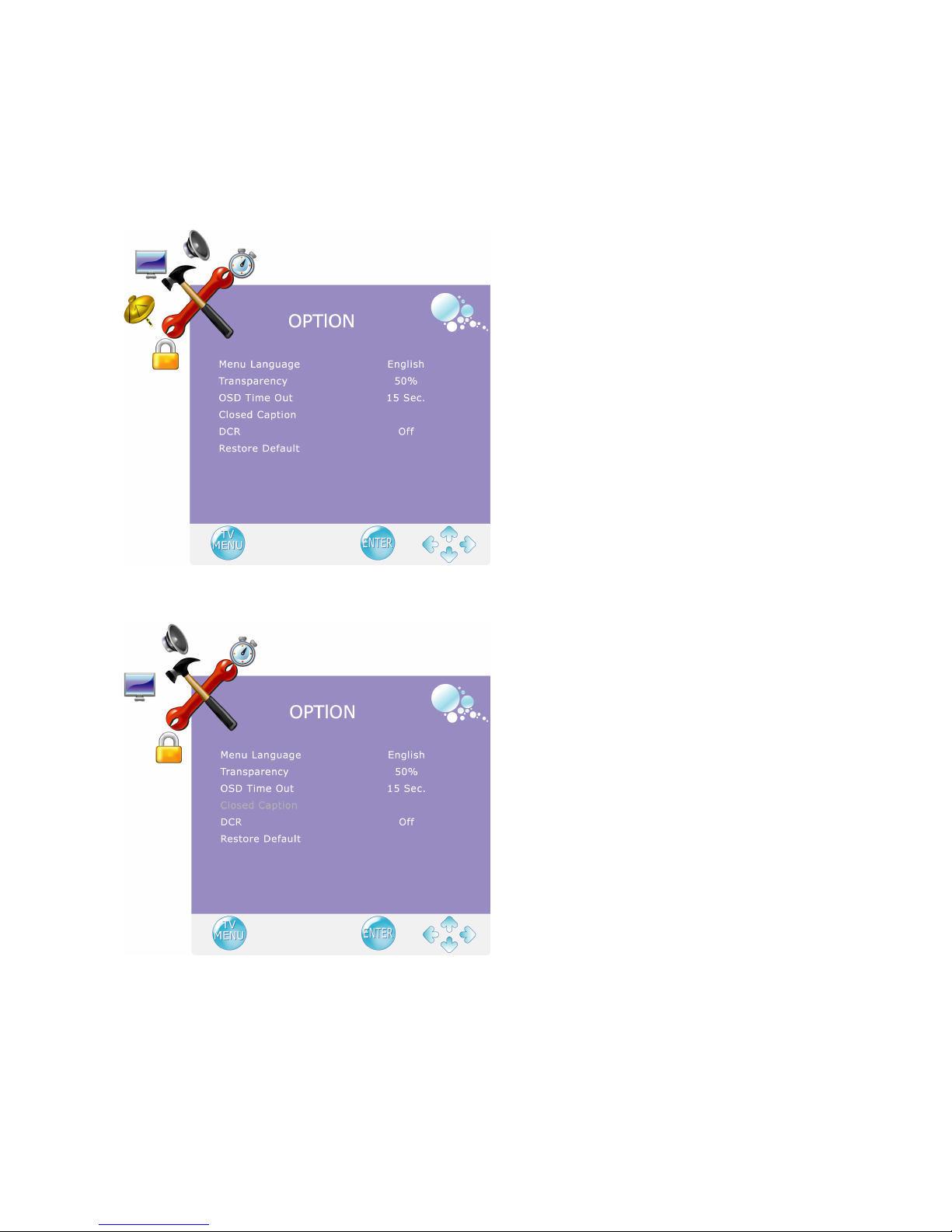

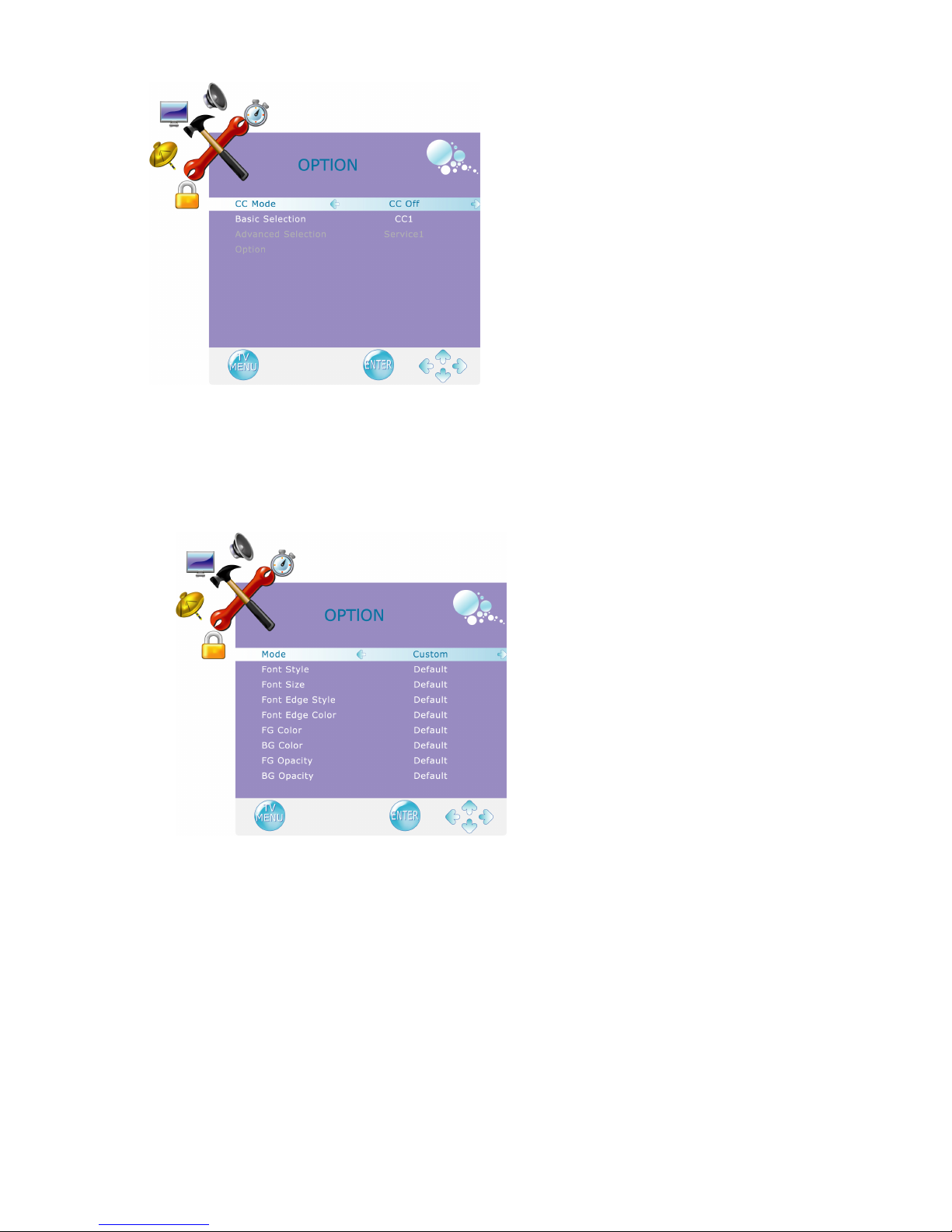

OPTION Menu..........................................................................................................17

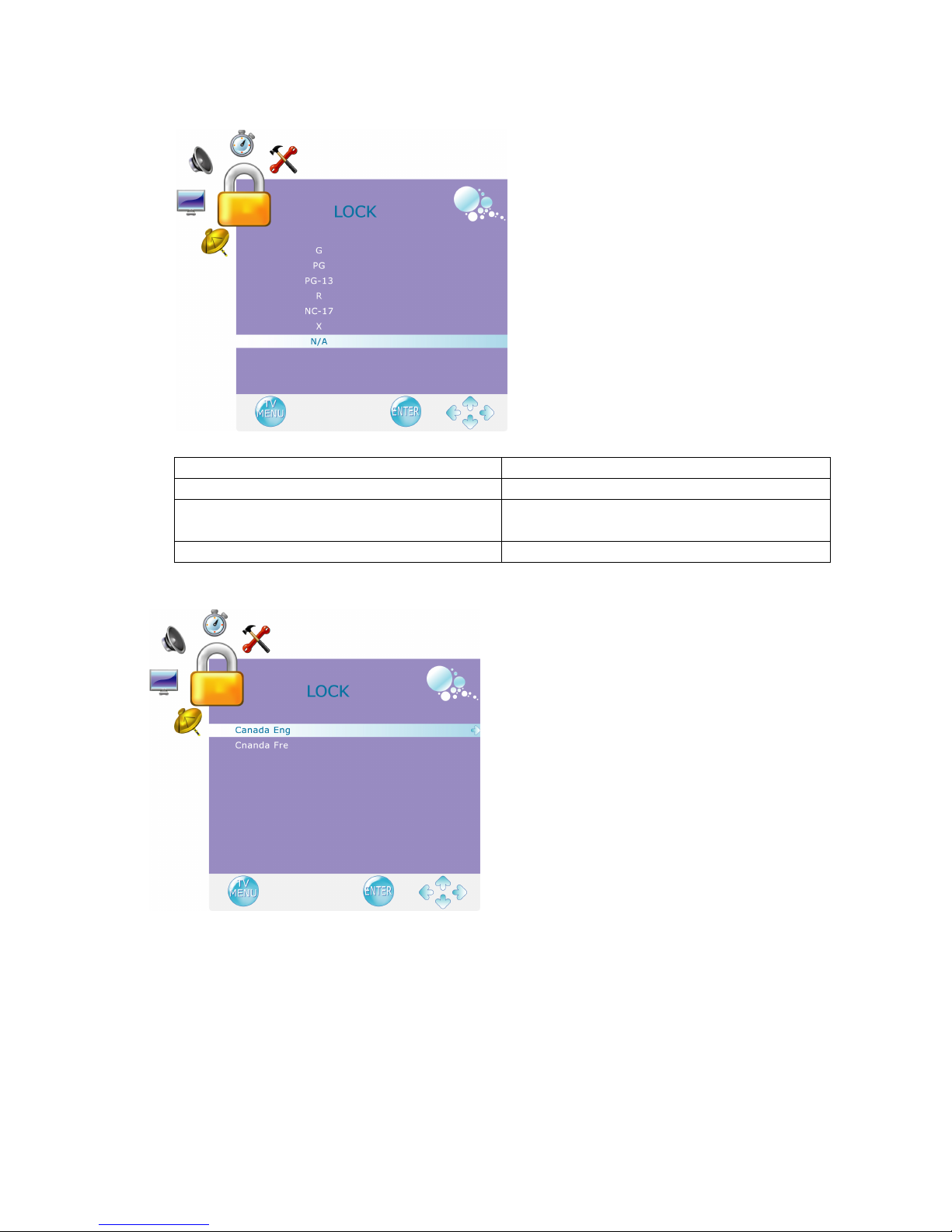

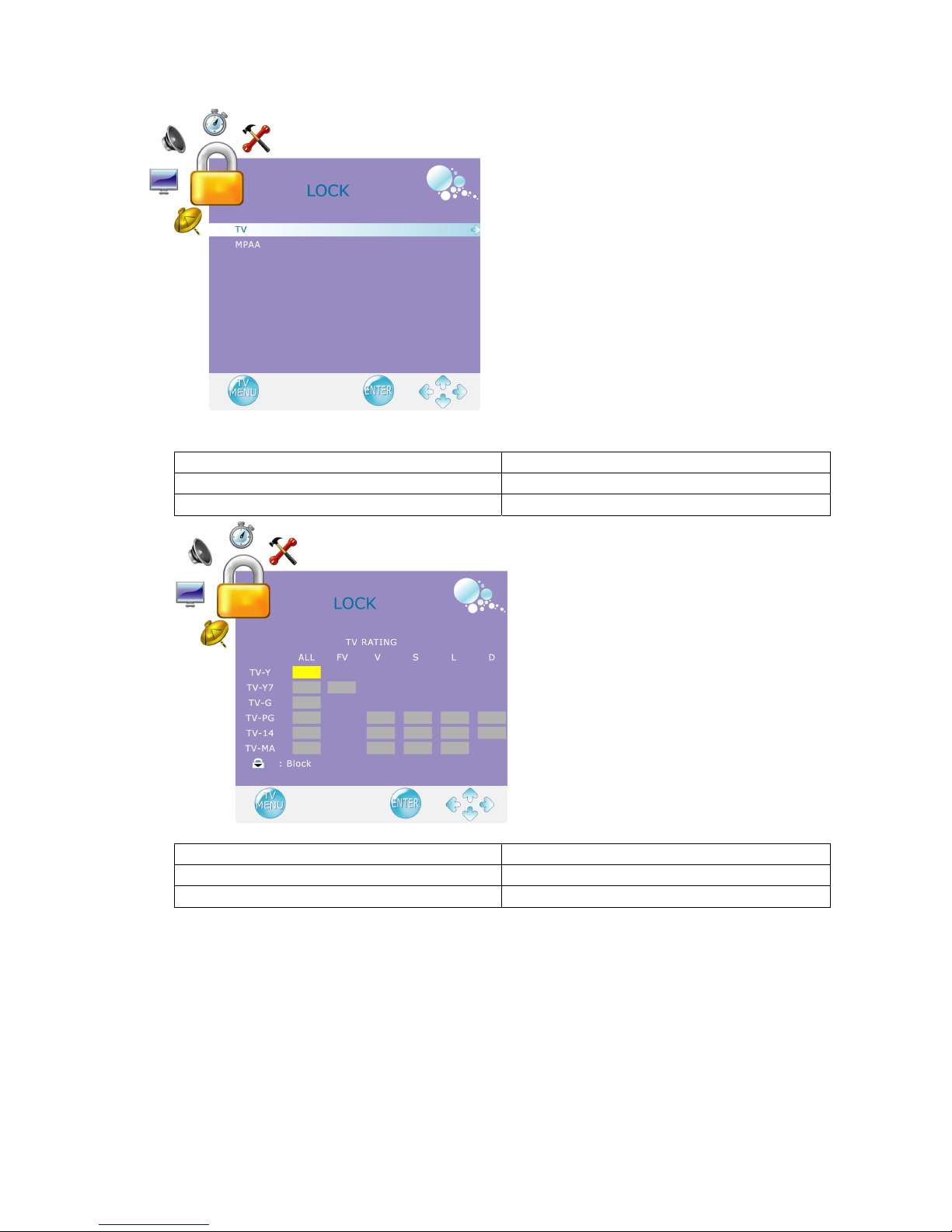

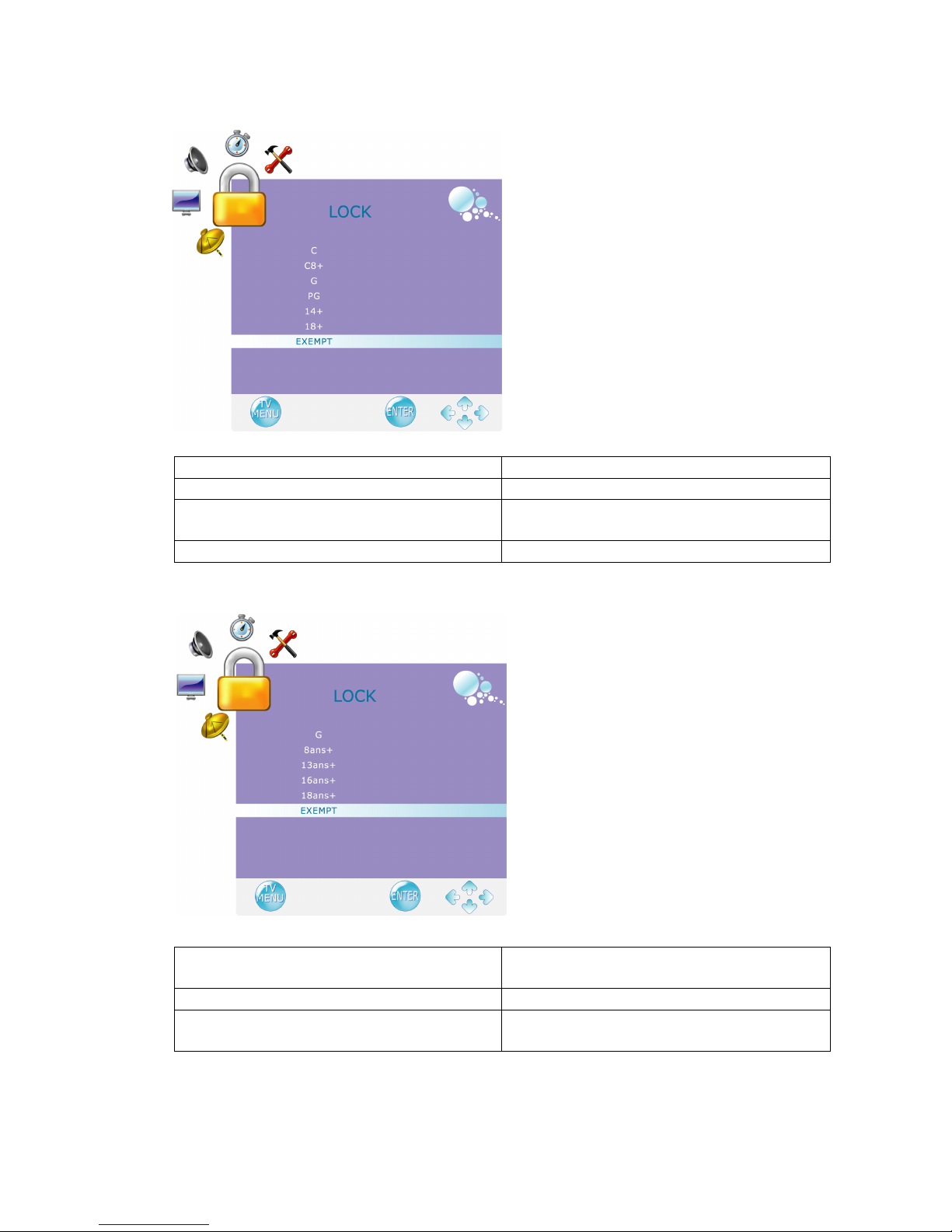

LOCK Menu..............................................................................................................19

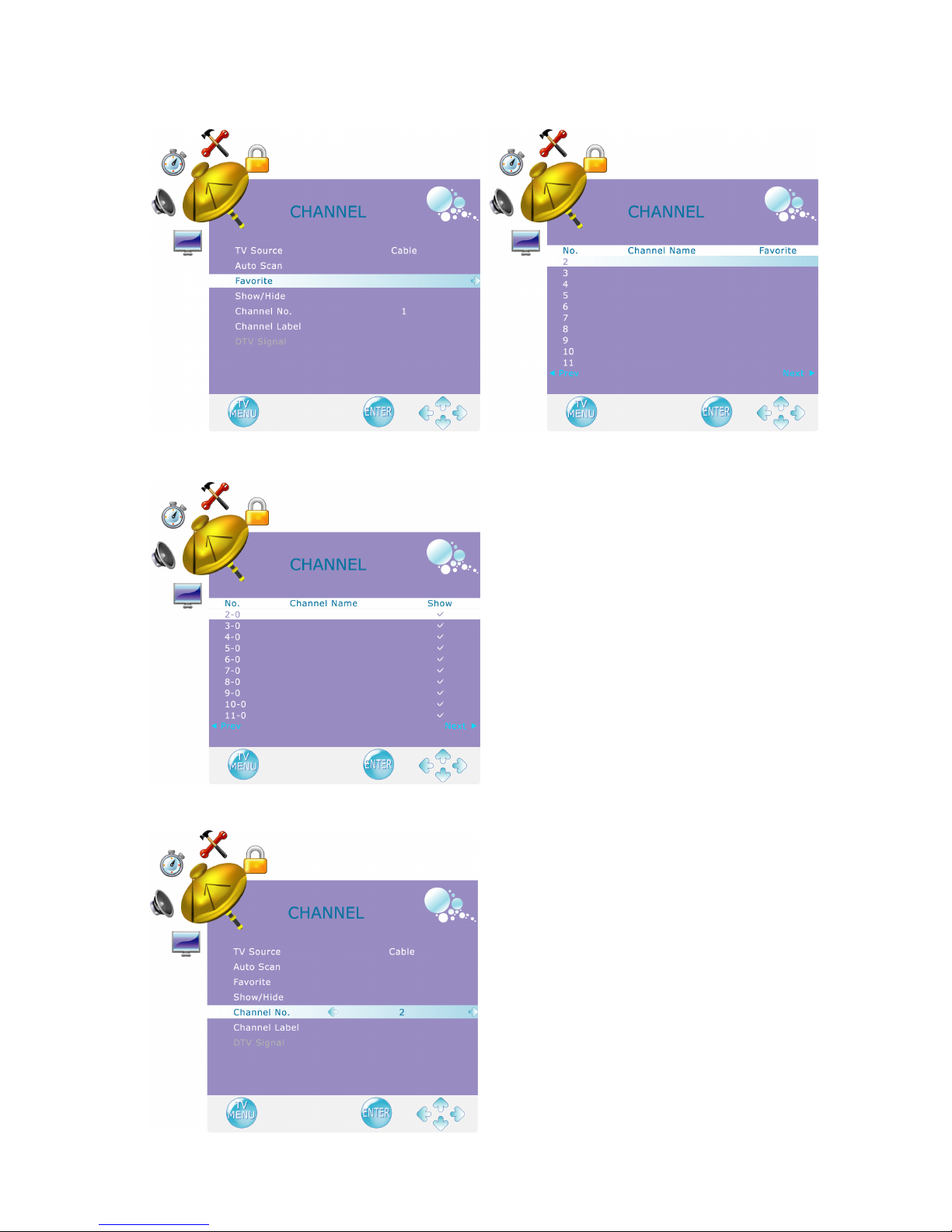

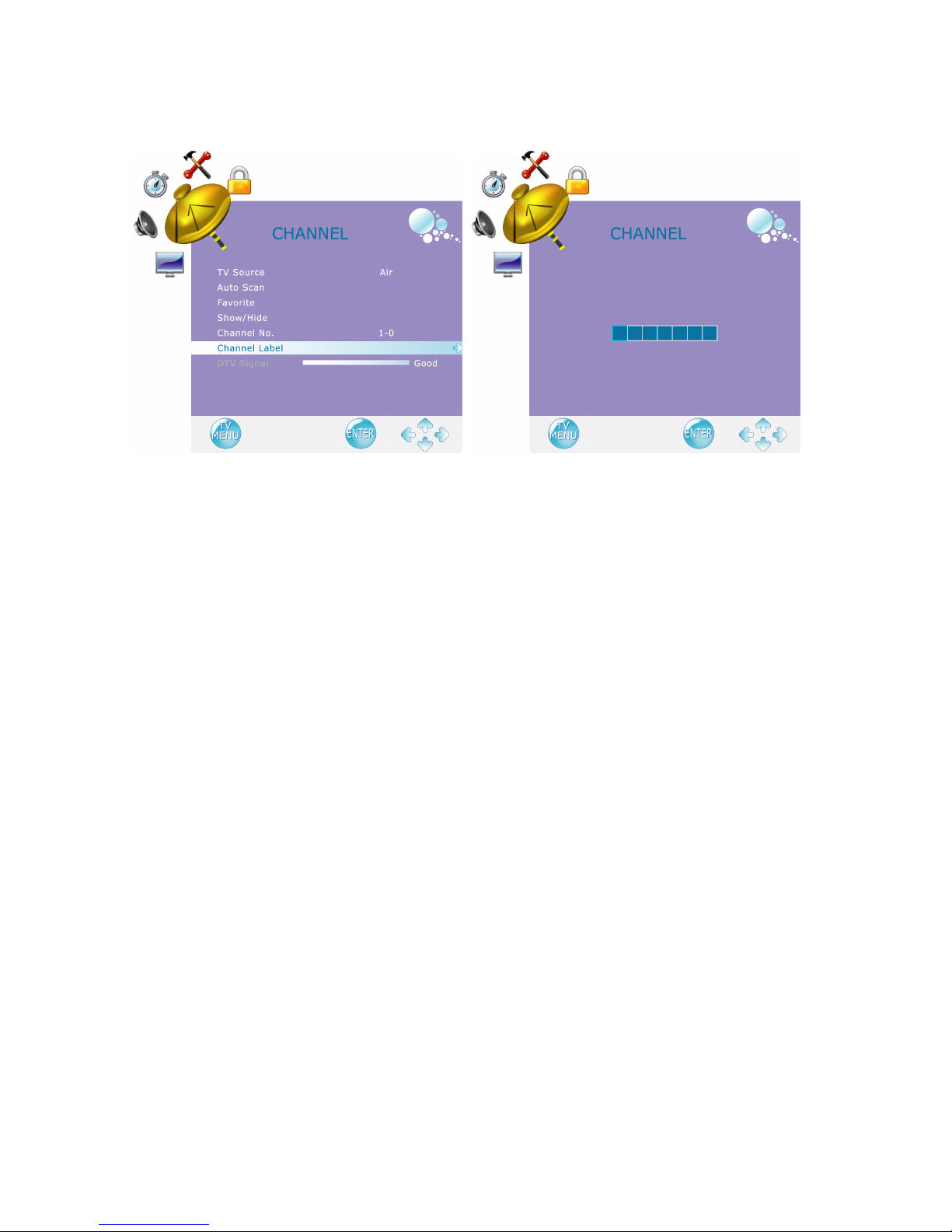

CHANNEL Menu.......................................................................................................23

TECHNICAL SPECIFICATION ........................................................................................26

SAFETY PRECAUTIONS ................................................................................................ 27

CARE AND MAINTENANCE ...........................................................................................28

TROUBLESHOOTING..................................................................................................... 28

1

ACCESSORIES

Thank you for purchasing this LCD-TV.
This LCD-TV package comes with:

 LCD TV

 User’s Guide book

 Remote control

 Battery AA x 2

 Power Cord

 RCA A/V Cable

INSTALLING THE STAND

1. Place the TV face down on a soft cloth or cushion on a table.

2. Install the stand base to the TV.

2

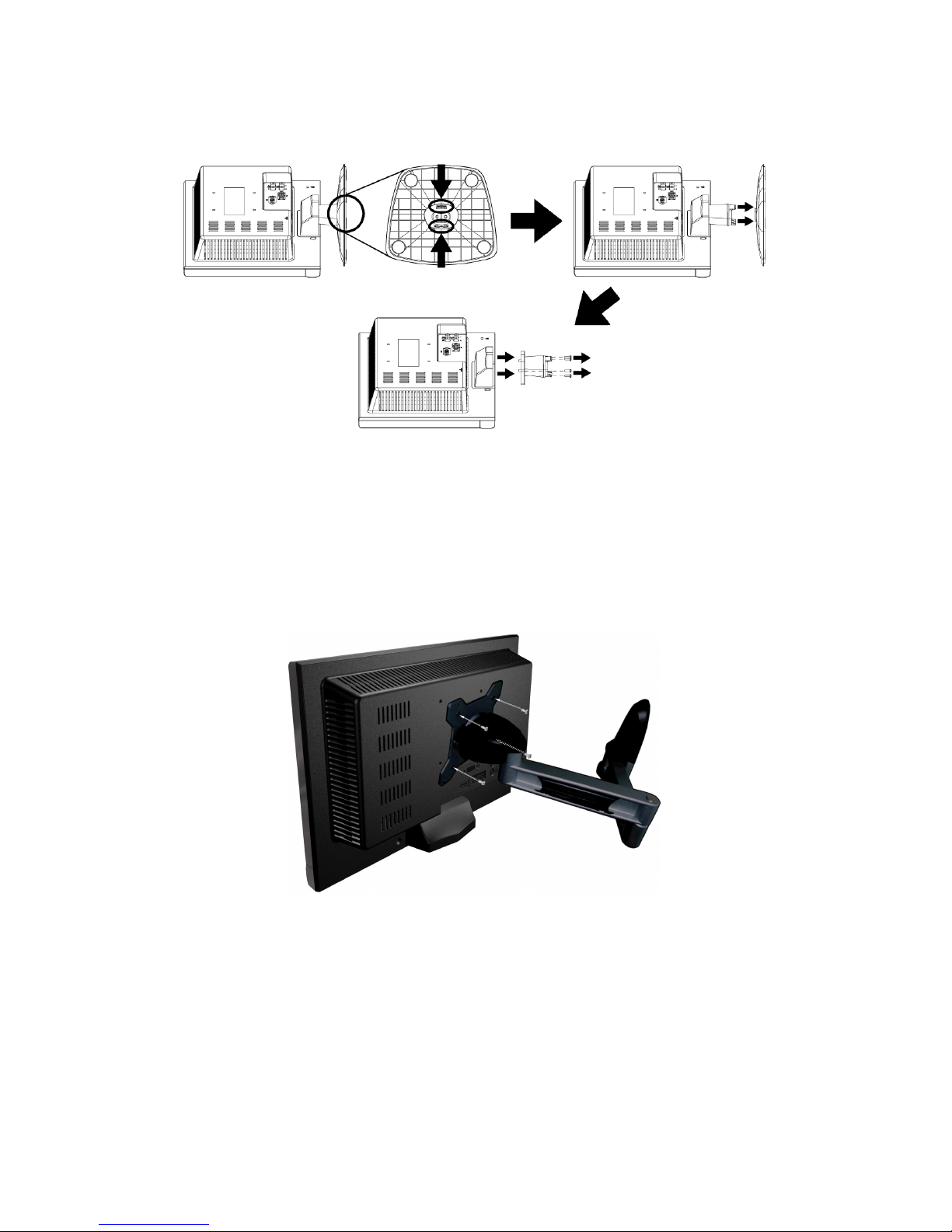

WALL-MOUNT INSTRUCTION

Preparing To Install The Optional Wall Mount Arm (not included)

This TV can be attached to a wall mounting arm you can purchase separately.
Turn the power OFF then disconnect the cables from the TV before performing the procedure
below.

1. Place the TV face down on a soft cloth or cushion on a table.

2. Remove the base.

3. Remove the 4 screws holding the stand to the hinge.

4. Remove the stand.

Attaching The Optional Wall Mount Arm (not supplied)

Follow these steps to finish installing the wall mounting arm:

1. Place the wall mounting arm onto the back of the TV. Line up the holes of the arm with the
holes in the back of the monitor.

2. Insert the 4 screws into the holes and tighten.

3. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting
arm for instructions on attaching it to the wall.

NOTE

 75 x 75mm VESA high hole (n=4), M4, pitch =0.7 mm screw mounting kit not included.
 Due to safety concerns, if the VESA mounting kit is purchased separately please make sure the

mounting kit is UL-Listed, and replaceable only by service personnel.

3

FRONT PANEL BUTTONS

 Volume Down
 Volume Up
 On Screen Display Menu On/Off
 CH Down
 CH Up
 Input Source Selection (Enter)
 Power ON/OFF button
 Power LED Indicator/ Remote Control Receiver

       

4

BACK PANEL BUTTONS

A B C D E F G H I J K

A Power (AC input)

B HDMI Input Terminal

C VGA signal input

D YPbPr signal input

E Composite Video input

F YPbPr/ DVI signal Audio input (left/right)

G Headphone Jack

H PC Audio input

I AV/ S-Video signal Audio input (left/right)

J S-Video input

K Cable/ Air TV input

5

REMOTE CONTROL

6

Remote control button function as follows:

1 INPUT Input source select

2 ENTER Confirm selection or enter selected menu

3 TV Direct to TV source

4 - VOL + Adjust volume UP/DOWN

5 LIST Select channel from program list

6 GUIDE Select electronic program guide (EPG)

7 0~9, - number Directly channel select

8 POWER Power ON/OFF

9 UP/ DOWN/ LEFT/

RIGHT

Move the cursor In OSD menu: UP/ DOWN for OSD function

select and LEFT/ RIGHT for function adjust

10 MENU On Screen Display (OSD) menu ON/OFF

11 ▼ CH ▲

Adjust channel UP/DOWN

12 FAV Select from preset Favorite Channels

13 ZOOM Adjust window size

14 MUTE Volume mute ON/OFF

15 INFO Display current information

16 SLEEP Set timer to turn off TV

17 MTS Select Mono, Stereo or SAP sound

18 C.C

Select caption mode

19 LAST

Return to previous channel

7

INSTALLATION

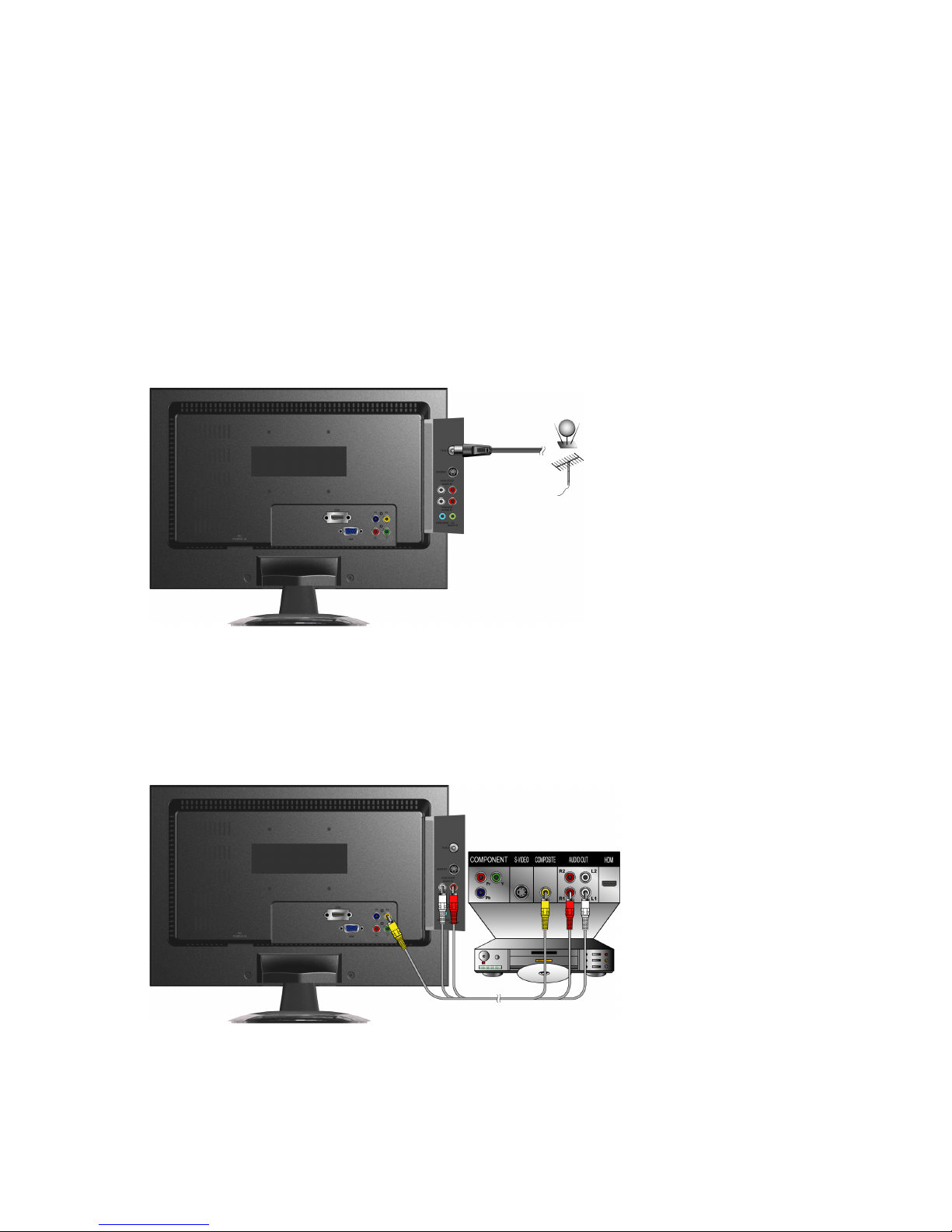

Connecting RF antenna and Cable TV

Make sure the power is OFF before installing your LCD TV.

1) AIR TV: Connect the LCD TV to TV antenna with 75-ohm coaxial cable. Preset the air TV

channels into memory with Auto Scan function when using an antenna TV system. This air
input jack both support TV and DTV systems. Besides, the TV system (NTSC) and DTV
system (ATSC) can be found by the scanning of “AIR” with Auto Scan function. See page 23.

2) Cable TV: Connect the LCD TV to the cable with CATV and Digital cable. Preset the cable TV

channels into memory with Auto Scan function when using a cable TV system. The cable
input jack both support CATV and Digital cable systems. Besides, the CATV system (cable TV)
and Digital cable system (clear QAM) can be found by the scanning of “Cable” with Auto Scan
function. See page 23.

Note: Users can select either Air or Cable TV cable to be connected to the TV IN jack. To
watch both of them, use an adapter to connect both Air and Cable cables to the jack.

Connecting to DVD / Set Top Box

Connect Video/Audio cables from compatible devices into the back panel of LCD TV.

1) With AV cable:

RF Cable, CATV/ Digital cable
or Adapter (not supplied)

VCD or DVD Player

RCA A/V Cable

8

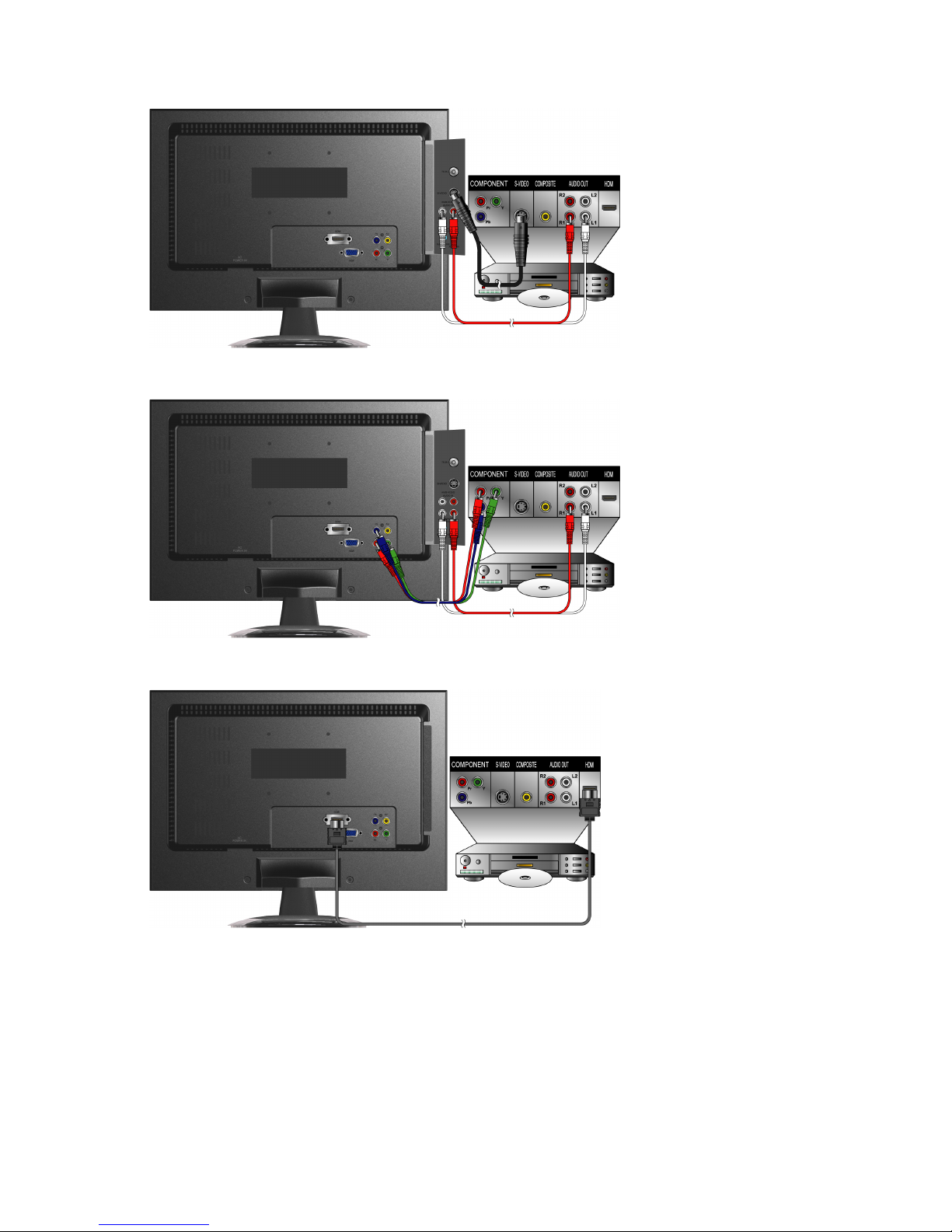

2) With S-Video cable:

3) With YPbPr cable:

4) With HDMI cable:

VCD or DVD Player

A

udio Cable (not supplied)

VCD or DVD Player

A

udio Cable (not supplied)

HDMI Cable (not supplied)

S-Video Cable (not supplied)

YPbPr Cable (not supplied)

VCD or DVD Player
(DVD Player should have
the HDMI output terminal)

9

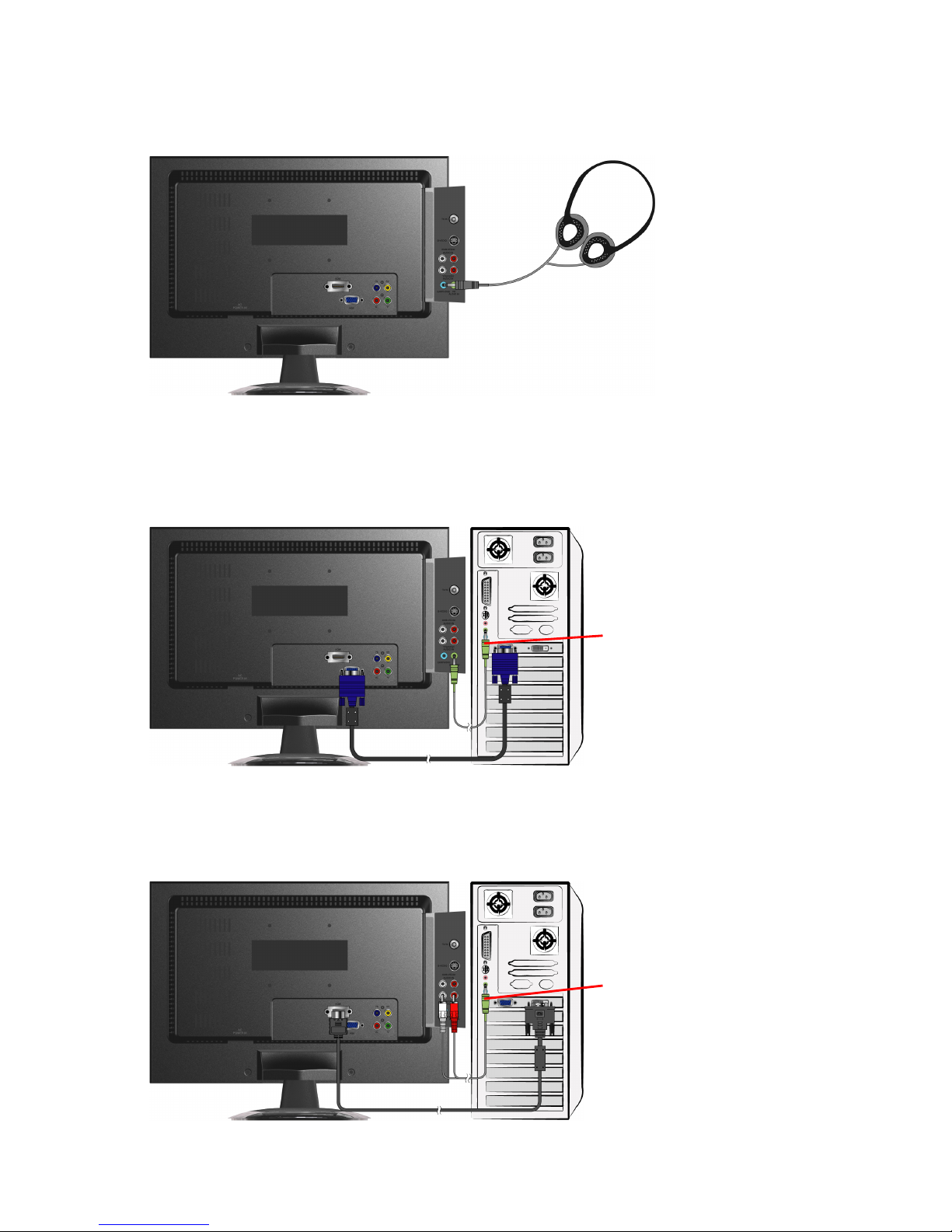

Connecting to the Headphone

Connect the headphone to the headphone output terminal of the LCD TV. (Headphone sold
separately).

Connecting to a Computer

1) With VGA Cable:

Connect the VGA cable from VGA output of the computer to the VGA terminal input of your
LCD TV. Also, connect the Audio In cable (green) from the audio output of your computer to the
audio input terminal (green) of the LCD TV.

2) With HDMI-DVI Cable:

Connect the HDMI-DVI cable from the DVI output of the computer to the HDMI terminal input
of the LCD TV. Also, connect the green end of the Audio In cable from the audio output of your
computer to the audio input terminal (red/white) of the LCD TV.

Headphone
(not supplied)

VGA 15 Pin Cable (not supplied)

PC

PC Audio In Cable (not supplied)

HDMI-DVI Cable (not supplied)

PC

Audio In Cable (not supplied)

10

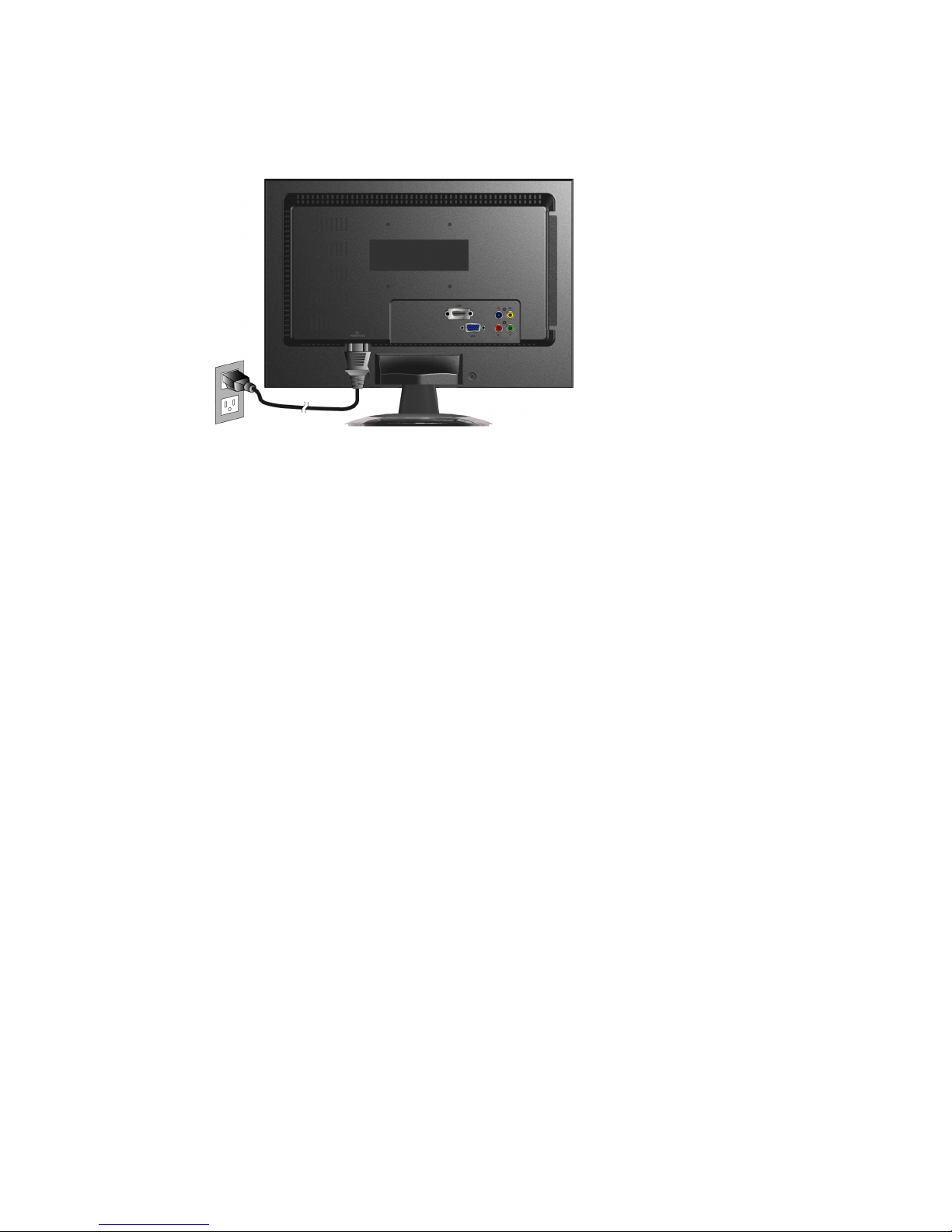

Connecting with the power cord

Connect the power cord to the AC inlet on the back of your LCD TV, after all connections have
been completed, and plug the other end of the power cord into a correctly grounded electrical
outlet.

A

C power socket

Power Cord

11

BASIC OPERATION

To operate your LCD TV, you may use the TV remote control or bottom panel buttons to select
input source, change channels, or adjust volume.

Turning on the LCD TV

Before using the LCD TV:

1. Connect external equipment properly.

2. Insert the power plug and the power LED indicator will light orange.

Power On/Off

To turn the LCD TV on/off :

Press the POWER button under the LCD TV, or press the POWER button on your remote control
to turn on/off the TV. The power LED indicator lights blue when the LCD TV is on.

Select input source

To select the required input source:
Press the INPUT button on the remote control, Use ▲▼ to select the required input source
between TV, AV, S-Video, YPbPr, HDMI, and PC.
To confirm the selection, press ENTER.

Volume Adjusting

Press – VOL + to adjust volume.
To turn off the volume, press MUTE.
If you want to restore volume, press MUTE again, or press – VOL + directly.

INFO

To display the current information of the LCD TV: Press INFO, and the current state will be displayed
on the screen. (It shows all or some of the information about Input, Channel, Resolution, Audio Type,
etc., depending on what input source it is in.)

* The picture here shows an example of the INFO screen in a DTV source.

12

Electronic Program Guide (EPG)

Press the GUIDE button on the remote control and the program information for the channel you
are watching will be displayed on the screen.

* The picture here shows an example of the GUIDE screen in a DTV source.

Channel Select

Press number key or ▼CH▲ button to select your desired channel.

1. ATV

The “-” button has no function in ATV mode. Directly press the number buttons to select
channels.

2. DTV

Use“-＂button to select the sub channel in DTV.
Ex: Your desired number is 80-3.
Press 8 → press 0 → press“-＂→ press 3.

• Whether in ATV or DTV, after you input the channel numbers, press ENTER button to direct

to the channel immediately, or wait for 3 seconds to change automatically.

• Return to the previous channel, press LAST button.

List

Press LIST button and there will be a small window showing program list, you can scroll through
the list to select the channel you want directly without using the ▼CH▲ button.

13

Favorite Channels

Press FAV button to show Favorite List and select your favorite channels that have already been
stored. (You need to preset the favorite channels from the OSD menu to enable this function.)

Sleep Time Setting

Repeatedly press SLEEP button to set the off timer. The function is used to automatically shut off
the LCD TV after a preset period of time passed. There are several times for choice – Off, 5min,
10min, 15min, 30min, 45min, 60min, 90min, 120min, 180min, 240min.

Zoom

Press ZOOM button repeatedly to select the screen size. You can select from Full, 4:3, Movie
Scale, and Zoom In.

MTS Selecting

Press MTS button to choose the available sound output that is preset by TV broadcasting station.

C.C Mode

Press C.C button to select the caption mode.

Using the OSD function

You can use the OSD menus and options to adjust various settings by using the remote control.
The basic operation is as following:

 Press MENU to display OSD menu.
 Press ◄► to select your desired top Menu, and press ENTER or ▼ to enter the menu you

select.

 Use ▲▼ to select the control you want to adjust.
 When selecting the control with ►, press ► to enter next level menu or enable the function.
 Press ◄► to adjust or select the settings.

 Press MENU to exit from the OSD menu.

14

ADVANCED OPERATION—OSD MENU

PICTURE Menu

—To adjust the picture quality

In TV, AV, S-Video, YPbPr, HDMI source:

Note: The CHANNEL Menu icon on the screen will disappear in AV, S-Video, YPbPr, and HDMI
sources.

In PC source:

 Picture Mode: To select picture mode between Standard, Dynamic, Soft, and Personal.

 Contrast: To adjust contrast of video. (right: Max, left: Min.)
 Brightness: To adjust luminance of video. (right: Max, left: Min.)
 Sharpness: To adjust picture sharpness. (right: sharper, left: softer.)
 Tint: To adjust tint level.
 Color: To adjust color. (right: brilliant color, left: pale color.)
 Color Mode: To select color mode from Normal, Warm, or Cool.

15

 Zoom Mode: To select image size from Full, 4:3, Movie Scale, or Zoom In.
 NR: To select noise restriction function from Standard, Strong, Auto, Off, or Weak.
 Advanced: To adjust advanced PC functions, press ► to enter. (only appear in PC source)

 Auto: To auto adjust picture’s horizontal position, vertical position, fine tune and H-Size.
 H-Pos: To adjust the horizontal position of the picture.
 V-Pos: To adjust the vertical position of the picture.
 Clock: To adjust clock frequency in order to get optimized horizontal size.
 Phase: To adjust delay time of phase in order to reduce the noise of picture.

AUDIO Menu

—To set the audio quality and status

In DTV source: In ATV source:

16

In AV, S-Video, YPbPr, HDMI, PC source:

 Sound Mode: To select sound mode between Standard, Music, Movie, Sports, and Personal.
 Treble/Bass: To adjust the treble, bass or balance.
 Prefer Language: To select the available audio languages. (only enabled in DTV mode)
 MTS: Press ◄► to select the audio language from STEREO, Mono or SAP. (only appears in

ATV source)

 Surround Sound: To enjoy a concert hall effect, select “On” when stereo is playing.
 Audio Only: To turn off the screen picture but keep the sound on. (it is disabled in some

sources)

TIME Menu

—To set up time zone

Note: The CHANNEL Menu icon on the screen will disappear in AV, S-Video, YPbPr, HDMI, and
PC sources.

 Sleep Timer: Off, 5min, 10min, 15min, 30min, 45min, 60min, 90min, 120min, 180min, 240min.
 Time Zone: To select the correct Time Zone for your area.
 DST: To turn on/off summer Daylight Saving Time.
 Time Format: To select time format from 12-hour or 24-hour.
 Auto Sync: To enable automatic synchronization of time.

17

 Clock: To adjust the current time. Press ► to enter. Use ◄► to move between Year, Month,

Date, Hour, Minute, and use ▲▼ to adjust. Select OK and press ENTER to save the setting.

OPTION Menu

—To set up OSD window

In TV, AV, S-Video source:

Note: The CHANNEL Menu icon on the screen will disappear in AV and S-Video sources.

In YPbPr, HDMI, PC source:

 Menu Language: To select an OSD language from English, French or Spanish.
 Transparency: To change the transparency of OSD window. (0%, 25%, 50%, 75%, 100%)
 OSD Time Out: To setup the display time of OSD. (5, 15, 30, 45, and 60 seconds)
 Closed Caption: To set close caption options.

18

 CC Mode: To select Closed Caption Mode from CC Off, CC On, or CC on Mute.
 Basic Selection: To set basic analog closed caption options. (CC1~CC4, TEXT1~TEXT4,

or Off)

 Advanced Selection: To select closed caption signal formats and set up caption modes

for digital TV channels. (Service1~6, or Off)

 Option: Press ◄► to select Mode from Default or Custom. When “Custom” is selected,

use ▲▼ to select the desired controls, ◄► to adjust detailed settings.

 DCR: To turn on/off the DCR (Dynamic Contrast Ratio) function.
 Restore Default: To restore the factory default settings.

19

LOCK Menu

—To set up parental control

In TV, AV, S-Video, YPbPr, HDMI, PC source:

Note: The CHANNEL Menu icon on the screen will disappear in AV, S-Video, YPbPr, HDMI, and
PC sources.

 Enter Password: Enter password and the screen below will show. (The default password is

0000.)

Note: Some options will be disabled when in YPbPr, HDMI, or PC source.

 Change Password: To change the password, press ►, and the screen on the right appears.

Follow the instructions to change password.

 System Lock: Select “On” to enable the following options.

Note: The below options can be enabled only when “On” is selected here.

 Unrated Lock: Select “On” to block unrated movies or TV programs.
 Input Block: To set the input source to be blocked.

20

 US: Press ► to set TV or MPAA ratings.

 TV: To adjust TV blocking level in the US.

The following screen will allow you to customize the following TV ratings:
TV-Y (all children) TV-PG (guidance suggested)
TV-Y7 (older children) TV-14 (strongly cautioned)
TV-G (general audience) TV-MA (mature audience)

You can also customize the TV ratings for the following content:
ALL (All types of content) S (sexual situations)
FV (fantasy violence) L (adult language)
V (violence) D (sexsual dialog)

21

 MPAA: To adjust movie blocking level in the US. You can select between G, PG, PG-13, R,

NC-17, X, or N/A.

The movie Ratings in the US are defined as following:

G (general audience) NC-17 (no one under 17 years of age)
PG (parental guidance suggested) X (adult audience only)
PG-13 (recommended for children 14 years
of age or older)

N/A (Not applicable)

R (mature audience)

 Canada: Press ► to set Canadian English and French ratings.

22

 Canada Eng: To adjust blocking level in English-speaking region of Canada. You can

select between C, C8+, G, PG, 14+, 18+, EXEMPT.

The Canadian English Ratings are defined as following:

C (children) 14+ (viewers and older)
C8+ (children eight years and older) 18+ (adult programming)
G (general programming, suitable for all
audiences)

EXEMPT

PG (parental guidance)

 Canada Fre: To adjust blocking level in French-speaking region of Canada. You can

select between G, 8 ans+, 13 ans+, 16 ans+, 18 ans+, EXEMPT.

The Canadian French Ratings are defined as following:

G (genenral) 16 ans+ (not appropriate for children of less

than 16 years)
8 ans+ (children eight years and older) 18 ans+ (reserved to adults)
13 ans+ (not appropriate for children of less
than 13 years)

EXEMPT

 RRT Setting: To set Rating Region Table that defines the rating standard for a particular

geographic region and/or country. Press ► to enter the setting.

 Reset RRT: Press ► to reset RRT Setting.

23

CHANNEL Menu

—To set up for TV

Note: The Channel Menu is only active in TV source. When in AV, S-Video, YPbPr, HDMI, or PC
source, the CHANNEL Menu will not appear.

Note: The condition of DTV Signal will only be displayed when source is in DTV.

 TV Source: To select Cable or Air as the TV source.
 Auto Scan: To auto scan the TV or DTV channels. Select Air or Cable in TV Source option,

and press ► to start auto scanning TV channels. Press MENU again at any time to interrupt
scanning.

24

 Favorite: To set your favorite channels into memory. Press ENTER to confirm/ cancel your

favorite channels. Press◄ / ► to go to previous / next page.

 Show/Hide: Press ENTER to skip the selected channel. To restore the channel, press ENTER

again.

 Channel No.: Press ◄► to select a channel. The channel selected will be shown on the

screen at the same time.

25

 Channel Label: Press ► to edit a name for the current channel (the channel selected in

Channel No.). Use ▲▼ to choose letters or signs, ◄► to move forward or backward, and
then press MENU or ENTER to exit.

 DTV Signal: To display the detected signal strength of the current DTV channel.

26

TECHNICAL SPECIFICATION

Type 15.6” TFT Active Matrix

0.252 (H) x 0.252 (V) pixel pitch

Color Filter RGB vertical stripe

LCD

Glass surface Anti-Glare

RGB RGB analog (0.7/1.0 Vp-p, 75 ohms) Separate Sync,

fh: 30-80 kHz, fv:50-75 Hz

RF TV system Antenna / NTSC+ATSC

TV Cable system / CATV + Digital Cable

Input signal

Video 1 composite RCA, 1 S-Video, 1 YPbPr component,

1 HDMI

Audio 1 mini-stereo, 2 pair of RCA (L/R) stereo

Compatibility PC Up to 1360 x 768 Non-interlaced

Resolution Recommended

and supported

1360 x 768 @ 60 Hz

1280 x 1024 @ 60 Hz

1024 x 768 @ 60, 75 Hz

800 x 600 @ 60, 75 Hz

640 x 480 @ 60, 75 Hz

Speaker Output 2.5W x 2 @THD=10%

Audio Output 1 Headphone jack

Power Voltage 100-240 VAC, 50/60 Hz (auto switch)

Display area Full Scan 344.232 mm (H) x 193.536 mm (V)

13.6” (H) x 7.6” (V)

Temperature 32°F to + 104°F ( 0°C to + 40°C)

Humidity 20% to 65% (no condensation)

Operating

conditions

Altitude To 7,000 feet (2,000m)

Temperature -4°F to + 140°F (-20°C to + 60°C)

Humidity 10% to 90% (no condensation)

Storage condition

Altitude To 40,000 feet (12,000m)

Dimensions Physical 375.8mm (W) x 300.9mm (H) x 160.9mm (D)

14.8’’ (W) x 11.8’’ (H) x 6.3’’ (D)

Weight Net 3.0 kg (6.6 lb)

Regulations UL, FCC-B (Doc-B), Energy Star

On < 40 W (blue LED) Power saving modes

Stand by Max 1W, typical: 0.9W (orange LED)

Preset Timing Mode (Pre-adjusted to GTF® 1360 x 768 @ 60 Hz)
Warning: Do not set the graphics card in your computer to exceed these refresh rates;

doing so may result in permanent damage to the LCD TV

Note: Product Specifications are subject to change without notice.

27

SAFETY PRECAUTIONS

This LCD TV is manufactured and tested to insure the user’s safety. Improper use or
installation may result danger to the LCD TV as well as to the user. Carefully go over the
following WARNINGS before installation and keep this guide handy.

WARNINGS

 This LCD TV should be operated only at the correct power sources indicated on the label on

the rear end of the LCD TV. If you’re unsure of the power supply in your residence, consult
your local dealer or power company.



Do not try to repair the LCD TV yourself as it contains no user-serviceable parts. The LCD TV
should only be repaired by a qualified technician.



Do not remove the LCD TV cabinet. There is high-voltage parts inside that may cause electric
shock. even when the power cord is disconnected .



Stop using the LCD TV if the cabinet is damaged. Have it checked by a service technician.



Put your LCD TV only in a clean, dry environment. Unplug the LCD TV immediately if gets wet
and consult your service technician.



Always unplug the LCD TV before cleaning it. Clean the cabinet with a clean, dry cloth. Apply
non-ammonia based cleaner onto the cloth, not directly onto the glass screen.



Keep the LCD TV away from magnetic objects, motors, TV sets, and transformer.



Do not place heavy objects on the cable or power cord.

 For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed near the equipment and

shall be easily accessible.

28

CARE AND MAINTENANCE

Care



Avoid exposing your LCD TV directly to sunlight or other heat source.



Place your LCD TV away from the sun to reduce glare.



Put your LCD TV in a well ventilated area. Do not place anything heavy on top of your LCD TV.



Make certain your LCD TV is installed in a clean and moisture-free area.

 Keep your LCD TV away from magnets, motors, transformers, speakers, and TV sets.

Safety Tips



If smoke, abnormal noise or odor came out of your LCD TV, remove the power cord
immediately and call your service center.



CAUTION-Never remove the rear cover of your LCD TV cabinet. The display unit inside
contains high-voltage parts and may cause electric shock to human bodies.

 Never try to repair your LCD TV yourself. Always call your service center or a qualified

technician to fix it.

TROUBLESHOOTING

No power

 Make sure A/C power cord is securely connected.
 Plug another electrical device into the power outlet to verify that the outlet is supplying proper

voltage.

Power on but no screen image

 Make sure the video cable supplied with the TV is tightly secured to the video output port on

back of video source (DVD, VCR…). If not, tightly secure it.

 Adjust brightness.
 Make sure all signal cables are installed.

Wrong or abnormal colors

 If any colors (red, green, blue) are missing, check the video cable to make sure it is securely

connected. Loose or broken pins in the cable connector could cause an improper connection.

 Connect the TV unit to another video source or use another TVs to make sure the video source

was not causing the problem.
