AURES W-TOUCH User Manual

USER MANUAL

VERSION 1.0 September 2011

W-TOUCH

ii

Copyright 2011
All Rights Reserved
Manual Version 1.0

The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not limited
to, the implied warranties of merchantability and fitness for a particular purpose.
We shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be photocopied, reproduced or translated
to another language without the prior written consent of the manufacturer.

TRADEMARK

I

ntel®, Pentium® and MMX are registered trademarks of Intel® Corporation.
Microsoft® and Windows® are registered trademarks of Microsoft Corporation.
Other trademarks mentioned herein are the property of their respective owners.

Safety

IMPORTANT SAFETY INSTRUCTIONS

To disconnect the machine from the electrical power supply, turn off the power switch 1.
and remove the power cord plug from the wall socket. The wall socket must be easily
accessible and in close proximity to the machine.
Read these instructions carefully. Save these instructions for future reference.2.
Follow all warnings and instructions marked on the product.3.
Do not use this product near water.4.
Do not place this product on an unstable cart, stand, or table. The product may fall, 5.
causing serious damage to the product.
Slots and openings in the cabinet and the back or bottom are provided for ventilation 6.
to ensure reliable operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface. This product should
never be placed near or over a radiator or heat register or in a built-in installation
unless proper ventilation is provided.
This product should be operated from the type of power indicated on the marking label. 7.
If you are not sure of the type of power available, consult your dealer or local power
company.
Do not allow anything to rest on the power cord. Do not locate this product where 8.
persons will walk on the cord.
Never push objects of any kind into this product through cabinet slots as they may 9.
touch dangerous voltage points or short out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the product.

iii

CE MARK

This device complies with the requirements of the EEC directive 2004/108/EC with
regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”.

FCC

This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.

CAUTION ON LITHIUM BATTERIES

There is a danger of explosion if the battery is replaced incorrectly. Replace only
with the same or equivalent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.

Battery Caution

Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery
according to the local disposal instructions.

Safety Caution

Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S) related
legislation, peripherals shall be 4.7.3.2 “Materials for fi re enclosure” compliant.

4.7.3.2 Materials for fi re enclosures
For MOVABLE EQUIPMENT having a total mass not exceeding 18kg.the material of a
FIRE ENCLOSURE, in the thinnest signifi cant wall thickness used, shall be of V-1 CLASS
MATERIAL or shall pass the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg and for all STATIONARY
EQUIPMENT, the material of a FIRE ENCLOSURE, in the thinnest significant wall
thickness used, shall be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1

iv

LEGISLATION AND WEEE SYMBOL

2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment,

collection, recycling and disposal of electric and electronic devices and their
components.

The crossed dust bin symbol on the device means that it should not be disposed of
with other household wastes at the end of its working life. Instead, the device should
be taken to the waste collection centers for activation of the treatment, collection,
recycling and disposal procedure.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take this item for
environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of
the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

v

Revision History

Changes to the original user manual are listed below:

Revision Description Date

1.0 Initial release• 2011 September

vi

Table of Contents

1. Packing List .................................. 1

1-1. Standard Accessories ..........................................1

1-2. Optional Accessories ...........................................2

2. System View .................................. 3

2-1. Front & Side View .................................................3

2-2. Rear View with Stand ...........................................3

2-3. I/O Ports View ......................................................4

2-4. System Dimension ...............................................4

3. System Assembly & Disassembly 5

3-1. Open Cable Cover ................................................5

3-2. Open the System ..................................................5

3-3. HDD Replacement ...............................................6

3-4. RAM Replacement ...............................................7

4. Peripheral Installation ................. 8

4-1. MSR Installation ...................................................8

4-2. Fingerprint and iButton Installation ....................9

4-3. Wall Mount Kit Installation .................................10

4-4. SSD Card Installation ..........................................11

4-5. Cash Drawer Installation ................................... 12

vii

5. Specifications .............................. 14

6. Jumper Setting ............................ 15

6-1. C48 Motherboard ...............................................15

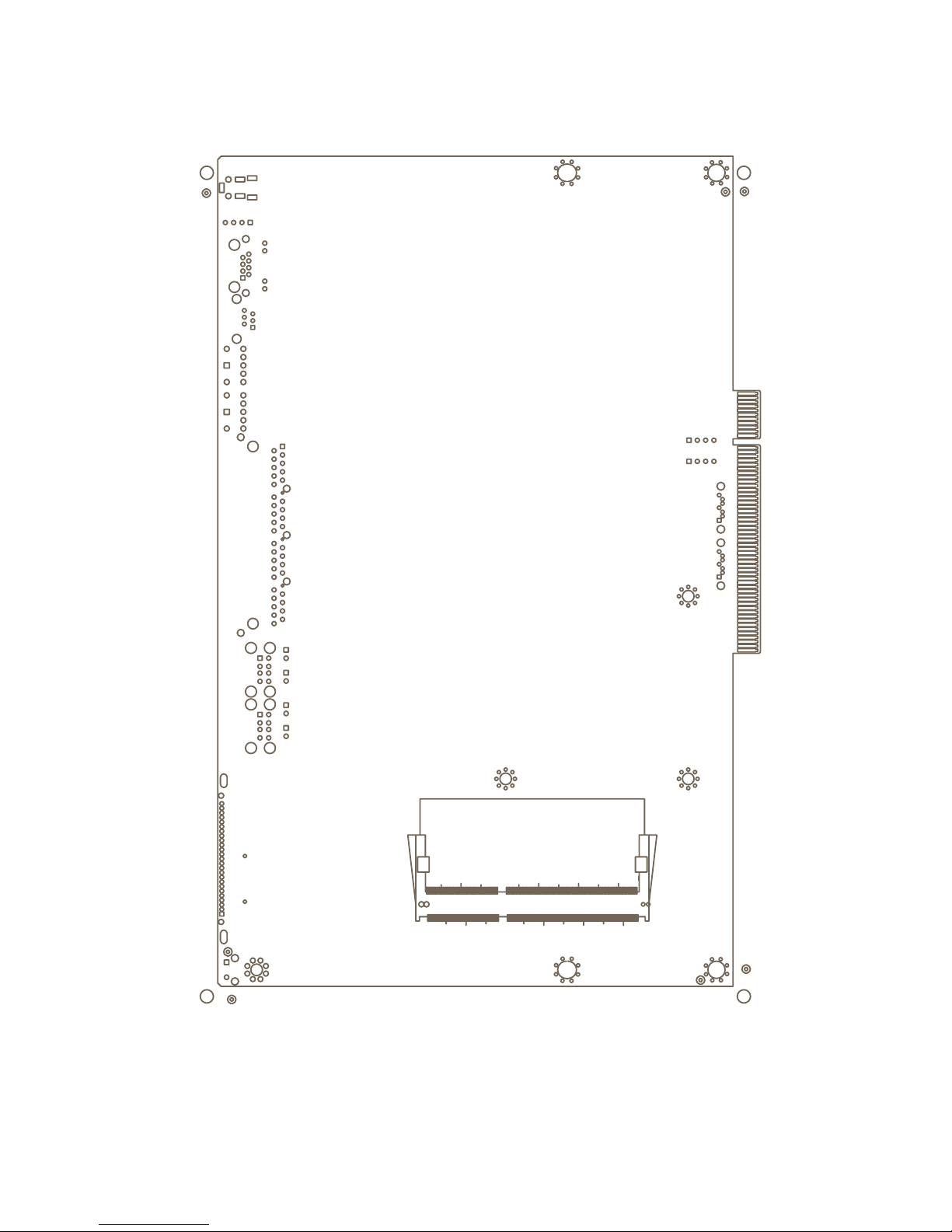

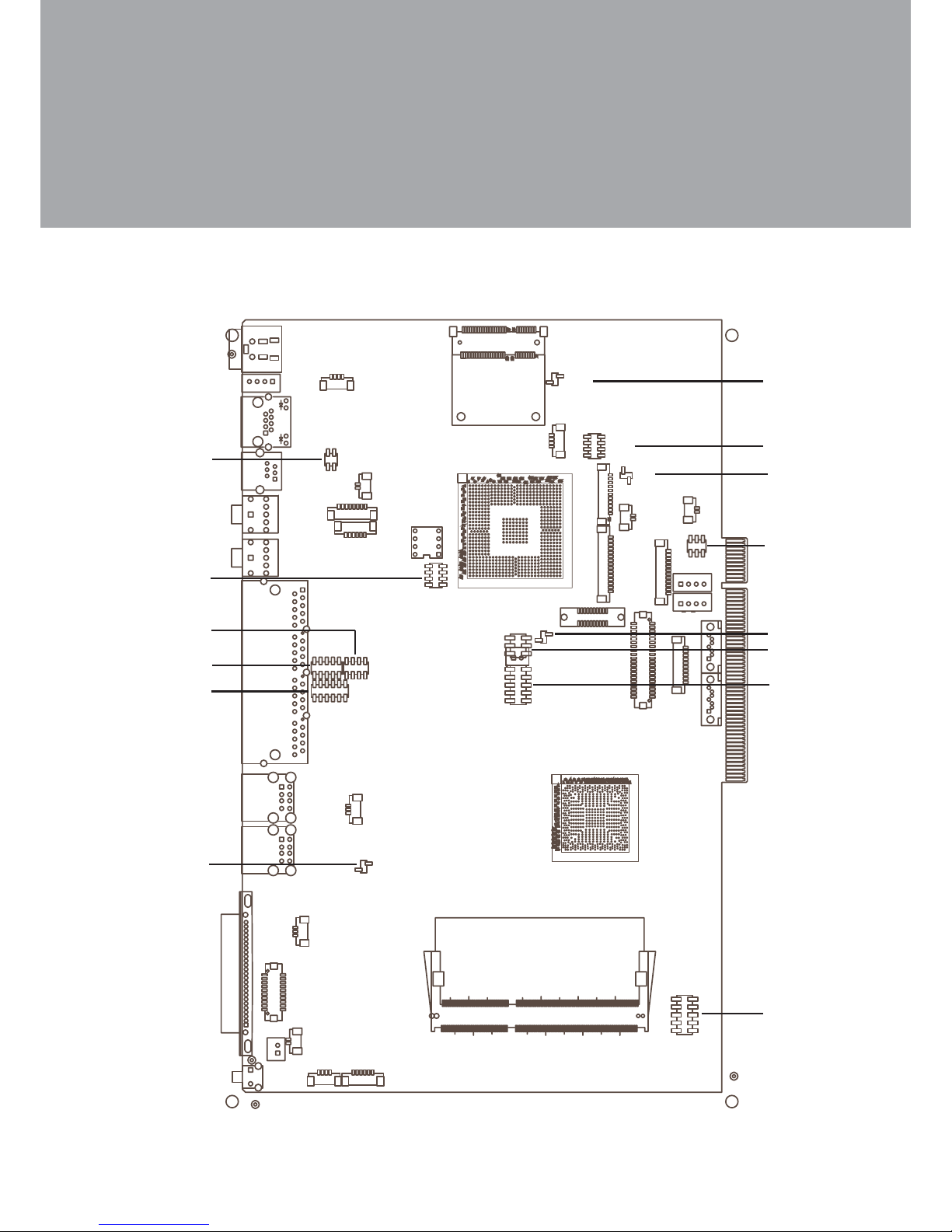

6-1-1. Motherboard Layout .................................15

6-1-2. Connectors & Functions ...........................17

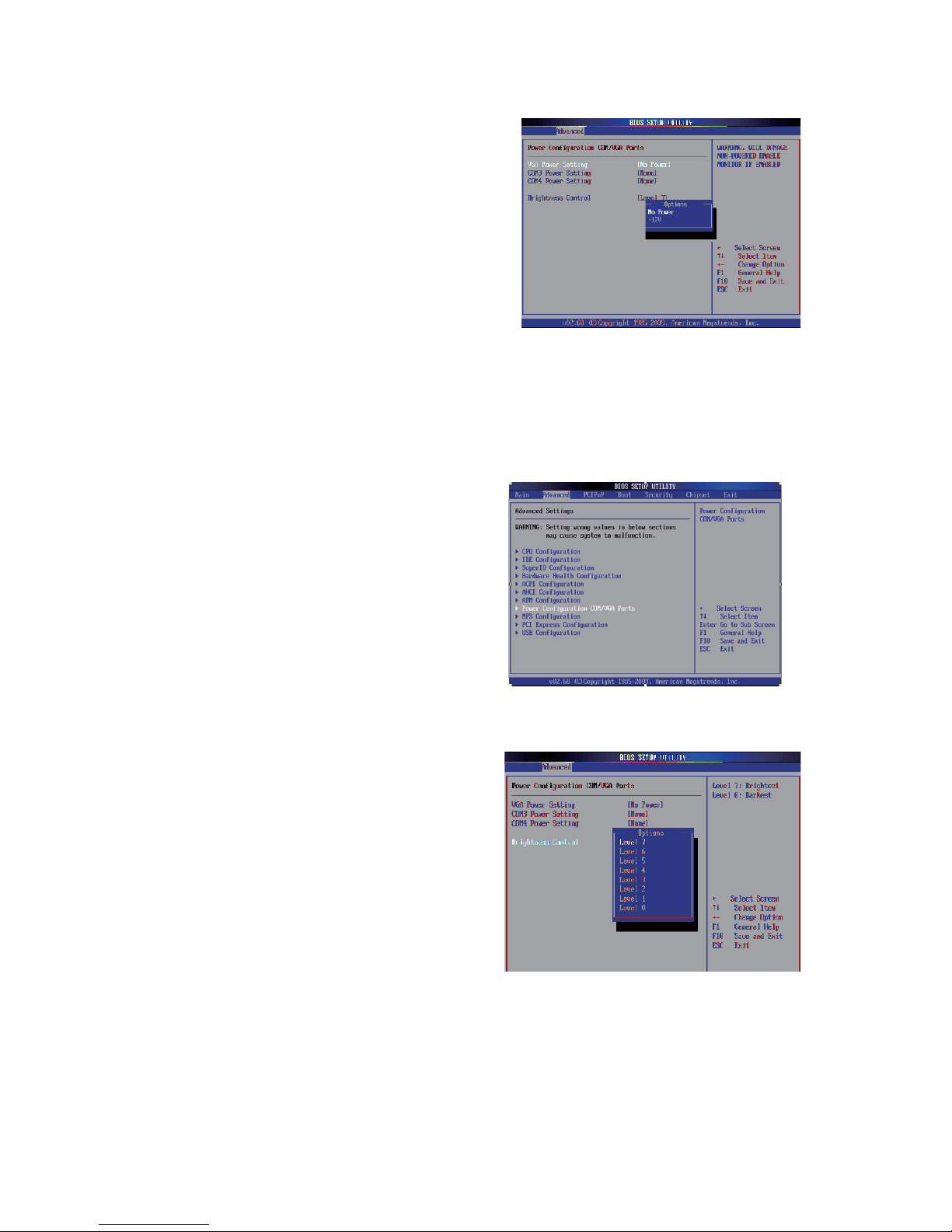

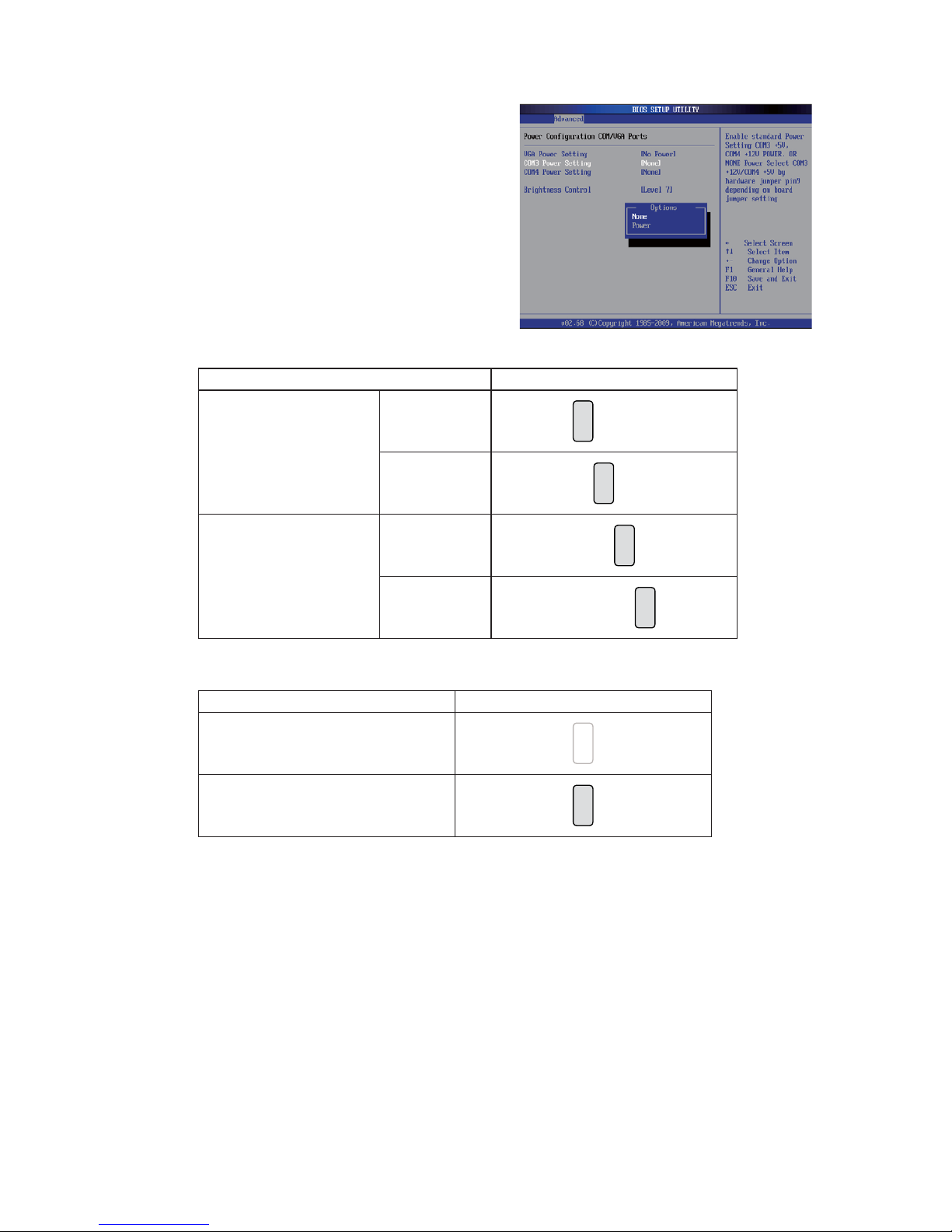

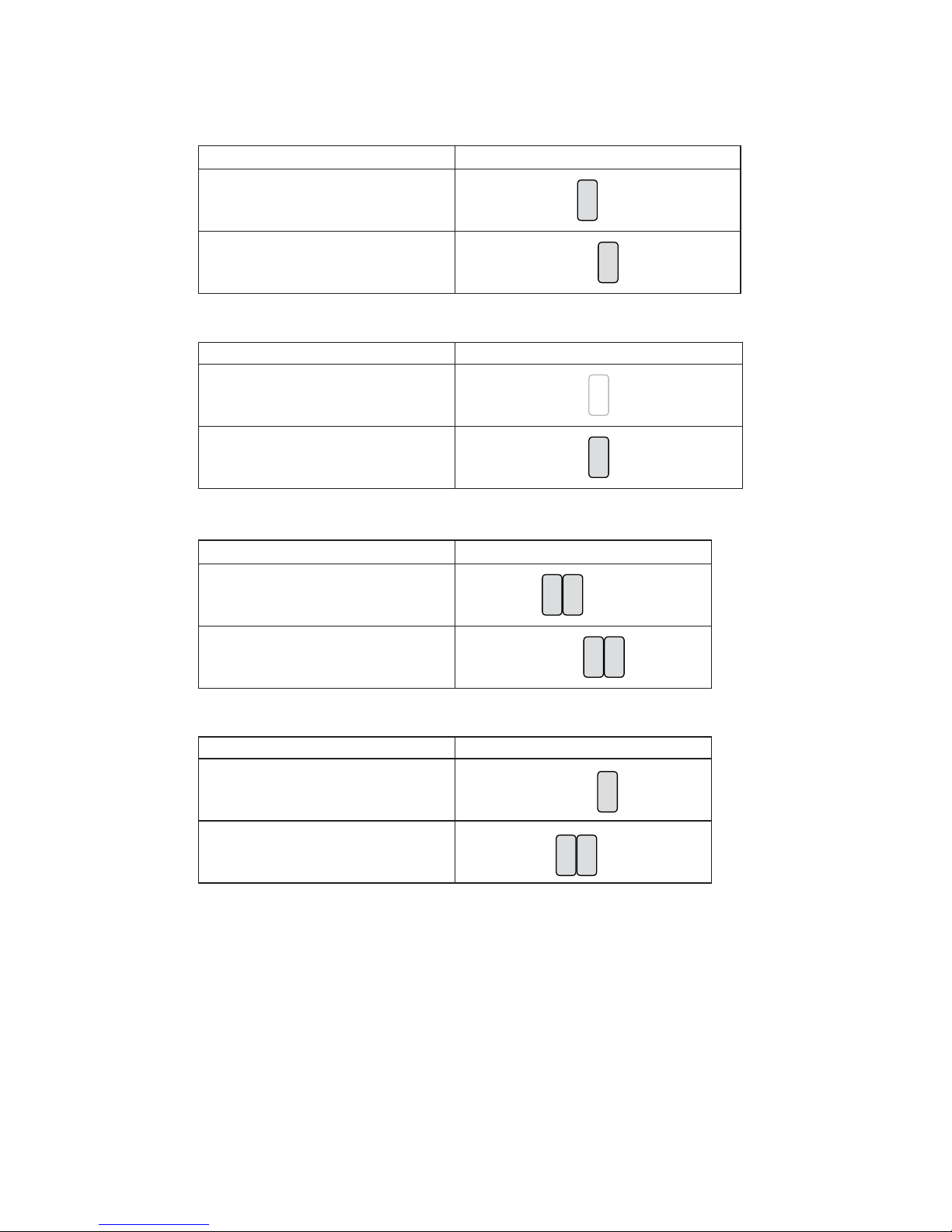

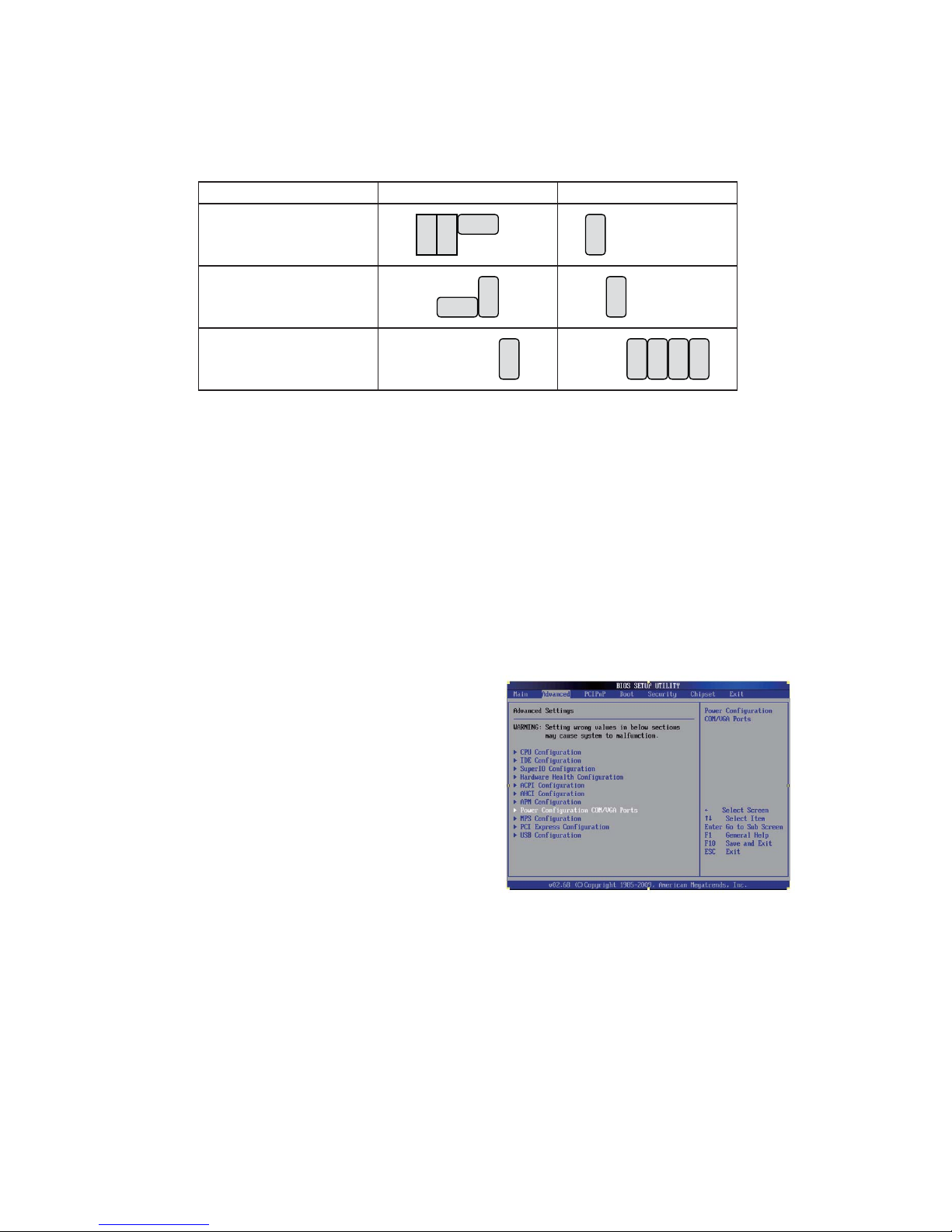

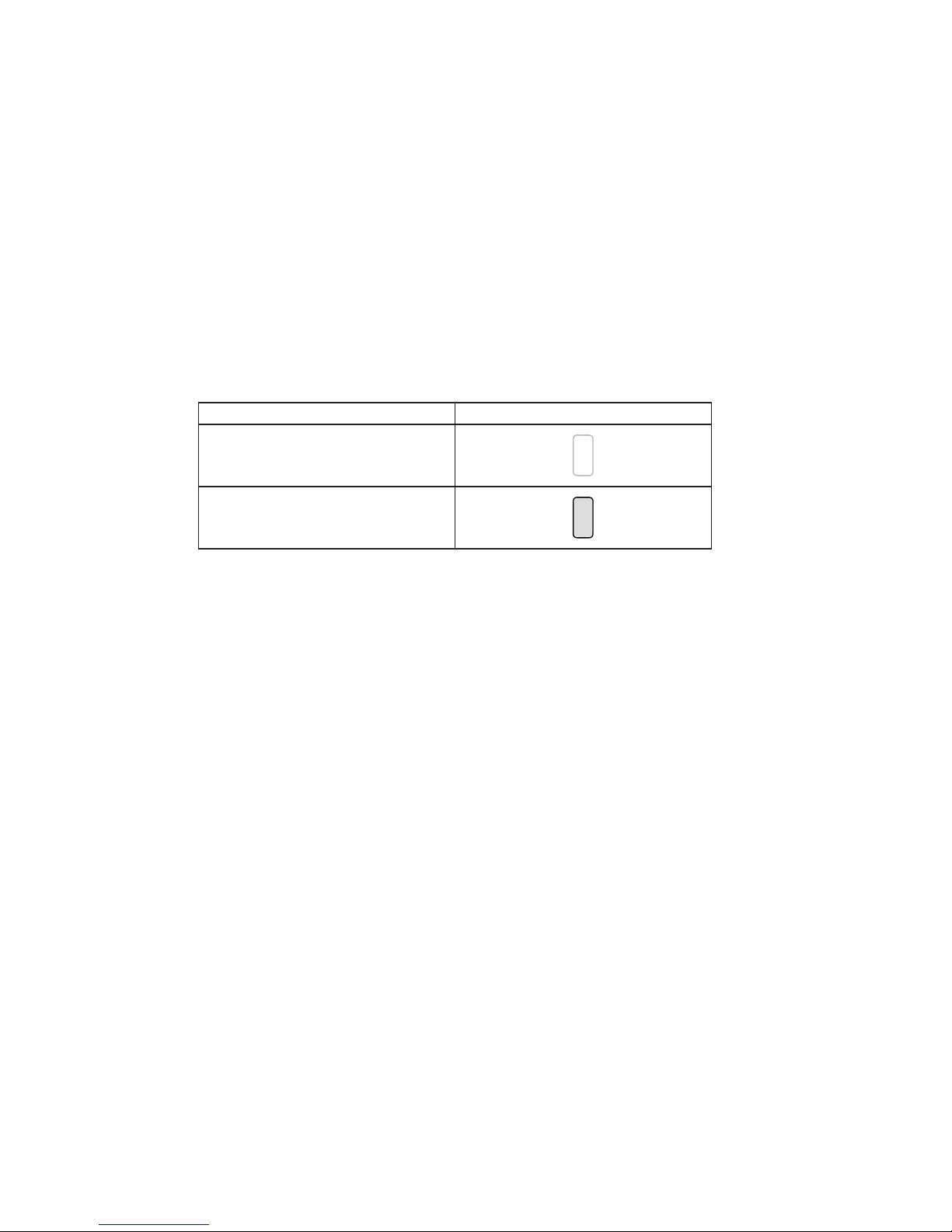

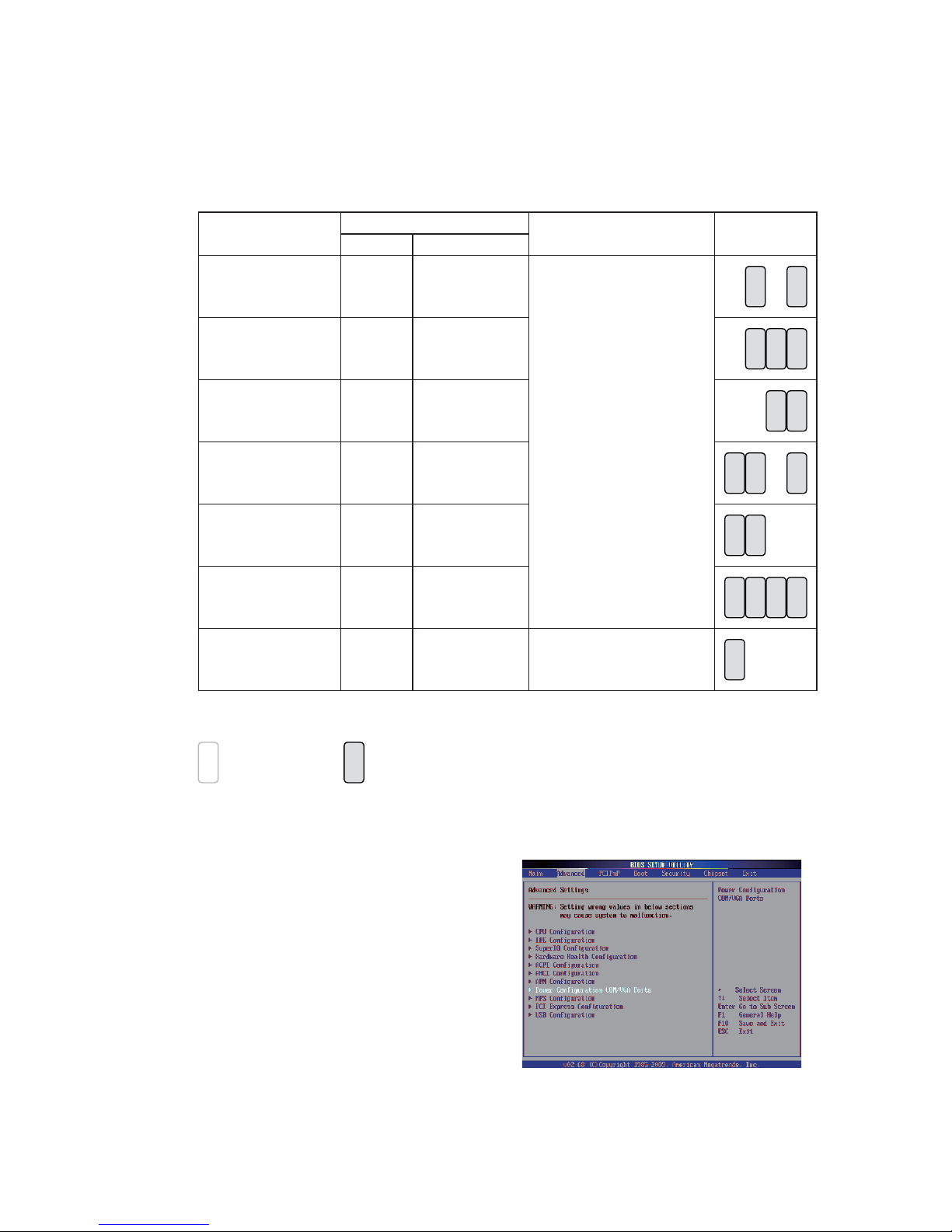

6-1-3. Jumper & BIOS/Utility Setting................. 18

Appendix: Drivers Installation .......... 25

viii

The page is intentionally left blank

1

Packing List1.

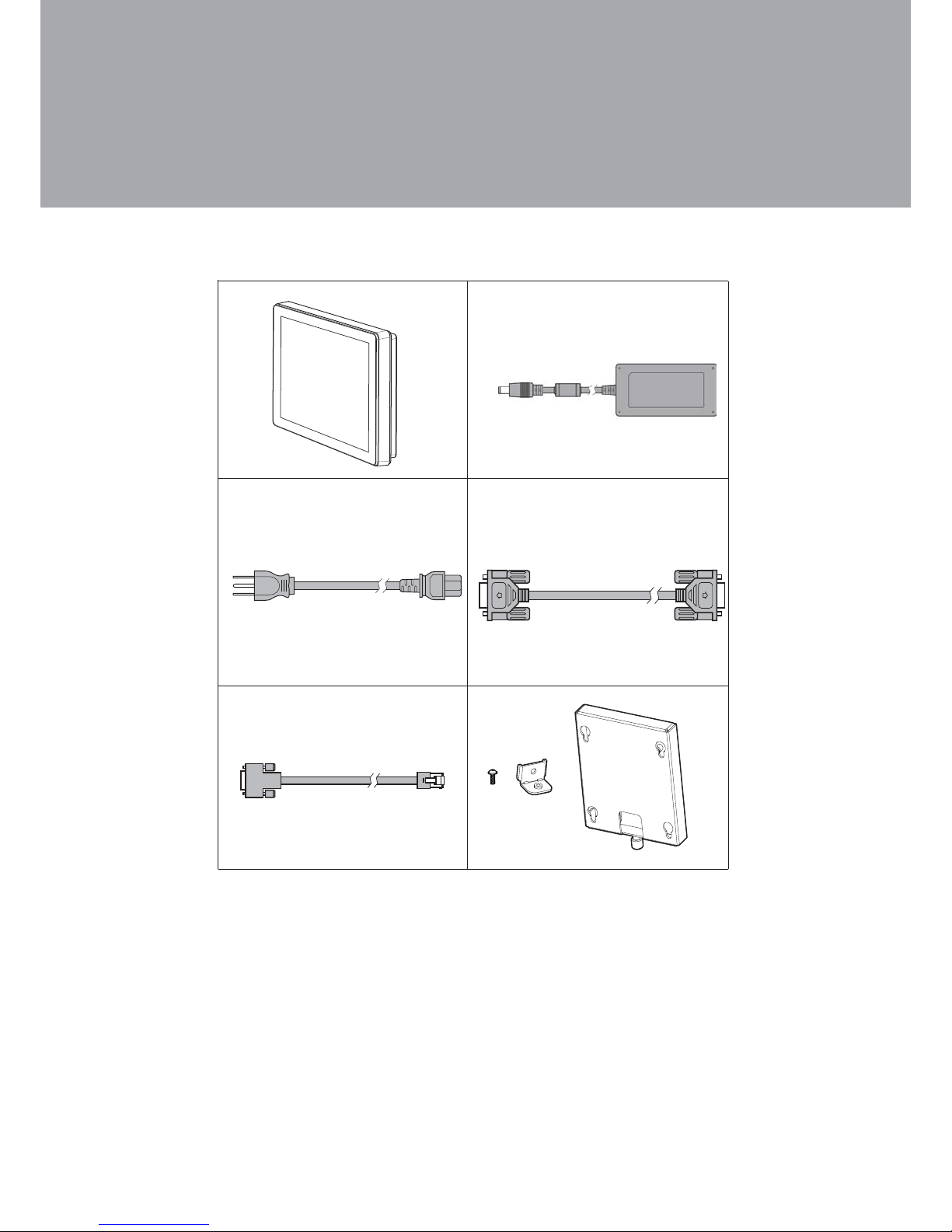

Standard Accessories

1-1.

Systema.
Power adapterb.
Power cordc.
VGA cabled.
RJ45-DB9 cable (x2)e.
Wall mount kitf.

a

b

c

d

e

f

2

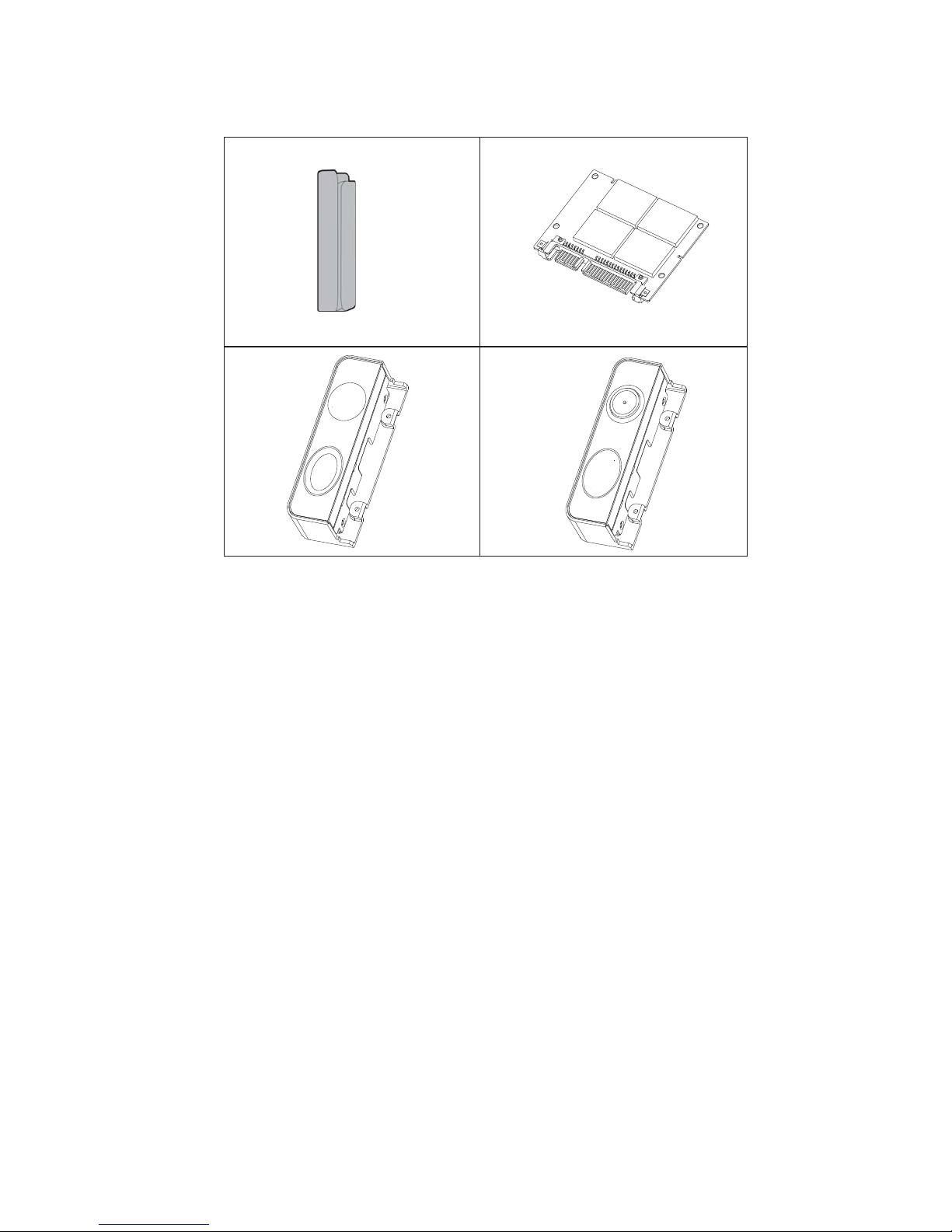

Optional Accessories

1-2.

MSR modulea.
SSD cardb.
Fingerprint modulec.
iButton moduled.

a

b

c

d

3

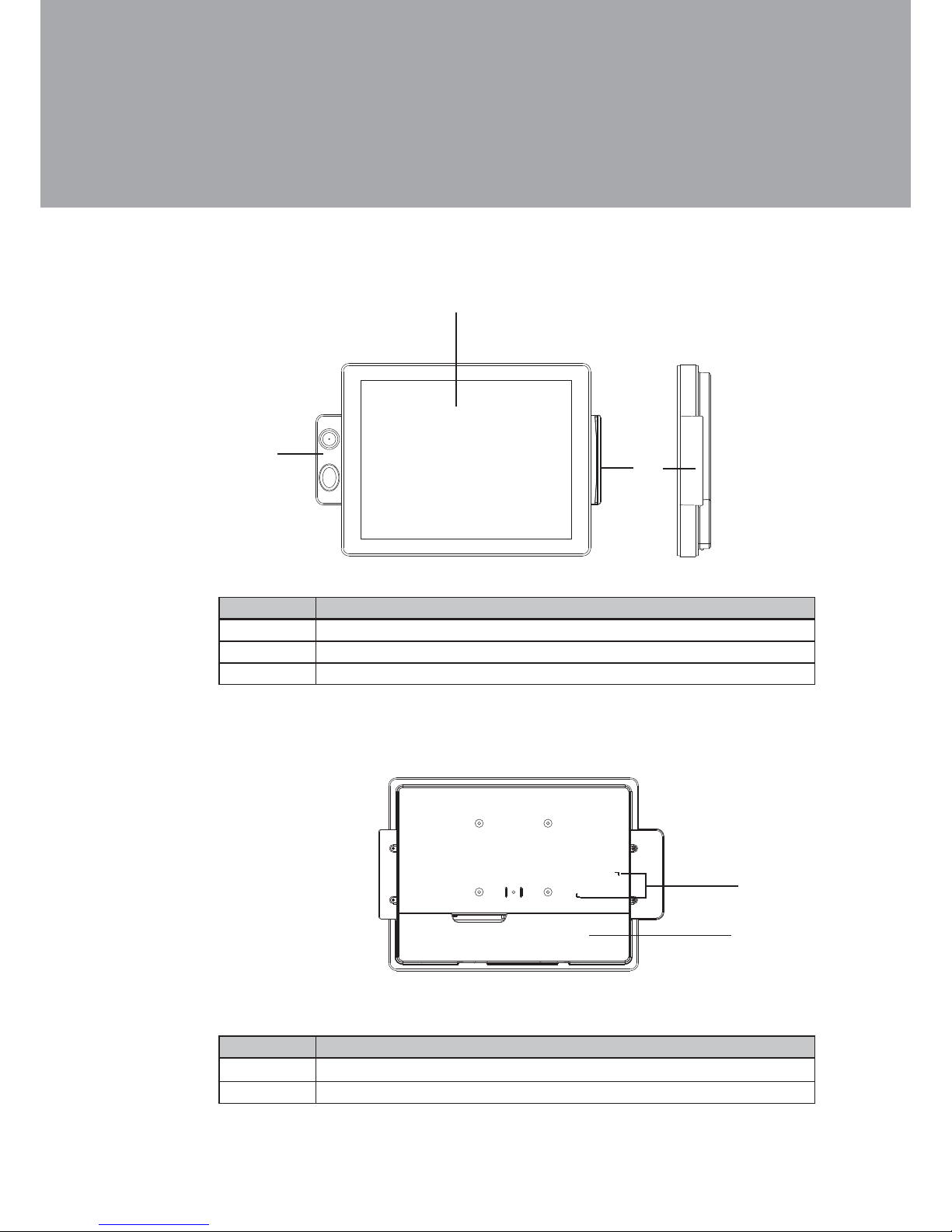

System View2.

Front & Side View

2-1.

Item No. Description

1 Touch screen
2 MSR module (optional)
3 Fingerprint or iButton module (optional)

Rear View with Stand

2-2.

Item No. Description

4 Safety label
5 Cable cover

1

3

2

5

4

4

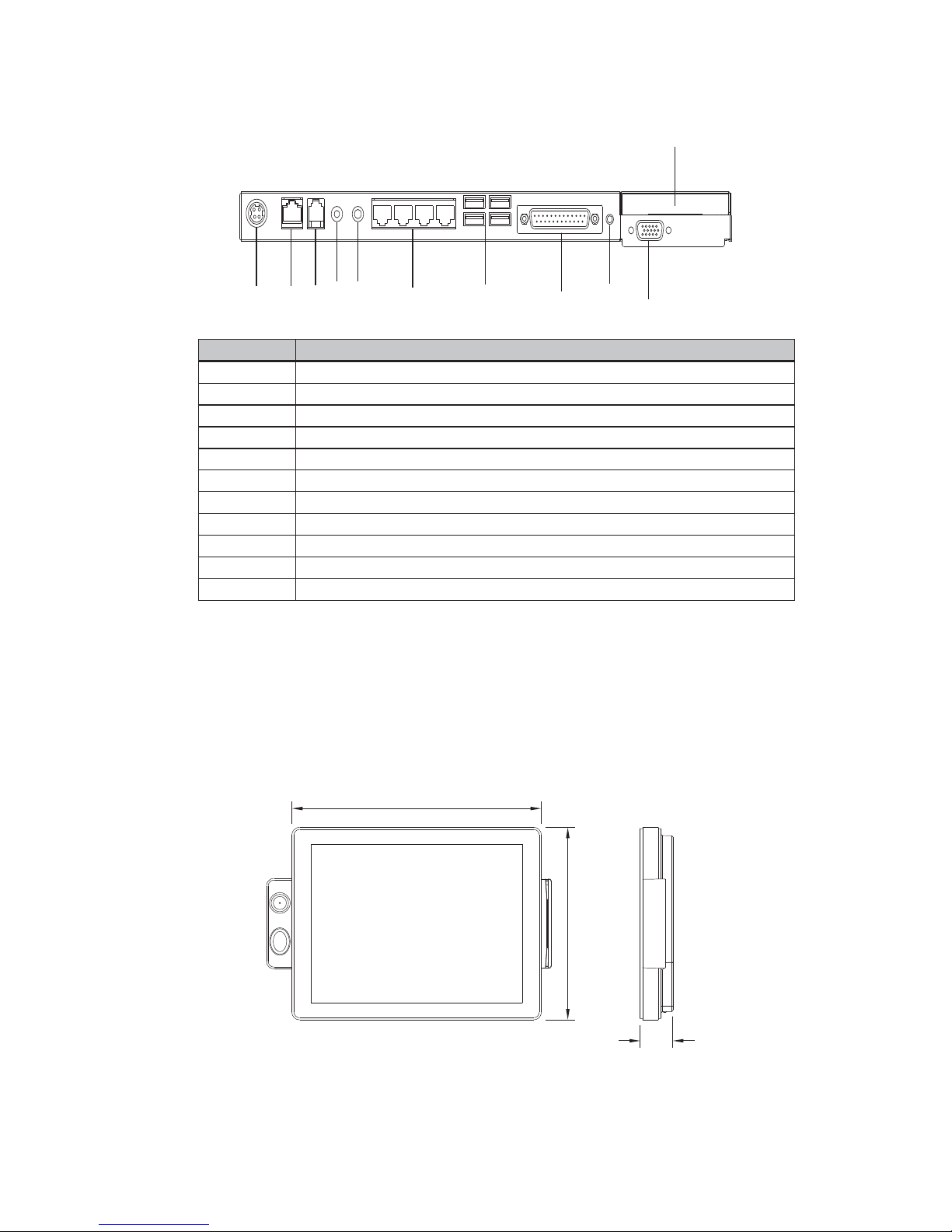

I/O Ports View

2-3.

System Dimension

2-4.

a

b

c

d

e

f

g

h

i

j

k

Item No. Description

a DC IN
b LAN
c Cash drawer
d MIC in
e Line out

f COM port 1, 2, 3, 4 (from left to right)
g USB(x4)
h Parallel

i 2nd power button

jVGA
k HDD slot

363.4 mm

280.4 mm

48.3 mm

5

System Assembly & Disassembly3.

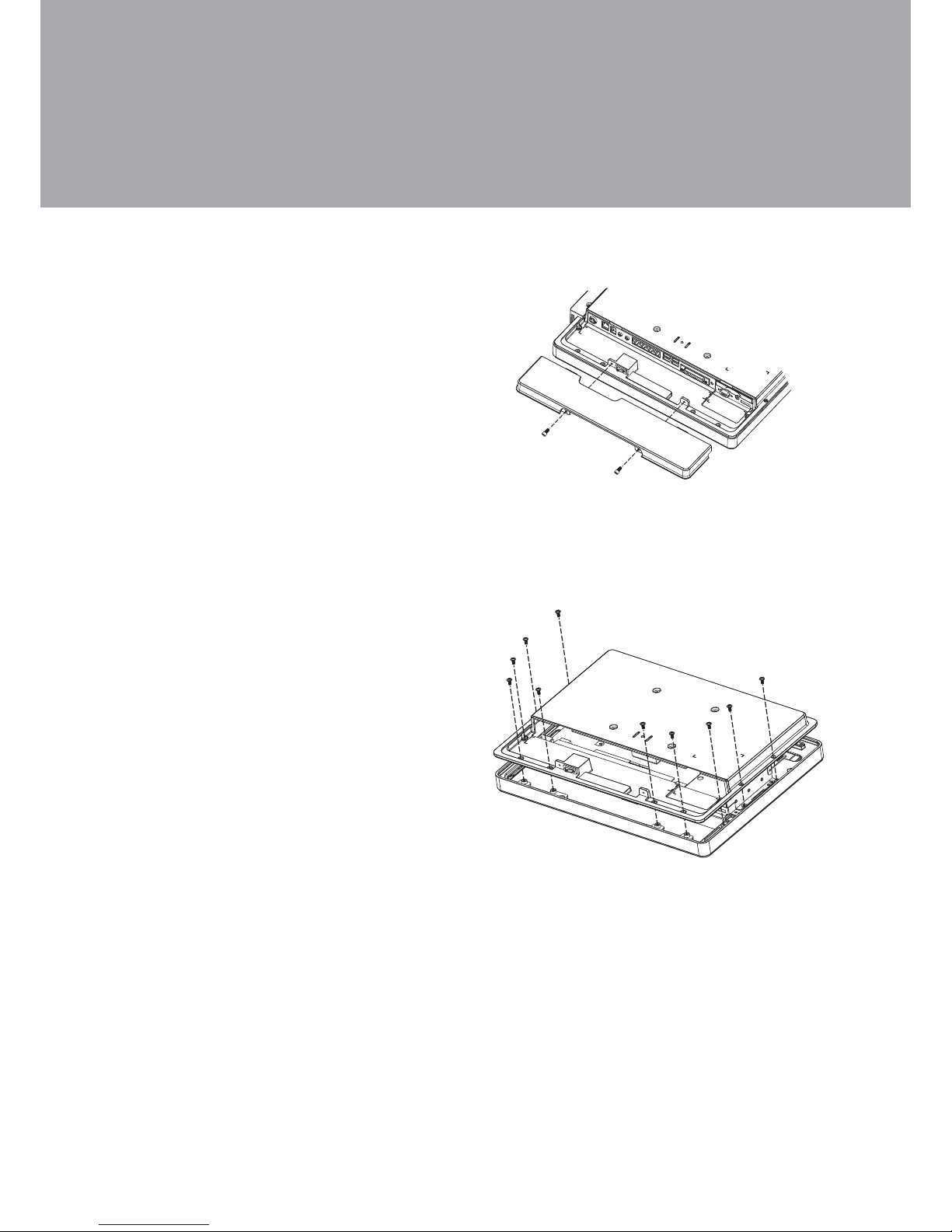

Open Cable Cover

3-1.

1. Place the system face down. Make
sure not to scratch the screen.

2. Loosen the thumb screws(x2) to
open the cable cover.

Open the System

3-2.

To open the system, please open the cable cover firstly as steps dscribed in chapter
3-1

1. Loosen the hex socket cap
screws(M3x10) to open the rear
rear cover of the system.

Note: If the system is equipped
with MSR/ Fingerprint/ iButton,
please remove them first.(refer
to Chapter 4-1 and 4-2 and
reverse the steps to remove the
MSR/ Fingerprint / iButton)

6

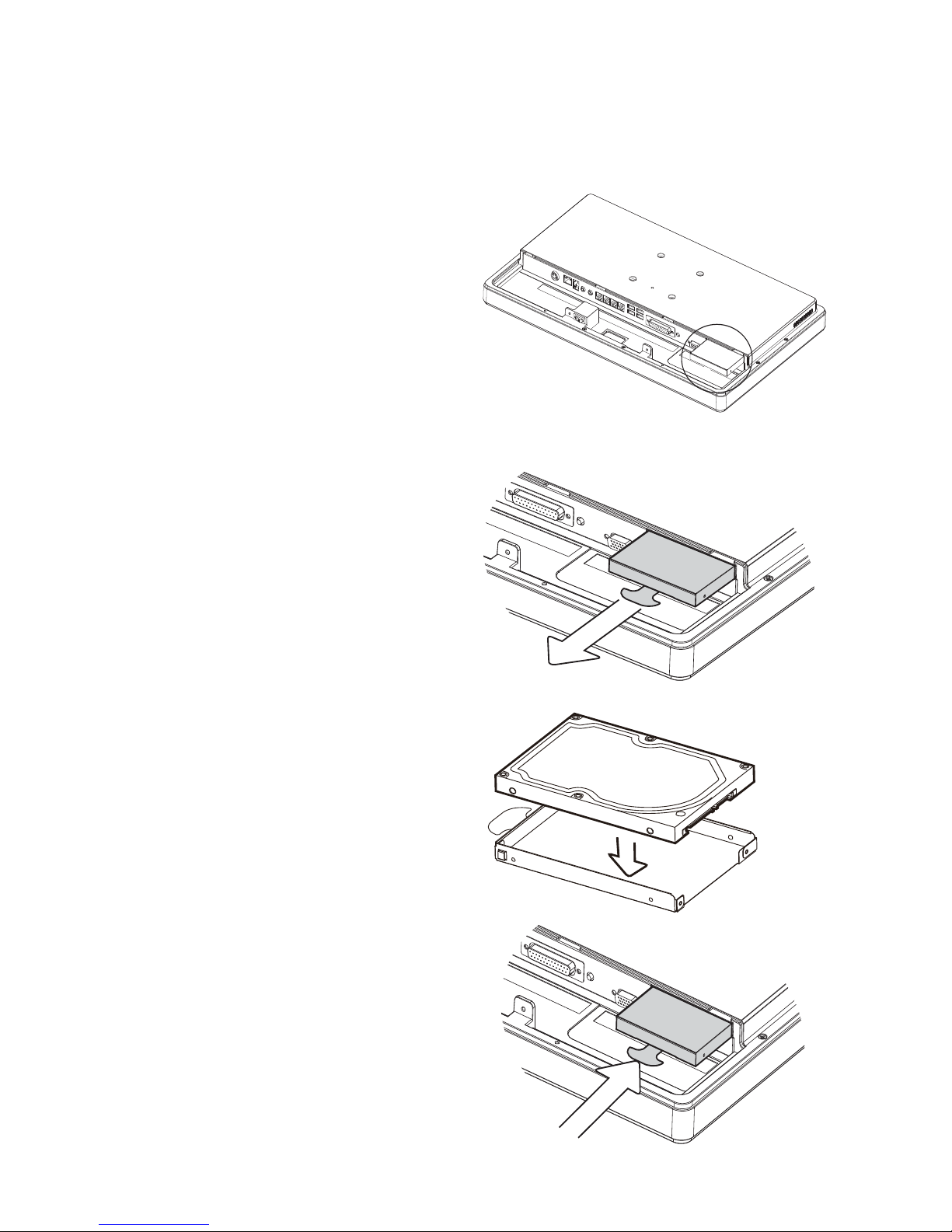

To remove and replace the HDD, please open the cable cover firstly as steps dscribed
in chapter 3-1

1. Power the system off. Find the
HDD located at the right side.

2. Pull the HDD tray from the system.
For easier removal pull the plastic
sheet (see picture) at the same
time.

3. Attach the HDD to the HDD tray and
slide it into the slot until it snaps in
place.

* Please note the top of the HDD

should be on the upper side.

HDD Replacement

3-3.

7

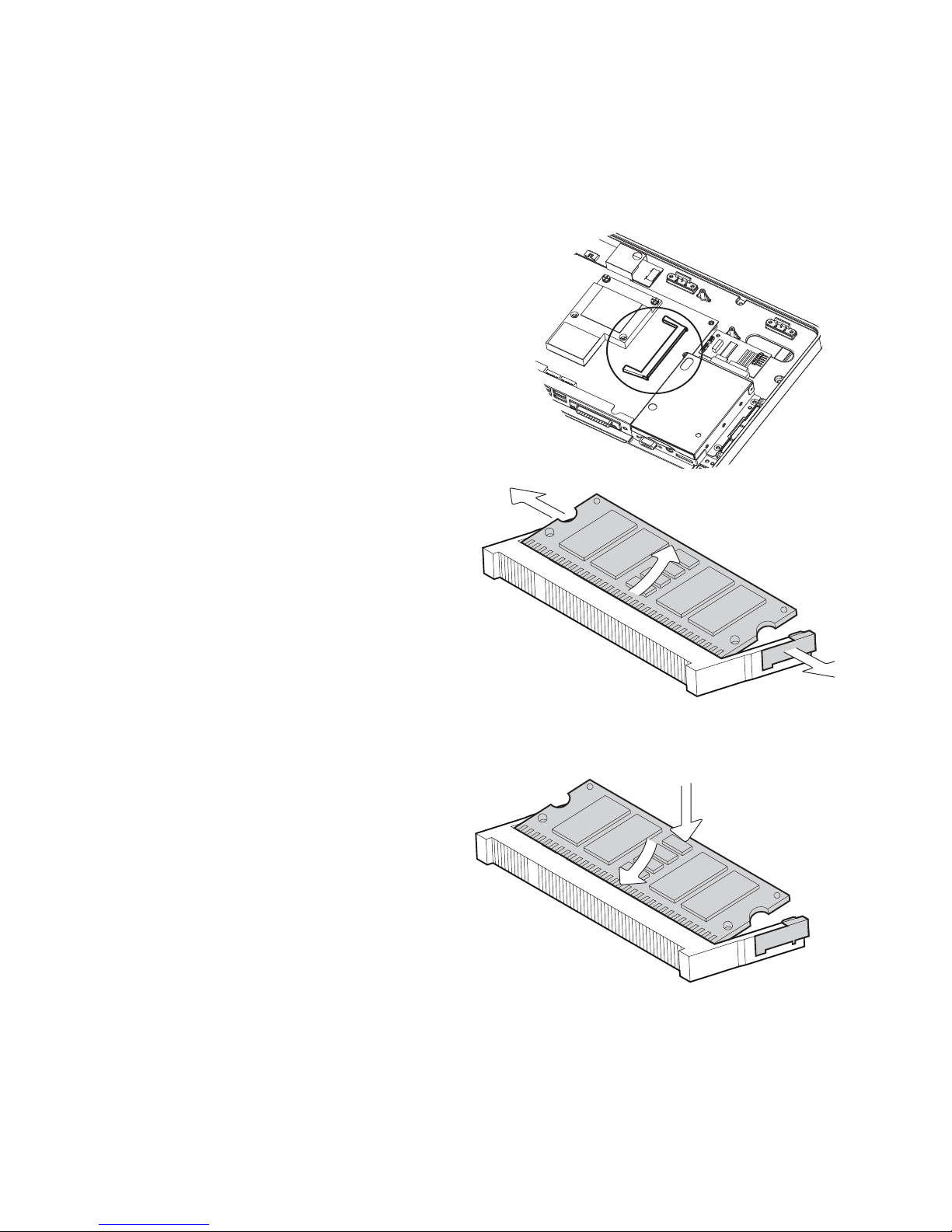

RAM Replacement

3-4.

To remove and replace the RAM module, please open the rear cover firstly

as steps dscribed in chapter 3-2.

Removing a RAM module

1. Find the memory slot at the right
side of the motherboard.

2. Flip the ejector clips outwards
to remove the memory module
from the memory slot.

Installing a RAM moudle

3. Slide the memory module into
the memory slot and press down
until the ejector clips snaps in
place.

8

Peripheral Installation4.

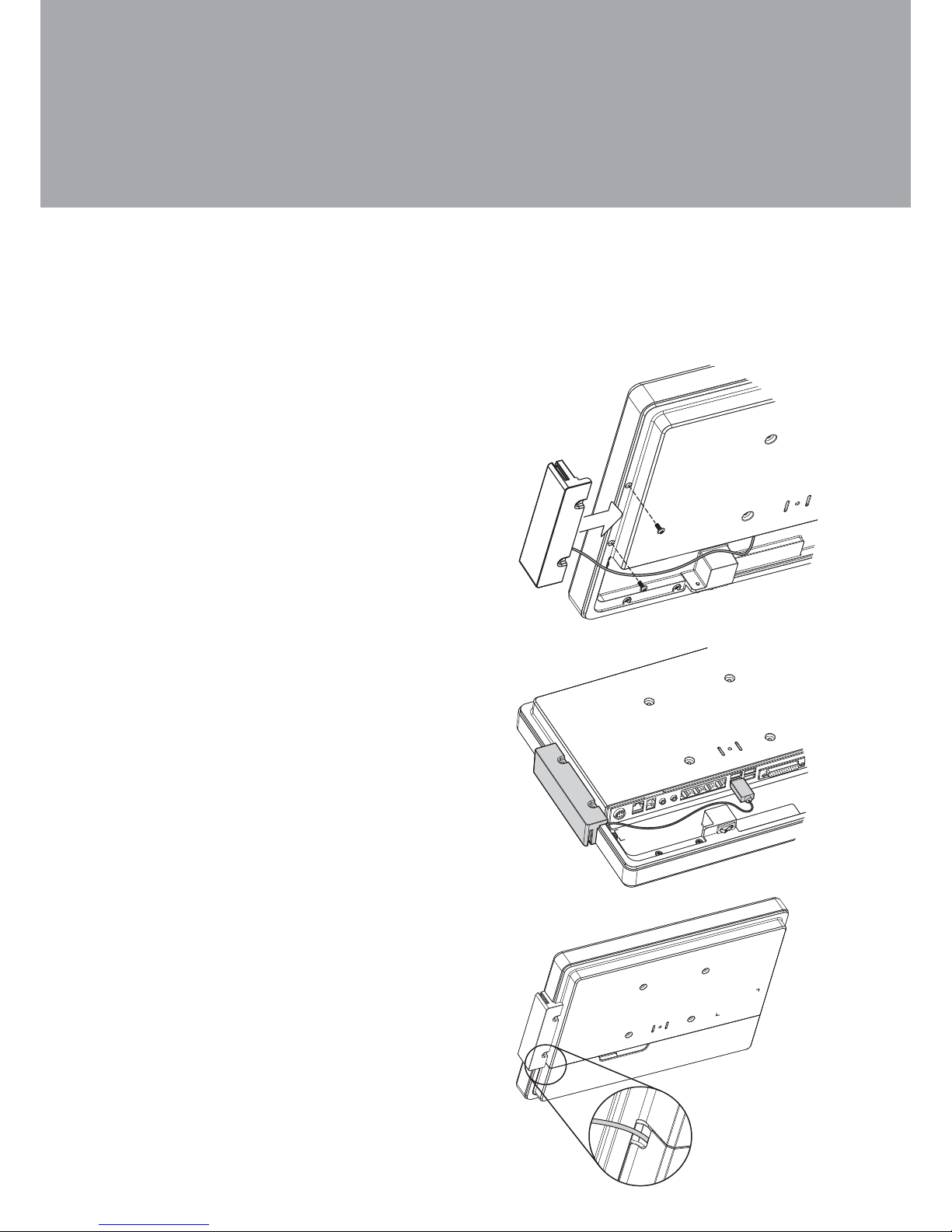

MSR Installation

4-1.

MSR module can be installed to either side of the system. Choose one side and
follow the steps below. Before the installation, please open the cable cover firstly as
steps described in chapter 3-2

1. Insert MSR module in place and
fasten the screws (M3x2) on the back
to secure the module.

2. Connect MSR cable to the connector on
system side.

3. Close the cable cover and fasten
screws (x2). Make sure the MSR cable
is threaded through the MSR cable
hole on the system

.

9

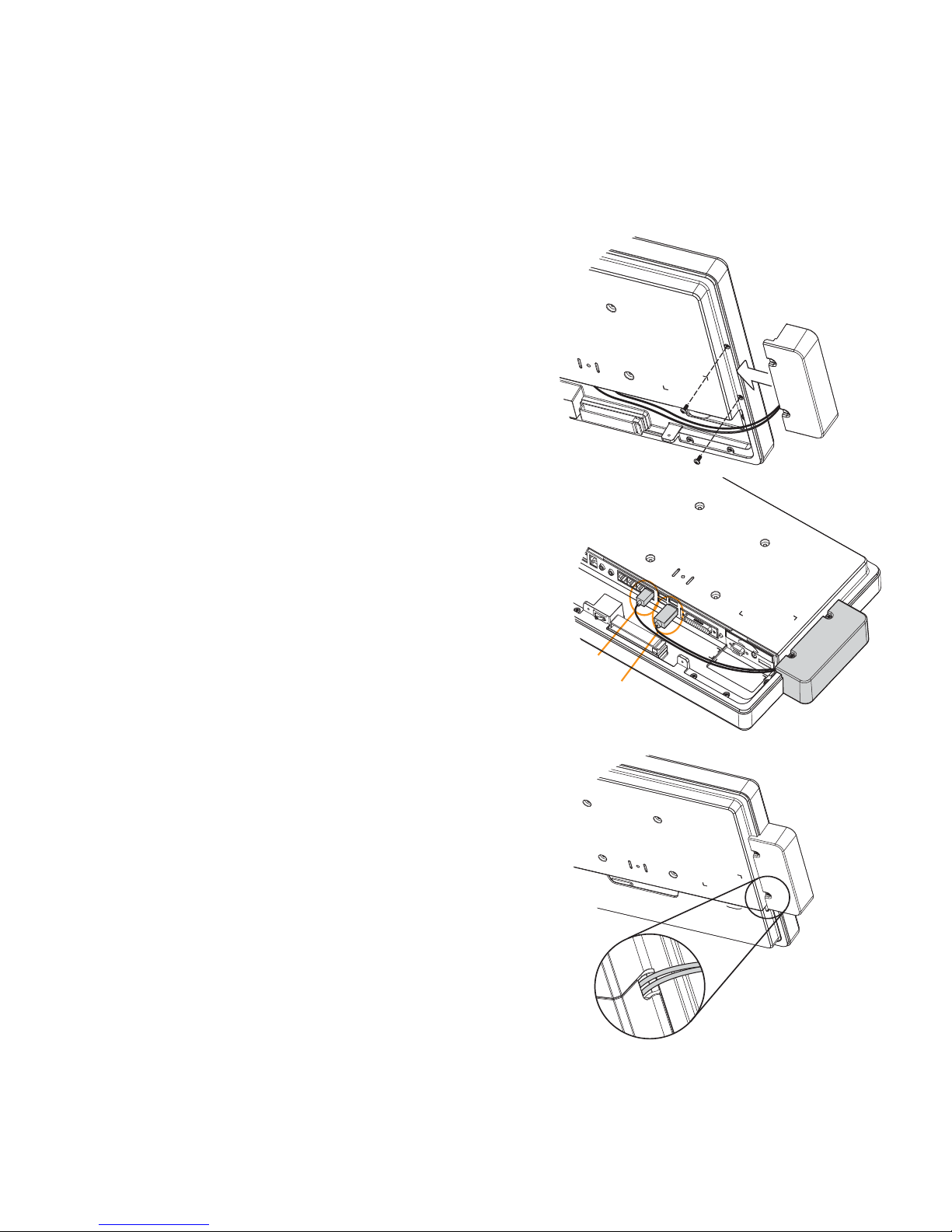

Fingerprint and iButton Installation

4-2.

1. Insert Fingerprint and iButton module in
place and fasten the screws (M3x2) on
the back to secure the module.

Fingerprint and iButton module can be installed to either side of the system. Choose
one side and follow the steps below. Before the installation, please open the cable
cover firstly as steps described in chapter 3-1

2. Connect the iButton cable to the RJ45 COM
port on the I/O panel, and connector the
Fingerprint cable to the USB port.

3. Close the cable cover and fasten
screws (x2). Make sure the cables are
threaded through the cable hole on the
system.

iButton

Fingerprint

10

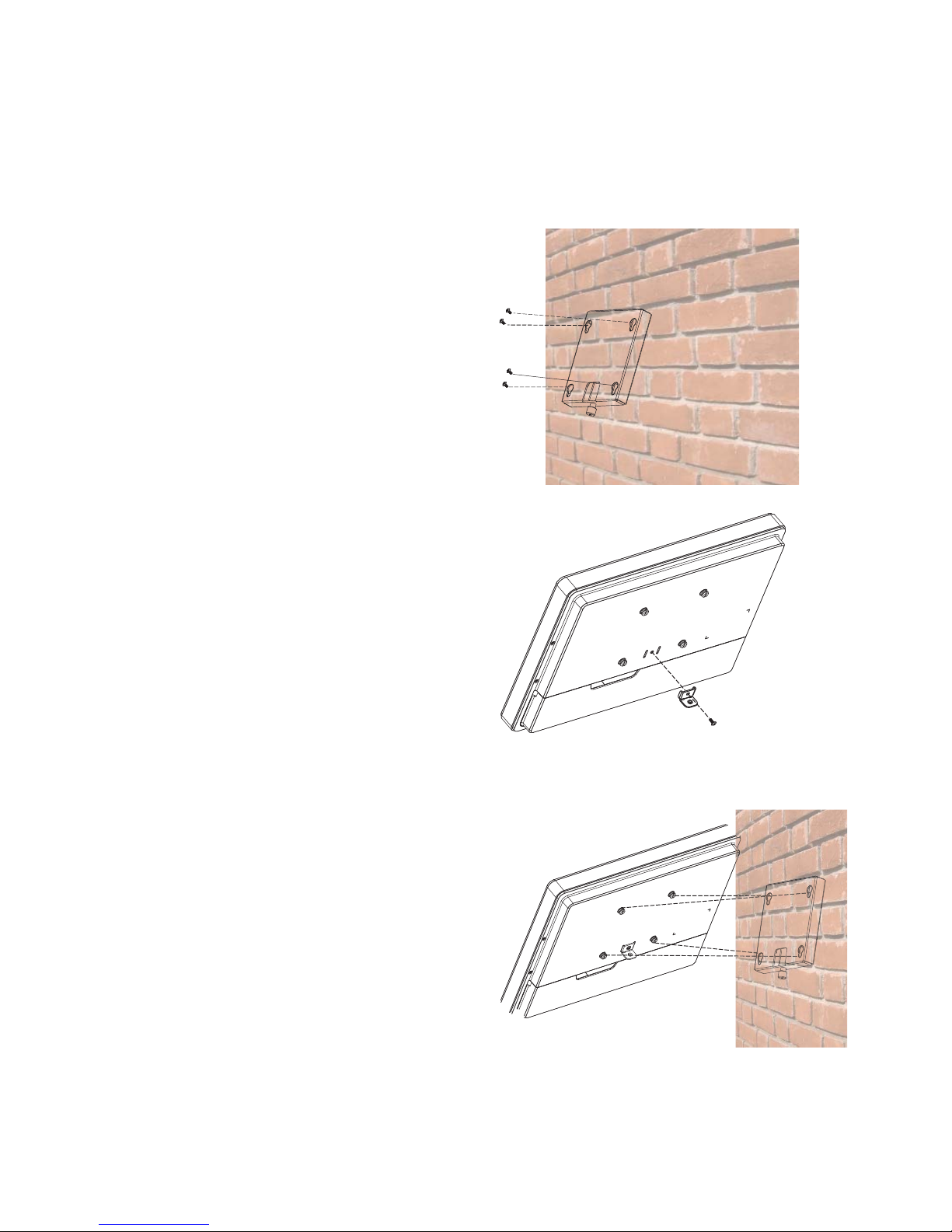

Wall Mount Kit Installation

4-3.

The Wall Mount Kit includes a wall plate, a metal bracket, and one screw. (refer to
Chapter 1-2 item c) Please follow the steps below for installation.

2. Attach the metal bracket to the back
side of the sytem by fastening the
screw (x1) as picture shown.

3. Align the large end of the teardrop

mounting holes (x4) on the wall
plate with the screws (x4) on the
systems rear cover. Slide the wall
plate until the screws are even with
the narrow end.

1. Secure the wall plate to the wall by

fastening screws (M3x4)

11

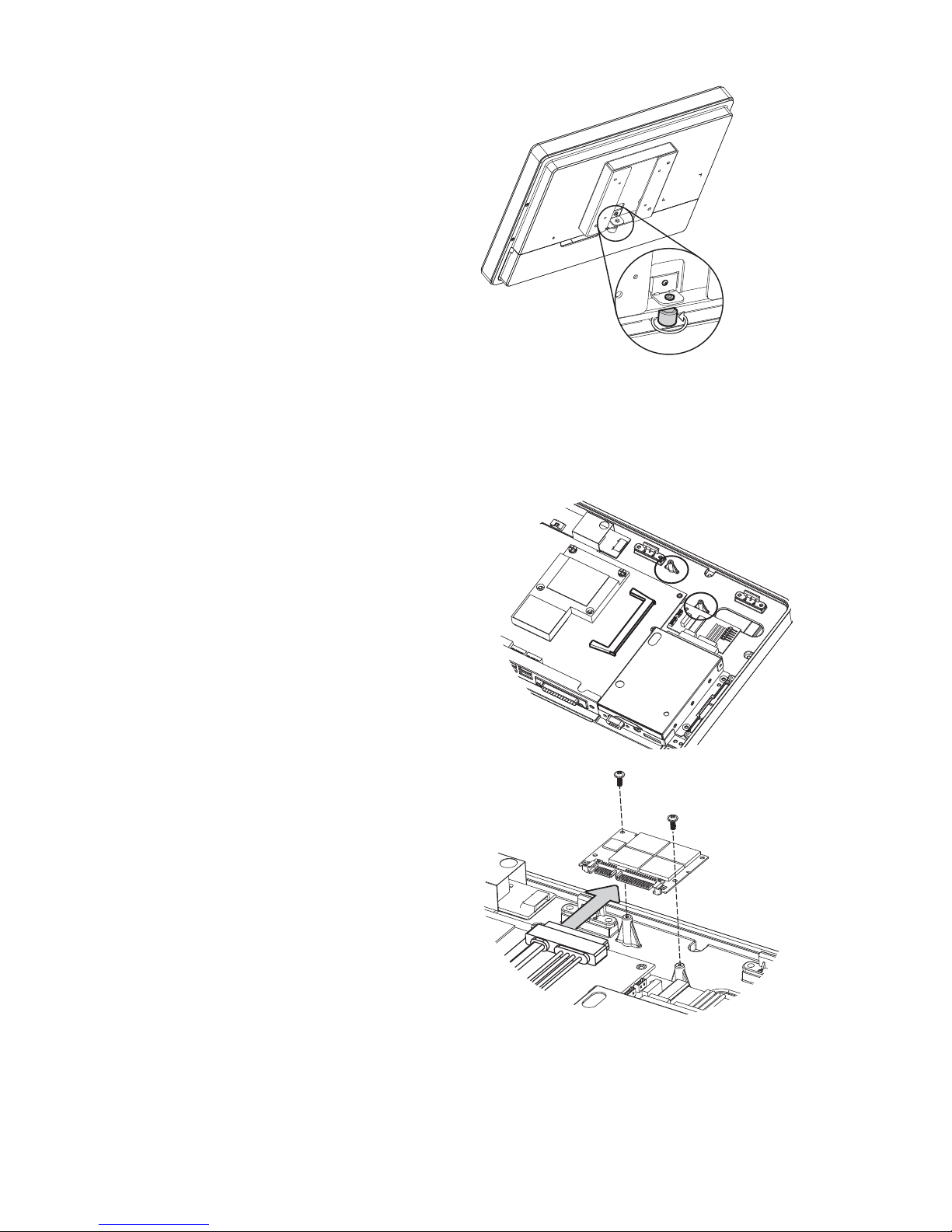

SSD Card Installation

4-4.

1. Refer to Chapter 3-3 to open the
system.

2. Find the two positioning pins on the
system.

1. Insert the SSD card to the cable
connector as shown by arrow.

2. Align the SSD card to the
positioning pins and fasten the
screws(x2) as picture shown.

4. Fasten the screw (x1) through the
metal bracket to secure the wall
mount kit.

12

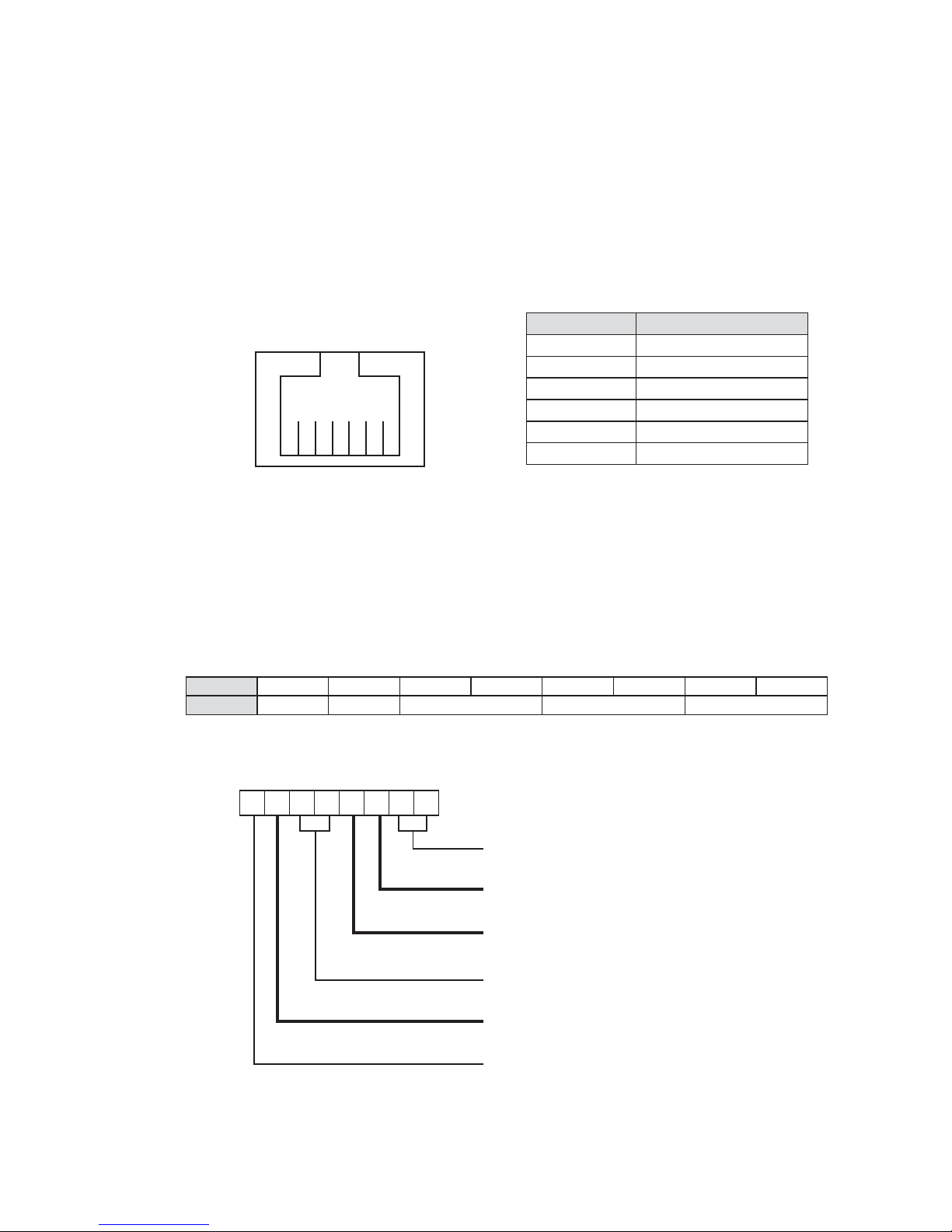

You can install a cash drawer through the cash drawer port. Please verify the pin as­signment before installation.

Cash Drawer Pin Assignment

Pin Signal

1 GND
2 DOUT bit0
3 DIN bit0
4 12V / 19V
5 DOUT bit1
6 GND

Cash Drawer Controller Register

The Cash Drawer Controller use one I/O addresses to control the Cash Drawer.

Register Location: 48Ch

Attribute: Read / Write

Size: 8bit

BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

Attribute Reserved Read Reserved Write Reserved

76543210
X

X X

X X

Reserved

Cash Drawer “DOUT bit0” pin output control

Cash Drawer “DOUT bit1” pin output control

Reserved

Cash Drawer “DIN bit0” pin input status

Reserved

1

6

Cash Drawer Installation

4-5.

13

Bit 7: Reserved
Bit 6: Cash Drawer “DIN bit0” pin input status.
= 1: the Cash Drawer closed or no Cash Drawer
= 0: the Cash Drawer opened
Bit 5: Reserved
Bit 4: Reserved
Bit 3: Cash Drawer “DOUT bit1” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
Bit 2: Cash Drawer “DOUT bit0” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
Bit 1: Reserved
Bit 0: Reserved

Note: Please follow the Cash Drawer control signal design to control the Cash Drawer.

Cash Drawer Control Command Example

Use Debug.EXE program under DOS or Windows98

Command Cash Drawer

O 48C 04 Opening
O 48C 00 Allow to close

Set the I/O address 48Ch bit2 =1 for opening Cash Drawer by “DOUT bit0” pin

►

control.
Set the I/O address 48Ch bit2 = 0 for allow close Cash Drawer.

►

Command Cash Drawer

I 48C Check status

The I/O address 48Ch bit6 =1 mean the Cash Drawer is opened or not exist.

►

The I/O address 48Ch bit6 =0 mean the Cash Drawer is closed.

►

14

Specifications5.

Model W-TOUCH
Motherboard C48

CPU Support Intel PineTrial D525 1.8G L2 1M, Dual Core

Chipset CPU with Graphic built-in + ICH 8M
System Memory 2 x DDR3 SO-DIMM up to 4GB FSB 800MHz

Graphic Memory Shared system memory up to 256MB

LCD Touch Panel

LCD Size 15” TFT LCD
Brightness 250nits
Maximal Resolution 1024 x 768
Touch Screen Type Resistive
Tilt Angle 0° ~ 90°

Storage

HDD One 2.5” SATA HDD bay
Flash Memory SATA SSD flash card (optional)

Expansion

mini PCI-E 1

External I/O Ports

USB 4 ports (V2.0)

Serial / COM

4 x RJ45 COM(COM1/COM2 standard RS-232 without power, COM3 /COM4 powered COM with

power enable /disable by BIOS setting and +5V/+12V by MB setting.
Parallel 1
LAN (10 /100 / 1000) 1 x RJ45
DC Jack 1
2nd VGA 1 (Female)
Cash Drawer Port 1 x RJ 11 (12V /24V)
Audio Jack 1 x Line-out, 1 x Mic-in

Power

Power Adapter 19V/90W

Control / Indicator

Power Button 1

Peripheral

MSR 3 Tracks MSR ( USB )
Fingerprint Fingerprint (USB)
iButton iButton (COM)
Second Display 8.4” / 15” 2nd display without touch (optional)
Customer Display Flush mount VFD display 2 x 20 characters (COM)

Environment

EMC & Safety FCC, Class A, CE, LVD
Operating Temperature 5°C ~ 35°C (41°F ~ 95°F)
Storage Temperature -20°C ~ 55°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% RH non condensing
Storage Humidity 20% ~ 85% RH non condensing
Dimension (W x D x H)

363.4 x 280.4 x 48.3

Weight (N.W./G.W.) 7.4kgs / 8.4kgs
Mounting 100mm x100mm VESA mounting holes for Panel PC type
OS Support Windows® XP Professional, Windows Embedded POSReady 2009, Windows XP Embedded,

Windows XP Professional for Embedded, WinCE, Windows 2000 Professional for Embedded,

Vista, Windows 7, Linux

* This specification is subject to change without prior notice.

15

AH

AG

AF AD

AC

AB YW

V T

R

P

M

L

K H

G

F D

C

B

282726

242322

21

19

181716 141312

11 987

6 432

1

29

25

20

15

10

5

AEJ

N

U

AAAEAJ

AL

AK

AJ

AH

AG

AF

AE

AD

AC

AB

AA

Y

W

V

U

T

R

P

N

M

L

K

J

H

G

F

E

D

C

B

A

31

30292827262524232221201918171615141312111098765432

1

15

17

18

16

2

11

DDR3_A1

CN24

MINI_PCIE

RJ45_2

PWR1

RJ11_1

CN18

CN14

RJ45_1

JP5

JP4

JP18

CN23

USB2

USB1

CN29

JP19

CN21

CN16

CN17

SKT1

JP8

JP1

FAN_CPU1

CN4

CN3

CN1

CN28

CN25

SW1

JP21

JP3

JP6

CN7

JP12

CN22

JP10

JP9

CN20

CN13

CN19

CN15

JP14

JP20

CN31

CN27

CN8

CN5

CN26

CN11

SATA2

SATA1

PRN1

JP1

JP3

JP4

JP5

JP6

JP8

JP9

JP10

JP12

JP14

JP18

JP19

JP20

JP21

C48 V2.1 TOP LAYER

Jumper Setting6.

C48 Motherboard

6-1.

6-1-1.

Motherboard Layout

16

DDR3_A2

C48 V2.1 BOTTOM LAYER

17

6-1-2.

Connectors & Functions

Connector Purpose

CN1 Power Button Connector
CN3 Printer Port Reset
CN4 Printer Port
CN5/8 HDD Power
CN11 COM5 For Touch
CN13 Card Reader Connector
CN14 Line out
CN15 HDD LED
CN16 Speaker & MIC
CN18 MIC IN
CN20/JP10 System Indicator
CN22 USB Port
CN23 PS2 KEYBOARD
CN26 LVDS
CN27 Inverter Connector
CN29 System Fan
DDR3_A1 DDR3 SO-DIMM1
DDR3_A2 DDR3 SO-DIMM2
PRN1 Parallel Port
PWR1 +19V DC Jack
RJ11_1 Cash Drawer Connector
RJ45_1 COM1, COM2, COM3, COM4
RJ45_2 LAN
SATA1 SATA Connector
SATA2 SATA Connector
USB1 USB1, USB2
USB2 USB3, USB4
SW1 Power Button
JP1 CMOS Operation Mode
JP3/6 VGA Port
JP4/5 COM2 RS232/485/422 Setting
JP8 LCD ID Setting
JP9 Power Mode Setting
JP12 System Reset
JP14 Inverter Selection
JP18 COM3/4 Power Setting
JP19 Cash Drawer Power Setting

18

COM2 RS232/485/422 Setting

Function JP5 JP4

▲RS232

13579
268104

57911

2

13

6 8 10 124

RS485

810

579

2

1

3

64

11

12810

579

2

13

64

RS422

810

579

2

13

64 10

57911

2

13

68 124

COM3 & COM4 Power Setting

COM3 and COM4 can be set to provide power to your serial device.
The voltage can be set to +5V or 12V by setting jumper JP18 on the motherboard.
When enabled, the power is available on pin 10 of the RJ45 serial connector..
If you use the serial RJ45 to DB9 adapter cable, the power is on pin 9 of the DB9 con­nector.

By default, the power option is disabled in the BIOS.

6-1-3.

Jumper & BIOS/Utility Setting

BIOS/Utility setup

1. Press <DEL> key to enter BIOS
SETUP UTILITY when system boot
up.

2. Find tab "Advanced".

3. Select "Power Configuration COM/
VGA Ports" and press <Enter> to
go to sub screen.

19

COM3/COM4 Jumper setup

Function JP18

COM3

▲+5V

8

57

2

13

64

+12V

8

57

2

13

64

COM4

+5V

8

57

2

13

64

▲+12V

8

57

2

13

64

Function JP1

▲CMOS Normal

2

1

CMOS Reset

2

1

▲ = Manufacturer Default Setting

4. To switch on the power, select
"Power". Please save the change
before exiting BIOS so as to go for
physical jumper adjustment.

20

Cash Drawer Power Setting

Function JP19

+19V

2

13

4

▲+12V

2

13

4

Power Mode Setting

Function JP9

▲ATX Power

2

1

AT Power

2

1

System Indicator

Function JP10

▲Disable

8

57

2

13

64

Enable

8

57

2

13

64

Inverter Selection

Function JP14

▲ CCFL

LED

▲ = Manufacturer Default Setting

5

2

13

64

5

2

13

64

21

CMOS Operation Mode

CMOS Reset

To clear the CMOS,

1. Remove the power cable from the system.

2. Open the system, and set the ‘CMOS Operation jumper’ from ‘CMOS Normal’

to ‘CMOS Reset’. (refer to the jumper shown below)

3. Connect the power cable to the system, and power on the system:

in ATX mode: press the power button and it will fail power on
in AT mode: turn on system power

4. Remove the power cable from the system.

5. Return the "CMOS Operation mode" jumper setting from "CMOS Reset" to

"CMOS normal".

6. Connect the power cable and power on the system.

Function JP1

▲CMOS Normal

2

1

CMOS Reset

2

1

▲ = Manufacturer Default Setting

22

LCD ID Setting

Several configurations are applied to different sizes of panel. Please refer to the
followings to complete relevant settings.

Resolution

LVDS

Output Interface JP8

Bits Channel

800 x 600 24 Single

1st: LCD Panel

2nd: VGA port

8

57

2

13

64

1024 x 768 24 Single

8

57

2

13

64

1366 x 768 24 Single

8

57

2

13

64

800 x 600 18 Single

8

57

2

13

64

*800 x 600 18 Single

8

57

2

13

64

1024 x 768 18 Single

8

57

2

13

64

1280 x 1024 24 Dual 1st: VGA port

8

57

2

13

64

*remark: specialized for Sharp 12.1” LQ121S1LG41/LQ121S1LG42 panel.

2

1

J

umper open

2

1

Jumper short

2nd VGA Power Setting

VGA port power must be on through BIOS/Utility for default is “No Power“.

BIOS/Utility setup

1. Press <DEL> key to enter BIOS
SETUP UTILITY when system boot
up.

2. Find tab "Advanced".

3. Select "Power Configuration COM/
VGA Ports" and press <Enter> to
go to sub screen.

23

4. To switch on the power, select
"+12V". Please save the change
before exiting BIOS to avoid data
lost.

LCD Brightness Control Setting

Please note Brightness Control can only be set by setting jumper JP14 for CCFL on
the motherboard C48 V2.1. By default, the inverter is CCFL on the motherboard
jumper setting.

1. Power on the system, and press
the <DEL> key when the system is
booting up to enter the BIOS Setup
utility.

2. Select the Advanced tab.

3. Select Power Configuration COM/
VGA Ports and press <Enter> to go
to display the available options.

4. To change the brightness, select
“Brightness Control” and press
<Enter>. Choose the desired
brightness level (0~7) press
<Enter>. Save the change by
pressing F10.

NOTE: the new brightness will

take effect after the system has
restarted.

24

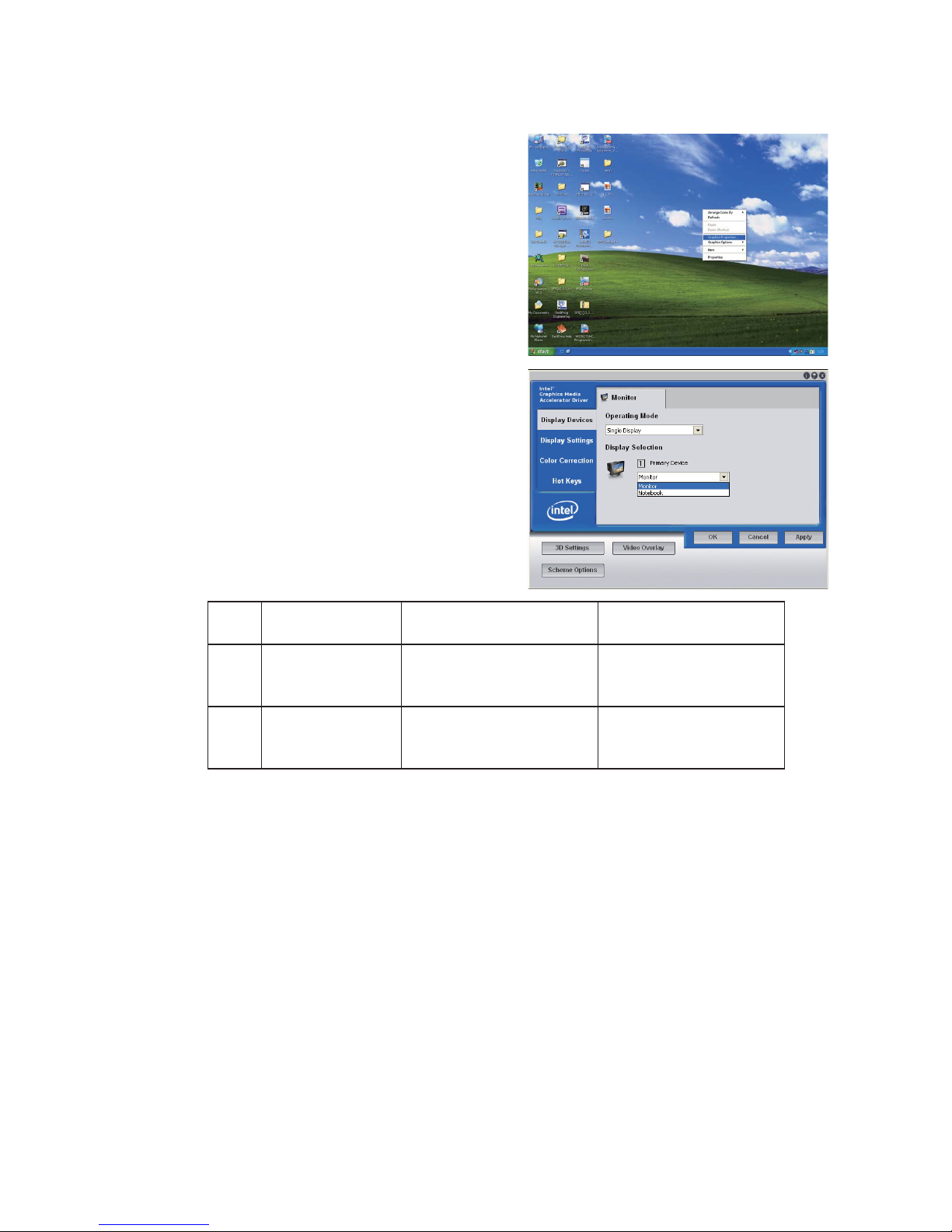

Intel Graphics Driver Setting

1. Right click Desktop. Find
"Graphics Properties" and enter
the manu.

2. Make sure the Display Device is
same as follows.

No. Output Interface Connector & Jumper

Intel Graphics Driver

Device Name

1st LCD Panel CN26 Notebook

2nd VGA Port JP3/6 Monitor

25

Appendix: Drivers Installation

To downoad the most recent drivers and utilities, and obtain advice regarding the
installation of your equipment, please visit the AURES Technical Support Website:

www.aures-support.fr (French)
www.aures-support.fr/UK (English)
www.aures-support.fr/GE (German)
