1. Packing List
Take the system unit out of the carton. Remove the unit from the carton by holding it by the
foam inserts. The following contents should be found in the carton:
a. Power Cable b. Driver CD
Page 9
9
2. System View

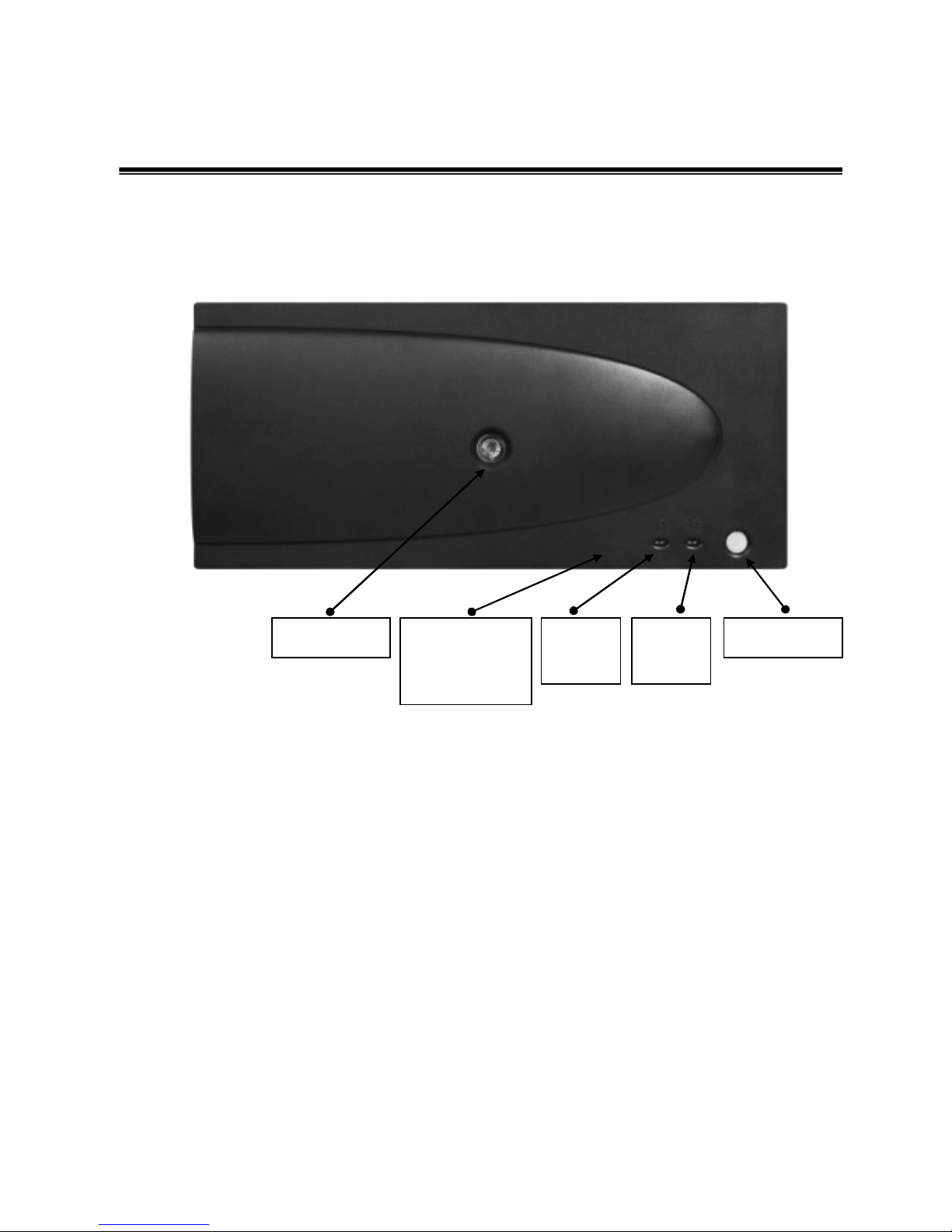

2.1 Front View
1 x USB behind
front bezel
(See Ch. 5.1- 5.2)
Battery
LED
Power
LED
Power Button Key Lock
Page 10
10
C
ash
Drawer
2.2 I/O View
AC Power
COM2 & 4
COM 6
Line Out
LPT
VGA
COM1 DC Output 12V LAN
COM 3 & 5
4 x
P/S 2
Keyboard
Note: The maximum current that can be drawn from each COM port is 500 mA.
Pin Assignment
1 NC
2 + 24V DC
3 GND
DC output 24V Pin Assignment
DC Output 24V
Page 11
11
3. Driver Installation
3.1 Driver List
Folder/File File Description
<CD>:\Poseo_5100.htm B89 Driver List
<CD>:\Common\INTEL\Chipset\i8xx Chipset Driver
<CD>:\COMMON\INTEL\VGA\i85x\Win2K_XP\CRT_
only\IEGD51-FT2a
<CD>:\Common\Ac97_codec\Realtek\ALC202A Audio Driver
<CD>:\COMMON\Lan_driver\R8139_810x 10/100Mb LAN Driver
-The following procedures are for Windows XP, other platforms are similar.
VGA IEGD Driver
3.2 Chipset Driver Installation

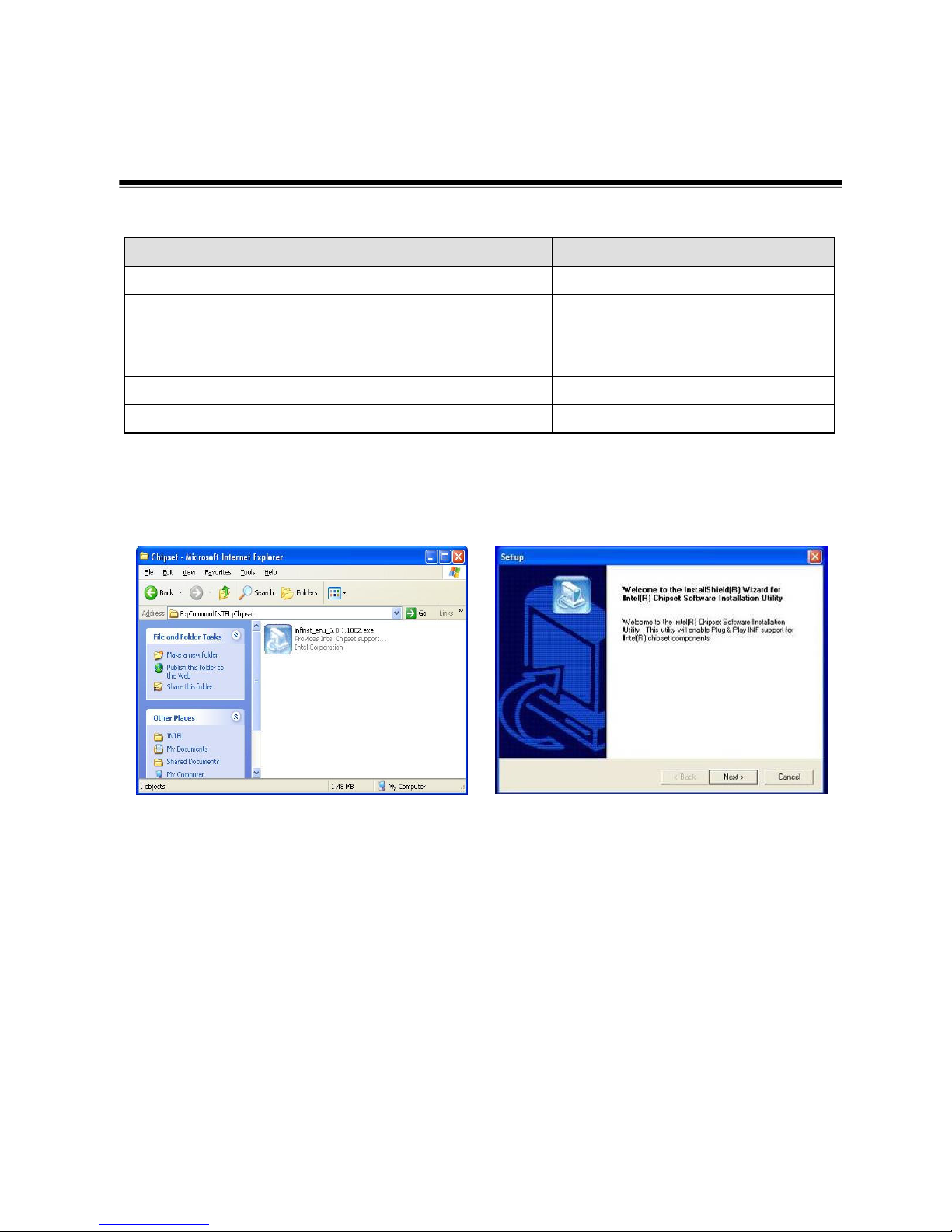

a. Double click on
“infinst_enu_6.0.1.1002” in the My
Computer window.
b. Click “Next”.
Page 12
12

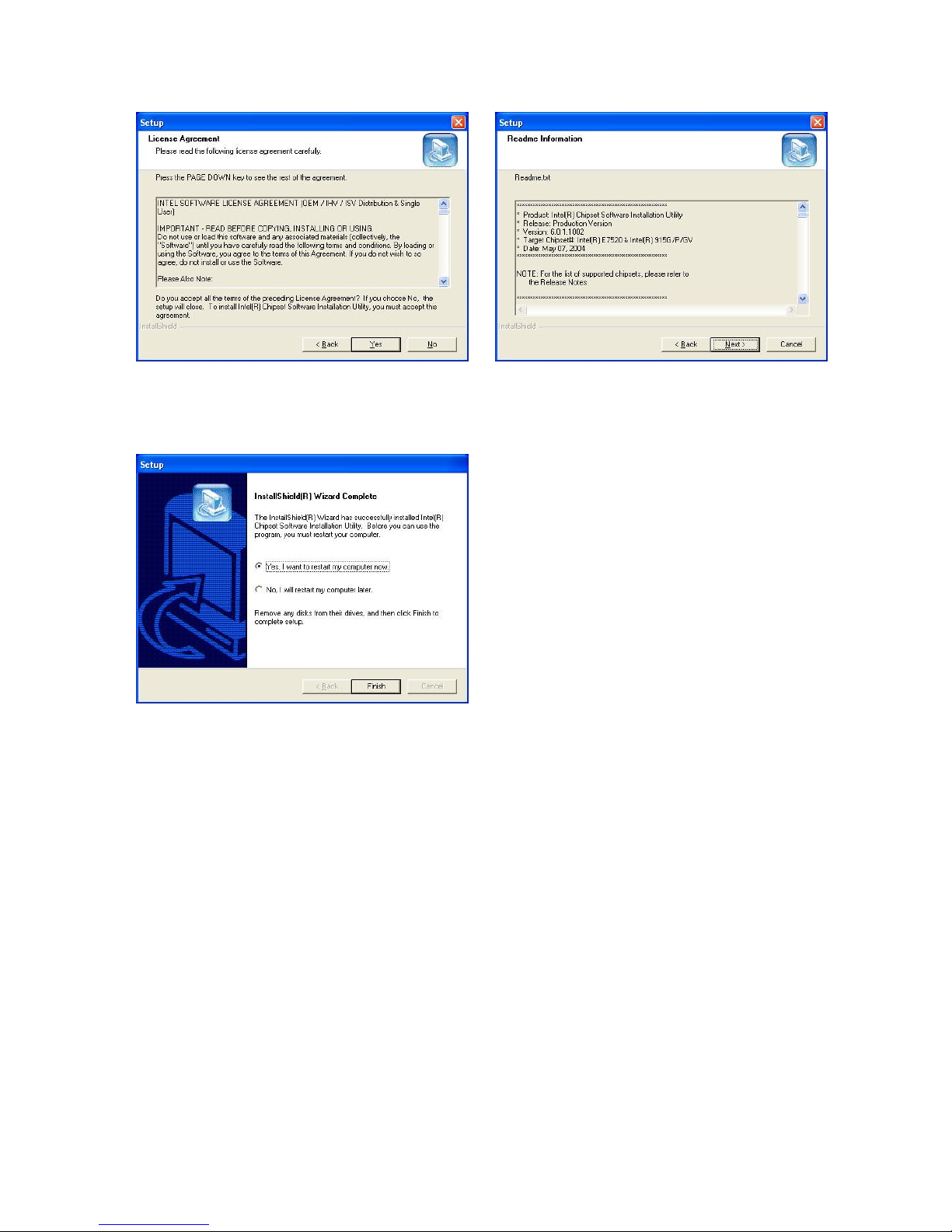

c. Click “Yes”. d. Click ”Next”.
e. Click the “Finish” button to restart your
system.
Page 13
13

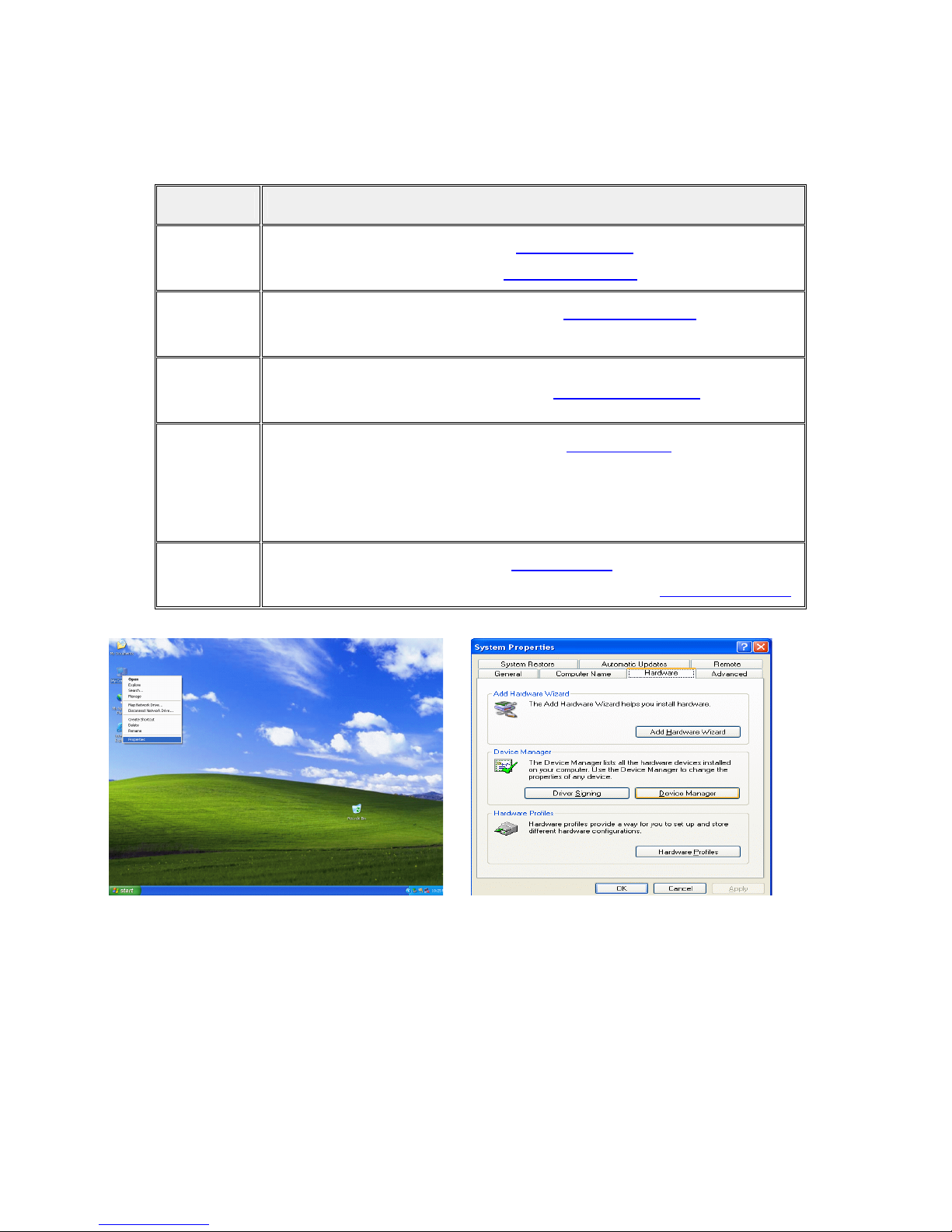

3.3 USB 2.0 Driver Installation
OS Requirements
OS USB 2.0 requirements
Windows
XP
Windows
2000
Windows
98SE/Me
Windows
98 (Retail)
Linux
USB 2.0 drivers are provided in Service Pack 1 (SP1) for Windows
XP, which is available through Windows Update.
USB 2.0 drivers are available through Windows Update or Service
Pack 4.
USB 2.0 drivers are available on the Intel developer site.
Developers and OEMs should contact Orange Ware. For end-users,
if your device does not ship with Windows 98 drivers, contact your
device or system manufacturer. If USB 2.0 drivers are not available,
your device will operate at USB 1.1 speeds
USB 2.0 support is available in kernel 2.4.19 or later development
kernels, or in the 2.4.19 or later production kernel. More information.

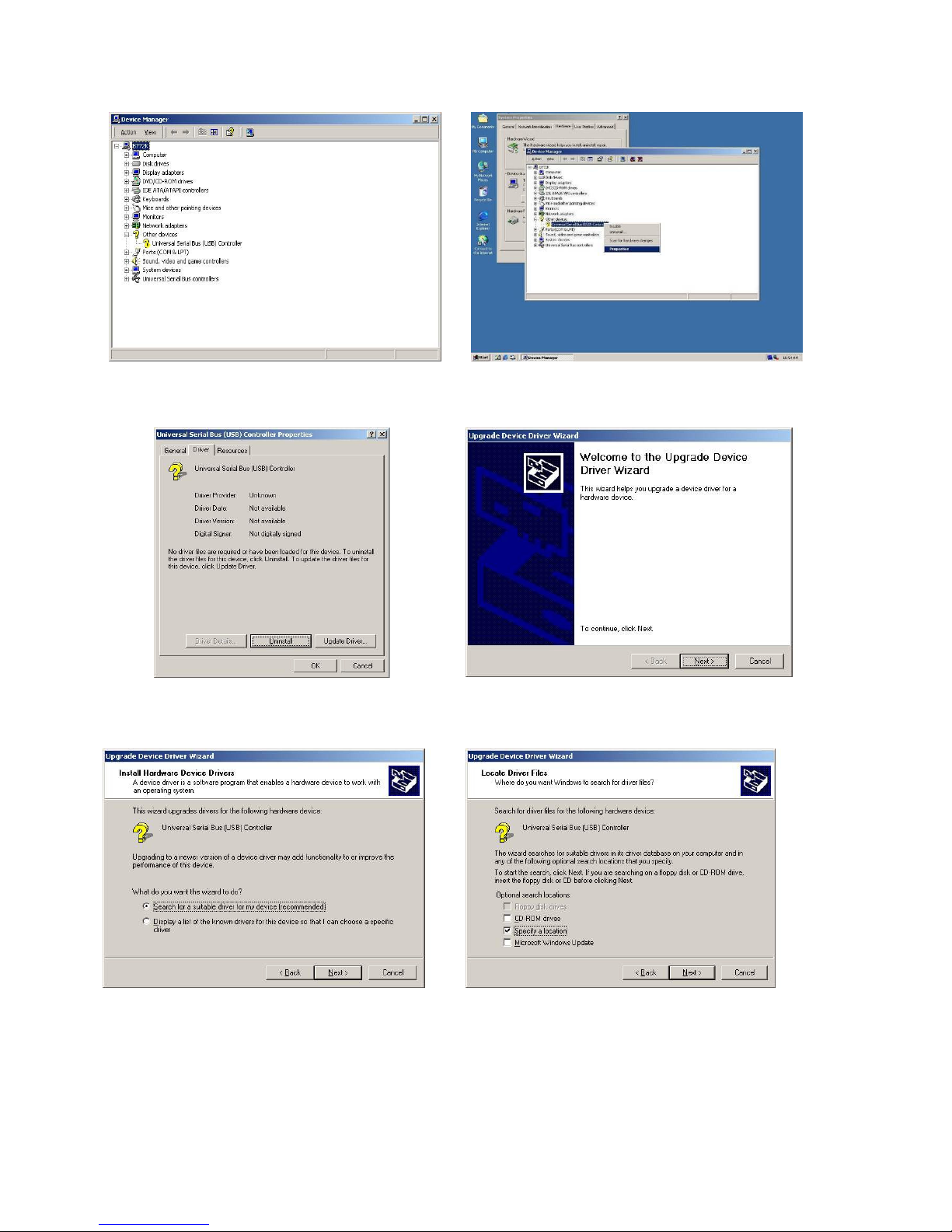

a. Right click the My Computer icon on
the desktop and select “properties”
b. Select “Hardware””Device
Manager”.
Page 14
14
c. Select ”Other Devices” “Universal Serial Bus (USB) Controller” ”Properties”.
d. Select “Device” “Update Driver…”. e. Click ”Next”.
f. Select “Search for a suitable…”and
click “Next”.
g. Select “Specify a location” and click
“Next”.
Page 15
15
h. Click on the “Browse” button to select
i. Click “Next”.
the driver and then click “OK” to go to
the next page.
j. Click on the “Finish” button to complete
k. Finished.
this process.
Page 16
16
3.4 VGA IEGD Driver Installation

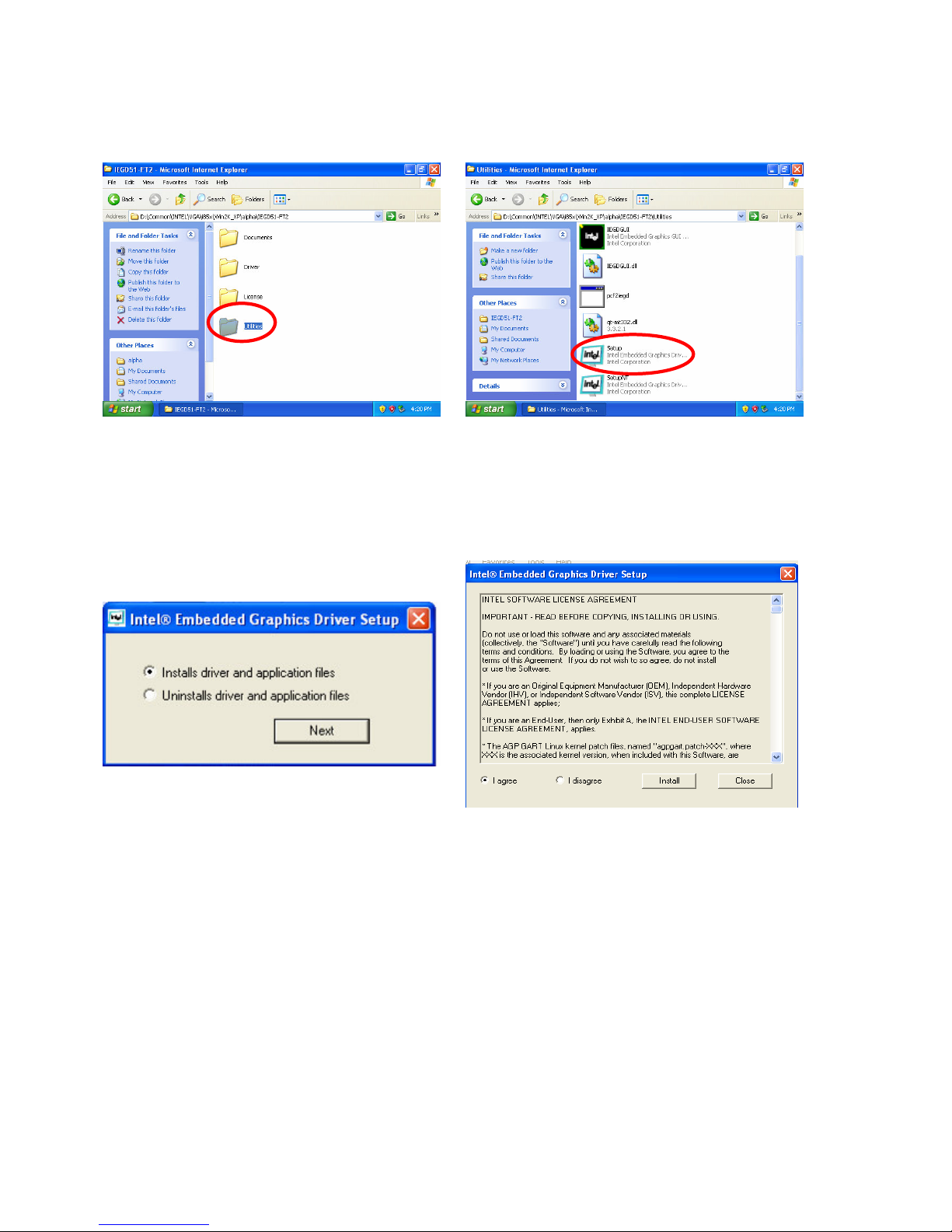

a. Select “Utilities” In the My Computer
b. Double click the “Setup” icon.
window.
c. Select “Installs driver and application
d. Select “I agree” and click on the “Install”
files” and click the “Next”.
button.
Page 17
17

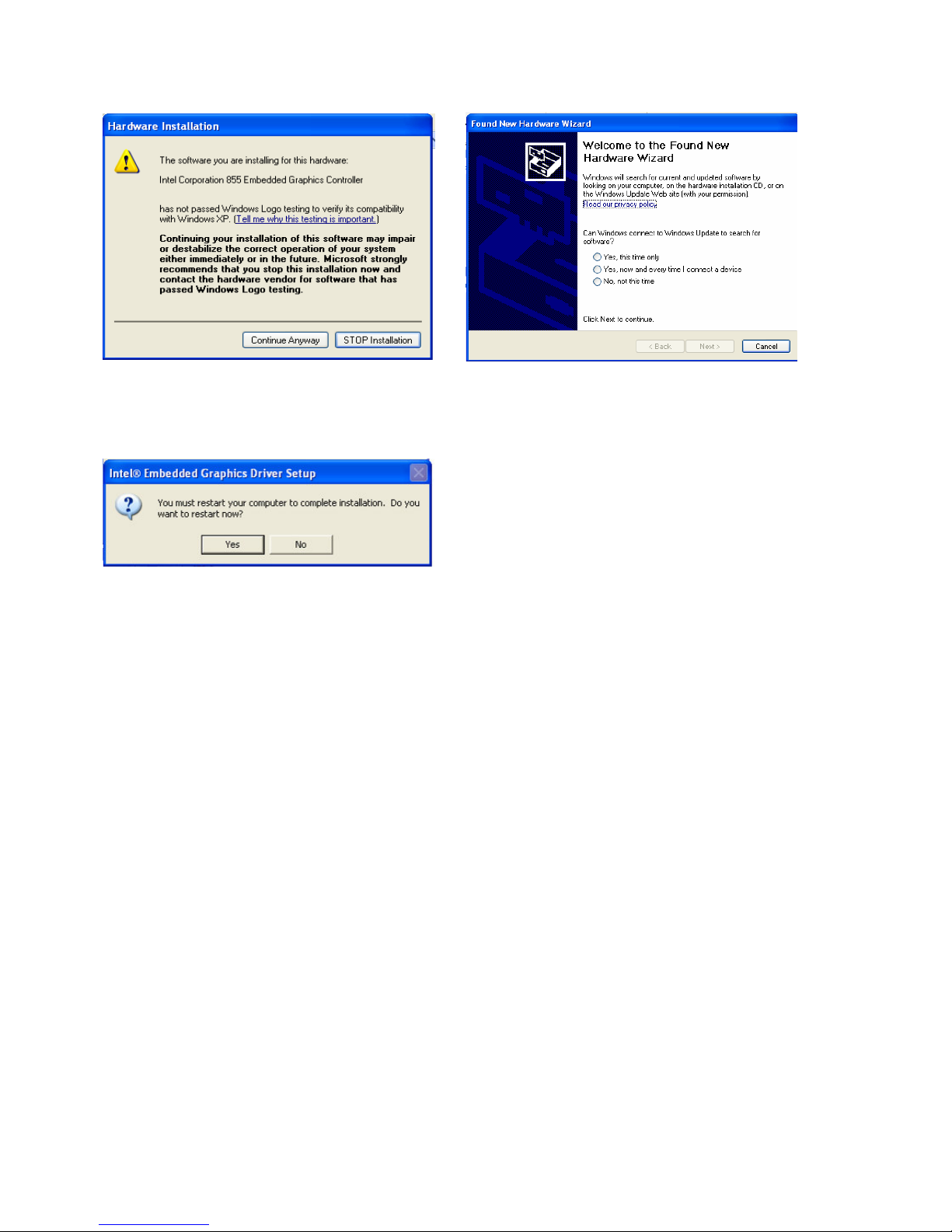

e. Click “Continue Anyway”. f. Select “No, not this time” and click
“Next”.
g. Click “Yes” to restart your system.
Page 18
18

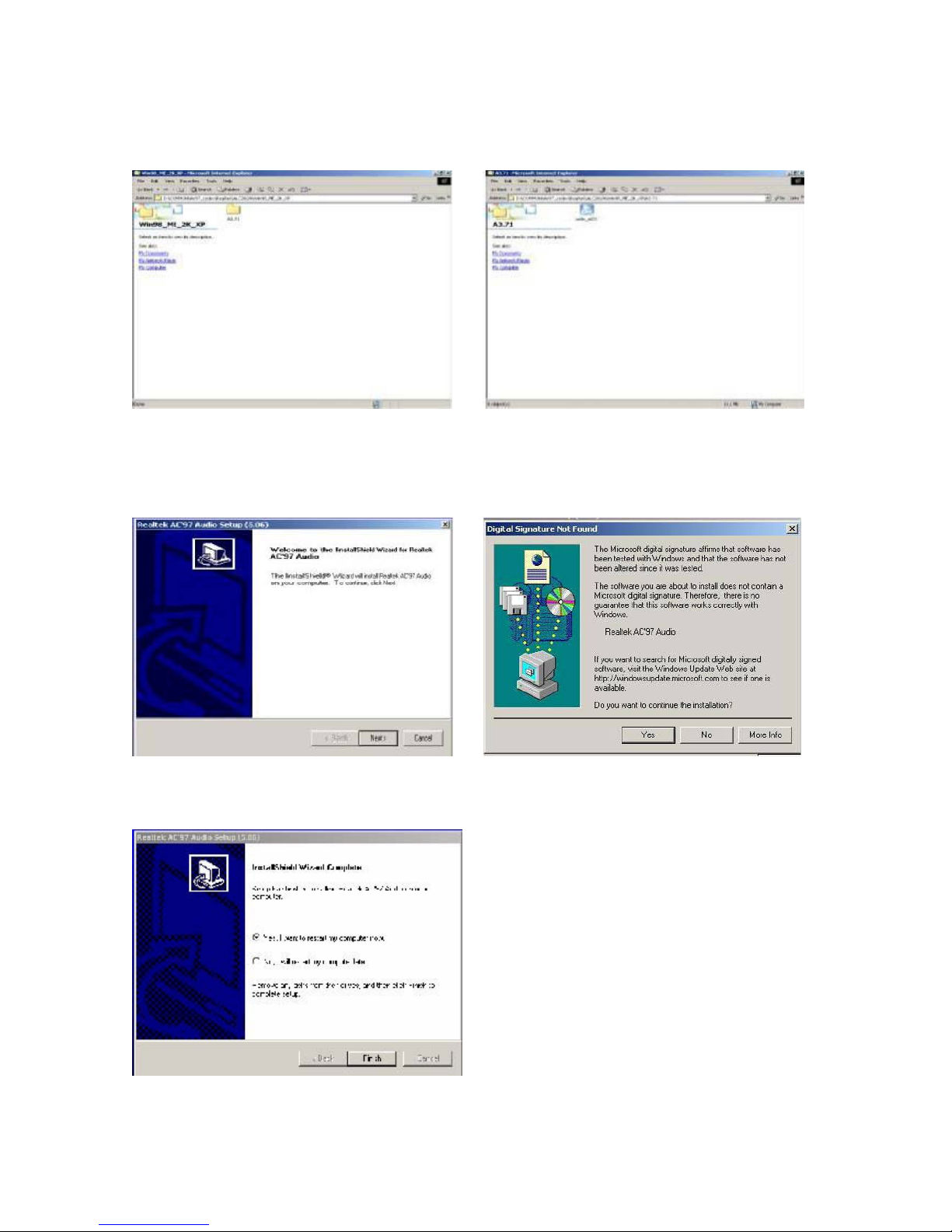

3.5. Audio Driver Installation
a. Click “A3.71” in the My Computer
b. Double click the “wdm_a371” icon.
window.
c. Click “Next”. d. Click “Yes”.
e. Click “Finish”.
Page 19
19
3.6 LAN Driver Installation

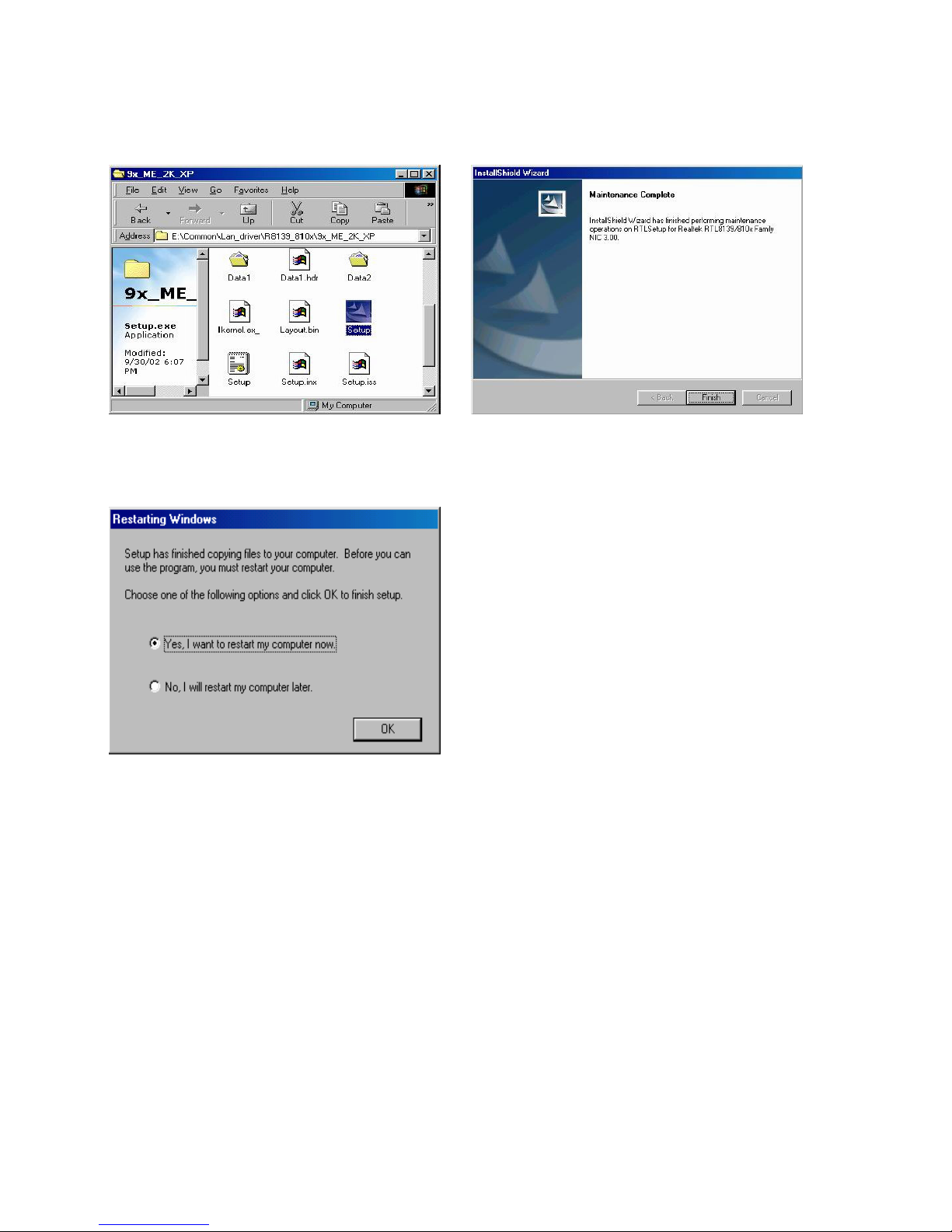

a. Double click ”Setup” in the My
Computer window.
c. Click ”OK” to restart your system.
b. Click “Finish”.
Page 20
20
4. Peripherals Installation
4.1. Cash Drawer Installation
You can install a cash drawer through the Cash Drawer port.
Please verify the pin assignment before installation.

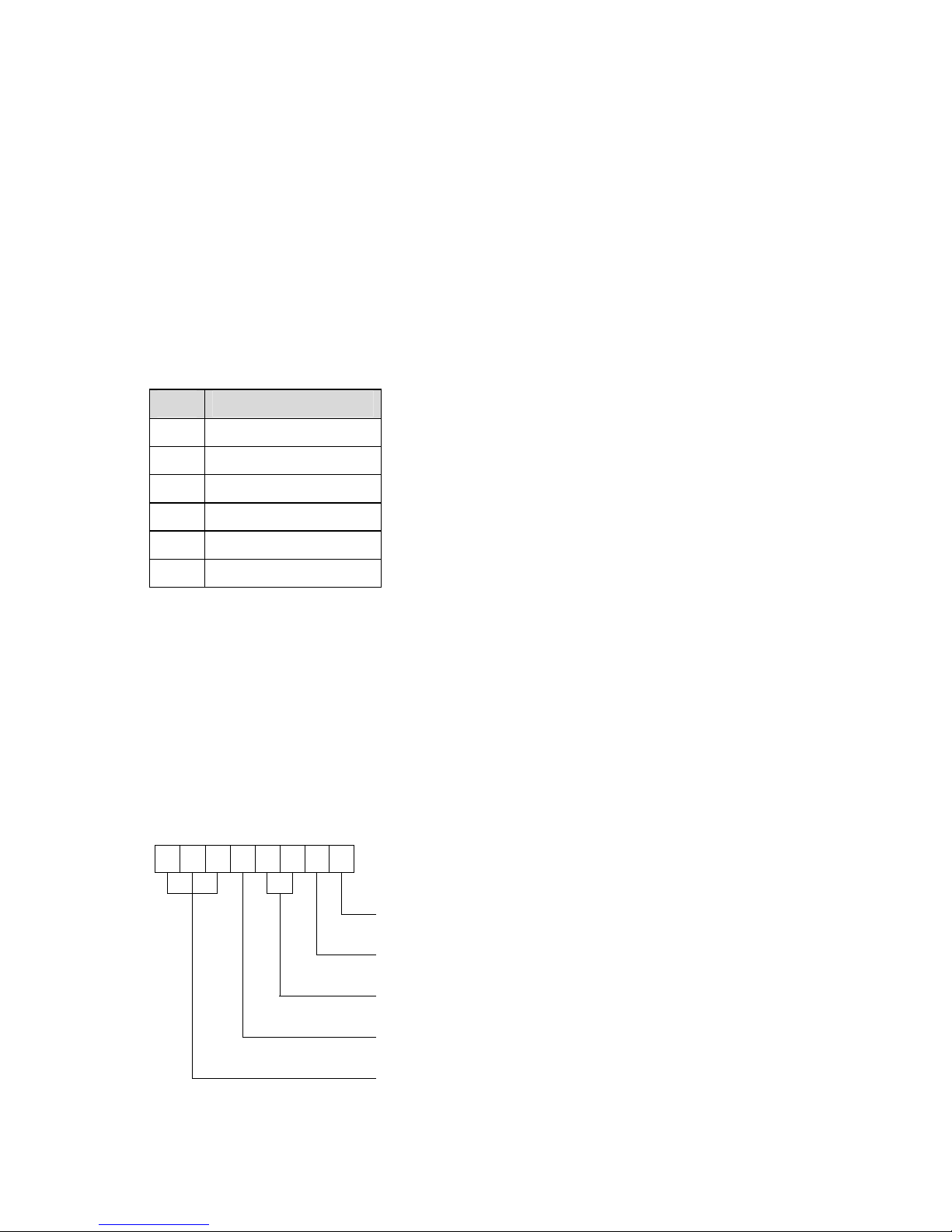

4.1.1 Cash Drawer Pin Assignment
Pin
Signal
1 GND
2 DOUT bit0
3 DIN bit0
4 12V/24V
5 DOUT bit1
6 GND
4.1.2 Cash Drawer Controller Register
The Cash Drawer Controller uses one I/O address to control the Cash Drawer.
Register Location: 48Bh
Attribute: Read / Write
Size: 8 bits
7 6 5 4 3 2 1 0
X X X X X
Cash Drawer 1 “DOUT bit0” pin output control
Cash Drawer 1 “DOUT bit1” pin output control
Reserved
Cash Drawer 1 “DIN bit0” pin input status
Reserved
Page 21
21
Bit 7: Reserved
Bit 6: Reserved
Bit 5: Reserved
Bit 4: Cash Drawer “DIN bit0” pin input status.
= 1: the Cash Drawer closed or no Cash Drawer.
= 0: the Cash Drawer opened.
Bit 3: Reserved.
Bit 2: Reserved.
Bit 1: Cash Drawer “DOUT bit1” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow closing the Cash Drawer
Bit 0: Cash Drawer “DOUT bit0” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow closing the Cash Drawer
Note: Please follow the Cash Drawer control signal design to control the Cash Drawer.
4.1.3 Cash Drawer Control Command Example
Use Debug.exe program under DOS or Windows98
Command Cash Drawer
O 4B8 01 Opening
O 4B8 00 Allow to closing
Set the I/O address 4B8h bit0 =1 for opening the Cash Drawer by “DOUT bit0” pin
control.
Set the I/O address 4B8h bit0 = 0 to allow closing Cash Drawer.
Command Cash Drawer
I 4B8 Check status
The I/O address 4B8h bit4 =1 means the Cash Drawer is closed or no Cash Drawer.
The I/O address 4B8h bit4 =0 means the Cash Drawer is open.
Page 22
22
5. System Disassembly
USB

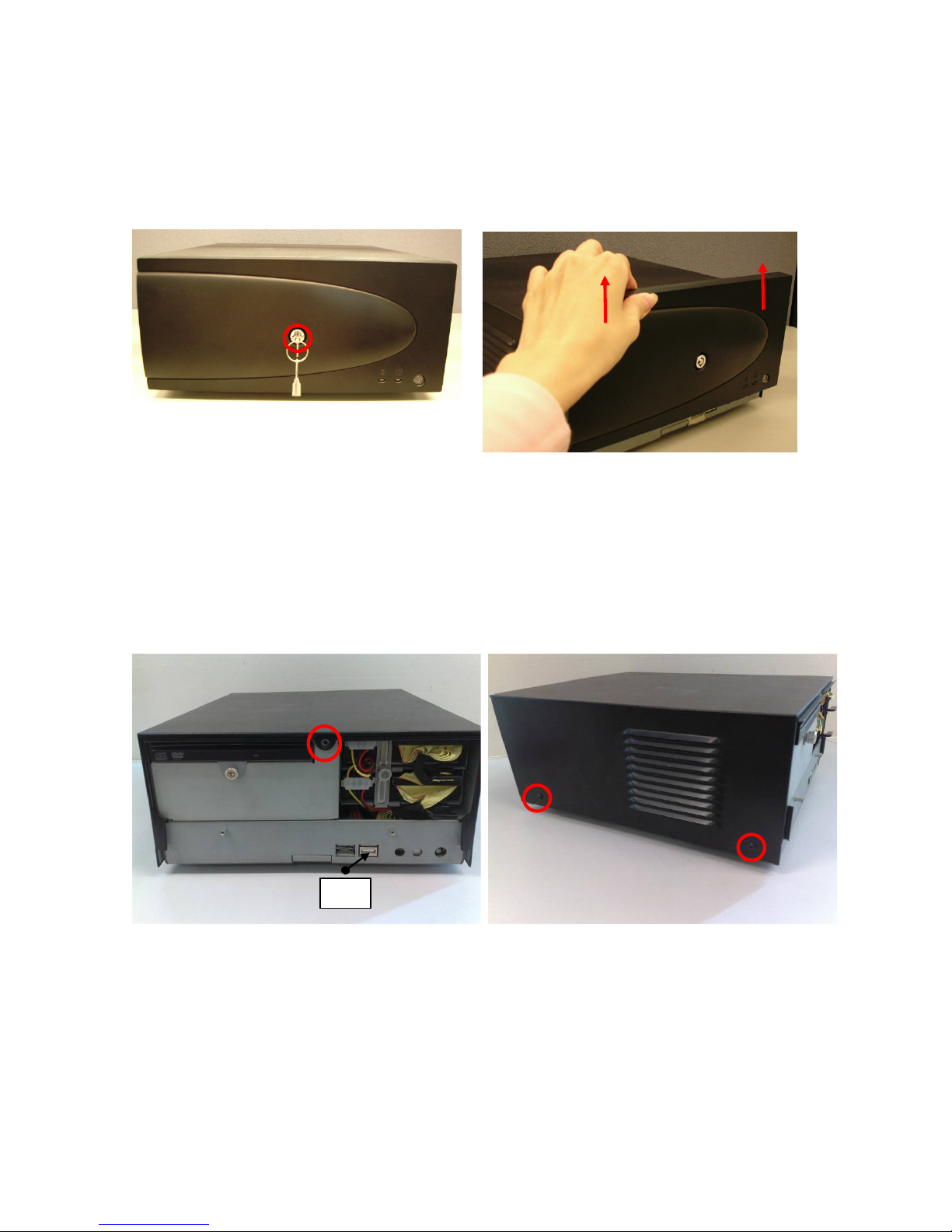

5.1. Removing the Front Cover
a. Use the key to unlock the front cover. b. Lift the front cover up as shown by the
arrows and remove it.
5.2 Removing the Top Cover
To remove the top cover, please follow the steps as described in chapter 5.1.
a. Remove the screw (1)
Note: You can access the front USB
connector after removing the front cover.
b. Loosen the thumb screws (4 - two on
each side) to release the top cover from the
system.
Page 23
23
5.3 Replacing the HDD
To remove the front cover, please follow the steps as described in chapter 5.1.
a. Loosen the thumb screw (1). b. Pull the locking bar down. Pull the handle
to slide out the HDD a few cm.
Disconnect the two cables
c. Now slide the HDD out completely and
remove it from the system.
d. Repeat for the second HDD (if present).
Page 24
24
5.4. Replacing the DVD-ROM (Option)
To remove the front and top covers, please follow the steps as described in chapter 5.1 - 5.2

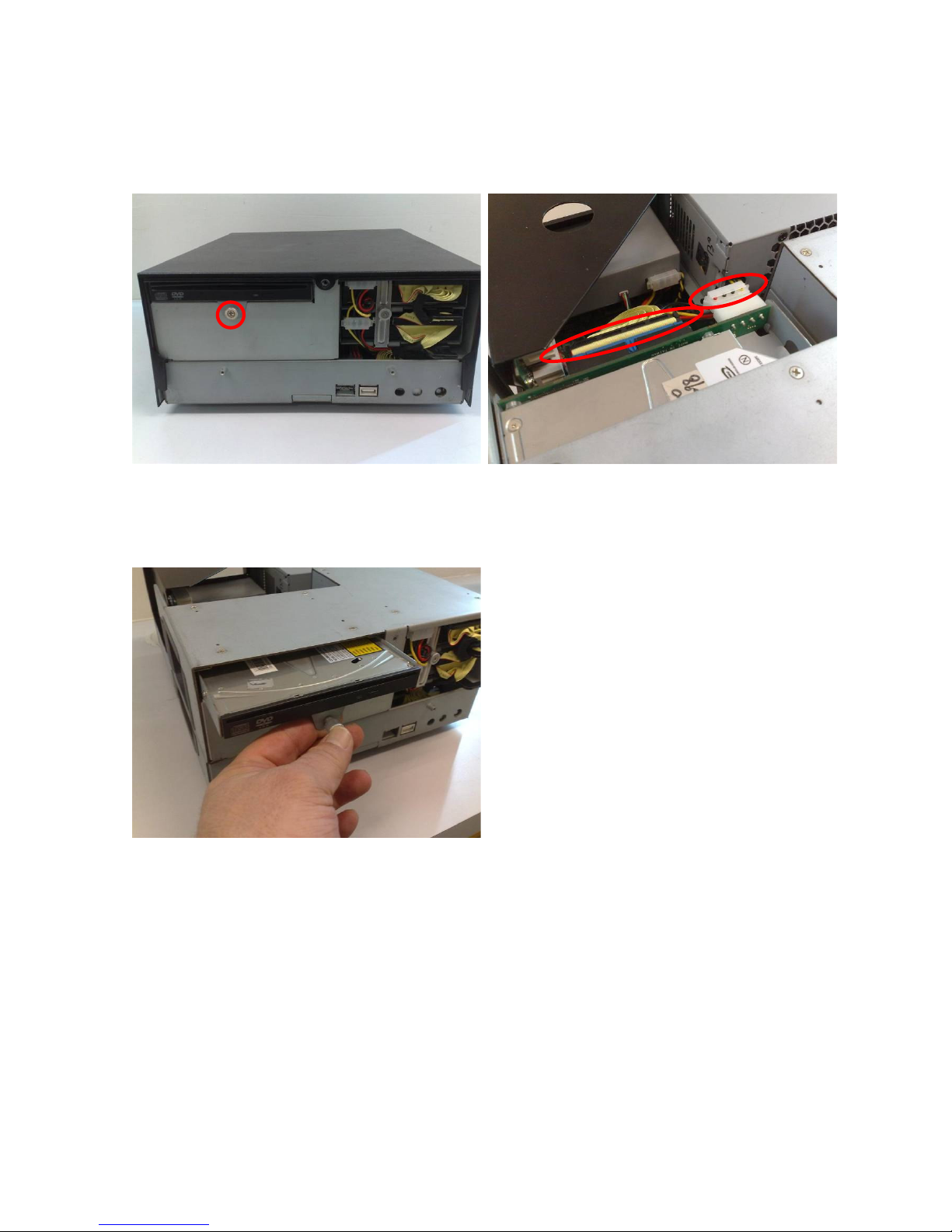

a. Loosen the thumb screw (1) b. Disconnect the two cables from the
DVD-ROM unit.
c. Slide out the CD-ROM/DVD-ROM unit.
Page 25
25

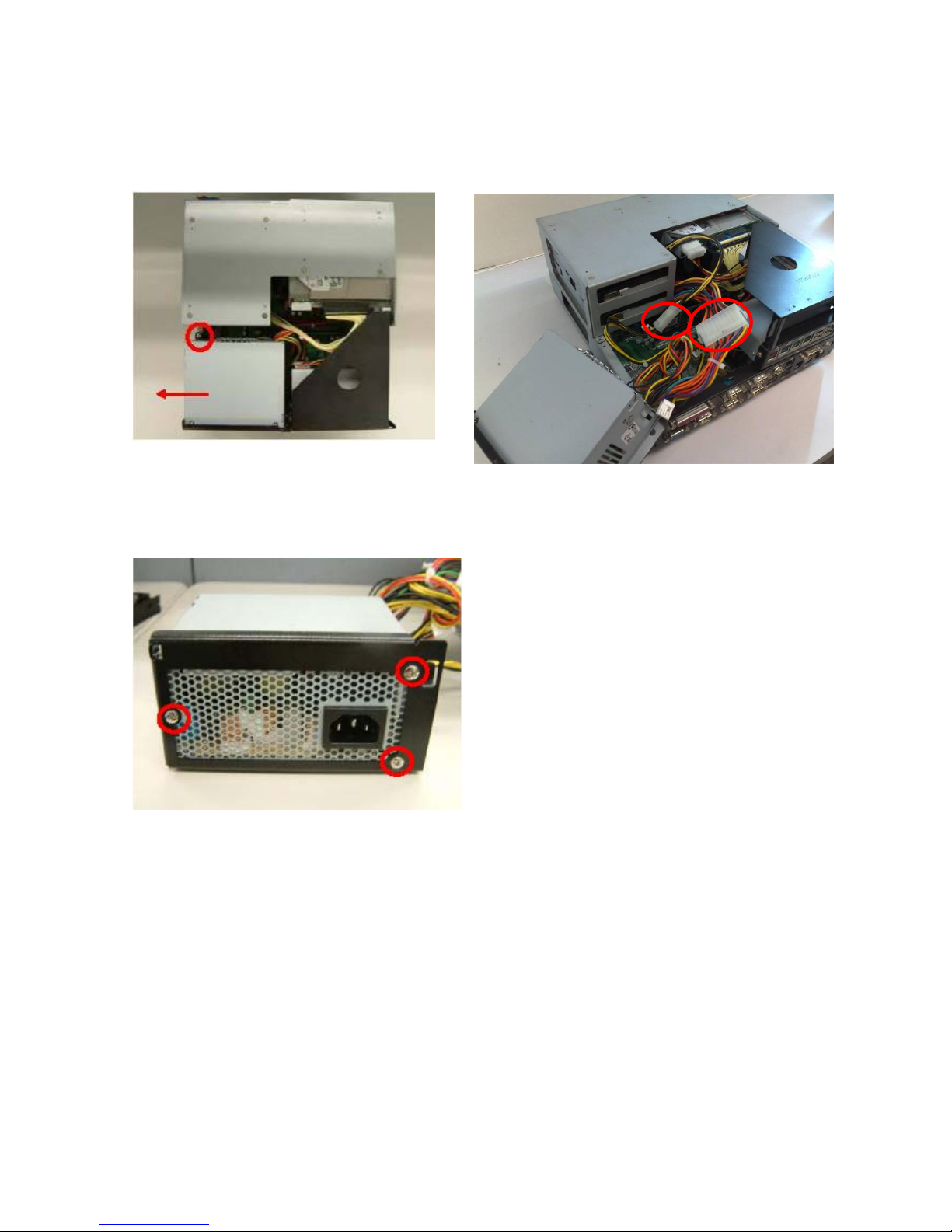

5.5. Replacing the Power Supply
To replace the power supply, please follow the steps as described in chapter 5.1 and 5.2
a. Remove the screw (1) and slide the
power supply outwards.
c. Remove the screws (3) to separate the
power supply from the frame.
b. Disconnect the cables (2) and remove the
power supply.
Page 26
26

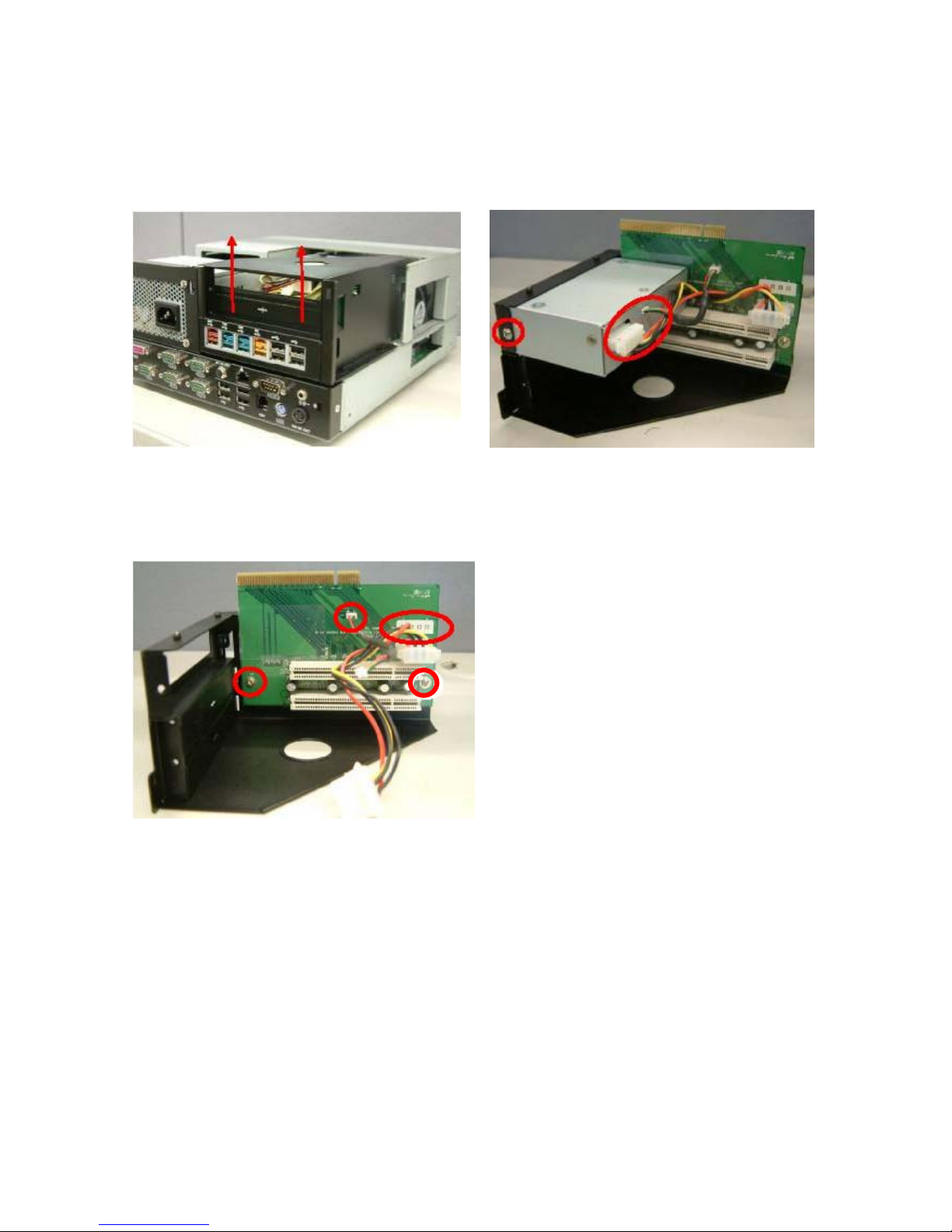

5.6. Replacing the USB Hub & PCI Extension Module (Options)
To replace the I/O and PCI extension module, please follow the steps as described in chapter
5.1 and 5.2
a. Remove the extension module by gently
pulling it upwards taking care not to
damage the connector.
b. Remove the screws (2) and disconnect
the cables (3) to remove the USB hub
from the holder.
c. Disconnect the cables (2) and remove the
screws (2) to release the PCI riser card
from the holder.
Page 27
27
5.7. Replacing the Memory
To replace the memory, please follow the steps as described in chapter 5.1, 5.2 , 5.5(a+b) and
5.6(a)

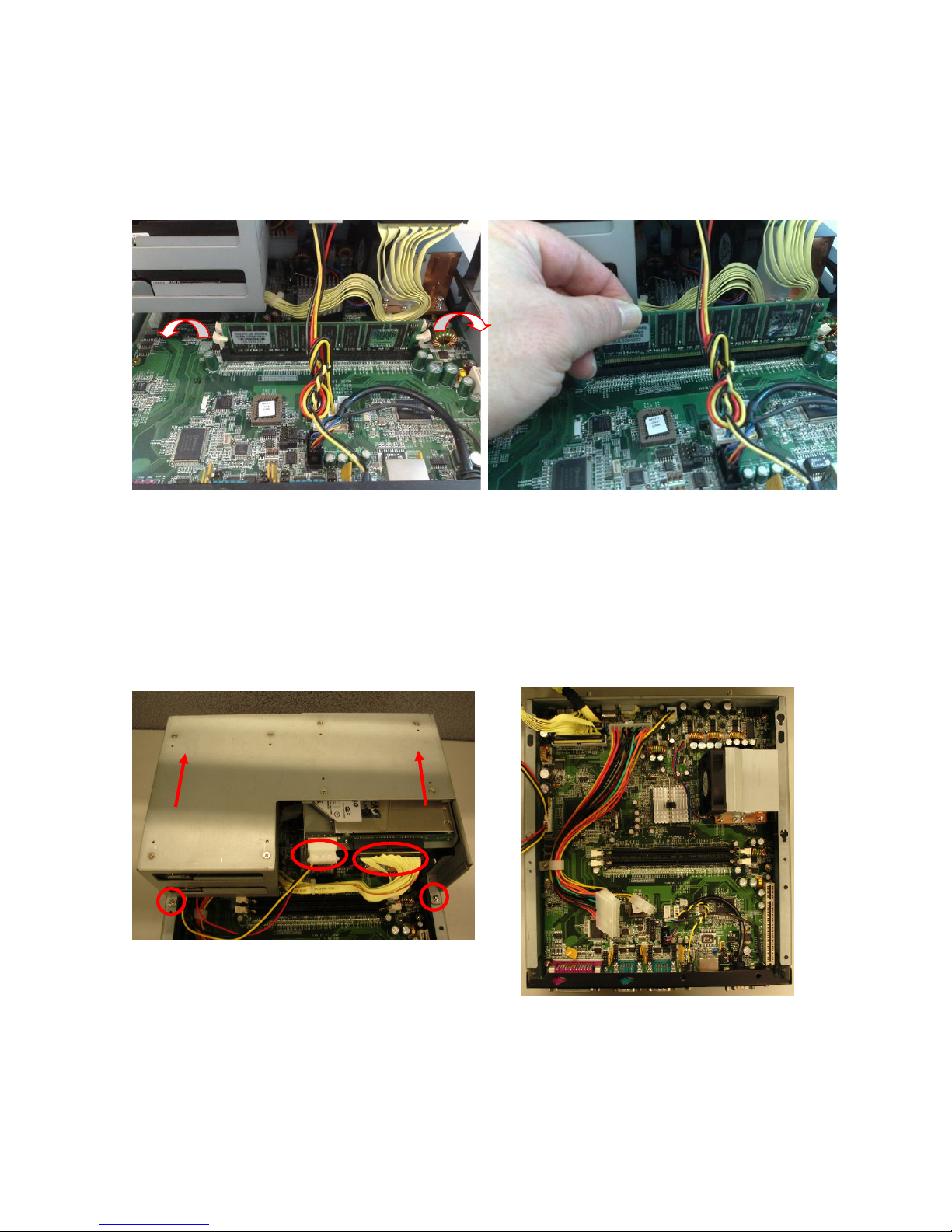

a. Use your finger to push the DIMM slot
ejector clips into the down position.
b. Remove the memory module from the
slot.
5.8. Replacing the Motherboard
To replace the motherboard, please first follow the steps as described in chapter 5.1, 5.2,
5.3(a+b), 5.5(a) and 5.6(a)
a. Disconnect the cables (2), remove the
screws (2) and slide the HDD module in
the direction as shown by the arrows to
release the module from the motherboard
Chassis
b. Remove the screw (1) and disconnect
the cables (9) as shown in the picture.
Page 28
28
Remove the screws (7)
nuts (17) to release the
motherboard from the chassis
Page 29
29
6. Specification
Motherboard B89
CPU Support Intel SK478 CPU Celeron 2.5G
Chipset INTEL 852GM + ICH4
System Memory up to 2GB DDR 400MHz RAM, 2 RAM-DIMM
Storage
HDD 2x3.5" HDD _PATA
ODD 1xSlim CD-ROM/CD-RW/DVD_ROM Drive bay(option)
Expansion
PCI slot 1
External I/O Ports
Front I/O
USB 1 (USB 7)
Power Button 1
Rear I/O
PS/2 keyboard 1
USB 4(USB3~6)
Powered Serial /
5 (COM1/ COM2 / COM3 / COM4 / COM5)
COM
Serial
1 (COM6)
RS232/RS485/RS422
Cash drawer port 1
VGA 1 ( DB-15)
Line-out 1
LAN (10/100) 1
Parallel 1
DC 24V output 1
DC 12V output 1 (for OLC 8.4 VESA power)
Optional Module: USB Hub
Powered USB (12V) 2
Powered USB (24V) 1
Powered USB (5V) 1
USB 4
Page 30
30
Peripheral (special feature)
System ID 1
Power button 1 (pin header)
Control/ Indicator
Power button 1 (Front)
LED HDD/Power 2
Environment
EMC & Safety FCC Class A, CE, LVD
Operating
5oC ~ 35 oC (41 oF ~ 95 oF)
Temperature
Storage Temperature -10 oC ~ 60 oC (14 oF ~ 140 oF)
Operating Humidity 20% - 85% RH non condensing
Storage Humidity 5% - 90% RH non condensing
Dimension
270 x 300 x 120mm
(W x D x H)
Power requirements
Power Supply 230W
Page 31
31
7. Motherboard, Jumper Settings, Connectors

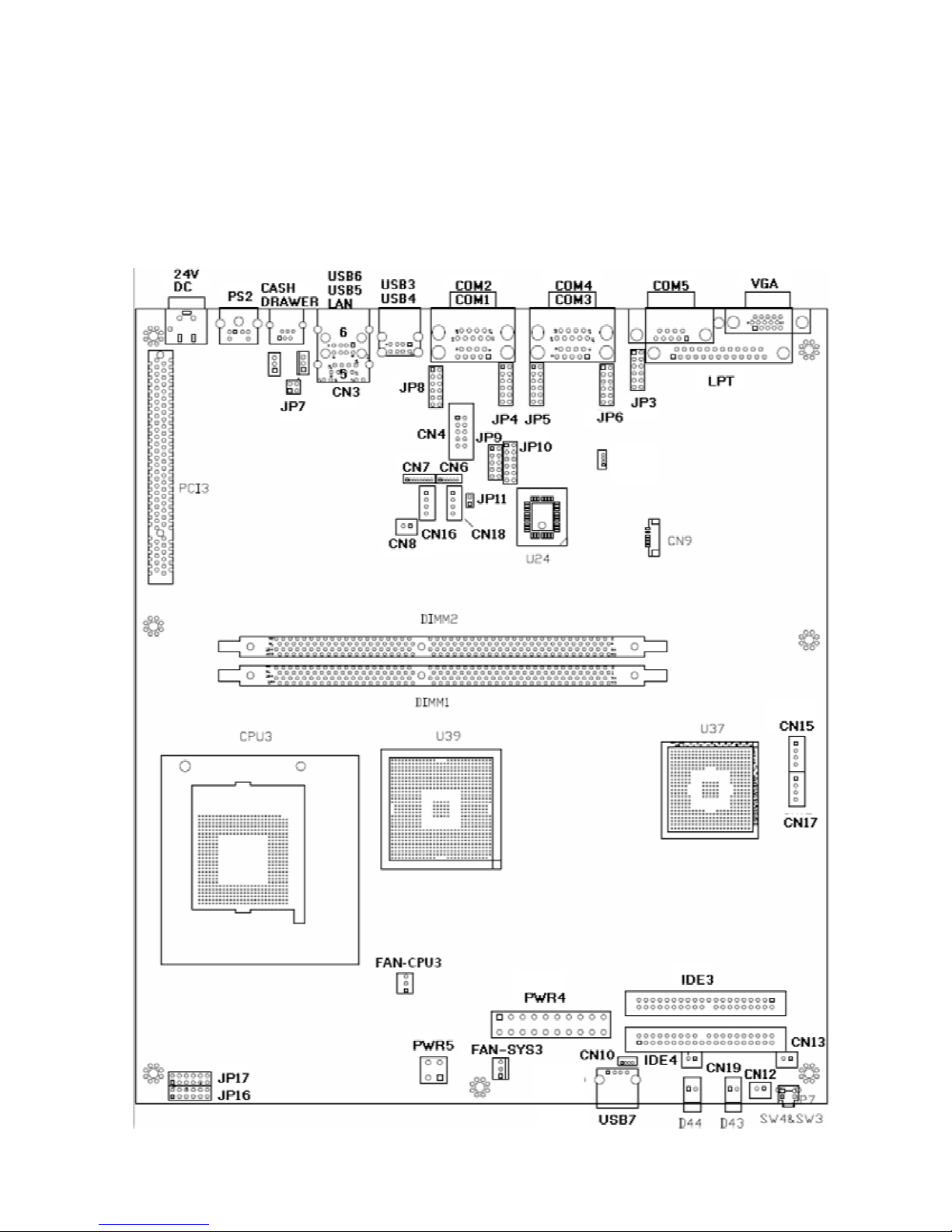

7.1 B89 Motherboard layout
B89 Motherboard
Page 32
32

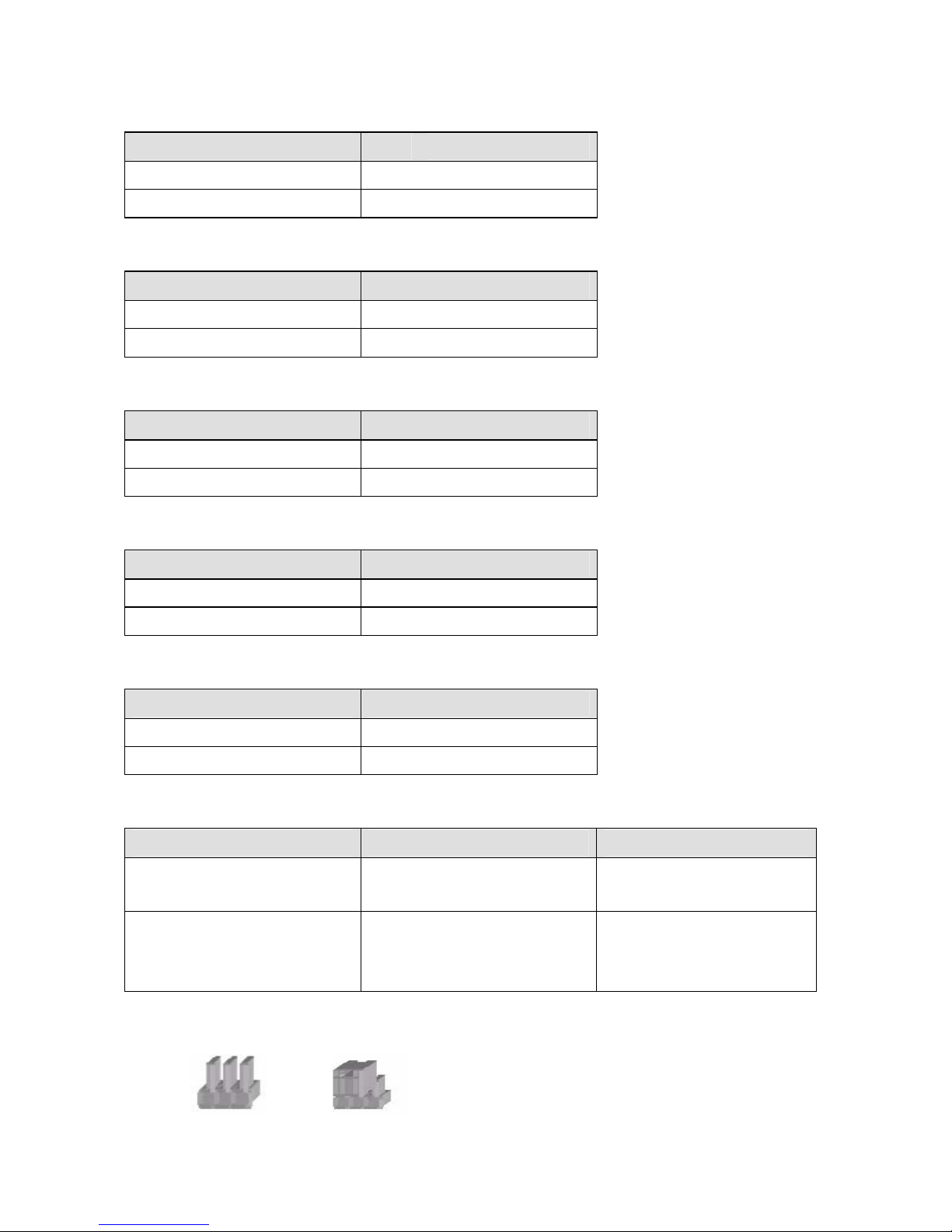

7.2 Jumper Settings
= Factory Default Setting
1. COM1 / COM2 / COM3 / COM4 / COM5 Power Setting
COM Port Jumper Pin Function Jumper Setting
COM1 JP4 DCD# 1-2
COM2 JP8 +5V 3-4
COM3 JP6
1
+12V 5-6
COM4 JP5 RI# 7-8
COM5 JP3 +5V 9-10
9
+12V 11-12
2. COM 6 RS232/ 485/ 422 Setting
Function RS232 RS485 RS422
JP9 (1-2) v
JP9 (3-4) v
JP9 (4-6)
JP9 (5-7) v
JP9 (7-8)
JP9 (9-10) v
JP10 (1-2)
v
JP10 (3-4)
JP10 (5-6)
v
v
v
v
JP10 (7-8)
JP10 (9-10)
JP10 (11-12)
3. 2ND Display Power Setting
Function JP11 (SHORT)
+12V
NC
1-2
1
v
v
v
Page 33
33
4. CMOS Operation Mode Setting
Function JP13 (SHORT)
COMS Normal
COMS Reset
5. Power Mode Setting
Function JP15 (SHORT)
ATX Power N/C
AT Power 1-2
6. Cash Drawer Power Setting
Voltage JP7 (SHORT)
+12V
+ 24V
7. ACPI Mode Setting
Function JP12 (SHORT)
Disable
Enable
N/C
1-2
1-2
3-4
1-2
N/C
8. CPU Frequency Setting
Function JP14 (SHORT)
FSB400
FSB533
9. CPU Voltage Setting
CPU Type JP16 JP17
P4
P4-M(1.3V)
Perf. Mode
Note: OPEN SHORT
1-2, 3-4
3-4
1-2, 3-4, 5-6
7-8, 9-10, 11-12
N/C
N/C
3-4, 9-10
1-2(NC), 5-6(NC)
7-8(NC), 11-12(NC)
Page 34
34
7.3 Connectors and Pin Assignments
CN4: COM6 RS232/422/485
Pin 1 DB9_1 Pin 2 DB9_2
Pin 3 DB9_3 Pin 4 DB9_4
Pin 5 GND Pin 6 RS232_6_DSR#
Pin 7 RS232_6_RTS#
Pin9 RS232_6_RI
Pin 8 RS232_6_CTS#
Pin 10 N/C
CN6: Speaker & MIC Connector
Pin 1 LIN_OUT_L Pin 2 GND
Pin 3 GND Pin 4 LIN_OUT_R
Pin 5 GND Pin 6 MIC1
CN7: CD-IN & Line-In Connector
Pin 1 CDIN_L Pin 2 CDIN_REF
Pin 3 CDIN_R Pin 4 CDIN_REF
Pin 5 GND Pin 6 LINE_IN_L
Pin 7 LINE_IN_R Pin 8 GND
CN8: Hardware Reset
Pin 1 GND Pin 2 PWR_OK
CN10: USB5
Pin 1 +5V_USB1 Pin 2 USB20_R_P1-
USB20_R_P1
Pin 3
+
CN12: Power LED
Pin 1 +5V Pin 2 GND
CN13: Power Button
Pin 1 GND Pin 2 SW_PWRBT#
Pin 4 GND
Page 35
35
CN15: HDD Power Connector
Pin 1 +12V Pin 2 GND
Pin 3 GND Pin 4 +5V
CN16: CD-ROM Power Connector
Pin 1 +12V Pin 2 GND
Pin 3 GND Pin 4 +5V
CN17: HDD Power Connector
Pin 1 +12V Pin 2 GND
Pin 3 GND Pin 4 +5V
CN18: Power Connector external 12V Power connector
Pin 1 +12V Pin 2 GND
Pin 3 GND (not used) Pin 4 +5V (not used)
CN19: IDE LED
Pin 1 HDD_LED# Pin 2 +5V
FAN_CPU3: CPU FAN CONTROL
Pin 1 GND Pin 2 +12V
Pin 3 FB
Page 36
36
8. BIOS Settings
8.1 BIOS Setup Utility
The BIOS setup defines how the system is configured. You need to run this program the first
time you configure this product. You may need to run it again if you change the configuration.
You need to connect a PC keyboard to the keyboard connector to run the BIOS setup utility.
8.2 Starting the BIOS Setup
1. Turn on or reboot this product.
2. Press the DEL key immediately after the product is turned on, or press the DEL key when
the following message is displayed during POST (the Power on Self-Test).
Press DEL to enter SETUP.
3. The main menu of the BIOS setup is displayed.
4. If the supervisor password is set, you must enter it here.
If, after making and saving system changes with the Setup utility, you find that this product no
longer boots, start the BIOS setup and execute the following.
8.3 When a Problem Occurs
Load Optimized Defaults

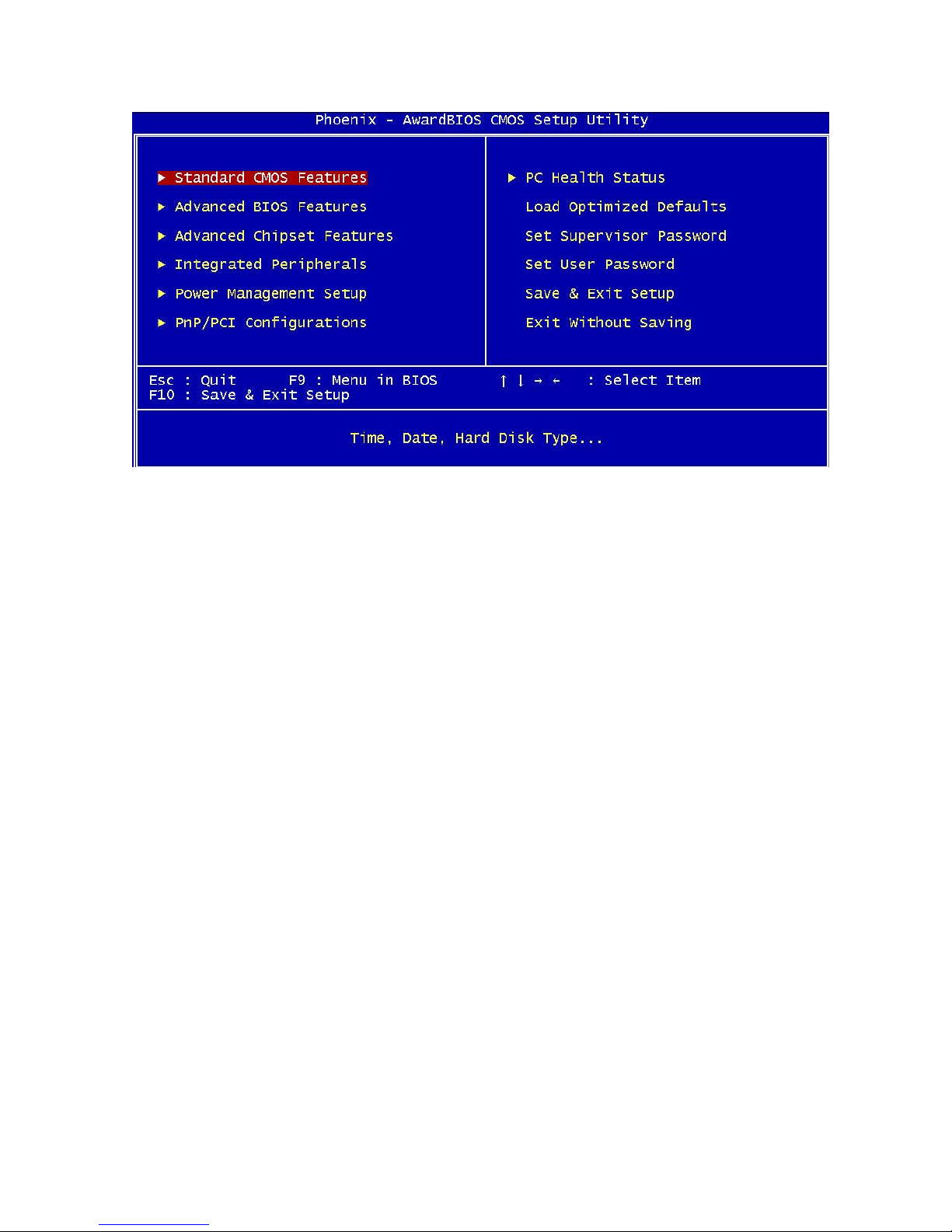

8.4 BIOS Main Menu
When the BIOS Main Menu is displayed, the following items can be selected. Use the arrow
keys to select items and the Enter key to accept and enter the sub-menu.
Note: The BIOS menu below is from B99 RAID BIOS version B990V10.BIN. If you have a
different BIOS version, the contents of the menu may different.
Page 37
37
Standard CMOS Features
Use this menu for basic system configuration.
Advanced BIOS Features
Use this menu to set the Advanced Features available on the system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize the system’s
performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management setup
Use this menu to specify your settings for power management.
PnP/PCI Configurations
This entry appears if your system supports Plug and Play and PCI Configuration.
PC health status
Displays CPU, System Temperature, Fan Speed, and System Voltages Value.
Load Optimized Defaults
Use this menu to load the BIOS default values, i.e., factory settings for optimal performance
Page 38
38
system operations. While Award has designed the custom BIOS to maximize performance, the
factory has the option to change these defaults to meet their needs
Set Supervisor Password
Enables you to change, set, or disable the supervisor or user password
Set Password
Change, set, or disable the password. It allows you to limit access to the system and to the
setup, or just to the setup.
Save & exit setup
Save CMOS value changes to CMOS and exits setup.
Exit without saving
Ignores all CMOS value changes and exits setup.
Page 39
39
Appendix A: PCI Card Dimensions

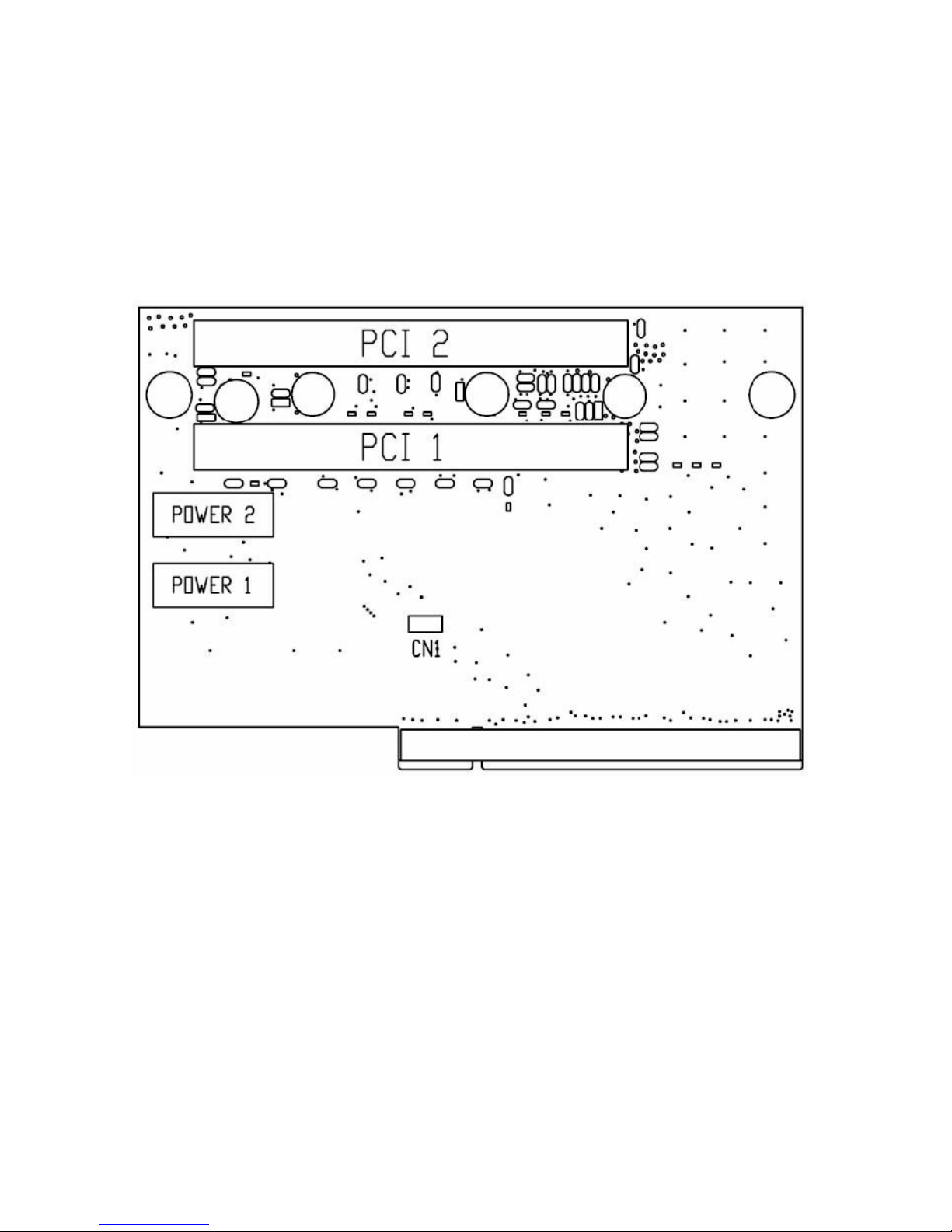

Maximum dimension of the PCI add-on card: Component Side: 130mm x 90.26mm ( D x W )
(Picture 1)
Page 40
40

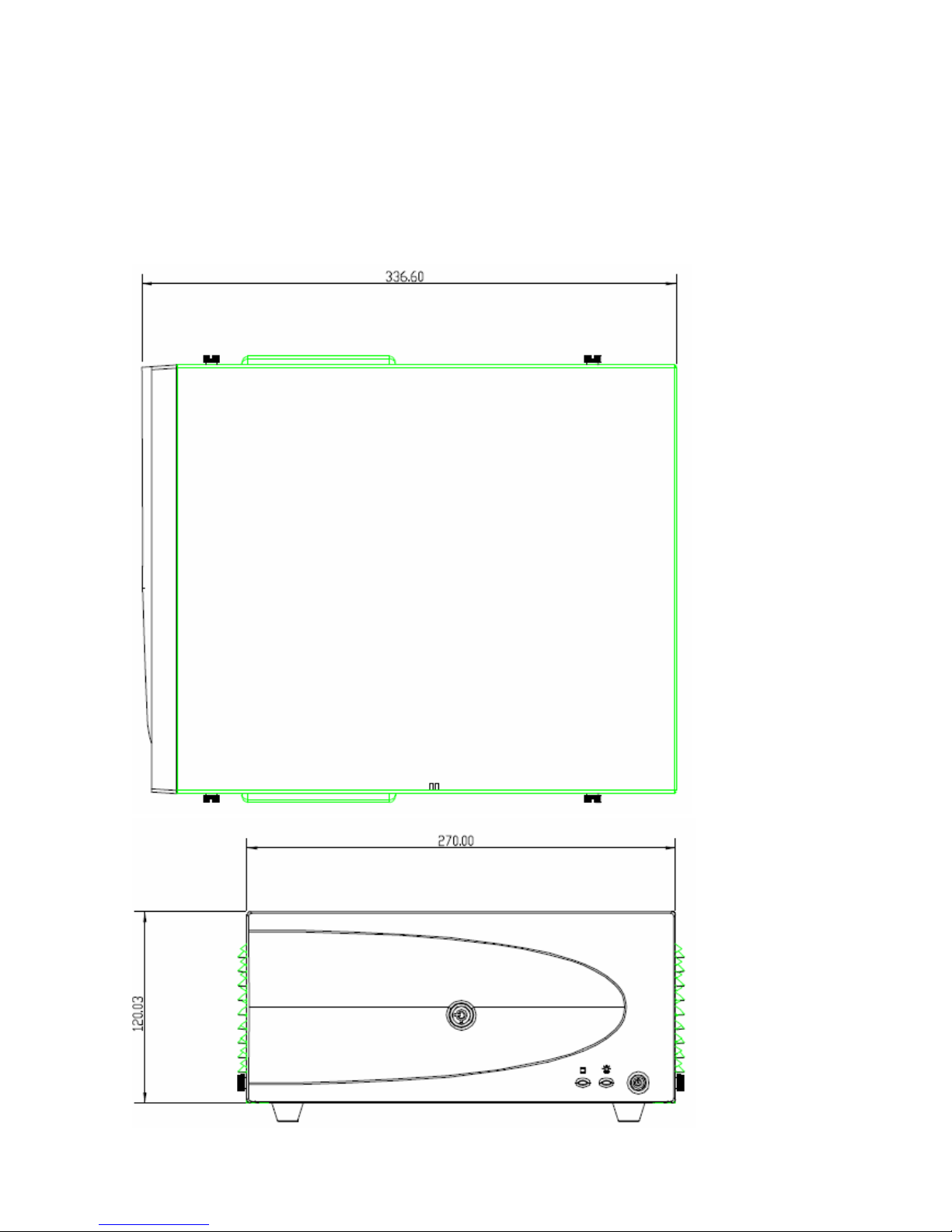

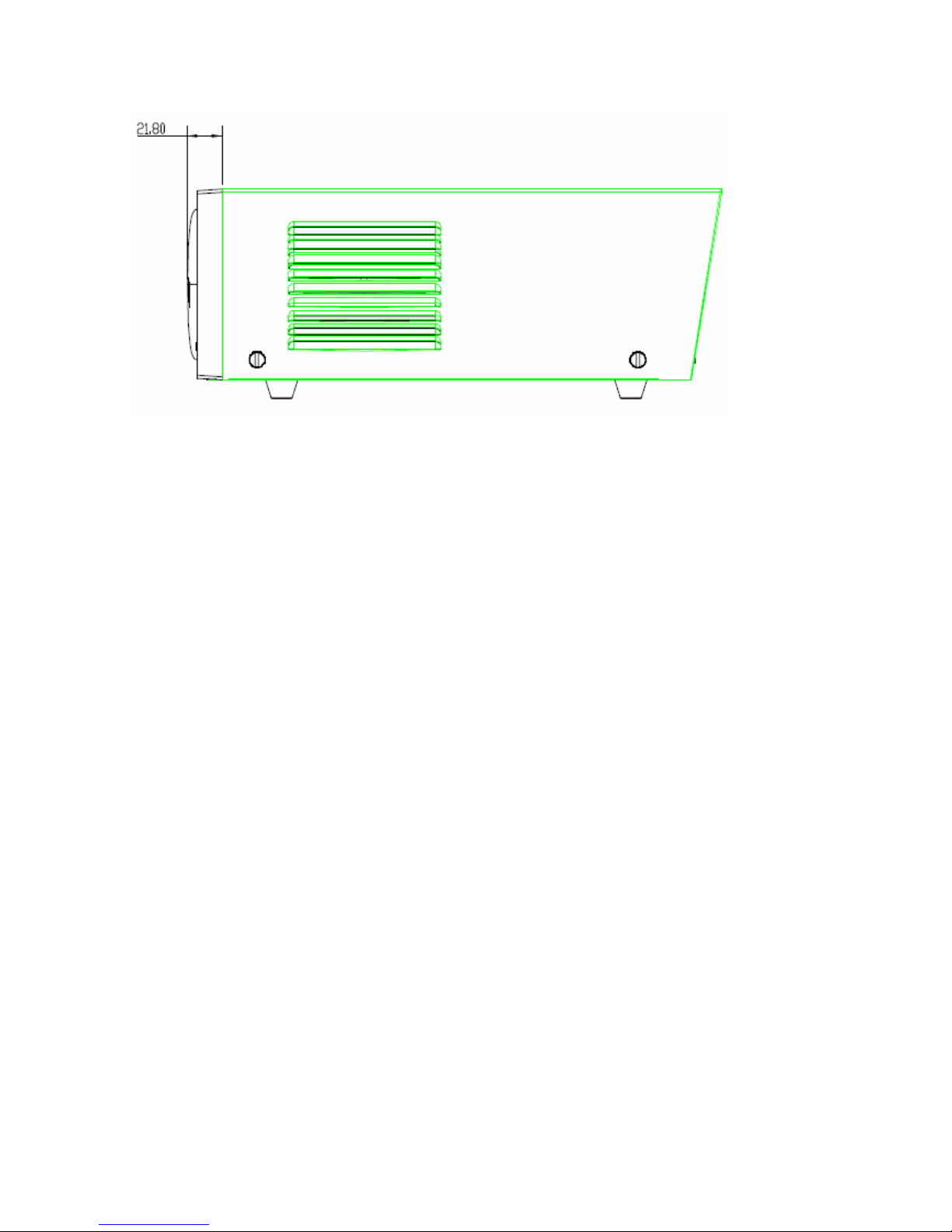

Appendix B: Dimensional Drawings
All dimensions in mm
Page 41
41
Loading...
