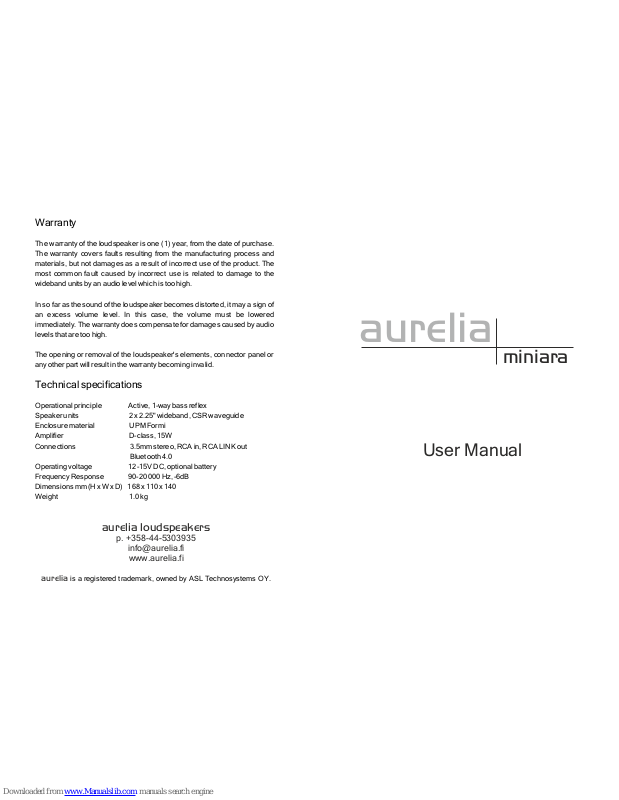

Aurelia miniara User Manual

aurelia

miniara

User Manual

aurelia loudspeakers

p. [phone]

[e-mail]

www.aurelia.fi

aurelia is a registered trademark, owned by ASL Technosystems OY.

Warranty

The warranty of the loudspeaker is one (1) year, from the date of purchase.
The warranty covers faults resulting from the manufacturing process and
materials, but not damages as a result of incorrect use of the product. The
most common fault caused by incorrect use is related to damage to the
wideband units by an audio level which is too high.

In so far as the sound of the loudspeaker becomes distorted, it may a sign of
an excess volume level. In this case, the volume must be lowered
immediately. The warranty does compensate for damages caused by audio
levels that are too high.

The opening or removal of the loudspeaker's elements, connector panel or
any other part will result in the warranty becoming invalid.

Technical specifications

Operational principle Active, 1-way bass reflex
Speaker units 2 x 2.25" wideband, CSR waveguide
Enclosure material UPM Formi
Amplifier D-class, 15W
Connections 3.5mm stereo, RCA in, RCA LINK out
Bluetooth 4.0
Operating voltage 12-15V DC, optional battery
Frequency Response 90-20 000 Hz, -6dB
Dimensions mm (H x W x D) 168 x 110 x 140
Weight 1.0 kg

2. Bluetooth SPLIT

Two Miniara’s are connected to play the Bluetooth signal in stereo. In this
case, the first Miniara plays the right channel (R) and the second left
channel (L). The right speaker is set to Bluetooth SPLIT mode and the left
speaker in Bluetooth OFF mode. The speakers are connected to one
another by the RCA cable as shown.

(L) (R)

The LINK OUT jack on the left speaker can be used to connect an RCA
cable to an additional subwoofer, if needed.

3. Bluetooth MONO

The Miniara plays both the right channel (R) and the left channel (L) and
combines them with the monosignal.

Aurelia Miniara User's Guide

Setting up and connecting the loudspeaker to the input source

The package includes the following items: 1 Miniara loudspeaker, 1 power
adapter, 1 pcs 3.5mm plug stereo cable, 1 reflex tube plug and user manual.

First connect the power supply to Miniara's power connector. If it is a battery
version (option), Miniara battery will recharge. The Miniara’s power LED is
dual-functional. When charging, the battery lights up in red until the battery
is fully charged and the LED goes out. During the playback of the
loudspeaker, the LED lights up in blue when the loudspeaker is being used
with either the battery or power source.

The reflex tube plug is recommended for use with powerful bass music.
Plugging in the reflex tube is also recommended when using Miniara
together with the subwoofer.

Miniara operating modes and switching modes

1. Bluetooth OFF

The Miniara is used as a regular active speaker, whereby the input signal is
connected either to the RCA jack or the 3.5mm jack. The Bluetooth

connection of the loudspeaker is switched off.

You can connect the RCA cable to another Miniara or, if necessary, to an
external subwoofer from the LINK OUT jack.

Pic 1. Line-input connected to
RCA-connector (solid line)
or 3.5mm connector (dotted line)

You can connect the RCA cable
to the other Miniara or, if needed
to an external subwoofer from the
LINK OUT jack.
