Aura Audio D2i MANUAL Version 1.0
www.auraaudio.com Page 1 of 8

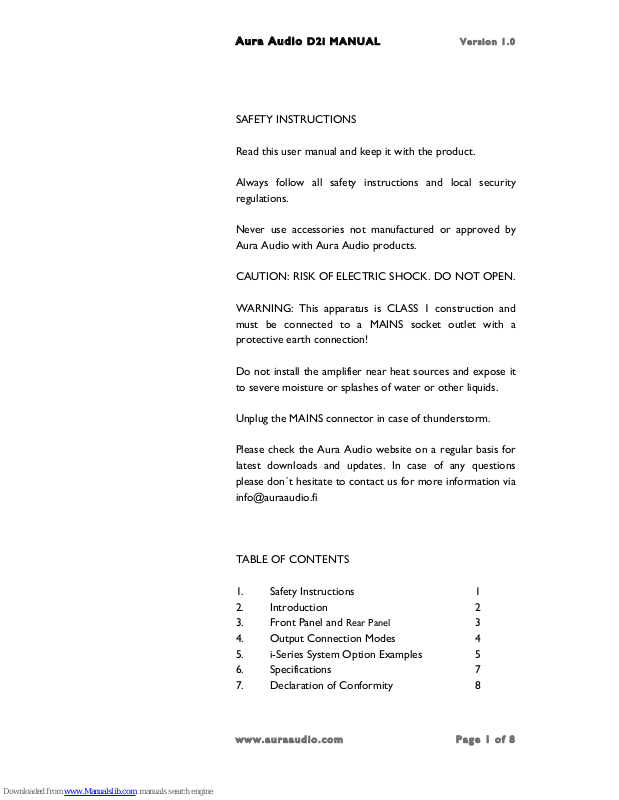

SAFETY INSTRUCTIONS
Read this user manual and keep it with the product.
Always follow all safety instructions and local security
regulations.
Never use accessories not manufactured or approved by
Aura Audio with Aura Audio products.
CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN.
WARNING: This apparatus is CLASS 1 construction and
must be connected to a MAINS socket outlet with a
protective earth connection!
Do not install the amplifier near heat sources and expose it
to severe moisture or splashes of water or other liquids.
Unplug the MAINS connector in case of thunderstorm.
Please check the Aura Audio website on a regular basis for
latest downloads and updates. In case of any questions
please don´t hesitate to contact us for more information via
[email protected]
TABLE OF CONTENTS
1. Safety Instructions 1
2. Introduction 2
3. Front Panel and Rear Panel 3
4. Output Connection Modes 4
5. i-Series System Option Examples 5
6. Specifications 7

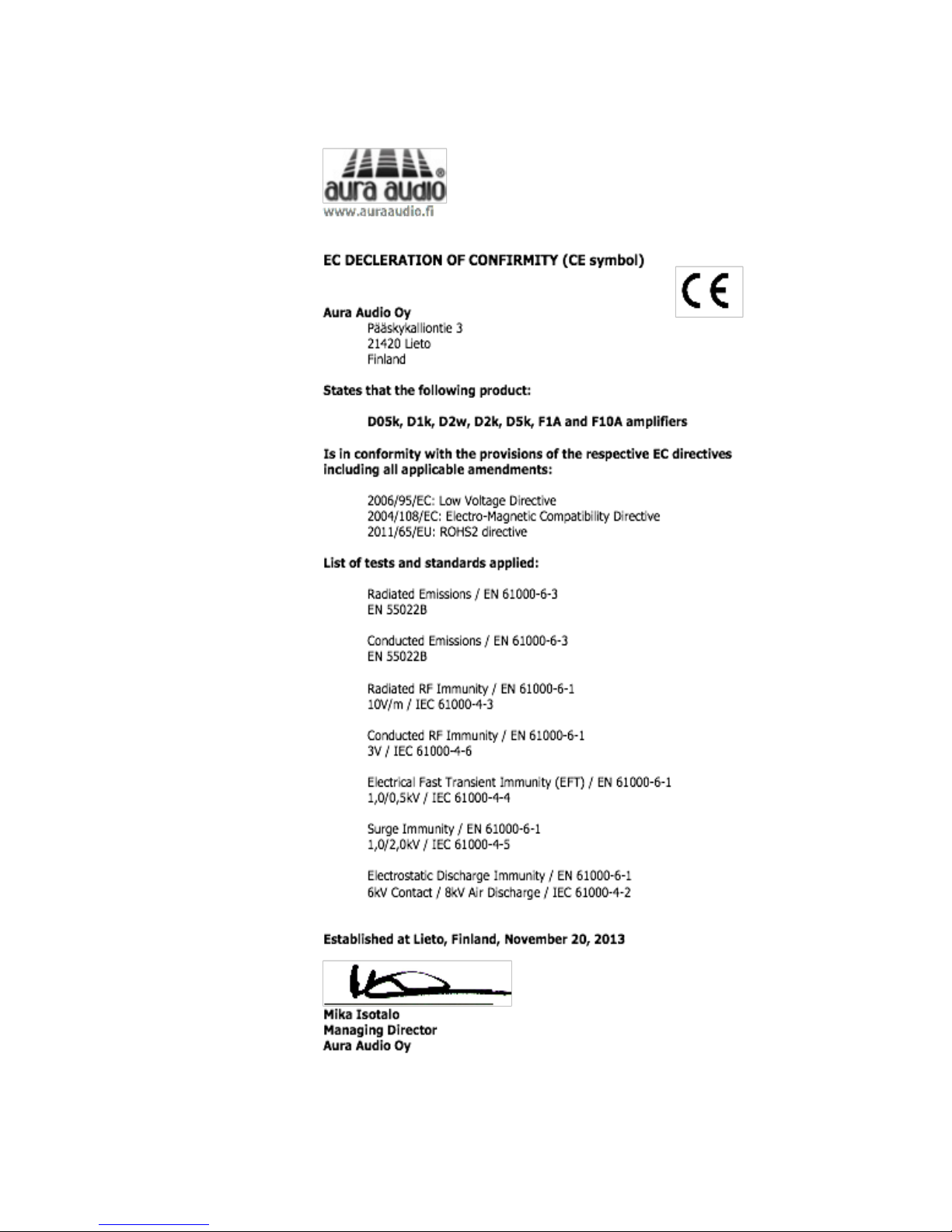

7. Declaration of Conformity 8
Page 2
Aura Audio D2i MANUAL Version 1.0
www.auraaudio.com Page 2 of 8
INTRODUCTION

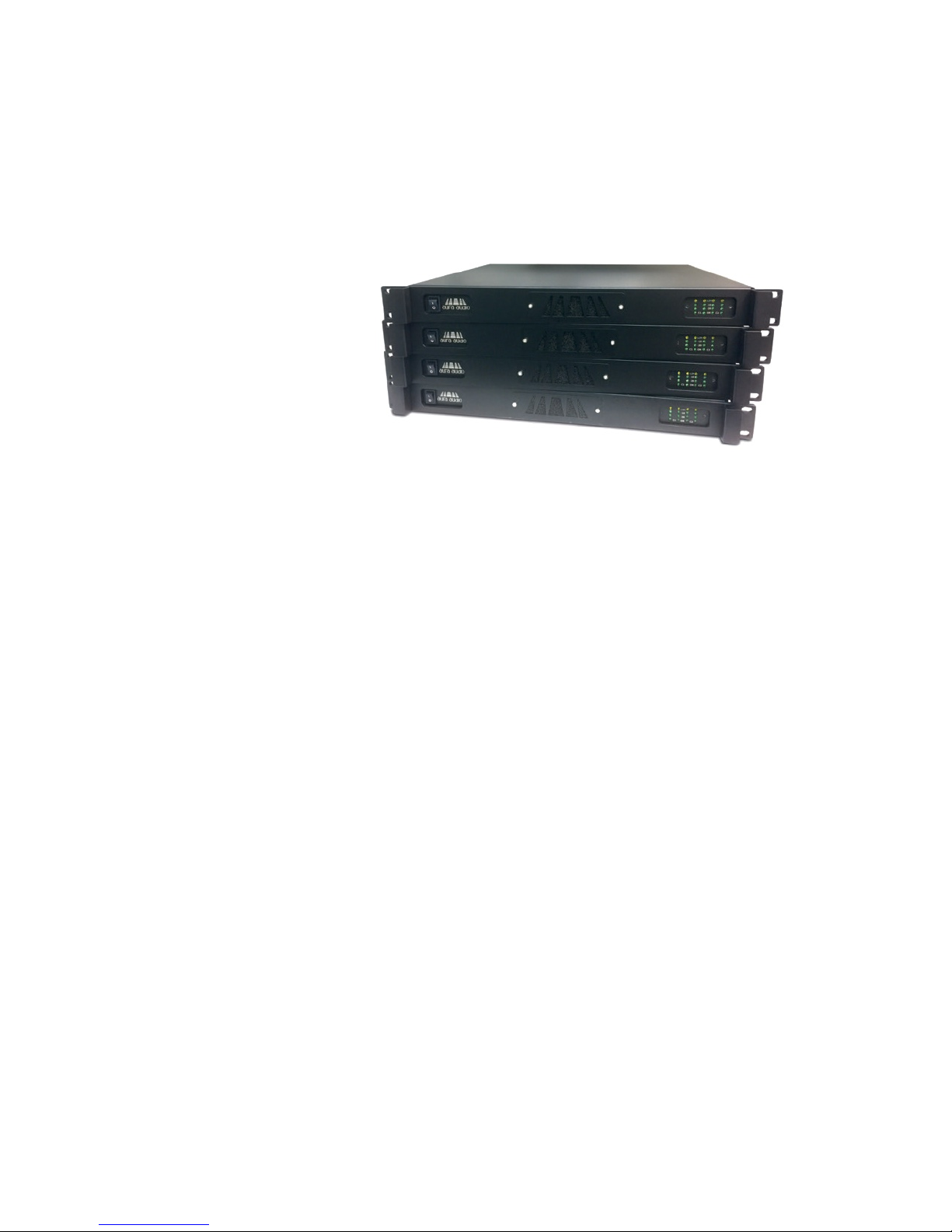

D2 amplifiers are Class-D High Efficiency Power Amplifiers
with fixed Loudspeaker Management. D2 amplifier range
represents the latest technology in Class-D amplifier design
featuring extremely high fidelity sound with frequencyindependent harmonic distortion performance, very low
noise floor and low total weight.
D2i is 2 in 4 out amplifier to be used as an independent
system amplifier or together with D80DSP fed by D80DSP
AUX Outputs. It is a dedicated system amplifier for i3 and
i5 with subwoofers XD10 and XD12 featuring crossover for
bi-amp operation.
D2i amplifier is fitted with fixed system controllers for the
specific loudspeaker including high-pass and low-pass filters,
parametric EQ and state-of-the-art optical limiter circuit.
Both channels are powered by separate switch-mode power
supplies featuring over-current and over-voltage protection
and optimized low noise cooling system.
Page 3
Aura Audio D2i MANUAL Version 1.0
www.auraaudio.com Page 3 of 8

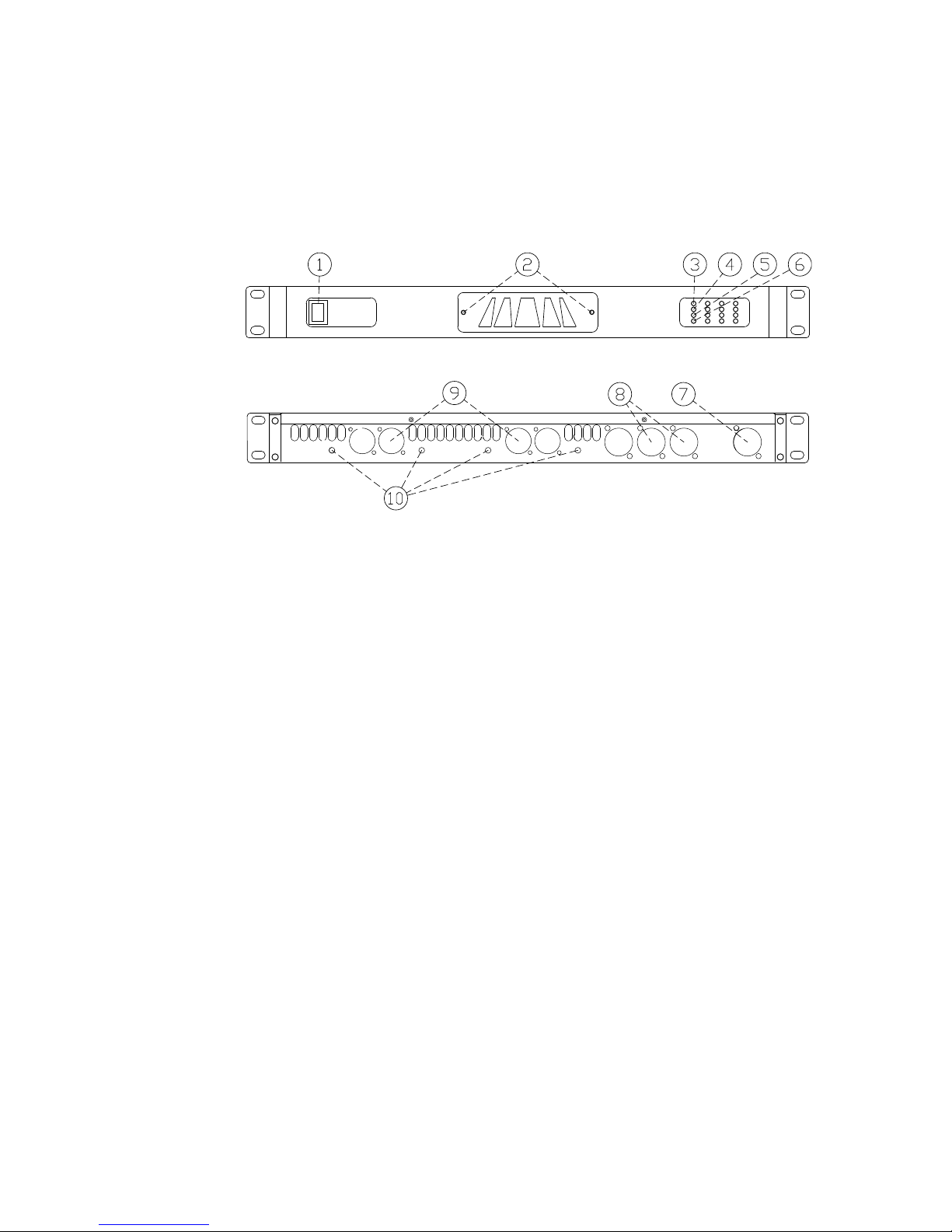

FRONT PANEL AND REAR PANEL
1. Power Switch: Double pole switch turns the amplifier off
and isolates it from the mains.
2. Ventilation: Change or clean the foam by unscrewing the
two M3 Allen Screws.
3. Limit Indicator: This yellow LED indicates when output
limiting is taking place. Brightness increases when more gain
reduction is taking place. Subwoofer channel is at left side
and i3/i5 channel at right for each C1 and C2 pair.
4. Signal Indicator: This green LED indicates -10dB signal to
limit ratio. Subwoofer channel is at left side and i3/i5
channel at right for each C1 and C2 pair.
5. Signal Indicator: This green LED indicates -20dB signal to
limit ratio. Subwoofer channel is at left side and i3/i5
channel at right for each C1 and C2 pair.
6. Ready Indicator: Indicates channel power supply is ON
and channel is working without protection.
7. MAINS Connector: Neutrik Powercon
Page 4
Aura Audio D2i MANUAL Version 1.0
www.auraaudio.com Page 4 of 8
8. Speaker Outputs: Neutrik Speakon NL4 connectors
(see below: Output Connections)
9. INPUT Connectors: XLR sockets for line level input (0dBu
for -3dB average output level) and hard link XLR for linking
the inputs.
10. Output Gain TRIM: These potentiometer control the
signal pre limiter and amplifier from 0dB to -100dB
OUTPUT CONNECTIONS:
D2i is a four channel amplifier. There are two amplifier
channels connected in both Speakon NL4 connectors:
#1 Subwoofers are connected to:
Pin 1+: Hot
Pin 1-: Cold
Minimum nominal load impedance should be 8 Ohms
#2 Max 6 pcs of i3 or one i5 are connected to:
Pin 2+: Hot
Pin 2-: Cold
Minimum nominal load impedance should be above 2 Ohms
Recommended maximum speaker cable lenght
cable gauge 8 Ohm load 4 Ohm load 2.7 Ohm load
2.5mm2 30m 15m 10m
4mm2 50m 25m 17m
6mm2 74m 37m 25m
Page 5
Aura Audio D2i MANUAL Version 1.0
www.auraaudio.com Page 5 of 8

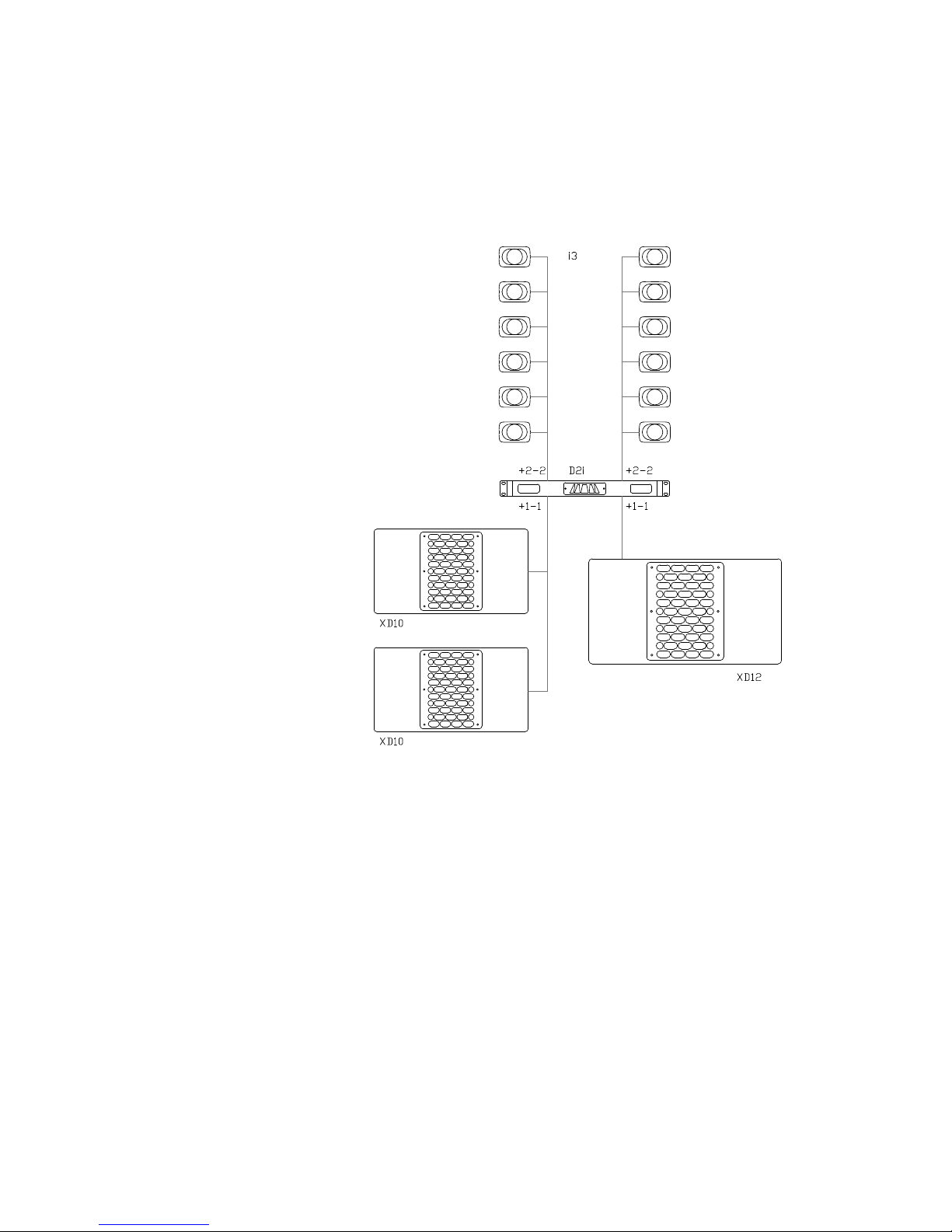

i3 System Option Examples
Page 6
Aura Audio D2i MANUAL Version 1.0
www.auraaudio.com Page 6 of 8

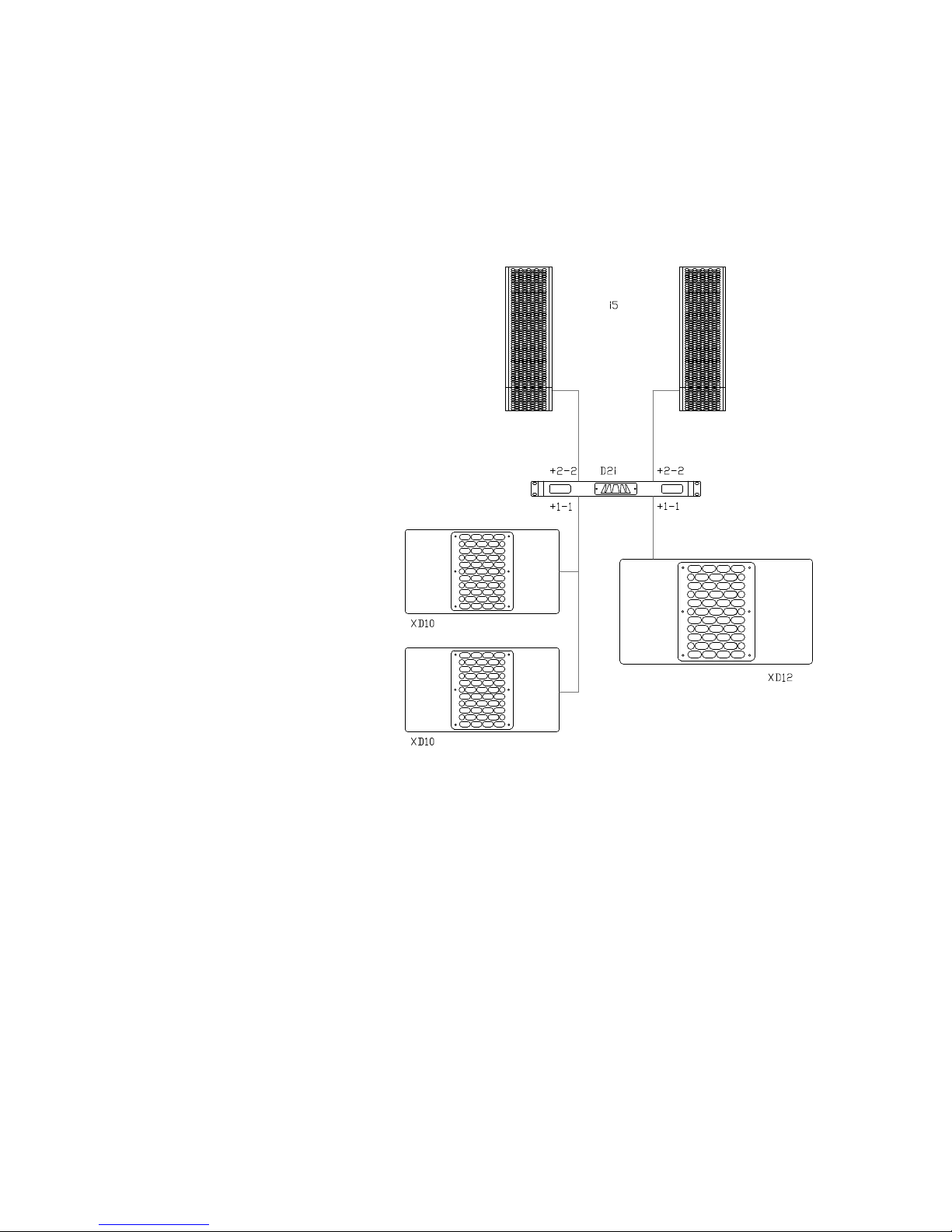

i5 System Option Examples
Page 7
Aura Audio D2i MANUAL Version 1.0
www.auraaudio.com Page 7 of 8
SPECIFICATIONS
D2i Output Power Subwoofer channels: (2) 250W/8ohms
D2i Output Power i3/i5 channels: (2) 125W/4ohms
Frequency response: 15Hz-30kHz -1dB
Dynamic Range: >100dB (C-weighted)
THD+N at -3dB <0.05% (50Hz - 20kHz)
THD+N at +10dB limit <0.5% (1kHz)
Input connectors: 2 x XLR, 2 x XLR link
Output connectors: 2 x Speakon NL4
Subwoofer Output Speakon NL4 pins:
1+ (hot), 1- (cold)
i3/i5 Output Speakon NL4 pins:
2+ (hot 1), 2- (cold 1)
Output Gain TRIM: 0dB to -100dB
Mains connector: Neutrik Powercon
Mains Power Consumption: 150W 1/5 Power, 1000W peak
Mains Power Idle Losses: 50W
DIMENSIONS
483mm (19") x 44mm (1U) x 400mm
Weight: 5,5kg
Shipping box: 540mm x 85mm x 510mm
Shipping weight: 6kg
