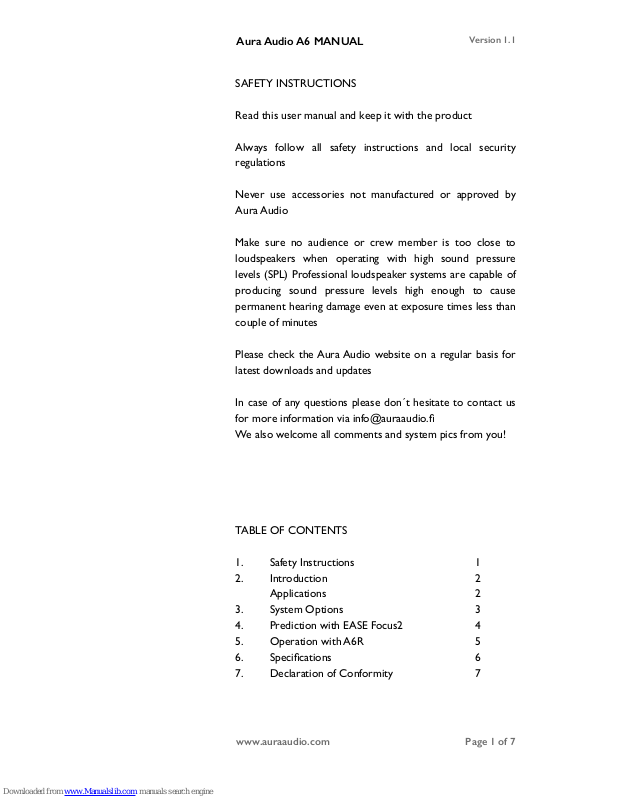

Aura Audio A6 MANUAL
Version 1.1
SAFETY INSTRUCTIONS!
!
Read this user manual and keep it with the product!
!
Always follow all safety instructions and local security
regulations!
!
Never use accessories not manufactured or approved by
Aura Audio!
!
Make sure no audience or crew member is too close to
loudspeakers when operating with high sound pressure
levels (SPL) Professional loudspeaker systems are capable of
producing sound pressure levels high enough to cause
permanent hearing damage even at exposure times less than
couple of minutes!
!
Please check the Aura Audio website on a regular basis for
latest downloads and updates!
!
In case of any questions please don´t hesitate to contact us
for more information via info@auraaudio.fi!
We also welcome all comments and system pics from you!!
!
!
!
!
!
TABLE OF CONTENTS!
!
1.! Safety Instructions! ! ! ! 1!
2.! Introduction! ! ! ! ! 2!
! Applications! ! ! ! ! 2!
3.! System Options! ! ! ! 3!
4.! Prediction with EASE Focus2!! ! 4!
5.! Operation with A6R! ! ! ! 5!
6.! Specifications! ! ! ! ! 6!
7.! Declaration of Conformity! ! ! 7!
!
!
!
Page ! of !1 7
www.auraaudio.com
Page 2
Aura Audio A6 MANUAL
Version 1.1
INTRODUCTION!
A6 is an ultra compact 2-way line array speaker. It consists
of 6.5” low frequency driver and 0.65” exit compression
drivers loaded with triple exit waveguide.!
!
The front loaded 6.5” low frequency drivers is loaded with
compact reflex-tuned enclosure and wavefront shaping
phase-plug. !
!
A6 features wide horizontal beam width and high cut off
frequency of 2.5kHz making it possible to use small
lightweight diaphragm compression driver for high
frequencies for increased sensitivity and detail. !
!
Up to six (12) units can be driven with Aura Audio D2k.A6
powered controller or up to twenty four (24) with
Powersoft X4 amplifiers fitted with OEM preset libraries.!
!
!
!
!
!
APPLICATIONS!
Front of house systems!
Night clubs!
Houses of worship!
Small to medium installations!
Music reinforcement with subwoofer!
!
!
!
Page ! of !2 7
www.auraaudio.com
Page 3
Aura Audio A6 MANUAL
Version 1.1
SYSTEM OPTIONS!
A6 line array speaker!
Full range operation down to 80Hz (extended mode)!
!
A6R Flying Frame for A6 array of 1 to 16 units!
!
Powersoft X4 - OEM Presets - max 24 units /Amplifier!
Aura Audio D2w.A6 - 4 units of A6 +4 subs /Amplifier!
Aura Audio D2k.A6 - 12 units /Amplifier!
!
Music reinforcement with subwoofer:!
XD10 ultra compact subwoofer; operation to 40Hz!
XD12 compact subwoofer; operation to 40Hz !
XD18 high power subwoofer; operation to 33Hz !
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Page ! of !3 7
www.auraaudio.com
Complimentary subwoofer XD18
D2w.A6 System Amplifier
Page 4
Aura Audio A6 MANUAL
Version 1.1
PREDICTION WITH EASE Focus 2!

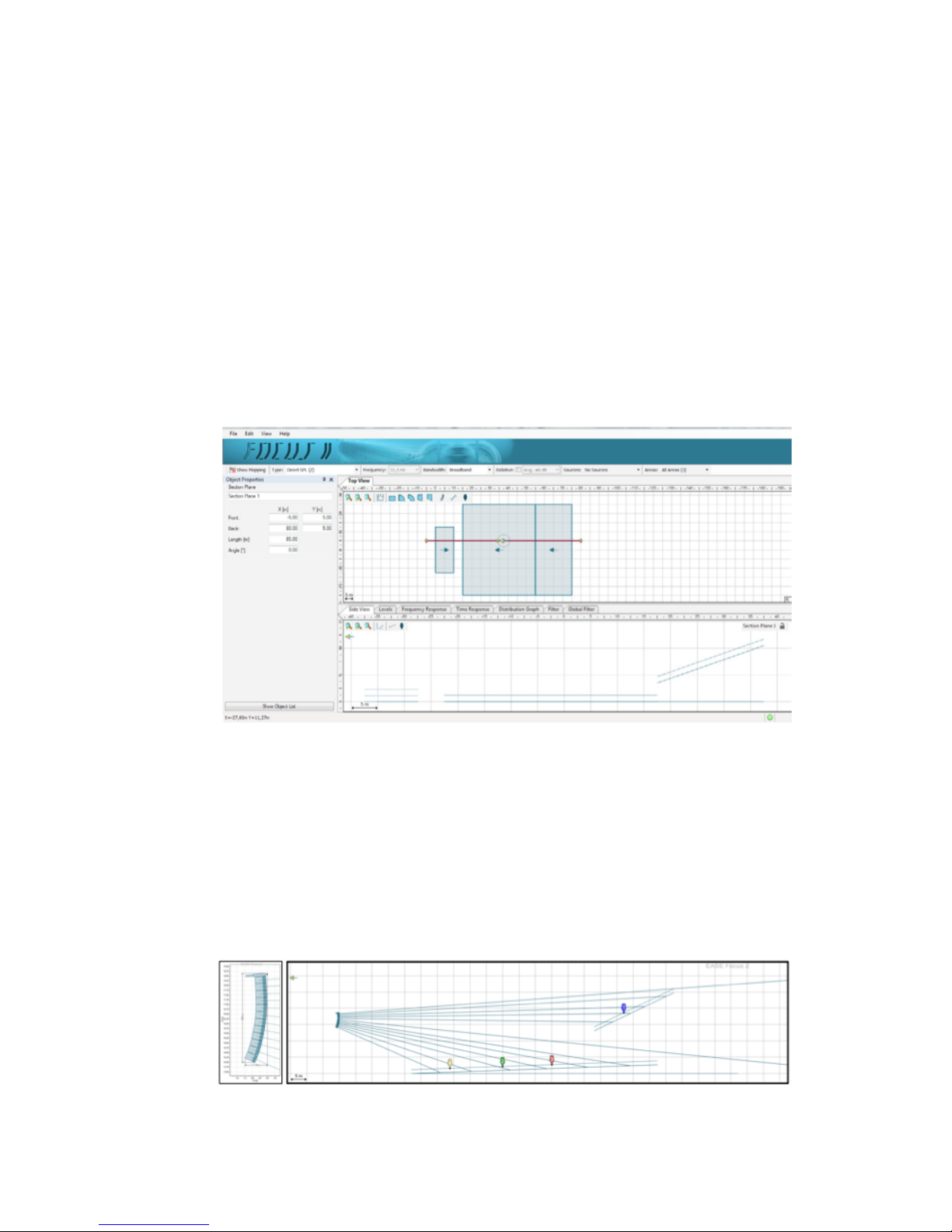

EASE Focus 2 is a system design software developed by
AFMG GmbH. Before using the software visit “downloads”
section in Aura Audio website to download A6 GLL file and
then download EASE Focus 2 software from http://afmg.eu!
!
Install the software and import A6 GLL file to your project:!
Edit / Import System Definition File… => Add Sound Source!
!
Please refer to the EASE Focus 2 User Manual for more
details or contact Aura Audio user support via email
info(at)auraaudio.fi!
We recommend you always verify the system performance
after the setup is completely ready by measuring frequency
response from at least two or three locations (front of
house, middle of audience area, balcony etc.) and by listening
familiar music material. It is also necessary to time aline
subwoofers to flown array separate and summed
measurements from both subs and tops and adjust delay to
one or both groups accordingly.!
!
Page ! of !4 7
www.auraaudio.com
Page 5
Aura Audio A6 MANUAL
Version 1.1
OPERATION WITH A6R FLYING FRAME!
A6 and A6R flying frames are in conformity with UNI EN
13155:2009. The safety factor is equal to 10:1 on the
breaking load. However there are wide regulation variations
internationally and practices applying to suspension of sound
systems in public places. Consequently, users of Aura Audio
rigging systems should be prepared to take additional safety
assurance measures beyond those outlined in this manual.!
! ! ! WARNING ! ! ! Do not suspend more than 16 A6
with one A6R bumper! WLL for A6/A6R is 120 Kg (264 lb).!
In the following three steps we show how to suspend A6R
bumper to the top A6 unit of a cluster.!
!
!
!
!
!
!
!
!
!
!
!

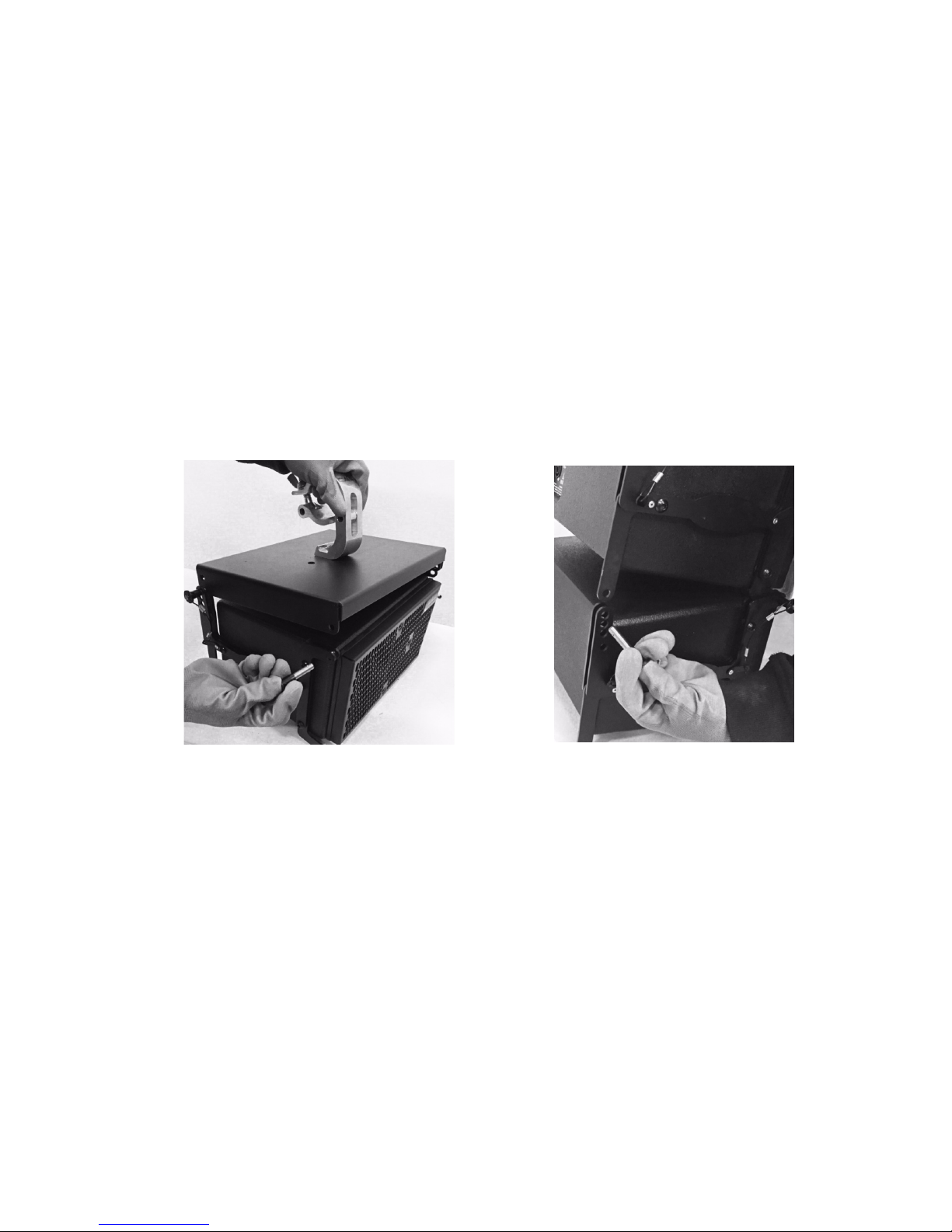

1# Place A6R on top of the first A6 and connect the front
quick release pins first. Pull back the pins to make sure they
are locked. To release the pin just push the button in the pin
and pull back the pin.!
!
2# Connect the angle rod according to Ease Focus
simulation. A6 features 4 choices for angles; 1, 3, 6, and 10
degrees. A6R only has same connections for angle rod.!
!
3# Hook the motor chain to A6R bumper (chain option) or
attach top clamp to truss (pic). The chain can be connected
directly to the A6R using omega shackle(s) not supplied with
the system. Now you are ready to lift and connect the next
A6 under the top A6 repeating the steps 1# and 2# above.!
Page ! of !5 7
www.auraaudio.com
Page 6
Aura Audio A6 MANUAL
Version 1.1
!
SPECIFICATIONS!
Frequency Response (+-3 dB): 90–22000 Hz!
Horizontal Coverage (-6 dB): 90 degrees!
Vertical Coverage (-6 dB): 12 degrees!
Max peak SPL: 121 dB (free space)!
Sensitivity 1w/1m: 94 dB (free space)!
Impedance: 16 Ohms!
Crossover: 2.5kHz passive !
Power handling: 125 W rms, 500 W pk!
Recommended HP-filter: 80-95 Hz, 12dB/oct!
!
DRIVERS!
LF: (1) x 6.5” neodymium magnet cone driver, reflex-tuned!
HF: (1) x 0.65” exit compression driver, triple exit waveguide!
!
ENCLOSURE!
Enclosure: Birch plywood, textured black paint finish!
Grille: Cold rolled steel grille, textured black paint finish!
Rigging system: Stainless steel, textured black paint finish!
Connectors: (2) x NL4, +/-1: IN/LINK, +/-2: linked!

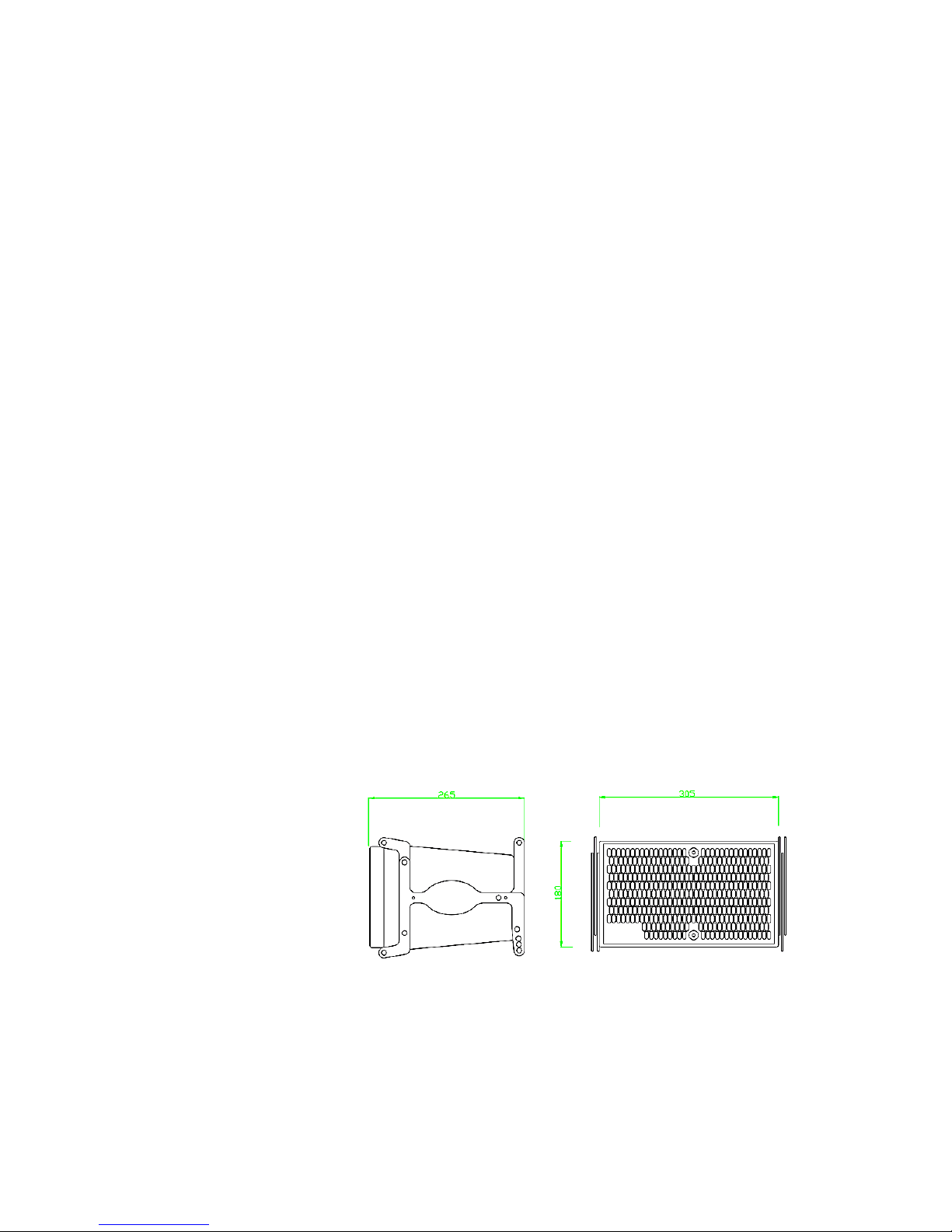

Dimensions: 305 mm x 180 mm x 240 mm (w/o rigging)!
Weight: 7 kg (w/o rigging)!
!
!
Page ! of !6 7
www.auraaudio.com
Page 7
www.auraaudio.fi
EC DECLERATION OF CONFIRMITY (CE symbol)
Aura Audio Oy
Pääskykalliontie 3
21420 Lieto
Finland
States that the following product:
D05k, D1k, D2w, D2k, D5k, F1A and F10A amplifiers
Is in conformity with the provisions of the respective EC directives
including all applicable amendments:
2006/95/EC: Low Voltage Directive
2004/108/EC: Electro-Magnetic Compatibility Directive
2011/65/EU: ROHS2 directive
List of tests and standards applied:
Radiated Emissions / EN 61000-6-3
EN 55022B
Conducted Emissions / EN 61000-6-3
EN 55022B
Radiated RF Immunity / EN 61000-6-1
10V/m / IEC 61000-4-3
Conducted RF Immunity / EN 61000-6-1
3V / IEC 61000-4-6
Electrical Fast Transient Immunity (EFT) / EN 61000-6-1
1,0/0,5kV / IEC 61000-4-4
Surge Immunity / EN 61000-6-1
1,0/2,0kV / IEC 61000-4-5
Electrostatic Discharge Immunity / EN 61000-6-1
6kV Contact / 8kV Air Discharge / IEC 61000-4-2
Established at Lieto, Finland, November 20, 2013
Mika Isotalo
Managing Director
Aura Audio Oy
Aura Audio A6 MANUAL
Version 1.1
www.auraaudio.com
Page ! of !7 7
