Aura Audio A28 MANUAL Version 1.2
www.auraaudio.com Page 1 of 7

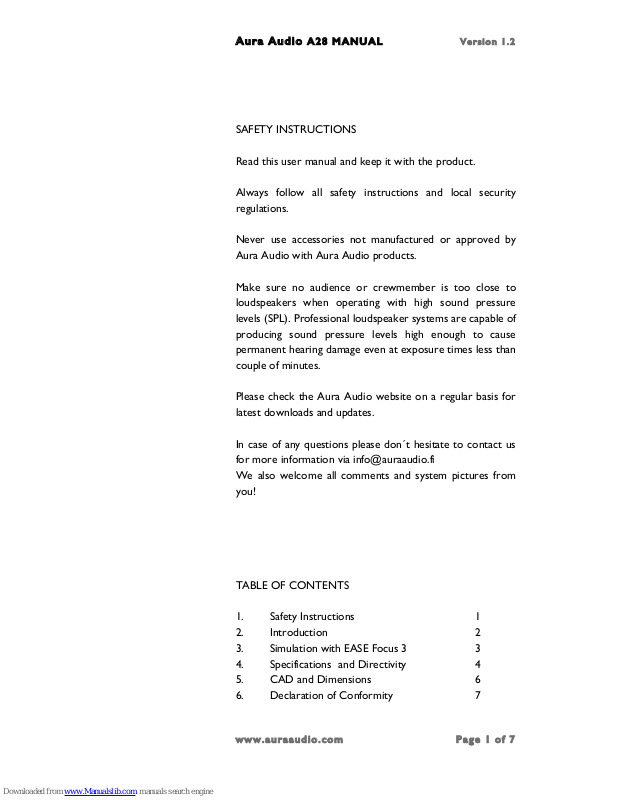

SAFETY INSTRUCTIONS
Read this user manual and keep it with the product.
Always follow all safety instructions and local security
regulations.
Never use accessories not manufactured or approved by
Aura Audio with Aura Audio products.
Make sure no audience or crewmember is too close to
loudspeakers when operating with high sound pressure
levels (SPL). Professional loudspeaker systems are capable of
producing sound pressure levels high enough to cause
permanent hearing damage even at exposure times less than
couple of minutes.
Please check the Aura Audio website on a regular basis for
latest downloads and updates.
In case of any questions please don´t hesitate to contact us
for more information via info@auraaudio.fi
We also welcome all comments and system pictures from
you!
TABLE OF CONTENTS
1. Safety Instructions 1
2. Introduction 2
3. Simulation with EASE Focus 3 3
4. Specifications and Directivity 4
5. CAD and Dimensions 6
6. Declaration of Conformity 7
Aura Audio A28 MANUAL Version 1.2
www.auraaudio.com Page 2 of 7
INTRODUCTION
A28 is a passive high power subwoofer. Featuring FIpatented hybrid enclosure design, a combination of folded
horn together with a separate reflex-loaded enclosure gives
this subwoofer its unique directional character. The key
innovation Passive End Fire Technology perfectly matches
the phase responses of the front firing horn-loaded 18”
cone driver to reflex-loaded rear firing 18” cone driver and
as a result the two waveforms sum at the front of the
cabinet and cancel behind the cabinet. Because this is
accomplished purely acoustically there is no need for
additional processing and A28 can be driven with only one
amplifier channel greatly reducing the overall system cost.
A28 is covered with water resistant semi-matt black coating
and equipped with CNC-machined handles, 100mm heavy
duty wheels and stacking studs for easy and safe ground
stacking.
Aura Audio A28 MANUAL Version 1.2
www.auraaudio.com Page 3 of 7
SIMULATION WITH EASE Focus 3
EASE Focus 3 is 3D system design software developed by
AFMG GmbH. Before using the software visit “downloads”
section in Aura Audio website to download A28 GLL file
and download EASE Focus 3 software from http://afmg.eu
Install the software and import A28 file to your project:
Edit / Import System Definition File…=> Add Sound Source
You can choose two modes of operation when choosing
A28 from the library: Subwoofer Array or Single Source.
When Subwoofer Array mode is used the software
calculates the necessary delays when quantity of
subwoofers, array width and target coverage angle are
determined. Another option is Single Source and setting all
subwoofers one by one. This enables placing subs freely and
adding delay and gain to each unit separately.
Please refer to the EASE Focus 3 User Manual for more
details or contact Aura Audio user support via email
info(at)auraaudio.fi
It is always necessary to time align subwoofers to the flown
array (tops) by measuring both separate and summed
frequency and phase responses from subs and tops and
adjust delay to one or both groups accordingly. Ground
plane measurement is recommended to minimize near
microphone reflections at low frequencies.
Aura Audio A28 MANUAL Version 1.2
www.auraaudio.com Page 4 of 7
APPLICATIONS
Touring in mid and large size venues
Subwoofer for drum fills
Medium and large size installations
Low frequency extension for A1, A2, A3, A6, C12 and C15
FEATURES
Passive end fire technology
Cardioid polar pattern without external processing
Unique patented hybrid loading design
Very accurate and dynamic low frequency reproduction
Double 18” high power long excursion cone drivers
Rugged birch plywood construction
Textured semi-matt black paint finish
SPECIFICATIONS
Frequency Response (-10 dB): 39 Hz – 150 Hz
Coverage (-6 dB): 150 degrees
Max SPL (cont/peak): 135/141 dB (free space)
Sensitivity, 1w/1m: 103 dB (free space)
Impedance: 6 ohms
Power handling: 1800 W(rms) 3600W(prog)
DRIVERS
LF (front): (1) x 18” cone driver, 4” voice coil
LF (rear): (1) x 18” cone driver, 3” voice coil
ENCLOSURE
Material: Birch plywood, textured black paint finish
Grille: Cold rolled steel grille, textured black paint finish
Connectors: (2) x NL4, +/-1: Input, +/-2: Linked
Dimensions: 1000mm x 580mm x 860mm (990 w/ wheels)
Weight: 85 kg (93 kg w/ wheels)
Aura Audio A28 MANUAL Version 1.2
www.auraaudio.com Page 5 of 7
DIRECTIVITY MEASUREMENTS
2x18”v2
Aura Audio A28 MANUAL Version 1.2
www.auraaudio.com Page 6 of 7
Aura Audio A28 MANUAL Version 1.2
www.auraaudio.com Page 7 of 7
