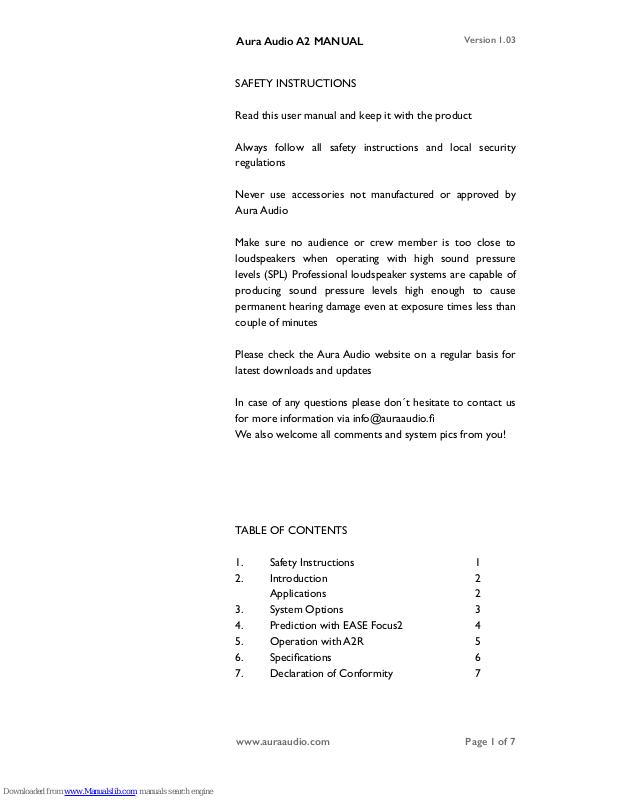

Aura Audio A2 MANUAL
Version 1.03
SAFETY INSTRUCTIONS!
!
Read this user manual and keep it with the product!
!
Always follow all safety instructions and local security
regulations!
!
Never use accessories not manufactured or approved by
Aura Audio!
!
Make sure no audience or crew member is too close to
loudspeakers when operating with high sound pressure
levels (SPL) Professional loudspeaker systems are capable of
producing sound pressure levels high enough to cause
permanent hearing damage even at exposure times less than
couple of minutes!
!
Please check the Aura Audio website on a regular basis for
latest downloads and updates!
!
In case of any questions please don´t hesitate to contact us
for more information via info@auraaudio.fi!
We also welcome all comments and system pics from you!!
!
!
!
!
!
TABLE OF CONTENTS!
!
1.! Safety Instructions! ! ! ! 1!
2.! Introduction! ! ! ! ! 2!
! Applications! ! ! ! ! 2!
3.! System Options! ! ! ! 3!
4.! Prediction with EASE Focus2!! ! 4!
5.! Operation with A2R! ! ! ! 5!
6.! Specifications! ! ! ! ! 6!
7.! Declaration of Conformity! ! ! 7!
!
!
!
Page ! of !1 7
www.auraaudio.com
Aura Audio A2 MANUAL
Version 1.03
INTRODUCTION!
A2 is a compact passive 3-way line array speaker. It consists
of two (2) 10” low frequency driver, 6.5” cone driver loaded
multi-path waveguide and two (2) 0.65” exit compression
drivers loaded with triple exit waveguides.!
Two (2) 10” low frequency drivers are loaded with narrowQ band-pass horn for extra sensitivity which actually equals
two front loaded 12” drivers in SPL over 150-400Hz. Low
frequency response is extended to 65Hz using tuned
combined back volume.!
"!
The heart of A2, like in its predecessor A1 is M6 mid
frequency driver consisting of 6.5” neodymium magnet cone
driver loaded with internationally patented multi-path
waveguide. Not only does this technology increase the
sensitivity roughly 10dB but M6 sound channels LPF also
cancel harmonics making distortion levels at max SPL
between 10-20dB lower than standard speaker systems
equal size. M6 also features wide horizontal beam width and
high cut off frequency of 4kHz making it possible to use
small diaphragm lightweight compression drivers for high
frequencies for increased sensitivity and detail. Two (2) A2´s
can be driven with Aura Audio D2k.A1 powered controller
channel or up to three (3) with Powersoft X-series
amplifiers fitted with OEM preset libraries.!
!
APPLICATIONS!
Front of house systems!
Medium to large installations!
Music reinforcement with subwoofer!
!
Page ! of !2 7
www.auraaudio.com
Aura Audio A2 MANUAL
Version 1.03
SYSTEM OPTIONS!
A2 compact line array speaker!
Full range operation down to 65Hz!
!
A2R Flying Frame for A2 array of 1 to 20 units!
A2RG Ground stacking or on a top of XD-series subwoofer!
!
Powersoft X4 - A2 Presets - max 3 units /ch (12 units)!
Powersoft X8 - A2 Presets - max 3 units /ch (24 units)!
Aura Audio D2k.A2 - max 2 units /ch (4 units)!
Aura Audio D2w.A2 - max one A2 + XD12 /ch (2+2 units)!
!
Music reinforcement with subwoofer:!
XD12 compact subwoofer; operation to 40Hz !
XD18 high power subwoofer; operation to 33Hz !
XD30 active high power subwoofer; operation to 30Hz!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Page ! of !3 7
www.auraaudio.com
Complimentary subwoofer XD18
D2w.A2 System Amplifier
Aura Audio A2 MANUAL
Version 1.03
PREDICTION WITH EASE Focus 2!
EASE Focus 2 is a system design software developed by
AFMG GmbH. Before using the software visit “downloads”
section in Aura Audio website to download A2 GLL file and
then download EASE Focus 2 software from http://afmg.eu!
!
Install the software and import A2 GLL file to your project:!
Edit / Import System Definition File… => Add Sound Source!
!
Please refer to the EASE Focus 2 User Manual for more
details or contact Aura Audio user support via email
info(at)auraaudio.fi!
We recommend you always verify the system performance
after the setup is completely ready by measuring frequency
response from at least two or three locations (front of
house, middle of audience area, balcony etc.) and by listening
familiar music material. It is also necessary to time aline
subwoofers to flown array separate and summed
measurements from both subs and tops and adjust delay to
one or both groups accordingly.!
!
Page ! of !4 7
www.auraaudio.com
Aura Audio A2 MANUAL
Version 1.03
OPERATION WITH A2R FLYING FRAME!
A2 and A2R flying frames are in conformity with UNI EN
13155:2009. The safety factor is equal to 10:1 on the
breaking load. However there are wide regulation variations
internationally and practices applying to suspension of sound
systems in public places. Consequently, users of Aura Audio
rigging systems should be prepared to take additional safety
assurance measures beyond those outlined in this manual.!
! ! ! WARNING ! ! ! Do not suspend more than 20 A2 with
one A2R bumper! WLL for A2/A2R is 700 Kg (1543 lb).!
In the following three steps we show how to suspend A2R
bumper to the top A2 unit of a cluster.!
!
!
!
!
!
!
!
!
!
!
!
1# Place A2R on top of the first A2 and connect the front
quick release pins first. Pull back the pins to make sure they
are locked. To release the pin just push the button in the pin
and pull back the pin.!
!
2# Connect the angle rod according to Ease Focus
simulation. A2 features 5 choices for angles; 0.5, 2, 5, 7.5 and
10 degrees. A2R only has one connection for angle rod.!
!
3# Hook the motor chains to the A2R bumper. The motor
chains can be connected directly to the A2R using omega
shackle(s) supplied with the system. Now you are ready to
lift and connect the next A2 under the top A2 repeating the
steps 1# and 2# above.!
Page ! of !5 7
www.auraaudio.com
Aura Audio A2 MANUAL
Version 1.03
A2 - SPECIFICATIONS!
Frequency Response (+-3 dB): 65–22000 Hz!
Horizontal Nominal Coverage (-6 dB): 90 degrees!
Vertical Nominal Coverage (-6 dB): 10 degrees!
Max peak SPL: 142 dB (free space)!
Sensitivity, 1w/1m: 109 dB (free space)!
Impedance: 8 Ohms!
Crossover: 400Hz and 3.5kHz passive 3-way!
Power handling: 500 W rms, 2000 W peak!
Recommended HP-filter: 65-80 Hz, 12dB/oct!
!
DRIVERS!
LF: (2) x 10” cone driver, band-pass horn loaded!
MF: (1) x 6.5” neodymium magnet cone driver, horn-loaded!
HF: (2) x 0.65” exit compression driver, triple exit waveguide!
!
ENCLOSURE!
Enclosure: Birch plywood, textured black paint finish!
Grille: Cold rolled steel grille, textured black paint finish!
Rigging system: Stainless steel, textured black paint finish!
Connectors: (2) x NL4, +/-1: IN/LINK, +/-2: n.c.!
Dimensions: 700 mm x 310 mm x 460 mm!
Weight: 33 kg!
!
!
Page ! of !6 7
www.auraaudio.com
www.auraaudio.fi
EC DECLERATION OF CONFIRMITY (CE symbol)
Aura Audio Oy
Pääskykalliontie 3
21420 Lieto
Finland
States that the following product:
D05k, D1k, D2w, D2k, D5k, F1A and F10A amplifiers
Is in conformity with the provisions of the respective EC directives
including all applicable amendments:
2006/95/EC: Low Voltage Directive
2004/108/EC: Electro-Magnetic Compatibility Directive
2011/65/EU: ROHS2 directive
List of tests and standards applied:
Radiated Emissions / EN 61000-6-3
EN 55022B
Conducted Emissions / EN 61000-6-3
EN 55022B
Radiated RF Immunity / EN 61000-6-1
10V/m / IEC 61000-4-3
Conducted RF Immunity / EN 61000-6-1
3V / IEC 61000-4-6
Electrical Fast Transient Immunity (EFT) / EN 61000-6-1
1,0/0,5kV / IEC 61000-4-4
Surge Immunity / EN 61000-6-1
1,0/2,0kV / IEC 61000-4-5
Electrostatic Discharge Immunity / EN 61000-6-1
6kV Contact / 8kV Air Discharge / IEC 61000-4-2
Established at Lieto, Finland, November 20, 2013
Mika Isotalo
Managing Director
Aura Audio Oy
Aura Audio A2 MANUAL
Version 1.03
www.auraaudio.com
Page ! of !7 7
