Aura Cebilon Plus, Cebilon Plus 101MF, Cebilon Plus 101MP User Manual

User Manual

MODEL

101MF

Pump

MODEL

101MP

101MF Tested and Certified by NSF International NSF/ANSI Standard 58 for the Reduction

Claims Specified on the Performans Data Sheet.

Member, Water Quality Association

Osmosis Osmotic Pressure, Reverse Osmosis (RO) Process

Semi-permeable mebrane and solution the basics of the asmosis event.

Semi-permeable mebrane which is formed of a thin diaphragm or thin ﬁlm, lets some of molecules and ions pass, but does not let some others. Cell

mebranes and egg mebrane are examples of membrane.

Solutions is a homogeneous mixture formed of several chemical subtances. In

other words, it is the diﬀusion of a substance in another substance in the form of particles which are too small to be visible. This diﬀusion is called dissolving, and obtained mixture is called solution. Generally, the one with less amount

in the mixture is called the solute and the one with high amount is called the solvent. Water is better solvent than any other one in nature. It dissolves many

solid, liquid and gaseous materials. Water (sea water) and suğar water (tea) are

the most commonly known solutions.

Many solid substance are found as dissolved in water in nature. In other words,

water we use is a solution. Water molecules in this solution are constantly in motion. As the amount of dissolved solid sunstance increases. In water with

high concentration, i.e. in water with higher solid substance , less molecules are present when compared with water same volume but less concentration, as a consequence, since the number of molecules in motion is less, also the thermal interior energy becomes less. That is, the energy of the solution with

lower concentration is higher.

1

3

Before Osmosis

Solvent (water)

Solute (solid matter particles)

Passage of water molecules through the membrane

Lower Concentration

1-

(higher osmotic pressure and higher internal energy) Higher Concentration

2-

(lower osmotic pressure and lower internal energy) Membrane (semi-permable)

3-

2

3

Pressure

After Osmosis

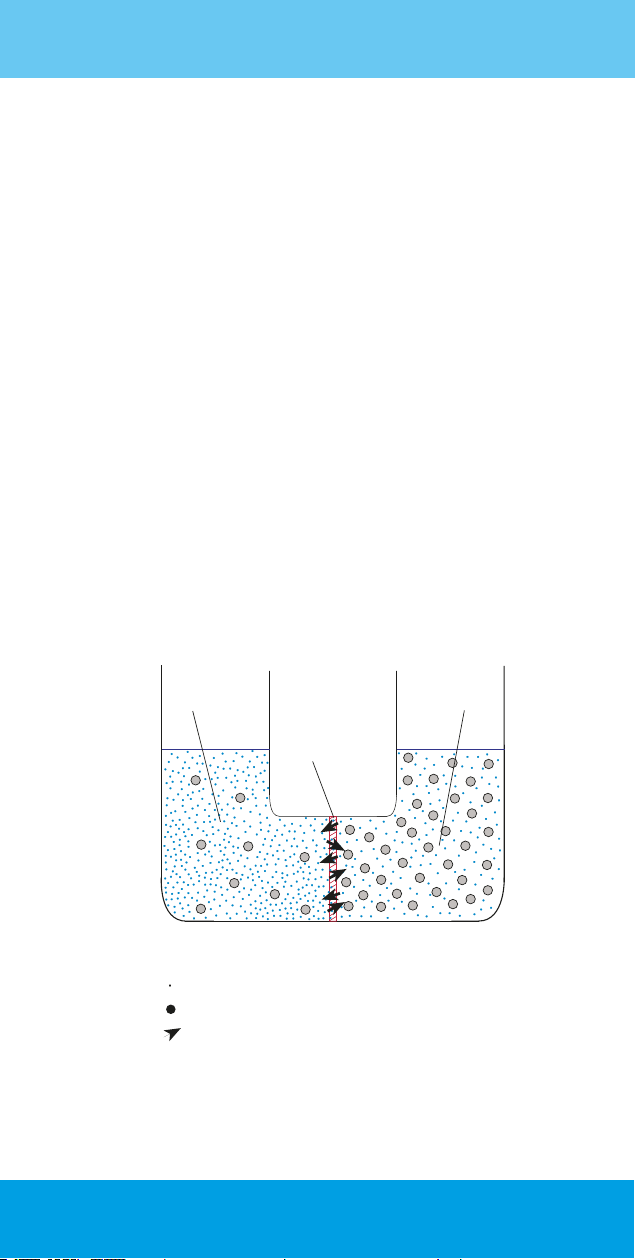

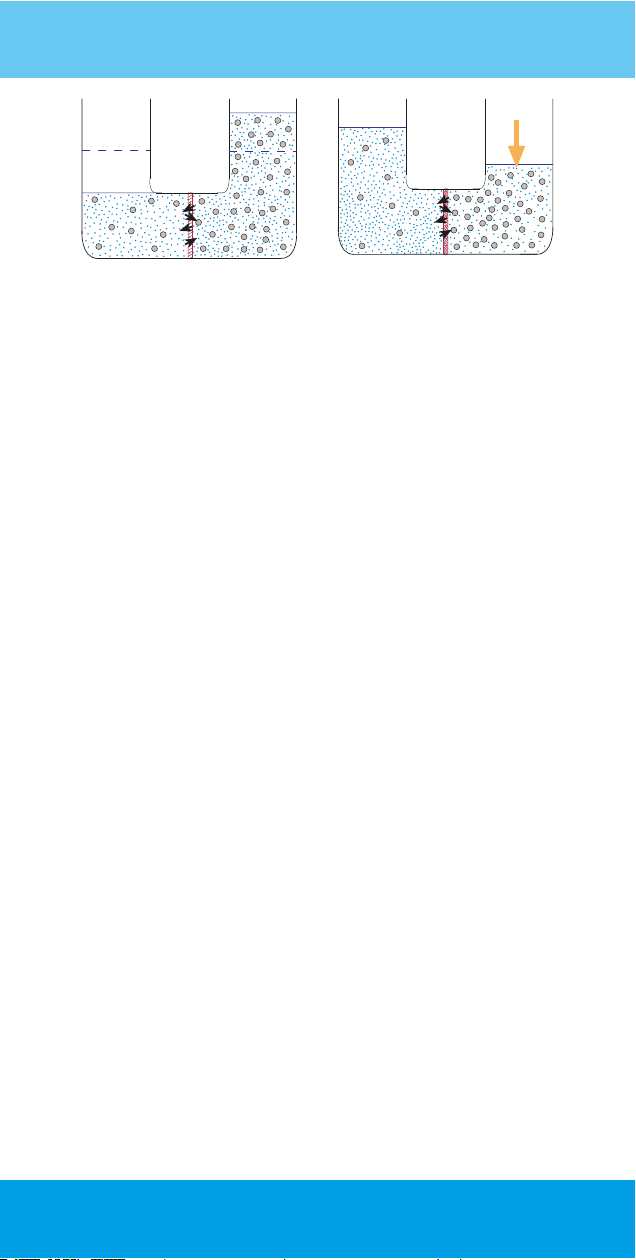

Figure 1. Osmosis and Reverse Osmosis

When semi-permeable membrane is placed in between two water column of

same volume but diﬀerent concentrations in a U-tube, while water molecules pass through the pores, several solid material particles having bigger size in

dissolved state can not pass through those pores. Passing rate is related to

concentration ratio, temprature and pressure. This passing continues until the concentration ratio at both sides are equal. The pressure originating from the

potential energy of this increasing water column is balanced by the Osmotic

Pressure. Thet is to say, internal enetgy on the side with lower concentration is

balanced by the potential ebetgy of the excess in the water column on the side with higher concentration.

On the condition the if a pressure equal to the pressure to be formed by the excess in the water column is applied to the side with higher concentration, this phenomenon called Osmosis does not take place. Furthermore, if a pressure higher than this level is applied, Osmosis phenomenon is reversed. In spite of the fact that amount is less, water molecules in the side with higher concentration

start to pass to the side with lower concentration. This phenomenon realized by force of pressure is called Reverse Osmosis.

Reverse Osmosis is used to separate the solid matters dissolved in water. The

purpose in water puriﬁcation is to convey the water molecules in water with high concentration (polluted water) to the water side with lower concentration. Osmosis take place conversely. In Reverse Osmosis, osmotic pressure surmounted by

application of pressure and the phenomenon is reversed and the purpose is achieved.

Reverse Osmosis

Reverse Osmosis (RO) Water Treatment Systems

There are systematic equipment designed in order to abtain lower concentration water (clear potable water) by using the method of reverse osmosis from higher concentration water (polluted mains water) It is possible to reverse the osmosis phenomenon which is a natural incident, by applying pressure. When pressurized water is passed through the membrane wrapped artiﬁcial rollers, most of the solid particles are held and disposed together with waste

water. Water with much lower concentration passing through thin membrane

pores is used as potable water. Before water enters into the membrane, in

order for the rough residues and chloride which is used in water disinfection to be held, a pre-ﬁltration proces such as sediment ﬁlter, carbon ﬁlter is usded.

4

-

Post carbon ﬁlter is applied in order to clean up the taste of water by adding into water coming out of the membrane, some helpful minerals.

Components such as those ﬁlters applied before and aﬅer the membrane, ﬁttings connecting those to each other, pump used to increase the pressure, switches, fresh water storage tank and body, etc. constitue the system. There may be various conﬁgurations of this system. Basically, it is composed of pre-ﬁltration, mambraine

which is the main component of the system where reverse osmosis event takes

place, and storage of water. Aura Cebilon Plus RO system is composed of 3 pre-ﬁltration, membrane, pH regulating post ﬁlter, pump set and a water tank.

Parts and Functions

City water

The water free of solid particules

The water free of solid particules and chlorine

Potable water

Waste water

14

WasteWater

7

12

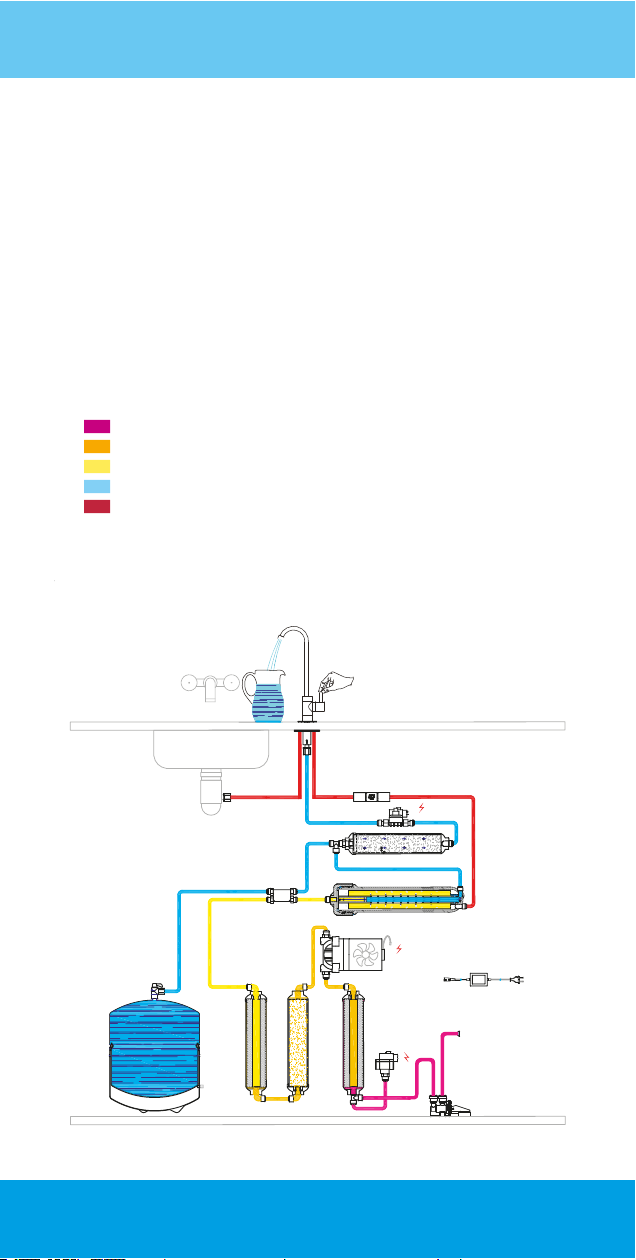

1 Water Leakage Stopper 2 Low Pressure Switch * 3 5 Micron Sediment Filter 4 Pressure Pump * 5 Granular Activated Carbon Filter 6 1 Micron Sediment Filter 7 Shut-off Valve 8 Membrane Filter 9 Mineral Post Carbon Filter 10 High Pressure Switch * 11 Flow Restrictor 12 Tank Valve 13 Fresh Water Tank 14 Faucet 15 Adaptör (24V DC) *

* Only available in 101MF model.

11

10*

9

8

4*

15*

13

6 5

Figure 2. RO System Diagram

City Water

2*

3

inOut

1

5

Functions of the Parts

5 Micron Sediment Filter (340071Z), holds the oating matters and particles in water in order to clarify water.

G

ranular Activated Carbon Filter (GAC) (340069Z), holds free chloride

organic matters and undesired odour.

1 Micron Sediment Filter (340070Z), holds the carbon dust to keep from plugging of membrane.

Membrane Filter (349004Z02), is where reverse osmosis phenomenon takes place. A long lm made of a semi-permeable material is folded in a spiral-wound conguration around a permeate colection tube to obtain double layer lm. A let shaped permeate channel spacer placed between layers to prevent layers sticking together and to let clean water ow through between layers into the holes on tube. Tube is a plastic tube with one end closed, other end lets water coming from lm bag through holes ow to tank or faucet. Two long sides and one short side welded with spacer material together to prevent water leakage from sides expect the tube side. The membrane lm looks like long bag having all sides welded and closed expect the end at the tube side. Film bag with an other let shaped spacer wrapped around the tube together, lm and spacer form a spiral shape. This spacer constitutes a space between lm bag wraps to let water ow and reach whole lm surfaces. Some of water passes into the inside of lm bag by pressure eect, taken o from outow holes on the tube while polluted water passes by grazing the lm surfaces in a ow named as crossover ow, some water moves to the inner part of the lm as fresh water by pressure eect (Figure 3.).

6

5

4

3

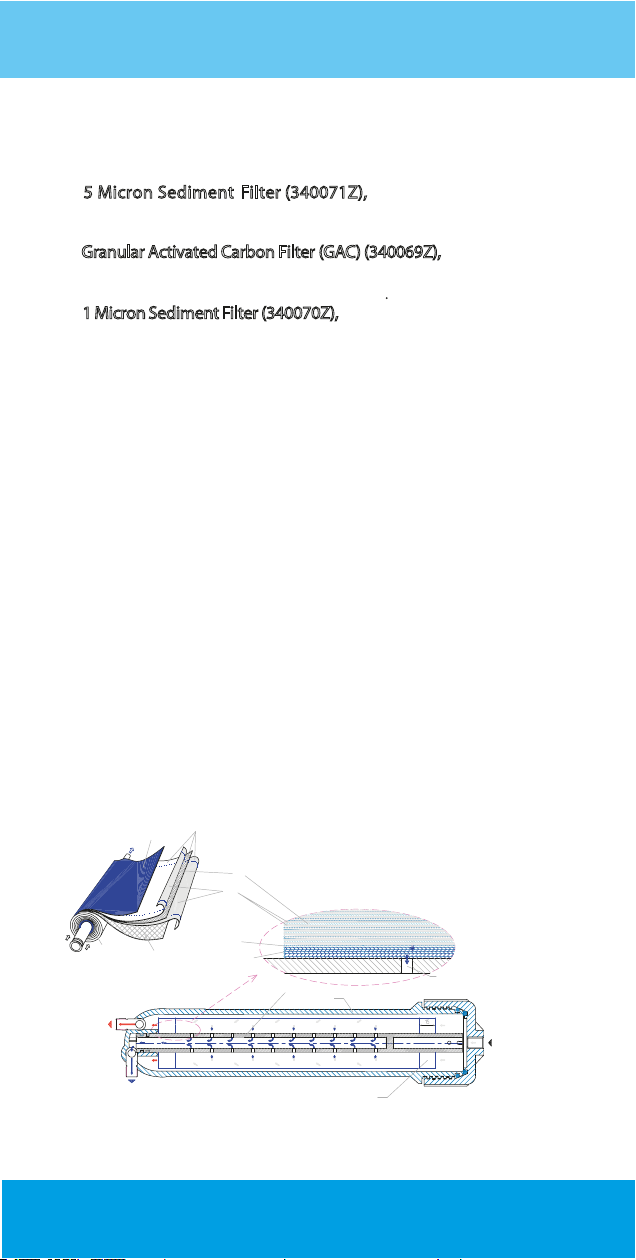

1- Permeate Channel Spacer Folding 2- Spacer 3- Membrane 4- Permeate Channel Spacer 5- Plastic Cover 6- Welded Area

Tube

2

1

Housing

Welded Area

Drain Hole

Inlet

Waste

1

2

Clean

Figure 3. Structure of the Membrane

6

Fresh Water Tank has an inner surface coated by a “food contact” plastic material appropriate to food any provides storage of fresh water in a hygienic condition.

ank Valve controls inow and outow of water.

T

Mineral Post Carbon Filter (340005Z06) enriches water by adding minerals before the fresh water stored in the tank of coming directly from the membrane, ows through the tap and regulates Ph.

Flow Restrictor provides formation of the necessary pressure in the membrane by restriction the ow, in order to perform decomposition process. It is placed on the line where waste water is discharged.

Faucet

is the tap where fresh water is received.

Low Pressure pressure is below 0.2 bars (3 psi).

Pressure Pump * ltration, to the level which is necessary for the membrane to function.

Shut-o Valve, controls the water ow. Cuts o water ow once the tank pressure reaches to the membrane entrance pressure.

High Pressure lled up with fresh water reaches 2.6 bars (38 psi).

Pump mains voltage to 24 V DC.

* Only available in 101MF model.

Switch *, stops the pump when water is cut o or the

, brings the pressure of water passing through pre-

Switch *, stops the pump once the pressure in the tank

Adapter * is the power supply of the pump, it transforms the

Application

This appliance is used to obtain drinking water from the mains water that have passed through the municipal treatment processes. This water should be microbiologically safe, subjected to the necessary disinfection. If the parameters of the water are within the following ranges ecient operation of the appliance is ensured. Systems designed diferently for waters such as sea water, well water, muddy water etc. with a very high TDS value are also available.

7

Tecnical Specif ications

ank Capacity

Tank Capacity

Tank Air Pressure

Daily Capacity 34,03 gpd (128,6 L/d)

Daily Capacity

Purication Rate

Pump Discharge * 0,8 L/m-1,2 L/m

Pump Discharge *

6,1 L (100 psi/689 kPa)

6-7 psi (40-48 kPa)

%85 - %98

0,8 L/m-1,2 L/m

Pump Pressure * 80 psi-110 psi (551-758 kPa)

Pump Pressure *

Pump Power Supply * 24 VDC

Pump Power Supply *

Product Size (mm)

Product Size (mm) 270x400x385

Total weight

otal weight

80 psi-110 psi (551-758 kPa)

24 VDC

270x400x385

101 MF 12,5 kg / 101 MP 9,5 kg

* Only available in 101MF model.

•

Do not use this system with any water that is microbiologically unsafe, that does not have adequate disinfection before or after operation or that of the quality is unknown.

Aura Cebilon Plus contains critical components that are required to be replaced periodically to purify the total dissolved solid materials (TDS) eciently. To check the eciency of the system, water from the appliance must beperiodically tested.

Your appliance contains critical components that must be replaced periodically with respect to the system's eciency. These critical components must be replaced with components and lters with the specications dened by the manufacturer so that the system can operate continuously with the same eciency and performance.

8

Operating Principle

The rst lter of the system is the 5-micron sediment lter where the solid particles are retained. The water from the sediment lter is passed through the carbon lter. Granular Active Carbon (GAC) lter retains organic matter especially free chlorine and eliminates unwanted odors, carbon and other particles that may escape from the lter, even the chlorine is passed through the 1 M sediment lter and it is ensured that the pre-membrane lters, even more suitable. This is also a factor aecting the life of the membrane. The water cleaned in three pre-lters, solid ions dissolved in the membrane that is the basis of the RO water treatment system, small particles are retained to a large extent and given to the waste water.

While the waste water containing the undesirable substances are discharged from one line of the membrane running with cross-fow method, water received from the other line of the cross-fow is collected in a pressurized tank. The amount of waste water should always be more than the clean water so that the membrane works in a healthy way and has a long life. Through the ready the water in the tank, water is supplied faster. Your appliance's tank capacity is 6.1 liters (approximately

1.61 gallons)

Installation

Your appliance is very practical for use and the water installation can be easily installed anywhere. Installation of your appliance must be made by Aura Cebilon Plus Authorized Services.

Aura Cebilon Plus that are required to be replaced periodically to purify the total dissolved solid materials (TDS). To check the eciency of the system, water from the appliance must be periodicallytested.

Free chlorine may aect the polymer structure of the membrane lter that is located inside the system.

Please read the instruction manual for installation, operation, maintenance and warranty terms.

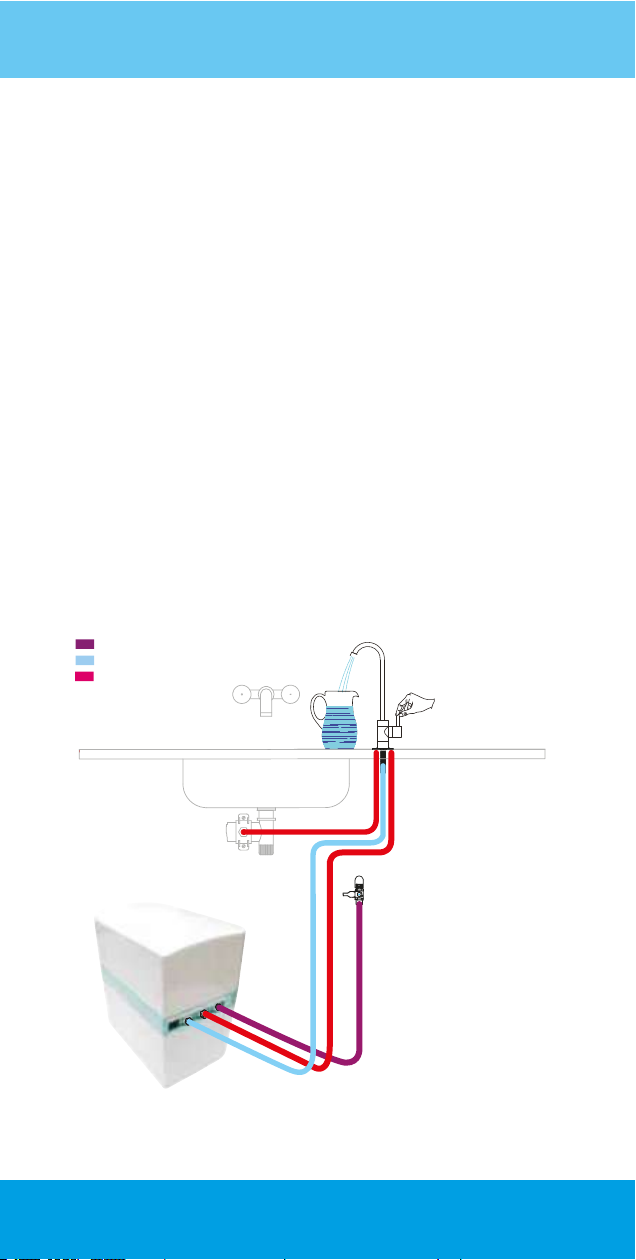

Installation diagram for the appliance is shown in Figure 4.

RO System contains critical components

9

! Warning

1- Measures should be taken against freezing.

2- Waste water should not interfered with.

3- When muddy (clay) water comes from the mains, close the water inlet of the appliance.

4- If a water supply other than the mains will be used, you must receive a drinking water report from relevant institutions.

5- If it is a water source other than the mains water, make sure that the disinfection process is performed.

6- Filters are considered as supplies and areoutside the scope of warranty.

City Water RO Water Waste Water

7

6

2

1- Aura Cebilon Plus RO System 2- Water inlet valve

1

3

4

5

3- Water inlet 4- Waste water outlet 5- RO water outlet (Fresh water) 6- Waste water clamp 7- Tap

Figure 4. RO Installation diagram

10

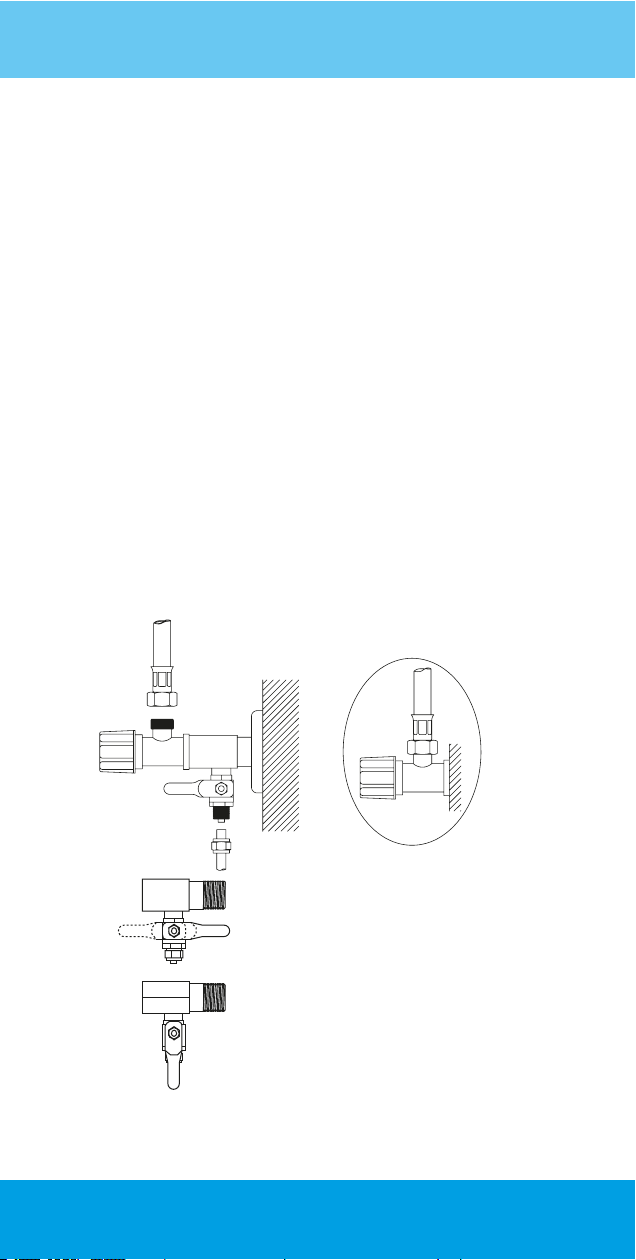

Water Connection

• Close the mains water from the apartment inlet valve.

• After draining the water left in the pipes from proper places, mount the three-way adapter to the mains by ensuring the sealing.

• First, mount the 1/4 ball valve to the three-way adapter by wrapping a teon tape in a position so that the valve is opened and closed easily (Figure 5.a).

• Connect the water inlet hose to the ball valve (Figure 5.b).

• Make sure the ball valve is closed (Figure 5.c).

• Open the mains water, check whether there is any leakage (Figure 5.d).

• Place the appliance on a suitable place underneath the counter in upright position.

a

c

d

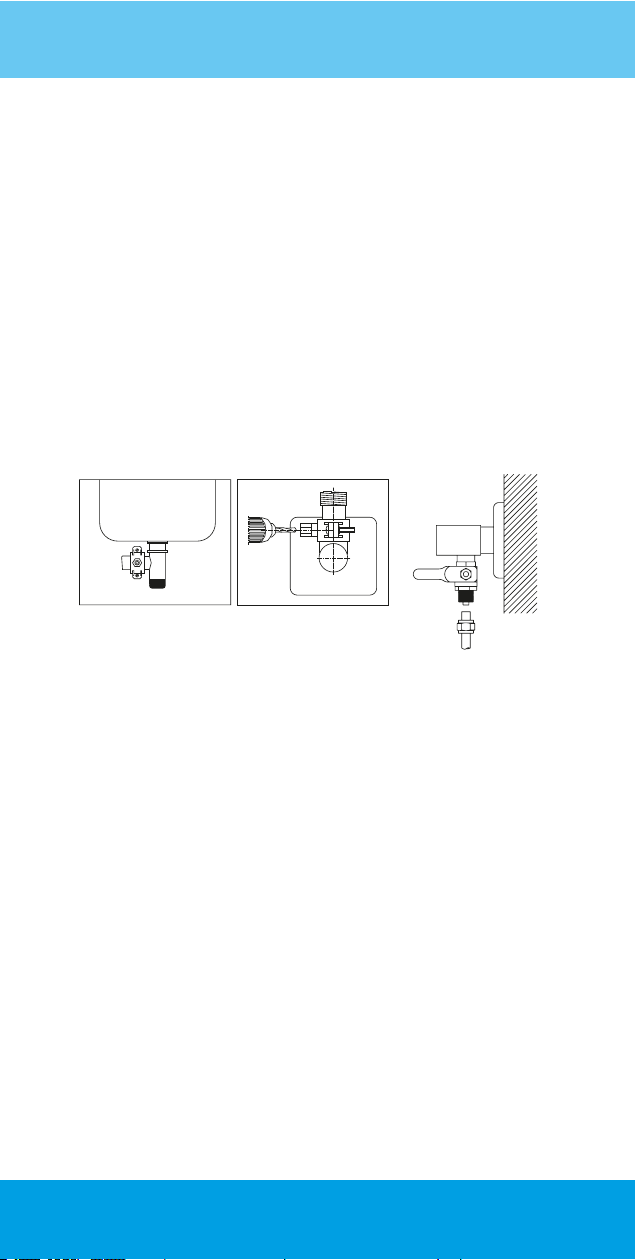

Figure 5. Water connection ttings

b

11

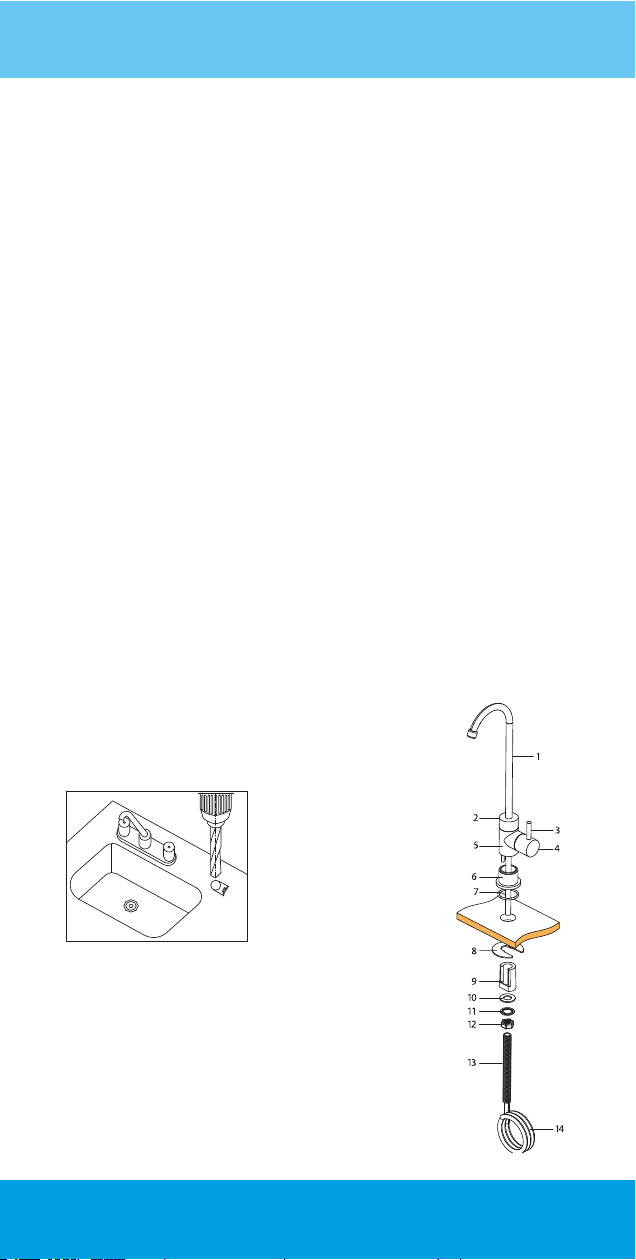

Installing a faucet

Clean water faucet should be mounted carefully in terms of use and aesthetics. If the counter or kitchen sink will be drilled, drilling process should be proceeded after the dimensions are obtained so as to install the washers, nuts and unions under the counteror kitchen sink (Figure 6). Otherwise, drilling may be incorrect.

The location to be drilled may be granite, marble, concrete or stainless sink. If the counter is granite, it must be drilled with a 20 mm diameter bore bit. Bore bit is attached to the end of the drill and it is set to low speed. Water is poured on the ground to be drilled (do not drill without water). Bend the bore bit as 45 degrees and press slightly, it makes a trail on the granite. Then it is brought to an upright position slowly without lifting. When it reaches the upright position, drilling is completed by applying enough force. If the bore bit is not kept constant when we start drilling, parts can break o from the granite surface. The o-ring on the faucet's mirror cannot ensure sealing and may cause the water leakage down from the counter. Marble countertops can be drilled by the same drilling bit or bore bit. Concrete countertops are drilled with a contact tip and hammer drill. If concrete is coated with tiles, a pre drill is made with a small-diameter drill bit to avoid cracking the tiles. Bore bit for the stainless sinks is dierent.

The hose should be mounted carefully between the faucet mounted on the counter and on the appliance where "Clean Water" is written.

Water connection ttings

1 Faucet Pipe 2 Upper Body Part 3 Opening/Closing Handle 4 Hub Cover 5 Faucet Body 6 Body Bushing 7 Body Bushing O-ring 8 Mounting Parts 9 Mounting Plastic 10 Plastic Mounting Washer 11 Crinkled Spring Washer 12 Compression Nut 13 Faucet Screw 14 1/4” Hose

12

Figure 6. Faucet

Waste Water Connection

• If waste water pipe of the sink is not a throat hose but a 40 mm plastic pipe, it is mounted in a 3/8" clamp sealing sponge axed state (Figure 7a).

• The ush is drilled from the hole of the clamp in 8 mm diameter on the same axis (Figure 7b). One end of the 3/8" waste water faucet is connected to this clamp and the other end is connected to the 3/8" waste water union.

• If waste water hose will be mounted on the 50 mm waste water installation, 3/8" clamp will be mounted and the waste water a hose will be mounted on its location above this. A seal must be used when mounting the adapter to the waste water installation.

Figure 7. Waste water connectiona b

Figure 8. Mains inlet valve

Pre-tests

• Adapter is plugged in after the adapter jack is inserted into the 24 V DC power inlet on the appliance.*

• Fresh water tap is open .

• Tank valve should be closed.

• Opening up the ¼” ball valve, mains water is supplied to the system (Figure 8.). Pump starts to operate.

• When amount of water ow took place, tap is closed

• Once the operation of the pump is stopped, leakage control is performed in each and every connection, tank valve is opened up.

• Since the tank will be lled for the rst time, tank water is let to ow for no purpose, for at least once. The appliance is now ready to use

• This system should be used after the twenty-four hours washing process,

(Installation is done after this process is carried out by an authorized service.)

* Only available in 101MF model.

Points for Attention

• The appliance is designed for domestic use. Parts such as storage tank, waste water hose, faucet must be attached indoor environment. Necessary measures should be taken to prevent freezing and waste water ow.

13

• Use the appliance after the necessary measures are taken in microbiologically unsafe or disinfected waters.

• The appliance must be supplied with its own power adapter. *

• If the appliance will not be used for a long time (such as more than 1 month), the inlet water valve must be closed , the tank should be drained and the adapter should be plugged out and the authorizes service must be called to disinfect the appliance when reactivating.

• When there not anyone in the house, close the water inlet valve of the appliance for safety purposes (Figure 8).

• The appliance must not be interfered for repair and maintenance purposes. Otherwise, it falls out of the warranty scope, these operations are carried out by

Aura Cebilon Plus

Authorized Service.

Filter Flushing and Conditioning Procedures

• The rst three lters shall be ushed separately. Firstly close the ball valve that supplies mains water to the system. Remove the outlet tube on the housing cover of rst lter. Insert one meter ¼ Inch tube to the outlet of the cover. And then open the ball valve, ush the lter for 2-3 minutes with mains water. Insert the outlet tube to its place and follow the same procedure for the other two lters.

• After that when you ush membrane lter remove tubes on the both outlets of the membrane housing. Insert one meter tube to the both outlet. Flush the membrane for 2-3 minutes to clear membrane form protective membrane solution.

• Install the tube that has ow restrictor on it but not to install the tube that goes to post carbon lter.

• Allow water ow for 2-3 minutes to clear the membrane solution completely. And then install the tube that goes to post carbon lter.

• Then storage tank will be lled for the rst time, tank water is let to ow for no purpose, for at least once. The appliance is now ready to use.

• When you ush lters, some water drops can cause E2 (water leakage error). So dry the sensor and the device completely. Be careful that there will be no water drop in the device somewhere. If you experience such a problem, dry the sensor and device and then pull out the plug and then install the plug again the E2 error will disappear.

• Also there are three pcs L elbow that is not installed to the device. These elbows should be xed to the inlet and outlets of the device for preventing tube breakage.

14

• As the inlet water temperature changes, the amount of clean water to be received and the eciency may change. Therefore, water obtained may be low in winter and high in summer.

• In any unfavorableness (Figure 8) close the water inlet valve and consult

Aura Cebilon Plus

Authorized Service.

* Only available in 101MF model.

Maintenance

Maintenance of your appliance must be performed by an Cebilon Plus

The life of the lters used in

Authorized Service.

Aura Cebilon Plus

RO System changes

Aura

depending on various factors with the amount of water used. These major factors are inlet water quality, chlorine amount, residue amount etc. Filters are considered as supplies and they are out of warranty.

Recommended Filter Replacement Periods

Have timely periodic maintenance of your appliance to use your system eciently and for longer time. The following replacement periods are the recommended durations for appliances used in mains water under normal conditions.

The usage condition of your appliance may change depending on the properties of inlet water, amount of chlorine and sediment.

Our authorized services will perform periodic maintenance required for your system to work eciently every six months.

Replacement

Period

Sediment ltration is performed by taking coarse

5 Micron Sediment Filter 340071Z

GAC Filtre

340069Z

1 Micron Sediment Filter 340070Z

Mineral Carbon Filter 340005Z06

Membrane

349004Z02

For the replacement parts please contact your local dealer or www.iea.com.tr / +90 212 875 35 62

6 months

6-12 months

2-5 years

particles in water. Clears the water at a micron level. Its life varies depending on the nature of the inlet water.

Keeps all the gas in water chemically in itself. The excess chlorine reduces the life of the 1st carbon lter (GAC). Timely replacement protects from damage of chlorine and extends the life of the membrane lter.

Sediment lter holds the carbon dust to keep from plugging of membrane

Regulates the pH by supplying mineral to water. 6-12 months

This is where Reverse Osmosis occurs. Life of the lter will change depending on the ion concentration in the mains water, amount of the distilled water and whether the maintenance is carried out in a timely manner.

DutiesFilter Name

15

Aura Cebilon Plus Reverse Osmosis System

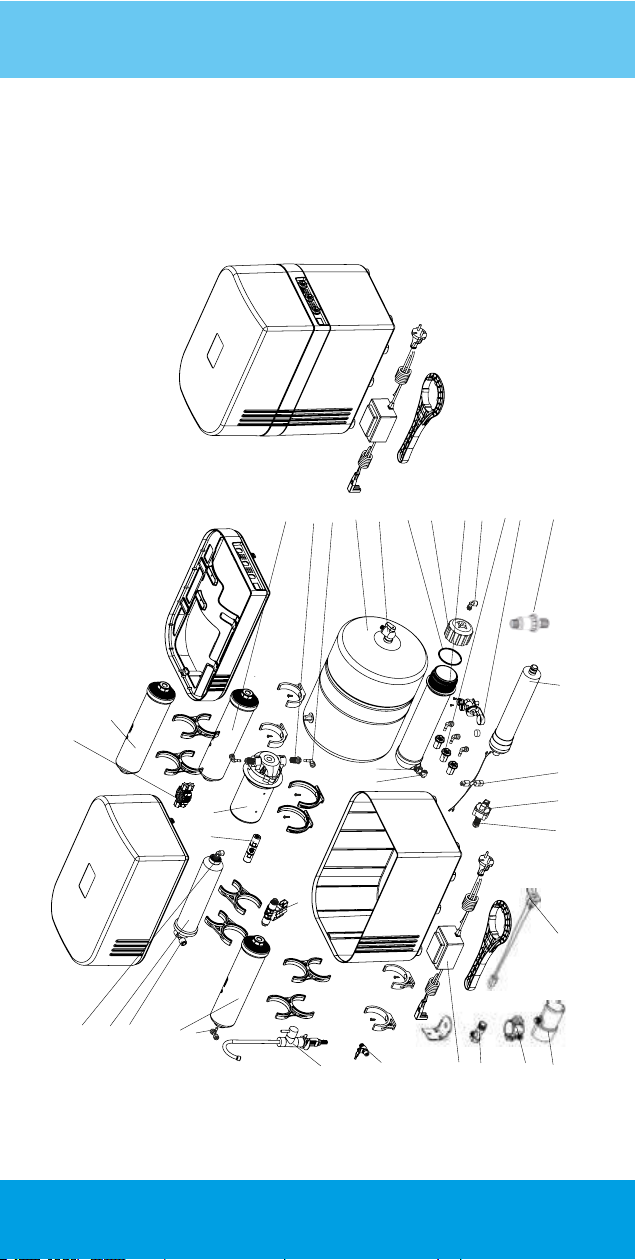

Part List

8

4

3

18

5

31

9

24

25

2

29

1

22

23

12

32

7

19

27

28

16

13

10

6

15

27

30

20

14

26

11

21

33

17

34

16

P. No Part Code Part Name P. No Part Code Part Name

Sediment Filter Group 5 Micron 12''

19 341003Z Plastic Tank Valve

Sediment Filter Group 1 Micron 12''

346003Z03

341067Z01

Cover,Membrane Housing

Oring (54X3,35) Membrane Housing

340005Z06

340059Z01 Flow Dedector (Leakage)

341088Z01 Low Pressure Body (In-Out)

341084Z02 High Pressure Switch Body

Transformer - 24V DC / 1,2A

349004Z02 Filmtec Membranes BW60-1812-75

Bulkhead Union, 1/4''ODx1/4''OD

17 343001Z Feed Water Connector Internal Thread (1/2''X1/4''X1/2'') 34 341125Z Waste Water Connecting Adaptor, 1/4"

3 340069Z GAC Filter Group 12'' 20 341130Z01 Pressure Regulator

1 350001Z Clean Water Tank 2,2G 18 340006Z04 Automatic Shut Off Valve

2 340071Z

21 341099Z QC Male Connector 1/4"ODx1/4"NPTF

24 341103Z QC Male Branch Tee 1/4'' OD X 1/4 NPT X 1/4'' OD

25 341100Z QC Male Elbow 1/4"ODx1/4"NPTF

27 341101Z QC Male Elbow 1/4'' OD X 1/8'' NPTF

28 341105Z Check Valve1/4 OD X1/8 NPT

29 341319Z QC Stem Branch Tee 1/4'' OD X 1/4'' OD X 1/4'' OD

30 343001Z01 Feed Water Connector Internal Thread - (1/2"x1/4"x1/2")

31 341106Z02 QC Flow Restrictor 300cc

32 343034Z Faucet

Pump 22 341141Z QC Male Connector 1/4"ODx3/8"NPTF

Membrane Housing 23 341307Z QC Stem Elbow 1/4''ODx1/4''OD

Post Carbon Filter 26 346029Z01 Cable Group with Socket

6

7 341068Z

4 340070Z

5

8 344004Z

9

10

11

12

13 356007Z

14

15 341048Z

16 343002Z Ball Valve (1/4''X1/4''') 33 346040Z Cable Group

17

Performance Data Sheet

Cebilon Plus 101MF model system conform to NSF/ANSI 58 for the speciﬁc performance claims as veriﬁed and substantiated b test data.

• Do not use this system with any water that is microbiologically unsafe, that does not

have adequate disinfection before or after operation or that of the quality is unknown.

• This System contains critical components that are required to be replaced periodically

to purify the total dissolved solid materials (TDS). To check the eﬃciency of the system, water from the appliance must be tested periodically.

• Your appliance contains critical components that must be replaced periodically with

respect to the system's eﬃciency. These critical components must be replaced with components and ﬁlters with the speciﬁcations deﬁned by the manufacturer so that the system can operate continuously with the same eﬃciency and performance.

• 101MF has been tested according to NSF/ANSI 58 for reduction of the substances

listed below. The concentration of the indicated substances in water entering the

system was reduced to a concentration less than or equal to the permissible limit for

water leaving the system, as speciﬁed in NSF/ANSI 58. Testing was performed under standard laboratory conditions, actual performance vary.

Substance

Total dissolved

solids (TDS)

Inuent

Challenge

Concentration

750 ± 40 790

Average

Inuence

(mg/L)

Average

Euent

(mg/L)

34

Average

%

Reduction

95.7 187

Troubleshooting

Complaints Possible Causes Solution Recommended

There are bubbles n water or water ows n mlk color.

The applance gves less water.

Although the tank s full, water can not be receved from the tap.

There s excessve nose n the equpment.

Pump operates constantly*

There s ar n the system.

Pump does not functon and there s not sucent pressure.*

Pre-fltraton set s clogged.

Membrane does not functon properly.

The temperature of the nlet water decreased.

Check valve s defectve.

Stock ar pressure of the tank s nsucent.

Waste water hose may gve out water ow sound.

Hgh Pressure Swtch may be defectve.

Low Pressure Swtch may be defectve.

Check valve may be defectve.

Shuto valve may be defectve.

Pump may be defectve.

* Only available in 101MF model.

Exstance of ar n the system just after the frst nstallaton s normal. Sometmes, there may be ar orgnatng from the mans. It wll become normal after usng for a specfc tme. Usng ths water s not harmful.

Check that the pump electrcal adapter s plugged. If the adapter s plugged, contact the servce.

Contact the servce

Ths s not a falure. It s normal that amount of fresh water decreases by a specfc amount n wnter season.

Contact the servce

There s not ar remaned n requred amount n the tank. Contact the servce.

Brng the poston of the clamp attached to the sphon and the waste water hose passng through t nto an approprate condton.

Clean the cloggng n the outlet hose or straghten the bended hose.

Shut o the nlet water, contact the servce.

Contact the servce.

Maximum permissible product water concentration

(mg/L)

18

PRODUCT

SERIAL NO

SERVICE TELEPHONE

Intallation Date

Number of people in the family:

Mains Water TUS Value:

Maintenance Card

Service Personnel Name Surname Signature

lter

TDS After

replaciment

lter

TDS before

replaciment

Filter

Carbon Mineral

Filter

Membran

Filter

Sediment

Filter

Replaced Filters

Carbon

Filter

Sediment

_ _ _ _ _ _

Date

Filter Replaciment

Recommended Next

First Installation

Serial No

Date Product

Filter Replaciment

1

2

Customers Name Surname:

Address:

No

Tel:

Order

3

THIS PAGE WILL TAKEN BY SERVICE TECHNICIAN

4

5

6

7

8

9

19

Checklist

Considerations to be Checked

S.No

1 Did you measure the chloride amount present in mains water? 2 Did you measure the hardness of mains water? 3 Did you measure the TDS value in mains water? 4 Did you measure the pressure in mains water? 5 Is the pressure of the tank appropriate? 6 Did you ask customer the appropriate place for installation? 7 Have connections of 3-way adapter been sealed? 8 Did you ask customer the installation place of tab? 9 Is the drilling set appropriate for the material used in the counter? 10 Does the appliance have an appropriate plug for the adapter of the appliance?* 11 Did you check the chloride amount at the membrane inlet after installation? 12 Did you check fresh water / waste water ratio? 13 Did you adjust the waste water ratio in accordance with the hardness of mains water? 14 Did you check the automatic shuto valve? 15 Did you check that low pressure switch actuates the pump?* 16 Did you check that low pressure switch stopped the pump?* 17 Did you check that high pressure switch stopped the pump?* 18 Did you perform a leakage check? 19 While performing those actions, did you actuate the pump of the appliance?* 20 Has the connection of the waste water hose to the outlet been made appropriately? 21 Has the client been informed that he/she has to drain a tank water for no purpose? 22 Has the maintenance card been processed? 23 Has the client been given the necessary explanations?

Yes No

* Only available in 101MF model.

Service Personel : .................................................................................................................................................................

Installation Date : .................................................................................................................................................................

Appliance Serial Number : ......................................................................................................................

20

PRODUCT

SERIAL NO

SERVICE TELEPHONE

Intallation Date

Number of people in the family:

Mains Water TUS Value:

Maintenance Card

Service Personnel Name Surname Signature

lter

TDS After

replaciment

lter

TDS before

replaciment

Filter

Carbon Mineral

Filter

Membran

Filter

Sediment

Filter

Replaced Filters

Carbon

Filter

Sediment

_ _ _ _ _ _

Customers Name Surname:

Address:

Date

Filter Replaciment

Recommended Next

First Installation

Serial No

Date Product

Filter Replaciment

1

2

3

4

5

6

7

8

No

Tel:

Order

9

21

Complies with WEEE Regulation.

This symbol on the product or packaging shows that the product should not be disposed of withnormal domestic waste and should be transmitted to the collection points for recycling theelectrical and electronic appliances. If you dispose of this product correctly, you will be contributingto the protection of the nature and human health. Wrong disposal will be harmful to the nature andhuman health. You may nd further information on recycling this product from your municipal, waste collection service or from the store you have purchased the appliance.

Warranty Certif icate

AURA CEBILON PLUS OWNER’S

Name Surname

Phone Number

Address

Purchase Date

.....................................................................................................................................................................................................................................................................

AURA CEBILON PLUS’S

Appliance Serial Number

Date of Invoice

Invoice No

...............................................................................................................................................................................................................................................

.....................................................................................................................................................................................................................................................................

AURA CEBILON PLUS DISTRIBUTOR’S

Company Name

Address

Phone Number

Other Information

.....................................................................................................................................................................................................................................................................

AURA CEBILON PLUS SALES REPRESANTATIVE’S

Name Surname

Phone Number

Signature

Warranty Conditions

This product is manufactured for global distribution and sales. Since the warranty conditions and periods of this type of product varies from country to country, please contact your reginal distributor or seller for information concerning the applicable warranty and service policies. Please make sure you understand clearly the policies and procedures concerning the warranty. It is solely the distributor’s responsibility to set up a warranty policy in compliance with the local laws and regulations. Please report your comments and complaints to the distibutor or to the manufacturer and report your satisfaction and happiness to your friends as recommendation to them to know more about the excellence of Aura Cebilon Plus.

.....................................................................................................................................................................................................................................................................

BOSB Mermerciler Sanayi Sitesi 7. Cad. No:14 34524 Beylikdüzü / İSTANBUL Tel: +90 212 875 35 62, Faks:+90 212 875 36 64

www.iea.com.tr - [email protected]

348115ZEN
