Aura Audio A1 MANUAL Version 1.2
www.auraaudio.com Page 1 of 8

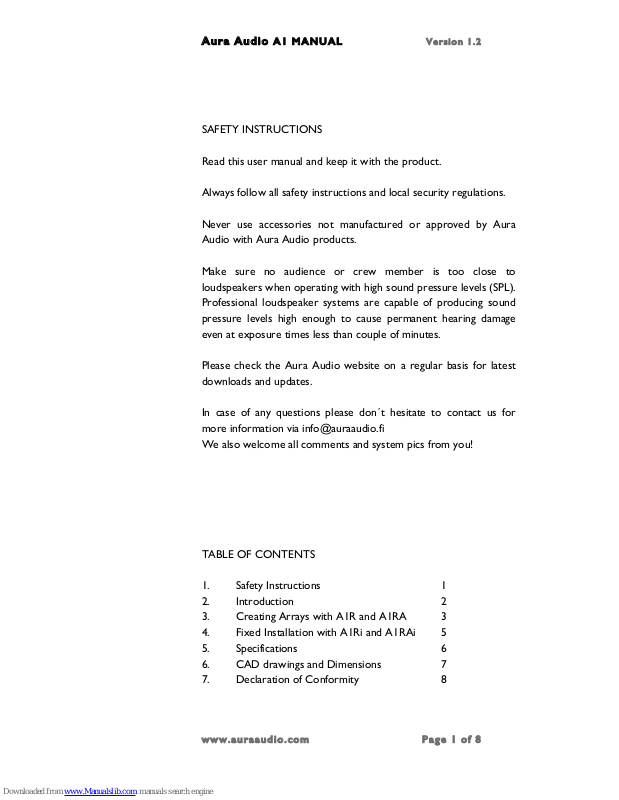

SAFETY INSTRUCTIONS
Read this user manual and keep it with the product.
Always follow all safety instructions and local security regulations.
Never use accessories not manufactured or approved by Aura
Audio with Aura Audio products.
Make sure no audience or crew member is too close to
loudspeakers when operating with high sound pressure levels (SPL).
Professional loudspeaker systems are capable of producing sound
pressure levels high enough to cause permanent hearing damage
even at exposure times less than couple of minutes.
Please check the Aura Audio website on a regular basis for latest
downloads and updates.
In case of any questions please don´t hesitate to contact us for
more information via [email protected]
We also welcome all comments and system pics from you!
TABLE OF CONTENTS
1. Safety Instructions 1
2. Introduction 2
3. Creating Arrays with A1R and A1RA 3
4. Fixed Installation with A1Ri and A1RAi 5
5. Specifications 6

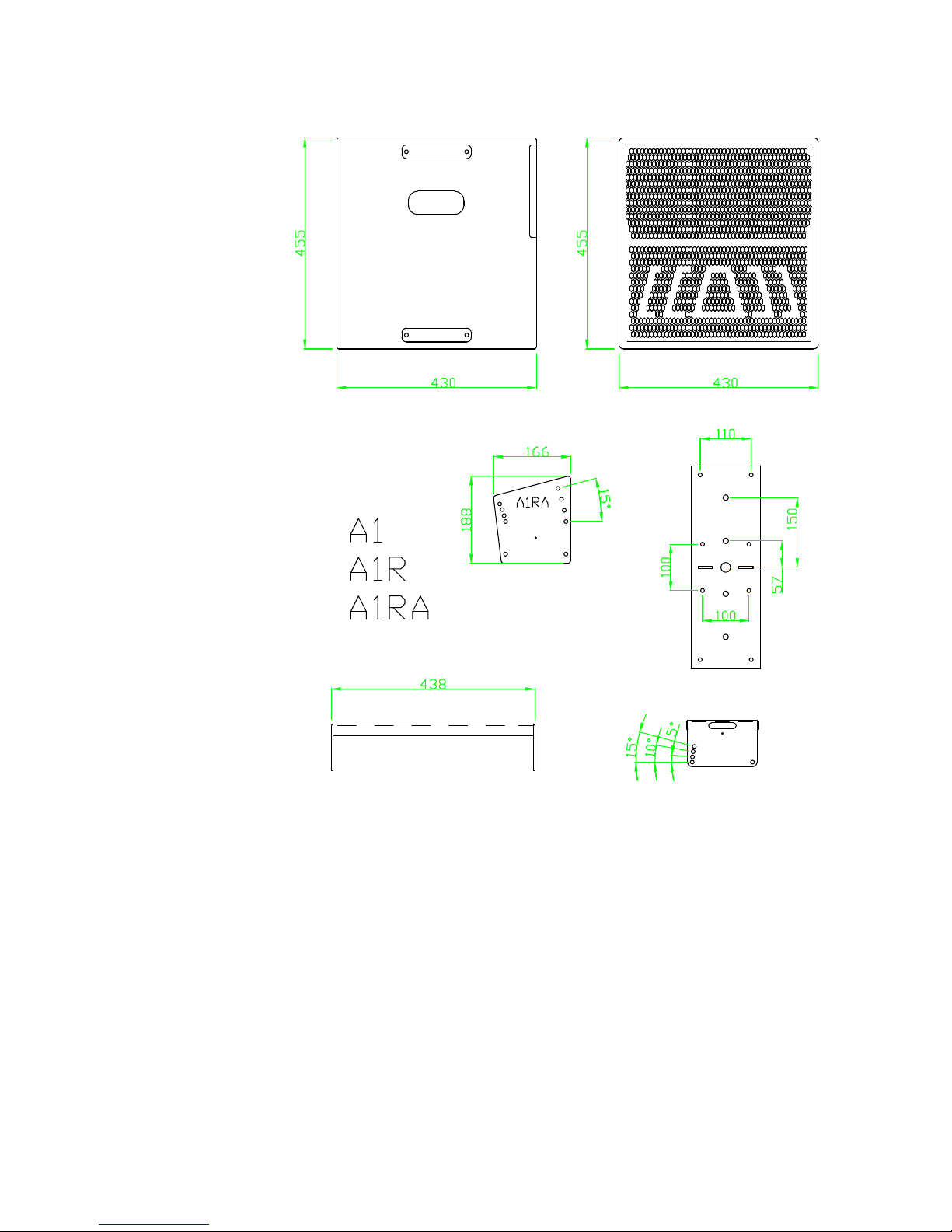

6. CAD drawings and Dimensions 7
7. Declaration of Conformity 8
Page 2
Aura Audio A1 MANUAL Version 1.2
www.auraaudio.com Page 2 of 8
INTRODUCTION

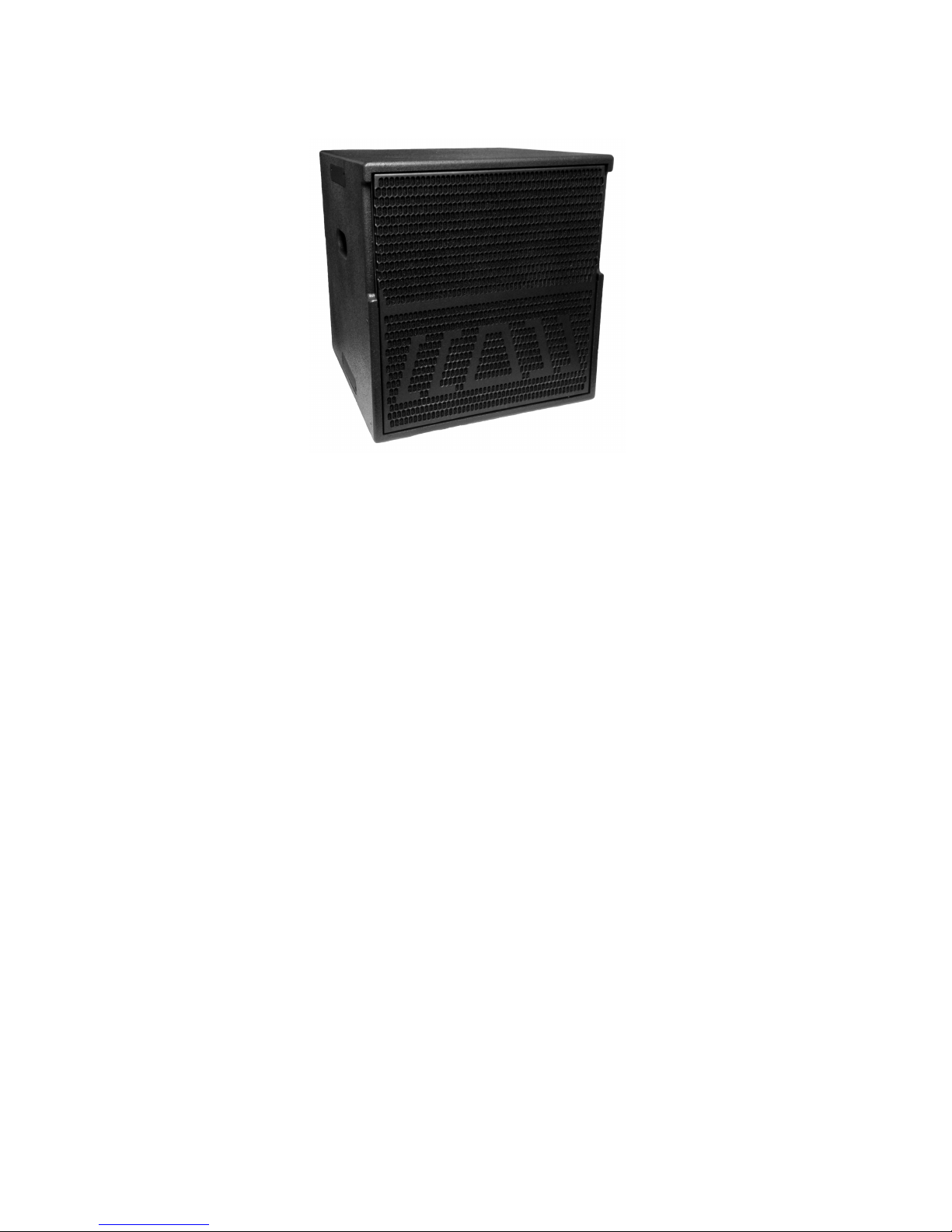

A1 is a compact actively driven passive 3-way speaker system. It
consists of 15” neodymium magnet low frequency driver, 6.5” cone
driver loaded multi-path waveguide and two 0.65” exit compression
drivers loaded with dual exit waveguides.
15” low frequency driver is loaded with narrow-Q band-pass horn
for extra sensitivity which actually equals two front loaded 15”
drivers in upper bass region. With an enclosure not more than the
size of single 15” driver this design sets a new benchmark for SPL
to size ratio to compact full range speakers.
The heart of A1 is M6 mid frequency driver consisting of 6.5”
neodymium magnet cone driver loaded with internationally
patented multi-path waveguide. Not only does this technology
increase the sensitivity 10dB but M6 sound channels also cancel
harmonics making distortion levels between 10-20dB lower than
standard speaker systems equal size. M6 also features wide
horizontal beam width and high cut off frequency of 4kHz making it
possible to use small diaphragm lightweight compression drivers for
high frequencies for increased sensitivity and detail.
Page 3
Aura Audio A1 MANUAL Version 1.2
www.auraaudio.com Page 3 of 8

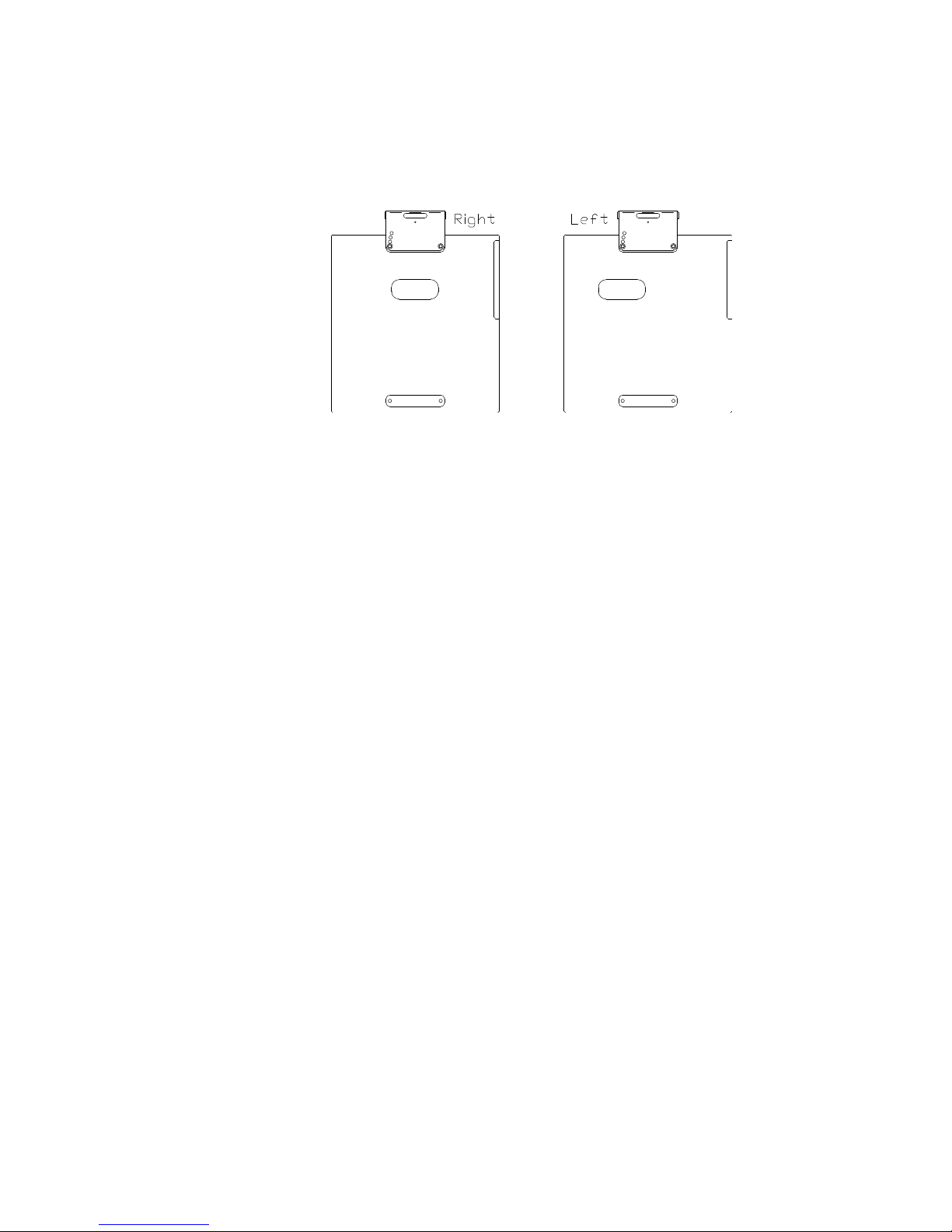

A1 is shipped in pairs of left and right.
A1 is driven with Aura Audio D2w.A1 or other Aura Audio
approved powered controllers. D2w.A1 features 2 in 4 out matrix
with analog filtering, optical limiters and ultra high quality class-D
amplifiers powered by high efficiency switch-mode power supply.

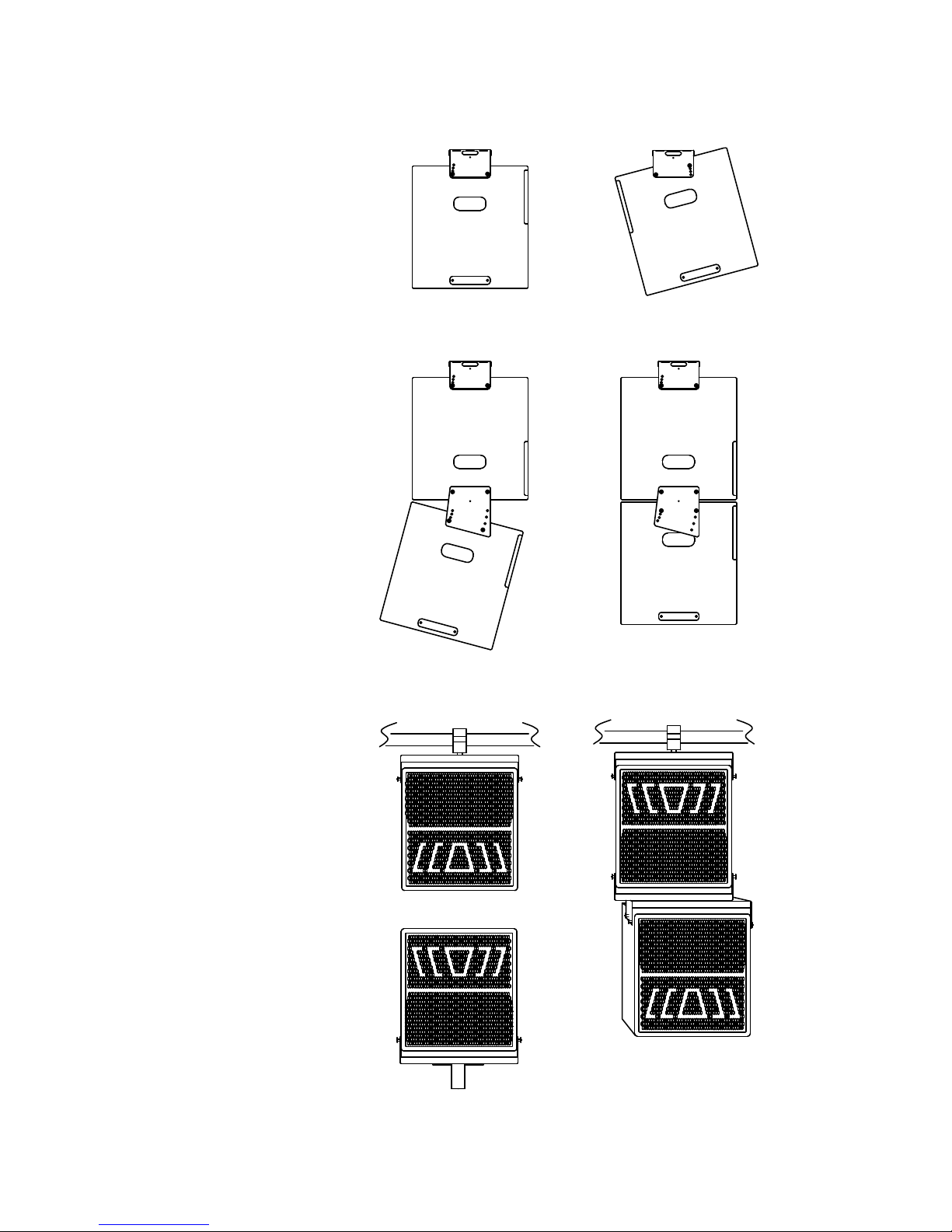

CREATING ARRAYS WITH A1R AND A1RA
A1 is designed to meet many different applications from simple
stand mounting in compact touring to larger scale arrays up to
three units per side. A1R is used in all applications except when A1
is simply placed on top of a subwoofer or other platform for
ground stacking. A1R is equipped with large number of fixing holes
and can be used with pole mount adaptor such as K&M 24528,
K&M 24521 and K&M 24281 Screw-on adapters.
When double or multiple A1´s are used in arrays A1RA should be
used. When two units are used the A1´s work as one speaker
when other unit is placed upside down. It is important use both left
and right models when placing hi-mid-sections together (logos in
grilles are further apart). That way asymmetrically placed hi and mid
horns create two continuous columns and one single line source.
Page 4
Aura Audio A1 MANUAL Version 1.2
www.auraaudio.com Page 4 of 8
Page 5
Aura Audio A1 MANUAL Version 1.2
www.auraaudio.com Page 5 of 8

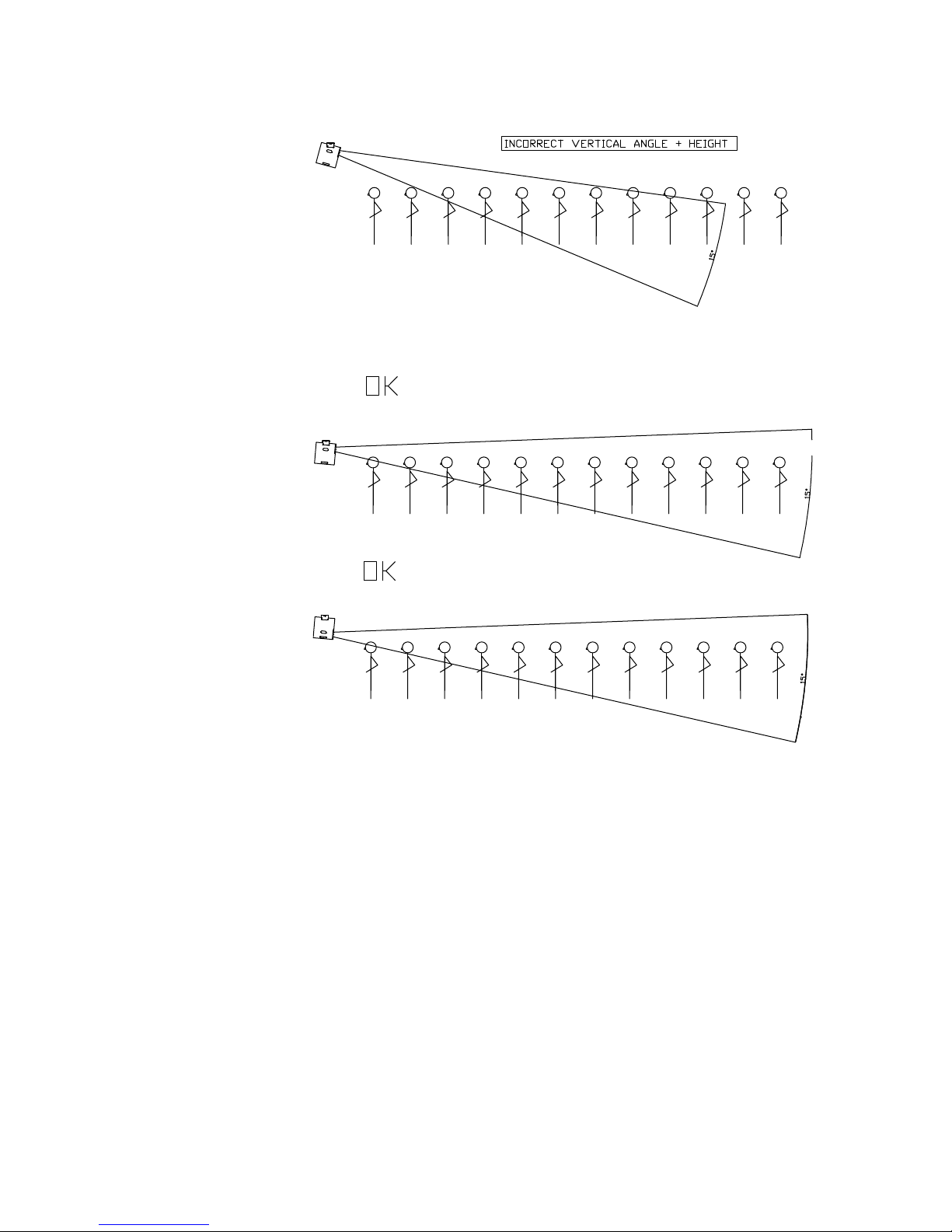

FIXED INSTALLATION WITH A1Ri AND A1RAi
Both A1R and A1RA are also available as A1Ri and A1RAi. These
models are intended to fixed installations and feature more
economical M8 bolt connection replacing quick release pins found
in standard models. Note that when used with “I” models A1 must
also be ordered as A1i or modified M8 thread
Page 6
Aura Audio A1 MANUAL Version 1.2
www.auraaudio.com Page 6 of 8
A1 - SPECIFICATIONS
Frequency Response (+-3 dB): 85–22000 Hza
Horizontal Coverage (-6 dB): 90 degrees
Vertical Coverage (-6 dB): 15 degrees
Max peak SPL : 137 dB (free space)
Sensitivity LF, 1w/1m: 103 dB (free space)
Sensitivity HF, 1w/1m: 110 dB (free space)
Crossover: 300Hz active, 3.5kHz passive
Power handling LF: 500 W rms, 2000 W pk
Power handling HF: 125 W rms, 500 W pk
Recommended HP-filter: 76 Hz, 24dB/oct
DRIVERS
LF: (1) x 15” neodymium magnet cone driver, band-pass horn
loaded
MF: (1) x 6.5” neodymium magnet cone driver, horn-loaded
HF: (2) x 0.65” exit compression driver, dual exit waveguide
ENCLOSURE
Enclosure material: Finnish birch plywood,
textured black paint finish
Grille: Cold rolled steel grille, textured black paint finish
Connectors: (2) x NL4, +/-1: LF, +/-2: HF
Dimensions: 455 mm x 430 mm x 430 mm
Weight: 24 kg
Page 7
Aura Audio A1 MANUAL Version 1.2
www.auraaudio.com Page 7 of 8

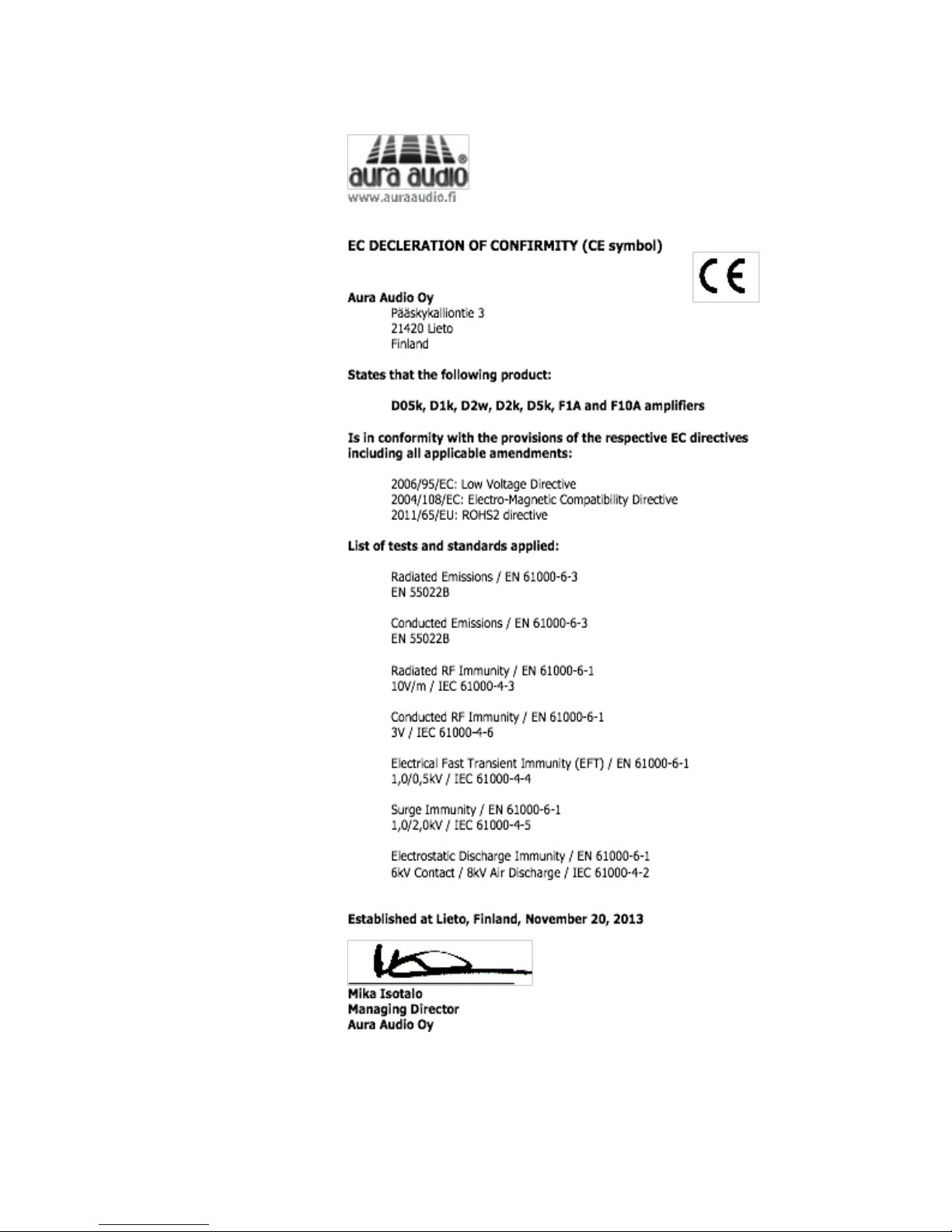

Page 8
Aura Audio A1 MANUAL Version 1.2
www.auraaudio.com Page 8 of 8
