AU Optronics T216XW01-V0 Product Specification

Download

Product Description: T216XW02 TFT-LCD PANEL with RoHS guarantee

AUO Model Name: T216XW01 V0

Customer Part No/Project Name:

Customer Signature Date AUO 2008/09/22

Approved By: PM Director / Frank Hsu

www.jxlcd.com

Reviewed By: RD Director / Hong Hong Jye

Reviewed By: Project Leader / Sarah Ke

Prepared By: PM / Hanson Wang

Product Specifications

21.6” WXGA Color TFT-LCD Module Model Name: T216XW01

(*) Preliminary Specifications

() Final Specifications

www.jxlcd.com

Contents

www.jxlcd.com

Record of Revision

Version Date No Old Description New Description Remark

0.0 2008/9/15 First Draft

www.jxlcd.com

1. General Description

This specification applies to the 21.6 inch Color TFT-LCD Module T216XW01. This LCD module has a TFT active matrix type liquid crystal panel 1366x768 pixels, and diagonal size of 21.6 inch. This module supports 1366x768 XGA-WIDE mode (Non-interlace). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with an 8-bit gray scale signal for each dot. The T260XW02 has been designed to apply the 8-bit 1 channel LVDS interface method. It is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important. This module is without any inverter card for backlight.

* General Information

Items Specification Unit Note

Active Screen Size 21.6 inches 50.9cm diagonal Display Area 477.417 (H) x 268.416 (V) mm Outline Dimension

Resolution 1366 x 768 Pixels Pixel Pitch 0.1165 x 0.3495 Pixel Arrangement RGB vertical stripe Display mode Normally Black Display Colors 16.7M (8-bit for R,G,B) Colors Typical White Luminance Surface Treatment AG, Haze=11%, 3H Green ROHS compliance

501 (H)

××××

297 (V)

350 @ 8 mA [cd/m2]

××××

17.3 (D)

mm Without inverter

www.jxlcd.com

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Item Symbol Min Max Unit Note

Logic/LCD Drive Voltage Vdd -0.3 6 [Volt] 1 Input Voltage of Signal Vin -0.3 3.6 [Volt] 1 Operating Temperature TOP 0 +50 [oC] 2 Operating Humidity HOP 10 90 [%RH] 2 Storage Temperature TST -20 +60 [oC] 2 Storage Humidity HST 10 90 [%RH] 2

Note 1 : Duration = 50msec

Note 2 : Maximum Wet-Bulb should be 39℃ and No condensation.

www.jxlcd.com

3. Electrical Specification

The T216XW01 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. An inverter typically generates the second input, which powers the CCFL.

3-1 Electrical Characteristics

Values Parameter Symbol

Min Typ Max

LCD: Power Supply Input Voltage Vcc 4.5 5.0 5.5 Vdc Power Supply Input Current Icc - 0.8 Power Consumption Pc - 4.0 5.0 Watt 1 Inrush Current I Backlight Power Consumption Total Power Consumption - 30 Life Time 30000 - - Hours 3

Note :

1. Vcc=5.0V, Fv=60Hz, Fclk= 85.0 MHz , 25℃. , Test Pattern : White Pattern

2. Vcc rising time = 470

3. The performance of the Lamp in LCM, for example: lifetime or brightness, is extremely influenced by

the characteristics of the DC-AC Inverter. So all the parameters of an inverter should be carefully designed so as not to produce too much leakage current from high-voltage output of the inverter. When you design or order the inverter, please make sure unwanted lighting caused by the mismatch of the lamp and the inverter (no lighting, flicker, etc) never occurs. When you confirm it, the LCD Assembly should be operated in the same condition as installed in your instrument.

4. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,

TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage current occurs between lamp wire and conducting tape.

5. The relative humidity must not exceed 80% non-condensing at temperatures of 40℃ or less. At

6. The life is determined as the time at which luminance of the lamp is 50% compared to that of initial

www.jxlcd.com

temperatures greater than 40℃, the wet bulb temperature must not exceed 39℃. When operate at low temperatures, the brightness of CCFL will drop and the lifetime of CCFL will be reduced.

value at the typical lamp current on condition of continuous operating at 25±2℃. The lamp current should fix at 8 mA (typ.) and then keep the 30000hr(typ.) lamp life

, Vcc=5.0V

- -

RUSH

- 26

1.0

3 30 35

Unit Notes

A 1

A 1 Watt 2 Watt 2

3-2 Interface Connections

LCD connector (CN1): Starconn 093G30-B0001A-1

Note:

1. All GND (ground) pins should be connected together and should also be connected to the LCD’s metal

frame. All Vcc (power input) pins should be connected together.

Pin No Symbol Description Note

1 Reserved Open or High AUO internal test pin 2 Reserved Open or High AUO internal test pin 3 Reserved Open or High AUO internal test pin 4 GND Ground 5 Rx0- LVDS Channel 0 [Polarity: Negative] 6 Rx0+ LVDS Channel 0 [Polarity: Positive] 7 GND Ground 8 Rx1- LVDS Channel 1 [Polarity: Negative]

9 Rx1+ LVDS Channel 1 [Polarity: Positive] 10 GND Ground 11 Rx2- LVDS Channel 2 [Polarity: Negative] 12 Rx2+ LVDS Channel 2 [Polarity: Positive] 13 GND Ground 14 RXCLK- LVDS Clock [Polarity: Negative] 15 RXCLK+ LVDS Clock [Polarity: Positive] 16 GND Ground 17 Rx3- LVDS Channel 3 [Polarity: Negative] 18 Rx3+ LVDS Channel 3 [Polarity: Positive] 19 GND Ground

www.jxlcd.com

20 Reserved Open AUO internal test pin 21 LVDS Option* Low for JEIDA, High/Open for NS 22 Reserved Open 23 GND Ground 24 GND Ground 25 GND Ground 26 Vdd (+5V) 5V, DC, Regulated 27 Vdd (+5V) 5V, DC, Regulated 28 Vdd (+5V) 5V, DC, Regulated 29 Vdd (+5V) 5V, DC, Regulated 30 Vdd (+5V) 5V, DC, Regulated

LVDS Option = L (GND)  JETDA Format

Previous Cycle Current Cycle Next Cycle

Clock

RIN0+ RIN0-

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

LVDS Option = H (3.3V) or N.C. NS Format

Previous Cycle Current Cycle Next Cycle

www.jxlcd.com

Clock

R2R7 G2G2R2R3 R4R5R6 R3

G3B2 B3B3G3G4 G5G6 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

RIN0+ RIN0-

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

R0R5 G0G0R0R1 R2R3R4 R1

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA

R6B7 NANAR6R7 G6G7B6 R7

Backlight Connector Pin Configuration

Electrical specification (Lamp spec)

Parameter Min Typ Max Units Condition CCFL current(ICFL)

CCFL Frequency(FCFL) CCFL Ignition Voltage(Vs) CCFL Ignition Voltage(Vs) CCFL Voltage (Reference) (VCFL) CCFL Power consumption (PCFL)

Note. (a) Start-up Voltage means the lowest voltage (after output capacitor) at lighting on stable time under darkness environment (under 0.1 lux). (b) Start-up Voltage means the lowest voltage (after output capacitor) at lighting on stable time under lightness environment (over 500 lux). (c) CCFL Voltage is base on following current, 860Vrms @4.0mA; 840Vrms @6.5mA; 823Vrms @7.0mA. (d) *PCFL = ICFL x VCFL x 4 = 8 x 703 x 4 = 22.5 W (typ) PCFL = ICFL x VCFL x 4 = 8 x 773.3 x 4 = 24.75 W (max)

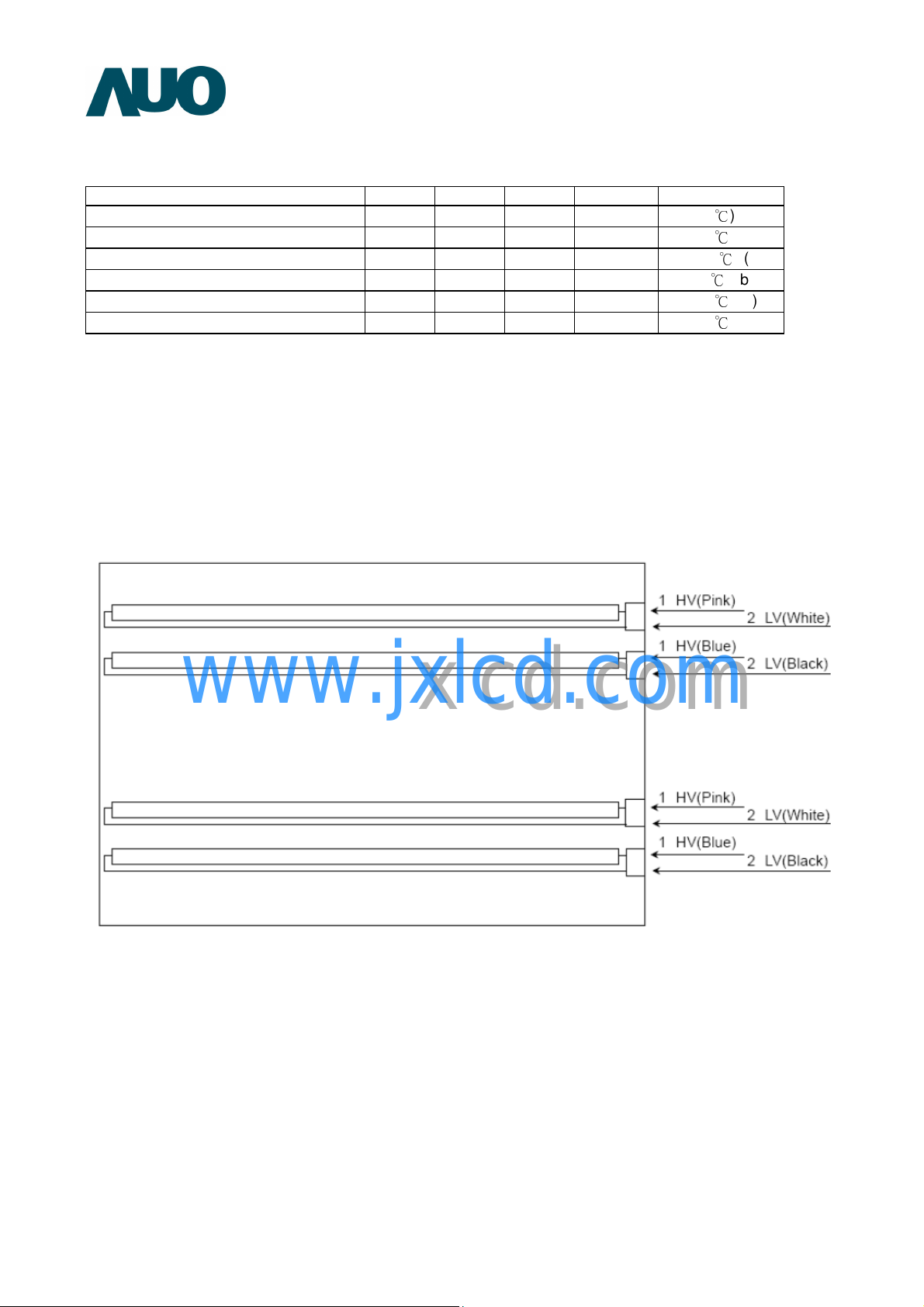

Lamp connect configuration

7 8 8.5

35 46 80

1250 1500

632.7 703 773.3

22.5 * 24.75

[mA] rms [KHz] [Volt] rms [Volt] rms [Volt] rms [Watt]

(Ta=25℃) (Ta=25℃) (Ta= 25℃) (a) (Ta= 0℃) (b) (Ta=25℃) (c) (Ta=25℃) (d)

www.jxlcd.com

3-3 Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing

should be satisfied with the following specifications for it’s proper operation.

* Timing Table

Signal Item Symbol Min. Typ. Max. Unit

Vertical Section

Horizontal

Section

LVDS Clock Frequency

Vertical

Frequency

Horizontal

Frequency

*1) CLK signal input must be valid while power supply is applied. *2) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the falling edge of 1st CLK right after the rise of DE, is displayed on the left edge of the screen. Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of horizontal period. The 1st data corresponding to one horizontal line after the rise of DE is displayed at the top line of screen.

3.) If a period of DE “High” is less than 1366 CLK or less than 768 lines, the rest of the screen displays black.

4.) The display position does not fit to the screen if a period of DE “High” and the effective data period do not synchronize with each other.

Period Active

Blanking

Period Active

Blanking

Frequency

www.jxlcd.com

Tv 784 806 1015 Th

Tdisp(v) 768 Th

Tblk (v) 16 38 247 Th

Th 1414 1648 1900 Tclk

Tdisp(h) 1366 Tclk

Tblk (h) 48 282 334 Tclk

Fclk (1/Tclk)

Fv 47 60 63 Hz

Fh 43 48 53 kHz

60 80 85 MHz

3-4 Signal Timing Waveforms

CLK

Tclk

CLK

Tdisp(h)

Tclk

www.jxlcd.com

Tblk(h)

Tdisp(v)

Tblk(v)

3-5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Color

Basic Color

RED

GREEN

BLUE

Input Color Data

RED MSB LSB R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black(L0) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Green 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 Blue 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 White(L255) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 RED 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

---RED 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 GREEN 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

www.jxlcd.com

---GREEN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 GREEN) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

------BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

www.jxlcd.com

MSB LSB

GREEN

BLUE MSB LSB

Pow

er Supply for LCD

3-6 Power Sequence

(Vdd)

LVDS Data & CLK

Power for LAMP

Values

Parameter

t1 t2 t3 t4

www.jxlcd.com

t5 t6 t7

Apply the lamp voltage within the LCD operating range. When the backlight turns on before the LCD operation or the LCD turns off before the backlight turns off, the display may momentarily become abnormal.

Caution : The above on/off sequence should be applied to avoid abnormal function in the display. In case of handling, make sure to turn off the power when you plug the cable into the input connector or pull the cable out of the connector.

Min. Typ. Max.

0.47 - 1.0 20 - 50

700 - -

10 - -

1 - 50

- - 300

1000 - -

Units

ms ms ms ms ms ms ms

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 30 minutes in a dark environment at 25℃. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of Φ and θequal to 0°.

PR880 or equivalent

Fig.4-1 Optical measurement equipment and method

Parameter

Contrast Ratio CR 1600 2000 1 Surface Luminance, white LWH 300 350

Luminance Variation Response Time Color Gamut 72 %

Color Coordinates

Viewing Angle by ELDIM Contrast Ratio>10

x axis, right(φ=0°) x axis, left(φ=180°) y axis, up(φ=90°) y axis, down (φ=0°)

RED RX RY GREEN GX GY BLUE BX BY WHITE WX

www.jxlcd.com

Symbol

WHITE

Tγ

θ θ

Min. Typ. Max.

9 p 1.3 3

Typ.-0.03

θ θ

65 88 Degree 6, 7 65 88 55 88 55 88

Values

6.5 ms

0.640

0.330

0.290

0.600

0.150

0.060

0.295

0.305

Typ.+0.03

Units Notes

cd/㎡

5 6

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of L

on1

Contrast Ratio=

Surface Luminance of L

2. Surface luminance is luminance value at point 1 across the LCD surface 50cm from the surface with all pixels displaying white. From more information see FIG 4-2. When IBL = 32 mA, LWH=350cd/㎡(typ.) LWH=Lon1, Where Lon1 is the luminance with all pixels displaying white at center 1 location.

V/2

V/6

1 2

7 8

off1

Fig.4-2 Optical measurement point

3. The variation in surface luminance, δWHITE is defined (center of Screen) as:

www.jxlcd.com

WHITE(9P)

=Maximum(L

on1

, L

on2

,…,L

)/Minimum(L

on9

on1

, L

on2

,…L

H/2 H/6

)

on9

4. Response time Tγ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on fv=60Hz to optimize.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG 4-5.

Fig.4-5 Viewing Angle Definition

www.jxlcd.com

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T216XW01. In addition the figures in the next page are detailed mechanical drawing of the LCD.

Horizontal (typ.) 501mm

Outline Dimension

Bezel Area

Active Display Area

Weight 3000g (max.)

Surface Treatment HC, 3H

Vertical (typ.) 297mm

Depth (typ.) 17.3mm

Horizontal (typ.)

Vertical (typ.)

Horizontal 477.417mm

Vertical 268.416mm

481mm

272.5mm

www.jxlcd.com

Front View:

www.jxlcd.com

Rear View:

www.jxlcd.com

*Assembly lamp connecter type : YEONHO 35001HS-02L

6. Reliability

Environment test condition

Test Items Q'ty Conditions

1 High Temperature Stroage 3 2 Low Temperature Stroage 3 3 High Temperature Operation 3 4 Low Temperature Operation 3

5 Vibration (non-operation) 3

6 Shock (non-operation) 3

7 Vibration (With carton) 3

8 Drop (With carton) 3

60℃ 300 hrs

-20℃, 300 hrs 50℃, 300 hrs

-5℃, 300 hrs (10 ~ 300Hz/1.5G/11min SR, XYZ

30min/axis) Vibration level : 1.5G RMS, Bandwidth : 10-300Hz Duration: X, Y, Z 30min, Shock level: 50G Waveform: have sine wave, 11ms Direction: ±X,±Y, ±Z One time each direction

Random wave (1.5 Grms 10~200Hz) 30mins / Per each X.Y.Z axes

Height: 46cm 1 corner, 3 edges, 6 surfaces (ASTMD4169-I)

www.jxlcd.com

7. International Standard

7-1. Safety

(1) UL6500, Underwriters Laboratories, Inc. (AUO file number : E204356)

Standard for Safety of Information Technology Equipment Including electrical Business Equipment.

(2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.

(3) EN60950 : 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996 IEC 60065 European Committee for Electro technical Standardization (CENELEC) EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business Equipment.

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998

7-3. Green Green Mark Description:

a) For Pb Free products, AUO will add for identification.

b) For RoHS compatible products, AUO will add for identification.

Note. The Green Mark will be present only when the green documents have been ready by AUO Internal Green Team. (The definition of green design follows the AUO green design checklist.)

www.jxlcd.com

8. Packing

Label Sample

TW5A01100005-ZMA00*

TW5A011: Production lot (T-Taiwan, 5-year, 1~C-month) 00005: Panel serial number ZMA: AUO internal code Manufactured 05/43: 2005 week 43

Carton Label

www.jxlcd.com

PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module. (3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction. (6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer. (8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading. (9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV application (2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage: V=±200mV(Over and under shoot voltage) (3) Response time depends on the temperature. (In lower temperature, it becomes longer..) (4) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature, response time (required time that brightness is stable after turned on) becomes longer. (5) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur. (6) When fixed patterns are displayed for a long time, remnant image is likely to occur. (7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done by system manufacturers. Grounding and shielding methods may be important to minimize the interface.

www.jxlcd.com

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature between 5℃ and 35℃ at normal humidity. (2) The polarizer surface should not come in contact with any other object. It is recommended that they be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc. (2) When the module with protection film attached is stored for a long time, sometimes there remains a very small amount of flue still on the Bezel after the protection film is peeled off. (3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

www.jxlcd.com
