) Preliminary Specification
(
( V) Final Specification
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
Module
Model Name
24” Color TFT-LCD
M240HW01 V6
Customer Date
Approved by
Approved by Date
Sean Chen
Prepared by
2009/05/05
Note: This Specification is subject to
change without notice.
Amy Wu
Desktop Display Business Group /
AU Optronics corporation
2009/05/05
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 1
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
Contents
1.0 Handling Precautions .....................................................................................4
2.0 General Description ........................................................................................5
2.1 Display Characteristics....................................................................................................... 5
2.2 Optical Characteristics ....................................................................................................... 6
3.0 Functional Block Diagram ............................................................................ 10
4.0 Absolute Maximum Ratings .........................................................................11
4.1 TFT LCD Module.............................................................................................................. 11
4.2 Backlight Unit ................................................................................................................... 11
4.3 Absolute Ratings of Environment..................................................................................... 11
5.0 Electrical characteristics .............................................................................. 12
5.1 TFT LCD Module.............................................................................................................. 12
5.1.1 Power Specification ...................................................................................................................................... 12

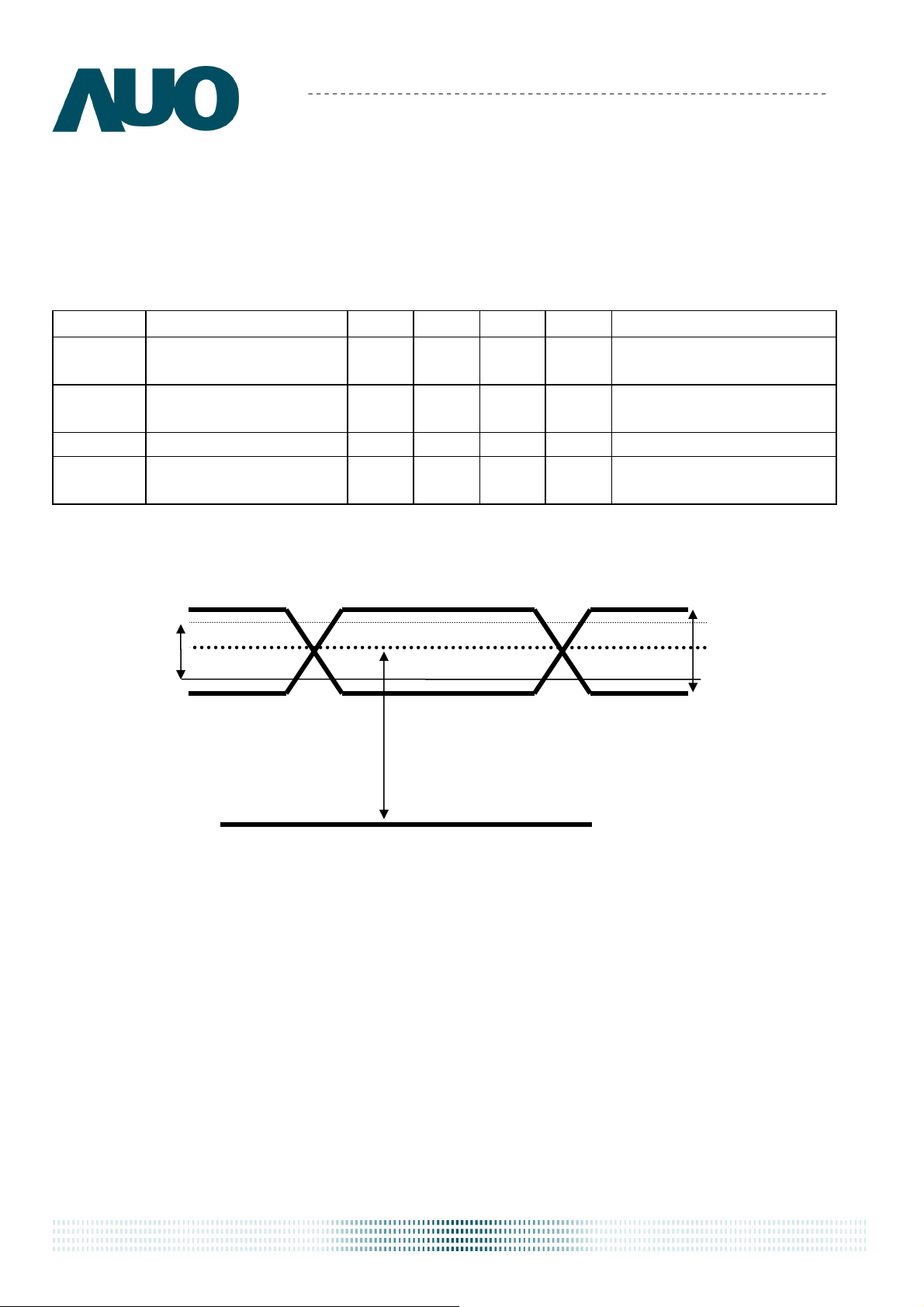

5.1.2 Signal Electrical Characteristics ................................................................................................................... 13
5.2 Backlight Unit ................................................................................................................... 14
6.0 Signal Characteristic..................................................................................... 15
6.1 Pixel Format Image .......................................................................................................... 15

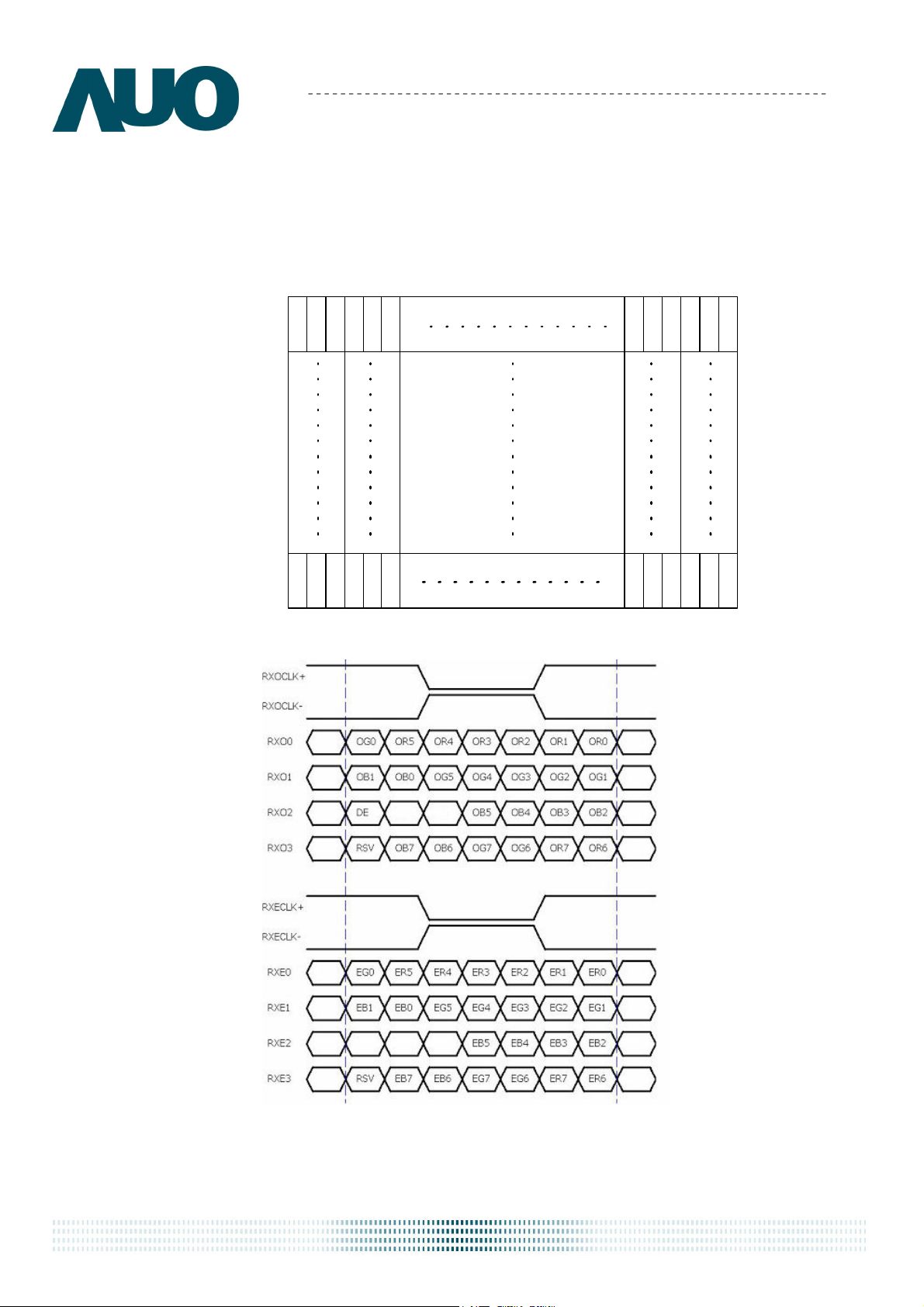

6.2 The input data format ....................................................................................................... 15
6.3 Signal Description ............................................................................................................ 16
6.4 Timing Characteristics...................................................................................................... 18

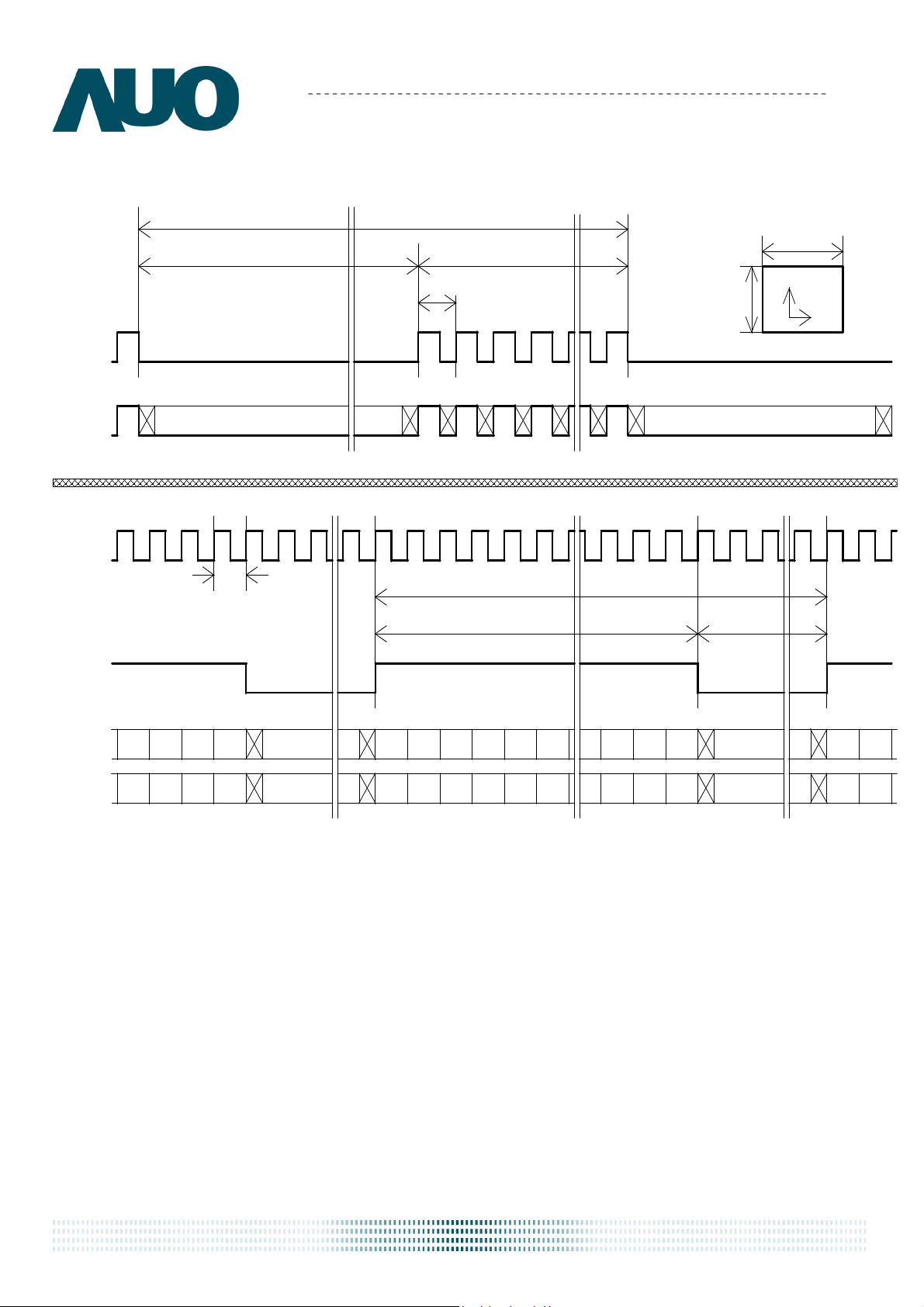

6.5 Timing diagram ................................................................................................................ 19
6.6 Power ON/OFF Sequence ............................................................................................... 19
7.0 Connector & Pin Assignment....................................................................... 21
7.1 TFT LCD Module.............................................................................................................. 21
7.1.1 Pin Assignment............................................................................................................................................. 21
7.2 Recommend connector for Backlight Unit........................................................................ 22
7.2.1 Pin assignment ............................................................................................................................................. 22
8.0 Reliability Test............................................................................................... 23
9.0 Shipping Label .............................................................................................. 24
10.0 Mechanical Characteristics ........................................................................ 25
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 2
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
Version and
Date
0.1
2009/03/24
1.0
2009/05/05
Record of Revision
Page
First Version
Final Version
Old description New Description Remark
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 3
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard
surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken
out from the container, do not press the center of the LED lightbar edge. Instead, press at the
far ends of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT
Module may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 4
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
2.0 General Description
This specification applies to the 24 inch-FHD Color a-Si TFT-LCD Module M240HW01. The
display supports the FHD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits +
Hi-FRC data). The light source of this TFT-LCD module is W-LED. All input signals are 2-channel
LVDS interface and this module doesn’t contain a driver for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25℃ condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 609.7(24.0”)
Active Area [mm] 531.36 (H) x 298.89 (V)
Pixels H x V 1920(x3) x 1080
Pixel Pitch [um] 276.75 (per one triad) ×276.75
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode, Normally White
White Luminance ( Center ) [cd/m2]
Contrast Ratio 1000(Typ.)
Optical Response Time [msec] 5ms (Typ., on/off)
Nominal Input Voltage VDD [Volt] +5.0 V (Typ)
Power Consumption
[Watt] 21W
(VDD line + LED line)
Weight [Grams]
Physical Size [mm] 556.0(H)x323.2(V)x9.90(D)
Electrical Interface Dual channel LVDS
Support Color 16.7M colors (RGB 6-bit + Hi_FRC )
Surface Treatment Anti-Glare, 3H
Temperature Range
Operating
Storage (Shipping)
[oC]
[oC]
RoHS Compliance RoHS Compliance
250 cd/m2 (Typ.)
2190 Typ.
0 to +50
-20 to +60
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 5
Product Specification
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃:
Item Unit Conditions Min. Typ. Max. Note
Viewing Angle [degree]
Contrast ratio Normal Direction
Response Time [msec]
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Raising Time (TrR)
Falling Time (TrF)
Raising + Falling
Red x
150
140
600
-
-
-
0.608 0.638 0.668
M240HW01 V6
170
160
1000 -
3.5 7.4
1.5 2.6
5 10
-
-
-
-
2
3
4
Red y
Green x
Green y
Blue x
Blue y
White x
White y
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE) White
Central Luminance [cd/m2] 200 250 - 6
Luminance Uniformity
Crosstalk (in 60Hz)
Flicker
[%]
[%]
dB
0.318 0.348 0.378
0.304 0.334 0.364
0.578 0.608 0.638
0.120 0.150 0.180
0.027 0.057 0.087
0.283 0.313 0.343
0.299 0.329 0.359
70 75
-
1.5 8
-20
5
7
9
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 6
Product Specification
Center of the screen
AU OPTRONICS CORPORATION
M240HW01 V6
Note 1: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35℃). In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room.
Photo detector
Measured distance
Note 2: Definition of viewing angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the
screen rotated about its center to develop the desired measurement viewing angle.
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 7
Product Specification
F
R
F
R
1 Frame
AU OPTRONICS CORPORATION
M240HW01 V6
Note 3: Contrast ratio is measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, TrR), and from “Full White” to “Full Black” (falling time, TfF),
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.
Optical
Optical
response
response
100
100
90
10
10
%
%
W hite
0
0
Tr
Tr
Black
1 Frame
Black
Tr
Tr
W hite
TrR + TfF = 5 msec (typ.).
Note 5: Color chromaticity and coordinates (CIE) is measured by TOPCON SR-3
Note 6: Central luminance is measured by TOPCON SR-3
Note 7: Luminance uniformity of these 9 points is defined as below and measured by
TOPCON SR-3
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 8
Uniformity =
9)-(1 points 9in LuminanceMinimum
9)-(1 Points 9in LuminanceMaximum
Product Specification
Level
DC
AU OPTRONICS CORPORATION
Note 8: Crosstalk is defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
M240HW01 V6
Note 9: Test Patern: Subchecker Pattern measured by TOPCON SR-3
G B R G B
R
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
DC
AC
Time
Hz) 30Level(at AC
log20(dB)Flicker =
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 9
Product Specification
Backlight
DC
Connector
LVD
S
Y
-
Driver IC
AU OPTRONICS CORPORATION
M240HW01 V6
3.0 Functional Block Diagram
The following diagram shows the functional block of the 24.0 inch Color TFT-LCD Module:
+5V
I/F + X-PCB
LVDS
Receiver
DC/DC
Converter
AUO
ASIC
Correction
Timing
Controller
miniLVDS
Transmitter
Gamma
G1
TFT-LCD
1920(x3) x 1080
Pixels
D1
LED
I/F PCB Interface:
FI-XB30SRL-HF11
093F30-B0T01A
LED Driver on system
Mating Type:
FI-X30HL(Locked Type)
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 10
Product Specification
AU OPTRONICS CORPORATION
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Voltage
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED Current ILED
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
VDD 0 6.0 [Volt] Note 1,2
NA 20
M240HW01 V6
[mA] Note 1,2
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
5 90
[%RH]
Note 1: With in Ta (25℃)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: For quality perfermance, please refer to AUO IIS(Incoming Inspection Standard).
Note 3
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
Operating Range Storage Range
document version 1.0 11
Product Specification
M240HW01 V6
AU OPTRONICS CORPORATION
5.0 Electrical characteristics
5.1 TFT LCD Module

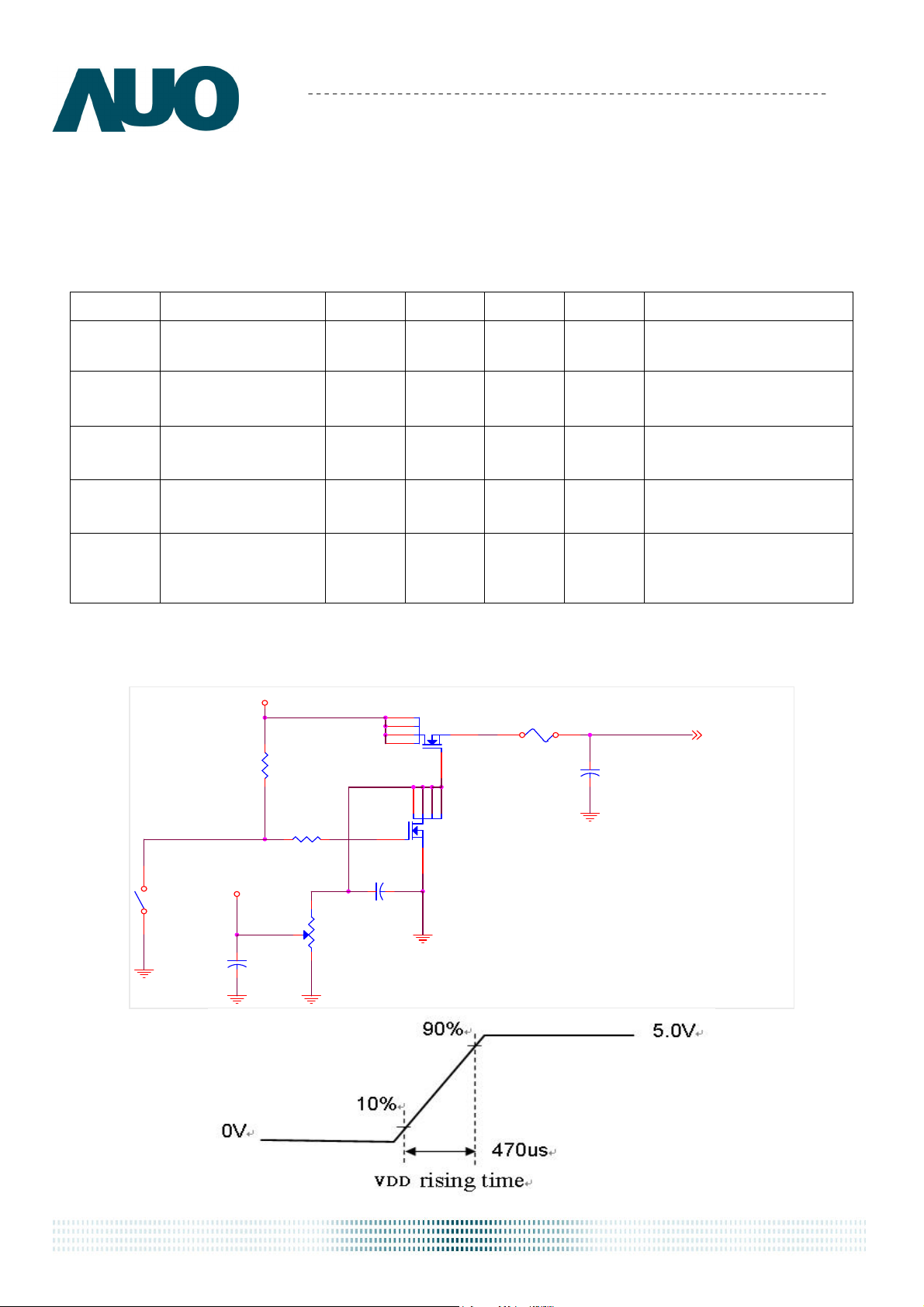

5.1.1 Power Specification
Input power specifications are as following:
Symbol Parameter Min Typ Max Unit Conditions
VDD
Logic/LCD Drive
Voltage
IDD Input Current
PDD
VDD Power
4.5
-
-
5.0
0.6
3 6 [Watt]
5.5
1.2
[Volt] +/-10%
[A]
VDD= 5.0V,All black Pattern,
At 60Hz
VDD= 5.0V,All black Pattern,
At 60Hz
IRush Inrush Current
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
-
-
- 3 [A]
- 300 [mV] p-p
Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
+5.0V
R1
47K
R2
1K
VR1
47K
D6
D5
D2 S
D1
G
C3
0.01uF/25V
Q3
AO6402
D2SD1D5
G
D6
Q3
AO6402
Note 1
VDD= 5.0V, All Black Pattern
At 75Hz
F1
VCC
C1
1uF/16V
(LCD Module Input)
C2
1uF/25V
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 12
Product Specification
V
VID│
VSS
AU OPTRONICS CORPORATION
M240HW01 V6
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of
SN75LVDS82DGG (Texas Instruments) in detail.
Characteristics of each signal are as following:
Symbol Parameter Min Typ Max Units
VTH
VTL
│VID│ Input Differential Voltage 100 - 600 [mV] Note 1
VICM
Differential Input High
Threshold
Differential Input Low
Threshold
Differential Input Common
Mode Voltage
- +50 +100 [mV]
-100 -50 - [mV]
+1.0 +1.2 +1.5 [V]
VICM = 1.2V
Note 1
VICM = 1.2V
Note 1
VTH-VTL = 200MV (max)
Note 1
Note 1: LVDS Signal Waveform
VICM
Condition
│
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 13
Product Specification
M240HW01 V6
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25℃ (Room Temperature):
Symbol Parameter Min. Typ. Max. Unit Note
IR
LED Operation Current - 20
LED
VLB
P
BLU Power consumption (for reference)
BLU
Light Bar Operation Voltage
(for reference)
- 42.9 44.2 [Volt]
- 13.73 14.14 [Watt]
20
[mA]
Operating with fixed
driving current
LT
LED life Time
LED
- 15,000
-
[Hour]
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 14
Product Specification
R G B R G B
R G B R G B
R G B R G B
R G B R G B
1 2 1
919 1
920
1st Line
1080
Line
AU OPTRONICS CORPORATION
M240HW01 V6
6.0 Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
6.2 The input data format
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “Odd Pixel Data” E = “Even Pixel Data”
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 15
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments). LVDS is a
differential signal technology for LCD interface and high speed data transfer device. LVDS
transmitters shall be SN75LVDS83(negative edge sampling). The first LVDS port(RxOxxx)
transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, DSPTMG)
7 GND Power Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 GND Power Ground
15 RxEIN1- Positive LVDS differential data input (Even data)
16 RxEIN1+ Negative LVDS differential data input (Even data)
17 GND Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 NC No connection (for AUO test only. Do not connect)
26 NC No connection (for AUO test only. Do not connect)
27 VDD Power +5V
28 VDD Power +5V
29 VDD Power +5V
30 VDD Power +5V
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
Note1: Start from left side
document version 1.0 16
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
Note2: Input signals of odd and even clock shall be the same timing.
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 17
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
6.4 Timing Characteristics
Basically, interface timing described here is not actual input timing of LCD module but close to
output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.
Item Symbol Min Typ Max Unit
Data CLK
Tclk
40
75
90
[MHz]
Period Th 1034 1060 2047 [Tclk]
H-section
Display Area Tdisp(h) 960 960 960 [Tclk]
Blanking
Period Tv 1088 1120 2047 [Th]
V-section
Display Area Tdisp(v) 1080 1080 1080 [Th]
Blanking
Frame Rate F 50 60 75 [Hz]
Note : DE mode only
Tblk(h)
Tblk(v)
74 100 1087 [Tclk]
8 40 967 [Th]
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 18
6.5 Timing diagram
Product Specification
M240HW01 V6
AU OPTRONICS CORPORATION
Tv
M pixel
DE
RGB Data
CLK
DE
N
Line
Tblk(v)
Invalid Data
Tclk
Tdisp(v)
Y
Th
N Line
32
LineLine
Th
Tdisp(h)
4
LineLine
N
Line
Invalid Data
Tblk(h)
1
X
RGB Data
(Odd)
RGB Data
(Even)
Pixel
M-7
Pixel
M-6
Pixel
M-5
Pixel
Pixel
M-3
Pixel
M-2
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
Pixel
1
Pixel Pixel
2
Pixel
Pixel
3
5
Pixel
6 M-2
4
Pixel
Pixel
7
Pixel
8 M
Pixel
10
Pixel
119
12
Pixel
M-5
Pixel
M-4
Pixel
M-3
Pixel
Pixel
M-1
PixelPixel
Invalid Data
Invalid Data
Pixel
1
Pixel
2M-4
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
Pixel
3
Pixel
4
document version 1.0 19
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
Value
Parameter
Min. Typ. Max.
T1 0.5 - 10 [msec]
T2 0 - 15 [msec]
T3 300 - - [msec]
T4 200 - - [msec]
T5 0 16 50 [msec]
T6 - - 100 [msec]
T7 1000 - - [msec]
Unit
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 20
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer
Type Part Number
Mating Housing Part Number FI-X30HL (Locked Type)
JAE
Starconn
FI-XB30SRL-HF11
093F30-B0T01A
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
RxOIN0-
RxOIN1-
RxOIN2-
GND
RxOCLKIN+
RxOIN3+
RxEIN0+
RxEIN1-
GND
RxEIN2+
RxECLKIN+
RxEIN3+
NC (for AUO test only. Do not
connect)
VDD
VDD
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
RxOIN0+
RxOIN1+
RxOIN2+
RxOCLKIN-
RxOIN3-
RxEIN0-
GND
RxEIN1+
RxEIN2-
RxECLKIN-
RxEIN3-
GND
NC (for AUO test only. Do not
connect)
VDD
VDD
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 21
Product Specification
AU OPTRONICS CORPORATION
M240HW01 V6
7.2 Recommend connector for Backlight Unit
This connector is mounted on the monitor system board for LED light-bar FFC mating.
Connector Name / Designation Driver Board Connector
Manufacturer ENTERY INDUSTRIAL CO., LTD
Mating Type Part Number 6712K-F10N-02R
7.2.1 Pin assignment
Pin no. Signal name
1 IRLED (current out)
2 IRLED (current out)
3 IRLED (current out)
4 IRLED (current out)
5 VLED (voltage in)
6 VLED (voltage in)
7 IRLED (current out)
8 IRLED (current out)
9 IRLED (current out)
10 IRLED (current out)
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 22
Product Specification
AU OPTRONICS CORPORATION
8.0 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB)
Ta= 50℃, 80%RH, 300hours
M240HW01 V6
Note
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Drop Test Height: 46 cm, package test
Thermal Shock Test (TST)
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (Electro Static Discharge)
Ta= 50℃, 50%RH, 300hours
Ta= 0℃, 300hours
Ta= 60℃, 300hours
Ta= -20℃, 300hours
Acceleration: 1.5 Grms
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
-20℃/30min, 60℃/30min, 100 cycles
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
15 points, 25 times/ point.
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
15 points, 25 times/ point.
1
2
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20℃ to 60℃, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost
Self-recoverable
No hardware failures.
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 23
Product Specification
AU OPTRONICS CORPORATION
9.0 Shipping Label
The label is on the panel as shown below:
Manufactured: XX/XX
Model No: M240HW01 V6
AU Optronics
Made in XXXXX
M240HW01 V6
Note 1: For Pb Free products, AUO will add for identification.
Note 2: For RoHS compatible products, AUO will add for identification.
Note 3: For China RoHS compatible products, AUO will add for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
document version 1.0 24
Ver 1.0
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
10.0 Mechanical Characteristics
Ver 1.0
AUO Confidential For INNOLUX Internal Use Only / 2009/5/12
Loading...
