AU Optronics M201EW01-V1 Product Specification

M201EW01 V1

Document Version: 0.1

Date: 2004/11/12

Product Functional Specification

20.1 inch WSXGA+ Color TFT LCD Module Model Name: M201EW01 V1

www.jxlcd.com

() Preliminary Specification

( ) Final Specification

Note: This Specification is subject to change without notice.

M201EW01 V1

AU OPTRONICS CORPORATION

Product Specification

+

20.1”Wide SXGA

Color TFT-LCD Module

Model Name: M201EW01 V.1

Approved by Prepared by

www.jxlcd.com

CCChiu

DDBU Marketing Division / AU Optronics corporation

Customer Checked & Approved by

M201EW01 V1

Contents

1.0 Handling Precautions.............................................................6

2.0 General Description ...............................................................7

2.1 Display Characteristics ...................................................................................................................7

2.2 Optical Characteristics ....................................................................................................................8

3.0 Functional Block Diagram ....................................................12

4.0 Absolute Maximum Ratings..................................................13

4.1 TFT LCD Module............................................................................................................................13

4.2 Backlight Unit..................................................................................................................................13

4.3 Absolute Ratings of Environment................................................................................................13

5.0 Electrical characteristics......................................................14

5.1 TFT LCD Module............................................................................................................................14

5.1.1 Power Specification..............................................................................................14

5.1.2 Signal Electrical Characteristics..............................................................................15

5.2 Backlight Unit...................................................................................................................................16

5.2.1 Parameter guideline for Hot-to-Hot driven Inverter...................................................16

5.2.2 Parameter guideline for single CCFL with Hot-to-Cold Inverter (for reference) ...................................17

6.0 Signal Characteristic............................................................18

6.1 Pixel Format Image .......................................................................................................................18

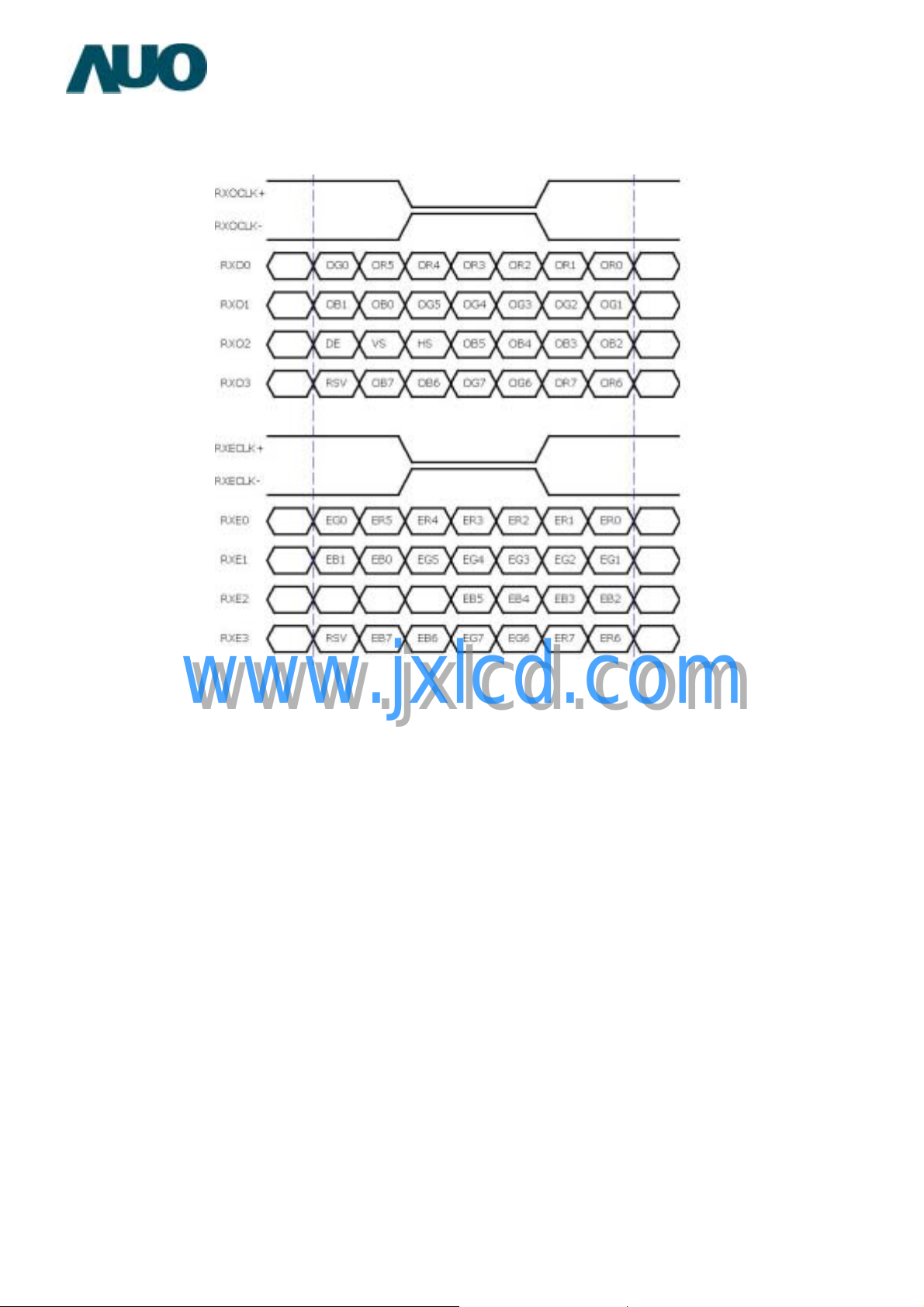

6.2 The input data format....................................................................................................................19

6.3 Signal Description..........................................................................................................................20

6.4 Timing Characteristics...................................................................................................................21

6.4.1 Timing diagram...................................................................................................22

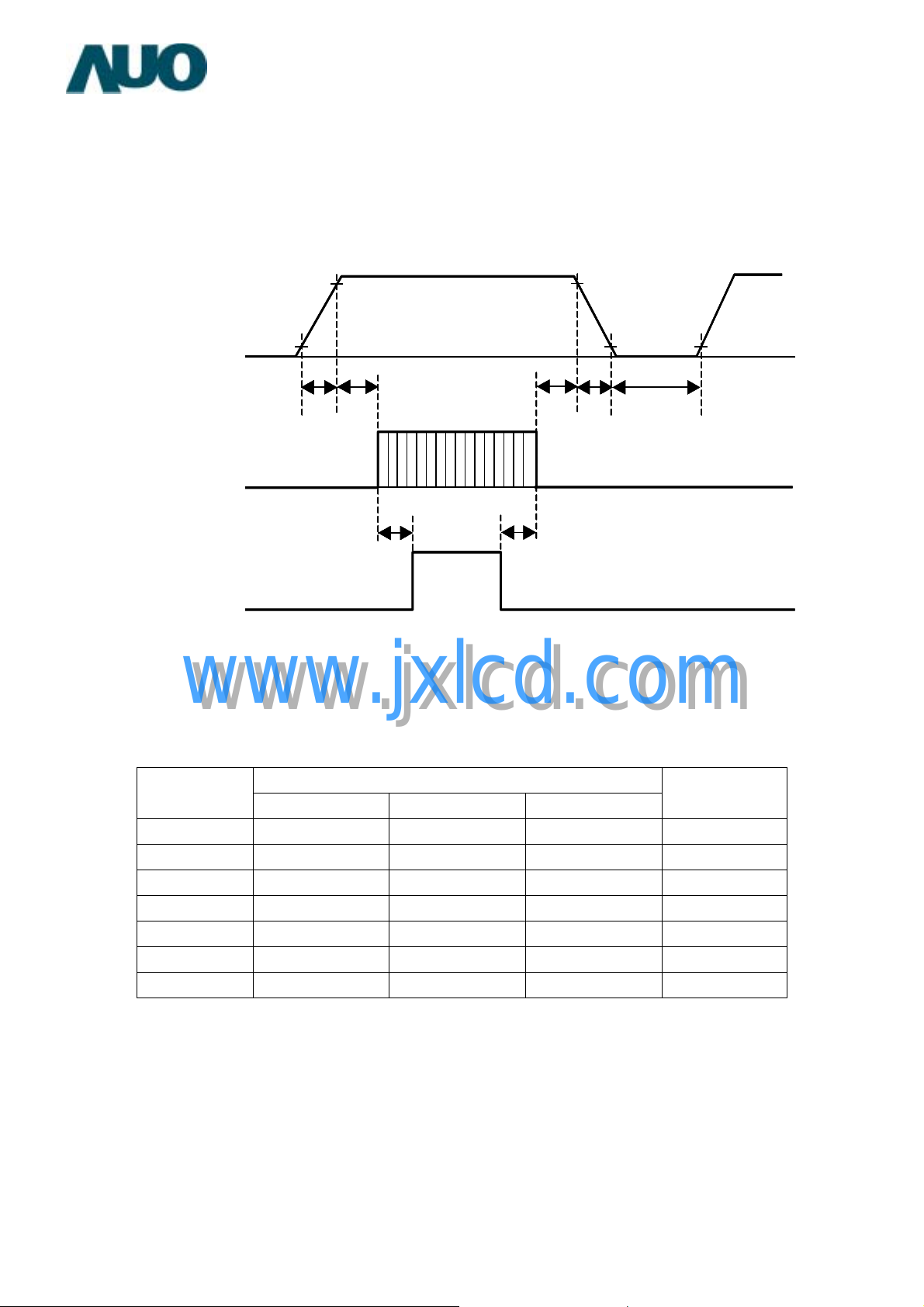

6.5 Power ON/OFF Sequence ...........................................................................................................23

www.jxlcd.com

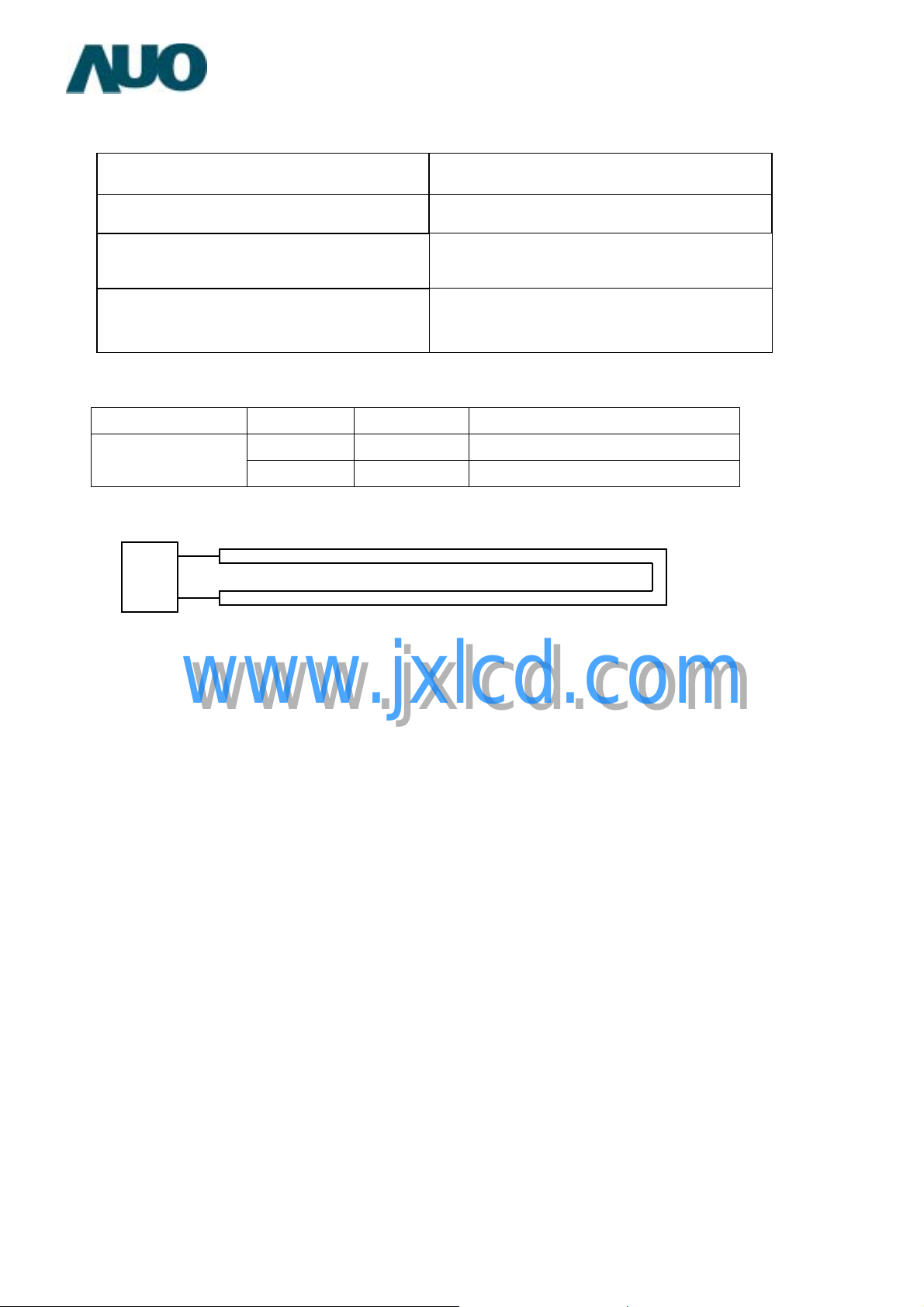

7.0 Connector & Pin Assignment................................................24

7.1 TFT LCD Module............................................................................................................................24

8.0 Reliability.............................................................................26

9.0 Environment ........................................................................27

9.1 Temperature and Humidity ...........................................................................................................27

9.1.1 Operating Conditions............................................................................................27

9.1.2 Shipping Conditions .............................................................................................27

9.2 Atmospheric Pressure ...................................................................................................................27

10.0 Safety ................................................................................28

10.1 Sharp Edge Requirements.........................................................................................................28

10.2 Materials........................................................................................................................................28

10.2.1 Toxicity ............................................................................................................28

10.2.2 Flammability .....................................................................................................28

M201EW01 V1

10.3 Capacitors.....................................................................................................................................28

11.0 Other requirement .............................................................29

11.1 National Test Lab Requirement .................................................................................................29

11.2 Label ..............................................................................................................................................29

12.0 Mechanical Characteristics.................................................30

www.jxlcd.com

M201EW01 V1

Record of Revision

Version and Date Page Old description New Description Remark

0.1 2004/11/12 All First Edition for Customer All

www.jxlcd.com

M201EW01 V1

1.0 Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.

7) Do not open nor modify the Module Assembly.

8) Do not press or pat the panel surface by fingers,hand or tooling

9) Do not press the reflector sheet at the back of the module to any directions.

10) In case if a module has to be put back into the packing container slot after once it was taken out from the container, do not press the center of the CCFL reflector edge. Instead, press at the far ends of the CCFL reflector edge softly. Otherwise the TFT module may be damaged.

11) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT module.

12) After installation of the TFT module into an enclosure (Desktop monitor Bezel, for example), do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT module from outside. Otherwise the TFT module may be damaged.

www.jxlcd.com

M201EW01 V1

2.0 General Description

This specification applies to the 20.1 inch-wide Color TFT-LCD Module M201EW01.

The display supports the WSXGA+ (1680(H) x 1050(V)) screen format and 16.7M colors (RGB 8-bits data).

All input signals are 2 Channel LVDS interface compatible.

This module does not contain an inverter card for backlight.

2.1 Display Characteristics

The following items are characteristics summary on the table under 25 ℃ condition:

ITEMS Unit SPECIFICATIONS

Screen Diagonal [mm] 511.13 (20.1"Wide) Active Area [mm] 433.44 (H) x 270.90(V) Pixels H x V 1680(x3) x 1050 Pixel Pitch [mm] 0.258 (per one triad) x 0.258 Pixel Arrangement R.G.B. Vertical Stripe Display Mode Normally Black White Luminance ( Center ) [cd/m2]

Contrast Ratio 800 : 1 (Typ) Optical Response Time [msec] 20ms (Typ, on/off) ; 12ms (Average, grey to grey) Color Saturation 72% NTSC Nominal Input Voltage VDD [Volt] +5.0 V Power Consumption (VDD line + CCFL line) Weight [Grams] 2150 (Max) Physical Size [mm] 459.4(W) x 296.4(H) x 31.5 (D) (Typ) Electrical Interface Even/Odd R/G/B data, 3 sync signal,

Support Color 16.7M colors (RGB 8-bit data ) Temperature Range Operating Storage (Shipping) Surface Treatment Hard-coating (3H), Glare Type

Note 1: Hot-to-Hot inverter driven method is recommend. The typical central brightness specification could be

attained while input power consumption of a Hot-to-Hot inverter is higher than 43 Watt; the luminance efficiency is about 10.5 nit/Watt.

www.jxlcd.com

[Watt] 40W(Typ) (w/o Inverter, All white pattern)

o

[

C]

o

[

C]

450 cd/m

Clock

0 to +50

-20 to +60

2 Note 1

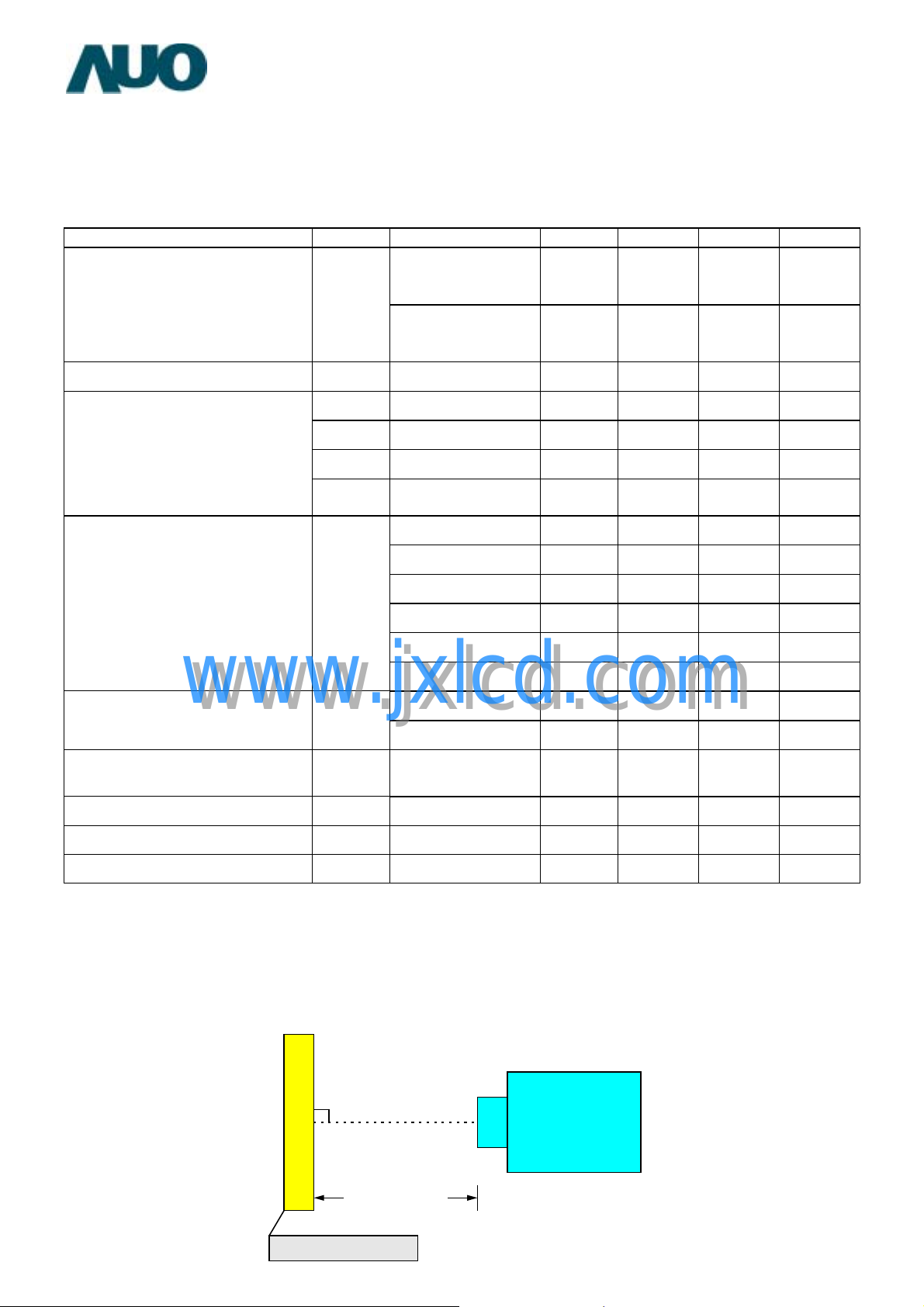

2.2 Optical Characteristics

The optical characteristics are measured under stable conditions at 25℃:

Item Unit Conditions Min. Typ. Max. Note

Viewing Angle

Contrast ratio Normal Direction

Response Time

Color / Chromaticity Coordinates (CIE)

www.jxlcd.com

Color Coordinates (CIE) White

White Luminance (central point)

www.jxlcd.com

[degree] [degree]

[msec] Rising Time

[msec] Falling Time

[msec] Rising + Falling

[msec] Grey to Grey

[cd/m2]

Horizontal (Right) CR = 10 (Left)

Vertical (Up) CR = 10 (Down)

(average)

Red x

Red y

Green x

Green y

Blue x

Blue y

White x

White y

0.610 0.640 0.670

0.322 0.352 0.382

0.258 0.288 0.318

0.598 0.628 0.658

0.114 0.144 0.174

0.046 0.076 0.106

0.283

0.299

75

400 800

-

- 5 15

- 20 40

- 12 -

320 450 -

85

85 85

85

15

0.313

0.329

25

0.343

0.359

M201EW01 V1

-

Note 1 Note 1 Note 1 Note 2

Luminance Uniformity

Crosstalk (in75Hz)

Flicker

Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM-5A ,

BM 7 ,CS-1000, & EZContrast* )

Aperture 1°with 100cm viewing distance (VD) or 2°with 50cm viewing distance (VD) Test Point Center (VESA point 9) Environment < 1 lux

Module Driving Equipment

[%] 70 75 -

[%] 1.5

DB -20

LCD Module

PR-880 /

BM5A /

BM7

/CS1000

measuring distance

Note 3 Note 4 Note 5

M201EW01 V1

*’ EZ Contrast is different measurement tool with very close viewing distance.

Note 1: Definition of Response time

The output signals of photodetector are measured when the input signals are changed from “Black” to “White”

(rising time), and from “White” to “Black ”(falling time), respectively. The response time is interval between the

10% and 90% of amplitudes.

Optical

response

Note 2: Over-Drive and Response time:

www.jxlcd.com

B

A

100

90

10

%

White

0

Tr

F

Black White

Tr

R

Time

100%

90%

10%

0%

Optical Response Driving Signal

Tr Tf

Algorithm:

16 B Level - A Level ≥ then average Tr≦16ms & average Tf ≦16ms

Time

A

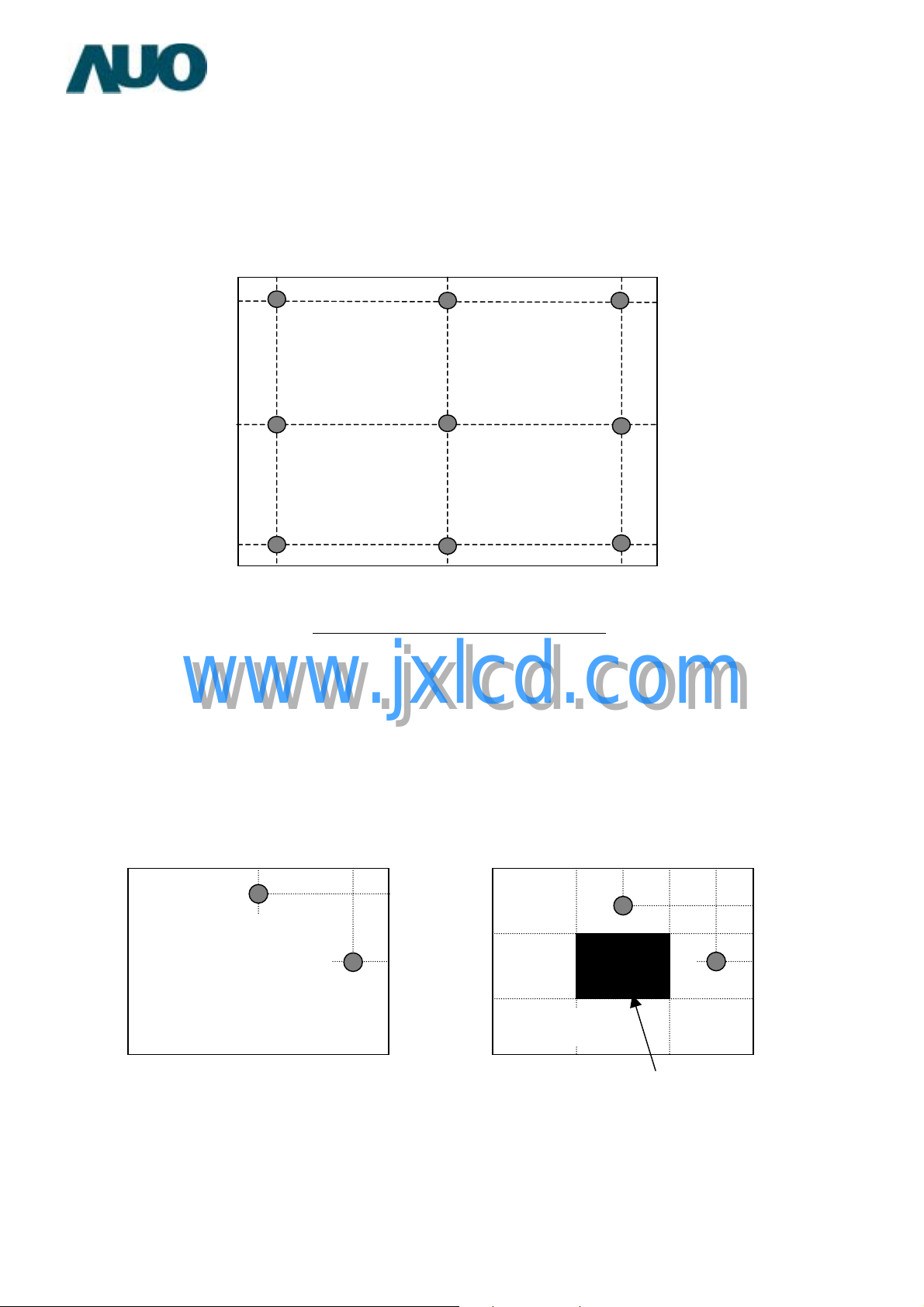

Note 3: Brightness uniformity of these 9 points is defined as below

90 %

50 %

M201EW01 V1

10 %

50 %

90 %

Uniformity = x 100%

9)-(1 points 9in Luminance Minimum

9)-(1 Points 9in Luminance Maximum

www.jxlcd.com

Note 4: Crosstalk is defined as below :

l L

184 gray level 184 gray level

Unit: percentage of dimension of display area

l / LA x 100%= 1.5% max., LA and LB are brightness at location A and B

A-LA’

l / LB x 100%= 1.5% max., LA’ and LB’ are brightness at location A’ and B’

B-LB’

1/2

1/6

1/2

B

1/2

2/3 1/3

’

0 gray level

1/6

1/3

1/2

B’

2/3

Note5: Test Paterm: Subchecker Pattern

R G B R G B

M201EW01 V1

Gray Level = L127

R G B R G B

Method: Record dBV & DC value with (WESTAR)TRD-100

Amplitude

DC

log20(dB)Flicker =

www.jxlcd.com

Gray Level = L0

Hz) 30Level(at AC

Level DC

AC

Time

M201EW01 V1

3.0 Functional Block Diagram

The following diagram shows the functional block of the 20.1 inches wide Color TFT/LCD Module:

+

Connector

Converter

www.jxlcd.com

LVDS

Receiver

Over-Driver

DC/DC

+

-

Timing

Controller

Gamma

Correction

-

G1050

Inverter

JAE FI-XB30SL-HF10 JST PHR-14

Mating Type: Mating Type: JAE FI-X30HL-T ( Locked Type ) S14B-PH-SM3 JAE FI-X30S-H ( Unlocked Type )

1680*(3)*1050

D1 D5040

TFT-LCD

Pixels

-

6 CCFL

M201EW01 V1

p

4.0 Absolute Maximum Ratings

Absolute maximum ratings of the module is as following:

4.1 TFT LCD Module

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage VIN -0.3 +5.5 [Volt] Note 1,2

4.2 Backlight Unit

Item Symbol Min Max Unit Conditions

CCFL Current ICFL - 7 [mA] rms Note 1,2

4.3 Absolute Ratings of Environment

Item Symbol Min Max Unit Conditions

Operating Humidity HOP 8 95 [%RH] Note

Storage Temperature TST -20 +60 [

Storage Humidity HST 8 95 [%RH] Note

Note 1: Single lamp for Hot-to-Cold driven in Ta (25℃ ) Note 2: Permanent damage to the device may occur if exceed maximum values

Relative Humidity %

100

95

80

60

40

20

www.jxlcd.com

Twb=39℃

T=40℃,H=95%

T=50℃,H=55%

Storage range

Operation range

Storage range

5

0

-20

0 6050

erature ℃

Tem

o

C] Note

T=60℃,H=39%

T=65℃,H=29%

V

5.0 Electrical characteristics

5.1 TFT LCD Module

5.1.1 Power Specification

Input power specifications are as follows;

Symbol Parameter Min Typ Max Units Condition

M201EW01 V1

VDD

Logic/LCD Drive

Voltage

4.5 5 5.5 [Volt] ±10%

IDD VDD current - 1200 1400 [mA]

Irush LCD Inrush Current - - 7 [A] Note

PDD VDD Power - 8 [Watt]

VDDrp

VDDns

Allowable Logic/LCD

Drive Ripple Voltage

Allowable Logic/LCD

Drive Ripple Voltage

100

[mV]

p-p

[mV]

p-p

Note: Measurement conditions:

www.jxlcd.com

+5.0V

R1 47K

Q3

AO6402

D6 D5 D2 S D1

G

F1

Vin=5V , All White Pattern,

+30%, at 60Hz

Vin=5V , All White Pattern,

+30%, at 60Hz

VCC

(LCD Module Input)

C1 1uF/16V

D2SD1D5

(High to Low) Control Signal

SW

+12.0V

C2 1uF/25V

R2

1K

VR1

47K

G

C3

0.01uF/25V

D6

Q3

AO6402

5.0V

0V

470 us

in rising time

V

5.1.2 Signal Electrical Characteristics

Input signals shall be low or Hi-Z state when Vin is off It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.

M201EW01 V1

Each signal characteristics are as follows;

Symbol Parameter Min Typ Max Units Condition

VTH

VTL

│VID│ Input Differential Voltage 100 400 600 [mV] Note

VICM

Note: LVDS Signal Waveform

VTH

VTL

Differential Input High

Threshold

Differential Input Low

Threshold

Differential Input Common

Mode Voltage

www.jxlcd.com

SS

VICM

- - +100 [mV]

-100 - - [mV]

+1.0 +1.2 +1.5 [V]

VICM = 1.2V

Note VICM = 1.2V Note

VTH/VTL = ±100MV Note

│VID│

5.2 Backlight Unit

5.2.1 Parameter guideline for Hot-to-Hot driven Inverter

M201EW01 V1

Symbol Parameter Min. Typ. Max. Unit Condition

ISCFL CCFL standard current 5.5 6.0 6.5

FCFL CCFL Frequency 45 50 55 [KHz] (Ta=25

LTCFL CCFL life Time 40,000 50,000 - [Hour] (Ta=25

Note 1: As to lamp current, there is significant deviation between Hot-to-Cold and Hot-to-Hot driven methods. For

reference, the lamp current is 4mA @ 48 Watt with Hot-to-Cold driven but 6.3mA @ 48 Watt with Hot-to-Hot driven.

Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD.

Input Power consumption

(for reference)

www.jxlcd.com

- 43 - [Watt] With inverter

[mA]

rms

(Ta=25

o

C) Note 1

o

C) Note 2

o

C) Note 3

5.2.2 Parameter guideline for single CCFL with Hot-to-Cold Inverter (for reference)

Symbol Parameter Min. Typ. Max. Unit Condition

ISCFL CCFL standard current 3.5 4.0 4.5

IRCFL CCFL operation range

FCFL CCFL Frequency 45 50 55 [KHz] (Ta=25

ViCFL

o

(0

C)

ViCF

o

(25

C)

VCFL

PCFL

LTCFL CCFL life Time 40,000 50,000 - [Hour] (Ta=25

CCFL Ignition Voltage

(End of the lamp wire

connector)

CCFL Ignition Voltage

(End of the lamp wire

connector)

CCFL Operation

Voltage

CCFL Power

consumption (for

reference)

[mA]

rms

3.0 4.0 7.0

2730 - -

2180 - -

1445

@7mA

- 39 60 [Watt] (Ta=25

www.jxlcd.com

1630

@4mA

1680

@3mA

[mA]

rms

[Volt]

rms

[Volt]

rms

[Volt]

rms

(Ta=25

(Ta=25oC)

(Ta=0

(Ta=25

o

C) Note 1

o

C) Note 2

o

C) Note 3

o

C) Note 3

o

C) Note 4

o

C) Note 5

o

C) Note 6

M201EW01 V1

Note 1: CCFL standard current is measured at 25±2℃. Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD

Note 3: ViCFL means Ignition Voltage for both ends of the lamp, and CCFL inverter should be able to give out a

power that has a generating capacity of over ViCFL for ignition

Note 4: CCFL operation voltage is measured at 25±2℃. Note 5: The variance of CCFL power consumption is ±10%. The value is calculated for reference

(ICFL×VCFL×6=PCFL).

Note 6: Definition of life: brightness becomes 50% or less than the minimum luminance value of CCFL.

6.0 Signal Characteristic

6.1 Pixel Format Image

Following figure shows the relationship of the input signals and LCD pixel format.

M201EW01 V1

1

1st Line

1050 Line

www.jxlcd.com

R G B R G B

2

1679 1680

R G B R G B

6.2 The input data format

M201EW01 V1

Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB

O = “First Pixel Data”

www.jxlcd.com

E = “Second Pixel Data”

M201EW01 V1

)

6.3 Signal Description

The module using one LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be

SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels

while the second LVDS port(RxExxx) transmits even pixels.

PIN # SIGNAL NAME DESCRIPTION

1 RxO0- Negative LVDS differential data input (Odd data

2 RxO0+ Positive LVDS differential data input (Odd data

3 RxO1- Negative LVDS differential data input (Odd data

4 RxO1+ Positive LVDS differential data input (Odd data

5 RxO2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG

6 RxO2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG

7 GND Power Ground

8 RxOC- Negative LVDS differential clock input (Odd clock

9 RxOC+ Positive LVDS differential clock input (Odd clock

10 RxO3- Negative LVDS differential data input (Odd data

11 RxO3+ Positive LVDS differential data input (Odd data

12 RxE0- Negative LVDS differential data input (Even clock

13 RxE0+ Positive LVDS differential data input (Even data

14 GND Power Ground

15 RxE1- Positive LVDS differential data input (Even data

16 RxE1+ Negative LVDS differential data input (Even data

17 GND Power Ground

18 RxE2- Negative LVDS differential data input (Even data

19 RxE2+ Positive LVDS differential data input (Even data

20 RxEC- Negative LVDS differential clock input (Even clock

21 RxEC+ Positive LVDS differential clock input (Even clock

22 RxE3- Negative LVDS differential data input (Even data

23 RxE3+ Positive LVDS differential data input (Even data

24 GND Power Ground

25 NC -

26 NC -

27 NC -

28 POWER Power

29 POWER Power

30 POWER Power

www.jxlcd.com

M201EW01 V1

RxO IN

0

VCC

Note1: Start from left side

Note2: Input signals of odd and even clock shall be the same timing.

www.jxlcd.com

Connector

30

-

6.4 Timing Characteristics

Basically, interface timings described here is not actual input timing of LCD module but output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.

Signal Item Symbol Min Typ Max Unit

Period Tv

Vertical

Active Tdisp(v) 1050 1050 1050 Th

Section

Blanking Tbp(v)+Tfp(v)+PWvs 11 - 550 Th

Period Th 920 - 1400 Tclk

Horizontal

Active Tdisp(h) 840 840 840 Tclk

Section

Blanking Tbp(h)+Tfp(h)+PWhs 80 - 560 Tclk

Period Tclk 12 - - ns

Clock

Frequency Freq - 73.5 85 MHz

Note : DE mode only

1061 - 1600 Th

6.4.1 Timing diagram

RGB Data

(Even)

RGB Data

(Odd)

Invalid Data

Pixel

2

1

Pixel Pixel

Pixel

39 M-1

4

Pixel

6

5M-3

Pixel Pixel Pixel Pixel Pixel Pixel

7

8

www.jxlcd.com

10

11

12

M-4

PixelPixelPixelPixel

M-5

M-2

M

PixelPixel

Invalid Data

DE

Tbp(h)

Tdisp(h)

Tfp(h)

PWhs

M201EW01 V1

Hsync

CLK

Tclk

RGB Data

Line Line Line Line Line Line

N

Invalid Data

2

43

N1

Invalid Data

DE

Tfp(v)

Tbp(v)

Tdisp(v)

Th

Hsync

Vsync

PWvs

Tv

M201EW01 V1

6.5 Power ON/OFF Sequence

Vin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when Vin is off.

90% 90%

10%

Vin 10%

0V

Signal

0V

10%

T2 T5 T6 T7

T1

T4

T3

T4

10%

Lamp

0V

www.jxlcd.com

Symbol

T1 0 - 10 [ms]

T2 0.5 40 50 [ms]

T3 200 - - [ms]

T4 200 - - [ms]

T5 0.5 16 50 [ms]

T6 0.5 - 10 [ms]

T7 1000 - - [ms]

Min Typ Max

Values

Unit

M201EW01 V1

7.0 Connector & Pin Assignment

Physical interface is described as for the connector on module. These connectors are capable of accommodating the following signals and will be following components.

7.1 TFT LCD Module

Connector Name / Designation Interface Connector / Interface card Manufacturer JAE or compatible Type Part Number FI-XB30SL-HF10

Mating Housing Part Number

Pin# Signal Name Pin# Signal Name

1 RxO0- 2 RxO0+

3 RxO1- 4 RxO1+

5 RxO2- 6 RxO2+

7 GND 8 RxOC-

9 RxOC+ 10 RxO3-

11 RxO3+ 12 RxE0-

13 RxE0+ 14 GND

15 RxE1- 16 RxE1+

www.jxlcd.com

17 GND 18 RxE2-

19 RxE2+ 20 RxEC-

21 RxEC+ 22 RxE3-

23 RxE3+ 24 GND

25 NC 26 NC

27 NC 28 Power

29 Power 30 Power

www.jxlcd.com

FI-X30HL-T ( Locked Type ) FI-X30S-H ( Unlocked Type )

7.2 Backlight Unit

Connector Name / Designation Lamp Connector / Backlight lamp

7.3 Signal for Lamp connector

Connector No. Pin No. Color Function

CN2~CN7

Manufacturer JST

Type Part Number BHR-03VS-1

Mating Type Part Number SM02(8,0)BHS-1-TB (2pin)

M201EW01 V1

1 Pink High Voltage (HOT)

2 White High Voltage (HOT)

1 CN2~7 2

www.jxlcd.com

8.0 Reliability

Reliability test condition

No Test Item Test Condition

M201EW01 V1

1 Temperature Humidity Bias (THB)

2 High Temperature Operation (HTO)

3 Low Temperature Operation (LTO)

4 High Temperature Storage (HTS)

5 Low Temperature Storage (LTS)

6 Thermal Shock Test (TST)

7 On/Off Test On/10sec, Off/10sec, 30,000 cycles

8 Shock Test (Non-Operating) 50G, 20ms, Half-sine wave (+ X, +Y, +Z)

9 Vibration Test (Non-Operating) 1.5G(10~200Hz P- P), 30 Minutes each Axis (X, Y, Z)

10 Drop test

11 ESD (ElectroStatic Discharge) Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point

12 Altitude Test Operation:10,000 ft

50℃, 80%, 300hours 50℃, 300hours 0℃, 300hours 60℃, 300hours

-20℃, 300hours

-20℃/30min, 60℃/30min, 100 cycles

Package test: The drop height is 60cm.

Air Discharge: ± 15KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point

Non-Operation:30,000 ft

www.jxlcd.com

M201EW01 V1

9.0 Environment

The display module will meet the provision of this specification during operating condition or after storage

or shipment condition specified below. Operation at 10% beyond the specified range will not cause

physical damage to the unit.

9.1 Temperature and Humidity

9.1.1 Operating Conditions

The display module operates error free, when operated under the following conditions; Temperature 0 Relative Humidity 8% to 95% Wet Bulb Temperature 39.0

9.1.2 Shipping Conditions

The display module operates error free, after the following conditions; Temperature -20 Relative Humidity 8% to 95% Wet Bulb Temperature 39.0

0

C to 50 0C

0

C

0

C to 60 0C

0

C

9.2 Atmospheric Pressure

The display assembly is capable of being operated without affecting its operations over the pressure range as following specified;

Pressure Note

www.jxlcd.com

Maximum Pressure 1040hPa 0m = sea level

Minimum Pressure 674hPa 3048m = 10.000 feet

Note : Non-operation attitude limit of this display module = 30,000 feet. = 9145 m.

10.0 Safety

10.1 Sharp Edge Requirements

There will be no sharp edges or comers on the display assembly that could cause injury.

10.2 Materials

10.2.1 Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic

materials are used, they will be reviewed and approved by the responsible ADT

Toxicologist.

10.2.2 Flammability

All components including electrical components that do not meet the flammability grade

UL94-V1 in the module will complete the flammability rating exception approval process.

M201EW01 V1

The printed circuit board will be made from material rated 94-V1 or better. The actual UL

flammability rating will be printed on the printed circuit board.

10.3 Capacitors

If any polarized capacitors are used in the display assembly, provisions will be

made to keep them from being inserted backwards.

www.jxlcd.com

A

11.0 Other requirement

11.1 National Test Lab Requirement

The display module will satisfy all requirements for compliance to

UL 1950, First Edition U.S.A. Information Technology Equipment CSA C22.2 No.950-M89 Canada, Information Technology Equipment EEC 950 International, Information Technology Equipment EN 60 950 International, Information Processing Equipment

(European Norm for IEC950)

11.2 Label

The label is on the panel as shown below:

Model No: M201EW01

M201EW01 V1

US

www.jxlcd.com

Model No: M201EW01

12.0 Mechanical Characteristics

www.jxlcd.com

Ver0.1 30/32
