Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
( V ) Preliminary Specification
( ) Final Specification
Module 19” WXGA+ Color TFT-LCD
Model Name M190PW01 V8
Customer Date
Approved by
www.jxlcd.com
www.jxlcd.com
Approved by Date
ChiYi Wu
Prepared by Date
Nov 15, 2010
Note: This Specification is subject to
change without notice.
document version 0.1 1
Archer Cheng
Desktop Display Business Group /
AU Optronics corporation
Nov 15, 2010
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
Contents
1.0 Handling Precautions............................................................. 4
2.0 General Description ............................................................... 5
2.1 Display Characteristics....................................................................................................................5
2.2 Optical Characteristics ....................................................................................................................6
3.0 Functional Block Diagram .................................................... 10
4.0 Absolute Maximum Ratings......................................................... 11
4.1 TFT LCD Module..............................................................................................................................11
4.2 Backlight Unit.................................................................................................................................... 11
4.3 Absolute Ratings of Environment ......................................................................................................11
5.0 Electrical characteristics...................................................... 12
5.1 TFT LCD Module............................................................................................................................ 12
5.1.1 Power Specification.............................................................................................. 12
5.1.2 Signal Electrical Characteristics.............................................................................. 13
5.2 Backlight Unit.................................................................................................................................... 14
6.1 Pixel Format Image........................................................................................................................15
6.2 The input data format .................................................................................................................... 15
6.3 Signal Description..........................................................................................................................16
6.4 Timing Characteristics .......................................................................................................................18
6.5 Timing diagram...............................................................................................................................19
6.6 Power ON/OFF Sequence ...........................................................................................................20
www.jxlcd.com
www.jxlcd.com
7.0 Connector & Pin Assignment ............................................... 21
7.1 TFT LCD Module............................................................................................................................ 21
7.1.1 Pin Assignment ................................................................................................... 21
7.2 Backlight Unit.................................................................................................................................. 22
8.0 Reliability Test..................................................................... 23
9.0 Shipping Label ..................................................................... 24
10. Packing Specification........................................................... 25
11.0 Mechanical Characteristics ................................................ 26
document version 0.1 2
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2010/11/15 All First Edition for Customer N/A
www.jxlcd.com
www.jxlcd.com
document version 0.1 3
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken
out from the container, do not press the center of the LED lightbar edge. Instead, press at the
far ends of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT
www.jxlcd.com
Module may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
13) Pls avoid touching COF position while you are doing mechanical design
14) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep
the temperature between 5℃ and 35℃ at normal humidity.
www.jxlcd.com
3/18
document version 0.1 4
Product Specification
AU OPTRONICS CORPORATION
2.0 General Description
This specification applies to the 19 inch-wide Color TFT-LCD Module M190PW01.
The display supports the WXGA+ (1440(H) x 900(V)) screen format and 16.7M colors(RGB
6-bits+HiFRC). All input signals are 2-Channel LVDS interface compatible. This module does
not contain an inverter board for backlight.
2.1 Display Characteristics
M190PW01 V8
The following items are characteristics summary on the table under 25℃ condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm]
Active Area [mm] 408.24 (H) x 255.15(V)
Pixels H x V 1440x3(RGB) x 900
Pixel Pitch [um] 283.5 (per one triad) ×283.5
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode, Normally White
White Luminance ( Center ) [cd/m2]
Contrast Ratio 1000 (Typ.)
Optical Response Time [msec] 5ms (Typ., on/off) (
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + LED line)
Weight [Grams] 1450 (Typ)
Physical Size [mm] 428.0(W) x 278.0(H) x 10.3(D) (Typ)
Electrical Interface Dual channel LVDS
Support Color 16.7M colors (RGB 6-bit + Hi_FRC )
Surface Treatment Anti-Glare, 3H
Temperature Range
Operating
Storage (Shipping)
RoHS Compliance RoHS Compliance
TCO5.1 Compliance TCO5.1 Compliance
www.jxlcd.com
www.jxlcd.com
[Watt]
[oC]
[oC]
250 cd/m
15.1W (Typ)
(without inverter, all black pattern)
0 to +50
-20 to +60
2
(Typ.)
A
document version 0.1 5
2.2 Optical Characteristics
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
The optical characteristics are measured under stable conditions at 25℃:
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Viewing Angle [degree]
Vertical (Up)
CR = 10 (Down)
Contrast ratio Normal Direction
Raising Time (TrR)
Response Time [msec]
Color / Chromaticity
Coordinates (CIE)
www.jxlcd.com
Color Coordinates (CIE) White
Central Luminance [cd/m2] 200 250 - 6
Luminance Uniformity
Crosstalk (in 75 Hz)
Flicker
www.jxlcd.com
[%]
[%]
dB
Falling Time (TrF)
Raising + Falling
Gray to Gray(16x16 avg.)
Red x
Red y 0.315 0.345 0.375
Green x 0.291 0.321 0.351
Green y 0.595 0.625 0.655
Blue x 0.121 0.151 0.181
Blue y 0.027 0.057 0.087
White x
White y
70
70
70
70
600
0.612 0.642 0.672
0.283 0.313 0.343
0.299 0.329 0.359
75 80
85
-
-
-
-
85
80
80
1000 -
3.6 5.7
1.4 2.3
5 8
- -
-
-
-
-
3/18
-
1.5 8
-20
2
3
4
5
7
9
document version 0.1 6
Note 1: Measurement method
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room.
)
. In order to stabilize the luminance, the
Photo detector
Measured distance
LCD Panel
TFT-LCD Module
Note 2: Definition of viewing angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
www.jxlcd.com
www.jxlcd.com
Center of the screen
document version 0.1 7
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
Note 3: Contrast ratio is measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, Tr
), and from “Full White” to “Full Black” (falling time, TfF),
R
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.
Optical
Optical
resp on se
resp on se
Tr
+ TfF = 5 msec (typ.).
R
Algorithm:┃Gray Level A – Gray Level B┃
100
100
90
10
10
0
0
%
%
Tr
Tr
F
F
White Black
1 Fra me 1 Fra me
Black
16, then the average gray to gray response time is 2
Tr
Tr
R
R
White
ms,
(F= 60 Hz).
Note 5: Color chromaticity and coordinates (CIE) is measured by TOPCON SR-3
www.jxlcd.com
www.jxlcd.com
Note 6: Central luminance is measured by TOPCON SR-3
Note 7: Luminance uniformity of these 9 points is defined as below and measured by
TOPCON SR-3
document version 0.1 8
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
Uniformity =
Note 8: Crosstalk is defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
9)-(1 points 9in LuminanceMinimum
9)-(1 Points 9in LuminanceMaximum
Note 9: Test Patern: Subchecker Pattern measured by TOPCON SR-3
R G B R G B
R G B R G B
R G B R G B
Method: Record dBV & DC value with TRD-100
Amplitude
www.jxlcd.com
www.jxlcd.com
Gray Level = L127
Gray Level = L0
AC
DC
Time
log20(dB)Flicker =
Level DC
Hz) 30Level(at AC
document version 0.1 9
3.0 Functional Block Diagram
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
The following diagram shows the functional block of the
LVDS
+5V
LVDS
Connector
Receiver
DC/DC
Converter
www.jxlcd.com
www.jxlcd.com
I/F + X-PCB
AUO ASIC
Timing
Controller
Gamma
Correction
DC
19.0 inch Color TFT-LCD Module:
G1
Y-Driver IC
TFT-LCD
1440*(3)*900
Pixels
G900
D1
X-Driver IC
D4320
LED Backlight
LED Driver on system
I/F PCB Interface:
FI-XPB30SRL-HF11(JAE)/ 093F30-B0T01A (SC)
Mating Type:
FI-X30HL-T(JAE)(Locked Type)
document version 0.1 10
Product Specification
AU OPTRONICS CORPORATION
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Voltage
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED Current ILED
4.3 Absolute Ratings of Environment
VDD 0 5.5 [Volt] Note 1,2
- 80
M190PW01 V8
[mA] rms Note 1,2
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
www.jxlcd.com
Note 1: With in Ta (25℃)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: For quality perfermance, please refer to AUO IIS(Incoming Inspection Standard).
www.jxlcd.com
5 90
[%RH]
Note 3
Operating Range Storage Range
document version 0.1 11
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as following:
Symbol Parameter Min Typ Max Unit Conditions
VDD
IDD Input Current
PDD
Logic/LCD Drive
Voltage
VDD Power
4.5
-
-
5.0
0.9
4.5 5.5 [Watt]
5.5
1.1
[Volt] +/-10%
[A]
VDD= 5.0V, All Black Pattern
At 60Hz
VDD= 5.0V, All Black Pattern
At 60Hz , Note 1
IRush Inrush Current
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
-
-
- 3 [A] Note 2
- 250 [mV] p-p
Note 1: The variance of VDD power consumption is ±10%

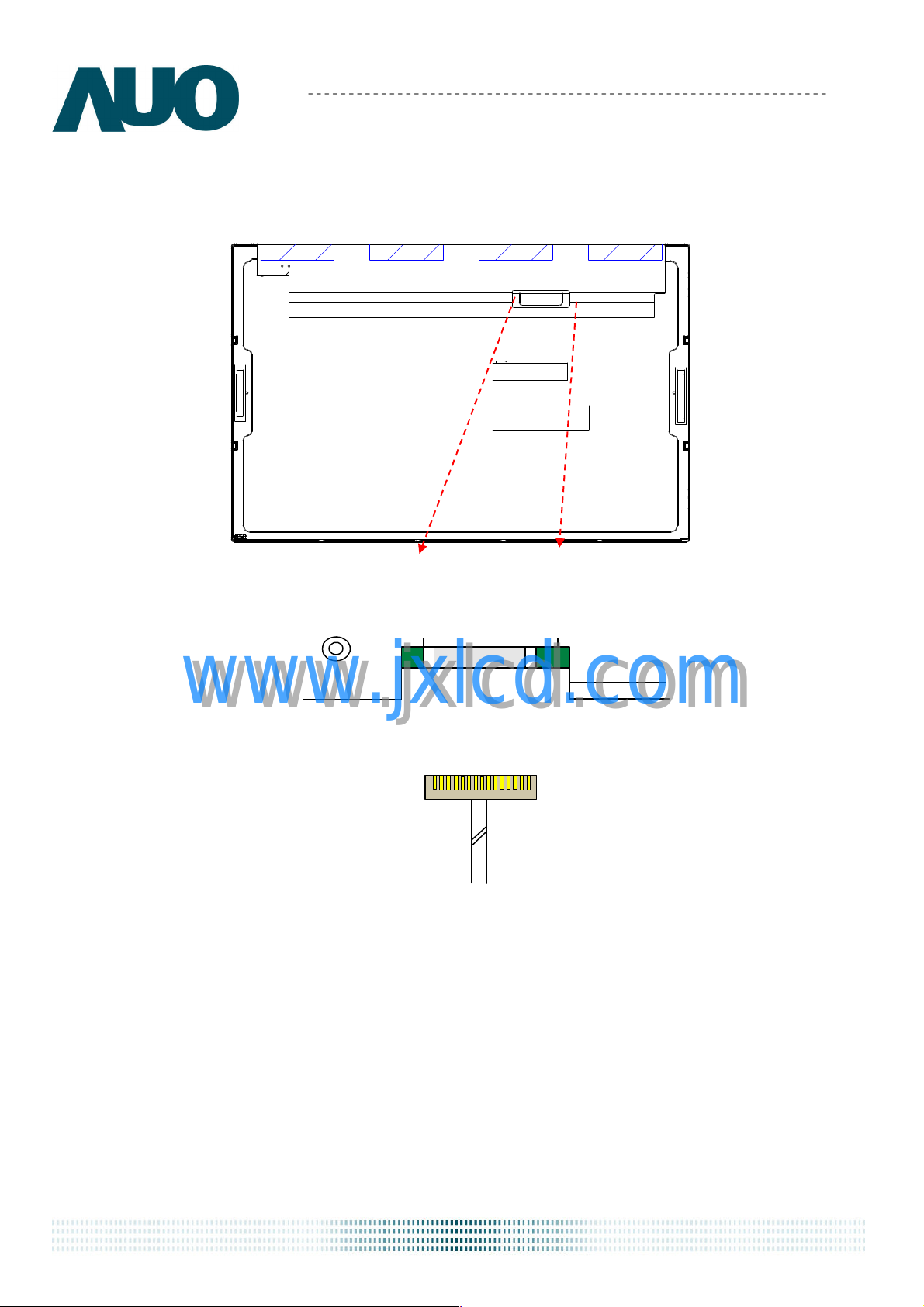

Note 2: Measurement conditions:
The duration of rising time of power input is 470us.
www.jxlcd.com
www.jxlcd.com
VDD=5.0, All black pattern at
60Hz
document version 0.1 12
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
│VID│
VICM
Differential Input High
Threshold
Differential Input
Low Threshold
Input Differential
Voltage
Differential Input
Common Mode
Voltage
www.jxlcd.com
www.jxlcd.com
- -
-100 -
100 400 600 [mV]
1.0 1.2 1.5 [V]
100 [mV]
- [mV]
VICM = 1.2V Note
VICM = 1.2V Note
Note
VTH/VTL = ± 100mV Note
Note: LVDS Signal Waveform
document version 0.1 13
Product Specification
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25
Symbol Parameter Min.
IR
LED Operation Current -- 60 80 [mA]
LED
Typ. Max. Unit Note
M190PW01 V8
(R
T
oom
empera
t
)
re
u
:
VLB
P
BLU Power consumption (for reference)
BLU
LT
LED life Time
LED
Light Bar Operation Voltage
(for reference)
39 44.2 46.8
- 10.6 15 [Watt]
30,000 -- --
[Volt]
Note 1
[Hour]
Note 2
Operating with fixed
driving current
Note 1 : The value showed in the table is one light bar’s operation voltage.
Note 2 : Based on the operating current is 60mA.
Note 3 : Definition of life time : brightness becomes 50% of its original value. The minimum life time of LED unit is on the
condition of IR
= 60mA and 25±2℃(Room temperature).
LED
Note 4: Each LED light bar consists of 52 pcs LED package (4 strings x 13 pcs / string)
www.jxlcd.com
www.jxlcd.com
document version 0.1 14
Product Specification
AU OPTRONICS CORPORATION
6.0 Signal Characteristic
6.1 Pixel Format Image
M190PW01 V8
Following figure shows the relationship of the input signals and LCD pixel format.
1st L ine
900 Line
6.2 The input data format
www.jxlcd.com
www.jxlcd.com
1 2 1439 1440
R G B R G B
R G B R G B
R G B R G B
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “First Pixel Data” E = “Second Pixel Data”
document version 0.1 15
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments). LVDS is a
differential signal technology for LCD interface and high speed data transfer device. LVDS
transmitters shall be SN75LVDS83(negative edge sampling). The first LVDS port(RxOxxx)
transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7 GND Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock)
9 RxOCLKIN+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 GND Power Ground
15 RxEIN1- Negative LVDS differential data input (Even data)
16 RxEIN1+ Positive LVDS differential data input (Even data)
17 GND Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLKIN- Negative LVDS differential clock input (Even clock)
21 RxECLKIN+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 NC No contact (For AUO test only)
26 NC No contact (For AUO test only)
www.jxlcd.com
www.jxlcd.com
27 NC No contact (For AUO test only)
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
document version 0.1 16
Note1: Start from left side
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
1
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
www.jxlcd.com
www.jxlcd.com
RxOIN0-
30
VCC
document version 0.1 17
Product Specification
AU OPTRONICS CORPORATION
6.4 Timing Characteristics
Basically, interface timing described here is not actual input timing of LCD module but close to
output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.
Item Symbol Min Typ Max Unit
Data CLK 1/Tclk 42.92 54.05 67.57 [MHz]
Period Th 870 964 2047 [Tclk]
M190PW01 V8
H-section
V-section
Frame Rate F 50 60 76 [Hz]
Note : DE mode only
Display Area Tdisp(h) 720 720 720 [Tclk]
Blanking
Period Tv 910 916 2047 [Th]
Display Area Tdisp(v) 900 900 900 [Th]
Blanking
www.jxlcd.com
www.jxlcd.com
Tblk(h)
Tblk(v)
150 244 1327 [Tclk]
10 16 1147 [Th]
document version 0.1 18
Product Specification
M190PW01 V8
AU OPTRONICS CORPORATION
6.5 Timing diagram
RGB Data
(Even)
RGB Data
(Odd)
Invalid Data
Invalid Data
2
4
6
8
10
Pixel
Pixel
1
Pixel Pixel
Pixel
3 9 M-1
Pixel
5 M-3
Pixel Pixel Pixel Pixel Pixel Pixel
www.jxlcd.com
www.jxlcd.com
7
12
11
M-4
PixelPixelPixelPixel
M-5
M-2
M
PixelPixel
Invalid Data
Invalid Data
DE
Tbp(h)
Tdisp(h)
Tfp(h)
PWhs
Hsync
Tclk
CLK
RGB Data
Line Line Line Line Line Line
N
Invalid Data
2
43
N1
Invalid Data
DE
Tfp(v)
Tbp(v)
Tdisp(v)
Th
Hsync
Vsync
PWvs
Tv
document version 0.1 19
Product Specification
AU OPTRONICS CORPORATION
6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
M190PW01 V8
www.jxlcd.com
www.jxlcd.com
Parameter
Min. Max.
T1 0.5 10 [msec]
T2 0 50 [msec]
T3 500 - [msec]
T4 200 - [msec]
T5 0 50 [msec]
T6 1000 - [msec]
Value
Unit
document version 0.1 20
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer JAE or SC(慶良)
Type Part Number
Mating Housing Part Number
FI-XPB30SRL-HF11
093F30-B0T01A
FI-X30HL-T ( Locked Type )
FI-X30S-H ( Unlocked Type ) or equivalent
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 GND 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 GND
15 RxEIN1- 16 RxEIN1+
17 GND 18 RxEIN2-
www.jxlcd.com
www.jxlcd.com
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 GND
25 NC 26 NC
27 NC 28 VCC
29 VCC 30 VCC
document version 0.1 21
Product Specification
AU OPTRONICS CORPORATION
7.2 Backlight Unit
This connector is mounted on LED light-bar.
Connector Name / Designation Driver Board Connector
Manufacturer
Type Part Number
Mating Type Part Number (Housing)
(1) ENTERY INDUSTRIAL CO., LTD
(2) CHIEF LAND Electronic Co., Ltd.
(3) CVILUX CORPORATION.
(1) 3707K-Q06N-01
(2) 116B06-100000-M2-R
(3) CI1406M1HRE-NH
(1) H112K-P06N-01B
(2) -
(3) CI1406SL000-NH
M190PW01 V8
7.2.1 Pin assignment
Pin no. Signal name
1 IRLED (current out)
2 IRLED (current out)
3 VLED (voltage in)
www.jxlcd.com
www.jxlcd.com
4 VLED (voltage in)
5 IRLED (current out)
6 IRLED (current out)
document version 0.1 22
Product Specification
AU OPTRONICS CORPORATION
8.0 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 5
High Temperature Operation (HTO) Ta= 5
Low Temperature Operation (LTO) Ta=
High Temperature Storage (HTS) Ta=
Low Temperature Storage (LTS) Ta= -
Vibration Test
(Non-operation)
,
80%RH, 300hours
0
,
50%RH, 300hours
0
3
0
60
20
h
o
rs
,
u
00
3
,
00
3
,
h
o
rs
u
h
o
rs
u
00
Acceleration: 1.5 Grms
Wave: Random
Frequency: 10 - 200 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
M190PW01 V8
Note
Acceleration: 50 G
Shock Test
(Non-operation)
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Drop Test Height: 60 cm, package test
www.jxlcd.com
Thermal Shock Test (TST) -20
www.jxlcd.com
/30min, 60
/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
1
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point.
ESD (Electro Static Discharge)
2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20℃ to 60℃, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost
Self-recoverable
No hardware failures.
document version 0.1 23
Product Specification
AU OPTRONICS CORPORATION
9.0 Shipping Label
The label is on the panel as shown below:
M190PW01 V8
Note 1: For Pb Free products, AUO will add
Note 2: For RoHS compatible products, AUO will add
Note 3: For China RoHS compatible products, AUO will add for identification.
www.jxlcd.com
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
www.jxlcd.com
for identification.
for identification.
document version 0.1 24
A
10. Packing Specification
Product Specification
AU OPTRONICS CORPORATION
M190PW01 V8
www.jxlcd.com
www.jxlcd.com
M190PW01 V8 Packing instruction
2. Pallet and shipment information
1 Panel 1 428(H)mm x 278(V)mm x 10.3(D)mm 1.45
2 Cushion 1 - 1.80
3 Box 1 480(L)mm x 276(W)mm x 430(H)mm 0.95 without Panel & cushion
Item
Q'ty Dimension Weight(kg)
Specification
Remark
4 Packing Box 8 pcs/Box 480(L)mm x 276(W)mm x 430(H)mm 14.35 with panel & cushion
5 Pallet 1 1140(L)mm x 980(W)mm x 138(H)mm 13
6 Pallet after Packing 16 boxes/pallet 1140(L)mm x 980(W)mm x 1428(H)mm 229.6
document version 0.1 25
www.jxlcd.com
www.jxlcd.com
11.0 Mechanical Characteristics
Document version 0.1
Loading...
