Product Specification
) Preliminary Specifications
(
( V ) Final Specifications
AU OPTRONICS CORPORATION
B170PW07 V0
Module
Model Name
17.0” WXGA+ Color TFT-LCD
B170PW07 V0
Customer Date
Checked &
Approved by
www.jxlcd.com
www.jxlcd.com
Approved by Date
Prepared by
Howard Lee
Note: This Specification is subject to change
without notice.
document version 1
2006/1/10
Maxine Lee
NBBU Marketing Division /
AU Optronics corporation
2006/1/10
Product Specification
AU OPTRONICS CORPORATION
B170PW07 V0
Contents
1. Handling Precautions..............................................................................................................4
2. General Description.................................................................................................................5
2.1 General Specification.........................................................................................................5
2.2 Optical Characteristics.......................................................................................................6
3. Functional Block Diagram.....................................................................................................10
4. Absolute Maximum Ratings..................................................................................................11
4.1 Absolute Ratings of TFT LCD Module..............................................................................11
4.2 Absolute Ratings of Backlight Unit...................................................................................11
4.3 Absolute Ratings of Environment.....................................................................................11

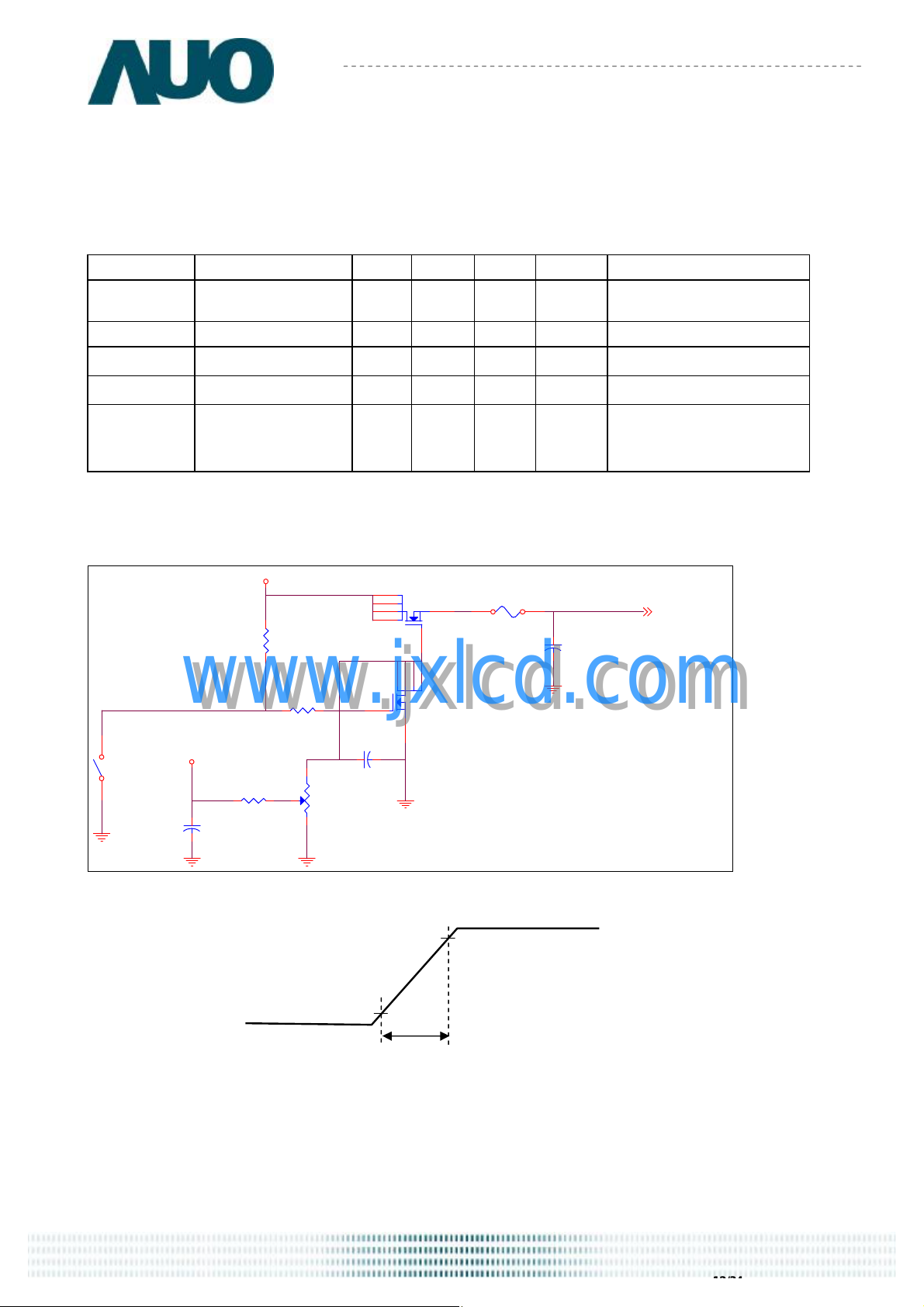

5. Electrical characteristics.......................................................................................................12
5.1 TFT LCD Module..............................................................................................................12
5.2 Backlight Unit...................................................................................................................14
6. Signal Characteristic.............................................................................................................16
6.1 Pixel Format Image..........................................................................................................16

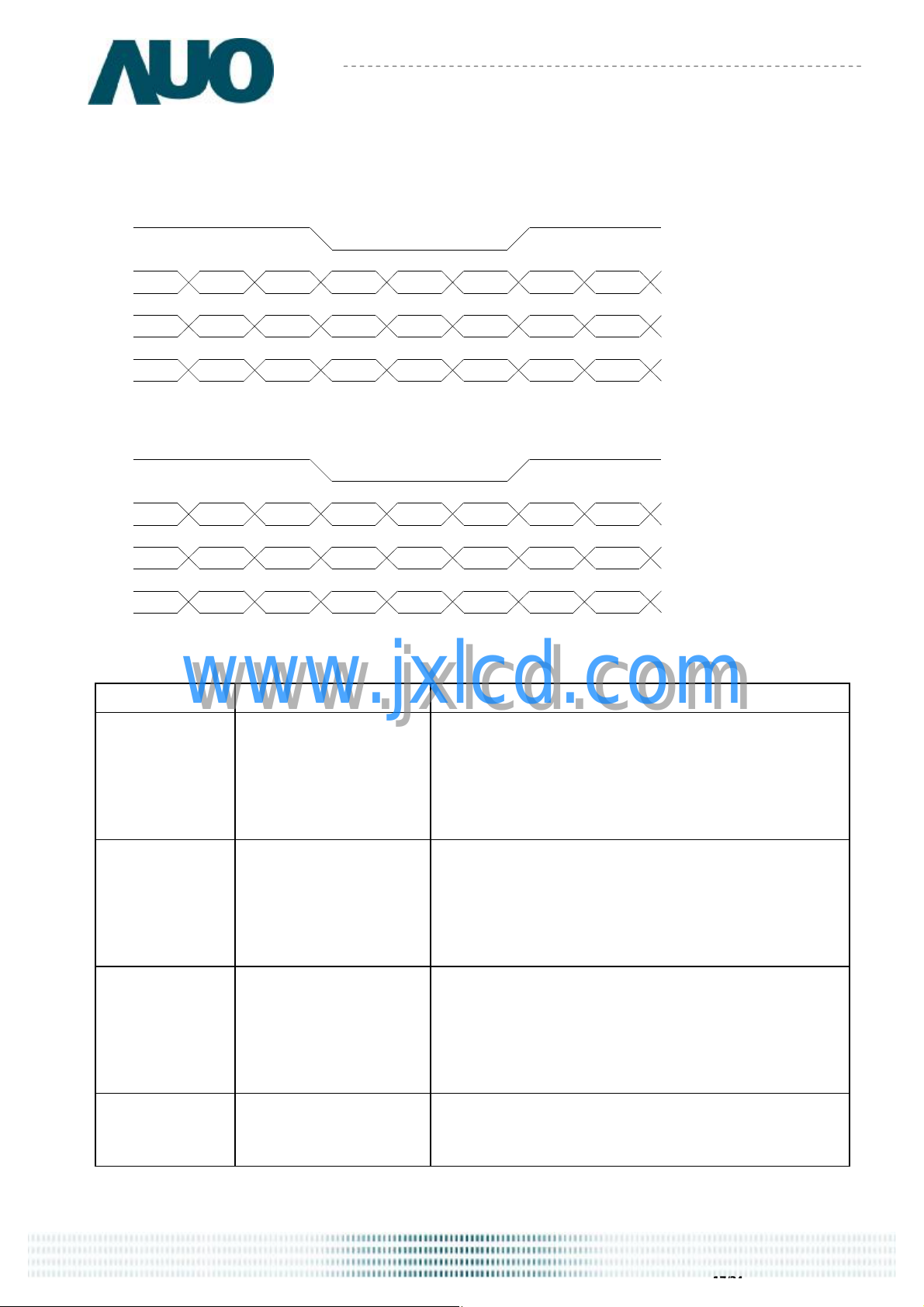

6.2 The input data format.......................................................................................................17
6.3 Signal Description............................................................................................................19
6.4 Interface Timing................................................................................................................20

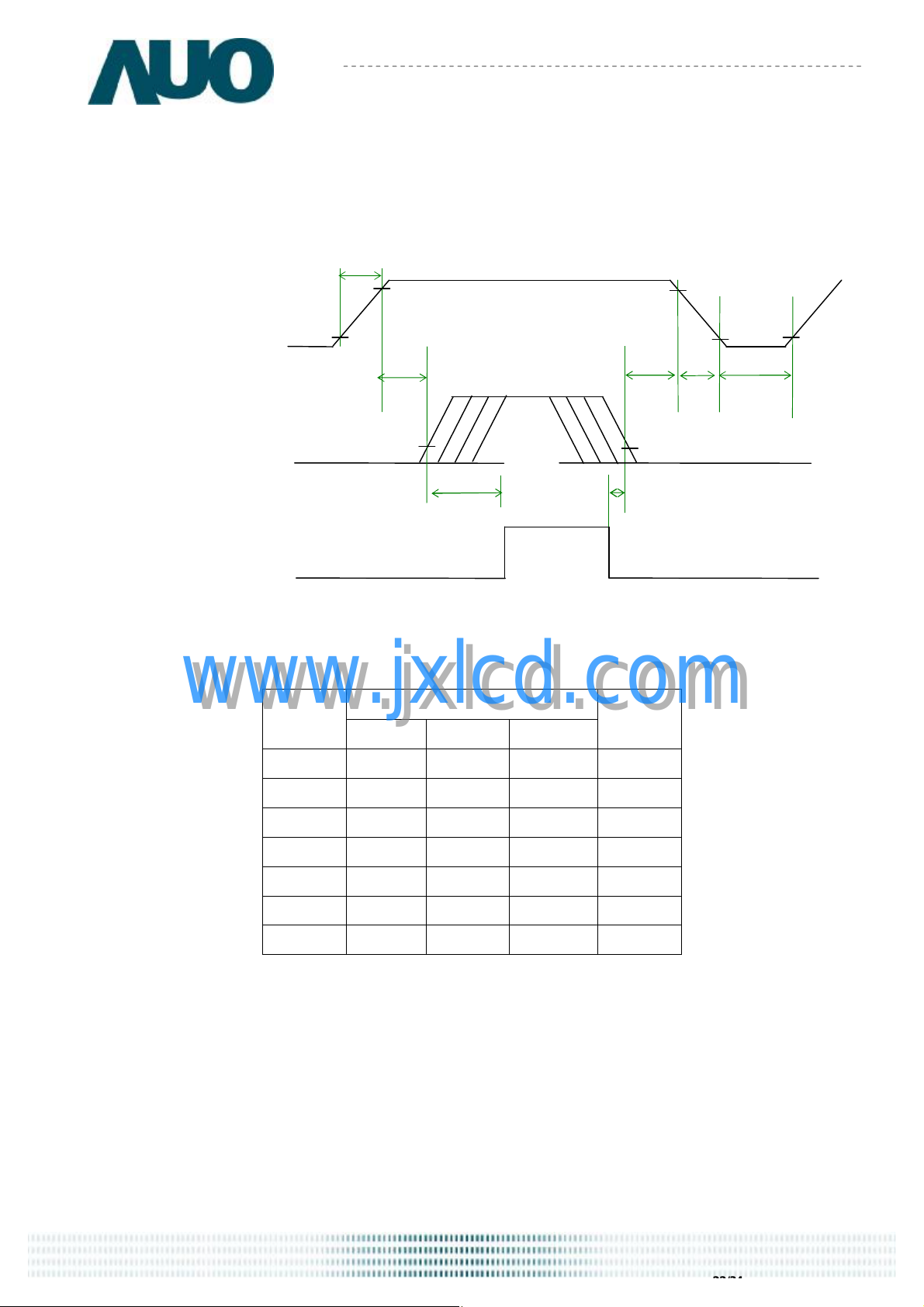

6.5 Power ON/OFF Sequence...............................................................................................22
7. Connector Description..........................................................................................................23
7.1 TFT LCD Module..............................................................................................................23
7.2 Backlight Unit...................................................................................................................23
7.3 Signal for Lamp connector...............................................................................................23
8. Vibration and Shock Test......................................................................................................24
8.1 Vibration Test...................................................................................................................24
8.2 Shock Test Spec:..............................................................................................................24
9. Reliability................................................................................................................................25
10. Mechanical Characteristics.................................................................................................26

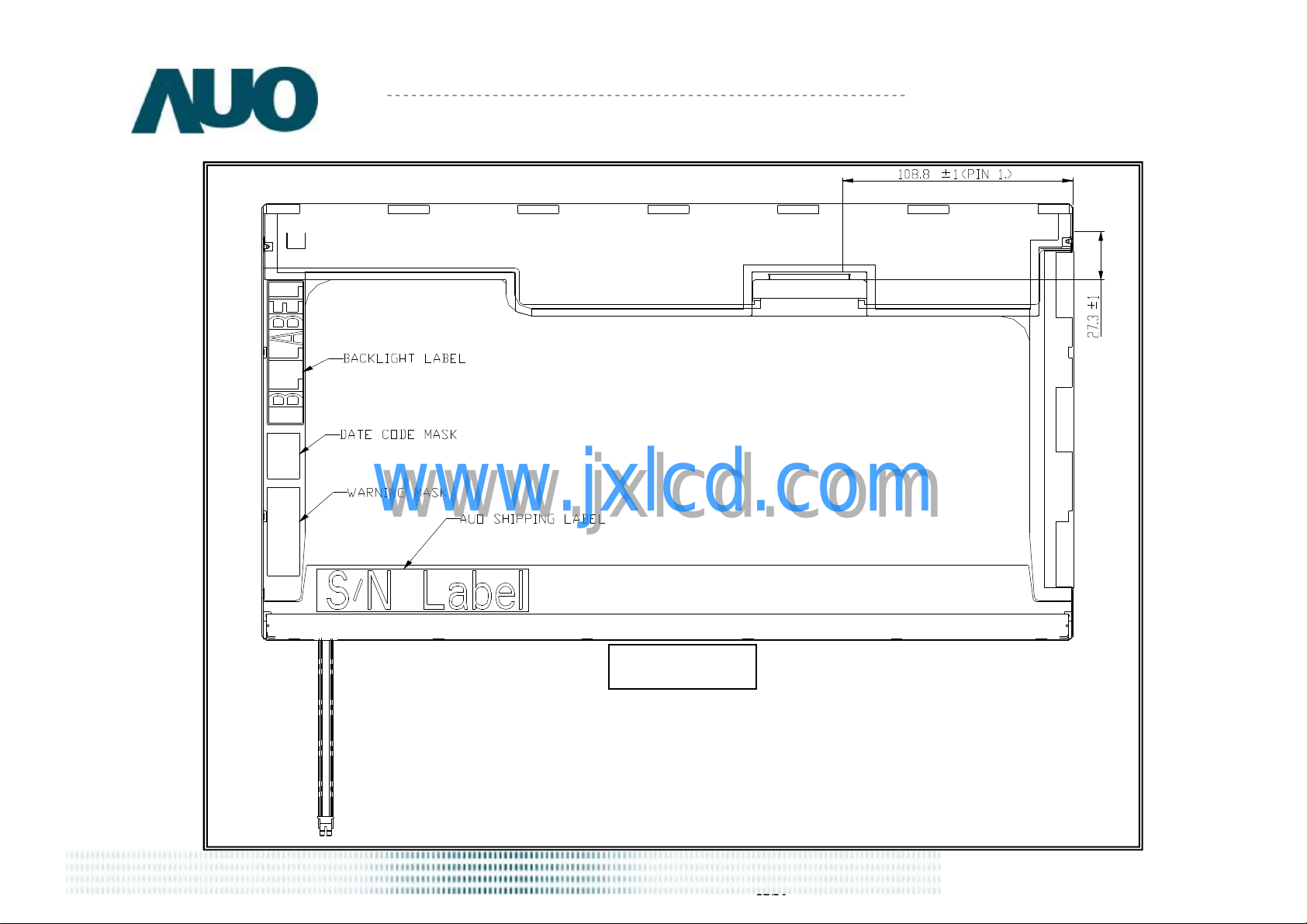

10.1 LCM Outline Dimension...............................................................................................26

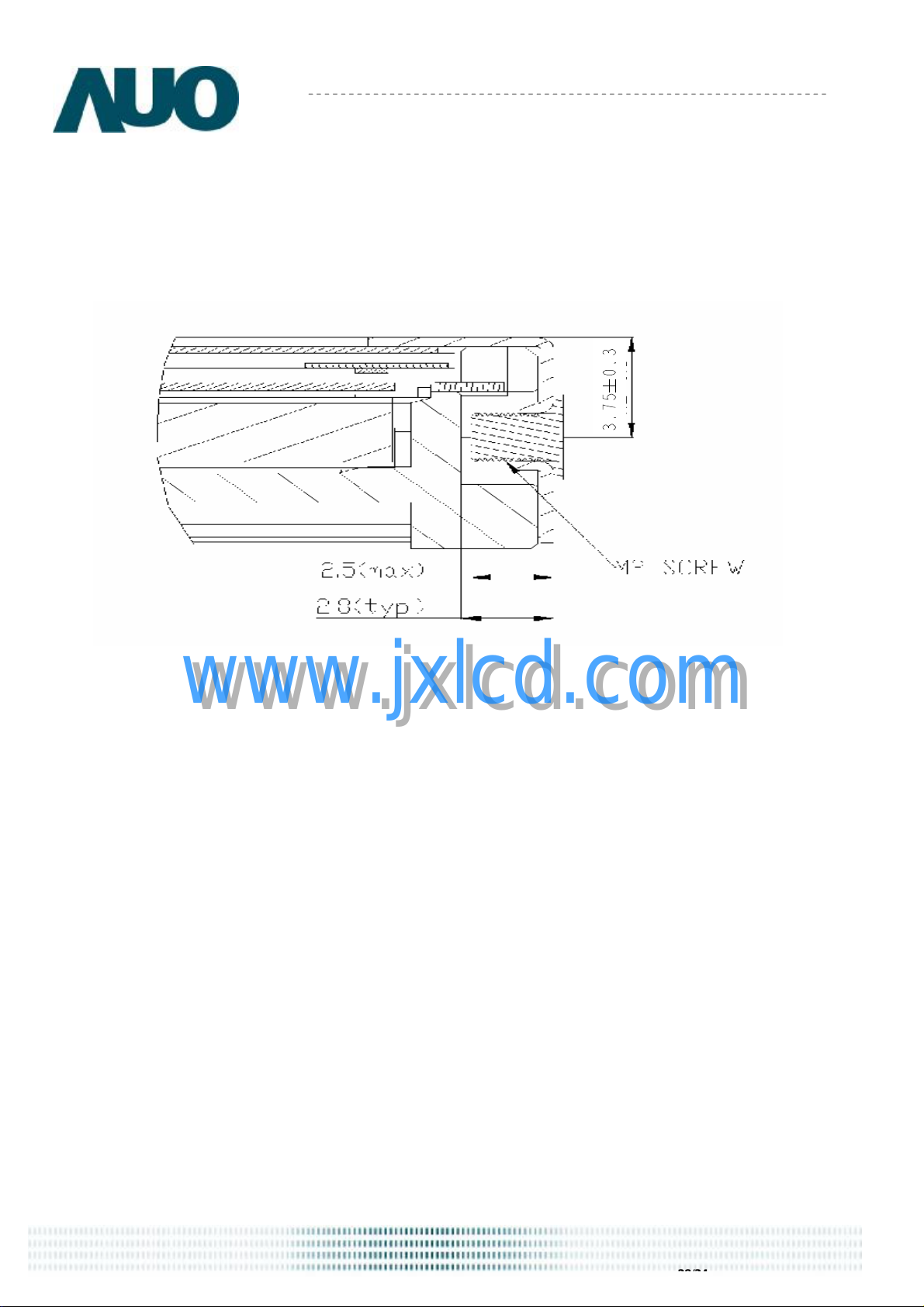

10.2 Screw Hole Depth and Center Position..........................................................................28
www.jxlcd.com
www.jxlcd.com
11. Shipping and Package.........................................................................................................29
11.1 Shipping Label Format...................................................................................................29
11.2. Carton Package.............................................................................................................29
12. Appendix: EDID description................................................................................................31
document version 1
Product Specification
AU OPTRONICS CORPORATION
B170PW07 V0
Record of Revision
Version and Date Page
V0 2006/9/25 Initial Edition
V1 2006/12/28 5 Power spec is 13.2W Power spec is 12W
6 White Color is (0.313, 0.329) White Color is (0.330, 0.349)
Old description New Description Remark
www.jxlcd.com
www.jxlcd.com
document version 1
Product Specification
AU OPTRONICS CORPORATION
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input
connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration
or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on
hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure
human earth when handling.
7) Do not open nor modify the Module Assembly.
B170PW07 V0
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it
was taken out from the container, do not press the center of the CCFL Reflector
edge. Instead, press at the far ends of the CFL Reflector edge softly. Otherwise the
TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate
nor tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure (Notebook PC Bezel, for
example), do not twist nor bend the TFT Module even momentary. At designing the
enclosure, it should be taken into consideration that no bending/twisting forces are
applied to the TFT Module from outside. Otherwise the TFT Module may be
damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow
local ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The
LCD module should be supplied by power complied with requirements of Limited Power
Source (IEC60950 or UL1950), or be applied exemption.
www.jxlcd.com
www.jxlcd.com
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit
(IEC60950 or UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
document version 1
Product Specification
Pixel Arrangement
R.G.B. Vertical Stripe
Storage (Non
-
Operating)
[oC]
-
20 to +60
RoHS Compliance
AU OPTRONICS CORPORATION
2. General Description
B170PW07 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD
panel, a driver circuit, and backlight system. The screen format is intended to support the
WXGA+ (1440(H) x 900(V)) screen and 262k colors (RGB 6-bits data driver). All input
signals are LVDS interface compatible. Inverter of backlight is not included.
B170PW07 V0 is designed for a display unit of notebook style personal computer and
industrial machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 ℃ condition:
Screen Diagonal [mm] 391 (17.0W”)
Active Area [mm] 367.20(H) X 229.50(V)
Items Unit Specifications
B170PW07 V0
Pixels H x V 1440x3(RGB)x900
Pixel Pitch [mm] 0.255X0.255
Display Mode Normally White
White Luminance (ICCFL=6.5mA)
Note: ICCFL is lamp current
www.jxlcd.com
Luminance Uniformity 1.5 max. (5 points)
Contrast Ratio 800 typ
Optical Rise Time/Fall Time [msec] 8ms typ. (12ms max)
Nominal Input Voltage VDD [Volt] +3.3 typ. (+3.0 min, +3.6 max)
Power Consumption [Watt] 12 typ (without inverter)
Weight [Grams] 690 typ. (725 max)
Physical Size [mm] TYP: 382.2(W)x247.5(H)x6.5 (D)
Electrical Interface 2 channel LVDS
Surface Treatment Glare
Support Color Native 262K colors ( RGB 6-bit Data
www.jxlcd.com
[cd/m2] 500 typ. (5 points average)
425 min. (5 points average)
(Note1)
MAX:382.7(W)x248.0(H)x7.0 (D)
driver)
Temperature Range
Operating
RoHS Compliance
document version 1
[oC]
0 to +50
Product Specification
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃ (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
B170PW07 V0
White Luminance
ICCFL=6.5mA
Viewing Angle
Luminance Uniformity
Luminance Uniformity
CR: Contrast Ratio
Color Gamut [NTSC]
Cross talk %
Response Time
Color / Chromaticity
Coordinates
(CIE 1931)
www.jxlcd.com
www.jxlcd.com
[cd/m2] 5 points average
[degree]
[degree]
[degree]
[degree]
[msec] Rising
[msec] Falling
[msec] Rising + Falling
425 500 - 1, 4, 8
Horizontal (Right)
CR = 10 (Left)
Vertical (Upper)
CR = 10 (Lower)
5 Points
13 Points
600 800 - 4
72%
4 5
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
55
55
45
45
1.5 1,3
2.0 2,3
-
8
0.618 0.648 0.678
0.308 0.338 0.368
0.262 0.292 0.322
0.582 0.612 0.642
0.115 0.145 0.175
0.045 0.075 0.105
0.300 0.330 0.360
0.319 0.349 0.370
65
65
50
50
2
6 9
-
-
-
-
5
14
7
6
2,7
document version 1
Product Specification
= Maximum Brightness of thirteen points
Minimum Brightness of thirteen points
Maximum Brightness of five
points
= Minimum Brightness of five
points
AU OPTRONICS CORPORATION
Note 1: 5 points position (Display area : 367.20(H) X 229.50(V))mm)
H/4
H/4
B170PW07 V0
W
W/4 W/4 W/4 W/4
1 2
H
Note 2: 13 points position
H/4
www.jxlcd.com
www.jxlcd.com
H/4
H
H/4
H/4
H/4
10
10
W/4
1
6
3
4 5
W
W/4
4
W/4
2
7
W/4
10
3
5
8
9
H/4
10
11
Note 3: The luminance uniformity of 5 and 13 points is defined by dividing the maximum luminance values by
the minimum test point luminance
δ
W5
10
1312
δ
W13
document version 1
Product Specification
Field=2
°
AU OPTRONICS CORPORATION
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room.
B170PW07 V0
Photo detector
Note 5： Definition of Cross Talk (CT)
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
www.jxlcd.com
www.jxlcd.com
document version 1
Product Specification
AU OPTRONICS CORPORATION
Note 6: Definition of response time:
The output signals of BM-7 or equivalent are measured when the input signals are changed from “Black” to
“White” (falling time) and from “White” to “Black” (rising time), respectively. The response time interval
between the 10% and 90% of amplitudes. Refer to figure as below.
B170PW07 V0
Signal(Relative value)
100%
90%
10%
0%
Tr
"Black"
Tf
"White""White"
Note 7. Definition of viewing angle
Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180° horizontal and
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows; 90°
(θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is
typically perpendicular to the display surface with the screen rotated about its center to develop the desired
measurement viewing angle.
www.jxlcd.com
www.jxlcd.com
Note 8. Brightness measured with Foxconn inverter T73I019.01, under 6.5mA lamp current input.
document version 1
Product Specification
Odd_
RxIN0
Lamp Connector(2pin)
X 2
Even_
RxIN0
AU OPTRONICS CORPORATION
3. Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches wide Color TFT/LCD Module:
(8 pairs LVDS)
Odd_RxIN1
Odd_RxIN2
Odd_RxCLKIN
Even_RxIN1
Even_RxIN2
Even_RxCLKIN
LCD DRIVE
CARD
LCD
Controller
DC-DC
Converter
Ref circuit
B170PW07 V0
Y-Driver
X-Driver
TFT ARRAY/CELL
1440(R/G/B) x 3
Backlight Unit
VDD
GND
JAE FI-XB30SL-HF10 or compatible
Mating Housing JAE FI-X30H
www.jxlcd.com
www.jxlcd.com
JST BHSR-02VS-1
document version 1
Product Specification
AU OPTRONICS CORPORATION
4. Absolute Maximum Ratings
Absolute maximum rating of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICCFL - 7 [mA] rms Note 1,2
4.3 Absolute Ratings of Environment
B170PW07 V0
Vin -0.3 +4.0 [Volt] Note 1,2
Item Symbol Min Max Unit Conditions
Operating Temperature
Operation Humidity HOP 5 95 [%RH] Note 3
Storage Temperature
Storage Humidity HST
Note 1: Within Ta (25℃ )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS(Incoming Inspection Standard).
www.jxlcd.com
www.jxlcd.com
TOP 0 +50 [oC] Note 3
TST -20 +60 [
5 95
Twb=39° C
o
C] Note 3
[%RH]
Note 3
-40
Operating Range Storage Range
document version 1
65
Loading...
