AU Optronics B170PW04-V0 Product Specification

Product Specification
) Preliminary Specifications
( V ( ) Final Specifications
AU OPTRONICS CORPORATION
B170PW04 V0
Module Model Name
Customer Date
HP
Checked &
Approved by
17.0 WXGA Color TFT-LCD B170WP04 V0
Approved by Date
www.jxlcd.com
www.jxlcd.com
Prepared by
Joselyn Liu
Note: This Specification is subject to change without notice.
document version 3 1/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
2005/3/31
Maxine Lee
MDBU Marketing Division /
AU Optronics corporation
2006/3/31
Product Specification
AU OPTRONICS CORPORATION
B170PW04 V0
Contents
1. Handling Precautions..............................................................................................................4
2. General Description.................................................................................................................5
2.1 Display Characteristics......................................................................................................5
2.2 Optical Characteristics.......................................................................................................6
3. Functional Block Diagram.....................................................................................................10
4. Absolute Maximum Ratings..................................................................................................11
4.1 TFT LCD Module..............................................................................................................11
4.2 Backlight Unit...................................................................................................................11
4.3 Absolute Ratings of Environment.....................................................................................11
5. Electrical characteristics.......................................................................................................12
5.1 TFT LCD Module..............................................................................................................12
5.2 Backlight Unit...................................................................................................................14
6. Signal Characteristic.............................................................................................................16
6.1 Pixel Format Image..........................................................................................................16
6.2 The input data format.......................................................................................................17
6.3 Signal Description............................................................................................................19
6.4 Interface Timing................................................................................................................20
6.5 Power ON/OFF Sequence...............................................................................................22
7. Connector & Pin Assignment................................................................................................23
7.1 TFT LCD Module..............................................................................................................23
7.2 Backlight Unit...................................................................................................................23
7.3 Signal for Lamp connector...............................................................................................23
8. Vibration and Shock Test......................................................................................................24
8.1 Vibration Test...................................................................................................................24
8.2 Shock Test Spec:..............................................................................................................24
9. Reliability................................................................................................................................25
10. Mechanical Characteristics.................................................................................................26
10.1 LCM Outline Dimension.................................................................................................26
10.2 Screw Hole Depth and Center Position..........................................................................28
www.jxlcd.com
www.jxlcd.com
11. Shipping and Package.........................................................................................................29
11.1 Shipping Label Format...................................................................................................29
11.2. Carton package.............................................................................................................29
12. Appendix: EDID description................................................................................................30
document version 3 2/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
B170PW04 V0
Record of Revision
Version and Date Page
V0 2005/11/15 Initial Version V1 2005/11/23 27 Update Drawing 5 Update Contrast Ratio 6 Update Color Spec V2 2006/3/10 6 Contrast Ratio: min 650 Contrast Ratio: min 550 Add Color Gamut V3 2006/3/28 5 Physical Size: 10.3 (D) max Physical Size: 10.0 (D) max 26,27 New Drawing with dimension mark
Old description New Description Remark
updated
www.jxlcd.com
www.jxlcd.com
document version 3 3/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.
7) Do not open nor modify the Module Assembly.
B170PW04 V0
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out from the container, do not press the center of the CCFL Reflector edge. Instead, press at the far ends of the CFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure (Notebook PC Bezel, for example), do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module should be supplied by power complied with requirements of Limited Power Source(, IEC60950 or UL1950), or be applied exemption.
www.jxlcd.com
www.jxlcd.com
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
document version 3 4/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
Pixel Arrangement
Storage (Non
-
Operating)
[oC]
-
20 to +60
RoHS Compliance
AU OPTRONICS CORPORATION
2. General Description
B170PW04 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and backlight system. The screen format is intended to support the WXGA+ (1440(H) x 900(V)) screen and 262k colors (RGB 6-bits data driver). All input signals are LVDS interface compatible. Inverter of backlight is not included.
B170PW04 V0 is designed for a display unit of notebook style personal computer and industrial machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 condition:
Screen Diagonal [mm] 391 (17.0W) Active Area [mm] 367.20(H) X 229.50(V)
Items Unit Specifications
B170PW04 V0
Pixels H x V 1440x3(RGB) x 900 Pixel Pitch [mm] 0.255X0.255
Display Mode Normally White White Luminance (ICCFL=6.5mA)
Note: ICCFL is lamp current
www.jxlcd.com
Luminance Uniformity 1.25 max. (5 points) Contrast Ratio 700 typ
Optical Rise Time/Fall Time [msec] 8ms typ. (12ms max) Nominal Input Voltage VDD [Volt] +3.3 typ. (+3.0 min, +3.6 max)
Power Consumption [Watt] 12.5 (without inverter) Weight [Grams] 960 typ. (1100 max) Physical Size [mm] 382.2(W)typx246.8(H)typx10.0 (D)max
Electrical Interface 2 channel LVDS Surface Treatment Glare
Support Color Native 262K colors ( RGB 6-bit Data
www.jxlcd.com
[cd/m2] 500 typ. (5 points average)
425 min. (5 points average)
(Note1)
driver)
Temperature Range
Operating
RoHS Compliance
document version 3 5/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
[oC]
0 to +50
Product Specification
0.623
0.653
0.308
0.338
0.269
0.299
0.578
0.608
0.117
0.147
0.042
0.072
0.308
0.338
0.316
0.346
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃ (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
B170PW04 V0
White Luminance ICCFL=6.5mA Viewing Angle
Luminance Uniformity Luminance Uniformity CR: Contrast Ratio Color Gamut [NTSC] Cross talk % Response Time
Color / Chromaticity Coordinates (CIE 1931)
www.jxlcd.com
www.jxlcd.com
[cd/m2] 5 points average
[degree] [degree]
[degree] [degree]
[msec] Rising [msec] Falling [msec] Rising + Falling
Horizontal (Right) CR = 10 (Left)
Vertical (Upper) CR = 10 (Lower)
5 Points 13 Points
550 700 - 4 72% 4 5
Red x Red y Green x Green y Blue x Blue y White x White y
425 500 - 1, 4
60 60 50 50
1.25 1,3
2.0 2,3
-
­ 8
70 70 60 60
6 2 5
0.683
0.368
0.329
0.638
0.177
0.102
0.368
0.376
-
-
-
-
9
14
7
6
2,7
document version 3 6/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
= Maximum Brightness of thirteen points
Minimum Brightness of thirteen points
Maximum Brightness of five
points
= Minimum Brightness of five
points
AU OPTRONICS CORPORATION
Note 1: 5 points position (Display area : 367.20(H) X 229.50(V))mm)
H/4
H/4
B170PW04 V0
W
W/4 W/4 W/4 W/4
12
H
Note 2: 13 points position
H/4
www.jxlcd.com
www.jxlcd.com
H/4
H
H/4
H/4
H/4
10
10
W/4
1
6
3
45
W
W/4
4
W/4
2
7
W/4
10
3
5
8
9
H/4
10
11
Note 3: The luminance uniformity of 5 and 13 points is defined by dividing the maximum luminance values by the minimum test point luminance
δ
W5
10
1312
δ
W13
document version 3 7/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
Field=2
°
AU OPTRONICS CORPORATION
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change during measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and dark room.
B170PW04 V0
Photo detector
Note 5 Definition of Cross Talk (CT)
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
www.jxlcd.com
www.jxlcd.com
document version 3 8/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
Note 6: Definition of response time:
The output signals of BM-7 or equivalent are measured when the input signals are changed from “Black to White (falling time) and from “White to Black (rising time), respectively. The response time interval between the 10% and 90% of amplitudes. Refer to figure as below.
B170PW04 V0
S i
g
n
a
l
(
R e
l
a
t
i
v
e v
a
l
u
e
)
100%
90%
10%
0%
Tr
"Black"
Tf
"White""White"
Note 7. Definition of viewing angle
Viewing angle is the measurement of contrast ratio 10, at the screen center, over a 180° horizontal and
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is
typically perpendicular to the display surface with the screen rotated about its center to develop the desired measurement viewing angle.
www.jxlcd.com
www.jxlcd.com
document version 3 9/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
Odd_
RxIN0
Lamp Connector(2pin)
X 2
Even_
RxIN0
AU OPTRONICS CORPORATION
3. Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches wide Color TFT/LCD Module:
(8 pairs LVDS)
Odd_RxIN1 Odd_RxIN2 Odd_RxCLKIN
Even_RxIN1 Even_RxIN2 Even_RxCLKIN
LCD DRIVE CARD
LCD Controller
DC-DC
Converter Ref circuit
B170PW04 V0
Y-Driver
X-Driver
TFT ARRAY/CELL
1440(R/G/B) x 3
Backlight Unit
VDD GND
JAE FI-XB30SL-HF10 or compatible
Mating Housing JAE FI-X30H
www.jxlcd.com
www.jxlcd.com
JST BHSR-02VS-1
document version 3 10/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
4. Absolute Maximum Ratings
Absolute maximum rating of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICCFL - 7 [mA] rms Note 1,2
4.3 Absolute Ratings of Environment
B170PW04 V0
Vin -0.3 +4.0 [Volt] Note 1,2
Item Symbol Min Max Unit Conditions
Operating Temperature
Operation Humidity HOP 5 95 [%RH] Note 3
Storage Temperature
Storage Humidity HST
Note 1: Within Ta (25 ) Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS(Incoming Inspection Standard).
www.jxlcd.com
www.jxlcd.com
TOP 0 +50 [
TST -20 +60 [
5 95
Twb=39° C
o
C] Note 3
o
C] Note 3
[%RH]
Note 3
-40
Operating Range Storage Range
document version 3 11/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
65
Product Specification
Voltage
90%
10%
AU OPTRONICS CORPORATION
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
B170PW04 V0
Symble Parameter Min Typ Max Units
VDD Logic/LCD Drive PDD VDD Power
IDD IDD Current IRush Inrush Current VDDrp Allowable
3.0 3.3 3.6 [Volt] 3 [Watt] Note 1
600
700
2000 [mA]
100 [mV] Logic/LCD Drive Ripple Voltage
Note 1 : Maximum Measurement Condition:Black Pattern Note 2Measure Condition
Q3
AO6402
D6 F1 D5 D2 S D1
G
D2SD1D5
D6
Q3
G
C3
0.01uF/25V
AO6402
SW1
SW MAG-SPST
1 2
+3.3V
R1 47K
(High to Low) Control Signal
www.jxlcd.com
www.jxlcd.com
+12.0V
R2
1K
C2 1uF/25V
R2
1K
VR1
47K
[mA]
p-p
C1 1uF/16V
Note
Note 1 Note 2
VCC
(LCD Module Input)
0V
0.5ms
document version 3 12/33
Vin rising time
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
3.3V
Product Specification
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
Input signals shall be low or High-impedance state when VDD is off. It is recommended to refer the specifications of THC63LVDF84A (Thine Electronics Inc.) in detail.
Signal electrical characteristics are as follows;
B170PW04 V0
Parameter
Vth
Vtl
Vcm
Note: LVDS Differential Voltage
www.jxlcd.com
Differential Input High Threshold (Vcm=+1.2V)
Differential Input Low Threshold (Vcm=+1.2V)
Differential Input
Common Mode Voltage
www.jxlcd.com
Condition Min Max Unit
-100
1.125
100
1.375
[mV]
[mV]
[V]
document version 3 13/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Note 2
5.2 Backlight Unit
Parameter guideline for CCFL Inverter
Parameter Min Typ
Product Specification
AU OPTRONICS CORPORATION
B170PW04 V0
Max
Units Condition
White Luminance 5800 6400
CCFL current(ICCFL) 3.0 6.5 7.0 [mA] rms
CCFL Frequency (FCCFL) 45 60 80 [KHz]
CCFL Ignition Voltage (Vs)
CCFL Ignition Voltage(Vs)
CCFL Voltage (Reference)
CCFL Power consumption (2 lamp)
Note 1: Typ are AUO recommended Design Points. *1 All of characteristics listed are measured under the condition using the AUO Test inverter.
www.jxlcd.com
www.jxlcd.com
1250
745 785 905
5.4 9.6 10.4
1500
[cd/m2 ]
[Volt] rms
[Volt] rms
[Volt] rms
[Watt]
(Ta=25) Note 1
(Ta=25)
(Ta=25) Note 3,4
(Ta= 0) Note 5
(Ta= 25) Note 5
(Ta=25) Note 6
(Ta=25) Note 6
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully. Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker at low power may happen. *3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of CCFL, for instance, becomes more than 1 [M ohm] when CFL is damaged. *4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is recommended to keep on applying kick-off voltage for 1 [Sec] until discharge. *5 CCFL discharge frequency must be carefully chosen so as not to produce interfering noise stripes on the screen. *6 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL discharge frequency. So all the parameters of an inverter should be carefully designed so as not to produce too
much leakage current from high-voltage output of the inverter. Note 2: It should be employed the inverter which has Duty Dimming, if ICCFL is less than 4mA. Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter and TFT LCD. Note 4: The frequency range will not affect to lamp life and reliability characteristics. Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,430 voltage. Lamp units need 1,400 voltage minimum for ignition.
document version 3 14/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
Note 6: Calculator value for reference (ICCFL×VCCFL=PCCFL) Note 7: Requirements for a system inverter design, which is intended to have a better display performance, a better power efficiency and a more reliable lamp, are following. It shall help increase the lamp lifetime and reduce leakage current. a. The asymmetry rate of the inverter waveform should be less than 10%. b. The distortion rate of the waveform should bewithin 2 ±10%.

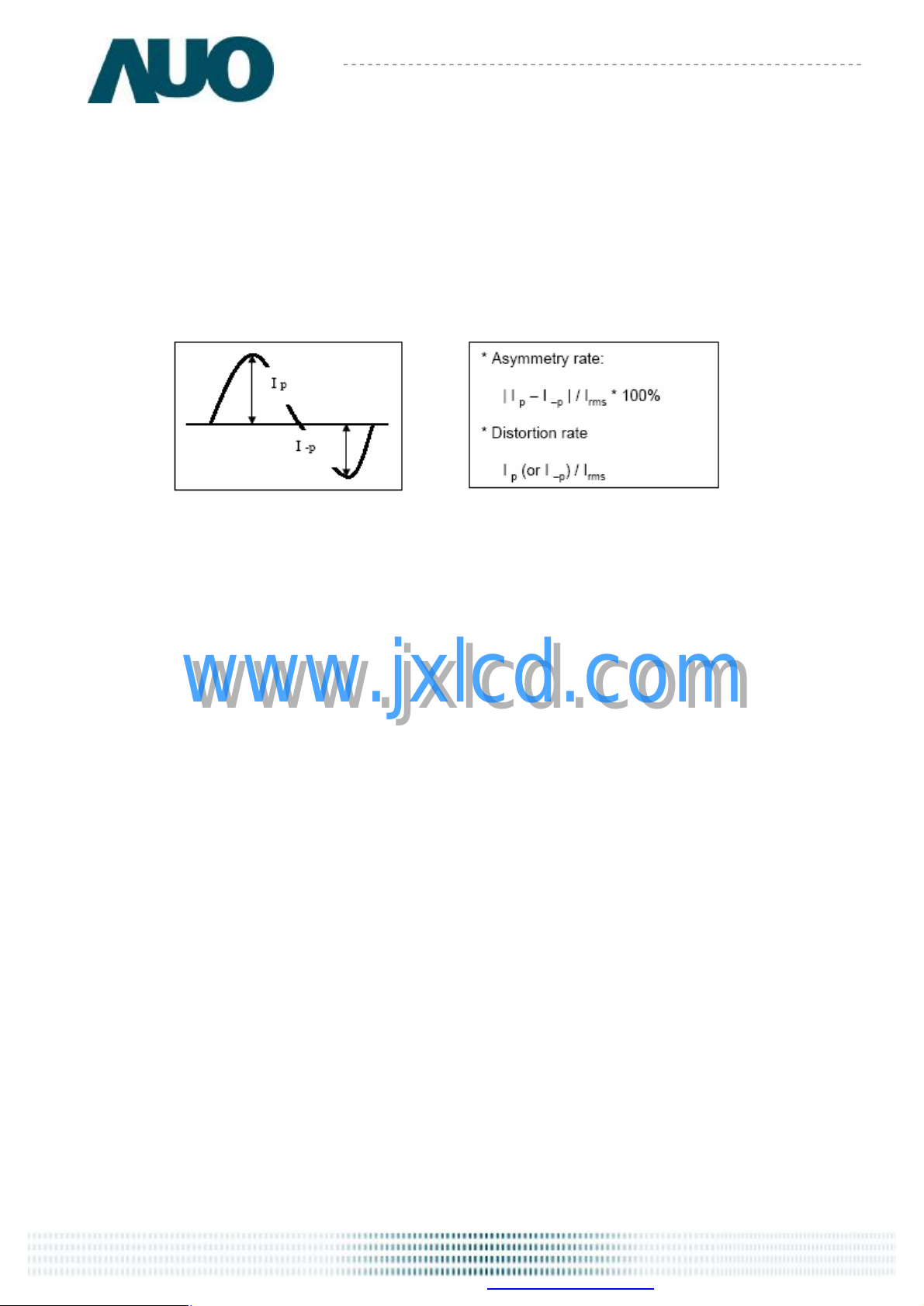

* Inverter output waveform had better be more similar to ideal sine wave.
B170PW04 V0
www.jxlcd.com
www.jxlcd.com
document version 3 15/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
R G B R G B R G B R G B R G B R G B 1 2
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
B170PW04 V0
1439 1440
1st Line
900th Line
R G B R G B
www.jxlcd.com
www.jxlcd.com
document version 3 16/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
6.2 The input data format
ODD pair( 1st pixel input)
CK
Product Specification
AU OPTRONICS CORPORATION B170PW04 V0
DIN1
DIN2
DIN3
G0 R5R4R3R2 R1R0
B1B0 G5G4G3 G2G1
DEVSHS B5B4 B3B2
Even pair(2nd pixel input)
CK
DIN1
DIN2
DIN3
Signal Name Description
R5 R4 R3 R2 R1 R0
G5 G4 G3 G2 G1 G0
B5 B4 B3 B2 B1 B0
RxCLKIN
G0 R5R4R3R2 R1R0
B1B0 G5G4G3 G2G1
DEVSHS B5B4 B3B2
www.jxlcd.com
www.jxlcd.com
Red Data 5 (MSB) Red Data 4 Red Data 3 Red Data 2 Red Data 1 Red Data 0 (LSB) Red-pixel Data Green Data 5 (MSB) Green Data 4 Green Data 3 Green Data 2 Green Data 1 Green Data 0 (LSB) Green-pixel Data Blue Data 5 (MSB) Blue Data 4 Blue Data 3 Blue Data 2 Blue Data 1 Blue Data 0 (LSB)
Blue-pixel Data Data Clock
Red-pixel Data Each red pixel's brightness data consists of these 6 bits pixel data.
Green-pixel Data Each green pixel's brightness data consists of these 6 bits pixel data.
Blue-pixel Data Each blue pixel's brightness data consists of these 6 bits pixel data.
The typical frequency is 48.2 MHz. The signal is used to strobe the pixel data and DSPTMG signals. All pixel data shall be valid at the falling edge when the DSPTMG signal is high.
document version 3 17/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
DE
VS HS
Note: Output signals from any system shall be low or Hi-Z state when VDD is off.
Display Timing
Vertical Sync Horizontal Sync
B170PW04 V0
This signal is strobed at the falling edge of
-DTCLK. When the signal is high, the pixel data shall be valid to be displayed. The signal is synchronized to -DTCLK .
The signal is synchronized to -DTCLK .
www.jxlcd.com
www.jxlcd.com
document version 3 18/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
Pin no
Symbol
Function
Etc.
AU OPTRONICS CORPORATION
6.3 Signal Description
LVDS is a differential signal technology for LCD interface and high speed data transfer device.
1 GND Ground 2 VDD Power supply ,3.3 V (typical) 3 VDD Power supply ,3.3 V (typical)
B170PW04 V0
4 V 5 NC No Connection (Reserved for AUO) test 6 CLK 7 Data 8 Odd_RxIN0- -LVDS differential data input
9 Odd_RxIN0+ +LVDS differential data input 10 GND Ground 11 Odd_RxIN1- -LVDS differential data input 12 Odd_RxIN1+ +LVDS differential data input 13 GND Ground 14 Odd_RxIN2- -LVDS differential data input 15 Odd_RxIN2+ +LVDS differential data input 16 GND Ground 17 Odd_RxCLKIN- -LVDS differential clock input 18 Odd_RxCLKIN+ +LVDS differential clock input
19 GND Ground 20 Even_RxIN0- -LVDS differential data input
www.jxlcd.com
www.jxlcd.com
DDC 3.3V power
EDID
DDC Clock
EDID
DDC data
EDID
21 Even_RxIN0+ +LVDS differential data input 22 GND Ground 23 Even_RxIN1- -LVDS differential data input 24 Even_RxIN1+ +LVDS differential data input 25 GND Ground 26 Even_RxIN2- -LVDS differential data input 27 Even_RxIN2+ +LVDS differential data input 28 GND Ground 29 Even_RxCLKIN- -LVDS differential clock input 30 Even_RxCLKIN+ +LVDS differential clock input
document version 3 19/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION B170PW04 V0
Note1: Start from right side Note2: Please follow VESA standard.
Note3: Input signals shall be low or High-impedance when VDD is off.
Internal circuit of LVDS inputs are as following.
The module uses a 100ohm resistor between positive and negative data lines of each receiver input
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings should match the 1440x900 manufacturing guide line timing.
www.jxlcd.com
www.jxlcd.com
Note : DE mode only
document version 3 20/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
6.4.2 Timing diagram
Product Specification
AU OPTRONICS CORPORATION B170PW04 V0
www.jxlcd.com
www.jxlcd.com
document version 3 21/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
T3 T2
T1
T7
AU OPTRONICS CORPORATION
6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
Power Supply VDD
Power Sequence Timing
Backlight On
www.jxlcd.com
www.jxlcd.com
Parameter
T1 0.5 - 10 (ms) T2 0 - 50 (ms) T3 0 - 50 (ms) T4 400 - - (ms) T5 200 - - (ms) T6 200 - - (ms) T7 0 - 10 (ms)
B170PW04 V0
10%
90%
Min. Typ. Max.
T5
Value
VALID DATA
90%
10%
T4
T6
Units
document version 3 22/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
7. Connector Description
Physical interface is described as for the connector on module. These connectors are capable of accommodating the following signals and will be
following components.
7.1 TFT LCD Module
Connector Name / Designation For Signal Connector
Manufacturer Type / Part Number Mating Housing/Part Number Mating Contact/Part Number
B170PW04 V0
JAE or compatible FI-XB30SL-HF10 or compatible FI-X30H FI-XC3-1-15000
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of accommodating the following signals and will be
following components.
Connector Name / Designation For Lamp Connector
Manufacturer Type / Part Number Mating Type / Part Number
www.jxlcd.com
www.jxlcd.com
JST BHSR-02VS-1 SM02B-BHSS-1-TB
7.3 Signal for Lamp connector
Pin # Cable color Signal Name
1
2
Red
White
Lamp High Voltage
Lamp Low Voltage
document version 3 23/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
8. Vibration and Shock Test
8.1 Vibration Test
Test Spec:
l Test method: Non-Operation l Acceleration: 1.5G l Frequency: 10 - 500Hz Random l Sweep: 30 Minutes each Axis (X, Y, Z)
8.2 Shock Test Spec:
Test Spec:
l Test method: Non-Operation l Acceleration: 180 G , Half sine wave
B170PW04 V0
l Active time: 2 ms l Pulse: X,Y,Z .one time for each side
www.jxlcd.com
www.jxlcd.com
document version 3 24/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
, Humidity
High Temp & High Humidity
30
C/min, Duration at Temp. =
AU OPTRONICS CORPORATION
9. Reliability
Items Required Conditions
Operating Life – High Temp. Temp.= +50°C, Dynamic. 250 Hours, Humidity 20% Operating Life – Low Temp. Temp.= 0°C, Dynamic, 250 Hours, Humidity 20%
B170PW04 V0
High Temp. Storage Life – Non-Operating Low Temp. Storage Life – Non-Operating
Operating Life
Shock – Non-Operating 180g, 2.0 ms, Half Sine Wave
Vibration – Non-Operating
Temp. Cycle – Non-Operating
www.jxlcd.com
ESD
Room temperature Test
www.jxlcd.com
Temp.= +60°C, Non-Operating, 250 Hours 20%
Temp.= -20°C, Non-Operating, 250 Hours Temp.=+40°C,
Dynamic Humidity 95%(Non-Condensing), 250 Hours
Random vibration, 1.5 G zero-to-peak, 10 to 500 Hz, minutes in each of three mutually perpendicular axes
-20°C to +60°C, Ramp 20° 30min, Test Cycles = 50
Contact : ±8KV/ operation Air : ±15KV / operation
25, 2000hours, Operating with loop pattern
Note1: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost
. Self-recoverable. No hardware failures. Note2: CCFL Life time: 10,000 hours minimum under normal module usage. Note3: MTBF (Excluding the CCFL): 30,000 hours with a confidence level 90%
document version 3 25/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
10. Mechanical Characteristics
10.1 LCM Outline Dimension
B170PW04 V0
www.jxlcd.com
www.jxlcd.com
10.0 max
document version 3 26/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION B170PW04 V0
www.jxlcd.com
www.jxlcd.com
document version 3 27/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
10.2 Screw Hole Depth and Center Position
Screw hole minimum depth, from side surface =2.8 mm (See drawing) Screw hole center location, from front surface = 4.2 ± 0.3mm (See drawing) Screw maximum length = 2.5 mm (See drawing) Screw Torque: Maximum2.5 kgzf-cm
B170PW04 V0
www.jxlcd.com
www.jxlcd.com
document version 3 28/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
11. Shipping and Package
11.1 Shipping Label Format
Product Specification
AU OPTRONICS CORPORATION B170PW04 V0
Model Name
Hardware
Week code
Manufacturing area
Control Code
Firmware
11.2. Carton Package
www.jxlcd.com
Packing is 10 pcs / box.
www.jxlcd.com
document version 3 29/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
12. Appendix: EDID description
B170PW04 V0
Address
HEX HEX BIN DEC
00 Header 00 00000000 0 01 FF 11111111 255 02 FF 11111111 255 03 FF 11111111 255 04 FF 11111111 255 05 FF 11111111 255 06 FF 11111111 255 07 00 00000000 0 08 EISA Manuf. Code LSB 06 00000110 6 09 Compressed ASCII AF 10101111 175
0A 0B 0C 32-bit ser # 00 00000000 0 0D 00 00000000 0 0E 00 00000000 0
www.jxlcd.com
www.jxlcd.com
FUNCTION Value Value Value
Product Code hex, LSB first
87 10000111 135 40 01000000 64
0F 00 00000000 0
10 Week of manufacture 01 00000001 1 11 Year of manufacture 0F 00001111 15 12 EDID Structure Ver. 01 00000001 1 13 EDID revision # 03 00000011 3 14 15 16 17 18
19 1A 1B 1C Red y/ highER 8 bits 5A 01011010 90 1D Green x 49 01001001 73 1E Green y 9F 10011111 159
Video input def. (digital I/P, non-TMDS, CRGB)
Max H image size (rounded to cm)
Max V image size (rounded to cm)
Display Gamma (=(gamma*100)-100)
Feature support (no DPMS, Active OFF, RGB, tmg Blk#1)
Red/green low bits (Lower 2:2:2:2 bits) Blue/white low bits (Lower 2:2:2:2 bits)
Red x (Upper 8 bits)
80 10000000 128 25 00100101 37 17 00010111 23 78 01111000 120
0A 00001010 10
68 01101000 104 76 01110110 118
A2 10100010 162
1F Blue x 23 00100011 35
document version 3 30/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
20 Blue y 13 00010011 19
21 White x 4F 01001111 79
22 White y 54 01010100 84
23 Established timing 1 00 00000000 0
24 Established timing 2 00 00000000 0
25 Established timing 3 00 00000000 0
26 Standard timing #1 01 00000001 1
27 01 00000001 1
28 Standard timing #2 01 00000001 1
29 01 00000001 1 2A Standard timing #3 01 00000001 1 2B 01 00000001 1 2C Standard timing #4 01 00000001 1
B170PW04 V0
2D 01 00000001 1 2E Standard timing #5 01 00000001 1 2F 01 00000001 1
30 Standard timing #6 01 00000001 1
31 01 00000001 1
32 Standard timing #7 01 00000001 1
33 01 00000001 1
34 Standard timing #8 01 00000001 1
35 01 00000001 1
36 Pixel Clock/10000 LSB 9E 10011110 158
37 Pixel Clock/10000 USB 25 00100101 37
Horz active Lower 8bits
38
Horz blanking Lower 8bits
39
HorzAct:HorzBlnk Upper 4:4 bits
3A 3B 3C
www.jxlcd.com
www.jxlcd.com
A0 10100000 160
40 01000000 64 51 01010001 81
Vertical Active Lower 8bits Vertical Blanking Lower 8bits
84 10000100 132
0C 00001100 12
3D 3E HorzSync. Offset 40 01000000 64 3F HorzSync.Width 20 00100000 32
40 VertSync.Offset : VertSync.Width 33 00110011 51
41
42 Horizontal Image Size Lower 8bits 6F 01101111 111
43 Vertical Image Size Lower 8bits E5 11100101 229
document version 3 31/33
Vert Act : Vertical Blanking (upper 4:4 bit)
Horz&Vert Sync Offset/Width Upper 2bits
30 00110000 48
00 00000000 0
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
B170PW04 V0
44 Horizontal & Vertical Image Size (upper 4:4 bits)
45 Horizontal Border (zero for internal LCD) 00 00000000 0
46 Vertical Border (zero for internal LCD) 00 00000000 0
47 Signal (non-intr, norm, no stero, sep sync, neg pol) 18 00011000 24
48 Detailed timing/monitor 00 00000000 0
49 descriptor #2 00 00000000 0 4A 00 00000000 0 4B 0F 00001111 15 4C 00 00000000 0 4D 00 00000000 0 4E 00 00000000 0 4F 00 00000000 0
50 00 00000000 0
51 00 00000000 0
52 00 00000000 0
53 00 00000000 0
10 00010000 16
54 00 00000000 0
55 00 00000000 0
56 00 00000000 0
57 00 00000000 0
58 00 00000000 0
59 20 00100000 32 5A Detailed timing/monitor 00 00000000 0 5B descriptor #3 00 00000000 0 5C 00 00000000 0 5D FE 11111110 254 5E 00 00000000 0 5F Manufacture 41 01000001 65
60 Manufacture 55 01010101 85
61 Manufacture 4F 01001111 79
62 0A 00001010 10
63 20 00100000 32
www.jxlcd.com
www.jxlcd.com
64 20 00100000 32
65 20 00100000 32
66 20 00100000 32
67 20 00100000 32
document version 3 32/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Product Specification
AU OPTRONICS CORPORATION
68 20 00100000 32
69 20 00100000 32 6A 20 00100000 32 6B 20 00100000 32 6C Detailed timing/monitor 00 00000000 0 6D descriptor #4 00 00000000 0 6E 00 00000000 0 6F FE 11111110 254
70 00 00000000 0
71 Manufacture P/N 42 01000010 66
72 Manufacture P/N 31 00110001 49
73 Manufacture P/N 37 00110111 55
74 Manufacture P/N 30 00110000 48
B170PW04 V0
75 Manufacture P/N 50 01010000 80
76 Manufacture P/N 57 01010111 87
77 Manufacture P/N 30 00110000 48
78 Manufacture P/N 34 00110100 52
79 Manufacture P/N 20 00100000 32 7A Manufacture P/N 56 01010110 86 7B Manufacture P/N 30 00110000 48 7C 20 00100000 32 7D 0A 00001010 10 7E Extension Flag 00 00000000 0 7F Checksum DB 11011011 219
www.jxlcd.com
www.jxlcd.com
document version 3 33/33
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Loading...
