AU Optronics B154EW01-V8 Product Specification

Product Specification
B154EW01 V8
AU OPTRONICS CORPORATION
Product Specification
15.4 WXGA Color TFT-LCD Module
Model Name: B154EW01 V8
Approved by Prepared by
www.jxlcd.com
www.jxlcd.com
Joselyn Liu Zephyr Hsu
MDBU Marketing Division / AU Optronics corporation
Customer Checked & Approved by
Document version 0.3 1/1
B154EW01 V8
(V) Preliminary Specifications
Product Specification
Product Specification
15.4 WXGA Color TFT-LCD Module Model Name: B154EW01
V8
( ) Final Specifications
www.jxlcd.com
www.jxlcd.com
Note: This Specification is subject to change without notice.
Document version 0.3 2/2
Product Specification
B154EW01 V8
Contents
1. Handling Precautions..........................................................................................5
2. General Description.............................................................................................5
2.1 Display Characteristics......................................................................................................6
2.2 Optical Characteristics.......................................................................................................7
3. Functional Block Diagram.................................................................................12
4. Absolute Maximum Ratings..............................................................................13
4.1 TFT LCD Module..............................................................................................................13
4.2 Backlight Unit...................................................................................................................13
4.3 Absolute Ratings of Environment.....................................................................................13
5. Electrical characteristics...................................................................................14
5.1 TFT LCD Module..............................................................................................................14
5.2 Backlight Unit...................................................................................................................16
6. Signal Characteristic..........................................................................................18
6.1 Pixel Format Image..........................................................................................................18
6.2 The input data format.......................................................................................................19
6.3 Signal Description............................................................................................................21
6.4 Interface Timing................................................................................................................23
6.5 Power ON/OFF Sequence...............................................................................................24
www.jxlcd.com
7. Connector & Pin Assignment............................................................................25
www.jxlcd.com
7.1 TFT LCD Module..............................................................................................................25
7.2 Backlight Unit...................................................................................................................25
7.3 Signal for Lamp connector...............................................................................................25
8. Vibration and Shock Test..................................................................................26
8.1 Vibration Test...................................................................................................................26
8.2 Shock Test Spec:..............................................................................................................26
9. Reliability.............................................................................................................27
10. Mechanical Characteristics.............................................................................28
10.1 LCM Outline Dimension.................................................................................................28
10.2 Screw Hole Depth and Center Position..........................................................................29
11. Shipping and Package.....................................................................................30
11.1 Shipping Label Format...................................................................................................30
11.2. Carton package.............................................................................................................31
11.3 Shipping package of palletizing sequence.....................................................................31
12. Appendix: EDID description............................................................................32
Document version 0.3 3/3
Product Specification
B154EW01 V8
Record of Revision
Version and Date Page
0.1 2005/06/26 All First Edition for Customer
0.2 2005/06/07 all New typeseeting and illustration
0.3 2005/07/19 26 Update drawing
0.3 2006/02/09 26 Update drawing
www.jxlcd.com
www.jxlcd.com
Old description New Description Remark
Document version 0.3 4/4
Product Specification
B154EW01 V8
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out from the container, do not press the center of the CCFL Reflector edge. Instead, press at the far ends of the CFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module.
www.jxlcd.com
11) After installation of the TFT Module into an enclosure (Notebook PC Bezel, for example), do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module should be supplied by power complied with requirements of Limited Power Source(, IEC60950 or UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit(IEC60950 or UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
www.jxlcd.com
2. General Description
B154EW01 V8 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and backlight system. The screen format is intended to support the WXGA (1280(H) x 800(V)) screen and 262k colors (RGB 6-bits data driver). All input signals are LVDS interface compatible. Inverter of backlight is not included.
Document version 0.3 5/5
Product Specification
B154EW01 V8
(
Note1
)
Storage (
Non
-
Operating)
[oC]
-20 t
o +60
RoHS Compliance
B154EW01 V8 is designed for a display unit of notebook style personal computer and industrial machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 condition:
Items Unit Specifications
Screen Diagonal [mm] 391 (15.4W) Active Area [mm] 331.2 X 207.0
Pixels H x V 1280x3(RGB) x 800 Pixel Pitch [mm] 0.2588X0.2588 Pixel Arrangement R.G.B. Vertical Stripe Display Mode Normally White White Luminance (I
Note: I Luminance Uniformity 1.25 max. (5 points)
Contrast Ratio 400 typ Optical Rise Time/Fall Time [msec] 4/12 typ.
CCFL
is lamp current
CCFL
=6.0mA)
[cd/m2] 180 typ. (5 points average)
150 min. (5 points average)
Nominal Input Voltage VDD [Volt] +3.3 typ. Power Consumption [Watt] 6.5 max.(without inverter) Weight [Grams] 585 typ. Physical Size [mm] 344.0 typ. x 222.0 typ. x 6.5 max.
Electrical Interface 1 channel LVDS Surface Treatment Anti-glare, Hardness 3H,
Support Color 262K colors ( RGB 6-bit )
Temperature Range
RoHS Compliance
www.jxlcd.com
www.jxlcd.com
Haze 25%, Reflectance 4.3%
Operating
[oC]
0 to +50
Document version 0.3 6/6
Product Specification
B154EW01 V8
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
White Luminance ICCFL=6.0mA Viewing Angle
Luminance Uniformity Luminance Uniformity CR: Contrast Ratio Cross talk % Response Time
Color / Chromaticity Coordinates (CIE 1931)
www.jxlcd.com
www.jxlcd.com
[cd/m2] 5 points average
[degree] [degree]
[degree] [degree]
[msec] Rising [msec] Falling [msec] Rising + Falling
Horizontal (Right) CR = 10 (Left)
Vertical (Upper) CR = 10 (Lower)
5 Points 13 Points
4 7
Red x Red y Green x Green y Blue x Blue y White x White y
150 180 - 1, 4, 5.
-
-
-
-
1.25 1
1.50 2
300
-
- 12 17 16 25
0.570 0.600 0.630
0.300 0.340 0.370
0.280 0.310 0.340
0.530 0.560 0.590
0.120 0.150 0.180
0.085 0.115 0.145
0.290 0.313 0.343
0.299 0.329 0.350
45 45 15 35
400 - 6
4
8
-
-
-
-
8
8
2,8
Document version 0.3 7/7
Product Specification
B154EW01 V8
=
Maximum Brightness of thirteen points
Minimum Brightness of thirteen points
Maximum Brightness of five
points
=
Minimum Brightness of
five points

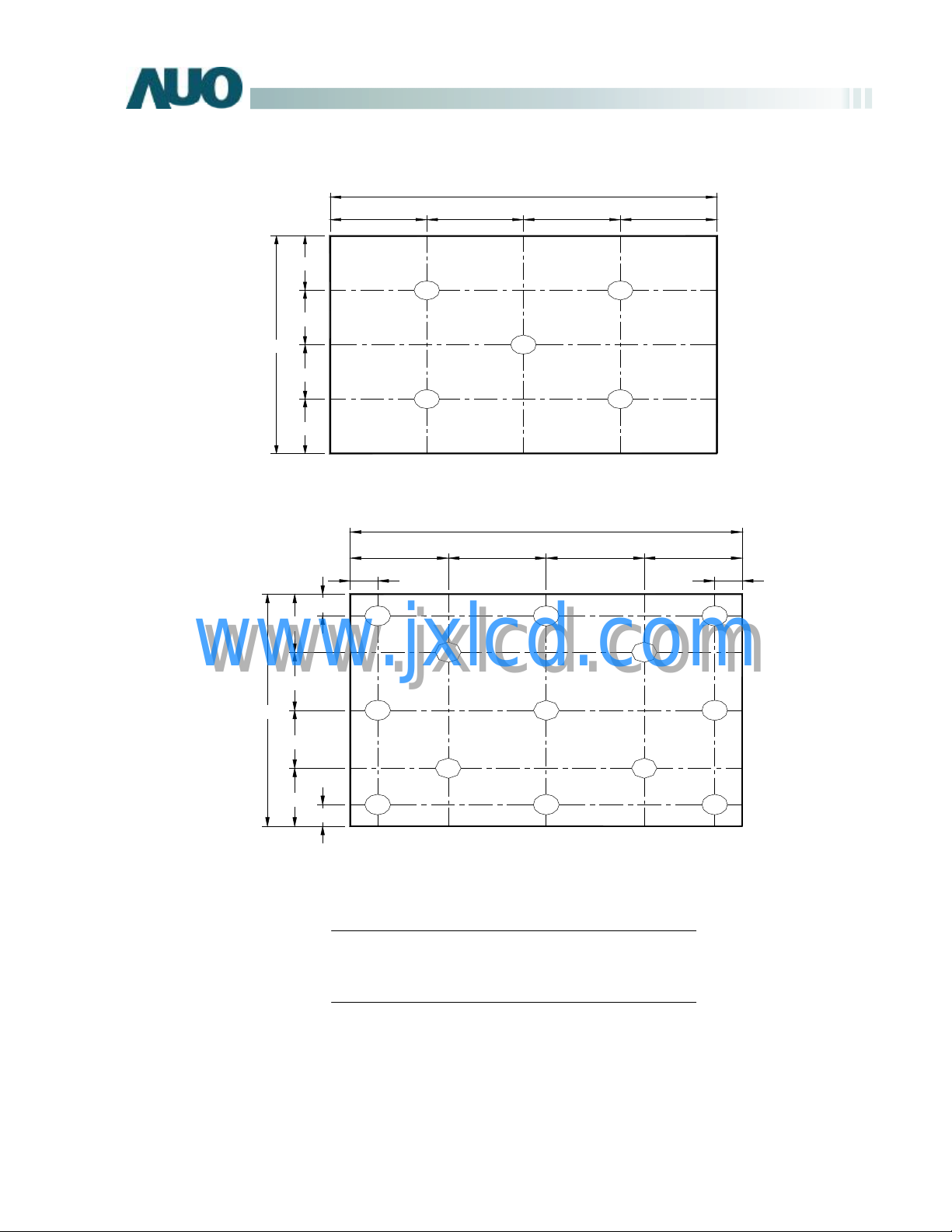

Note 1: 5 points position (Display area : 331.2mm x 207.0mm)
W
W/4 W/4 W/4 W/4
H/4
12
H/4
H
H/4
45
H/4
Note 2: 13 points position
W/4
10
W/4
3
W
W/4
W/4
10
10
H/4
www.jxlcd.com
www.jxlcd.com
H/4
H
H/4
H/4
10
1
4
6
9
11
Note 3: The luminance uniformity of 5 and 13 points is defined by dividing the maximum luminance values by the minimum test point luminance
δ
W5
2
5
7
10
3
8
1312
δ
W13
Document version 0.3 8/8
Product Specification
B154EW01 V8

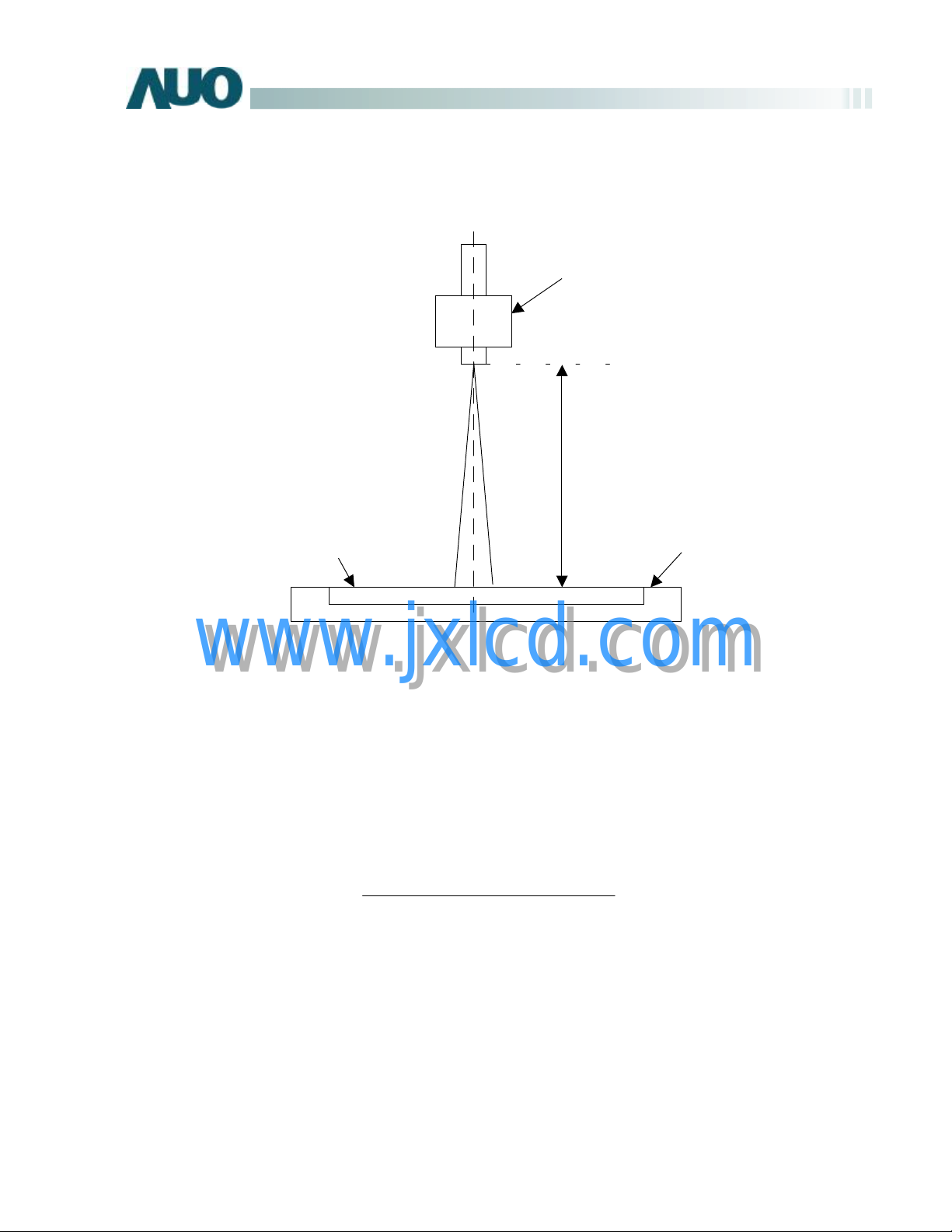

Center of the screen
TFT-LCD
50 cm
LCD Panel
Field=2
°
Contrast ratio (CR)=
Brightness on the White state
Brightness on the Black state
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change during measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and dark room.
Photo detector
Note 5: Definition of Average Luminance of White (YL):
Measure the luminance of gray level 63 at 5 points,Y
L (x) is corresponding to the luminance of the point X at Figure in Note (1).
Note 6: Definition of contrast ratio:
www.jxlcd.com
www.jxlcd.com
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
L
Contrast ratio is calculated with the following formula.
Document version 0.3 9/9
B154EW01 V8
"Black"
Tr
Tf
"White"
"White"
0 % 10 % 90 % 100 %
Note 7: Definition of Cross Talk (CT)
Product Specification
CT = | YB – YA | / Y
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2) YB = Luminance of measured location with gray level 0 pattern (cd/m2)
×
A
100 (%)

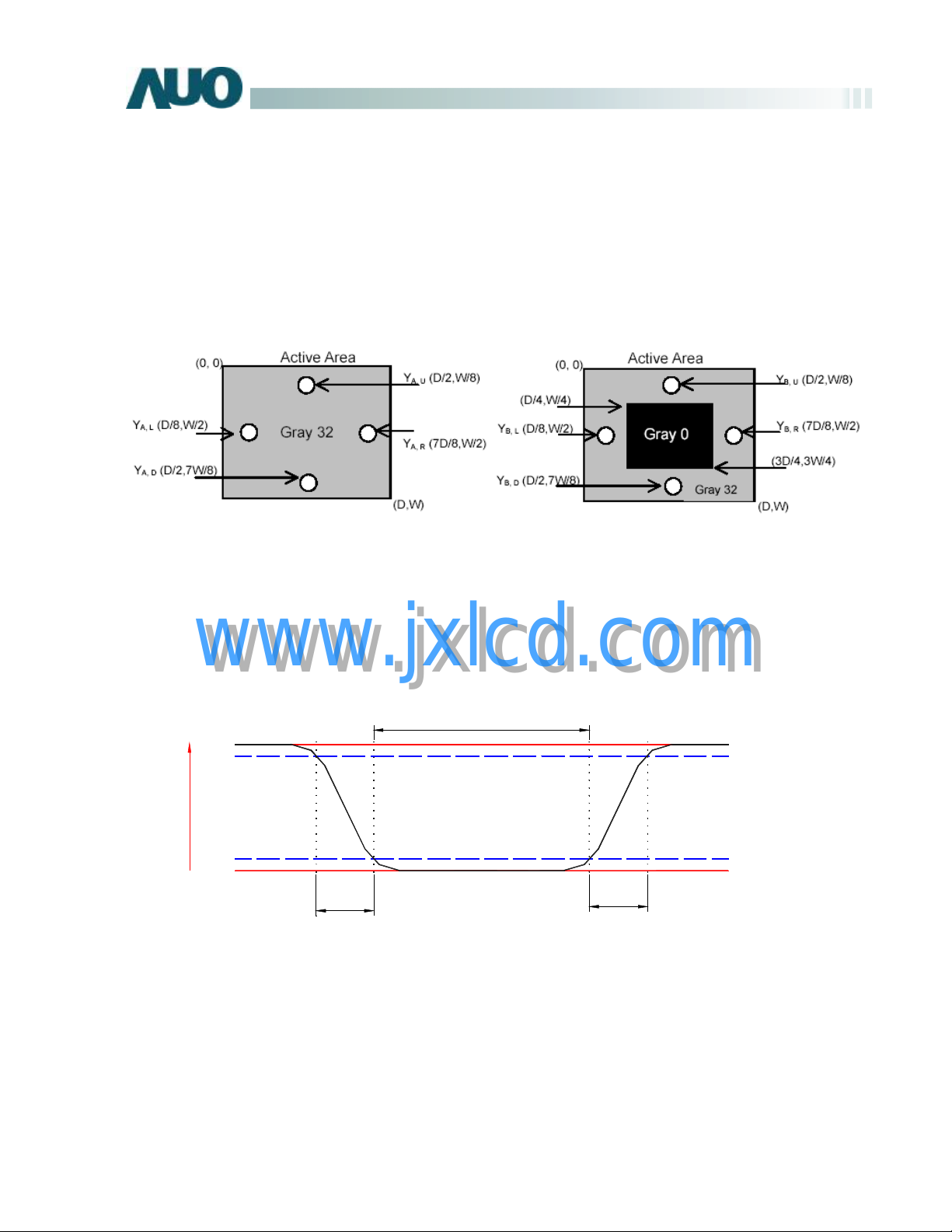

Note 8: Definition of response time:
The output signals of BM-7 or equivalent are measured when the input signals are changed from Black to White (falling time) and from White to Black (rising time), respectively. The response time interval between the 10% and 90% of amplitudes. Refer to figure as below.
www.jxlcd.com
www.jxlcd.com
Document version 0.3 10/10
Product Specification
B154EW01 V8

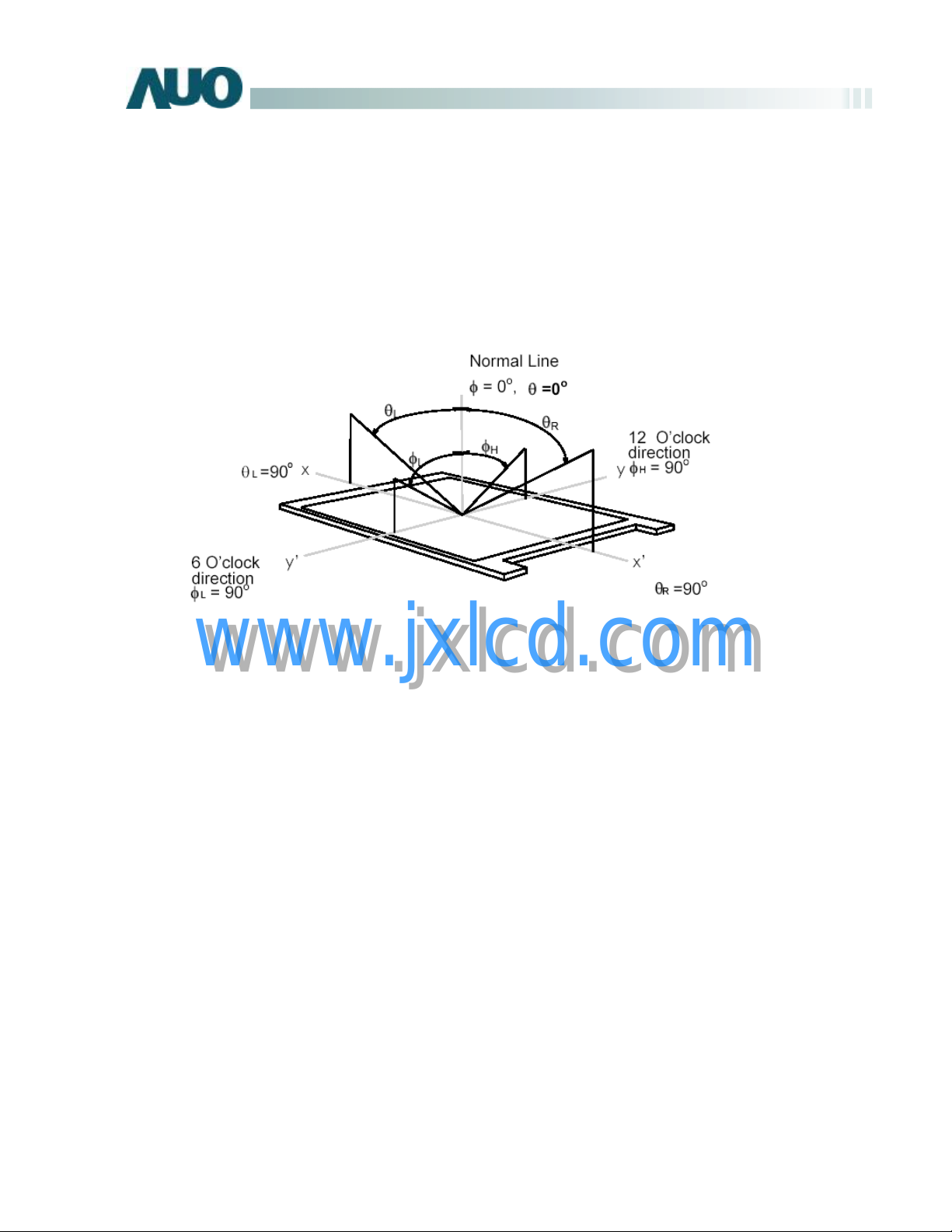

Note 8. Definition of viewing angle
Viewing angle is the measurement of contrast ratio 10, at the screen center, over a 180° horizontal and
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is
typically perpendicular to the display surface with the screen rotated about its center to develop the desired measurement viewing angle.
www.jxlcd.com
www.jxlcd.com
Document version 0.3 11/11
Product Specification
B154EW01 V8
RxIN0
Lamp Connector(2pin)
LCD Connector(
30
pin)
3. Functional Block Diagram
The following diagram shows the functional block of the 15.4 inches wide Color TFT/LCD Module:
X-Driver
(4 pairs LVDS)
RxIN1 RxIN2 RxCLKIN
VDD GND
JAE FI-XB30SL-HF10
Mating Housing JAE FI-X30H
www.jxlcd.com
www.jxlcd.com
LCD DRIVE BOARD
LCD Controller
DC-DC
Converter
Ref circuit
Y-Driver
TFT ARRAY/CELL
1280(R/G/B) x 3 x 800
Backlight Unit
JST BHSR-02VS-1
Mating Type SM02B-BHSS-1-TB
Document version 0.3 12/12
Product Specification
B154EW01 V8
4. Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Vin -0.3 +4.0 [Volt] Note 1,2
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICCFL - 6.5 [mA] rms Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Temperature
Operation Humidity HOP 5 95 [%RH] Note 3
Storage Temperature
Storage Humidity HST
Note 1: At Ta (25℃ )
TOP 0 +50 [
TST -20 +60 [
5 95
o
C] Note 3
o
C] Note 3
[%RH]
Note 3
Note 2: Permanent damage to the device may occur if exceed maximum values Note 3: For quality performance, please refer to AUO IIS(Incoming Inspection Standard).
Twb=39° C
www.jxlcd.com
www.jxlcd.com
Operating Range
Storage Range
Document version 0.3 13/13
B154EW01 V8
90% 10%
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
Product Specification
Symble Parameter Min Typ Max Units
VDD Logic/LCD Drive PDD VDD Power
IDD IDD Current IRush Inrush Current VDDrp Allowable
3.0 3.3 3.6 [Volt] 2 [Watt] Note 1
500
600
2000 [mA]
100 [mV] Logic/LCD Drive Ripple Voltage
Note 1 : Maximum Measurement Condition:Black Patterm Note 2:Measure Condition
Q3
AO6402
D6 F1 D5 D2 S D1
G
D2SD1D5
D6
Q3
G
C3
0.01uF/25V
AO6402
SW1
SW MAG-SPST
1 2
+3.3V
R1 47K
(High to Low) Control
www.jxlcd.com
www.jxlcd.com
Signal
+12.0V
C2 1uF/25V
R2
1K
R2
1K
VR1
47K
[mA]
p-p
C1 1uF/16V
Note
Note 1 Note 2
VCC
(LCD Module Input)
3.3V
0V
0.5ms
Vin rising time
Document version 0.3 14/14
Product Specification
B154EW01 V8
5.1.2 Signal Electrical Characteristics
Input signals shall be low or High-impedance state when VDD is off. It is recommended to refer the specifications of THC63LVDF84A(Thine Electronics Inc.) in detail.
Signal electrical characteristics are as follows;
Parameter
Vth
Vtl
Vcm
Note: LVDS Differential Voltage
www.jxlcd.com
www.jxlcd.com
Differential Input High Threshold (Vcm=+1.2V)
Differential Input Low Threshold (Vcm=+1.2V)
Differential Input
Common Mode Voltage
Condition Min Max Unit
-100
1.125
100
1.375
[mV]
[mV]
[V]
Document version 0.3 15/15
B154EW01 V8
Note 2
5.2 Backlight Unit
Parameter guideline for CCFL Inverter
Product Specification
Parameter Min Typ Max
White Luminance 5 points average
CCFL current(I
CCFL Frequency(F
CCFL
) 3.0 6.0 6.5 [mA] rms
CCFL
) 50 62 70 [KHz]
CCFL Ignition Voltage(Vs)
CCFL Ignition Voltage(Vs)
CCFL Voltage (Reference)
CCFL
(V
)
CCFL Power consumption
CCFL
(P
)
-
180
-
1430
1190
648 720 792
- 4.30 4.50
Units Condition
[cd/m2 ]
(Ta=25℃)
(Ta=25℃) Note 3,4
[Volt] rms
[Volt] rms
[Volt] rms
[Watt]
(Ta= 0) Note 5
(Ta= 25℃) Note 5
(Ta=25℃) Note 6
(Ta=25) Note 6
Note 1: Typ are AUO recommended Design Points. *1 All of characteristics listed are measured under the condition using the AUO Test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
www.jxlcd.com
www.jxlcd.com
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker at low power may happen. *3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of CCFL, for instance, becomes more than 1 [M ohm] when CFL is damaged. *4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is recommended to keep on applying kick-off voltage for 1 [Sec] until discharge. *5 CCFL discharge frequency must be carefully chosen so as not to produce interfering noise stripes on the screen. *6 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL discharge frequency. So all the parameters of an inverter should be carefully designed so as not to produce too
much leakage current from high-voltage output of the inverter. Note 2: It should be employed the inverter which has Duty Dimming, if ICCFL is less than 4mA. Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter and TFT LCD. Note 4: The frequency range will not affect to lamp life and reliability characteristics. Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,430 voltage. Lamp units need 1,400 voltage minimum for ignition.
Document version 0.3 16/16
Product Specification
B154EW01 V8
Note 6: Calculator value for reference (ICCFL×VCCFL=PCCFL) Note 7: Requirements for a system inverter design, which is intended to have a better display performance, a better power efficiency and a more reliable lamp, are following. It shall help increase the lamp lifetime and reduce leakage current. a. The asymmetry rate of the inverter waveform should be less than 10%. b. The distortion rate of the waveform should bewithin √2 ±10%.
* Inverter output waveform had better be more similar to ideal sine wave.
www.jxlcd.com
www.jxlcd.com
Document version 0.3 17/17
Product Specification
B154EW01 V8
R G B R G B R G B R G B R G B R G B 0 1
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1278 1279
1st Line
800th Line
www.jxlcd.com
www.jxlcd.com
R G B R G B
Document version 0.3 18/18
B154EW01 V8
Data Clock
6.2 The input data format
Signal Name
R5 R4 R3 R2 R1 R0
Description
Red Data 5 (MSB) Red Data 4 Red Data 3 Red Data 2 Red Data 1 Red Data 0 (LSB) Red-pixel Data
Product Specification
Red-pixel Data Each red pixel's brightness data consists of these 6 bits pixel data.
G5 G4 G3 G2 G1 G0
B5 B4 B3 B2 B1 B0
RxCLKIN
DE Display Timing This signal is strobed at the falling edge of
VS Vertical Sync The signal is synchronized to RxCLKIN . HS Horizontal Sync The signal is synchronized to RxCLKIN .
Note: Output signals from any system shall be low or High-impedance state when VDD is
off.
www.jxlcd.com
www.jxlcd.com
Green Data 5 (MSB) Green Data 4 Green Data 3 Green Data 2 Green Data 1 Green Data 0 (LSB) Green-pixel Data Blue Data 5 (MSB) Blue Data 4 Blue Data 3 Blue Data 2 Blue Data 1 Blue Data 0 (LSB) Blue-pixel Data
Green-pixel Data Each green pixel's brightness data consists of these 6 bits pixel data.
Blue-pixel Data Each blue pixel's brightness data consists of these 6 bits pixel data.
The typical frequency is 68.9 MHZ.. The signal is used to strobe the pixel data and DE signals. All pixel data shall be valid at the falling edge when the DE signal is high.
RxCLKIN. When the signal is high, the pixel data shall be valid to be displayed.
Document version 0.3 19/19
Product Specification
B154EW01 V8
www.jxlcd.com
www.jxlcd.com
Document version 0.3 20/20
Product Specification
B154EW01 V8
6.3 Signal Description/Pin Assignment
LVDS is a differential signal technology for LCD interface and high speed data transfer device.
PIN# Signal Name
1 2 VDD +3.3V Power Supply 3 VDD +3.3V Power Supply 4 5 6 CLK 7 DATA 8 RxIN0- LVDS differential data input(R0-R5, G0) 9
10 GND Ground 11 RxIN1- LVDS differential data input(G1-G5, B0-B1) 12 13 GND Ground 14 RxIN2- LVDS differential data input(B2-B5, HS, VS, DE) 15
www.jxlcd.com
16 GND Ground 17 RxCLKIN- LVDS differential clock input
www.jxlcd.com
GND
V
EDID
NC
EDID
EDID
RxIN0+
RxIN1+
RxIN2+
Ground
+3.3V EDID Power No Connection (Reserve for AUO test)
EDID Clock Input
EDID Data Input
LVDS differential data input(R0-R5, G0)
LVDS differential data input(G1-G5, B0-B1)
LVDS differential data input(B2-B5, HS, VS, DE)
Description
18 19 GND Ground 20 GND Ground 21 22 23 NC No Connection (Reserve for AUO test) 24 25 26 NC No Connection (Reserve for AUO test) 27 28 29 NC No Connection (Reserve for AUO test) 30
RxCLKIN+ LVDS differential clock input
NC NC
NC NC
NC NC
NC
No Connection (Reserve for AUO test) No Connection (Reserve for AUO test)
No Connection (Reserve for AUO test) No Connection (Reserve for AUO test)
No Connection (Reserve for AUO test) No Connection (Reserve for AUO test)
No Connection (Reserve for AUO test)
Document version 0.3 21/21
B154EW01 V8
R R R
9
12
15 17 18 8
NC
GND
Note1: Start from right side
30
Product Specification
Connector
1
Note2: Input signals shall be low or High-impedance state when VDD is off.
internal circuit of LVDS inputs are as following. The module uses a 100ohm resistor between positive and negative data lines of each receiver input
www.jxlcd.com
www.jxlcd.com
Signal Input
Pin No.
11
14
RxIN0-
R
RxIN0+
RxIN1-
RxIN1+
RxIN2-
RxIN2+
RxCLKIN-
RxCLKIN+
LVDS Receiver
Document version 0.3 22/22
Product Specification
B154EW01 V8
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings should match the 1280x800 /60Hz manufacturing guide line timing.
Parameter Symbol Min. Typ. Max. Unit
Frame Rate - 50 60 - Hz
Clock frequency 1/ T
Vertical Section
Horizontal
Section
Note : DE mode only
6.4.2 Timing diagram
www.jxlcd.com
www.jxlcd.com
T
CLOCK
DOTCLK
Input Data
DE
DE
50 68.9 80 MHz
Clock
Period TV 803 816 832 Active T
Blanking T
Period TH 1302 1408 1700 Active T
Blanking T
VD
VB
HD
HB
800 800 800
3 16 32
- 1280 -
22 128 420
Input Timing Definition ( DE Mode)
Invaild
Data
T
HB
Pixel
1
T
VB
Pixel
2
T
Pixel
3
T
HD
H
T
V
Pixel
N-1
T
VD
Pixel
T
Line
T
Clock
Invaild
N
Data
Pixel
1
Document version 0.3 23/23
Product Specification
B154EW01 V8
T3T2 T5
T1
T7
LVDS Interface
6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
Power Supply VDD
Timing
Backlight On
www.jxlcd.com
www.jxlcd.com
Parameter
90%
10%
Min. Typ. Max.
T1 0.5 - 10 (ms) T2 T3 0 - 50 (ms) T4 400 - - (ms) T5 T6 T7 0 - 10 (ms)
0
200 200
Value
-
-
-
VALID DATA
50
-
-
T6
Units
(ms)
(ms) (ms)
90%
10%
T4
Power Sequence
Document version 0.3 24/24
Product Specification
B154EW01 V8
7. Connector Description
Physical interface is described as for the connector on module. These connectors are capable of accommodating the following signals and will be
following components.
7.1 TFT LCD Module
Connector Name / Designation For Signal Connector
Manufacturer JAE or compatible Type / Part Number FI-XB30SL-HF10 or compatible Mating Housing/Part Number FI-X30H or compatible
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of accommodating the following signals and will be
following components.
www.jxlcd.com
Connector Name / Designation For Lamp Connector
Manufacturer JST Type / Part Number BHSR-02VS-1 Mating Type / Part Number SM02B-BHSS-1-TB
www.jxlcd.com
7.3 Signal for Lamp connector
Pin # Cable color Signal Name
1
2
Red
White
Lamp High Voltage
Lamp Low Voltage
Document version 0.3 25/25
B154EW01 V8
8. Vibration and Shock Test
8.1 Vibration Test
Test Spec:
Test method: Non-Operation
l
Acceleration: 2.16G
l
Frequency: 10 - 500Hz Random
l
Sweep: 30 Minutes each Axis (X, Y, Z)
l
8.2 Shock Test Spec:
Test Spec:
Test method: Non-Operation
l
Acceleration: 240 G , Half sine wave
l
Active time: 2 ms
l
Pulse: X,Y,Z .one time for each side
l
Product Specification
www.jxlcd.com
www.jxlcd.com
Document version 0.3 26/26
B154EW01 V8
9. Reliability
Items
Temperature Humidity Bias High Temperature Operation Low Temperature Operation
On/Off Test Hot Storage Cold Storage Thermal Shock Test Hot Start Test Cold Start Test
Shock Test (Non-Operating)
Product Specification
Required Condition Note
40/90%,300Hr
60℃/Dry,300Hr
0,300Hr 25℃, ON/30 sec. OFF/30sec., 10,000 cycles)
60/35% RH ,250 hours
-20℃/50% RH ,250 hours
-20℃/30 min ,60℃/30 min 100cycles 50/1 Hr min. power on/off per 5 minutes, 5 times 0℃/1 Hr min. power on/off per 5 minutes, 5 times
240G, 2ms, Half-sine wave
Vibration Test (Non-Operating)
www.jxlcd.com
www.jxlcd.com
ESD
Room temperature Test
Note1: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost
. Self-recoverable. No hardware failures. Note2: CCFL Life time: 10,000 hours minimum under normal module usage. Note3: MTBF (Excluding the CCFL): 30,000 hours with a confidence level 90%
Random vibration, 2.16 G zero-to-peak, 10 to 500 Hz, 30 mins in each of three mutually perpendicular axes.
Contact : ±8KV/ operation Air : ±15KV / operation
25℃, 2000hours, Operating with loop pattern
Note 1
Document version 0.3 27/27
10. Mechanical Characteristics
10.1 LCM Outline Dimension
www.jxlcd.com
www.jxlcd.com
Document version 0.4 28/28
10.2 Screw Hole Depth and Center Position
Screw hole minimum depth, from side surface =2.5 mm (See drawing) Screw hole center location, from front surface = 3.7 ± 0.2mm (See drawing)
Screw Torque: Maximum 2.5 kgf-cm
www.jxlcd.com
www.jxlcd.com
Document version 0.4 29/29
11. Shipping and Package
11.1 Shipping Label Format
Note 1:
www.jxlcd.com
www.jxlcd.com
IC Combination Control Code
Source IC:NT39360 Gate IC: NT 3959C
Source TSBT6L92A Gate IC: NECupd160703
H/W
OAXXX OA
1AXXX 1A
Document version 0.4 30/30
11.2. Carton package
The outside dimension of carton is 455 (L)mm x 380 (W)mm x 355 (H)mm
www.jxlcd.com
www.jxlcd.com
11.3 Shipping package of palletizing sequence
Top cardboard
Bottom cardboard
Wooden pallet
Document version 0.4 31/31
Note : Limit of box palletizing = Max 3 layers(ship and stock conditions)
Corner angle
PE band
Stretch film
12. Appendix: EDID description
Address
HEX
00 Header 00 00000000 01 FF 11111111 02 FF 11111111 03 FF 11111111 04 05 FF 11111111 06 FF 11111111 07 08 EISA Manuf. Code LSB 06 00000110
09 Compressed ASCII AF 10101111 0A Product Code 74 01110100 0B hex, LSB first 18 00011000 0C 32-bit ser # 00 00000000 0D 00 00000000 0E 00 00000000
FUNCTION Value Value Value Notes
HEX BIN DEC Date: Apr/9/2005
FF 11111111
00 00000000
www.jxlcd.com
www.jxlcd.com
0 255 255 255 255 255 255
0
6 ASCII Data String:B154EW01 175 AUO 116 15.4"(0111)+1280x800(0100)
24 B154EW01(0001)+V8(1000)
0 unused
0
0
0F 10 Week of manufacture 01 00000001 11 Year of manufacture 0F 00001111 12 EDID Structure Ver. 01 00000001 13 EDID revision # 03 00000011 14 Video input definition 80 10000000 15 Max H image size 21 00100001 16 Max V image size 15 00010101 17 Display Gamma 78 01111000 18 Feature support 0A 00001010
19 Red/green low bits 85 10000101 1A Blue/white low bits A5 10100101 1B Red x/ high bits 99 10011001
00 00000000
Document version 0.4 32/32
0 1 Week 42
15 15(2005-1990=15)
1 3
128 Digital Input
33 33.12cm 21 20.7cm
120 Gamma 2.2
10 no DPMS,Active off,RGB color 133 165 153 Rx=0.6
Horiz. Active pixels(Lower 8
1C Red y 57 01010111 1D Green x 4F 01001111 1E Green y 8F 10001111
1F Blue x 26 00100110 20 Blue y 1D 00011101 21 White x 50 01010000 22 White y 54 01010100 23 Established timing 1 00 00000000 24 Established timing 2 00 00000000 25 Manufacturer's Timing 00 00000000 26 Standard timing #1 01 00000001 27 28 Standard timing #2 01 00000001
29 01 00000001 2A Standard timing #3 01 00000001 2B 01 00000001 2C Standard timing #4 01 00000001
01 00000001
87 Ry=0.34 79 Gx=0.31
143 Gy=0.56
38 Bx=0.15 29 By=0.115 80 Wx=0.313 84 Wy=0.329
0 unused 0 0 1 unused 1 1 1 1 1
1 2D 01 00000001 2E Standard timing #5 01 00000001
2F 30 Standard timing #6 01 00000001
www.jxlcd.com
31 01 00000001 32 Standard timing #7 01 00000001 33 01 00000001 34 Standard timing #8 01 00000001 35 01 00000001
www.jxlcd.com
01 00000001
36 Pixel Clock/10,000 (LSB)
37 Pixel Clock/10,000 (MSB)
38
Horiz.Blanking (Lower 8
39
bits) 00 00000000
bits) 80 10000000
EA
1A 00011010
11101010
1
1
1
1
1
1
1
1
1
234
26
0 Horiz active=1280 pixels
128 Horiz blanking=128 pixels
Timing Descriptor #1
1280x800 @60_mode:pixel
clock=68.9MHz
3A
3B
Horiz. Active pixels:Horiz.
Blanking (Upper4:4 bits)
Document version 0.4 33/33
50
20
01010000
00100000
80
32 Vertcal active=800 lines
3C
Vert. Active pixels:Vert. 3D 3E
3F 20 00100000
40
41
42
43
44 45 00 00000000 46 00 00000000
Blanking (Upper4:4 bits)
Vert. Sync. Offset=xx lines,
Sync Width=xx lines
Horz. Ver. Sync/Width
Hori. Image size (Lower 8
Vert. Image size (Lower 8
Hori. Image size : Vert.
Image size (Upper 4 bits)
10 00010000
30
15 00010101
44
(upper 2 bits) 00 00000000
bits) 4B 01001011
bits) CF 11001111
10
00110000
01000100
00010000
16 Vertical blanking=16 lines
48 21 Horiz sync. Offset=21 pixels 32 Horiz sync. Pulse Width=32 pixels
Verti sync. Offset=4 lines,Sync Width=4
68
0
75 Hori image size= 331 mm
207 Verti image size = 207mm
16
0 Horizontal Border = 0 0 Vertical Border = 0
lines
47 48 Detailed timing/monitor 00 00000000
49 descriptor #2 00 00000000 4A 00 00000000 4B 0F 00001111 4C 4D 00 00000000 4E 00 00000000
4F
50 00 00000000
51 00 00000000
52 00 00000000
53 00 00000000
54
55 00 00000000
56 00 00000000
57
www.jxlcd.com
www.jxlcd.com
18 00011000
00 00000000
00 00000000
00 00000000
00 00000000
24
0 ASCII Data String:B154EW01 0 0
15
0 0 0 0 0 0 0 0 0 0 0
0 58 00 00000000 59
5A Detailed timing/monitor 00 00000000 5B descriptor #3 00 00000000
02 00000010
Document version 0.4 34/34
0
2
0 ASCII Data String:B154EW01
0
5C 5D FE 11111110 5E 00 00000000
5F 60 55 01010101 61 4F 01001111 62 63 20 00100000 64 65 20 00100000 66 20 00100000 67 68 20 00100000 69 20 00100000
6A 20 00100000 6B 20 00100000 6C Detailed timing/monitor 00 00000000
00 00000000
41 01000001
0A 00001010
20 00100000
20 00100000
0
254
0
65 A 85 U 79 O 10 32 32 32 32 32 32 32 32 32
0 Monitor Name: Color LCD
6D descriptor #4 00 00000000 6E 00 00000000
6F 70 00 00000000
www.jxlcd.com
71 42 01000010 72 31 00110001 73 35 00110101 74 75 45 01000101 76 57 01010111 77 78 31 00110001 79
7A 56 01010110 7B 38 00111000 7C 7D 0A 00001010
www.jxlcd.com
FE 11111110
34 00110100
30 00110000
20 00100000
20 00100000
0
0
254
0
66 B 49 1 53 5 52 4 69 E 87 W 48 0 49 1 32 86 V 56 8 32 10
7E Extension Flag 00 00000000
7F Checksum CE 11001110
Document version 0.4 35/35
0
206
www.jxlcd.com
www.jxlcd.com
Document version 0.4 36/36
Loading...
