AU Optronics B141EW05-V0 Product Specification

Product Specification

) Preliminary Specifications

( V ( ) Final Specifications

Module 14.1” WXGA Color TFT-LCD with LED Backlight design

AU OPTRONICS CORPORATION

Model Name

Note ( )

Customer Date

www.jxlcd.com

Checked &

Approved by

B141EW05 V0

LED Backlight with driving circuit design

Date

Approved by Date

Beyond Yang

Prepared by

03/12/2008

Note: This Specification is subject to change without notice.

B141EW05 V0 Document Version: 0.6

Jeff Hou

NBBU Marketing Division /

AU Optronics corporation

03/12/2008

1 of 36

Product Specification

AU OPTRONICS CORPORATION

Contents

1. Handling Precautions .............................................................. 4

2. General Description ................................................................ 5

2.1 General Specification ..........................................................................................................................5

2.2 Optical Characteristics ........................................................................................................................6

3. Functional Block Diagram ..................................................... 11

4. Absolute Maximum Ratings................................................... 12

4.1 Absolute Ratings of TFT LCD Module.............................................................................................12

4.2 Absolute Ratings of Backlight Unit...................................................................................................12

4.3 Absolute Ratings of Environment .....................................................................................................12

5. Electrical characteristics ....................................................... 13

5.1 TFT LCD Module..............................................................................................................................13

5.2 Backlight Unit ...................................................................................................................................15

6. Signal Characteristic ............................................................. 16

6.1 Pixel Format Image ...........................................................................................................................16

6.2 The input data format ........................................................................................................................17

6.3 Signal Description/Pin Assignment...................................................................................................18

6.4 Interface Timing ................................................................................................................................22

7. Connector Description........................................................... 26

7.1 TFT LCD Module..............................................................................................................................26

www.jxlcd.com

8. LED Driving Specification ...................................................... 27

8.1 Connector Description.......................................................................................................................27

8.2 Pin Assignment..................................................................................................................................27

www.jxlcd.com

9. Vibration and Shock Test ...................................................... 27

9.1 Vibration Test ....................................................................................................................................27

9.2 Shock Test Spec:................................................................................................................................27

10. Reliability............................................................................ 28

11. Mechanical Characteristics.................................................. 29

11.1 LCM Outline Dimension.................................................................................................................29

11.2 Screw Hole Depth and Center Position ...........................................................................................31

12. Shipping and Package ......................................................... 32

12.1 Shipping Label Format....................................................................................................................32

12.2 Carton package................................................................................................................................33

11.3 Shipping package of palletizing sequence.......................................................................................33

13. Appendix: EDID description ................................................ 34

B141EW05 V0 Document Version: 0.6

2 of 36

Product Specification

AU OPTRONICS CORPORATION

Record of Revision

Version and Date Page

0.1 2007/10/25 All First Edition for Customer

0.2 2007/12/12 16

28,29

18,19

5

13

33

0.3 2008/1/11 18 Upda

0.4 2008/2/18 5 Update (1) Brightness spec. (1) Brightness typ. 220 min.187

0.5 2008/2/27 5 Power consumption to 4.9W(max) Total Power consumption <4.2W

0.6 2008/3/12 24 LED Power ON/OFF Sequence Add Panel Power ON/OFF Sequence

www.jxlcd.com

Modify (1) Pixel Format Image

(2) LCM Outline drawing

(3) Pin assignment

(4) Power Consumption

(5) Logic Power Consumption

(6) EDID code

Old description New Description Remark

(1) Modify RGB orders

(2) Modify connector position

(3) Modify Pin assignment 30~40

(4) Total Power Consumption=4.9W

(5) Logic Power Consumption=1.1W

(6) Update EDID code

te

(1)Pin assigment (1) Update Pin assigment

exclused the conversion efficiency

B141EW05 V0 Document Version: 0.6

3 of 36

Product Specification

1. Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.

7) Do not open nor modify the Module Assembly.

8) Do not press the reflector sheet at the back of the module to any directions.

9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module.

AU OPTRONICS CORPORATION

11) After installation of the TFT Module into an enclosure (Notebook PC Bezel, for example), do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.

12) Small amount of materials having no flammability grade is used in the LCD module. The LCD module should be supplied by power complied with requirements of Limited Power Source (IEC60950 or UL1950), or be applied exemption.

13) Disconnecting power supply before handling LCD modules, it can prevent electric shock, DO NOT TOUCH the electrode parts, cables, connectors and LED circuit part of TFT module that a LED light bar build in as a light source of back light unit. High voltage is supplied to these parts when power turn on.

www.jxlcd.com

B141EW05 V0 Document Version: 0.6

4 of 36

Product Specification

(Note1)

Thickness

2. General Description

B141EW05 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the WXGA (1280(H) x 800(V)) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible.

B141EW05 V0 is designed for a display unit of notebook style personal computer and industrial machine.

AU OPTRONICS CORPORATION

2.1 General Specification

The following items are characteristics summary on the table at 25 ℃ condition:

Items Unit Specifications

Screen Diagonal [mm] 301.7 (14.1W”)

Active Area [mm] 303.36 X 189.6

Pixels H x V 1280x3(RGB) x 800

Pixel Pitch [mm] 0.237

Pixel Format B.G.R. Vertical Stripe

Display Mode Normally White

www.jxlcd.com

White Luminance (I Note: I

Luminance Uniformity 1.25 max. (5 points) Contrast Ratio 500 typ

LED

www.jxlcd.com

is LED current

LED

=20mA)

[cd/m2] 220 typ. (5 points average)

187 min. (5 points average)

Response Time [ms] 8 typ / 12 Max

Nominal Input Voltage VDD [Volt] +3.3 typ.

Power Consumption [Watt] 4.2 max. (Include Logic and Blu power)

Weight [Grams] 375 max. Physical Size without inverter,

bracket.

Electrical Interface 1 channel LVDS

Surface Treatment Glare, Hardness 3H,

B141EW05 V0 Document Version: 0.6

[mm]

Min. Typ. Max.

Length 319 319.5 320

Width 205 205.5 206

4.8 - 5.5

(Note1)

5 of 36

Product Specification

RoHS Compliance

Support Color 262K colors ( RGB 6-bit )

AU OPTRONICS CORPORATION

Temperature Range

Operating Storage (Non-Operating)

RoHS Compliance

Note 1. Total power consumption including LED power efficiency <4.9W max.

[oC] [oC]

0 to +50

-20 to +65

2.2 Optical Characteristics

The optical characteristics are measured under stable conditions at 25℃ (Room Temperature) :

Item Symbol

White Luminance

I

LED

=20mA

Viewing Angle

Luminance

Uniformity

Luminance

Uniformity

Contrast Ratio CR

Cross talk %

Response Time

Color /

Chromaticity

Coodinates

www.jxlcd.com

Red x

Red y

Green x

Green y

Blue x

Blue y

White x

White y

θθθθR θθθθL

ψψψψH ψψψψL

δδδδ5P

δδδδ

13P

Tr Rising

Tf Falling

TRT Rising + Falling

Conditions Min. Typ. Max.

5 points average

Horizontal (Right)

CR = 10 (Left)

Vertical (Upper)

CR = 10 (Lower)

5 Points

13 Points

400 500 -

4

CIE 1931

187 220 - cd/m

40

10

30

- - 1.25

- - 1.50

-

- TBD -

- 8 12

TBD

0.263 0.313 0.363

0.279 0.329 0.379

45

15

35

TBD

-

Unit Note

2

1, 4, 5.

degree

4, 9

1, 3, 4

2, 3, 4

4, 6

4, 7

msec

4, 8

4

NTSC %

B141EW05 V0 Document Version: 0.6

- 45 -

6 of 36

Product Specification

=

Maximum Brightness of thirteen points

Minimum Brightness of thirteen points

Maximum Brightness of five

points

=

Minimum Brightness of fiv

e points

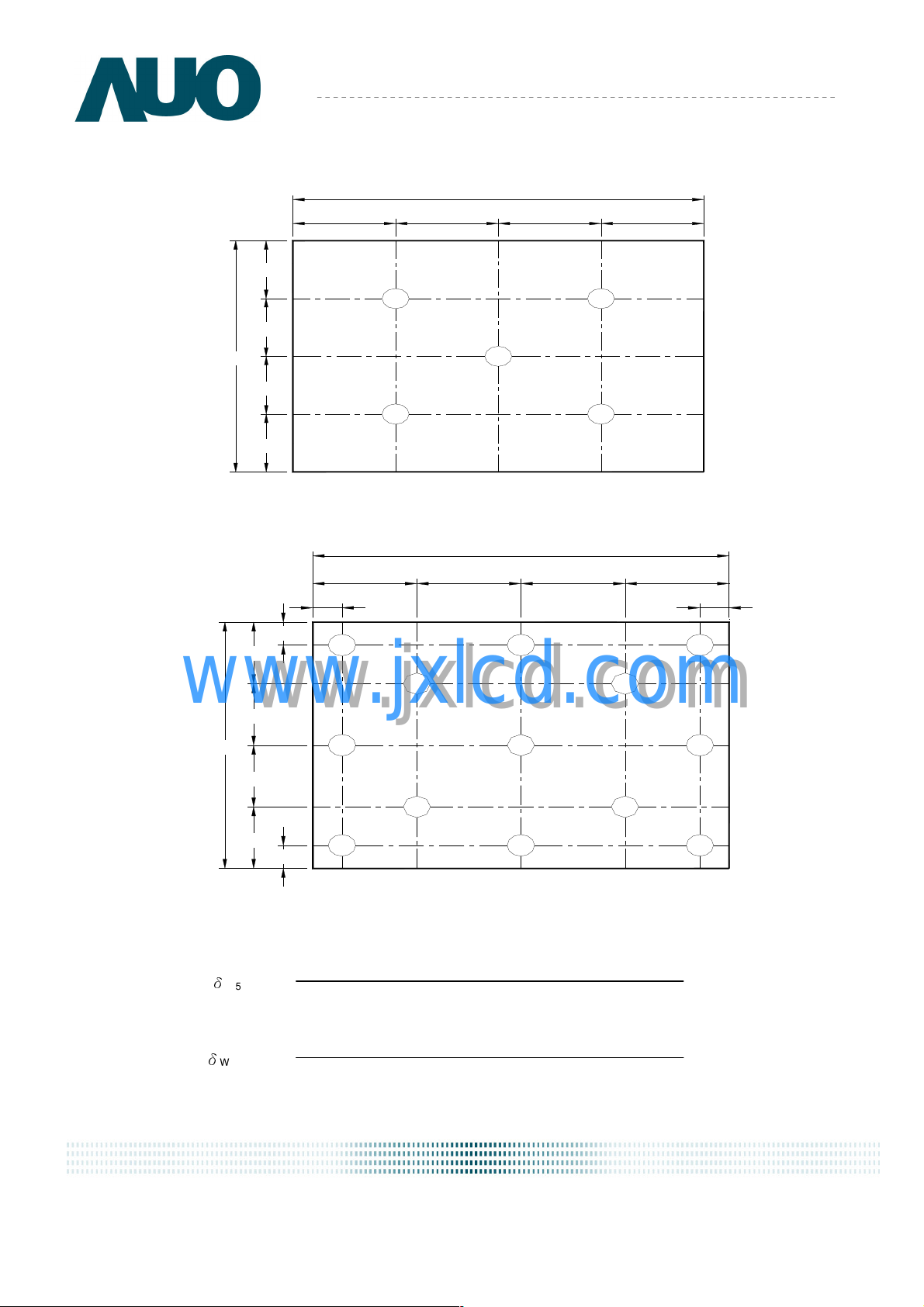

Note 1: 5 points position (Ref: Active area)

H /4

AU OPTRONICS CORPORATION

W / 4 W / 4 W / 4 W / 4

W

1 2

H

H /4

Note 2: 13 points position (Ref: Active area)

W /4

1 0

H /4

www.jxlcd.com

H /4

H

H /4

1

6

3

4

W

W /4

4 5

W /4

2

7

5

W /4

1 0

3

8

9

H /4

1 0

1 1

1 2

Note 3: The luminance uniformity of 5 or13 points is defined by dividing the maximum luminance values by the minimum test point luminance

δ

W5

1 0

1 3

δ

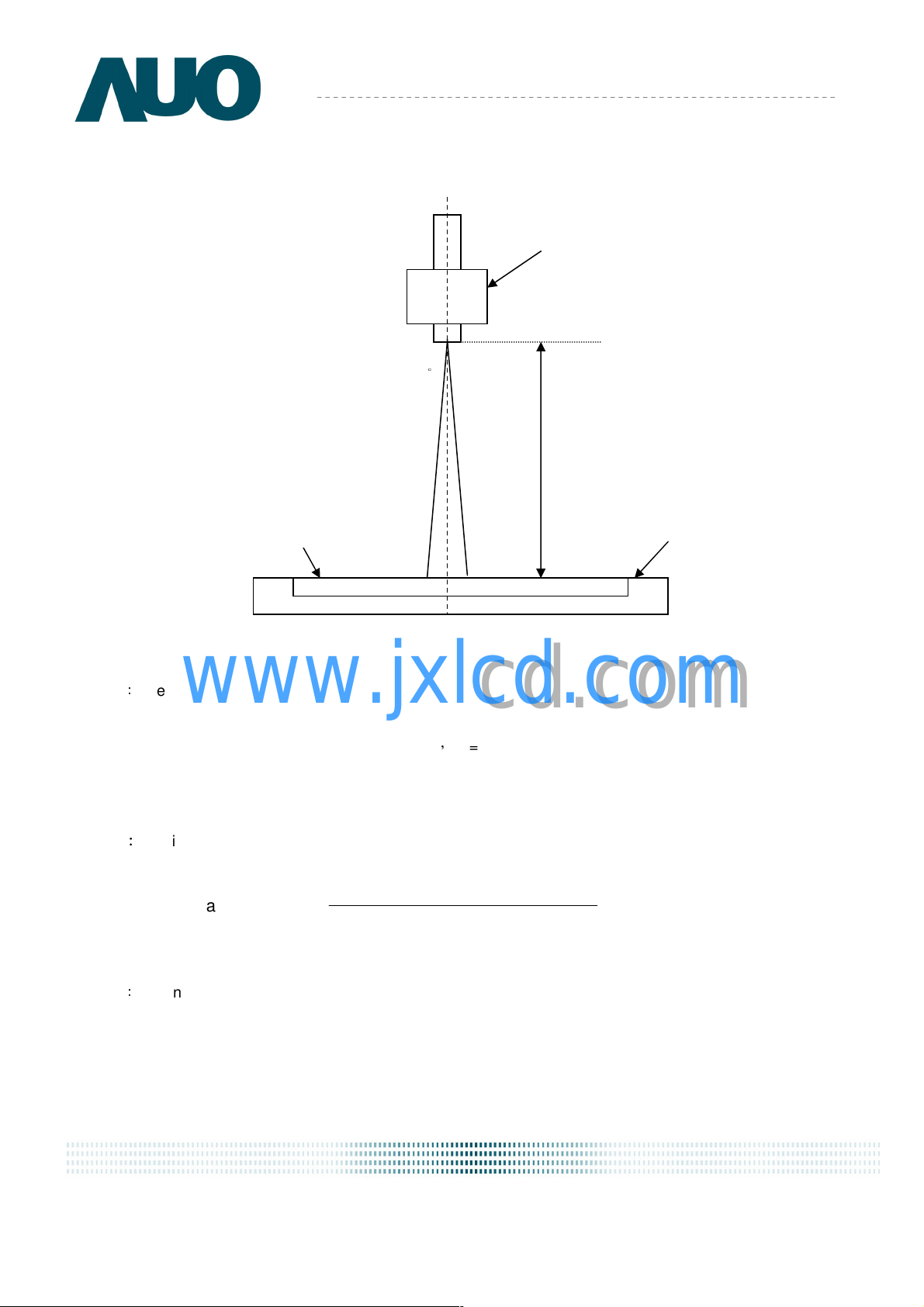

Note 4: Measurement method

B141EW05 V0 Document Version: 0.6

W13

7 of 36

Product Specification

Field=2

°

Contrast ratio (CR)=

Brightness on the “White” state

Brightness on the “Black” state

The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change

during measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight

AU OPTRONICS CORPORATION

for 30 minutes in a stable, windless and dark room, , and it should be measured in the center of screen.

Photo detector

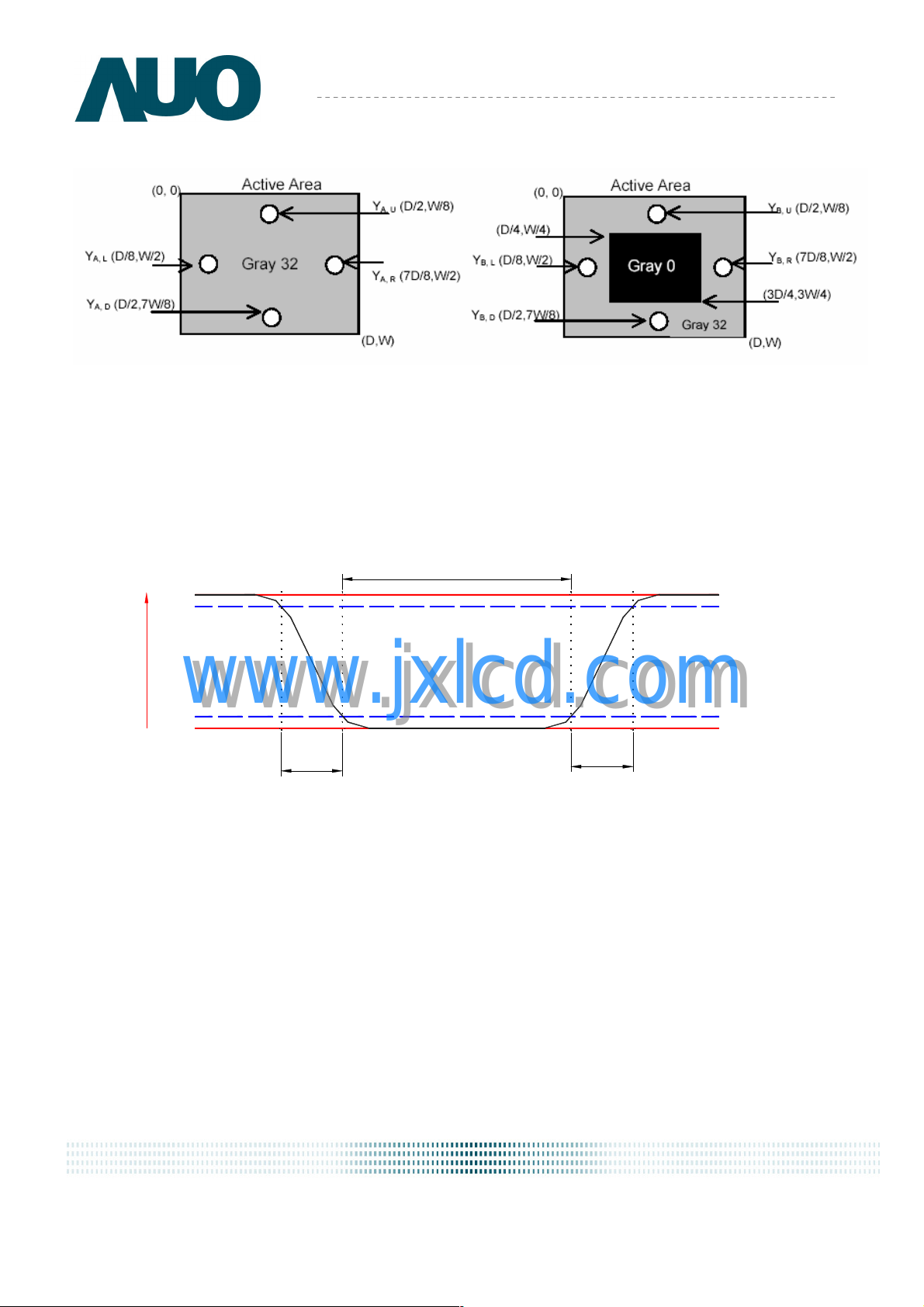

Note 5： Definition of Average Luminance of White (YL):

Measure the luminance of gray level 63 at 5 points，Y

L (x) is corresponding to the luminance of the point X at Figure in Note (1).

Note 6： Definition of contrast ratio:

Note 7： Definition of Cross Talk (CT)

CT = | YB – YA | / YA × 100 (%)

Where

YA = Luminance of measured location without gray level 0 pattern (cd/m2)

www.jxlcd.com

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

L

Contrast ratio is calculated with the following formula.

B141EW05 V0 Document Version: 0.6

8 of 36

Product Specification

YB = Luminance of measured location with gray level 0 pattern (cd/m2)

Note 8: Definition of response time:

The output signals of BM-7 or equivalent are measured when the input signals are changed from “Black” to

“White” (falling time) and from “White” to “Black” (rising time), respectively. The response time interval between the

10% and 90% of amplitudes. Refer to figure as below.

AU OPTRONICS CORPORATION

"Black"

100%

S i

90%

g n a l

(

R e

l

a t

i

v e

v a l

u e )

www.jxlcd.com

10%

0%

Tr

Tf

"White""White"

B141EW05 V0 Document Version: 0.6

9 of 36

Product Specification

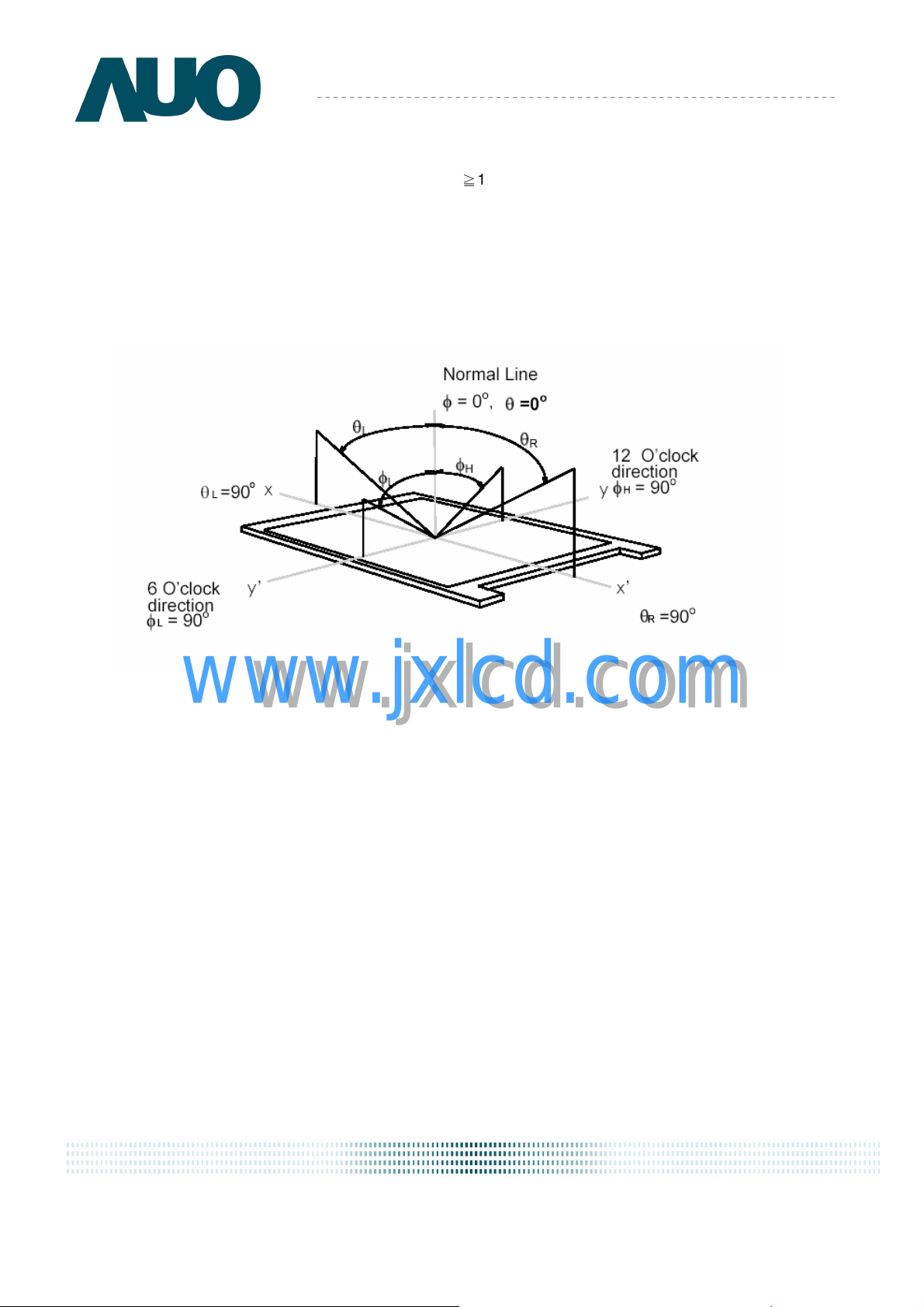

Note 9. Definition of viewing angle

Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180° horizontal and

180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows; 90° (θ)

horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is typically

perpendicular to the display surface with the screen rotated about its center to develop the desired measurement

viewing angle.

AU OPTRONICS CORPORATION

www.jxlcd.com

B141EW05 V0 Document Version: 0.6

10 of 36

Product Specification

3. Functional Block Diagram

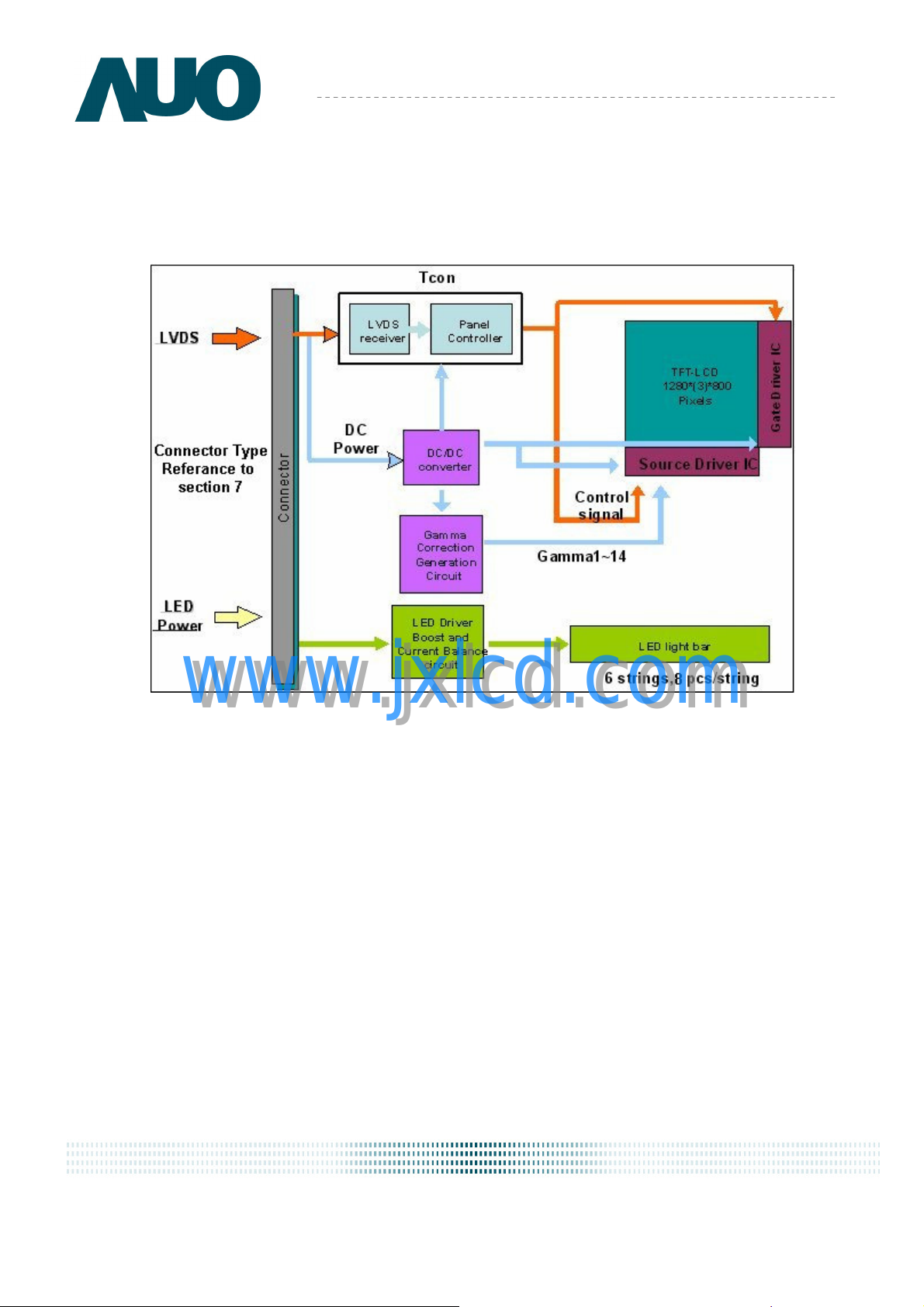

The following diagram shows the functional block of the 14.1 inches wide Color TFT/LCD 40 Pin (One ch/connector Module:

AU OPTRONICS CORPORATION

www.jxlcd.com

B141EW05 V0 Document Version: 0.6

11 of 36

Product Specification

4. Absolute Maximum Ratings

An absolute maximum rating of the module is as following:

4.1 Absolute Ratings of TFT LCD Module

Item Symbol Min Max Unit Conditions

AU OPTRONICS CORPORATION

Logic/LCD Drive Voltage

Vin -0.3 +4.0 [Volt] Note 1,2

4.2 Absolute Ratings of Backlight Unit

Item Symbol Min Max Unit Conditions

LED Driving Voltage

LED Driving Current I

V

-

LED

-

LED

36 (Row Output)

30 (Row Output)

[Volt] Note 1,2,3

[mA] rms Note 1,2,3

4.3 Absolute Ratings of Environment

Item Symbol Min Max Unit Conditions

Operating Temperature

Operation Humidity HOP 8 95 [%RH] Note 4

Storage Temperature

Storage Humidity HST

Note 1: At Ta (25℃ )

Note 2: Permanent damage to the device may occur if exceed maximum values

Note 3: LED specification refer to section 5.2

Note 4: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).

www.jxlcd.com

TOP 0 +50 [oC] Note 4

TST -20 +65 [oC] Note 4

5 95

Twb=39°C

[%RH]

Note 4

Operating Range

B141EW05 V0 Document Version: 0.6

Storage Range

12 of 36

Product Specification

Voltage

-

90%

10%

5. Electrical characteristics

5.1 TFT LCD Module

5.1.1 Power Specification

Input power specifications are as follows;

The power specification are measured under 25℃ and frame frenquency under 60Hz

AU OPTRONICS CORPORATION

Symble Parameter Min Typ Max Units

VDD Logic/LCD Drive

PDD VDD Power IDD IDD Current

I

Rush

Inrush Current

VDDrp Allowable

3.0 3.3 3.6 [Volt]

- 1.1 [Watt] Note 1/2

- 350

- -

450

2000 [mA]

100 [mV] Logic/LCD Drive Ripple Voltage

Note 1 : Maximum Measurement Condition：Black Pattern

Note 2：Typical Measurement Condition: Mosaic Pattern

Note 3：Measure Condition

+5.0V

www.jxlcd.com

(High to Low) Control Signal

SW1

SW MAG-SPST

1 2

+12.0V

R1 47K

R2

1K

VR1

47K

D6 D5 D2 S D1

G

C3

0.01uF/25V

Q3 AO6402

D2SD1D5

G

D6

Q3

AO6402

F1

[mA]

p-p

Note 1/2

Note 3

(LCD Module Input)

C1 1uF/16V

Note

VCC

C2 1uF/25V

3.3V

0V

0.5ms

Vin rising time

B141EW05 V0 Document Version: 0.6

13 of 36

Product Specification

VSS

5.1.2 Signal Electrical Characteristics

Input signals shall be low or High-impedance state when VDD is off. It is recommended to refer the specifications of THC63LVDF84A (Thine Electronics Inc.) in detail.

Signal electrical characteristics are as follows;

AU OPTRONICS CORPORATION

Parameter

Vth

Vtl

Vcm

Note: LVDS Signal Waveform

V t

Differential Input High Threshold (Vcm=+1.2V)

Differential Input Low Threshold (Vcm=+1.2V)

Differential Input

Common Mode Voltage

www.jxlcd.com

Condition Min Max Unit

Vcm

-

-100

1.125

100

-

1.375

[mV]

[V]

B141EW05 V0 Document Version: 0.6

14 of 36

Product Specification

5.2 Backlight Unit

LED Parameter guideline for LED driving selection (Ref. Remark 1)

AU OPTRONICS CORPORATION

Parameter

LED Forward Voltage VF 2.95 3.15 3.35

LED Forward Current IF 20 30 [mA]

LED Power consumption

LED Life-Time

Output PWM frequency

Duty ratio

Note 1: Calculator value for reference IF×VF =P

Symbol

P

3.78

LED

N/A 10,000

F

PWM

-- 20 -- 100

Min Typ Max

- -

180 200 220

Units Condition

[Volt]

[Watt]

Hour

Hz

%

(Ta=25℃)

(Ta=25℃) Note 1

(Ta=25℃)

IF=20 mA

Note 2

Note 2: The LED life-time define as the estimated time to 50% degradation of initial luminous.

www.jxlcd.com

B141EW05 V0 Document Version: 0.6

15 of 36

Product Specification

R G B

B

6. Signal Characteristic

6.1 Pixel Format Image

Following figure shows the relationship of the input signals and LCD pixel format.

1

AU OPTRONICS CORPORATION

1280

1st Line

800th Line

R G B B G R

R G B

www.jxlcd.com

R G B R G B

R G B R G

B141EW05 V0 Document Version: 0.6

16 of 36

Product Specification

Data Clock

6.2 The input data format

Signal Name

R5 R4 R3 R2 R1 R0

Description

Red Data 5 (MSB) Red Data 4 Red Data 3 Red Data 2 Red Data 1 Red Data 0 (LSB)

Red-pixel Data

AU OPTRONICS CORPORATION

Red-pixel Data Each red pixel's brightness data consists of these 6 bits pixel data.

G5 G4 G3 G2 G1 G0

B5 B4 B3 B2 B1 B0

RxCLKIN

DE Display Timing This signal is strobed at the falling edge of

VS Vertical Sync The signal is synchronized to RxCLKIN . HS Horizontal Sync The signal is synchronized to RxCLKIN .

Note: Output signals from any system shall be low or High-impedance state when VDD is off.

Green Data 5 (MSB) Green Data 4 Green Data 3

www.jxlcd.com

Green Data 2 Green Data 1 Green Data 0 (LSB)

Green-pixel Data Blue Data 5 (MSB) Blue Data 4 Blue Data 3 Blue Data 2 Blue Data 1 Blue Data 0 (LSB)

Blue-pixel Data

Green-pixel Data Each green pixel's brightness data consists of these 6 bits pixel data.

Blue-pixel Data Each blue pixel's brightness data consists of these 6 bits pixel data.

The signal is used to strobe the pixel data and DE signals. All pixel data shall be valid at the falling edge when the DE signal is high.

RxCLKIN. When the signal is high, the pixel data shall be valid to be displayed.

B141EW05 V0 Document Version: 0.6

17 of 36

Product Specification

6.3 Signal Description/Pin Assignment

LVDS is a differential signal technology for LCD interface and high speed data transfer device.

AU OPTRONICS CORPORATION

4

6

7

www.jxlcd.com

EDID

Ground GND1

+3.3V Power SupplyVDD2

+3.3V Power SupplyVDD3

+3.3V EDID PowerV

No Connection (Reserve for AUO test)NC5

EDID Clock InputCLK

EDID Data InputDATA

LVDS differential data input(R0-R5, G0)RxIN0-8

LVDS differential data input(R0-R5, G0)RxIN0+9

Ground GND10

LVDS differential data input(G1-G5, B0-B1)RxIN1-11

LVDS differential data input(G1-G5, B0-B1)RxIN1+12

Ground GND13

LVDS differential data input(B2-B5, HS, VS, DE)RxIN2-14

LVDS differential data input(B2-B5, HS, VS, DE)RxIN2+15

DescriptionSignal NamePIN#

Ground GND16

LVDS differential clock inputRxCLKIN-17

LVDS differential clock inputRxCLKIN+18

Ground GND19

No Connection (Reserve for AUO test)NC20

B141EW05 V0 Document Version: 0.6

18 of 36

Product Specification

AU OPTRONICS CORPORATION

DescriptionSignal NamePIN#

No Connection (Reserve for AUO test)NC21

Ground GND22

No Connection (Reserve for AUO test)NC23

No Connection (Reserve for AUO test)NC24

Ground GND25

No Connection (Reserve for AUO test)NC26

No Connection (Reserve for AUO test)NC27

Ground GND28

No Connection (Reserve for AUO test)NC29

No Connection (Reserve for AUO test)NC30

LED GroundVLED_GND31

LED GroundVLED_GND32

LED GroundVLED_GND33

LED Power Supply 7V-20V VLED34

LED Power Supply 7V-20V VLED35

LED Power Supply 7V-20V VLED36

www.jxlcd.com

LED Power Supply 7V-20V VLED36

LED Power Supply 7V-20V VLED37

System PWM signal Input S_PWMIN38

LED enable pin (+3V input)LED_EN39

NCNC40

B141EW05 V0 Document Version: 0.6

19 of 36

1

GND

Note1: Start from right side

Product Specification

AU OPTRONICS CORPORATION

Note2: Input signals shall be low or High-impedance state when VDD is off.

www.jxlcd.com

40

Panel PWM

signal output

B141EW05 V0 Document Version: 0.6

20 of 36

Product Specification

12

internal circuit of LVDS inputs are as following. The module uses a 100ohm resistor between positive and negative data lines of each receiver input

Signal Input

Pin No .

8

RxIN0-

9

RxIN0+

11

RxIN1-

RxIN1+

14

RxIN2-

15

RxIN2+

AU OPTRONICS CORPORATION

LVDS Receiver

R

17

18

RxCLK IN-

RxCLKIN+

R

www.jxlcd.com

B141EW05 V0 Document Version: 0.6

21 of 36

Product Specification

6.4 Interface Timing

6.4.1 Timing Characteristics

Basically, interface timings should match the 1280x800 /60Hz manufacturing guide line timing.

Parameter Symbol Min. Typ. Max. Unit

Frame Rate - - 60 - Hz

AU OPTRONICS CORPORATION

Clock frequency 1/ T

Vertical

Section

Horizontal

Section

Note : DE mode only

www.jxlcd.com

Period TV 803 816 1023

Active TVD 800 800 800

Blanking TVB 3 16 223

Period TH 1303 1408 2047

Active THD 1280 1280 1280

Blanking THB 23 118 767

- 68.9 - MHz

Clock

T

Line

Clock

B141EW05 V0 Document Version: 0.6

22 of 36

6.4.2 Timing diagram

T

CLOCK

DOTCLK

Input Data

DE

www.jxlcd.com

Invaild

Data

Product Specification

AU OPTRONICS CORPORATION

Input Timing Definition ( DE Mode)

Pixel

1

T

HB

T

VB

Pixel

2

T

Pixel

3

T

HD

H

T

V

Pixel

N-1

T

VD

Pixel

N

Invaild

Data

Pixel

1

B141EW05 V0 Document Version: 0.6

23 of 36

Product Specification

6.5 Power ON/OFF Sequence

VDD power on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off

AU OPTRONICS CORPORATION

www.jxlcd.com

B141EW05 V0 Document Version: 0.6

24 of 36

Product Specification

LED on/off sequence is as follows. Interface signals are also shown in the chart.

AU OPTRONICS CORPORATION

Note: The duty of LED dimming signal should be more than 20% in T2 and T3.

www.jxlcd.com

Power Sequence Timing

Symbol

T1

T2

T3

T4

T5

Min Typ Max

10 --- --- ms

50 --- --- ms

0 --- --- ms

10 --- --- ms

Valus

Unit

B141EW05 V0 Document Version: 0.6

25 of 36

Product Specification

7. Connector Description

Physical interface is described as for the connector on module.

These connectors are capable of accommodating the following signals and will be following components.

7.1 TFT LCD Module

Connector Name / Designation For Signal Connector

AU OPTRONICS CORPORATION

Manufacturer

Type / Part Number

Mating Housing/Part Number

www.jxlcd.com

IPEX

or compatible

IPEX 20347-340E-12

or compatible

B141EW05 V0 Document Version: 0.6

26 of 36

Product Specification

8. LED Driving Specification

8.1 Connector Description

It is a intergrative interface and comibe into LVDS connector. The type and mating refer to section 7.

8.2 Pin Assignment

Ref. to 6.3

9. Vibration and Shock Test

AU OPTRONICS CORPORATION

9.1 Vibration Test

Test Spec:

Test method: Non-Operation



Acceleration: 1.5 G , Half sine pulse



Frequency: 5 - 150Hz Random



Sweep: 30 Minutes each Axis (X, Y, Z)



www.jxlcd.com

9.2 Shock Test Spec:

Test Spec:

Test method: Non-Operation



Acceleration: 240 G , Half sine pulse



Active time: 2 ms



Pulse: X,Y,Z .one time for each side



B141EW05 V0 Document Version: 0.6

27 of 36

10. Reliability

Items

Temperature

Humidity Bias

High Temperature

Operation

Low Temperature

Operation

High Temperature

Storage

Low Temperature

Storage

Thermal Shock

Test

Product Specification

AU OPTRONICS CORPORATION

Required Condition Note

Ta= 40℃℃℃℃, 90%RH, 300h

Ta= 50℃℃℃℃, Dry, 300h

Ta= 0℃℃℃℃, 300h

Ta= 60℃℃℃℃, 300h

Ta= -20℃℃℃℃, 300h

Ta=-20℃℃℃℃to 60℃℃℃℃, Duration at 30 min, 100 cycles

ESD

Note1:

Remark:

According to EN 61000-4-2 , ESD class B: Some performance degradation allowed. No data lost

. Self-recoverable. No hardware failures.

MTBF (Excluding the LED): 30,000 hours with a confidence level 90%

www.jxlcd.com

Contact : ±8 KV

Air : ±15 KV

Note 1

B141EW05 V0 Document Version: 0.6

28 of 36

Product Specification

11. Mechanical Characteristics

11.1 LCM Outline Dimension

AU OPTRONICS CORPORATION

www.jxlcd.com

B141EW05 V0 Document Version: 0.6

29 of 36

Product Specification

AU OPTRONICS CORPORATION

www.jxlcd.com

B141EW05 V0 Document Version: 0.6

30 of 36

Product Specification

11.2 Screw Hole Depth and Center Position

Screw hole minimum depth, from side surface = 2.1 mm (See drawing)

Screw hole center location, from front surface = 3.1 ± 0.2mm (See drawing)

AU OPTRONICS CORPORATION

Screw Torque: Maximum 2.5 kgf-cm

www.jxlcd.com

B141EW05 V0 Document Version: 0.6

31 of 36

Product Specification

AU OPTRONICS CORPORATION

12. Shipping and Package

12.1 Shipping Label Format

www.jxlcd.com

B141EW05 V0 Document Version: 0.6

32 of 36

Product Specification

12.2 Carton package

The outside dimension of carton is 455 (L)mm x 380 (W)mm x 355 (H)mm

AU OPTRONICS CORPORATION

www.jxlcd.com

11.3 Shipping package of palletizing sequence

B141EW05 V0 Document Version: 0.6

33 of 36

Product Specification

13. Appendix: EDID description

AU OPTRONICS CORPORATION

Address

HEX

00

01

02

03

04

05

06

07

08

09

0A

0B

0C

0D

0E

0F

10

11

12

13

14

15

16

17

18

19

1A

1B

1C

1D

1E

1F

20

21

22

23

24

25

26

27

28

29

2A

2B

B141EW05 V0 Document Version: 0.6

Video input def.

www.jxlcd.com

Max H image size

Max V image size

Display Gamma

Feature support

Red/green low bits

Blue/white low bits

FUNCTION Value Value Value

HEX BIN DEC

Header 00 00000000 0

FF 11111111 255

00 00000000 0

EISA Manuf. Code LSB 06 00000110 6

Compressed ASCII AF 10101111 175

Product Code

hex, LSB first

32-bit ser # 00 00000000 0

00 00000000 0

Week of manufacture 01 00000001 1

Year of manufacture 11 00010001 17

EDID Structure Ver. 01 00000001 1

EDID revision # 03 00000011 3

(digital I/P, non-TMDS, CRGB)

(rounded to cm)

(=(gamma*100)-100)

(no DPMS, Active OFF, RGB, tmg Blk#1)

(Lower 2:2:2:2 bits)

Red x

(Upper 8 bits)

Red y/ highER 8 bits 58 01011000 88

Green x 50 01010000 80

Green y 8E 10001110 142

Blue x 27 00100111 39

Blue y 27 00100111 39

White x 50 01010000 80

White y 54 01010100 84

Established timing 1 00 00000000 0

Established timing 2 00 00000000 0

Established timing 3 00 00000000 0

Standard timing #1 01 00000001 1

01 00000001 1

Standard timing #2 01 00000001 1

01 00000001 1

Standard timing #3 01 00000001 1

01 00000001 1

44 01000100 68

50 01010000 80

80 10000000 128

21 00100001 33

15 00010101 21

78 01111000 120

0A 00001010 10

1C 00011100 28

F5 11110101 245

97 10010111 151

34 of 36

Product Specification

2C

2D

2E

2F

30

31

32

33

34

35

36

Pixel Clock/10000 LSB

37

Pixel Clock/10000 USB

Horz active

38

Horz blanking

39

3A

3B

3C

3D

4A

4B

4C

4D

5A

HorzAct:HorzBlnk

Vertical Active

Vertical Blanking

Vert Act : Vertical Blanking

3E

3F

40

41

42

43

44

45

46

47

48

49

4E

4F

50

51

52

53

54

55

56

57

58

59

HorzSync. Offset

HorzSync.Width

VertSync.Offset : VertSync.Width

Horz&Vert Sync Offset/Width

Horizontal Image Size

Vertical Image Size

www.jxlcd.com

Horizontal & Vertical Image Size

Horizontal Border

Vertical Border

Signal

(non-intr, norm, no stero, sep sync, neg pol)

Standard timing #4 01 00000001 1

Standard timing #5 01 00000001 1

Standard timing #6 01 00000001 1

Standard timing #7 01 00000001 1

Standard timing #8 01 00000001 1

Lower 8bits

Detailed timing/monitor 00 00000000 0

AU OPTRONICS CORPORATION

01 00000001 1

C7 11000111 199

1B 00011011 27

Upper 4:4 bits

Lower 8bits

(zero for internal LCD)

(upper 4:4 bit)

Upper 2bits

(upper 4:4 bits)

descriptor #2 00 00000000 0

00 00000000 0

0F 00001111 15

00 00000000 0

20 00100000 32

00 00000000 0

A0 10100000 160

50 01010000 80

20 00100000 32

17 00010111 23

30 00110000 48

20 00100000 32

36 00110110 54

00 00000000 0

4B 01001011 75

CF 11001111 207

10 00010000 16

00 00000000 0

18 00011000 24

B141EW05 V0 Document Version: 0.6

35 of 36

Product Specification

5B

5C

5D

5E

5F

60

61

62

63

64

65

66

67

68

69

6A

6B

6C

6D

6E

6F

70

71

72

73

74

75

76

77

78

79

7A

7B

7C

7D

7E

7F

www.jxlcd.com

Detailed timing/monitor 00 00000000 0

Manufacture P/N 42 01000010 66

Manufacture P/N 31 00110001 49

Manufacture P/N 34 00110100 52

Manufacture P/N 31 00110001 49

Manufacture P/N 45 01000101 69

Manufacture P/N 57 01010111 87

Manufacture P/N 30 00110000 48

Manufacture P/N 35 00110101 53

Manufacture P/N 20 00100000 32

Manufacture P/N 56 01010110 86

Manufacture P/N 30 00110000 48

AU OPTRONICS CORPORATION

descriptor #3 00 00000000 0

00 00000000 0

FE 11111110 254

00 00000000 0

Manufacture 41 01000001 65

Manufacture 55 01010101 85

Manufacture 4F 01001111 79

0A 00001010 10

20 00100000 32

descriptor #4 00 00000000 0

00 00000000 0

FE 11111110 254

00 00000000 0

20 00100000 32

0A 00001010 10

Extension Flag 00 00000000 0

Checksum AB 10101011 171

B141EW05 V0 Document Version: 0.6

36 of 36

AU Optronics B141EW05-V0 Product Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
