AU Optronics B141EW04-V7 Product Specification

) Preliminary Specifications

( ( V ) Final Specifications

Product Specification

AU OPTRONICS CORPORATION

B141EW04 V7

Module

Model Name

14.1” WXGA Color TFT-LCD

B141EW04 V7

Customer Date

www.jxlcd.com

Checked &

Approved by

Approved by Date

Howard Lee

Prepared by

2007/10/15

Note: This Specification is subject to change without notice.

document version 1.0 1

Mendy Wang

NBBU Marketing Division / AU Optronics corporation

2007/10/15

Product Specification

AU OPTRONICS CORPORATION

B141EW04 V7

Contents

1. Handling Precautions .............................................................................................................. 4

2. General Description................................................................................................................. 5

2.1 General Specification......................................................................................................... 5

2.2 Optical Characteristics ....................................................................................................... 6

3. Functional Block Diagram .................................................................................................... 11

4. Absolute Maximum Ratings.................................................................................................. 12

4.1 Absolute Ratings of TFT LCD Module ............................................................................. 12

4.2 Absolute Ratings of Backlight Unit ................................................................................... 12

4.3 Absolute Ratings of Environment..................................................................................... 12

5. Electrical characteristics ...................................................................................................... 13

5.1 TFT LCD Module ............................................................................................................. 13

5.2 Backlight Unit................................................................................................................... 15

6. Signal Characteristic ............................................................................................................. 17

6.1 Pixel Format Image.......................................................................................................... 17

6.2 The input data format....................................................................................................... 18

6.3 Signal Description/Pin Assignment .................................................................................. 19

6.4 Interface Timing ............................................................................................................... 21

www.jxlcd.com

7. Connector Description .......................................................................................................... 23

7.1 TFT LCD Module ............................................................................................................. 23

7.2 Backlight Unit................................................................................................................... 23

7.3 Signal for Lamp connector............................................................................................... 23

8. Vibration and Shock Test...................................................................................................... 24

8.1 Vibration Test................................................................................................................... 24

8.2 Shock Test Spec: ............................................................................................................. 24

9. Reliability................................................................................................................................ 25

10. Mechanical Characteristics ................................................................................................ 26

10.1 LCM Outline Dimension ................................................................................................. 26

11. Shipping and Package ........................................................................................................ 29

www.jxlcd.com

11.1 Shipping Label Format................................................................................................... 29

11.2. Carton package............................................................................................................. 30

11.3 Shipping package of palletizing...................................................................................... 31

12. Appendix: EDID description ............................................................................................... 32

document version 1.0 2

Product Specification

CCFL Power Consumption(PCCFL):

AU OPTRONICS CORPORATION

B141EW04 V7

Record of Revision

Version and Date Page

0.1 2007/07/16 All First Edition for Customer

0.2 2007/9/17 5 Luminance Uniformity: 1.3 max (5 points)

5 Power Consumption: 5.2 typ Power Consumption: 5.1 typ

6 Wx: 0.280 min, 0.313 typ, 0.343

max

6 Wy: 0.299min, 0.329 typ, 0.359 max Wy: 0.309 min, 0.329 typ, 0.349 max

12 Absolute Ratings of Backlight Unit:

3.0 min

15 CCFL Current(ICCFL): 3.0 m in CCFL Current(ICCFL): 2.0 min

15 CCFL Frequency(FCCFL): 50 min,

55 typ, 60 max

15

4.3 typ

22 Power Sequence Time T1: 0.5 min Power Sequence Time T1: 0.3 min

22 Power Sequence Time T3: 50 m ax Power Sequence Time T3: - max

www.jxlcd.com

22 Power Sequence Time T4: 400 min Power Sequence Time T4: 150 min

www.jxlcd.com

Old description New Description Remark

Luminance Uniformity: 1.25 max (5 points)

Wx: 0.285 min, 0.313 typ, 0.341 max

Absolute Ratings of Backlight Unit:

2.0 min

CCFL Frequency(FCCFL): 50 min, 60 typ, 80 max

CCFL Power Consumption(PCCFL):

4.1 typ

22 Power Sequence Time T6: 200 min Power Sequence Time T6: 0 min

0.3 2007/9/26 6 Viewing Angle: 40/40/10/30 Min. Viewing Angle: 40/40/15/30 Min.

6 Viewing Angle: 45/45/20/35 Typ. Viewing Angle: 45/45/20/40 Typ.

6 Luminance Uniformity(5 point): 1.30

max

0.4 2007/10/1 29 11S42T0338Z1ZDT1C00000 707

30 CUSTOMER NO: CUSTOMER NO: P/N 42T0338

0.5 2007/10/9 26 LCM Outline Dimension

27 LCM Outline Dimension

1.0 2007/10/15 1 Preliminary Specifications Final Specifications

Luminance Uniformity(5 point): 1.25 max

P/N 42T0338 FRU 42T0339

document version 1.0 3

Product Specification

AU OPTRONICS CORPORATION

1. Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.

7) Do not open nor modify the Module Assembly.

B141EW04 V7

8) Do not press the reflector sheet at the back of the module to any directions.

9) In case if a Module has to be put back into the packing container slot after once it was taken out from the container, do not press the center of the CCFL Reflector edge. Instead, press at the far ends of the CFL Reflector edge softly. Otherwise the TFT Module may be damaged.

10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module.

11) After installation of the TFT Module into an enclosure (Notebook PC Bezel, for example), do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.

12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local ordinances or regulations for disposal.

13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module should be supplied by power complied with requirements of Limited Power Source(, IEC60950 or UL1950), or be applied exemption.

www.jxlcd.com

14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit(IEC60950 or UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.

document version 1.0 4

Product Specification

(

Note1

)

RoHS Compliance

AU OPTRONICS CORPORATION

2. General Description

B141EW04 V7 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and backlight system. The screen format is intended to support the WXGA (1280(H) x 800(V)) screen and 262k colors (RGB 6-bits data driver). All input signals are LVDS interface compatible. Inverter of backlight is not included.

B141EW04 V7 is designed for a display unit of notebook style personal computer and industrial machine.

B141EW04 V7

2.1 General Specification

The following items are characteristics summary on the table at 25 ℃ condition:

Items Unit Specifications

Screen Diagonal [mm] 357.7 (14.1 W”) Active Area [mm] 303.36(H) x 189.6 (V)

Pixels H x V 1280x3(RGB) x 800 Pixel Pitch [mm] 0.237

Pixel Arrangement R.G.B. Vertical Stripe Display Mode Normally White

White Luminance (ICCFL=6.0mA) Note: ICCFL is lamp current

www.jxlcd.com

Luminance Uniformity 1.25 max. (5 points) Contrast Ratio 400:1 Typ.,300:1 Min.

Optical Rise Time/Fall Time [msec] 16 Typ., 25 Max.

Nominal Input Voltage VDD [Volt] +3.3 Typ.

Power Consumption [Watt] 5.1 Typ

[cd/m2] 200 Typ. (5 points average)

170 Min. (5 points average)

Weight [Grams] 400 g Typ., 420g Max.

Physical Size [mm] 320 max. (W) x 206 max. (H) x 5.5 max.(T).

Electrical Interface R/G/B Data, 3 Sync, Signals, Clock (4 pairs

Surface Treatment Hard coating 3H, Anti-reflection type

Support Color 262K colors ( RGB 6-bit ) Temperature Range

Operating Storage (Non-Operating)

RoHS Compliance

document version 1.0 5

[oC] [oC]

LVDS)

0 to +50

-20 to +60

Product Specification

AU OPTRONICS CORPORATION

2.2 Optical Characteristics

The optical characteristics are measured under stable conditions at 25 (Room Temperature)℃:

Item Unit Conditions Min. Typ. Max. Note

B141EW04 V7

White Luminance I

CCFL

=6.0mA

Viewing Angle

[cd/m2] 5 points average

[degree] [degree]

Luminance Uniformity

CR: Contrast Ratio

Cross talk %

Response Time

[msec] Rising

[msec] Falling

[msec] Rising + Falling

Color / Chromaticity

www.jxlcd.com

Coordinates

(CIE 1931)

170 200 - 1, 4, 5.

Horizontal (Right)

40

45

-

9

CR = 10 (Left)

Vertical (Upper)

40

15

45

20

-

CR = 10 (Lower)

5 Points

13 Points

30

1.25 1

1.53 2

40

-

300 400 - 6

1.4 7

-

5

8

- 11 17

16 25

Red x

Red y

Green x

0.545 0.575 0.605

0.305 0.335 0.365

0.285 0.315 0.345

Green y

Blue x

Blue y

White x

White y

Note 1: 5 points position (Display area : 303.7 (H) x 189.8(V)mm)

document version 1.0 6

0.520 0.550 0.580

0.125 0.155 0.185

0.105 0.135 0.165

0.285 0.313 0.341

0.309 0.329 0.349

Product Specification

=

Maximum Brightness of thirteen points

Minimum Brightness of thirteen points

Maximum Brightness of five

point

s

=

Minimum Brightness of five

points

AU OPTRONICS CORPORATION

H /4

B141EW04 V7

W

W / 4 W / 4 W / 4 W / 4

1 2

H

Note 2: 13 points position

www.jxlcd.com

H

H /4

1 0

W /4

1

6

3

4

W

W /4

4 5

W /4

2

7

5

W /4

1 0

3

8

9

H /4

1 0

1 1

1 2

Note 3: The luminance uniformity of 5 and 13 points is defined by dividing the maximum luminance values by the minimum test point luminance

δ

W5

1 0

1 3

δ

document version 1.0 7

W13

Product Specification

Field=2

°

Contrast ratio (CR)=

Brightness on the “White” state

Brightness on the “Black” state

AU OPTRONICS CORPORATION

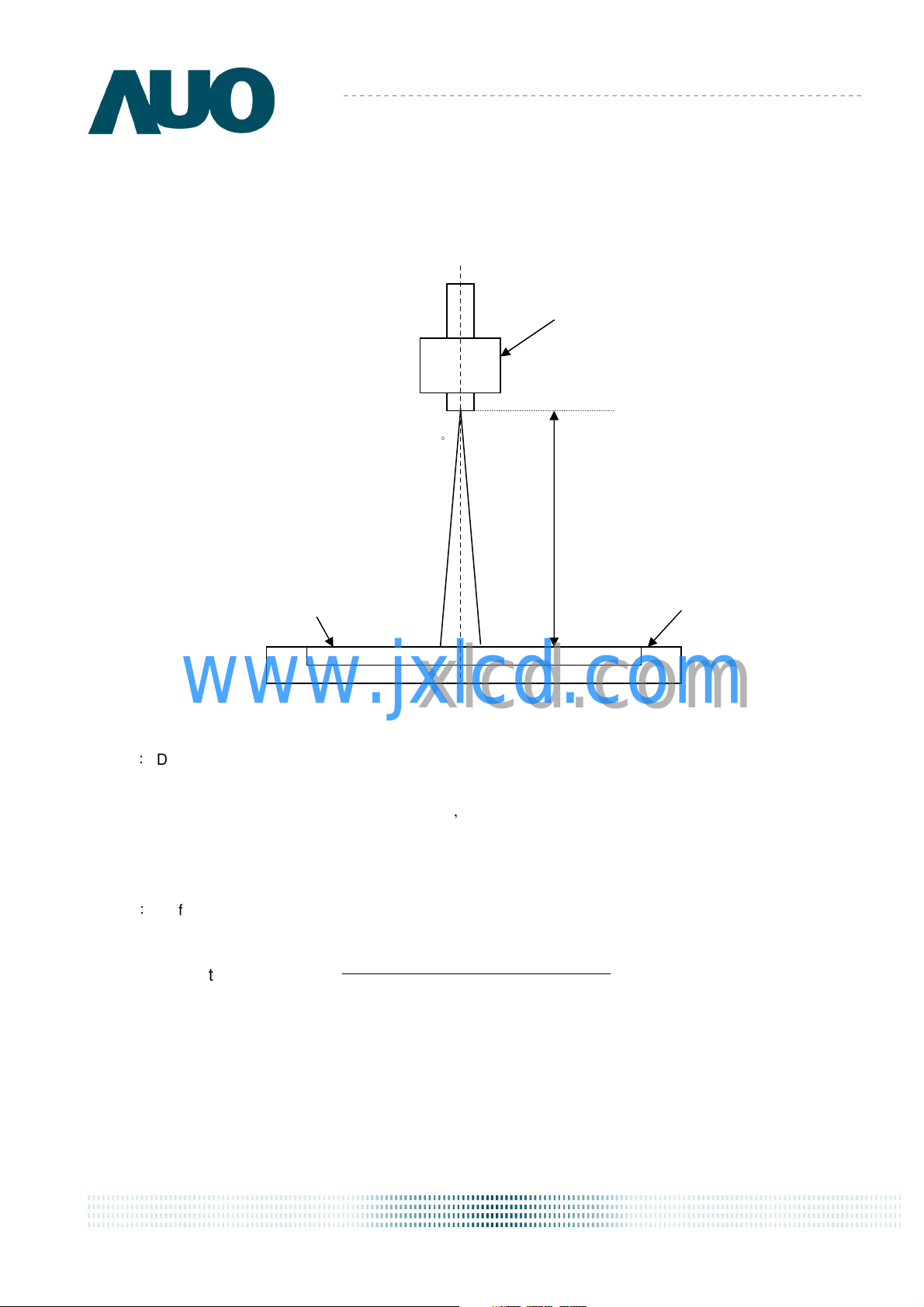

Note 4: Measurement method

The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change

during measuring. In order to stabilize the luminance, the measurement should be executed after lighting

Backlight for 30 minutes in a stable, windless and dark room.

B141EW04 V7

Photo detector

www.jxlcd.com

Note 5： Definition of Average Luminance of White (YL):

Measure the luminance of gray level 63 at 5 points，Y

L (x) is corresponding to the luminance of the point X at Figure in Note (1).

Note 6： Definition of contrast ratio:

www.jxlcd.com

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

L

Contrast ratio is calculated with the following formula.

document version 1.0 8

Product Specification

"Black"

Tr Tf

"White"

0 %

10 %

90 %

100 %

AU OPTRONICS CORPORATION

Note 7： Definition of Cross Talk (CT)

CT = | YB – YA | / YA × 100 (%)

Where

YA = Luminance of measured location without gray level 0 pattern (cd/m2)

B141EW04 V7

YB = Luminance of measured location with gray level 0 pattern (cd/m2)

Note 8: Definition of response time:

The output signals of BM-7 or equivalent are measured when the input signals are changed from “Black” to

“White” (falling time) and from “White” to “Black” (rising time), respectively. The response time interval between

the 10% and 90% of amplitudes. Refer to figure as below.

www.jxlcd.com

document version 1.0 9

Product Specification

AU OPTRONICS CORPORATION

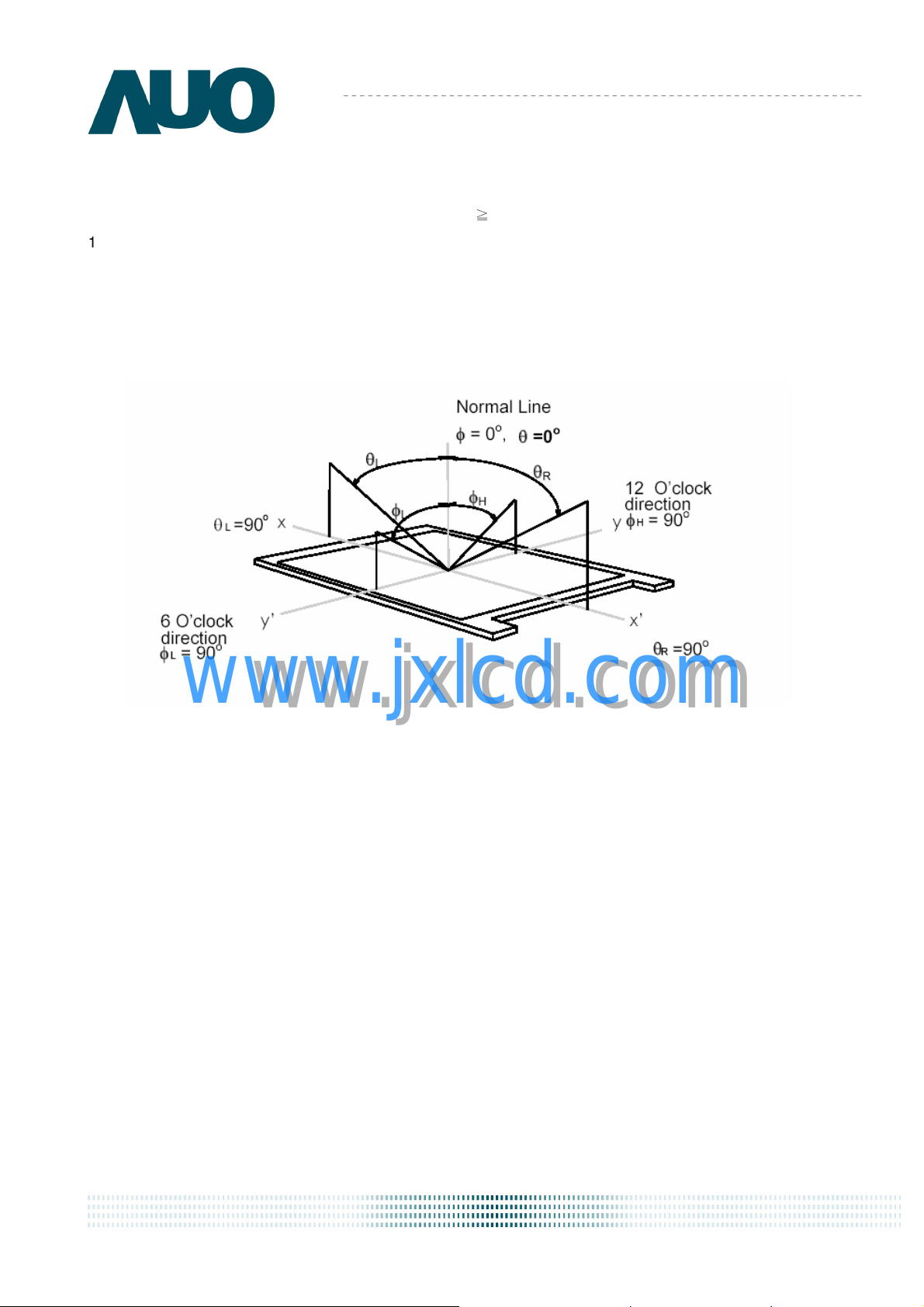

Note 9. Definition of viewing angle

Viewing angle is the measurement of contrast ratio 10, at the screen center, over a 180° horizontal and

180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is

B141EW04 V7

≧

typically perpendicular to the display surface with the screen rotated about its center to develop the desired

measurement viewing angle.

www.jxlcd.com

document version 1.0 10

Product Specification

Backlight Unit

RxIN0

TB

Lamp Connector(2pin)

AU OPTRONICS CORPORATION

3. Functional Block Diagram

The following diagram shows the functional block of the 14. 1inches wide Color TFT/LCD Module:

B141EW04 V7

X-Driver

(4 pairs LVDS)

RxIN1 RxIN2

RxCLKIN

VDD

GND

JAE FI-XB30SL-HF10

Mating Housing JAE FI-X30SL

www.jxlcd.com

Mating ContactFI-XC3-1-15000

LCD DR IV E CARD

LCD Controller

DC-DC

Converter

Ref circuit

TFT ARRAY/CELL

1280(R/G/B) x 3

Y-Driver

JST BHSR-02VS-1

Mating Type SM02B-BHSS-1-

document version 1.0 11

Product Specification

AU OPTRONICS CORPORATION

4. Absolute Maximum Ratings

Absolute maximum ratings of the module is as following:

4.1 Absolute Ratings of TFT LCD Module

Item Symbol Min Max Unit Conditions

B141EW04 V7

Logic/LCD Drive Voltage

VDD -0.3 +4.0 [Volt] Note 1,2

4.2 Absolute Ratings of Backlight Unit

Item Symbol Min Max Unit Conditions

CCFL Current ICFL 2.0 6.5 [mA] rms Note 1,2

4.3 Absolute Ratings of Environment

Item Symbol Min Max Unit Conditions

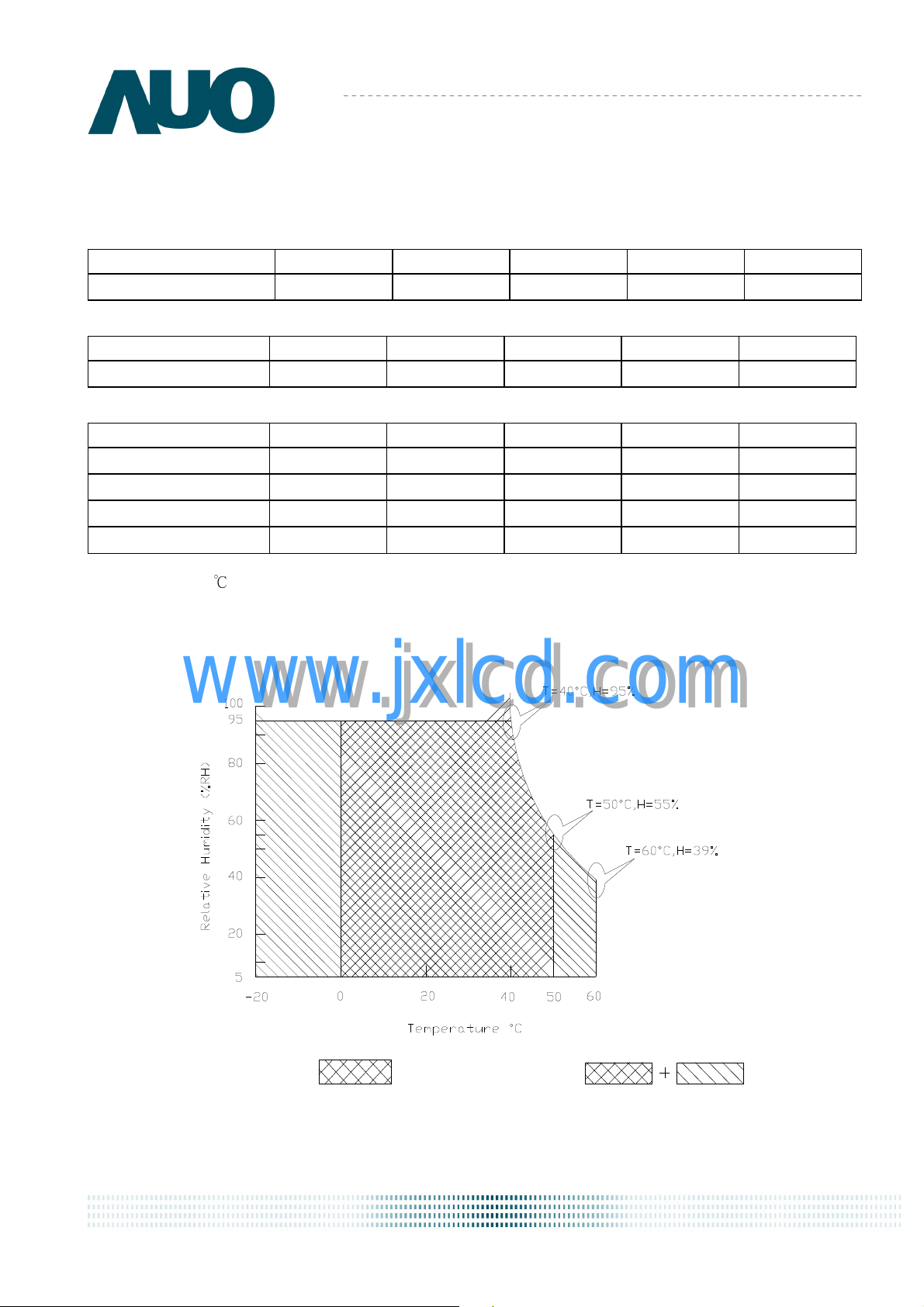

Operating Temperature

Operation Humidity HOP 5 95 [%RH] Note 3

Storage Temperature

Storage Humidity HST

Note 1: At Ta (25 )℃

Note 2: Permanent damage to the device may occur if exceed maximum values

Note 3: For quality performance, please refer to AUO IIS(Incoming Inspection Standard).

www.jxlcd.com

TOP 0 +50 [oC] Note 3

TST -20 +60 [oC] Note 3

5 95

Twb=39°C

[%RH]

Note 3

Operating Range

document version 1.0 12

Storage Range

Product Specification

Voltage

90%

10%

AU OPTRONICS CORPORATION

5. Electrical characteristics

5.1 TFT LCD Module

5.1.1 Power Specification

Input power specifications are as follows;

B141EW04 V7

Symble Parameter Min Typ Max Units

VDD Logic/LCD Drive

PDD VDD Power IDD IDD Current

I

Rush

Inrush Current

VDDrp Allowable

3.0 3.3 3.6 [Volt]

1.0. [Watt] Note 1

303

810

1500 [mA]

100 [mV] Logic/LCD Drive Ripple Voltage

Note 1 : Maximum Measurement Condition：Black Patterm

Note 2：Measure Condition

Q3

AO6402

D6 F1 D5 D2 S D1

G

D2SD1D5

D6

Q3

G

C3

0.01uF/25V

AO6402

SW1

SW MAG-SPST

1 2

+3.3V

R1 47K

www.jxlcd.com

(High to Low) Control Signal

+12.0V

C2 1uF/25V

R2

1K

R2

1K

VR1

47K

[mA]

p-p

C1 1uF/16V

Note

Note 1

Note 2

VCC

(LCD Module Input)

3.3V

0V

0.5ms

document version 1.0 13

Vin rising time

Product Specification

AU OPTRONICS CORPORATION

5.1.2 Signal Electrical Characteristics

Input signals shall be low or High-impedance state when VDD is off.

Signal electrical characteristics are as follows;

B141EW04 V7

Parameter

Vth

Vtl

Vcm

Note: LVDS Differential Voltage

www.jxlcd.com

Differential Input High Threshold (Vcm=+1.2V)

Differential Input Low Threshold (Vcm=+1.2V)

Differential Input

Common Mode Voltage

www.jxlcd.com

Condition Min Max Unit

-100

1.125

100

1.375

[mV]

[V]

document version 1.0 14

Note 2

5.2 Backlight Unit

Parameter guideline for CCFL Inverter

Product Specification

AU OPTRONICS CORPORATION

B141EW04 V7

Parameter Min Typ Max

White Luminance

5 points average

CCFL current(ICCFL) 2.0 6.0 6.5 [mA] rms

CCFL Frequency(FCCFL) 50 60 80 [KHz]

CCFL Ignition Voltage(Vs)

CCFL Voltage (Reference)

(VCCFL)

CCFL Power consumption

(PCCFL)

Note 1: Typ are AUO recommended Design Points.

*1 All of characteristics listed are measured under the condition using the AUO Test inverter.

www.jxlcd.com

170

1500

1060

630 655 845

- 4.1 4.6

200

-

Units Condition

[cd/m2 ]

[Volt] rms

[Watt]

(Ta=25 )℃

Note 3,4

(Ta= 0 )℃

Note 5

(Ta= 25 )℃

Note 5

(Ta=25 )℃

Note 6

(Ta=25 )℃

Note 6

*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.

Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker at low

power may happen.

*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of CCFL, for

instance, becomes more than 1 [M ohm] when CFL is damaged.

*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is recommended to

keep on applying kick-off voltage for 1 [Sec] until discharge.

*5 CCFL discharge frequency must be carefully chosen so as not to produce interfering noise stripes on

the screen.

*6 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL discharge

frequency. So all the parameters of an inverter should be carefully designed so as not to produce too much

leakage current from high-voltage output of the inverter.

Note 2: It should be employed the inverter which has “Duty Dimming”, if ICCFL is less than 4mA.

Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter and

TFT LCD.

Note 4: The frequency range will not affect to lamp life and reliability characteristics.

document version 1.0 15

Product Specification

AU OPTRONICS CORPORATION

Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,430 voltage.

Lamp units need 1,400 voltage minimum for ignition.

B141EW04 V7

Note 6: Calculator value for reference (I

Note 7: Requirements for a system inverter design, which is intended to have a better display performance, a

better power efficiency and a more reliable lamp, are following.

It shall help increase the lamp lifetime and reduce leakage current.

a. The asymmetry rate of the inverter waveform should be less than 10%. b. The distortion rate of the waveform should bewithin √2 ±10%.

* Inverter output waveform had better be more similar to ideal sine wave.

CCFL×VCCFL=PCCFL

)

www.jxlcd.com

document version 1.0 16

Product Specification

1

AU OPTRONICS CORPORATION

6. Signal Characteristic

6.1 Pixel Format Image

Following figure shows the relationship of the input signals and LCD pixel format.

0

B141EW04 V7

1278 1279

1st Line

800th Line

R G B R G B

www.jxlcd.com

R G B R G B

document version 1.0 17

Data Clock

6.2 The input data format

Signal Name

+R5 +R4 +R3 +R2 +R1 +R0

Description

Red Data 5 (MSB) Red Data 4 Red Data 3 Red Data 2 Red Data 1 Red Data 0 (LSB) Red-pixel Data

Product Specification

AU OPTRONICS CORPORATION

B141EW04 V7

Red-pixel Data Each red pixel's brightness data consists of these 6 bits pixel data.

+G5 +G4 +G3 +G2 +G1 +G0

+B5 +B4 +B3 +B2 +B1 +B0

RxCLKIN

DE Display Timing This signal is strobed at the falling edge of

VS Vertical Sync The signal is synchronized to RxCLKIN . HS Horizontal Sync The signal is synchronized to RxCLKIN .

Note: Output signals from any system shall be low or High-impedance state when VDD is

off.

www.jxlcd.com

Green Data 5 (MSB) Green Data 4 Green Data 3 Green Data 2 Green Data 1 Green Data 0 (LSB) Green-pixel Data Blue Data 5 (MSB) Blue Data 4 Blue Data 3 Blue Data 2 Blue Data 1 Blue Data 0 (LSB) Blue-pixel Data

Green-pixel Data Each green pixel's brightness data consists of these 6 bits pixel data.

Blue-pixel Data Each blue pixel's brightness data consists of these 6 bits pixel data.

The typical frequency is 68.94 MHZ.. The signal is used to strobe the pixel data and DE signals. All pixel data shall be valid at the falling edge when the DE signal is high.

RxCLKIN. When the signal is high, the pixel data shall be valid to be displayed.

document version 1.0 18

Product Specification

AU OPTRONICS CORPORATION

6.3 Signal Description/Pin Assignment

LVDS is a differential signal technology for LCD interface and high speed data transfer device.

Pin# Signal Name Pin# Signal Name

1 GND 2 VDD

B141EW04 V7

3 VDD 4 V

5 Aging 6 CLK

7 DATA

9 RxIN0+ 10 GND

11 RxIN1- 12 RxIN1+

13 GND 14 RxIN2-

15 RxIN2+ 16 GND

17 RxCLKIN- 18 RxCLKIN+

19 GND 20 NC

21 NC 22 GND

23 NC 24 NC

25 GND 26 NC

27 NC 28 GND

29 NC 30 NC

www.jxlcd.com

8 RxIN0-

EDID

document version 1.0 19

12

Note1: Start from right side

Product Specification

AU OPTRONICS CORPORATION

B141EW04 V7

Note2: Input signals shall be low or High-impedance state when VDD is off.

internal circuit of LVDS inputs are as following. The module uses a 100ohm resistor between positive and negative data lines of each receiver input

Signal Input

www.jxlcd.com

Pin No .

8

RxIN0-

R

9

RxIN0+

11

RxIN1-

R

RxIN1+

14

RxIN2-

R

15

RxIN2+

17

18

RxCLK IN-

RxCLKIN+

R

LVDS Receiver

document version 1.0 20

Product Specification

AU OPTRONICS CORPORATION

6.4 Interface Timing

6.4.1 Timing Characteristics

Basically, interface timings should match the 1280x800 /60Hz manufacturing guide line timing.

Parameter Symbol Min. Typ. Max. Unit

Frame Rate - 50 60 - Hz

B141EW04 V7

Clock frequency 1/ T

Vertical

Section

Horizontal

Section

Note : DE mode only

6.4.2 Timing diagram

DOTCLK

T

CLOCK

www.jxlcd.com

Input Data

DE

Period T

Active T

Blanking T

Period T

Active T

Blanking T

Invaild

Data

T

HB

T

VB

69.25 MHz

Clock

V

VD

VB

H

HD

HB

803 822 1023

800 800 800

3 22 223

1303 1404 2047

1280 1280 1280

23 124 767

Input Timing Definition ( DE Mode)

Pixel

1

Pixel

2

T

Pixel

3

T

HD

H

T

V

Pixel

N-1

T

VD

Pixel

N

Invaild

Data

T

Line

Clock

Pixel

1

document version 1.0 21

Product Specification

T3 T2

T1

T7

AU OPTRONICS CORPORATION

6.5 Power ON/OFF Sequence

VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off.

Power Supply VDD

Power Sequence Timing

Backlight On

www.jxlcd.com

10%

Parameter

T1

T2

T3

T4

T5

B141EW04 V7

90%

Min.

0.3

0

150

200

T5

Value

Typ.

-

VALID DATA

Max.

10

50

90%

10%

T4

T6

Units

(ms)

-

T6

T7

document version 1.0 22

0

-

10

-

(ms)

Product Specification

AU OPTRONICS CORPORATION

7. Connector Description

Physical interface is described as for the connector on module.

These connectors are capable of accommodating the following signals and will be following components.

7.1 TFT LCD Module

Connector Name / Designation For Signal Connector

Manufacturer JAE

Type / Part Number FI-XB30SL-HF10

Mating Housing/Part Number F1-X30H

B141EW04 V7

Mating Contact/Part Number F1-XC3-1-15000

7.2 Backlight Unit

Physical interface is described as for the connector on module.

These connectors are capable of accommodating the following signals and will be following components.

Connector Name / Designation For Lamp Connector

Manufacturer JST

Type / Part Number BHSR-02VS-1

Mating Type / Part Number SM02B-BHSS-1-TB

www.jxlcd.com

7.3 Signal for Lamp connector

Pin # Cable color Signal Name

1

2

Red

White

Lamp High Voltage

Lamp Low Voltage

document version 1.0 23

Product Specification

AU OPTRONICS CORPORATION

8. Vibration and Shock Test

8.1 Vibration Test

Test Spec:

Test method: Non-Operation



Acceleration: 1.5G



Frequency: 10 - 500Hz



Sweep: Half sine wave 60mins/axis



8.2 Shock Test Spec:

Test Spec:

Test method: Non-Operation



B141EW04 V7

Acceleration: 240 G , Half sine wave



Active time: 2 ms



Pulse: Half sine wave



www.jxlcd.com

document version 1.0 24

9. Reliability

Items

Temperature Humidity Bias High Temperature Operation Low Temperature Operation

On/Off Test

Hot Storage

Cold Storage

Thermal Shock Test

Shock Test (Non-Operating)

Product Specification

AU OPTRONICS CORPORATION

50 /℃ 80,1000Hr

50 /20%,300Hr℃

0℃,500Hr

25 , ℃ ON/30 sec. OFF/30sec., 30,000 cycles, 500 hours

60 /20% RH ,300 hours℃

-20℃/20% RH ,300 hours

(-25 to +65 ) ramp 25 /min℃ ℃ ℃ duration at temp=60min

240G,2ms for half sine pulse, 1 time for ±x, ±y, ±z 6 directions

B141EW04 V7

Required Condition Note

Vibration Test (Non-Operating)

ESD

www.jxlcd.com

Note1: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost

. Self-recoverable. No hardware failures.

Note2: CCFL Life time: 12,000 hours minimum under normal module usage.

Note3: MTBF (Excluding the CCFL): 30,000 hours with a confidence level 90%

1.5G, 10~500Hz/half sine wave,60mins/axis

Contact : ±8KV, operation, class B

Air : ±15KV, operation, class B

Note 1

document version 1.0 25

Product Specification

AU OPTRONICS CORPORATION

10. Mechanical Characteristics

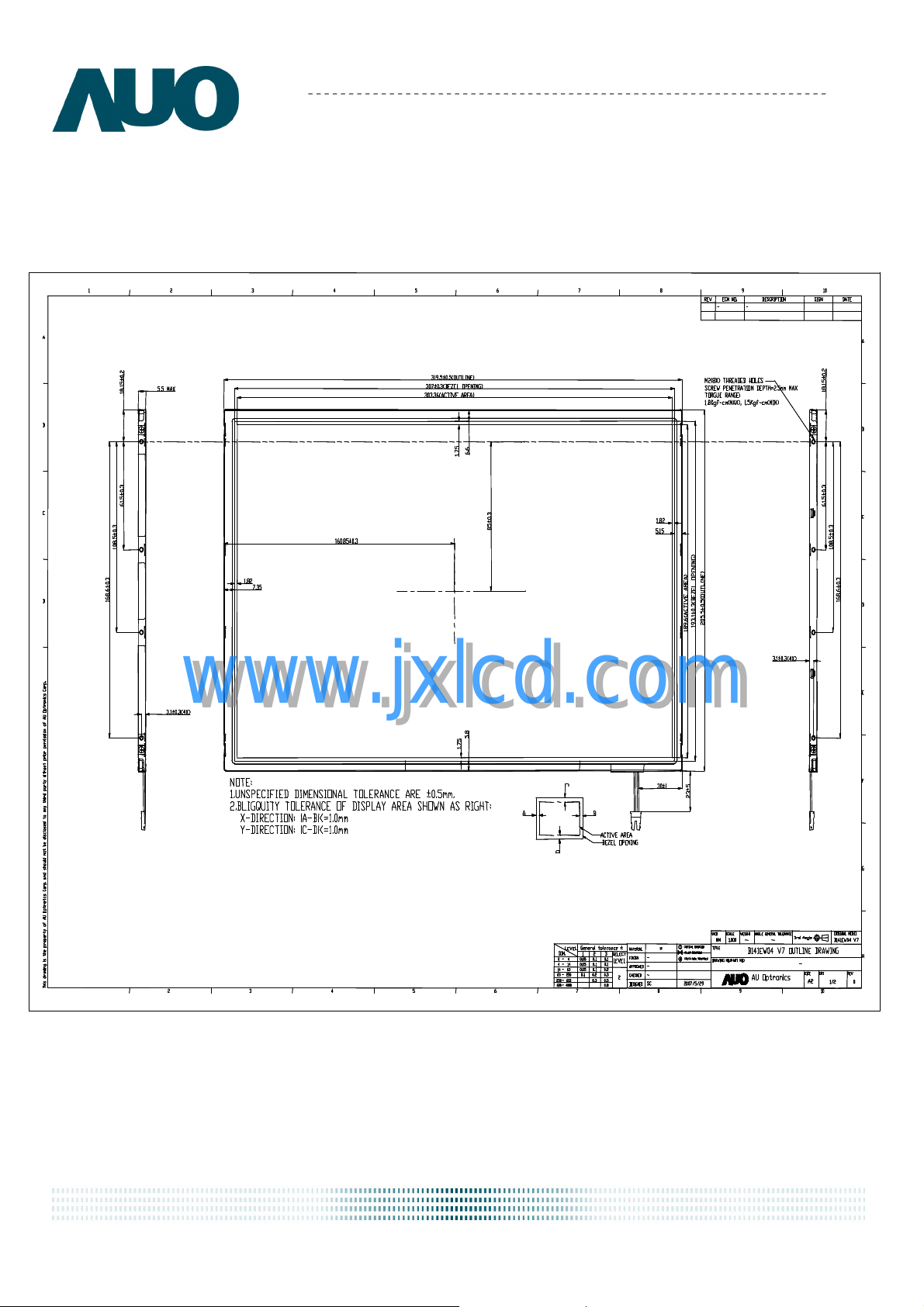

10.1 LCM Outline Dimension

B141EW04 V7

www.jxlcd.com

document version 1.0 26

Product Specification

AU OPTRONICS CORPORATION

B141EW04 V7

www.jxlcd.com

document version 1.0 27

Product Specification

AU OPTRONICS CORPORATION

10.2 Screw Hole Depth and Center Position

Screw hole maximum depth, from side surface =2.5 mm (See drawing)

Screw hole center location, from front surface = 3.1 ± 0.3mm (See drawing)

Screw Torque: Maximum2.5 kgf-cm

B141EW04 V7

www.jxlcd.com

document version 1.0 28

0A

B141EW04 V7

11. Shipping and Package

Product Specification

AU OPTRONICS CORPORATION

B141EW04 V7

11.1 Shipping Label Format

11S42T0338Z1ZDT1C00000 707 P/N 42T0338 FRU 42T0339

www.jxlcd.com

H/W Source IC Gate IC 0A Raydium NT

document version 1.0 29

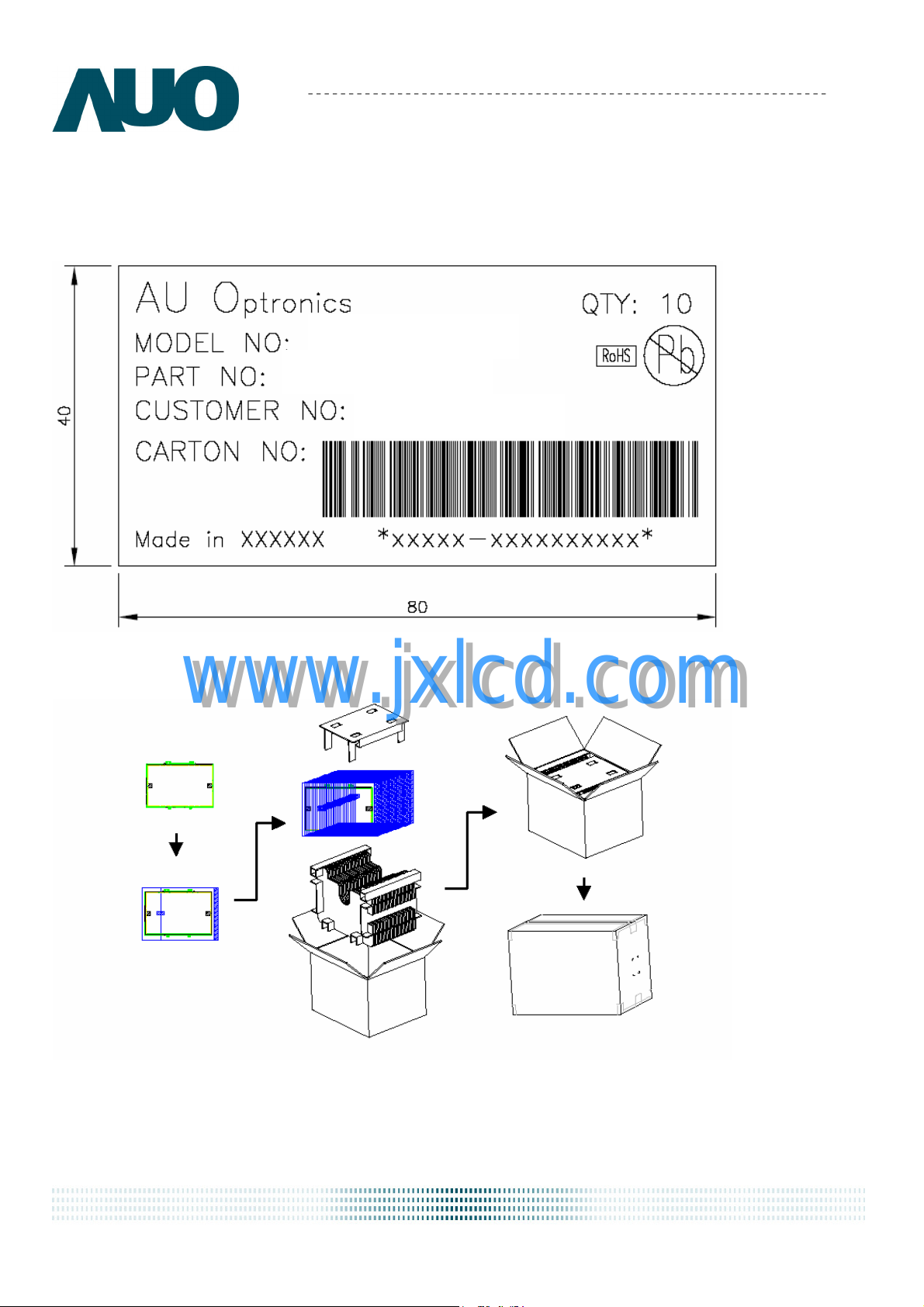

11.2. Carton package

Carton Label: 80mm * 40mm

Product Specification

AU OPTRONICS CORPORATION

B141EW04 V7

97.14B28.700

P/N 42T0338

The outside dimension of carton is 454(L)mm* 388(W)mm* 352(H)mm, carton and cushion weight are 2920g.

www.jxlcd.com

document version 1.0 30

Product Specification

AU OPTRONICS CORPORATION

11.3 Shipping package of palletizing

By air : 6 *4 layers, one pallet put 24 boxes, total 480 pcs module. By sea : 6 *5 layers, one pallet put 30 boxes, total 600 pcs module.

Stretch film

B141EW04 V7

Top cardboard

Bottom cardboard

Label

www.jxlcd.com

PET band

Corner angle

Wooden pallet

document version 1.0 31

Product Specification

AU OPTRONICS CORPORATION

12. Appendix: EDID description

Byte# Byte# Data Data Data

(decimal) (HEX)

0 00

1 01

2 02

3 03

4 04

5 05

6 06

7 07

8 08

9 09

10 0A

11 0B

12 0C

13 0D

14 0E

15 0F

16 10

17 11

18 12

19 13

20 14

21 15

22 16

23 17

24 18

25 19

26 1A

27 1B

28 1C

29 1D

30 1E

31 1F

32 20

33 21

34 22

35 23

36 24

www.jxlcd.com

Field Name and Comments

Header

ID system Manufacturer Name

Compressed ASCII

ID Product Code (LSB)

ID Product Code (MSB)

LCD Module Serial No.

Week of Manufacture

Year of Manufacture

EDID Structure version

EDID Revision

Video Input Definition

Max H image size(㎝)

Max V image size(㎝)

Display gamma

Feature support(DPMS)

Red/Green low Bits

Blue/White Low Bits

Red X

Red Y

Green X

Green Y

Blue X

Blue Y

White X

White Y

Established Timing I

Established Timing II

B141EW04 V7

(decimal)

0 00 00000000

255 FF 11111111

0 00 00000000

48 30 00110000

174 AE 10101110

49 31 00110001

64 40 01000000

0 00 00000000

1 01 00000001

16 10 00010000

1 01 00000001

3 03 00000011

128 80 10000000

30 1E 00011110

19 13 00010011

120 78 01111000

234 EA 11101010

135 87 10000111

197 C5 11000101

148 94 10010100

87 57 01010111

79 4F 01001111

140 8C 10001100

39 27 00100111

37 25 00100101

80 50 01010000

84 54 01010100

0 00 00000000

(HEX) (BIN)

document version 1.0 32

Product Specification

Digital

AU OPTRONICS CORPORATION

B141EW04 V7

37 25

38 26

39 27

40 28

41 29

42 2A

43 2B

44 2C

45 2D

46 2E

47 2F

48 30

49 31

50 32

51 33

52 34

53 35

54 36

55 37

56 38

57 39

58 3A

59 3B

60 3C

61 3D

62 3E

63 3F

64 40

65 41

66 42

67 43

68 44

69 45

70 46

71 47

72 48

73 49

74 4A

75 4B

76 4C

Manufacturer's Timings

Standard Timing Identification 1

Standard Timing Identification 2

Standard Timing Identification 3

Standard Timing Identification 4

Standard Timing Identification 5

Standard Timing Identification 6

Standard Timing Identification 7

Standard Timing Identification 7 was not used

Standard Timing Identification 8 was not used

Pixel Clock/10,000 (LSB)

Pixel Clock/10,000 (MSB) /

Horizontal Active

Horizontal Blanking

Horizontal Active : Horizontal Blanking

www.jxlcd.com

Vertical Active

Vertical Blanking

Vertical Active : Vertical Blanking

Horizontal Sync. Offset

Horizontal Sync Pulse Width

Vertical Sync Offset : Sync Width

Horizontal Vertical Sync Offset/Width upper 2bits

Horizontal Image Size

Vertical Image Size

Horizontal & Vertical Image Size (upper 4bit)

Horizontal Border = 0

Vertical Border = 0

Non-interlaced, Normal display, no stereo, separate sync ,H/V pol negatives

Pixel Clock/10,000 (LSB) 50Hz

Pixel Clock/10,000 (MSB) / 50Hz

Horizontal Active

Horizontal Blanking

Horizontal Active : Horizontal Blanking

0 00 00000000

1 01 00000001

13 0D 00001101

27 1B 00011011

0 00 00000000

124 7C 01111100

80 50 01010000

32 20 00100000

22 16 00010110

48 30 00110000

32 20 00100000

54 36 00110110

0 00 00000000

48 30 00101111

190 BE 10111110

16 10 00010000

0 00 00000000

24 18 00011000

139 8B 10001011

22 16 00010110

0 00 00000000

124 7C 01111100

80 50 01010000

document version 1.0 33

Product Specification

Digital

AU OPTRONICS CORPORATION

B141EW04 V7

77 4D

78 4E

79 4F

80 50

81 51

82 52

83 53

84 54

85 55

86 56

87 57

88 58

89 59

90 5A

91 5B

92 5C

93 5D

94 5E

95 5F

96 60

97 61

98 62

99 63

100 64

101 65

102 66

103 67

104 68

105 69

106 6A

107 6B

108 6C

109 6D

110 6E

111 6F

112 70

113 71

114 72

115 73

116 74

Vertical Active

Vertical Blanking

Vertical Active : Vertical Blanking

Horizontal Sync. Offset

Horizontal Sync Pulse Width

Vertical Sync Offset : Sync Width

Horizontal Vertical Sync Offset/Width upper 2bits

Horizontal Image Size

Vertical Image Size

Horizontal & Vertical Image Size (upper 4bit)

Horizontal Border = 0

Vertical Border = 0

Non-interlaced, Normal display, no stereo, separate sync, H/V pol negatives

Detailed Timing Descriptor #3

(Horizontal active pixel /8)-31

Image Aspect Ratio(15:9)

Low Refresh Rate #1(50Hz)

www.jxlcd.com

(Horizontal active pixel /8)-31

Image Aspect Ratio(16:10)

Low Refresh Rate #2(40Hz)

Brightness(1/10nit)

Feature flag(TN mode)

Reserved 00h

EISA manufacturer code(3 Character ID)

Compressed ASCII

Panel Supplier Reserved - Product code

(Hex, LSB first)

Detailed Timing Descriptor #4

(Supplier S/N)

32 20 00100000

22 16 00010110

48 30 00110000

32 20 00100000

54 36 00110110

0 00 00000000

48 30 00101111

190 BE 10111110

16 10 00010000

0 00 00000000

24 18 00011000

0 00 00000000

15 0F 00001111

0 00 00000000

129 81 10000001

10 0A 00001010

50 32 00110010

129 81 10000001

10 0A 00001010

40 28 00101000

18 12 00010010

1 01 00000001

0 00 00000000

6 06 00000110

175 AF 10101111

68 44 01000100

71 47 00100100

0 00 00000000

254 FE 11111110

0 00 00000000

66 42 01000010

49 31 00110001

52 34 00110100

49 31 00110001

document version 1.0 34

Product Specification

AU OPTRONICS CORPORATION

B141EW04 V7

117 75

118 76

119 77

120 78

121 79

122 7A

123 7B

124 7C

125 7D

126 7E

127 7F

(Supplier S/N)

Extension flag = 00

Checksum

69 45 01000101

87 57 01010111

48 30 00110000

52 34 00110010

32 20 00100000

86 56 01010110

55 37 00110100

32 20 00100000

10 0A 00001010

0 00 00000000

153 99 11000001

www.jxlcd.com

document version 1.0 35

AU Optronics B141EW04-V7 Product Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
