Product Specification
) Preliminary Specifications
(
( V ) Final Specifications
Module 13.3”(13.25”) HD 16:9 Color TFT-LCD
with LED Backlight design
AU OPTRONICS CORPORATION
Model Name
Note ( )
Customer Date
www.jxlcd.com
www.jxlcd.com
Checked &
Approved by
B133XW04 V0 (H/W:0A)
LED Backlight with driving circuit design
Date
Approved by Date
Howard LEE
Prepared by
14/04/2010
Note: This Specification is subject to change
without notice.
YW LEE
NBBU Marketing Division
AU Optronics corporation
14/04/2010
B133XW04 V0 Document Version : 1.0
1 of 31
Product Specification
AU OPTRONICS CORPORATION
Contents
1. Handling Precautions .............................................................. 2
2. General Description ................................................................ 2
2.1 General Specification ..........................................................................................................................2
2.2 Optical Characteristics ........................................................................................................................2
3. Functional Block Diagram ....................................................... 2
4. Absolute Maximum Ratings..................................................... 2
4.1 Absolute Ratings of TFT LCD Module...............................................................................................2
4.2 Absolute Ratings of Environment .......................................................................................................2
5. Electrical Characteristics......................................................... 2
5.1 TFT LCD Module................................................................................................................................2
5.2 Backlight Unit .....................................................................................................................................2
6. Signal Interface Characteristic................................................ 2
6.1 Pixel Format Image .............................................................................................................................2
6.2 The Input Data Format ........................................................................................................................2
6.3 Integration Interface Requirement.......................................................................................................2
6.4 Interface Timing ..................................................................................................................................2
7. Panel Reliability Test .............................................................. 2
7.1 Vibration Test ......................................................................................................................................2
7.2 Shock Test ...........................................................................................................................................2
www.jxlcd.com
7.3 Reliability Test.....................................................................................................................................2
www.jxlcd.com
8. Mechanical Characteristics...................................................... 2
8.1 LCM Outline Dimension.....................................................................................................................2
9. Shipping and Package ............................................................. 2
9.1 Shipping Label Format........................................................................................................................2
9.2 Carton Package....................................................................................................................................2
9.3 Shipping Package of Palletizing Sequence..........................................................................................2
10. Appendix: EDID Description.................................................. 2
B133XW04 V0 Document Version : 1.0
2 of 31
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
Version and Date Page
0.1 2009/12/3 All First Edition for Customer
1.0 2010/04/14 All Final Edition for Customer
www.jxlcd.com
www.jxlcd.com
Old description New Description Remark
B133XW04 V0 Document Version : 1.0
3 of 31
Product Specification
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input
connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration
or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on
hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure
human earth when handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate
AU OPTRONICS CORPORATION
nor tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure (Notebook PC Bezel, for
example), do not twist nor bend the TFT Module even momentary. At designing the
enclosure, it should be taken into consideration that no bending/twisting forces are
applied to the TFT Module from outside. Otherwise the TFT Module may be
damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The
LCD module should be supplied by power complied with requirements of Limited Power
Source (IEC60950 or UL1950), or be applied exemption.
13) Disconnecting power supply before handling LCD modules, it can prevent electric shock,
DO NOT TOUCH the electrode parts, cables, connectors and LED circuit part of TFT
module that a LED light bar build in as a light source of back light unit. It can prevent
electrostic breakdown.
www.jxlcd.com
www.jxlcd.com
B133XW04 V0 Document Version : 1.0
4 of 31
Product Specification
Thickness
2. General Description
B133XW04 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel,
a driver circuit, and LED backlight system. The screen format is intended to support the 16:9
HD, 1366(H) x768(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight
driving circuit. All input signals are LVDS interface compatible.
B133XW04 V0 is designed for a display unit of notebook style personal computer and
industrial machine.
AU OPTRONICS CORPORATION
2.1 General Specification
The following items are characteristics summary on the table at 25 ℃ condition:
Items Unit Specifications
Screen Diagonal [mm]
Active Area [mm]
Pixels H x V
Pixel Pitch [mm]
Pixel Format
Display Mode
www.jxlcd.com
White Luminance (I
(Note: ILED is LED current)
Luminance Uniformity
Contrast Ratio
Response Time [ms]
Nominal Input Voltage VDD [Volt]
www.jxlcd.com
LED
=20mA)
13.3W”(13.25)
293.42 x 164.97
1366 x 3(RGB) x 768
0.2148 x 0.2148
R.G.B. Vertical Stripe
Normally White
[cd/m2]
200 typ. (5 points average)
170 min. (5 points average)
1.25 max. (5 points)
500 typ
8 typ / 16 Max
+3.3 typ.
Power Consumption [Watt]
Weight [Grams]
Physical Size
Include bracket
Electrical Interface
Glass Thickness [mm]
Surface Treatment
Support Color
B133XW04 V0 Document Version : 1.0
[mm]
4.0 max. (Include Logic and Blu power)
350 max.
Min. Typ. Max.
Length --- 307.6 308.1
Width --- 183.1 183.6
--- --- 5.2
1 channel LVDS
0.5
Glare, Hardness 3H
262K colors ( RGB 6-bit )
5 of 31
Product Specification
Temperature Range
Operating
Storage (Non-Operating)
RoHS Compliance RoHS Compliance
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃ (Room Temperature) :
AU OPTRONICS CORPORATION
[oC]
[oC]
0 to +50
-20 to +60
Item Symbol
White Luminance
I
LED
=20mA
Viewing Angle
Luminance
Uniformity
Contrast Ratio CR
Cross talk %
Response Time TRT Rising + Falling
www.jxlcd.com
www.jxlcd.com
Red
Color /
Chromaticity
Coodinates
Green
Blue
White
θθθθR
θθθθL
ψψψψH
ψψψψL
δδδδ5P
Rx
Ry
Gx
Gy
Bx
By
Wx
Wy
Conditions Min. Typ. Max. Unit Note
5 points average
Horizontal (Right)
CR = 10 (Left)
Vertical (Upper)
CR = 10 (Lower)
5 Points
400 500 ---
--- --- 4
CIE 1931
170 200 ---
40
40
10
30
--- --- 1.25
--- 8 16
0.555 0.585 0.615
0.310 0.340 0.370
0.295 0.325 0.355
0.525 0.555 0.585
0.125 0.155 0.185
0.115 0.145 0.175
0.283 0.313 0.343
0.299 0.329 0.359
45
45
15
35
---
---
---
---
cd/m
degree
msec
---
2
1, 4, 5.
4, 9
1, 3, 4
4, 6
4, 7
4, 8
4
NTSC %
B133XW04 V0 Document Version : 1.0
---- 45 ----
6 of 31
Product Specification
=
Maximum Brightness of thirteen points
Minimum Brightness of thirteen points
Maximum Bright
ness of five
points
=
Minimum Brightness of five points
Note 1: 5 points position (Ref: Active area)
H /4
H /4
AU OPTRONICS CORPORATION
W / 4 W /4 W / 4 W / 4
W
1 2
H
H /4
H /4
Note 2: 13 points position (Ref: Active area)
W /4
1 0
1 0
H /4
www.jxlcd.com
www.jxlcd.com
H /4
H
H /4
1
6
3
4
W
W /4
4 5
W /4
2
7
5
W /4
1 0
3
8
9
H /4
1 0
1 1
1 2
Note 3: The luminance uniformity of 5 or13 points is defined by dividing the maximum luminance values by the
minimum test point luminance
δ
W5
1 0
1 3
δ
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change
during measuring. In order to stabilize the luminance, the measurement should be executed after lighting
B133XW04 V0 Document Version : 1.0
W13
7 of 31
Product Specification
Field=2
°
Contrast ratio (CR)=
Brightness on the “White” state
Brightness on the “Black” state
AU OPTRONICS CORPORATION
Backlight for 30 minutes in a stable, windless and dark room, and it should be measured in the center of screen.
Photo detector
Note 5： Definition of Average Luminance of White (YL):
Measure the luminance of gray level 63 at 5 points，Y
L (x) is corresponding to the luminance of the point X at Figure in Note (1).
Note 6： Definition of contrast ratio:
Note 7： Definition of Cross Talk (CT)
CT = | YB – YA | / YA × 100 (%)
Where
www.jxlcd.com
www.jxlcd.com
Contrast ratio is calculated with the following formula.
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
L
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
B133XW04 V0 Document Version : 1.0
8 of 31
Product Specification

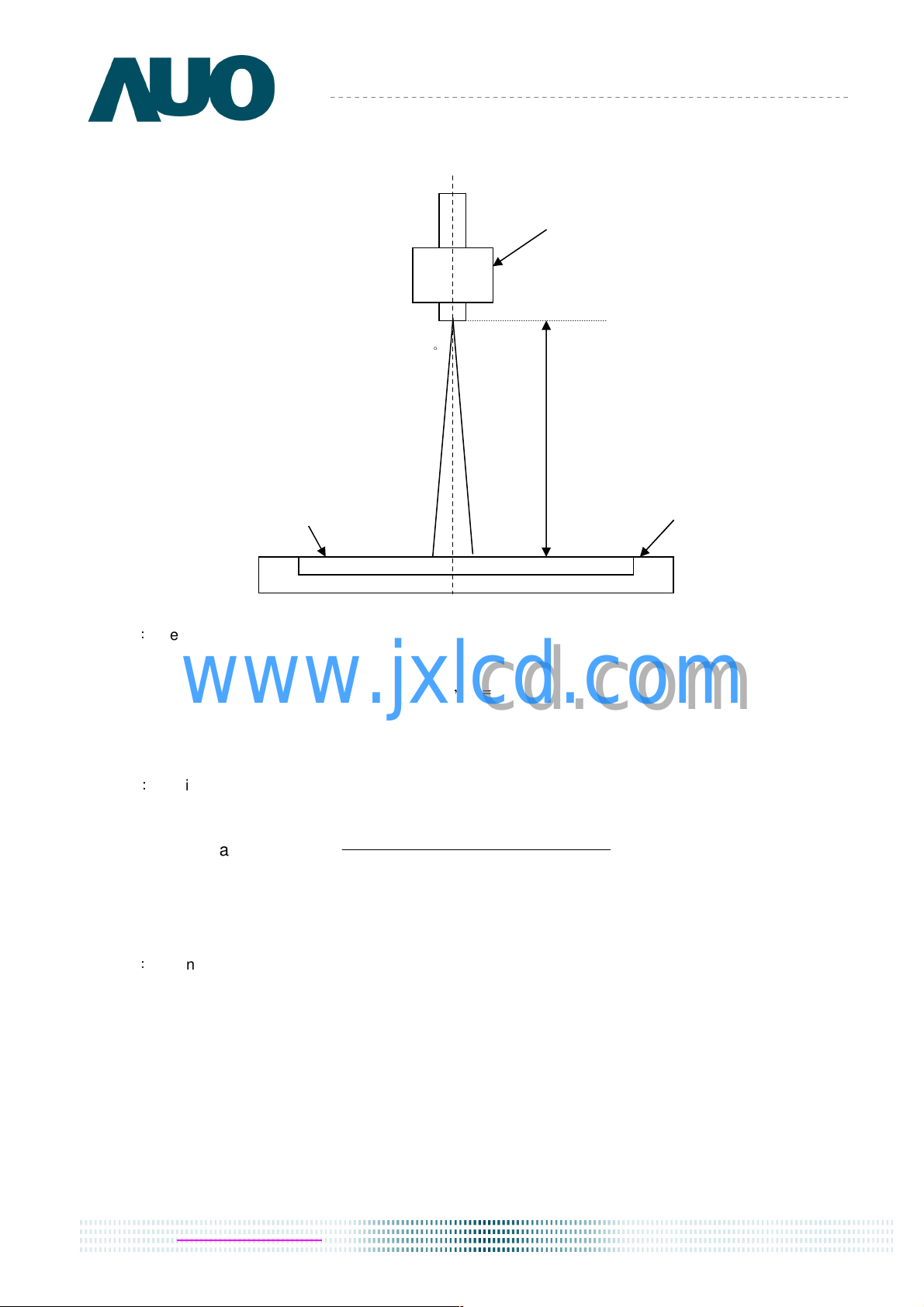

Note 8: Definition of response time:
The output signals of BM-7 or equivalent are measured when the input signals are changed from “Black” to
“White” (falling time) and from “White” to “Black” (rising time), respectively. The response time interval between
the 10% and 90% of amplitudes. Refer to figure as below.
AU OPTRONICS CORPORATION
"Black"
100%
S
i
90%
g
n
a
l
(
R
e
l
a
t
i
v
www.jxlcd.com
e
www.jxlcd.com
v
a
l
u
10%
e
)
0%
Tr
Tf
"White""White"
B133XW04 V0 Document Version : 1.0
9 of 31
Product Specification

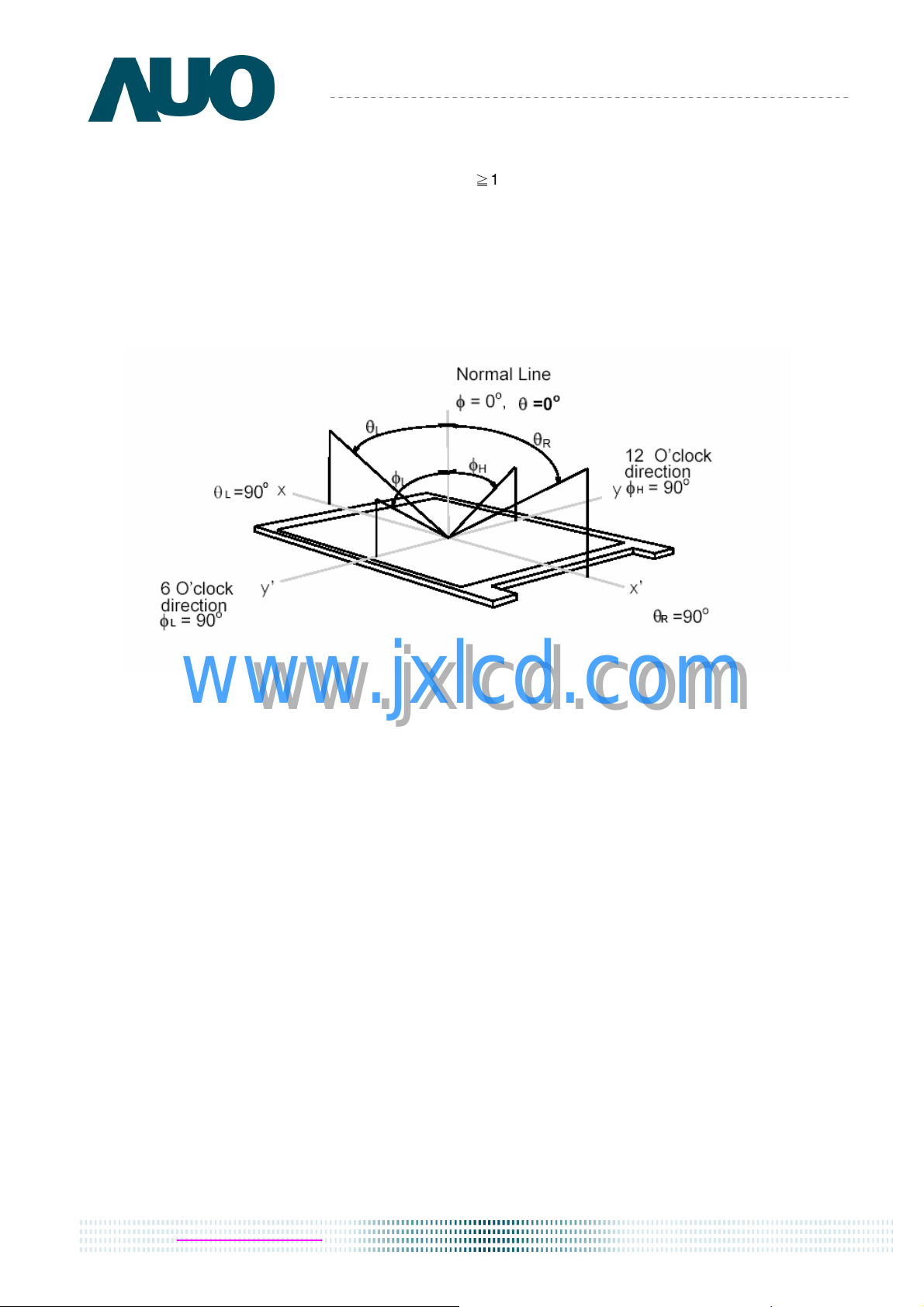

Note 9. Definition of viewing angle
Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180° horizontal and
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows; 90°
(θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is
AU OPTRONICS CORPORATION
typically perpendicular to the display surface with the screen rotated about its center to develop the desired
measurement viewing angle.
www.jxlcd.com
www.jxlcd.com
B133XW04 V0 Document Version : 1.0
10 of 31
Product Specification
3. Functional Block Diagram
The following diagram shows the functional block of the 13.3 inches wide Color TFT/LCD 40 Pin one
channel Module
AU OPTRONICS CORPORATION
www.jxlcd.com
www.jxlcd.com
B133XW04 V0 Document Version : 1.0
11 of 31
Product Specification
4. Absolute Maximum Ratings
An absolute maximum rating of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min Max Unit Conditions
AU OPTRONICS CORPORATION
Logic/LCD Drive Voltage
Vin -0.3 +4.0 [Volt] Note 1,2
4.2 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Temperature
Operation Humidity HOP 5 95 [%RH] Note 4
Storage Temperature
Storage Humidity HST
Note 1: At Ta (25℃ )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: LED specification refer to section 5.2
Note 4: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
www.jxlcd.com
www.jxlcd.com
TOP 0 +50 [oC] Note 4
TST -20 +60 [oC] Note 4
5 95
Twb=39°C
[%RH]
Note 4
Operating Range
B133XW04 V0 Document Version : 1.0
Storage Range
12 of 31
Product Specification
Voltage
-
90%
10%
5. Electrical Characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
The power specification are measured under 25℃ and frame frenquency under 60Hz
Symble Parameter Min Typ Max Units Note
VDD
Logic/LCD Drive
AU OPTRONICS CORPORATION
3.0
3.3 3.6 [Volt]
PDD
IDD
I
Rush
VDDrp
Note 1 : Maximum Measurement Condition：Black Pattern at 3.3V driving voltage. (P
Note 2：Measure Condition
VDD Power
IDD Current
Inrush Current
Allowable
Logic/LCD Drive
Ripple Voltage
www.jxlcd.com
www.jxlcd.com
- - 242
- -
- -
- 0.8 [Watt]
[mA] Note 1
[mA]
[mV]
p-p
2000
100
Note 1
Note 2
max=V3.3
x I
black
)
3.3V
0V
0.5ms
Vin rising time
B133XW04 V0 Document Version : 1.0
13 of 31
Product Specification
5.1.2 Signal Electrical Characteristics
Input signals shall be low or High-impedance state when VDD is off.
Signal electrical characteristics are as follows;
AU OPTRONICS CORPORATION
Parameter
VTH
VTL
|VID|
VCM

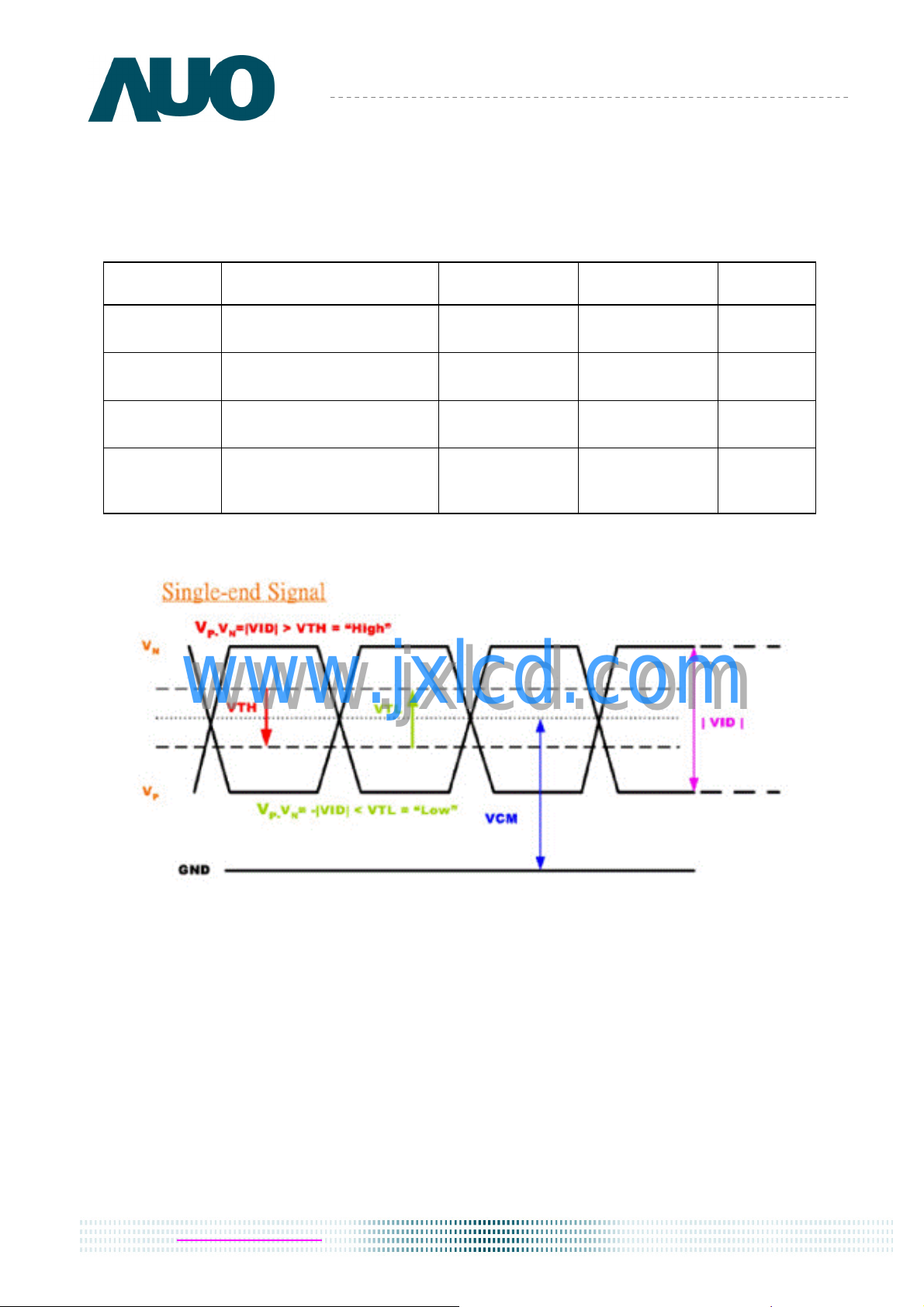

Note: LVDS Signal Waveform
www.jxlcd.com
Differential Input High
Threshold (Vcm=+1.2V)
Differential Input Low
Threshold (Vcm=+1.2V)
Differential Input
Voltage
Differential Input
Common Mode Voltage
www.jxlcd.com
Condition Min Max Unit
---
-100
100 600
1.125
100
---
1.375
[mV]
[mV]
[mV]
[V]
B133XW04 V0 Document Version : 1.0
14 of 31
AU OPTRONICS CORPORATION
5.2 Backlight Unit
5.2.1 LED characteristics
Parameter
Product Specification
Symbol
Min Typ Max Units
Condition
Backlight Power
Consumption
LED Life-Time
Note 1: Calculator value for reference P
Note 2: The LED life-time define as the estimated time to 50% degradation of initial luminous.
5.2.2 Backlight input signal characteristics
Parameter
LED Power Supply VLED 6.0 12.0 21.0 [Volt]
www.jxlcd.com
LED Enable Input
High Level
LED Enable Input
Low Level
PWM Logic Input
High Level
PWM Logic Input
Low Level
www.jxlcd.com
PLED - - 2.2
N/A 10,000 - -
= VF (Normal Distribution) * IF (Normal Distribution) / Efficiency
LED
Symbol
VLED_EN
VPWM_EN
Min Typ Max Units Remark
2.5 - 5.5 [Volt]
- - 0.8 [Volt]
2.5 - 5.5
- - 0.8
[Watt]
Hour
(Ta=25℃), Note 1
Vin =12V
(Ta=25℃), Note 2
IF=20 mA
[Volt]
[Volt]
Define as
Connector
Interface
(Ta=25℃)
PWM Input Frequency
PWM Duty Ratio
B133XW04 V0 Document Version : 0.1
FPWM 100 - 20K
Duty 5 -- 100
Hz
%
15 of 31
Product Specification
6. Signal Interface Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
AU OPTRONICS CORPORATION
1st Line
768th Line
www.jxlcd.com
www.jxlcd.com
1
R G B R G B
R G B R G B
1366
R G B R G B
R G B R G B
B133XW04 V0 Document Version : 0.1
16 of 31
Product Specification
Data Clock
6.2 The Input Data Format
Signal Name
R5
R4
R3
R2
R1
R0
Description
Red Data 5 (MSB)
Red Data 4
Red Data 3
Red Data 2
Red Data 1
Red Data 0 (LSB)
Red-pixel Data
AU OPTRONICS CORPORATION
Red-pixel Data
Each red pixel's brightness data consists of
these 6 bits pixel data.
G5
G4
G3
G2
G1
G0
B5
B4
B3
B2
B1
B0
RxCLKIN
DE Display Timing This signal is strobed at the falling edge of
VS Vertical Sync The signal is synchronized to RxCLKIN .
HS Horizontal Sync The signal is synchronized to RxCLKIN .
Note: Output signals from any system shall be low or High-impedance state when VDD is off.
Green Data 5 (MSB)
Green Data 4
Green Data 3
Green Data 2
www.jxlcd.com
www.jxlcd.com
Green Data 1
Green Data 0 (LSB)
Green-pixel Data
Blue Data 5 (MSB)
Blue Data 4
Blue Data 3
Blue Data 2
Blue Data 1
Blue Data 0 (LSB)
Blue-pixel Data
Green-pixel Data
Each green pixel's brightness data consists of
these 6 bits pixel data.
Blue-pixel Data
Each blue pixel's brightness data consists of
these 6 bits pixel data.
The signal is used to strobe the pixel data and
DE signals. All pixel data shall be valid at the
falling edge when the DE signal is high.
RxCLKIN. When the signal is high, the pixel
data shall be valid to be displayed.
B133XW04 V0 Document Version : 0.1
17 of 31
Product Specification
6.3 Integration Interface Requirement
6.3.1 Connector Description
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following
components.
Connector Name / Designation For Signal Connector
AU OPTRONICS CORPORATION
Manufacturer
Type / Part Number
Mating Housing/Part Number
6.3.2 Pin Assignment
LVDS is a differential signal technology for LCD interface and high speed data transfer device.
PIN# Signal Name
1 NC No Connection (Reserve)
2 VDD Power Supply +3.3V
3 VDD Power Supply +3.3V
4 VEDID EDID +3.3V Power
5 NC No Connect (Reserve)
6 CLK_EDID EDID Clock Input
7 DAT_EDID EDID Data Input
www.jxlcd.com
www.jxlcd.com
IPEX 20455-040E-12R or Compatible
IPEX 20453-040T-11or Compatible
IPEX or Compatible
Description
8 RxOIN0- -LVDS Differential Data INPUT(Odd R0-R5,G0)
9 RxOIN0+ +LVDS Differential Data INPUT(Odd R0-R5,G0)
10 VSS Ground
11 RxOIN1- -LVDS Differential Data INPUT(Odd G1-G5,B0-B1)
12 RxOIN1+ +LVDS Differential Data INPUT(Odd G1-G5,B0-B1)
13 VSS Ground
14 RxOIN2- -LVDS Differential Data INPUT(Odd B2-B5,HS,VS,DE)
15 RxOIN2+ +LVDS Differential Data INPUT(Odd B2-B5,HS,VS,DE)
16 VSS Ground
17 RxOCKIN- -LVDS Odd Differential Clock INPUT
18 RxOCKIN+ -LVDS Odd Differential Clock INPUT
19 NC No connection
20 NC No connection
21 NC No connection
22 NC No connection
B133XW04 V0 Document Version : 0.1
18 of 31
Product Specification
Connector
VLED
NC
23 NC No connection
24 NC No connection
25 NC No connection
26 NC No connection
27 NC No connection
28 NC No connection
29 NC No connection
30 NC No connection
31 VLED_GND LED Ground
32 VLED_GND LED Ground
33 VLED_GND LED Ground
34 NC No Connection (Reserve)
35 VPWM_EN PWM logic input level
36 VLED_EN LED enable input level
AU OPTRONICS CORPORATION
37 DCR_EN Dynamic Contrast Ratio Input Level
38 VLED LED Power Supply 6V-21V
39 VLED LED Power Supply 6V-21V
40 VLED LED Power Supply 6V-21V
www.jxlcd.com
www.jxlcd.com
Pin 40
Note1: Input signals shall be low or High-impedance state when VDD is off.
B133XW04 V0 Document Version : 0.1
Pin 1
19 of 31
Product Specification
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings should match the 1366x768 /60Hz manufacturing guide line timing.
Parameter Symbol Min. Typ. Max. Unit
Frame Rate - --- 60 --- Hz
AU OPTRONICS CORPORATION
Clock frequency 1/ T
Vertical
Section
Horizontal
Section
Note : DE mode only
6.4.2 Timing diagram
T
CLOCK
DOTCLK
www.jxlcd.com
www.jxlcd.com
Input
Data
DE
DE
65 69.3 80 MHz
Clock
Period TV 776 800 1000
Active TVD 768
Blanking TVB 8 32 323
Period TH 1426 1562 2000
Active THD 1366
Blanking THB 60 196 634
Input Timing Definition ( DE Mode)
Invaild
Data
T
HB
Pixel
1
T
VB
Pixel
2
T
Pixel
3
T
HD
H
T
V
Pixel
N-1
T
Pixel
N
VD
T
Line
T
Clock
Invaild
Data
Pixel
1
B133XW04 V0 Document Version : 0.1
20 of 31
Product Specification
6.5 Power ON/OFF Sequence
Power on/off sequence is as follows. Interface signals and LED on/off sequence are also shown in
the chart. Signals from any system shall be Hi-Z state or low level when VDD is off
AU OPTRONICS CORPORATION
www.jxlcd.com
www.jxlcd.com
Power Sequence Timing
Value
Parameter
T1
T2
T3
T4
T5
T6
T7
T8
T9
T10
T11
T12
Min. Max.
0.5 10
0 50
200 -
200 -
0 50
0 10
500 -
10 -
0 180
0 180
10 -
0.5 10
Units
ms
B133XW04 V0 Document Version : 0.1
21 of 31
7. Panel Reliability Test
7.1 Vibration Test
Test Spec:
Test method: Non-Operation
Acceleration: 1.5 G
Frequency: 10 - 500Hz Random
Sweep: 30 Minutes each Axis (X, Y, Z)
7.2 Shock Test
Test Spec:
Test method: Non-Operation
Acceleration: 220 G , Half sine wave
Product Specification
AU OPTRONICS CORPORATION
Active time: 2 ms
Pulse: X,Y,Z .one time for each side
7.3 Reliability Test
Items
www.jxlcd.com
www.jxlcd.com
Temperature
Humidity Bias
High Temperature
Operation
Low Temperature
Operation
High Temperature
Storage
Low Temperature
Storage
Thermal Shock
Test
Required Condition Note
Ta= 40℃℃℃℃, 90%RH, 300h
Ta= 50℃℃℃℃, Dry, 300h
Ta= 0℃℃℃℃, 300h
Ta= 60℃℃℃℃, 35%RH, 300h
Ta= -20℃℃℃℃, 50%RH, 250h
Ta=-20℃℃℃℃to 60℃℃℃℃, Duration at 30 min, 100 cycles
ESD
Note1: According to EN 61000-4-2 , ESD class B: Some performance degradation allowed. Self-recoverable.
No data lost, No hardware failures.
Remark: MTBF (Excluding the LED): 30,000 hours with a confidence level 90%
B133XW04 V0 Document Version : 0.1
Contact : ±8 KV
Air : ±15 KV
Note 1
22 of 31
Product Specification
8. Mechanical Characteristics
8.1 LCM Outline Dimension
8.1.1 Standard Front View
AU OPTRONICS CORPORATION
www.jxlcd.com
www.jxlcd.com
B133XW04 V0 Document Version : 0.1
23 of 31
Product Specification
8.1.2 Standard Rear View & Key components remark and remind
Prevention damage the IC, connector, Capacitor…., we recommend your design (Ex: cable, rib, hardness parts) far away those section those have
remarked at this drawing.
AU OPTRONICS CORPORATION
www.jxlcd.com
www.jxlcd.com
Note: Prevention IC damage, IC positions not allowed any overlap over these areas.
B133XW04 V0 Document Version : 0.1
24 of 31
Product Specification
8.2 Screw Hole Depth and Center Position
Maximum Screw penetration from side surface is 2.6± 0.3 mm
The center of screw hole center location is 3.1 ± 0.2 mm from front surface
Screw Torque: Maximum 2.5 kgf-cm
AU OPTRONICS CORPORATION
www.jxlcd.com
www.jxlcd.com
B133XW04 V0 Document Version : 0.1
25 of 31
Product Specification
AU OPTRONICS CORPORATION
9. Shipping and Package
9.1 Shipping Label Format
www.jxlcd.com
www.jxlcd.com
B133XW04 V0 Document Version : 0.1
26 of 31
Product Specification
9.2 Carton Package
The outside dimension of carton is 437 (L) mm x 359 (W) mm x 285 (H) mm
www.jxlcd.com
www.jxlcd.com
AU OPTRONICS CORPORATION
9.3 Shipping Package of Palletizing Sequence
B133XW04 V0 Document Version : 0.1
27 of 31
Product Specification
10. Appendix: EDID Description
AU OPTRONICS CORPORATION
Address
HEX
00
01
02
03
04
05
06
07
08
09
0A
0B
0C
0D
FUNCTION Value
HEX
Header 00 00000000 0
FF 11111111 255
FF 11111111 255
FF 11111111 255
FF 11111111 255
FF 11111111 255
FF 11111111 255
00 00000000 0
EISA Manuf. Code LSB 06 00000110 6
Compressed ASCII AF 10101111 175
Product Code
hex, LSB first
32-bit ser # 00 00000000 0
00 00000000 0
2C 00101100 44
40 01000000 64
Value Value
BIN DEC
Note
0E
0F
10
11
12
13
14
15
16
17
18
19
1A
1B
1C
00 00000000 0
00 00000000 0
www.jxlcd.com
www.jxlcd.com
Video input def. (digital I/P, non-TMDS, CRGB)
Max H image size (rounded to cm)
Max V image size (rounded to cm)
Display Gamma (=(gamma*100)-100)
Week of manufacture 00 00000000 0
Year of manufacture 14 00010100 20
EDID Structure Ver. 01 00000001 1
EDID revision # 03 00000011 3
80 10000000 128
1D 00011101 29
10 00010000 16
78 01111000 120
Feature support (no DPMS, Active OFF, RGB,
tmg Blk#1)
Red/green low bits (Lower 2:2:2:2 bits)
Blue/white low bits (Lower 2:2:2:2 bits)
Red x (Upper 8 bits)
Red y/ highER 8 bits 58 01011000 88
0A 00001010 10
15 00010101 21
85 10000101 133
97 10010111 151
1D
1E
1F
20
21
22
B133XW04 V0 Document Version : 0.1
Green x 53 01010011 83
Green y 8A 10001010 138
Blue x 26 00100110 38
Blue y 25 00100101 37
White x 50 01010000 80
White y 54 01010100 84
28 of 31
Product Specification
AU OPTRONICS CORPORATION
23
24
25
26
27
28
29
2A
2B
2C
2D
2E
2F
30
31
32
Established timing 1 00 00000000 0
Established timing 2 00 00000000 0
Established timing 3 00 00000000 0
Standard timing #1 01 00000001 1
01 00000001 1
Standard timing #2 01 00000001 1
01 00000001 1
Standard timing #3 01 00000001 1
01 00000001 1
Standard timing #4 01 00000001 1
01 00000001 1
Standard timing #5 01 00000001 1
01 00000001 1
Standard timing #6 01 00000001 1
01 00000001 1
Standard timing #7 01 00000001 1
33
34
35
36
37
38
39
3A
3B
3C
3D
3E
3F
40
41
42
01 00000001 1
Standard timing #8 01 00000001 1
01 00000001 1
Pixel Clock/10000 LSB
www.jxlcd.com
www.jxlcd.com
Pixel Clock/10000 USB
Horz active Lower 8bits
Horz blanking Lower 8bits
HorzAct:HorzBlnk Upper 4:4 bits
Vertical Active Lower 8bits
Vertical Blanking Lower 8bits
Vert Act : Vertical Blanking (upper 4:4 bit)
HorzSync. Offset
HorzSync.Width
VertSync.Offset : VertSync.Width
Horz&Vert Sync Offset/Width Upper 2bits
Horizontal Image Size Lower 8bits 25 00100101 37
12 00010010 18
1B 00011011 27
56 01010110 86
5A 01011010 90
50 01010000 80
00 00000000 0
19 00011001 25
30 00110000 48
30 00110000 48
20 00100000 32
36 00110110 54
00 00000000 0
43
44
45
46
Vertical Image Size Lower 8bits A4 10100100 164
Horizontal & Vertical Image Size (upper 4:4 bits) 10 00010000 16
Horizontal Border (zero for internal LCD) 00 00000000 0
Vertical Border (zero for internal LCD)
00 00000000 0
Signal (non-intr, norm, no stero, sep sync, neg
47
48
B133XW04 V0 Document Version : 0.1
pol)
18 00011000 24
Detailed timing/monitor 00 00000000 0
29 of 31
Product Specification
AU OPTRONICS CORPORATION
49
4A
4B
4C
4D
4E
4F
50
51
52
53
54
55
56
57
58
descriptor #2 00 00000000 0
00 00000000 0
0F 00001111 15
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
59
5A
5B
5C
5D
5E
5F
60
61
62
63
64
65
66
67
68
20 00100000 32
Detailed timing/monitor 00 00000000 0
descriptor #3 00 00000000 0
www.jxlcd.com
www.jxlcd.com
Manufacture 41 01000001 65 A
Manufacture 55 01010101 85 U
Manufacture 4F 01001111 79 O
00 00000000 0
FE 11111110 254
00 00000000 0
0A 00001010 10
20 00100000 32
20 00100000 32
20 00100000 32
20 00100000 32
20 00100000 32
20 00100000 32
69
6A
6B
6C
6D
6E
6F
B133XW04 V0 Document Version : 0.1
Detailed timing/monitor 00 00000000 0
20 00100000 32
20 00100000 32
20 00100000 32
descriptor #4 00 00000000 0
00 00000000 0
FE 11111110 254
30 of 31
Product Specification
AU OPTRONICS CORPORATION
70
71
72
73
74
75
76
77
78
79
7A
7B
7C
7D
7E
7F
00 00000000 0
Manufacture P/N 42 01000010 66 B
Manufacture P/N 31 00110001 49 1
Manufacture P/N 33 00110011 51 3
Manufacture P/N 33 00110011 51 3
Manufacture P/N 58 01011000 88 X
Manufacture P/N 57 01010111 87 W
Manufacture P/N 30 00110000 48 0
Manufacture P/N 34 00110100 52 4
Manufacture P/N 20 00100000 32
Manufacture P/N 56 01010110 86 V
Manufacture P/N 30 00110000 48 0
20 00100000 32
0A 00001010 10
Extension Flag 00 00000000 0
Checksum 56 01010110 86
www.jxlcd.com
www.jxlcd.com
B133XW04 V0 Document Version : 0.1
31 of 31
Loading...
