Product Specification
) Preliminary Specifications
(
( V ) Final Specifications
Module 13.3”(13.25”) HD 16:9 Color TFT-LCD
with LED Backlight design
AU OPTRONICS CORPORATION
Model Name
Note
Customer Date
www.jxlcd.com
www.jxlcd.com
Checked &
Approved by
B133XW03 V2 (H/W:0A)
LED Backlight with driving circuit design
Color Management (Virtual and Rich Color Solution )
Dynamic Contrast Ratio (Power Saving Solution)
Date
Approved by Date
Howard LEE
Prepared by
04/15/2010
Note: This Specification is subject to change
without notice.
YW LEE
NBBU Marketing Division
AU Optronics corporation
04/15/2010
B133XW03 V2 Document Version : 1.0
1 of 32
Product Specification
AU OPTRONICS CORPORATION
Contents
1. Handling Precautions .............................................................. 4
2. General Description ................................................................ 5
2.1 General Specification ..........................................................................................................................5
2.2 Optical Characteristics ........................................................................................................................6
3. Functional Block Diagram ..................................................... 11
4. Absolute Maximum Ratings................................................... 12
4.1 Absolute Ratings of TFT LCD Module.............................................................................................12
4.2 Absolute Ratings of Environment .....................................................................................................12
5. Electrical Characteristics....................................................... 13
5.1 TFT LCD Module..............................................................................................................................13
5.2 Backlight Unit ...................................................................................................................................16
6. Signal Interface Characteristic.............................................. 17
6.1 Pixel Format Image ...........................................................................................................................17
6.2 The Input Data Format ......................................................................................................................18
6.3 Integration Interface Requirement.....................................................................................................19
6.4 Interface Timing ................................................................................................................................21
6.5 Power ON/OFF Sequence .................................................................................................................22
7. Panel Reliability Test ............................................................ 23
7.1 Vibration Test ....................................................................................................................................23
www.jxlcd.com
7.2 Shock Test .........................................................................................................................................23
7.3 Reliability Test...................................................................................................................................23
www.jxlcd.com
8. Mechanical Characteristics.................................................... 24
8.1 LCM Outline Dimension...................................................................................................................24
9. Shipping and Package ........................................................... 26
9.1 Shipping Label Format......................................................................................................................26
9.2 Carton Package..................................................................................................................................27
9.3 Shipping Package of Palletizing Sequence........................................................................................27
10. Appendix............................................................................. 28
10.1 EDID Description............................................................................................................................28
10.2 Color Standardization Photographs.................................................................................................32
B133XW03 V2 Document Version : 1.0
2 of 32
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
Version and Date Page
0.1 2009/12/03 All First Edition for Customer
0.2 2010/02/10 6 TBD Add RGB spec.
1.0 2010/04/14 All Final Edition for Customer
www.jxlcd.com
www.jxlcd.com
Old description New Description Remark
B133XW03 V2 Document Version : 1.0
3 of 32
Product Specification
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input
connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration
or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on
hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure
human earth when handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate
AU OPTRONICS CORPORATION
nor tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure (Notebook PC Bezel, for
example), do not twist nor bend the TFT Module even momentary. At designing the
enclosure, it should be taken into consideration that no bending/twisting forces are
applied to the TFT Module from outside. Otherwise the TFT Module may be
damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The
LCD module should be supplied by power complied with requirements of Limited Power
Source (IEC60950 or UL1950), or be applied exemption.
13) Disconnecting power supply before handling LCD modules, it can prevent electric shock,
DO NOT TOUCH the electrode parts, cables, connectors and LED circuit part of TFT
module that a LED light bar build in as a light source of back light unit. It can prevent
electrostic breakdown.
www.jxlcd.com
www.jxlcd.com
B133XW03 V2 Document Version : 1.0
4 of 32
Product Specification
Thickness
2. General Description
B133XW03 V2 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel,
a driver circuit, and LED backlight system. The screen format is intended to support the 16:9
HD, 1366(H) x768(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight
driving circuit. All input signals are LVDS interface compatible.
B133XW03 V2 is designed for a display unit of notebook style personal computer and
industrial machine.
AU OPTRONICS CORPORATION
2.1 General Specification
The following items are characteristics summary on the table at 25 ℃ condition:
Items Unit Specifications
Screen Diagonal
Active Area
Pixels H x V
Pixel Pitch
Pixel Format
Display Mode
www.jxlcd.com
White Luminance (I
(Note: ILED is LED current)
Luminance Uniformity
Contrast Ratio
Response Time
Nominal Input Voltage VDD
www.jxlcd.com
LED
=20mA)
[mm]
[mm]
[mm]
[cd/m2]
[ms]
[Volt]
336.6 (13.25W”)
293.42 X 164.97
1366x3(RGB) x 768
0.2148X0.2148
R.G.B. Vertical Stripe
Normally White
200 typ. (5 points average)
170 min. (5 points average)
1.25 max. (5 points)
500 typ, 400 min.
8 typ / 16 Max
+3.3 typ.
Power Consumption
Weight
Physical Size
Include bracket
Electrical Interface
Glass Thickness
Surface Treatment
Support Color
B133XW03 V2 Document Version : 1.0
[Watt]
[Grams]
[mm]
[mm]
3.0 max. (Include Logic and Blu power)
310 max.
Min. Typ. Max.
Length 316.7 317.2 317.7
Width 188.2 188.7 189.2
- - 3.6
1 channel LVDS
0.5
Glare, Hardness 3H
262K colors ( RGB 6-bit )
5 of 32
Product Specification
Temperature Range
Operating
Storage (Non-Operating)
RoHS Compliance RoHS Compliance
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃ (Room Temperature) :
AU OPTRONICS CORPORATION
[oC]
[oC]
0 to +50
-20 to +60
Item Symbol
White Luminance
I
LED
=20mA
θθθθR
θθθθL
Conditions Min. Typ. Max. Unit Note
5 points average
Horizontal (Right)
CR = 10 (Left)
Viewing Angle
ψψψψH
ψψψψL
Luminance
Uniformity
Luminance
Uniformity
δδδδ5P
δδδδ
13P
Contrast Ratio CR
Cross talk %
Response Time TRT Rising + Falling
www.jxlcd.com
www.jxlcd.com
Vertical (Upper)
CR = 10 (Lower)
5 Points
13 Points
400 500 -
4
Rx
Red
Ry
Gx
Color /
Green
Gy
Chromaticity
Coodinates
Blue
Bx
By
CIE 1931
Wx
White
Wy
170 200 -
40
40
10
30
45
45
15
35
-
-
-
-
- - 1.25
- - 1.50
- 8 16
0.560 0.590 0.620
0.315 0.345 0.375
0.295 0.325 0.355
0.510 0.540 0.570
0.120 0.150 0.180
0.115 0.145 0.175
0.283 0.313 0.343
0.299 0.329 0.359
cd/m
degree
msec
2
1, 4, 5.
4, 9
1, 3, 4
2, 3, 4
4, 6
4, 7
4, 8
4
NTSC %
B133XW03 V2 Document Version : 1.0
- 45 -
6 of 32
Product Specification
=
Maximum Brightness of thirteen points
Minimum Brightness of thirteen points
Maximum Bright
ness of five
points
=
Minimum Brightness of five points
Note 1: 5 points position (Ref: Active area)
H /4
H /4
AU OPTRONICS CORPORATION
W / 4 W /4 W / 4 W / 4
W
1 2
H
H /4
H /4
Note 2: 13 points position (Ref: Active area)
W /4
1 0
1 0
H /4
www.jxlcd.com
www.jxlcd.com
H /4
H
H /4
1
6
3
4
W
W /4
4 5
W /4
2
7
5
W /4
1 0
3
8
9
H /4
1 0
1 1
1 2
Note 3: The luminance uniformity of 5 or13 points is defined by dividing the maximum luminance values by the
minimum test point luminance
δ
W5
1 0
1 3
δ
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change
during measuring. In order to stabilize the luminance, the measurement should be executed after lighting
B133XW03 V2 Document Version : 1.0
W13
7 of 32
Product Specification
Field=2
°
Contrast ratio (CR)=
Brightness on the “White” state
Brightness on the “Black” state
AU OPTRONICS CORPORATION

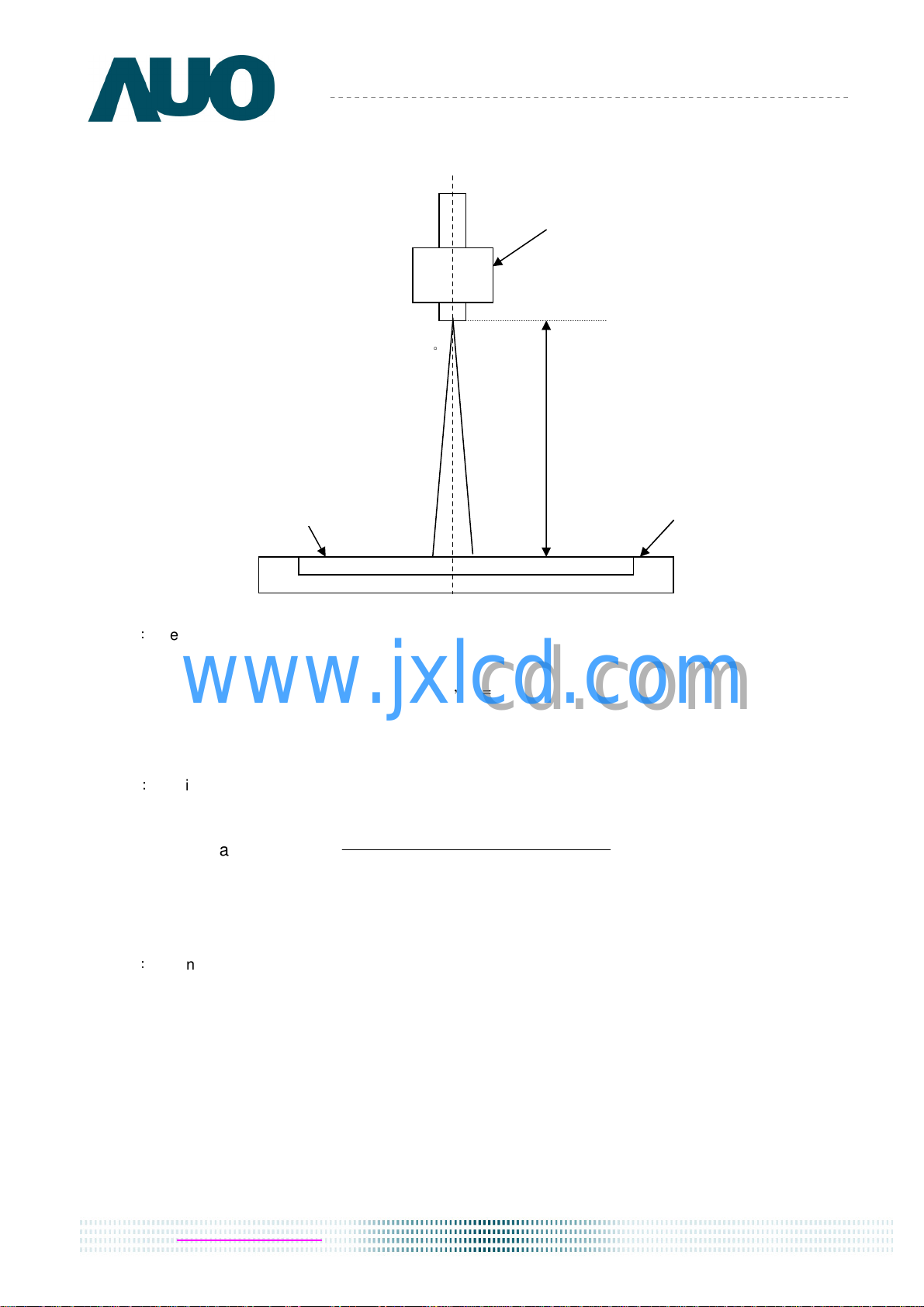

Backlight for 30 minutes in a stable, windless and dark room, and it should be measured in the center of screen.
Photo detector
Note 5： Definition of Average Luminance of White (YL):
Measure the luminance of gray level 63 at 5 points，Y
L (x) is corresponding to the luminance of the point X at Figure in Note (1).
Note 6： Definition of contrast ratio:
Note 7： Definition of Cross Talk (CT)
CT = | YB – YA | / YA × 100 (%)
Where
www.jxlcd.com
www.jxlcd.com
Contrast ratio is calculated with the following formula.
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
L
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
B133XW03 V2 Document Version : 1.0
8 of 32
Product Specification
Note 8: Definition of response time:
The output signals of BM-7 or equivalent are measured when the input signals are changed from “Black” to
“White” (falling time) and from “White” to “Black” (rising time), respectively. The response time interval between
the 10% and 90% of amplitudes. Refer to figure as below.
AU OPTRONICS CORPORATION
"Black"
100%
S
i
90%
g
n
a
l
(
R
e
l
a
t
i
v
www.jxlcd.com
e
www.jxlcd.com
v
a
l
u
10%
e
)
0%
Tr
Tf
"White""White"
B133XW03 V2 Document Version : 1.0
9 of 32
Product Specification

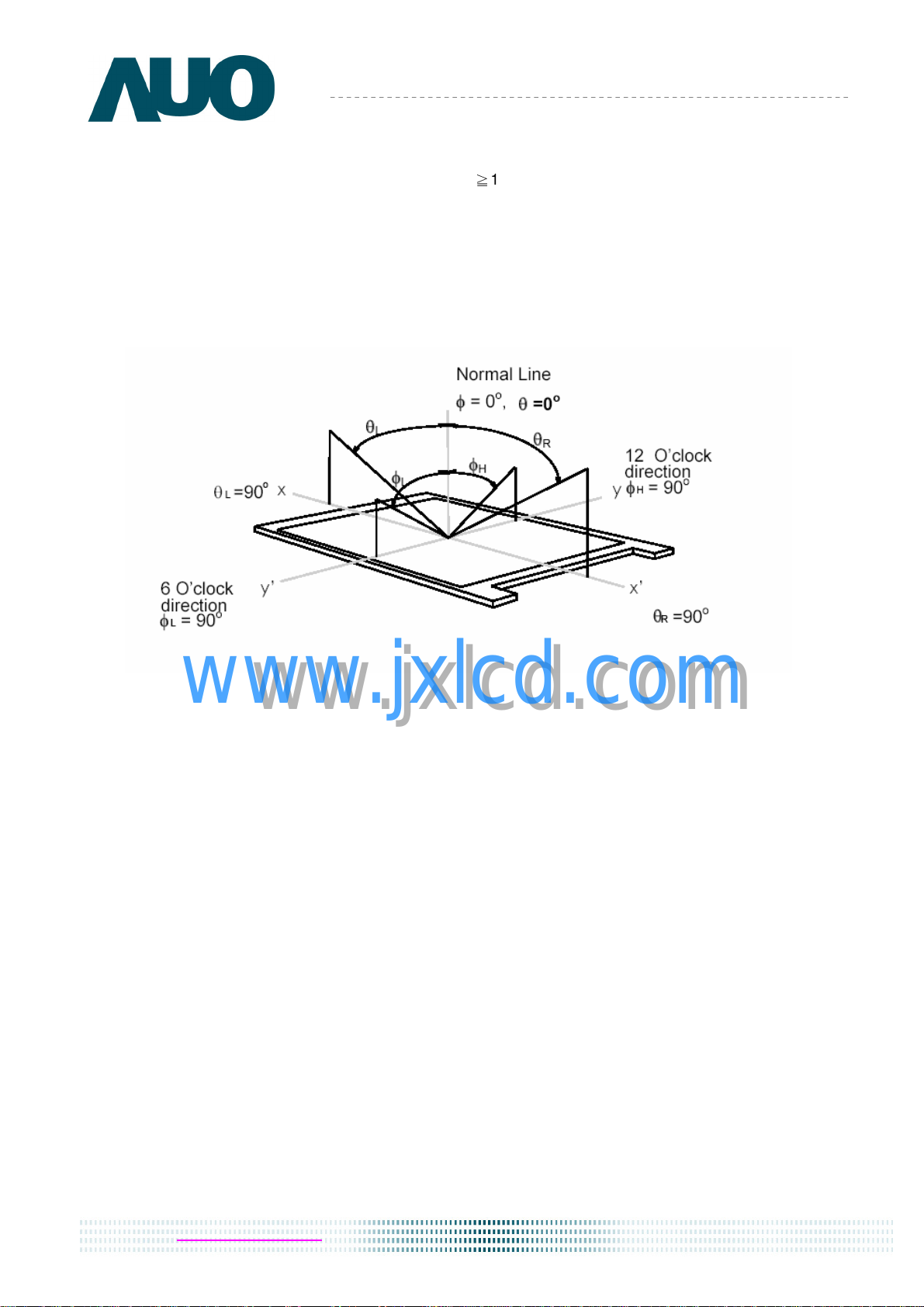

Note 9. Definition of viewing angle
Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180° horizontal and
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows; 90°
(θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is
AU OPTRONICS CORPORATION
typically perpendicular to the display surface with the screen rotated about its center to develop the desired
measurement viewing angle.
www.jxlcd.com
www.jxlcd.com
B133XW03 V2 Document Version : 1.0
10 of 32
