AU Optronics B133EW07-V1 Product Specification

AUO

Display Specification for B133EW07 V1

13.3” Wide (1280x800) TFT-LCD

www.jxlcd.com

LED Backlight with High Color Gamut

 | Size: A | METRIC | Scale: NONE | Page 1 of 54 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD, DWG Number: 646-0634 Rev.01

Revision History

DATE REV # Section # CHANGE DESCRIPTION

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 2 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

Table of Content

Revision History 2

1. General Description 6

2. ORDER OF PRECEDENCE OF DOCUMENTATION AUTHORITY 7

2.1. The Purchase Order 7

2.2. This Specification 7

2.3. Reference Documents 7

3. PHYSICAL DESCRIPTION 8

4. MECHANICAL REQUIREMENTS 9

5. ELECTRICAL REQUIREMENTS 11

5.1. Block Diagram 11

5.2. Display PCB Schematics 12

5.3. Display PCB Layout 13

5.4. Display Subsystem (PCB & TFT Panel) 13

5.4.1.

Pin-Out (Single Channel LVDS Interface) 13

5.4.2.

Connector Diagram 14

5.4.3.

Color Input Data Reference 15

www.jxlcd.com

5.4.4.

5.4.5.

5.4.6.

5.4.6.1. Signal Impedance 22

5.4.6.2. Timing Data 22

5.4.6.3. Video Timing Diagram 23

5.4.7.

5.4.8.

5.4.9.

5.5. Near-Field Noise 27

5.6. Backlight Subsystem 27

6. OPTICAL REQUIREMENTS 30

6.1. Optical Specifications 30

6.2. Measuring Conditions 31

N

. | Size: A | METRIC | Scale: NONE | Page 3 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

www.jxlcd.com

EDID Interface (Per Vesa EDID 1.x standard requirements) 17

Electrical Ratings 20

Signal Timing 22

Power Measurements (W/O backlight) 25

Power on-off sequence 26

Vcc Dip Condition 26

6.3.

6.3.1.

6.3.2.

6.3.3.

Definition 33

Center Point Luminance 33

Average Luminance 33

Luminance Uniformity 33

6.3.3.1. Global Luminance Uniformity: 33

6.3.3.2. Worst Neighbor Luminance Uniformity (The 4 points that are closest to the test point)

34

6.3.4.

6.3.5.

6.3.5.1. Panel to Panel White Color Uniformity 34

6.3.5.2. Max Color Difference with respect to the center within a panel 35

6.3.5.3. Max Color Difference between any two points within the panel 35

6.3.5.4. Max Color Difference between two neighbors 35

6.3.6.

6.3.7.

6.3.8.

6.3.9.

6.3.9.1. On and Off Response Time 36

6.3.9.2. Gray to Gray Response Time 36

6.3.10. Gray Scale Linearity or Gamma Value 37

Contrast Ratio 34

White Color Uniformity 34

RGB Color Chromaticity 35

Viewing Angle 35

Gray Scale Inversion 36

Response Time 36

www.jxlcd.com

6.3.11. Flicker 37

6.3.12. Cross-talk 38

6.4. Hot Spot Specifications: 38

7. ENVIRONMENTAL 40

7.1. Shock and Vibration 40

7.2. Temperature and Humidity 41

7.2.1.

General Performance Requirements 41

7.2.2.

Non-operational Testing 42

7.2.2.1. Low Temperature 42

7.2.2.2. High Temperature 42

7.2.2.3. High Temperature and High Humidity 42

7.2.2.4. Thermal Shock 42

7.2.3.

Operational Testing 42

N

. | Size: A | METRIC | Scale: NONE | Page 4 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

7.2.3.1.

Low Temperature 42

7.2.3.2. High Temperature 42

7.2.3.3. High Temperature and High Humidity 42

7.2.3.4. Four Corner Test (72 hrs – operating) 42

7.3. Altitude 43

8. RELIABILITY 43

8.1. Resistance to Normal Abuse 43

8.1.1.

Torsion Test 43

8.1.2.

Test Conditions: 43

8.1.3.

Test Set-up 44

8.1.4.

Static Load Deflection and Breakage 44

8.2. Electrostatic Discharge (ESD) 44

8.3. MTBF 44

8.4. LCD Glass Strength 45

9. COSMETIC REQUIREMENTS 50

10.

REGULATORY 51

10.1. Product Safety (Environmental, Ergonomics, Safety and Health) 51

10.2. RoHS Compliance and other Substance Regulations 51

10.3 Halogen Free 51

www.jxlcd.com

10.3. Environmental Markings and Recycling 51

10.4. Product Safety 52

10.5. Ergonomics 52

10.6. Electromagnetic Compatibility (EMC) 52

11 FACTORY/SERVICE REQUIREMENTS 54

12 REFERENCE DOCUMENTS 55

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 5 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

1. General Description

This document establishes the requirements for the display device for the B133EW07 V1

Category Parameter Specification

General

Electrical

Optical

Manufacturer AUO

Mfg. P/N B133EW07 V1

LCD TYPE Normally-White, Transmissive TN TFT-LCD

Diagonal 13.282” (33.74cm)

Pixel Format 1280 (RGB stripe, H) x 800 (V)

Pixel Pitch 0.2235(V) x 3x0.0745(H) mm

Color Depth 18-bits (6R, 6G, 6B), 262144 colors

Pooling requirement Rigid Post Spacer with strong pooling resistance

Packaging Protective film on front polarizer. Displays packaged

and air-tight sealed in anti-static bags.

Interface 3.3V single-channel LVDS

Power Consumption 4.36 W @ Black (typical, the logic plus the backlight

www.jxlcd.com

Luminance 275 nits @ 94% duty cycle @23 mA (typical center)

@94% duty cycle @23mA, 3.3V forward bias voltage)

Mechanical

N

. | Size: A | METRIC | Scale: NONE | Page 6 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

White LED Backlight 6 strings, 9 LED per string. Nichia NNSW208

Hot Spots No visible hot spot at any angle

Viewing Direction 6:00 for worst dark inversion (pcb driver on the bottom)

Contrast 500 typical

Top Polarizer Glossy Surface, 3H Hard Coating, LT4/ARC7 AR

coating

Diffuser Sheet Tsujiden D153GS (top) & Tsujiden D120 (Bottom)

BEF Sheet 2 X BEF2-G2 MR (Halogen free)

Reflector E6SR or equivalent (sulfur free)

LGP PMMA

Active Area 286.08 mm (H) x 178.80 mm (V)

Minimum Viewing Area 288.08 mm (H) x 180.80 mm (V)

Environmental

Pre-Aging

2. ORDER OF PRECEDENCE OF DOCUMENTATION AUTHORITY

In the case of any conflict in any specification related to these parts, this order of precedence of

authority shall apply:

2.1. The Purchase Order

2.2. This Specification

Module Outline Size 297.150 mm (H) x 192.150 mm (V)

Connector IPEX 20474-030E-12

Mating Connector IPEX 20472-030T-10

Weight 300 grams typical

Operating Temperature 0°C ~ +50°C

Storage Temperature -25°C ~ +65°C

Before shipment Minimum 2 hours at 50°C, panel on

2.3. Reference Documents

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 7 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

3. PHYSICAL DESCRIPTION

3.1. Display Mode

Normally White, Transmissive, Twisted Nematic Liquid Crystal Displays

3.2. Pixel Configuration

RGB Vertical Stripe

3.3. Pixel Pitch

0.2235 mm x 0.2235 mm

3.4. Resolution

1280 (RGB stripe, H) x 800 (V)

3.5. Aperture Ratio

Minimum > 50%

3.6. Optimum Viewing Cone

6 o’clock worst dark inversion direction (PCB on the bottom)

3.7. Interface & Driving Scheme

3.3V single-channel LVDS (Flat Link) interface, requiring Hsync and Vsync

signals, along with DE (Data Enable) mode, 2-dot inversion

3.8. Front Surface Treatment

www.jxlcd.com

Low-reflection gloss surface, ~1% Reflectance, ≥3H hardness (Sumitomo LT4, or

Nitto Denko ARC7)

3.9 Environmental Requirements:

www.jxlcd.com

Any homogeneous component must meet Halogen-Free Specification, 069-1857.

N

. | Size: A | METRIC | Scale: NONE | Page 8 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

4. MECHANICAL REQUIREMENTS

4.1. Dimensions and Tolerances

The LCD module outline is described in the following table.

Dimension Min Typ Max Unit

Horizontal (H) 296.85 297.15 297.45 mm

Vertical (V) 191.85 192.15 192.45 mm

Depth (D) 3.08 3.38 3.68 mm

4.2. Weight

300 g (typical), 310 g (max)

4.3. Stack-up (tentative)

Mechanical Stack-up Part # Thickness /mm

Top Polarizer

(glossy, LT4 or ARC7) Sumika, SRW862APK-LT4

LCD Glass CF 0.5

LCD Glass TFT 0.5

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 9 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

Bottom Polarizer 0.215

www.jxlcd.com

Total Design Gap - 0.135

Upper Diffuser Tsujiden D131S 0.095

Upper BEF (Halogen Free) BEF II-GII MR 0.155

Lower BEF (Halogen Free) BEF II-GII MR 0.155

Lower Diffuser Tsujiden D120 0.12

Light Guide PMMA 0.72

White Reflector (Sulfur-free

reflector for PMMA

backlight) E6SR 0.188

Rear Bezel SUS 304 0.3

Tape 0.1

Total Typical Thickness w/o PCB 3.38

Maximum Tolerance 0.3

Total Maximum Thickness

PCB Thickness (8 Layer

PCB) 0.8

Maximum Component - 1

side (include Solder) 1.15

(w/o PCB) 3.68

0.215

Maximum Component - 2

side (include Solder) 0.2

Total Maximum PCB

Thickness 2.15

4.4. Exposed Areas and Restrictions

The display module shall not have exposed edges or components, which may cause injury

or damage during handling, inspection, assembly, and service. Exposed areas of the display

module (those not protected or shielded by construction) must be insulated and otherwise

protected to eliminate the possibility of electrical shorting or destructive ESD discharges

(per Section 7.2) during handling, inspection, assembly, and service.

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 10 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

2

LVDS

DVD

D

AVD

VCOM

ELECTRICAL REQUIREMENTS

4.5. Block Diagram

Connector

User

I C BUS

EDID BUS

Input

Panel IF

D GAMMA

VON/VOFF

(EEPROM)

DC/DC

DC/DCDC/DC

Converter

EDID

EDIDEDID

Buck DC/DC

Generator

Controller

ControllerController

Gamma

GammaGamma

VCOM

VCOMVCOM

Timing

TimingTiming

SOURCE

SOURCESOURCE

DRIVE IC

DRIVE ICDRIVE IC

13.3” WXGA

(1280 x 800 × RGB)

GATE DRIVE IC

GATE DRIVE ICGATE DRIVE IC

www.jxlcd.com

Backlight Driving Architecture

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 11 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

4.6. Display PCB Schematics

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 12 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

4.7. Display PCB Layout

Display Subsystem (PCB & TFT Panel)

www.jxlcd.com

4.7.1. Pin-Out (Single Channel LVDS Interface)

Connector: IPEX 20474-030E-12 or equivalent (1.0 mm thickness, lock-in type, pin 1

starts from left on the front)

Matching Connector: IPEX 20472-030T-10 or equivalent (micro-coax type)

Interface Chips: (need update according the latest Configuration Sheet), integrated LVDS

and timing controller)

Single Channel LVDS Configuration

Pin Symbol Description Micro-coax cable gauge

1 GND Ground 40

2 Vcc Power Supply (+3.3V)

(AWG)

36

3 V

4 V

N

. | Size: A | METRIC | Scale: NONE | Page 13 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

Power Supply (+3.3V)

analog

DDC Power +3.3V 40

EDID

36

5 Vsync Vsync 40

6 Clk

7 DATA

8 Rin0- Differential Data Input 40

9 Rin0+ Differential Data Input 40

10 GND Ground 40

11 Rin1- Differential Data Input 40

12 Rin1+ Differential Data Input 40

13 GND Ground 40

14 Rin2- Differential Data Input 40

15 Rin2+ Differential Data Input 40

16 GND Ground 40

17 Clkin- Differential Clock Input 40

18 Clkin+ Differential Clock Input 40

19 GND Ground 40

20 NC NC 40

21 Vdc(1 &2) LED Annold (Positive) 40

22 Vdc(3&4) LED Annold (Positive) 40

DDC Clock 40

EDID

DDC Data 40

EDID

23 NC NC 40

24 Vdc1 LED Cathode (Negative) 40

25 Vdc2 LED Cathode (Negative) 40

www.jxlcd.com

26 Vdc3 LED Cathode (Negative) 40

www.jxlcd.com

27 Vdc4 LED Cathode (Negative) 40

28 Vdc5 LED Cathode (Negative) 40

29 Vdc6 LED Cathode (Negative) 40

30 NC NC 40

4.7.2. Connector Diagram

N

. | Size: A | METRIC | Scale: NONE | Page 14 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

PIN #1

PIN #30

4.7.3. Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 6-bit gray

scale data input for the color. The higher the binary input, the brighter the color. The

table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Color Red

MSB LSB

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0

Black

Red(63)

Green(63)

Basic

Blue(63)

Colors

Cyan

Magenta

Yellow

www.jxlcd.com

White

Red(00) Dark

Red(01)

Red(02)

Red

Red(61)

Red(62)

Red(63) Bright

0

1

0

1

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

1

0

Green

MSB LSB

0

1

0

1

0

1

0

:

0

MSB LSB

0

1

0

1

0

1

0

1

0

:

0

Blue

0

1

0

1

0

:

0

:

Green(00)Dark

Green(01)

Green(02)

Green

Green(61)

Green(62)

Green(63)Bright

N

. | Size: A | METRIC | Scale: NONE | Page 15 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

R

G B R G

B R

G B R G B

L

1279

799

in e 0

Blue(00) Dark

Blue(01)

Blue(02)

Blue

Blue(61)

Blue(62)

Blue(63) Bright

R G B R G B

0

:

0

Pixel Format on the Display

0

1

0

1

0

:

0

1

0

1

0

1

0

1

R G B R G B

Scan Direction

www.jxlcd.com

Flex Bonding Edge

N

. | Size: A | METRIC | Scale: NONE | Page 16 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

4.7.4. EDID Interface (Per Vesa EDID 1.x standard requirements)

2 B133EW07 Value Value Note

Header

HeaderHeader

00 00000000 0

FF 11111111 255

EISA Manuf. Code LSB

EISA Manuf. Code LSBEISA Manuf. Code LSB

Compressed ASCII

Compressed ASCIICompressed ASCII

Product Code

Product CodeProduct Code

hex, LSB first

hex, LSB firsthex, LSB first

32

32----bit ser #

bit ser #

3232

bit ser #bit ser #

01 00000001 1

Week of manufacture

Week of manufactureWeek of manufacture

Year of manufa

Year of manufacture

Year of manufaYear of manufa

www.jxlcd.com

EDID Structure Ver.

EDID Structure Ver.EDID Structure Ver.

EDID revision #

EDID revision #EDID revision #

Video input definition

Video input definitionVideo input definition

Max H image size

Max H image sizeMax H image size

Max V image size

Max V image sizeMax V image size

Display Gamm

Display Gammaaaa

Display GammDisplay Gamm

Feature support

Feature supportFeature support

Red/green low bits

Red/green low bitsRed/green low bits

Blue/white low bits

Blue/white low bitsBlue/white low bits

Red x/ high bits

Red x/ high bitsRed x/ high bits

Red y

Red yRed y

Green x

Green xGreen x Green y

Green y

Green yGreen y

Blue x

Blue xBlue x Blue y

Blue y

Blue yBlue y

White x

N

White xWhite x

cture

cturecture

HEX BIN DEC

00 00000000 0

06 00000110 6

10 00010000 16 0 00001(A) 10000(P) 10000(P)

C2 11000010 194

9C 10011100 156

01 00000001 1

13 00010011 19

01 00000001 1

03 00000011 3

80 10000000 128 Digital Input

1D 00011101 29

12 00010010 18

78 01111000 120

0A 00001010 10 no DPMS,Active off,RGB color

C5 11000101 197

95 10010101 149

A3 10100011 163 Rx=0.640

57 01010111 87 Ry=0.340

4F 01001111 79 Gx=0.310

9C 10011100 156 Gy=0.610

26 00100110 38 Bx=0.150

0F 00001111 15 By=0.060

50 01010000 80 Wx=0.313

9CC2 (apple assigned code)

19(2009

19(2009----1990=19)

19(200919(2009

APP9CC2

APP9CC2APP9CC2

unused

unusedunused

Week 1

Week 1Week 1

1990=19)

1990=19)1990=19)

28.6cm

28.6cm28.6cm

17.9cm

17.9cm17.9cm

Gamma 2.2

Gamma 2.2Gamma 2.2

. | Size: A | METRIC | Scale: NONE | Page 17 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

White y

White yWhite y

Established timing 1

Established timing 1Established timing 1 Established timing 2

Established timing 2

Established timing 2Established timing 2

Manufacturer's Timing

Manufacturer's TimingManufacturer's Timing

Standard timing #1

Standard timing #1Standard timing #1

01 00000001 1

Standard timing #2

Standard timing #2Standard timing #2

01 00000001 1

Standard timing #3

Standard timing #3Standard timing #3

01 00000001 1

Standard timing #4

Standard timing #4Standard timing #4

01 00000001 1

Standard timing #5

Standard timing #5Standard timing #5

01 00000001 1

Standard timing #6

Standard timing #6Standard timing #6

01 00000001 1

Standard timing #7

Standard timing #7Standard timing #7

01 00000001 1

Standard timing #8

Standard timing #8Standard timing #8

01 00000001 1

Pixel Clock/10,000 (LSB)

Pixel Clock/10,000 (LSB)Pixel Clock/10,000 (LSB)

Pixel Clock/10,000 (MSB)

Pixel Clock/10,000 (MSB)Pixel Clock/10,000 (MSB)

www.jxlcd.com

Horiz. Active pixels(Lower 8 bits) 00 00000000 0

Horiz.Blanking (Lower 8 bits) 8F 10001111 143

Horiz. Active pixels:Horiz. Blanking

(Upper4:4 bits)

20 00100000 32

2E 00101110 46

Vert. Active pixels:Vert. Blanking

(Upper4:4 bits)

30 00110000 48

20 00100000 32

Vert. Sync. Offset=xx lines, Sync

Width=xx lines

Horz. Ver. Sync/Width (upper 2 bits)

Hori. Image size (Lower 8 bits) 1E 00011110 30

Vert. Image size (Lower 8 bits) B3 10110011 179

Hori. Image size : Vert. Image size

(Upper 4 bits) 10 00010000 16

00 00000000 0

54 01010100 84 Wy=0.329

00 00000000 0 unused

00 00000000 0

01 00000001 1 unused

01 00000001 1

52 01010010 82

1C 00011100 28

50 01010000 80

30 00110000 48

36 00110110 54

00 00000000 0

Timing Descriptor #1

1280x800 @60_mode:pixel

1280x800 @60_mode:pixel 1280x800 @60_mode:pixel

clock=

clock=72.5

72.5MHz

72.572.5

MHz

MHzMHz

ixels

ixelsixels

clock=clock=

Horiz active=1280 pixels

Horiz active=1280 pixelsHoriz active=1280 pixels

Horiz blanking=143p

Horiz blanking=143pixels

Horiz blanking=143pHoriz blanking=143p

Vertcal active=800 lines

Vertcal active=800 linesVertcal active=800 lines

Vertical blanking=46 lines

Vertical blanking=46 linesVertical blanking=46 lines

Horiz sync. Offset=48 pixels

Horiz sync. Offset=48 pixelsHoriz sync. Offset=48 pixels

Horiz sync. Pulse Width=32 pixel

Horiz sync. Pulse Width=32 pixelssss

Horiz sync. Pulse Width=32 pixelHoriz sync. Pulse Width=32 pixel

Verti sync. Offset=3 lines,Sync

Verti sync. Offset=3 lines,Sync Verti sync. Offset=3 lines,Sync

Width=6 lines

Width=6 linesWidth=6 lines

Hori image size= 286 mm

Hori image size= 286 mmHori image size= 286 mm

Verti image size = 179mm

Verti image size = 179mmVerti image size = 179mm

Horizontal Border = 0

Horizontal Border = 0 Horizontal Border = 0

N

. | Size: A | METRIC | Scale: NONE | Page 18 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

00 00000000 0

18 00011000 24

Detailed timing/monitor

Detailed timing/monitorDetailed timing/monitor

descriptor #2

descriptor #2descriptor #2

00 00000000 0

Version

Apple edid signature

Link Type (LVDS Link,MSB

justified)

Pixel and link component format

(6-bit panel interface)

Panel features (No inverter)

0A 00001010 10

20 00100000 32

Detailed timing/monitor

Detailed timing/monitorDetailed timing/monitor

www.jxlcd.com

descriptor #3

descriptor #3descriptor #3

www.jxlcd.com

00 00000000 0

FE 11111110 254

00 00000000 0

42 01000010 66 B

31 00110001 49 1

33 00110011 51 3

45 01000101 69 E

57 01010111 87 W

30 00110000 48 0

37 00110111 55 7

20 00100000 32

56 01010110 86 V

31 00110001 49 1

0A 00001010 10

00 00000000 0

01 00000001 1

00 00000000 0

06 00000110 6

10 00010000 16

20 00100000 32

00 00000000 0

Vertical Border = 0

Vertical Border = 0 Vertical Border = 0

For apple

ASCII Data String:B133EW07 V1

ASCII Data String:B133EW07 V1ASCII Data String:B133EW07 V1

N

. | Size: A | METRIC | Scale: NONE | Page 19 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

Detailed timing/monitor

Detailed timing/monitorDetailed timing/monitor

descriptor #4

descriptor #4descriptor #4

Extension Flag

Extension FlagExtension Flag

20 00100000 32

Mon

Monitor Name: Color LCD

itor Name: Color LCD

MonMon

00 00000000 0

FE 11111110 254

00 00000000 0

43 01000011 67 C

6F 01101111 111 o

6C 01101100 108 l

6F 01101111 111 o

72 01110010 114 r

20 00100000 32

4C 01001100 76 L

43 01000011 67 C

44 01000100 68 D

0A 00001010 10

20 00100000 32

00 00000000 0

itor Name: Color LCDitor Name: Color LCD

Checksum

ChecksumChecksum

www.jxlcd.com

4.7.5.

Power Supply Input Voltage

Power Supply Ripple

Electrical Ratings

PARAMETER SYMBOL

6D 01101101 109

SUM

V

CC

6400

VALUES

Min. Typ. Max.

3.0

3.3

50

3.6

UNIT NOTES

V (DC)

mV

p-p

1

N

. | Size: A | METRIC | Scale: NONE | Page 20 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

3.3V

Power Supply Input Current

Differential Impedance

Power Consumption

Rush current

Notes: (1) The power supply ripple is measured whereas a black pattern is displayed;

(2) The specified current and power consumption are under the conditions at Vcc = 3.3 V, T =

25ºC, and fv = 60 Hz, f

(3) This impedance value is needed to a proper display and is measured from LVDS mating

connector to LVDS Rx

(4) The following is a typical Vcc circuit on the system side

CONTROL SIGNAL

(HIGH to LOW)

12V

www.jxlcd.com

C3 1uF

Vcc rise time is about 470 µs

N

GND

. | Size: A | METRIC | Scale: NONE | Page 21 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

I

CC

Zm

Pc

I

RUSH

=72.5MHz, whereas a mosaic pattern (typical) is displayed;

CLK

R1 47K

R2

1K

R3

47K

0.9Vcc

-

90

-

M1 2SK1059

C2

10000pF

M2 2SK1399

242

100

0.8

-

FUSE

273

110

0.9

1.5

C1 1uF

3.3V

0.1Vcc 470 µs

mA

Ω

W

A

V

cc

(

LCD INPUT)

2

3

2

4

The duration of the rush current is about 20 ms.

4.7.6. Signal Timing

4.7.6.1. Signal Impedance

Defined in VESA standard for LVDS FPDI 2

4.7.6.2. Timing Data

This is the signal timing required at the input of the control ASIC concerned with

LVDS as a FlatLink or equivalent. All of the interface signal timing should be

satisfied with the following specifications based on the VESA timing guideline

(1280x800 @ 60 Hz) for its proper operation.

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 22 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

Video Timing Data

Signal Parameter Symbol Min Typ Max

D

Clock Period

CLK

DE

(Data Enable

Only)

(DTMG)

Data

H

sync

www.jxlcd.com

V

sync

Clock Frequency

Duty Ratio (% High)

Rise Time

Fall Time

DE Setup Time

Data Setup Time

Data Hold Time

Horizontal Period

Horizontal Blank Period

Vertical Period

Vertical Blank Period

Back Porch

sync

H

Pulse Width

sync

H

Front Porch

sync

Horizontal Active Period

Back Porch

sync

V

Pulse Width

sync

V

Front Porch

sync

Vertical Active Period

T

Kdr

T

R CLK

T

F CLK

T

Tsd

Thd

TH

Tha

TV

T

H

T

Hfp

THD

V

TWV

Vfp

TVD

fC

wvb

WH

C

se

bp

40

-

4

2

1280

800

13.79

72.50

50

4.42

-

1440

160

823

23

80

32

48

1280

14

6

3

800

60

-

1280

800

Unit Note

ns

MHz

%

ns

TC

TH

T

C

TC

T

H

TH

1

1/T

TCh /TC

2

fV=59.94 Hz, 3

Display Period

C

Note: (1) When the WXGA+ controller sets DE Mode, and H

(DTMG) signal must be longer than 1 clock period (TC) at every horizontal sync period;

(2) Horizontal Period = One Line Scanning Time;

(3) The vertical period TV is related to the frame frequency fV, i.e., 60 Hz.

sync

and V

are required. The duration of DE

sync

4.7.6.3. Video Timing Diagram

N

. | Size: A | METRIC | Scale: NONE | Page 23 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

1280 pixel

s

DE

DEDE

DCLK

DCLKDCLK

DE

DEDE

Da t a

Da t aData

DE

T vd

Valid

Valid Dis p lay

Dis play Data

ValidValid

Dis playDis play

T v

T h d

T h

Data ((((1111111155552222pix e ls)

DataData

pixe ls )

pixe ls )pixe ls )

T w vb

T h s

T c

T ch

90 %

www.jxlcd.com

DCLK

DCLKDCLK

Display

DisplayDispla y data

data

datada ta

DE

DEDE

50 %

10 %

T r clk

T d s

T e s

90 %

50 %

10 %

T fclk

T d h

90 %

10 %

90 %

N

. | Size: A | METRIC | Scale: NONE | Page 24 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

4.7.7. Power Measurements (W/O backlight)

Pattern Min Typ Max Unit

White To be updated

Mosaic 242 273 mA

V. Stripe To be updated

Black 273 303 mA

Note: (1) Display data pins and timing signal pins should be connected (GND = 0V);

(2) Operation conditions: fV = 60 Hz, f

(3) Power dissipation patterns are as follows.

(a) White screen (b) Mosaic (or checker) pattern

20x20 pixel black and white boxes

mA

= 72.5 MHz, Vcc = 3.3 V;

CLK

www.jxlcd.com

Display Brightest Gray Level

Display Darkest Gray Level

(c) Vertical Stripe Pattern

sub-pixel vertical line on/off alternation,

N

. | Size: A | METRIC | Scale: NONE | Page 25 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

R G B R G B R G B

6

5

4.7.8. Power on-off sequence

Power-on includes both system starting from power-off state and wake from sleep state;

power-off includes both system shutdown and entering sleep state.

Power on

Power Supply for LCD VCC

Interface Signal (LVDS Signal of Transmitter), Vi

Power for Lamp

www.jxlcd.com

0V

10%

Values Parameter

90%

OFF

Power off Restart

90%

10%

T

2

T

1

Valid Data

T3

ON

T

4

T

OFF

Unit

7

Min. Typ. Max.

T

T7

1

2

3

4

5

6

0.15

1

200

0

5

500

-

20

250

20

-

10

50

-

50

20

-

ms

4.7.9. Vcc Dip Condition

The Vcc dip is the Vcc voltage drop during panel start-up.

N

. | Size: A | METRIC | Scale: NONE | Page 26 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

(1) 2.5V ≤ V

(2) For Vcc < 2.5V, Vcc should follow the power on-off sequence defined in 4.7.8

4.8. Near-Field Noise

The RF emissions from the panel (especially the LVDS input and Tcon) interfere with Wifi operation.

Note that this spec compliance requirement is in addition to the legal EMI compliance requirements.

< 3.0 V, Td ≤ 20 ms;

cc

td

Vcc

4.9. Backlight Subsystem

www.jxlcd.com

4.9.1. General Information

LED Manufacturer Nichia

LED Manufacturer Assembly P/N Nichia NNSW208

Number of LEDs 54

LED Ranks V630 and up

LED Brightness Bin 50 mcd per bin

LED Vf Bin Rank 1 (2.8-3.0 V) and 2 (3.0-3.2 V)

LED Forward Voltage Range for All 6

LED Series Lines

4.9.2. Backlight Synchronization Requirement (to avoid BL shimmering)

N

. | Size: A | METRIC | Scale: NONE | Page 27 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

(Characterized at LVDS Connector for 23 mA)

MAX: 28.8 V

Display Minimum

The Vsync/STV signal is a once-per-frame pulse that has a constant phase delay with

respect to the start of the frame. This signal is used by the backlight LED driver to

synchronize BL PWM with the frame update to avoid shimmering (waterfall) artifacts in

www.jxlcd.com

the image.

The minimum pulse width is 1 us.

4.9.3. Backlight Electrical Characteristics

The backlight brightness test shall be tested at 600Hz PWM 94% cycle & 23 mA peak current

with following percentage duty cycle

LED Current (%

duty cycle)

LED Forward

Voltage for any

LED string

Power (W)

Assuming 3.2V

max forward bias

Luminance (nits)

Display Typical

Luminance (nits)

Display

Maximum

Luminance (nits)

94% 28.8 V 3.73 250 275 300

N

. | Size: A | METRIC | Scale: NONE | Page 28 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

19% 28.8 V 0.75 50 55 60

5% 28.8 V 0.19 12 14 15

4.9.4. LED Connection

String LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8 LED9

1

2

3

4

5

6

1 7 13 19 25 31 37 43 49

2 8 14 20 26 32 38 44 50

3 9 15 21 27 33 39 45 51

4 10 16 22 28 34 40 46 52

5 11 17 23 29 35 41 47 53

6 12 18 24 30 36 42 48 54

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 29 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

5.

OPTICAL REQUIREMENTS

5.1. Optical Specifications

Supplier must submit optical measurement data from 20 samples for items marked critical in

Table 6.1.1. The optical performance will be based on supplier’s measurement data, visual

inspection of the samples, verification measurements, and specification correlation.

Table 6.1.1: Optical Characteristics

Parameter Symbol

Iso-Contrast Viewing Angle

CR ≥ 10

Contrast ratio CR Optimal 400 600 -- -- 1,2,3

Luminance Y I

Global Luminance Uniformity Optimal 50 -- % 1,2

Worst Neighbor Luminance

Uniformity

Gamma

Flicker F No Visual Flicker

Cross Talk D

Worst Low Level (dark)

Inversion Viewing Direction

www.jxlcd.com

θ

down 45 50

left/right 55/55 60/60

Optimal 80 -- % 1,2

γ

Optimal -- 2.0 % 1,2,3

SHA

PCB on the

Condition Min. Typ. Max. Unit Note

up 45 50 -- Degrees 1,2,3

=23 mA

LED

@94% duty cycle

-- -- 2.2 -- -- 1,2,3

bottom

220 250 -- cd/m2 1,2,4

-- -- -30 dB 1,2,3

-- 6:00 -- o’clock 1,2

Response (rise+fall time)

Gray to Gray Response time

(all panels)

(Within one panel)

N

. | Size: A | METRIC | Scale: NONE | Page 30 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

τ

θ = 0°, Ta=25°C

on+off

τ

θ = 0°, Ta=25°C

G2G

x CIE 1931 0.297 0.313 0.329 -- 1,2,3 White Chromaticity

y 0.313 0.329 0.345 -- 1,2,3

delta x 0.005 White Chromaticity

delta y 0.008

x CIE 1931 0.620 0.640 0.660 -- 1,2,3 Red Chromaticity

y 0.315 0.330 0.345 -- 1,2,3

-- 16 25 ms 1,2,3

-- 40 ms 1,2,3

Parameter Symbol

Condition Min. Typ. Max. Unit Note

Green Chromaticity

Max color difference within

one panel

Max color difference w.r.t.

Center within one panel

Max color difference from

panel to panel

Max color difference between

neigbors

Note 1: The testing conditions are specified in 6.2.

Note 2: The definitions of optical characteristics are shown in 6.3.

Note 3: Measured at center point. Equivalent performance over the entire panel required.

Note 4: Both center point and average of 160 points.

x CIE 1931 0.290 0.310 0.330 -- 1,2,3

Y 0.590 0.610 0.630 -- 1,2,3

X CIE 1931 0.120 0.150 0.170 -- 1,2,3 Blue Chromaticity

Y 0.040 0.060 0.080 -- 1,2,3

du’v’ white 0.005 1,2

du’v’ white 0.003 1,2

du’v’ white 0.008

du’v’ white 0.0025

1,2

5.2. Measuring Conditions

www.jxlcd.com

The optical characteristics are determined after the unit has been ‘ON’ and stable for

approximately 30 minutes at the maximum brightness, in a dark environment at an

ambient temperature at 25°C ± 2°C. The electrical conditions include Vcc = 3.3 V, fv =

60 Hz, f

measuring equipments for luminance and color are CCD based imaging systems such as

Radiant Imaging Prometric 1400 system, or Colorimeter such as Photo Research PR650,

TOPCON BM-5A or similar. The measuring distance should be about 50 cm from the

LCD surface at normal unless otherwise specified. Measurements should be done on the

160 grid points as shown in the following figures. The measurement spot at the center is

approximately 12 mm in diameter from a distance of 400 mm by TOPCON BM-5A or

15 mm in diameter from a distance of 500 mm by PR 650.

= 72.5 MHz, IBL = 23 mA @94% duty cycle with 600Hz. Recommended

CLK

Viewing angle measurements should be done by an Eldim EZ Color system or similar.

N

. | Size: A | METRIC | Scale: NONE | Page 31 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

Field = 2

°

The CIE 1931 or 1976 Standards will be used.

www.jxlcd.com

Luminance and Color Measurement

X-Y Stage

LCD Module

TOPCON BM-5A or PR650 or CCD

400 or 500 mm

Viewing Angle Measurement

ELDIM EZ Color or equivalent

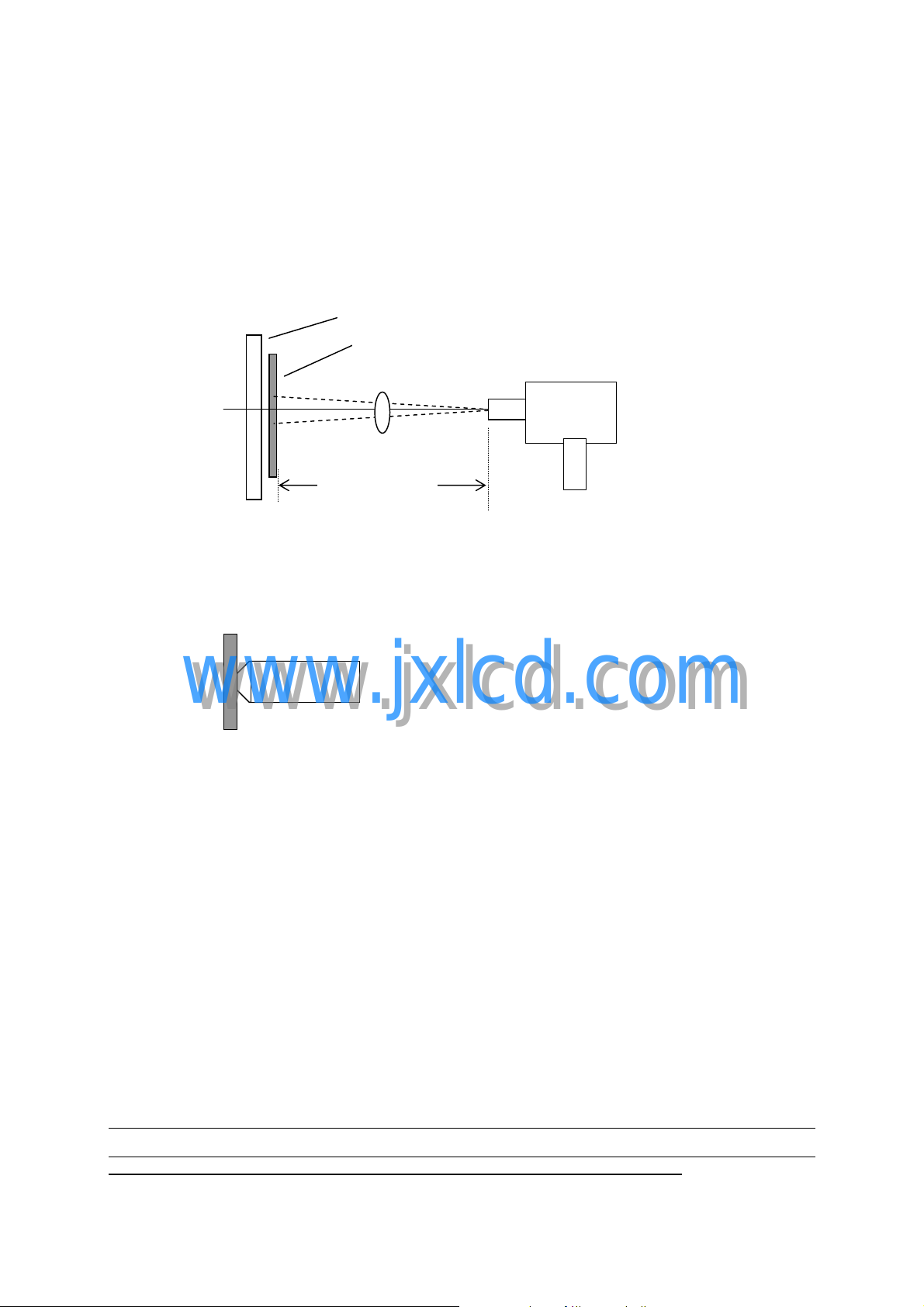

Figure 6-1: Optical Measurement Set-up

N

. | Size: A | METRIC | Scale: NONE | Page 32 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

Figure 6-2: Measurement point location. L and W are the length and width of Active Area

respectively.

5.3. Definition

5.3.1. Center Point Luminance

Lct =(L

www.jxlcd.com

5.3.2. Average Luminance

L

where L1 to L

5.3.3. Luminance Uniformity

The entire display active area shall be scanned with the luminance measurement

with white screen set full brightness.

two kinds of data for brightness uniformity: Luminance Uniformity, and Worst

Neighbor Luminance Uniformity. The definitions are shown in below:

72+ L73+ L88+ L89

= SUM(L1:L

Ave

160

)/4{Average Luminance value at point #72, 73, 88, 89}

) / 160

160

are the luminance values measured at point #1 to #160.

5.3.3.1. Global Luminance Uniformity:

U = 100% - (L

N

. | Size: A | METRIC | Scale: NONE | Page 33 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

where, L

max-Lmin

= max {Luminance values at 160 points},

max

)/L

max

= min {Luminance values at 160 points}

L

min

5.3.3.2. Worst Neighbor Luminance Uniformity (The 4 points that are closest to

the test point)

WNU=100%-Max(∆L1, ∆L2, ∆L3, ∆L4)/L0

Global WNU = min (WNU1, …WNU160)

5.3.4. Contrast Ratio

www.jxlcd.com

CR = Luminance at G

#72, 73, 88, 89}

5.3.5. White Color Uniformity

The entire display active area shall be scanned with the color coordinate

measurement with white screen set full brightness.

5.3.5.1. Panel to Panel White Color Uniformity

The center point (as defined by the average value at point #72, 73, 88, 89) white

color coordinate of any panel shall be within the box with 4 corners coordination

boundary listed in Table 6.1.

/ Luminance at G

max

{Average contrast value at point

min

N

. | Size: A | METRIC | Scale: NONE | Page 34 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

5.3.5.2.

Max Color Difference with respect to the center within a panel

On each panel, the maximum color difference between any of the 160 points and

the center point (defined as the average value at point #72, 73, 88, 89),

represented in delta u’v’.

5.3.5.3. Max Color Difference between any two points within the panel

On each panel, the maximum color difference between any two of the 143 points ,

represented in delta u’v’.

5.3.5.4. Max Color Difference between two neighbors

On each panel, the maximum color difference between any two neighboring

points on the panel, represented in delta u’v’

5.3.6. RGB Color Chromaticity

The entire display active area shall be scanned with the color coordinate

measurement with screen set to full brightness and solid R, G, B color

respectively. The measured color coordinate of any panel shall be within the box

www.jxlcd.com

with 4 corners coordination boundary listed in Table 6.1.

www.jxlcd.com

5.3.7. Viewing Angle

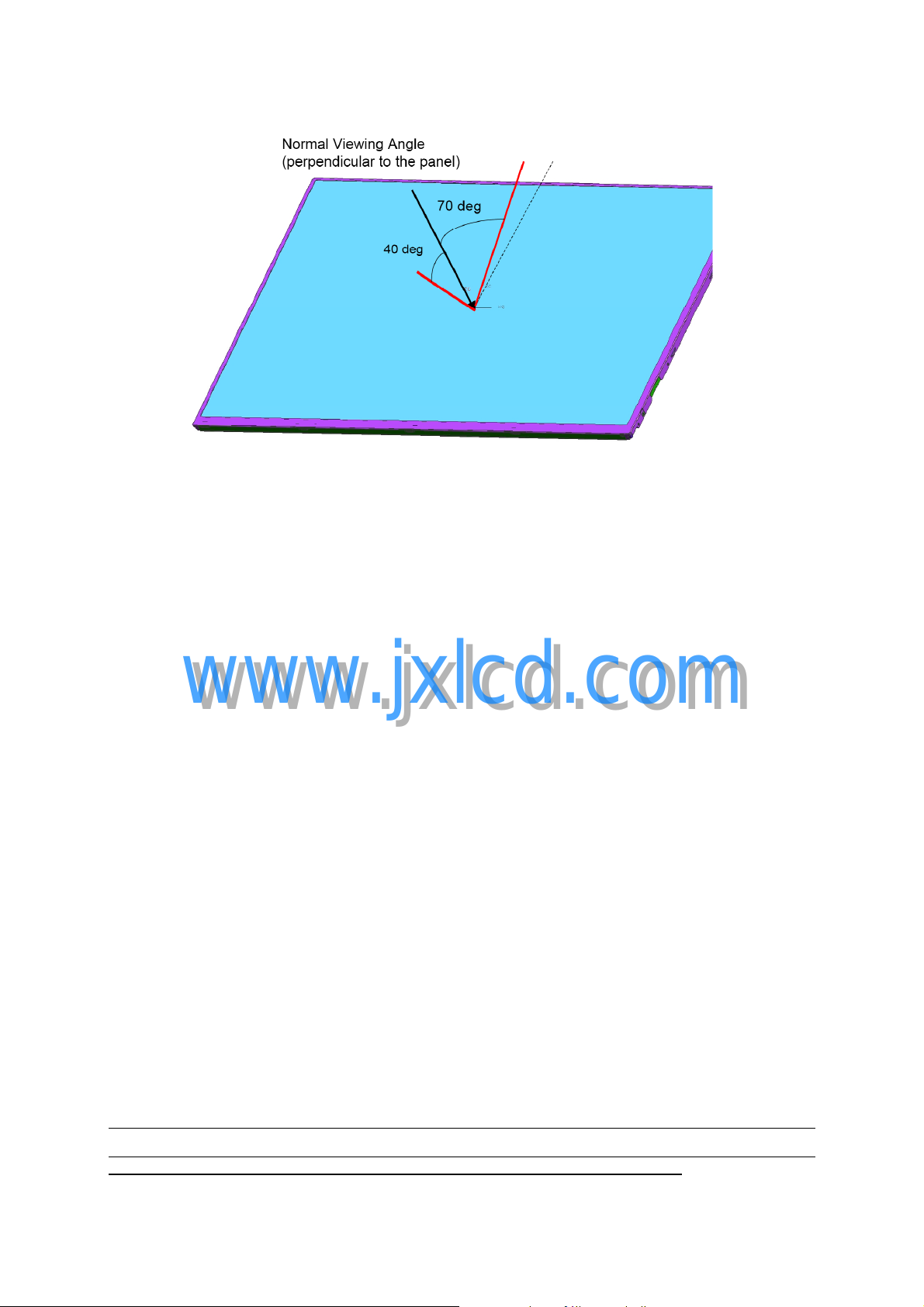

The viewing angle is defined as the viewing angle range under the condition at

CR > 10:1 .

Normal Line

o

φ = 0

θ

L

φ

o

θ L =90

6 O’clock direction

φ L= 90o

N

. | Size: A | METRIC | Scale: NONE | Page 35 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

x

L

o

,

θ = 0

θ

R

φ

H

y

12 O’clock direction

x'y'

θR =90

φ H = 90o

o

Figure 6-4: Viewing angle definition

5.3.8. Gray Scale Inversion

Luminance vs. viewing angle curves are measured based on gray level 255, 223,

191, 159, 127, 95, 63, 32 and 0, in the viewing angle of left, right, up, down, with

PCB on the bottom side. Gray scale inversion happens when a higher gray scale

measures the same luminance or lower luminance than any of the lower gray scale.

5.3.9. Response Time

5.3.9.1. On and Off Response Time

The On/Off response time, tR + tF, is defined in the following figure and shall be

measured by switching the input signal for “black” and “white”.

s

Display data

Optical Response

www.jxlcd.com

5.3.9.2. Gray to Gray Response Time

White (TFT OFF)

100% 90%

10% 0%

Black (TFT ON)

t

R

Figure 6-5: Response Time Measurement

White (TFT OFF)

t

F

Time

Gray to Gray Response Time is measured in a similar method. But instead of

switching display between black and white, panel is switched between two gray

scales. The maximum gray-to-gray response time is based on 9 levels of gray

N

. | Size: A | METRIC | Scale: NONE | Page 36 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

scales. The 9 levels are: gray level 255, 223, 191, 159, 127, 95, 63, 32 and 0.

Figure 6-6 shows an example of Gray to Gray Response Time measurement data.

Response護Tim

e

50

40

30

[ms]

20

10

255

223

191

Start Gray scale

159

127

95

63

32

0 0

63

32

127

95

159

Arrival Gray scale

0

255

223

191

Figure 6-6: Gray to Gray Response Time

www.jxlcd.com

5.3.10. Gray Scale Linearity or Gamma Value

The display luminance, LG, is measured at the different gray scales, G

, …, G

min

max

.

The exponential fitting is used to determine the gamma (γ) value, which should be

an intrinsic or uncorrected characteristic.

LG ~ Gϒ.

5.3.11. Flicker

No visual flicker will be allowed

. The flicker level should be measured with

either vertical stripes or a checker pattern, defined in Sec. 5.3.6. The output signal

of a photometer is sent to an FFT analyzer. The flicker is essentially a ratio of the

powers in the frequency spectrum at 30 Hz (Px) and 0 Hz (P0),

N

. | Size: A | METRIC | Scale: NONE | Page 37 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

i.e

.,

Black in surrounding

5.3.12. Cross-talk

No visual cross-talk will be allowed. Two luminance values are measured at

F = 10 Log (P

/ P0).

x

center spot with 50 x 50 pixels. The cross-talk, D

D

= (LB – LA)/LB • 100%,

SHA

Where, LA = Luminance in Pattern A

LB = Luminance in Pattern B.

Pattern A

Gray Scale = 127/255 in center

www.jxlcd.com

5.4. Hot Spot Specifications:

www.jxlcd.com

, is defined as,

SHA

Pattern B

Gray Scale = 127/255 full screen

The LED hot spot shall be inspected from 70 degree to -40 degree per the drawing

below. There shall be no visible hot spot or no worse than “limited sample” hot spot (if

there is a “limited sample” set up.

N

. | Size: A | METRIC | Scale: NONE | Page 38 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 39 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

6. ENVIRONMENTAL

The display modules shall meet all functional and cosmetic specifications after testing to the

nvironmental quality standards listed in this section. Additionally, the LCD modules in products

shall pass all the system testing requirements listed in the end of this document.

6.1. Shock and Vibration

7.1.1 There will be no functional or cosmetic defects following a shock to all 6 sides

delivering at least 200 G in a half sine pulse no longer than 2 ms to the display

module, secured by its designated mounting details, in accordance with MIL-STD-

202F Method 213B, test condition A.

7.1.2 There will be no functional defects following a shock delivering at least 260 g in a

half sine pulse no longer than 2 ms to each of 6 sides. Each of the 6 sides will be

shock tested with one each display, for a total of 6 displays. The displays are secured

by designated mounting details, in accordance with MIL-STD-202F Method 213B,

test condition A.

7.1.3 There will be no functional or cosmetic defects following a shock delivering at least

60 G in a pulse 11 msec or longer to the display module, secured by its designated

www.jxlcd.com

mounting details, in accordance with MIL-STD-202F Method 213B, test condition A.

7.1.4 There shall be no functional or cosmetic defects following a vibration test,

conducted at

with the display secured by its designated mounting details, and conducted in

accordance with MIL-STD-202F, method 201A.

3.0

G from 5–150 Hz, 0.37 Oct/min with sine wave for 30 min./axis,

N

. | Size: A | METRIC | Scale: NONE | Page 40 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

Storage

6.2.

Temperature and Humidity

Unless otherwise stated in this specification, the display module must meet functional

and cosmetic requirements after testing in accordance with Spec. # 080-0859, non-

operating and operating conditions.

For these tests, the following limits set forth in Specification #080-0859 shall be altered

to read.

6.2.1. General Performance Requirements

90%

60

80%

50%

www.jxlcd.com

-25 0 10 20 30

Note:

1) Maximum wet bulb temp operating temperature is 39°C.

Wet Bulb Temperature

39

30

20

10

0

Dry Bulb Temperature [°C]

50

48

40

40 50 60 70 80

40%

30%

20%

10%

Humidity [%(RH)]

+

Operation

2) Maximum wet bulb temp storage temperature is 48°C.

N

. | Size: A | METRIC | Scale: NONE | Page 41 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

6.2.2. Non-operational Testing

6.2.2.1. Low Temperature

6.2.2.2. High Temperature

65°C @ 500 hrs

6.2.2.3. High Temperature and High Humidity

60°C @ 500 hrs, R.H. = 75% ± 10%

6.2.2.4. Thermal Shock

Cycle display from -25°C to 65°C with 5-minute transfer time,

100 cycles at -25°C/65°C/-25°C.

6.2.3. Operational Testing

www.jxlcd.com

6.2.3.1. Low Temperature

www.jxlcd.com

-25°C @ 500 hrs

0°C for 500 hours

6.2.3.2. High Temperature

50°C for 500 hours

6.2.3.3. High Temperature and High Humidity

50°C and 90% R.H. for 240 hours (Functional Check)

Maximum wet-bulb temperature at 39°C or lower without

condensation.

6.2.3.4. Four Corner Test (72 hrs – operating)

40°C @ 10% RH

40°C @ 90% RH

N

. | Size: A | METRIC | Scale: NONE | Page 42 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

10°C @10% RH

10°C @ 90% RH

Altitude

6.3.

72 hour storage

Operational: 15,000 Ft.

Non-Operational: 40,000 Ft.

7. RELIABILITY

7.1. Resistance to Normal Abuse

7.1.1. Torsion Test

Module is fixed by 4 mounting holes (A, B, & C) on stable supports. Tester is

connected to mounting hole on free floating module corner. Push/Pull test is

conducted on all four corners.

7.1.2. Test Conditions:

www.jxlcd.com

Applied Force 20 N

www.jxlcd.com

Cycles 10 K

Frequency (F=push / pull)1 Hz (1 cycle / sec.)

N

. | Size: A | METRIC | Scale: NONE | Page 43 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

7.1.3. Test Set-up

7.1.4. Static Load Deflection and Breakage

Supplier shall demonstrate compliance per Specification 062-2208 Static

Breakage Test

7.2. Electrostatic Discharge (ESD)

www.jxlcd.com

Display modules are to be tested for ESD susceptibility per specification 062-

0302. The display modules must meet the Level 1 for the bare module, and Level

1 through III test requirements stated in the above referenced specification, when

assembled in a portable computer.

7.3. MTBF

Supplier to demonstrate display module meets minimum 50,000 Hrs.@90%

Confidence Supplier to include any acceleration factors included in the

calculations. Power cycling frequency during this test is to be approved.

N

. | Size: A | METRIC | Scale: NONE | Page 44 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

7.4. LCD Glass Strength

The LCD glass strength (failure load) will be defined at a single 90% survival rate value on

Weibull distribution. Please provide the optimized loading performance in the similar chart

format below. The failure load of the 90% Weibull survival rate shall be higher than TBD N.

Probability Plot for bendload

Complete Data - LSXY Estimates

99

90 80

70 60 50 40

30

20

Percent

10

5

3

2

1

www.jxlcd.com

The 4 point bend test shall be used for the LCD glass strength test. The detailed fixture design/

www.jxlcd.com

shall follow the ASTM standard C158-02. The fixture is used in conduction with a load-

displacement machine, commonly known as Instron.

EXAMPLE ONLY

Bending Load (Newton)

bendload

Weibull

Table of Statistics Shape Scale 0.0024863 Mean 0.0023964 StDev 0. 0002073 Median 0. 0024227 IQR 0. 0002677 Failure 22 Censor 0 AD* 1.220 Correlation 0.972

0.00280.00260.00240.00220.00200.0018

14.1433

N

. | Size: A | METRIC | Scale: NONE | Page 45 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

www.jxlcd.com

Two orientations must be tested for this specification: orientation A (Figure 2.A) and orientation B

(Figure 2.B)

This test shall be performed on 30 samples, WITH current POLARIZERS laminated on both top

and bottom of the LCD glass, per applicable orientation as a First Article Inspection and when

settings, tooling, and equipment are modified. Supplier is responsible for monitoring glass strength

on an ongoing production basis. The test shall be conducted with a top rollers velocity of 1 mm/min.

As soon as the first plane breaks, the test shall be stopped to prevent the second plane from

breaking.

N

. | Size: A | METRIC | Scale: NONE | Page 46 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

Orientation A. Longer plane parallel to ledge Orientation B. Shorter plane parallel to ledge

Figure 2. Display orientations measuring strength at edges

www.jxlcd.com

LCD glass strength data collection

Failure initiation site must be determined by visual inspection by selecting one of the different cases shown below

(Figure 3).

Case A) If the failure is starting from the bottom edge or close to it, enter letter A.

Case B) If the failure is starting from the top edge or close it, enter letter B.

Case C) If the failure is starting from the surface of glass, away from the edges and showing branching in both

directions, enter letter C.

Case D) When testing in orientation D (Figure 1.D), if the failure is starting at the epoxy region between the panes,

enter letter C edges of the glass (case D).

Case E) If during testing a snap is heard, but no crack is visible, enter letter E

Case O) If the failure does not match any of the above or cannot be easily recognized due to catastrophic breakage,

enter letter O.

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 47 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

a [mm] =

Site Case (A, B, C,

Initiation site

OR

Small branching

Small branching near edge

near edge

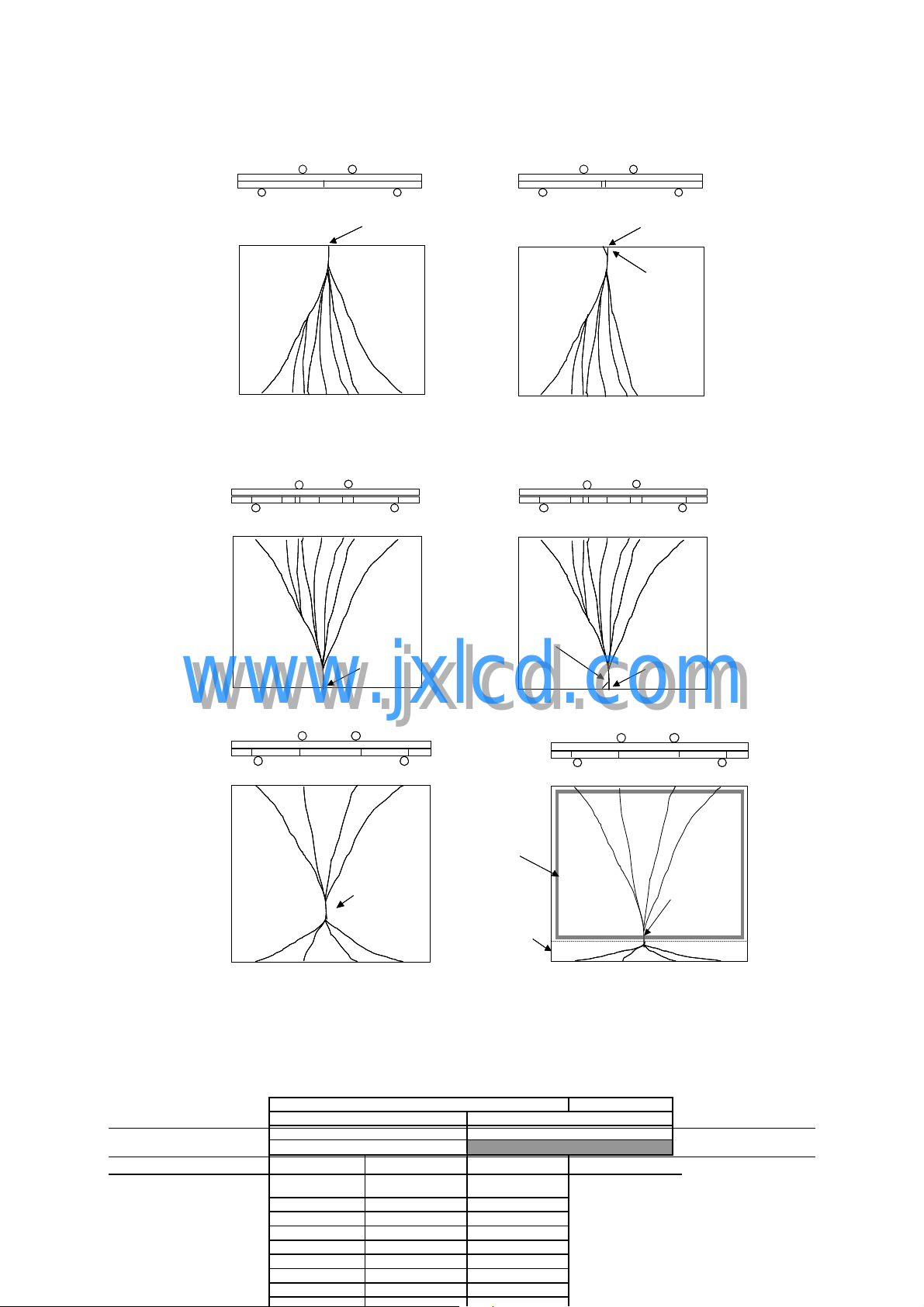

Case A. Failure from bottom edge (with or without slight branching near edge)

OR

Initiation site

www.jxlcd.com

Case B. Failure from top edge (with or without slight branching near edge)

Initiation site

Approximate

Approximate initiation site

initiation site

Small branching

Small branching near edge

near edge

Epoxy

Ledge

Initiation site

Failure

Approximate

initiation

initiation site

site

Case C. Initiation on surface of glass Case D. Failure at surface on epoxy region (Orientation D)

Figure 3 Surface crack initiation.

All failure loads and failure initiation sites will be entered in the following table below.

N

. | Size: A | METRIC | Scale: NONE | Page 48 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

Orientation a b c d (Circle one)

W [mm] = Llong [mm] =

Lshort [mm] = t [mm] =

Failure Initiation

Unit # Failure Load [N]

D, E, or O) 1 2 3 4 5 6 7

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 49 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

8. COSMETIC REQUIREMENTS

Cosmetic Specification for Notebook Display, 062-7003E.

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 50 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

9. REGULATORY

9.1. Product Safety (Environmental, Ergonomics, Safety and Health)

Materials: specific chemical composition information or certifications necessary for the

product to enter countries, markets, and/or for component(s) material identification, or for

to respond to customer requests for information. The information may be in the form of,

but is not limited to, Material Safety Data Sheets, material specification sheets, health

hazard information, certifications, or other forms of documentation.

9.2. RoHS Compliance and other Substance Regulations

This product’s components, parts, and packaging shall be manufactured or assembled

based upon the following requirements.

10.2.1 The display module must comply with the European RoHS directive, As evidence

of such compliance, the supplier must provide a declaration of conformity in

accordance with RoHS Declaration of Conformity Procedure, 080-2153.

10.2.2 In addition to RoHS compliance, the display module and its manufacturing

www.jxlcd.com

process shall comply with Regulated Substances Specification, 069-0135.

10.2.3 The vendor shall provide a written statement declaring the average and maximum

amount of mercury in the display module.

10.3 Halogen Free

Flat panel display must be must be halogen-free in accordance with the Halogen-Free

Specification, 069-1857

9.3. Environmental Markings and Recycling

10.3.1 Flat panel display must be modular in design so that parts can be easily separated,

without any special tools, for ease of proper recycling/disposal at the product's

end-of-life.

N

. | Size: A | METRIC | Scale: NONE | Page 51 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

10.3.2

Flat panel display plastic parts >25 grams must be marked according to ISO

11469 (except for the LGP (light guide panel) and optical films in the backlight).

9.4. Product Safety

Flat panel display assembly shall comply with Specification,

069-0279, Product Safety Requirements for Component Flat Panel Display

Assemblies.

9.5. Ergonomics

The flat panel display must comply with the ergonomic requirements of ISO 13406 parts

1 and 2. The vendor shall provide a written statement that the flat panel display, is

certified to comply with ISO 13406, parts 1 and 2.

9.6. Electromagnetic Compatibility (EMC)

10.6 Emissions

www.jxlcd.com

The final product must meet Class B Emission Standards for home electronic

device when configured within a system Spec. #062-0718. The display supplier

must provide all necessary support as required to meet this requirement. EMI

measurements are taken at the worst-case contrast setting.

10.6.1 Susceptibility

Performance degradation due to external noise or RF will be considered as

specified in #062-0718 for Class B products.

10.6.2 Spectrum Spreading Compatibility (SSC)

10.6.2.1

Emissions

The final product must be compatible with spectrum spreading conditions

specified in 1.2.2 of this document. No failure or degradation in electronic

N

. | Size: A | METRIC | Scale: NONE | Page 52 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

functionality and optical performance is allowed with the spreading turned

ON compared to that when it is turned OFF.

10.6.2.2

Spreading %: 0% (min.), 0.75% (typical), and 1.5% (max.)

Spreading type: center or down

Modulation Rate: 40 to 80 kHz.

Conditions for Spectrum Spreading

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 53 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

11 FACTORY/SERVICE REQUIREMENTS

11.1 SQBR

Factory requirements are outlined in Supplier Quality and Business Requirements,

specification 070-1191.

11.6 SERVICE REQUIREMENTS

Service Requirements are outlined in specification 070-0385.

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 54 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

12 REFERENCE DOCUMENTS

www.jxlcd.com

N

. | Size: A | METRIC | Scale: NONE | Page 55 of 55 Title: Spec, Elec., Dspl., AUO, 13.3” TFT-LCD DWG Number: 069-3542 Rev.01

AU Optronics B133EW07-V1 Product Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
