T550HVN01.3 SKD Product Specification
Rev.0.0
Model Name: T550HVN01.3 SKD
Issue Date : 2012/10/15
(＊＊＊＊)Preliminary Specifications
(…………)Final Specifications
Customer Signature Date AUO Date
Customer Signature Date AUO Date
Approved By
Approved By
_________________________________
_________________________________
Note
Note
Approval By PM Director
Approval By PM Director
CP Wang
____________________________________
____________________________________
Reviewed By RD Director
Reviewed By RD Director
Eugene CC Chen
____________________________________
____________________________________
Reviewed By Project Leader
Reviewed By Project Leader
Yi Tse Lin
____________________________________
____________________________________
Prepared By PM
Prepared By PM
Haley Huang
____________________________________
____________________________________
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 1 / 28
Page 2
Contents
T550HVN01.3 SKD Product Specification
Rev.0.0
No
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATION
3-1 ELECTRIACL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATION
3-4 SIGNAL TIMING WAVEFORM
3-5 COLOR INPUT DATA REFERENCE
3-6 POWER SEQUENCE
4 OPTICAL SPECIFICATION
5 MECHANICAL CHARACTERISTICS
6 RELIABILITY TEST ITEMS
7 PACKING
7-1 DEFINITION OF LABELS
7-2 PACKING METHODS
7-3 PALLET AND SHIPMENT INFORMATION
8 PRECAUTION
8-1 MOUNTING PRECAUTIONS
8-2 OPERATING PRECAUTIONS
8-3 ELECTROSTATIC DISCHARGE CONTROL
8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
8-5 STORAGE
8-6 HANDLING PRECAUTIONS FOR PROTECT FILM
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 2 / 28
Page 3
Record of Revision
T550HVN01.3 SKD Product Specification
Rev.0.0
Version
0.0 2012/10/15 First release
Date Page Description
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 3 / 28
Page 4
T550HVN01.3 SKD Product Specification
Rev.0.0
1. General Description
This specification applies to the 54.6 inch Color TFT-LCD SKD model T550HVN01.3. This LCD Open Cell Unit
has a TFT active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 54.6 inch. This Open Cell
Unit supports 1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are
arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray
scale signal for each dot.
* General Information
Items Specification Unit Note
Active Screen Size 54.6 inch
Display Area 1209.6(H) x 680.4(V) mm
Outline Dimension 1228.8(H) x 699.4(V) x 1.3(D) mm D: cell thickness
Driver Element a-Si TFT active matrix
Bezel Opening 939 (H) x 531 (V) mm Recommend
Display Colors 10 bit, 1073.7M Colors
Number of Pixels 1,920x1,080 Pixel
Pixel Pitch 0.21 (W) x 0.63(H) mm
Pixel Arrangement RGB vertical stripe
Display Operation Mode Normally Black
Surface Treatment Anti-Glare, 3H Haze=2%
Weight Typ. 3680 g
Rotate Function Achievable Note 1
Display Orientation Signal input with “ABC” Note 2
Note 1: Rotate Function refers to LCD display could be able to rotate.
Note 2: LCD display as below illustrated when signal input with “ABC”.
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 4 / 28
Page 5
T550HVN01.3 SKD Product Specification
Absolute Maximum Ratings
The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1
Input Voltage of Signal Vin -0.3 4 [Volt] Note 1
Operating Temperature TOP 0 +50 [oC] Note 2
Operating Humidity HOP 10 90 [%RH] Note 2
Storage Temperature TST -20 +60 [oC] Note 2
Storage Humidity HST 10 90 [%RH] Note 2
Panel Surface Temperature PST 65 [oC] Note 3
Note 1: Duration: 50 msec.
Rev.0.0
Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃
The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures
greater than 40 , the wet bulb temperature must not exceed 39 .
Note 3: Surface temperature is measured at 50℃ Dry condition
℃ ℃
℃
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 5 / 28
Page 6
T550HVN01.3 SKD Product Specification
Rev.0.0
3. Electrical Specification
The T550HVN01.3 Open Cell Unit requires power input which is employed to power the LCD electronics and to
drive the TFT array and liquid crystal.
3.1 Electrical Characteristics
3.1.1: DC Characteristics
Parameter Symbol
Unit Note
Min. Typ. Max
LCD
Power Supply Input Voltage VDD 10.8 12 13.2 VDC
Value
Power Supply Input Current IDD -- 0.45
1.68 A 1
Power Consumption PC -- 5.4 20.16 Watt 1
Inrush Current I
Permissible Ripple of Power Supply Input Voltage
Input Differential Voltage
LVDS
Interface
Differential Input High Threshold Voltage
Differential Input Low Threshold Voltage
Input Common Mode Voltage V
CMOS
Interface
Input High Threshold Voltage
Input Low Threshold Voltage
-- -- 4 A 2
RUSH
VRP -- -- VDD * 5% mV
∣
V
∣
ID
200 400 600 mVDC 4
pk-pk
VTH +100 -- +300 mVDC 4
VTL -300 -- -100 mVDC 4
1.1 1.25 1.4 VDC 4
ICM
VIH
(High)
VIL
(Low)
2.7 -- 3.3 VDC 6
0 -- 0.6 VDC 6
3
LED lightbar and LED Backlight structure are designed by customers, AUO can not guarantee life time and
backlight power consumption.
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 6 / 28
Page 7
s
µ
3.1.2: AC Characteristics
T550HVN01.3 SKD Product Specification
Rev.0.0
Parameter Symbol
Input Channel Pair Skew Margin t
Receiver Clock : Spread Spectrum
LVDS
Interface
Modulation range
Receiver Clock : Spread Spectrum
Modulation frequency
Receiver Data Input Margin
Fclk = 85 MHz
Fclk = 65 MHz
Note :
1. V
2. Measurement condition : Rising time = 400us
= 12.0V, Fv = 120Hz, Fclk= Max freq., 25 , Test Pattern : White Pattern℃
DD
SKEW (CP)
Fclk_ss
Fss
tRMG
90%
Value
Min. Typ. Max
-500 -- +500 ps 7
Fclk
-3%
30
-0.4
-0.5
VVVV
DD
DD
DDDD
--
--
--
--
Fclk
+3%
200
0.4
0.5
Unit Note
MHz
8
KHz
8
ns
9
GND
GND
GNDGND
10%
3. Test Condition:
(1) The measure point of V
is in LCM side after connecting the System Board and LCM.
RP
(2) Under Max. Input current spec. condition.
4. V
= 1.25V
ICM
L V D S -
V
IC M
L V D S +
G N D
0 V
400
400
400400
|VID|
V
T H
|VID|
V
T L
|VID|
5. The measure points of V
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 7 / 28
and V
IH
are in LCM side after connecting the System Board and LCM.
IL
Page 8
T550HVN01.3 SKD Product Specification
6. Input Channel Pair Skew Margin
Note: x = 0, 1, 2, 3, 4
7. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures
1111////FFFF
SS
SS
SSSS
Fclk
Fclk____ss
FclkFclk
ss((((max
max))))
ssss
maxmax
Rev.0.0
Fclk
Fclk
FclkFclk
Fclk
Fclk____ss
FclkFclk
ss((((min
ssss
min))))
minmin
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 8 / 28
Page 9
8. Receiver Data Input Margin
T550HVN01.3 SKD Product Specification
Rev.0.0
Parameter Symbol
Min Type Max
Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz
Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns
Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns
Input Data Position2 tRIP6 2T/7-|tRMG|
Input Data Position3 tRIP5 3T/7-|tRMG|
Input Data Position4 tRIP4 4T/7-|tRMG|
Input Data Position5 tRIP3 5T/7-|tRMG|
Input Data Position6 tRIP2 6T/7-|tRMG|
Rating
Unit
2T/7 2T/7+|tRMG| ns
3T/7 3T/7+|tRMG| ns
4T/7 4T/7+|tRMG| ns
5T/7 5T/7+|tRMG| ns
6T/7 6T/7+|tRMG| ns
tRIP2
tRIP3
tRIP4
tRIP5
Note
T=1/Fclk
LVDS-Rx
Input Data
LVDS-Rx
Input Clock
tRIP6
tRIP0
tRIP1
Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3
VVVV
=
= 0000VVVV
= =
diff
diff
diff diff
1/Fclk=T
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 9 / 28
Page 10
3.2 Interface Connections
LCD connector: 187059-51221 (P-TWO, LVDS connector)
T550HVN01.3 SKD Product Specification
Rev.0.0
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Symbol Description PIN
N.C.
N.C.
N.C.
N.C.
N.C.
ROTATE
LVDS_SEL
N.C. No connection
N.C.
N.C.
GND Ground 36
CH1_0- LVDS Channel 1, Signal 0-
CH1_0+ LVDS Channel 1, Signal 0+
CH1_1- LVDS Channel 1, Signal 1-
AUO Internal Use Only
AUO Internal Use Only
AUO Internal Use Only
AUO Internal Use Only
AUO Internal Use Only
Panel Rotation Display Control
High(3.3V) : Rotate Enable
Open/Low(GND) : Rotate Disable
Open/High(3.3V) for NS,
Low(GND) for JEIDA
AUO Internal Use Only
AUO Internal Use Only
Symbol Description
26
27
28
29
30
31
32
33
34
35
37
38
39
GND Ground
GND Ground
CH2_0- LVDS Channel 2, Signal 0-
CH2_0+ LVDS Channel 2, Signal 0+
CH2_1- LVDS Channel 2, Signal 1-
CH2_1+ LVDS Channel 2, Signal 1+
CH2_2- LVDS Channel 2, Signal 2-
CH2_2+ LVDS Channel 2, Signal 2+
GND Ground
CH2_CLK- LVDS Channel 2, Clock -
CH2_CLK+ LVDS Channel 2, Clock +
GND Ground
CH2_3- LVDS Channel 2, Signal 3-
CH2_3+ LVDS Channel 2, Signal 3+
15
16
17
18
19
20
21
22
23
24
25
CH1_1+ LVDS Channel 1, Signal 1+
CH1_2- LVDS Channel 1, Signal 2-
CH1_2+ LVDS Channel 1, Signal 2+
GND Ground
CH1_CLK- LVDS Channel 1, Clock -
CH1_CLK+ LVDS Channel 1, Clock +
GND Ground
CH1_3- LVDS Channel 1, Signal 3-
CH1_3+ LVDS Channel 1, Signal 3+
CH1_4- LVDS Channel 1, Signal 4-
CH1_4+ LVDS Channel 1, Signal 4+
51
40
41
42
43
44
45
46
47
48
49
50
CH2_4- LVDS Channel 2, Signal 4-
CH2_4+ LVDS Channel 2, Signal 4+
GND Ground
GND Ground
GND Ground
GND Ground
GND Ground
NC No connection
V
DD
V
DD
V
DD
V
DD
Power Supply, +12V DC
Regulated
Power Supply, +12V DC
Regulated
Power Supply, +12V DC
Regulated
Power Supply, +12V DC
Regulated
Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal
(Low/GND/High).
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 10 / 28
Page 11
T550HVN01.3 SKD Product Specification
187060-41221-1 (P-TWO, LVDS connector)
PIN Symbol Description PIN Symbol Description
Rev.0.0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
N.C. No connection 21
N.C. No connection 22
N.C. No connection 23
N.C. No connection 24
N.C. No connection 25
N.C. No connection 26
N.C. AUO Internal Use Only 27
N.C. No connection 28
GND Ground 29
CH3_0-
CH3_0+
CH3_1-
CH3_1+
CH3_2-
CH3_2+
GND
LVDS Channel 3, Signal 0- 30
LVDS Channel 3, Signal 0+ 31
LVDS Channel 3, Signal 1- 32
LVDS Channel 3, Signal 1+ 33
LVDS Channel 3, Signal 2- 34
LVDS Channel 3, Signal 2+ 35
Ground 36
CH3_3+
CH 3_4- LVDS Channel 3, Signal 4-
CH3_4+ LVDS Channel 3, Signal 4+
GND
GND
CH4_0-
CH4_0+
CH4_1-
CH4_1+
CH4_2-
CH4_2+
GND
CH4_CLK-
CH4_CLK+
GND
CH4_3-
LVDS Channel 3, Signal 3+
Ground
Ground
LVDS Channel 4, Signal 0-
LVDS Channel 4, Signal 0+
LVDS Channel 4, Signal 1-
LVDS Channel 4, Signal 1+
LVDS Channel 4, Signal 2-
LVDS Channel 4, Signal 2+
Ground
LVDS Channel 4, Clock -
LVDS Channel 4, Clock +
Ground
LVDS Channel 4, Signal 3-
CH3_CLK-
17
CH3_CLK+
18
19
20
GND
CH3_3-
LVDS Channel 3, Clock - 37
LVDS Channel 3, Clock + 38
Ground 39
LVDS Channel 3, Signal 3- 40 GND Ground
41 GND Ground
CH4_3+
CH4_4- LVDS Channel 4, Signal 4-
CH4_4+ LVDS Channel 4, Signal 4+
LVDS Channel 4, Signal 3+
Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal
(Low/GND/High).
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 11 / 28
Page 12
LVDS Option = High/OpenNS
P r e v i o u s C y c le C u r re n t C y c le N e x t C y c l e
P r e v i o u s C y c le C u r re n t C y c le N e x t C y c l e
P r e v i o u s C y c le C u r re n t C y c le N e x t C y c l e P r e v i o u s C y c le C u r re n t C y c le N e x t C y c l e
C l o c k
C l o c k
C l o c kC l o c k
C H x
C H x ____ 0000 ++++
C H xC H x
C H x
C H x ____ 0000 ----
C H xC H x
C H x
C H x ____ 1111 ++++
C H xC H x
C H x
C H x ____ 1111 ----
C H xC H x
C H x
C H x ____ 2222 ++++
C H xC H x
C H x
C H x ____ 2222 ----
C H xC H x
C H x
C H x ____ 3333 ++++
C H xC H x
C H x
C H x ____ 3333 ----
C H xC H x
D EBBBB 2222BBBB 3333 BBBB 4444BBBB 5555N A
D ED E
N ARRRR 6666RRRR 7777 GGGG 6666GGGG 7777BBBB 6666 RRRR 7777
N AN A
N A D E
N AN A
T550HVN01.3 SKD Product Specification
N A BBBB 3333
N AN A
RRRR 0000RRRR 5555 GGGG 0000GGGG 0000RRRR 0000RRRR 1111 RRRR 2222RRRR 3333RRRR 4444 RRRR 1111
GGGG 1111BBBB 0000 BBBB 1111BBBB 1111GGGG 1111GGGG 2222 GGGG 3333GGGG 4444GGGG 5555 GGGG 2222
BBBB 2222N A
RRRR 6666BBBB 7777 N A
D ED E
D ED E
N AN A
N AN A
Rev.0.0
C H x
C H x ____ 4444 ++++
C H xC H x
C H x
C H x ____ 4444 ----
C H xC H x
N ARRRR 8888RRRR 9999 GGGG 8888GGGG 9999BBBB 8888 RRRR 9999
N AN A
Note: x = 1, 2, 3, 4…
LVDS Option = LowJEIDA
P re vi o u s C yc l e C u r r e n t C y c le N ex t C y c l e
P re vi o u s C yc l e C u r r e n t C y c le N ex t C y c l e
P re vi o u s C yc l e C u r r e n t C y c le N ex t C y c l e P re vi o u s C yc l e C u r r e n t C y c le N ex t C y c l e
C lo c k
C lo c k
C lo c kC lo ck
C H x
C H x ____ 0000 ++++
C H xC H x
C H x
C H x ____ 0000 ----
C H xC H x
C H x
C H x ____ 1111 ++++
C H xC H x
C H x
C H x ____ 1111 ----
C H xC H x
C H x
C H x ____ 2222 ++++
C H xC H x
C H x
C H x ____ 2222 ----
C H xC H x
D EBBBB 6666BBBB 7777 BBBB 8888BBBB 9999N A
D ED E
RRRR 8888BBBB 9999 N A
RRRR 4444RRRR 9999 GGGG 4444GGGG 4444RRRR 4444RRRR 5555 RRRR 6666RRRR 7777RRRR 8888 RRRR 5555
GGGG 5555BBBB 4444 BBBB 5555BBBB 5555GGGG 5555GGGG 6666 GGGG 7777GGGG 8888GGGG 9999 GGGG 6666
G7
N A D E
N AN A
N A BBBB 7777
N AN A
BBBB 6666N A
D ED E
D ED E
N AN A
N AN A
C H x
C H x ____ 3333 ++++
C H xC H x
C H x
C H x ____ 3333 ----
C H xC H x
C H x
C H x ____ 4444 ++++
C H xC H x
C H x
C H x ____ 4444 ----
C H xC H x
N ARRRR 2222RRRR 3333 GGGG 2222GGGG 3333BBBB 2222 RRRR 3333
N AN A
N ARRRR 0000RRRR 1111 GGGG 0000GGGG 1111BBBB 0000 RRRR 1111
N AN A
RRRR 2222BBBB 3333 N A
RRRR 0000BBBB 1111 N A
N AN A
N AN A
N AN A
N AN A
Note: x = 1, 2, 3, 4…
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 12 / 28
Page 13
T550HVN01.3 SKD Product Specification
Rev.0.0
3.3 Signal Timing Specification
This is the signal timing required at the input of the user connector. All of the interface signal timing should be
satisfied with the following specifications for its proper operation.
Timing Table (DE only Mode)
Signal Item Symbol Min. Typ. Max Unit
Period Tv 1096 1130 1392 Th
Vertical Section
Active Tdisp (v) 1080
Blanking Tblk (v) 16 50 312 Th
Period Th 520 570 580 Tclk
Horizontal Section
Active Tdisp (h) 480
Blanking Tblk (h) 40 90 100 Tclk
Clock Frequency Fclk=1/Tclk 64.8 77.29 80.74 MHz
Vertical Frequency Frequency Fv 94 120 122 Hz
Horizontal Frequency
Notes:
(1) Display position is specific by the rise of DE signal only.
Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the
left edge of the screen.
(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of
horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top
line of screen.
Frequency Fh 120 135.6 139.2 KHz
(3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.
(4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not
synchronize with each other.
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 13 / 28
Page 14
3.4 Signal Timing Waveforms
T550HVN01.3 SKD Product Specification
Rev.0.0
CH4
M-12
Pixel
Pixel
M-8
Pixel
M-4
Pixel
M
Invalid Data
Pixel
4
Pixel
8
Pixel
12
Pixel
16
Pixel
20
Pixel
24
CH3
M-13
Pixel
Pixel
M-9
Pixel
M-5
Pixel
M-1
Invalid Data
Pixel
3
Pixel
7
Pixel
11
Pixel
15
Pixel
19
Pixel
23
CH2
M-14
Pixel
M-10
Pixel
Pixel
M-6
Pixel
M-2
Invalid Data
Pixel
2
Pixel
6
Pixel
10
Pixel
14
Pixel
18
Pixel
22
CH1
M-15
Pixel
M-11
Pixel
Pixel
M-7
Pixel
M-3
Invalid Data
Pixel
1
Pixel
5
Pixel
9
Pixel
13
Pixel
17
Pixel
21
DE
Tdisp(h) Tblk(h)
CLK
RGB
Data
Line
N
Tclk
Invalid Data Invalid Data
Line
1
Line
2
Th
Line
3
Line
4
DE
Th
Tv
Tdisp(v)Tblk(v)
M-10
Pixel
M-8
Pixel
M-4
Pixel
M
Invalid Data
Pixel
4
Pixel
8
Pixel
M-9
Pixel
M-5
Pixel
M-1
Invalid Data
Pixel
3
Pixel
7
Pixel
Pixel
M-6
Pixel
M-2
Invalid Data
Pixel
2
Pixel
6
M-11
Pixel
Pixel
M-7
Pixel
M-3
Invalid Data
Pixel
1
Pixel
5
Line
N
N L in e
N L in e
N L in eN L in e
M
M
M
M
p
p
p
p
i
i
i
i
x
x
x
x
e
e
e
e
l
l
l
l
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 14 / 28
Page 15
Basic
T550HVN01.3 SKD Product Specification
Rev.0.0
3.5 Color Input Data Reference
The brightness of each primary color (red, green and blue) is based on the 10 bit gray scale data input for the color;
the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.
COLOR DATA REFERENCE
Input Color Data
Color
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Green(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
Blue(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
Color
Cyan 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Magenta 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(001) 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
R
----
RED(1022) 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
MSB LSB
R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
RED
MSB LSB
GREEN
BLUE
MSB LSB
GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
G
----
GREEN(1022) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0
GREEN(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
B
----
BLUE(1022) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0
BLUE(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 15 / 28
Page 16
T550HVN01.3 SKD Product Specification
Rev.0.0
Input Color Data
Basic
Color
R
Color
MSB LSB
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
----
RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED
MSB LSB
GREEN
BLUE
MSB LSB
GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0
G
----
GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0
GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
B
----
BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0
BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 16 / 28
Page 17
3.6 Power Sequence for LCD
T550HVN01.3 SKD Product Specification
Rev.0.0
Pow er S u p p ly F or LC D
Pow er S u p p ly F or LC D
Pow er S u p p ly F or LC D Pow er S u p p ly F or LC D
VD D
VD D (+
(+ 12
(+(+
12 VVVV ))))
121 2
G ND
VD D VD D
In ter face Sig n a l
In ter face Sig n a l
In ter face Sig n a lIn ter face Sig n a l
((((LV DS Data
LV DS Data &
LV DS Data LV DS Data
Back lig h t o n
Back lig h t o n ////o ff
Back lig h t o nB a c klight on
co n tro l s ig na l
co n tro l s ig na l
co n tro l s ig na lco n tro l s ig na l
((((VBLO N
VBLO N ))))
VBLO NV B L O N
CM O S Inte rfa ce Sig n a l
CM O S Inte rfa ce Sig n a l
CM O S Inte rfa ce Sig n a lCM O S Inte rfa ce Sig n a l
((((L V DS
LVD S ____SE L
LVD SL V DS
& C LK
CLK ))))
& &
CLKCLK
G ND
off
offo ff
GN D
SE L ,,,,....... )
....... )
SE LS E L
....... )....... )
G ND
Parameter
t1 0.4 --- 30 ms
t2 0.1 --- 50 ms
10 %
90 %
t1
t2
Valid D ata
Valid D ata
Valid D ataValid D ata
t3 t4
t8 t9
Values
Min. Type. Max.
90 %
10 %
t6
t5
10 %
t7
Unit
t3 450 --- --- ms
t4 0*1 --- --- ms
t5 0 --- --- ms
t6 --- --- ---*2 ms
t7 500 --- --- ms
t8
10*3
--- 50 ms
t9 0 --- --- ms
Note:
(1) t4=0 : concern for residual pattern before BLU turn off.
(2) t6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value)
(3) When CMOS Interface signal is N.C. (no connection), opened in Transmitted end, t8 timing spec can be
negligible.
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 17 / 28
Page 18
T550HVN01.3 SKD Product Specification
Rev.0.0
4. Optical Specification
Optical characteristics are determined after the open cell unit and light source has been ‘ON’ and stable for
approximately 45 minutes in a dark environment at 25°C. The values specified are at an approximate distance
50cm from the LCD surface at a viewing angle of φ and θ equal to 0°.
Fig.1 presents additional information concerning the measurement equipment and method.
SR3 or equivalent
Parameter Symbol
Contrast Ratio CR 3200 4000 -- 1,2
Surface Luminance
(White)
Luminance Variation δ
Response Time (G to G)
Center Transmittance T%
Color Chromaticity 6
Red RX 0.640
RY 0.340
Green GX 0.300
GY 0.605
Blue BX 0.150
LWH 270 340 -- cd/m2 1,3
WHITE(9P)
Tγ -- 6.5 -- Ms 5
Standard light source “C”
Condition
Min. Typ. Max
With STD BLU
-- -- 1.33 1,4
6.6 % 1,8
With STD BLU
Typ.-0.03
Values
Unit Notes
Typ.+0.03
BY 0.045
White WX 0.275
WY
Viewing Angle 7
x axis, right(φ=0°) θr -- 89 -- degree
x axis, left(φ=180°) θl -- 89 -- degree
y axis, up(φ=90°) θu -- 89 -- degree
y axis, down (φ=270°) θd
With STD BLU
-- 89 -- degree
0.280
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 18 / 28
Page 19
2 3
7
T550HVN01.3 SKD Product Specification
Rev.0.0
1. Light source here is the BLU of STD BLU.
2. Contrast Ratio (CR) is defined mathematically as:
Surface Luminance of
Contrast Ratio=
Surface Luminance of
3. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels
displaying white. For more information see FIG 2. LWH=Lon5 where Lon5 is the luminance with all pixels
displaying white at center 5 location.
FIG. 2 Luminance
L
on5
L
off5
V
H/2
H/6
1
H
V/2 V/6
4. The variation in surface luminance, δWHITE is defined (center of Screen) as:
δ
WHITE(9P)
= Maximum(L
on1
, L
on2
,…,L
)/ Minimum(L
on9
on1
, L
on2
,…L
on9
)
5. Response time Tγ is the average time required for display transition by switching the input signal for five
luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=120Hz to optimize.
Target Measured
Response Time
0%
25%
0% 25% 50% 75% 100%
0% to 25% 0% to 50% 0% to 75% 0% to 100%
25% to 0% 25% to 50% 25% to 75% 25% to 100%
Start
50%
75%
100%
50% to 0% 50% to 25%
75% to 0% 75% to 25% 75% to 50%
50% to 75% 50% to 100%
75% to 100%
100% to 0% 100% to 25% 100% to 50% 100% to 75%
The response time is defined as the following figure and shall be measured by switching the input signal for
“any level of gray(bright) “ and “any level of gray(dark)”.
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 19 / 28
Page 20
T550HVN01.3 SKD Product Specification
FIG.3 Response Time
Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)
Rev.0.0
0% , 25%, 50% , 75%, 100%
0% , 25%, 50% , 75%, 10 0%
Photodetector
Output
0% , 25%, 50% , 75%, 100%
Tim e
T
(F)
γγγγ
6. Light source here is the standard light source “C” which is defined by CIE and driving voltages are based on
suitable gamma voltages. The calculating method is as following：
A. Measure the “Module” and “BLU” optical spectrums (W, R, G, B) of STD BLU.
T
γγγγ
(R)
B. Calculate cell spectrum from “Module” and “BLU” spectrums.
C. Calculate color chromaticity by using cell spectrum and the spectrum of standard light source “C”.
7. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the
horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For
more information see FIG4.
FIG.4 Viewing Angle
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 20 / 28
Page 21
8. Definition of Transmittance (T%):
T550HVN01.3 SKD Product Specification
Rev.0.0
module LCD of Luminance
nceTransmitta ∗=
%001
backlight of Luminance
During transmittance measurement, the backlight of LCD module contains no brightness enhancement film.
Two diffuser sheets which diffuse the light source uniformly are suggested to use for transmittance
measurement.
5. Mechanical Characteristics
Item Typ Unit Note
Weight 3680 g
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 21 / 28
Page 22
Open Cell Drawing
T550HVN01.3 SKD Product Specification
Rev.0.0
RUBBER RUBBERRUBBER RUBBER RUBBER RUBBERRUBBER
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 22 / 28
Page 23
6. Reliability Test Items
T550HVN01.3 SKD Product Specification
Rev.0.0
1 High temperature storage test 3 60℃, 300hrs
2 Low temperature storage test 3 -20℃, 300hrs
3 High temperature operation test 3 50℃, 300hrs
4 Low temperature operation test 3 -5℃, 300hrs
5 Vibration test (With carton) 1(PKG)
6 Drop test (With carton) 1(PKG)
Note: Test item 1~4 RA tests are done on AUO T550HVN01.5 panels.
Test Item Q’ty Condition
Random wave (1.5G RMS, 10-200Hz)
30mins/ Per each X,Y,Z axes
Drop Height: 12.7 cm, 6 Flats
(Front→Rear→Left→Right→Top→Bottom)
(ASTMD4169-I)
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 23 / 28
Page 24
7. Packing
7-1. DEFINITION OF LABELS:
A. Open cell shipping label (35*7mm):
T550HVN01.3 SKD Product Specification
Rev.0.0
XXXXXXXXXXXX – XXXXX – XXXX – XXXXXXXXXX
1. S/N Number
2. AUO internal use
3. Manufactured week
4. Model name
B. Carton Label:
T550HVN01.3
91.55T02.3XX
XXXXX–XXXXX–XXXXX
Carton label location
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 24 / 28
Page 25

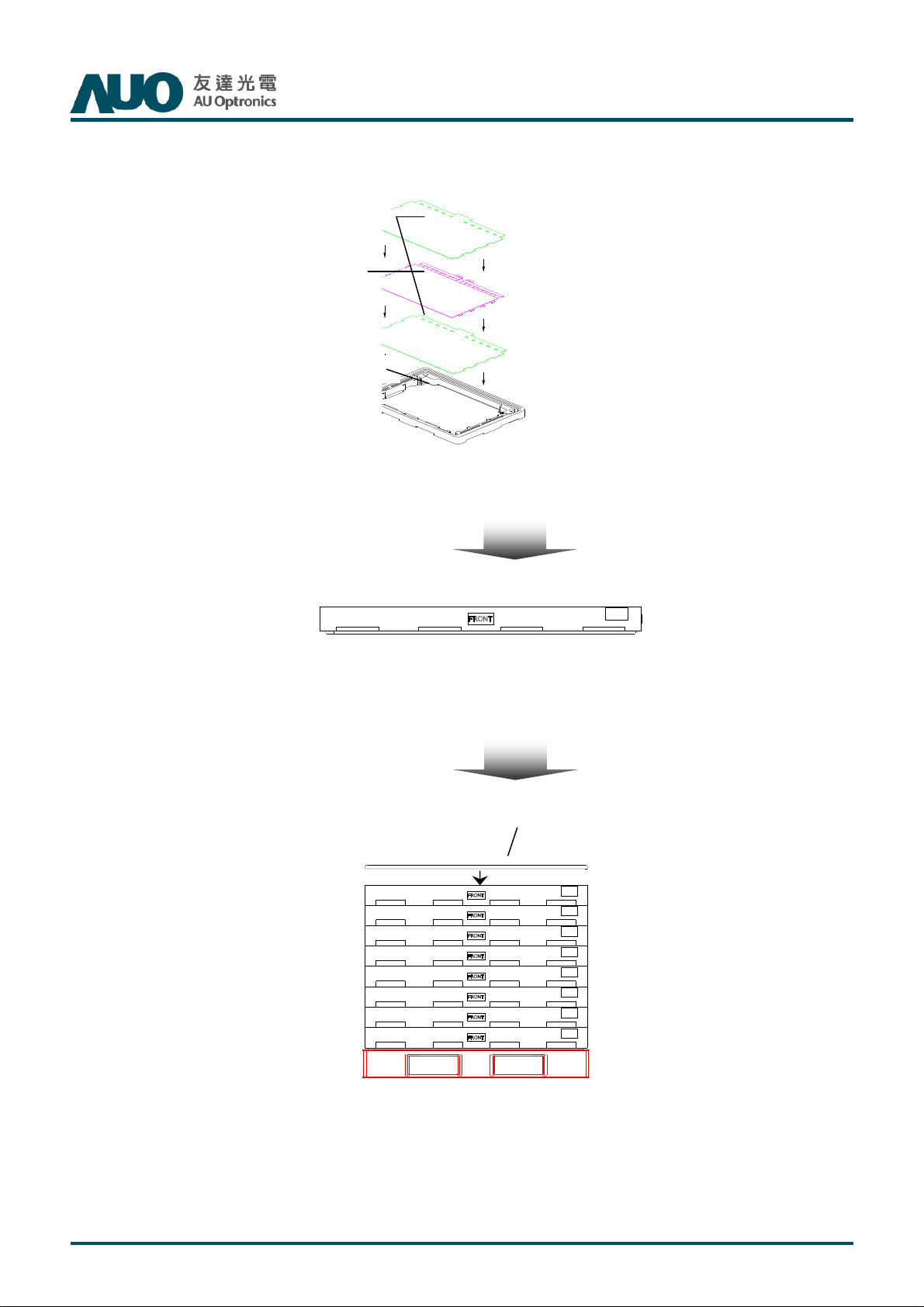

7-2 PACKING METHODS:
EPE Spacer
Open Cell
Hybrid Box
T550HVN01.3 SKD Product Specification
Rev.0.0
1Box for 11 pcs cells & 12 pcs spacers
11 Pcs/Box,
EPP Top Cover
Pallet Dimension:1420*1120*150 mm
8 Boxes/Pallet, after stack 8 boxes, then put EPP top cover on it.
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 25 / 28
Page 26
7-3 Pallet and Shipment Information
T550HVN01.3 SKD Product Specification
Rev.0.0
Specification
Item
1 Packing Box 11 pcs/box 1400(L)mm*990(W)mm*116(H)mm 37
2 Pallet 1 1420(L)mm*1120(W)mm*150(H)mm 15
3 Boxes per Pallet 8 boxes/Pallet (By Air) ; 8 Boxes/Pallet*Double Pallet (By Sea)
4 Panels per Pallet 88 pcs/pallet(By Air) ; 88 pcs/Pallet*Double Pallet (By Sea)
after packing
Qty. Dimension Weight (kg)
88(by Air) 1420(L)mm*1120(W)mm*1028(H)mm (by Air) 313 (by Air)
176(by Sea) 1420(L)mm*1120(W)mm*2056(H)mm (by Sea) 626 (by Sea) 40ft HQ
Packing
Remark
5 Pallet
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 26 / 28
Page 27
T550HVN01.3 SKD Product Specification
8. PRECAUTIONS
Please pay attention to the followings when you use this TFT LCD Open Cell unit.
8-1 MOUNTING PRECAUTIONS
(1) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the
cell. And the frame on which a cell is mounted should have sufficient strength so that external force is not
transmitted directly to the cell.
(2) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(3) You should adopt radiation structure to satisfy the temperature specification.
(3) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by
electro-chemical reaction.
(4) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil
lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer
for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)
(5) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used
to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical
damage to the polarizer.
(6) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(7) Do not open the case because inside circuits do not have sufficient strength.
Rev.0.0
8-2 OPERATING PRECAUTIONS
(1) The open cell unit listed in the product specification sheets was designed and manufactured for TV
application
(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:
V=±200mV(Over and under shoot voltage)
(3) Response time depends on the temperature. (In lower temperature, it becomes longer.)
(4) Brightness/transmittance depends on the temperature. (In lower temperature, it becomes lower.) And in
lower temperature, response time (required time that brightness is stable after turned on) becomes longer.
(5) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer
or electrical contacted parts. And after fading condensation, smear or spot will occur.
(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimize the
interface.
(8)
8-3 ELECTROSTATIC DISCHARGE CONTROL
Since a open cell unit is composed of electronic circuits, it is not strong to electrostatic discharge. Make
certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin
directly.
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 27 / 28
Page 28
T550HVN01.3 SKD Product Specification
8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of polarizer and color filter.
8-5 STORAGE
When storing open cell units as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the open cell unit to sunlight or fluorescent light. Keep the
Rev.0.0
temperature between 5 and 35 at normal humidity.
(2) The polarizer surface should not come in contact with any other object. It is recommended that they be
stored in the container in which they were shipped.
℃ ℃
8-6 HANDLING PRECAUTIONS FOR PROTECTION FILM OF POLARIZER
The protection film of polarizer is still attached on the surface as you receive open cell units. When the
protection film is peeled off, static electricity is easily generated on the polarizer surface. This should be peeled off
slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a
condition, etc.
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 28 / 28
Loading...
