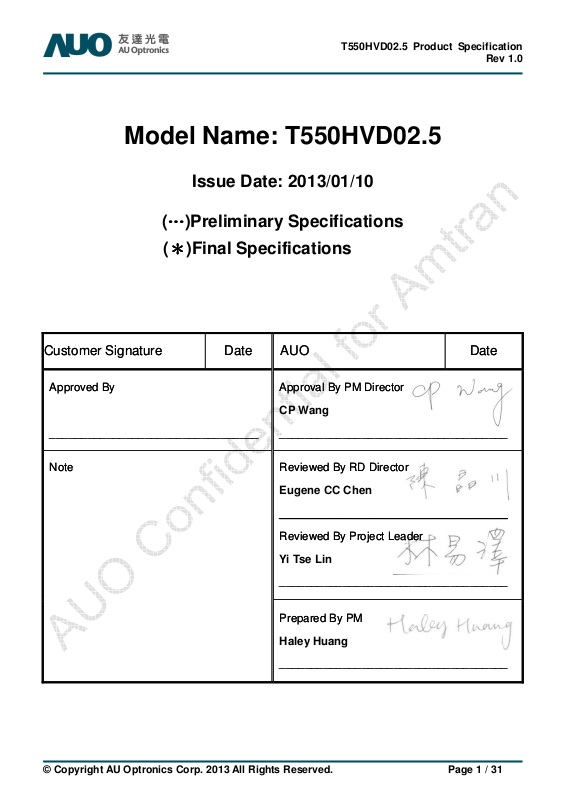

AUO T550HVD02.5 Specification

T550HVD02.5 Product Specification

Rev 1.0

Model Name: T550HVD02.5

Issue Date: 2013/01/10

(…………)Preliminary Specifications

(＊＊＊＊)Final Specifications

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director

CP Wang

____________________________________

Reviewed By RD Director

Eugene CC Chen

____________________________________

Reviewed By Project Leader

Yi Tse Lin

____________________________________

Prepared By PM

Haley Huang

____________________________________

Contents

No

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

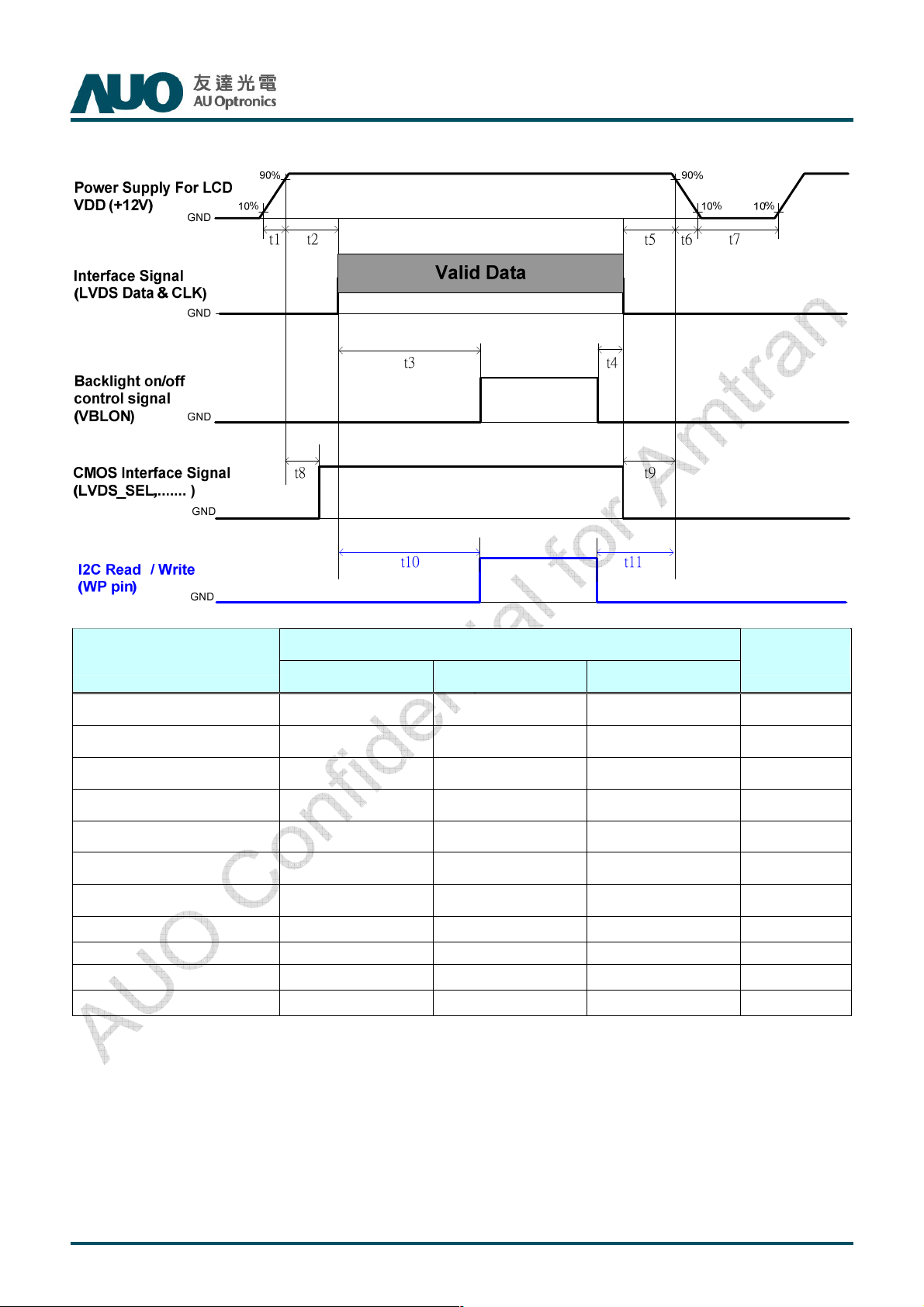

3-6 POWER SEQUENCE

T550HVD02.5 Product Specification

Rev 1.0

3-7 VCOM ADJUST SOP

4 OPTICAL SPECIFICATION

5 MECHANICAL CHARACTERISTICS

6 PACKING

7 PRECAUTION

7-1 MOUNTING PRECAUTIONS

7-2 OPERATING PRECAUTIONS

7-3 ELECTROSTATIC DISCHARGE CONTROL

7-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

7-5 STORAGE

76 HANDLING PRECAUTIONS FOR PROTECT FILM OF POLARIZER

Record of Revision

Version

0.0 2012/07/25

Date Page Description

First release

T550HVD02.5 Product Specification

Rev 1.0

0.1 2012/07/09

0.2 2012/08/31

0.3 2012/10/08

0.4 2012/11/20

1.0 2013/01/10

4 Weight modify & LCD display update

5 Add Electro Statistic Voltage and Note 4

7 Add 3.1.3 Driver Characteristics

11 3.2.1 T-CON BOARD PIN MAP update

14 3.3 Timing Table modify

18 3.6 Power Sequence for LCD diagram update

19 Add 3.7 VCOM ADJUST SOP

10 Interface Connections

21 FPR size update

6 Power Consumption & Power Supply Input Current

10 3.2 Interface Connections pin6, pin10 update

3.4 Signal Timing Specification / Timing Table Vertical Section(Period)

12

( Blanking) , Horizontal Section (Period)

15 3.7 Power Sequence for LCD / t2 (max)

Final release

20 Color Chromaticity modify

21 Note 3 modify

24 Remove 6 Reliability Test Items

T550HVD02.5 Product Specification

Rev 1.0

1. General Description

This specification applies to the 54.6 inch Color TFT-LCD SKD model T550HVD02.5. This Open Cell Unit has a TFT active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 54.6 inch. This Open Cell Unit supports 1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.

* General Information

Items Specification Unit Note

Active Screen Size 54.6 inch Display Area Outline Dimension Driver Element a-Si TFT active matrix Bezel Opening 1216.2 (H) x 687 (V) mm Recommend Display Colors 8bit 16.7M Colors

Number of Pixels 1,920x1,080 Pixel Pitch

Pixel Arrangement RGB vertical stripe Display Operation Mode Normally Black Surface Treatment Anti-Glare, 3H Haze=2% Rotate Function Achievable Note 1 Weight Typ. 2680 g Display Orientation Signal input with “ABC” Note 2

Note 1: Rotate Function refers to LCD display could be able to rotate. Note 2: LCD display as below illustrated when signal input with “ABC”.

1209.6(H) x 680.4(V)

1228.8(H) x 699.4(V) x 1.3(D)

0.21 (W) x 0.63(H)

mm mm D: cell thickness

Pixel

mm

T550HVD02.5 Product Specification

Rev 1.0

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1 Input Voltage of Signal Vin -0.3 4 [Volt] Note 1 Operating Temperature TOP 0 +50 [oC] Note 2 Operating Humidity HOP 10 90 [%RH] Note 2 Storage Temperature TST -20 +60 [oC] Note 2 Storage Humidity HST 10 90 [%RH] Note 2 Panel Surface Temperature PST 65 [oC] Note 3 Electro Statistic Voltage ESD

Note 1: Duration: 50 msec. Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃ The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures greater than 40 , the wet bulb temperature must not exceed 39 . Note 3: Surface temperature is measured at 50℃ Dry condition

Note 4: ESD protection procedure must be applied during production process; especially polarizer protection films remove process. Please directly contact AUO if module process advice is required.

℃ ℃

±

2

[KV] Note 4

℃

T550HVD02.5 Product Specification

Rev 1.0

3. Electrical Specification

The T550HVD02.5 Open Cell Unit requires power input which is employed to power the LCD electronics and to drive the TFT array and liquid crystal.

3.1 Electrical Characteristics

 3.1.1 DC Characteristics

Parameter Symbol

LCD

Power Supply Input Voltage VDD 10.8 12 13.2 VDC

Power Supply Input Current IDD -- 0.48 1.1 A 1

Power Consumption PC -- 5.76 13.2 Watt 1

Min. Typ. Max

Value

Unit Note

Inrush Current I

Permissible Ripple of Power Supply Input Voltage (for input power=12V)

Input Differential Voltage

Differential Input High Threshold

LVDS Interface

CMOS Interface

Voltage

Differential Input Low Threshold Voltage

Input Common Mode Voltage

Input High Threshold Voltage

Input Low Threshold Voltage

- - 5.5 A 2

RUSH

VRP -- -- VDD * 5%

∣

V

∣

ID

VTH +100 -- +300 4 4

V

TL

V

ICM

VIH

(High)

VIL

(Low)

200 400 600 4 4

-300 -- -100 4 4

1.1

2.7 -- 3.3 5

0 -- 0.6 VDC

1.25

1.4

mV

3

pk-pk

4 4

LED lightbar and LED Backlight structure are designed by customers, AUO can not guarantee life time and backlight power consumption.

5

 3.1.2 AC Characteristics

Parameter Symbol

T550HVD02.5 Product Specification

Rev 1.0

Value

Min. Typ. Max

Unit Note

LVDS Interface

Input Channel Pair Skew Margin t

Receiver Clock : Spread Spectrum Modulation range

Receiver Clock : Spread Spectrum Modulation frequency

Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHz

SKEW (CP)

Fclk_ss

Fss

tRMG

 3.1.3 Driver Characteristics

Item Symbol Min Max Unit condition

Driver Surface Temperature DST 100

Note : Any point on the driver surface must be less than 100

-500 -- +500 ps 6

Fclk

-3%

30

-0.4

-0.5

℃℃℃℃

under any conditions.

--

[℃]

Fclk

+3%

200

0.4

0.5

Note

MHz

KHz

ns

7

8

s

µ

Note :

1. Test Condition:

(1) V (2) Fv = 60Hz (3) Fclk= Max freq. (4) Temperature = 25 ℃ (5) Typ. Input current : White Pattern

>> refer to “Section: 3.3 Signal Timing Specification, Typical timing”

2. Measurement condition : Rising time = 400us

= 12.0V

DD

Max. Input current: Heavy loading pattern defined by AUO

90%

T550HVD02.5 Product Specification

Rev.1.0

VVVV

DD

DDDD

GND

GNDGND

10%

3. Test Condition:

(1) The measure point of V

is in LCM side after connecting the System Board and LCM.

RP

(2) Under Max. Input current spec. condition.

4. V

= 1.25V

ICM

L V D S -

V

IC M

L V D S +

G N D

0 V

400

400400

|VID|

V

T H

|VID|

V

T L

5. The measure points of V

and V

IH

are in LCM side after connecting the System Board and LCM.

IL

6. Input Channel Pair Skew Margin

T550HVD02.5 Product Specification

Rev.1.0

Note: x = 0, 1, 2, 3, 4

7. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures

1111////FFFF

SS

SSSS

Fclk

Fclk____ss

FclkFclk

ss((((max

ssss

Fclk

FclkFclk

Fclk

Fclk____ss

FclkFclk

ss((((min

ssss

max))))

maxmax

min))))

minmin

T550HVD02.5 Product Specification

8. Receiver Data Input Margin

Parameter Symbol

Min Type Max

Rating

Unit

tRIP2

tRIP3

tRIP4

tRIP5

tRIP6

Rev.1.0

Note

T=1/Fclk

LVDS-Rx Input Data

LVDS-Rx Input Clock

tRIP0

tRIP1

Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3

VVVV

=

= 0000VVVV

= =

diff

diff diff

1/Fclk=T

No connection (for AUO test only. Do not

on (for AUO test only. Do not

No connection (for AUO test only. Do not

3.2 Interface Connections

3.2.1 T-CON BOARD PIN MAP



LCD connector : 187059-51221-1 (P-TWO, LVDS connector)

1

2

3

4

5

6

7 LVDS_SEL

Symbol Description PIN Symbol Description

N.C.

SCL EEPROM Serial Clock

EEPROM Write Protection

WP

SDA EEPROM Serial Data

N.C.

ROTATE.

No connecti

Panel Rotation Display Control High(3.3V) : Rotate Enable(Data mirror) Open/Low(GND) : Rotate Disable

High(3.3V) for Writable,

Low(GND) for Protection

Open/High(3.3V) for NS,

connect)

Low(GND) for JEIDA

26

27

28

29

30

31

32

T550HVD02.5 Product Specification

Rev.1.0

N.C.

CH2_0- LVDS Channel 2, Signal 0-

CH2_0+ LVDS Channel 2, Signal 0+

CH2_1- LVDS Channel 2, Signal 1-

CH2_1+ LVDS Channel 2, Signal 1+

CH2_2- LVDS Channel 2, Signal 2-

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

8

9

10

11

12

13

14

15

16

17

18

19 CH1_CLK-

20 CH1_CLK+

21

22

23

24

25

N.C.

3D_EN

GND Ground 36 CH2_CLK+

CH1_0- LVDS Channel 1, Signal 0- 37

CH1_0+ LVDS Channel 1, Signal 0+ 38

CH1_1- LVDS Channel 1, Signal 1- 39

CH1_1+ LVDS Channel 1, Signal 1+ 40

CH1_2- LVDS Channel 1, Signal 2- 41

CH1_2+ LVDS Channel 1, Signal 2+ 42

GND Ground 43

LVDS Channel 1, Clock - 44

LVDS Channel 1, Clock + 45

GND Ground 46

CH1_3- LVDS Channel 1, Signal 3- 47

CH1_3+ LVDS Channel 1, Signal 3+ 48

CH1_4-

CH1_4+

LVDS Channel 1,Signal 4-(for 10bit input) LVDS Channel 1,Signal 4+(for 10bit input)

connect)

3D Function Enable

High(3.3V) : 3D

Open/Low(GND) : 2D

51

33

34

35 CH2_CLK-

49

50

CH2_2+ LVDS Channel 2, Signal 2+

GND Ground

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

CH2_4-

CH2_4+

N.C.

GND Ground

N.C.

V

DD

V

DD

V

DD

V

DD

LVDS Channel 2, Clock -

LVDS Channel 2, Clock +

LVDS Channel 2,Signal 4-(for 10bit input) LVDS Channel 2,Signal 4+(for 10bit input)

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

Power Supply, +12V DC Regulated

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High). Note: Open / High(3.3V) / Low(GND)/ WP / SDA / SCL described in 3.2.1.3 Note: 3D_EN timing described in 3.2.1.3

T550HVD02.5 Product Specification

Rev.1.0

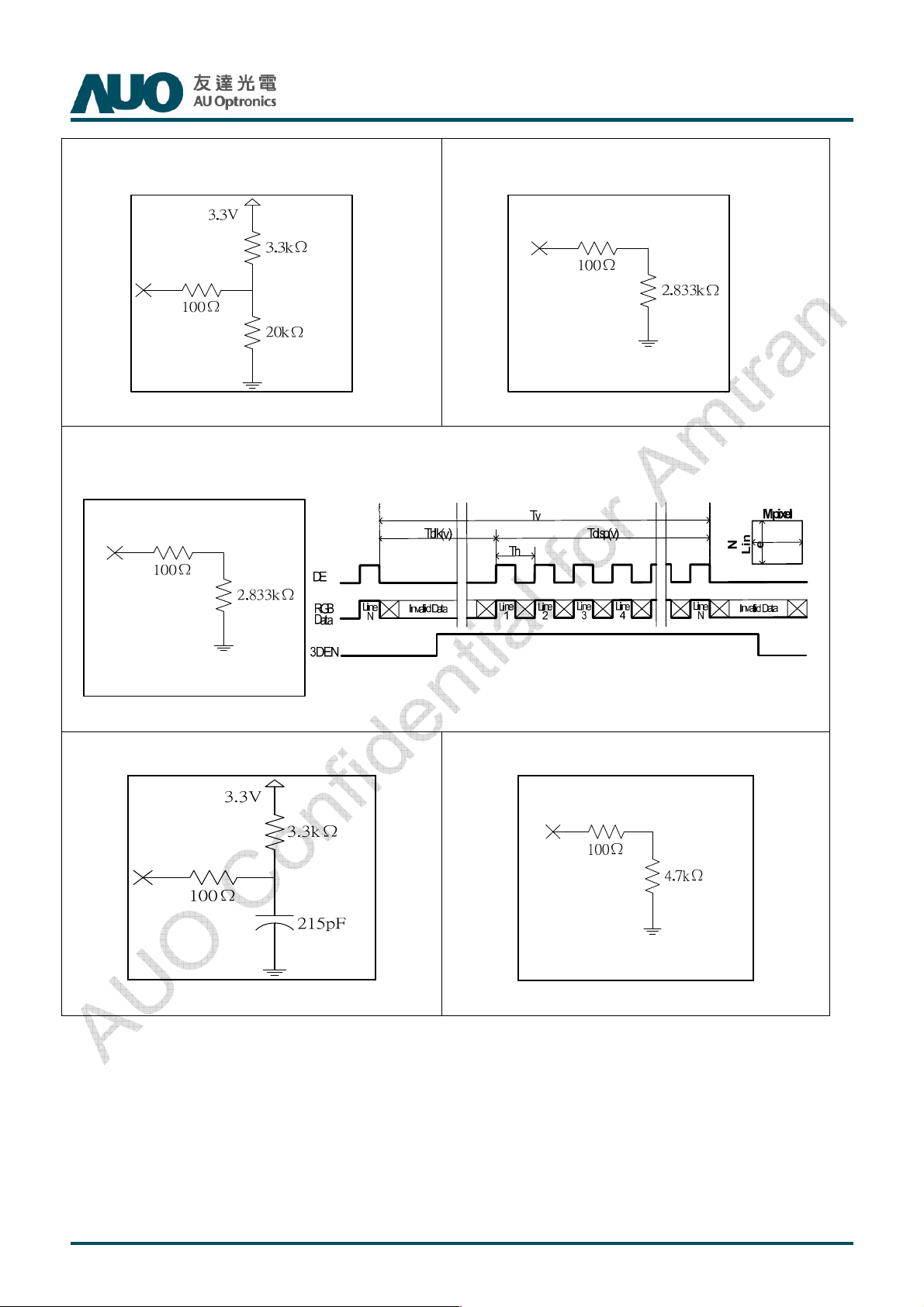

Note * : Open/High(3.3V)

Note *** : Open/Low(GND)

3D_EN control signal can only “pull high” in the middle of vertical blanking area (Tblk(V))

Note ** : Open/Low(GND)

Note **** : SCL/SDA

Note ***** : WP

3.2.2 LVDS Option = High/OpenNS

P re v io u s C ycle C urren t C yc le N ex t C yc le

P re v io u s C ycle C urren t C yc le N ex t C yc le P re v io u s C ycle C urren t C yc le N ex t C yc le

C lo c k

C lo c kCloc k

C H x

C H x____ 0000 ++++

C H xC H x

C H x

C H x____ 0000 ----

C H xC H x

C H x

C H x____ 1111 ++++

C H xC H x

C H x

C H x____ 1111 ----

C H xC H x

C H x

C H x____ 2222 ++++

C H xC H x

C H x

C H x____ 2222 ----

C H xC H x

C H x

C H x____ 3333 ++++

C H xC H x

C H x

C H x____ 3333 ----

C H xC H x

D EBBBB 2222BBBB 3333 BBBB 4444BBBB 5555N A

D ED E

N ARRRR 6666RRRR 7777 GGGG 6666GGGG 7777BBBB 6666 RRRR 7777

N AN A

N A D E

N AN A

Note: x = 1, 2, 3 …

LVDS Option = LowJEIDA

T550HVD02.5 Product Specification

N A BBBB 3333

N AN A

RRRR 0000RRRR 5555 GGGG 0000GGGG 0000RRRR 0000RRRR 1111 RRRR 2222RRRR 3333RRRR 4444 RRRR 1111

GGGG 1111BBBB 0000 BBBB 1111BBBB 1111GGGG 1111GGGG 2222 GGGG 3333GGGG 4444GGGG 5555 GGGG 2222

BBBB 2222N A

RRRR 6666BBBB 7777 N A

D ED E

N AN A

Rev.1.0

P re v io u s C yc le C urren t C y c le N e xt C ycle

P re v io u s C yc le C urren t C y c le N e xt C ycle P re vio us C y c le C urr e n t C ycle N ex t C ycle

C lo c k

C lo c kC loc k

C H x

C H x ____ 0000 ++++

C H xCH x C H x

C H x ____ 0000 ----

C H xCH x

C H x

C H x ____ 1111 ++++

C H xCH x C H x

C H x ____ 1111 ----

C H xCH x

C H x

C H x ____ 2222 ++++

C H xCH x C H x

C H x ____ 2222 ----

C H xCH x

C H x

C H x ____ 3333 ++++

C H xCH x C H x

C H x ____ 3333 ----

C H xCH x

G7

D EBBBB 4444BBBB 5555 BBBB 6666BBBB 7777N A

D ED E

N ARRRR 0000RRRR 1111 GGGG 0000GGGG 1111BBBB 0000 RRRR 1111

N AN A

N A D E

N AN A

N A BBBB 5555

N AN A

RRRR 2222RRRR 7777 GGGG 2222GGGG 2222RRRR 2222RRRR 3333 RRRR 4444RRRR 5555RRRR 6666 RRRR 3333

GGGG 3333BBBB 2222 BBBB 3333BBBB 3333GGGG 3333GGGG 4444 GGGG 5555GGGG 6666GGGG 7777 GGGG 4444

BBBB 4444N A

RRRR 0000BBBB 1111 N A

D ED E

N AN A

Note: x = 1, 2, 3 …

T550HVD02.5 Product Specification

Rev.1.0

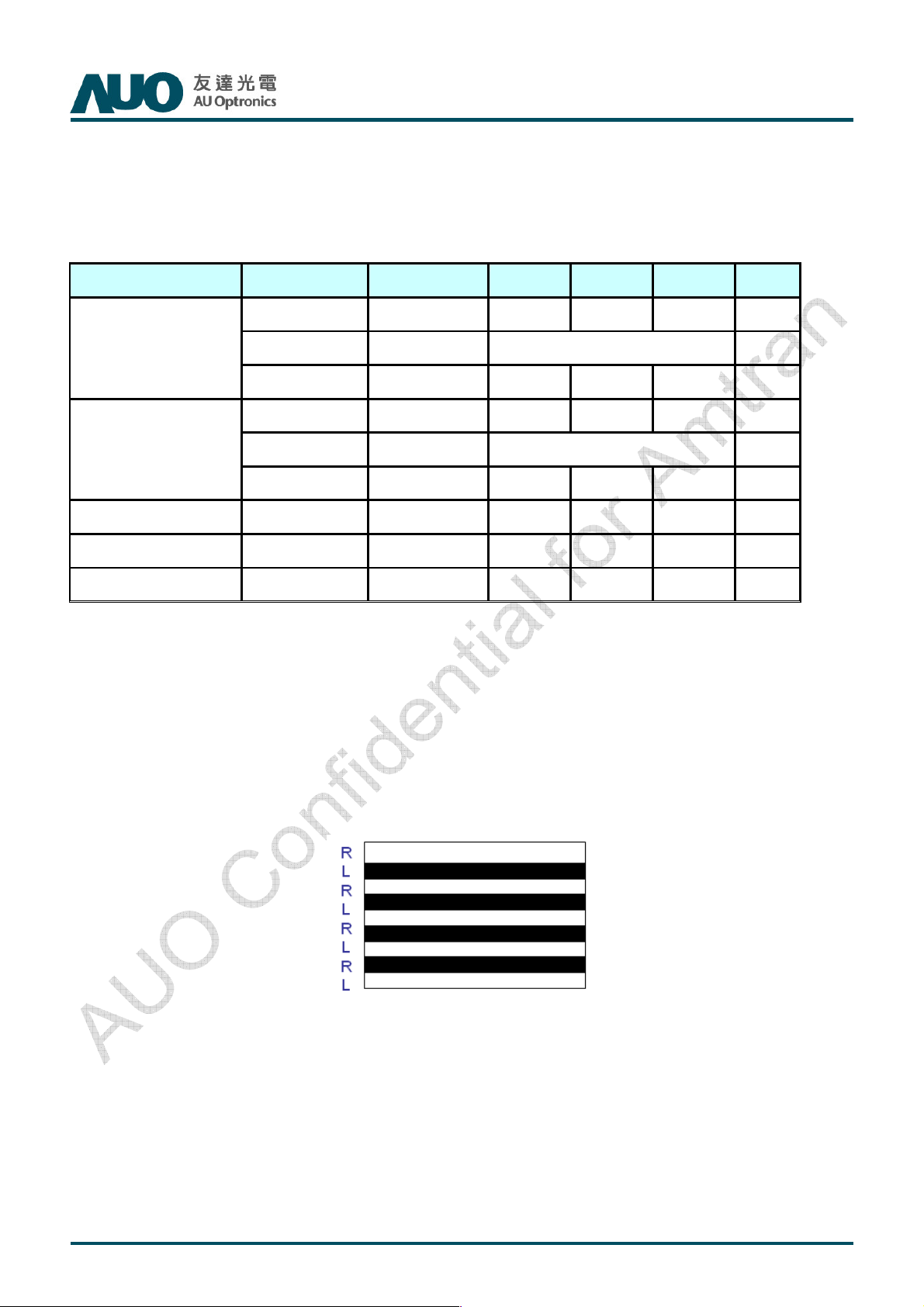

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode) Vertical Frequency Range (60Hz)

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1100 1125 1480

Vertical Section

Horizontal Section

Clock Frequency Fclk=1/Tclk 53 74.25 82 MHz

Vertical Frequency Frequency Fv 47 60 63 Hz

Horizontal Frequency

Notes: (1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the

left edge of the screen. (2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen. (3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black. (4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other. (5) Under 3D mode, signal should be input as following sequence: 1st line: right eye, 2nd line: left eye (when rotate function is not implemented and Tcon position is at panel upper side).

Active Tdisp (v) 1080 Th

Blanking Tblk (v) 20 45 400

Period Th 1030 1100 1325 Tclk

Active Tdisp (h) 960 Tclk

Blanking Tblk (h) 70 140 365 Tclk

Frequency Fh 60 67.5 73 KHz

Th

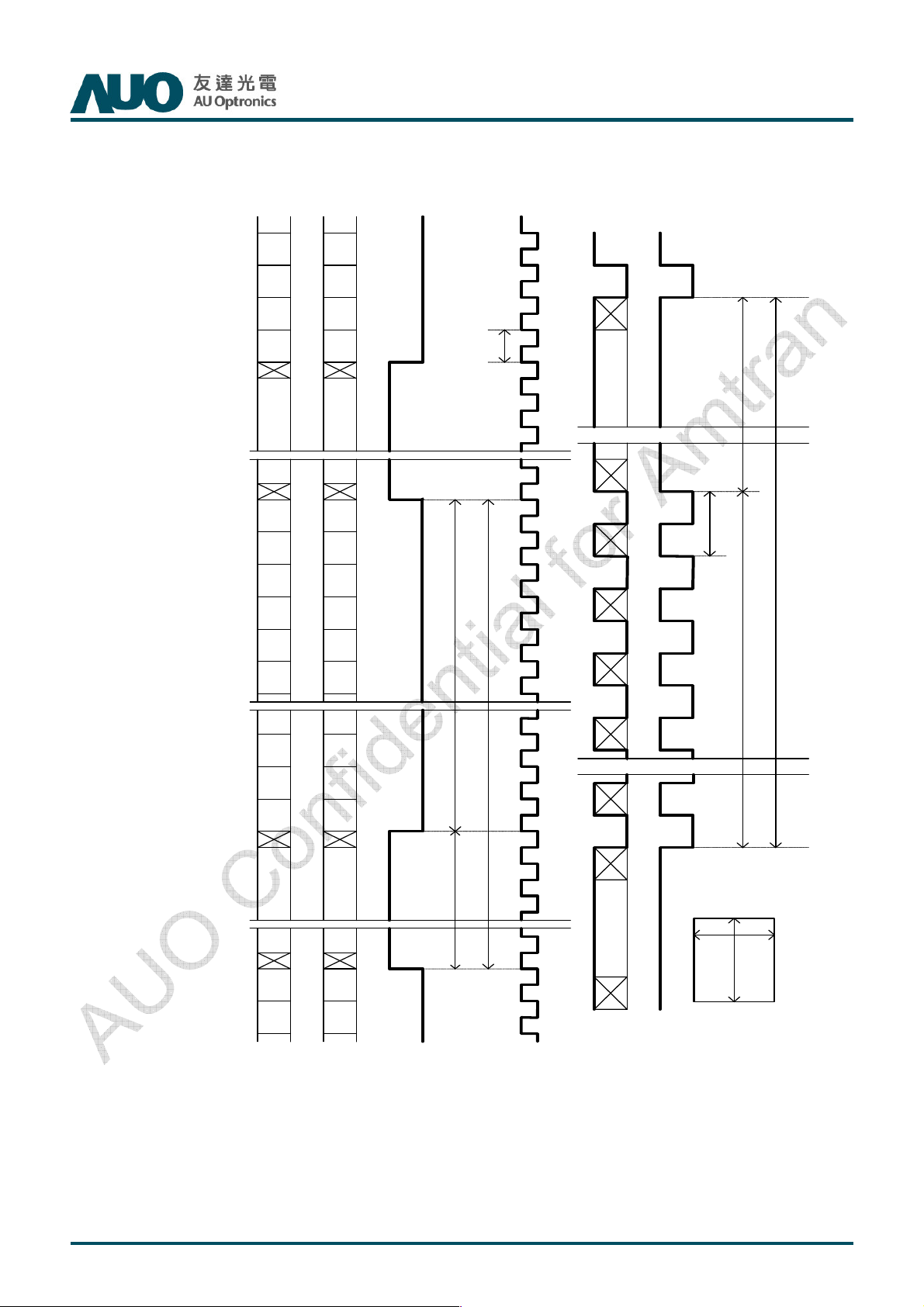

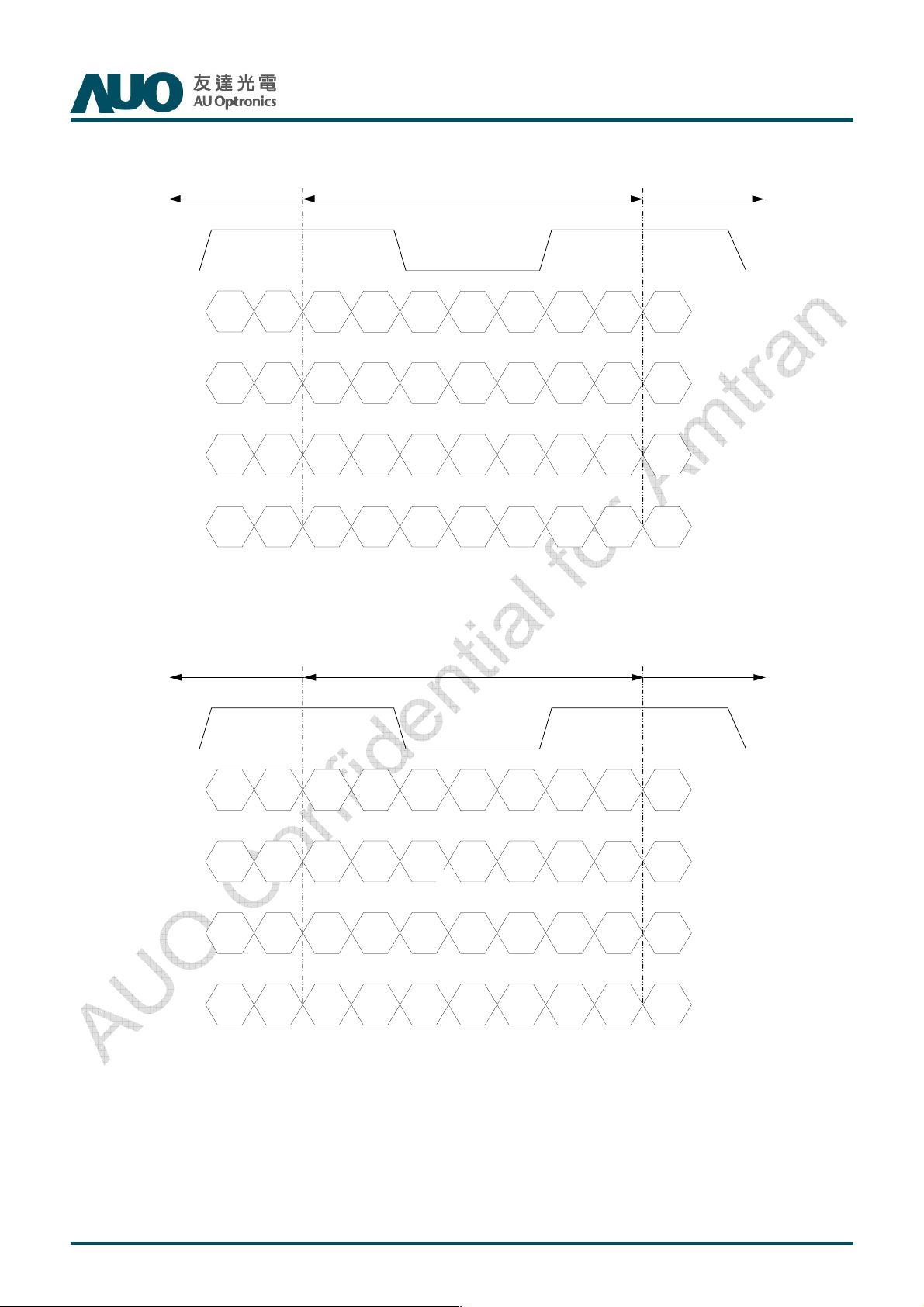

3.4 Signal Timing Waveforms

CH2

T550HVD02.5 Product Specification

Rev.1.0

CH1

DE

CLK

RGB

Data

DE

Pixel

M-6

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

6

Pixel

8

Pixel

10

Pixel

12

Pixel

M-7

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Pixel

5

Pixel

7

Pixel

9

Pixel

11

Tclk

Tdisp(h) Tblk(h)

Th

Line

N

Invalid Data Invalid Data

Line

1

Th

Tv

Line

2

Line

3

Line

4

Tdisp(v)Tblk(v)

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Line

N

N L in e

N L in eN L in e

M

M p

p

p i

i

x

x e

e

e l

l

T550HVD02.5 Product Specification

Rev.1.0

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic Color

R

G

B

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

---RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

---GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

---BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

RED

MSB LSB

GREEN

BLUE

MSB LSB

3.6 Power Sequence for LCD

T550HVD02.5 Product Specification

Rev.1.0

Values

Parameter

Unit

Min. Type. Max.

t1 0.4 --- 30 ms

t2 0.1 --- 50 ms

t3 450 --- --- ms

t4 0*1 --- --- ms

t5 0 --- --- ms

t6 --- --- ---*2 ms

t7 500 --- --- ms t8

10*3

--- 50 ms

t9 0 --- --- ms t10 450 --- --- ms t11 150 --- --- ms

Note: (1) t4=0: concern for residual pattern before BLU turn off. (2) t6: voltage of VDD must decay smoothly after power-off. (customer system decide this value) (3) When CMOS Interface signal is N.C. (no connection), opened in Transmitted end, t8 timing spec can be

negligible.

T550HVD02.5 Product Specification

3.7 VCOM ADJUST SOP

If you need below pattern or more detail information, please directly contact AUO for engineer service.

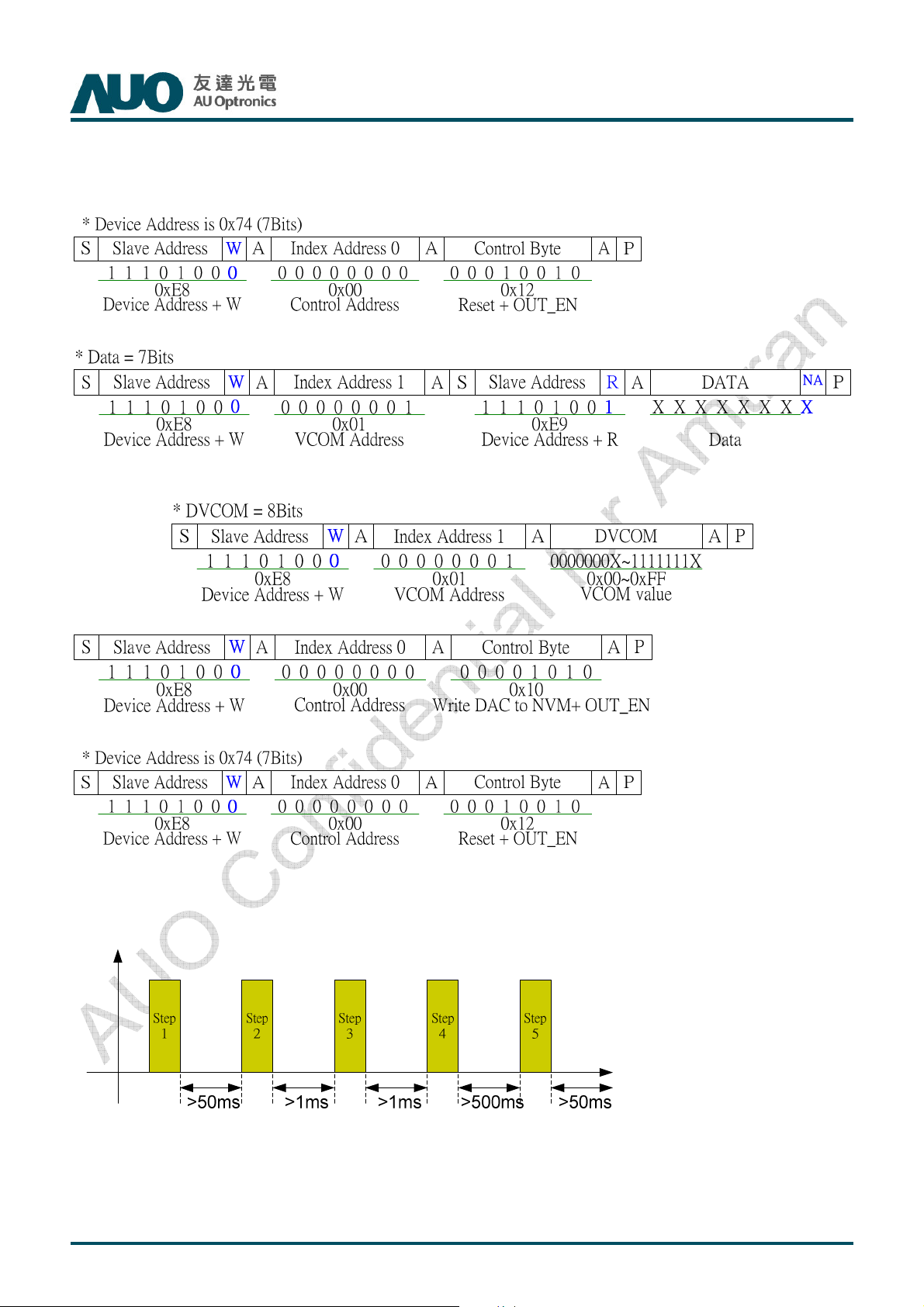

3.7.1 VCOM I2C TUNING STEP

Rev.1.0

3.7.2 FLICKER PATTERN

■ Dot

Green (L128)

G B R G

R

R G B R G B R G B R G B

G B R G

R

R G

B R G

R G B R G B R G B R G B

B R G

B R

G B

B

□ 1+2Dot

Green (L128)

3.7.3 WP (WRITE PROTECT) DISABLE

Disable Enable Default (NC)

□

■

L H H

H L L

Green (L128)

□ 2Dot

□ V-stripe

Green (L128)

3.7.4 ADJUST SOP

Step1 Reset

Step2 Read VCOM

T550HVD02.5 Product Specification

Rev.1.0

Step3 Adjust VCOM

Step4 Write VCOM

Step5 Reset

3.7.5 INTERVAL OF STEP TO STEP

Step to step interval must follow below figure

T550HVD02.5 Product Specification

Rev.1.0

4. Optical Specification

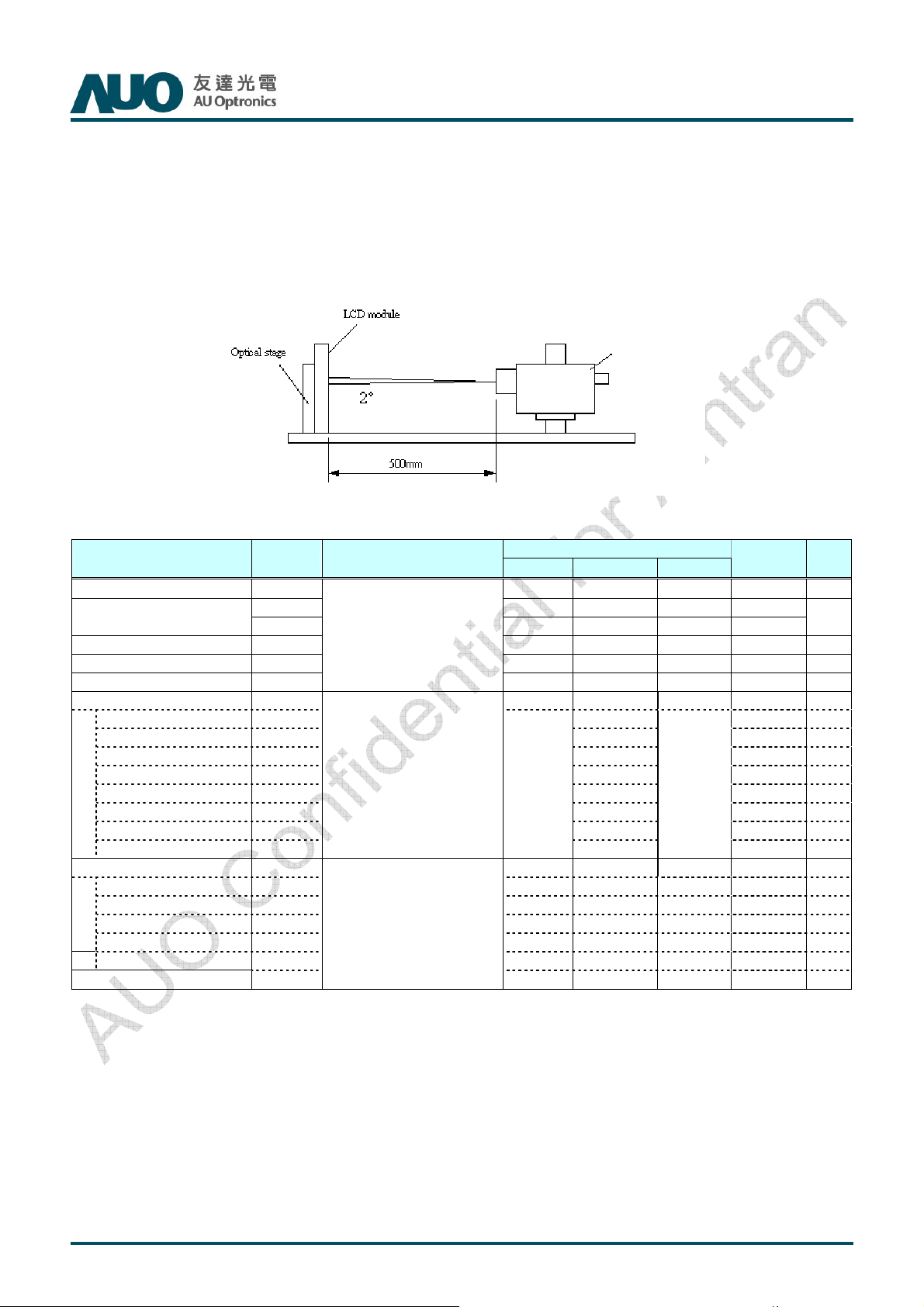

Optical characteristics are determined after the open cell unit and light source has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Contrast Ratio CR 3200 4000 -- 1,2

L

(2D)

(White) Luminance Variation δ Response Time (G to G) Center Transmittance T% Color Chromaticity 6

Red RX 0.659 RY 0.328 Green GX 0.275 GY 0.580 Blue BX 0.140 BY 0.091 White WX 0.297 WY

Viewing Angle 7

x axis, right(φ=0°) θr -- 89 -- degree x axis, left(φ=180°) θl -- 89 -- degree y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θd -- 89 -- degree 3D y axis, up + down θu + θd 26 30 degree 9 3D cross talk (middle)

WH

L

(3D)

WH

WHITE(9P)

Tγ -- 6.5 -- Ms 5

Standard light source “C”

Condition

With STD BLU

Min. Typ. Max

320 400 -- cd/m2 Surface Luminance

100 --

-- -- 1.33 1,4

6.6 % 1,8

Typ.-0.03

-- 1 3 %

Values

0.341

Unit Notes

1,3

Typ.+0.03

3

5 6

T550HVD02.5 Product Specification

Rev.1.0

Note:

1. Light source here is the BLU of AUO T550HVN01.5 module.

2. Contrast Ratio (CR) is defined mathematically as:

Contrast Ratio=

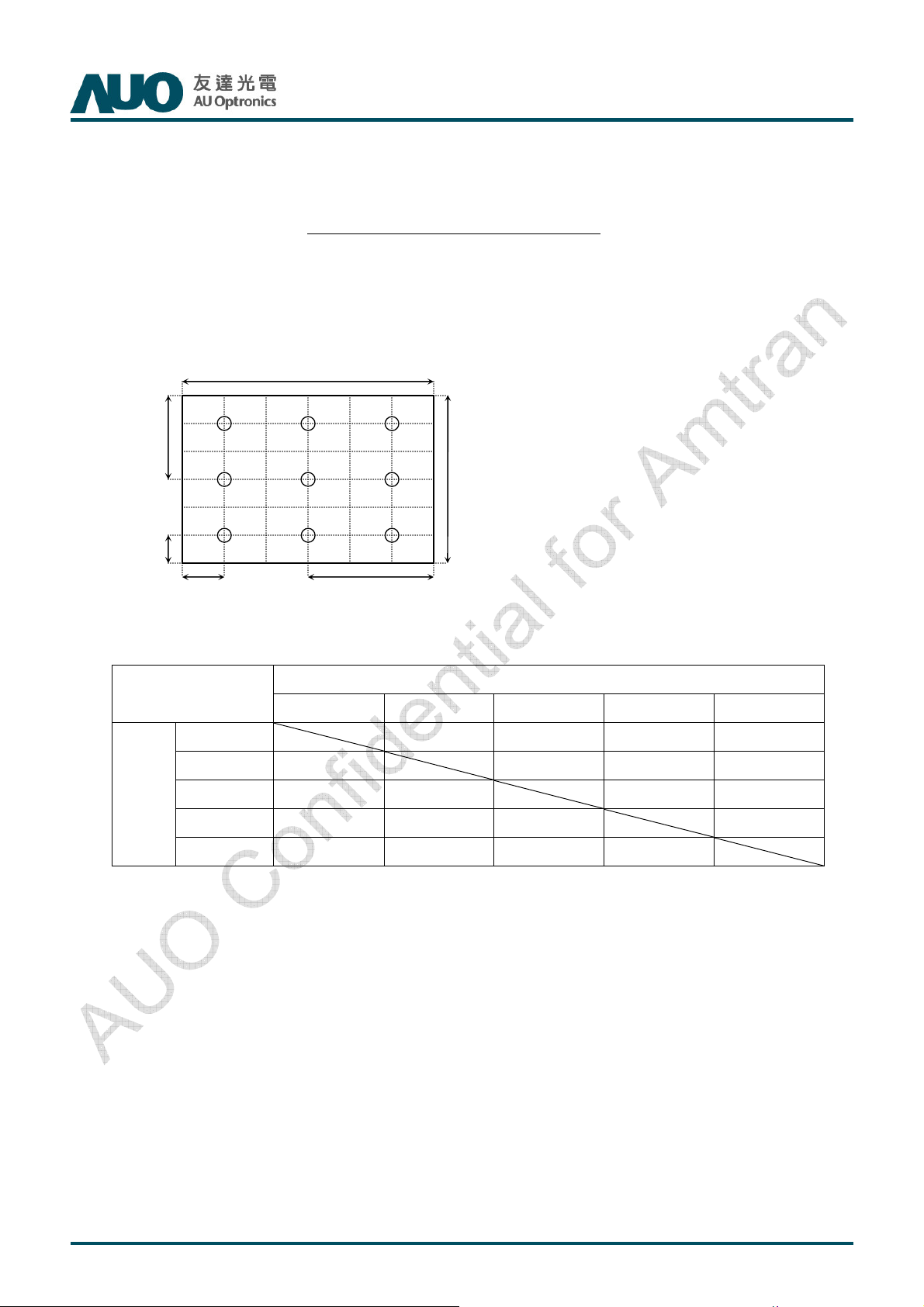

3. The white variation, δWHITE is defined as: δWHITE(9P)= Maximum(Lon1, Lon2,…,Lon9)/ Minimum(Lon1, Lon2,…Lon9)

Surface Luminance of Surface Luminance of

V

L

on5

L

off5

4. Response time Tγ is the average time required for display transition by switching the input signal for five

H/2

H/6

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.

1

4

7

2

H

8

V/2 V/6

Target Measured

Response Time

0%

25%

Start

50%

75%

100%

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of grey(bright) “ and “any level of gray(dark)”.

0% 25% 50% 75% 100%

0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% to 0% 25% to 50% 25% to 75% 25% to 100%

50% to 0% 50% to 25%

75% to 0% 75% to 25% 75% to 50%

100% to 0% 100% to 25% 100% to 50% 100% to 75%

50% to 75% 50% to 100%

75% to 100%

T550HVD02.5 Product Specification

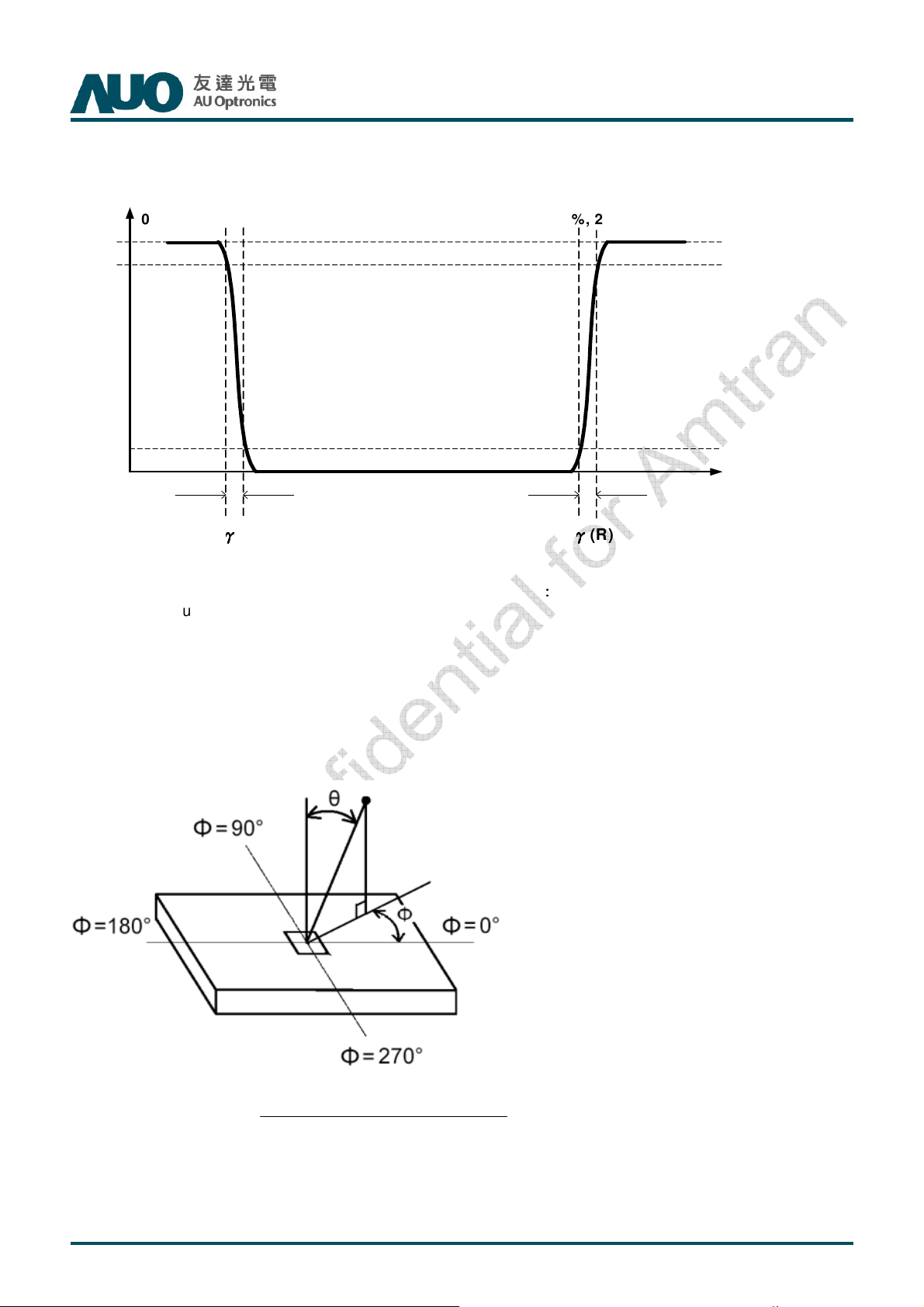

FIG.3 Response Time

Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)

Rev.1.0

0% , 25%, 50% , 75%, 100%

0% , 25%, 50% , 75%, 10 0%

Photodetector

Output

0% , 25%, 50% , 75%, 100%

Tim e

T

(F)

γγγγ

5. Light source here is the standard light source “C” which is defined by CIE and driving voltages are based on suitable gamma voltages. The calculating method is as following：

A. Measure the “Module” and “BLU” optical spectrums (W, R, G, B) of AUO T550HVN01.5. B. Calculate cell spectrum from “Module” and “BLU” spectrums. C. Calculate color chromaticity by using cell spectrum and the spectrum of standard light source “C”.

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG4.

FIG.4 Viewing Angle

T

γγγγ

(R)

7. Definition of Transmittance (T%):

module LCD of Luminance

nceTransmitta ∗=

%001

backlight of Luminance

During transmittance measurement, the backlight of LCD module contains no brightness enhancement film. Two diffuser sheets which diffuse the light source uniformly are suggested to use for transmittance measurement.

2

−

T550HVD02.5 Product Specification

Rev.1.0

8. 3D performance specification here defines 3D Crosstalk and 3D viewing angle. 3D crosstalk is measured at panel center point under wearing glass condition. a. Cross talk (middle) is defined by observation position which is 1.7m distance from panel center point and human head in 0 degree steady vertical angle from panel mid axis level. b. Cross talk (in vertical viewing angle) is defined by observation position which is 1.7m distance from panel center point and observation range within specified degrees of vertical angle from panel mid axis level, and the value is limited by 10%. For more information, refer to 9-4 3D Measurement of 3D view angle.

8-1 Notation of measurement.

Glasses type: R: right eyeglass L: left eyeglass C: without eyeglass

RL (W,K)

Measurement Code: L: Luminance

Left eye gray level

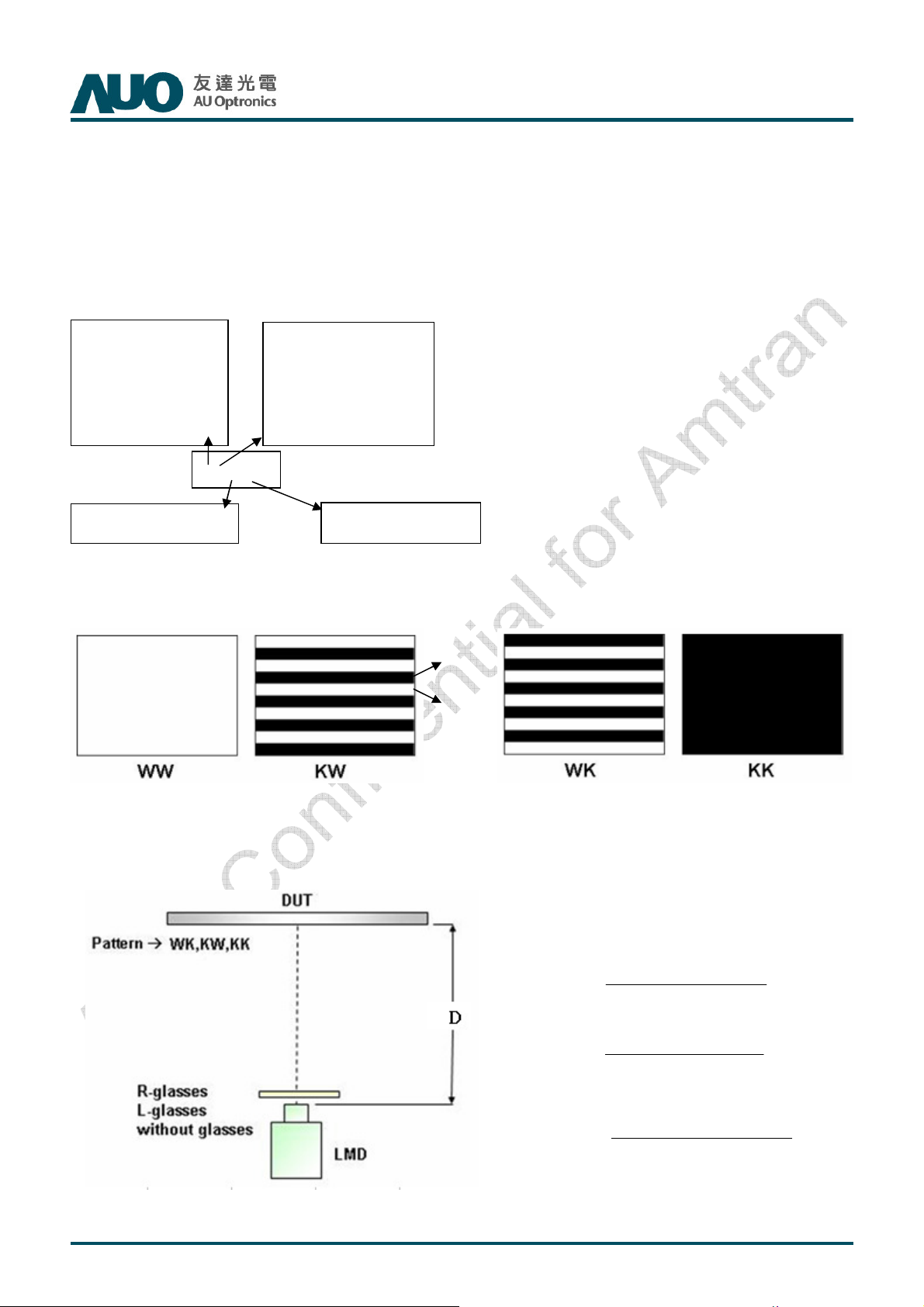

8-2 Measurement Configuration 4-test patterns (first character refers to Left eye gray level; second one refers to Right eye gray level). W is defined as brightness gray level; K is defined as dark state where black and white lines are displayed

on even or odd lines.

Right eye gray level

Odd line

Even line

8-3 Measurement of 3D Crosstalk

a. Test patterns KW, WK and KK are displayed, measuring distance is 1.7m. b. Right or left eyeglass is placed in front of SR3 or equivalent equipment (as FIG1 showed) successively

and luminance is measured at panel center point where the notation for luminance measurement is RL(W,W) and LL(W,W).

Crosstalk

=

R

=

L

Crosstalk+=

LL

−

LL

−

LL

),(),(

KKRWKR

),(),(

KKLWKL

),(),(

KKLKWL

CrosstalkCrosstalk

%100

×

%100

×

LR

),(),(

KKRKWR

8-4 Measurement of 3D view angle

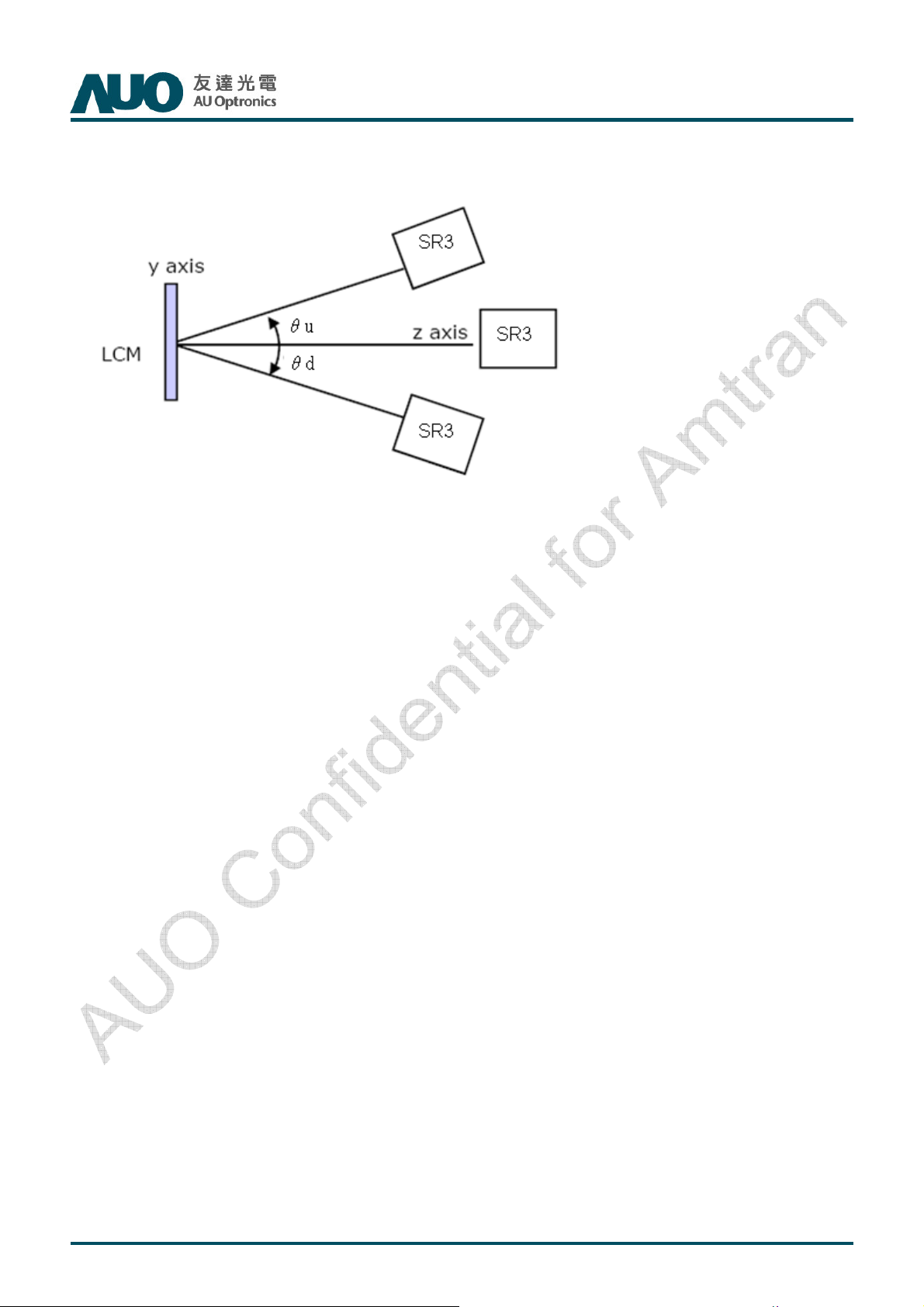

The angles are determined for the vertical or y axis with respect to the z axis which is normal to the LCD module surface and measured at panel center position.

T550HVD02.5 Product Specification

Rev.1.0

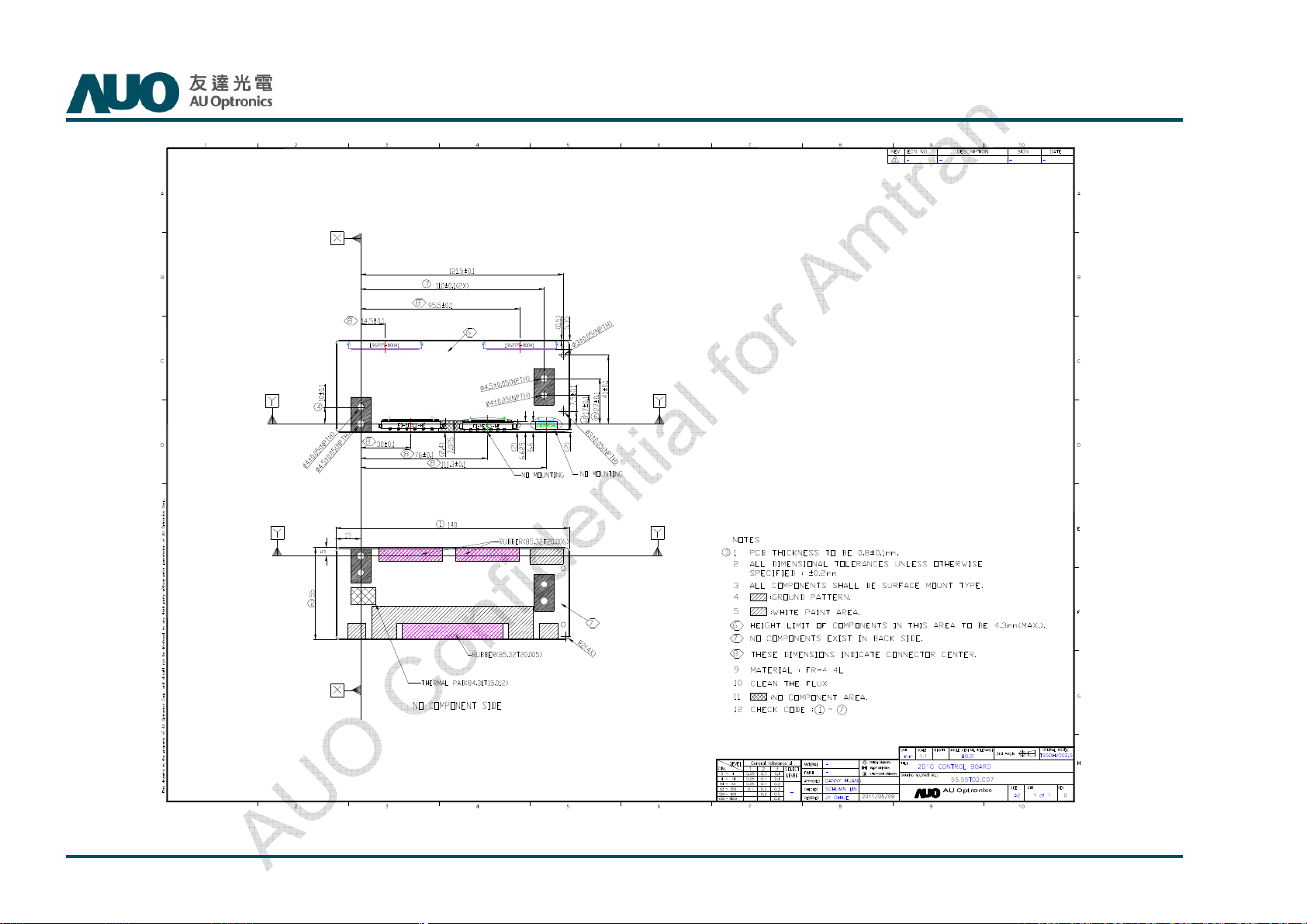

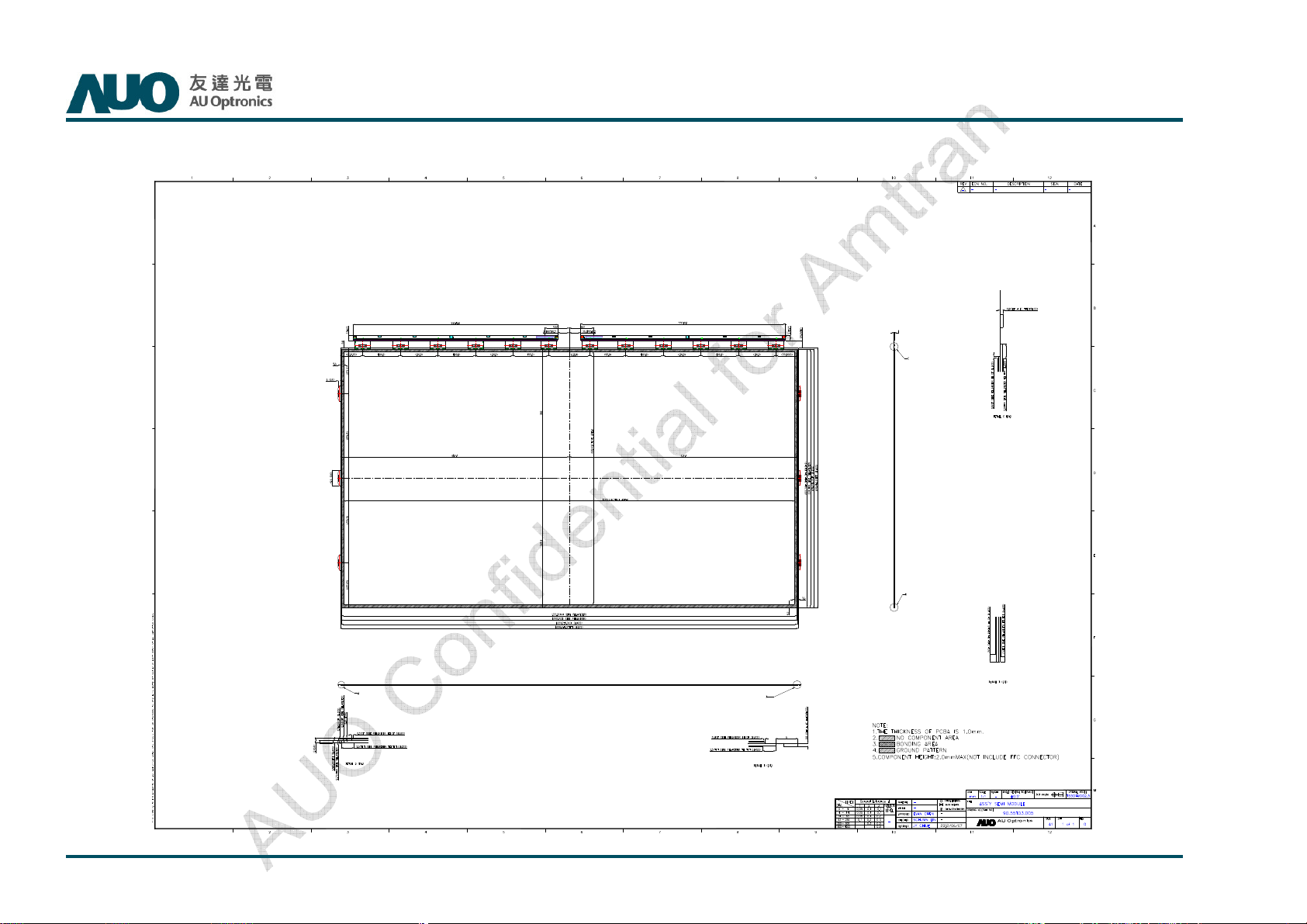

5. Mechanical Characteristics

T550HVD02.5 Product Specification

Rev.1.0

RUBBER RUBBERRUBBER RUBBER RUBBER RU BBERRUBBER

T550HVD02.5 Product Specification

Rev.1.0

XXXXX

–

XXXXX

–

XXXX

X

T

550

HVD0

2.5

91.

55T03

.5XX

6. Packing

6-1. DEFINITION OF LABELS:

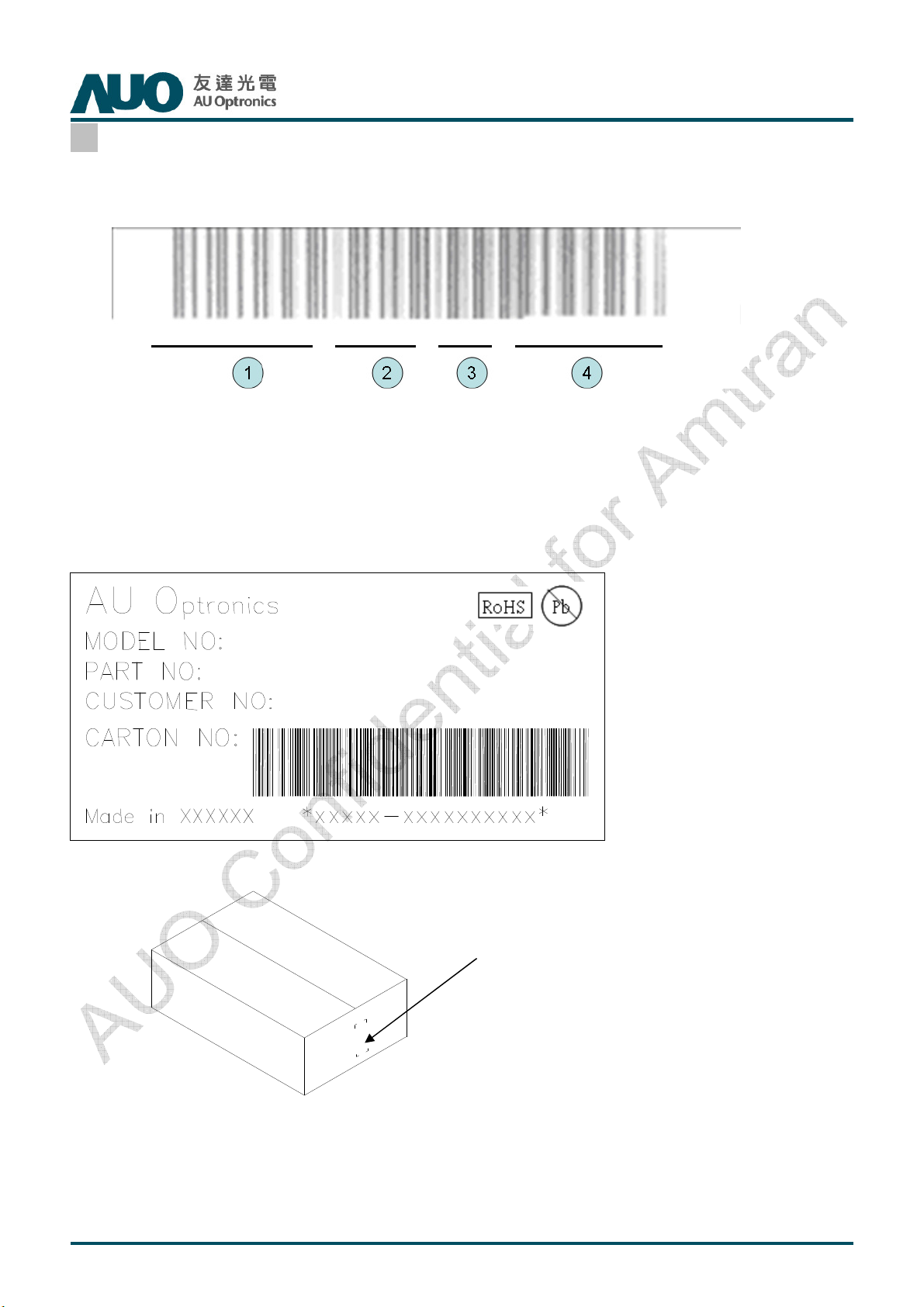

A. Open cell shipping label (35*7mm):

1. S/N Number

2. AUO internal use

3. Manufactured week

4. Model name

XXXXXXXXXXXX – XXXXXX – XXXX – XXXXXXXXXXX

B. Carton Label:

T550HVD02.5 Product Specification

Rev.1.0

Carton label location

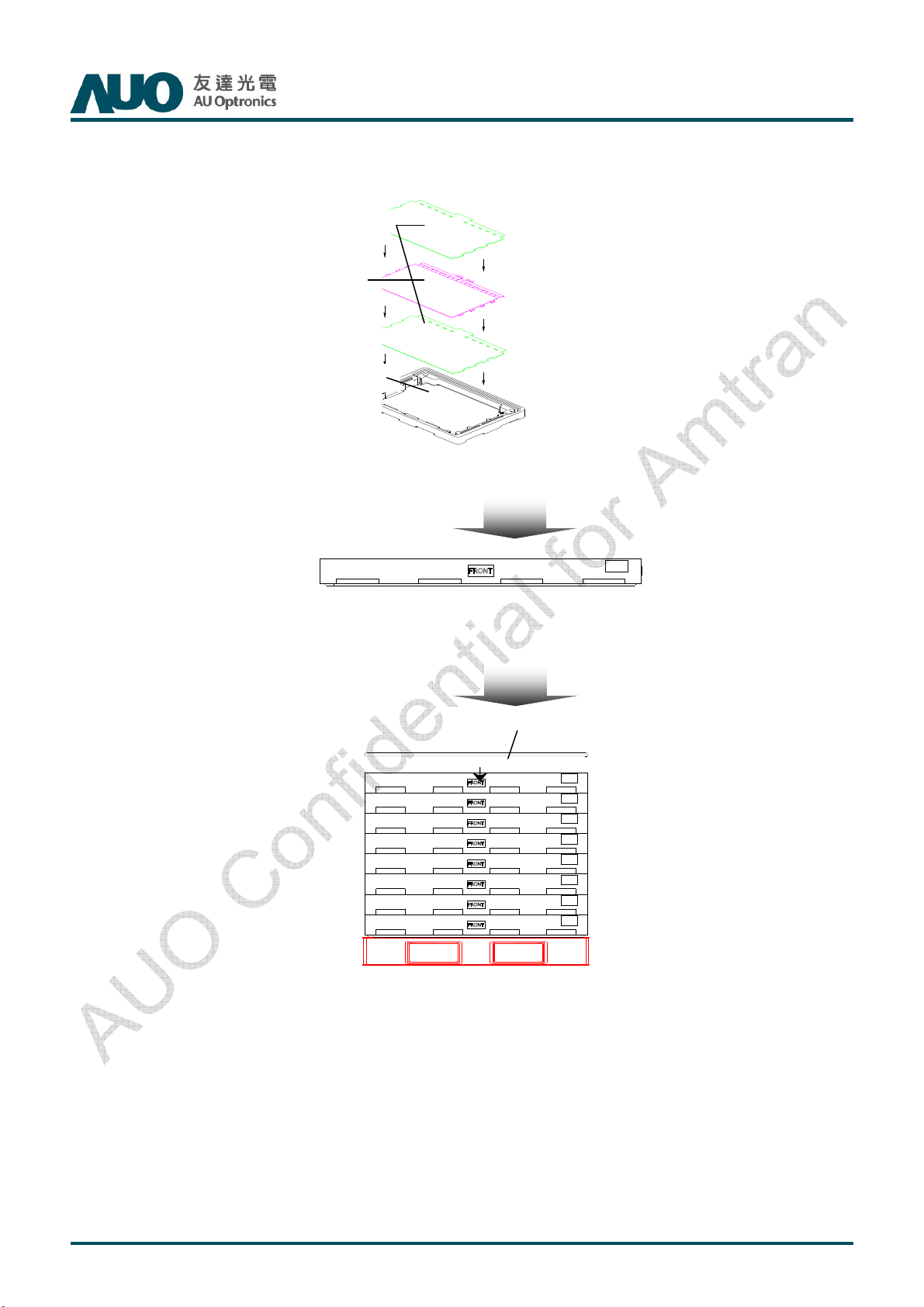

6-2 PACKING METHODS:

EPE Spacer

Open Cell

Hybrid Box

T550HVD02.5 Product Specification

Rev.1.0

1Box for 12 pcs cells & 13 pcs spacers

12 Pcs/Box,

EPP Top Cover

Pallet Dimension:1420*1120*150 mm

8 Boxes/Pallet, after stack 8 boxes, then put EPP top cover on it.

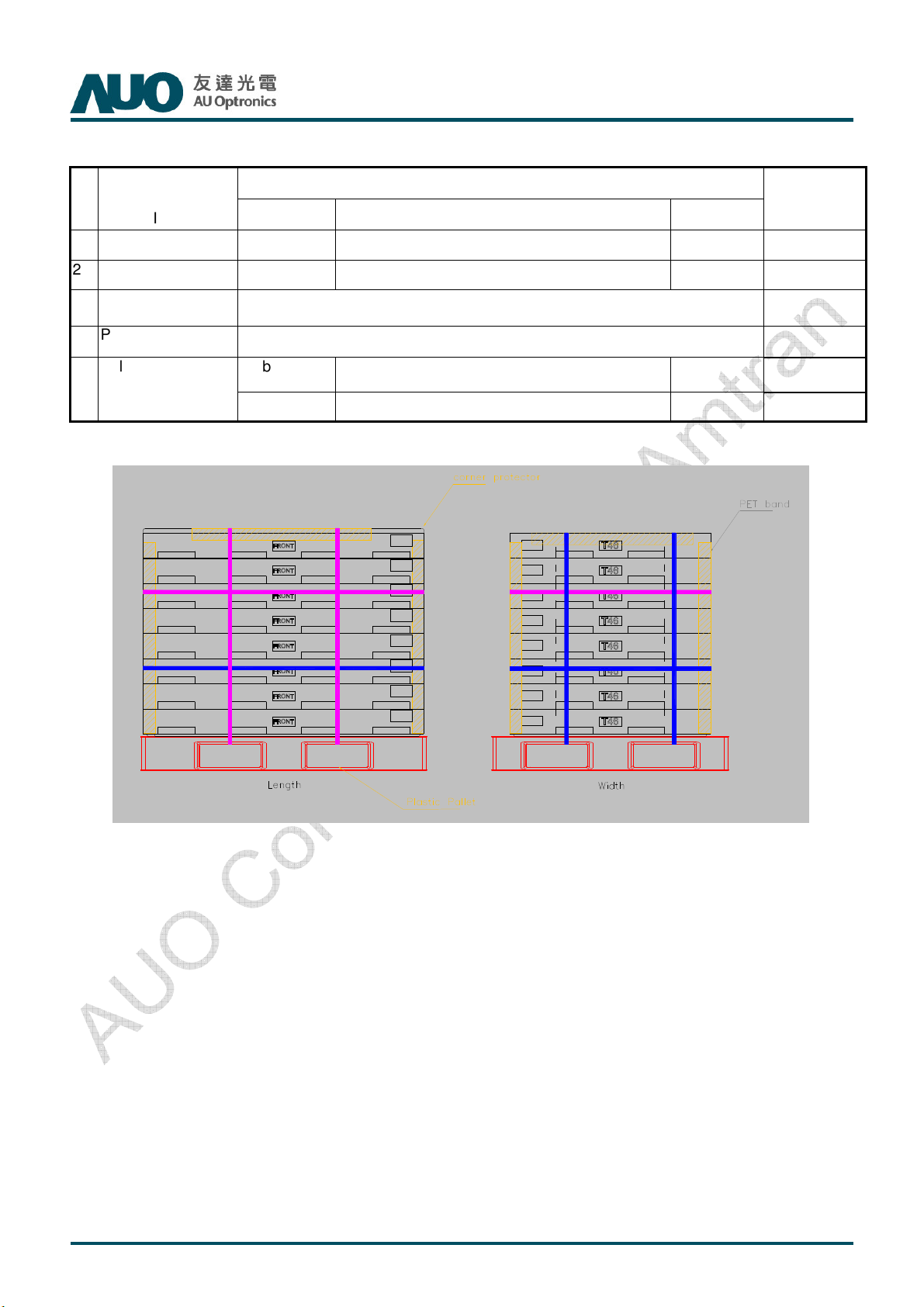

6-3 Pallet and Shipment Information

T550HVD02.5 Product Specification

Rev.1.0

Specification

Item

1 Packing Box 12 pcs/box 1400(L)mm*990(W)mm*116(H)mm 37

2 Pallet 1 1420(L)mm*1120(W)mm*150(H)mm 15

3 Boxes per Pallet 8 boxes/Pallet (By Air) ; 8 Boxes/Pallet*Double Pallet (By Sea)

4 Panels per Pallet 96 pcs/pallet(By Air) ; 88 pcs/Pallet*Double Pallet (By Sea)

after packing

Qty. Dimension Weight (kg)

96(by Air) 1420(L)mm*1120(W)mm*1028(H)mm (by Air) 313 (by Air)

192(by Sea) 1420(L)mm*1120(W)mm*2056(H)mm (by Sea) 626 (by Sea)

Packing

Remark

5 Pallet

40ft HQ

T550HVD02.5 Product Specification

7. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD Open Cell unit and strongly recommended to contact AUO if module process advice is required.

7-1 MOUNTING PRECAUTIONS

(1) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the cell. And the frame on which a cell is mounted should have sufficient strength so that external force is not transmitted directly to the cell.

(2) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force.

(3) You should adopt radiation structure to satisfy the temperature specification.

(3) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction. (4) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.) (5) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer. (6) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading. (7) Do not open the case because inside circuits do not have sufficient strength.

7-2 OPERATING PRECAUTIONS

(1) The open cell unit listed in the product specification sheets was designed and manufactured for TV application (2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage: V=±200mV(Over and under shoot voltage) (3) Response time depends on the temperature. (In lower temperature, it becomes longer.) (4) Brightness/transmittance depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature, response time (required time that brightness is stable after turned on) becomes longer. (5) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur. (6) When fixed patterns are displayed for a long time, remnant image is likely to occur. (7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done by system manufacturers. Grounding and shielding methods may be important to minimize the interface. (8)

7-3 ELECTROSTATIC DISCHARGE CONTROL

Since a open cell unit is composed of electronic circuits, it is not strong to electrostatic discharge. Make

certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin

directly.

7-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

Rev.1.0

7-5 STORAGE

When storing open cell units as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the open cell unit to sunlight or fluorescent light. Keep the

temperature between 5 and 35 at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they be

stored in the container in which they were shipped.

℃ ℃

T550HVD02.5 Product Specification

Rev.1.0

7-6 HANDLING PRECAUTIONS FOR PROTECTION FILM OF POLARIZER

The protection film of polarizer is still attached on the surface as you receive open cell units. When the protection film is peeled off, static electricity is easily generated on the polarizer surface. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.
