AUO T520HW01 V5 Specification

Download

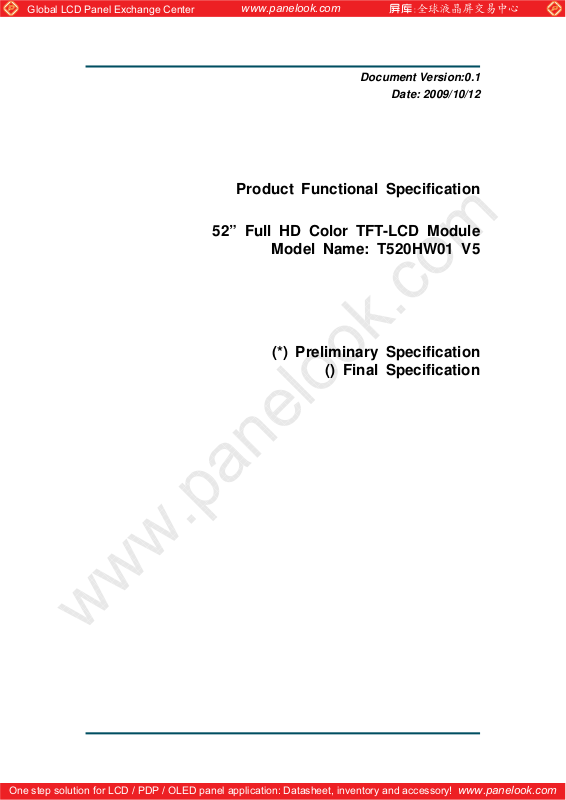

Page 1

Global LCD Panel Exchange Center

www.panelook.com

Document Version:0.1

Date: 2009/10/12

Product Functional Specification

52” Full HD Color TFT-LCD Module

Model Name: T520HW01 V5

(*) Preliminary Specification

() Final Specification

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 2

Global LCD Panel Exchange Center

www.panelook.com

Contents

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTOR

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

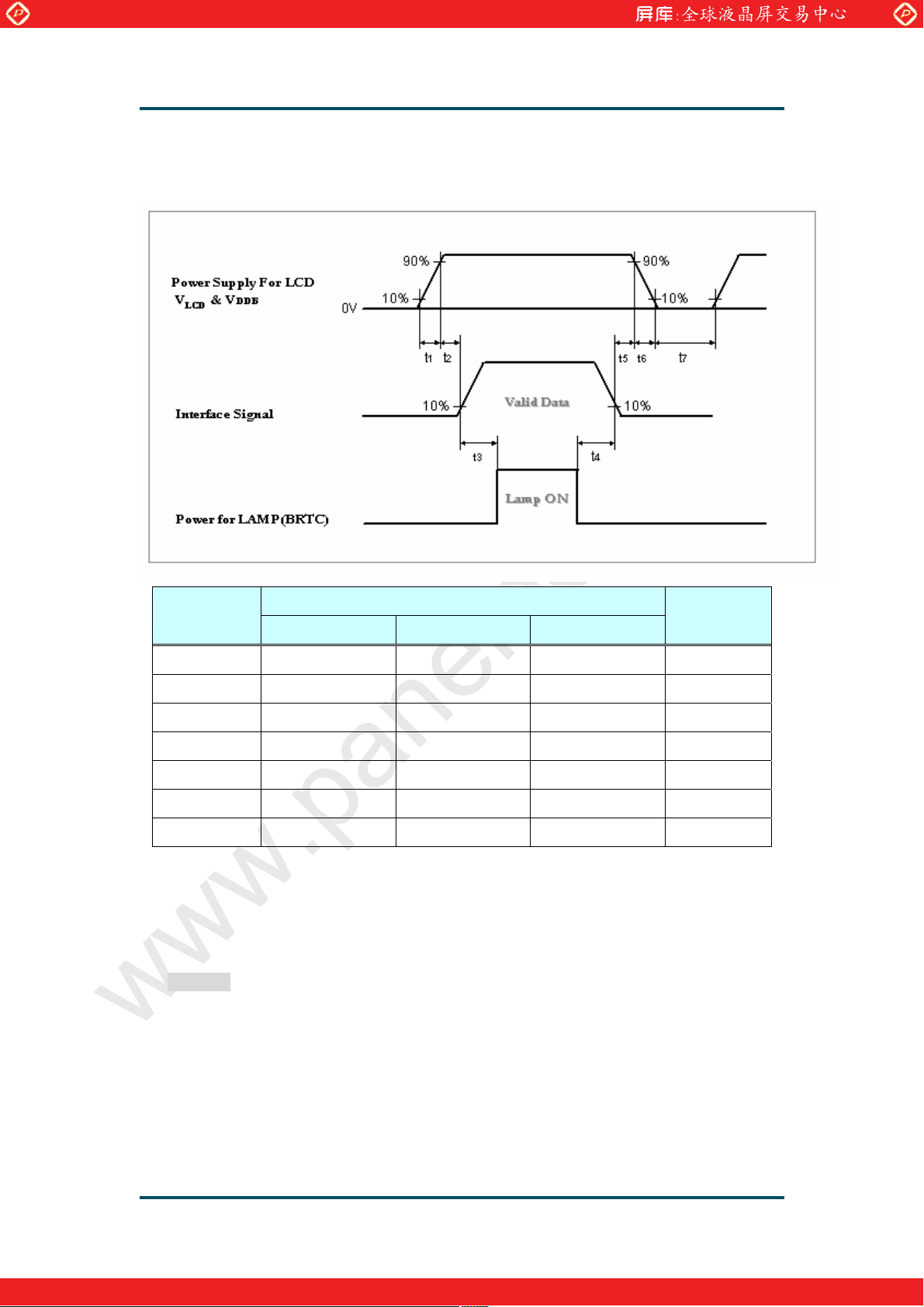

3-6 POWER SEQUENCE

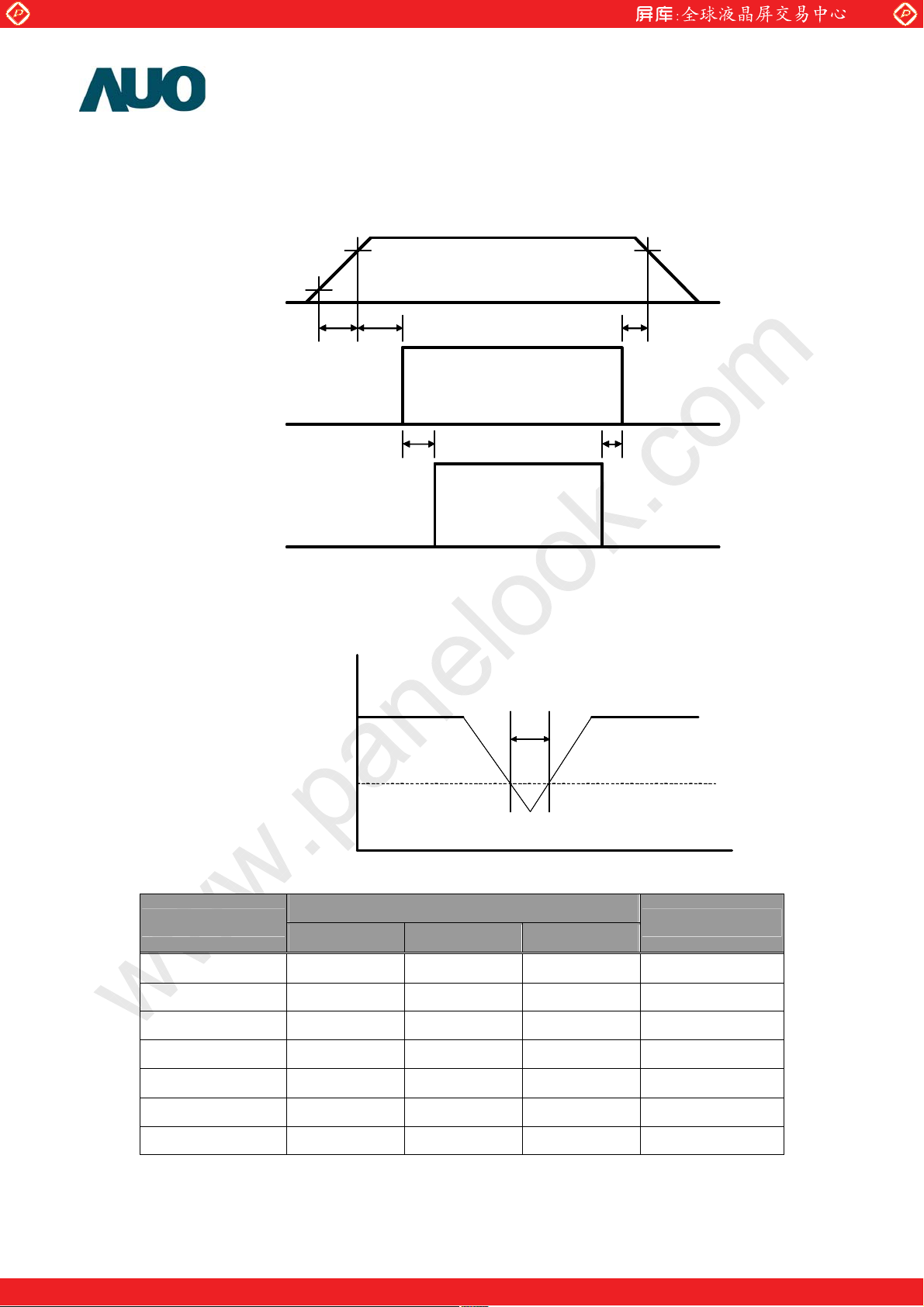

3-7 BACK LIGHT POWER SPECIFICATION

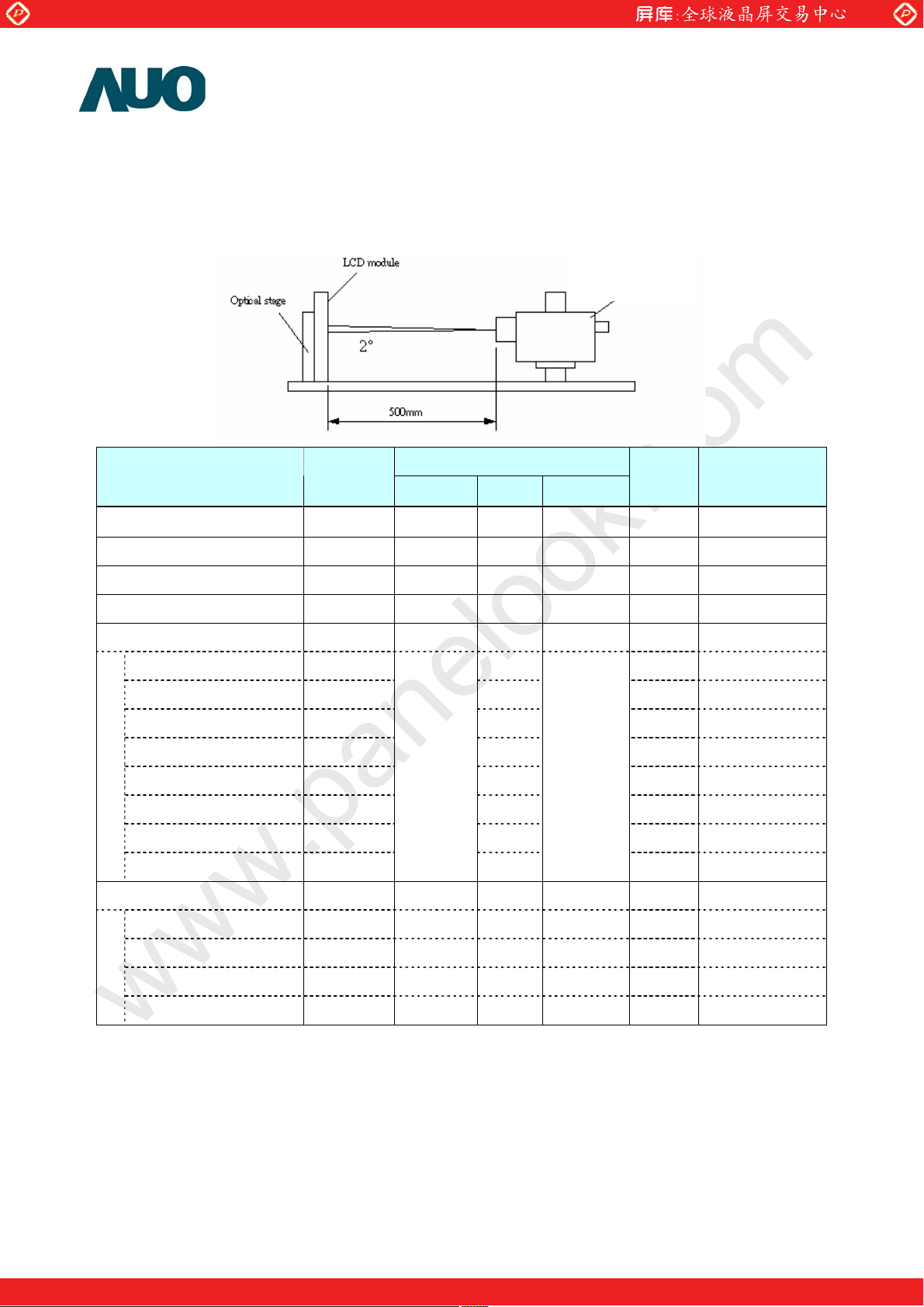

4 OPTICAL SPECIFICATION

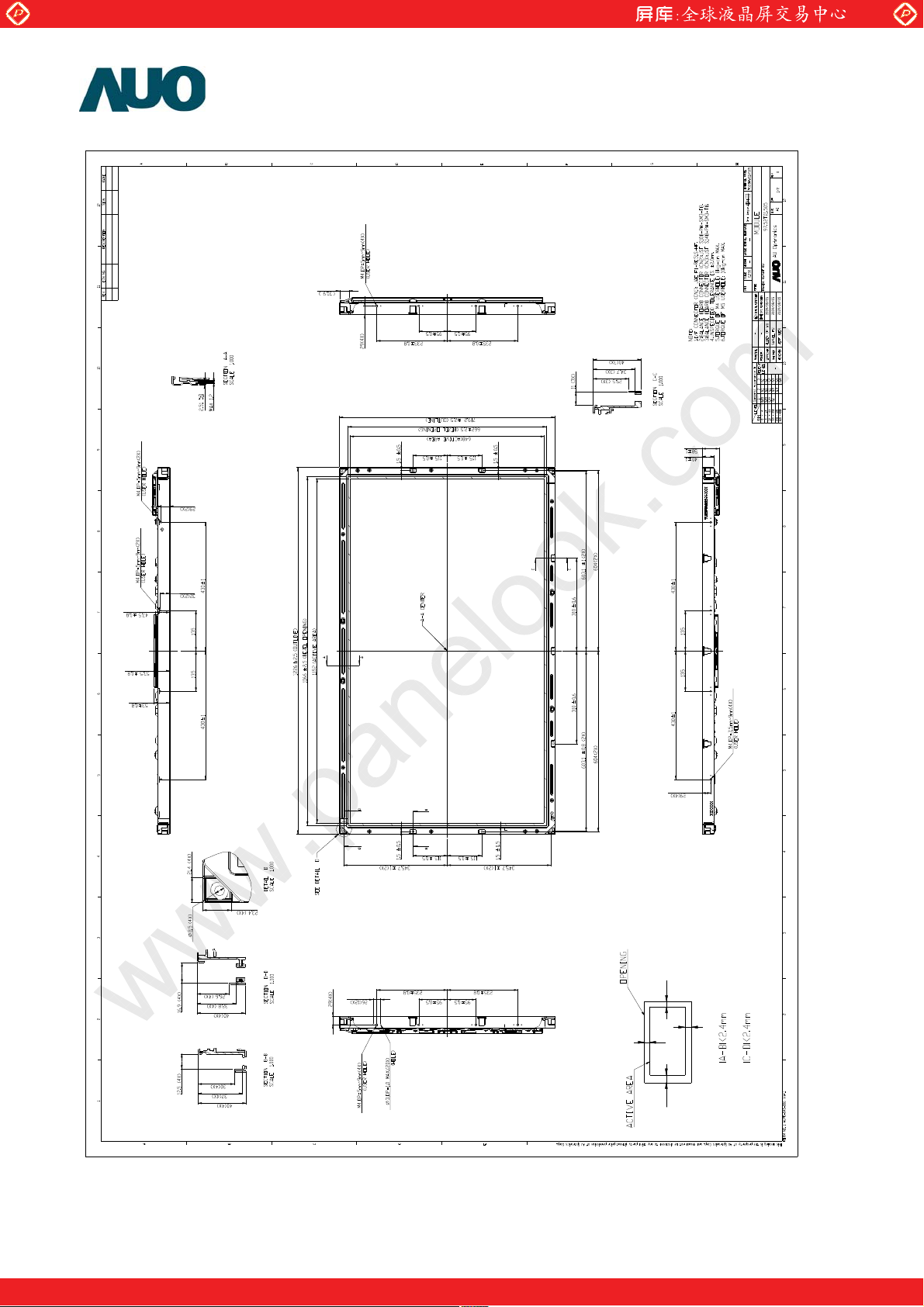

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY

7 INTERNATIONAL STANDARD

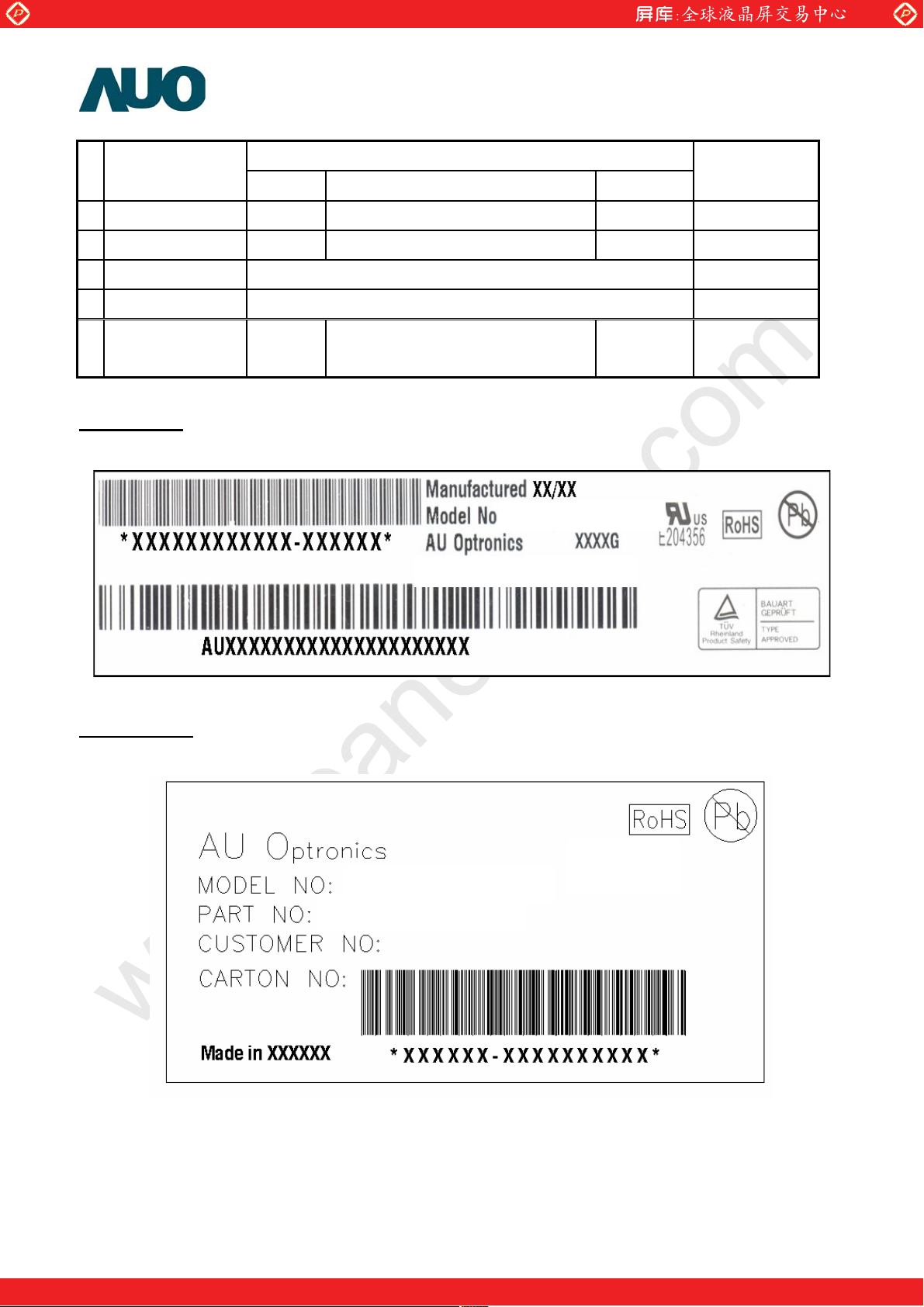

8 PACKING

9 PRECAUTION

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 3

Global LCD Panel Exchange Center

Record of Revision

Ver sion Data Page. Old Description New Description Remark

0.0 2009/09/23 First release N/A N/A

0.1 2009/10/12 2nd release

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 4

Global LCD Panel Exchange Center

1. General Description

This specification applies to the 52 inch Color TFT-LCD Module T520HW01 V5. This LCD

module has a TFT active matrix type liquid crystal panel 1920x1080 pixels, and diagonal size

of 52 inch. This module supports Full HD mode (Non-interlace) with 60Hz frame rate.

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in

vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit

gray scale signal for each dot.

The T520HW01 V5 has been designed to apply the 8-bit 2 channel LVDS interface method. It

is intended to support displays where high brightness, EBU Gamut (72% NTSC), wide viewing

angle, and high color depth are very important.

The T520HW01 V5 backlight unit is using inverter-less solution (inductor type balance board),

and need to be powered by integrated power system by customers.

www.panelook.com

General Information

Items Specification Unit Note

Active Screen Size 52 inches Diagonal

Display Area 1152(H) x 648(V) mm

Outline Dimension 1226(H) x 719.2(V) x 58(D) mm With Inverter

Driver Element a-Si TFT active matrix

Display Colors 16.7M Colors

Color Gamut 72 % NTSC

Number of Pixels 1920 x 1080 Pixel

Pixel Arrangement RGB vertical stripe

Pixel Pitch 0.6 mm

Display Mode Normally Black

Surface Treatment Haze 11%, 3H

RoHS RoHS compliance

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 5

Global LCD Panel Exchange Center

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or

damage to the unit

Item Symbol Min. Max Unit Note

Logic/LCD Drive Voltage VDD -0.3 14.0 VDC 1

Input Voltage of Signal VIN -0.3 3.6 VDC 1

Operating Temperature TOP 0 +50 °C 2

Operating Humidity HOP 10 90 %RH 2

Storage Temperature TST -20 +60 °C 2

Storage Humidity HST 10 90 %RH 2

www.panelook.com

Panel Surface Temperature T

Shock (non-operation) ±x, ±y -- 40 G 3

Shock (non-operation) ±z -- 30 G 3

Vibration (non-operation) -- 1.5 G 4

Note 1: Duration = 50ms

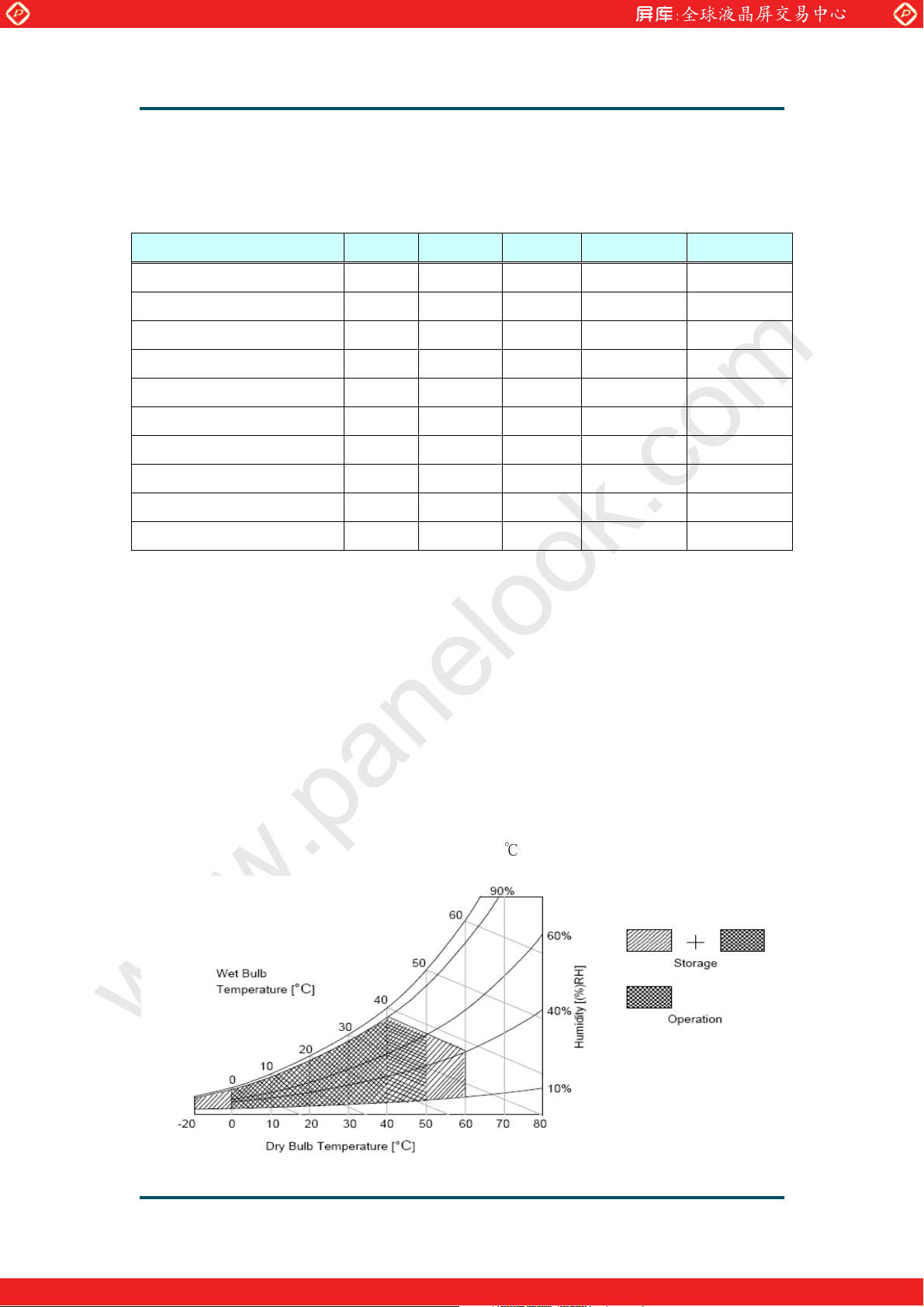

Note 2: Maximum Wet-Bulb should be 39°C and no condensation. The relative humidity

must not exceed 90% non-condensing at temperatures of 40°C or less. At

temperatures greater than 40°C, the wet bulb temperature must not exceed

39°C.

Note 3: Sine wave, 11ms, direction: ±x, ±y, ±z (one time each direction)

Note 4: Wave form: random, vibration level: 1.5G RMS, Bandwidth: 10--300Hz

Duration: X, Y, Z 30min (one time each direction)

Note 5: Surface temperature is measured at 50

-- +65 °C 2

SUR

Dry condition

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 6

Global LCD Panel Exchange Center

3. Electrical Specification

The T520HW01 V5 requires two power inputs. One is employed to power the LCD electronics

and to drive the TFT array and liquid crystal. The second input, which powers the CCFL, is

typically generated by an integrate power (I/P) system.

3.1 Electrical Characteristics

www.panelook.com

Parameter Symbol

Unit Note

Min. Typ. Max

Power Supply Input Voltage VDD 10.8 12.0 13.2 VDC

Power Supply Input Current IDD -- 0.6 1.2 A 1

Power Consumption PC -- 7.2 14.4 Watt 1

Value

Inrush Current I

-- -- 13 A 4

RUSH

Differential Input

High Threshold

-- -- +100 mVDC 3

Voltage

LVDS

Interface

Differential Input

Low Threshold

-100 -- -- mVDC 3

Voltage

Common Input

1.10 1.25 1.40 VDC

CIM

VIH

(High)

2.4 -- 3.3 V

CMOS

Voltage

Input High

Threshold Voltage

Interface

Input Low

Threshold Voltage

(Low)

0 -- 0.7 V

Backlight Power Consumption (ref.) PBL -- 190 -- Watt 2

Life Time 50000 -- -- Hours 5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 7

Global LCD Panel Exchange Center

Note:

www.panelook.com

1. V

=12.0V, fV=60Hz, f

CLK

=81.5Mhz, 25°C, VDD duration time=400μs, test pattern:

white pattern

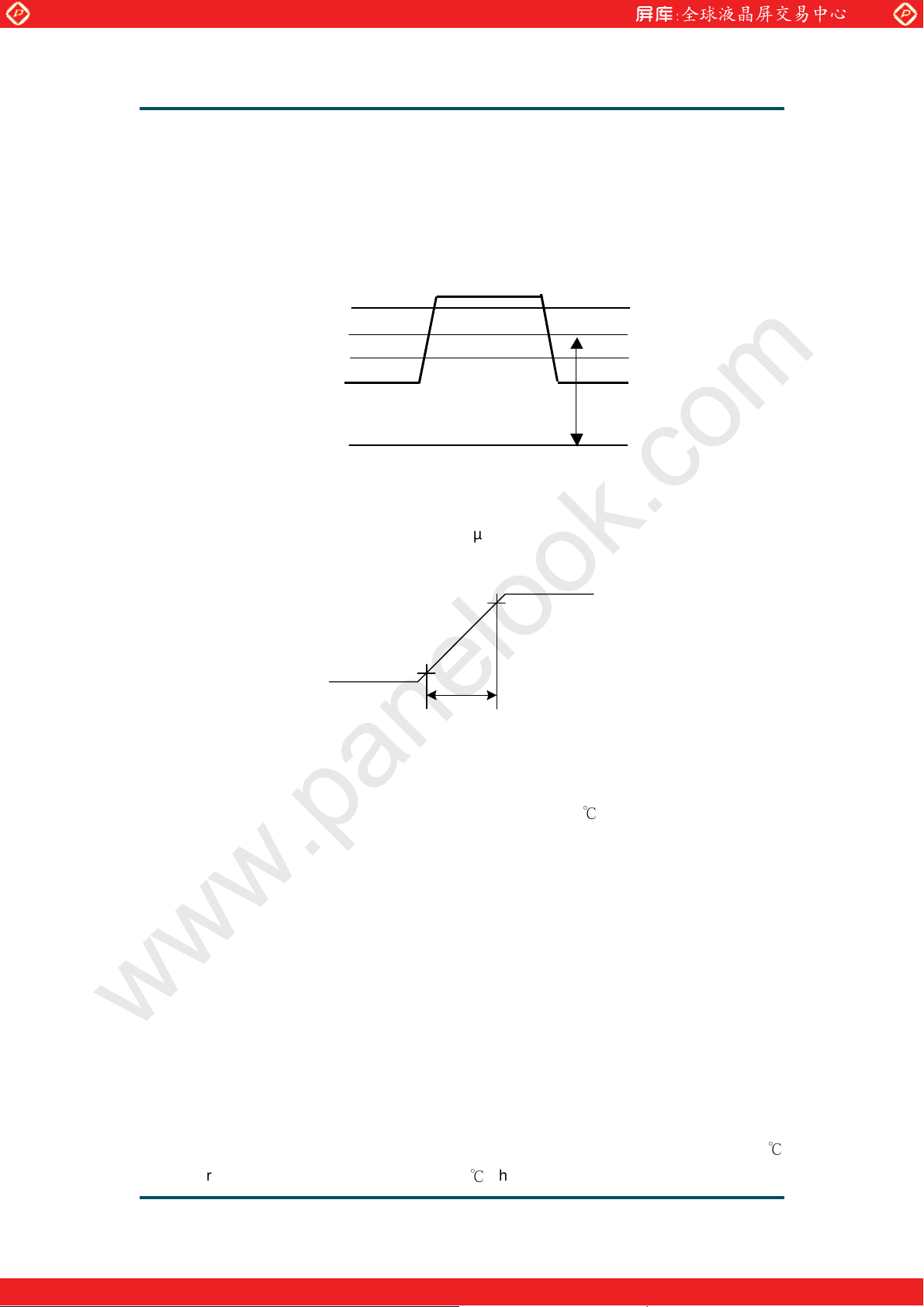

2. The backlight power consumption shown above is tested by lamp current I

3. V

=1.25V

CIM

VTH

VCIM

VTL

Figure: LVDS Differential Voltage

4. Measurement condition: rising time=400

μs

0.9 Vdd

Vdd

=9.0mA.

GND

0.1 Vdd

400

5. Specified values are for a single lamp only which is aligned horizontally. The lifetime is

defined as the time which luminance of the lamp is 50% compared to its original value.

[Operating condition: Continuous operating at Ta = 25±2

]

6. The performance of the Lamp in LCD panel, for example life time or brightness, is

extremely influenced by the characteristics of balanced board and I/P board. All the

parameters should be carefully designed as not to produce too much leakage current

from high-voltage output. While you design or order the balance board, please make

sure unwanted lighting caused by the mismatch of the lamp and the balanced board

(no lighting, flicker, etc) never occurs. After confirmation, the LCD panel should be

operated in the same condition as installed in your instrument

7. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to

conducting tape, TFT-LCD Module have a low luminance and the inverter has

abnormal action because leakage current occurs between lamp wire and conducting

tape.

8. The relative humidity must not exceed 80% non-condensing at temperatures of 40

or less. At temperatures greater than 40

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

, the wet bulb temperature must not exceed

www.panelook.com

Page 8

Global LCD Panel Exchange Center

39к. When operate at low temperatures, the brightness of CCFL will drop and the life

time of CCFL will be reduced.

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 9

Global LCD Panel Exchange Center

3.2 Interface Connections

z LCD connector: FI-RE51S-HF (Manufactured by JAE)

z Mating connector: FI-RE51S-HL (Manufactured by JAE)

Pin No Symbol Description Note

1 VDD Operating Voltage Supply, +12V DC Regulated

2 VDD Operating Voltage Supply, +12V DC Regulated

3 VDD Operating Voltage Supply, +12V DC Regulated

4 VDD Operating Voltage Supply, +12V DC Regulated

www.panelook.com

5 VDD Operating Voltage Supply, +12V DC Regulated

6 GND Ground

7 GND Ground

8 GND Ground

9 GND Ground

10 RO_0- LVDS Channel odd, Signal 0-

11 RO_0+ LVDS Channel odd, Signal 0+

12 RO_1- LVDS Channel odd, Signal 1-

13 RO_1+ LVDS Channel odd, Signal 1+

14 RO_2- LVDS Channel odd, Signal 2-

15 RO_2+ LVDS Channel odd, Signal 2+

16 GND Ground

17 RO_CLK- LVDS Channel odd, Clock -

18 RO_CLK+ LVDS Channel odd, Clock +

19 GND Ground

20 RO_3- LVDS Channel odd, Signal 3-

Power

LVDS

Channel

Odd

21 RO_3+ LVDS Channel odd, Signal 3+

22 RO_4- LVDS Channel odd, Signal 4-

23 RO_4+ LVDS Channel odd, Signal 4+

24 GND Ground

25 RE_0- LVDS Channel even, Signal 0-

26 RE_0+ LVDS Channel even, Signal 0+

27 RE_1- LVDS Channel even, Signal 1-

28 RE_1+ LVDS Channel even, Signal 1+

29 RE_2- LVDS Channel even, Signal 2-

30 RE_2+ LVDS Channel even, Signal 2+

31 GND Ground

LVDS

Channel

Even

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 10

Global LCD Panel Exchange Center

32 RE_CLK- LVDS Channel even, Clock -

33 RE_CLK+ LVDS Channel even, Clock +

34 GND Ground

35 RE_3- LVDS Channel even, Signal 3-

36 RE_3+ LVDS Channel even, Signal 3+

37 RE_4- LVDS Channel even, Signal 4-

38 RE_4+ LVDS Channel even, Signal 4+

39 GND Ground

www.panelook.com

40 SCL EEPROM Serial Clock

41 NC AUO internal use

42 NC AUO internal use

43 WP EEPROM write protection

44 SDA EEPROM serial data

46 NC NC

47 NC

48 NC

49 NC

50 NC

51 NC AUO internal use

LVDS

LVDS_SEL (H/OPEN:NS L:JEIDA )

order

AUO internal use

Note 1: All GND (ground) pins should be connected together and should also be

connected to the LCD’s metal frame.

ʳʳ ʳʳ ʳʳ ʳʳ

Default :

ʳʳ ʳʳ

Note 2: All V

Note 3: All NC (no connection) pins should be open without voltage input.

(power input) pins should be connected together.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 11

Global LCD Panel Exchange Center

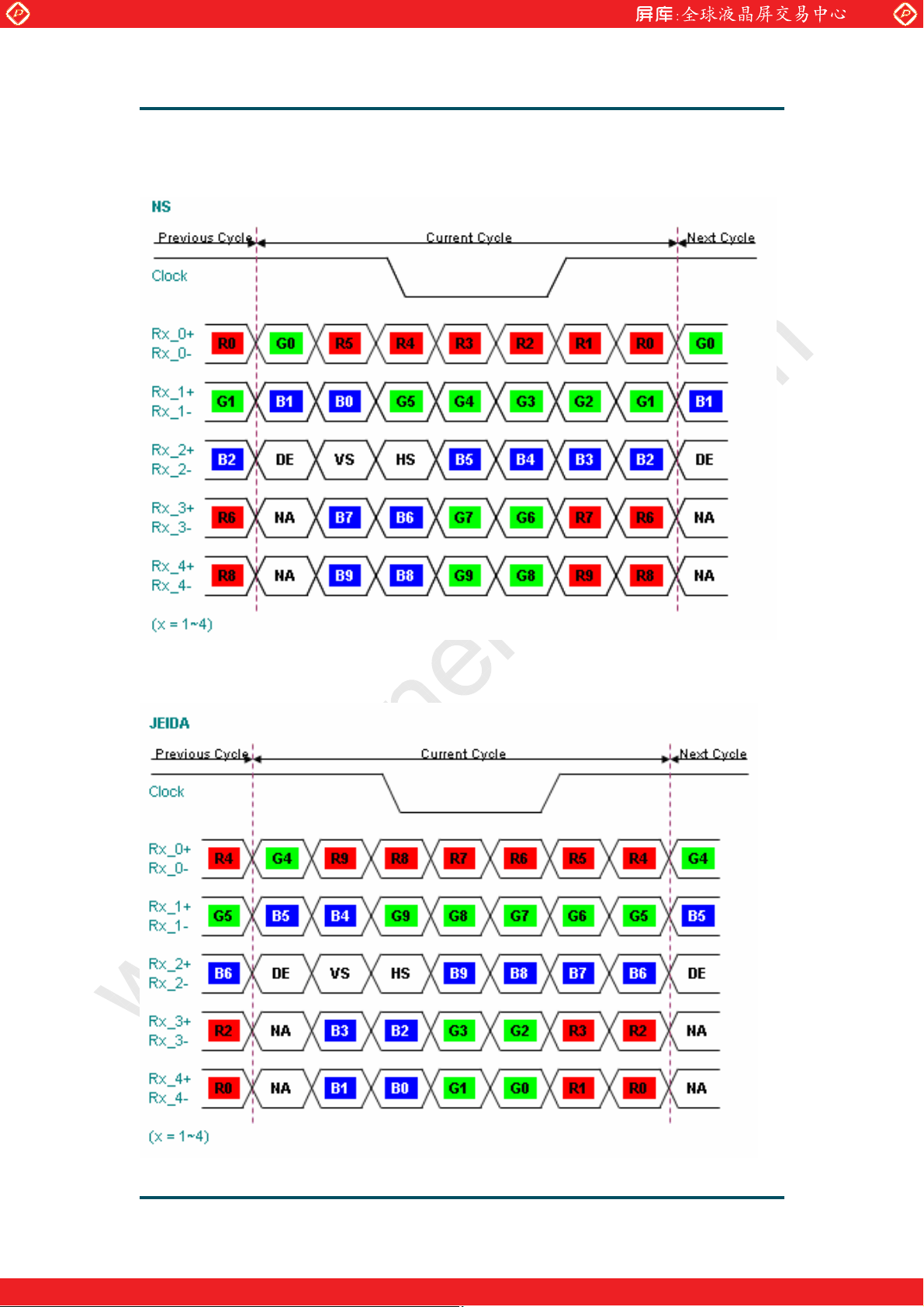

LVDS Option = High/OpenÎÎÎÎNS

www.panelook.com

LVDS Option = LowÎÎÎÎJEIDA

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 12

Global LCD Panel Exchange Center

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal

timing should be satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Vertical Frequency Range (60Hz)

Signal Item Symbol Min. Typ. Max Unit

www.panelook.com

Horizontal Section

Vertical Section

Clock

Period T

Active T

Blanking T

(V) 960 TH

DISP

(V) 70 140 365 T

BLK

Period TH 1090 1125 1480 T

Active T

Blanking T

Period T

Frequency F

(H) 1080 T

DISP

(H) 10 45 400 T

BLK

20 13.46 12.2 ns

CLK

50 74.25 82 MHz

CLK

1030 1100 1325 T

CLK

Vertical Frequency Frequency FV 47 60 63 Hz

Horizontal Frequency Frequency FH 60 67.5 73 KHz

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 13

Global LCD Panel Exchange Center

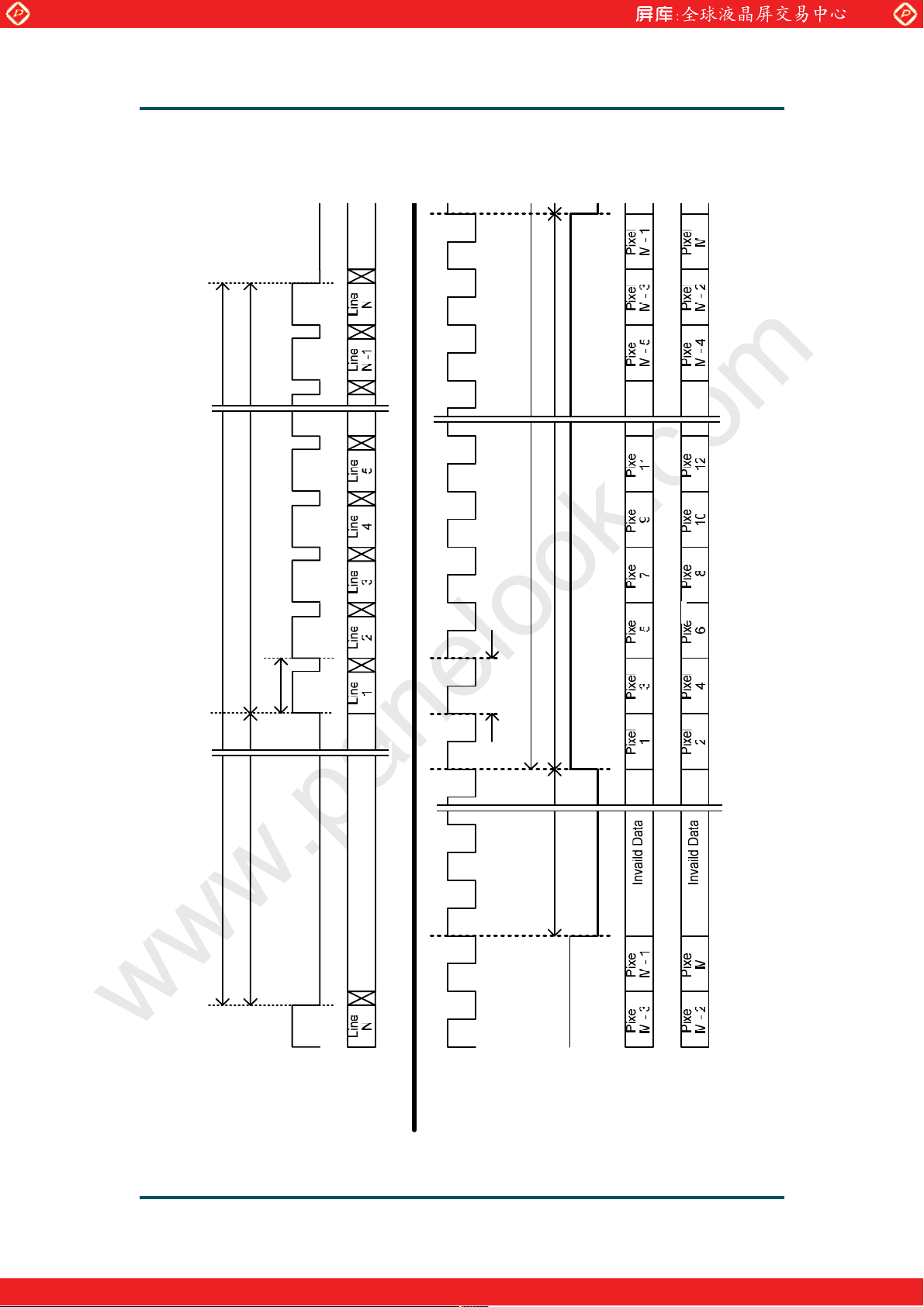

3.4 Signal Timing Waveforms

www.panelook.com



 





























One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 14

Global LCD Panel Exchange Center

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale

data input for the color; the higher the binary input, the brighter the color. The table below

provides a reference for color versus data input.

www.panelook.com

COLOR DATA REFERENCE

Input Color Data

Basic

Color

RED

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN

BLUE

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

-------

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 15

Global LCD Panel Exchange Center

3.6 Power Sequence

www.panelook.com

Parameter

Min. Typ. Max.

t1 0.4 -- 30 ms

t2 0.1 -- 50 ms

t3 300 -- -- ms

t4 10 -- -- ms

t5 0.1 -- 50 ms

t6 -- -- 300 ms

t7 500 -- -- ms

Apply the lamp voltage within the LCD operating range. When the backlight turns on

before the LCD operation or the LCD turns off before the backlight turns off, the display

may momentarily become abnormal.

Caution: The above on/off sequence should be applied to avoid abnormal function in the

display. In case of handling, make sure to turn off the power when you plug the cable into

Values

Unit

the input connector or pull the cable out of the connector.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 16

Global LCD Panel Exchange Center

3.7 Backlight Power Specification

3.7.1.1: Electrical specification

Item Symbol Condition

www.panelook.com

(Ta=25±5oC, Turn-on after 60mins)

Min Typ Max

Spec

Unit Note

Input Voltage

Input Current I

Input Power P

Inrush Current I

- 21.6 24 26.4 VDC -

DDB

VDDB=24V - 7.8 - ADC 1

DDB

VDDB=24V - - 190 W 1

DDB

VDDB=24V - - 4.14 ADC 2

RUSH

Operating Frequency FBL VDDB=24V 43 45 47 KHz

ON 2 - 5.0 -

On/Off control voltage V

On/Off control current I

Internal PWM Dimming

Control Voltage

V_IPWM

Internal PWM Dimming

Control Current

Internal PWM Dimming

Ratio

BLON

VDDB=24V - - 1.5 mA -

BLON

OFF

VDDB=24V

0 - 0.8

VDC

MAX 3.0 - 3.3 VDC -

VDDB=24V

MIN

- 0 - VDC -

I_IPWM VDDB=24V - - 2 mADC -

R_IPWM VDDB=24V 10 - 100 %

External PWM

Control Voltage

External PWM

Control Current

External PWM Duty

ratio

External PWM

Frequency

V_EPWM

I_EPWM VDDB=24V - - 2 mADC -

D_EPWM VDDB=24V 10 - 100 % 3

F_EPWM VDDB=24V 140 180 240 Hz -

MAX VDDB=24V 2 - 3.3 -

VDC

MIN VDDB=24V 0 - 0.8

Note 1 : Dimming ratio= 100% (MAX)ΰTa=25±5 , Turn on for 45кminutesα Note 2 : Measurement condition Rising time = 20ms (VDDB : 10%~90%);

Note 3-1 : (Sony/LGE) <40” model

ʳЊ

For External PWM application,

5% dimming is function well and no backlight shutdown.

Note 3-2 : (SEC) <37” model

For External PWM application,

5% dimming is function well and no backlight shutdown.

For External PWM application, no backlight shutdown when 0% dimming hold time <10sec

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 17

Global LCD Panel Exchange Center

3.7.1.2: Input Pin Assignment

CN3:CI0114M1HRL-NH (Cvilux)

Pin Symbol Description

1 VDDB Operating Voltage Supply, +24V DC regulated

2 VDDB Operating Voltage Supply, +24V DC regulated

3 VDDB Operating Voltage Supply, +24V DC regulated

4 VDDB Operating Voltage Supply, +24V DC regulated

5 VDDB Operating Voltage Supply, +24V DC regulated

6 BLGND Ground and Current Return

7 BLGND Ground and Current Return

8 BLGND Ground and Current Return

www.panelook.com

9 BLGND Ground and Current Return

10 BLGND Ground and Current Return

12 VBLON

13 VDIM

14 PDIM

(Sony/LGE/Normal)

DET

(SEC)

BLU status detection:

Normal : 0~0.8V ; Abnormal : Open collector

BLU status detection:

Normal : High(5V) ; Abnormal : 0~0.8V

BLU On-Off control:

BL On : High/Open (3.3V~5.5V);

BL off : Low (0~0.8V/GND)

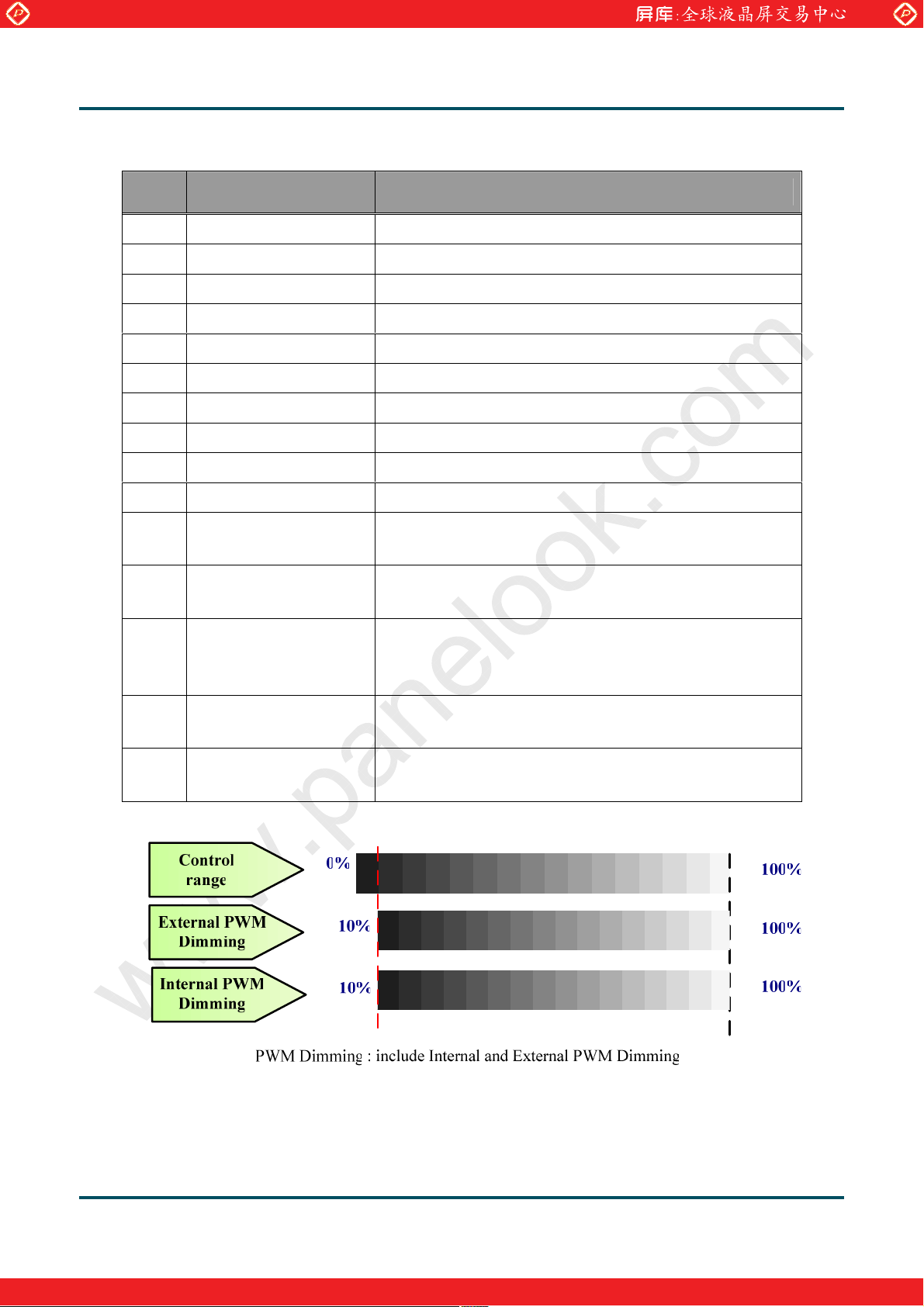

Internal PWM (0~3.3V for 10~100% Duty, open for 100%)

< NC ; at External PWM mode>

External PWM (10%~100% Duty, open for 100%)

< NC ; at Internal PWM mode>

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 18

Global LCD Panel Exchange Center

3.7.1.3 Power Sequence for Inverter

10%

Power Input for BLU

(VDDB)

Dimming Control Signal

(V_IPWM,V_EPWM)

10%

www.panelook.com

24V(typ.)

90% 90%

T1 T2

24V(typ.)

BLU On/Off Enable

(VBLON)

Dip condition for Inverter

Power Input for BLU

(VDDB)

VDDB(typ.)*0.8

Parameter

T1 20 - - ms

Value

Min Typ Max

Units

T2 500 - - ms

T3 (Normal) 250 - - ms

T3 (SONY)

T4 0 - - ms

T5 1 - - ms

T6 - - 10 ms

200 ms

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 19

Global LCD Panel Exchange Center

www.panelook.com

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60 minutes in a

dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of  and  equal to 0°.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max

Values

Unit Notes

Contrast Ratio CR 4000 5000 -- 1

Surface Luminance (White) LWH 360 450 -- cd/m2 2

Luminance Variation 

WHITE(9P)

Response Time (Average) T -- 6.5 -- ms 4

-- -- 1.3 3

(Gray to Gray)

Color Coordinates

Red RX 0.650

0.325

Green GX 0.300

0.600

Typ.-0.03

Typ.+0.03

Blue BX 0.147

0.050

White WX 0.280

Viewing Angle

x axis, right(=0°) r -- 89 -- degree 5

0.290

(Contrast Ratio>10)

x axis, left(=180°) l -- 89 -- degree 5

y axis, up(=90°) u -- 89 -- degree 5

y axis, down (=270°) 

-- 89 -- degree 5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 20

Global LCD Panel Exchange Center

www.panelook.com

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Contrast Ratio (CR)=

Brightness of the "white" state Brightness of the "black" state

2. Surface Luminance is luminance value at point 5 with 100% dimming across the LCD surface 50cm from the

surface with all pixels displaying white. For more information see Fig. 4-2. When power consumption=190 W,

WH=Lon5

, where L

is the luminance with all pixels displaying white at center 5 location.

on5

V/2

V/6

1 2 3

4 5 6

7 8

H/2 H/6

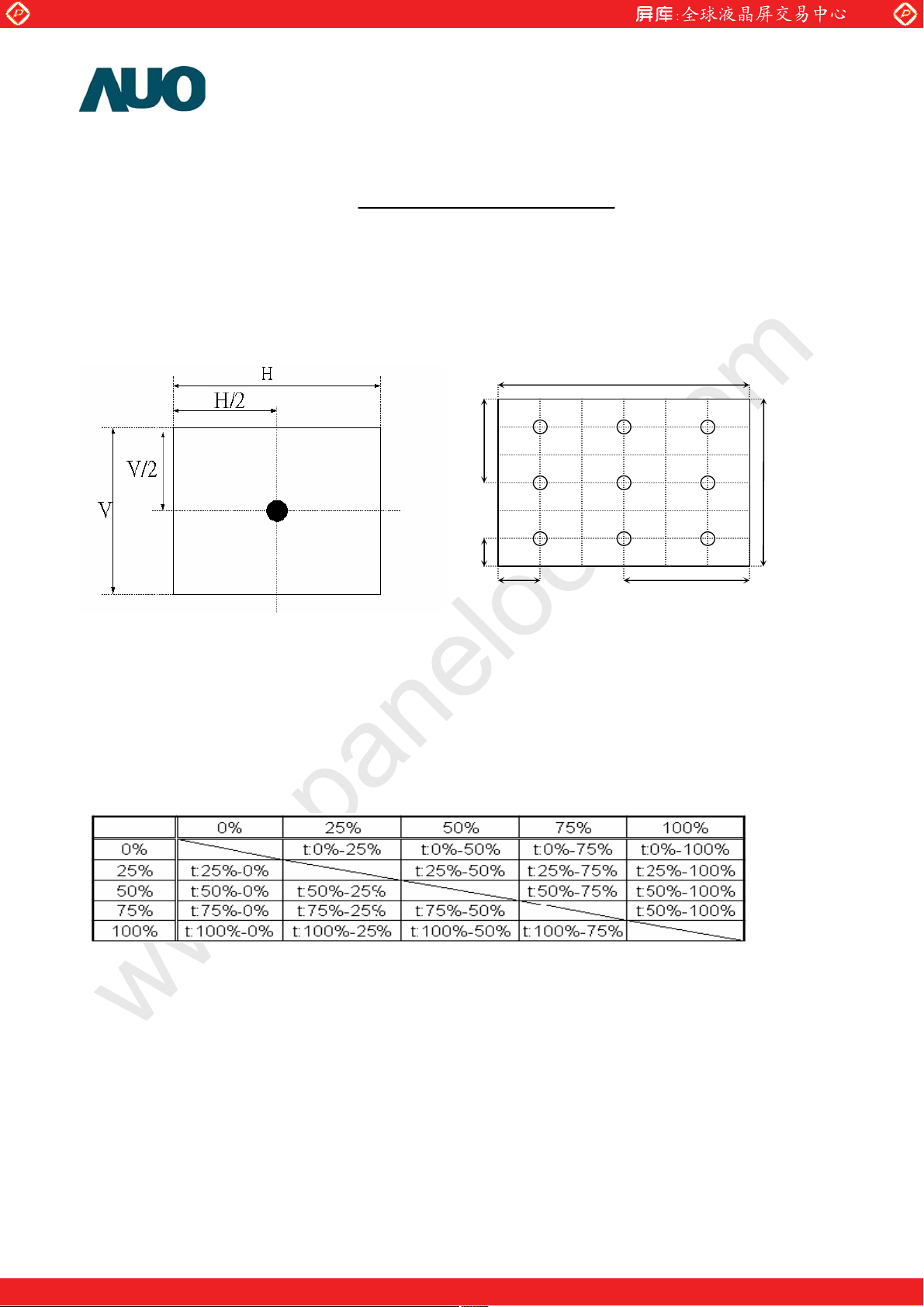

Fig.4-2 Optical measurement point

3. The variation in surface luminance, 



WHITE(9P)

= Maximum(L

WHITE(9P)

is defined under brightness of power consumption=190 W as:

, L

on1

on2

,…,L

)/Minimum(L

on9

on1

, L

on2

,…L

on9

)

4. Response time T is the average time required for display transition by switching the input signal for five

luminance ratio (0%, 25%, 50%, 75%, 100% brightness matrix)and is based on f

=60Hz to optimize.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal (or x-axis) and the vertical (or y-axis) with respect to the z-axis which is normal to the LCD surface.

For more information see Fig. 4-4.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 21

Global LCD Panel Exchange Center

www.panelook.com

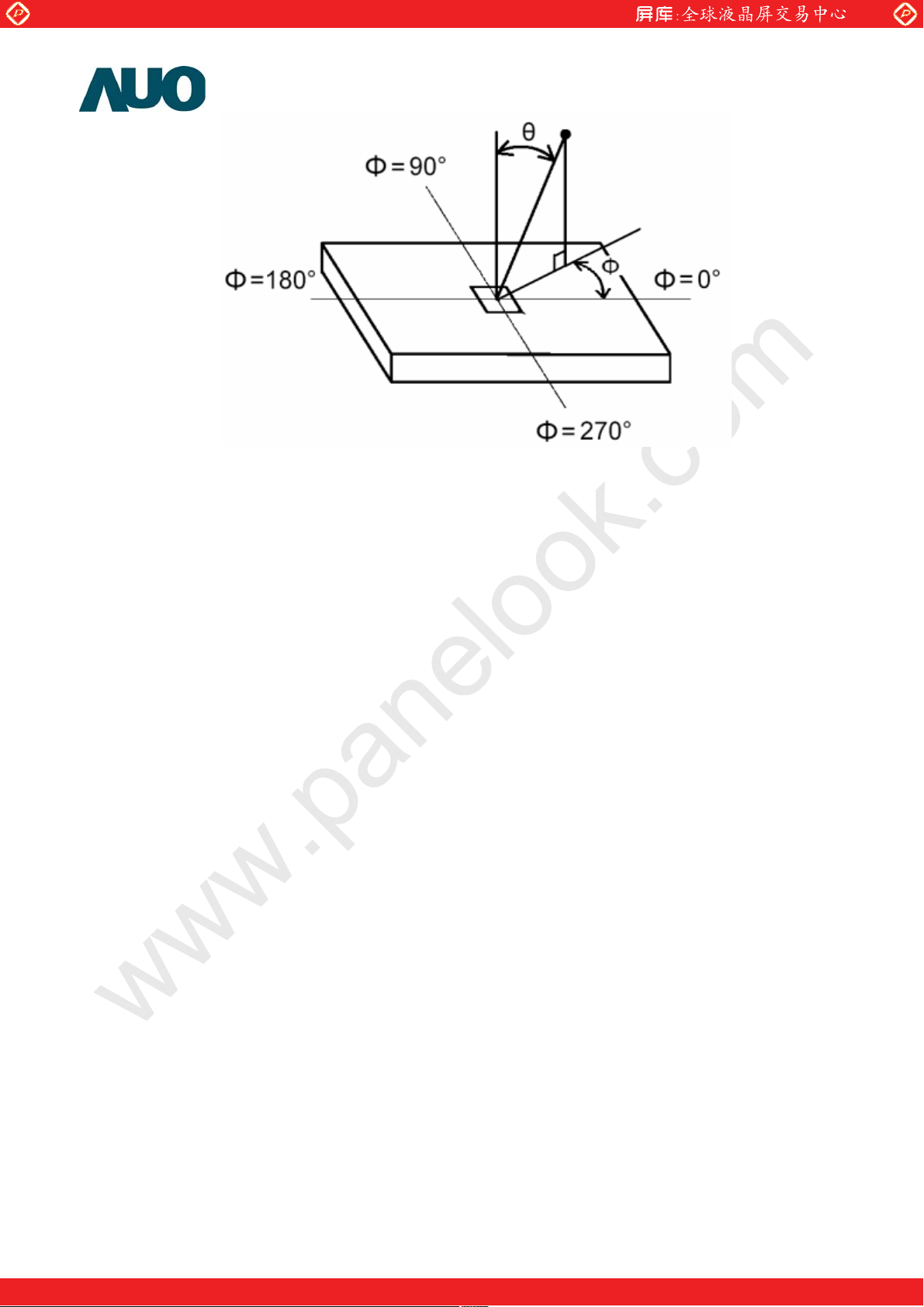

Fig.4-4 Viewing angle definition

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 22

Global LCD Panel Exchange Center

www.panelook.com

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T520HW01. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Horizontal (typ.) 1226 mm

Outline Dimension

Bezel Area

Active Display Area

Weight 19000g (Max)

Surface Treatment AGSR6, 3H

Vertical (typ.) 719.2 mm

Depth (typ.) 58 mm (with Inverter cover)

Horizontal (typ.) 1166 mm

Vertical (typ.) 662 mm

Horizontal 1152 mm

Vertical 648 mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 23

Global LCD Panel Exchange Center

2D Drawing (Front)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 24

Global LCD Panel Exchange Center

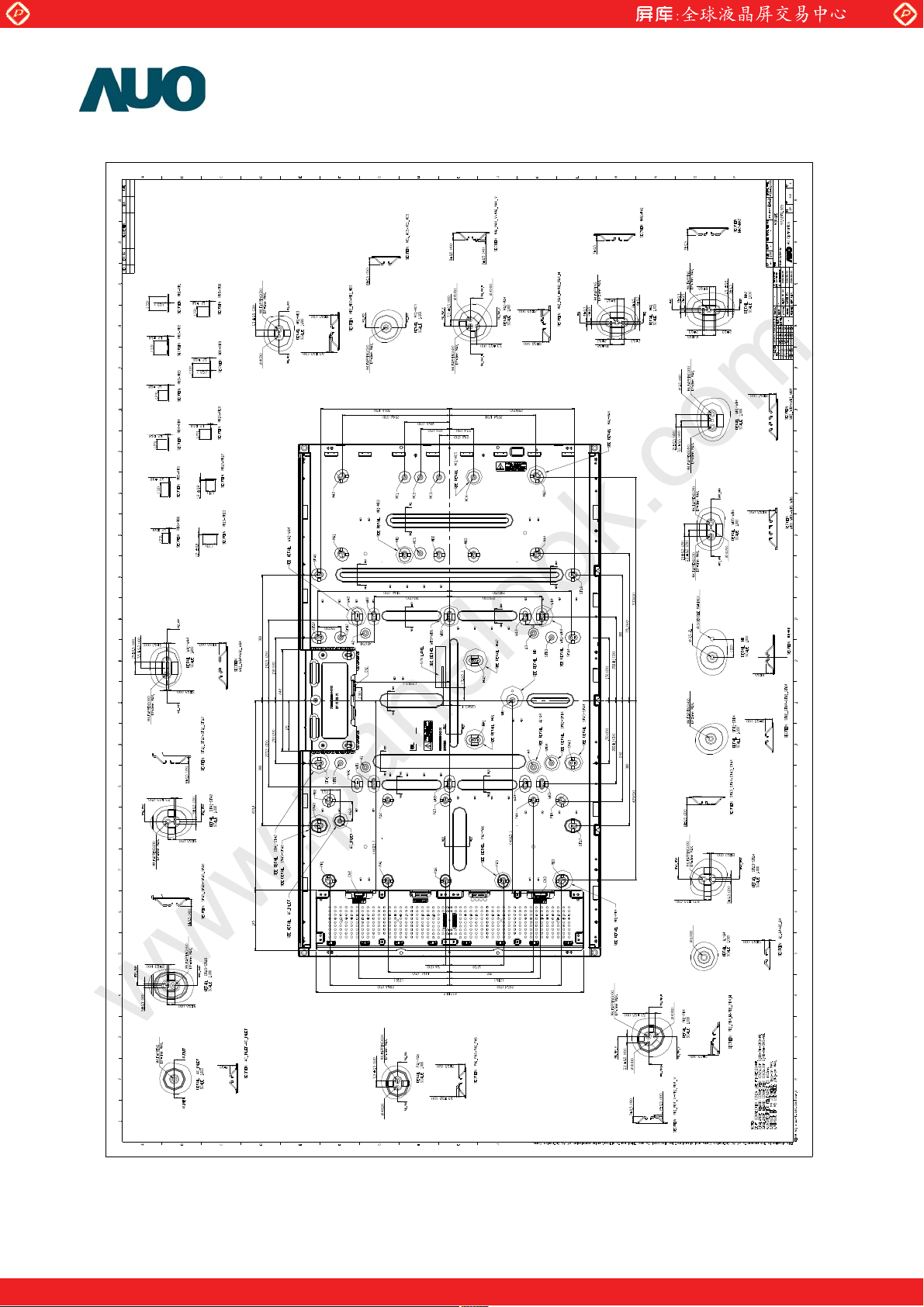

2D Drawing (Rear)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 25

Global LCD Panel Exchange Center

www.panelook.com

6. Reliability

Panel condition in RA test

Brightness: 450nits

Lamp Current (Hot side): 10 mA

No Test Item Condition

1 High temperature storage test Ta=60 300hк

2 Low temperature storage test Ta= -20 300hк

3 High temperature operation test Ta=50к 300h

4 Low temperature operation test Ta=-5 300hк

Result Evaluation Criteriaε

There should be no change which might affect the practical display function when the display quality test is conducted

under normal operating condition.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 26

Global LCD Panel Exchange Center

www.panelook.com

7. International Standard

7-1. Safety

(1) UL6500, UL 60065 Underwriters Laboratories, Inc. (AUO file number: E204356)

Standard for Safety of Information Technology Equipment Including electrical Business Equipment.

(2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.

(3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

IEC 60065: version 7th

European Committee for Electro technical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business

Equipment.

7-2. EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electrical

Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information Technology

Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998

7-3. Green Mark Description

(1) For Pb Free products, AUO will add

(2)

Note. The Green Mark will be present only when the green documents have been ready by AUO Internal Green

Team. (The definition of green design follows the AUO green design checklist.)

RoHS compatible products, AUO will add

For

for identification.

RoHS

for identification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 27

Global LCD Panel Exchange Center

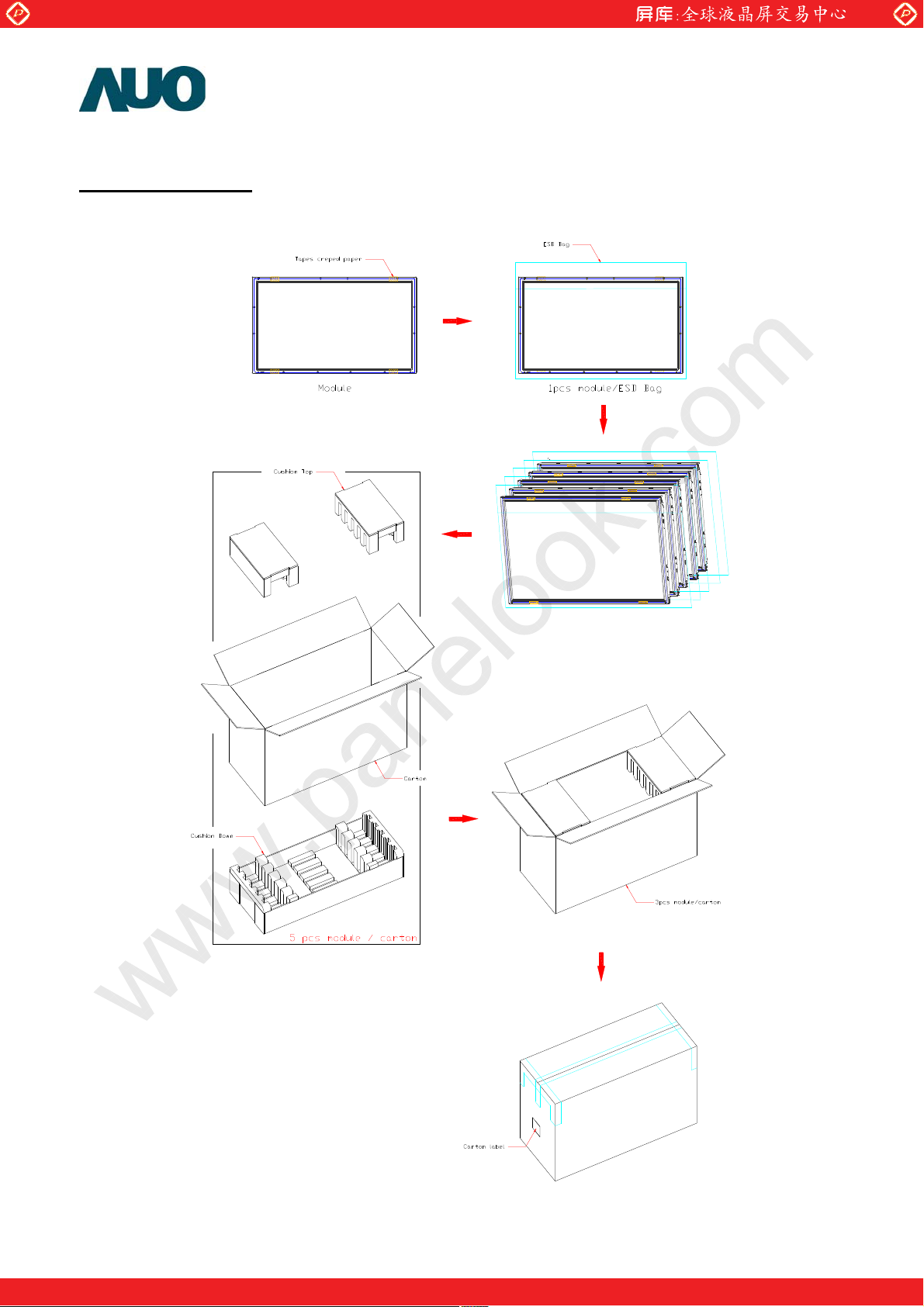

8. Packing

Packing Instruction

Carton dimension= 1300x 560x 860 mm

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 28

Global LCD Panel Exchange Center

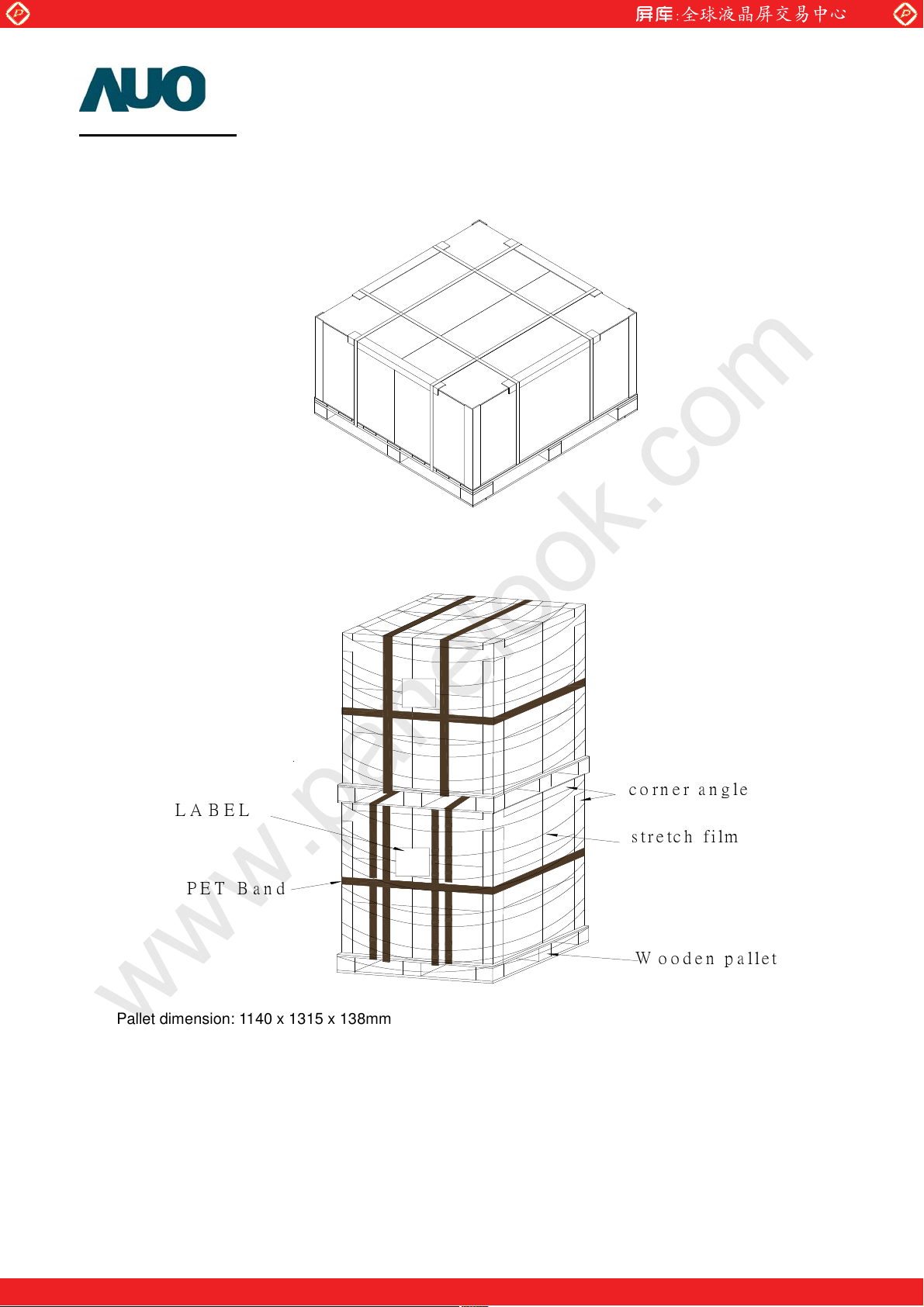

Pallet information

By air cargo: (2 x 1) x 1 layers, one pallet put 2 boxes, total 10 pcs module.

Dimension: 1150 x 1315 x 998mm

www.panelook.com

By sea: (2 x 1) x 2 layers, one pallet put 2 boxes, stack 2 layers, total 20 pcs module.

Dimension: 1140 x 1315 x 1996mm

˶  ˸ ʳ˴ ˺˿˸

˟˔˕˘˟

˸˶˻ʳ˹˼˿

ˣ˘˧ʳ˕˴˷

˪ ˷˸ʳ˴˿˿˸

Pallet dimension: 1140 x 1315 x 138mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 29

Global LCD Panel Exchange Center

www.panelook.com

Item

Qty. Dimension Weight (kg)

1 Packing BOX 5pcs/box 1300(L)mm*560(W)mm*860(H)mm 109

2 Pallet 1 1300(L)mm*1150(W)mm*138(H)mm 10

3 Boxes per Pallet 2 boxes/Pallet

4 Panels per Pallet 10pcs/pallet

Pallet after packing 10 1300(L)mm*1150(W)mm*998(H)mm 228

Specification

Packing Remark

Panel Label

Carton Label

QTY: 5

T520HW01 V5

97.52T01.XXX

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 30

Global LCD Panel Exchange Center

www.panelook.com

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

8-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged on back side of panel

(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to

module. And the case on which a module is mounted should have sufficient strength so that external force is

not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by

electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil

lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer

for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used

to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical

damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

8-2 OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:



200mV (Over and under shoot voltage)

(2) Response time depends on the temperature. (In lower temperature, it becomes longer.)

(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature,

response time (required time that brightness is stable after turned on) becomes longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.

(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done

by system manufacturers. Grounding and shielding methods may be important to minimize the interface.

(7) The device listed in the product specification sheets was designed and manufactured for TV application.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 31

Global LCD Panel Exchange Center

www.panelook.com

8-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

8-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they be

stored in the container in which they were shipped.

8-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off,

static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully

by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of flue still on the Bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, please

wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
