Page 1

Global LCD Panel Exchange Center

Product Description: T520HW01 TFT-LCD PANEL

AUO Model Name: T520HW01 V3

Customer Part No. / Project Name:

Customer Signature AU Optronics Corp.

www.panelook.com

Approved By: PM Director / Frank Hsu

Note

--------------------------------------------

Reviewed By: RD Director / Eugene CC Chen

--------------------------------------------

Reviewed By: Project Leader / Bert Chen

--------------------------------------------

Prepared By: PM / Eric Chiang

---------------------------------------------

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 2

Global LCD Panel Exchange Center

www.panelook.com

Document Version: 0.0

Date: 2009/5/22

Product Functional Specification

52” Full HD Color TFT-LCD Module

Model Name: T520HW01 V3

(*) Preliminary Specification

() Final Specification

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 3

Global LCD Panel Exchange Center

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3.1 ELECTRIACL CHARACTERISTICS

3.2 INTERFACE CONNECTOR

3.3 MEMC FUNCTION DESCRIPTION

www.panelook.com

Contents

3.4 SIGNAL TIMING SPECIFICATION

3.5 SIGNAL TIMING WAVEFORM

3.6 COLOR INPUT DATA REFERENCE

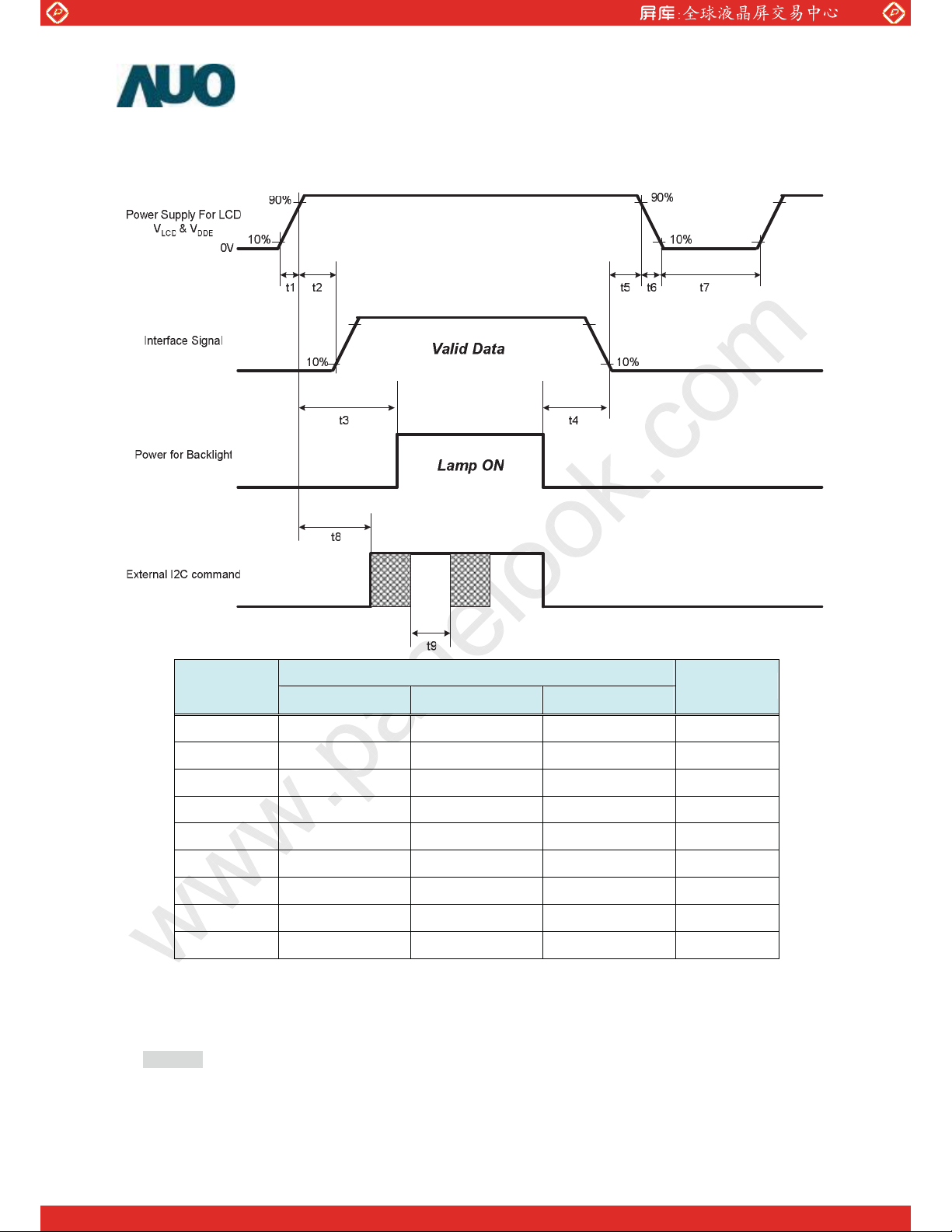

3.7 POWER SEQUENCE

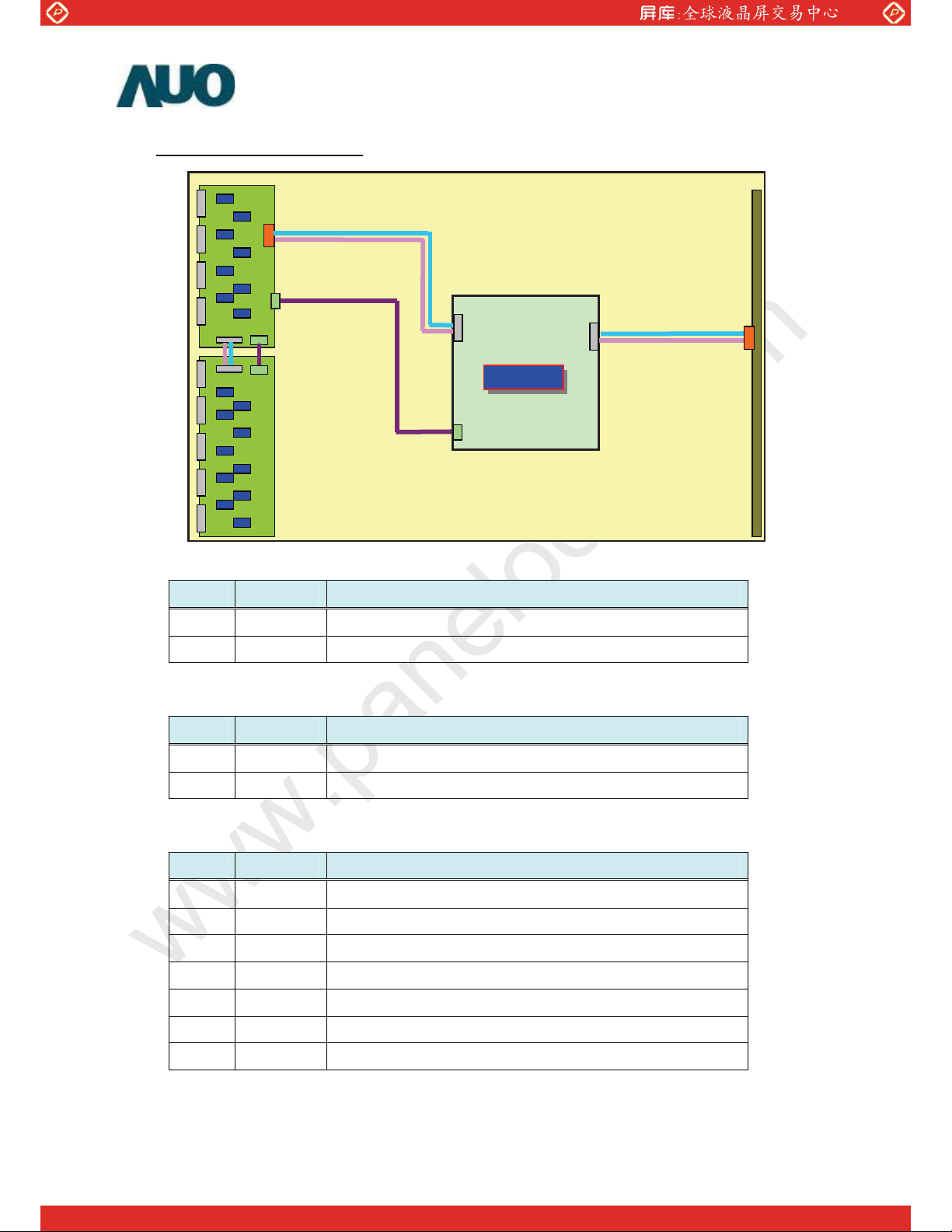

3.8 BACKLIGHT POWER SPECIFICATION

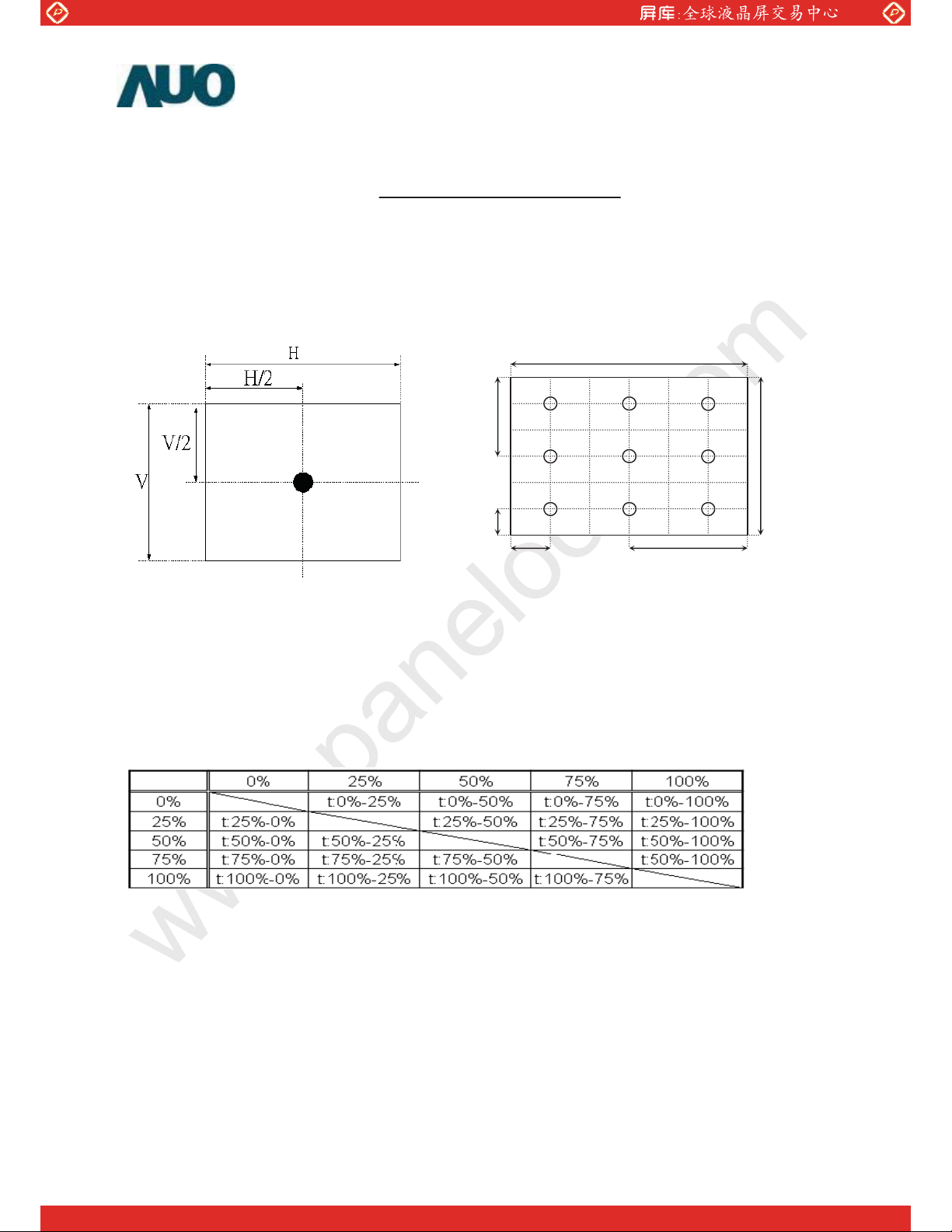

4 OPTICAL SPECIFICATION

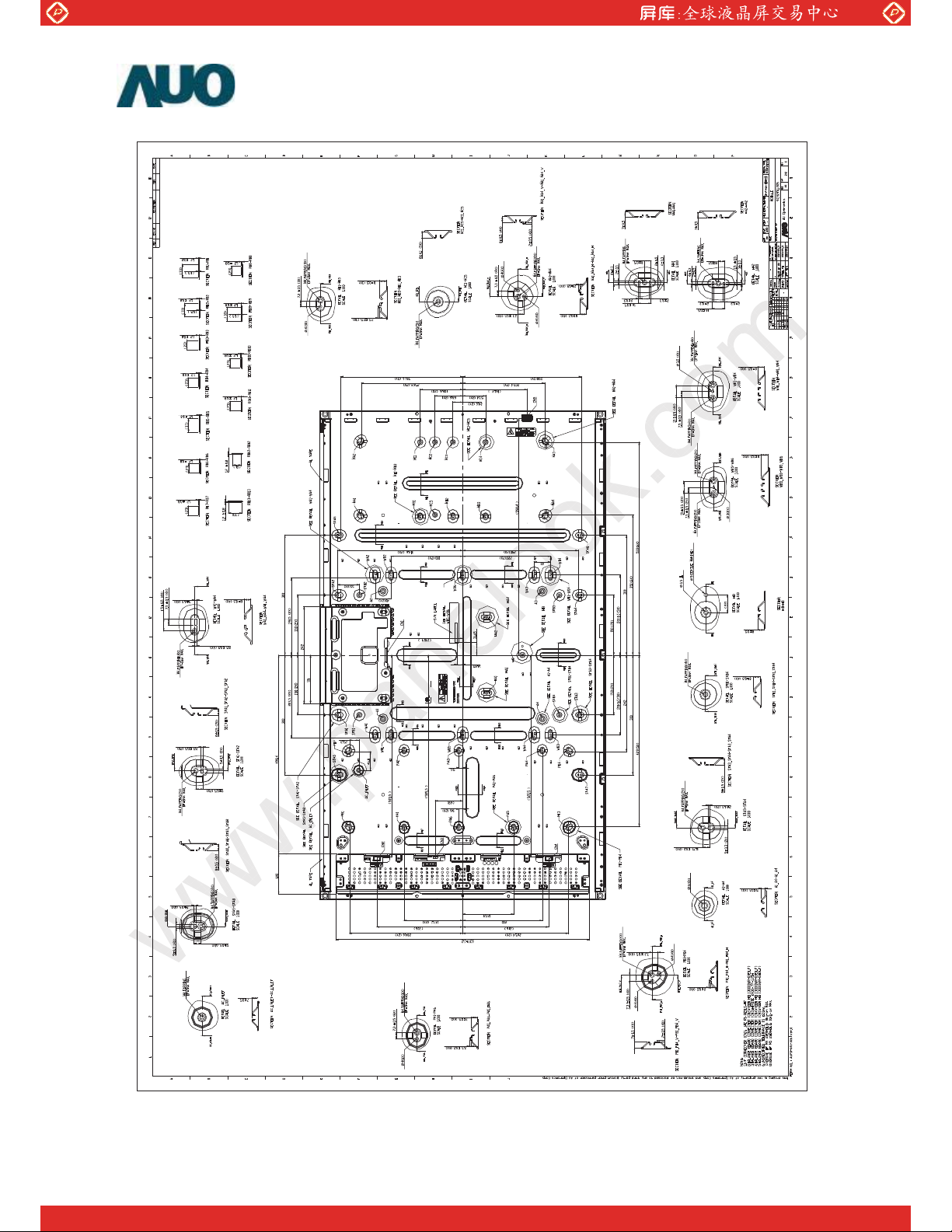

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY

7 INTERNATIONAL STANDARD

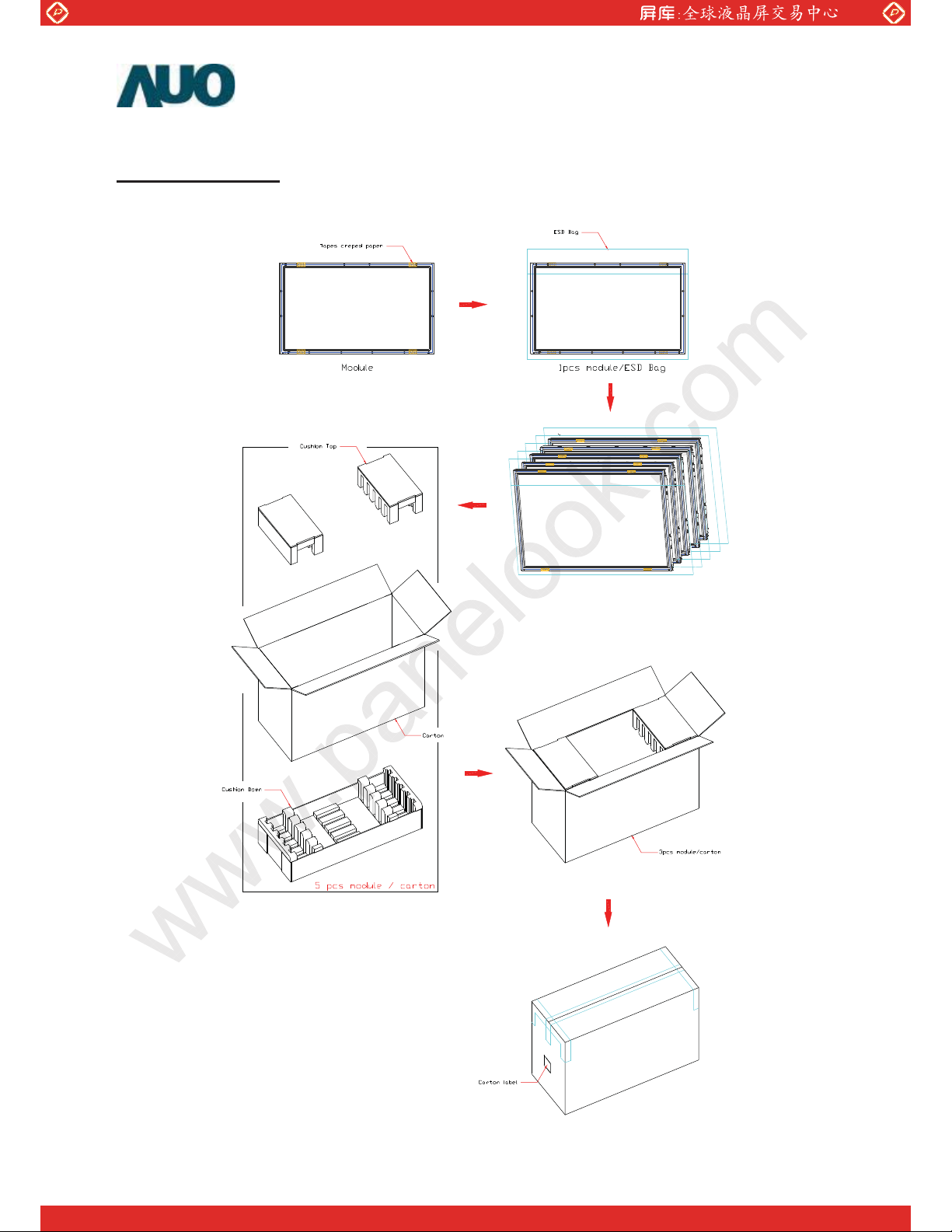

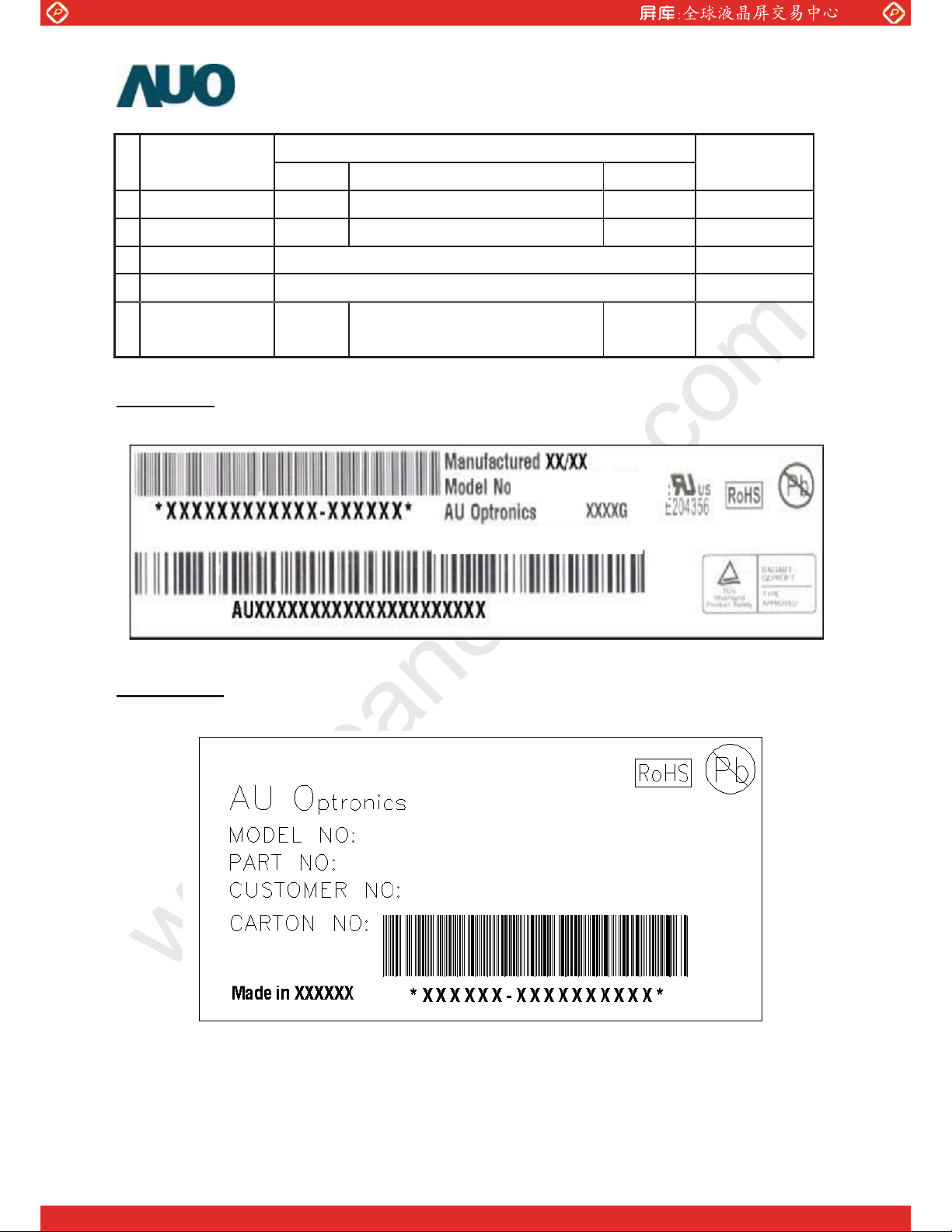

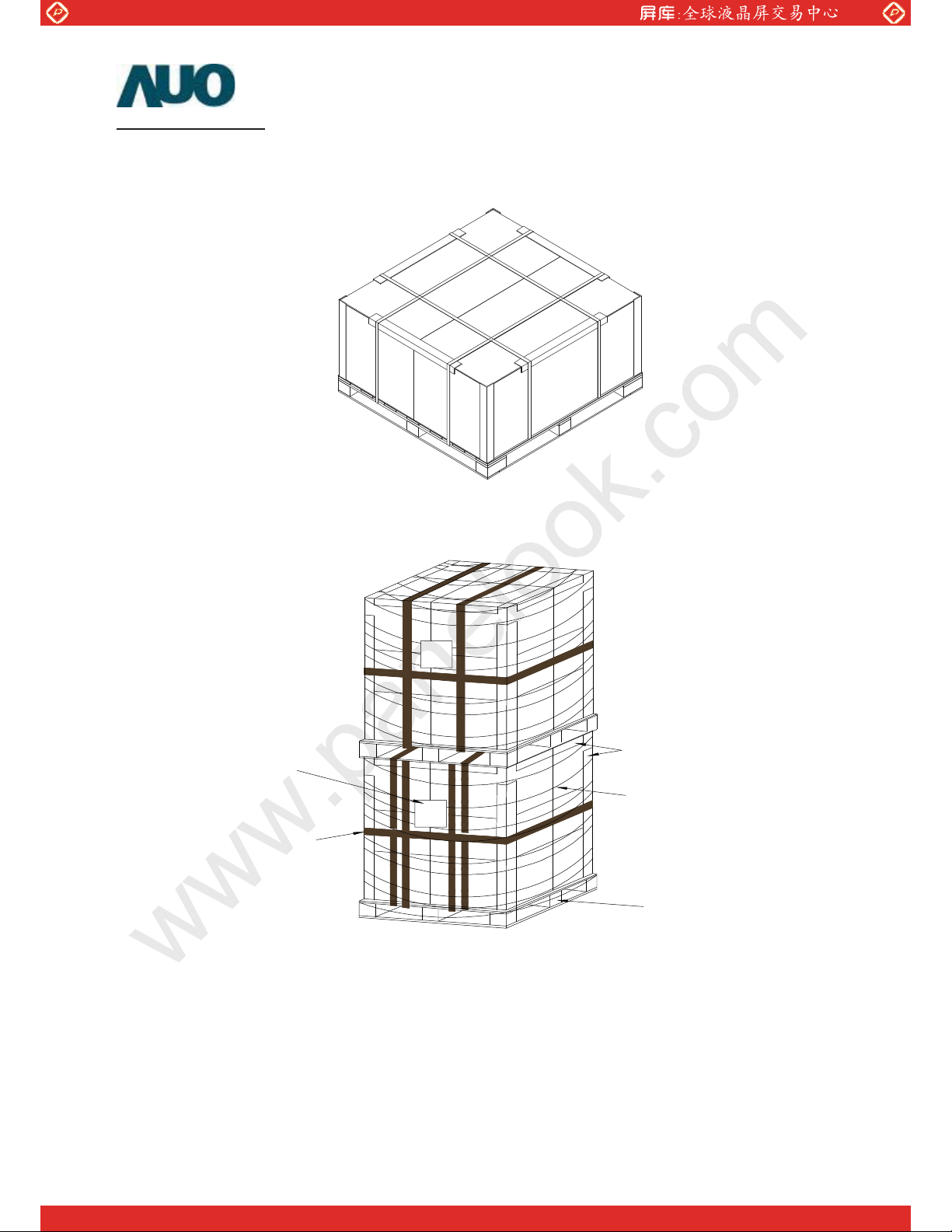

8 PACKING

9 PRECAUTIONS

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 4

Global LCD Panel Exchange Center

Record of Revision

Version Data Page. Old Description New Description Remark

0.0 2009/5/22 First release N/A N/A

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 5

Global LCD Panel Exchange Center

www.panelook.com

1. General Description

This specification applies to the 52 inch Color TFT-LCD Module T520HW01 V3. This LCD module has a TFT

active matrix type liquid crystal panel 1920x1080 pixels, and diagonal size of 52 inch. This module supports Full

HD mode (Non-interlace) with MEMC.

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray

scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.

The T520HW01 V3 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to

support displays where high brightness, EBU Gamut (72% NTSC), wide viewing angle, and high color depth are

very important.

The T520HW01 V3 backlight unit is using inverter-less solution (inductor type balance board), and need to be

* General Information

Items Specification Unit Note

Active Screen Size 52 inches Diagonal

Display Area 1152(H) x 648(V) mm

Outline Dimension 1226(H) x 719.2(V) x 58(D) mm With Balance Board cover

Driver Element a-Si TFT active matrix

Display Colors 16.7M Colors

Color Gamut 72 % NTSC

Number of Pixels 1920 x 1080 Pixel

Pixel Arrangement RGB vertical stripe

Pixel Pitch 0.6 mm

Display Mode Normally Black

Surface Treatment Haze 11%, 3H

RoHS RoHS compliance

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 6

Global LCD Panel Exchange Center

www.panelook.com

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min. Max Unit Note

Logic/LCD Drive Voltage VDD -0.3 14.0 VDC 1

Input Voltage of Signal VIN -0.3 3.6 VDC 1

Operating Temperature TOP 0 +50 °C 2

Operating Humidity HOP 10 90 %RH 2

Storage Temperature TST -20 +60 °C 2

Storage Humidity HST 10 90 %RH 2

Panel Surface Temperature T

Shock (non-operation) ±x, ±y -- 40 G 3

Shock (non-operation) ±z -- 30 G 3

Vibration (non-operation) -- 1.5 G 4

Note 1: Duration = 50ms

Note 2: Maximum Wet-Bulb should be 39°C and no condensation. The relative humidity must not exceed

90% non-condensing at temperatures of 40 °C or less. At temperatures greater than 40°C, the wet

bulb temperature must not exceed 39°C.

Note 3: Sine wave, 11ms, direction: ±x, ±y, ±z (one time each direction)

Note 4: Wave form: random, vibration level: 1.5G RMS, Bandwidth: 10--300Hz

Duration: X, Y, Z 30min (one time each direction)

Note 5: Surface temperature is measured at 50  Dry condition

-- +65 °C 2

SUR

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 7

Global LCD Panel Exchange Center

www.panelook.com

3. Electrical Specification

The T520HW01 V3 requires two power inputs. One is employed to power the LCD electronics and to drive the

TFT array and liquid crystal. The second input, which powers the CCFL, is typically generated by an integrate

power (I/P) system.

3.1 Electrical Characteristics

Parameter Symbol

Min. Typ. Max

Power Supply Input Voltage VDD 10.8 12.0 13.2 VDC

Power Supply Input Current IDD -- 1.3 2.2 A 1

Power Consumption PC -- 14.4 30 Watt 1

Value

Unit Note

Inrush Current I

-- -- 20 A 5

RUSH

Differential Input

High Threshold

-- -- +100 mVDC 4

Voltage

LVDS

Interface

Differential Input

Low Threshold

-100 -- -- mVDC 4

Voltage

Common Input

1.10 1.25 1.40 VDC

CIM

VIH

(High)

(Low)

2.4 -- 3.3 V

0 -- 0.7 V

CMOS

Interface

Voltage

Input High

Threshold Voltage

Input Low

Threshold Voltage

Backlight Power Consumption (ref.) PBL -- 190 -- Watt 2

Life Time 50000 -- -- Hours 3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 8

Global LCD Panel Exchange Center

Note:

1. V

2. The backlight power consumption shown above is tested by lamp current I

3. V

=12.0V, fV=60Hz, fCLK=81.5Mhz, 25°C, VDD duration time=400µs, test pattern: white pattern

=1.25V

CIM

VTH

VCIM

VTL

www.panelook.com

=9.0mA.

Figure: LVDS Differential Voltage

4. Measurement condition: rising time=400 µs

0.9 Vdd

GND

0.1 Vdd

400

5. Specified values are for a single lamp only which is aligned horizontally. The lifetime is defined as the

time which luminance of the lamp is 50% compared to its original value.

[Operating condition: Continuous operating at Ta = 25 ±2]

6. The performance of the Lamp in LCD panel, for example life time or brightness, is extremely influenced

by the characteristics of balanced board and I/P board. All the parameters should be carefully designed

as not to produce too much leakage current from high-voltage output. While you design or order the

balance board, please make sure unwanted lighting caused by the mismatch of the lamp and the

Vdd

balanced board (no lighting, flicker, etc) never occurs. After confirmation, the LCD panel should be

operated in the same condition as installed in your instrument

7. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,

TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage current

occurs between lamp wire and conducting tape.

8. The relative humidity must not exceed 80% non-condensing at temperatures of 40  or less. At

temperatures greater than 40, the wet bulb temperature must not exceed 39. When operate at low

temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 9

Global LCD Panel Exchange Center

3.2 Interface Connections

 LCD connector: FI-RE51S-HF (Manufactured by JAE)

 Mating connector: FI-RE51S-HL (Manufactured by JAE)

Pin No Symbol Description Note

1 VDD Operating Voltage Supply, +12V DC Regulated

2 VDD Operating Voltage Supply, +12V DC Regulated

3 VDD Operating Voltage Supply, +12V DC Regulated

4 VDD Operating Voltage Supply, +12V DC Regulated

www.panelook.com

5 VDD Operating Voltage Supply, +12V DC Regulated

6 GND Ground

7 GND Ground

8 GND Ground

9 GND Ground

10 RO_0- LVDS Channel Odd, Signal 0- LVDS

11 RO_0+ LVDS Channel Odd, Signal 0+ Channel

12 RO_1- LVDS Channel Odd, Signal 1- Odd

13 RO_1+ LVDS Channel Odd, Signal 1+

14 RO_2- LVDS Channel Odd, Signal 2-

15 RO_2+ LVDS Channel Odd, Signal 2+

16 GND Ground

17 RO_CLK- LVDS Channel Odd, Clock -

18 RO_CLK+ LVDS Channel Odd, Clock +

19 GND Ground

20 RO_3- LVDS Channel Odd, Signal 3-

21 RO_3+ LVDS Channel Odd, Signal 3+

Power

22 NC NC

23 NC NC

24 GND Ground

25 RE_0- LVDS Channel Even, Signal 0- LVDS

26 RE_0+ LVDS Channel Even, Signal 0+ Channel

27 RE_1- LVDS Channel Even, Signal 1- Even

28 RE_1+ LVDS Channel Even, Signal 1+

29 RE_2- LVDS Channel Even, Signal 2-

30 RE_2+ LVDS Channel Even, Signal 2+

31 GND Ground

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 10

Global LCD Panel Exchange Center

32 RE_CLK- LVDS Channel Even, Clock -

33 RE_CLK+ LVDS Channel Even, Clock +

34 GND Ground

35 RE_3- LVDS Channel Even, Signal 3-

36 RE_3+ LVDS Channel Even, Signal 3+

37 NC NC

38 NC NC

39 GND Ground

40 NC No Connect (AUO internal Only) Note 4

41 NC No Connect (AUO internal Only) Note 4

42 NC No Connect (AUO Internal Use Only)

43 NC No Connect (AUO Internal Use Only)

44 MEMC_ON MEMC ON

www.panelook.com

45 LVDS_SEL Open/High(3.3V) for NS, Low(GND) for JEIDA Default: NS

46 SCL_FRC EEPROM Serial Clock for MEMC

47 NC No Connect (AUO internal Only)

48 SDA_FRC EEPROM Serial Data for FRC

49 NC No Connect (AUO internal Only)

50 NC No Connect (AUO internal Only)

51 NC No Connect (AUO internal Only)

Note 1: All GND (ground) pins should be connected together and should also be connected to the LCD ’s

metal frame.

Note 2: All V

Note 3: All NC (no connection) pins should be open without voltage input.

(power input) pins should be connected together.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 11

Global LCD Panel Exchange Center

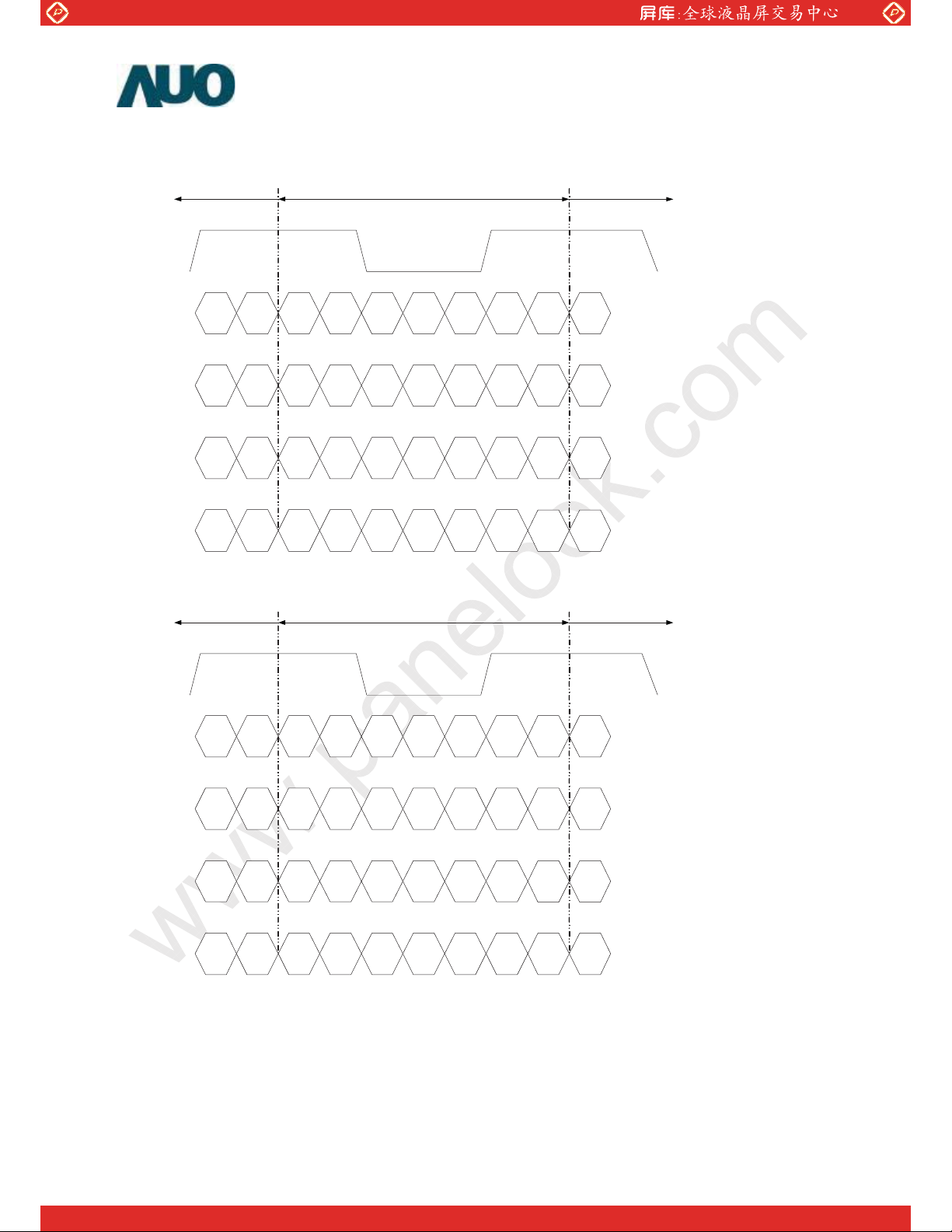

LVDS Option = High/Open NS

Previous Cycle Current Cycle Next Cycle

Clock

www.panelook.com

RIN0+ RIN0-

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

LVDS Option = Low

Previous Cycle Current Cycle Next Cycle

Clock

RIN0+ RIN0-

R0R5 G0G0R0R1 R2R3R4 R1

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA B4

R6B7 NANAR6R7 G6G7B6 R7

JEIDA

R2R7 G2G2R2R3 R4R5R6 R3

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

G3B2 B3B3G3G4 G5G6G6 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 12

Global LCD Panel Exchange Center

3.3 MEMC function description

1. Setting by hardware

Pin name

MEMC_ON *1 I

LVDS_FORMAT I

SDA_MCU I/O Internal I2C to control MEMC SCL_MCU I/O Internal I2C to control MEMC

Input/

Content Note

ouptut

MEMC ON/OFF Selection

0: MEMC OFF

1: MEMC ON

LVDS Format Selection 0: JEIDA Mode 10/8bits 1: NS Mode 8bits

www.panelook.com

MEMC ON: 10 frames latency (~170ms) for

film FLC, MBR + video MBR

MEME OFF: 1 frame latency (~16.7ms)

Default

SDA_E *2 I/O

External I2C from customer's comment

When MCU gets external I2C signals from customer's comment, MCU will download

SCL_E *2 I/O

External I2C from customer's

MCU_SDA and MCU_SCL. The sheet of

comment

Note 1.

MEMC ON/OFF can also control by external I2C. If users want to change the setting, only need to change hardware setting or provide external I2C command. Ex: When MEMC_ON of the hardware is L for MEMC OFF, external I2C can set address=0x79 and data=0x00 for MEMC ON.

Note 2.

The next figure shows the I2C format of customer’s single-byte command. Ex. Address : 0x65.

START 0XE4

(*1)

ACK

(*2)

Address ACK Data ACK STOP

(*3)

The next figure shows the I2C format of customer’s multi-byte command. Because of MCU buffer capacity multi-byte command has 20 bytes limitation per one time. Ex. Address : 0x23.

START 0XE4 ACK

Add ress

ACK

Data

(Byte 0)

ACK

Data

(Byte 1)

ACK

Data

(Byte 2)

ACK

Data

(Byte 3)

ACK

STOP

(*3)

Note (1)

Slave address of MEMC chip is 0x72 plus the least significant bit indicating a write (0xE4).

Note (2)

Shaded items are issued by the slave (MEMC chip).

Note (3)

The interval time between the two commands must longer than 100ms.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 13

Global LCD Panel Exchange Center

2. Setting by External I2C

Address

(Hex)

1B 0 7:0

Byte Bit Description Note Default

Output black data

0x00: unblank (normal display)

0x01: blank (output black data)

www.panelook.com

Initial state is unblanked. 0x00

MEMC ON/OFF Selection

79 0 7:0

65 0: 1 15: 0

59 0 7:0

0:1 15:0

2:3 15:0

4:5 15:0

0x00: MEMC ON

0x02: MEMC OFF

Control the demo option

0x0000: Demo OFF.

0x0004: Demo ON.

OSD ON/OFF control

0x00: OSD OFF

0x04: OSD ON

OSD width define

(Unit: pixel ; range 0~1920)

OSD height define

(Unit: pixel ; range 0~1080)

The amount of H pixels that the left upper corner of the

OSD is from the left top corner of the output window

(Unit: pixel ; range 0~1920)

MEMC ON: 10 frames latency

(~170ms) for film FLC, MBR + video

MBR

MEME OFF: 1 frame latency (~16.7ms)

Demo OFF : Normal display;

Demo ON : MEMC enable at Left side,

and MEMC disable at right side.

OSD On/Off Control 0x00

1. OSD Protection Size Define

(Width, height, x, y)

2. Usable in OSD ON status. (The data

of address 0x59 must be 0x04.)

0x00

0x0000

The amount of V pixels that the left upper corner of the

6:7 15:0

0 6:0

1 6:0

2:4

6E 0 7:0

OSD is from the left top corner of the output window

(Unit: pixel ; range 0~1080)

Thickness of the OSD left and right border

(Unit: pixel ; range 0~127)

Thickness of the OSD top and bottom border (Unit:

pixel ; range 0~127)

Red component of the OSD border color

7:0 0x00

Green component of the OSD border color

7:0 0x00

Blue component of the OSD border color

7:0

(Unit: 8 bit level ; range 0~255)

Different MEMC level selection

0x00: Normal MEMC level

0x01: Strong MEMC level

0x03: Weak MEMC level

1. OSD border width and color decision

2. Usable in OSD ON status. (The data

of address 0x59 must be 0x04.)

Usable in MEMC ON status. (The data

of address 0x79 must be 0x00.)

0x0000

0x00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 14

Global LCD Panel Exchange Center

www.panelook.com

3.4 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Vertical Frequency Range (60Hz)

Signal Item Symbol Min. Typ. Max Unit

Vertical Section

Period T

Active T

Blanking T

(V) 1080 TH

DISP

(V) 20 45 228 T

BLK

1100 1125 1300 T

Front porch Tfp(V) 1 4 200 TH

Back porch Tbp(V) 1 36 200 TH

Horizontal Section

LVDS Clock

V_sync

TVsync_wdth 2 5 200 T

Period TH 1050 1100 1150 T

Active T

Blanking T

(H) 960 T

DISP

(H) 90 120 190 T

BLK

Front porch Tfp(H) 5 44 180 T

Back porch T(H) 5 74 180 T

H_sync THsync_wdth

Period T

Frequency F

CLK

13.47 ns

70.875 74.25 76 MHz

5 22 180 T

CLK

Vertical Frequency Frequency FV 59.5 60 60.5 Hz

Horizontal Frequency Frequency FH 66 67.5 78 KHz

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 15

Global LCD Panel Exchange Center

3.5 Signal Timing Waveforms

www.panelook.com

Tdisp(h)

Tblk(v) Tdisp(v)

Invalid data

TCLK

Tblk(h)

RGB Data

(ODD)

CLK

(ODD)

RGB Data

(EVEN)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 16

Global LCD Panel Exchange Center

www.panelook.com

3.6 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 10 bit gray scale data input for the

color; the higher the binary input, the brighter the color. The table below provides a reference for color versus

data input.

COLOR DATA REFERENCE

Input Color Data

Basic

Color

RED

GREEN

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

----

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

-------

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 17

Global LCD Panel Exchange Center

3.7 Power Sequence

www.panelook.com

Parameter

Min. Typ. Max.

t1 0.4 -- 30 ms

t2 2480 -- 2980 ms

t3 1300 -- -- ms

t4 10 -- -- ms

t5 0.1 -- 50 ms

t6 -- -- 300 ms

t7 500 -- -- ms

t8 2500 -- -- ms

t9 100 -- -- ms

Apply the lamp voltage within the LCD operating range. When the backlight turns on before the LCD

operation or the LCD turns off before the backlight turns off, the display may momentarily become abnormal.

Caution: The above on/off sequence should be applied to avoid abnormal function in the display. In case of

handling, make sure to turn off the power when you plug the cable into the input connector or pull the cable

out of the connector.

Values

Unit

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 18

Global LCD Panel Exchange Center

3.8 Backlight Power Specification

www.panelook.com

(Ta=25±5oC, Turn-on after 60mins)

Item Symbol

Unit Note

Min. Typ. Max

HV1/

Specification

1 High Voltage (HV) Input

500 650

HV2

2 Input Current of ech HV IHV 135 140 155 mA

3 High Voltage (HV) Output V

4 Output Lamp Current I

500 650 800 V

OUT

8.7 9 9.3 mA

OUT

800 V

RMS

PWM=100%

RMS

5 Operating Frequency FOP 43 45 47 KHz (Recommend)

6 PWM Dimming Frequency F

7 Dimming Duty Ratio D

140 150 160 Hz (Recommend)

PW M

20 100 % (Recommend)

PW M

8 Lamp Type Straight

9 Number of Lamps 16 pcs

Protection Circuit (Feedback Signal):

10 Supply Voltage VCC 10 12 15 VDC

11 Supply Current ICC

12 Current Feedback Signal VFB

VLD(H)

13 Lamp Detection (OLP)

Vcc-0.5

(L)

2.1

mADC

Vcc

0.8

RMS

VDC Lamp normal status

Lamp protection status

Lamp Specification:

Output Working Voltage

VL 500 650 800

15 Output Current IL 8.7 9 9.3 mA

Lamp Frequency F

Starting Voltage Vs _ _ _ V

40 80 KHz

LAMP

RMS

Ta=25

RMS

CCFL SPC. )

=6.0mA

RMS

C(refer to

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 19

Global LCD Panel Exchange Center

Connector Pin Assignment

CCFL connector:

Lamp side CivLux CP042 ESFA00 Balanc e boar d sid e: CivLux CP042EP1MFA-LF

CN13

CN11

CN14

www.panelook.com

CN21CN12

CN15

CN16

CN11: YeonHO_130001WR-02E (LF)

PIN # Symbol Description

1 HV1+ I/P board high voltage supply

2 HV1+ I/P board high voltage supply

CN21: YeonHO_130001WR-02E (LF)

PIN # Symbol Description

1 HV1- I/P board high voltage supply

2 HV1- I/P board high voltage supply

IP Board

CN12: HIROSE_KN30-7P-1.25H

PIN # Symbol Description

1 VCC 12V power supply

2 FB Lamp current feedback signal (Full wave current)

3 FB Lamp current feedback signal (Full wave current)

4 GND GND

5 GND GND

6 LD Lamp detection

7 LD Lamp detection

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 20

Global LCD Panel Exchange Center

www.panelook.com

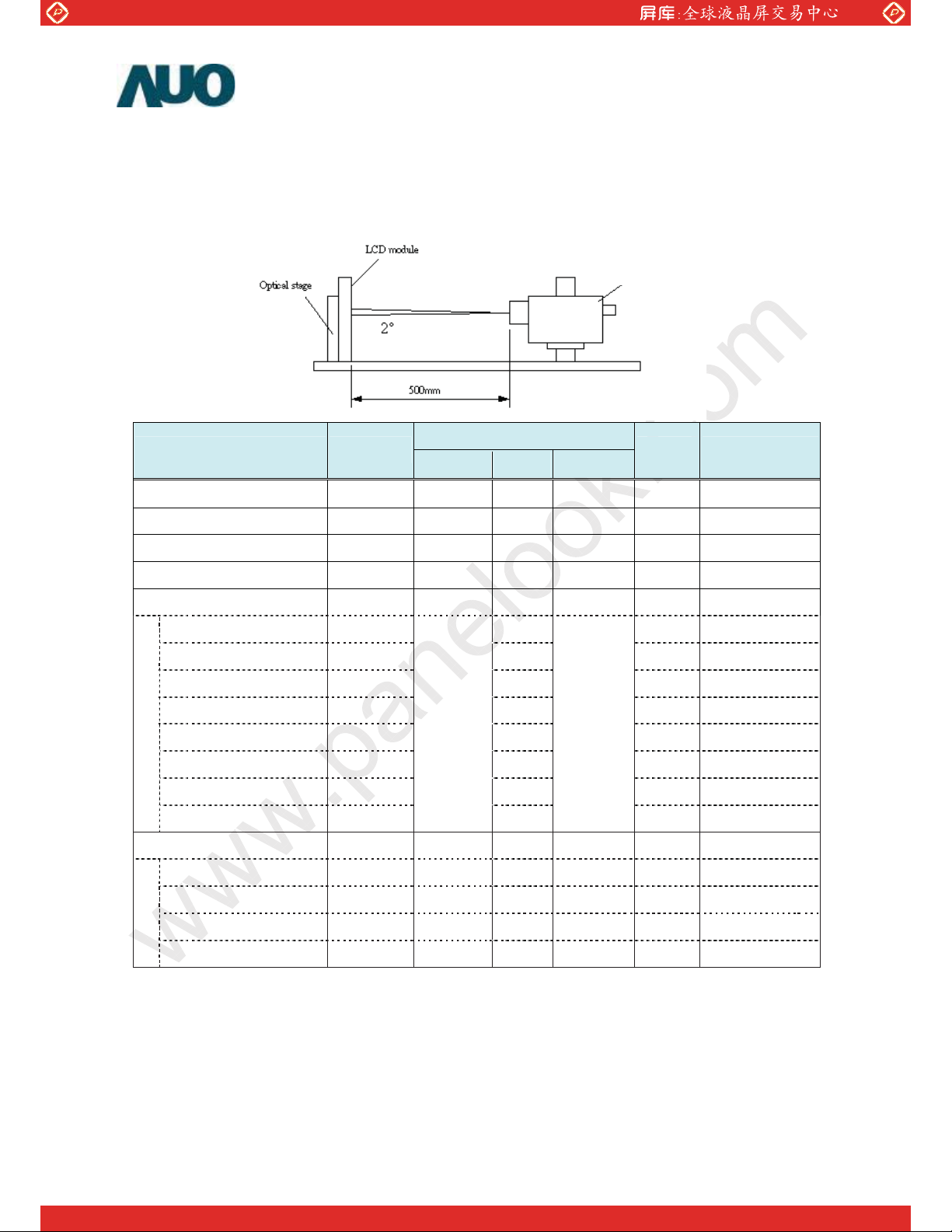

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60 minutes in a

dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of φ and θ equal to 0°.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max

Values

Unit Notes

Contrast Ratio CR 4000 5000 -- 1

Surface Luminance (White) LWH 400 500 -- cd/m2 2

Luminance Variation δ

WHITE(9P)

-- -- 1.3 3

Response Time (Average) Tγ -- 5.5 -- ms 4 (Gray t o Gray)

Color Coordinates

Red RX 0.640

0.330

Green GX 0.290

0.600

Typ.-0.03

Typ.+0.03

Blue BX 0.150

0.060

White WX 0.280

Viewing Angle

x axis, right(φ=0°) θr -- 89 -- degree 5

0.290

(Contrast Ratio>10)

x axis, left(φ=180°) θl -- 89 -- degree 5

y axis, up(φ=90°) θu -- 89 -- degree 5

y axis, down (φ=270°) θ

-- 89 -- degree 5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 21

Global LCD Panel Exchange Center

www.panelook.com

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Contrast Ratio (CR)=

Brightness of the "white" state Brightness of the "black" state

2. Surface Luminance is luminance value at point 5 with 100% dimming across the LCD surface 50cm from the

surface with all pixels displaying white. For more information see Fig. 4-2. When lamp current I

WH=Lon5

, where L

is the luminance with all pixels displaying white at center 5 location.

on5

=7.6mA,

V/2

V/6

123

456

H/2 H/6

Fig.4-2 Optical measurement point

3. The variation in surface luminance, δ

WHITE(9P)

= Maximum(L

W HITE(9P)

is defined under brightness of IL=9mA as:

, L

on1

on2

,…,L

)/Minimum(L

on9

on1

, L

on2

,…L

on9

)

4. Response time Tγ is the average time required for display transition by switching the input signal for five

luminance ratio (0%, 25%, 50%, 75%, 100% brightness matrix)and is based on f

=60Hz to optimize.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal (or x-axis) and the vertical (or y-axis) with respect to the z-axis which is normal to the LCD surface.

For more information see Fig. 4-4.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 22

Global LCD Panel Exchange Center

www.panelook.com

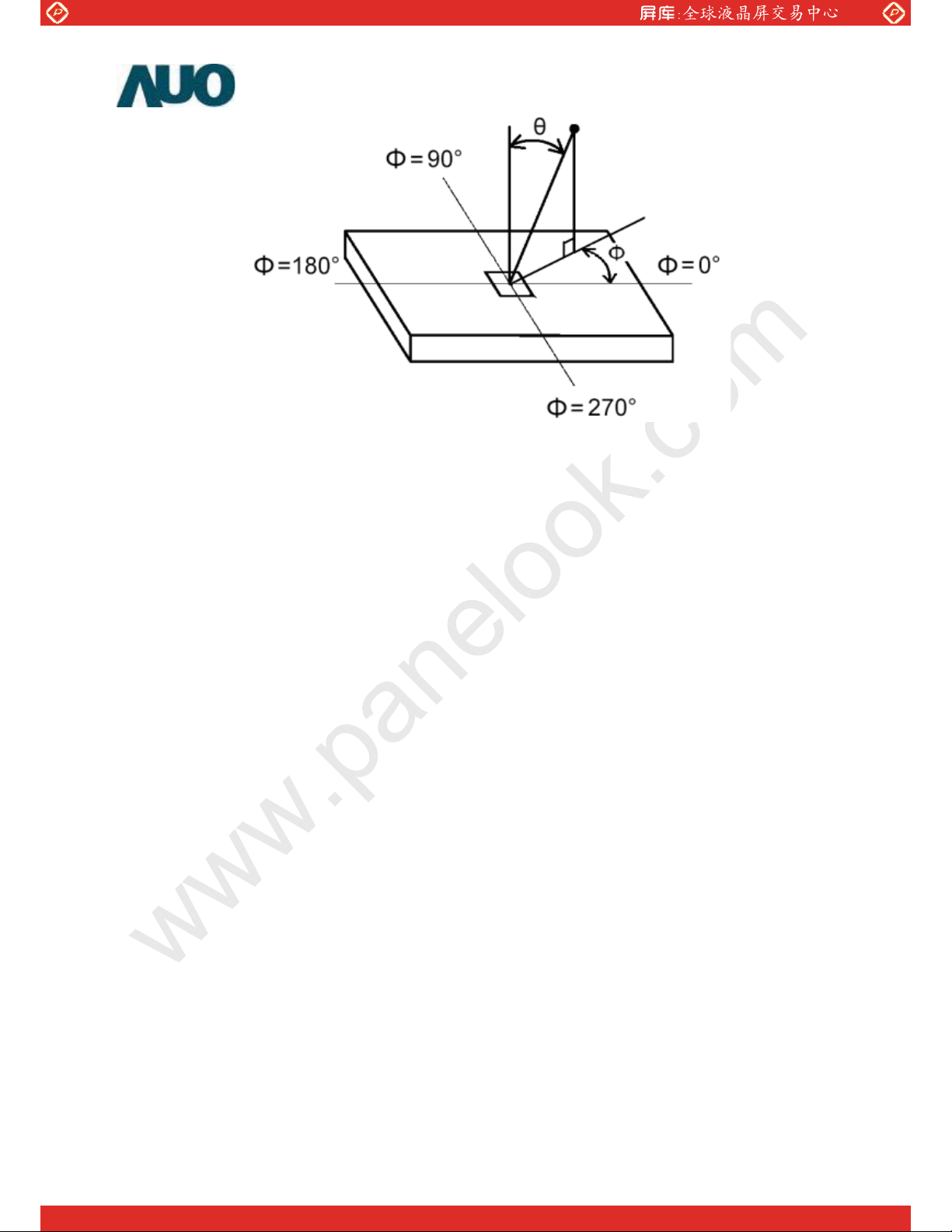

Fig.4-4 Viewing angle definition

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 23

Global LCD Panel Exchange Center

www.panelook.com

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T520HW01. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Horizontal (typ.) 1226 mm

Outline Dimension

Bezel Area

Active Display Area

Weight 19000g (Max)

Vertical (typ. ) 719.2 mm

Depth (typ.) 58 mm (with balance board cover)

Horizontal (typ.) 1166 mm

Vertical (typ.) 662 mm

Horizontal 1152 mm

Vertical 648 mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 24

Global LCD Panel Exchange Center

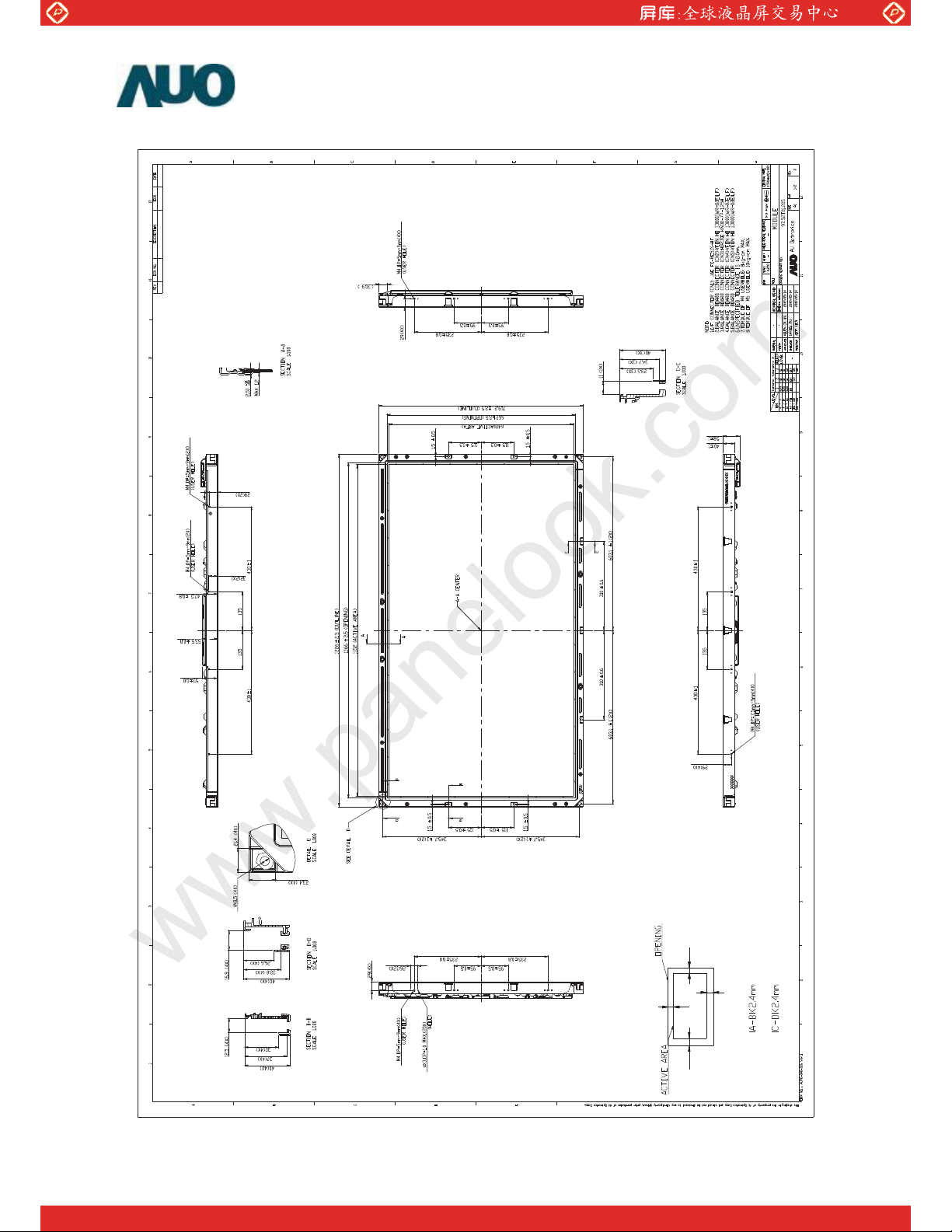

2D Drawing (Front)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 25

Global LCD Panel Exchange Center

www.panelook.com

2D Drawing (Rear)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 26

Global LCD Panel Exchange Center

www.panelook.com

6. Reliability

Panel condition in RA test

Brightness: 500nits

Lamp Current (Hot side): 9.0 mA

No Test Item Condition

1 High temperature storage test Ta=60 300h

2 Low temperature storage test Ta= -20 300h

3 High temperature operation test Ta=50  300h

4 Low temperature operation test Ta=-5 300h

Result Evaluation Criteria

There should be no change which might affect the practical display function when the display quality test is conducted

under normal operating condition.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 27

Global LCD Panel Exchange Center

www.panelook.com

7. International Standard

7-1. Safety

(1) UL6500, UL 60065 Underwriters Laboratories, Inc. (AUO file number: E204356)

Standard for Safety of Information Technology Equipment Including electrical Business Equipment.

(2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.

(3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

IEC 60065: version 7th

European Committee for Electro technical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business

Equipment.

7-2. EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electrical

Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information Technology

Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998

7-3. Green Mark Description

(1) For Pb Free products, AUO will add for identification.

(2) For RoHS compatible products, AUO will add

Note. The Green Mark will be present only when the green documents have been ready by AUO Internal Green

Team. (The definition of green design follows the AUO green design checklist.)

RoHS

for identification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 28

Global LCD Panel Exchange Center

8. Packing

Packing Instruction

Carton dimension= 1300x 560x 860 mm

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 29

Global LCD Panel Exchange Center

Pallet information

By air cargo: (2 x 1) x 1 layers, one pallet put 2 boxes, total 10 pcs module.

Dimension: 1150 x 1315 x 998mm

www.panelook.com

By sea: (2 x 1) x 2 layers, one pallet put 2 boxes, stack 2 layers, total 20 pcs module.

Dimension: 1140 x 1315 x 1996mm

corner angle

LABEL

str etc h film

PET Band

W ooden pallet

Pallet dimension: 1140 x 1315 x 138mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 30

Global LCD Panel Exchange Center

www.panelook.com

Item

Specification

Qty. Dimension Weight (kg)

1 Packing BOX 5pcs/box 1300(L)mm*560(W)mm*860(H)mm 109

2 Pallet 1 1300(L)mm*1150(W)mm*138(H)mm 10

3 Boxes per Pallet 2 boxes/Pallet

4 Panels per Pallet 10pcs/pallet

Pallet after packing 10 1300(L)mm*1150(W)mm*998(H)mm 228

Panel Label

Packing Remark

Carton Label

T520HW01 V3

QTY: 5

97.52T01.XXX

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 31

Global LCD Panel Exchange Center

www.panelook.com

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged on back side of panel

(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to

module. And the case on which a module is mounted should have sufficient strength so that external force is

not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by

electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil

lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer

for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used

to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical

damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=200mV (Over and under shoot voltage)

(2) Response time depends on the temperature. (In lower temperature, it becomes longer.)

(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature,

response time (required time that brightness is stable after turned on) becomes longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.

(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done

by system manufacturers. Grounding and shielding methods may be important to minimize the interface.

(7) The device listed in the product specification sheets was designed and manufactured for TV application.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 32

Global LCD Panel Exchange Center

www.panelook.com

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don ’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they be

stored in the container in which they were shipped.

8-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off,

static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully

by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of flue still on the Bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, please wipe them off

with absorbent cotton waste or other soft material like chamois soaked with normal-hexa

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 33

Global LCD Panel Exchange Center

Appendix

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

AUO T520HW01 V3 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
