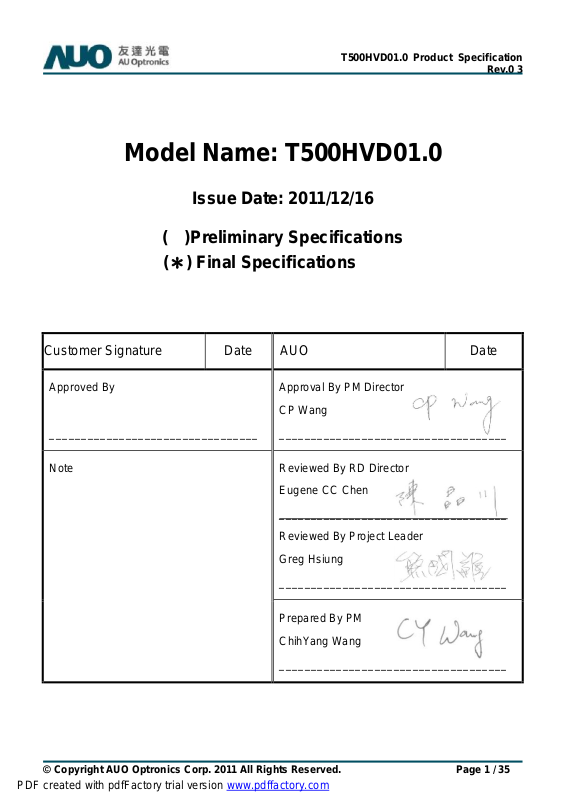

AUO T500HVD01.0 Specification

T500HVD01.0 Product Specification

Rev.0 3

Model Name: T500HVD01.0

Issue Date: 2011/12/16

( )Preliminary Specifications

(＊) Final Specifications

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director CP Wang ____________________________________

Reviewed By RD Director Eugene CC Chen ____________________________________ Reviewed By Project Leader Greg Hsiung ____________________________________

Prepared By PM ChihYang Wang ____________________________________

PDF created with pdfFactory trial version www.pdffactory.com

T500HVD01.0 Product Specification

Rev.0 3

Contents

No

CONTENTS

RECORD OF REVISIONS 1 GENERAL DESCRIPTION 2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE

3-7 BACKLIGHT SPECIFICATION 4 OPTICAL SPECIFICATION 5 MECHANICAL CHARACTERISTICS 6 RELIABILITY TEST ITEMS 7 INTERNATIONAL STANDARD

7-1 SAFETY

7-2 EMC 8 PACKING

8-1 DEFINITION OF LABEL

8-2 PACKING METHODS

8-3 PALLET AND SHIPMENT INFORMATION 9 PRECAUTION

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECT FILM

PDF created with pdfFactory trial version www.pdffactory.com

Record of Revision

T500HVD01.0 Product Specification

Rev.0 3

Version

0.0 2011/12/16 First release

0.1 2011/12/23 Remove 3.1 DCR Update LVDS connector P/N & pin assignment Update 3.7.2 pin 12 Update 4 RGB color point

0.2 2012/02/29 Update 5. Weight & Drawing Update 8.3 packing weight Update 4. 3D view angle y axis degree Update 3.1.1 LCD/backlight power consumption Add 3.1.2 Input Channel Pair Skew Margin Update 3.7.1 Electrical specification

0.3 2012/5/10 Update 5 Weight Update 3.7.2 Input Pin Assignment Update 3.2 Interface Connections Update 3.5 Color Input Data Reference

Date Page Description

Final

PDF created with pdfFactory trial version www.pdffactory.com

D: front bezel to driver board

T500HVD01.0 Product Specification

Rev.0 3

1. General Description

This specification applies to the 50.0 inch Color TFT-LCD Module T500HVD01.0. This LCD module has a TFT active matrix type liquid crystal panel 1,920 x 1,080 pixels, and diagonal size of 50.0 inch. This module supports

1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.

The T500HVD01.0 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important. Also, 3D function is embedded as pattern retarder.

* General Information

Items Specification Unit Note

Active Screen Size 50.00 inch Display Area 1095.84 (H) x 616.41(V) mm

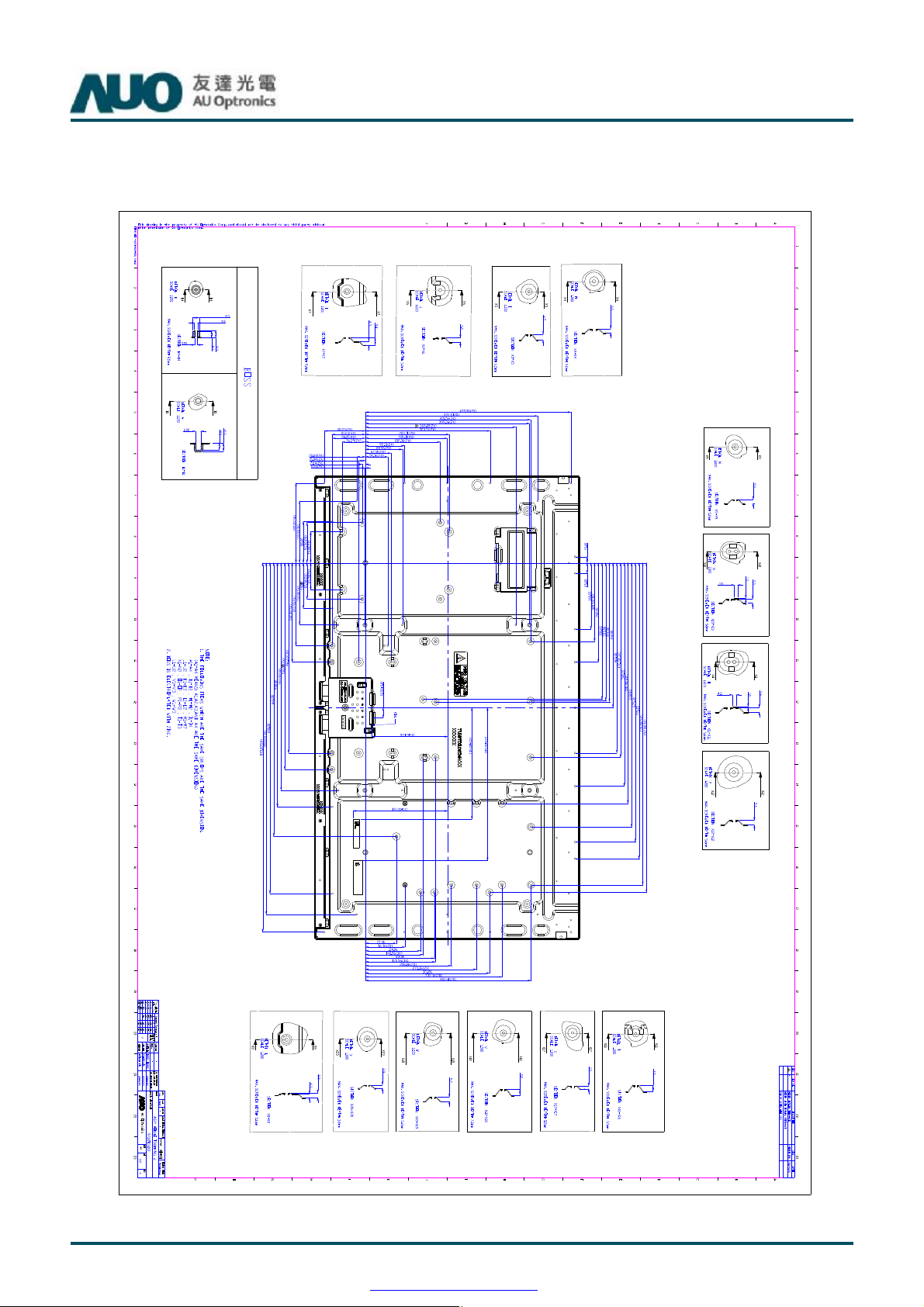

Outline Dimension 1121.6(H) x 644.3 (V) x 26.2(D)

Driver Element a-Si TFT active matrix Bezel Opening 1101.8 (H) x 622.4 (V) mm Display Colors 8 bits Colors Number of Pixels 1,920 x 1,080 Pixel Pixel Pitch 0.19025 (H) x 0.57075(W) mm Pixel Arrangement RGB vertical stripe Display Operation Mode Normally Black Rotate Function Unachievable Note 1 Display Orientation Signal input with “A” Note 2

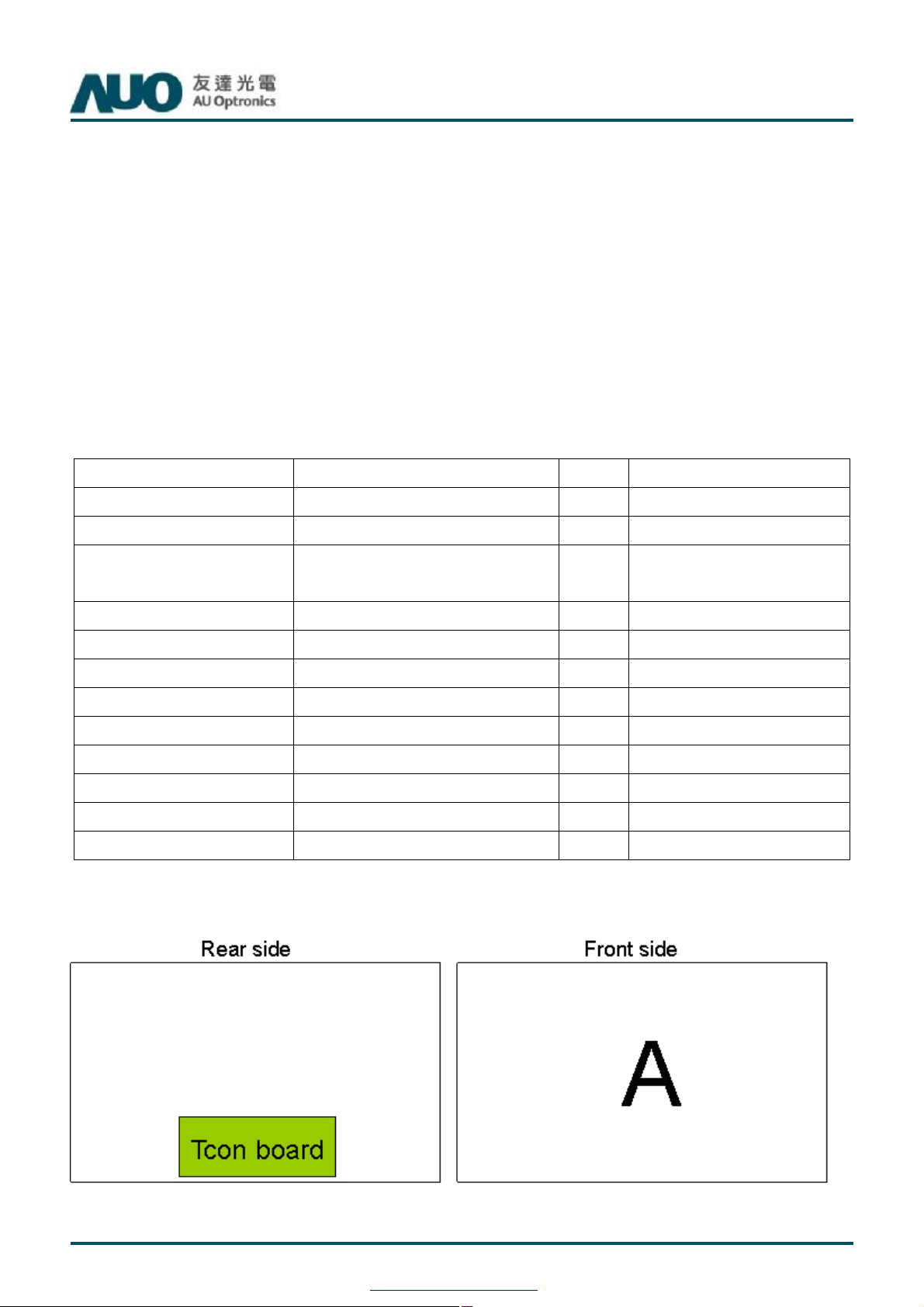

Note 1: Rotate Function refers to LCD display could NOT be able to rotate.

Note 2: LCD display as below illustrated when signal input with “A”.

mm

cover

PDF created with pdfFactory trial version www.pdffactory.com

T500HVD01.0 Product Specification

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1 Input Voltage of Signal Vin -0.3 4 [Volt] Note 1 Operating Temperature TOP 0 +50 [oC] Note 2 Operating Humidity HOP 10 90 [%RH] Note 2 Storage Temperature TST -20 +60 [oC] Note 2 Storage Humidity HST 10 90 [%RH] Note 2 Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec. Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃

Rev.0 3

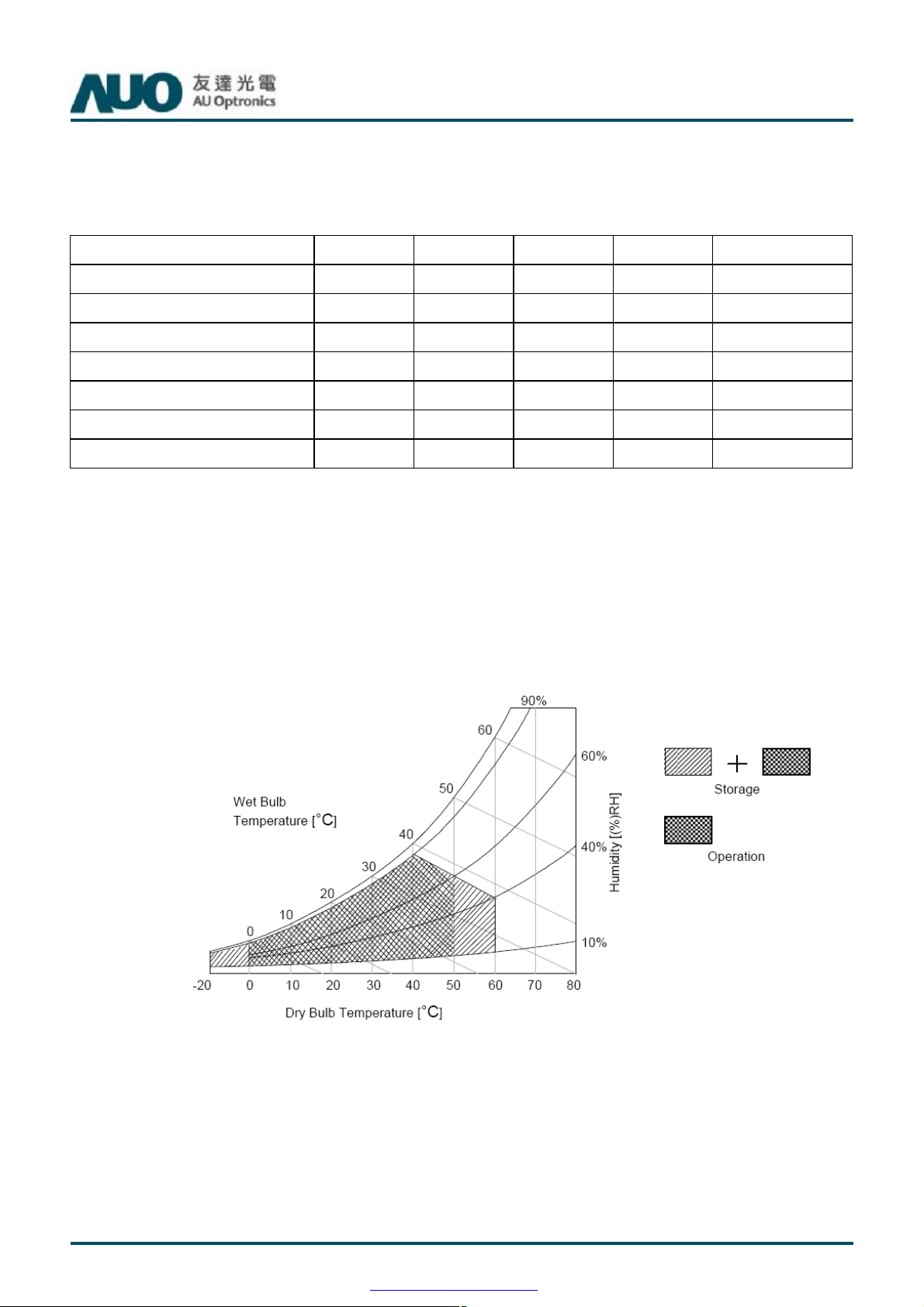

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures ℃ greater than 40, the wet bulb temperature must not exceed 39.℃℃ Note 3: Surface temperature is measured at 50℃ Dry condition

PDF created with pdfFactory trial version www.pdffactory.com

T500HVD01.0 Product Specification

Rev.0 3

3. Electrical Specification

The T500HVD01.0 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The other is to power Back Light Unit.

3.1 Electrical Characteristics

3.1.1: DC Characteristics

Parameter Symbol

LCD Power Supply Input Voltage VDD 10.8 12 13.2 VDC Power Supply Input Current IDD -- 0.9 1.2 A 1 Power Consumption PC -- 10.8 14.4 Watt 1 Inrush Current I

Permissible Ripple of Power Supply Input Voltage

Input Differential Voltage

LVDS Interface

CMOS Interface

Backlight Power Consumption PBL --

Differential Input High Threshold Voltage

Differential Input Low Threshold Voltage Input Common Mode Voltage V

Input High Threshold Voltage

Input Low Threshold Voltage

RUSH

VRP -- -- VDD * 5% mV

∣VID∣

VTH +100 -- +300 mVDC 4

VTL -300 -- -100 mVDC 4

ICM

VIH

(High)

VIL

(Low)

Min. Typ. Max

-- -- 5 A 2

200 400 600 mVDC 4

1.1 1.25 1.4 VDC 4

2.7 -- 3.3 VDC 5

0 -- 0.6 VDC 5

Value

75.12

79.92

Unit Note

pk-pk

Watt

3

Life time (MTTF) 30000

PDF created with pdfFactory trial version www.pdffactory.com

Hour 8,9

s

µ

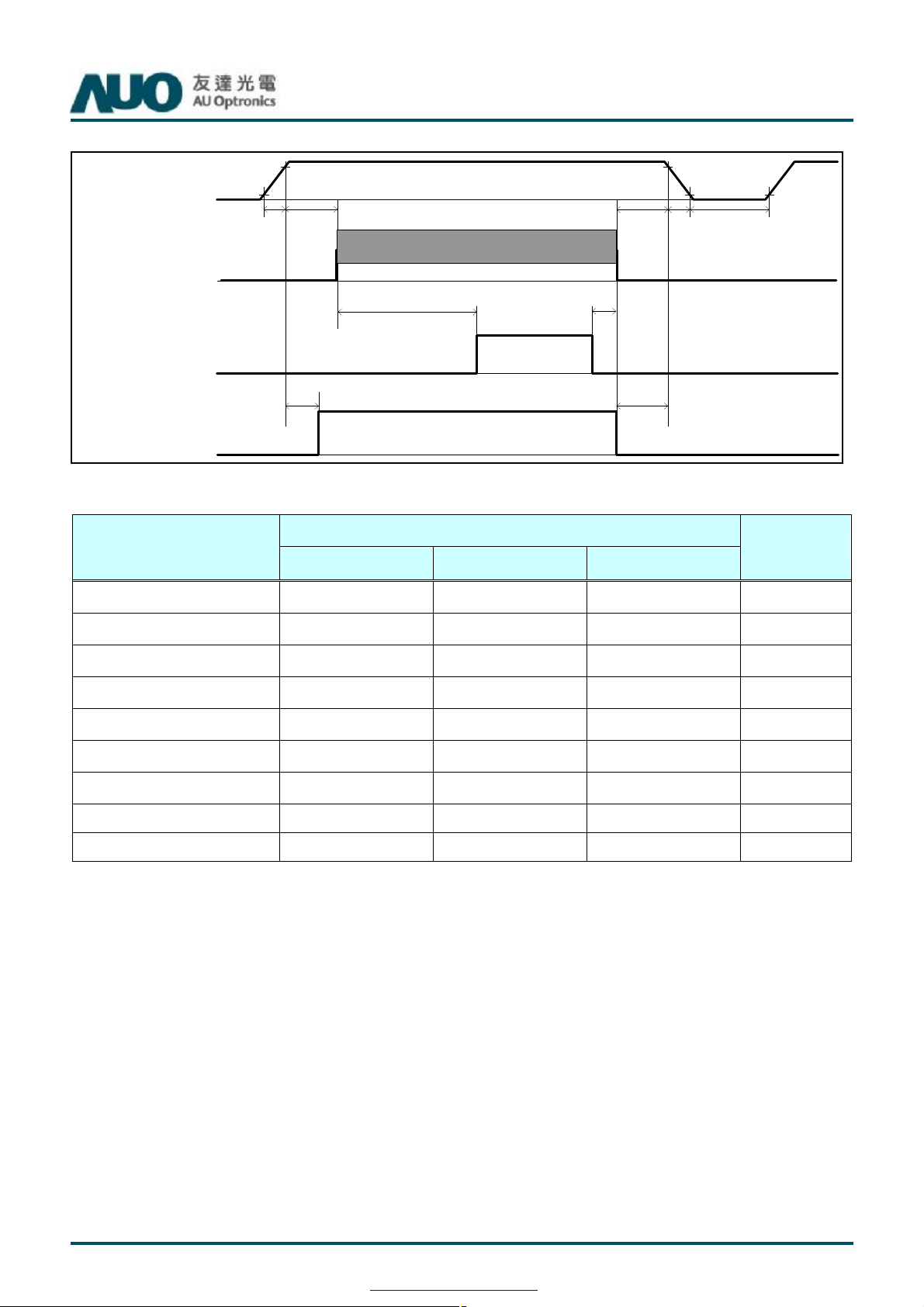

3.1.2: AC Characteristics

T500HVD01.0 Product Specification

Rev.0 3

Parameter Symbol

Input Channel Pair Skew Margin t Receiver Clock : Spread Spectrum

LVDS Interface

Modulation range Receiver Clock : Spread Spectrum

Modulation frequency Receiver Data Input Margin

Fclk = 85 MHz Fclk = 65 MHz

Note:

1. V

2. Measurement condition: Rising time = 400us

= 12.0V, Fv = 60Hz, Fclk= Max freq., 25 , Test Pattern : White Pattern℃

DD

Value

Unit Note

Min. Typ. Max

SKEW (CP)

Fclk_ss

-500 -- +500 ps 6 Fclk

-3%

--

Fclk

+3%

MHz 7

Fss 30 -- 200 KHz 7

tRMG

90%

-0.4

-0.5

V

DD

--

0.4

ns 8

0.5

GND

10%

3. Test Condition: (1) The measure point of V

is in LCM side after connecting the System Board and LCM.

RP

(2) Under Max. Input current spec. condition.

4. V

= 1.25V

ICM

LVDS -

V

ICM

LVDS +

GND

0V

400

|VID|

V

TH

|VID|

V

TL

5. The measure points of V

and V

IH

are in LCM side after connecting the System Board and LCM.

IL

PDF created with pdfFactory trial version www.pdffactory.com

|VID|

T500HVD01.0 Product Specification

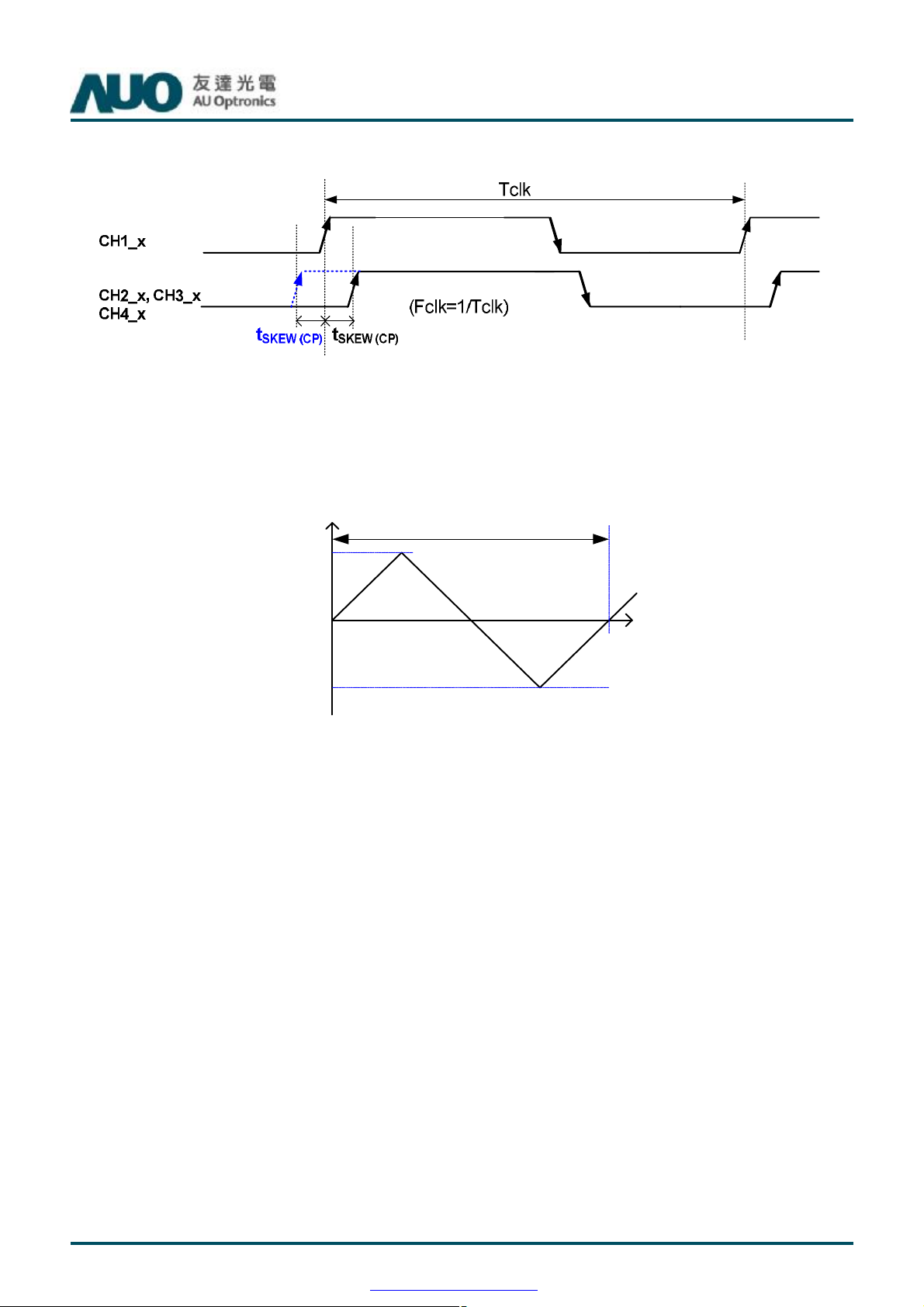

6. Input Channel Pair Skew Margin.

Note: x = 0, 1, 2, 3, 4

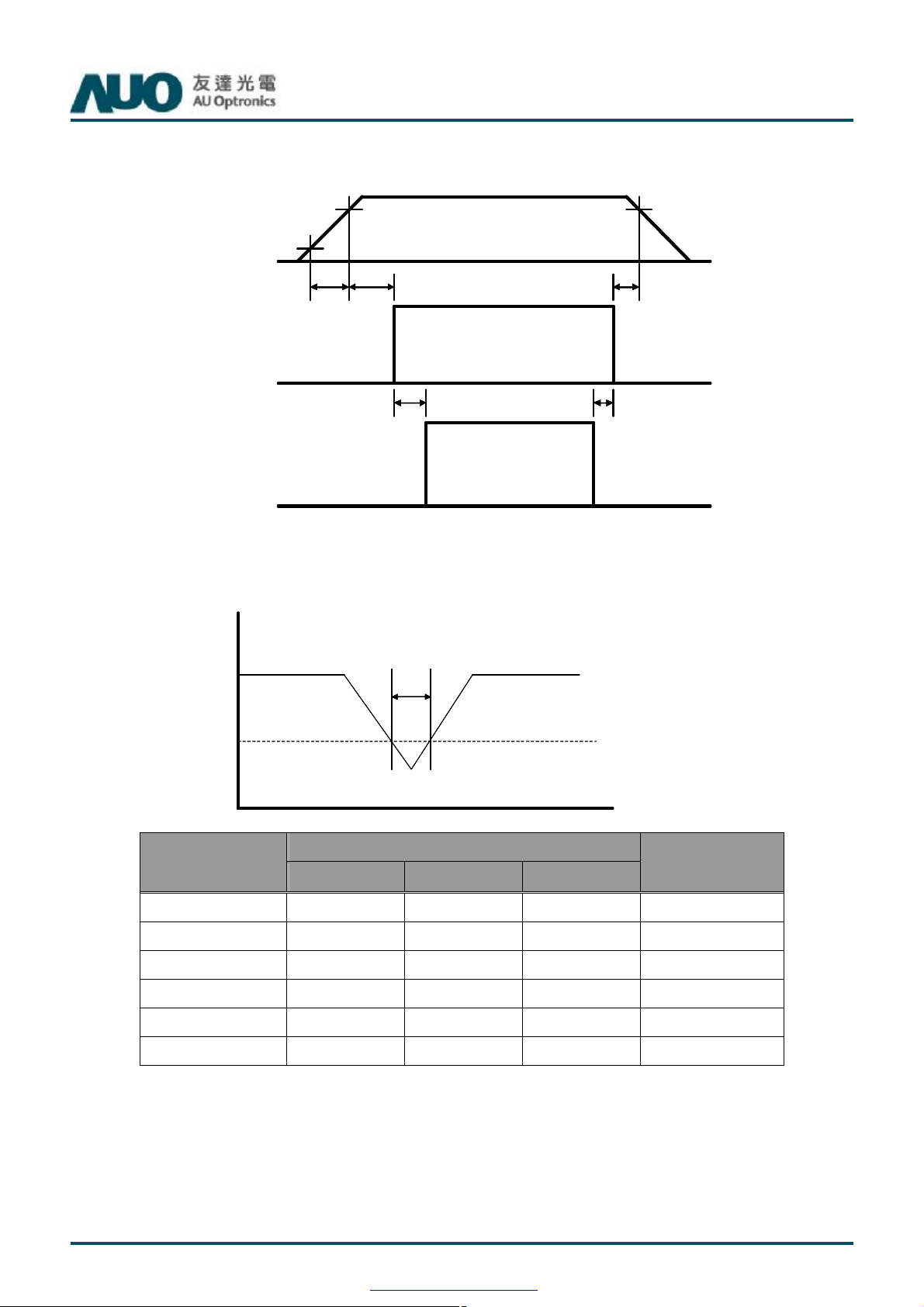

7. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures

Rev.0 3

Fclk_ss(max)

Fclk

Fclk_ss(min)

1/F

SS

PDF created with pdfFactory trial version www.pdffactory.com

8. Receiver Data Input Margin

T500HVD01.0 Product Specification

Rev.0 3

Parameter Symbol

Min Type Max

Rating

Unit

tRIP2 tRIP3 tRIP4 tRIP5

Note

T=1/Fclk

tRIP6 tRIP0

tRIP1 LVDS-Rx Input Data

Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3

LVDS-Rx

V

= 0V

Input Clock

diff

1/Fclk=T

9. The relative humidity must not exceed 80% non-condensing at temperatures of 40℃ or less. At temperatures greater than 40℃, the wet bulb temperature must not exceed 39℃. When operate at low temperatures, the brightness of LED will drop and the life time of LED will be reduced.

10. The lifetime (MTTF) is defined as the time which luminance of LED is 50% compared to its original value.

[Operating condition: Continuous operating at Ta = 25±2℃]

PDF created with pdfFactory trial version www.pdffactory.com

24

25

Interface Connections

l LCD connector: 187059-5122 (P-TWO, LVDS connector) l Mating connector:

T500HVD01.0 Product Specification

Rev.0 3

1 2 3 4

Symbol Description PIN

N.C. AUO Internal Use Only 26 N.C. AUO Internal Use Only 27 N.C. AUO Internal Use Only 28 N.C. AUO Internal Use Only 29

LVDS 8/10bit Input Selection

5

BITSEL

Open/Low(GND) : 8bits

High(3.3V) : 10bits

6

N.C. AUO Internal Use Only 31

Open/High(3.3V) for NS,

7 LVDS_SEL 8

9

N.C. No connection 33 N.C. AUO Internal Use Only 34

Low(GND) for JEIDA

3D Function Enable

10

3D_EN

High(3.3V) : 3D

Open/Low(GND) : 2D

11 12 13 14

15

16 17

18

GND Ground 36 CH2_CLK+ LVDS Channel 2, Clock +

CH1_0- LVDS Channel 1, Signal 0- 37

CH1_0+ LVDS Channel 1, Signal 0+ 38

CH1_1- LVDS Channel 1, Signal 1- 39

CH1_1+ LVDS Channel 1, Signal 1+ 40

CH1_2- LVDS Channel 1, Signal 2- 41

CH1_2+ LVDS Channel 1, Signal 2+ 42

GND Ground 43 19 CH1_CLK- LVDS Channel 1, Clock - 44 20 CH1_CLK+ LVDS Channel 1, Clock + 45 21 22 23

GND Ground 46

CH1_3- LVDS Channel 1, Signal 3- 47

CH1_3+ LVDS Channel 1, Signal 3+ 48

LVDS Channel 1, Signal 4-

CH1_4-

(for 10-bit input)

LVDS Channel 1, Signal 4+

CH1_4+

(for 10-bit input)

51

Symbol Description

N.C. AUO Internal Use Only N.C. AUO Internal Use Only

CH2_0- LVDS Channel 2, Signal 0-

CH2_0+ LVDS Channel 2, Signal 0+

30

CH2_1- LVDS Channel 2, Signal 1-

CH2_1+ LVDS Channel 2, Signal 1+

32

CH2_2- LVDS Channel 2, Signal 2-

CH2_2+ LVDS Channel 2, Signal 2+

GND Ground

35 CH2_CLK- LVDS Channel 2, Clock -

GND Ground

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

LVDS Channel 2, Signal 4-

CH2_4-

(for 10-bit input)

LVDS Channel 2, Signal 4+

CH2_4+

(for 10-bit input)

N.C. AUO Internal Use Only N.C. AUO Internal Use Only

GND Ground GND Ground GND Ground

N.C. No connection

49

50

V

DD

V

DD

V

DD

V

DD

Power Supply, +12V DC Regulated

Power Supply, +12V DC Regulated Power Supply, +12V DC Regulated

Note: N.C.: please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).

PDF created with pdfFactory trial version www.pdffactory.com

LVDS Option for 8bit

n LVDS Option = High/OpenèNS

Previous Cycle Current Cycle Next Cycle

Clock

T500HVD01.0 Product Specification

Rev.0 3

CHx_0+ CHx_0-

CHx_1+ CHx_1-

CHx_2+ CHx_2-

CHx_3+ CHx_3-

Note: x = 1, 2, 3, 4…

n LVDS Option = LowèJEIDA

Previous Cycle Current Cycle Next Cycle

Clock

R0R5 G0G0R0R1 R2R3R4 R1

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA B3

R6B7 NANAR6R7 G6G7B6 R7

CHx_0+ CHx_0-

CHx_1+ CHx_1-

CHx_2+ CHx_2-

CHx_3+ CHx_3-

R2R7 G2G2R2R3 R4R5R6 R3

G3B2 B3B3G3G4 G5G6G7 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

Note: x = 1, 2, 3, 4…

PDF created with pdfFactory trial version www.pdffactory.com

LVDS Option for 10bit

n LVDS Option = High/OpenèNS

Previous Cycle Current Cycle Next Cycle

Clock

T500HVD01.0 Product Specification

Rev.0 3

CHx_0+ CHx_0-

CHx_1+ CHx_1-

CHx_2+ CHx_2-

CHx_3+ CHx_3-

CHx_4+ CHx_4-

Note: x = 1, 2, 3, 4…

n LVDS Option = LowèJEIDA

Previous Cycle Current Cycle Next Cycle

R0R5 G0G0R0R1 R2R3R4 R1

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA B3

R6B7 NANAR6R7 G6G7B6 R7

R8B9 NANAR8R9 G8G9B8 R9

Clock

CHx_0+ CHx_0-

CHx_1+ CHx_1-

CHx_2+ CHx_2-

CHx_3+ CHx_3-

CHx_4+ CHx_4-

R4R9 G4G4R4R5 R6R7R8 R5

G5B4 B5B5G5G6 G7G8G9 G6

B6NA DEDEB6B7 B8B9NA B7

R2B3 NANAR2R3 G2G3B2 R3

R0B1 NANAR0R1 G0G1B0 R1

Note: x = 1, 2, 3, 4…

PDF created with pdfFactory trial version www.pdffactory.com

T500HVD01.0 Product Specification

Rev.0 3

3.2 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1096 1125 1480 Th

Vertical Section

Active Tdisp (v) 1080

Blanking Tblk (v) 16 45 400 Th

Period Th 1040 1100 1328 Tclk

Horizontal Section

Active Tdisp (h) 960

Blanking Tblk (h) 80 140 368 Tclk Clock Frequency Fclk=1/Tclk 50 74.25 82 MHz Vertical Frequency Frequency Fv 47 60 63 Hz Horizontal Frequency

Frequency Fh 60 67.5 73 KHz

Note: (1) Horizontal Blanking must be even number

Notes: (1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the left edge of the screen.

(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen. (3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black. (4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

(5) Under 3D mode, signal should be input as following sequence: 1st line: right eye, 2nd line: left eye (when rotate function is not implemented and Tcon position is at panel upper side).

PDF created with pdfFactory trial version www.pdffactory.com

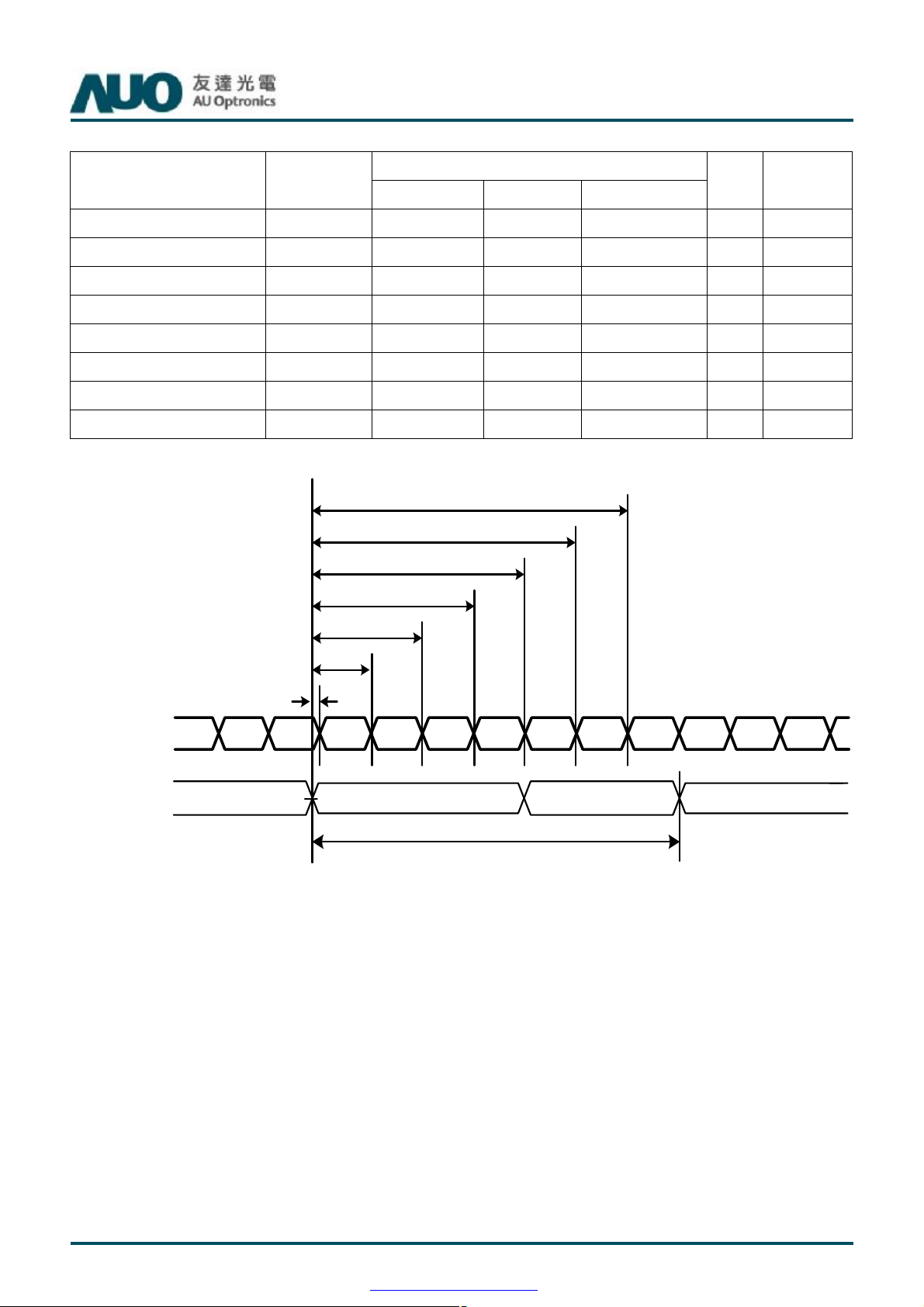

3.3 Signal Timing Waveforms

T500HVD01.0 Product Specification

Rev.0 3

CH2

Pixel

M-6

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

6

Pixel

8

Pixel

10

Pixel

12

CH1

Pixel

M-7

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Pixel

5

Pixel

7

Pixel

9

Pixel

11

DE

Tdisp(h) Tblk(h)

CLK

RGB

Data

Line

N

Tclk

Invalid Data Invalid Data

Line

1

Line

2

Line

Th

3

Line

4

DE

Th

Tv

Tdisp(v)Tblk(v)

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Line

N

N Line

M pixel

Pixel

2

Pixel

4

Pixel

1

Pixel

3

PDF created with pdfFactory trial version www.pdffactory.com

T500HVD01.0 Product Specification

Rev.0 3

3.4 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic Color

R

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0 Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

---RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

G

---GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

---BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

PDF created with pdfFactory trial version www.pdffactory.com

MSB LSB

B0

T500HVD01.0 Product Specification

Rev.0 3

The brightness of each primary color (red, green and blue) is based on the 10- bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Color

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Red(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Green(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 Blue(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 Cyan 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Magenta 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(001) 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

R

---- RED(1022) 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1

RED

MSB LSB

GREEN

BLUE

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

G

---- GREEN(1022) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 GREEN(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

---- BLUE(1022) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 BLUE(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

PDF created with pdfFactory trial version www.pdffactory.com

Power Sequence for LCD

Power Supply For LCD VDD (+12V)

GND

Interface Signal (LVDS Data & CLK)

GND

90%

10%

t1

T500HVD01.0 Product Specification

Rev.0 3

90%

10%

t6

t2

t5

Valid Data

10%

t7

Backlight on/off control signal (VBLON)

GND

CMOS Interface Signal

GND

Parameter

t1 0.4 --- 30 ms t2 0.1 --- 50 ms t3 450 --- --- ms t4 0*1 --- --- ms t5 0 --- --- ms

t3 t4

t8 t9

Values

Unit

Min. Type. Max.

t6 --- --- ---*2 ms t7 500 --- --- ms

t8

10*3

--- 50 ms

t9 0 --- --- ms

Note:

(1) t4=0 : concern for residual pattern before BLU turn off. (2) t6: voltage of VDD must decay smoothly after power-off. (customer system decide this value) (3) When CMOS Interface signal is N.C. (no connection), opened in Transmitted end, t8 timing spec can be negligible.

PDF created with pdfFactory trial version www.pdffactory.com

3.7 Backlight Specification

The backlight unit contains 2pcs light bar.

3.7.1 Electrical specification

Item Symbol Condition

T500HVD01.0 Product Specification

Rev.0 3

Spec

Unit Note

Min Typ Max

1 2 3 4

5 On/Off control voltage V

6

7

8 9 External PWM Duty ratio

10

11

Input Voltage VDDB - 22.8 Input Current I

Input Power P

Inrush Current I

On/Off control current I

External PWM

Control Voltage

External PWM

Control Current

External PWM

Frequency

DET status signal DET

V_EPWM

24 26.4

VDDB=24V

DDB

VDDB=24V

DDB

VDDB=24V

RUSH

ON 2 - 5.5 -

BLON

OFF

VDDB=24V

BLON

MAX VDDB=24V

MIN VDDB=24V 0 - 0.8

I_EPWM VDDB=24V D_EPWM VDDB=24V F_EPWM VDDB=24V 140 180 240 Hz -

HI Open Collector VDC 4

Lo

VDDB=24V

3.13 3.33

75.12 79.92 4 ADC 2

0 - 0.8

- - 1.5 mA -

2 - 5.5 -

- - 2 mADC -

5 - 100 % 3

0 - 0.8 VDC 4

VDC ADC 1

W 1

VDC

-

12

Note 1 : Dimming ratio= 100% (MAX)（Ta=25±5, Turn on for 45minutes℃ ） Note 2: Measurement condition Rising time = 20ms (VDDB : 10%~90%);

Note 3: Less than 5% dimming control is functional well and no backlight shutdown happened Note 4: Normal: 0~0.8V; Abnormal: Open collector

Input Impedance Rin VDDB=24V 300 Kohm -

PDF created with pdfFactory trial version www.pdffactory.com

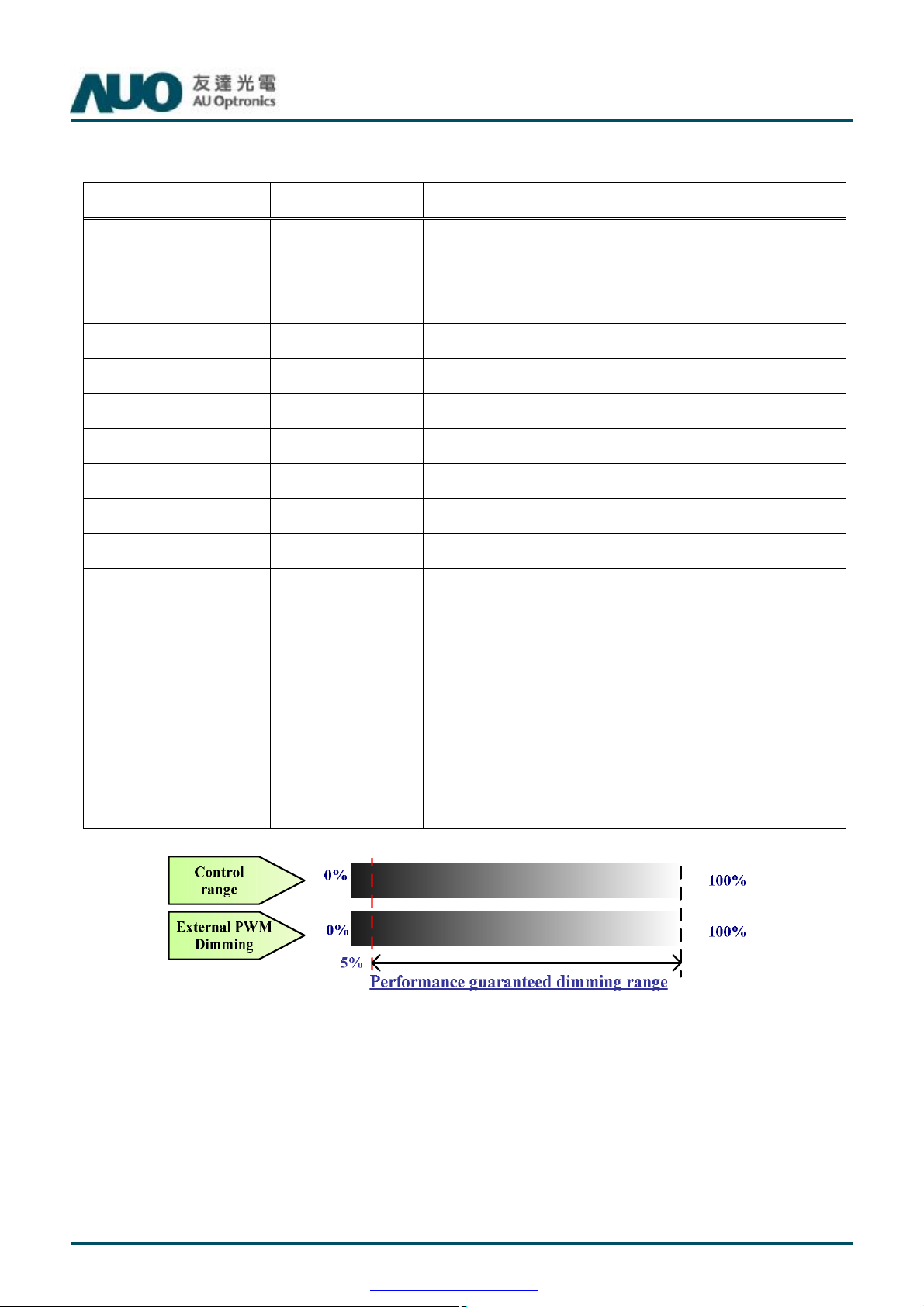

3.7.2 Input Pin Assignment

LED driver board connector: Cvilux CI0114M1HR0-NH or equivalent

Pin Symbol Description

1 VDDB Operating Voltage Supply, +24V DC regulated 2 VDDB Operating Voltage Supply, +24V DC regulated 3 VDDB Operating Voltage Supply, +24V DC regulated 4 VDDB Operating Voltage Supply, +24V DC regulated 5 VDDB Operating Voltage Supply, +24V DC regulated 6 BLGND Ground and Current Return 7 BLGND Ground and Current Return 8 BLGND Ground and Current Return 9 BLGND Ground and Current Return

T500HVD01.0 Product Specification

Rev.0 3

10 BLGND Ground and Current Return

11 DET

12 VBLON

13 14 PDIM(*) External PWM (0%~100% Duty, open for 100%)

(Note*) PWM Dimming range:

BLU status detection: Normal : 0~0.8V ; Abnormal : Open collector

(Recommend Pull high R > 10K, VDD = 3.3V) BLU On-Off control:

High/Open (2~5.5V) : BL On ;

Low (0~0.8V/GND) : BL Off

NC NC

IF External PWM function less than 5% dimming ratio, Judge condition as below:

(1)Backlight module must be lighted ON normally. (2)All protection function must work normally. (3)Uniformity and flicker could not be guaranteed

PDF created with pdfFactory trial version www.pdffactory.com

3.7.3 Power Sequence for Backlight

24V(typ.)

Power Input for BLU

(VDDB)

90% 90%

10%

T500HVD01.0 Product Specification

Rev.0 3

Dimming Control Signal

(V_IPWM,V_EPWM)

BLU On/Off Enable

(VBLON)

Dip condition for Inverter

Power Input for BLU

(VDDB)

VDDB(typ.)*0.8

T1 T2

T3

T6

T5

T4

Parameter

Min Typ Max

T1 20 - - ms T2 500 - - ms T3 250 - - ms T4 0 - - ms T5 1 - - ms T6 - - 10 ms

Value

Units

PDF created with pdfFactory trial version www.pdffactory.com

T500HVD01.0 Product Specification

Rev.0 3

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of φ and θ equal to 0°.

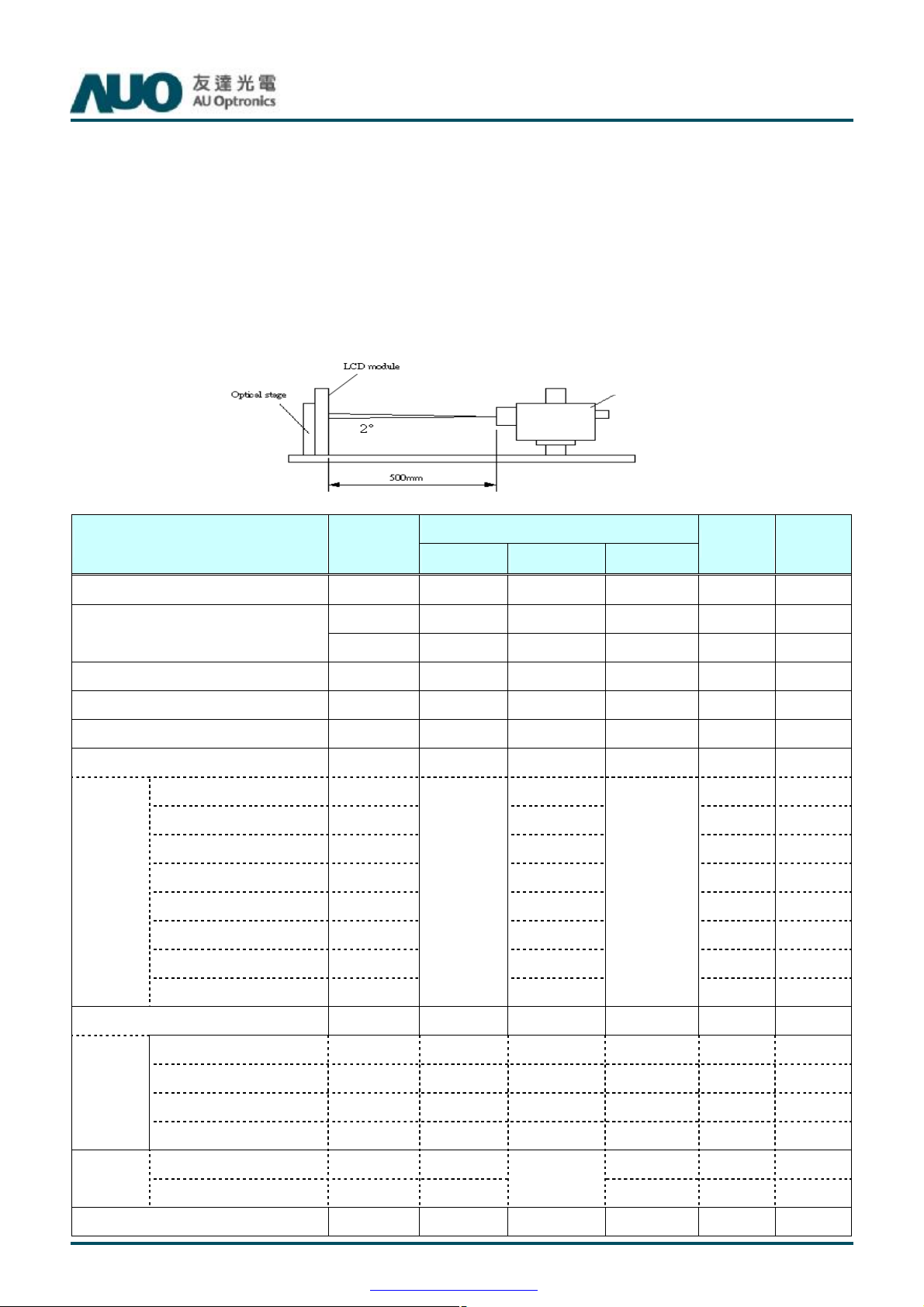

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max

Contrast Ratio CR 2400 3000 -- 1

L

(2D) 280 350 -- cd/m2 2

Surface Luminance (White)

Luminance Variation δ Response Time (G to G) Tγ -- 6.5 -- ms 4 Color Gamut NTSC 72 % Color Coordinates

Red RX 0.630 RY 0.330 Green GX 0.320 GY 0.620 Blue BX 0.150 BY 0.040 White WX 0.280

WH

L

(3D) 90 6

WH

WHITE(9P)

-- -- 1.3 3

Typ.-0.03

Values

Unit Notes

Typ.+0.03

WY

Viewing Angle 5

x axis, right(φ=0°) θr -- 89 -- degree

2D

3D

3D cross talk (middle) -- 1 3 % 6

x axis, left(φ=180°) θl -- 89 -- degree y axis, up(φ=90°) θu -- 89 -- degree y axis, down (φ=270°) θd -- 89 -- degree y axis, up θu 10 degree y axis, down θd 10

PDF created with pdfFactory trial version www.pdffactory.com

0.290

26

6

2 3 7

T500HVD01.0 Product Specification

Rev.0 3

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of L

Contrast Ratio=

Surface Luminance of L

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

on5 off5

displaying white. From more information see FIG 2. When LED input VDDB =24V, I

. = Typical value,

DDB

LWH=Lon5 where Lon5 is the luminance with all pixels displaying white at center 5 location.

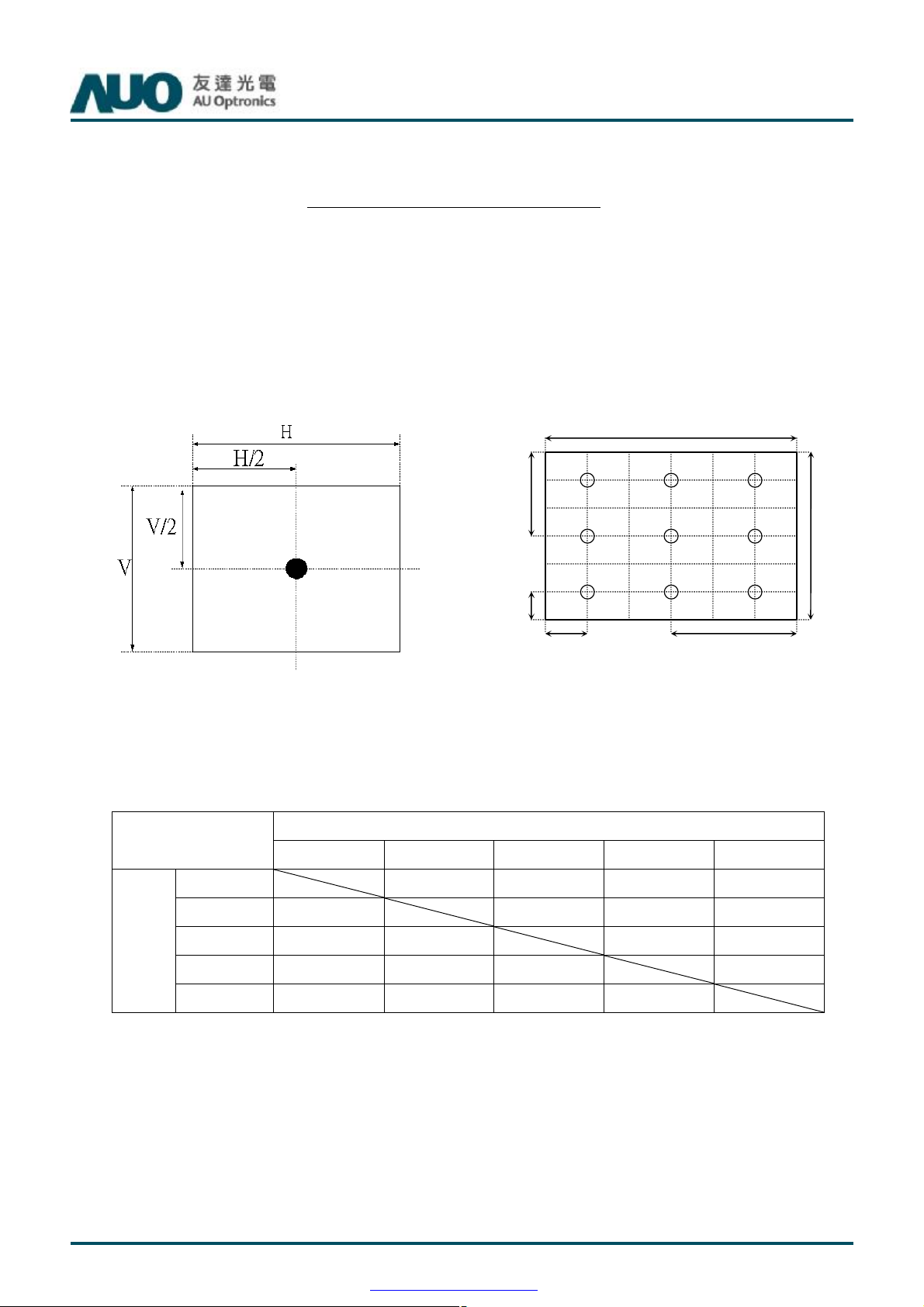

FIG. 2 Luminance

V

H/2

H/9

1

H

V/2 V/9

3. The variation in surface luminance, δWHITE is defined (center of Screen) as:

δ

WHITE(9P)

4. Response time Tγ is the average time required for display transition by switching the input signal for five

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.

Target Measured

Response Time

0% 25% 50% 75% 100%

0% 0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% 25% to 0% 25% to 50%

Start

Tγ is determined by 10% to 90% brightness difference of rising or falling period. (As illustrated)

50% 50% to 0% 50% to 25% 75% 75% to 0% 75% to 25%

100% 100% to 0%

100% to 25% 100% to 50% 100% to 75%

50% to 75% 50% to 100%

75% to 50%

25% to 75% 25% to 100%

75% to 100%

PDF created with pdfFactory trial version www.pdffactory.com

T500HVD01.0 Product Specification

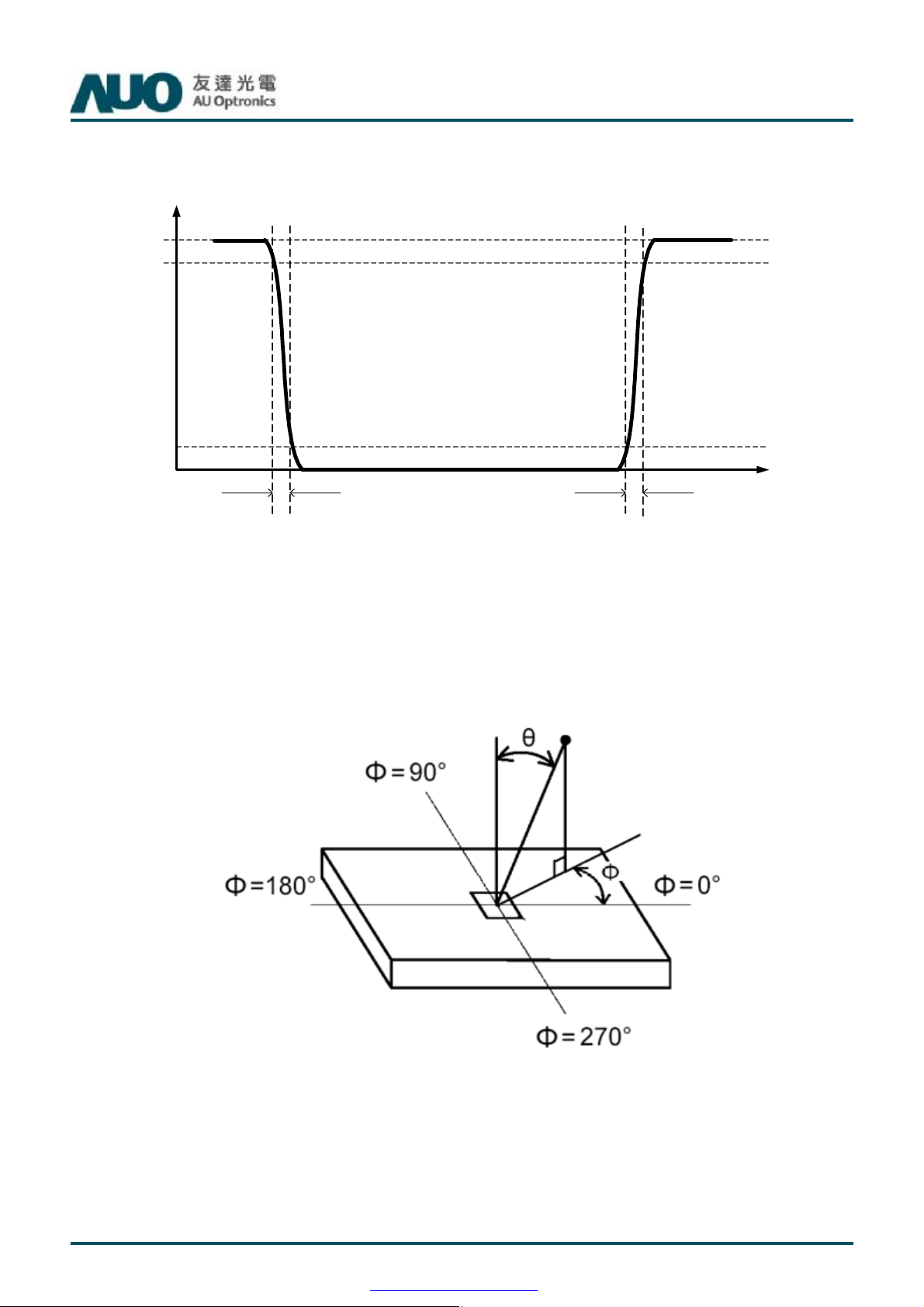

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of grey(bright) “ and “any level of gray(dark)”.

Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)

Rev.0 3

0%, 25%, 50%, 75%, 100%

100%

90%

0%, 25%, 50%, 75%, 100%

Photodetector

Output

10%

0%, 25%, 50%, 75%, 100%

Time

T

(F)

γ

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG3.

T

γ

(R)

FIG.3 Viewing Angle

6. 3D performance specification is expressed by 3D luminance, 3D Crosstalk and 3D viewing angle. 3D luminance which is defined by average of left and right eye brightness under wearing glasses condition is measured at panel center point. Also, 3D crosstalk is measured at panel center point.

a. Cross talk (middle) is defined by observation position which is 1.9m distance from panel center point and human head in 0 degree steady vertical angle from panel mid axis level. b. Cross talk (in vertical viewing angle) is defined by observation position which is 1.9m distance from panel

PDF created with pdfFactory trial version www.pdffactory.com

2

T500HVD01.0 Product Specification

center point and observation range within specified degrees of vertical angle from panel mid axis level, and the value is limited by 10%. For more information, refer to 6-5 3D Measurement of 3D view angle.

6-1 Notation of measurement.

Rev.0 3

Glasses type: R: right eyeglass L: left eyeglass C: without

RL (W,K)

Left eye gray level

6-2 Measurement Configuration 4-test patterns (first character refers to Left eye gray level; second one refers to Right eye gray level). W is defined as brightness gray level; K is defined as dark state where black and white lines are displayed

on even or odd lines.

Measurement Code: L: Luminance

Right eye gray level

Odd line

Even line

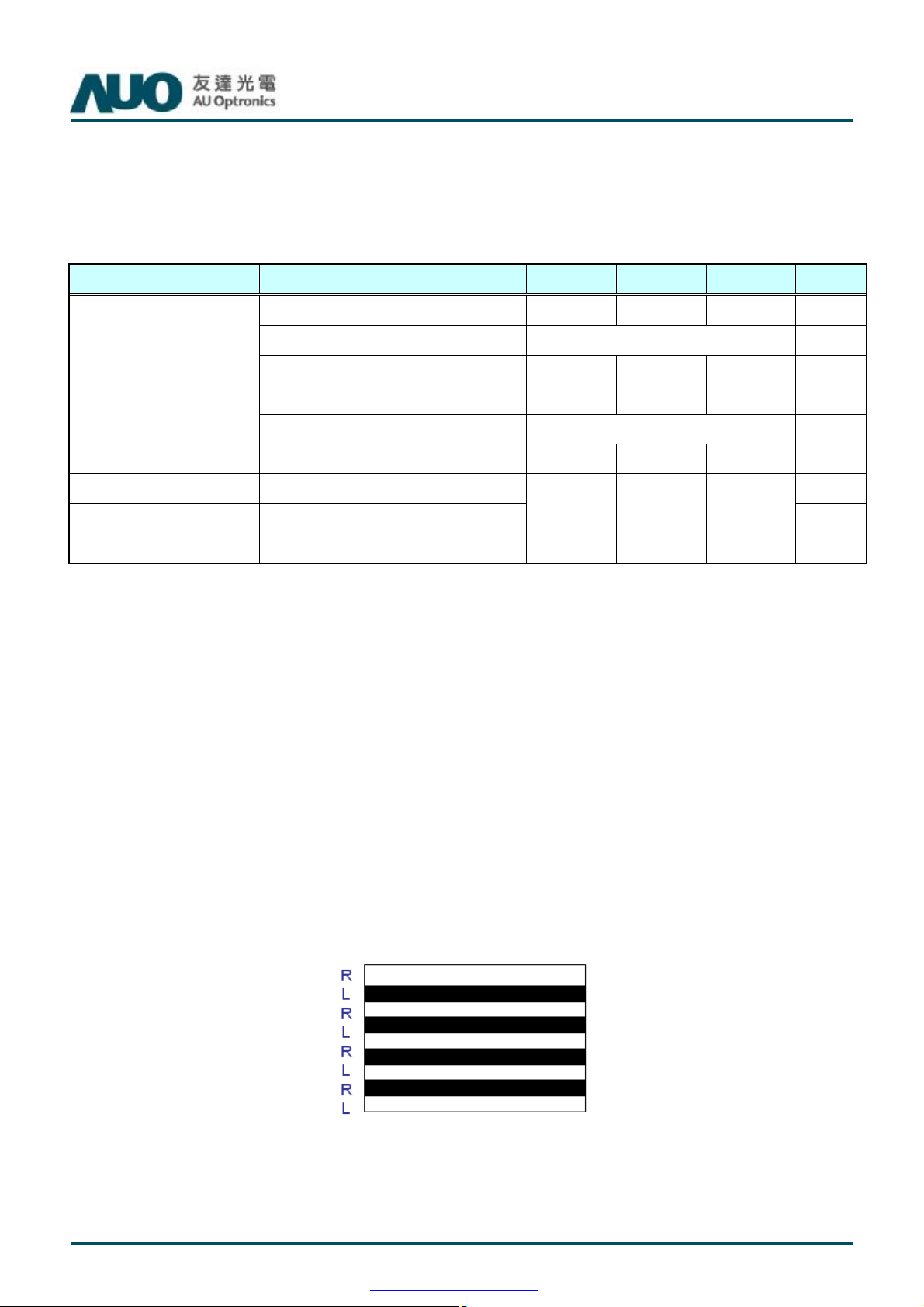

6-3 Measurement of 3D luminance a. Test pattern WW is displayed, measuring distance is 50cm. b. Left or right eyeglass are placed in front of SR3 or equivalent equipment (as FIG1 showed)

successively and luminance is measured at panel center point where the notation for luminance measurement is RL(W,W) and LL(W,W).

),(),(

3

LumD

=

+

WWLWWR

LL

PDF created with pdfFactory trial version www.pdffactory.com

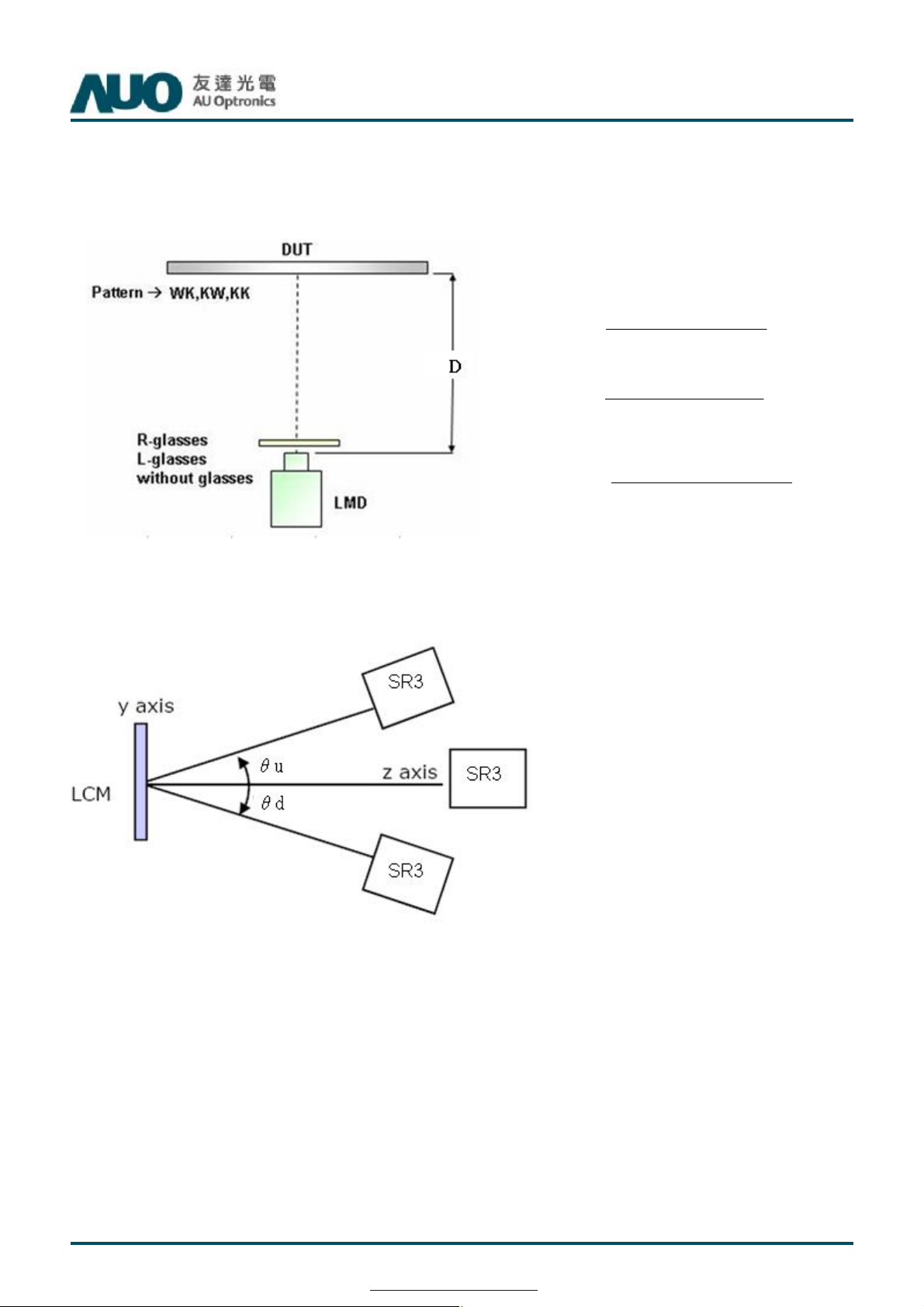

2

−

6-4 Measurement of 3D Crosstalk

a. Test patterns KW, WK and KK are displayed, measuring distance is 1.9m. b. Right or left eyeglass is placed in front of SR3 or equivalent equipment (as FIG1 showed) successively

and luminance is measured at panel center point

T500HVD01.0 Product Specification

Crosstalk

Rev.0 3

),(),(

KKRKWR

=

R

=

L

LL

−

LL

−

LL

),(),(

KKRWKR

),(),(

KKLWKL

),(),(

KKLKWL

%100

×

%100

×

6-5 Measurement of 3D view angle

The angles are determined for the vertical or y axis with respect to the z axis which is normal to the LCD module surface and measured at panel center position.

Crosstalk+=

CrosstalkCrosstalk

LR

PDF created with pdfFactory trial version www.pdffactory.com

T500HVD01.0 Product Specification

Rev.0 3

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T500HVD01.0 In addition the figures in the next page are detailed mechanical drawing of the LCD.

Item Dimension Unit Note

Horizontal 1121.6 mm

Vertical 644.3 mm

Outline Dimension

Depth (Dmin) 10.8 mm to rear

Depth (Dmax) 26.2 mm

Weight 12000 g

to driver board

cover

PDF created with pdfFactory trial version www.pdffactory.com

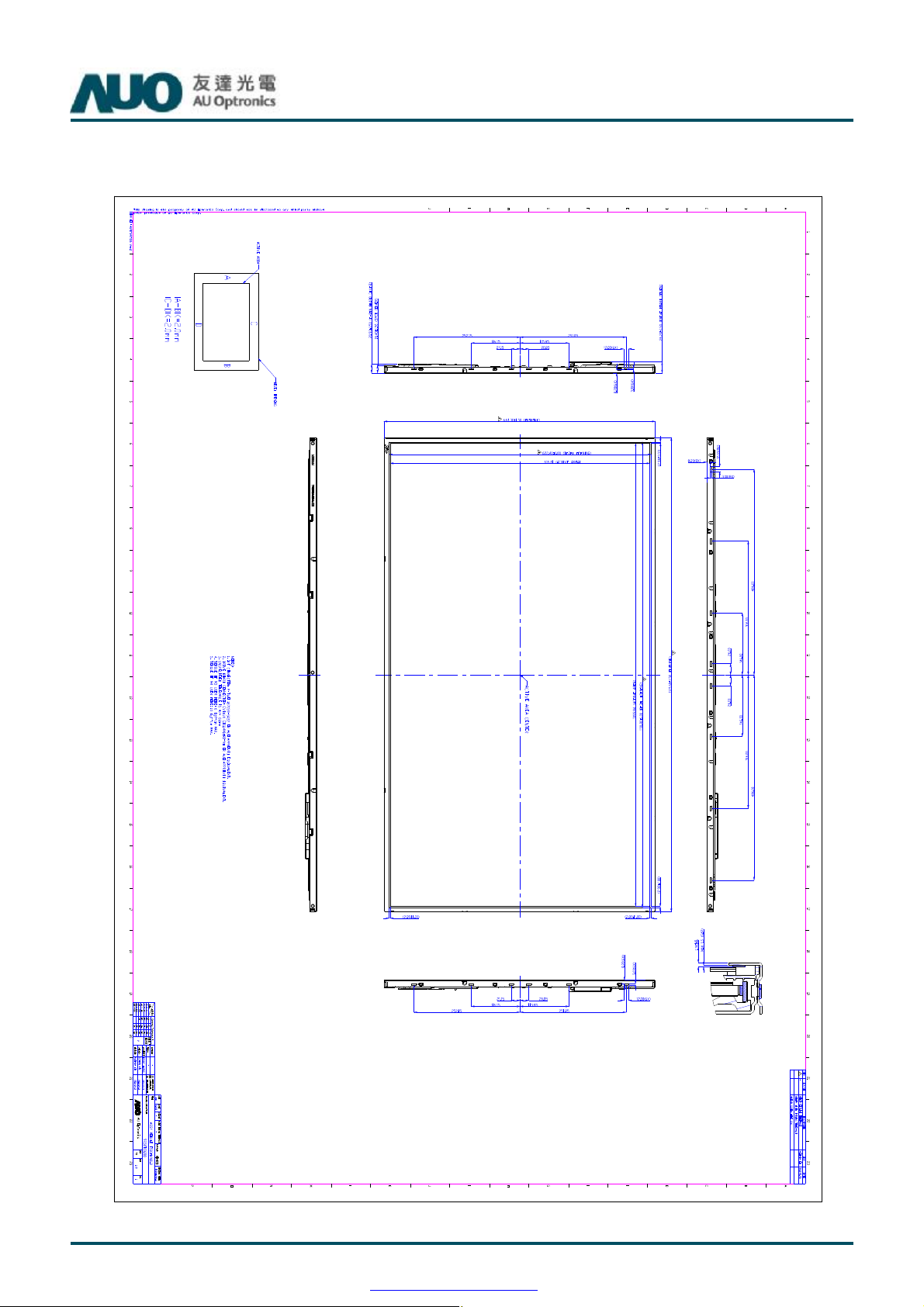

Front View

T500HVD01.0 Product Specification

Rev.0 3

PDF created with pdfFactory trial version www.pdffactory.com

Back View

T500HVD01.0 Product Specification

Rev.0 3

PDF created with pdfFactory trial version www.pdffactory.com

6. Reliability Test Items

T500HVD01.0 Product Specification

Rev.0 3

1 High temperature storage test 3 60℃, 300hrs

2 Low temperature storage test 3 -20℃, 300hrs

3 High temperature operation test 3 50℃, 300hrs

4 Low temperature operation test 3 -5℃, 300hrs

5 Vibration test (non-operation) 3

6 Shock test (non-operation) 3

7 Vibration test (With carton) 7

Test Item Q’ty Condition

Wave form: random Vibration level : 1.0G RMS Bandwidth : 10-300Hz Duration : X,Y,Z 10min per axes X,Y,Z: Horizontal, face up Shock level 50G, 11ms in ±X, ±Y axis, 35G, 11ms in ±Z axis Waveform: half sine wave Direction: One time each direction Random wave (1.05Grms 10~200Hz) Duration : X,Y,Z 10min per axes

8 Drop test (With carton) 7

Height: 25.4 cm (ASTMD4169) Surround four flats (Front, Rear, Left, Right flat) One time, bottom flat two times

PDF created with pdfFactory trial version www.pdffactory.com

7. International Standard

7.1 Safety

(1) UL 60950-1, UL 60065; Standard for Safety of Information Technology Equipment Including

electrical Business Equipment.

(2) IEC 60950-1 : 2001, IEC 60065:2001 ; Standard for Safety of International Electrotechnical

Commission

(3) EN 60950 : 2001+A11, EN 60065:2002+A1:2006; European Committee for Electrotechnical

Standardization (CENELEC), EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business Equipment.

7.2 EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI),

T500HVD01.0 Product Specification

Rev.0 3

1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998

PDF created with pdfFactory trial version www.pdffactory.com

QTY : 7

Manufactured

XX/XX

MADE IN

XXXXX

8. Packing

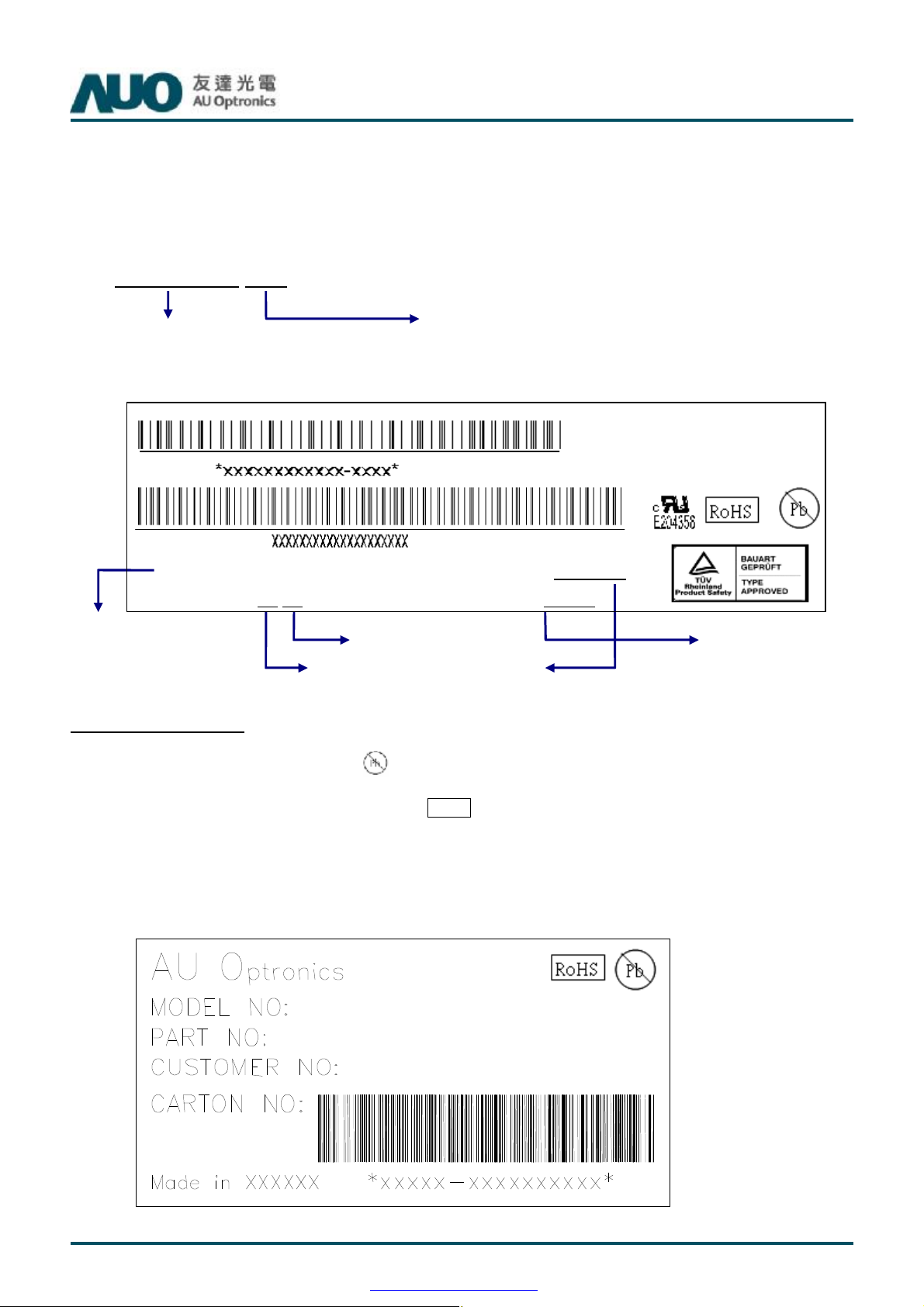

8-1 DEFINITION OF LABEL:

A. Panel Label:

*xxxxxxxxxxxx-xxxx*

T500HVD01.0 Product Specification

Rev.0 3

Panel Unique ID

XXXXX Model NO: T500HVD01.0 XXXXXXX

Green mark description

Year

AUO Internal Use

AU Optronics

Week Factory Location AUO Internal Use

AUO Internal Use

(1) For Pb Free Product, AUO will add for identification. (2) For RoHs compatible products, AUO will add RoHS for identification.

Note: The green Mark will be present only when the green documents have been ready by AUO internal green team. (definition of green design follows the AUO green design checklist.)

B. Carton Label:

T500HVD01.0

97.50T07.0XX

PDF created with pdfFactory trial version www.pdffactory.com

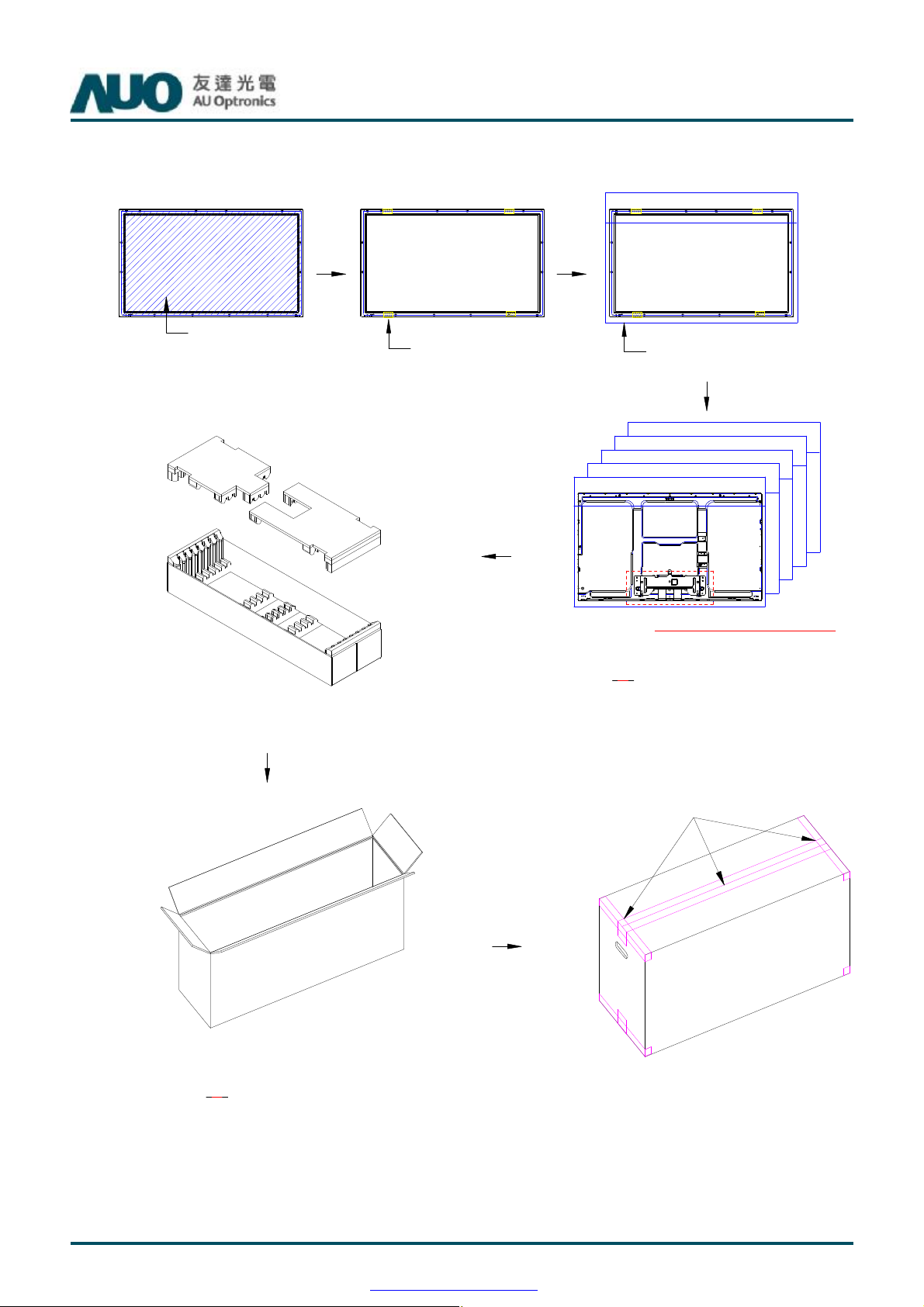

8-2 PACKING METHODS:

Protect Film

T500HVD01.0 Product Specification

Creped Paper Tape

Rev.0 3

Anti-Static Bag (Blue)

Cushion Set

Packing Way： Panel Top Side Down

( 7 ) Pcs Modules

"H" Tape

( 7 ) Pcs / 1 Carton

PDF created with pdfFactory trial version www.pdffactory.com

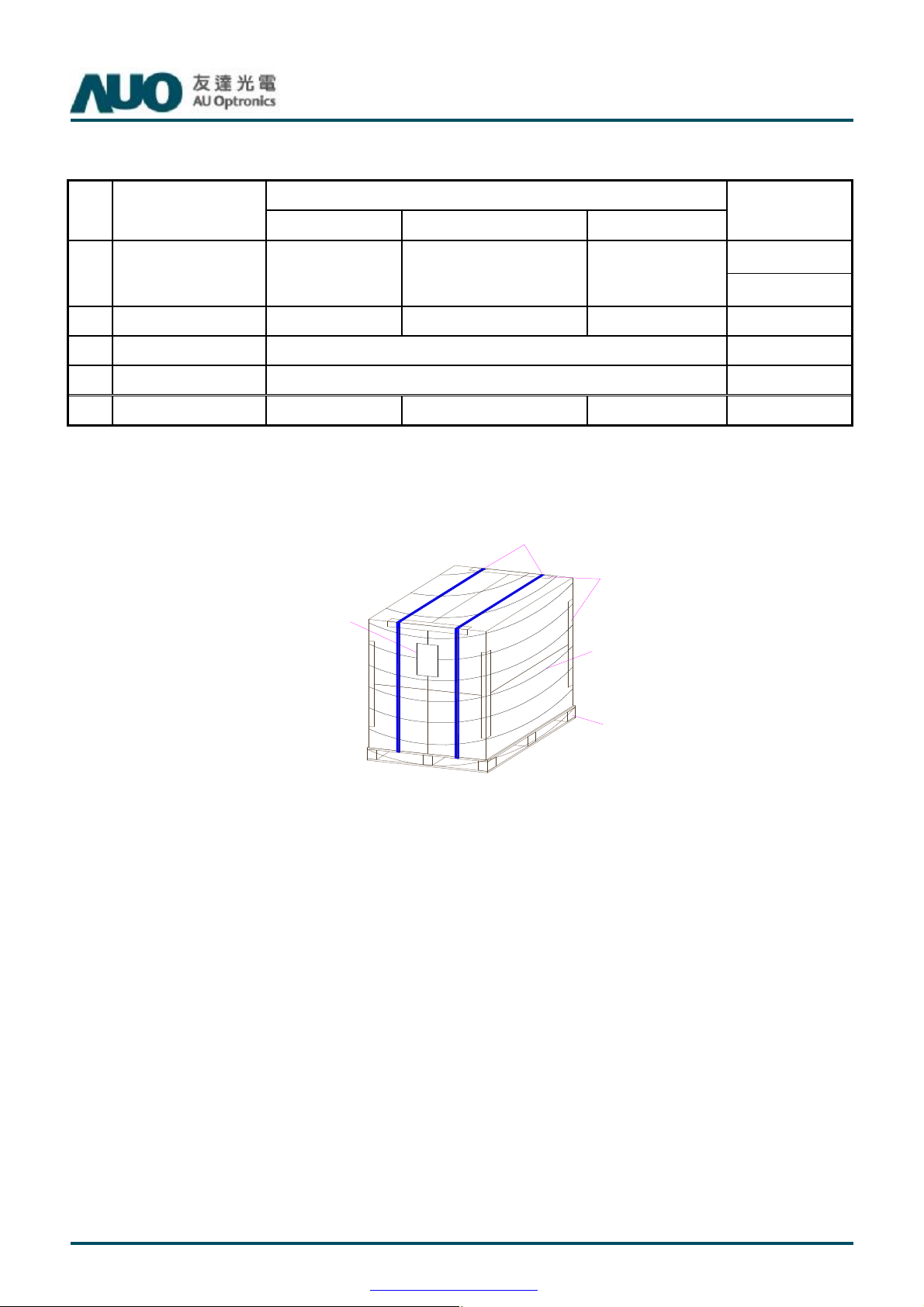

8-3 Pallet and Shipment Information

T500HVD01.0 Product Specification

Rev.0 3

Item

Qty. Dimension Weight (kg)

1 Packing BOX 7 pcs/box 1235*375*745 87.2

2 Pallet 1 1260*1150*138 17.3 3 Boxes per Pallet 3 boxes/pallet 4 Panels per Pallet 21 pcs/pallet

Pallet after packing

21 pcs/pallet 1260*1150*883 278.9

Specification

PET Strap

Angle Protector

Label

Packing Remark

Box =2.84kg Cushion =1.76kg

Stretch Film

Wooden Pallet

Single pallet packing illustration

PDF created with pdfFactory trial version www.pdffactory.com

T500HVD01.0 Product Specification

PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied

to module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

Rev.0 3

generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit broken by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials

like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage) (3) Response time depends on the temperature. (In lower temperature, it becomes longer..) (4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes

longer. (5) Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur. (6) When fixed patterns are displayed for a long time, remnant image is likely to occur. (7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall

PDF created with pdfFactory trial version www.pdffactory.com

be done by system manufacturers. Grounding and shielding methods may be important to minimize

the interface.

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wristband etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

T500HVD01.0 Product Specification

Rev.0 3

temperature between 5 and 35 at normal humidity.℃℃ (2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or

in such a condition, etc. (2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the bezel after the protection film is peeled off. (3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.

PDF created with pdfFactory trial version www.pdffactory.com
