Model Name: T460HW08 VB

(ϠϠϠϠ)Preliminary Specifications

( )Final Specifications

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

Issue Date : 2010/11/12

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director

Yen Ting Chiu

____________________________________

Reviewed By RD Director

Eugene CC Chen

____________________________________

Reviewed By Project Leader

Hank Chiu

____________________________________

Prepared By PM

Kampfer Lin

____________________________________

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

Contents

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE

3-7 BACKLIGHT SPECIFICATION

4 OPTICAL SPECIFICATION

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY TEST ITEMS

7 INTERNATIONAL STANDARD

7-1 SAFETY

7-2 EMC

8 PACKING

8-1 DEFINITION OF LABEL

8-2 PACKING METHODS

8-3 PALLET AND SHIPMENT INFORMATION

9 PRECAUTION

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECT FILM

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Record of Revision

Version Date Page Description

0.0 2010/11/12 First release

0.1 2010/12/02 Change Brightness from 450 nits to 400 nits

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T460HW08 VB Product Specification

1. General Description

This specification applies to the 46.0 inch Color TFT-LCD Module T460HW08 VB. This LCD module has a TFT

active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 46.0 inch. This module supports

1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.

The T400HW08 VB has been designed to apply the 10-bit 4 channel LVDS interface method. It is intended to

support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very

important.

Rev.0 1

* General Information

Items Specification Unit Note

Active Screen Size 46.00 inch

Display Area 1018.08 (H) x 572.67 (V) mm

Outline Dimension 1056.9(H) X 612.3(V) X 18.3(Z) mm D: front bezel to rear boss

Driver Element a-Si TFT active matrix

Bezel Opening 1024.9 (H) x 579.3 (V) mm

Display Colors 10 bit, 1073.7M Colors

Number of Pixels 1,920x1,080 Pixel

Pixel Pitch 0.53025 (H) x 0.53025(W) mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze=2%

Rotate Function Achievable

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T460HW08 VB Product Specification

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 4 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Rev.0 1

Note 1: Duration:50 msec.

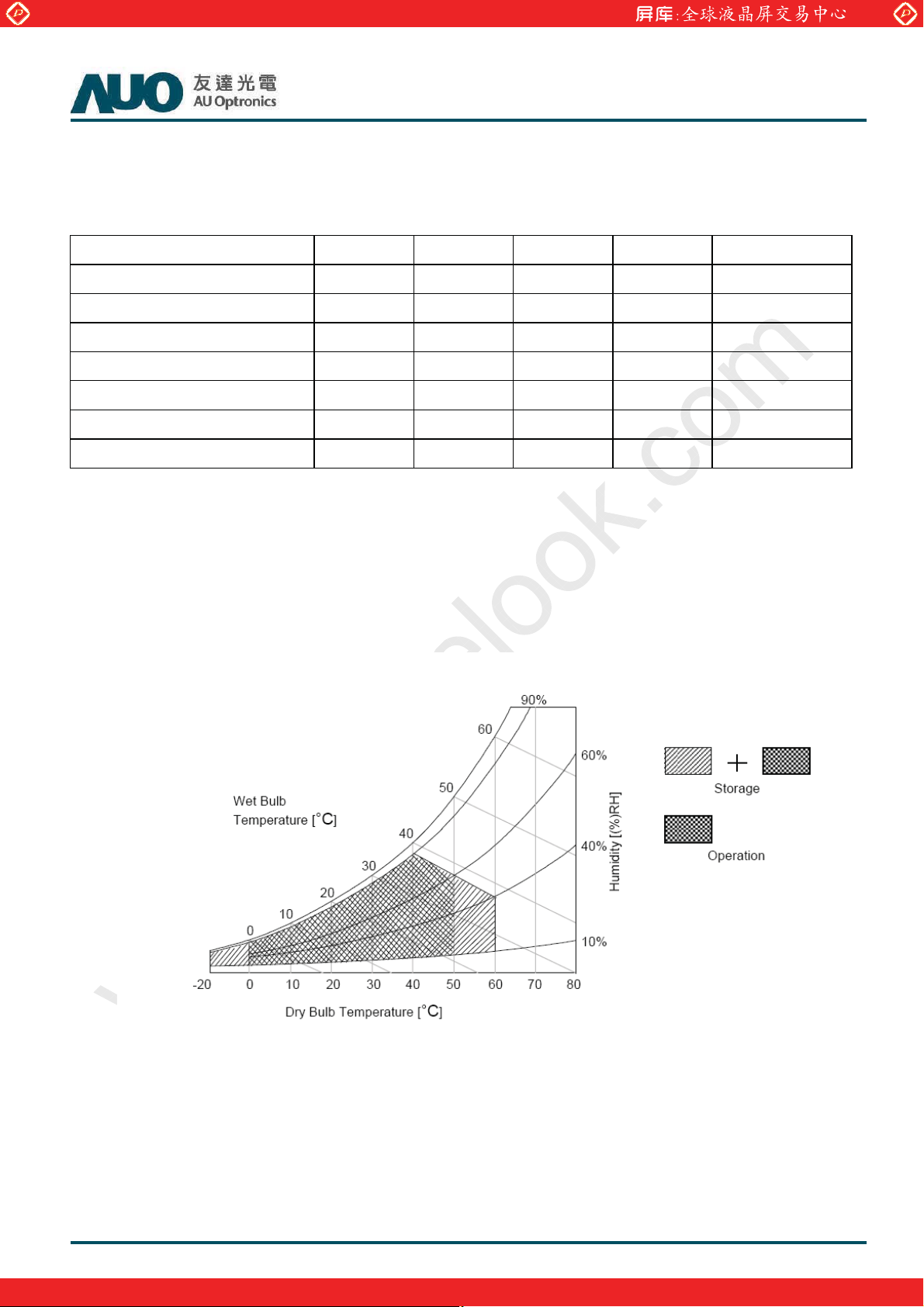

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.к

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures greater к

than 40 , the wet bulb temperature mк ust not exceed 39 .к

Note 3: Surface temperature is measured at 50к Dry condition

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T460HW08 VB Product Specification

3. Electrical Specification

The T460HW08 VB requires two power inputs. One is employed to power the LCD electronics and to drive the TFT

array and liquid crystal. The other is to power back light unit.

3.1 Electrical Characteristics

3.1.1: DC Characteristics

Rev.0 1

Parameter Symbol

LCD

Power Supply Input Voltage (for input power=12V) VDD 10.8 12 13.2 VDC

Power Supply Input Current IDD -- 0.44 1.16 A 1

Power Consumption PC -- 5.28 15.312 Watt 1

Inrush Current I

Input Differential Voltage 200 400 600 600 mVDC 3

LVDS

Interface

CMOS

Interface

Backlight Power Consumption PBL 62.5ʳ 66.7ʳ 68.8ʳ Watt

Differential Input High Threshold Voltage +100 -- +300 +300 mVDC 3

Differential Input Low Threshold Voltage -300 -- -100 -100 mVDC 3

Input Common Mode Voltage 1.1 1.25 1.4 1.4 V

Input High Threshold Voltage

Input Low Threshold Voltage

RUSH

2.7 -- 3.3 3.3 V

0 -- 0.6 0.6 V

Min. Typ. Max

-- -- 4 A 2

Value

Unit Note

3

DC

5

DC

5

DC

Life time (MTTF) 30000 Hour 9

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

s

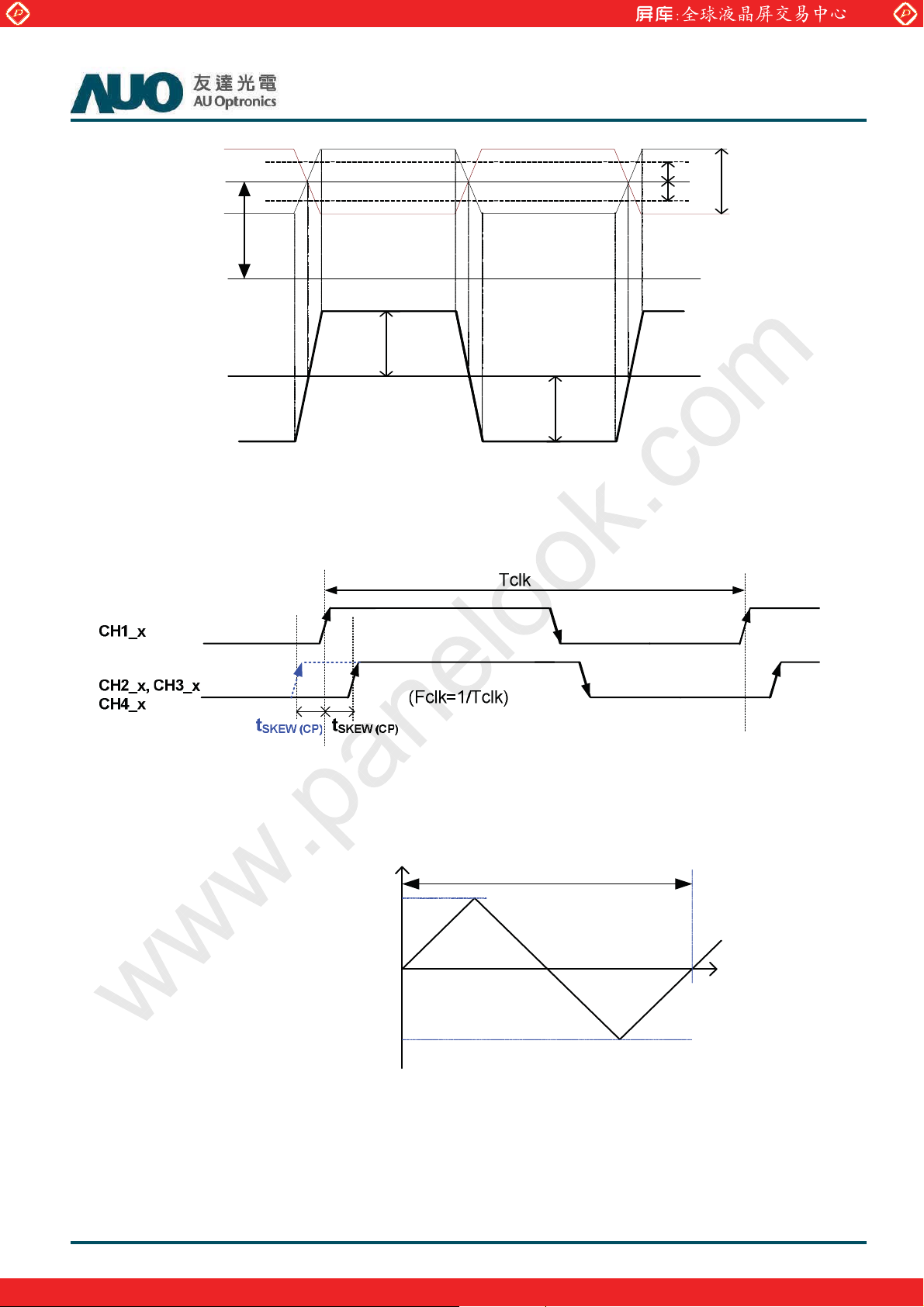

3.1.2: AC Characteristics

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

Input Channel Pair Skew Margin t

Receiver Clock : Spread Spectrum

LVDS Interface

Modulation range ʳ

Receiver Clock : Spread Spectrum Modulation frequencyʳ

Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHzʳ

Note :

1. Test Condition:

(1) V (2) Fv = 120Hz (3) Fclk= Max freq. (4) Temperature = 25 к (5) Typ. Input current : White Pattern

Parameter Symbol

Min. Typ. Max

SKEW (CP)

Fclk_ssʳ

-500 -- +500 ps 6

Fclk

-3%ʳ

Fssʳ 30ʳ --ʳ 200ʳ KHzʳ 7

tRMGʳ -0.4

-0.5ʳ

= 12.0V

DD

Max. Input current: Heavy loading pattern defined by AUO

Value

--ʳ

ʳ

--ʳ

Fclk

+3%ʳ

0.4

0.5ʳ

Unit Note

MHzʳ 7

nsʳ 8

2. Measurement condition : Rising time = 400us

10%

400

3. V

= 1.25V

ICM

GND

V

90%

DD

μ

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

LVDS -

V

ICM

LVDS +

GND

0V

www.panelook.com

|VID|

T460HW08 VB Product Specification

Rev.0 1

V

TH

|VID|

V

TL

4. The measure points of V

and V

IH

are in LCM side after connecting the System Board and LCM.

IL

5. Input Channel Pair Skew Margin

Note: x = 0, 1, 2, 3, 4

6. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures

1/F

SS

Fclk_ss(max)

Fclk

Fclk_ss(min)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

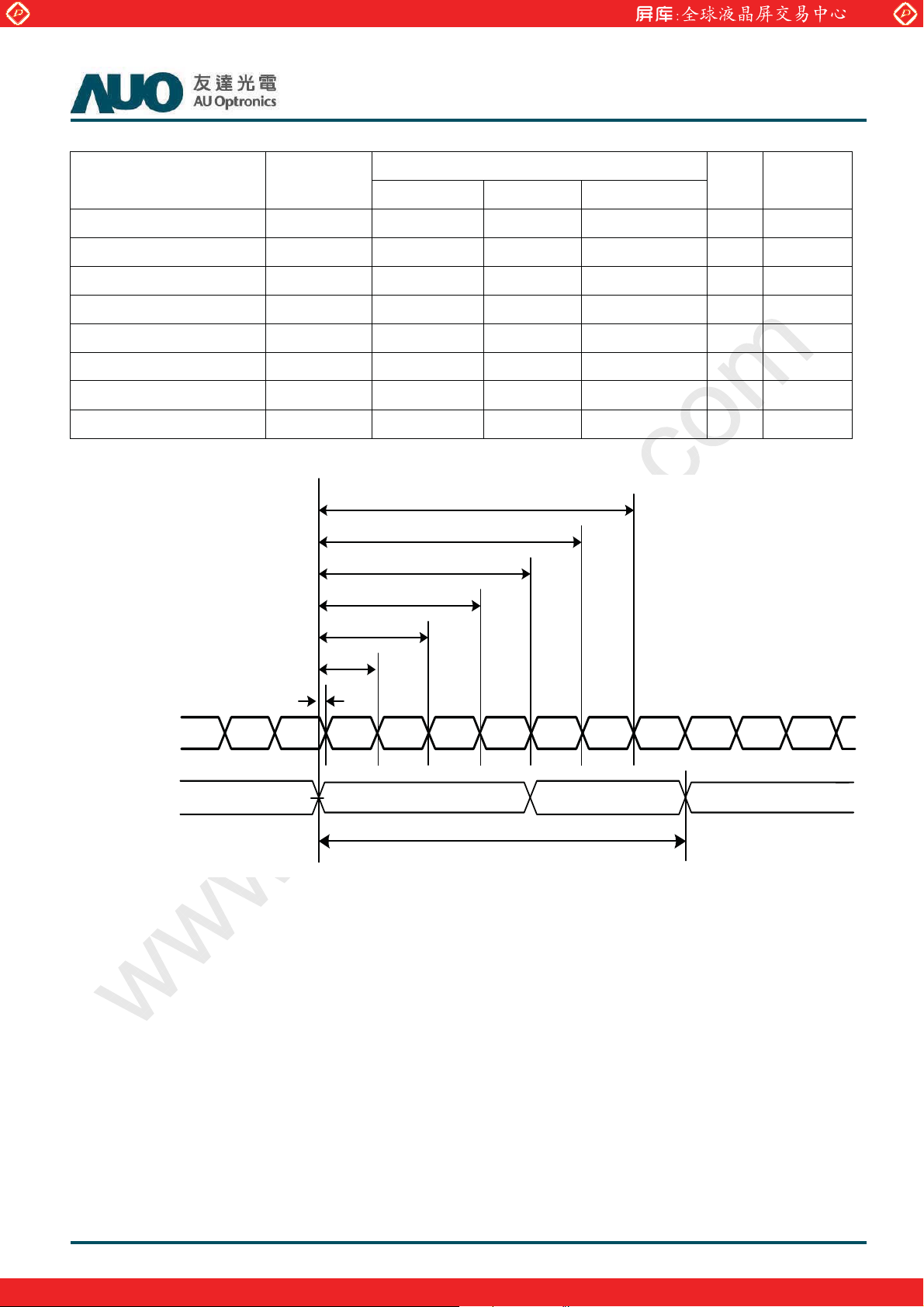

7. Receiver Data Input Margin

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

Parameter Symbol

Min Type Max

Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz T=1/Fclk

Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns

Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns

Input Data Position2 tRIP6 2T/7-|tRMG| 2T/7 2T/7+|tRMG| ns

Input Data Position3 tRIP5 3T/7-|tRMG| 3T/7 3T/7+|tRMG| ns

Input Data Position4 tRIP4 4T/7-|tRMG| 4T/7 4T/7+|tRMG| ns

Input Data Position5 tRIP3 5T/7-|tRMG| 5T/7 5T/7+|tRMG| ns

Input Data Position6 tRIP2 6T/7-|tRMG| 6T/7 6T/7+|tRMG| ns

Rating

Unit Note

tRIP2

tRIP3

tRIP4

tRIP5

tRIP6

tRIP0

tRIP1 LVDS-Rx Input Data

Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx 0 Rx6Rx2Rx3

LVDS-Rx

V

= 0V

Input Clock

dif f

1/Fcl k=T

8. The relative humidity must not exceed 80% non-condensing at temperatures of 40 к or less. At

temperatures greater than 40к, the wet bulb temperature must not exceed 39к. When operate at low

temperatures, the brightness of LED will drop and the life time of LED will be reduced.

9. The lifetime (MTTF) is defined as the time which luminance of LED is 50% compared to its original value.

[Operating condition: Continuous operating at Ta = 25±2к]

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T460HW08 VB Product Specification

Interface Connections

 LCD connector: 187059-51221 (P-TWO, LVDS connector)



187060-41221 (P-TWO, LVDS connector)



Mating connector:

PIN Symbol Description PIN Symbol Description

Rev.0 1

1 N.C. No connection 21

2 N.C. AUO Internal Use Only 22

3 N.C. No connection 23

4 N.C. No connection 24

5 N.C. No connection 25

6 N.C. No connection 26

7 N.C. AUO Internal Use Only 27

8 N.C. No connection 28

9 GND Ground 29

CH3_0-

10

11

12

13

14

15

16

CH3_0+

CH3_1-

CH3_1+

CH3_2-

CH3_2+

GND

LVDS Channel 3, Signal 0- 30

LVDS Channel 3, Signal 0+ 31

LVDS Channel 3, Signal 1- 32

LVDS Channel 3, Signal 1+ 33

LVDS Channel 3, Signal 2- 34

LVDS Channel 3, Signal 2+ 35

Ground 36

CH3_3+

CH3_4-

CH3_4+

GND

CH4_0-

CH4_0+

CH4_1-

CH4_1+

CH4_2-

CH4_2+

GND

CH4_CLK-

CH4_CLK+

GND

CH4_3-

LVDS Channel 3, Signal 3+

LVDS Channel 3, Signal 4-

LVDS Channel 3, Signal 4+

Ground

LVDS Channel 4, Signal 0-

LVDS Channel 4, Signal 0+

LVDS Channel 4, Signal 1-

LVDS Channel 4, Signal 1+

LVDS Channel 4, Signal 2-

LVDS Channel 4, Signal 2+

Ground

LVDS Channel 4, Clock -

LVDS Channel 4, Clock +

Ground

LVDS Channel 4, Signal 3-

CH3_CLK-

17

CH3_CLK+

18

19

20

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).

GND

CH3_3-

LVDS Channel 3, Clock - 37

LVDS Channel 3, Clock + 38

Ground 39

LVDS Channel 3, Signal 3- 40 GND Ground

41 GND Ground

CH4_3+

CH4_4-

CH4_4+

LVDS Channel 4, Signal 3+

LVDS Channel 4, Signal 4-

LVDS Channel 4, Signal 4+

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

PIN Symbol Description PIN Symbol Description

1 N.C. AUO Internal Use Only 26 GND Ground 2 N.C. AUO Internal Use Only 27 GND Ground 3 N.C. AUO Internal Use Only 28 CH2_0- LVDS Channel 2, Signal 04 N.C. AUO Internal Use Only 29 CH2_0+ LVDS Channel 2, Signal 0+

LVDS 8/10bit Input Selection

5BITSEL

6ROTATE

7 LVDS_SEL

8 N.C. AUO Internal Use Only 33 CH2_2+ LVDS Channel 2, Signal 2+

9 N.C. AUO Internal Use Only 34 GND Ground 10 N.C. AUO Internal Use Only 35 CH2_CLK- LVDS Channel 2, Clock 11 GND Ground 36 CH2_CLK+ LVDS Channel 2, Clock + 12 CH1_0- LVDS Channel 1, Signal 0- 37 GND Ground 13 CH1_0+ LVDS Channel 1, Signal 0+ 38 CH2_3- LVDS Channel 2, Signal 314 CH1_1- LVDS Channel 1, Signal 1- 39 CH2_3+ LVDS Channel 2, Signal 3+ 15 CH1_1+ LVDS Channel 1, Signal 1+ 40 CH2_4- LVDS Channel 2, Signal 416 CH1_2- LVDS Channel 1, Signal 2- 41 CH2_4+ LVDS Channel 2, Signal 4+ 17 CH1_2+ LVDS Channel 1, Signal 2+ 42 GND Ground 18 GND Ground 43 GND Ground 19 CH1_CLK- LVDS Channel 1, Clock - 44 GND Ground 20 CH1_CLK+ LVDS Channel 1, Clock + 45 GND Ground 21 GND Ground 46 GND Ground 22 CH1_3- LVDS Channel 1, Signal 3- 47 N.C. No connection 23 CH1_3+ LVDS Channel 1, Signal 3+ 48 V 24 CH1_4- LVDS Channel 1, Signal 4- 49 V 25 CH1_4+ LVDS Channel 1, Signal 4+ 50 V

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).

Open/High(3.3V) : 10bits

Low(GND) : 8bits

Panel Rotation Display Control

High(3.3V) : Rotate Enable

Open/Low(GND) : Rotate Disable

Open/High(3.3V) for NS,

Low(GND) for JEIDA

51 V

30 CH2_1- LVDS Channel 2, Signal 1-

31 CH2_1+ LVDS Channel 2, Signal 1+

32 CH2_2- LVDS Channel 2, Signal 2-

DD

Power Supply, +12V DC Regulated Power Supply, +12V DC Regulated Power Supply, +12V DC Regulated Power Supply, +12V DC Regulated

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

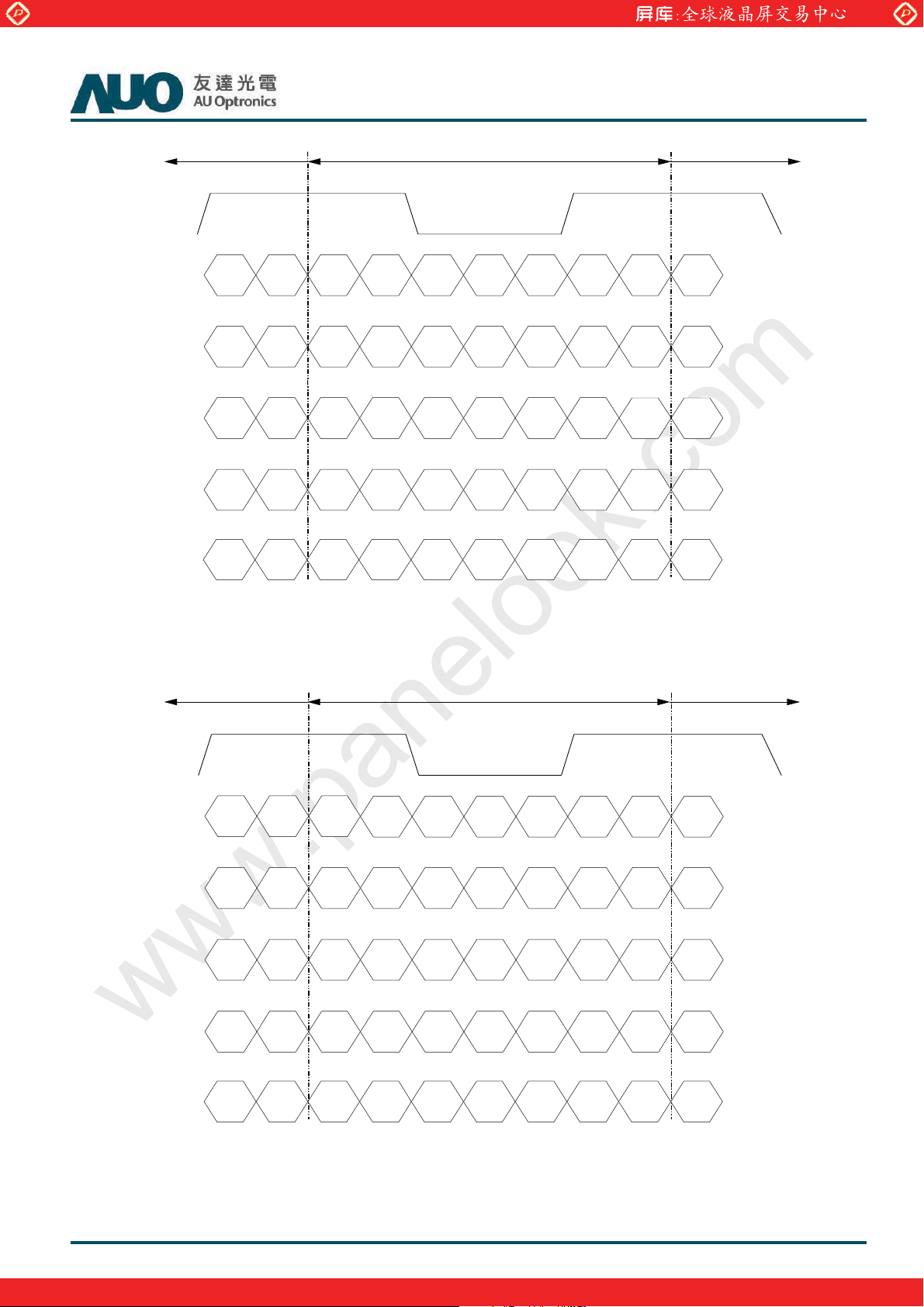

 LVDS Option = High/OpenNS

Previous C ycle Current Cycle N ext C ycle

Clock

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

CHx_0+ CHx_0-

CHx_1+ CHx_1-

CHx_2+ CHx_2-

CHx_3+ CHx_3-

CHx_4+ CHx_4-

Note: x = 1, 2, 3, 4…

 LVDS Option = LowJEIDA

Previou s C ycle Cu rrent C ycle Next Cycle

R0R5 G0G0R0R1 R2R3R4 R1

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA B3

R6B7 NANAR6R7 G6G7B6 R7

R8B9 NANAR8R9 G8G9B8 R9

Clock

CHx_0+ CHx_0-

CHx_1+ CHx_1-

CHx_2+ CHx_2-

CHx_3+ CHx_3-

CHx_4+ CHx_4-

Note: x = 1, 2, 3, 4…

R4R9 G4G4R4R5 R6R7R8 R5

G5B4 B5B5G5G6 G7G8G9 G6

B6NA DEDEB6B7 B8B9NA B7

R2B3 NANAR2R3 G2G3B2 R3

R0B1 NANAR0R1 G0G1B0 R1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T460HW08 VB Product Specification

Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1090ʳ 1130ʳ 1392ʳ Th

Rev.0 1

Vertical Section

Horizontal Section

Clock Frequency Fclk=1/Tclk 64.8ʳ 77.29ʳ 80.74ʳ MHz

Vertical Frequency Frequency Fv 94ʳ 120ʳ 122ʳ Hz

Horizontal Frequency Frequency Fh 120ʳ 135.6ʳ 139.2ʳ KHz

Notes:

(1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1

left edge of the screen.

(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1

st

Active Tdisp (v) 1080 Th

Blanking Tblk (v) 10ʳ 50ʳ 312ʳ Th

Period Th 540ʳ 570ʳ 580ʳ Tc l k

Active Tdisp (h) 480 Tclk

Blanking Tblk (h) 60ʳ 90ʳ 100ʳ Tc lk

st

DCLK after the rise of 1st DE, is displayed on the

data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen.

(3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

(4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

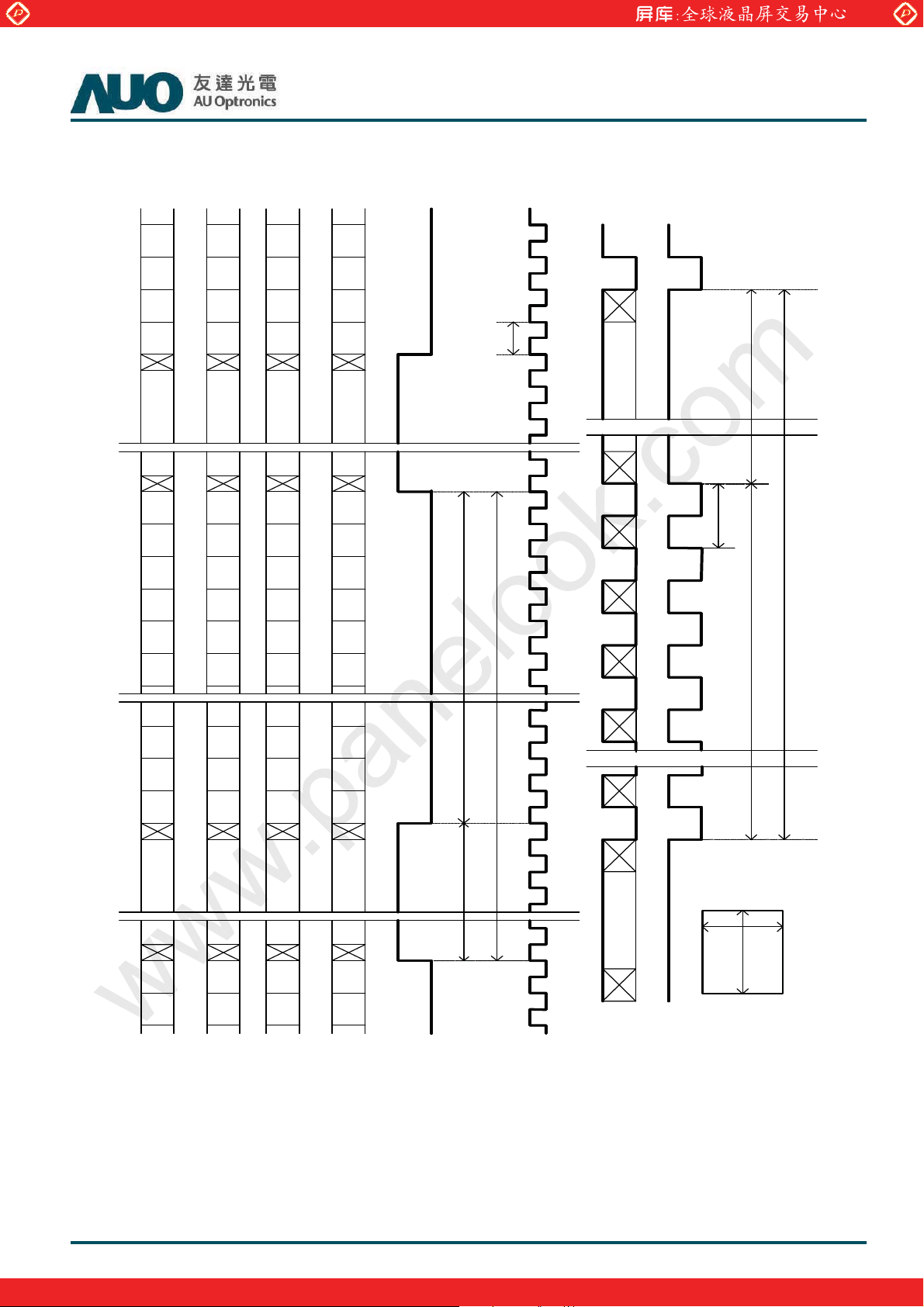

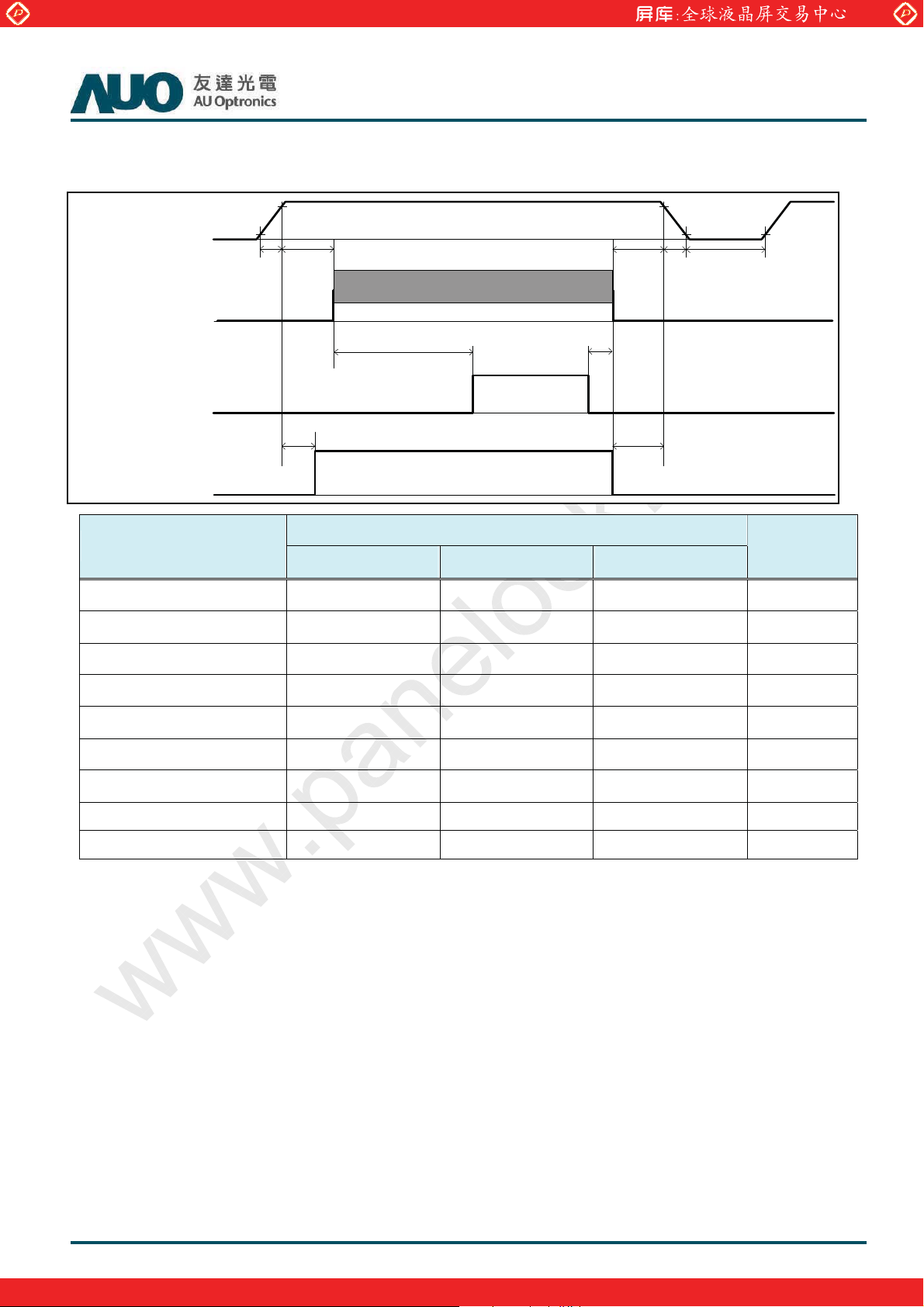

3.2 Signal Timing Waveforms

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

CH4

M-12

Pixel

M-8

Pixel

M-4

Pix el

M

Invalid Data

Pixel

4

Pixel

8

Pixel

12

Pix el

16

Pix el

20

Pixel

24

CH3

M-13

Pixel

M-9

Pixel

M-5

Pix el

M-1

Invalid Data

Pixel

3

Pixel

7

Pixel

11

Pix el

15

Pix el

19

Pixel

23

CH2

M-14

Pixel

M-10

Pixel

M-6

Pix el

M-2

Invalid Data

Pixel

2

Pixel

6

Pixel

10

Pix el

14

Pix el

18

Pixel

22

CH1

M-15

Pixel

M-11

Pixel

M-7

Pix el

M-3

Invalid Data

Pixel

1

Pixel

5

Pixel

9

Pix el

13

Pix el

17

Pixel

21

DE

Tdisp(h) Tblk(h)

Tclk

Th

CLK

Data

N

1

2

3

4

RGB

Line

Invalid Data Inval id Dat a

Line

DE

Th

Tv

Tdisp(v)Tblk(v)

Pixel

M-8

Pixel

M-4

Pixel

M

Invalid Da ta

Pixel

M-9

Pixel

M-5

Pixel

M-1

Invalid Da ta

M-10

Pixel

M-6

Pixel

M-2

Invalid Da ta

M-11

Pixel

M-7

Pixel

M-3

Invalid Da ta

Line

N

N Line

M pixel

Pixel

4

Pixel

8

Pixel

3

Pixel

7

Pixel

2

Pixel

6

Pixel

1

Pixel

5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T460HW08 VB Product Specification

3.3 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 10 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Rev.0 1

Color

Black 000000000000000000000000000000

Red(1023) 1 1 1 111111100000000000000000000

Green(1023) 0 0 0 000000011111111110000000000

Basic

Blue(1023) 0 0 0 000000000000000001111111111

Colorʳ

Cyan 000000000011111111111111111111

ʳ

Magenta 111111111100000000001111111111

ʳ

Yellow 111111111111111111110000000000

White 111111111111111111111111111111

RED(000) 0 0 0 000000000000000000000000000

RED(001) 0 0 0 000000100000000000000000000

Rʳ

---- ʳʳʳʳʳʳ

RED(1022) 1 1 1 111111000000000000000000000

RED(1023) 1 1 1 111111100000000000000000000

MSB LSB

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 000000000000000000000000000000

GREEN(001) 000000000000000000010000000000

Gʳ

---- ʳʳʳʳʳʳ

GREEN(1022)000000000011111111100000000000

GREEN(1023)000000000011111111110000000000

BLUE(000) 000000000000000000000000000000

BLUE(001) 000000000000000000000000000001

Bʳ

---- ʳʳʳʳʳʳ

BLUE(1022) 0 0 0 000000000000000001111111110

BLUE(1023) 0 0 0 000000000000000001111111111

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3.6 Power Sequence for LCD

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

Power Supply For LCD VDD (+12V)

Interface Signal (LVDS Data & CLK)

Backlight on/off control signal (VBLON)

CMOS Interface Signal

GND

Parameter

t1 0.4ʳ ---ʳ 30ʳ ms

t2 0.1ʳ ---ʳ 50ʳʳʳʳ ms

10%

90%

t1

t2

Valid Data

t3 t4

t8 t9

Values

Min. Type. Max.

90%

10%

t6

t5

10%

t7

Unit

t3 450ʳʳʳʳ ---ʳ ---ʳ ms

t4 0*1ʳ ---ʳ ---ʳ ms

t5 0ʳ ---ʳ ---ʳ ms

t6 ---ʳ ---ʳ ---*2ʳ ms

t7 500ʳ ---ʳ ---ʳ ms

t8ʳ 10ʳ ---ʳ 50ʳ msʳ

t9ʳ 0ʳ ---ʳ ---ʳ msʳ

Note: (1) t4=0 : concern for residual pattern before BLU turn off. (2) t6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3.7 Backlight Specification

The backlight unit contains 2pcs light bar.

3.7.1 Light bar Driven Condition

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

Parameter Symbol

Min Typ Max

Anode IF (anode) 744 mA Forward Current

(one light bar)

Peak Forward Current IFP TBD 260 mA <1msec.

Forward Voltage VF 40.6 44.1 47.6 V

Forward Voltage Variation

Total Power Consumption (4 light bars) PBL 60.4 65.7 70.8 W

PWM Operation Frequency F_PWM 140 180 240 Hz Note 1&2

PWM Dimming Duty Ratio D_PWM 10 100 %

Cathode IF (cathode) 93 100 mA

ႤVF

Values

Unit Note

TBD V

Cathode#1-1

Anode

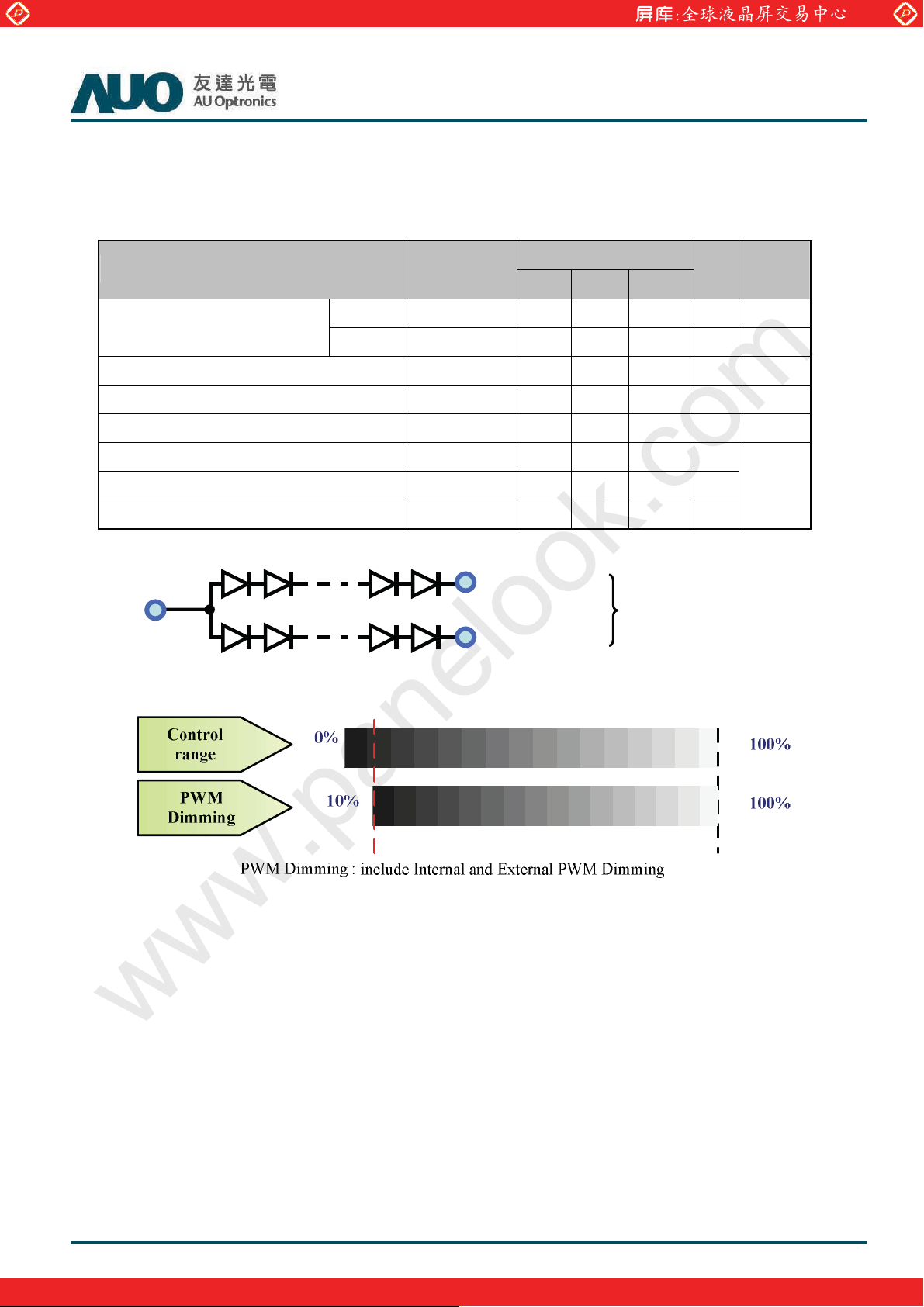

2 LED string / light bar

Cathode#1-2

Note 1: Dimming range

Note 2:Low dimming ratio operation

When PWM dimming duty ratio is operated lower than recommended value, feedback signal and all protection functions should be confirmed by LIPS design. Display performance should also be confirmed by customer’s implement.

Note 3:Low dimming ratio operation When PWM dimming duty ratio is operated lower than recommended value, feedback signal and all protection functions should be confirmed by LIPS design. Display performance should also be confirmed by customer’s implement.

Note 3: Each LED string should be driven by independent current control/feedback circuit.

Note 4: Fuse protection should be added into LIPS circuit to have better LED driving protection.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

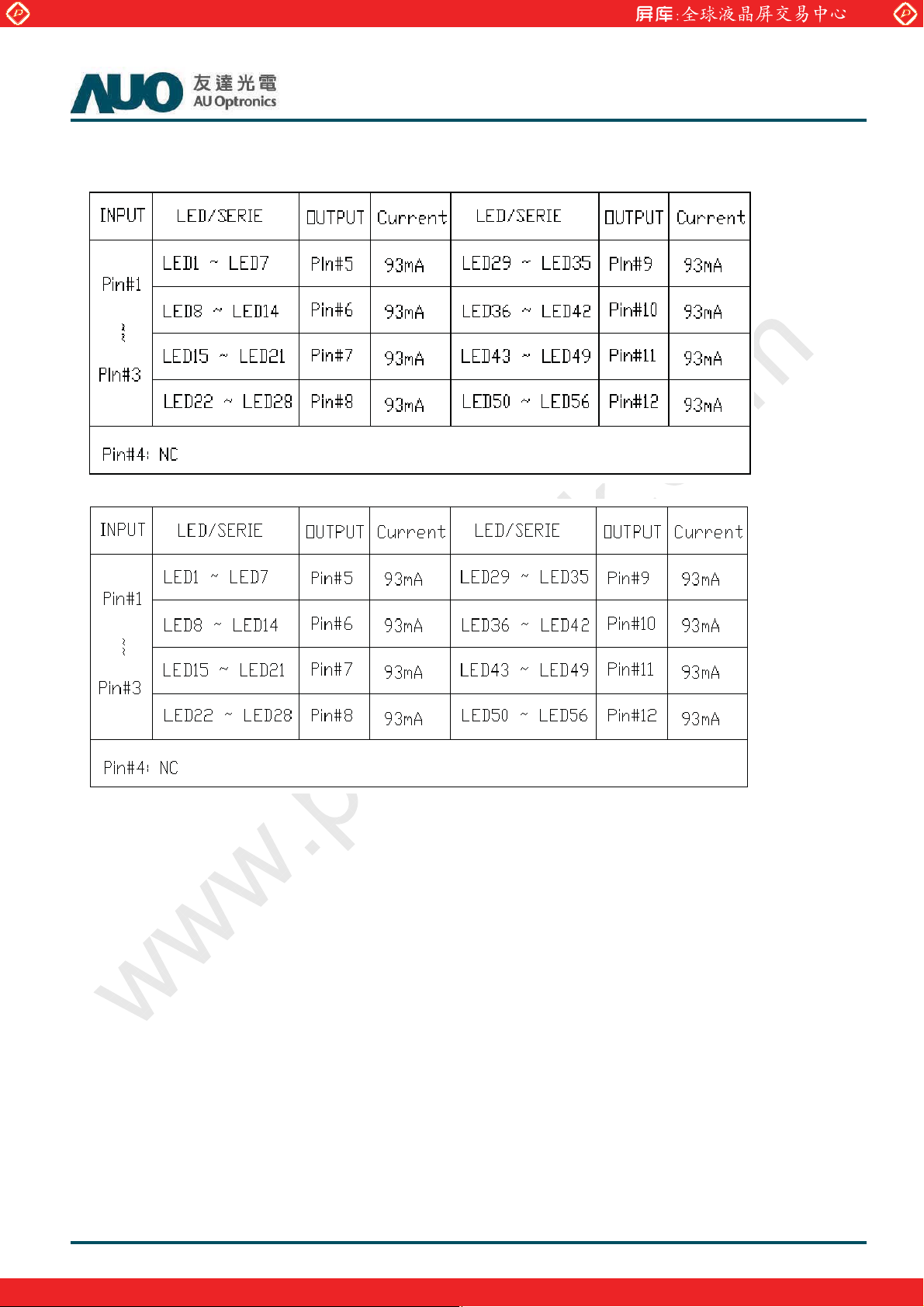

3.7.2 Input Pin Assignment

Connector: P-TWO: 196357-12041-3

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T460HW08 VB Product Specification

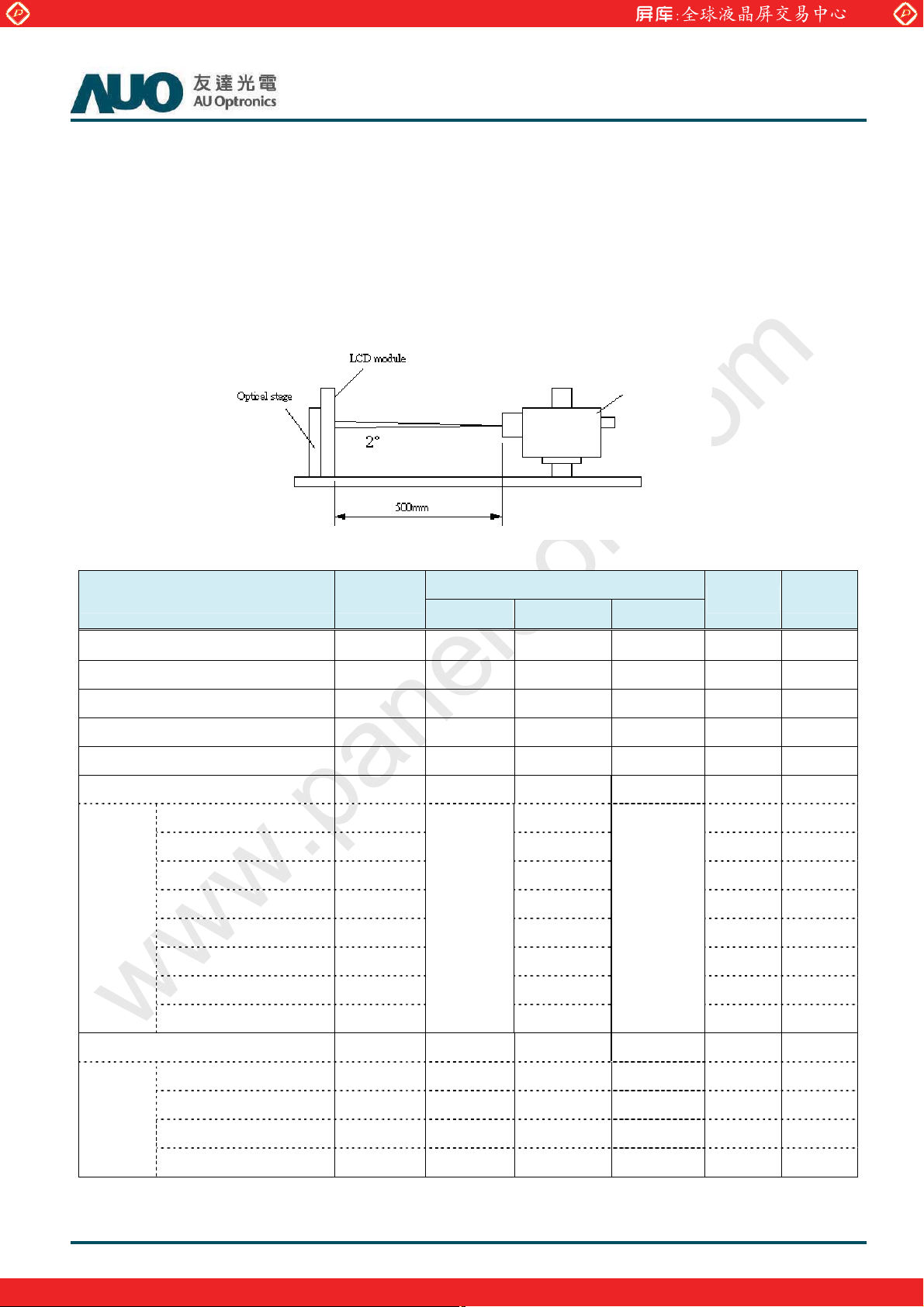

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark

environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a viewing

angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Rev.0 1

Parameter Symbol

Unit Notes

Min. Typ. Max

Contrast Ratio CR 3200 4000 -- 1

Surface Luminance (White) LWH 320 400 -- cd/m2 2

Values

Luminance Variation δ

WHITE(9P)

-- -- 1.33 3

Response Time (G to G) Tγ -- 5.5 -- Ms 4

Color Gamut NTSC 72 %

Color Coordinates

Red RX 0.630

R

0.330

Y

Green GX 0.320

G

0.620

Y

Typ.-0.03

Typ.+0.03

Blue BX 0.150

B

0.040

Y

White WX 0.280

W

Y

0.290

Viewing Angle 5

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θd -- 89 -- degree

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T460HW08 VB Product Specification

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

Surface Luminance of

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

L

on5

L

off5

Rev.0 1

displaying white. From more information see FIG 2. LED current I

input VDDB =24V, I

. = Typical value (with driver board), LWH=Lon5 where Lon5 is the luminance with all pixels

DDB

= typical value (without driver board), LED

F

displaying white at center 5 location.

3. The variation in surface luminance, δWHITE is defined (center of Screen) as:

δ

WHITE(9P)

4. Response time T

= Maximum(L

ӫʳ

is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on F

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

=120Hz to optimize.

v

Target Measured

Response Time

0%

25%

Start

50%

75%

100%

Tӫ is determined by 10% to 90% brightness difference of rising or falling period. (As illustrated)

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of grey(bright) “ and “any level of gray(dark)”.

0% 25% 50% 75% 100%

0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% to 0% 25% to 50% 25% to 75% 25% to 100%

50% to 0% 50% to 25% 50% to 75% 50% to 100%

75% to 0% 75% to 25% 75% to 50% 75% to 100%

100% to 0% 100% to 25% 100% to 50% 100% to 75%

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

0%, 25%, 50%, 75%, 100%

100%

90%

Photodetector

Output

10%

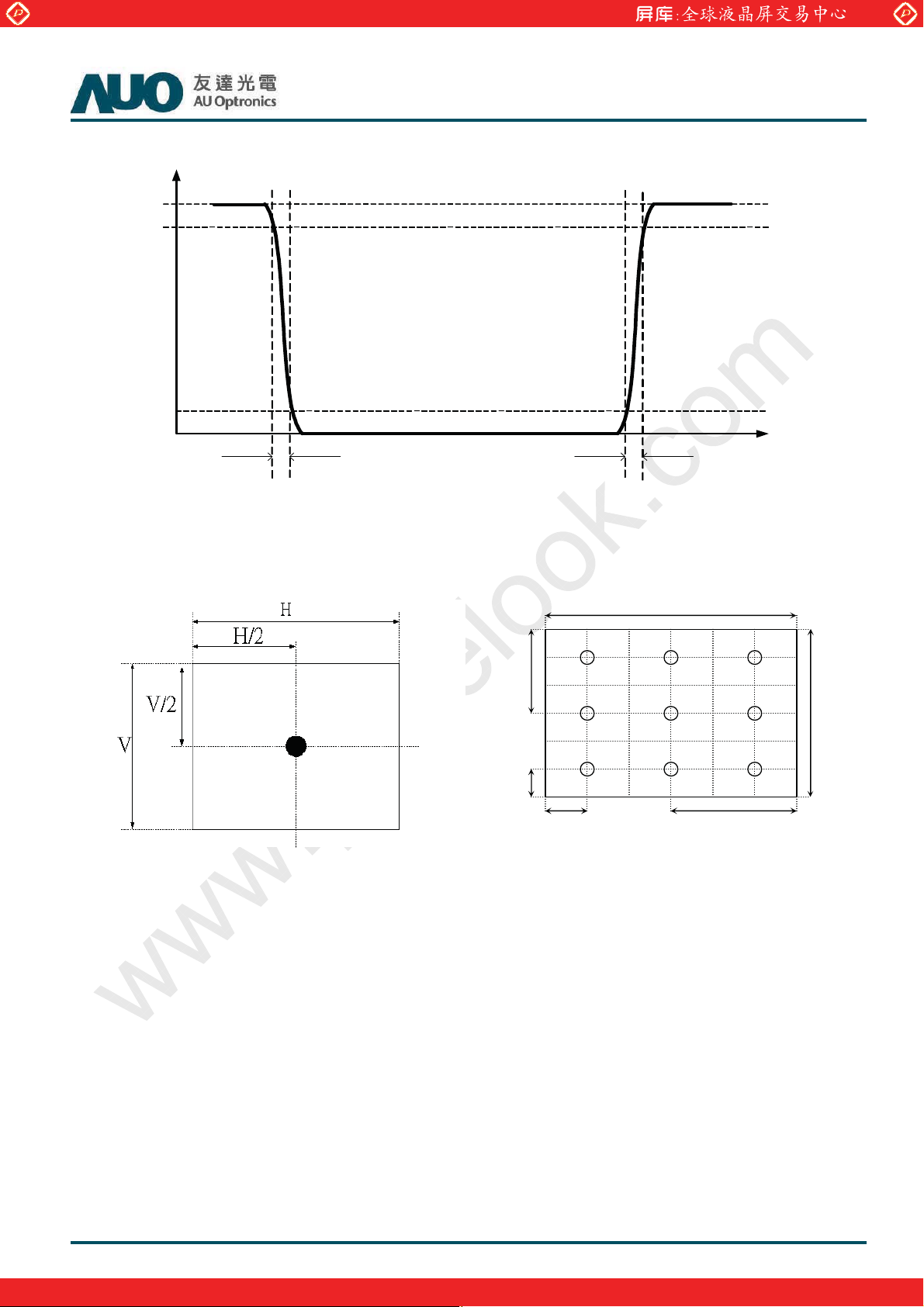

FIG. 2 Luminance

T

ӫӫӫӫ

(F)

0%, 25%, 50%, 75%, 100%

Time

T

ӫӫӫӫ

(R)

V

H/2

H/6

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG3.

1

H

V/2 V/6

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

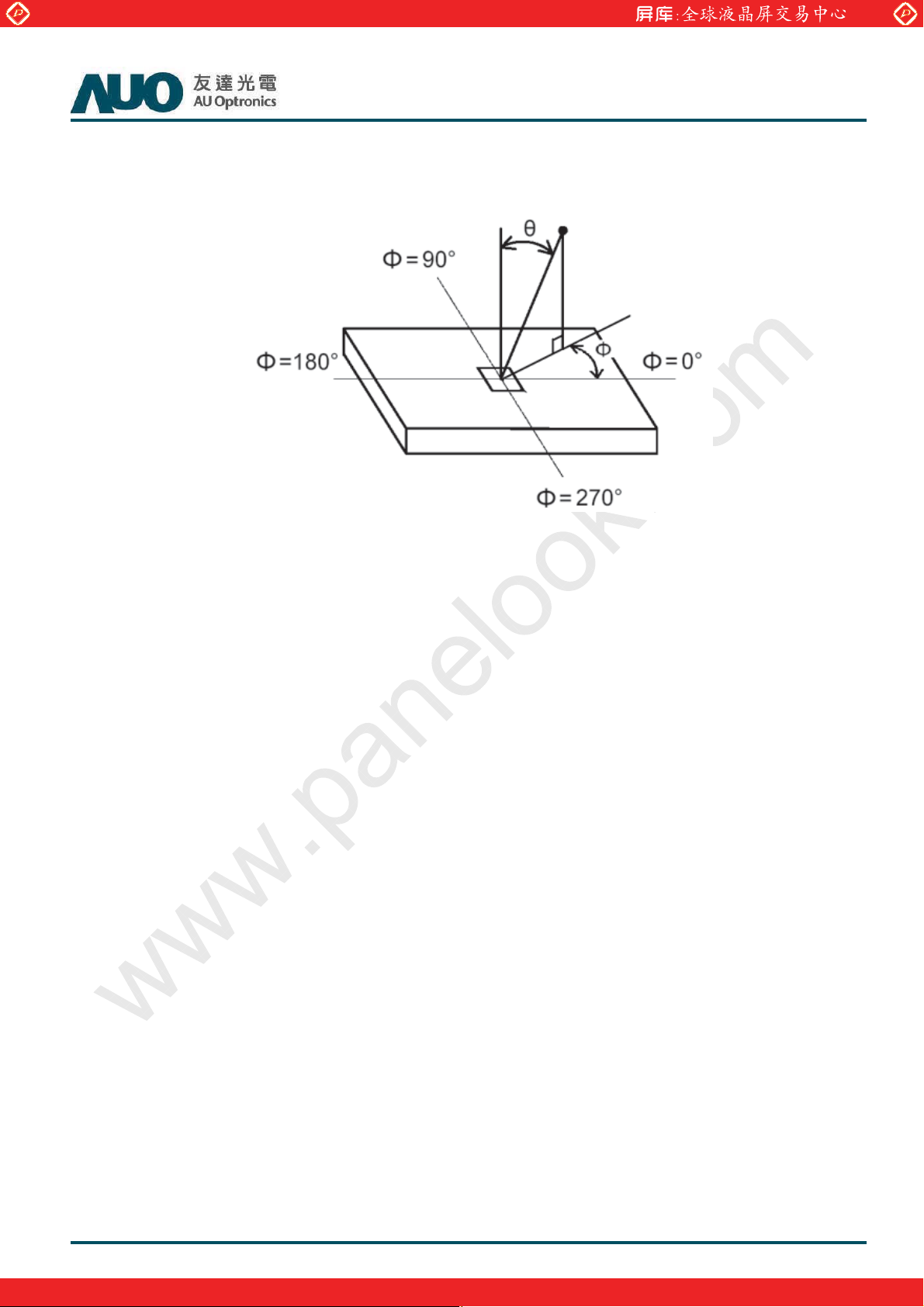

FIG.3 Viewing Angle

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T460HW08 VB Product Specification

5. Mechanical Characteristics

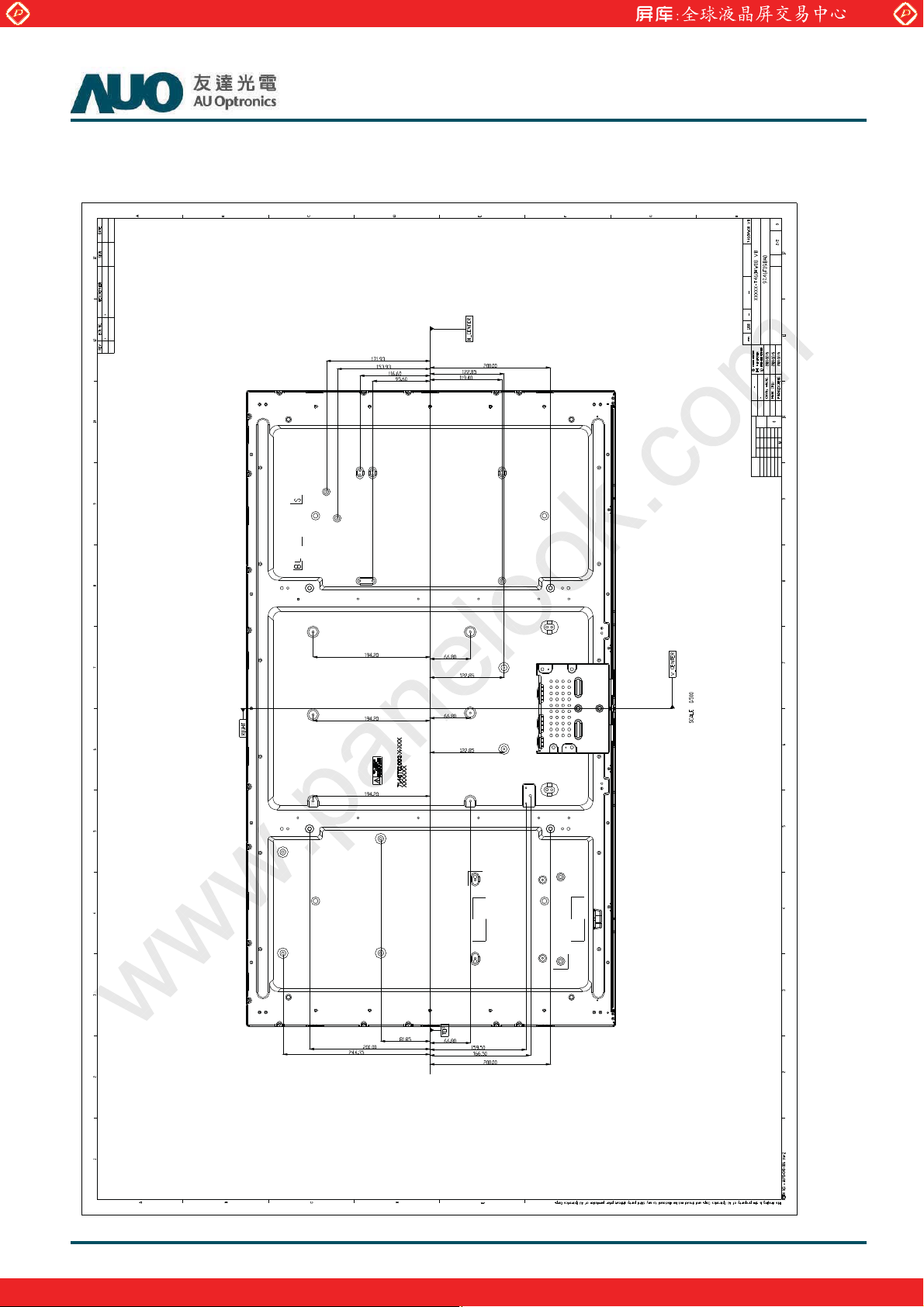

The contents provide general mechanical characteristics for the model T460HW08 VB. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Item Dimension Unit Note

Horizontal 1056.9 mm

Vertical 612.3 mm

Outline Dimension

Depth (Dmin) 10.8 mm to rear

Rev.0 1

Depth (Dmax) 20.9 mm to inverter cover

Weight TBD g

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

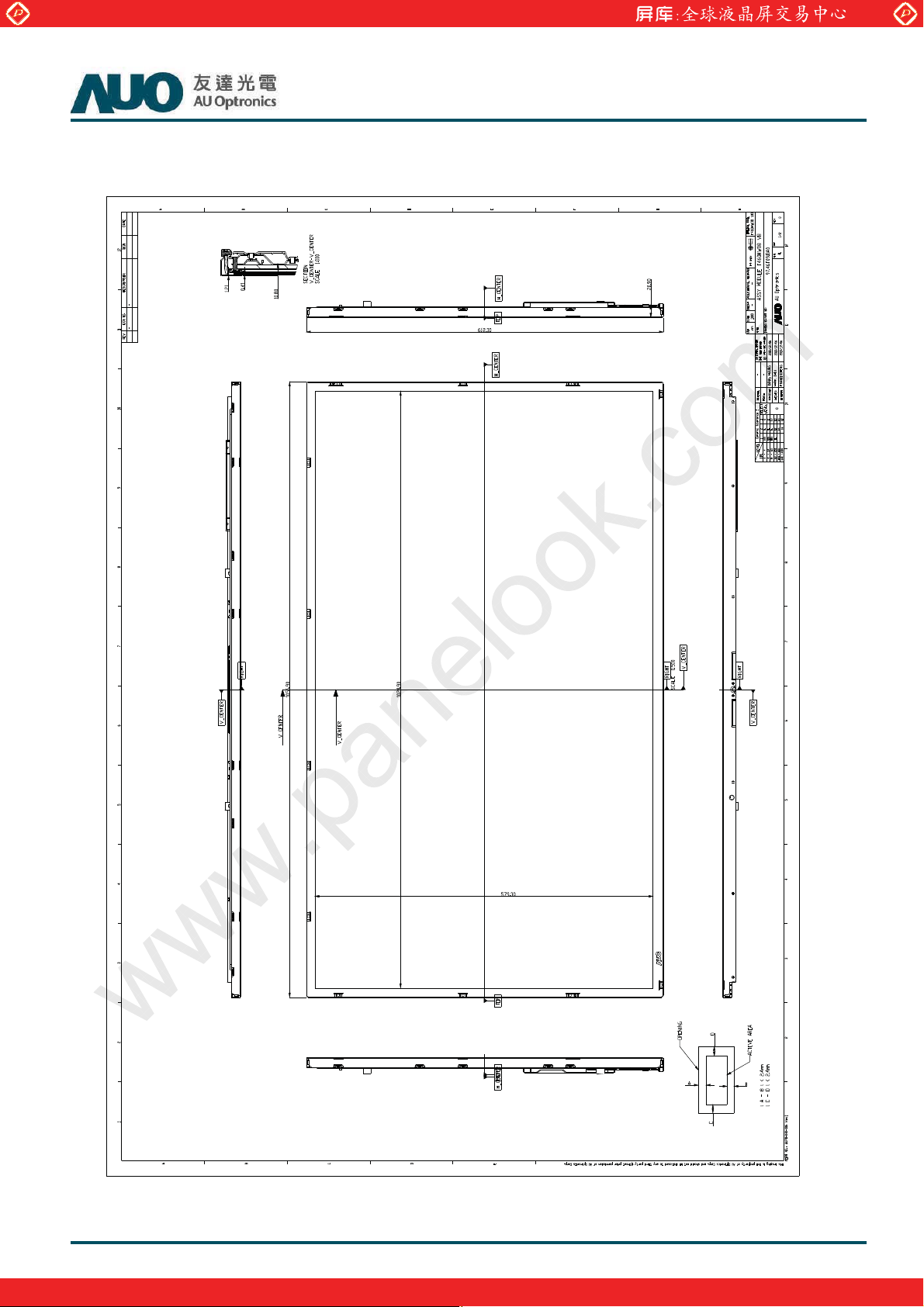

Front View

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Back View

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. Reliability Test Items

Test Item Q’ty Condition

1 High temperature storage test 3 60к, 300hrs

2 Low temperature storage test 3 -20к, 300hrs

3 High temperature operation test 3 50к, 300hrs

4 Low temperature operation test 3 -5к, 300hrs

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

Wave form: random

Vibration level : 1.0G RMS

5 Vibration test (non-operation) 3

6 Shock test (non-operation) 3

7 Vibration test (With carton) 3

8 Drop test (With carton) 3

Bandwidth : 10-300Hz

Duration : X,Y,Z 10min per axes

X,Y,Z: Horizontal, face up

Shock level

50G, 11ms in ±X, ±Y axis, 35G, 11ms in ±Z axis

Waveform: half sine wave

Direction: One time each direction

Random wave (1.05Grms 10~200Hz)

Duration : X,Y,Z 10min per axes

Height: XX.Xcm (ASTMD4169-I)

1 corner, 3 edges, 6 surfaces

(refer ASTM D 5276)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. International Standard

7.1 Safety

(1) UL 60950-1, UL 60065; Standard for Safety of Information Technology Equipment Including electrical

Business Equipment.

(2) IEC 60950-1 : 2001, IEC 60065:2001 ; Standard for Safety of International Electrotechnical

Commission

(3) EN 60950 : 2001+A11, EN 60065:2002+A1:2006; European Committee for Electrotechnical

Standardization (CENELEC), EUROPEAN STANDARD for Safety of Information Technology

Equipment Including Electrical Business Equipment.

7.2 EMC

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI),

1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),

1998

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

/

8. Packing

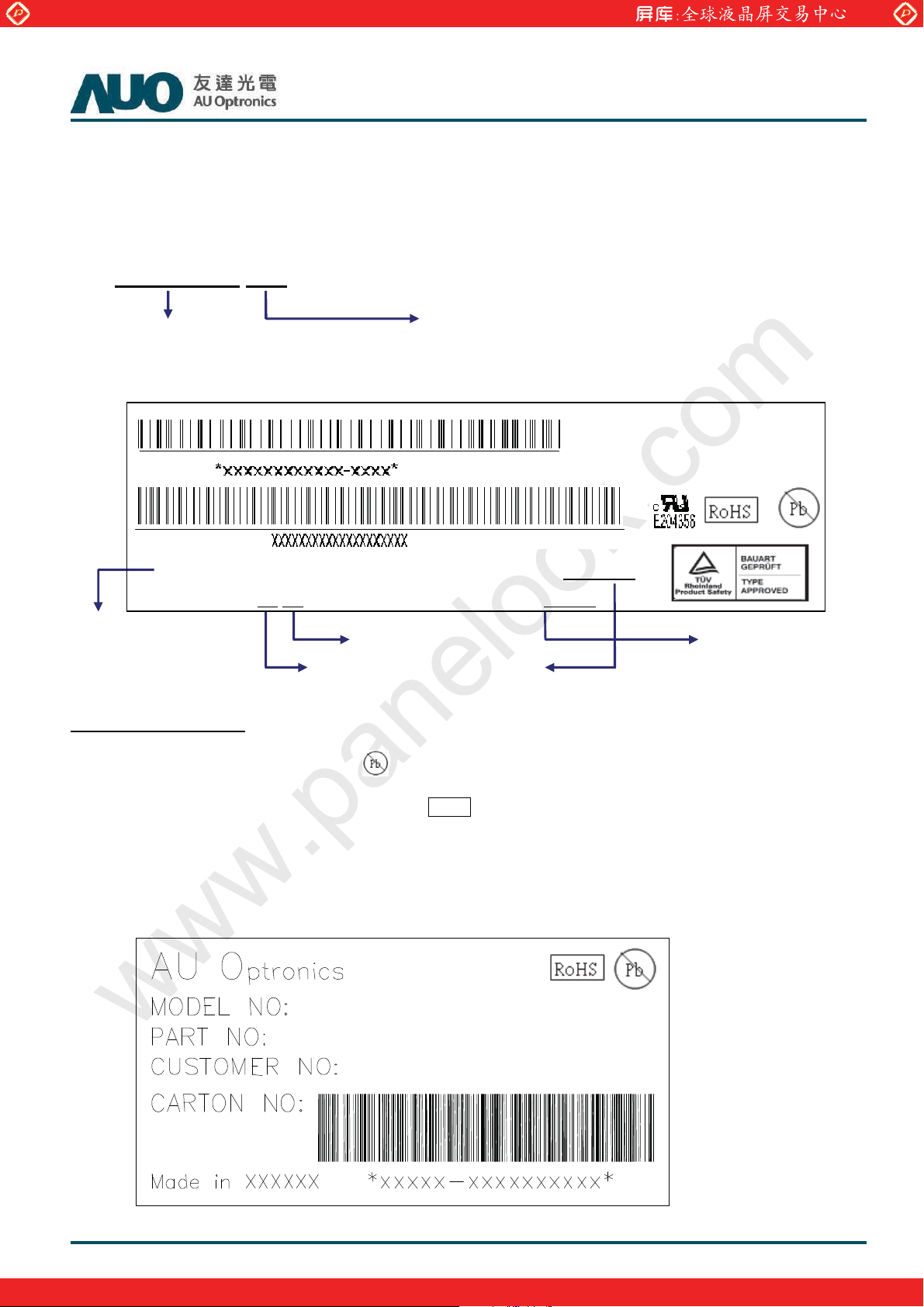

8-1 DEFINITION OF LABEL:

A. Panel Label:

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

*xxxxxxxxxxxx

Panel Unique ID

XXXXX Model NO: T460HW08 V.B XXXXXXX

Manufactured XX

Green mark description

-xxxx*

AUO Internal Use

XX MADE IN XXXXX

Week

Year

AUO Internal Use

AU Optronics

Factory Location AUO Internal Use

(1) For Pb Free Product, AUO will add for identification.

(2) For RoHs compatible products, AUO will add RoHS for identification.

Note: The green Mark will be present only when the green documents have been ready by AUO internal green

team. (definition of green design follows the AUO green design checklist.)

B. Carton Label:

QTY : 7

TXXXHW0X VX

97.46T09.BXX

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

J

S

W

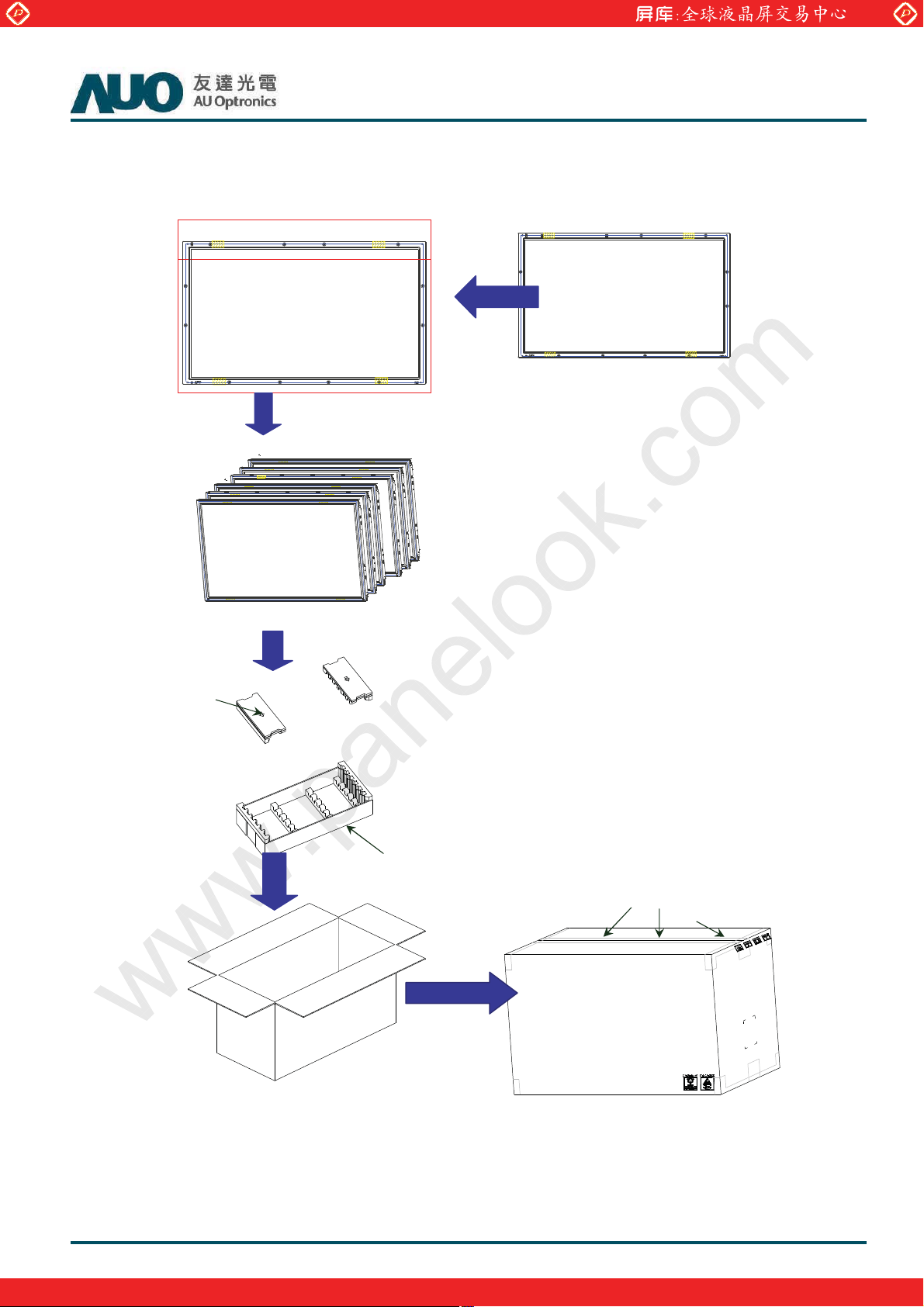

8-2 PACKING METHODS:

SFV0RGXOH(6'%D

SFV0RGXOH(6'%DJ

SFV0RGXOH(6'%D

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1



&XVKLRQWR

&XVKLRQWRS

&XVKLRQWR

&XVKLRQVH

&XVKLRQVHW

&XVKLRQVH

0RGXOH



&XVKLRQGRZQ

&XVKLRQGRZQ

&XVKLRQGRZQ&XVKLRQGRZQ



FVFDUWRQ

FVFDUWRQ

FVFDUWRQSFVFDUWRQ



One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!



ರ+ರ7DSH



www.panelook.com

Global LCD Panel Exchange Center

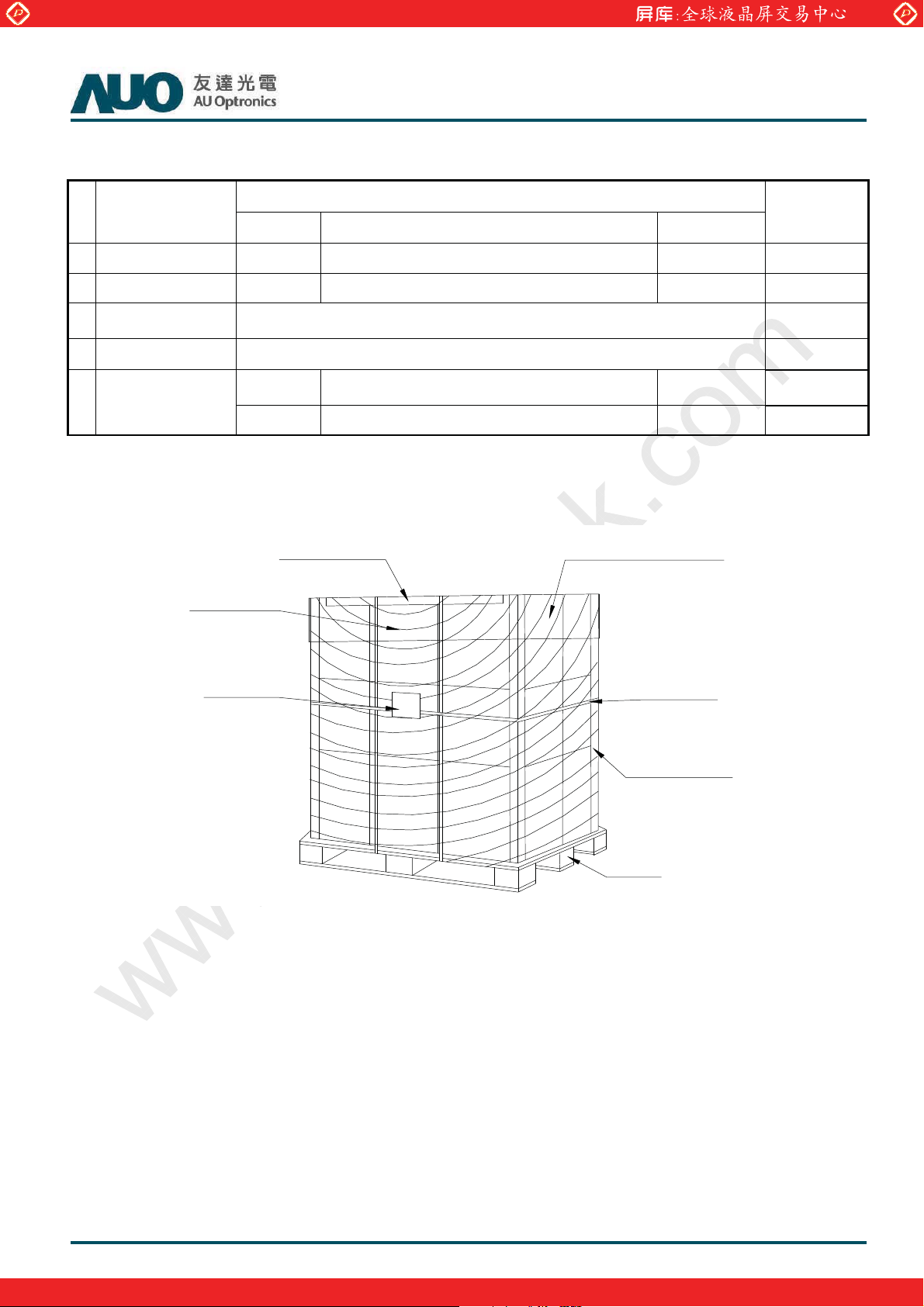

8-3 Pallet and Shipment Information

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

ʳ

Item

1 Packing Box 7pcs/box 1160(L)mm*375(W)mm*690(H)mm 75 ʳ

2 Pallet 1 1180(L)mm*1150(W)mm*132(H)mm 18 ʳ

3 Boxes per Pallet 3 boxes/Pallet (By Air) ; 3 Boxes/Pallet (By Sea) ʳ

4 Panels per Pallet 21pcs/pallet(By Air) ; 21 pcs/Pallet (By Sea) ʳ

after packing

Qty. Dimension Weight (kg)

21(by Air) 1180(L)mm*1150(W)mm*822(H)mm (by Air) 243 (by Air) ʳ5 Pallet

63(by Sea) 1180(L)mm*1150(W)mm*2466(H)mm (by Sea) 729 (by Sea) 40ft HQ

Corner angle

Specification

Moisture-proof film

Stretch film

Packing

Remark

Label

PET band

Corner angle

Pallet

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

10. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.

(2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied to

module. And the case on which a module is mounted should have sufficient strength so that external

force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit

broken by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface

of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives

used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because they cause

chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes

longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

be done by system manufacturers. Grounding and shielding methods may be important to minimize

the interface.

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain

that treatment persons are connected to ground through wristband etc. And don’t touch interface pin

directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

www.panelook.com

T460HW08 VB Product Specification

Rev.0 1

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5 and 35 at ккnormal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in

such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
