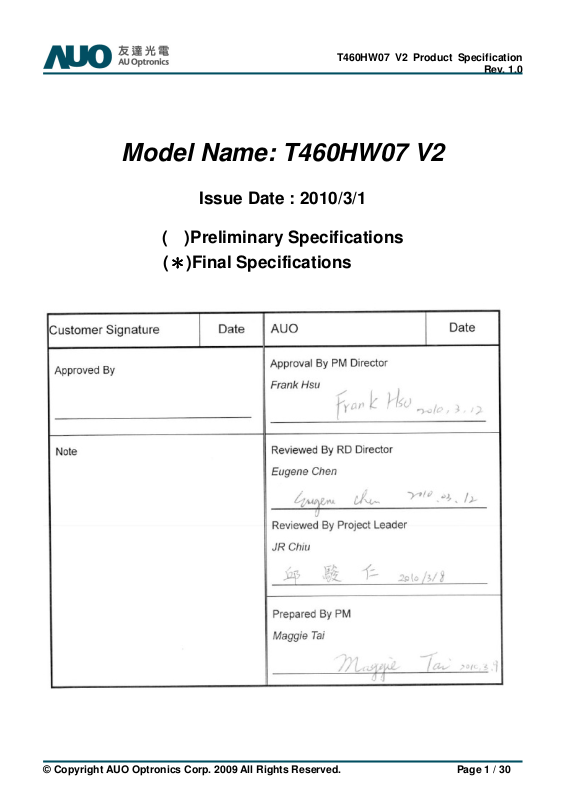

AUO T460HW07 V2 Specification

T460HW07 V2 Product Specification

Rev. 1.0

Model Name: T460HW07 V2

Issue Date : 2010/3/1

( )Preliminary Specifications

(＊＊＊＊)Final Specifications

T460HW07 V2 Product Specification

Rev. 1.0

Contents

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

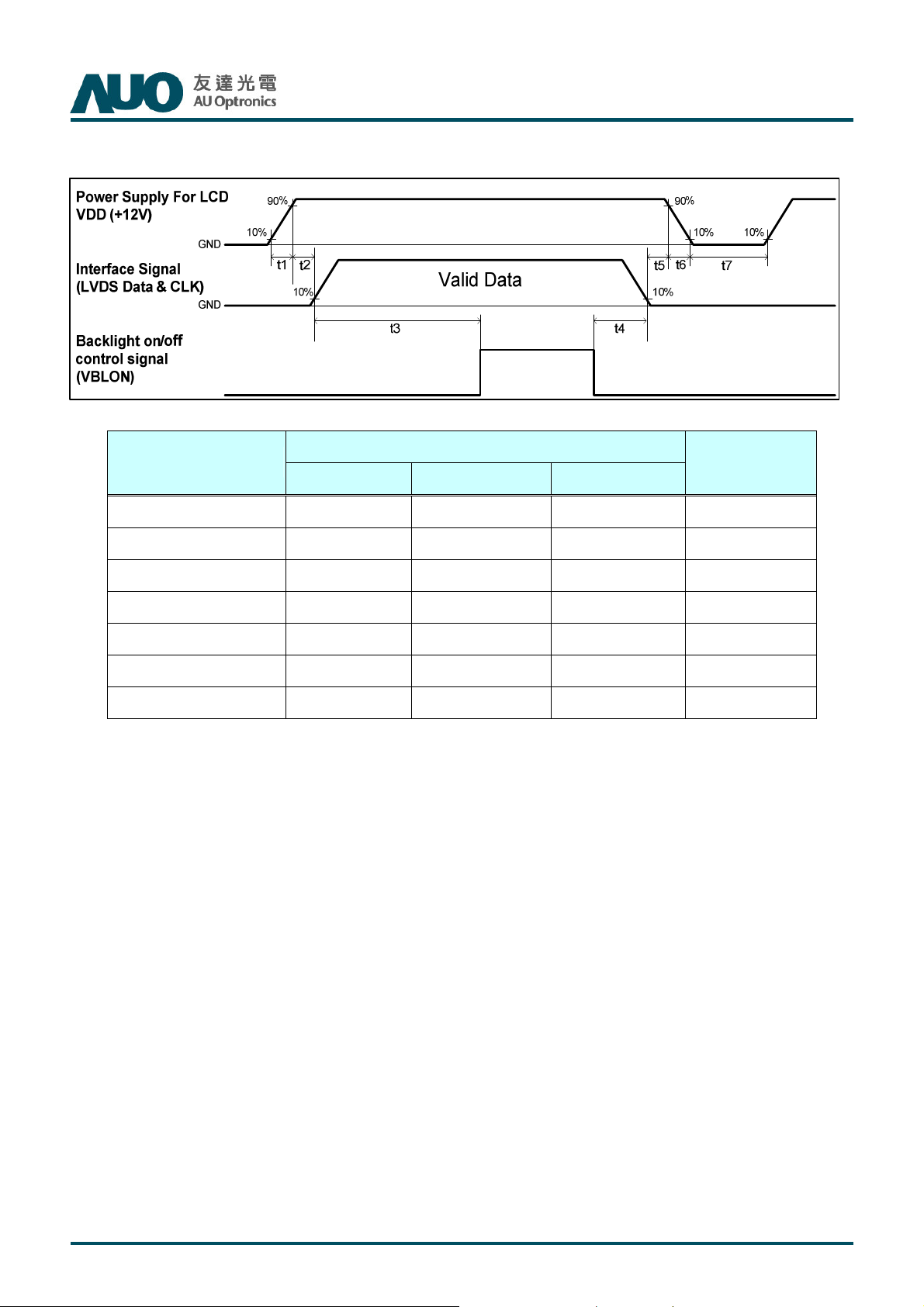

3-6 POWER SEQUENCE

3-7 BACKLIGHT SPECIFICATION

4 OPTICAL SPECIFICATION

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY TEST ITEMS

7 INTERNATIONAL STANDARD

7-1 SAFETY

7-2 EMC

8 PACKING

8-1 DEFINITION OF LABEL

8-2 PACKING METHODS

8-3 PALLET AND SHIPMENT INFORMATION

9 PRECAUTION

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECT FILM

Record of Revision

T460HW07 V2 Product Specification

Rev. 1.0

Version

1.0 2010/03/1

Date Page Description

First release

T460HW07 V2 Product Specification

Rev. 1.0

1. General Description

This specification applies to the 46 inch Color TFT-LCD Module T460HW07 V2. This LCD module has a TFT

active matrix type liquid crystal panel 1920 x 1080 pixels, and diagonal size of 46 inch. This module supports 1920

x 1080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.

The T460HW07 V2 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to

support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very

important.

* General Information

Items Specification Unit Note

Active Screen Size 46 inch

Display Area 1018.08(H) x 572.67(V) mm

Outline Dimension 1083.0(H) x 627.0(V) x 59.0(D) mm With Inverter

Driver Element a-Si TFT active matrix

Display Colors 8 bit, 16.7M Colors

Number of Pixels 1920 x 1080 Pixel

Pixel Pitch 0.53025 mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze=11%

T460HW07 V2 Product Specification

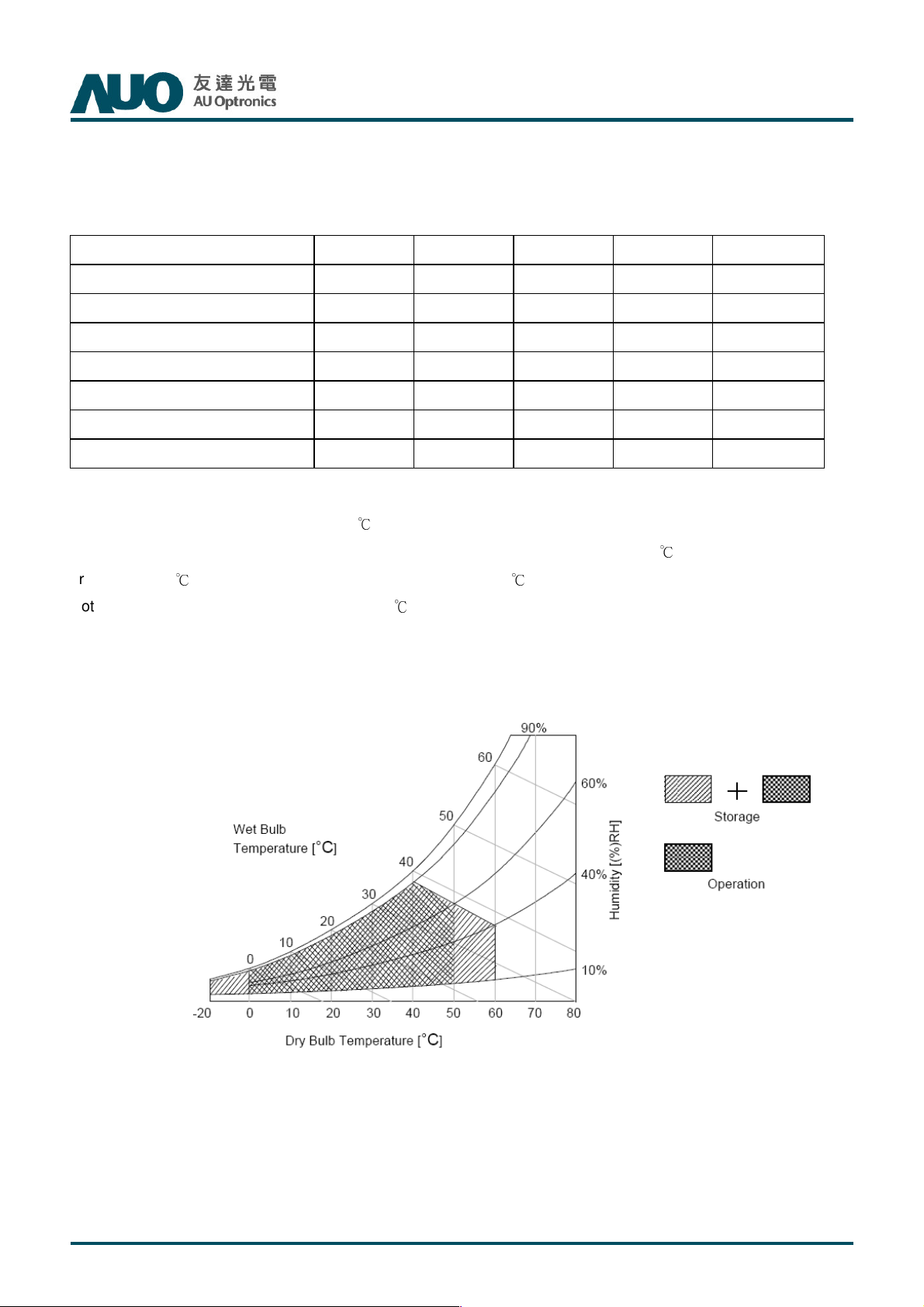

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 4 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2,4

Storage Humidity HST 10 90 [%RH] Note 2,4

Panel Surface Temperature PST - 65 [oC] Note 3

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃

Rev. 1.0

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures

greater than 40 , the wet bulb temperature must not exceed 39 .

Note 3: Surface temperature is measured at 50℃ Dry condition

Note 4:

Storage period should refer to RA criteria

℃ ℃

℃

s

µ

T460HW07 V2 Product Specification

Rev. 1.0

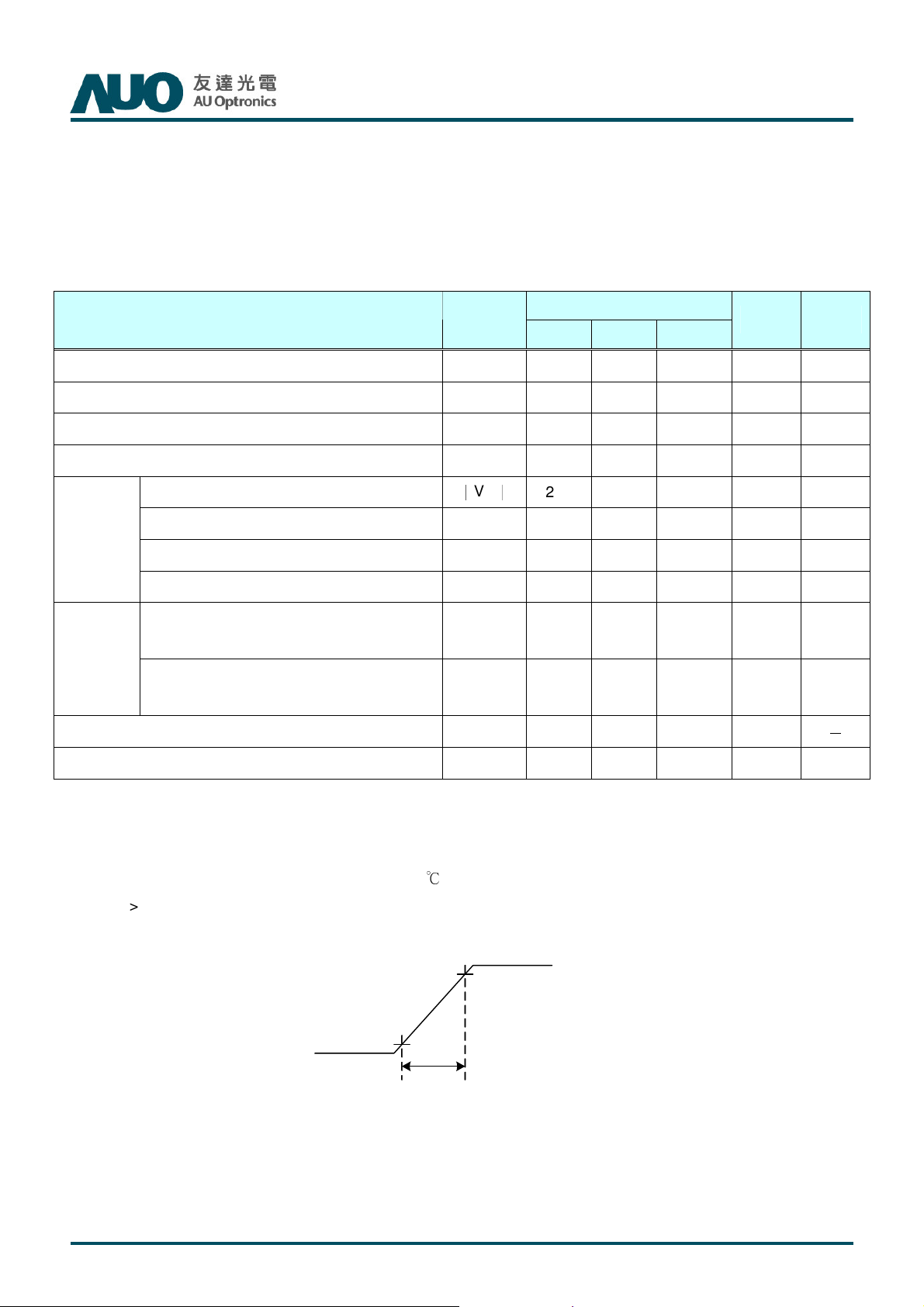

3. Electrical Specification

The T460HW07 V2 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT

array and liquid crystal. The second input for BLU is to power inverter.

3.1 Electrical Characteristics

Parameter Symbol

Unit Note

Min. Typ. Max

Power Supply Input Voltage VDD 10.8 12 13.2 VDC 1

Power Supply Input Current IDD -- 1.32 1.45 A 2

Value

Power Consumption PC -- 15.84

Inrush Current I

Input Differential Voltage

LVDS

Interface

Differential Input High Threshold Voltage VTH -- -- +100 mVDC 4

Differential Input Low Threshold Voltage VTL -100 -- -- mVDC 4

Input Common Mode Voltage V

-- -- 4.5 A 3

RUSH

∣

V

∣

ID

1.10 1.25 1.40 VDC 4

ICM

200 400 600 mVDC 4

17.40 Watt 2

VIH

CMOS

Interface

Input High Threshold Voltage

(High)

VIL

Input Low Threshold Voltage

2.7 -- 3.3 VDC --

0 -- 0.6 VDC --

(Low)

Backlight Power Consumption PBL 114 120 126 Watt --

Life Time 50,000

Note :

1. The ripple voltage should be controlled under 10% of VCC

2. V

= 12.0V, Fv = 60Hz, F

DD

= 82MHz , 25 , Test Pattern : White Pattern℃

CLK

>> refer to “Section:3.3 Signal Timing Specification, Typical timing”

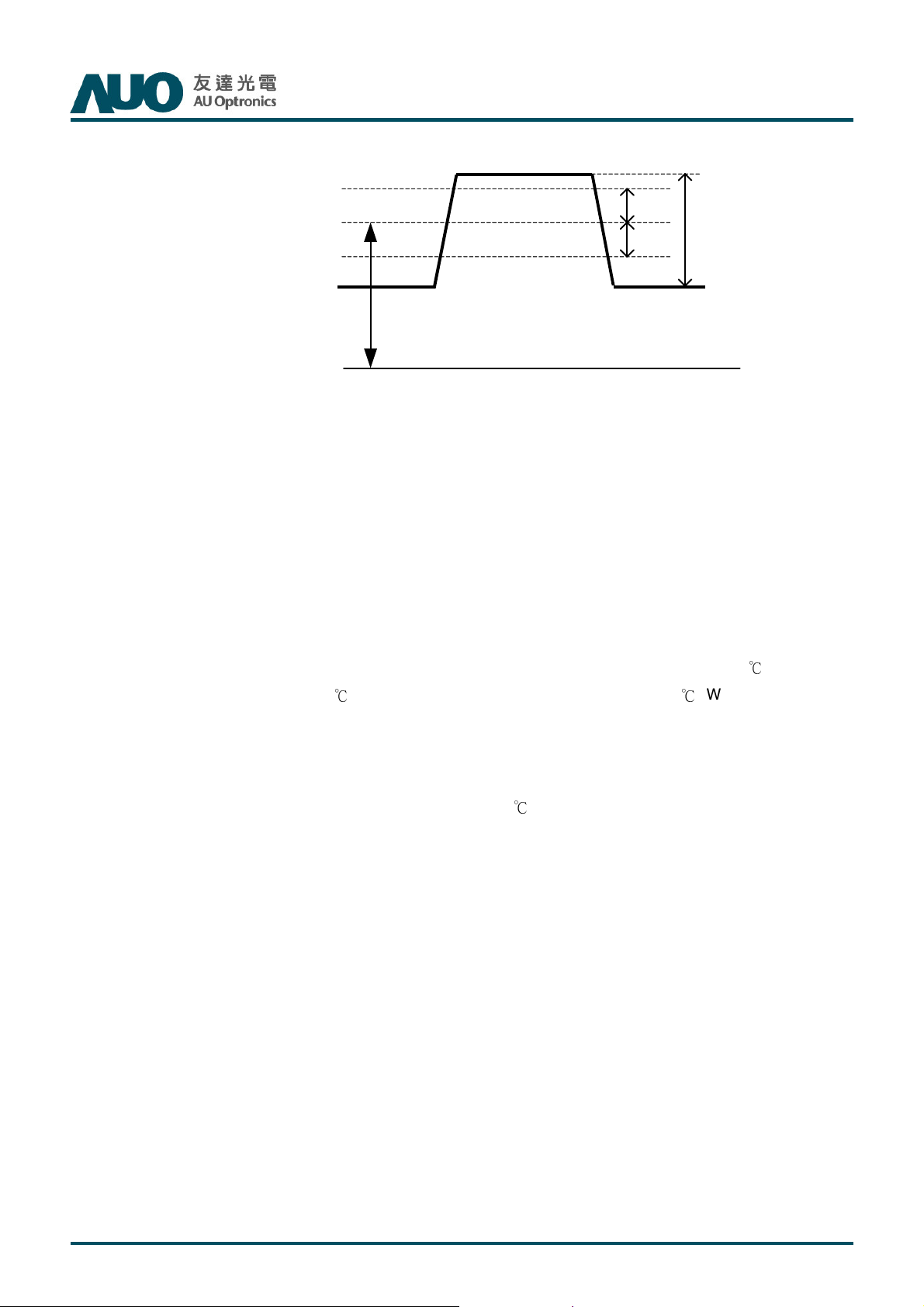

3. Measurement condition : Rising time = 400us

VVVV

DD

DDDD

GND

GNDGND

10%

400

400400

90%

-- Hours 5,6,7,8

T460HW07 V2 Product Specification

4. V

= 1.25V

ICM

VVVV

ICM

ICMICM

VVVV

TH

THTH

||||VVVV

||||

ID

IDID

VVVV

TL

TLTL

0000VVVV

5. The performance of the Lamp in LCM, for example life time or brightness, is extremely influenced by the

characteristics of the DC-AC Inverter. So all the parameters of an inverter should be carefully designed so

as not to produce too much leakage current from high-voltage output of the inverter. When you design or

Rev. 1.0

order the inverter (no light, flicker, etc) never occurs. When you confirm it, the LCD Assembly should be

operated in the same condition as installed in your instrument.

6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,

TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage current

occurs between lamp wire and conducting tape.

7. The relative humidity must not exceed 80% non-condensing at temperatures of 40℃ or less. At

temperatures greater than 40℃, the wet bulb temperature must not exceed 39℃. When operate at low

temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced.

8. Specified values are for a single lamp only which is aligned horizontally. The lifetime is defined as the time

which luminance of the lamp is 50% compared to its original value.

[Operating condition: Continuous operating at Ta = 25±2℃]

T460HW07 V2 Product Specification

3.2 Interface Connections

 LCD connector: CN1:FI-RE51S-HF (JAE, LVDS connector)

PIN Symbol Description PIN Symbol Description

Rev. 1.0

1

2

3

4

5

6 Reserved

7

8

9

10

11

12

13

14

15

16

VDD Power Supply, +12V DC Regulated 26

VDD Power Supply, +12V DC Regulated 27

VDD Power Supply, +12V DC Regulated 28

VDD Power Supply, +12V DC Regulated 29

VDD Power Supply, +12V DC Regulated 30

AUO Internal Use Only 31

GND Ground 32

GND Ground 33

GND Ground 34

CH1_0- LVDS Channel 1, Signal 0-

CH1_0+ LVDS Channel 1, Signal 0+

CH1_1- LVDS Channel 1, Signal 1-

CH1_1+ LVDS Channel 1, Signal 1+

CH1_2- LVDS Channel 1, Signal 2-

CH1_2+ LVDS Channel 1, Signal 2+

GND Ground

CH2_0+ LVDS Channel 2, Signal 0+

CH2_1- LVDS Channel 2, Signal 1-

CH2_1+ LVDS Channel 2, Signal 1+

CH2_2- LVDS Channel 2, Signal 2-

CH2_2+ LVDS Channel 2, Signal 2+

GND Ground

CH2_CLK-

CH2_CLK+

GND Ground

35

36

37

38

39

40

41

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

Reserved AUO Internal Use Only

GND Ground

SCL EEPROM Serial Clock

SDA EEPROM Serial Data

LVDS Channel 2, Clock -

LVDS Channel 2, Clock +

17

18

19

20

21

22

23

24

25

CH1_CLK-

CH1_CLK+

GND Ground

CH1_3- LVDS Channel 1, Signal 3-

CH1_3+ LVDS Channel 1, Signal 3+

Reserved

GND Ground

CH2_0- LVDS Channel 2, Signal 0-

LVDS Channel 1, Clock -

LVDS Channel 1, Clock +

AUO Internal Use Only

51

42

43

44 Panel_SEL reserve 0603 footprint of resistor to ground

45 LVDS_SEL

46 OD_SEL

47

48

49

50 TCON_RDY

NC No connection

EEPROM Write Protection

WP

NC No connection

High(3.3V) for Writable,

Low(GND) for Protection

Open/High(3.3V) for NS,

Low(GND) for JEIDA

Open/Low(GND): OD on,

High(3.3V): OD off

Connect 220ohm resistance to 3.3V

LVDS Option = High/OpenNS

P re v io u s C ycle C urrent C ycle N e x t C yc le

P re v io u s C ycle C urrent C ycle N e x t C yc le P re v io u s C ycle C urrent C ycle N e x t C yc le

C loc k

C loc kC loc k

C H x

C H x____ 0000 ++++

C H xC H x C H x

C H x____ 0000 ----

C H xC H x

C H x

C H x____ 1111 ++++

C H xC H x C H x

C H x____ 1111 ----

C H xC H x

C H x

C H x____ 2222 ++++

C H xC H x C H x

C H x____ 2222 ----

C H xC H x

D EBBBB 2222BBBB 3333 BBBB 4444BBBB 5555N A

D ED E

N A D E

N AN A

N A BBBB 3333

N AN A

T460HW07 V2 Product Specification

Rev. 1.0

RRRR 0000RRRR 5555 GGGG 0000GGGG 0000RRRR 0000RRRR 1111 RRRR 2222RRRR 3333RRRR 4444 RRRR 1111

GGGG 1111BBBB 0000 BBBB 1111BBBB 1111GGGG 1111GGGG 2222 GGGG 3333GGGG 4444GGGG 5555 GGGG 2222

BBBB 2222N A

D ED E

C H x

C H x____ 3333 ++++

C H xC H x C H x

C H x____ 3333 ----

C H xC H x

Note: x = 1, 2, 3, 4…

LVDS Option = Low/GNDJEIDA

Previo u s C yc le C urr e n t C ycle N e x t C ycle

Previo u s C yc le C urr e n t C ycle N e x t C ycle Previo u s C yc le C urr e n t C ycle N e x t C ycle

C lock

C lockC lock

C H x

C H x ____0000 ++++

C H xCH x C H x

C H x ____0000 ----

C H xCH x

C H x

C H x ____1111 ++++

C H xCH x C H x

C H x ____1111 ----

C H xCH x

C H x

C H x ____2222 ++++

C H xCH x C H x

C H x ____2222 ----

C H xCH x

D EBBBB 4444BBBB 5555 BBBB 6666BBBB 7777NA

D EDE

N ARRRR 6666RRRR 7777 GGGG 6666GGGG 7777BBBB 6666 RRRR 7777

N AN A

RRRR 2222RRRR 7777 GGGG 2222GGGG 2222RRRR 2222RRRR 3333 RRRR 4444RRRR 5555RRRR 6666 RRRR 3333

GGGG 3333BBBB 2222 BBBB 3333BBBB 3333GGGG 3333GGGG 4444 GGGG 5555GGGG 6666GGGG 7777 GGGG 4444

N A D E

N ANA

N A BBBB 5555

N ANA

BBBB 4444N A

RRRR 6666BBBB 7777 N A

D ED E

D EDE

N AN A

C H x

C H x ____3333 ++++

C H xCH x C H x

C H x ____3333 ----

C H xCH x

N ARRRR 0000RRRR 1111 GGGG 0000GGGG 1111BBBB 0000 RRRR 1111

N ANA

RRRR 0000BBBB 1111 N A

N AN A

N ANA

Note: x = 1, 2, 3, 4…

T460HW07 V2 Product Specification

Rev. 1.0

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1090 1125 1480 Th

Vertical Section

Horizontal Section

Clock Frequency Fclk=1/Tclk 50 74.25 82 MHz

Vertical Frequency Frequency Fv 47 60 63 Hz

Horizontal Frequency Frequency Fh 60 67.5 73 KHz

Notes:

(1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the

left edge of the screen.

(2) Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen.

Active Tdisp (v) 1080 Th

Blanking Tblk (v) 10 45 400 Th

Period Th 1030 1100 1325 Tclk

Active Tdisp (h) 960 Tclk

Blanking Tblk (h) 70 140 365 Tclk

(3) If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

(4) The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

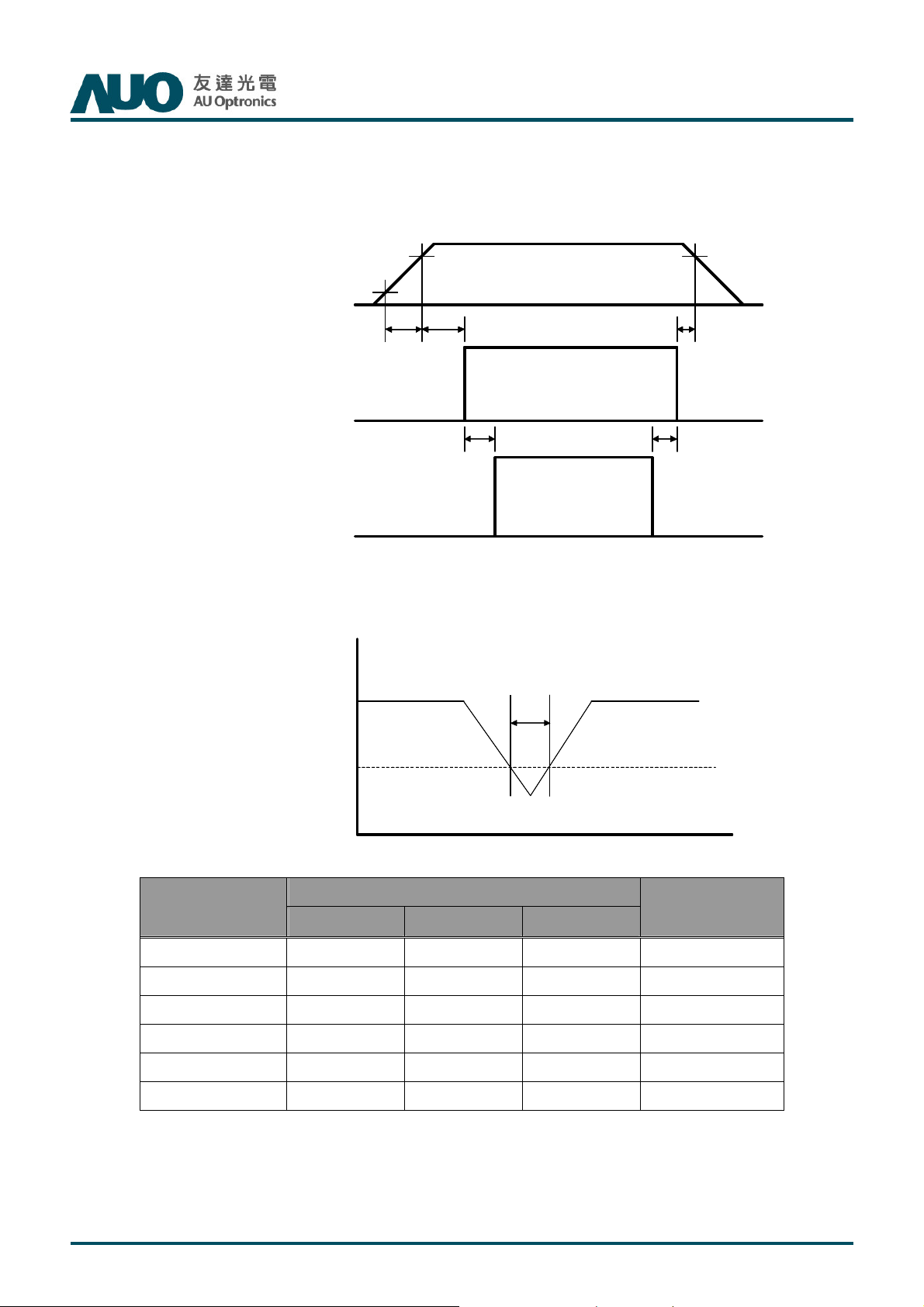

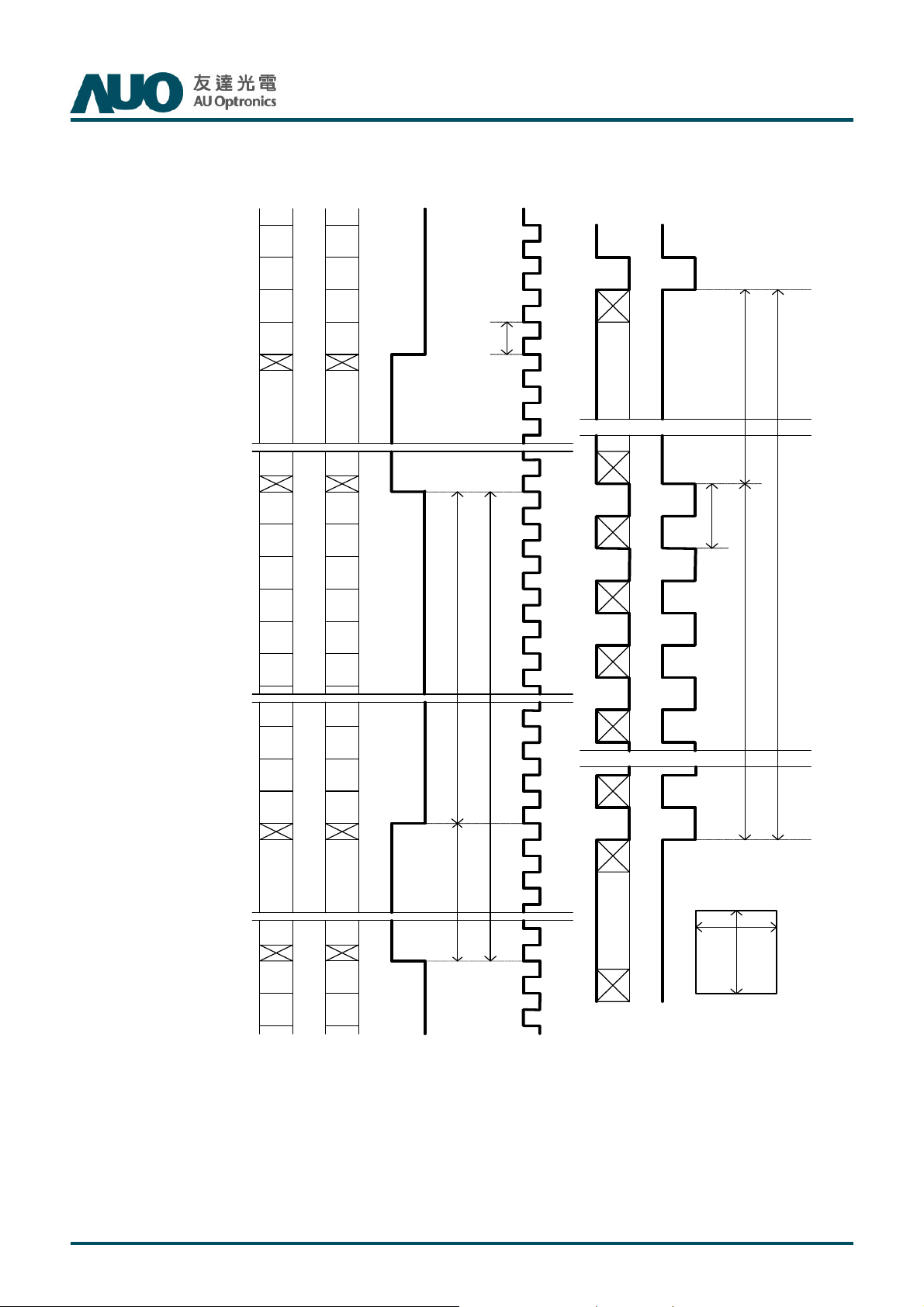

3.4 Signal Timing Waveforms

T460HW07 V2 Product Specification

Rev. 1.0

CH2

Pixel

M-6

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

6

Pixel

8

Pixel

10

Pixel

12

CH1

Pixel

M-7

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Pixel

5

Pixel

7

Pixel

9

Pixel

11

DE

Tdisp(h) Tblk(h)

CLK

RGB

Data

Line

N

Tclk

Invalid Data Invalid Data

Line

1

Line

2

Th

Line

3

Line

4

DE

Th

Tv

Tdisp(v)Tblk(v)

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Line

N

N L in e

N L in eN L in e

M

M p

p

p i

i

x

x e

e

e l

l

T460HW07 V2 Product Specification

Rev. 1.0

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

Color Data Reference

Input Color Data

Basic

Color

R

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

G

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

----

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

3.6 Power Sequence for LCD

T460HW07 V2 Product Specification

Rev. 1.0

Parameter

Values

Min. Type. Max.

t1 0.4 --- 30 ms

t2 0.1 --- --- ms

t3 300 --- --- ms

t4 0*1 --- --- ms

t5 0 --- --- ms

t6 --- --- ---*2 ms

t7 500 --- --- ms

Note: (1) T4=0 : concern for residual pattern before BLU turn off. (2) T6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value)

Unit

T460HW07 V2 Product Specification

3.7 Backlight Specification

The backlight unit contains 12 CCFLs (Cold Cathode Fluorescent Lamp)

3.7.1: Electrical specification

Spec

Item Symbol Condition

Min Typ Max

Input Voltage VDDB - 21.6 24 26.4 VDC -

Rev. 1.0

Unit Note

Input Current I

Input Power P

Inrush Current I

On/Off control voltage V

On/Off control current

BLON

Dimming Control Voltage V_DIM

Dimming Control Current

Internal Dimming Ratio

External PWM

Control Voltage

External PWM

Control Current

I_DIM VDDB=24V - - 2 mADC -

DIM_R VDDB=24V 10 - 100 % 3

V_EPWM

I_EPWM VDDB=24V - - 2 mADC -

VDDB=24V 4.75

DDB

VDDB=24V 114 120 126 W 1

DDB

VDDB=24V - - 7.875 ADC 2

RUSH

5 5.25 ADC 1

ON 3.3 - 5.5

OFF

I

VDDB=24V - - 1.5 mA

BLON

MAX

VDDB=24V

0 - 0.8

3.0 - 3.3 VDC -

VDDB=24V

MIN

- 0 - VDC -

MAX VDDB=24V 2 - 3.3

MIN VDDB=24V 0 - 0.8

-

VDC

-

VDC

-

External PWM Duty ratio

External PWM

Frequency

Note 1 : Dimming ratio= 100% (MAX)（Ta=25±5 , Turn on for 45minutes

D_EPWM VDDB=24V 10 - 100 % 3

F_EPWM VDDB=24V 140 180 240 Hz -

℃

）

Note 2: Measurement condition Rising time = 20ms (VDDB : 10%~90%); Note 3: Less than10% dimming control is functional well and no backlight shutdown happened.

3.7.2: Input Pin Assignment

CN2:

CI0114M1HRL-NH (Cvilux)

Pin Symbol Description

1 VDDB Operating Voltage Supply, +24V DC regulated

2 VDDB Operating Voltage Supply, +24V DC regulated

3 VDDB Operating Voltage Supply, +24V DC regulated

4 VDDB Operating Voltage Supply, +24V DC regulated

5 VDDB Operating Voltage Supply, +24V DC regulated

6 BLGND Ground and Current Return

7 BLGND Ground and Current Return

T460HW07 V2 Product Specification

Rev. 1.0

8 BLGND Ground and Current Return

9 BLGND Ground and Current Return

10 BLGND Ground and Current Return

11 DET

12 VBLON

13 VDIM(**)

14 PDIM(*)

BLU status detection:

Normal : 0~0.8V ; Abnormal : Open collector

BLU On-Off control:

High/Open (3.3V~5.5V) : BL On ;

Low (0~0.8V/GND) : BL off

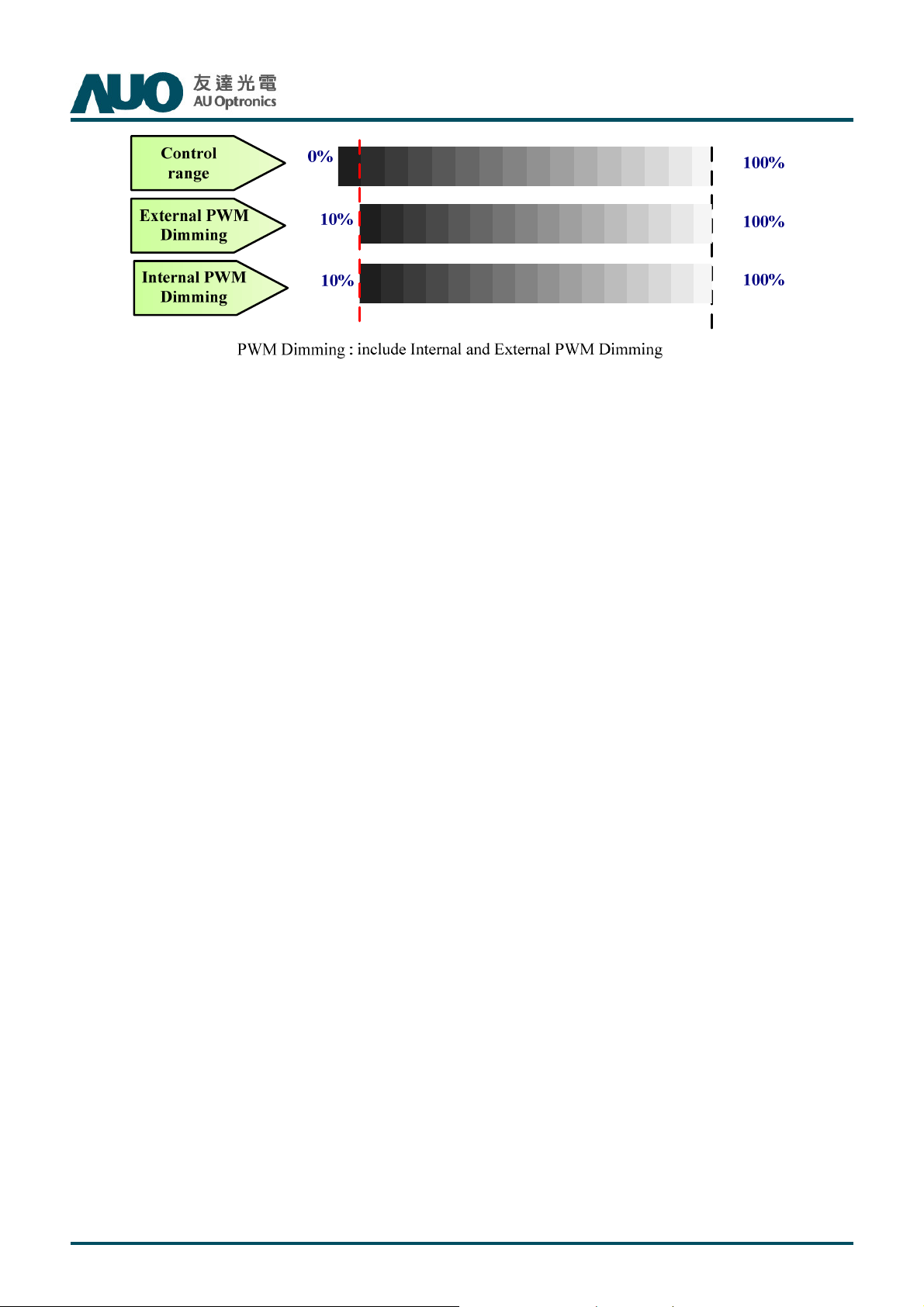

Internal PWM (0~3.3V for 10~100% Duty, open for 100%)

< NC ; at External PWM mode>

External PWM (10%~100% Duty, open for 100%)

< NC ; at Internal PWM mode>

T460HW07 V2 Product Specification

(Note*) IF External PWM function includes 10% dimming ratio. Judge condition as below:

1.) Backlight module must be lighted ON normally.

2.) All protection function must work normally.

3.) Uniformity and flicker could NOT be guaranteed!

Rev. 1.0

3.7.3 Power Sequence for Inverter

10%

Power Input for BLU

(VDDB)

Dimming Control Signal

(VDIM)

10%

T460HW07 V2 Product Specification

24V(typ.)

90% 90%

T1 T2

24V(typ.)

T3 T4

T3 T4T4

T5

Rev. 1.0

BLU On/Off Enable

(VBLON)

Dip condition for Inverter

Power Input for BLU

(VDDB)

VDDB(typ.)*0.8

Parameter

T1 20 - - ms

T6

Value

Min Typ Max

Units

T2 500 - - ms

T3 250 - - ms

T4 0 - - ms

T5 1 - - ms

T6 - - 10 ms

T460HW07 V2 Product Specification

Rev. 1.0

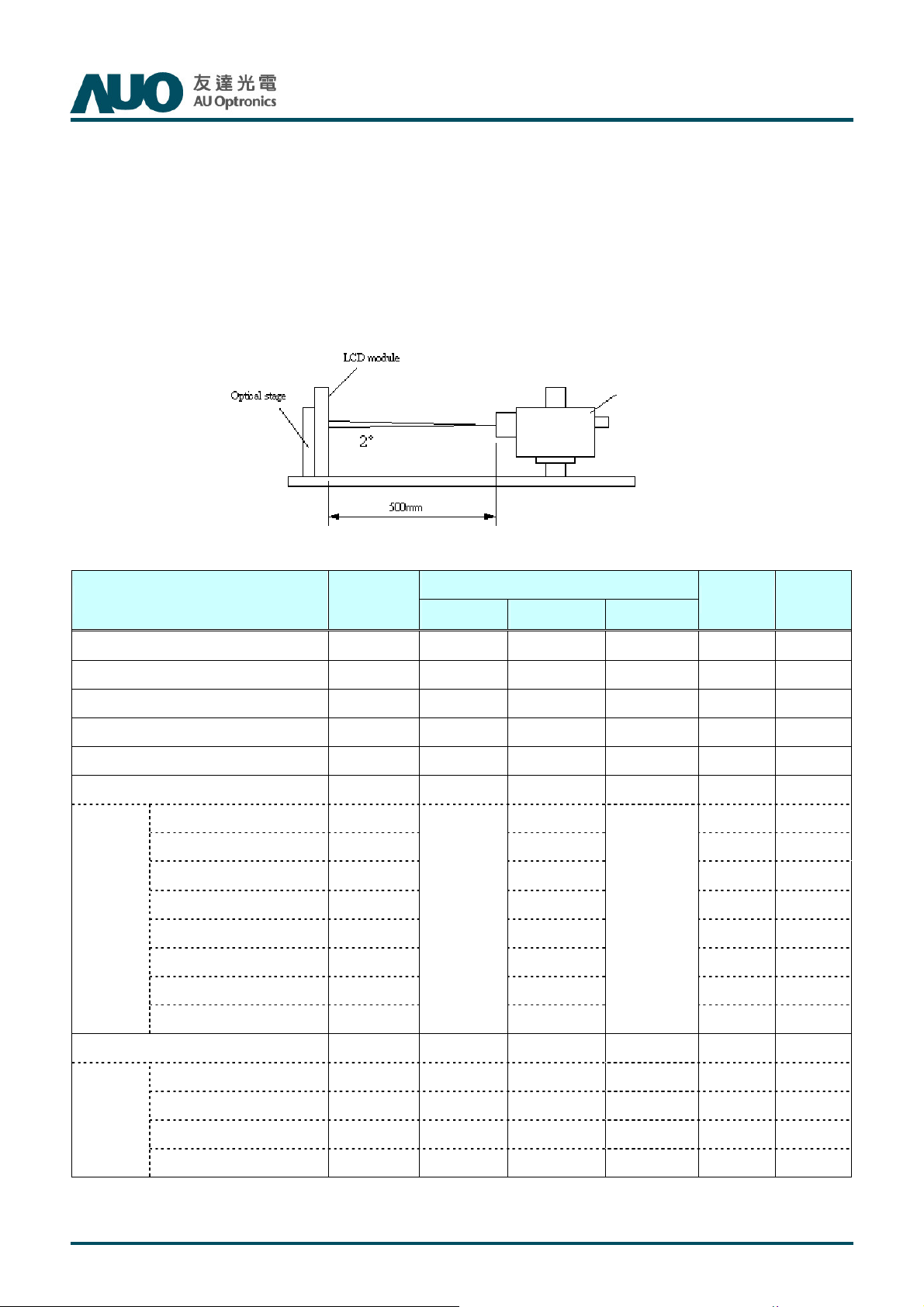

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a

dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max

Contrast Ratio CR 4,000 5,000 -- 1

Surface Luminance (White) LWH 360 450 -- cd/m2 2

Luminance Variation δ

Response Time (G to G) Tγ -- 6.5 -- Ms 4

Color Gamut NTSC 72 %

Color Coordinates

Red RX 0.645

RY 0.330

Green GX 0.290

GY 0.615

Blue BX 0.145

BY 0.055

WHITE(9P)

-- -- 1.3 3

Typ.-0.03

Values

Unit Notes

Typ.+0.03

White WX 0.280

WY

Viewing Angle 5

Note:

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θ

-- 89 -- degree

d

0.290

2 3

7

T460HW07 V2 Product Specification

Rev. 1.0

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

Surface Luminance of

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

displaying white. From more information see FIG 2. When lamp current IH = 5mA. LWH=Lon5 where Lon5 is

the luminance with all pixels displaying white at center 5 location.

3. The variation in surface luminance, δWHITE is defined (center of Screen) as:

L

on5

off5

δ

WHITE(9P)

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

4. Response time Tγ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.

Target Measured

Response Time

0% 25% 50% 75% 100%

0% 0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% 25% to 0% 25% to 50% 25% to 75% 25% to 100%

Start

50% 50% to 0% 50% to 25%

75% 75% to 0% 75% to 25% 75% to 50%

50% to 75% 50% to 100%

75% to 100%

100% 100% to 0% 100% to 25% 100% to 50% 100% to 75%

4. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG3.

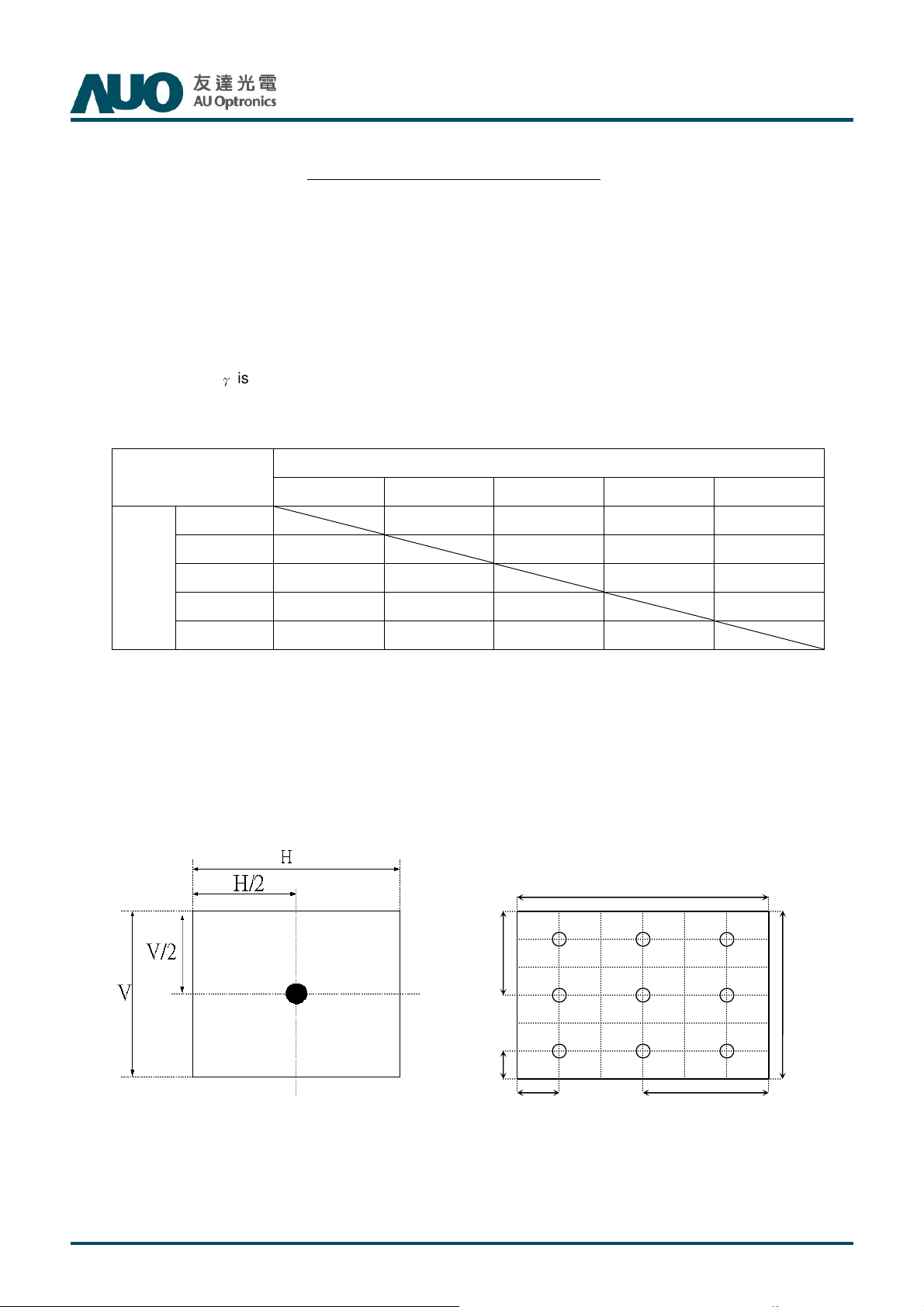

FIG. 2 Luminance

H/2

H/6

V

1

H

V/2 V/6

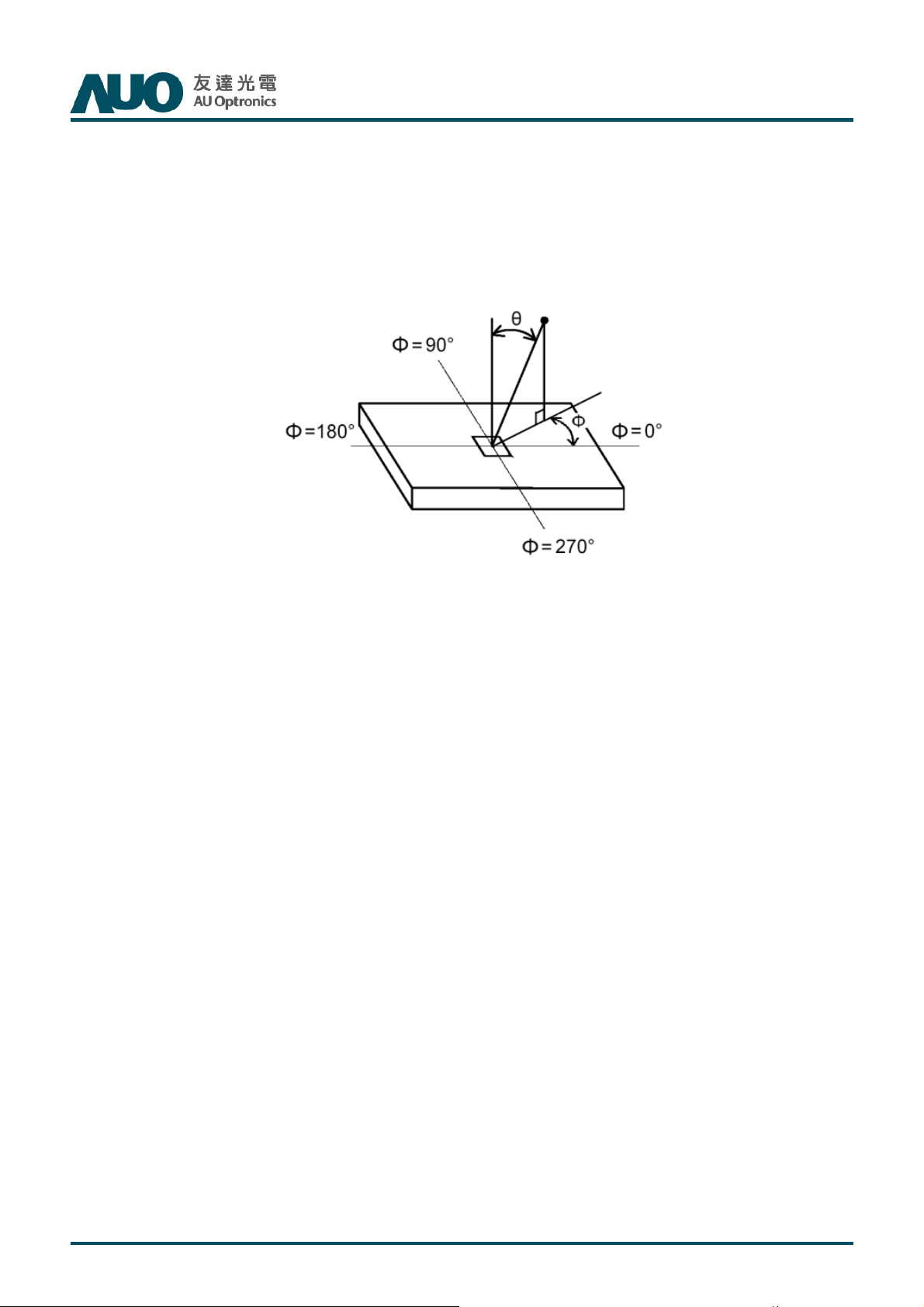

FIG.3 Viewing Angle

T460HW07 V2 Product Specification

Rev. 1.0

T460HW07 V2 Product Specification

Rev. 1.0

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T460HW07 V2. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Horizontal 1083.0mm

Outline Dimension

Bezel Opening

Active Display Area

Weight 13000 g(Typ.)

Surface Treatment AG, Haze=11%, 3H

Vertical 627.0mm

59.0mm

Depth

(w/ inverter & shielding)

Horizontal 1024.9 mm

Vertical 578.6 mm

Horizontal 1018.08 mm

Vertical 572.67 mm

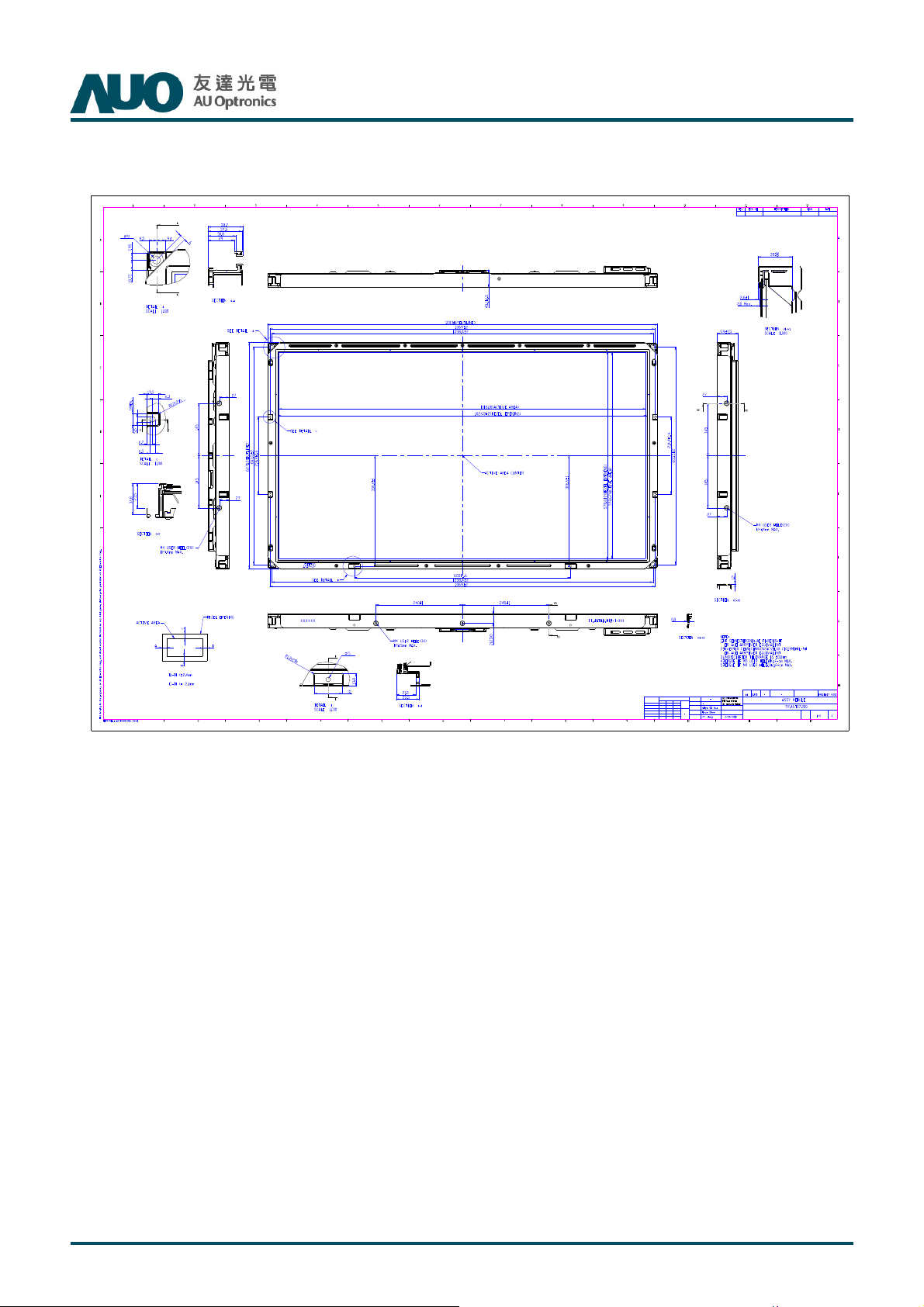

Front View

T460HW07 V2 Product Specification

Rev. 1.0

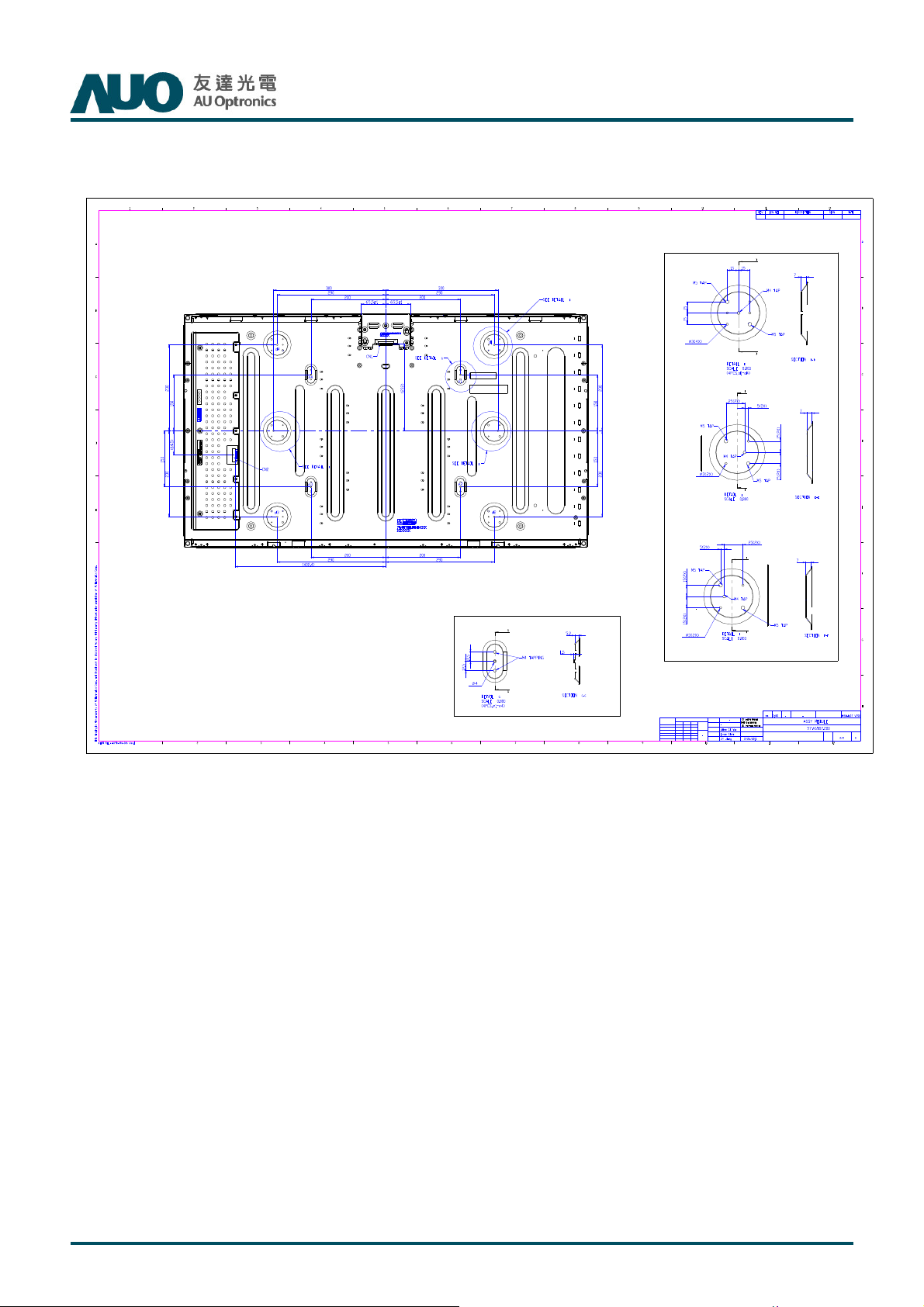

Back View

T460HW07 V2 Product Specification

Rev. 1.0

6. Reliability Test Items

T460HW07 V2 Product Specification

Rev. 1.0

1 High temperature storage test 3 60℃, 300hrs

2 Low temperature storage test 3 -20℃, 300hrs

3 High temperature operation test 3 50℃, 300hrs

4 Low temperature operation test 3 -5℃, 300hrs

5 Vibration test (non-operation) 3

6 Shock test (non-operation) 3

7 Vibration test (With carton) 1(PCK)

Test Item Q’ty Condition

Wave form : random

Vibration level : 1.5G RMS

Bandwidth: 10-300Hz

Duration: X, Y, Z 30min

One time for each direction

Shock level: 50G

Waveform: half since wave, 11ms

Direction: ±X, ±Y, ±Z, One time each direction

Random wave (1.5G RMS, 10-200Hz)

30mins/ Per each X,Y,Z axes

8 Drop test (With carton) 1(PCK)

Drop Height: 25.4 cm (ASTMD4169-I)

6 surfaces (refer ASTM D 5276)

7. International Standard

7.1 Safety

(1) UL 60950-1, UL 60065; Standard for Safety of Information Technology Equipment Including

electrical Business Equipment.

(2) IEC 60950-1 : 2001, IEC 60065:2001 ; Standard for Safety of International Electrotechnical

Commission

(3) EN 60950 : 2001+A11, EN 60065:2002+A1:2006; European Committee for Electrotechnical

Standardization (CENELEC), EUROPEAN STANDARD for Safety of Information Technology

Equipment Including Electrical Business Equipment.

7.2 EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI),

T460HW07 V2 Product Specification

Rev. 1.0

1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),

1998

QTY:6

Manufactured

XX/XX

MADE IN

X

XXXX

8. Packing

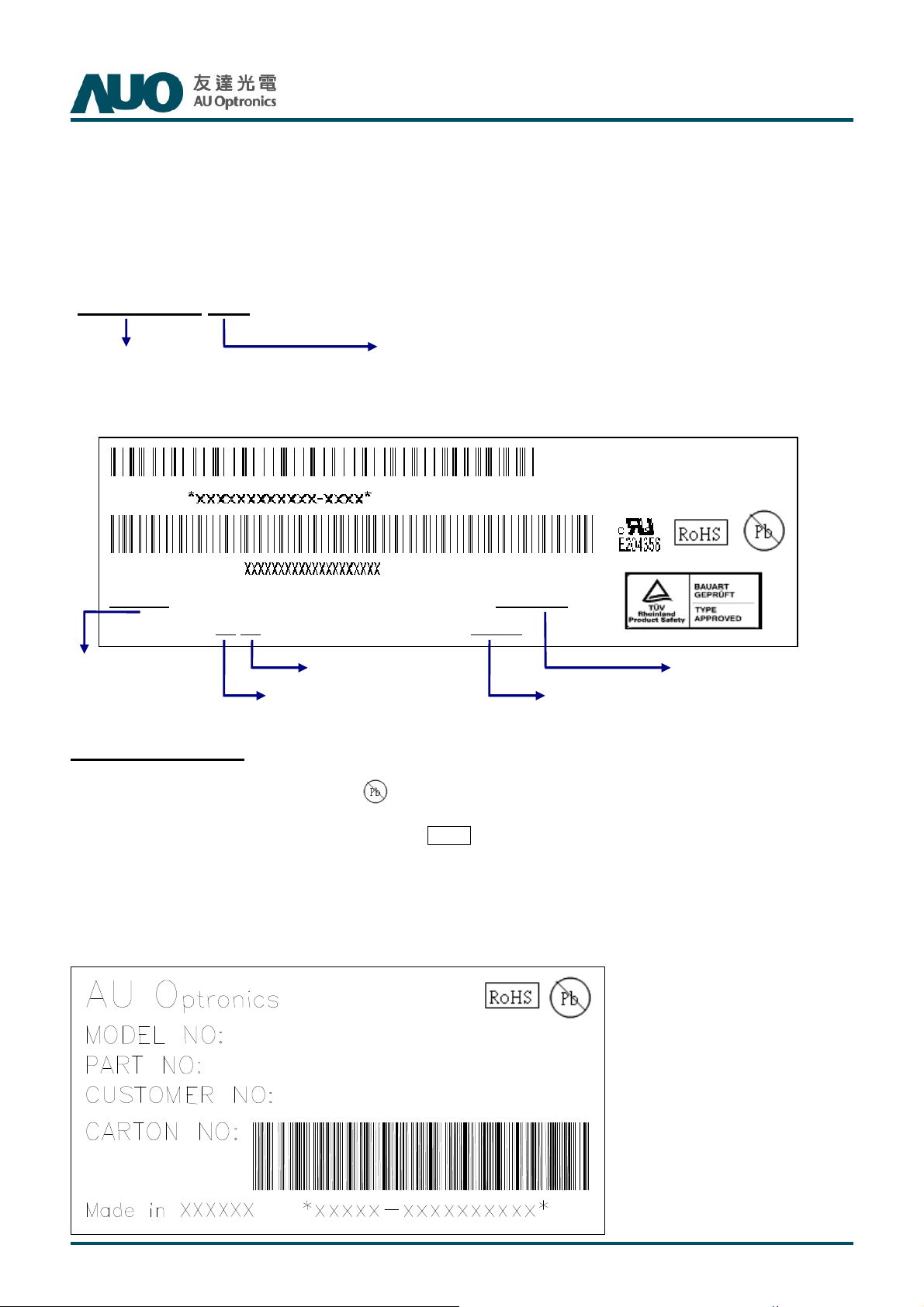

8-1 Definition of Label :

A. Panel Label:

*xxxxxxxxxxxx-xxxx*

T460HW07 V2 Product Specification

Rev. 1.0

Panel Unique ID

AUO Internal Use

XXXXX Model NO: T460HW07 V.2 XXXXXXX

AUO Internal Use

Week

Year

Green mark description

AU Optronics

Fab Location

AUO Internal Use

(1) For Pb Free Product, AUO will add for identification.

(2) For RoHs compatible products, AUO will add RoHS for identification.

Note: The green Mark will be present only when the green documents have been ready by AUO internal green

team. (definition of green design follows the AUO green design checklist.)

B. Carton Label:

T460HW07 V2

97.46T07.XXX

6pcs Modules

1pcs Module/ESD Bag

Cushion top

Module

6pcs / 1 carton

”

H ” Tape

Cushion down

Cushion set

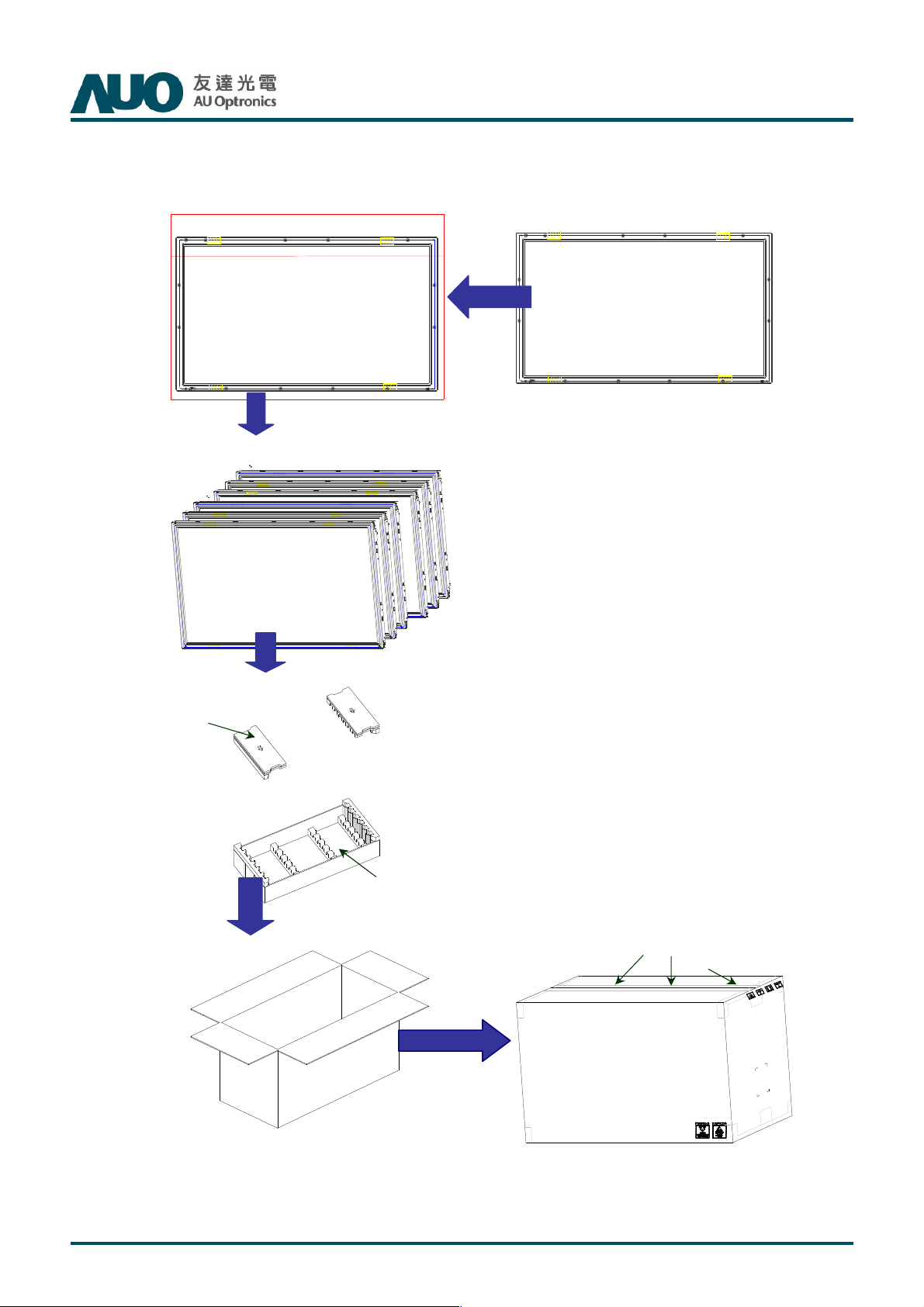

8-2 Packing Methods:

T460HW07 V2 Product Specification

Rev. 1.0

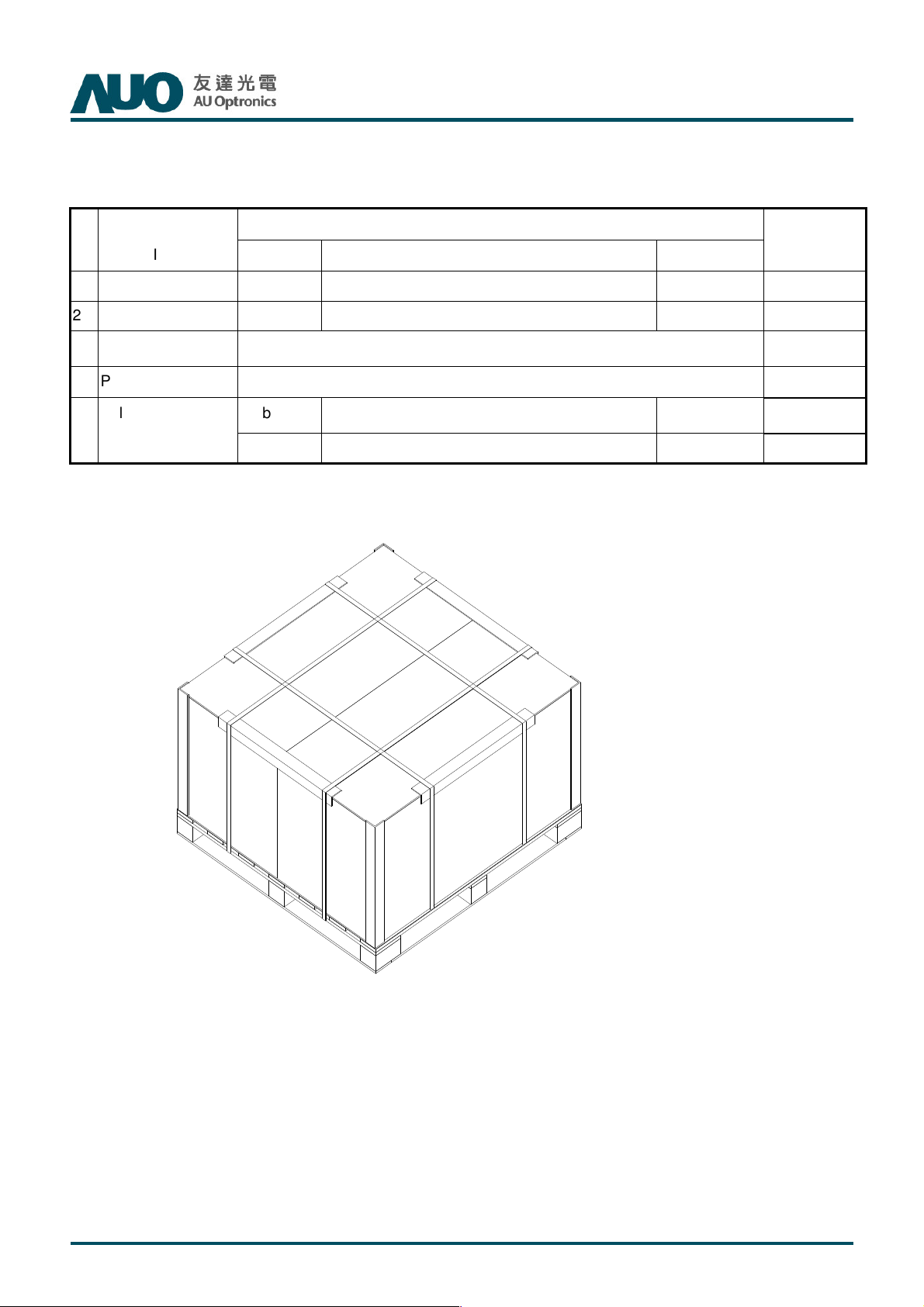

8-3 Pallet and Shipment Information

T460HW07 V2 Product Specification

Rev. 1.0

Specification

Item

1 Packing Box 6 pcs/box 1160(L)mm*547(W)mm*680(H)mm 97

2 Pallet 1 1180(L)mm*1150(W)mm*132(H)mm 18

3 Boxes per Pallet 2 boxes/Pallet (By Air) ; 2 Boxes/Pallet (By Sea)

4 Panels per Pallet 12pcs/pallet(By Air) ; 12 pcs/Pallet (By Sea)

after packing

Qty. Dimension Weight (kg)

12(by Air) 1180(L)mm*1150(W)mm*812(H)mm (by Air) 212 (by Air)

36(by Sea) 1180(L)mm*1150(W)mm*2436(H)mm (by Sea) 636 (by Sea) 40ft HQ

Packing

Remark

5 Pallet

T460HW07 V2 Product Specification

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.

(2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied

to module. And the case on which a module is mounted should have sufficient strength so that

external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

Rev. 1.0

generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit

broken by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the

surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials

like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the

adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because

they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4) Brightness of LED depends on the temperature. And in lower temperature, response time (required

time that brightness is stable after turned on) becomes longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall

be done by system manufacturers. Grounding and shielding methods may be important to minimize

the interface.

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain

that treatment persons are connected to ground through wristband etc. And don’t touch interface pin

directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

T460HW07 V2 Product Specification

Rev. 1.0

temperature between 5 and 35 at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

℃ ℃

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or

in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.
