AUO T460HW03 VD Specification

Download

Page 1

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 2

Global LCD Panel Exchange Center

Document Version: 1.0

www.panelook.com

Date: 2009/10/13

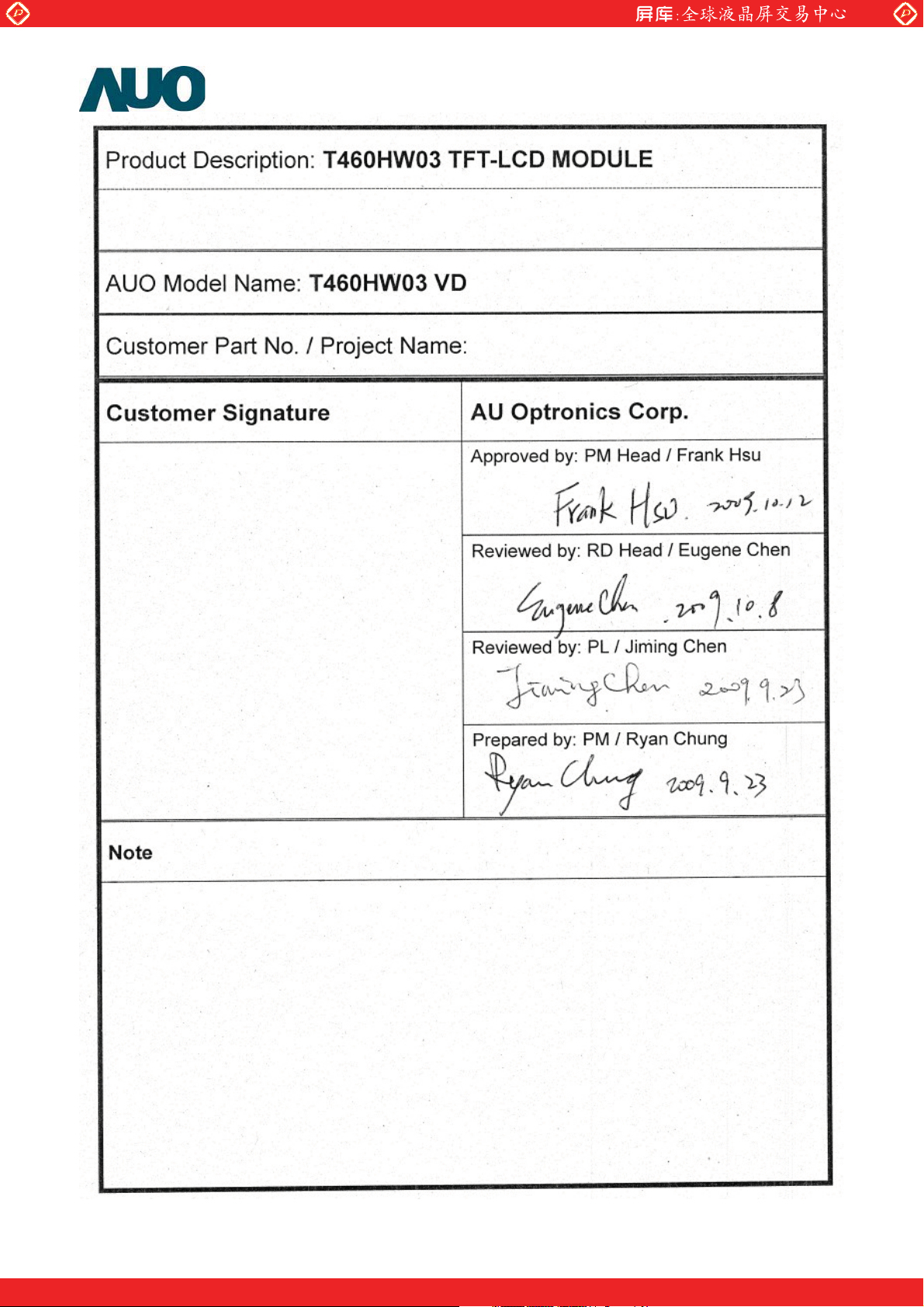

Product Functional Specification

46” Full HD Color TFT-LCD Module

Model Name: T460HW03 VD

() Preliminary Specification

(*) Final Specification

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 3

Global LCD Panel Exchange Center

www.panelook.com

Contents

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTOR

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE

3-7 BACK LIGHT POWER SPECIFICATION

4 OPTICAL SPECIFICATION

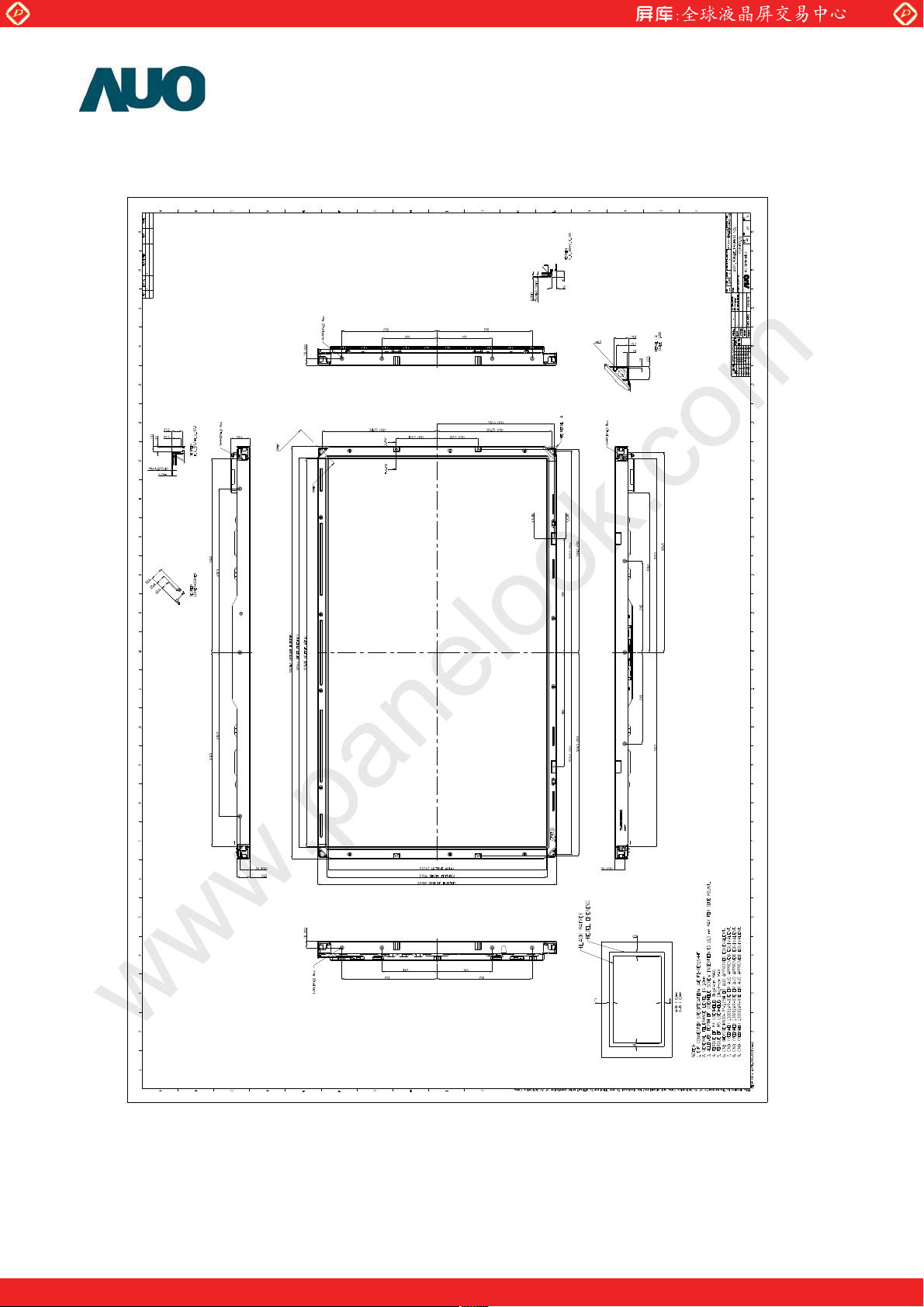

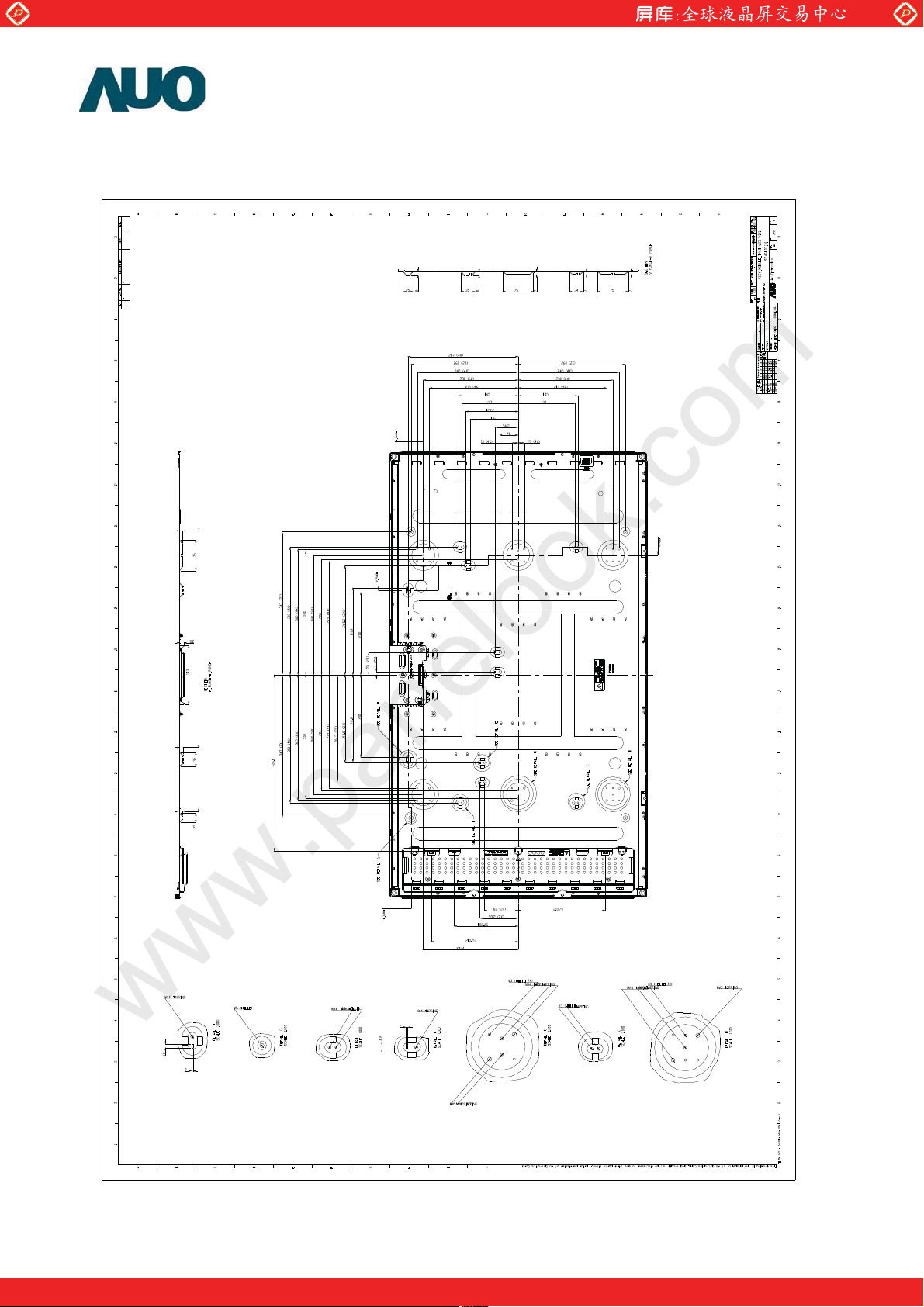

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY

7 INTERNATIONAL STANDARD

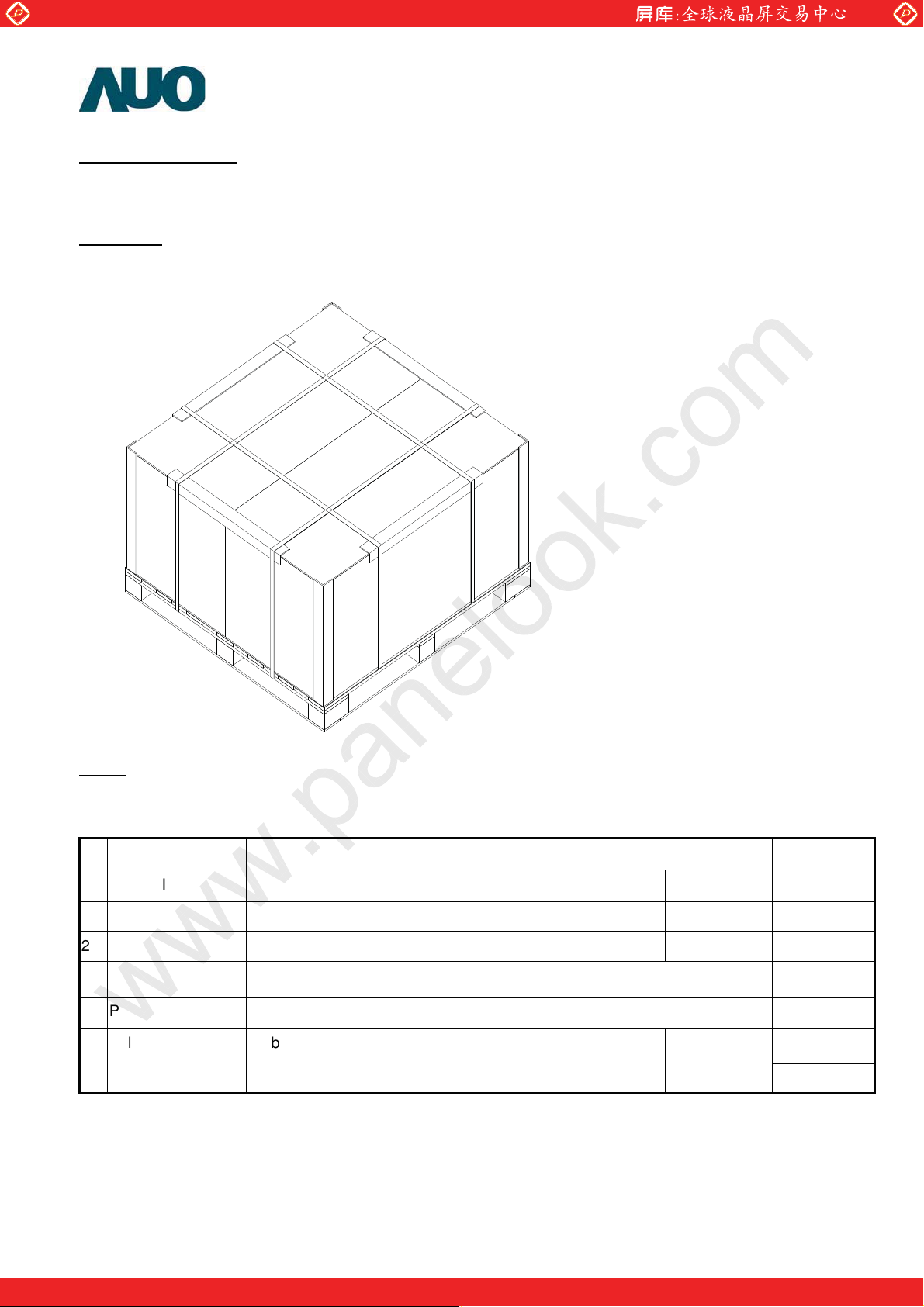

8 PACKING

9 PRECAUTION

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 4

Global LCD Panel Exchange Center

Record of Revision

Version Data Page. Old Description New Description Remark

0.0 2009/5/25 First release N/A N/A

1.0 2009/10/13 Final version release N/A N/A

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 5

Global LCD Panel Exchange Center

www.panelook.com

1. General Description

This specification applies to the 46 inch Color TFT-LCD Module T460HW03 VD. This LCD module has a TFT

active matrix type liquid crystal panel 1920x1080 pixels, and diagonal size of 46 inch. This module supports Full

HD mode (Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray

scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.

The T460HW03 VD has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to

support displays where high brightness, EBU Gamut (72% NTSC), wide viewing angle, and high color depth are

very important.

The T460HW03 VD backlight unit is using inverter-less solution (inductor type balance board), and need to be

General Information

Items Specification Unit Note

Active Screen Size 46 inches Diagonal

Display Area 1018.08(H) x 572.67(V) mm

Outline Dimension 1083.0(H) x 627.0(V) x 50.6(D) mm With Balance Board

Driver Element a-Si TFT active matrix

Display Colors 16.7M Colors

Color Gamut 72 % NTSC

Number of Pixels 1920 x 1080 Pixel

Pixel Arrangement RGB vertical stripe

Pixel Pitch 0.53025 mm

Display Mode Normally Black

Surface Treatment HC, 3H

RoHS RoHS compliance

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 6

Global LCD Panel Exchange Center

www.panelook.com

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min. Max Unit Note

Logic/LCD Drive Voltage VDD -0.3 14.0 VDC 1

Input Voltage of Signal VIN -0.3 3.6 VDC 1

Operating Temperature TOP 0 +50 °C 2

Operating Humidity HOP 10 90 %RH 2

Storage Temperature TST -20 +60 °C 2

Storage Humidity HST 10 90 %RH 2

Panel Surface Temperature T

Shock (non-operation) ±x, ±y -- 40 G 3

Shock (non-operation) ±z -- 30 G 3

Vibration (non-operation) -- 1.5 G 4

Note 1: Duration = 50ms

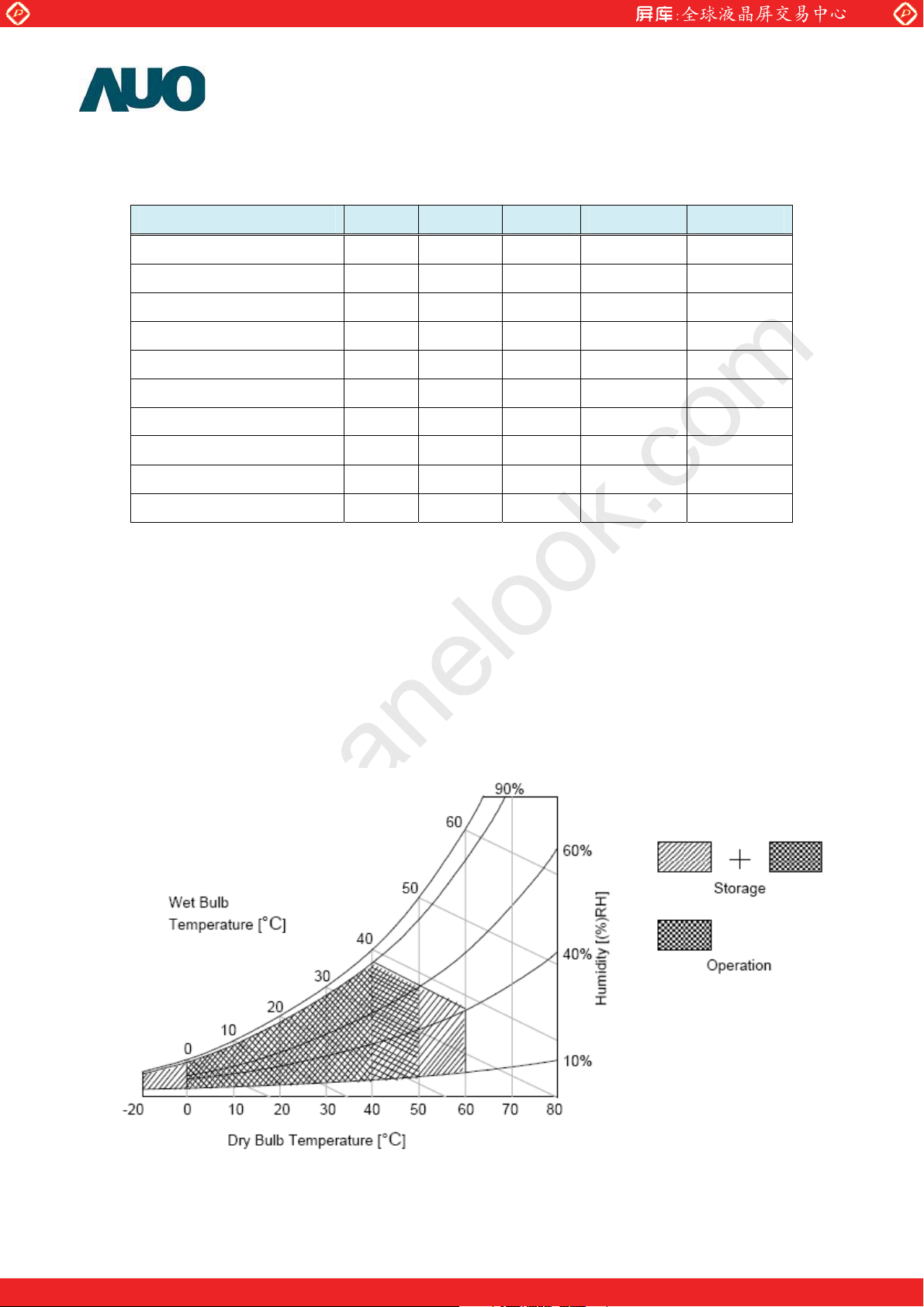

Note 2: Maximum Wet-Bulb should be 39°C and no condensation. The relative humidity must not exceed

90% non-condensing at temperatures of 40°C or less. At temperatures greater than 40°C, the wet

bulb temperature must not exceed 39°C.

Note 3: Sine wave, 11ms, direction: ±x, ±y, ±z (one time each direction)

Note 4: Wave form: random, vibration level: 1.5G RMS, Bandwidth: 10--300Hz

Duration: X, Y, Z 30min (one time each direction)

-- +65 °C 2

SUR

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 7

Global LCD Panel Exchange Center

www.panelook.com

3. Electrical Specification

The T460HW03 VD requires two power inputs. One is employed to power the LCD electronics and to drive the

TFT array and liquid crystal. The second input, which powers the CCFL, is typically generated by an integrate

power (I/P) system.

3.1 Electrical Characteristics

Parameter Symbol

Unit Note

Min. Typ. Max

Power Supply Input Voltage VDD 10.8 12.0 13.2 VDC

Power Supply Input Current IDD -- 1.1 1.32 A 1

Power Consumption PC -- 13.2 15.84 Watt 1

Value

Inrush Current I

-- -- 4.5 A 5

RUSH

Differential Input

High Threshold

-- -- +100 mVDC 4

Voltage

LVDS

Interface

Differential Input

Low Threshold

-100 -- -- mVDC 4

Voltage

Common Input

1.10 1.25 1.40 VDC

CIM

VIH

(High)

2.4 -- 3.3 V

CMOS

Voltage

Input High

Threshold Voltage

Interface

Input Low

Threshold Voltage

(Low)

0 -- 0.7 V

Backlight Power Consumption (ref.) PBL -- 210 -- Watt 2

Life Time 50000 -- -- Hours 3

The performance of the Lamp in LCD panel, for example life time or brightness, is extremely influenced by

the characteristics of the balance board and I/P board. All the parameters should be carefully designed as

not to produce too much leakage current from high-voltage output. While design or order balance board,

please make sure unwanted lighting caused by the mismatch of the lamp and balance board (no lighting,

flicker, etc) never occurs. After confirmation, the LCD Panel should be operated in the same condition as

installed in your instrument.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 8

Global LCD Panel Exchange Center

Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,

TFT-LCD Module has a low luminance and the inverter has abnormal action, because leakage current

occurs between lamp wire and conducting tape.

When operate at low temperatures, the brightness of CCFL will drop and the lifetime of CCFL will be

reduced.

Note:

www.panelook.com

1. V

2. The backlight power consumption shown above is tested by lamp current I

=12.0V, fV=60Hz, f

CLK

=81.5Mhz, 25°C, VDD duration time=400μs, test pattern: white pattern

=7.6mA.

3. The life is determined as the time at which luminance of the lamp is 50% compared to that of initial value

at the typical lamp current on condition of continuous operating at 25±2°C.

4. V

=1.25V

CIM

VTH

VCIM

VTL

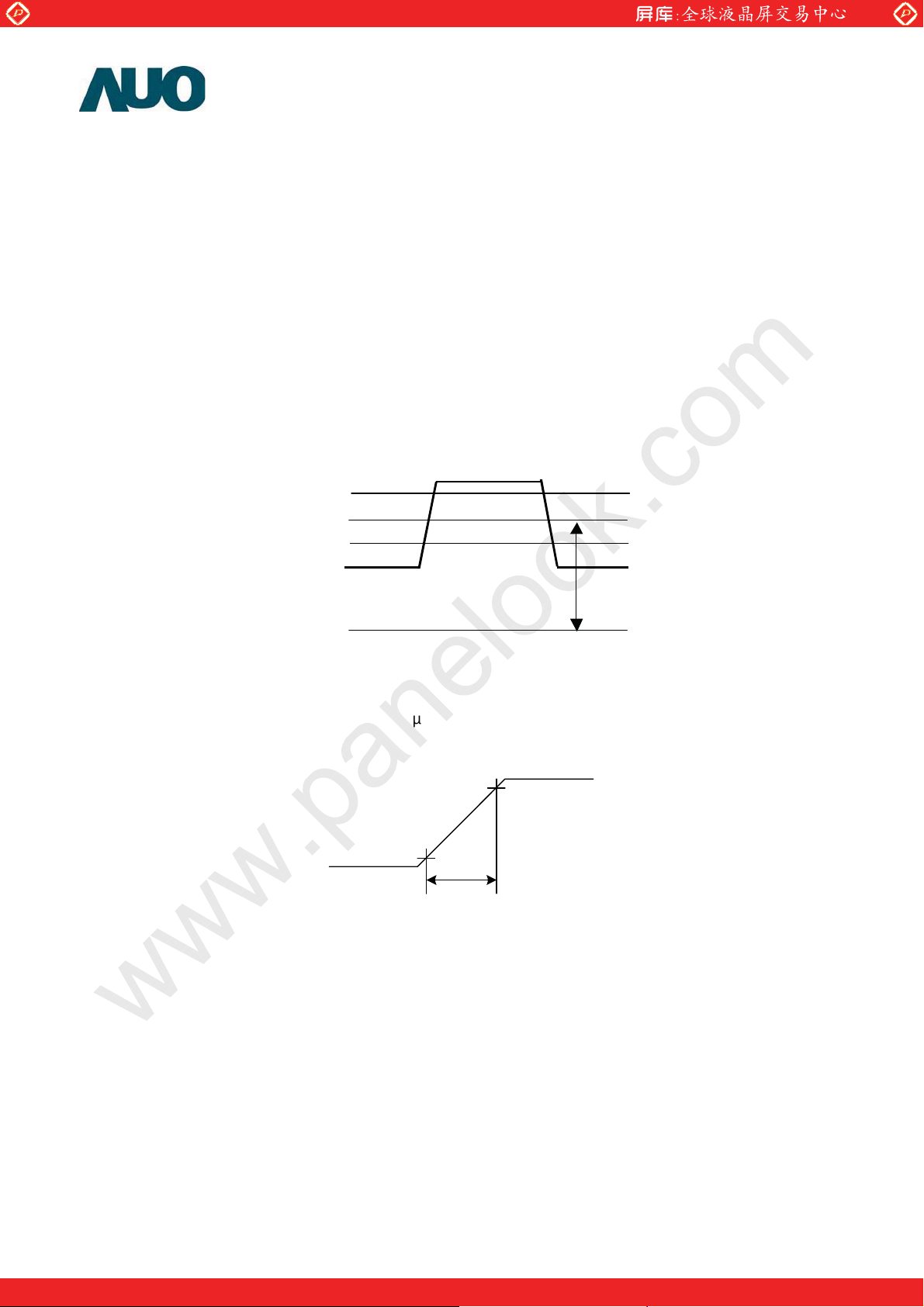

Figure: LVDS Differential Voltage

5. Measurement condition: rising time=400

μs

0.9 Vdd

Vdd

GND

0.1 Vdd

400

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 9

Global LCD Panel Exchange Center

3.2 Interface Connections

www.panelook.com

LCD connector: FI-RE51S-HF (JAE)

Mating connector: FI-RE51S-HL (JAE)

PIN # Signal Name Description

1 VDD 12V power supply

2 VDD 12V power supply

3 VDD 12V power supply

4 VDD 12V power supply

5 VDD 12V power supply

6 GND Ground

7 GND Ground

8 GND Ground

9 GND Ground

10 RO_0- Negative(-) LVDS differential data input

11 RO_0+ Positive(+) LVDS differential data input

12 RO_1- Negative(-) LVDS differential data input

13 RO_1+ Positive(+) LVDS differential data input

14 RO_2- Negative(-) LVDS differential data input

15 RO_2+ Positive(+) LVDS differential data input

16 GND Ground

17 RO_CLK- Clock Signal(-)

18 RO_CLK+ Clock Signal(+)

19 GND Ground

20 RO_3- Negative(-) LVDS differential data input

21 RO_3+ Positive(+) LVDS differential data input

22 NC No connection

23 NC No connection

24 GND Ground

25 RE_0- Negative(-) LVDS differential data input

26 RE_0+ Positive(+) LVDS differential data input

27 RE_1- Negative(-) LVDS differential data input

28 RE_1+ Positive(+) LVDS differential data input

29 RE_2- Negative(-) LVDS differential data input

30 RE_2+ Positive(+) LVDS differential data input

31 GND Ground

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 10

Global LCD Panel Exchange Center

PIN # Signal Name Description

32 RE_CLK- Clock Signal(-)

33 RE_CLK+ Clock Signal(+)

34 GND Ground

35 RE_3- Negative(-) LVDS differential data input

36 RE_3+ Positive(+) LVDS differential data input

37 NC No connection

38 NC No connection

39 GND Ground

40 NC No connection

41 NC No connection

www.panelook.com

42 NC No connection

43 NC No connection

44 NC No connection

45 LVDS Select LVDS data order (NS: High/Open, JEIDA: Low)

46 NC No connection

47 NC No connection

48 NC (reserved) No connection (AUO internal use)

49 NC (reserved) No connection (AUO internal use)

50 NC (reserved) No connection (AUO internal use)

51 NC (reserved) No connection (AUO internal use)

Note 1: All GND (ground) pins should be connected together and should also be connected to the LCD’s

metal frame.

Note 2: All V

(power input) pins should be connected together.

Note 3: All NC (no connection) pins should be open without voltage input.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 11

Global LCD Panel Exchange Center

(

)

(

)

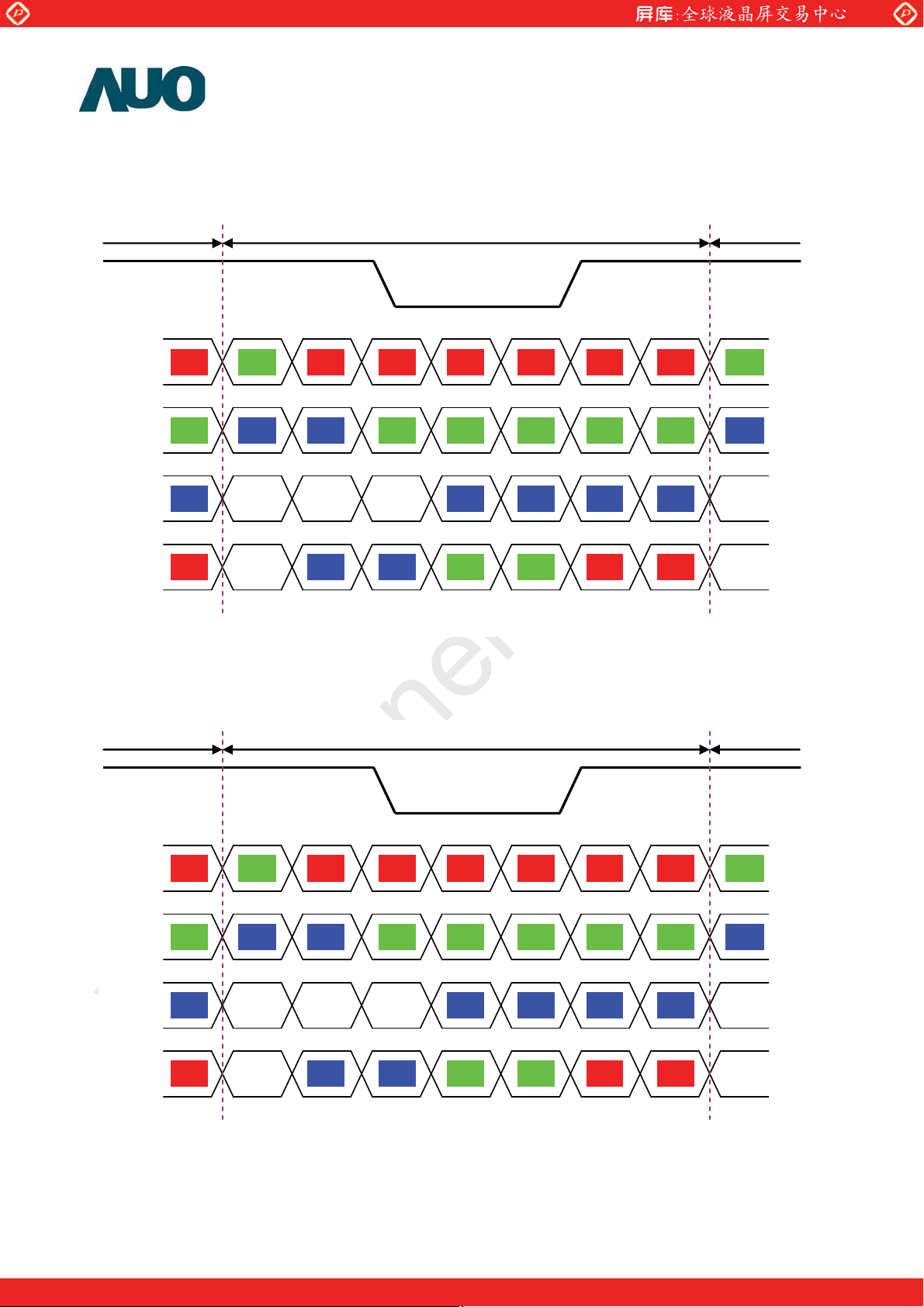

LVDS Option = High/OpenÎÎÎÎNS

Clock

www.panelook.com

Current Cycle Next CyclePrevious Cycle

Rx_0+

G0 R5 R4 R3 R2 R1 R0R0 G0

Rx_0-

Rx_1+

B1 B0 G5 G4 G3 G2 G1G1 B1

Rx_1-

Rx_2+

DE VS HS B5 B4 B3 B2B2 DE

Rx_2-

Rx_3+

NA B7 B6 G7 G6 R7 R6R6 NA

Rx_3-

x = O, E

LVDS Option = LowÎÎÎÎJEIDA

Clock

Current Cycle Next CyclePrevious Cycle

Rx_0+

G2 R7 R6 R5 R4 R3 R2R2 G2

Rx_0-

Rx_1+

B3 B2 G7 G6 G5 G4 G3G3 B3

Rx_1-

Rx_2+

DE VS HS B7 B6 B5 B4B4 DE

Rx_2-

Rx_3+

NA B1 B0 G1 G0 R1 R0R0 NA

Rx_3-

x = O, E

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 12

Global LCD Panel Exchange Center

www.panelook.com

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Vertical Frequency Range (60Hz)

Signal Item Symbol Min. Typ. Max Unit

Period T

Vertical Section

Active T

DISP

Blanking T

Period TH 1030 1100 1325 T

Horizontal Section

Active T

DISP

Blanking T

Clock Frequency F

(V) 1080 TH

(V) 10 45 400 T

BLK

(H) 960 T

(H) 70 140 365 T

BLK

50 74.25 82 MHz

CLK

1090 1125 1480 T

CLK

Vertical Frequency Frequency FV 47 60 63 Hz

Horizontal Frequency Frequency FH 60 67.5 73 KHz

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 13

Global LCD Panel Exchange Center

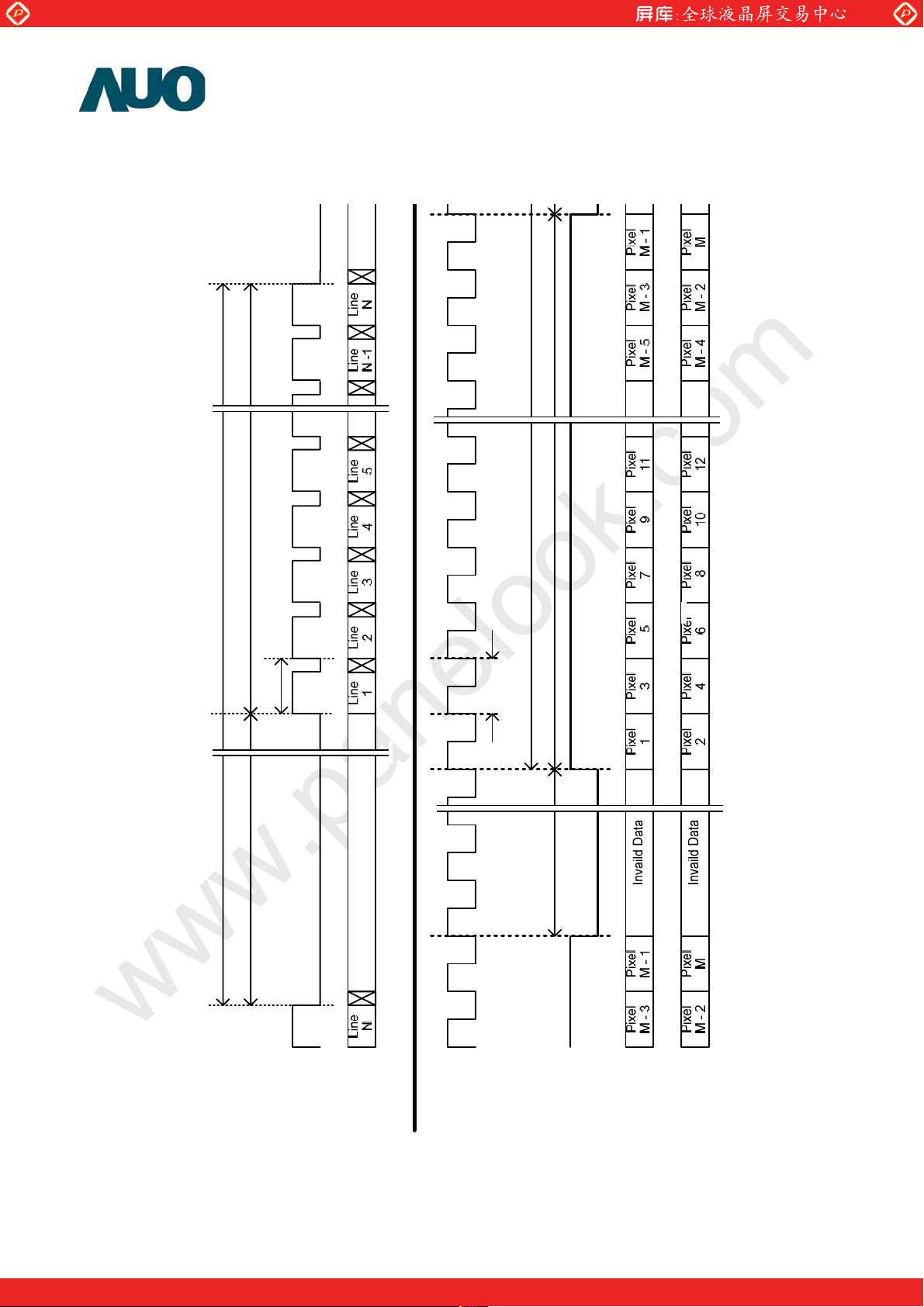

3.4 Signal Timing Waveforms

www.panelook.com

7EONY 7GLVSY

7GLVSK

7&/.

,QYDOLGGDWD

7EONK

5*%'DWD

2''

&/.

5*%'DWD

2''

5*%'DWD

(9(1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 14

Global LCD Panel Exchange Center

www.panelook.com

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the

color; the higher the binary input, the brighter the color. The table below provides a reference for color versus

data input.

COLOR DATA REFERENCE

Input Color Data

Basic

Color

RED

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN

BLUE

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

-------

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 15

Global LCD Panel Exchange Center

3.6 Power Sequence

www.panelook.com

Parameter

Min. Typ. Max.

t1 0.4 -- 30 ms

t2 0.1 -- 50 ms

t3 300* -- -- ms

t4 10 -- -- ms

t5 0.1 -- 50 ms

t6 -- -- 300 ms

t7 500 -- -- ms

* If t3=200ms, input black signal till 300ms from system is necessary. In case of t3<200ms, the abnormal

display will be happened. But it will not damage timing controller.

Apply the lamp voltage within the LCD operating range. When the backlight turns on before the LCD

operation or the LCD turns off before the backlight turns off, the display may momentarily become abnormal.

Caution: The above on/off sequence should be applied to avoid abnormal function in the display. In case of

Values

Unit

handling, make sure to turn off the power when you plug the cable into the input connector or pull the cable

out of the connector.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 16

Global LCD Panel Exchange Center

3.7 Backlight Power Specification

www.panelook.com

Specification

(Ta=25±5oC, Turn-on after 60mins)

Electrical specification

Description Min Typ Max Unit

1 BL Operating Voltage VBL 488 688 888 Vrms

2 BL Operating Current IBL 142 152 162 mArms

3 Starting Voltage

0к

2400 -

Vrms

2200 -

4 Operating frequency fo 45 47 49 kHz

5 Striking time St - - 1 sec

Power Consumption PBL

PWM Operating

Frequency

PWM Dimming Duty ratio D_PWM

- 210 -

F_PWM 140 150 160 Hz

20 - 100

Watt

Condition

1. BL one side operating voltage at dimming ratio 100%

2. Calculation method: (notes 1)

1. BL one side operating current at

dimming ratio 100%

1. BL two side striking voltage.

2. Measurement by disconnect IPB and

95~140Hz might cause waterfall noise but not influence panel function

1. luminance is from 10% to 100%

2. note 2

9 Lamp type Straight type

10 Number of lamps 20 pcs

11 Type of current balance inductance

Ta=2 55к, Turn on for 45minutesα

Protection Circuit (Feedback Signal)

12 Supply Voltage V

13 Current Feedback Signal VFB 1.8 2.0 2.2 V

14 Lamp Detection (LD)

10 12 15 VDC

VLD(H) 11.4 12 12.6

(L) 0 - 0.8

RMS

Lamp normal status

Lamp protection status

Lamp specification (Recommendation)

Description Min Typ Max Unit

1 Lamp Voltage Vlamp 1350 1376 1400 Vrms

2 Lamp Current Ilamp 7.1 7.6 8.1 mArms

3 Lamp frequency flamp 40 45 60 KHz

˃к

- - 2400 Vrms

4 Starting Voltage

˅ˈк

- - 2200 Vrms

5 Striking time St - - 1 sec

6 Discharge Stabilization Time - - 4 Min

7 Life time 50K - - hr

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 17

Global LCD Panel Exchange Center

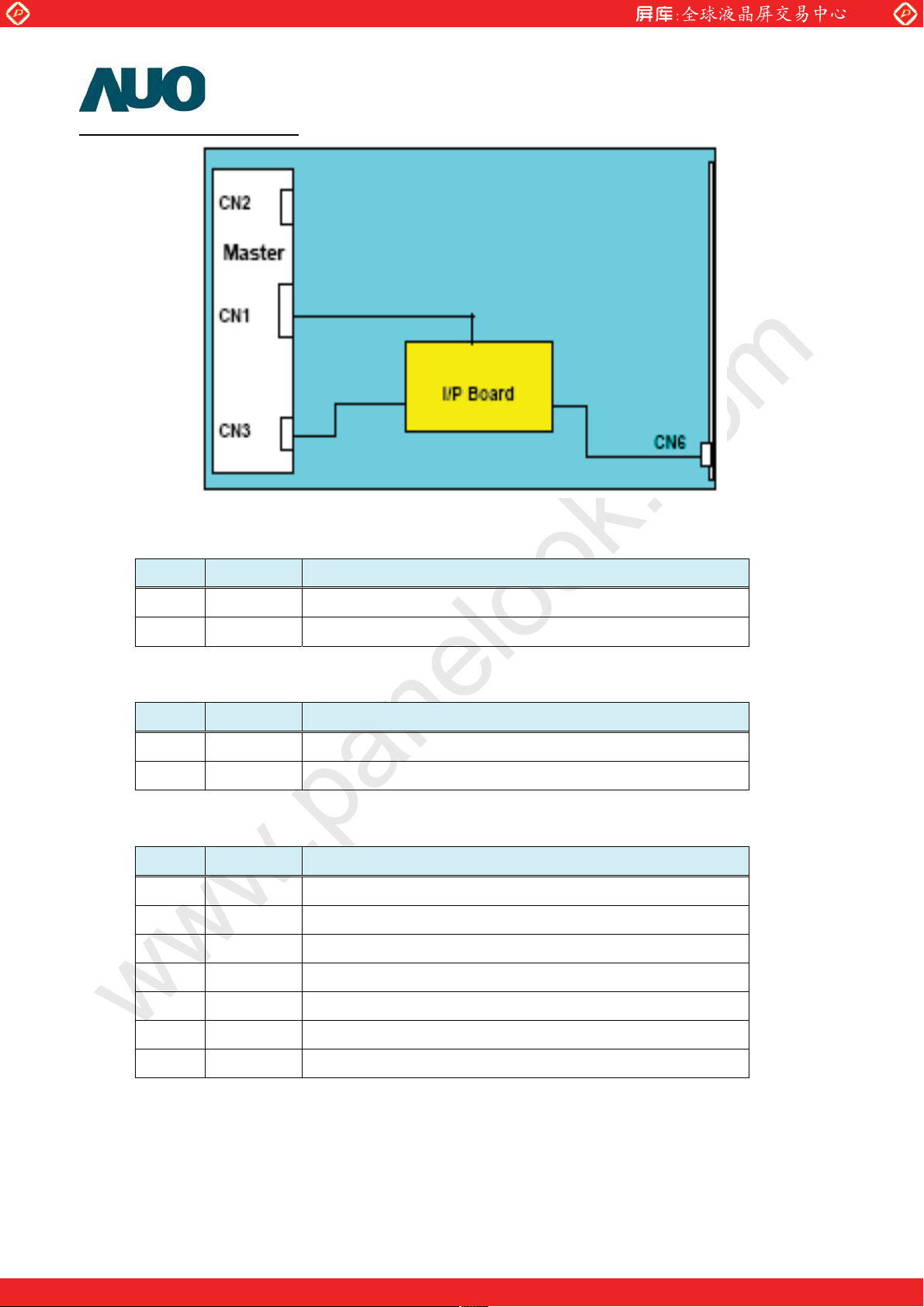

Connector Pin Assignment

www.panelook.com

CN2 or CN3: YeonHO_130001WR-02E (LF)

PIN # Symbol Description

1 HV1+ I/P board high voltage supply

2 HV1+ I/P board high voltage supply

CN6: YeonHO_130001WR-02E (LF)

PIN # Symbol Description

1 HV2 - I/P board high voltage supply

2 HV2- I/P board high voltage supply

CN1: HIROSE_KN30-7P-1.25H

PIN # Symbol Description

1 VCC Power Supply for Protection Circuit

2 IFB Lamp Current feedback Signal (Full wave current)

3 IFB Lamp Current feedback Signal (Full wave current)

4 GND Signal Ground

5 GND Signal Ground

6 LD Lamp detection

7 LD Lamp detection

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 18

Global LCD Panel Exchange Center

www.panelook.com

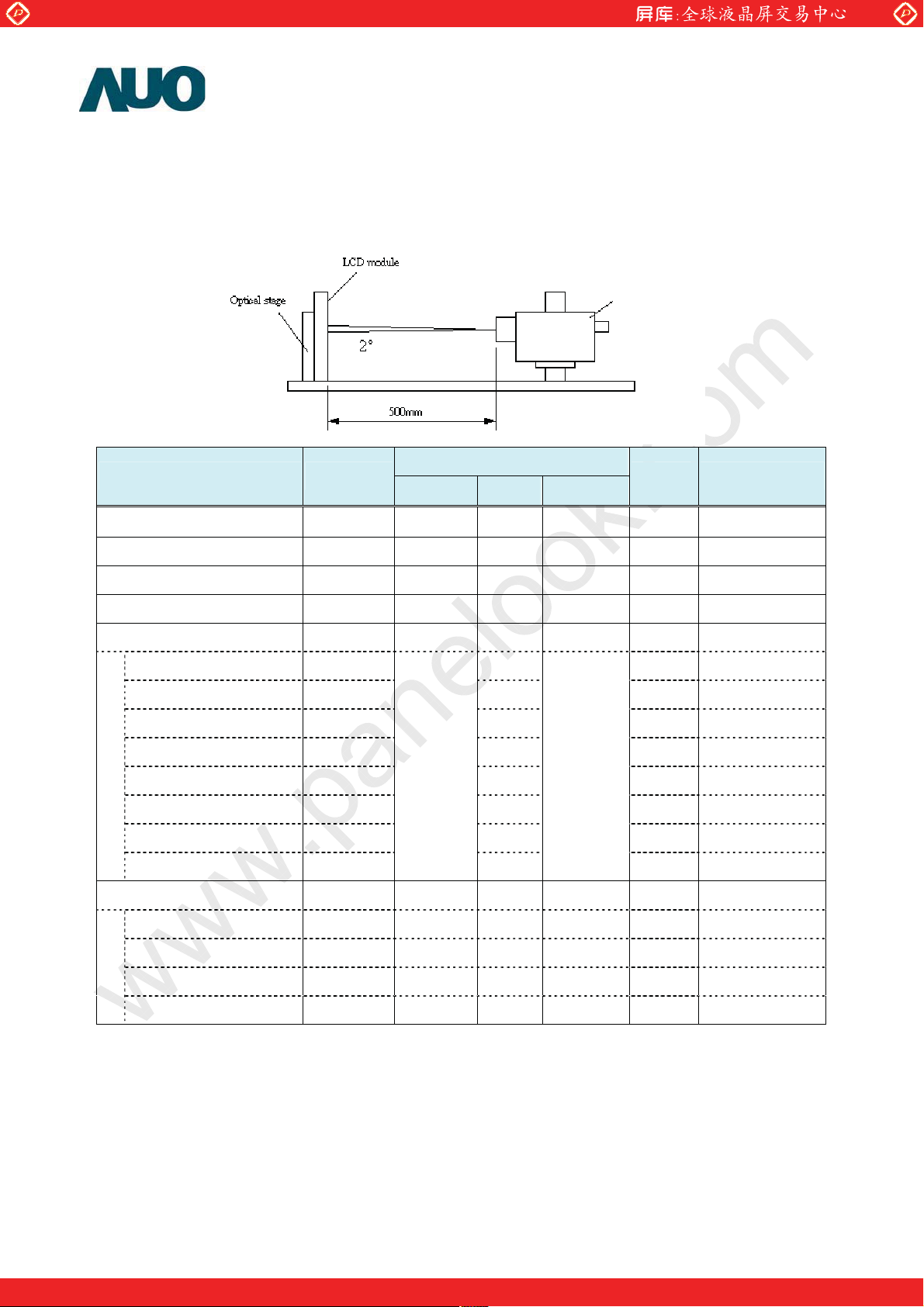

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60 minutes in a

dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of ĳ and ș equal to 0°.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max

Values

Unit Notes

Contrast Ratio CR 4000 5000 -- 1

Surface Luminance (White) LWH 400 500 -- cd/m2 2

Luminance Variation į

WHITE(9P)

Response Time (Average) TȖ -- 6.5 -- ms 4

-- -- 1.3 3

(Gray to Gray)

Color Coordinates

Red RX 0.640

0.330

Green GX 0.290

0.600

Typ.-0.03

Typ.+0.03

Blue BX 0.150

0.060

White WX 0.280

Viewing Angle

x axis, right(ĳ=0°) șr -- 89 -- degree 5

0.290

(Contrast Ratio>10)

x axis, left(ĳ=180°) șl -- 89 -- degree 5

y axis, up(ĳ=90°) șu -- 89 -- degree 5

y axis, down (ĳ=270°) ș

-- 89 -- degree 5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 19

Global LCD Panel Exchange Center

www.panelook.com

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Contrast Ratio (CR)=

Brightness of the "white" state Brightness of the "black" state

2. Surface Luminance is luminance value at point 5 with 100% dimming across the LCD surface 50cm from the

surface with all pixels displaying white. For more information see Fig. 4-2. When lamp current I

WH=Lon5

, where L

is the luminance with all pixels displaying white at center 5 location.

on5

V/2

V/6

1 2 3

4 5 6

7 8

H/2 H/6

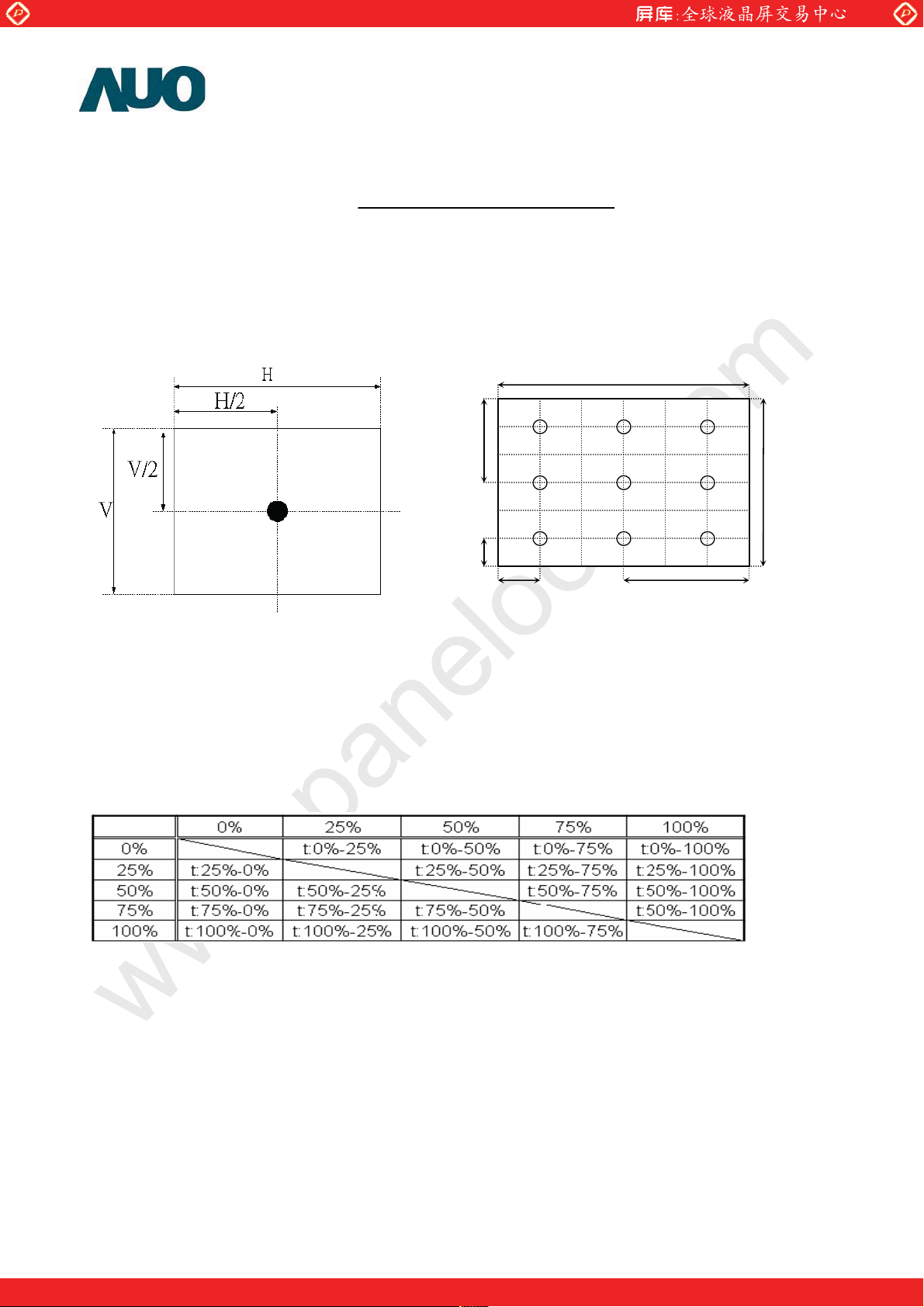

Fig.4-2 Optical measurement point

3. The variation in surface luminance, į

WHITE(9P)

= Maximum(L

WHITE(9P)

is defined under brightness of IL=7.6mA as:

, L

on1

on2

,…,L

)/Minimum(L

on9

on1

, L

on2

,…L

on9

)

=7.6mA,

4. Response time TȖ is the average time required for display transition by switching the input signal for five

luminance ratio (0%, 25%, 50%, 75%, 100% brightness matrix)and is based on f

=60Hz to optimize.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal (or x-axis) and the vertical (or y-axis) with respect to the z-axis which is normal to the LCD surface.

For more information see Fig. 4-4.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 20

Global LCD Panel Exchange Center

www.panelook.com

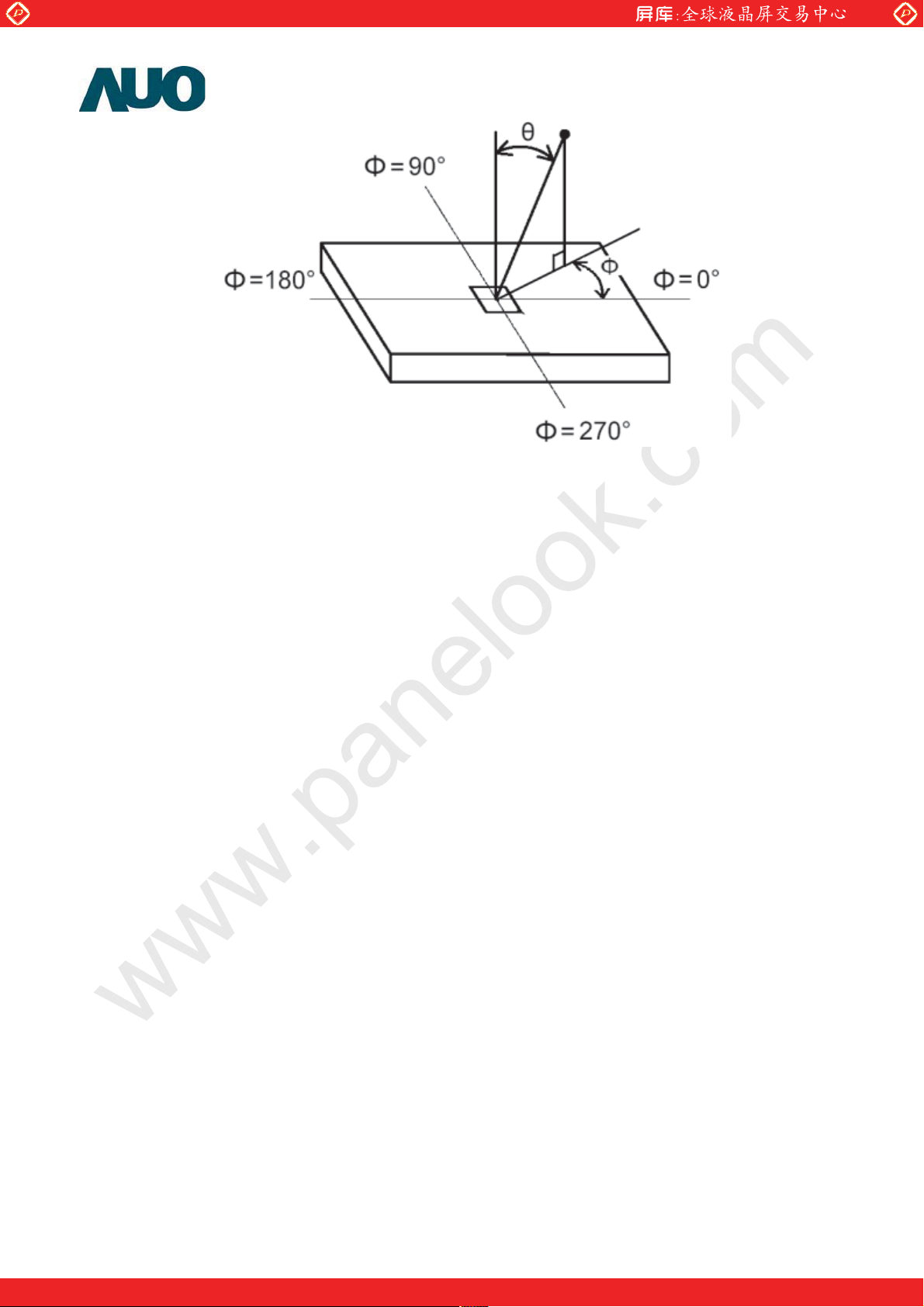

Fig.4-4 Viewing angle definition

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 21

Global LCD Panel Exchange Center

www.panelook.com

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T460HW03. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Horizontal (typ.) 1083.0 mm

Outline Dimension

Bezel Area

Active Display Area

Weight 15500g (Max)

Surface Treatment HC, 3H

Vertical (typ.) 627.0 mm

Depth (typ.) 50.6 mm (with balance board)

Horizontal (typ.) 1024.4 mm

Vertical (typ.) 578.6 mm

Horizontal 1018.08 mm

Vertical 572.67 mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 22

Global LCD Panel Exchange Center

2D Drawing (Front)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 23

Global LCD Panel Exchange Center

2D Drawing (Rear)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 24

Global LCD Panel Exchange Center

6. Reliability

Panel condition in RA test

Brightness: 500nits

Lamp Current (Hot side): 7.6mA

No Test Item Condition

1 High temperature storage test Ta=60 300hк

2 Low temperature storage test Ta= -20 300hк

3 High temperature operation test Ta=50к 300h

4 Low temperature operation test Ta=-5 300hк

www.panelook.com

5 Vibration test

(non-operating)

6 Shock test

(non-operating)

7 Vibration test

(with carton)

8 Drop test

(with carton)

Result Evaluation Criteriaε

There should be no change which might affect the practical display function when the display quality test is conducted

under normal operating condition.

Wave form : random

Vibration level : 1.5G RMS

Bandwidth: 10-300Hz

Duration: X, Y, Z 30min One time for each direction

Shock level: 50G Waveform: half since wave, 20ms Direction: ±X, ±Y, ±Z One time each direction Wave form: random Vibration level: 1.5G RMS Bandwidth: 10-200Hz, Duration: X, Y, Z 30min One time each direction

Height: 25cm

1corner, 3edges, 6flats

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 25

Global LCD Panel Exchange Center

www.panelook.com

7. International Standard

7-1. Safety

(1) UL6500, UL 60065 Underwriters Laboratories, Inc. (AUO file number: E204356)

Standard for Safety of Information Technology Equipment Including electrical Business Equipment.

(2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.

(3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

IEC 60065: version 7th

European Committee for Electro technical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business

Equipment.

7-2. EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electrical

Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information Technology

Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998

7-3. Green Mark Description

(1) For Pb Free products, AUO will add

(2)

Note. The Green Mark will be present only when the green documents have been ready by AUO Internal Green

Team. (The definition of green design follows the AUO green design checklist.)

RoHS compatible products, AUO will add

For

for identification.

RoHS

for identification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 26

Global LCD Panel Exchange Center

8. Packing

www.panelook.com

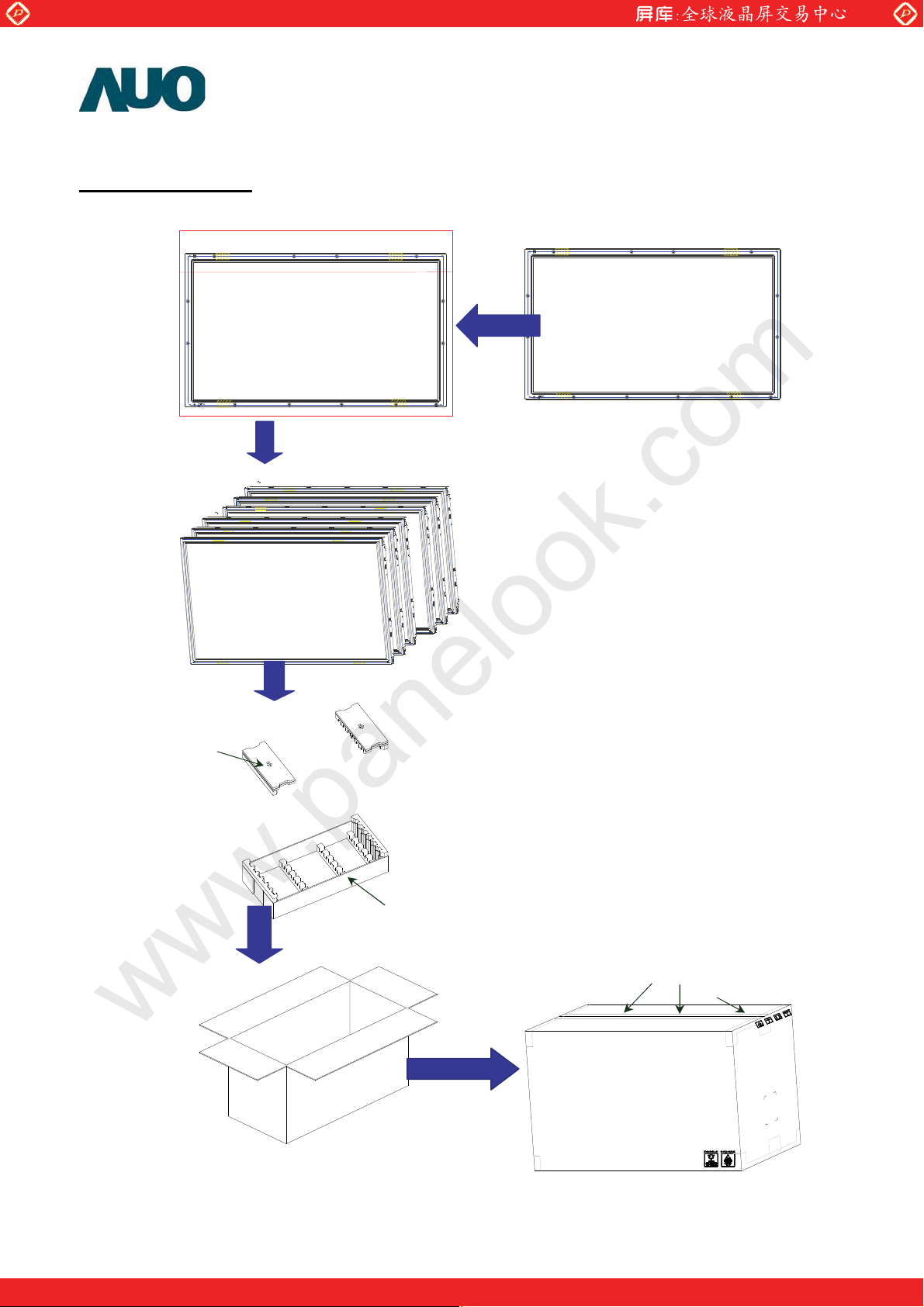

Packing Instruction

FV0RGXOH(6'%DJ



0RGXOH

&XVKLRQWR

&XVKLRQVHW



SFV0RGXOHV

&XVKLRQGRZQ

ರ+ರ7DSH



SFVFDUWRQ

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!



www.panelook.com

Page 27

Global LCD Panel Exchange Center

Pallet information

Pallet Dimension: 1180 x 1150 x 132 mm

Carton Dimension: 1160 x 547 x 680 mm

www.panelook.com

By air cargo

Pallet after Packing Dimension: 1180 x 1150 x 812 mm

: (2 x 1) x 1 layers, one pallet put 2 boxes, total 12 pcs module.

By sea

: (2 x 1) x 1 layers, one pallet put 2 boxes, 40ft HQ stack 3 pallet, total 36 pcs module.

Item

1 Packing Box 6 pcs/box 1160(L)mm*547(W)mm*680(H)mm 97

2 Pallet 1 1180(L)mm*1150(W)mm*132(H)mm 18

3 Boxes per Pallet 2 boxes/Pallet (By Air) ; 2 Boxes/Pallet (By Sea)

4 Panels per Pallet 12pcs/pallet(By Air) ; 12 pcs/Pallet (By Sea)

after packing

Qty. Dimension Weight (kg)

12(by Air) 1180(L)mm*1150(W)mm*812(H)mm (by Air) 212 (by Air)

36(by Sea) 1180(L)mm*1150(W)mm*2436(H)mm (by Sea) 636 (by Sea) 40ft HQ

Specification

Packing

Remark

5 Pallet

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 28

Global LCD Panel Exchange Center

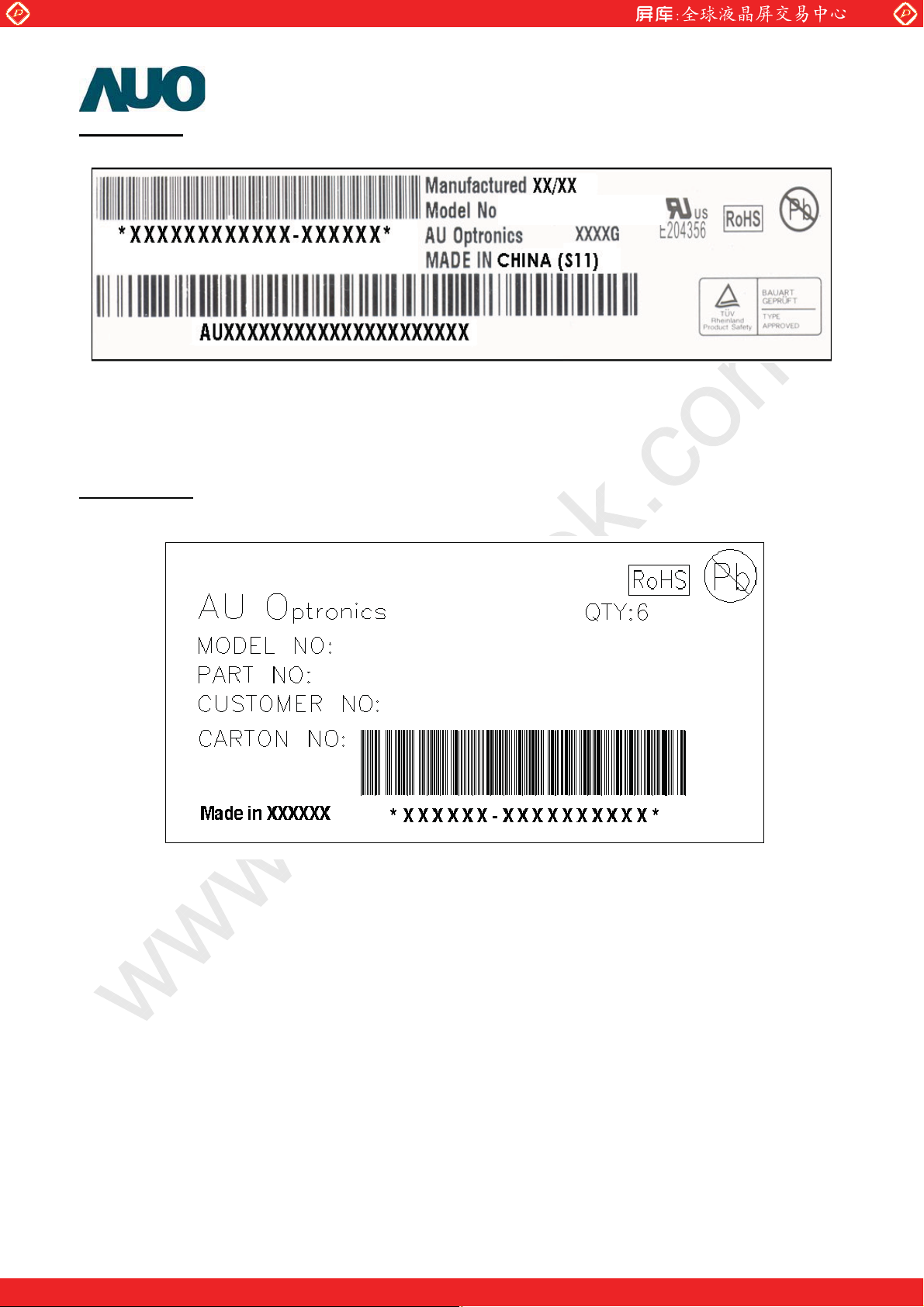

Panel Label

www.panelook.com

Carton Label

T460HW03 VD

97.46T03.XXX

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 29

Global LCD Panel Exchange Center

www.panelook.com

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged on back side of panel

(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to

module. And the case on which a module is mounted should have sufficient strength so that external force is

not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by

electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil

lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer

for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used

to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical

damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:



200mV (Over and under shoot voltage)

(2) Response time depends on the temperature. (In lower temperature, it becomes longer.)

(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature,

response time (required time that brightness is stable after turned on) becomes longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.

(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done

by system manufacturers. Grounding and shielding methods may be important to minimize the interface.

(7) The device listed in the product specification sheets was designed and manufactured for TV application.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 30

Global LCD Panel Exchange Center

www.panelook.com

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they be

stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off,

static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully

by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of flue still on the Bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, please

wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
