Page 1

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 2

Global LCD Panel Exchange Center

www.panelook.com

Document Version: 1.0

Date: 2009/04/29

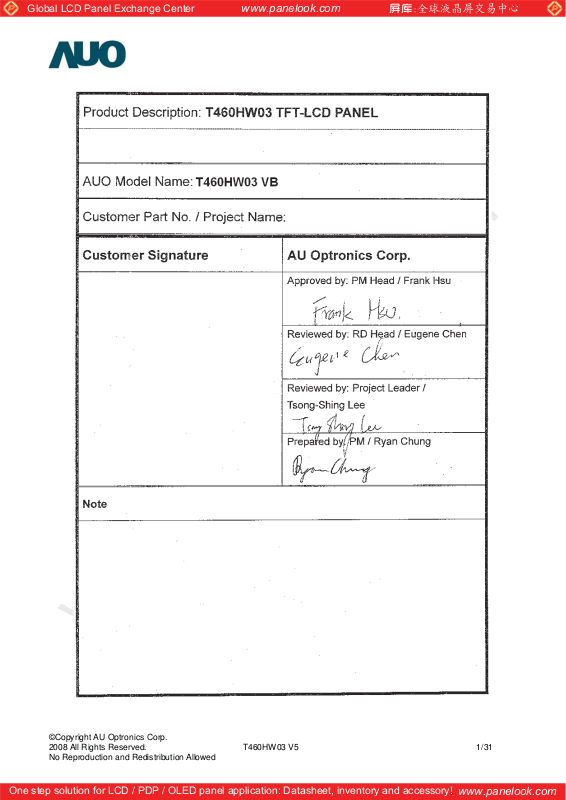

Product Functional Specification

46” Full HD Color TFT-LCD Module

Model Name: T460HW03 VB

() Preliminary Specification

(*) Final Specification

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 3

Global LCD Panel Exchange Center

www.panelook.com

Contents

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTOR

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

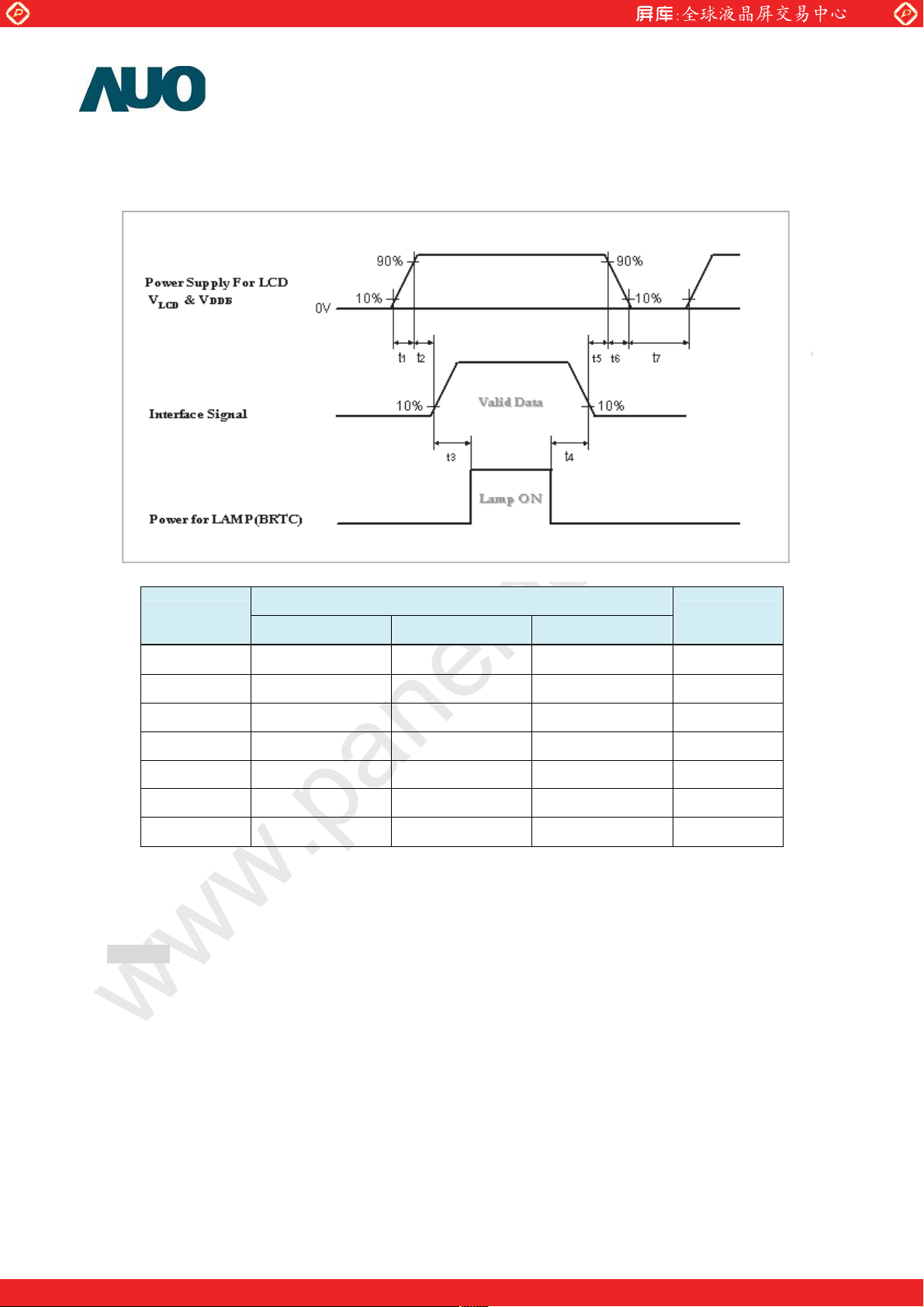

3-6 POWER SEQUENCE

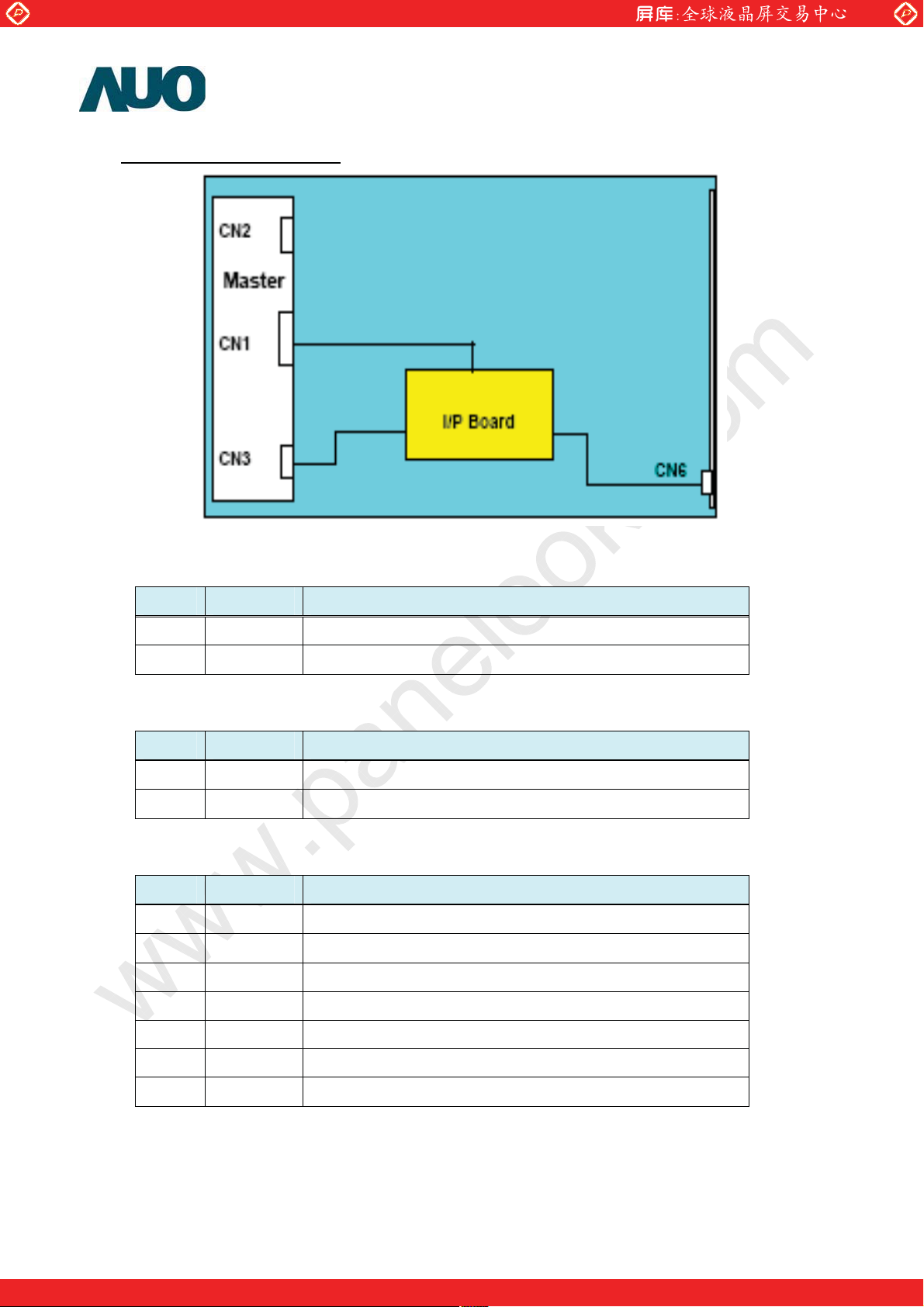

3-7 BACK LIGHT POWER SPECIFICATION

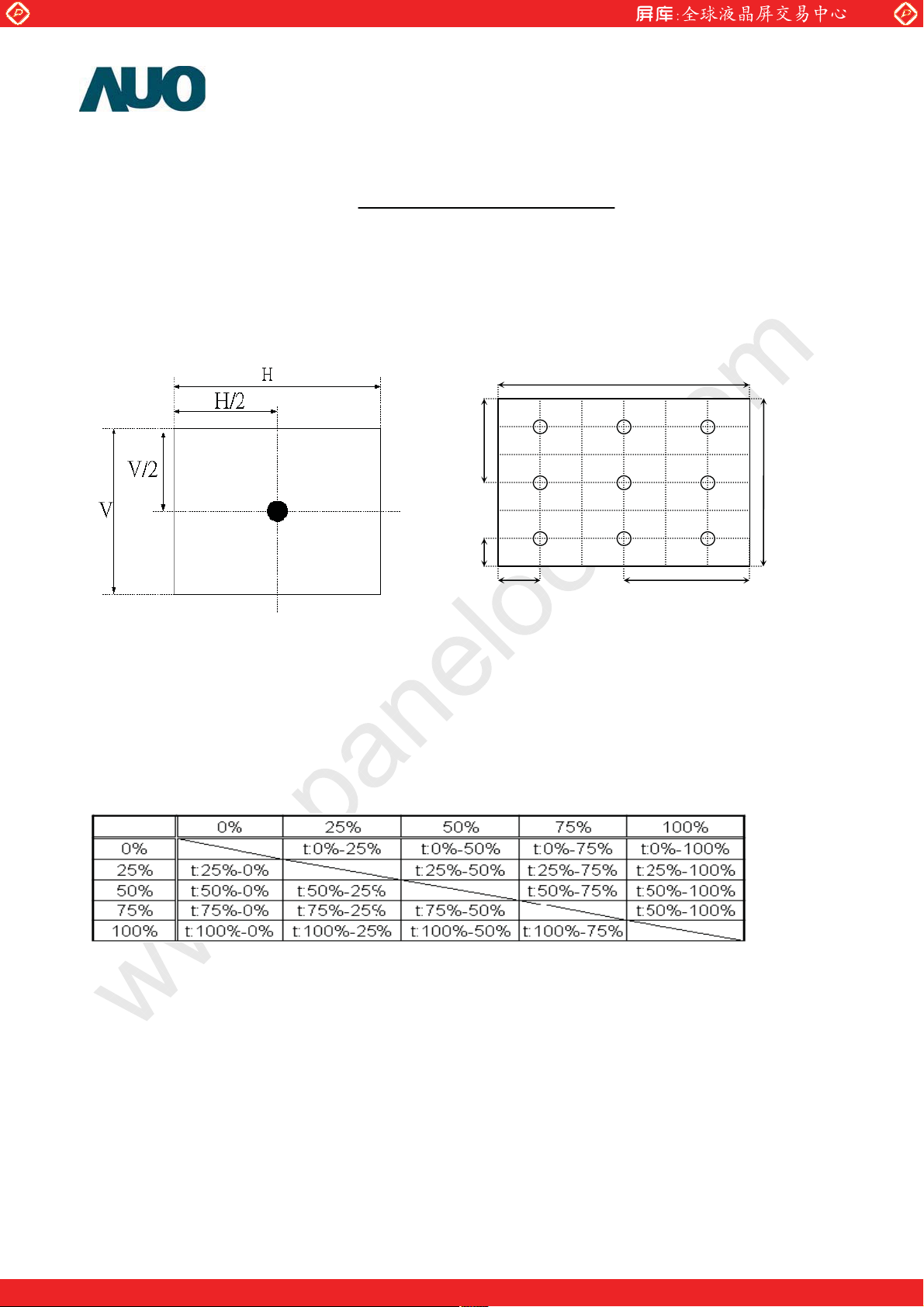

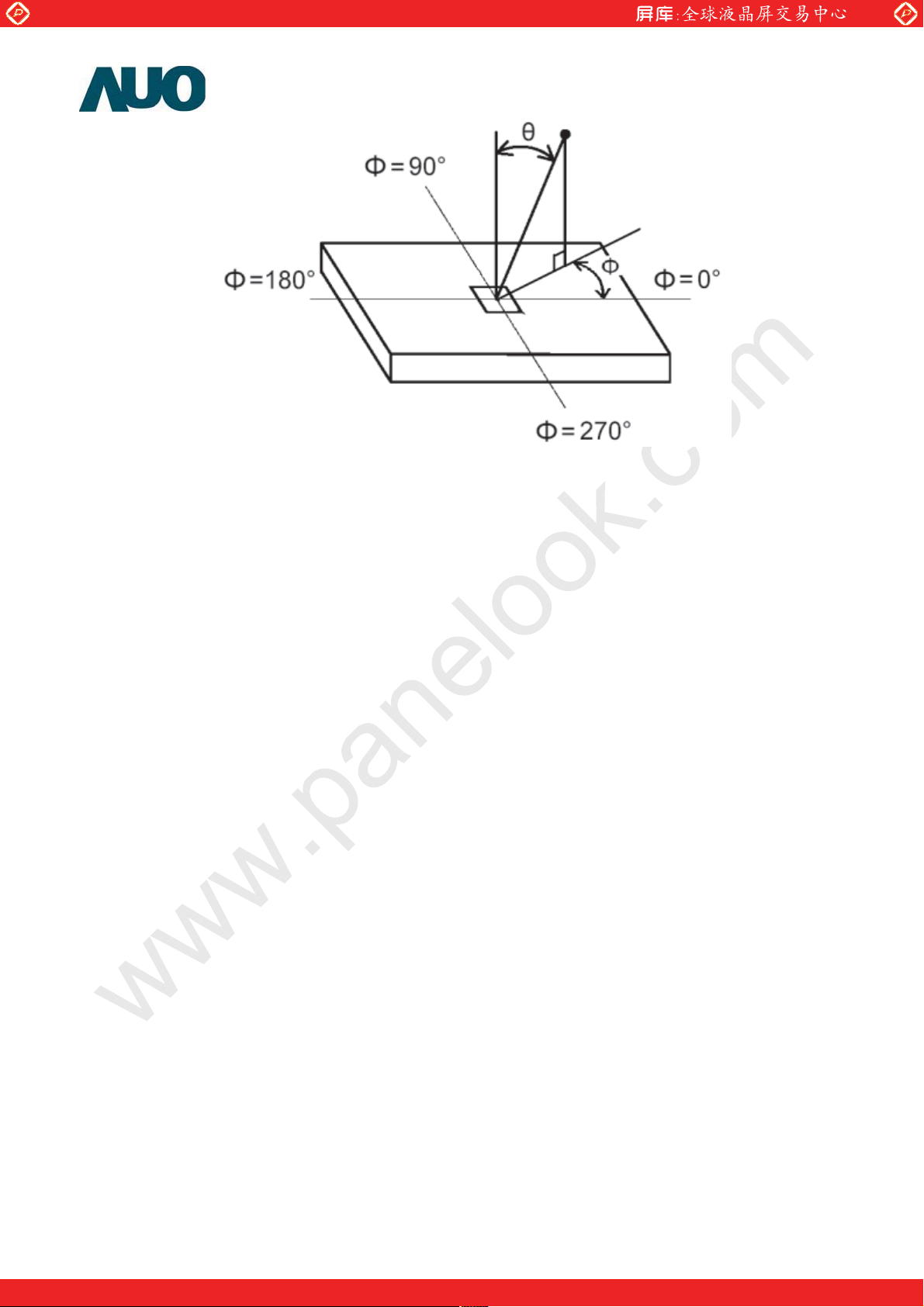

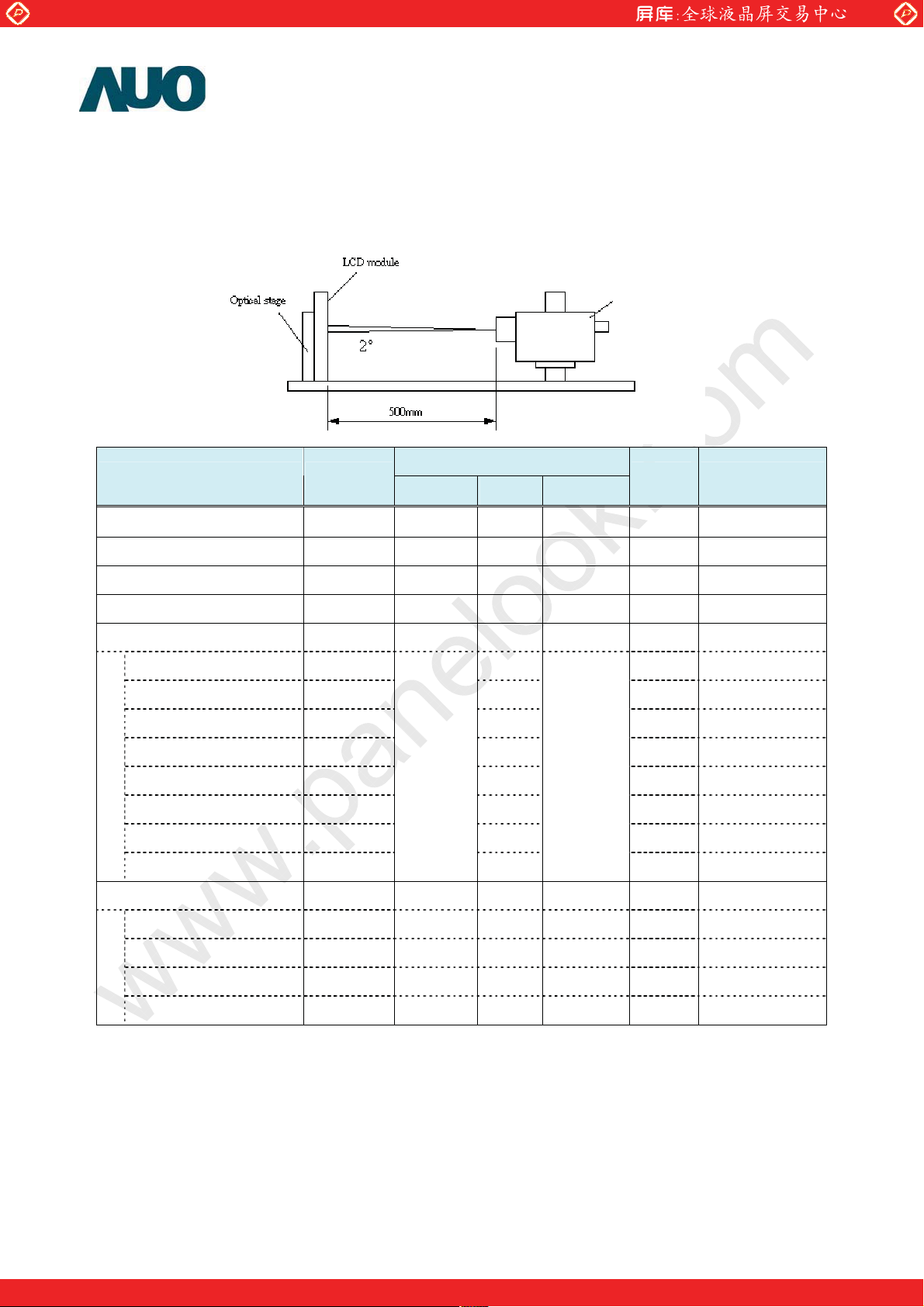

4 OPTICAL SPECIFICATION

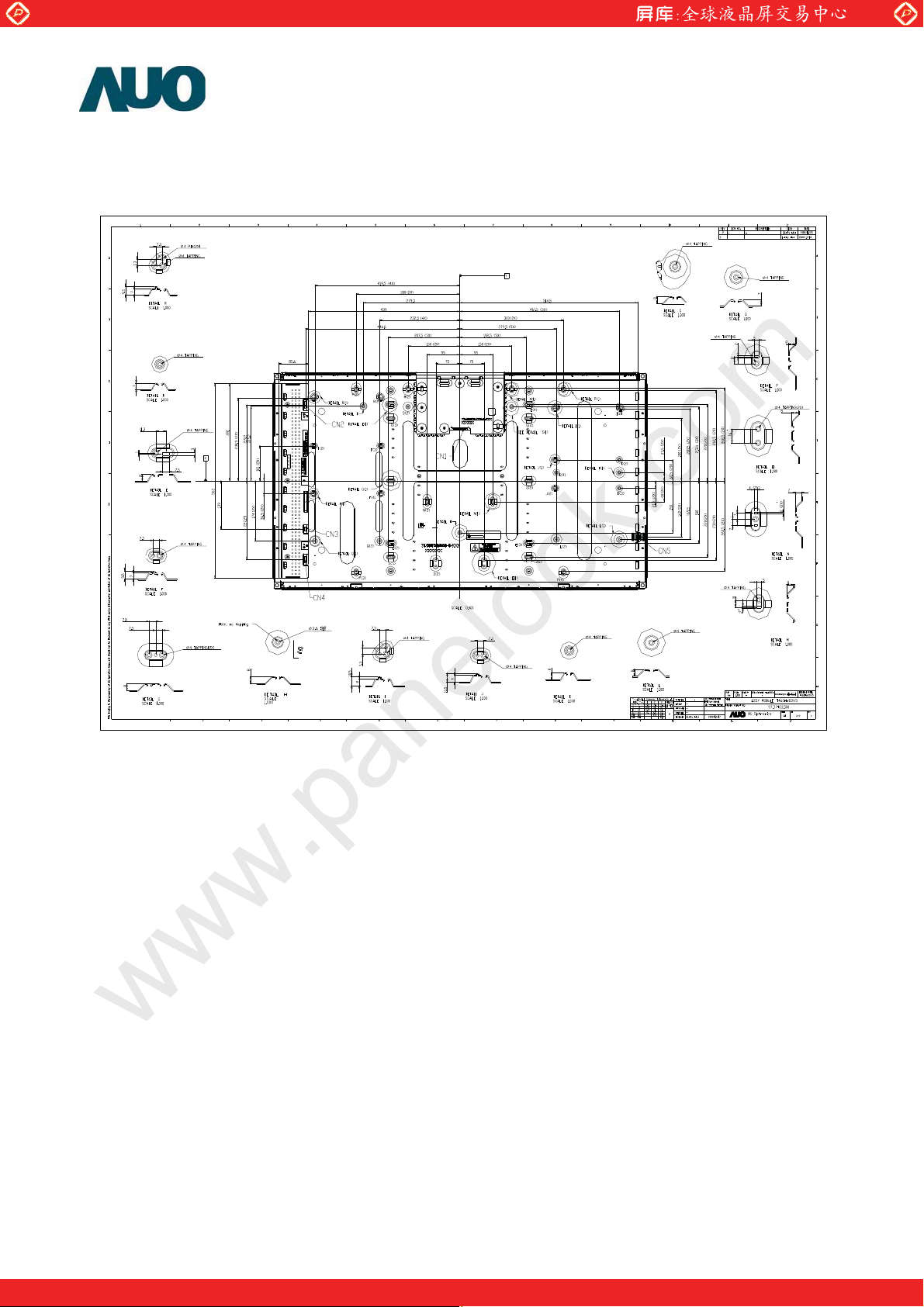

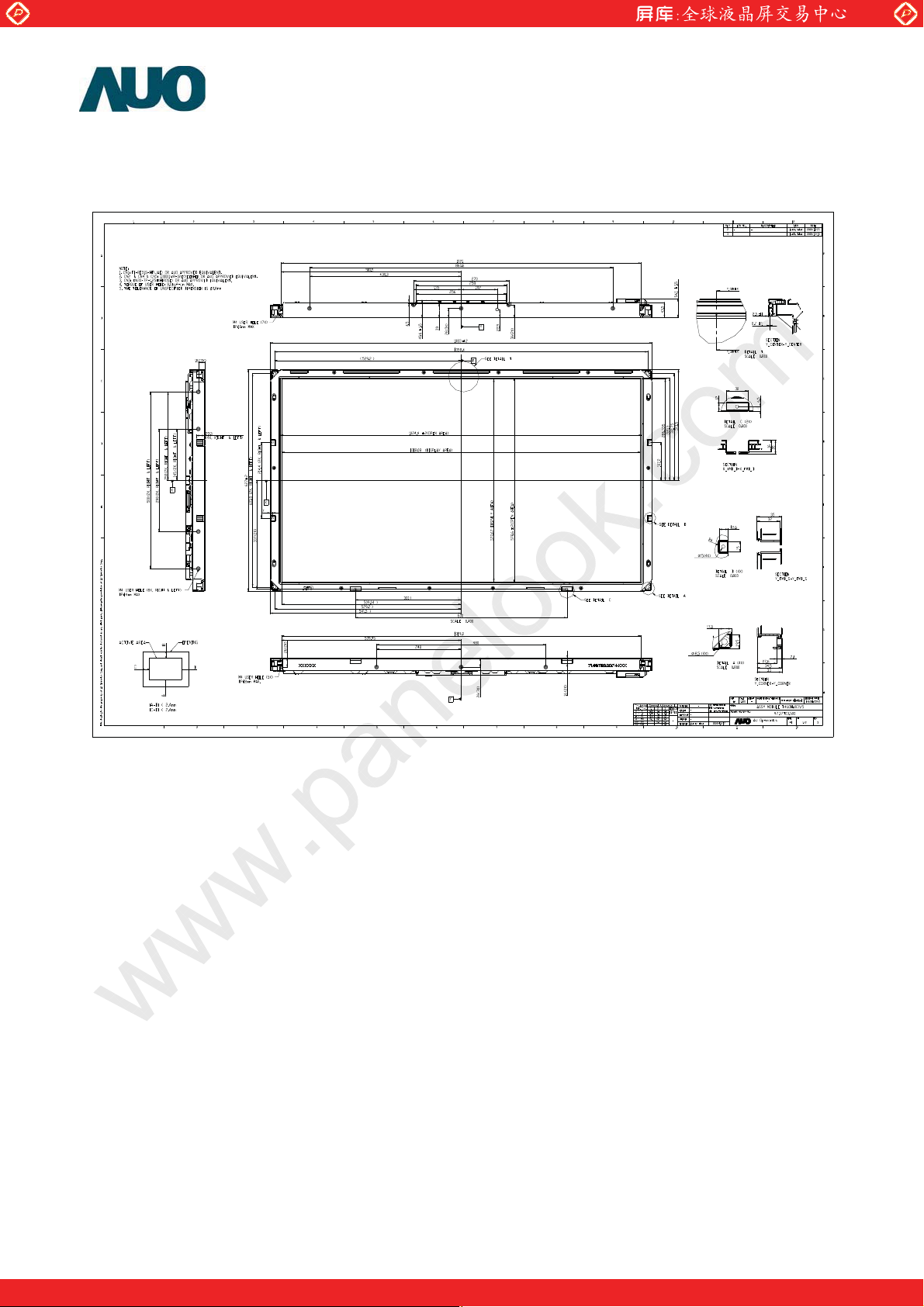

5 MECHANICAL CHARACTERISTICS

6 Reliability

7 INTERNATIONAL STANDARD

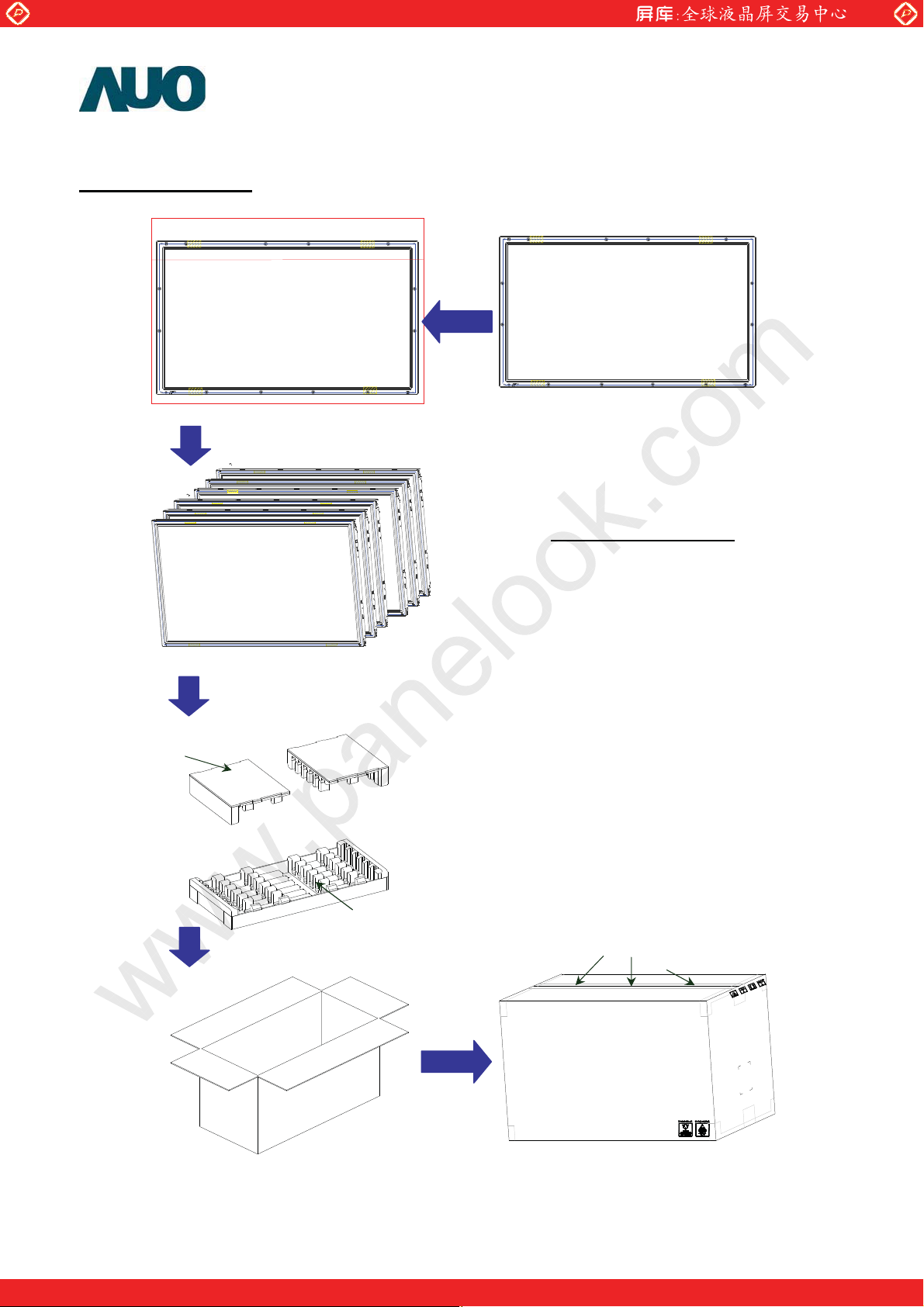

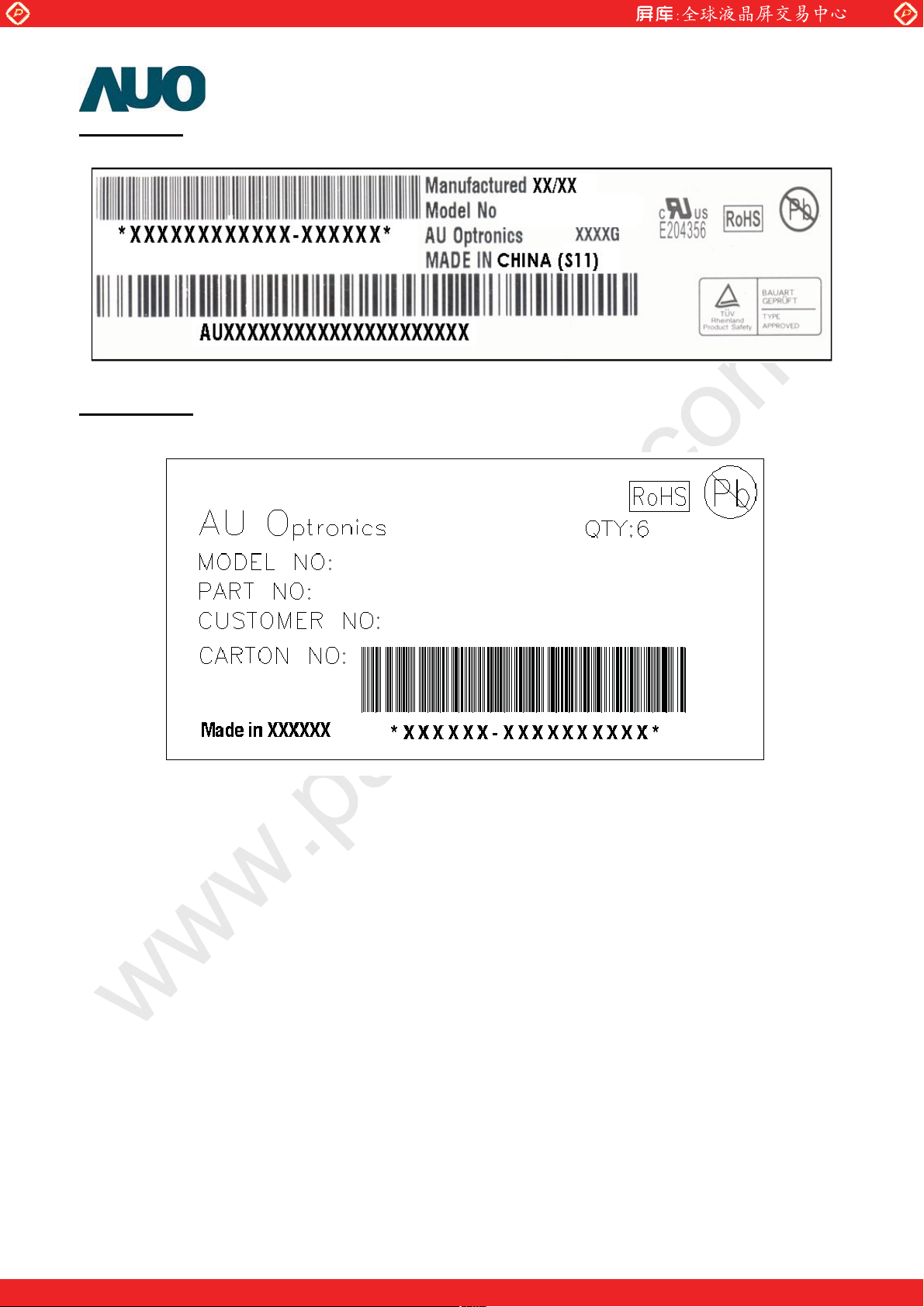

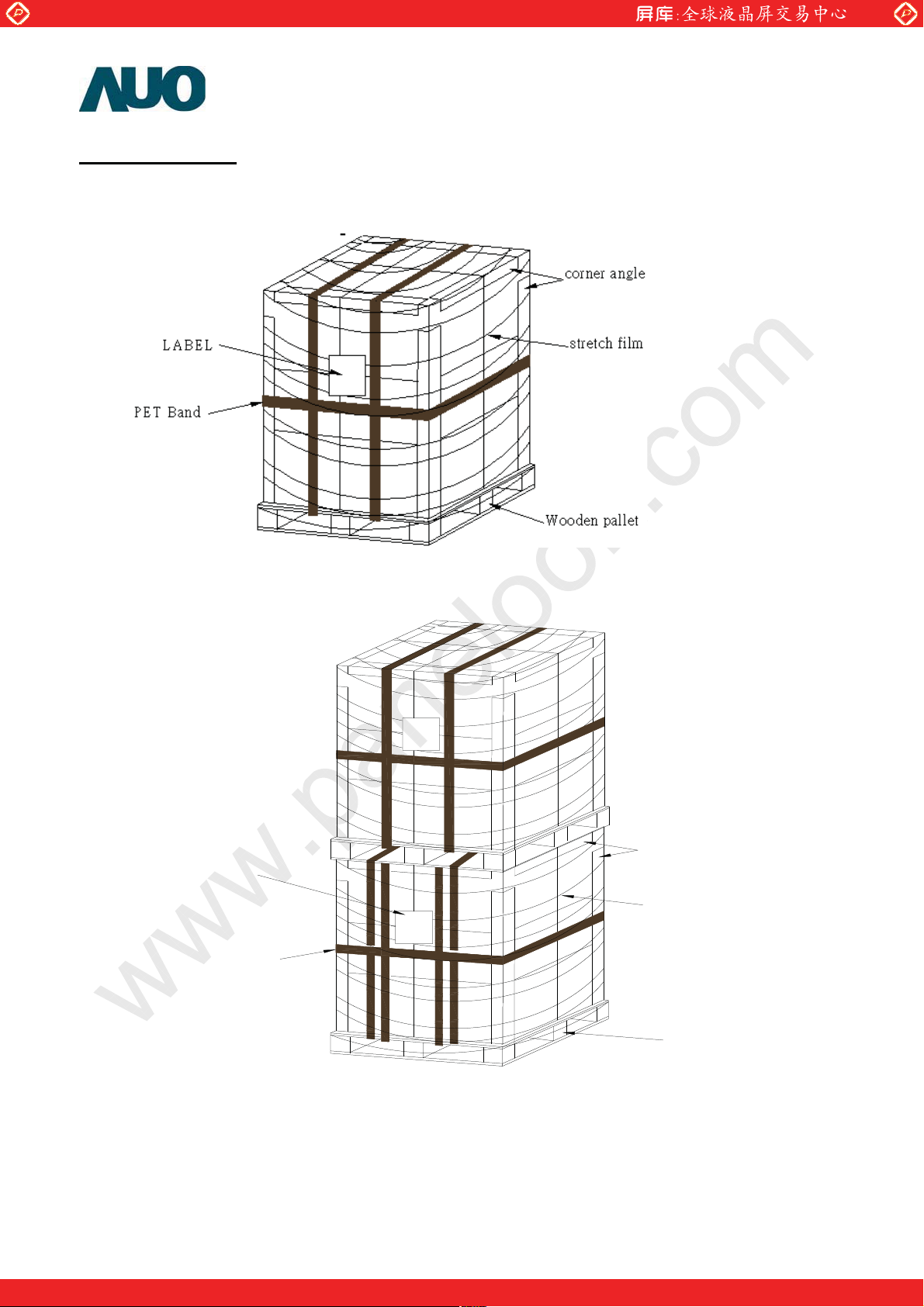

8 PACKING

9 PRECAUTION

10 APPENDIX

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 4

Global LCD Panel Exchange Center

Record of Revision

Version Data Page. Old Description New Description Remark

1.0 2009/04/29 - First release N/A N/A

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 5

Global LCD Panel Exchange Center

www.panelook.com

1. General Description

This specification applies to the 46 inch Color TFT-LCD Module T460HW03 VB. This LCD module has a TFT

active matrix type liquid crystal panel 1920x1080 pixels, and diagonal size of 46 inch. This module supports Full

HD mode (Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray

scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.

The T460HW03 VB has been designed to apply the 10-bit 2 channel LVDS interface method. It is intended to

support displays where high brightness, EBU Gamut (72% NTSC), wide viewing angle, and high color depth are

very important.

The T460HW03 VB backlight unit is using inverter-less solution (inductor type balance board), and need to be

General Information

Items Specification Unit Note

Active Screen Size 46 inches Diagonal

Display Area 1018.08(H) x 572.67(V) mm

Outline Dimension 1083.0(H) x 627.0(V) x 54.1(D) mm With Balance Board

Driver Element a-Si TFT active matrix

Display Colors 1.07B Colors

Color Gamut 72 % NTSC

Number of Pixels 1920 x 1080 Pixel

Pixel Arrangement RGB vertical stripe

Pixel Pitch 0.53025 mm

Display Mode Normally Black

Surface Treatment Haze 13%, 3H

RoHS RoHS compliance

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 6

Global LCD Panel Exchange Center

www.panelook.com

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min. Max Unit Note

Logic/LCD Drive Voltage VDD -0.3 14.0 VDC 1

Input Voltage of Signal VIN -0.3 4 VDC 1

Operating Temperature TOP 0 +50 °C 2

Operating Humidity HOP 10 90 %RH 2

Storage Temperature TST -20 +60 °C 2

Storage Humidity HST 10 90 %RH 2

Panel Surface Temperature T

Shock (non-operation) ±x, ±y -- 40 G 3

Shock (non-operation) ±z -- 30 G 3

Vibration (non-operation) -- 1.5 G 4

Note 1: Duration = 50ms

Note 2: Maximum Wet-Bulb should be 39°C and no condensation. The relative humidity must not exceed

90% non-condensing at temperatures of 40°C or less. At temperatures greater than 40°C, the wet

bulb temperature must not exceed 39°C.

Note 3: Sine wave, 11ms, direction: ±x, ±y, ±z (one time each direction)

Note 4: Wave form: random, vibration level: 1.5G RMS, Bandwidth: 10--300Hz

Duration: X, Y, Z 30min (one time each direction)

-- +65 °C 2

SUR

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 7

Global LCD Panel Exchange Center

www.panelook.com

3. Electrical Specification

The T460HW03 VB requires two power inputs. One is employed to power the LCD electronics and to drive the

TFT array and liquid crystal. The second input, which powers the CCFL, is typically generated by an integrate

power (I/P) system.

3.1 Electrical Characteristics

Parameter Symbol

Unit Note

Min. Typ. Max

Power Supply Input Voltage VDD 10.8 12.0 13.2 VDC

Power Supply Input Current IDD -- 1.1 1.6 A 1

Power Consumption PC -- 13.2 19.2 Watt 1

Value

Inrush Current I

-- -- 4.5 A 5

RUSH

Differential Input

High Threshold

-- -- +100 mVDC 4

Voltage

LVDS

Interface

Differential Input

Low Threshold

-100 -- -- mVDC 4

Voltage

Common Input

1.10 1.20 1.40 VDC

CIM

VIH

(High)

2.4 -- 3.3 V

CMOS

Voltage

Input High

Threshold Voltage

Interface

Input Low

Threshold Voltage

(Low)

0 -- 0.7 V

Backlight Power Consumption (ref.) PBL 182.4 201.6 216 Watt 2

Life Time 50000 -- -- Hours 3

The performance of the Lamp in LCD panel, for example life time or brightness, is extremely influenced by

the characteristics of the balance board and I/P board. All the parameters should be carefully designed as

not to produce too much leakage current from high-voltage output. While design or order balance board,

please make sure unwanted lighting caused by the mismatch of the lamp and balance board (no lighting,

flicker, etc) never occurs. After confirmation, the LCD Panel should be operated in the same condition as

installed in your instrument.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 8

Global LCD Panel Exchange Center

Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,

TFT-LCD Module has a low luminance and the inverter has abnormal action, because leakage current

occurs between lamp wire and conducting tape.

When operate at low temperatures, the brightness of CCFL will drop and the lifetime of CCFL will be

reduced.

Note:

www.panelook.com

1. V

2. The backlight power consumption shown above is tested by lamp current I

=12.0V, fV=60Hz, f

CLK

=74.25Mhz, 25°C, VDD duration time=400μs, test pattern: white pattern

=7.6mA.

3. The life is determined as the time at which luminance of the lamp is 50% compared to that of initial value

at the typical lamp current on condition of continuous operating at 25±2°C.

4. V

=1.20V

CIM

VTH

VCIM

VTL

Figure: LVDS Differential Voltage

5. Measurement condition: rising time=400

μs

0.9 Vdd

Vdd

GND

0.1 Vdd

400

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 9

Global LCD Panel Exchange Center

3.2 Interface Connections

LCD connector: FI-RE51S-HF (JAE)

Mating connector: FI-RE51S-HL (JAE)

PIN # Signal Name Description

www.panelook.com

2 VDD Operating voltage supply, +12V DC regulated

5 VDD Operating voltage supply, +12V DC regulated

6 GND Ground

7 GND Ground

8 GND Ground

9 GND Ground

10 RO_0- LVDS Channel 1, pair 0, negative

11 RO_0+ LVDS Channel 1, pair 0, positive

12 RO_1- LVDS Channel 1, pair 1, negative

13 RO_1+ LVDS Channel 1, pair 1, positive

14 RO_2- LVDS Channel 1, pair 2, negative

15 RO_2+ LVDS Channel 1, pair 2, positive

16 GND Ground

Operating voltage supply, +12V DC regulated

17 RO_CLK- LVDS Clock, Channel 1, negative

18 RO_CLK+ LVDS Clock, Channel 1, positive

19 GND Ground

20 RO_3- LVDS Channel 1, pair 3, negative

21 RO_3+ LVDS Channel 1, pair 3, positive

22 RO_4- LVDS Channel 1, pair 4, negative

23 RO_4+ LVDS Channel 1, pair 4, positive

24 GND Ground

25 RE_0- LVDS Channel 2, pair 0, negative

26 RE_0+ LVDS Channel 2, pair 0, positive

27 RE_1- LVDS Channel 2, pair 1, negative

28 RE_1+ LVDS Channel 2, pair 1, positive

29 RE_2- LVDS Channel 2, pair 2, negative

30 RE_2+ LVDS Channel 2, pair 2, positive

31 GND Ground

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 10

Global LCD Panel Exchange Center

32 RE_CLK- LVDS Clock, Channel 2, negative

33 RE_CLK+ LVDS Clock, Channel 2, positive

34 GND Ground

35 RE_3- LVDS Channel 2, pair 3, negative

36 RE_3+ LVDS Channel 2, pair 3, positive

37 RE_4- LVDS Channel 2, pair 4, negative

38 RE_4+ LVDS Channel 2, pair 4, positive

39 GND Ground

40 NC No Connection

41 NC No Connection

42 NC No Connection

WP EEPROM write protection

www.panelook.com

44 HSYNC Customer use only

45 LVDS Select LVDS data order (NS: High/Open, JEIDA: Low)

46 LVDS_SCL I2C SCL data from LVDS

47 FRC_NRESET Customer use only

48 LVDS_SDA I2C SDA data from LVDS

49 SW_PVCC Customer use only

50 MAIN_CHECK Customer use only

51 NC (reserved) No Connection (AUO internal use)

High (3.3V) for writable

Low (GND) for protection

Note 1: All GND (ground) pins should be connected together and should also be connected to the LCD’s

metal frame.

Note 2: All V

Note 3: All NC (no connection) pins should be open without voltage input.

(power input) pins should be connected together.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 11

Global LCD Panel Exchange Center

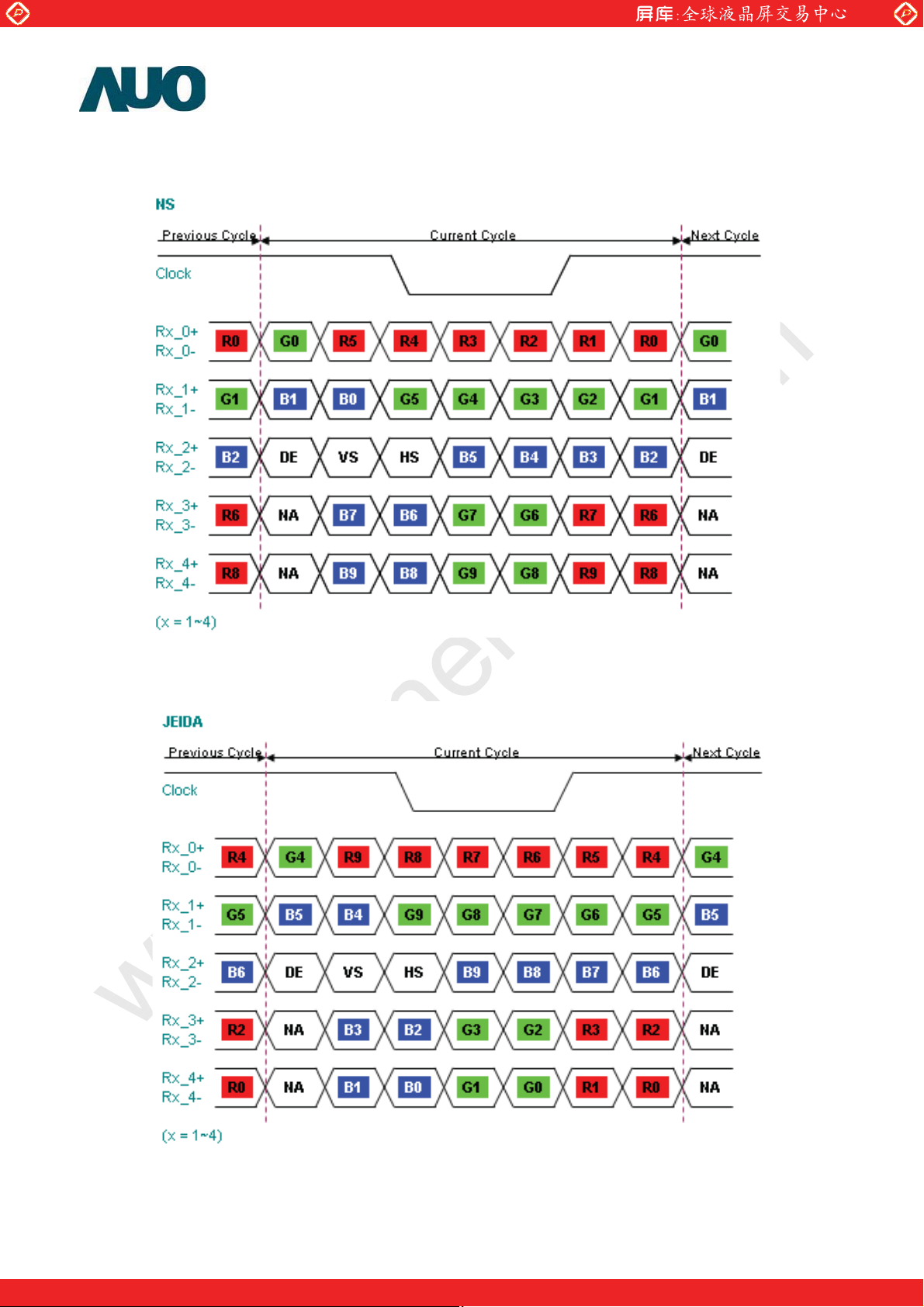

LVDS Option = High/OpenÎÎÎÎNS

www.panelook.com

(X = O E)

LVDS Option = LowÎÎÎÎJEIDA

(X = O E)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 12

Global LCD Panel Exchange Center

www.panelook.com

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table

Vertical Frequency Range (60Hz)

Signal Item Symbol Min. Typ. Max Unit

Vertical Section

Period T

Active T

Blanking T

(V) 1080 TH

DISP

(V) 45 T

BLK

1125 1125 1125 T

Front porch Tfp(V) 5 5 5 TH

Back porch Tbp(V) 31 31 31 TH

Horizontal Section

Clock

9BV\QF

TVsync_wdth 9 9 9 T

Period TH 2200 2200 2200 T

Active T

Blanking T

(H) 1920 T

DISP

(H) 144 T

BLK

Front porch Tfp(H) 49 49 49 T

Back porch T(H) 147 147 147 T

9BV\QF 79V\QFBZGWK

Period T

Frequency F

CLK

13.47 ns

74.25 MHz

84 84 84 T

CLK

Vertical Frequency Frequency FV 60 Hz

Horizontal Frequency Frequency FH 67.5 KHz

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 13

Global LCD Panel Exchange Center

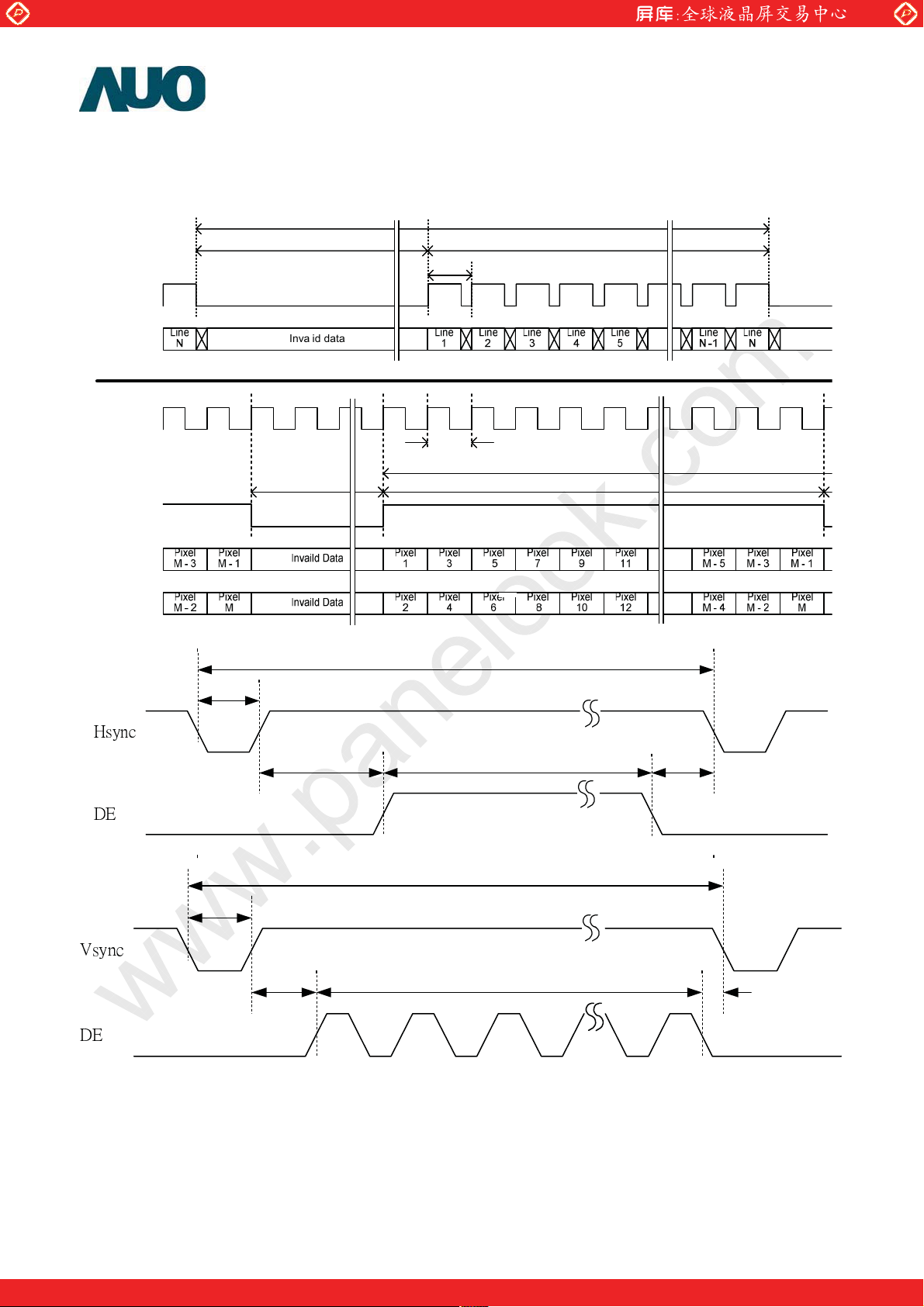

3.4 Signal Timing Waveforms

www.panelook.com



 





 

 

 















˛˶

˗˘

˩˶

˗˘

TH(sync_width)

TV(sync_width)

Tfp(h) Tbp(h)

Tdisp(h)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 14

Global LCD Panel Exchange Center

www.panelook.com

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 10 bit gray scale data input for the

color; the higher the binary input, the brighter the color. The table below provides a reference for color versus

data input.

COLOR DATA REFERENCE

Input Color Data

Basic

Color

RED

Color

MSB LSB

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

Blue(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(1022) 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN

BLUE

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

----

GREEN(1022) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0

GREEN(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

-------

BLUE(1022) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0

BLUE(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 15

Global LCD Panel Exchange Center

3.6 Power Sequence

www.panelook.com

Parameter

Min. Typ. Max.

t1 0.4 -- 30 ms

t2 0.1 -- 50 ms

t3 2300 -- -- ms

t4 10 -- -- ms

t5 0.1 -- 50 ms

t6 -- -- 300 ms

t7 500 -- -- ms

Apply the lamp voltage within the LCD operating range. When the backlight turns on before the LCD

operation or the LCD turns off before the backlight turns off, the display may momentarily become abnormal.

Caution: The above on/off sequence should be applied to avoid abnormal function in the display. In case of

handling, make sure to turn off the power when you plug the cable into the input connector or pull the cable

out of the connector.

Values

Unit

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 16

Global LCD Panel Exchange Center

3.7 Backlight Power Specification

www.panelook.com

Specification

(Ta=25±5oC, Turn-on after 60mins)

Specification

Item Symbol

Unit Note

Min. Typ. Max

HV1/

1 High Voltage (HV) Input

HV2

2 Input Current of each HV IHV 135 150 165 mA

3 High Voltage (HV) Output V

4 Output Lamp Current I

OUT

- 680 - V

- 1360 - V

7.3 7.6 7.9 mA

RMS

=7.6mA

RMS IL

RMS

PWM=100%

RMS

5 Operating Frequency FOP 43 45 47 KHz (Recommend)

6 PWM Dimming Frequency F

7 Dimming Duty Ratio D

140 150 160 Hz (Recommend)

PWM

20 -- 100 % (Recommend)

PWM

8 Lamp Type Straight

9 Number of Lamps 20 pcs

Protection Circuit (Feedback Signal):

RMS

10 Supply Voltage VCC 10 12 15 VDC

11 Supply Current ICC -- 20 40 mADC

12 Current Feedback Signal VFB 2.0 2.20 2.4 V

VLD(H) 11.4 12 12.6

RMS

13 Lamp Detection (OLP)

(L) 0 -- 0.8

Lamp Specification:

Output Working Voltage

VL 1224 1360 1496

RMS

15 Output Current IL 4 7.6 8.1 mA

Lamp Frequency F

Starting Voltage Vs

40 -- 80 KHz

LAMP

-- -- 2000 V

-- -- 2200

RMS

Lamp normal status

Lamp protection status

RMS

=7.6mA

, Ta=25oC

RMS

Ta=25oC

Ta=0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 17

Global LCD Panel Exchange Center

www.panelook.com

Connector Pin Assignment

CN2 or CN3: YeonHO_130001WR-02E (LF)

PIN # Symbol Description

1 HV1+ I/P board high voltage supply

2 HV1+ I/P board high voltage supply

CN6: YeonHO_130001WR-02E (LF)

PIN # Symbol Description

1 HV2 - I/P board high voltage supply

2 HV2- I/P board high voltage supply

CN1: HIROSE_KN30-7P-1.25H

PIN # Symbol Description

1 VCC Power Supply for Protection Circuit

2 IFB Lamp Current feedback Signal (Full wave current)

3 IFB Lamp Current feedback Signal (Full wave current)

4 GND Signal Ground

5 GND Signal Ground

6 LD Lamp detection

7 LD Lamp detection

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 18

Global LCD Panel Exchange Center

www.panelook.com

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60 minutes in a

dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of  and  equal to 0°.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max

Values

Unit Notes

Contrast Ratio CR 4000 5000 -- 1

Surface Luminance (White) LWH 425 500 -- cd/m2 2

Luminance Variation 

WHITE(9P)

Response Time (Average) T -- 5.5 -- ms 4

-- -- 1.3 3

(Gray to Gray)

Color Coordinates

Red RX 0.640

0.330

Green GX 0.290

0.600

Typ.-0.03

Typ.+0.03

Blue BX 0.150

0.060

White WX 0.280

Viewing Angle

x axis, right(=0°) r -- 89 -- degree 5

0.290

(Contrast Ratio>10)

x axis, left(=180°) l -- 89 -- degree 5

y axis, up(=90°) u -- 89 -- degree 5

y axis, down (=270°) 

-- 89 -- degree 5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 19

Global LCD Panel Exchange Center

www.panelook.com

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Contrast Ratio (CR)=

Brightness of the "white" state Brightness of the "black" state

2. Surface Luminance is luminance value at point 5 with 100% dimming across the LCD surface 50cm from the

surface with all pixels displaying white. For more information see Fig. 4-2. When lamp current I

WH=Lon5

, where L

is the luminance with all pixels displaying white at center 5 location.

on5

V/2

V/6

1 2 3

4 5 6

7 8

H/2 H/6

Fig.4-2 Optical measurement point

3. The variation in surface luminance, 



WHITE(9P)

= Maximum(L

WHITE(9P)

is defined under brightness of IL=7.6mA as:

, L

on1

on2

,…,L

)/Minimum(L

on9

on1

, L

on2

,…L

on9

)

=7.6mA,

4. Response time T is the average time required for display transition by switching the input signal for five

luminance ratio (0%, 25%, 50%, 75%, 100% brightness matrix)and is based on f

=60Hz to optimize.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal (or x-axis) and the vertical (or y-axis) with respect to the z-axis which is normal to the LCD surface.

For more information see Fig. 4-4.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 20

Global LCD Panel Exchange Center

www.panelook.com

Fig.4-4 Viewing angle definition

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 21

Global LCD Panel Exchange Center

www.panelook.com

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T460HW03. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Horizontal (typ.) 1083.0 mm

Outline Dimension

Bezel Area

Active Display Area

Weight 15500g (Max)

Surface Treatment Haze 13%, 3H

Vertical (typ.) 627.0 mm

Depth (typ.) 54.1 mm (with balance board)

Horizontal (typ.) 1024.4 mm

Vertical (typ.) 578.6 mm

Horizontal 1018.08 mm

Vertical 572.67 mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 22

Global LCD Panel Exchange Center

2D Drawing (Front)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 23

Global LCD Panel Exchange Center

2D Drawing (Rear)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 24

Global LCD Panel Exchange Center

6. Reliability

Panel condition in RA test

Brightness: 500nits

Lamp Current (Hot side): 7.6mA

No Test Item Condition

1 High temperature storage test Ta=60 300hк

2 Low temperature storage test Ta= -20 300hк

3 High temperature operation test Ta=50к 300h

4 Low temperature operation test Ta=-5 300hк

5 Vibration test

(non-operating)

6 Shock test

(non-operating)

7 Vibration test

(with carton)

8 Drop test

www.panelook.com

Wave form: random Vibration level: 1.5G RMS Bandwidth: 10-300Hz, Duration: X, Y, Z 30min One time each direction Shock level: 50G Waveform: half since wave, 11ms Direction: ±X, ±Y, ±Z One time each direction Wave form: random Vibration level: 1.5G RMS Bandwidth: 10-200Hz, Duration: X, Y, Z 90min One time each direction

Height: 25.4cm

(with carton)

Result Evaluation Criteriaε

There should be no change which might affect the practical display function when the display quality test is conducted

under normal operating condition.

1 corner, 3 edges, 6 surfaces

(ASTMD4169-I)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 25

Global LCD Panel Exchange Center

www.panelook.com

7. International Standard

7-1. Safety

(1) UL6500, UL 60065 Underwriters Laboratories, Inc. (AUO file number: E204356)

Standard for Safety of Information Technology Equipment Including electrical Business Equipment.

(2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.

(3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

IEC 60065: version 7th

European Committee for Electro technical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business

Equipment.

7-2. EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electrical

Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information Technology

Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998

7-3. Green Mark Description

(1) For Pb Free products, AUO will add

(2)

Note. The Green Mark will be present only when the green documents have been ready by AUO Internal Green

Team. (The definition of green design follows the AUO green design checklist.)

RoHS compatible products, AUO will add

For

for identification.

RoHS

for identification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 26

Global LCD Panel Exchange Center

8. Packing

Packing Instruction

www.panelook.com

Cushion top

1pcs Module/ESD Bag

Cushion set

6pcs Modules

Package information

Module

Carton outside dimension:

1170 x 560 x 670mm

Cushion down

"H" Tape

6pcs / 1 carton

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 27

Global LCD Panel Exchange Center

www.panelook.com

Pallet information

By air cargo: (2 x 1) x 1 layers, one pallet put 2 boxes, total 12 pcs module.

Dimension: 1140 x 1180 x 810mm

By sea: (2 x 1) x 2 layers, one pallet put 2 boxes, stack 2 layers, total 24 pcs module.

Dimension: 1140 x 1180 x 1620mm

˶˸ʳ˴˺˿˸

˟˔˕˘˟

˸˶˻ ʳ˹ ˼˿

ˣ˘˧ʳ˕˴˷

˪ ˷˸ʳ˴˿˿˸

Pallet dimension: 1140 x 1180 x 138mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 28

Global LCD Panel Exchange Center

Panel Label

Carton Label

www.panelook.com

T460HW03 V5

97.46T03.XXX

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 29

Global LCD Panel Exchange Center

www.panelook.com

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged on back side of panel

(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to

module. And the case on which a module is mounted should have sufficient strength so that external force is

not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by

electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB pencil lead.

And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for

bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used

to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because they cause chemical

damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:



200mV (Over and under shoot voltage)

(2) Response time depends on the temperature. (In lower temperature, it becomes longer.)

(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature,

response time (required time that brightness is stable after turned on) becomes longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.

(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done

by system manufacturers. Grounding and shielding methods may be important to minimize the interface.

(7) The device listed in the product specification sheets was designed and manufactured for TV application.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 30

Global LCD Panel Exchange Center

www.panelook.com

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they be

stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off,

static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully

by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of flue still on the Bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, please

wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 31

Global LCD Panel Exchange Center

www.panelook.com

APPENDIX

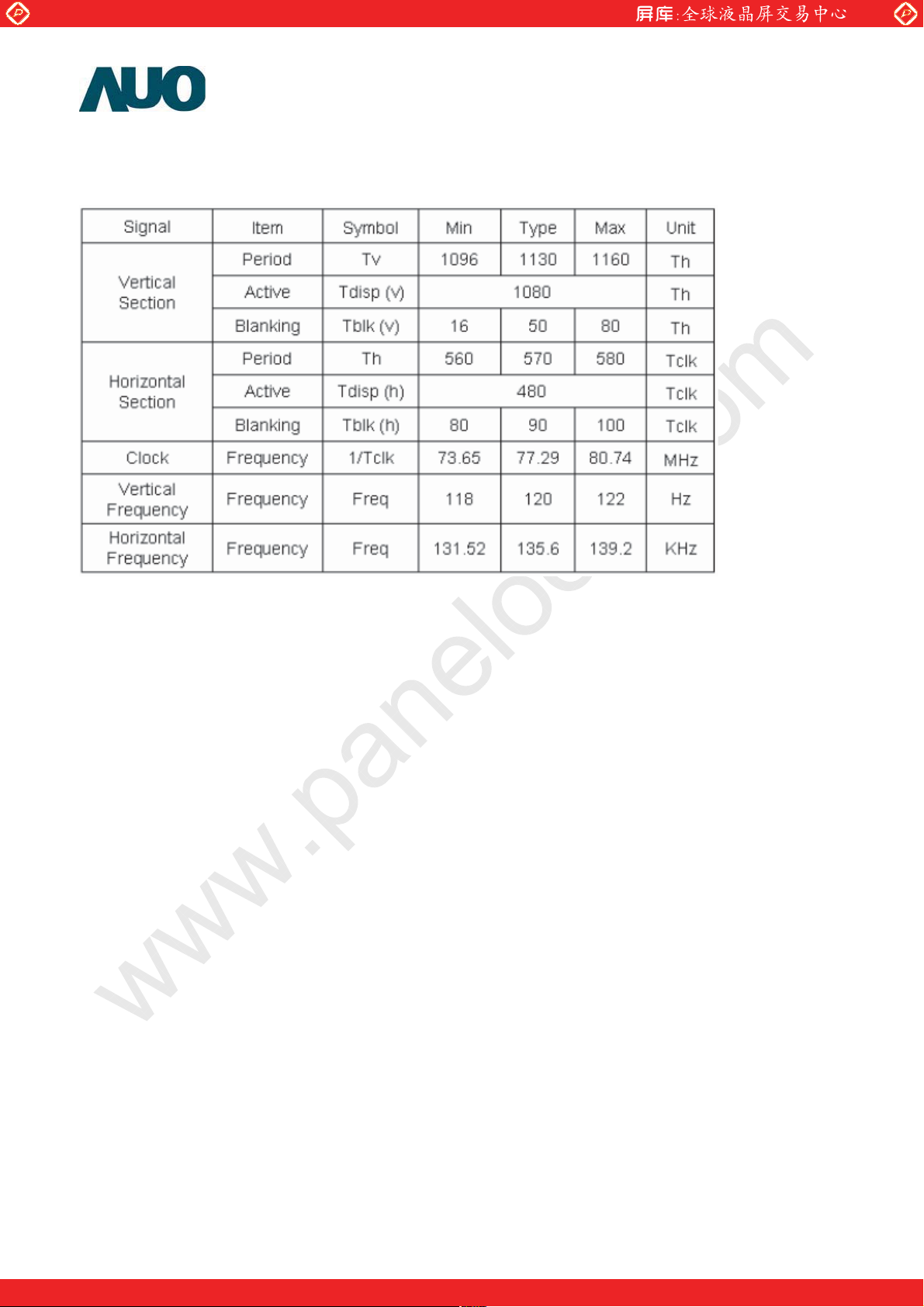

AUO T460HW03 VB T-CON LVDS Timing (120Hz)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

AUO T460HW03 VB Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
