Document Version: 1.3

Date: 2009/01/07

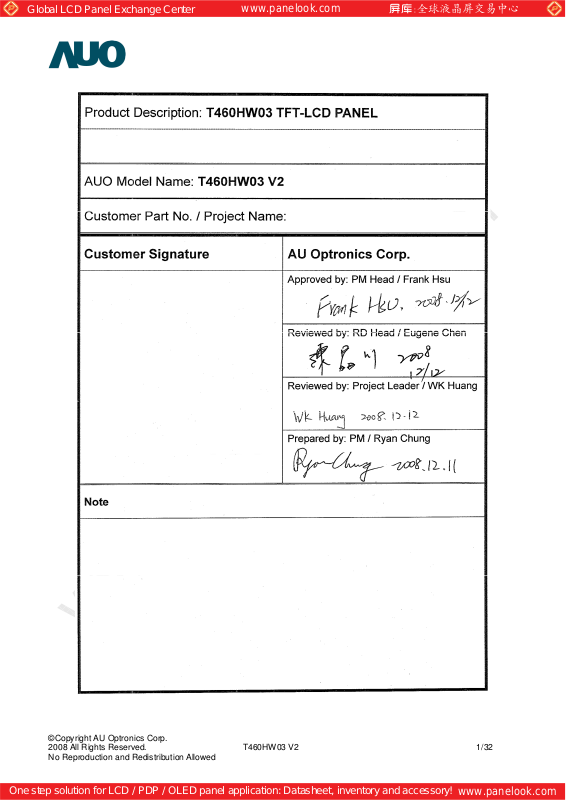

Product Functional Specification

46” Full HD Color TFT-LCD Module

Model Name: T460HW03 V2

() Preliminary Specification

(*) Final Specification

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTOR

Contents

3-3 SIGNAL TIMING SPECIFICATION

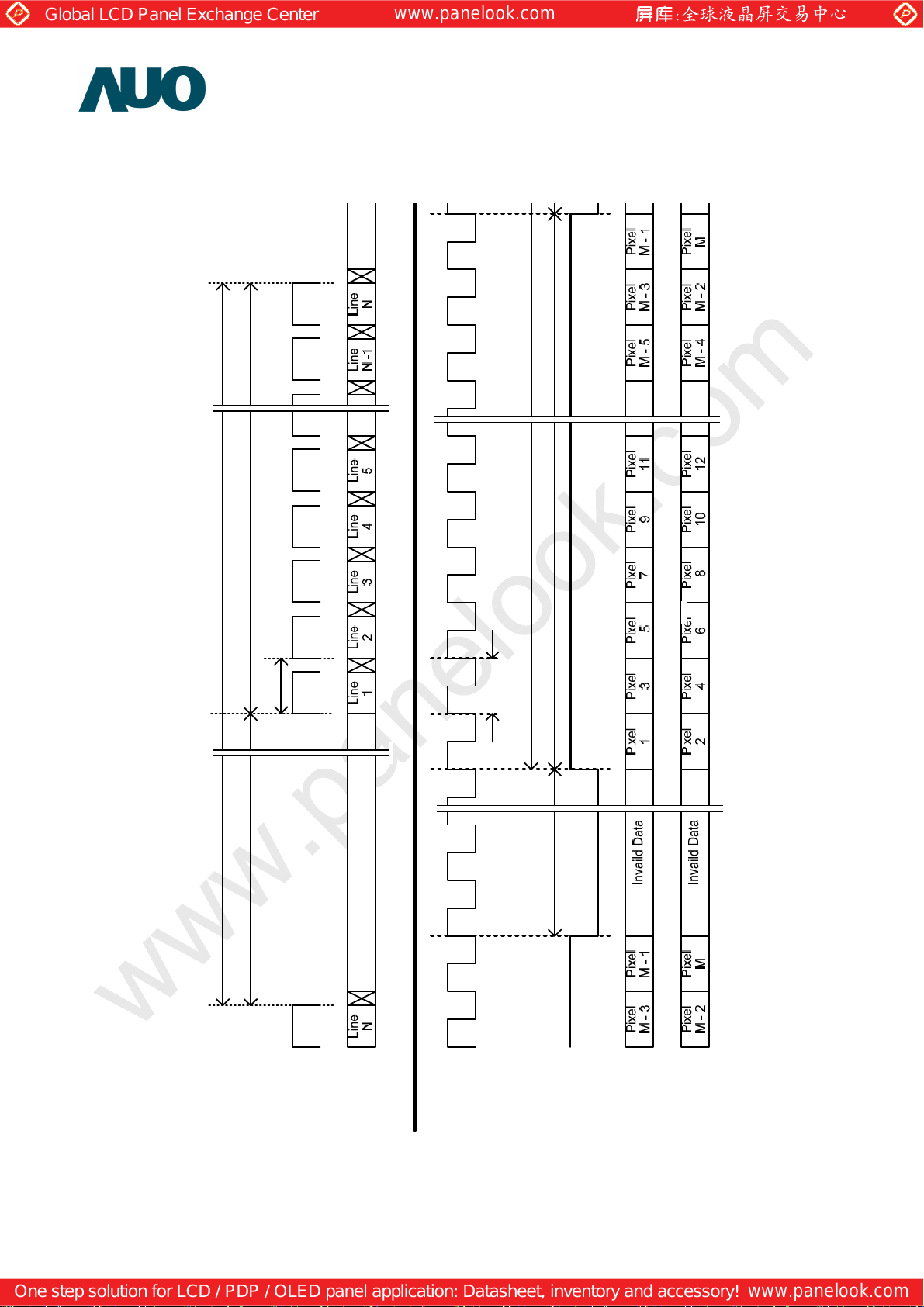

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

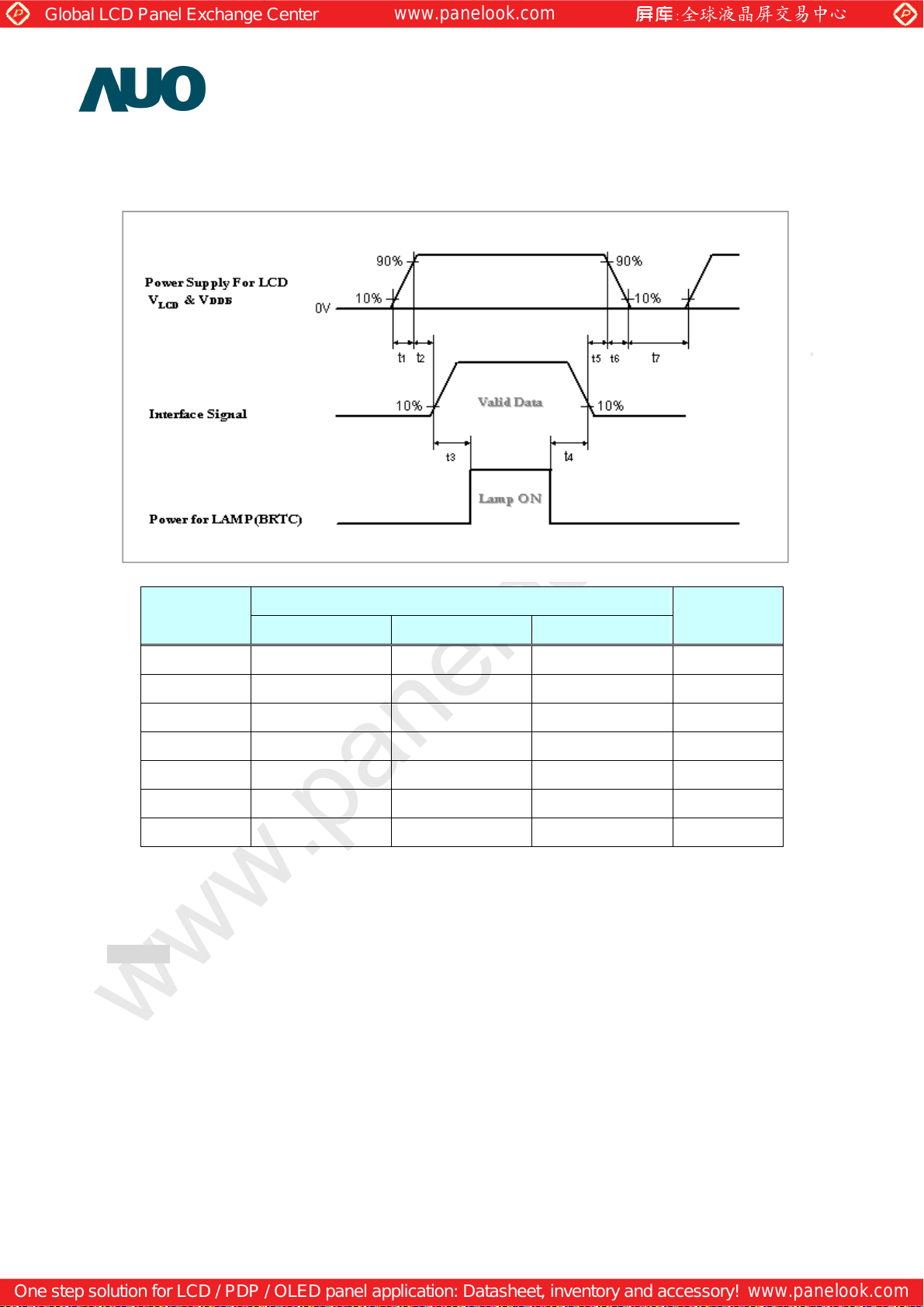

3-6 POWER SEQUENCE

3-7 BACK LIGHT POWER SPECIFICATION

4 OPTICAL SPECIFICATION

5 MECHANICAL CHARACTERISTICS

6 Reliability

7 INTERNATIONAL STANDARD

8 PACKING

9 PRECAUTION

10 APPENDIX

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Record of Revision

Version

0.0 2008/9/9

0.1 2008/11/10 22

0.1 2008/11/10 23 N/A 2D Drawing update N/A

0.1 2008/11/10 24 N/A 2D Drawing update N/A

1.0 2008/11/27 7 N/A

1.0 2008/11/27 12 N/A Signal timing spec update N/A

1.0 2008/11/27 16 N/A

1.1 2008/12/11 5,22 Haze 12% Haze 13% N/A

1.1 2008/12/11 25

1.1 2008/12/11 16

Data Page.

First release N/A N/A

Old Description New Description Remark

Bezel Area Horizontal (ty

p.)1024.4mm

Vibration test Duration: X, Y, Z 30min

Backlight power spec

High voltage Output: 1000

Output lamp current:

Mni:9.5 Typ:10 Max:10.5

Bezel Area Horizontal (typ.)

1024.9 mm

Electrical characteristics

update

Backlight power spec

update

Vibration test Duration: X, Y, Z 30min/XYZ

High voltage Output: 1220

Output lamp current:

Mni:10 Typ:10.5 Max:11

N/A

Lamp Spec

Output working voltage:

1.1 2008/12/11 16

1.1 2008/12/11 19

1.2 2008/12/11 8

1.3 2009/1/7

Mi:1107 Ty:1230 Ma:1353

Output current:

Min:4 Typ:10 Max:10.5

Starting Voltage: 2450

Contrast Ratio

Min:3200 Typ:4000

Power consumption

Typ:210W

23 Weight:15500g (Max) Weight:13030g (Typ) N/A

Output working voltage:

Mi:1098 Ty:1220 Ma:1342

Output current:

Min:4 Typ:10.5 Max:11

Starting Voltage: 2400

Min:4000 Typ:5000 N/A

Min:175W Typ:185W

Max:195W

N/A

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

1. General Description

This specification applies to the 46 inch Color TFT-LCD Module T460HW03 V2. This LCD module has a TFT

active matrix type liquid crystal panel 1920x1080 pixels, and diagonal size of 46 inch. This module supports Full

HD mode (Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray

scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.

The T460HW03 V2 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to

support displays where high brightness, EBU Gamut (72% NTSC), wide viewing angle, and high color depth are

very important.

The T460HW03 V2 backlight unit is using inverter-less solution (inductor type balance board), and need to be

powered by integrated power system by customers.

* General Information

Items Specification Unit Note

Active Screen Size 46 inches Diagonal

Display Area 1018.08(H) x 572.67(V) mm

Outline Dimension 1083.0(H) x 627.0(V) x 57.0(D) mm With Balance Board

Driver Element a-Si TFT active matrix

Display Colors 16.7M Colors

Number of Pixels 1920 x 1080 Pixel

Pixel Arrangement RGB vertical stripe

Pixel Pitch 0.53025 mm

Display Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze 13%

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol

Logic/LCD Drive Voltage VDD -0.3 14.0 VDC 1

Input Voltage of Signal VIN -0.3 3.6 VDC 1

Operating Temperature TOP 0 +50 °C 2

Operating Humidity HOP 10 90 %RH 2

Storage Temperature TST -20 +60 °C 2

Storage Humidity HST 10 90 %RH 2

Panel Surface Temperature T

Note 1: Duration = 50ms

Note 2: Maximum Wet-Bulb should be 39°C and no condensation. The relative humidity must not exceed

90% non-condensing at temperatures of 40°C or less. At temperatures greater than 40°C, the wet

bulb temperature must not exceed 39°C.

Note 3: Surface temperature is measured at 50°C dry condition

-- +65 °C 3

SUR

Min. Max Unit Note

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3. Electrical Specification

The T460HW03 V2 requires two power inputs. One is employed to power the LCD electronics and to drive the

TFT array and liquid crystal. The second input, which powers the CCFL, is typically generated by an integrate

power (I/P) system.

3.1 Electrical Characteristics

Parameter Symbol

Power Supply Input Voltage VDD 10.8 12.0 13.2 VDC

Power Supply Input Current IDD -- 0.75 1.2 A 1

Power Consumption PC -- 9 15.8 Watt 1

Inrush Current I

Differential Input

High Threshold

Voltage

LVDS

Interface

CMOS

Differential Input

Low Threshold

Voltage

Common Input

Voltage

Input High

Threshold Voltage

RUSH

VTH -- -- +100 mVDC 4

VTL -100 -- -- mVDC 4

V

CIM

VIH

(High)

Min. Typ. Max

-- -- 5 A 5

1.10 1.25 1.40 VDC

2.4 -- 3.3 VDC

Value

Unit Note

Interface

Backlight Power Consumption (ref.)

Life Time 50000

Input Low

Threshold Voltage

VIL

0 -- 0.7 VDC

(Low)

PBL 175 185 195 Watt 2

-- -- Hours 3

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

s

µ

Note:

1. The ripple voltage should be controlled under 10% of V CC

2. Vcc=12.0V, = v f 60Hz, fCLK=81.5Mhz , 25℃, Test Pattern : White Pattern

3. Measurement condition :

Vdd

GND

0.9 Vdd

0.1 Vdd

400

4. V

=1.2V

CIM

VTH

VCIM

VTL

0V

Figure: LVDS Differential Voltage

5. The performance of the Lamp in LCD panel, for example life time or brightness, is extremely

influenced by the characteristics of balanced board and I/P board. All the parameters should

be carefully designed as not to produce too much leakage current from high-voltage output.

While you design or order the balance board, please make sure unwanted lighting caused by

the mismatch of the lamp and the balanced board (no lighting, flicker, etc) never occurs. After

confirmation, the LCD panel should be operated in the same condition as installed in your

instrument

6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting

tape, TFT-LCD Module have a low luminance and the inverter has abnormal action because

leakage current occurs between lamp wire and conducting tape.

℃

7. The relative humidity must not exceed 80% non-condensing at temperatures of 40

At temperatures greater than 40℃, the wet bulb temperature must not exceed 39℃. When

operate at low temperatures, the brightness of CCFL will drop and the life time of CCFL will be

reduced.

or less.

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3.2 Interface Connections

 LCD connector: FI-RE51S-HF (JAE)

 Mating connector: FI-RE51S-HL (JAE)

PIN # Signal Name Description

1

2 VDD Operating voltage supply, +12V DC regulated

3

4

5 VDD Operating voltage supply, +12V DC regulated

6 GND Ground

7 GND Ground

8 GND Ground

9 GND Ground

10 RO_0- LVDS Channel 1, pair 0, negative

11 RO_0+ LVDS Channel 1, pair 0, positive

12 RO_1- LVDS Channel 1, pair 1, negative

13 RO_1+ LVDS Channel 1, pair 1, positive

14 RO_2- LVDS Channel 1, pair 2, negative

15 RO_2+ LVDS Channel 1, pair 2, positive

16 GND Ground

VDD

Operating voltage supply, +12V DC regulated

17 RO_CLK- LVDS Clock, Channel 1, negative

18 RO_CLK+ LVDS Clock, Channel 1, positive

19 GND Ground

20 RO_3- LVDS Channel 1, pair 3, negative

21 RO_3+ LVDS Channel 1, pair 3, positive

22 NC No Connection

23 NC No Connection

24 GND Ground

25 RE_0- LVDS Channel 2, pair 0, negative

26 RE_0+ LVDS Channel 2, pair 0, positive

27 RE_1- LVDS Channel 2, pair 1, negative

28 RE_1+ LVDS Channel 2, pair 1, positive

29 RE_2- LVDS Channel 2, pair 2, negative

30 RE_2+ LVDS Channel 2, pair 2, positive

31 GND Ground
