Document Version: 0.0
Date: 2008/2/29
Product Functional Specification
46” Full HD Color TFT-LCD Module
Model Name: T460HW03 V1
(*) Preliminary Specification
() Final Specification
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 2/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
No
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATION
3-1 ELECTRIACL CHARACTERISTICS
3-2 INTERFACE CONNECTOR
www.panelook.com
Contents
3-3 SIGNAL TIMING SPECIFICATION
3-4 SIGNAL TIMING WAVEFORM
3-5 COLOR INPUT DATA REFERENCE
3-6 POWER SEQUENCE
3-7 BACK LIGHT POWER SPECIFICATION
4 OPTICAL SPECIFICATION
5 MECHANICAL CHARACTERISTICS
6 INTERNATIONAL STANDARD
7 PACKING
8 PRECAUTION
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 3/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
Record of Revision
Version Data Page. Old Description New Description Remark
0.0 2008/2/29 First release N/A N/A
www.panelook.com
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 4/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
1. General Description
This specification applies to the 46 inch Color TFT-LCD Module T460HW03 V1. This LCD module has a TFT
active matrix type liquid crystal panel 1920x1080 pixels, and diagonal size of 46 inch. This module supports Full
HD mode (Non-interlace).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray
scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
The T460HW03 V1 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to
support displays where high brightness, EBU Gamut (72% NTSC), wide viewing angle, and high color depth are
very important.
The T460HW03 V1 backlight unit is using inverter-less solution (inductor type balance board), and need to be
powered by integrated power system by customers.
* General Information
Items Specification Unit Note
Active Screen Size 46 inches Diagonal
Display Area 1018.08(H) x 572.67(V) mm
Outline Dimension 1083.0(H) x 627.0(V) x 50.6(D) mm With Balance Board
Driver Element a-Si TFT active matrix
Display Colors 16.7M Colors
Color Gamut 72 % NTSC
Number of Pixels 1920 x 1080 Pixel
Pixel Arrangement RGB vertical stripe
Pixel Pitch 0.53025 mm
Display Mode Normally Black
Surface Treatment Haze 11%, 3H
RoHS RoHS compliance
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 5/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com

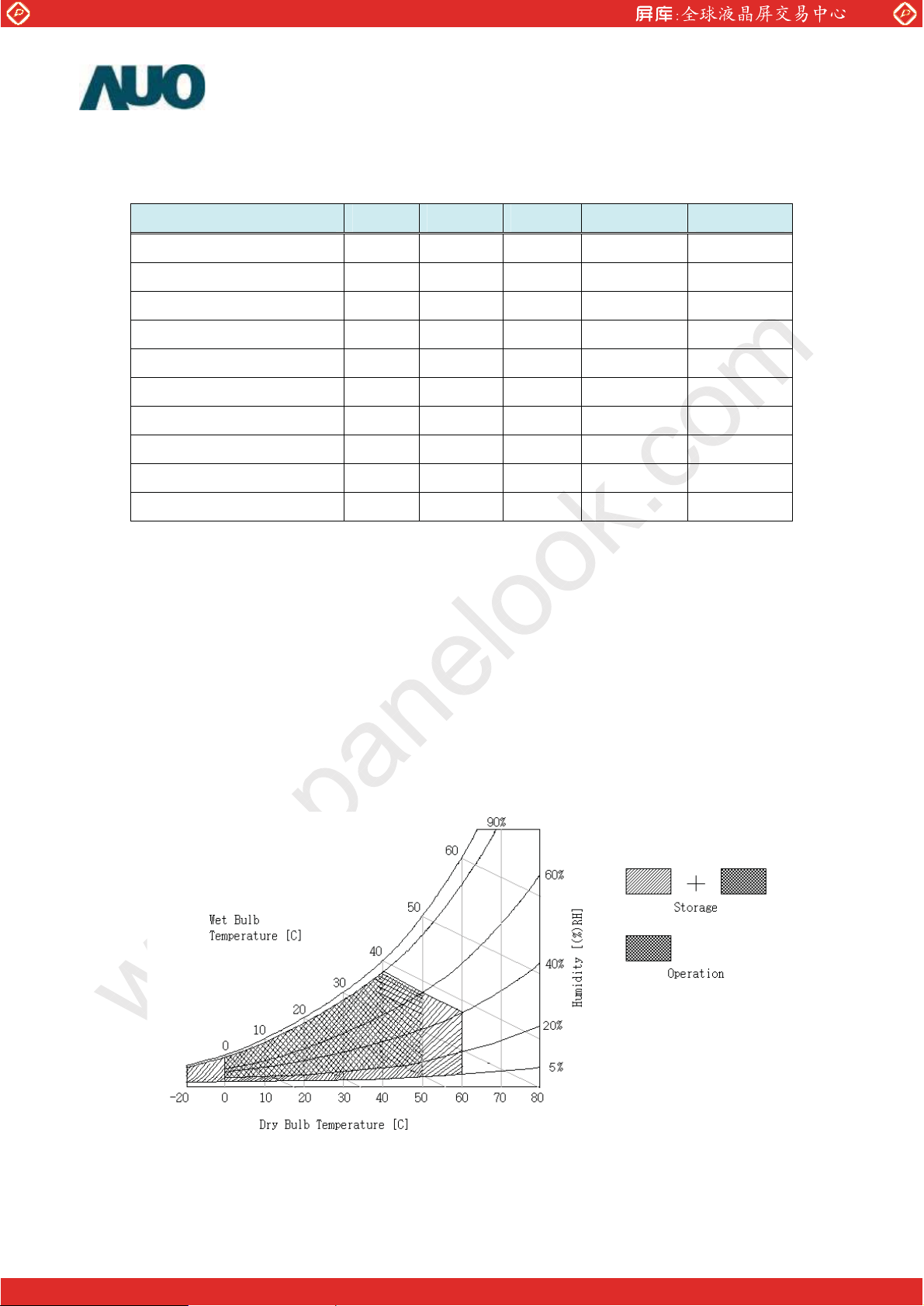

2. Absolute Maximum Ratings
The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit
Item Symbol Min. Max Unit Note
Logic/LCD Drive Voltage V
Input Voltage of Signal V
Operating Temperature T
Operating Humidity H
Storage Temperature T
Storage Humidity H
Panel Surface Temperature T
DD
IN
OP
OP
ST
ST
SUR
-0.3 14.0 V
-0.3 3.6 V
DC
DC
1
1
0+50 °C2
10 90 %RH 2
-20 +60 °C2
10 90 %RH 2
-- +65 °C2
Shock (non-operation) ±x, ±y-- 40 G 3
Shock (non-operation) ±z-- 30 G 3
Vibration (non-operation) -- 1.5 G 4
Note 1: Duration = 50ms
Note 2: Maximum Wet-Bulb should be 39°C and no condensation. The relative humidity must not exceed
90% non-condensing at temperatures of 40°C or less. At temperatures greater than 40°C, the wet
bulb temperature must not exceed 39°C.
Note 3: Sine wave, 11ms, direction: ±x, ±y, ±z (one time each direction)
Note 4: Wave form: random, vibration level: 1.5G RMS, Bandwidth: 10--300Hz
Duration: X, Y, Z 30min (one time each direction)
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 6/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
3. Electrical Specification
The T460HW03 V1 requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input, which powers the CCFL, is typically generated by an integrate
power (I/P) system.
3.1 Electrical Characteristics
Parameter Symbol
Power Supply Input Voltage V
Power Supply Input Current I
Power Consumption P
Inrush Current I
RUSH
Differential Input
High Threshold
V
Voltage
LVDS
Interface
Differential Input
Low Threshold
V
Voltage
Common Input
V
Voltage
CMOS
Input High
Threshold Voltage
V
(High)
DD
DD
TH
TL
CIM
Value
Unit Note
Min. Typ. Max
10.8 12.0 13.2 V
DC
-- 1.35 1.5 A 1
C
-- 16.2 19.8 Watt 1
-- -- 4.5 A 5
-- -- +100 mV
-100 -- -- mV
1.10 1.25 1.40 V
IH
2.4 -- 3.3 V
DC
DC
DC
DC
4
4
Interface
Backlight Power Consumption (ref.) P
Input Low
Threshold Voltage
V
IL
(Low)
BL
0 -- 0.7 V
DC
-- (210) -- Watt 2
Life Time 50000 -- -- Hours 3
The performance of the Lamp in LCD panel, for example life time or brightness, is extremely influenced by
the characteristics of the balance board and I/P board. All the parameters should be carefully designed as
not to produce too much leakage current from high-voltage output. While design or order balance board,
please make sure unwanted lighting caused by the mismatch of the lamp and balance board (no lighting,
flicker, etc) never occurs. After confirmation, the LCD Panel should be operated in the same condition as
installed in your instrument.
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 7/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
s
µ
Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,
TFT-LCD Module has a low luminance and the inverter has abnormal action, because leakage current
occurs between lamp wire and conducting tape.
When operate at low temperatures, the brightness of CCFL will drop and the lifetime of CCFL will be
reduced.
Note:
www.panelook.com
1. V
2. The backlight power consumption shown above is tested by lamp current I
=12.0V, fV=60Hz, fCLK=81.5Mhz, 25°C, VDD duration time=400µs, test pattern: white pattern
DD
=7.6mA.
L
3. The life is determined as the time at which luminance of the lamp is 50% compared to that of initial value
at the typical lamp current on condition of continuous operating at 25±2°C.
4. V
=1.25V
CIM
VTH
VCIM
VTL
0V

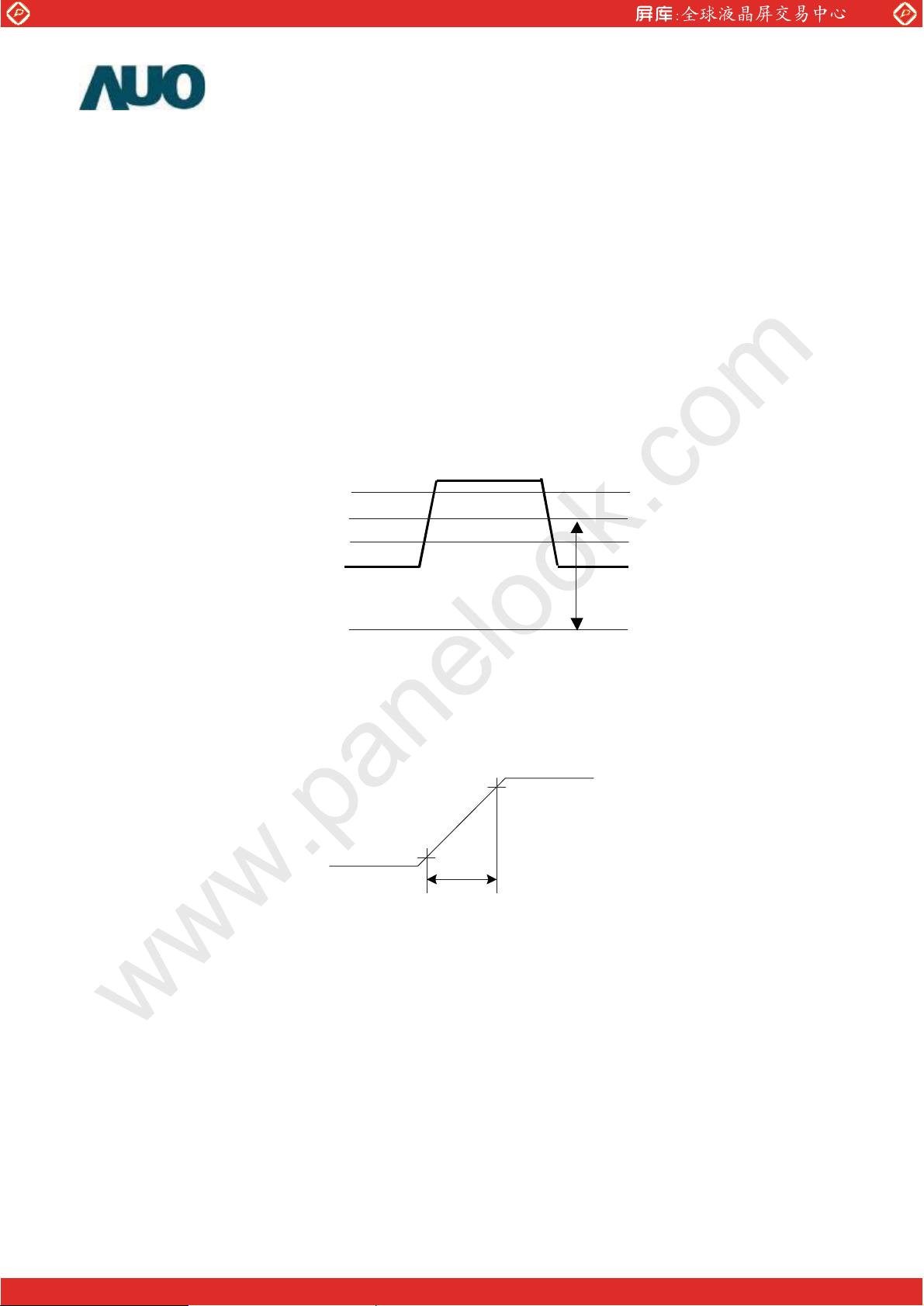

Figure: LVDS Differential Voltage
5. Measurement condition: rising time=400µs
0.9 Vdd
Vdd
GND
0.1 Vdd
400
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 8/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
3.2 Interface Connections
LCD connector: FI-RE51S-HF (JAE)
Mating connector: FI-RE51S-HL (JAE)
PIN # Signal Name Description
www.panelook.com
1 V
2 V
3 V
4 V
5 V
DD
DD
DD
DD
DD
12V power supply
12V power supply
12V power supply
12V power supply
12V power supply
6 GND Ground
7 GND Ground
8 GND Ground
9 GND Ground
10 RO_0- Negative(-) LVDS differential data input
11 RO_0+ Positive(+) LVDS differential data input
12 RO_1- Negative(-) LVDS differential data input
13 RO_1+ Positive(+) LVDS differential data input
14 RO_2- Negative(-) LVDS differential data input
15 RO_2+ Positive(+) LVDS differential data input
16 GND Ground
17 RO_CLK- Clock Signal(-)
18 RO_CLK+ Clock Signal(+)
19 GND Ground
20 RO_3- Negative(-) LVDS differential data input
21 RO_3+ Positive(+) LVDS differential data input
22 NC No connection
23 NC No connection
24 GND Ground
25 RE_0- Negative(-) LVDS differential data input
26 RE_0+ Positive(+) LVDS differential data input
27 RE_1- Negative(-) LVDS differential data input
28 RE_1+ Positive(+) LVDS differential data input
29 RE_2- Negative(-) LVDS differential data input
30 RE_2+ Positive(+) LVDS differential data input
31 GND Ground
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 9/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
PIN # Signal Name Description
32 RE_CLK- Clock Signal(-)
33 RE_CLK+ Clock Signal(+)
34 GND Ground
35 RE_3- Negative(-) LVDS differential data input
36 RE_3+ Positive(+) LVDS differential data input
37 NC No connection
38 NC No connection
39 GND Ground
40 NC No connection
41 NC No connection
www.panelook.com
42 NC No connection
43 NC No connection
44 NC No connection
45 LVDS Select LVDS data order (NS: High/Open, JEIDA: Low)
46 NC No connection
47 NC No connection
48 NC (reserved) No connection (AUO internal use)
49 NC (reserved) No connection (AUO internal use)
50 NC (reserved) No connection (AUO internal use)
51 NC (reserved) No connection (AUO internal use)
Note 1: All GND (ground) pins should be connected together and should also be connected to the LCD’s
metal frame.
Note 2: All V
(power input) pins should be connected together.
DD
Note 3: All NC (no connection) pins should be open without voltage input.
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 10/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
(
)
(
)
LVDS Option = High/OpenNS
Clock
www.panelook.com
Current Cycle Next CyclePrevious Cycle
Rx_0+
G0 R5 R4 R3 R2 R1 R0R0 G0
Rx_0-
Rx_1+
B1 B0 G5 G4 G3 G2 G1G1 B1
Rx_1-
Rx_2+
DE VS HS B5 B4 B3 B2B2 DE
Rx_2-
Rx_3+
NA B7 B6 G7 G6 R7 R6R6 NA
Rx_3-
x=O,E
LVDS Option = LowJEIDA
Clock
Current Cycle Next CyclePrevious Cycle
Rx_0+
G2 R7 R6 R5 R4 R3 R2R2 G2
Rx_0-
Rx_1+
B3 B2 G7 G6 G5 G4 G3G3 B3
Rx_1-
Rx_2+
DE VS HS B7 B6 B5 B4B4 DE
Rx_2-
Rx_3+
NA B1 B0 G1 G0 R1 R0R0 NA
Rx_3-
x=O,E
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 11/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
3.3 Signal Timing Specification
This is the signal timing required at the input of the user connector. All of the interface signal timing should be
satisfied with the following specifications for its proper operation.
Timing Table (DE only Mode)
Vertical Frequency Range (60Hz)
Signal Item Symbol Min. Typ. Max Unit
Period T
Vertical Section
Active T
Blanking T
Period T
Horizontal Section
Active T
Blanking T
Period T
Clock
Frequency F
Vertical Frequency Frequency F
Horizontal Frequency Frequency F
Vertical Frequency Range (50Hz)
Signal Item Symbol Min. Typ. Max Unit
Period T
Vertical Section
Active T
Blanking T
V
(V) 1080 T
DISP
(V) 10 50 120 T
BLK
H
(H) 960 T
DISP
(H) 130 140 160 T
BLK
CLK
CLK
V
H
V
(V) 1080 T
DISP
(V) 250 276 330 T
BLK
1090 1130 1200 T
1090 1100 1120 T
11.81 13.41 14.766 ns
67.722 74.58 84.672 MHz
57 60 63 Hz
62.13 67.8 75.6 KHz
1330 1356 1410 T
H
H
H
CLK
CLK
CLK
H
H
H
Period T
Horizontal Section
Active T
Blanking T
DISP
BLK
Period T
Clock
Frequency F
Vertical Frequency Frequency F
Horizontal Frequency Frequency F
H
(H) 960 T
(H) 130 140 160 T
CLK
CLK
V
H
1090 1100 1120 T
CLK
CLK
CLK
11.958 13.41 14.677 ns
68.136 74.58 83.698 MHz
47 50 53 Hz
62.51 67.8 74.73 KHz
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 12/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
3.4 Signal Timing Waveforms
www.panelook.com
Tv
Th
Tdisp(h)
Th
Tblk(v) Tdisp(v)
Invalid data
TCLK
Tblk(h)
DE
RGB Data
(ODD)
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 13/29
No Reproduction and Redistribution Allowed
CLK
DE
RGB Data
RGB Data
(ODD)
(EVEN)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
3.5 Color Input Data Reference
The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the
color; the higher the binary input, the brighter the color. The table below provides a reference for color versus
data input.
COLOR DATA REFERENCE
Input Color Data
Basic
Color
RED
Color
MSB LSB
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Yellow 111111111111111100000000
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
----
RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED
MSB LSB
GREEN
BLUE
MSB LSB
GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0
GREEN
BLUE
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 14/29
No Reproduction and Redistribution Allowed
----
GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0
GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
-------
BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0
BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
3.6 Power Sequence
www.panelook.com
Parameter
Min. Typ. Max.
t1 0.4 -- 10 ms
t2 20 -- 50 ms
t3 700 or (200)* -- -- ms
t4 200 -- -- ms
t5 0.1 -- 50 ms
t6 0.47 -- 30 ms
t7 1000 -- -- ms
* If t3=200ms, input black signal till 700ms from system is necessary. In case of t3<200ms, the abnormal
display will be happened. But it will not damage timing controller.
Apply the lamp voltage within the LCD operating range. When the backlight turns on before the LCD
operation or the LCD turns off before the backlight turns off, the display may momentarily become abnormal.
Caution: The above on/off sequence should be applied to avoid abnormal function in the display. In case of
handling, make sure to turn off the power when you plug the cable into the input connector or pull the cable
Values
Unit
out of the connector.
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 15/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
3.7 Backlight Power Specification
Specification
www.panelook.com
(Ta=25±5oC, Turn-on after 60mins)
Item Symbol
Specification
Min. Typ. Max
HV1/
1 High Voltage (HV) Input
500 700 900 V
HV2
2 Input Current of ech HV I
3 High Voltage (HV) Output V
4 Output Lamp Current I
5 Operating Frequency F
6 PWM Dimming Frequency F
7 Dimming Duty Ratio D
HV
OUT
OUT
PW M
PWM
68 74 80 mA
1000 -- V
(7.3) (7.6) (7.9) mA
44 45 46 KHz (Recommend)
OP
140 150 160 Hz (Recommend)
20 -- 100 % (Recommend)
8 Lamp Type Straight
9 Number of Lamps 20 pcs
Protection Circuit (Feedback Signal):
10 Supply Voltage V
11 Supply Current I
CC
10 12 15 V
CC
-- 20 40 mA
Unit Note
RMS
=6.0mA
RMSIL
RMS
RMS
DC
DC
PWM=100%
RMS
12 Current Feedback Signal V
13 Lamp Detection (OLP)
Lamp Specification:
Output Working Voltage
14
15 Output Current I
16
Lamp Frequency F
17
Starting Voltage Vs
2.0 2.20 2.4 V
FB
VLD(H) 11.4 12 12.6
(L) 0 -- 0.8
V
LD
V
1386 1540 1694
L
L
LAMP
4 6.0 7.5 mA
40 -- 80 KHz
-- -- 2220 V
-- -- 2360
V
V
V
V
RMS
Lamp normal status
DC
Lamp protection status
DC
IL=6.0mA
RMS
RMS
Ta =2 5oC
RMS
Ta =0oC
RMS
RMS
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 16/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
Connector Pin Assignment
www.panelook.com
CN127 or CN128: YeonHO_130001WR-02E (LF)
PIN # Symbol Description
1 HV1+ I/P board high voltage supply
2 HV1+ I/P board high voltage supply
CN226: YeonHO_130001WR-02E (LF)
PIN # Symbol Description
1 HV2 - I/P board high voltage supply
2 HV2- I/P board high voltage supply
CN125: HIROSE_KN30-7P-1.25H
PIN # Symbol Description
1 VCC Power Supply for Protection Circuit
2 IFB Lamp Current feedback Signal (Full wave current)
3 IFB Lamp Current feedback Signal (Full wave current)
4 GND Signal Ground
5 GND Signal Ground
6 LD Lamp detection
7 LD Lamp detection
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 17/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
4. Optical Specification
Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60 minutes in a
dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a
viewing angle of φ and θ equal to 0°.
SR3 or equivalent
Parameter Symbol
Unit Notes
Min. Typ. Max
Contrast Ratio CR 3000 (3500) -- 1
Values
Surface Luminance (White) L
Luminance Variation δ
WHITE(9P)
WH
430 (530) -- cd/m
-- -- 1.3 3
2
2
Response Time (Average) Tγ -- 6.5 -- ms 4, 5 (Gray to Gray)
Color Coordinates
Red R
R
Green G
G
Blue B
B
White W
W
X
Y
X
Y
X
Y
X
Y
Typ.-0.03
Viewing Angle
0.640
0.330
0.290
0.600
Typ.+0.03
0.150
0.060
0.280
0.290
(Contrast Ratio>10)
x axis, right(φ=0°) θ
x axis, left(φ=180°) θ
y axis, up(φ=90°) θ
y axis, down (φ=270°) θ
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 18/29
No Reproduction and Redistribution Allowed
r
l
u
d
-- 89 -- degree 6
-- 89 -- degree 6
-- 89 -- degree 6
-- 89 -- degree 6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
Note:
1. Contrast Ratio (CR) is defined mathematically as:
www.panelook.com
Contrast Ratio(CR)=
Brightness of the "white" state
Brightness of the "black" state
2. Surface Luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels
displaying white. For more information see Fig. 4-2. When lamp current I
=6.0mA, LWH=L
L
, where L
on5
on5
is the
luminance with all pixels displaying white at center 5 location.
H
V/2
V/6
123
456
78
9
H/2H/6
V
Fig.4-2 Optical measurement point
3. The variation in surface luminance, δ
δ
WHITE(9P)
= Maximum(L
WHITE(9P)
is defined under brightness of IL=6.0mA as:
, L
on1
on2
,…,L
)/Minimum(L
on9
on1
, L
on2
,…L
on9
)
4. Response time is the time required for the display to transition from white(L255) to black(L0) (Decay Time,
T
=TrD), and from black(L0) to white(L255) (Rise Time, Tr=TrR). For additional information see Fig. 4-3.
f
TrD
TrR
Fig.4-3 Response time
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 19/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
5. The response time is defined as the following figure and shall be measured by switching the input signal for 0,
63, 127, 191, 255 different gray level. For additional information see Fig. 4-4.
100%
90%
L0,15,L31,.L255
L0,15,L31,.L255
Lum inance
10%
0%
Tr
Fig.4-4 Response time
6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the
horizontal (or x-axis) and the vertical (or y-axis) with respect to the z-axis which is normal to the LCD surface.
For more information see Fig. 4-5.
D
L0,15,L31,.L255
Tr
Time
R
Fig.4-5 Viewing angle definition
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 20/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
5. Mechanical Characteristics
The contents provide general mechanical characteristics for the model T460HW03. In addition the figures in the
next page are detailed mechanical drawing of the LCD.
Horizontal (typ.) 1083.0 mm
Outline Dimension
Bezel Area
Active Display Area
Weight 15500g (Max)
Surface Treatment Haze 11%, 3H
Vertical (typ.) 627.0 mm
Depth (typ.) 50.6 mm (with balance board)
Horizontal (typ.) 1024.4 mm
Vertical (typ.) 578.6 mm
Horizontal 1018.08 mm
Vertical 572.67 mm
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 21/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
2D Drawing (Front)
www.panelook.com
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 22/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
2D Drawing (Rear)
www.panelook.com
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 23/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
6. International Standard
6-1. Safety
(1) UL6500, UL 60065 Underwriters Laboratories, Inc. (AUO file number: E204356)
Standard for Safety of Information Technology Equipment Including electrical Business Equipment.
(2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995
Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.
(3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997
IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996
IEC 60065: version 7th
European Committee for Electro technical Standardization (CENELEC)
EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business
Equipment.
6-2. EMC
(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electrical
Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992
(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information Technology
Equipment.” International Special committee on Radio Interference.
(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information
Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998
6-3. Green Mark Description
(1)For Pb Free products, AUO will add for identification.
(2)
Note. The Green Mark will be present only when the green documents have been ready by AUO Internal Green
Team. (The definition of green design follows the AUO green design checklist.)
RoHS compatible products, AUO will add
For
RoHS
for identification.
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 24/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
7. Packing
Packing Instruction
www.panelook.com
Cushion top
1pcs Module/ESD Bag
Module
Package information
Carton outside dimension:
1170 x 560 x 690mm
Cushion set
6pcs Modules
Cushion down
"H" Tape
6pcs / 1 carton
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 25/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
Pallet information
By air cargo: (2 x 1) x 1 layers, one pallet put 2 boxes, total 12 pcs module.
Dimension: 1140 x 1180 x 820mm
By sea: (2 x 1) x 2 layers, one pallet put 2 boxes, stack 2 layers, total 24 pcs module.
Dimension: 1140 x 1180 x 1640mm
Pallet dimension: 1140 x 1180 x 123mm
www.panelook.com
S tr e tc h fil m
Label
Corner angle
M o isture-proo f film
PET band
C orner ang le
Pallet
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 26/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
X
Panel Label
Carton Label
www.panelook.com
T460HW03 V1
97.46T03.XX
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 27/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
8. Precautions
Please pay attention to the followings when you use this TFT LCD module.
8-1 MOUNTING PRECAUTIONS
(1) You must mount a module using holes arranged on back side of panel
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to
module. And the case on which a module is mounted should have sufficient strength so that external force is
not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by
electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil
lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer
for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used
to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical
damage to the polarizer.
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
8-2 OPERATING PRECAUTIONS
(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:
V=200mV (Over and under shoot voltage)
(2) Response time depends on the temperature. (In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature,
response time (required time that brightness is stable after turned on) becomes longer.
(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done
by system manufacturers. Grounding and shielding methods may be important to minimize the interface.
(7) The device listed in the product specification sheets was designed and manufactured for TV application.
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 28/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
www.panelook.com
8-3 ELECTROSTATIC DISCHARGE CONTROL
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.
8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of polarizer and color filter.
8-5 STORAGE
When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature
between 5°C and 35°C at normal humidity.
(2) The polarizer surface should not come in contact with any other object. It is recommended that they be
stored in the container in which they were shipped.
8-6 HANDLING PRECAUTIONS FOR PROTECTION FILM
(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off,
static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully
by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.
(2) When the module with protection film attached is stored for a long time, sometimes there remains a very
small amount of flue still on the Bezel after the protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, please
wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.
©Copyright AU Optronics Corp.
2007 All Rights Reserved. T460HW03 V1 29/29
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
