T460HVN05.0 SKD Product Specification
Rev 0.2
Model Name: T460HVN05.0
Issue Date : 2013/07/01
( )Preliminary Specifications
(＊＊＊＊)Final Specifications
Customer Signature Date AUO Date
Approved By
_________________________________
Note
Approval By PM Director
____________________________________
Reviewed By RD Director
____________________________________
Reviewed By Project Leader
____________________________________
Prepared By PM
____________________________________
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 1 / 30
Page 2
T460HVN05.0 SKD Product Specification
CONTENTS
Rev 0.2
CONTENTS ................................................................................................................................................................2
RECORD OF REVISION ............................................................................................................................................3
1. GENERAL DESCRIPTION ................................................................................................................................4
ABSOLUTE MAXIMUM RATINGS .............................................................................................................................5
2. ELECTRICAL SPECIFICATION.........................................................................................................................6
3.1
ELECTRICAL CHARACTERISTICS .........................................................................................................6
3.1.1 DC CHARACTERISTICS ......................................................................................................................6
3.1.2 AC CHARACTERISTICS ......................................................................................................................7
3.1.3 DRIVER CHARACTERISTICS .............................................................................................................7
3.2
INTERFACE CONNECTIONS.................................................................................................................11
3.2.1 T-CON BOARD PIN MAP ...................................................................................................................11
3.2.2 LVDS Option .......................................................................................................................................13
3.3
SIGNAL TIMING SPECIFICATION..........................................................................................................14
3.4
SIGNAL TIMING WAVEFORMS ..............................................................................................................15
3.7.1 VCOM I2C TUNING STEP..................................................................................................................18
3.7.2 FLICKER PATTERN............................................................................................................................18
3.7.3 WP (WRITE PROTECT) DISABLE .....................................................................................................18
3.7.4 ADJUST SOP......................................................................................................................................19
3.7.5 INTERVAL OF STEP TO STEP ..........................................................................................................20
5. MECHANICAL CHARACTERISTICS...............................................................................................................25
6. PRECAUTIONS ...............................................................................................................................................29
7.1
MOUNTING PRECAUTIONS ..................................................................................................................29
7.2
OPERATING PRECAUTIONS.................................................................................................................29
7.3
ELECTROSTATIC DISCHARGE CONTROL ..........................................................................................29
7.4
PRECAUTIONS FOR STRONG LIGHT EXPOSURE .............................................................................29
7.5
STORAGE ...............................................................................................................................................30
7.6
HANDLING PRECAUTIONS FOR PROTECTION FILM OF POLARIZER..............................................30
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 2 / 30
Page 3
RECORD OF REVISION
T460HVN05.0 SKD Product Specification
Rev 0.2
Version
0.0 2012/09/12 First release
0.1 2012/11/28
26 Open cell drawing revised
0.2 2013/07/01 Final version released.
Date Page Description
11 LVDS connector model recommended
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 3 / 30
Page 4
T460HVN05.0 SKD Product Specification
Rev 0.2
1. GENERAL DESCRIPTION
This specification applies to the 46.0 inch Color TFT-LCD SKD model T460HVN05.0. This LCD Open Cell Unit
has a TFT active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 46.0 inch. This Open Cell
Unit supports 1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are
arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray
scale signal for each dot.
* General Information
Items Specification Unit Note
Active Screen Size 46.00 inch
Display Area 1018.08(H) x 572.6(V) mm
Outline Dimension 1036.28(H) x 632.24 (V) x 1.33(D) mm D: cell thickness
Driver Element a-Si TFT active matrix
AA-to-edge 9.3/9.1/9.1/7.6 mm Recommend
Display Colors 10 bit, 1.07B Colors
Number of Pixels 1,920x1,080 Pixel
Pixel Pitch 0.53025 (H) x 0.53025(W) mm
Pixel Arrangement RGB vertical stripe
Display Operation Mode Normally Black
Surface Treatment Anti-Glare, 3H Haze=2%
Weight 1840 g
Rotate Function Unachievable Note 1

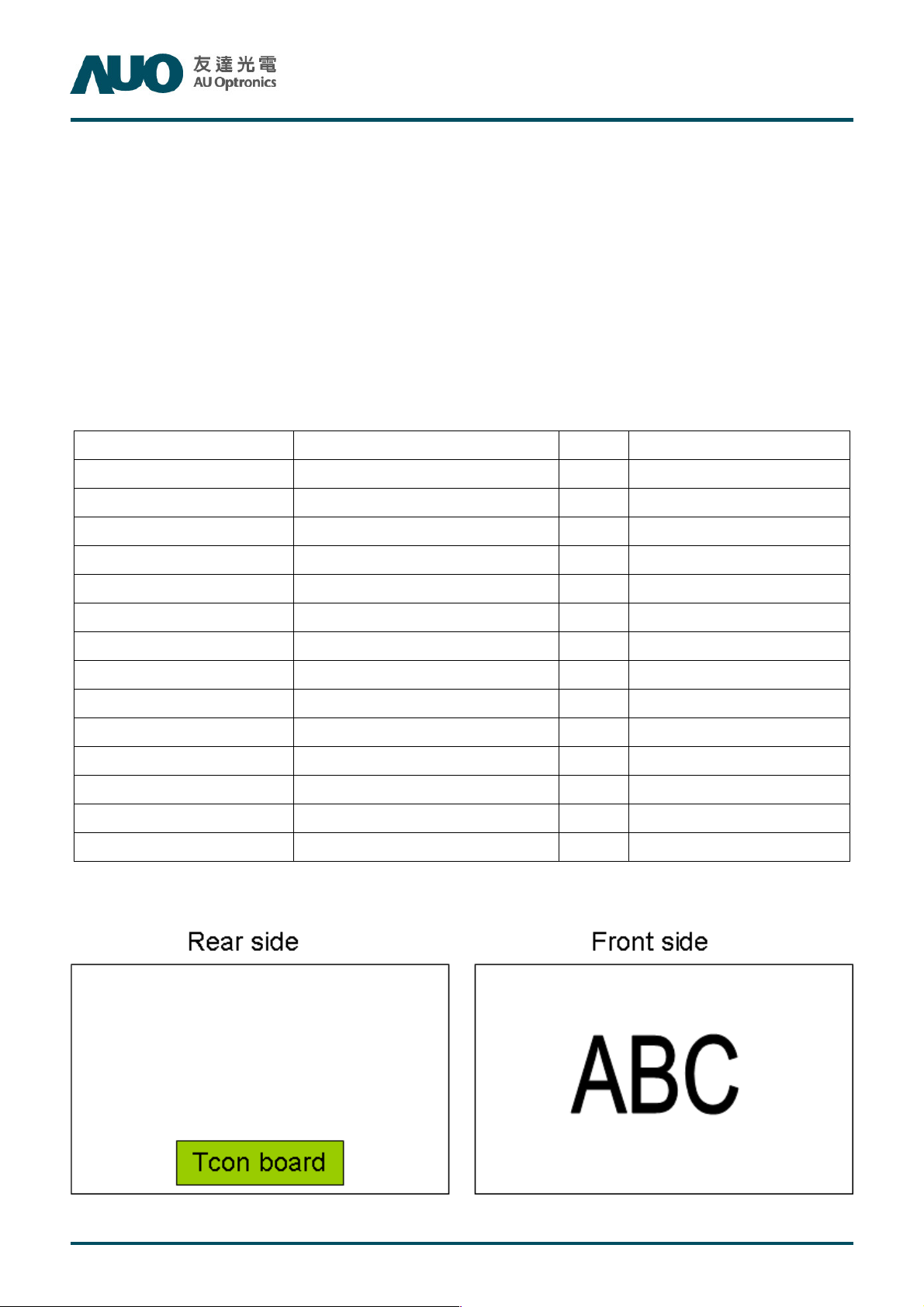

Display Orientation Signal input with “ABC” Note 2
Note 1: Rotate Function refers to LCD display could be able to rotate.
Note 2: LCD display as below illustrated when signal input with “ABC”.
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 4 / 30
Page 5
T460HVN05.0 SKD Product Specification
ABSOLUTE MAXIMUM RATINGS
The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit
Item Symbol Min Max Unit Conditions
Rev 0.2
Logic/LCD Drive Voltage VDD -0.3 14 [Volt]
Input Voltage of Signal Vin -0.3 4 [Volt]DC Note 1
Operating Temperature TOP 0 +50 [oC] Note 2

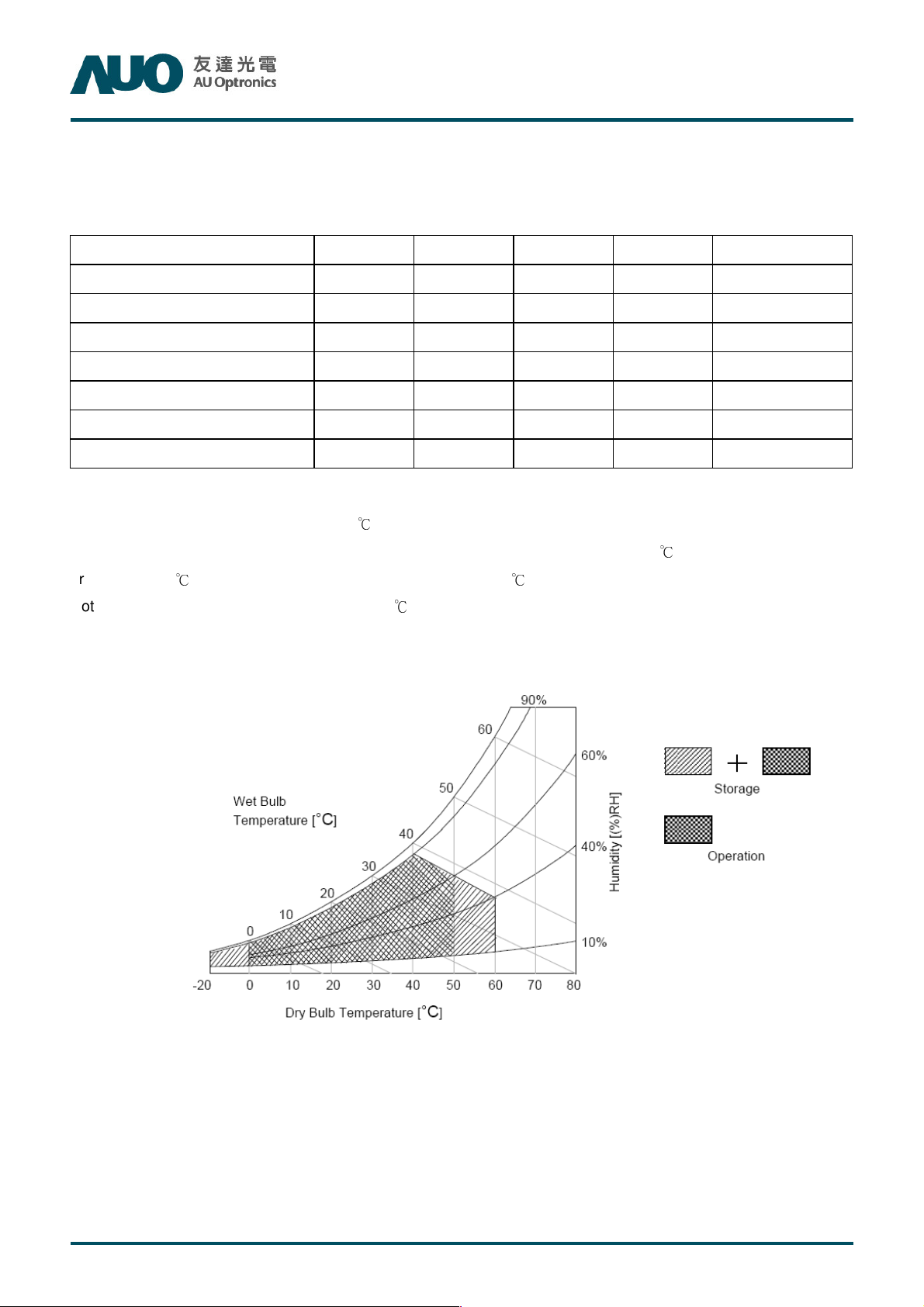

Operating Humidity HOP 10 90 [%RH] Note 2
Storage Temperature TST -20 +60 [oC] Note 2
Storage Humidity HST 10 90 [%RH] Note 2
Panel Surface Temperature PST 65 [oC] Note 3
Note 1: Duration:50 msec.
Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃
The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures
greater than 40 , the wet bulb temperature must not exceed 39 .
Note 3: Surface temperature is measured at 50℃ Dry condition
℃ ℃
Note 1
DC
℃
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 5 / 30
Page 6
T460HVN05.0 SKD Product Specification
Rev 0.2
2. ELECTRICAL SPECIFICATION
The T460HVN05.0 Open Cell Unit requires power input which is employed to power the LCD electronics and to
drive the TFT array and liquid crystal.
3.1 ELECTRICAL CHARACTERISTICS
3.1.1 DC CHARACTERISTICS
Parameter Symbol
Unit Note
Min. Typ. Max
LCD
Power Supply Input Voltage VDD 10.8 12 13.2 VDC
Power Supply Input Current IDD -- 0.36 0.83 A 1
Value
Inrush Current I
Permissible Ripple of Power Supply Input Voltage
Input Differential Voltage
-- -- 4 A 2
RUSH
VRP -- -- VDD * 5% mV
∣
V
∣
ID
200 400 600 mVDC 4
pk-pk
3
Differential Input High Threshold
LVDS
Interface
Voltage
Differential Input Low Threshold
VTH +100 -- +300 mVDC 4
VTL -300 -- -100 mVDC 4
Voltage
CMOS
Interface
Input Common Mode Voltage V
Input High Threshold Voltage
Input Low Threshold Voltage
1.1 1.25 1.4 VDC 4
ICM
VIH
(High)
VIL
(Low)
2.7 -- 3.3 VDC 5
0 -- 0.6 VDC 5
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 6 / 30
Page 7
3.1.2 AC CHARACTERISTICS
T460HVN05.0 SKD Product Specification
Rev 0.2
Parameter Symbol
LVDS
Interface
Input Channel Pair Skew Margin
(only for TCON: 12403U1, 12405)
Receiver Clock : Spread Spectrum
Modulation range
Receiver Clock : Spread Spectrum
Modulation frequency
Receiver Data Input Margin
Fclk = 85 MHz
Fclk = 65 MHz
t
SKEW (CP)
Fclk_ss
Fss
tRMG
3.1.3 DRIVER CHARACTERISTICS
Item Symbol Min Max Unit condition
Driver Surface Temperature DST 100
Note : Any point on the driver surface must be less than 100
Value
Min. Typ. Max
-500 -- +500 ps 6
Fclk
-3%
30
-0.4
-0.5
℃℃℃℃ under any conditions.
under any conditions.
under any conditions. under any conditions.
--
--
--
--
[℃]
Fclk
+3%
200
0.4
0.5
Note
Unit Note
MHz
7
KHz
7
ns
8
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 7 / 30
Page 8
Note :
s
µ
1. Test Condition:
(1) V
= 12.0V
DD
(2) Fv = 60Hz
(3) Fclk= Max freq.
(4) Temperature = 25 ℃
(5) Typ. Input current : White Pattern
Max. Input current: Heavy loading pattern defined by AUO

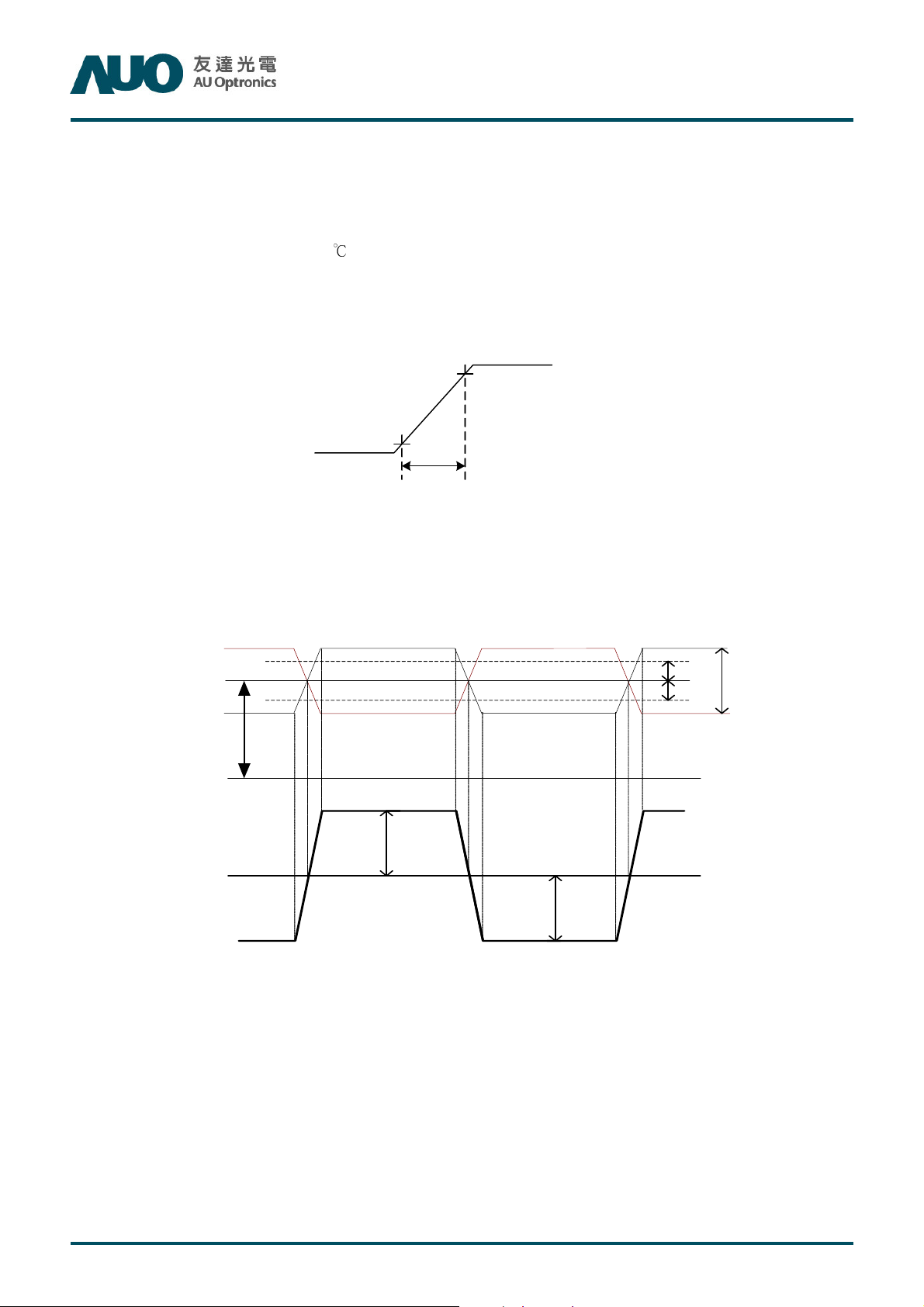

2. Measurement condition : Rising time = 400us
T460HVN05.0 SKD Product Specification
VVVV
DD
DD
90%
DDDD
Rev 0.2
GND
GND
GNDGND
10%
3. Test Condition:
(1) The measure point of V
is in LCM side after connecting the System Board and LCM.
RP
(2) Under Max. Input current spec. condition.
4. V
= 1.25V
ICM
L V D S -
V
IC M
L V D S +
G N D
0 V
400
400
400400
|VID|
V
T H
|VID|
V
T L
|VID|
5. The measure points of V
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 8 / 30
and V
IH
are in LCM side after connecting the System Board and LCM.
IL
Page 9
T460HVN05.0 SKD Product Specification

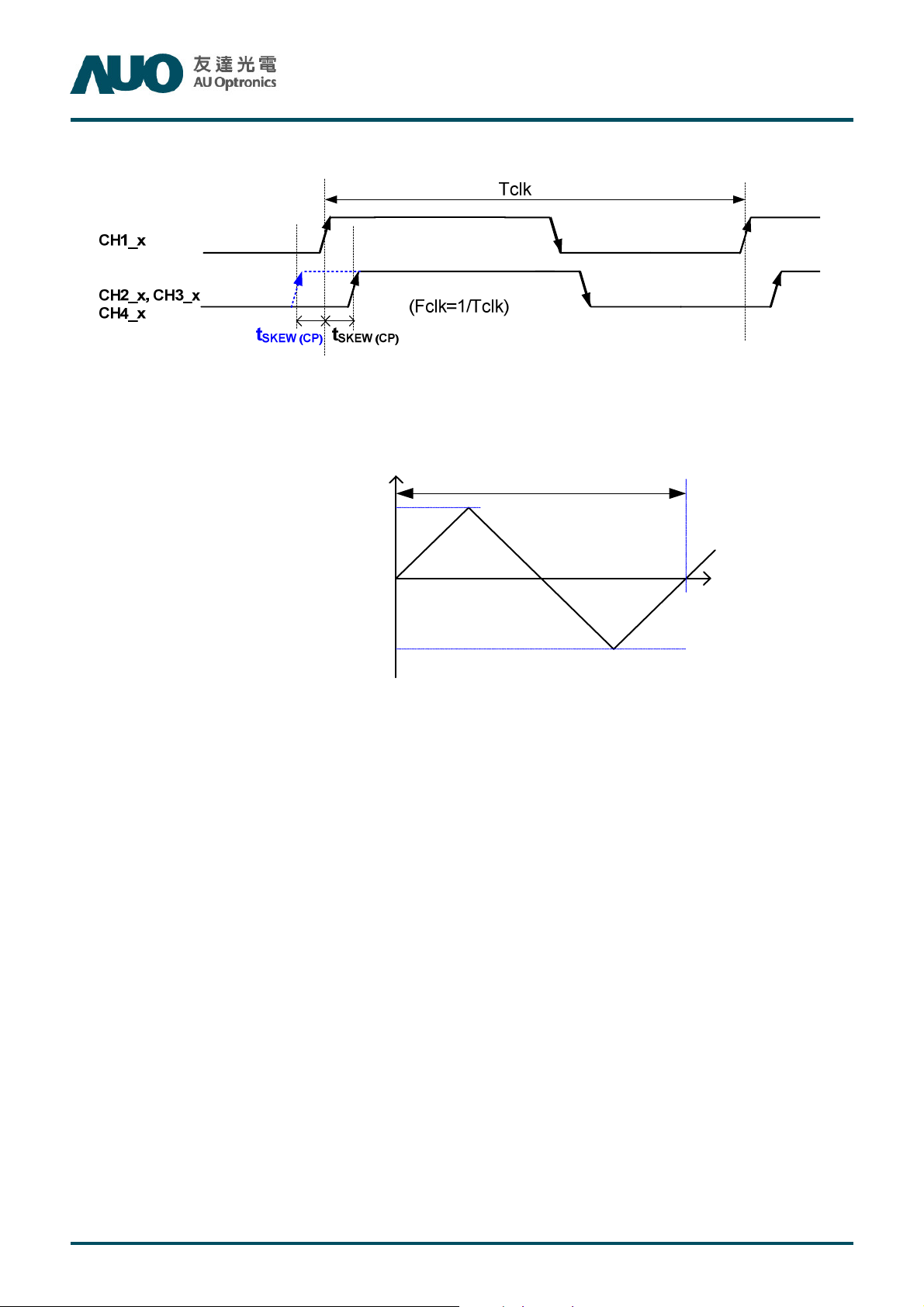

6. Input Channel Pair Skew Margin.
Note: x = 0, 1, 2, 3, 4
7. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures.
1111////FFFF
SS
SS
SSSS
Fclk
Fclk____ss
FclkFclk
ss((((max
max))))
ssss
maxmax
Rev 0.2
Fclk
Fclk
FclkFclk
Fclk
Fclk____ss
FclkFclk
ss((((min
min))))
ssss
minmin
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 9 / 30
Page 10

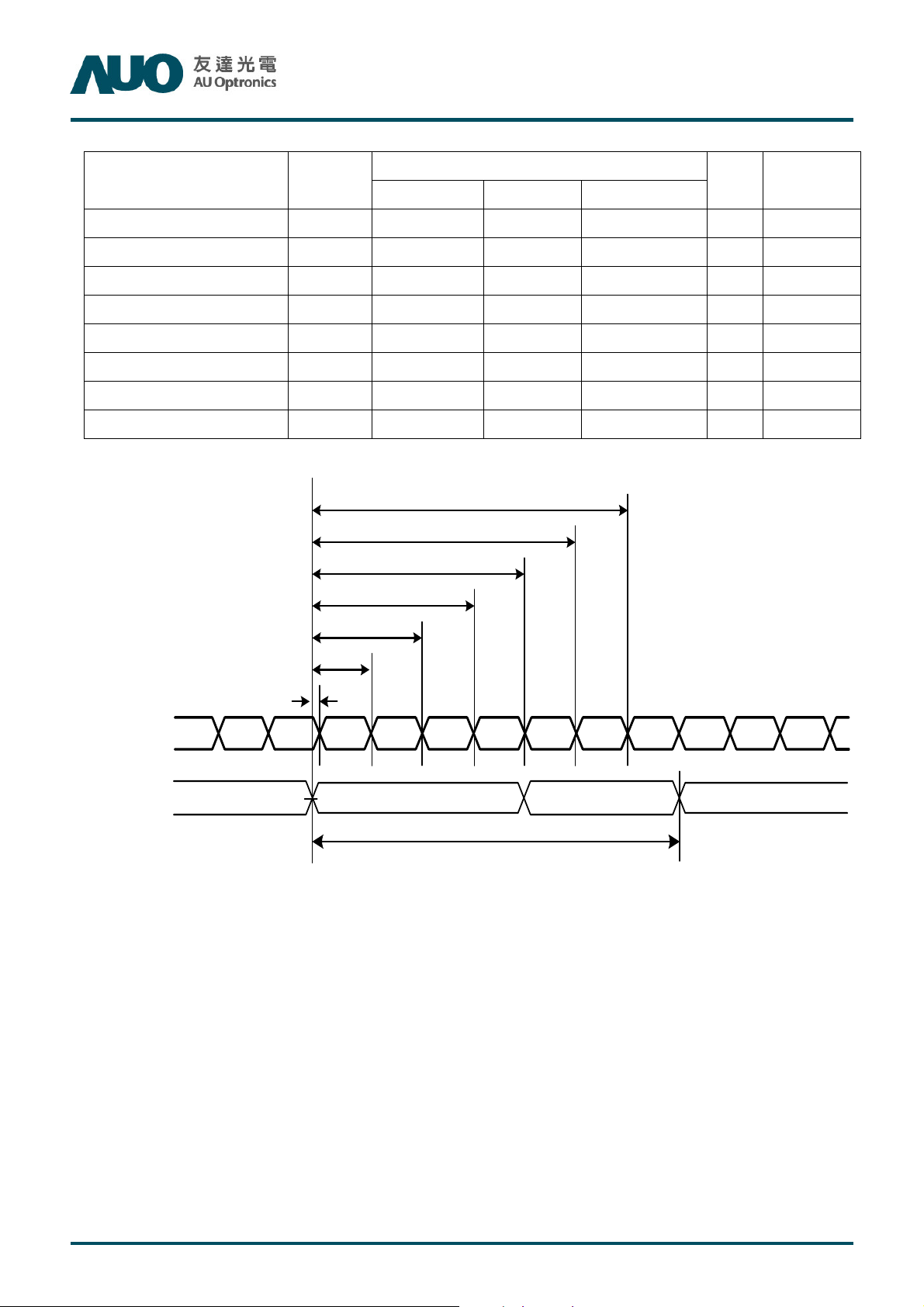

8. Receiver Data Input Margin
T460HVN05.0 SKD Product Specification
Rev 0.2
Parameter Symbol
Min Type Max
Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz
Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns
Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns
Input Data Position2 tRIP6 2T/7-|tRMG|
Input Data Position3 tRIP5 3T/7-|tRMG|
Input Data Position4 tRIP4 4T/7-|tRMG|
Input Data Position5 tRIP3 5T/7-|tRMG|
Input Data Position6 tRIP2 6T/7-|tRMG|
Rating
Unit
2T/7 2T/7+|tRMG| ns
3T/7 3T/7+|tRMG| ns
4T/7 4T/7+|tRMG| ns
5T/7 5T/7+|tRMG| ns
6T/7 6T/7+|tRMG| ns
tRIP2
tRIP3
tRIP4
tRIP5
Note
T=1/Fclk
LVDS-Rx
Input Data
LVDS-Rx
Input Clock
tRIP6
tRIP0
tRIP1
Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3
VVVV
=
= 0000VVVV
= =
diff
diff
diff diff
1/Fclk=T
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 10 / 30
Page 11
3.2 INTERFACE CONNECTIONS
3.2.1 T-CON BOARD PIN MAP
LCD connector: FI-RE51S-HF (JAE, LVDS connector)
PIN
Symbol Description PIN
T460HVN05.0 SKD Product Specification
Rev 0.2
Symbol Description
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
VDD Power Supply, +12V DC Regulated 26
VDD Power Supply, +12V DC Regulated 27
VDD Power Supply, +12V DC Regulated 28
VDD Power Supply, +12V DC Regulated 29
VDD Power Supply, +12V DC Regulated 30
N.C.
GND Ground 32 CH2_CLK- LVDS Channel 2, Clock -
GND Ground 33 CH2_CLK+ LVDS Channel 2, Clock +
GND Ground 34
CH1_0- LVDS Channel 1, Signal 0- 35
CH1_0+ LVDS Channel 1, Signal 0+ 36
CH1_1- LVDS Channel 1, Signal 1- 37
CH1_1+ LVDS Channel 1, Signal 1+ 38
CH1_2- LVDS Channel 1, Signal 2- 39
CH1_2+ LVDS Channel 1, Signal 2+ 40
No connection (for AUO test only.
31
Do not connect)
CH2_0+ LVDS Channel 2, Signal 0+
CH2_1- LVDS Channel 2, Signal 1-
CH2_1+ LVDS Channel 2, Signal 1+
CH2_2- LVDS Channel 2, Signal 2-
CH2_2+ LVDS Channel 2, Signal 2+
GND Ground
GND Ground
CH2_3- LVDS Channel 2, Signal 3-
CH2_3+ LVDS Channel 2, Signal 3+
CH2_4- LVDS Channel 2, Signal 4-
CH2_4+ LVDS Channel 2, Signal 4+
GND Ground
SCL EEPROM Serial Clock
16
17 CH1_CLK- LVDS Channel 1, Clock - 42
18 CH1_CLK+ LVDS Channel 1, Clock + 43
19
20
21
22
23
GND Ground 41
GND Ground 44 LVDS_SEL
CH1_3- LVDS Channel 1, Signal 3- 45
CH1_3+ LVDS Channel 1, Signal 3+ 46
CH1_4- LVDS Channel 1, Signal 4- 47
CH1_4+ LVDS Channel 1, Signal 4+ 48
SDA EEPROM Serial Data
N.C.
WP
N.C.
N.C.
N.C.
N.C.
No connection (for AUO test only.
Do not connect)
EEPROM Write Protection
High(3.3V) for Writable,
Low(GND) for Protection
Open/High(3.3V) for NS,
Low(GND) for JEIDA
No connection (for AUO test only.
Do not connect)
No connection (for AUO test only.
Do not connect)
No connection (for AUO test only.
Do not connect)
No connection (for AUO test only.
Do not connect)
No connection (for AUO test only.
24
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 11 / 30
GND Ground 49
N.C.
Do not connect)
Page 12
T460HVN05.0 SKD Product Specification
Rev 0.2
25
Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).
Note: Open / High(3.3V) / Low(GND) described in 3.2.1.2
CH2_0- LVDS Channel 2, Signal 0- 50
51
N.C.
N.C.
No connection (for AUO test only.
Do not connect)
No connection (for AUO test only.
Do not connect)
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 12 / 30
Page 13
3.2.2 LVDS Option
LVDS Option = High/OpenNS
P re vio u s C yc le C urre n t C y c le N e x t C yc le
P re vio u s C yc le C urre n t C y c le N e x t C yc le
P re vio u s C yc le C urre n t C y c le N e x t C yc le P re vio u s C yc le C urre n t C y c le N e x t C yc le
C lo c k
C lo c k
C lo c kC lo c k
C H x
C H x ____ 0000 ++++
C H xC H x
C H x
C H x ____ 0000 ----
C H xC H x
C H x
C H x ____ 1111 ++++
C H xC H x
C H x
C H x ____ 1111 ----
C H xC H x
C H x
C H x ____ 2222 ++++
C H xC H x
C H x
C H x ____ 2222 ----
C H xC H x
C H x
C H x ____ 3333 ++++
C H xC H x
C H x
C H x ____ 3333 ----
C H xC H x
D EBBBB 2222BBBB 3333 BBBB 4444BBBB 5555N A
D ED E
N ARRRR 6666RRRR 7777 GGGG 6666GGGG 7777BBBB 6666 RRRR 7777
N AN A
N A D E
N AN A
T460HVN05.0 SKD Product Specification
N A BBBB 3333
N AN A
RRRR 0000RRRR 5555 GGGG 0000GGGG 0000RRRR 0000RRRR 1111 RRRR 2222RRRR 3333RRRR 4444 RRRR 1111
GGGG 1111BBBB 0000 BBBB 1111BBBB 1111GGGG 1111GGGG 2222 GGGG 3333GGGG 4444GGGG 5555 GGGG 2222
BBBB 2222N A
RRRR 6666BBBB 7777 N A
D ED E
D ED E
N AN A
N AN A
Rev 0.2
C H x
C H x ____ 4444 ++++
C H xC H x
C H x
C H x ____ 4444 ----
C H xC H x
Note: x = 1, 2, 3, 4…
LVDS Option = LowJEIDA
P re v io u s C yc le C ur r e nt C y c le N e x t C yc le
P re v io u s C yc le C ur r e nt C y c le N e x t C yc le
P re v io u s C yc le C ur r e nt C y c le N e x t C yc le P re v io u s C yc le C ur r e nt C yc le N e x t C yc le
C lo c k
C lo c k
C lo c kC lo c k
C Hx
C Hx ____ 0000 ++++
C HxC Hx
C Hx
C Hx ____ 0000 ----
C HxC Hx
C Hx
C Hx ____ 1111 ++++
C HxC Hx
C Hx
C Hx ____ 1111 ----
C HxC Hx
C Hx
C Hx ____ 2222 ++++
C HxC Hx
C Hx
C Hx ____ 2222 ----
C HxC Hx
N ARRRR 8888RRRR 9999 GGGG 8888GGGG 9999BBBB 8888 RRRR 9999
N AN A
D EBBBB 6666BBBB 7777 BBBB 8888BBBB 9999N A
D ED E
N A D E
N AN A
N A BBBB 7777
N AN A
RRRR 8888BBBB 9999 N A
RRRR 4444RRRR 9999 GGGG 4444GGGG 4444RRRR 4444RRRR 5555 RRRR 6666RRRR 7777RRRR 8888 RRRR 5555
GGGG 5555BBBB 4444 BBBB 5555BBBB 5555GGGG 5555GGGG 6666 GGGG 7777GGGG 8888GGGG 9999 GGGG 6666
BBBB 6666N A
N AN A
N AN A
D ED E
D ED E
C Hx
C Hx ____ 3333 ++++
C HxC Hx
C Hx
C Hx ____ 3333 ----
C HxC Hx
C Hx
C Hx ____ 4444 ++++
C HxC Hx
C Hx
C Hx ____ 4444 ----
C HxC Hx
N ARRRR 2222RRRR 3333 GGGG 2222GGGG 3333BBBB 2222 RRRR 3333
N AN A
N ARRRR 0000RRRR 1111 GGGG 0000GGGG 1111BBBB 0000 RRRR 1111
N AN A
RRRR 2222BBBB 3333 N A
RRRR 0000BBBB 1111 N A
N AN A
N AN A
N AN A
N AN A
Note: x = 1, 2, 3, 4…
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 13 / 30
Page 14
T460HVN05.0 SKD Product Specification
Rev 0.2
3.3 SIGNAL TIMING SPECIFICATION
This is the signal timing required at the input of the user connector. All of the interface signal timing should be
satisfied with the following specifications for its proper operation.
Timing Table (DE only Mode)
Signal Item Symbol Min. Typ. Max Unit
Period Tv
Vertical Section
Active Tdisp (v)
Blanking Tblk (v)
Period Th
Horizontal Section
Active Tdisp (h)
Blanking Tblk (h)
Clock Frequency Fclk=1/Tclk
Vertical Frequency Frequency Fv
Horizontal Frequency
Notes:
(1) Display position is specific by the rise of DE signal only.
Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the
left edge of the screen.
Frequency Fh
1100 1125 1480
1080
20 45 400
1030 1100 1325
960
70 140 365
53 74.25 82
47 60 63
60 67.5 73
Th
Th
Tclk
Tclk
MHz
Hz
KHz
(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of
horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top
line of screen.
(3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.
(4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not
synchronize with each other.
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 14 / 30
Page 15

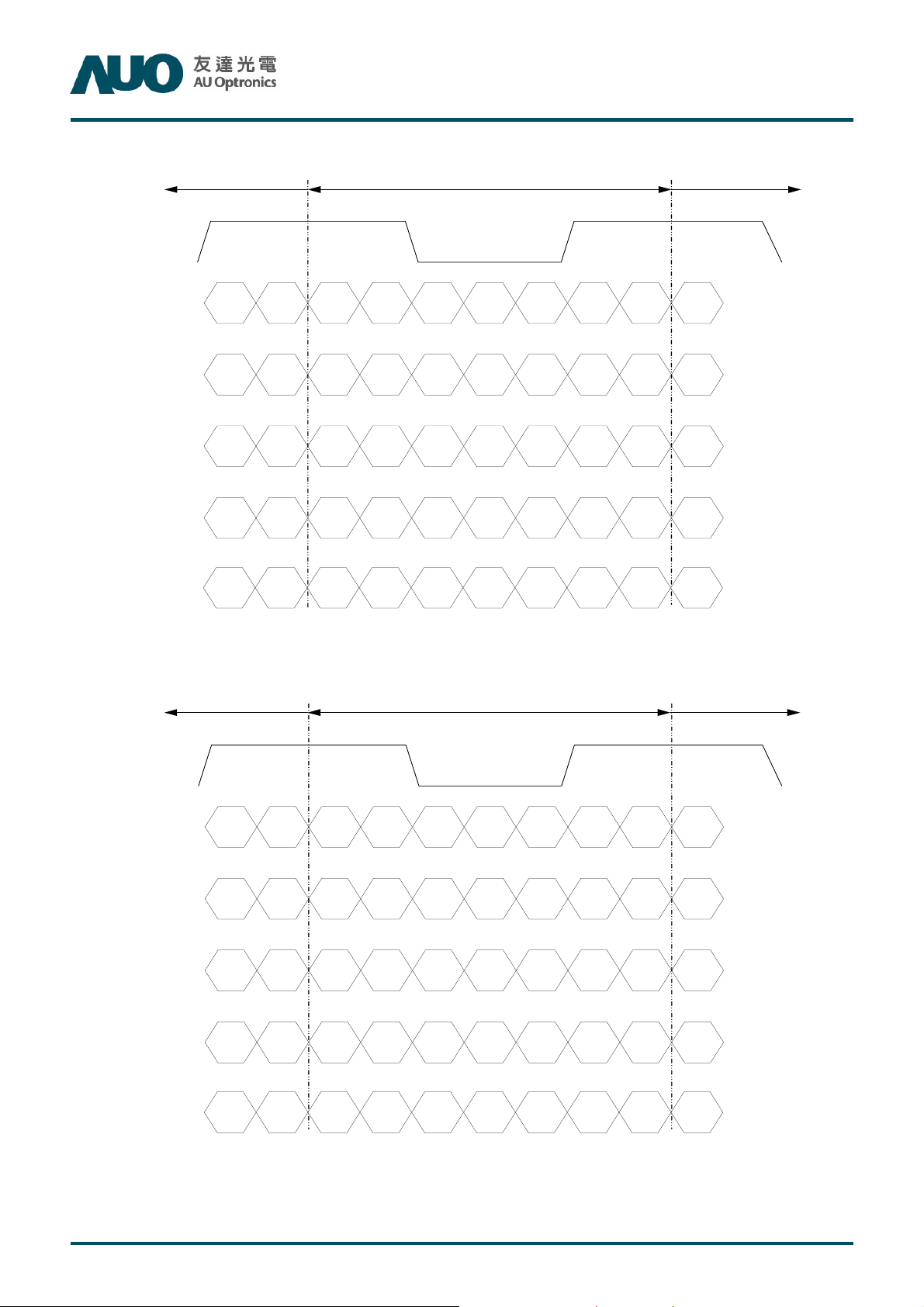

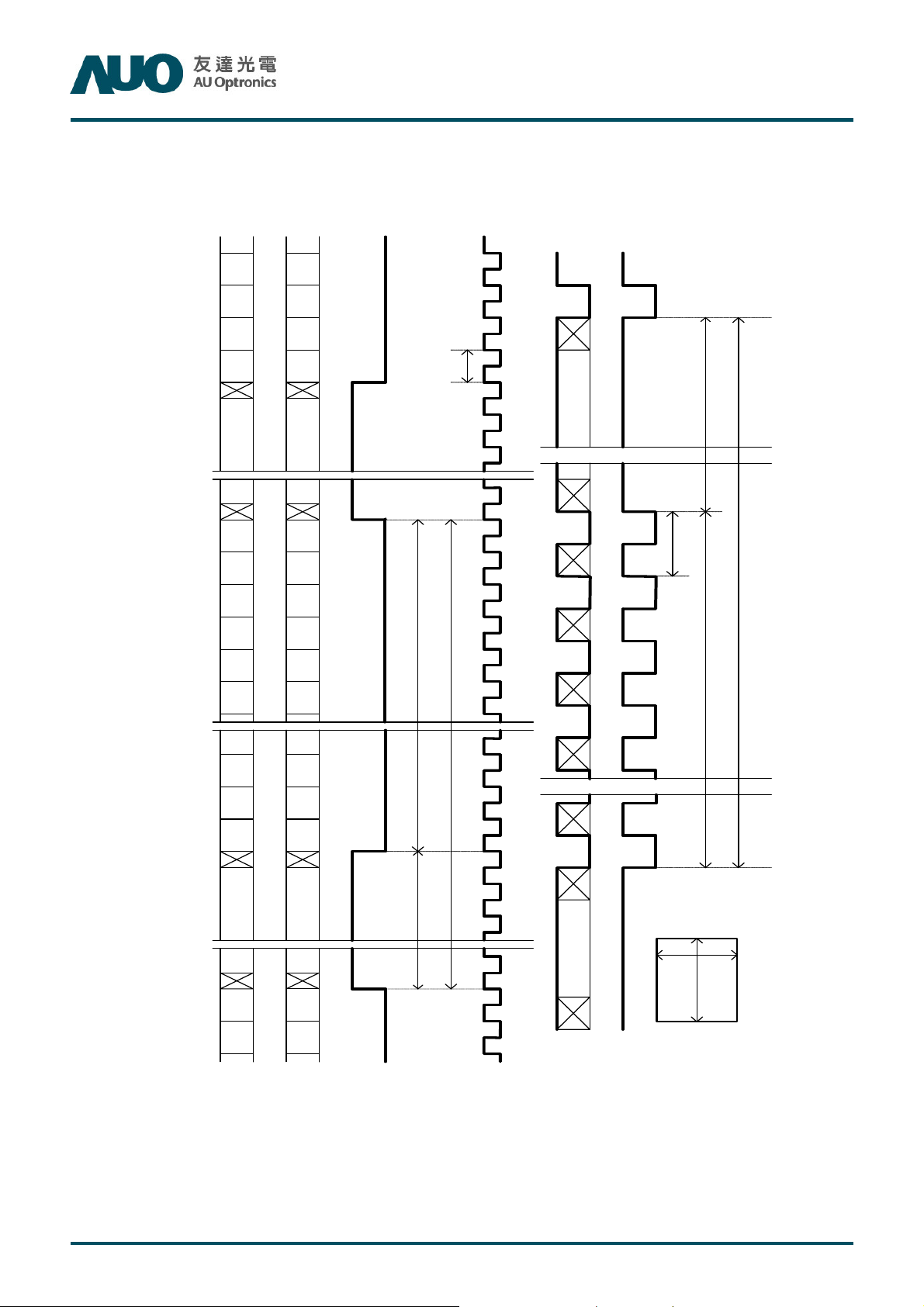

3.4 SIGNAL TIMING WAVEFORMS
T460HVN05.0 SKD Product Specification
Rev 0.2
CH2
Pixel
M-6
Pixel
M-4
Pixel
M-2
Pixel
M
Invalid Data
Pixel
2
Pixel
4
Pixel
6
Pixel
8
Pixel
10
Pixel
12
CH1
Pixel
M-7
Pixel
M-5
Pixel
M-3
Pixel
M-1
Invalid Data
Pixel
1
Pixel
3
Pixel
5
Pixel
7
Pixel
9
Pixel
11
DE
Tdisp(h) Tblk(h)
CLK
RGB
Data
Line
N
Tclk
Invalid Data Invalid Data
Line
1
Line
2
Th
Line
3
Line
4
DE
Th
Tv
Tdisp(v)Tblk(v)
Pixel
M-4
Pixel
M-2
Pixel
M
Invalid Data
Pixel
2
Pixel
4
Pixel
M-5
Pixel
M-3
Pixel
M-1
Invalid Data
Pixel
1
Pixel
3
Line
N
N L in e
N L in e
N L in eN L in e
M
M
M
M
p
p
p
p
i
i
i
i
x
x
x
x
e
e
e
e
l
l
l
l
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 15 / 30
Page 16
T460HVN05.0 SKD Product Specification
Basic
Rev 0.2
3.5.2: LVDS Option for 10bit
The brightness of each primary color (red, green and blue) is based on the 10 bit gray scale data input for the color;
the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.
COLOR DATA REFERENCE
Input Color Data
Color
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Green(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
Blue(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
Color
Cyan 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Magenta 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(001) 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
R
----
RED(1022) 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
MSB LSB
R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
RED
MSB LSB
GREEN
BLUE
MSB LSB
GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
G
----
GREEN(1022) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0
GREEN(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
B
----
BLUE(1022) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0
BLUE(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 16 / 30
Page 17

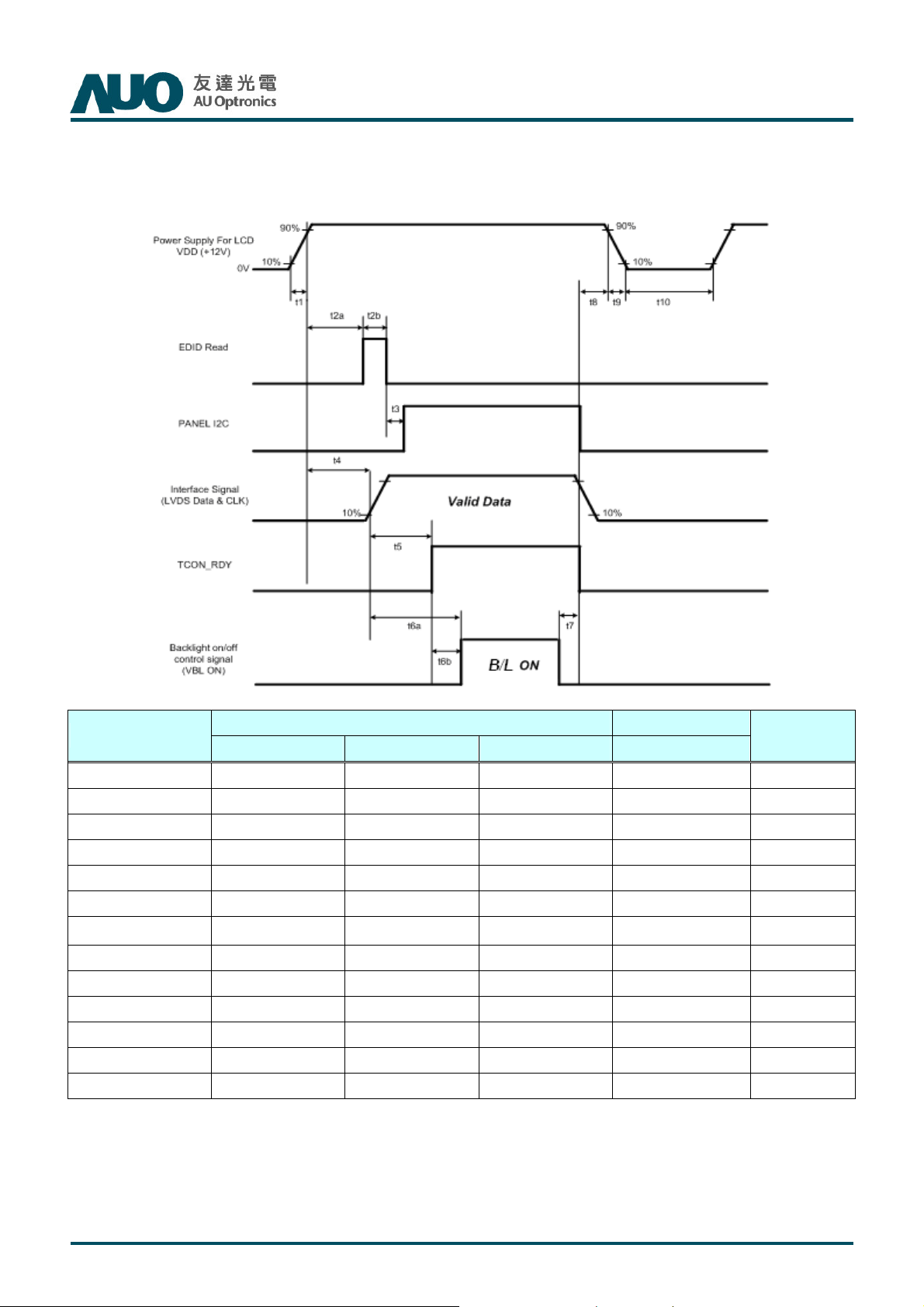

3.6.2.2: 1920x1080x60Hz
T460HVN05.0 SKD Product Specification
Rev.0.2
Parameter
Min. Type. Max. Type.
t1 0.4 --- 30 --- ms
t2a 10 --- 100 --- ms
t2b 0*4 --- 100*4 --- ms
t3 60 --- --- --- ms
t4 20 --- --- --- ms
t5 680*4 --- 1160*4 --- ms
t4+t5 ---
t6a --- --- --- --- ms
t6b 500 --- --- --- ms
t7 100*2 --- --- --- ms
t8 45 --- --- --- ms
t9 0*3 --- 300*3 --- ms
t10 500 --- --- --- ms
Note:
(1) Standard mode is used for customer’s operation. Standalone mode is used for panel factory operation.
(2) t7=0 : concern for residual pattern before BLU turn off.
(3) t9 : voltage of VDD must decay smoothly after power-off. (customer system decide this value)
(4) t2b, t5 and t9 : customer decides this value
Standard*1 Standalone*1
--- ---
51 ms
Unit
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 17 / 30
Page 18

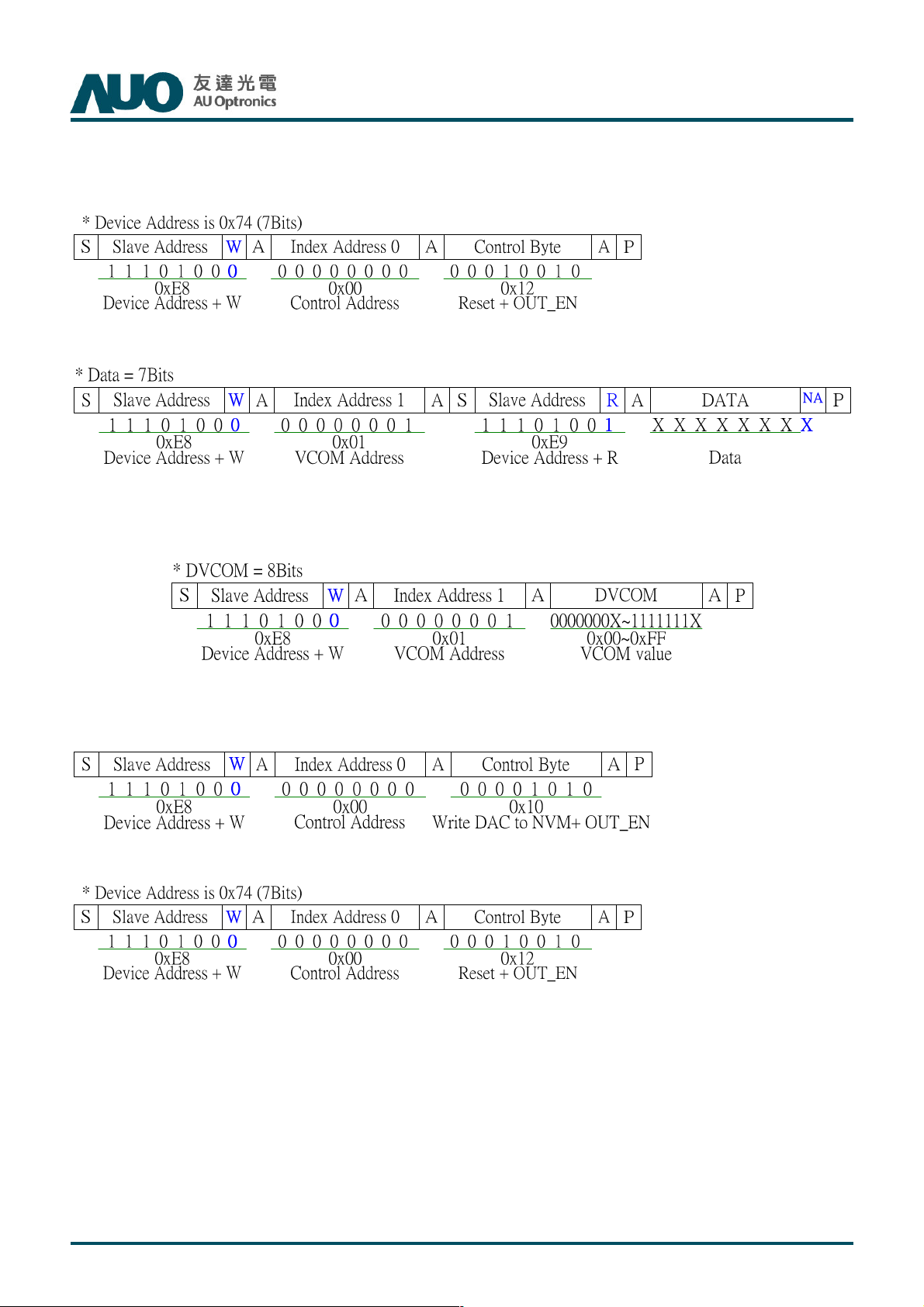

3.7.1 VCOM I2C TUNING STEP
T460HVN05.0 SKD Product Specification
Rev.0.2
3.7.2 FLICKER PATTERN
■ Dot
Green (L128)
□ 1+2Dot
Green (L128)
3.7.3 WP (WRITE PROTECT) DISABLE
□ 2Dot
Green (L128)
□ V-stripe
Green (L128)
Disable Enable Default (NC)
■
□
L H H
H L L
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 18 / 30
Page 19

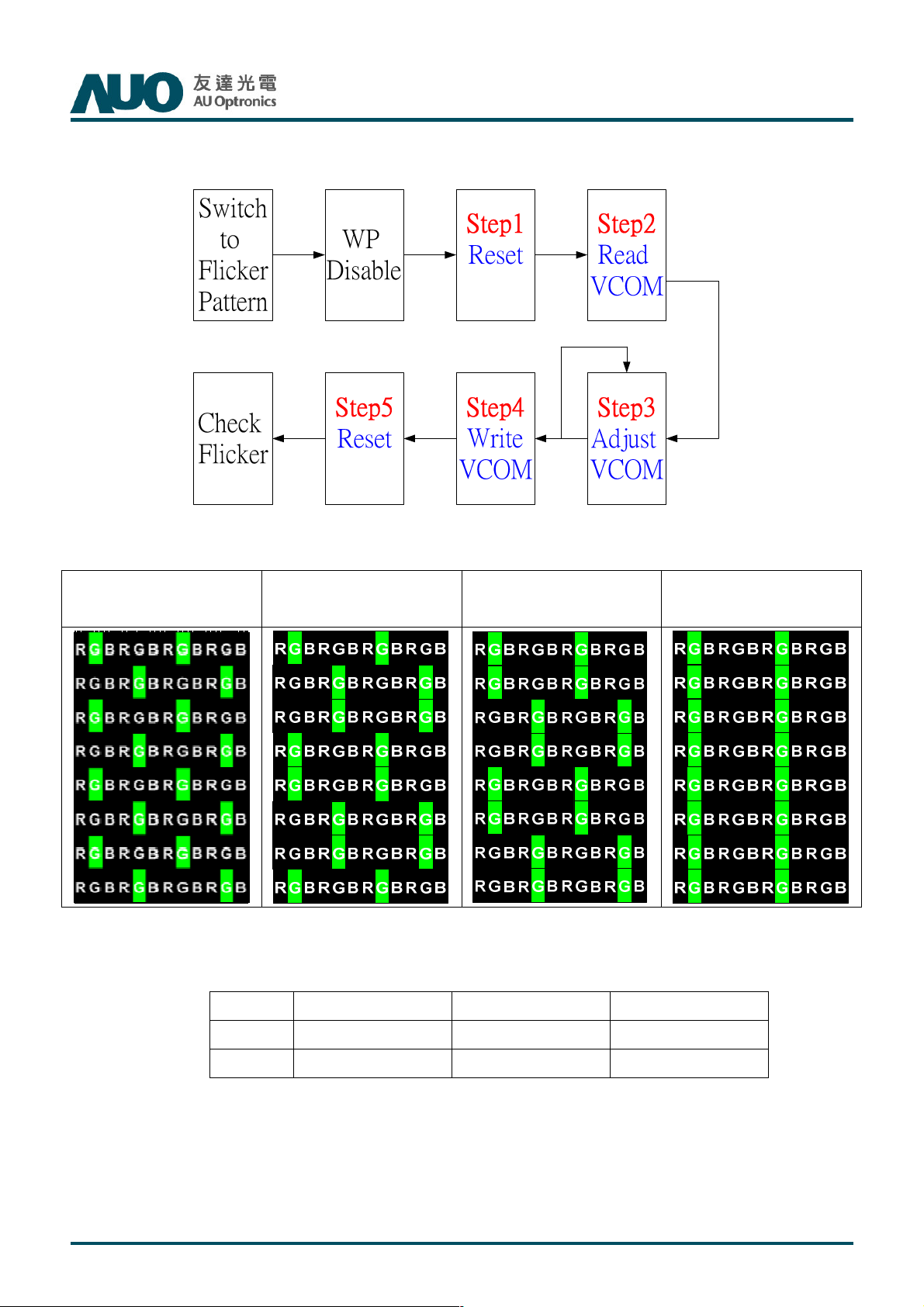

3.7.4 ADJUST SOP
Step1 Reset
Step2 Read VCOM
T460HVN05.0 SKD Product Specification
Rev.0.2
Step3 Adjust VCOM
Step4 Write VCOM
Step5 Reset
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 19 / 30
Page 20

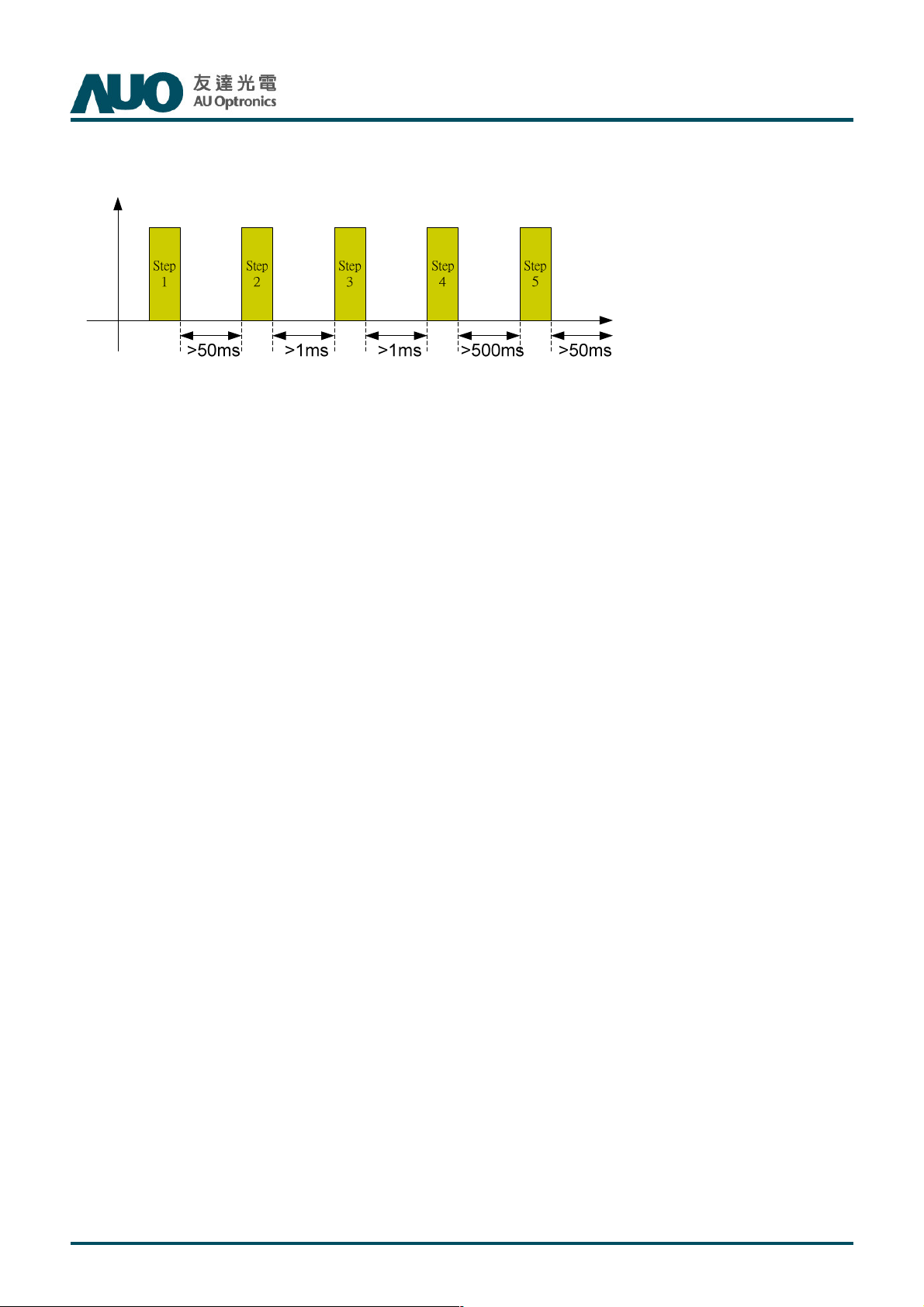

3.7.5 INTERVAL OF STEP TO STEP
Step to step interval must follow below figure
T460HVN05.0 SKD Product Specification
Rev.0.2
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 20 / 30
Page 21
T460HVN05.0 SKD Product Specification
Rev.0.2
4.OPTICAL SPECIFICATION

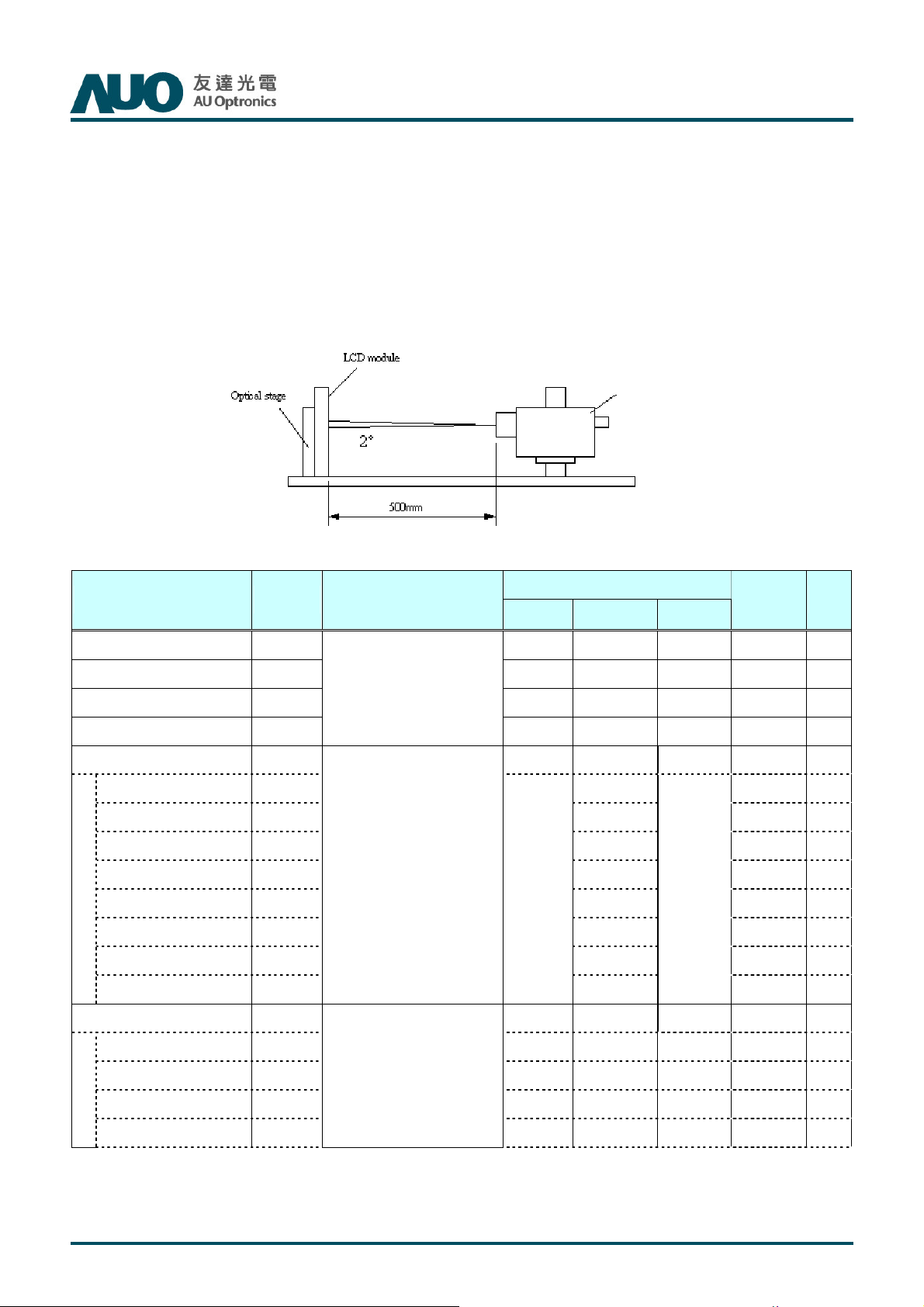

Optical characteristics are determined after the open cell unit and light source has been ‘ON’ and stable for
approximately 45 minutes in a dark environment at 25°C. The values specified are at an approximate distance

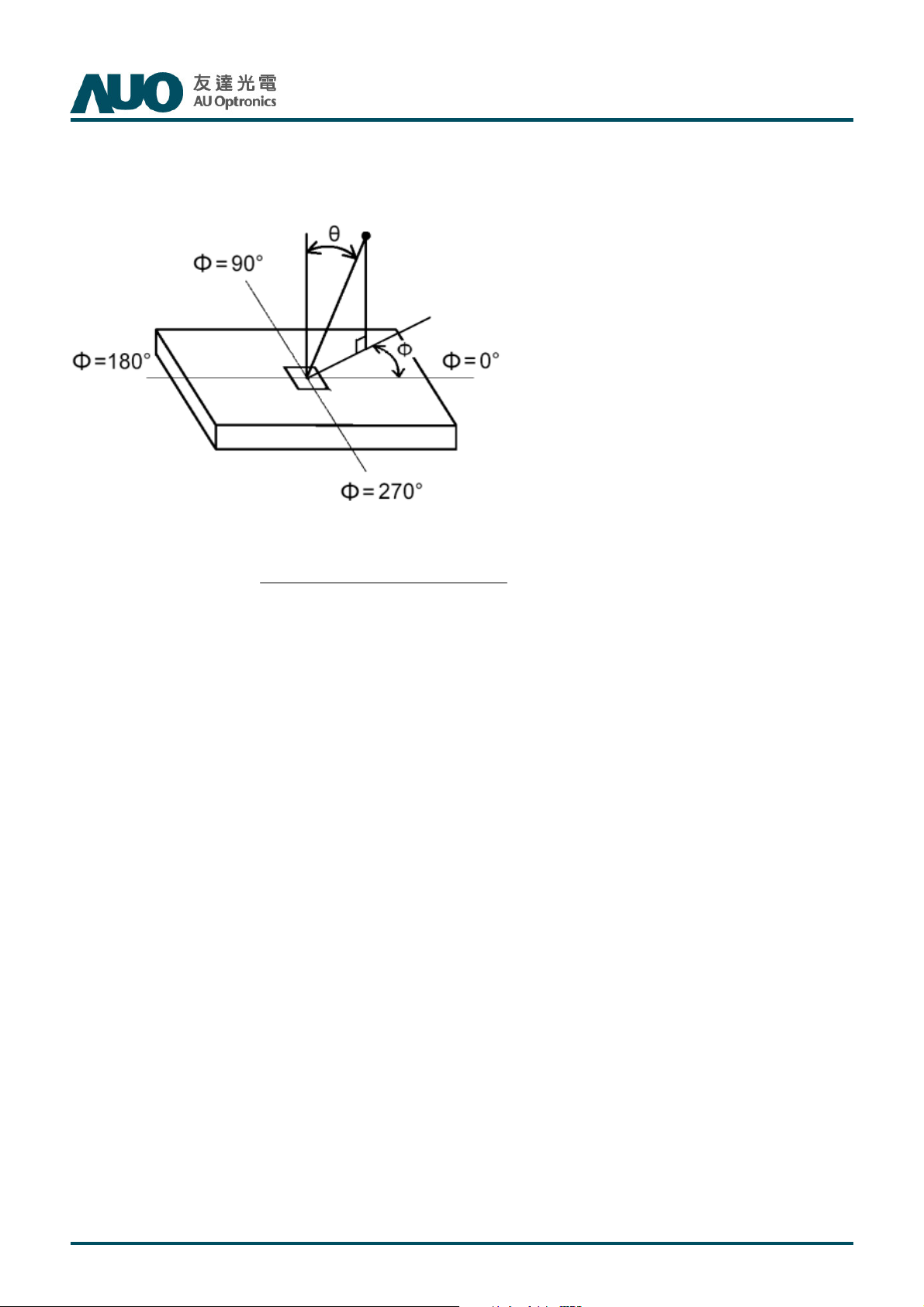

50cm from the LCD surface at a viewing angle of φ and θ equal to 0°.
Fig.1 presents additional information concerning the measurement equipment and method.
SR3 or equivalent
Parameter Symbol
Contrast Ratio CR 3000 -- 1, 2
White Variation δ
Response Time (G to G)
Center Transmittance T%
Color Chromaticity 5
Red RX 0.664
RY 0.323
Green GX 0.267
GY 0.600
Blue BX 0.140
BY 0.084
White WX 0.296
WHITE(9P)
Tγ -- 6.5 -- Ms 4
Standard light source “C”
Condition
Min. Typ. Max
-- -- 1.33 1, 3
With AUO Module
5.2 % 1, 7
With CS-1000T
Typ.-0.03
Values
Unit Notes
Typ.+0.03
WY
Viewing Angle 1, 6
x axis, right(φ=0°) θr -- 89 -- degree
x axis, left(φ=180°) θl -- 89 -- degree
y axis, up(φ=90°) θu -- 89 -- degree
y axis, down (φ=270°) θd
With AUO Module
-- 89 -- degree
0.336
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 21 / 30
Page 22
2 3
7
1. Light source here is the BLU of AUO module.
2. Contrast Ratio (CR) is defined mathematically as:
Surface Luminance of
Contrast Ratio=
Surface Luminance of

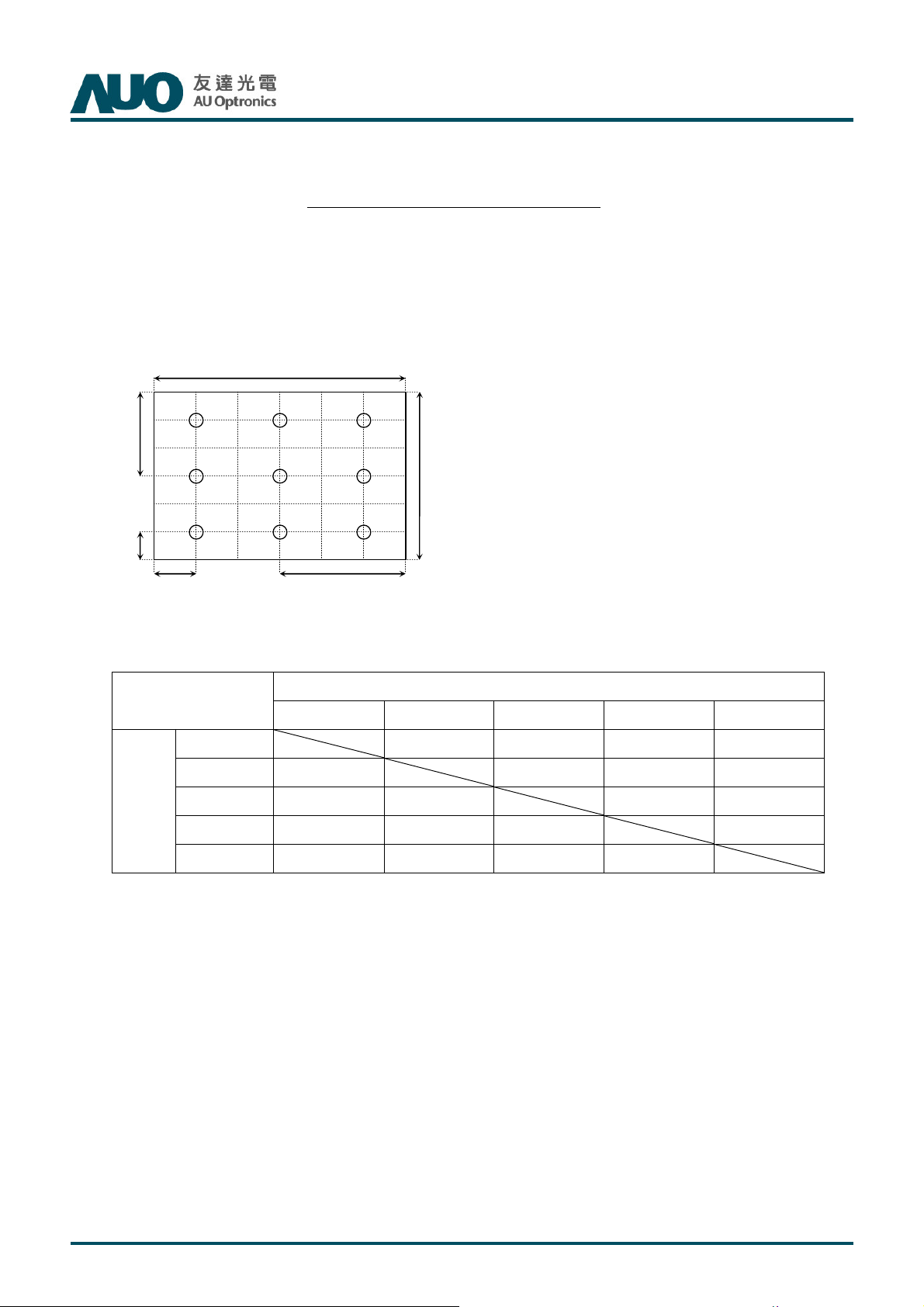

3. The white variation, δWHITE is defined as:
T460HVN05.0 SKD Product Specification
L
on5
L
off5
Rev.0.2
δ
WHITE(9P)
H/2
H/6
= Maximum(L
1
on1
, L
,…,L
on2
V
)/ Minimum(L
on9
V/2 V/6
, L
,…L
on1
on2
H
on9
)

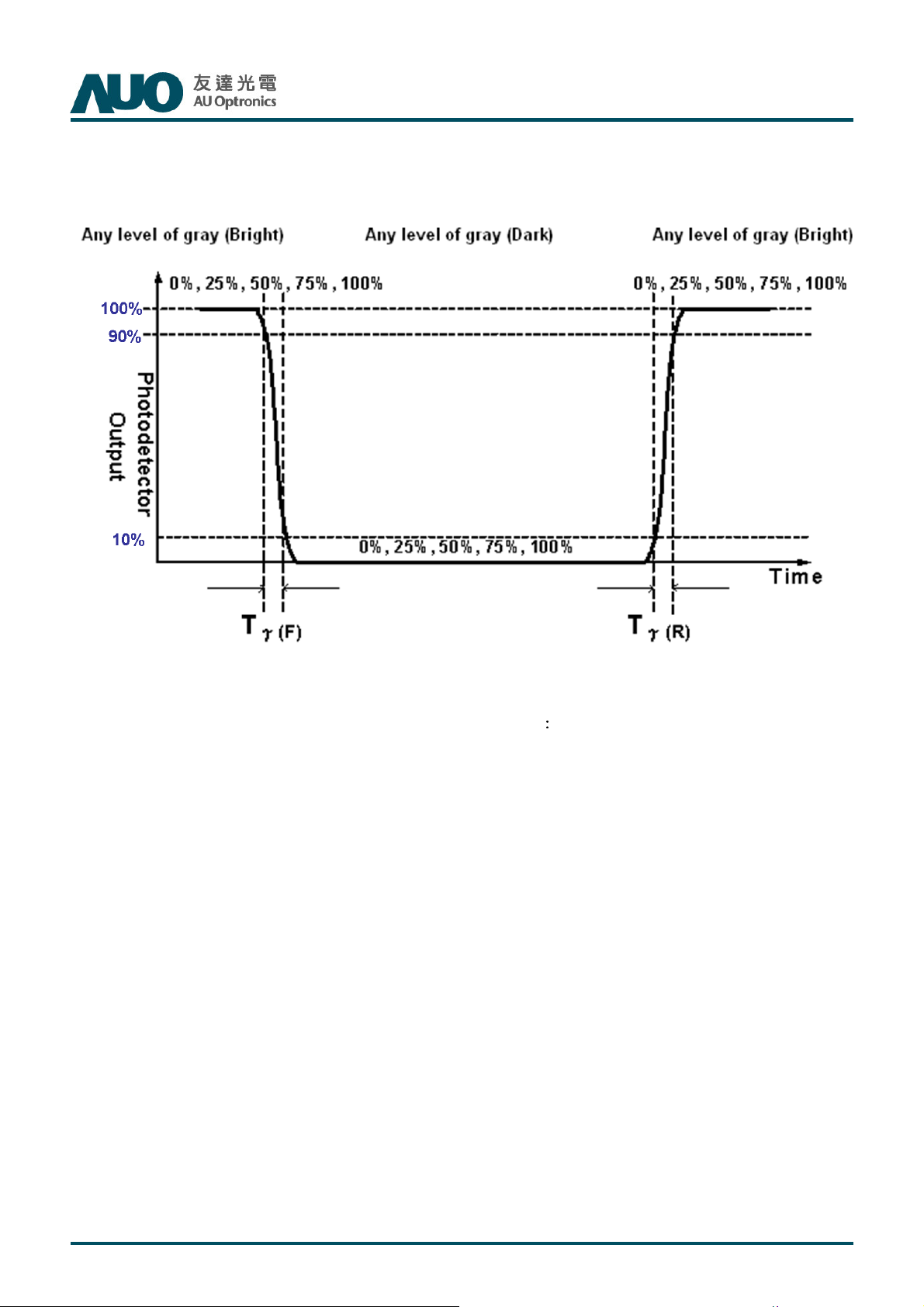

4. Response time Tγ is the average time required for display transition by switching the input signal for five
luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.
Target Measured
Response Time
0%
0% 25% 50% 75% 100%
0% to 25% 0% to 50% 0% to 75% 0% to 100%
Start
25%
50%
75%
100%
25% to 0% 25% to 50% 25% to 75% 25% to 100%
50% to 0% 50% to 25%
75% to 0% 75% to 25% 75% to 50%
100% to 0% 100% to 25% 100% to 50% 100% to 75%
50% to 75% 50% to 100%
75% to 100%
The response time is defined as the following figure and shall be measured by switching the input signal for
“any level of gray(bright) “ and “any level of gray(dark)”.
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 22 / 30
Page 23
FIG.3 Response Time
T460HVN05.0 SKD Product Specification
Rev.0.2
5. Light source here is the standard light source “C” which is defined by CIE and driving voltages are based on
suitable gamma voltages. The calculating method is as following：
A. Measure the “Module” and “BLU” optical spectrums (W, R, G, B).
B. Calculate cell spectrum from “Module” and “BLU” spectrums.
C. Calculate color chromaticity by using cell spectrum and the spectrum of standard light source “C”.
6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the
horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For
more information see FIG4.
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 23 / 30
Page 24
FIG.4 Viewing Angle
T460HVN05.0 SKD Product Specification
Rev.0.2
7. Definition of Transmittance (T%):
module LCD of Luminance
nceTransmitta ∗=
%001
backlight of Luminance
During transmittance measurement, the backlight of LCD module contains no brightness enhancement film.
Two diffuser sheets which diffuse the light source uniformly are suggested to use for transmittance
measurement.
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 24 / 30
Page 25

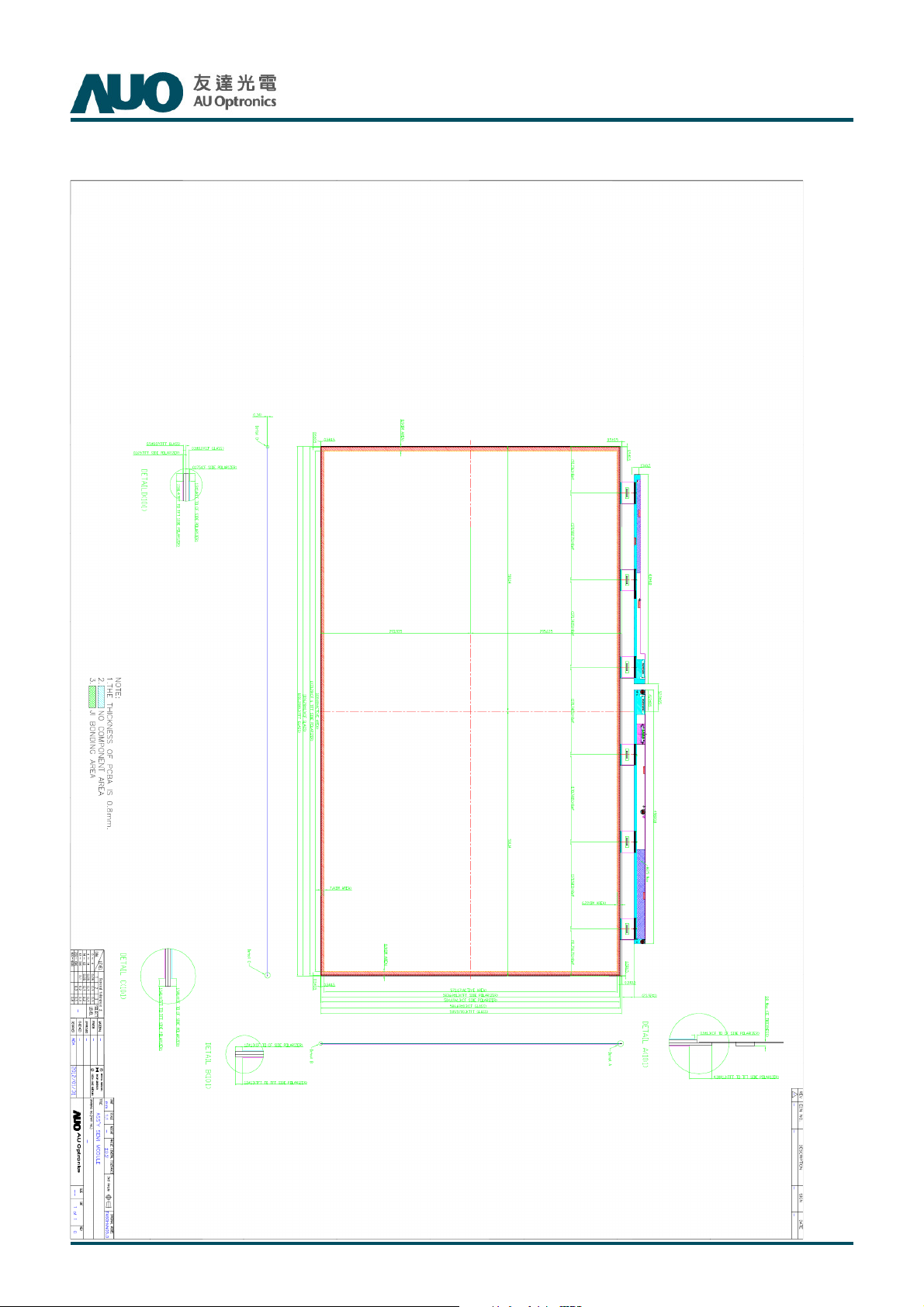

5. MECHANICAL CHARACTERISTICS
T460HVN05.0 SKD Product Specification
Rev.0.2
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 25 / 30
Page 26

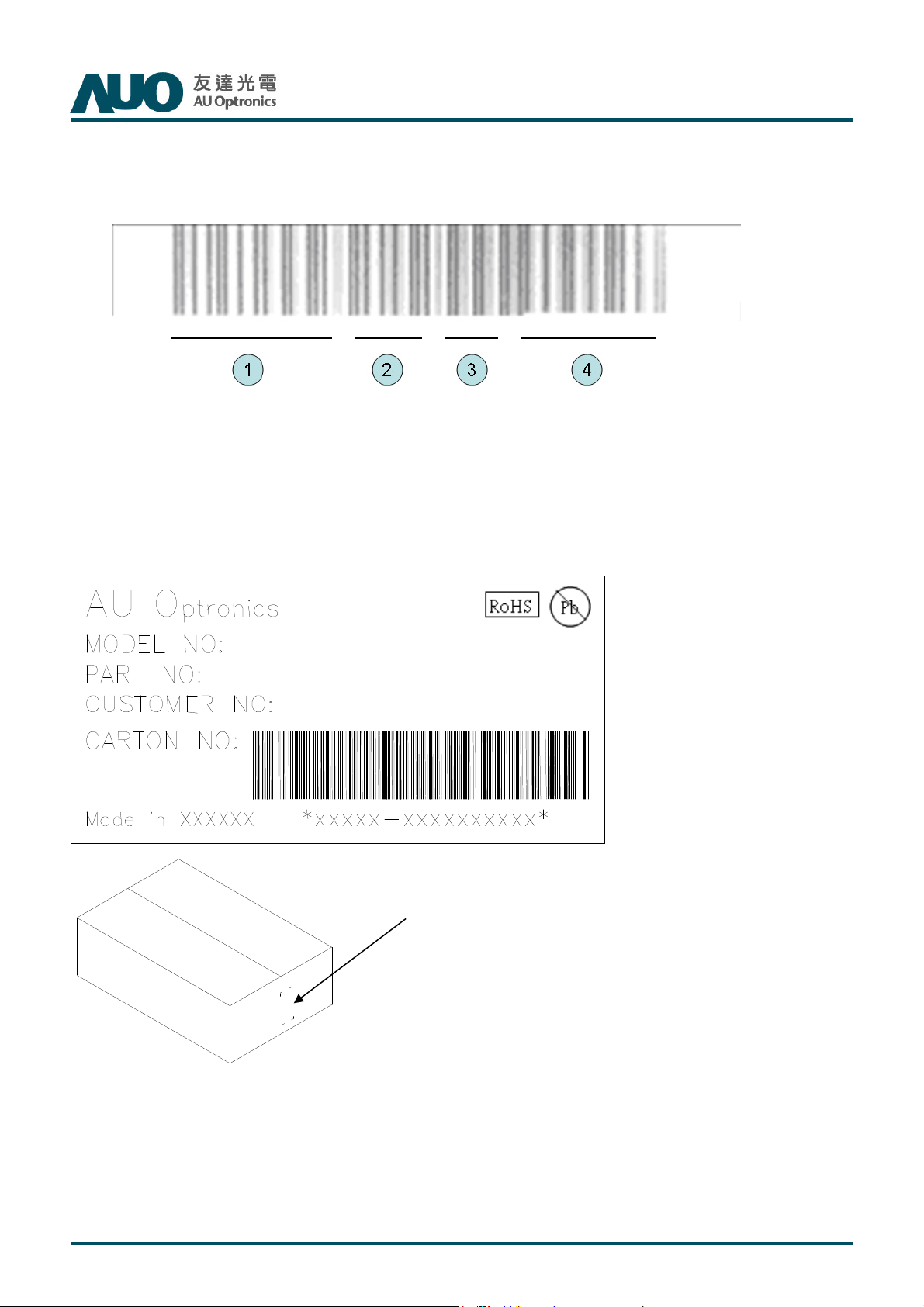

PACKING
6-1 Open cell shipping label (35*7mm)
T460HVN05.0 SKD Product Specification
Rev.0.2
XXXXXXXXXXXX – XXXXX – XXXX – XXXXXXXXXX
1. S/N Number
2. AUO internal use
3. Manufactured week
4. Model name
Carton Label:
T460HVN05.0
91.46T21.0xx
XXXXX–XXXXX–XXXXX
Carton label location
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 26 / 30
Page 27

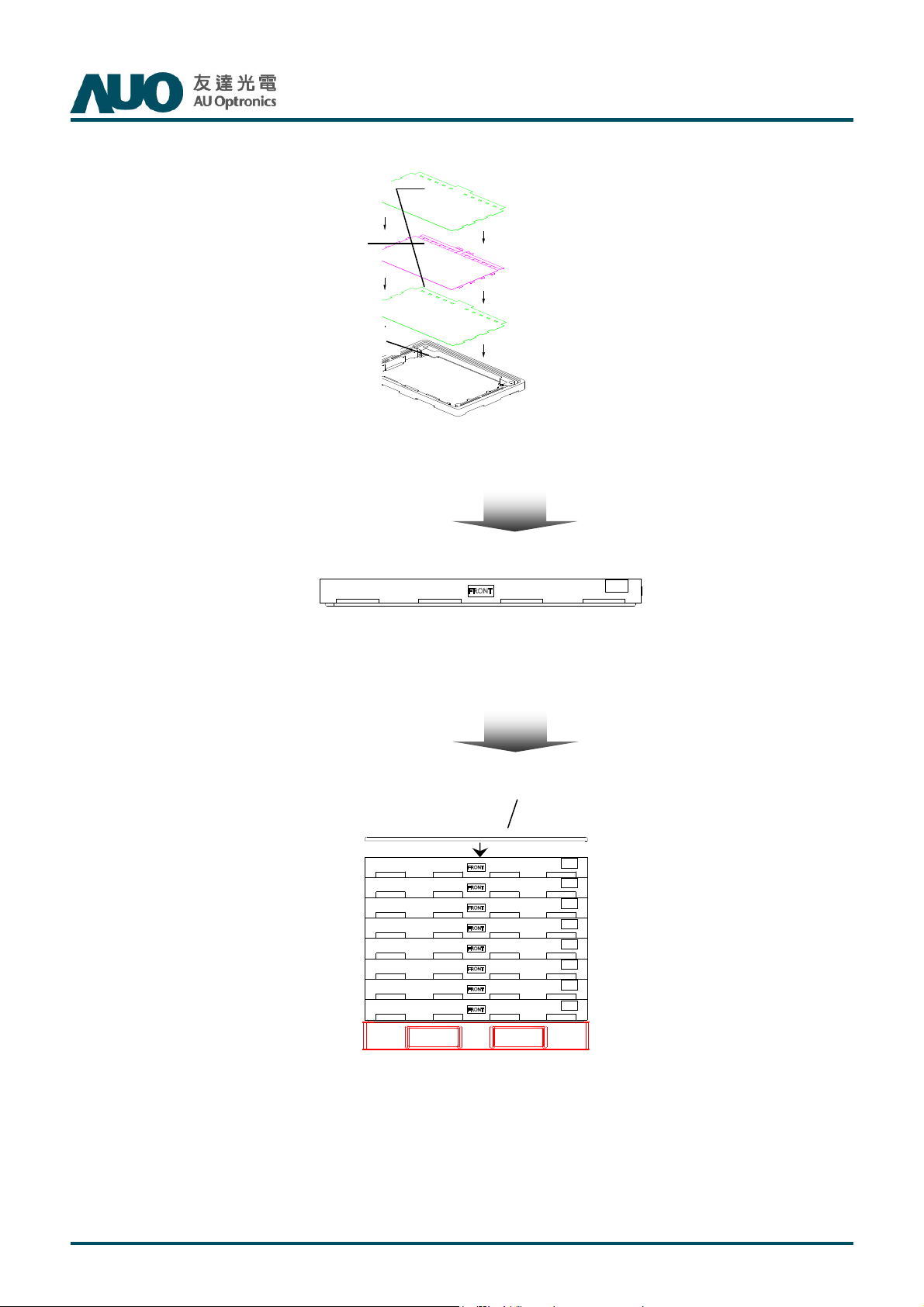

6-2 PACKING METHODS:
EPE Spacer
Open Cell
Hybrid Box
T460HVN05.0 SKD Product Specification
Rev.0.2
1Box for 12 pcs cells & 13 pcs spacers
12 Pcs/Box,
EPP Top Cover
Pallet Dimension:1200*1000*145 mm
8 Boxes/Pallet, after stack 8 boxes, then put EPP top cover on it.
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 27 / 30
Page 28

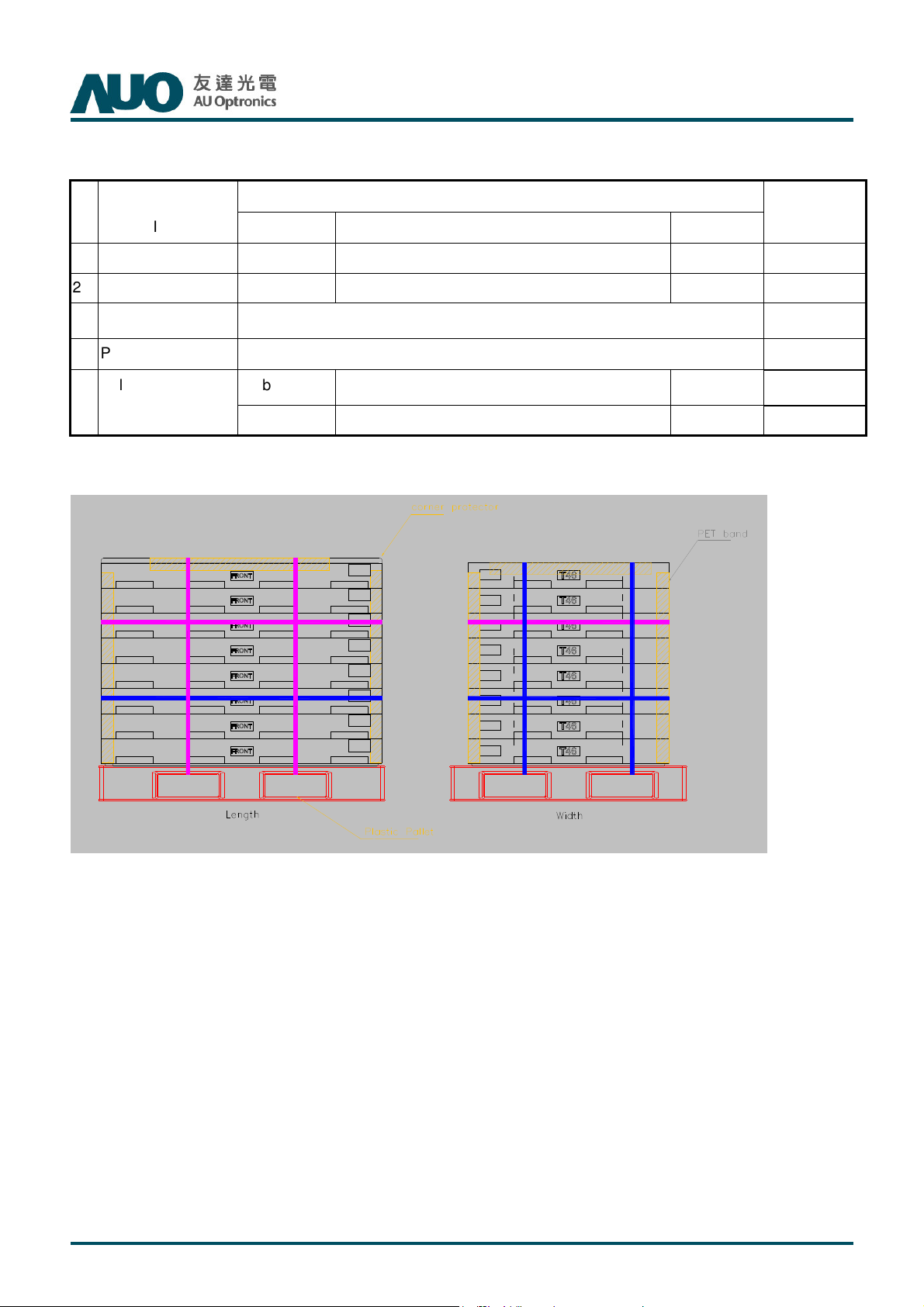

6-3 Pallet and Shipment Information
T460HVN05.0 SKD Product Specification
Rev.0.2
Specification
Item
1 Packing Box 12 pcs/box 1175(L)mm*860(W)mm*116(H)mm 28
2 Pallet 1 1200(L)mm*1000(W)mm*145(H)mm 13
3 Boxes per Pallet 8 boxes/Pallet (By Air) ; 8 Boxes/Pallet*Double Pallet (By Sea)
4 Panels per Pallet 96 pcs/pallet(By Air) ; 96 pcs/Pallet*Double Pallet (By Sea)
after packing
Qty. Dimension Weight (kg)
96(by Air) 1200(L)mm*1000(W)mm*1129(H)mm (by Air) 239 (by Air)
192(by Sea) 1200(L)mm*1000(W)mm*2268(H)mm (by Sea) 478 (by Sea) 40ft HQ
Packing
Remark
5 Pallet
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 28 / 30
Page 29
T460HVN05.0 SKD Product Specification
6. PRECAUTIONS
Please pay attention to the followings when you use this TFT LCD Open Cell unit.
7.1 MOUNTING PRECAUTIONS
(1) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the
cell. And the frame on which a cell is mounted should have sufficient strength so that external force is not
transmitted directly to the cell.
(2) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(3) You should adopt radiation structure to satisfy the temperature specification.
(3) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by
electro-chemical reaction.
(4) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil
lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer
for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)
(5) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used
to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical
damage to the polarizer.
(6) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(7) Do not open the case because inside circuits do not have sufficient strength.
Rev.0.2
7.2 OPERATING PRECAUTIONS
(1) The open cell unit listed in the product specification sheets was designed and manufactured for TV
application
(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:
V=±200mV(Over and under shoot voltage)
(3) Response time depends on the temperature. (In lower temperature, it becomes longer.)
(4) Brightness/transmittance depends on the temperature. (In lower temperature, it becomes lower.) And in
lower temperature, response time (required time that brightness is stable after turned on) becomes longer.
(5) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer
or electrical contacted parts. And after fading condensation, smear or spot will occur.
(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimize the
interface.
7.3 ELECTROSTATIC DISCHARGE CONTROL
Since a open cell unit is composed of electronic circuits, it is not strong to electrostatic discharge. Make
certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin
directly.
7.4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of polarizer and color filter.
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 29 / 30
Page 30
T460HVN05.0 SKD Product Specification
7.5 STORAGE
When storing open cell units as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the open cell unit to sunlight or fluorescent light. Keep the
Rev.0.2
temperature between 5 and 35 at normal humidity.
(2) The polarizer surface should not come in contact with any other object. It is recommended that they be
stored in the container in which they were shipped.
℃ ℃
7.6 HANDLING PRECAUTIONS FOR PROTECTION FILM OF POLARIZER
The protection film of polarizer is still attached on the surface as you receive open cell units. When the
protection film is peeled off, static electricity is easily generated on the polarizer surface. This should be peeled off
slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a
condition, etc.
© Copyright AU Optronics Corp. 2013 All Rights Reserved. Page 30 / 30
Loading...
