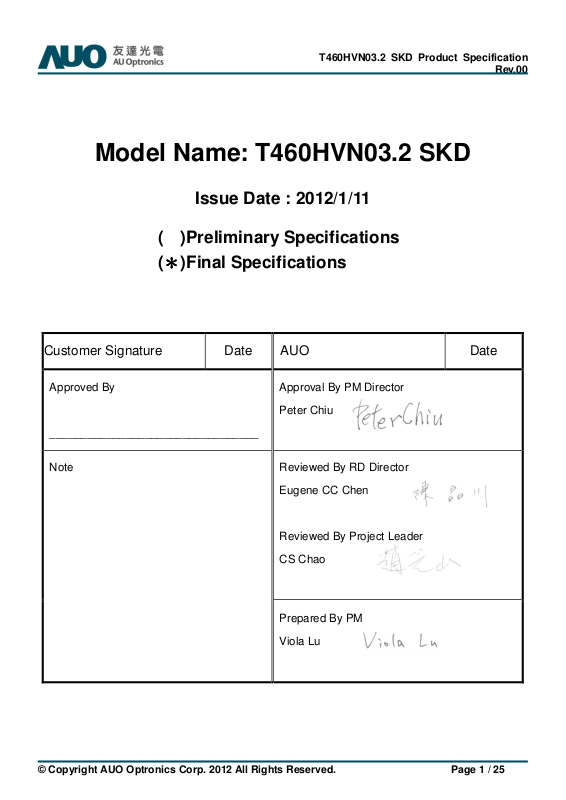

AUO T460HVN03.2 Specification

T460HVN03.2 SKD Product Specification

Rev.00

Model Name: T460HVN03.2 SKD

Issue Date : 2012/1/11

( )Preliminary Specifications (＊＊＊＊)Final Specifications

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director

Peter Chiu

Reviewed By RD Director

Eugene CC Chen

Reviewed By Project Leader

CS Chao

Prepared By PM

Viola Lu

T460HVN03.2 SKD Product Specification

Rev.00

Contents

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE FOR LCD

4 OPTICAL SPECIFICATION

5 OPEN CELL DRAWING

6 RELIABILITY TEST ITEMS

7 PACKING

7-1 DEFINITION OF LABEL

7-2 PACKING METHODS

8 PRECAUTION

8-1 MOUNTING PRECAUTIONS

8-2 OPERATING PRECAUTIONS

8-3 ELECTROSTATIC DISCHARGE CONTROL

8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

8-5 STORAGE

8-6 HANDLING PRECAUTIONS FOR PROTECT FILM

Record of Revision

T460HVN03.2 SKD Product Specification

Rev.00

Version

0.0 2012/1/11 First release

Date Page Description

T460HVN03.2 SKD Product Specification

Rev.00

1. General Description

This specification applies to the 46.0 inch Color TFT-LCD SKD model T460HVN03.2. This LCD Open Cell Unit has a

TFT active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 46.0 inch. This Open Cell Unit

supports 1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in

vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each

dot.

* General Information

Items Specification Unit Note

Active Screen Size 46.00 inch

Display Area 1018.08(H) x 572.67(V) mm

Outline Dimension 1043.58(H) x 597.68(V) x 1.378(D)

Driver Element a-Si TFT active matrix

Display Colors 10 bit, 1.07B Colors

Number of Pixels 1,920x1,080 Pixel

Pixel Pitch 0.53025(H) x 0.53025(W) mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze=2%

Rotate Function Unachievable Note 1

Display Orientation Signal input with “A” Note 2

Note 1: Rotate Function refers to LCD display could be able to rotate.

Note 2: LCD display as below illustrated when signal input with “A”.

mm

T460HVN03.2 SKD Product Specification

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage VDD -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 4 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃

Rev.00

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures greater

than 40 , the wet bulb temperature must not exceed 39 .

Note 3: Surface temperature is measured at 50℃ Dry condition

℃ ℃

℃

T460HVN03.2 SKD Product Specification

Rev.00

3. Electrical Specification

The T460HVN03.2 Open Cell Unit requires power input which is employed to power the LCD electronics and to drive

the TFT array and liquid crystal.

3.1 Electrical Characteristics

3.1.1: DC Characteristics

Parameter Symbol

Min. Typ.

Max

Unit Note

LCD

Power Supply Input Voltage VDD 10.8 12 13.2 VDC

Value

Power Supply Input Current IDD -- 0.85

Power Consumption PC -- 10.2

Inrush Current I

-- -- 4 A 2

RUSH

Permissible Ripple of Power Supply Input Voltage VRP -- -- VDD * 5% mV

∣

V

ID

ICM

VIH

(High)

VIL

(Low)

∣

200 400 600 mVDC 4

1.1 1.25

2.7 -- 3.3 VDC 5

0 -- 0.6 VDC 5

LVDS

Interface

CMOS

Interface

Input Differential Voltage

Differential Input High Threshold Voltage VTH +100 -- +300 mVDC 4

Differential Input Low Threshold Voltage VTL -300 -- -100 mVDC 4

Input Common Mode Voltage V

Input High Threshold Voltage

Input Low Threshold Voltage

1.2 A 1

12.24 Watt 1

pk-pk

1.4 VDC 4

Backlight Power Consumption PBL 64.1 72 76.5 Watt

3

Life time (MTTF) 30000

Hour 9,10

3.1.2: AC Characteristics

Parameter Symbol

Min. Typ. Max

LVDS Interface

Input Channel Pair Skew Margin

Receiver Clock : Spread Spectrum Modulation range

Receiver Clock : Spread Spectrum Modulation frequency

Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHz

t

SKEW (CP)

Fclk_ss

Fss

-500 -- +500 ps 6

Fclk

-3%

30

tRMG

-0.4

-0.5

Value

Unit Note

--

Fclk

+3%

200

0.4

0.5

MHz

KHz

ns

7

8

s

µ

Note :

T460HVN03.2 SKD Product Specification

Rev.00

1. V

= 12.0V, Fv = 60Hz, Fclk= 82MHz , 25 ℃, Test Pattern : White Pattern

DD

2. Measurement condition : Rising time = 400us

GND

GNDGND

10%

400

400400

3. Test Condition:

(1) The measure point of V

is in LCM side after connecting the System Board and LCM.

RP

(2) Under Max. Input current spec. condition.

4. V

= 1.25V

ICM

L V D S -

V

IC M

L V D S +

90%

VVVV

DD

DDDD

V

T H

|VID|

V

T L

G N D

0 V

5. The measure points of V

6. Input Channel Pair Skew Margin

and V

IH

|VID|

are in LCM side after connecting the System Board and LCM.

IL

Note: x = 0, 1, 2, 3, 4

7. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures

Fclk

Fclk____ss

FclkFclk

8. Receiver Data Input Margin

ss((((max

ssss

Fclk

FclkFclk

Fclk

Fclk____ss

FclkFclk

ss((((min

ssss

max))))

maxmax

min))))

minmin

1111////FFFF

T460HVN03.2 SKD Product Specification

SS

SSSS

Rev.00

Parameter Symbol

Min Type Max

Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz

Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns

Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns

Input Data Position2 tRIP6 2T/7-|tRMG|

Input Data Position3 tRIP5 3T/7-|tRMG|

Input Data Position4 tRIP4 4T/7-|tRMG|

Input Data Position5 tRIP3 5T/7-|tRMG|

Input Data Position6 tRIP2 6T/7-|tRMG|

Rating

Unit

2T/7 2T/7+|tRMG| ns

3T/7 3T/7+|tRMG| ns

4T/7 4T/7+|tRMG| ns

5T/7 5T/7+|tRMG| ns

6T/7 6T/7+|tRMG| ns

tRIP2

tRIP3

tRIP4

tRIP5

Note

T=1/Fclk

tRIP6

tRIP0

tRIP1 LVDS-Rx Input Data

Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3

LVDS-Rx

VVVV

=

= 0000VVVV

= =

diff

Input Clock

diff diff

1/Fclk=T

T460HVN03.2 SKD Product Specification

3.2 Interface Connections



LCD connector: 187059-51221-1 (P-TWO, LVDS connector)

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).

Rev.00

1

2

3

4

5

6

7 LVDS_SEL

8

9

10

11

12

13

14

15

16

17

18

19 CH1_CLK- LVDS Channel 1, Clock - 44

20 CH1_CLK+ LVDS Channel 1, Clock + 45

21

22

23

24

25

Symbol Description PIN

N.C. AUO Internal Use Only 26

N.C.

N.C. AUO Internal Use Only 28

N.C.

ROTATE

N.C. No connection 33

N.C.

GND Ground 36 CH2_CLK+ LVDS Channel 2, Clock +

CH1_0- LVDS Channel 1, Signal 0- 37

CH1_0+ LVDS Channel 1, Signal 0+ 38

CH1_1- LVDS Channel 1, Signal 1- 39

CH1_1+ LVDS Channel 1, Signal 1+ 40

CH1_2- LVDS Channel 1, Signal 2- 41

CH1_2+ LVDS Channel 1, Signal 2+ 42

GND Ground 43

GND Ground 46

CH1_3- LVDS Channel 1, Signal 3- 47

CH1_3+ LVDS Channel 1, Signal 3+ 48

CH1_4- LVDS Channel 1, Signal 4- 49

CH1_4+ LVDS Channel 1, Signal 4+ 50

AUO Internal Use Only 27

AUO Internal Use Only 29

AUO Internal Use Only 30

Panel Rotation Display Control

High(3.3V) : Rotate Enable

Open/Low(GND) : Rotate Disable

Open/High(3.3V) for NS,

Low(GND) for JEIDA

AUO Internal Use Only 34

AUO Internal Use Only 35 CH2_CLK- LVDS Channel 2, Clock -

51

31

32

Symbol Description

N.C. AUO Internal Use Only

N.C.

CH2_0- LVDS Channel 2, Signal 0-

CH2_0+ LVDS Channel 2, Signal 0+

CH2_1- LVDS Channel 2, Signal 1-

CH2_1+ LVDS Channel 2, Signal 1+

CH2_2- LVDS Channel 2, Signal 2-

CH2_2+ LVDS Channel 2, Signal 2+

GND Ground

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

CH2_4- LVDS Channel 2, Signal 4-

CH2_4+ LVDS Channel 2, Signal 4+

N.C. AUO Internal Use Only

GND Ground

N.C. No connection

V

DD

V

DD

V

DD

V

DD

AUO Internal Use Only

Power Supply, +12V DC Regulated

T460HVN03.2 SKD Product Specification

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).

LVDS Option = High/OpenNS

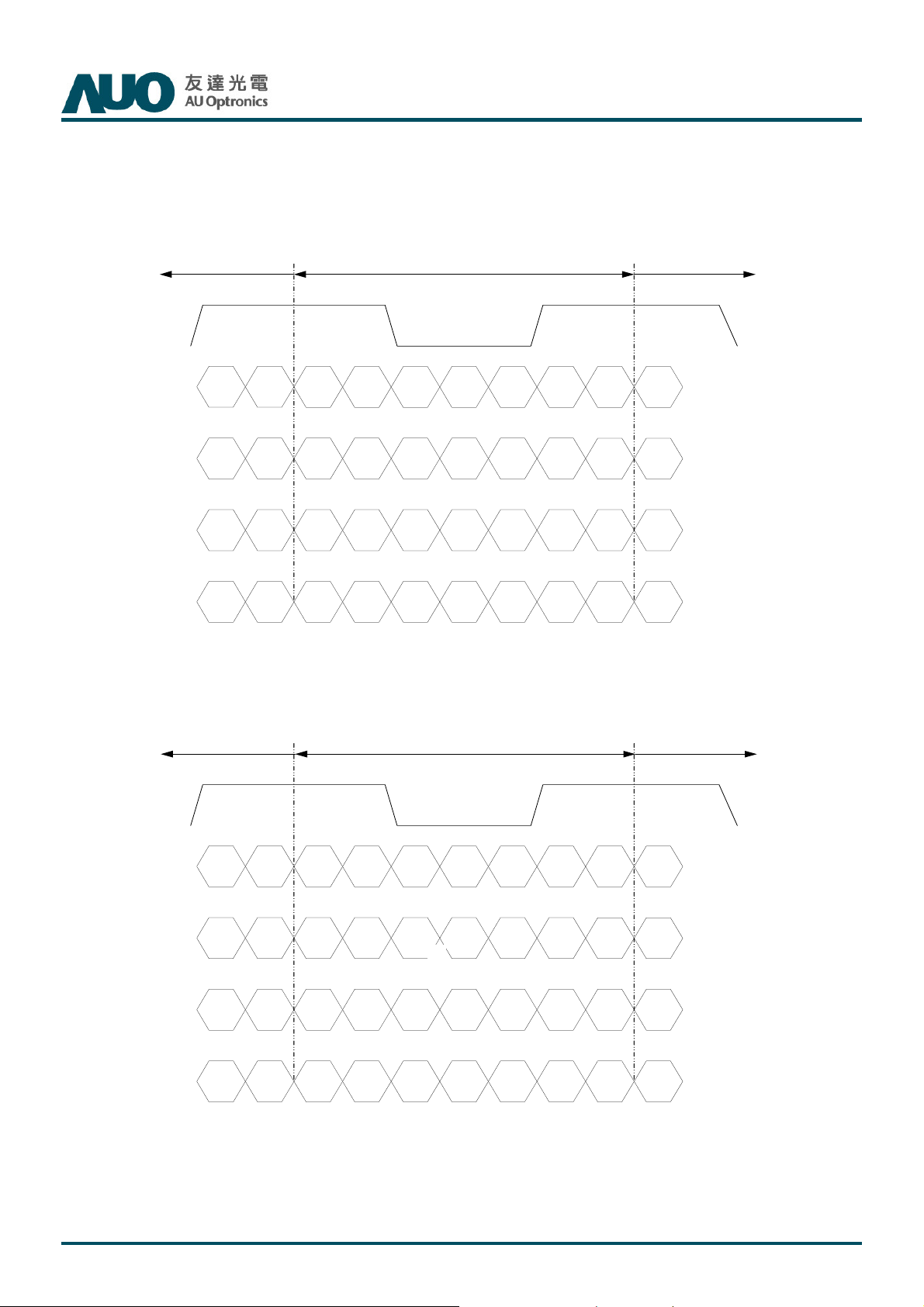

P revio us C ycle C u r rent C yc le N ex t C ycle

P revio us C ycle C u r rent C yc le N ex t C ycle P revio us C ycle C u r rent C yc le N ex t C ycle

C lo ck

C lo ckCl o c k

C H x

C H x ____ 0000 ++++

C H xCH x

C H x

C H x ____ 0000 ----

C H xCH x

C H x

C H x ____ 1111 ++++

C H xCH x

C H x

C H x ____ 1111 ----

C H xCH x

C H x

C H x ____ 2222 ++++

C H xCH x

C H x

C H x ____ 2222 ----

C H xCH x

D EBBBB 2222BBBB 3333 BBBB 4444BBBB 5555NA

D ED E

N A D E

N AN A

N A BBBB 3333

N AN A

RRRR 0000RRRR 5555 GGGG 0000GGGG 0000RRRR 0000RRRR 1111 RRRR 2222RRRR 3333RRRR 4444 RRRR 1111

GGGG 1111BBBB 0000 BBBB 1111BBBB 1111GGGG 1111GGGG 2222 GGGG 3333GGGG 4444GGGG 5555 GGGG 2222

BBBB 2222N A

D ED E

Rev.00

C H x

C H x ____ 3333 ++++

C H xCH x

C H x

C H x ____ 3333 ----

C H xCH x

Note: x = 1, 2, 3, 4…

LVDS Option = LowJEIDA

P re v io us C yc le C u r ren t C ycle N e x t C y c le

P re v io us C yc le C u r ren t C ycle N e x t C y c le Pre v iou s C y c le C urr e n t C yc le N ext C y c le

C lock

C lockClo c k

C H x

C H x____ 0000 ++++

C H xCH x C H x

C H x____ 0000 ----

C H xCH x

C H x

C H x____ 1111 ++++

C H xCH x C H x

C H x____ 1111 ----

C H xCH x

C H x

C H x____ 2222 ++++

C H xCH x C H x

C H x____ 2222 ----

C H xCH x

N ARRRR 6666RRRR 7777 GGGG 6666GGGG 7777BBBB 6666 RRRR 7777

N AN A

G7

D EBBBB 4444BBBB 5555 BBBB 6666BBBB 7777N A

D ED E

N A D E

N AN A

N A BBBB 5555

N AN A

RRRR 6666BBBB 7777 N A

RRRR 2222RRRR 7777 GGGG 2222GGGG 2222RRRR 2222RRRR 3333 RRRR 4444RRRR 5555RRRR 6666 RRRR 3333

GGGG 3333BBBB 2222 BBBB 3333BBBB 3333GGGG 3333GGGG 4444 GGGG 5555GGGG 6666GGGG 7777 GGGG 4444

BBBB 4444N A

N AN A

D ED E

C H x

C H x____ 3333 ++++

C H xCH x C H x

C H x____ 3333 ----

C H xCH x

N ARRRR 0000RRRR 1111 GGGG 0000GGGG 1111BBBB 0000 RRRR 1111

N AN A

RRRR 0000BBBB 1111 N A

N AN A

Note: x = 1, 2, 3, 4…

T460HVN03.2 SKD Product Specification

Rev.00

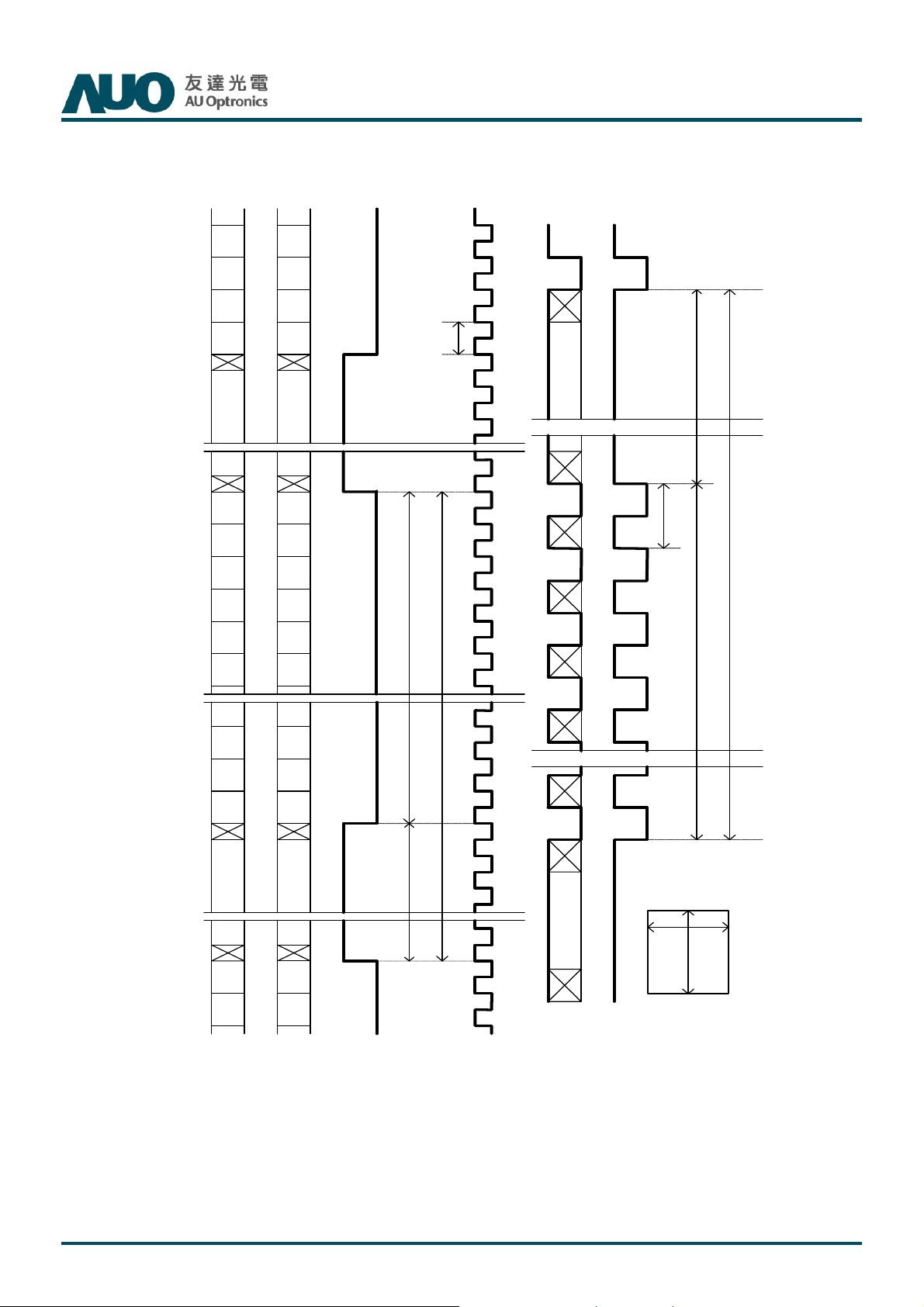

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be satisfied

with the following specifications for its proper operation.

Timing Table (DE only Mode)

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1096 1125 1480 Th

Vertical Section

Horizontal Section

Clock Frequency Fclk=1/Tclk 50 74.25 82 MHz

Vertical Frequency Frequency Fv 47 60 63 Hz

Horizontal Frequency Frequency Fh 60 67.5 73 KHz

Notes:

(1) Horizontal Blanking must be even numbers.

(2) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the

left edge of the screen.

(3)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

Active Tdisp (v) 1080

Blanking Tblk (v) 16 45 400 Th

Period Th 1040 1100 1328 Tclk

Active Tdisp (h) 960

Blanking Tblk (h) 80 140 368 Tclk

line of screen.

(4)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

(5)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

3.4 Signal Timing Waveforms

T460HVN03.2 SKD Product Specification

Rev.00

CH2

Pixel

M-6

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

6

Pixel

8

Pixel

10

Pixel

12

CH1

Pixel

M-7

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Pixel

5

Pixel

7

Pixel

9

Pixel

11

DE

Tdisp(h) Tblk(h)

CLK

RGB

Data

Line

N

Tclk

Invalid Data Invalid Data

Line

1

Line

2

Th

Line

3

Line

4

DE

Th

Tv

Tdisp(v)Tblk(v)

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Line

N

N L in e

N L in eN L in e

M

M p

p

p i

i

x

x e

e

e l

l

T460HVN03.2 SKD Product Specification

Rev.00

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 10 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic

Color

R

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

G

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

----

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

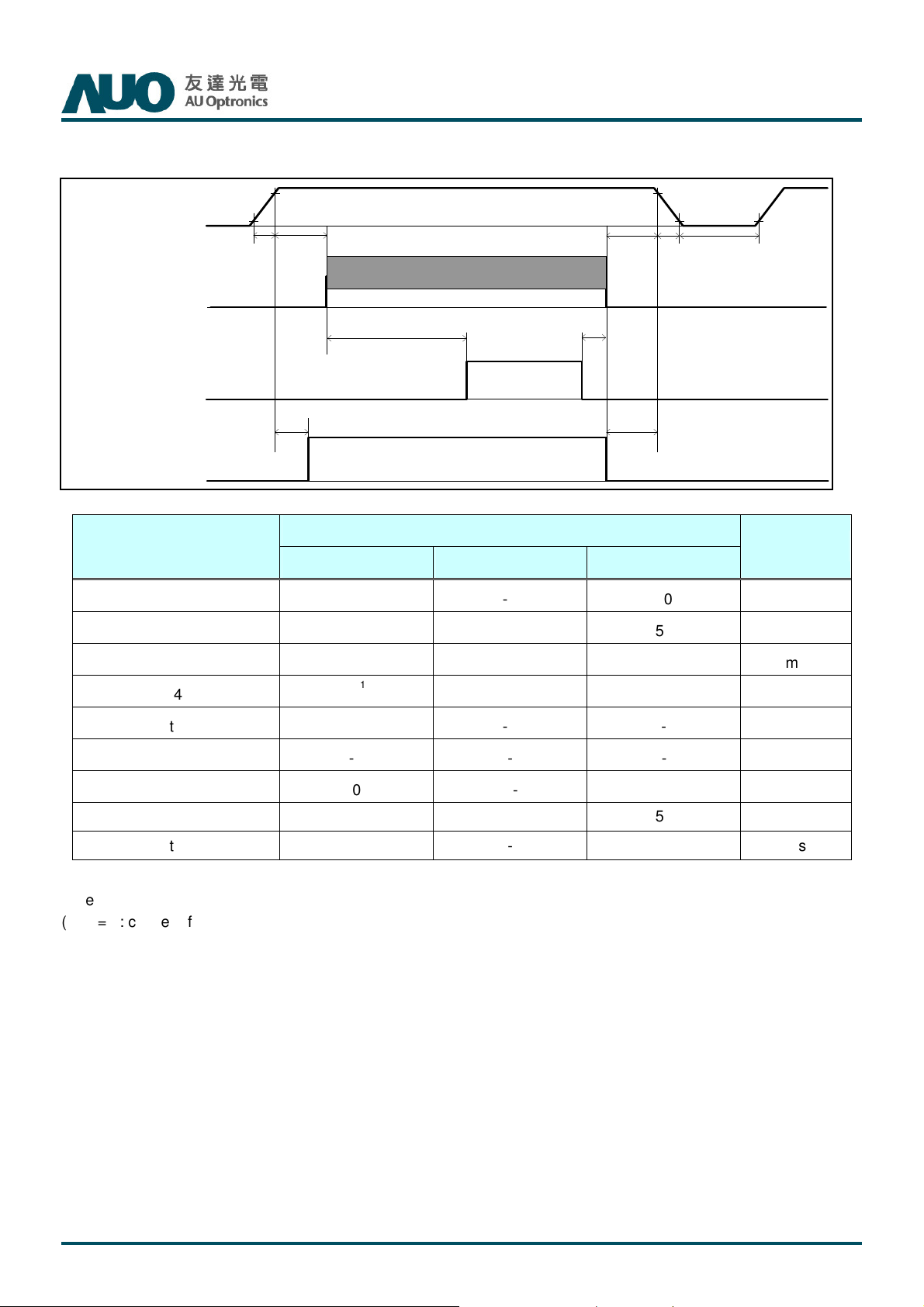

3.6 Power Sequence for LCD

10 %

90 %

t1

t2

Power S u p p ly For L C D

Power S u p p ly For L C D Power S u p p ly For L C D VDD

VDD (+

(+ 1 2

12 VVVV ))))

VDD VD D

(+(+

121 2

G ND

In te rfa ce S ig n a l

In te rfa ce S ig n a lIn te rfa ce S ig n a l ((((LV D S D a ta

LV DS D a ta &

LV DS D a ta LV DS D a ta

& C L K

CLK ))))

& &

CLKCLK

G ND

Valid Data

Valid DataValid D ata

T460HVN03.2 SKD Product Specification

Rev.00

90 %

10 %

t6

t5

10 %

t7

Back light o n

Back light o n ////o ff

Back light o nB a ckl ig h t on co n trol signa l

co n trol signa l

co n trol signa lco n trol signa l ((((VBLO N

VBLON ))))

VBLONV B L O N

off

offo ff

GN D

CM O S In te rfa ce S ign a l

CM O S In te rfa ce S ign a lCM O S In te rfa ce S ign a l ((((L V D S

LVDS ____SE L

SEL,,,,....... )

SELS E L

....... )

....... )....... )

G ND

LVDSL V D S

Parameter

t1 0.4

t2 0.1

t3 450

t4 0

t5 0

t6 ---

t3 t4

t8 t9

Values

Min. Type. Max.

*1

---

30

50

---

Unit

*2

ms

t7 500

t8

t9

10

*3

0

---

50

---

ms

Note: (1) t4=0 : concern for residual pattern before BLU turn off. (2) t6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value) (3) When CMOS Interface signal is N.C. (no connection), opened in Transmitted end, t8 timing spec can be

negligible.

T460HVN03.2 SKD Product Specification

Rev.00

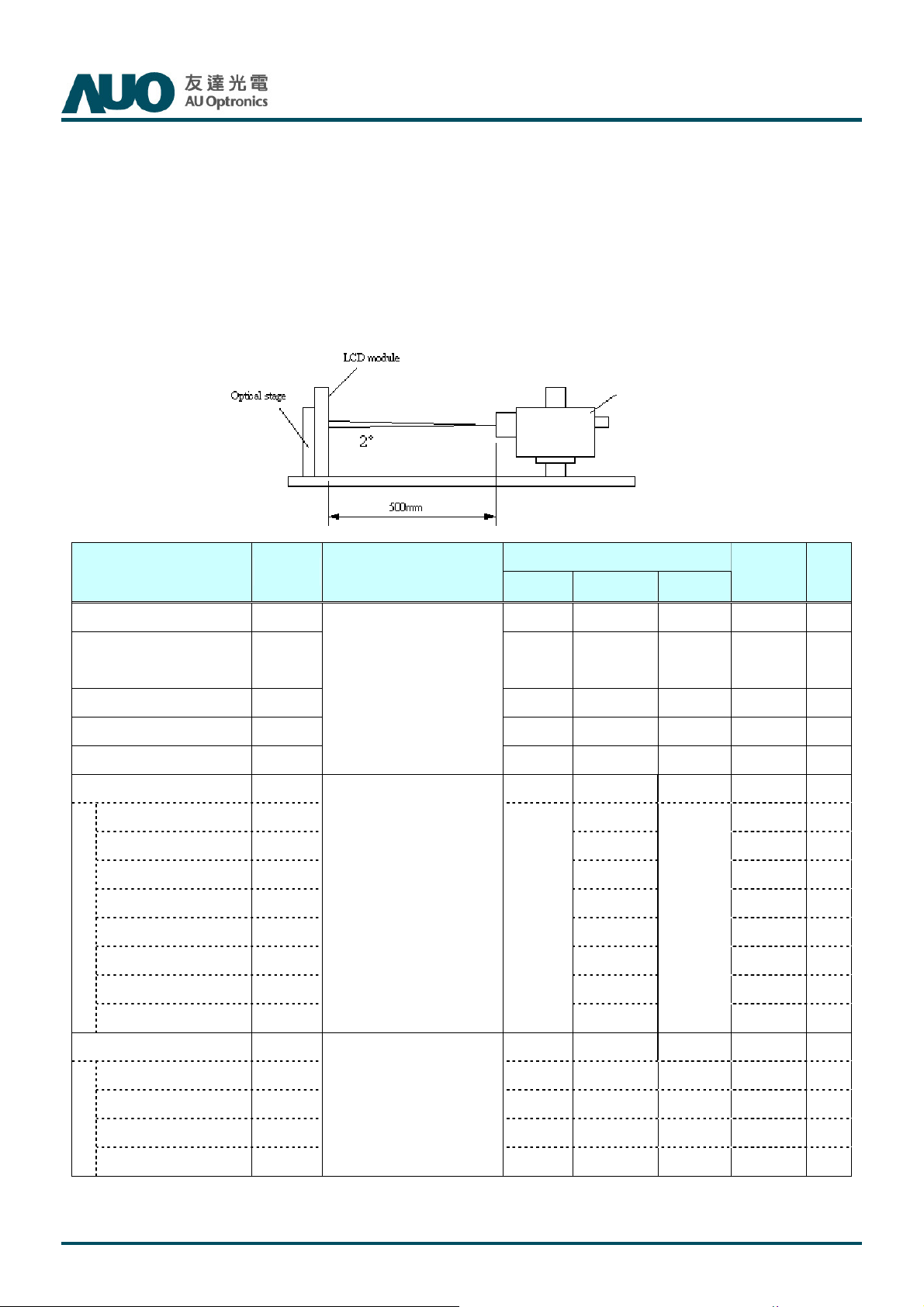

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark

environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a viewing

angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Contrast Ratio CR 2400 3000 -- 1,2

Surface Luminance

(White)

Luminance Variation δ

Response Time (G to G)

Center Transmittance T%

Color Chromaticity 6

Red RX 0.662

RY 0.324

Green GX 0.306

GY 0.595

Blue BX 0.137

BY 0.090

LWH 280 350 -- cd/m2 1,3

WHITE(9P)

Tγ -- 5.5 -- Ms 5

Standard light source “C”

Condition

Min. Typ. Max

With AUO Module

-- -- 1.33 1,4

5.7 % 1,8

With CS-1000T

Typ.-0.03

Values

Typ.+0.03

Unit Notes

White WX 0.323

WY

Viewing Angle 7

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

2D

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°)

θd

With AUO Module

-- 89 -- degree

0.362

2 3

7

T460HVN03.2 SKD Product Specification

Rev.00

Note:

1. Light source here is the BLU of AUO T460HW08 VE module.

2. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

Surface Luminance of

3. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

displaying white. For more information see FIG 2. LWH=Lon5 where Lon5 is the luminance with all pixels

displaying white at center 5 location.

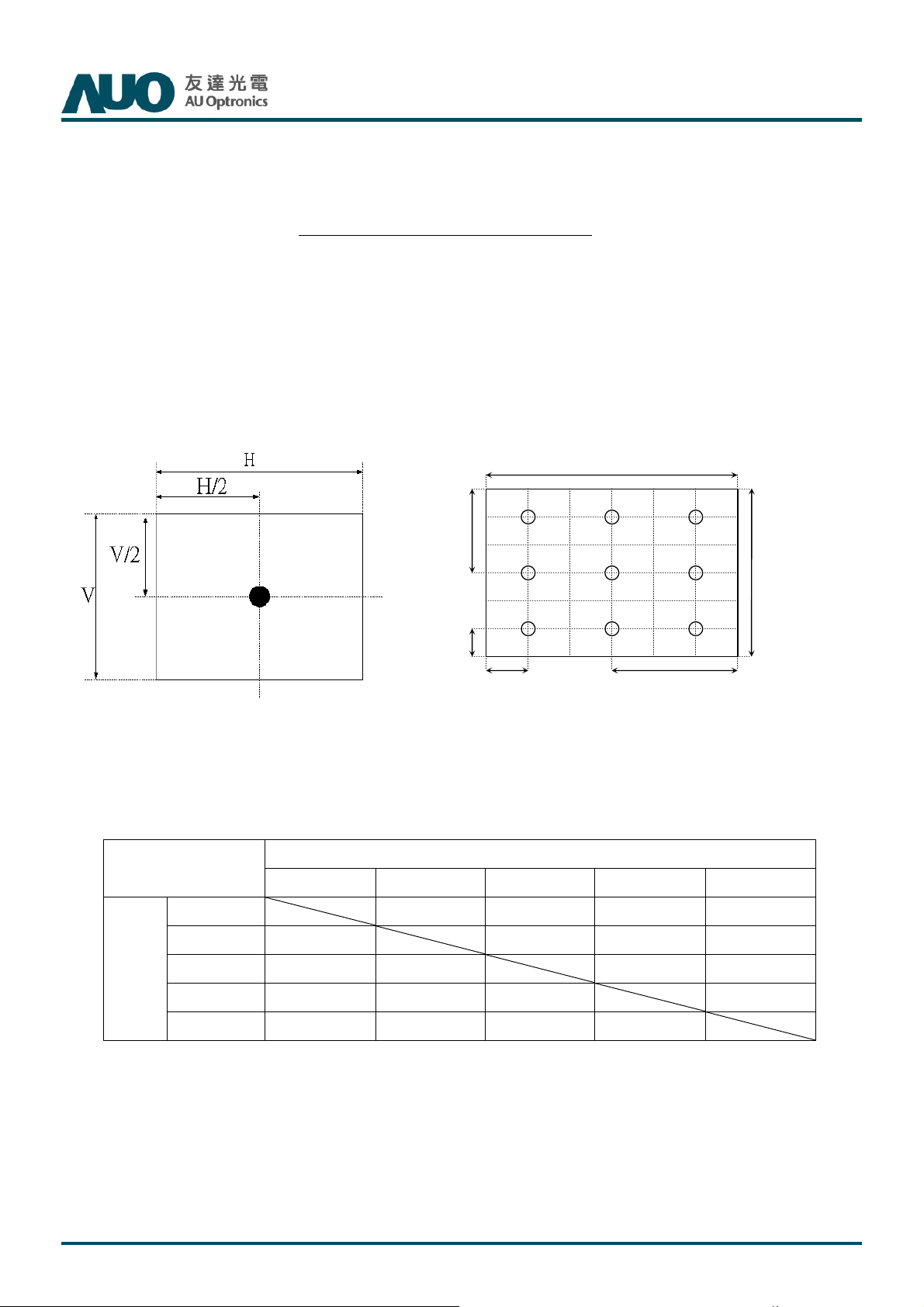

FIG. 2 Luminance

L

on5

L

off5

V

H/2

H/6

1

H

V/2 V/6

4. The variation in surface luminance, δWHITE is defined (center of Screen) as:

δ

WHITE(9P)

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

5. Response time Tγ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=120Hz to optimize.

Target Measured

Response Time

0%

25%

0% 25% 50% 75% 100%

0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% to 0% 25% to 50% 25% to 75% 25% to 100%

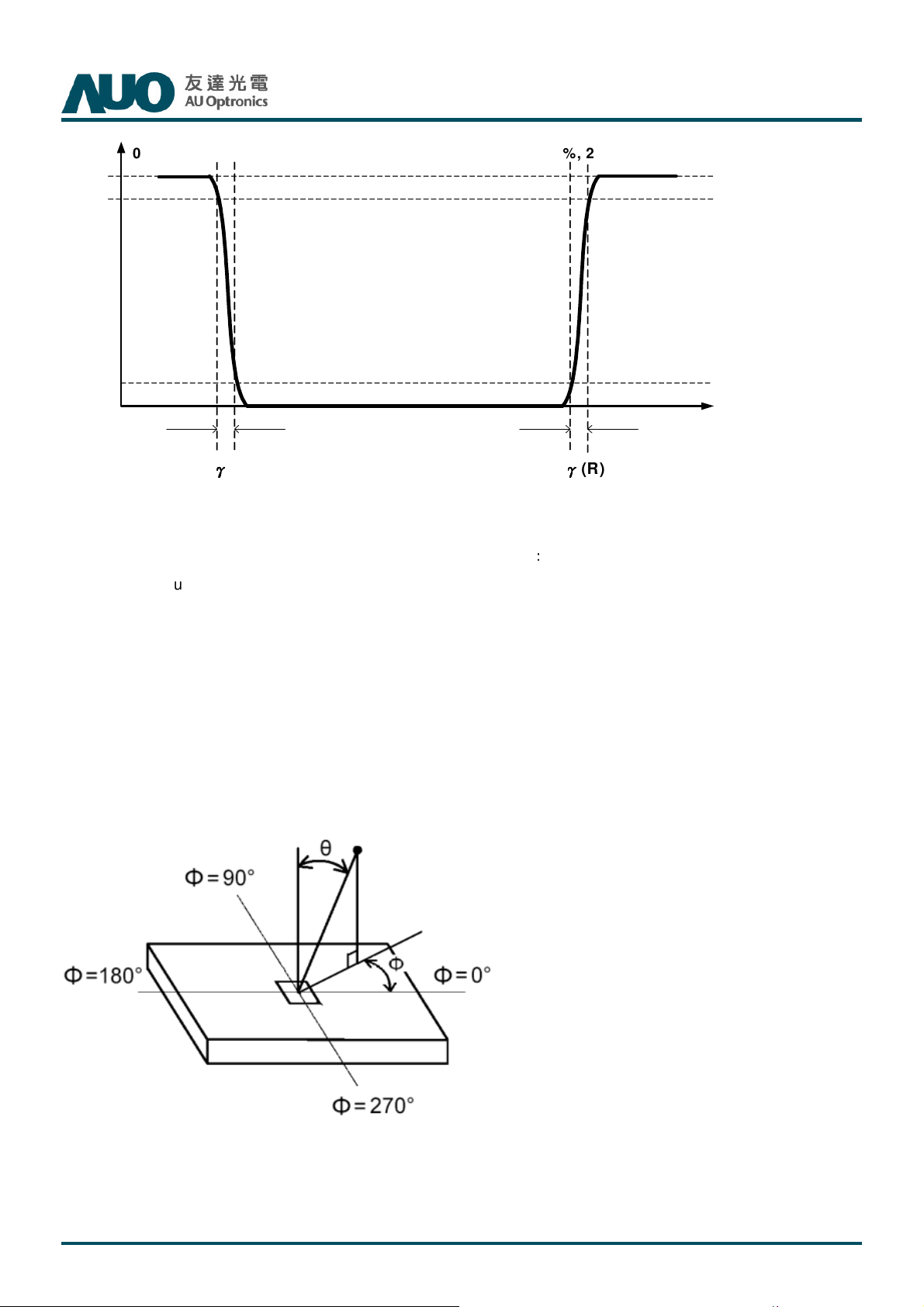

FIG.3 Response Time

Start

50%

75%

100%

50% to 0% 50% to 25%

75% to 0% 75% to 25% 75% to 50%

50% to 75% 50% to 100%

75% to 100%

100% to 0% 100% to 25% 100% to 50% 100% to 75%

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of grey(bright) “ and “any level of gray(dark)”.

Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)

T460HVN03.2 SKD Product Specification

Rev.00

0% , 25% , 50% , 75%, 100%

0% , 25% , 50%, 75%, 100%

Photodetector

Output

0% , 25% , 50%, 75%, 100%

Time

T

(F)

γγγγ

6. Light source here is the standard light source “C” which is defined by CIE and driving voltages are based on

suitable gamma voltages. The calculating method is as following：

A. Measure the “Module” and “BLU” optical spectrums (W, R, G, B) of AUO T460HVN03.1.

T

γγγγ

(R)

B. Calculate cell spectrum from “Module” and “BLU” spectrums.

C. Calculate color chromaticity by using cell spectrum and the spectrum of standard light source “C”.

7. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG4.

FIG.4 Viewing Angle

8. Definition of Transmittance (T%):

T460HVN03.2 SKD Product Specification

Rev.00

module LCD of Luminance

nceTransmitta ∗=

%001

backlight of Luminance

During transmittance measurement, the backlight of LCD module contains no brightness enhancement film. Two

diffuser sheets which diffuse the light source uniformly are suggested to use for transmittance measurement.

T460HVN03.2 SKD Product Specification

Rev.00

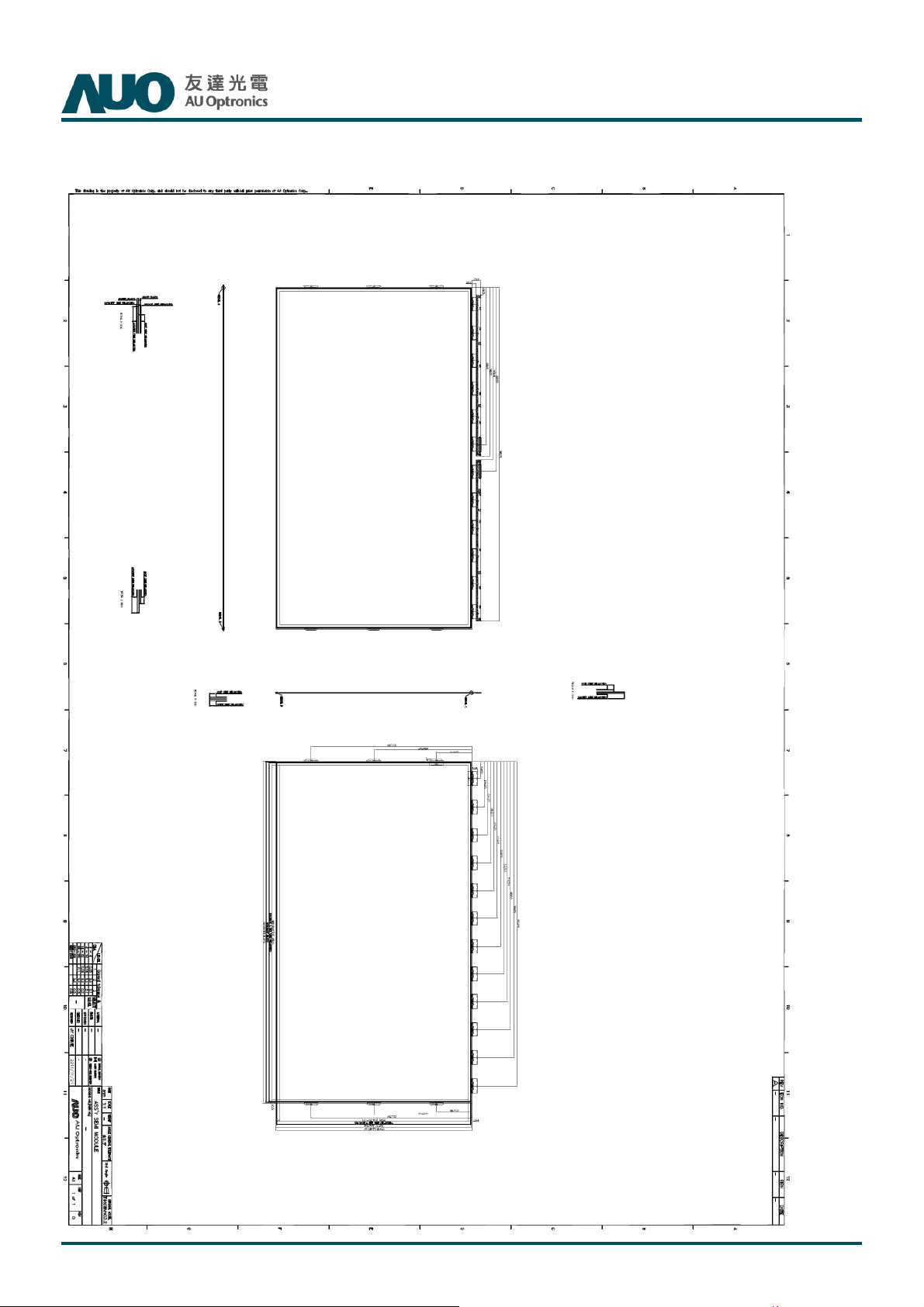

5. Open Cell Drawing

6. Reliability Test Items

T460HVN03.2 SKD Product Specification

Rev.00

1 High temperature storage test 3 60℃, 300hrs

2 Low temperature storage test 3 -20℃, 300hrs

3 High temperature operation test 3 50℃, 300hrs

4 Low temperature operation test 3 -5℃, 300hrs

5 Vibration test (With carton) 1(PKG)

6 Drop test (With carton) 1(PKG)

Note: Test item 1~4Test item 1~4 RA tests are done on AUO T460HVN03 V1 panels.

Test Item Q’ty Condition

Random wave (1.5G RMS, 10-200Hz)

30mins/ Per each X,Y,Z axes

Drop Height: 15.2 cm (ASTM D 4169)

6 Flats (ASTM D 5276)

7. Packing

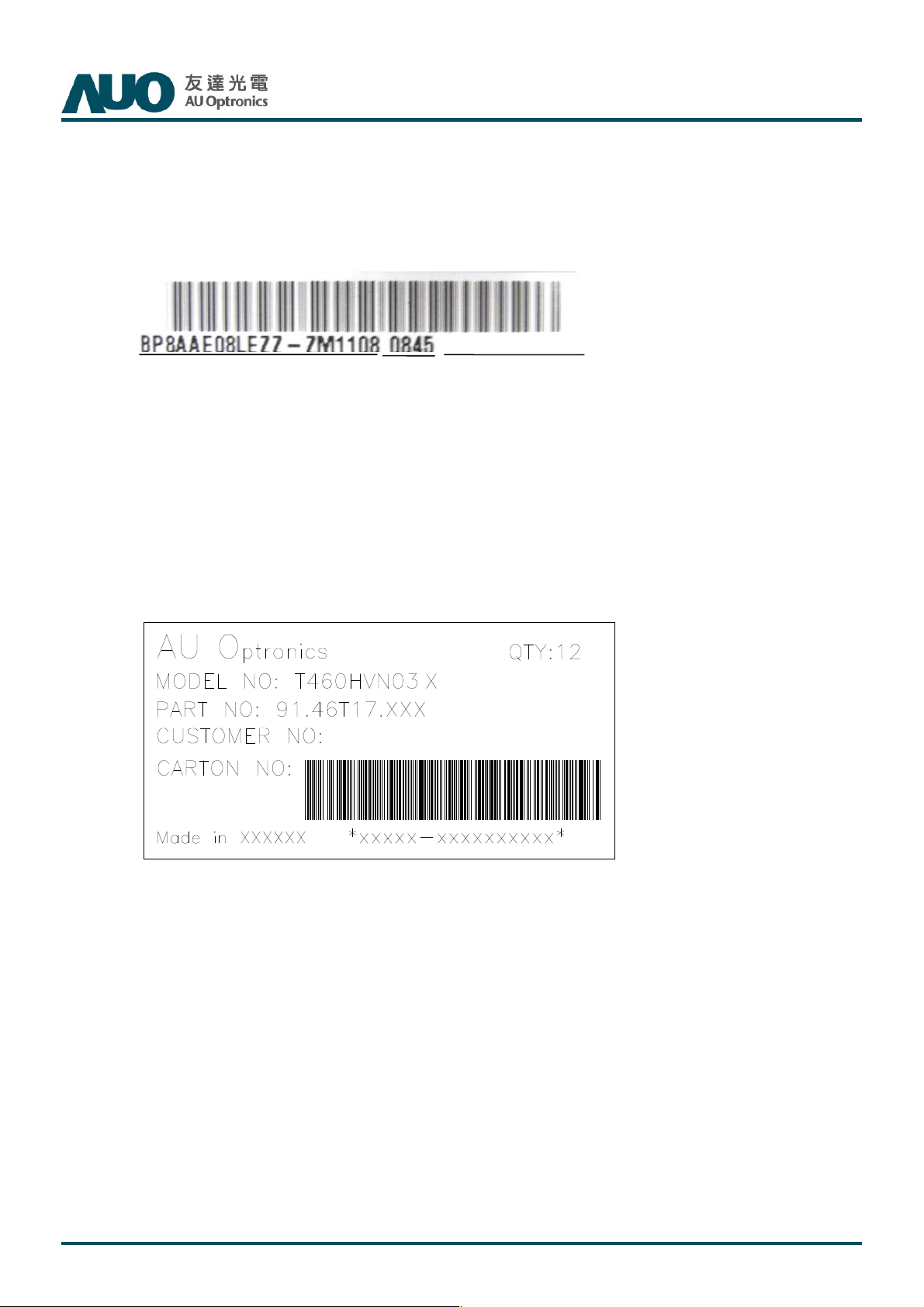

7-1 DEFINITION OF LABEL:

A. Open cell shipping Label:

(1)

AUO internal code

(2)

Manufactured date

(3)

Model name

(1) (2) (3)

T460HVN03.2 SKD Product Specification

TTTT46

460000HVN03.

HVN03.2222

4646

HVN03.HVN03.

Rev.00

B. Carton Label:

.

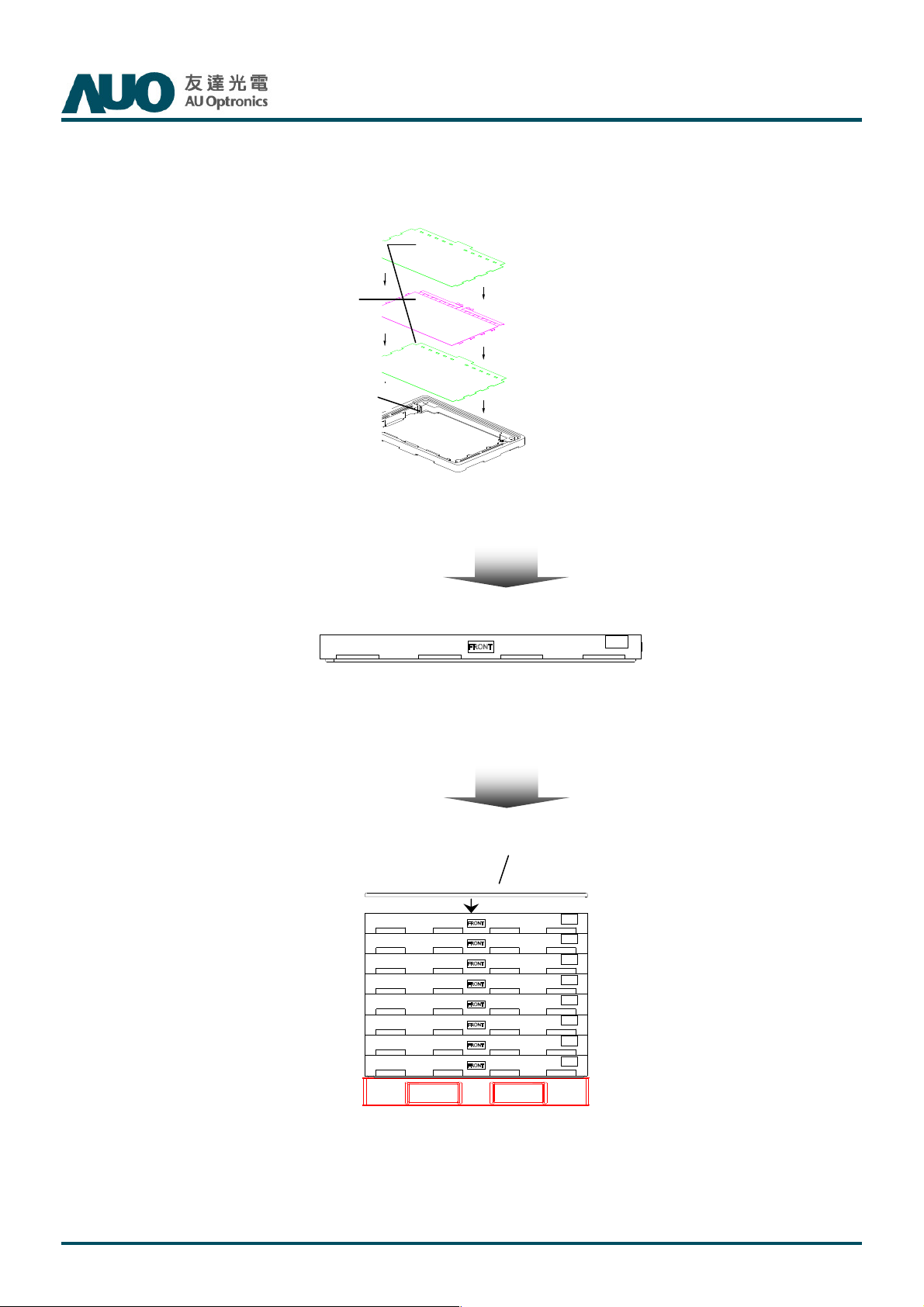

7-2 PACKING METHODS:

T460HVN03.2 SKD Product Specification

Rev.00

EPE Spacer

Open Cell

Hybrid Box

1Box for 12 pcs cells & 13 pcs spacers

12 Pcs/Box,

EPP Top Cover

Pallet Dimension:1200*1000*145 mm

8 Boxes/Pallet, after stack 8 boxes, then put EPP top cover on it.

7-3 Pallet and Shipment Information

T460HVN03.2 SKD Product Specification

Rev.00

Specification

Item

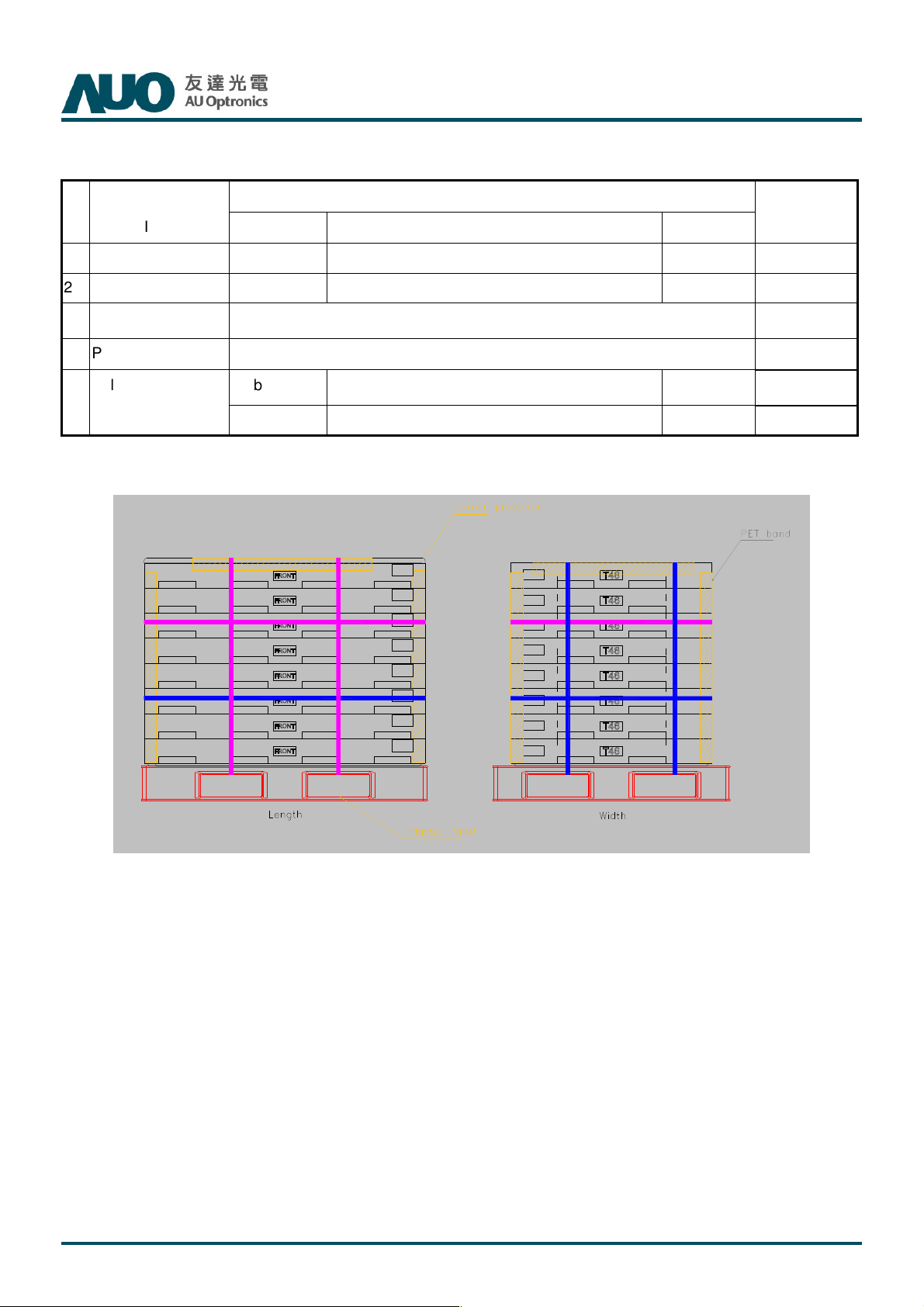

1 Packing Box 12 pcs/box 1175(L)mm*860(W)mm*116(H)mm 28

2 Pallet 1 1200(L)mm*1000(W)mm*145(H)mm 13

3 Boxes per Pallet 8 boxes/Pallet (By Air) ; 8 Boxes/Pallet*Double Pallet (By Sea)

4 Panels per Pallet 96 pcs/pallet(By Air) ; 96 pcs/Pallet*Double Pallet (By Sea)

after packing

Qty. Dimension Weight (kg)

96(by Air) 1200(L)mm*1000(W)mm*1129(H)mm (by Air) 239 (by Air)

(by Sea) 1200(L)mm*1000(W)mm*2268(H)mm (by Sea) 478 (by Sea) 40ft HQ

Packing

Remark

5 Pallet

T460HVN03.2 SKD Product Specification

8. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

8-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.

(2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied to

module. And the case on which a module is mounted should have sufficient strength so that external

force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

Rev.00

generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit

broken by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB pencil

lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of

polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives

used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because they cause

chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

8-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes

longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer

or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimize the

interface.

8-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain

that treatment persons are connected to ground through wristband etc. And don’t touch interface pin

directly.

8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

8-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

T460HVN03.2 SKD Product Specification

Rev.00

temperature between 5 and 35 at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they be

stored in the container in which they were shipped.

℃ ℃

8-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in

such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.
