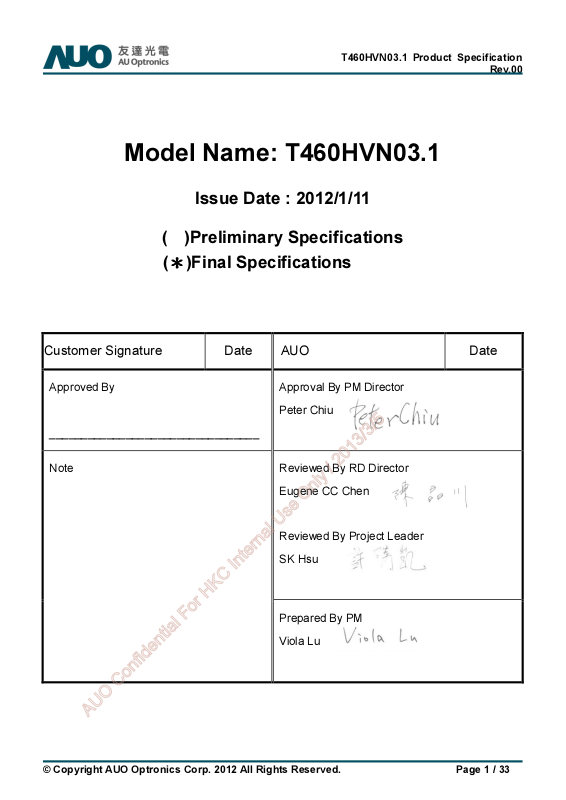

AUO T460HVN03.1 Specification

T460HVN03.1 Product Specification

Rev.00

Model Name: T460HVN03.1

Issue Date : 2012/1/11

( )Preliminary Specifications

(＊＊＊＊)Final Specifications

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director

Peter Chiu

Reviewed By RD Director

Eugene CC Chen

Reviewed By Project Leader

SK Hsu

Prepared By PM

Viola Lu

AUO Confidential For HKC Internal Use Only / 2013/3/5

T460HVN03.1 Product Specification

Rev.00

Contents

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE

3-7 BACKLIGHT SPECIFICATION

4 OPTICAL SPECIFICATION

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY TEST ITEMS

7 INTERNATIONAL STANDARD

7-1 SAFETY

7-2 EMC

8 PACKING

8-1 DEFINITION OF LABEL

8-2 PACKING METHODS

8-3 PALLET AND SHIPMENT INFORMATION

9 PRECAUTION

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECT FILM

AUO Confidential For HKC Internal Use Only / 2013/3/5

Record of Revision

T460HVN03.1 Product Specification

Rev.00

Version

0.0 2012/1/11 First release

Date Page Description

AUO Confidential For HKC Internal Use Only / 2013/3/5

T460HVN03.1 Product Specification

Rev.00

1. General Description

This specification applies to the 46.0 inch Color TFT-LCD Module T460HVN03.1. This LCD module has a TFT

active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 46.0 inch. This module supports

1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each

dot.

The T460HVN03.1 has been designed to apply the 10-bit 4 channel LVDS interface method. It is intended to

support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very

important.

* General Information

Items Specification Unit Note

Active Screen Size 46.00 inch

Display Area 1018.08(H) x 572.67(V) mm

Outline Dimension 1049(H) x 604.6(V) x 27.4(D) mm D: front bezel to D/B cover

Driver Element a-Si TFT active matrix

Bezel Opening 1027.2(H) x 581.7(V) mm

Display Colors 10 bit, 1.07B Colors

Number of Pixels 1,920x1,080 Pixel

Pixel Pitch 0.53025(H) x 0.53025(W) mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze=2%

Rotate Function Achievable Note 1

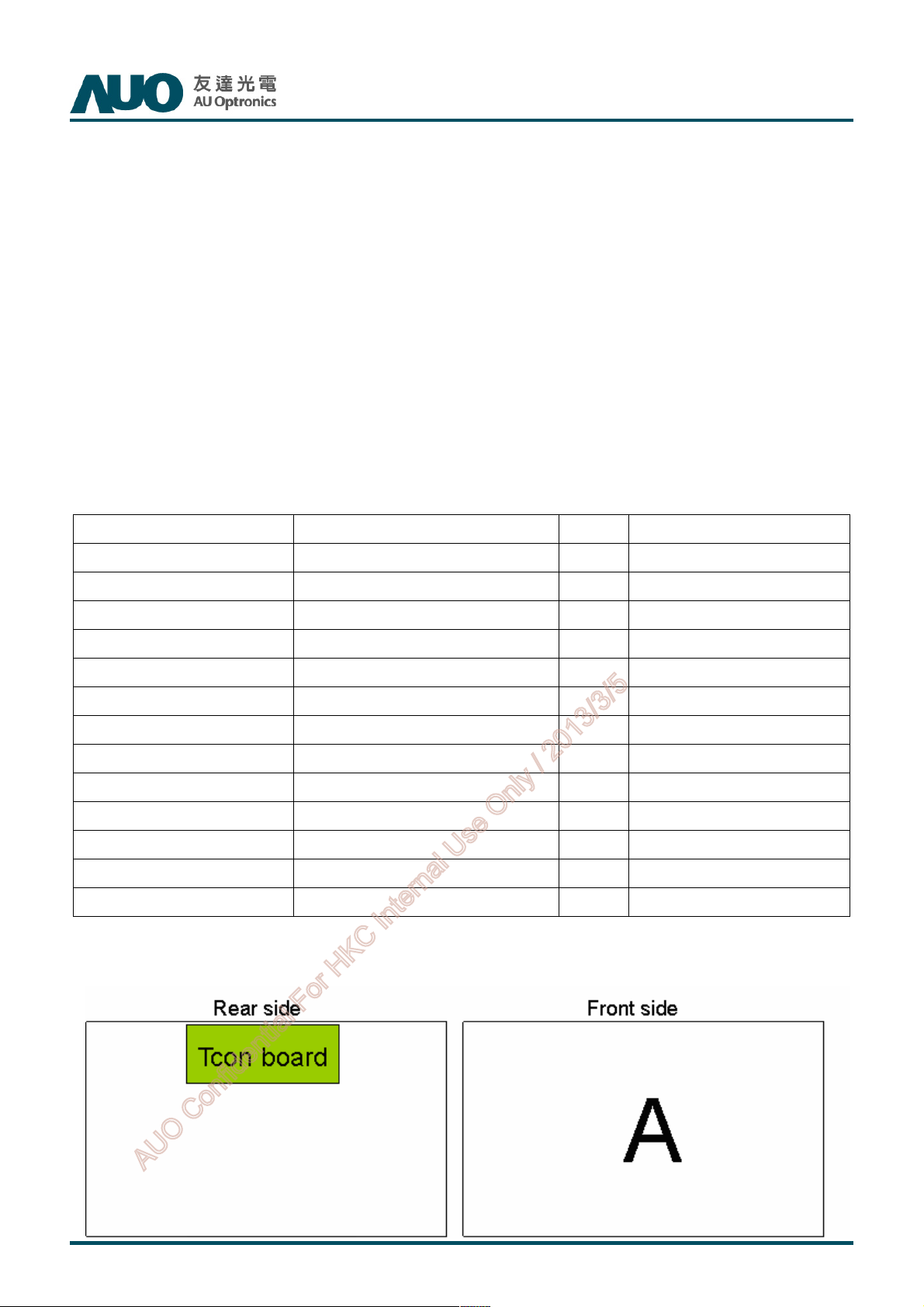

Display Orientation Signal input with “A” Note 2

Note 1: Rotate Function refers to LCD display could be able to rotate.

Note 2: LCD display as below illustrated when signal input with “A”.

AUO Confidential For HKC Internal Use Only / 2013/3/5

T460HVN03.1 Product Specification

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage VDD -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 4 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec.

B

lb

h

ldb

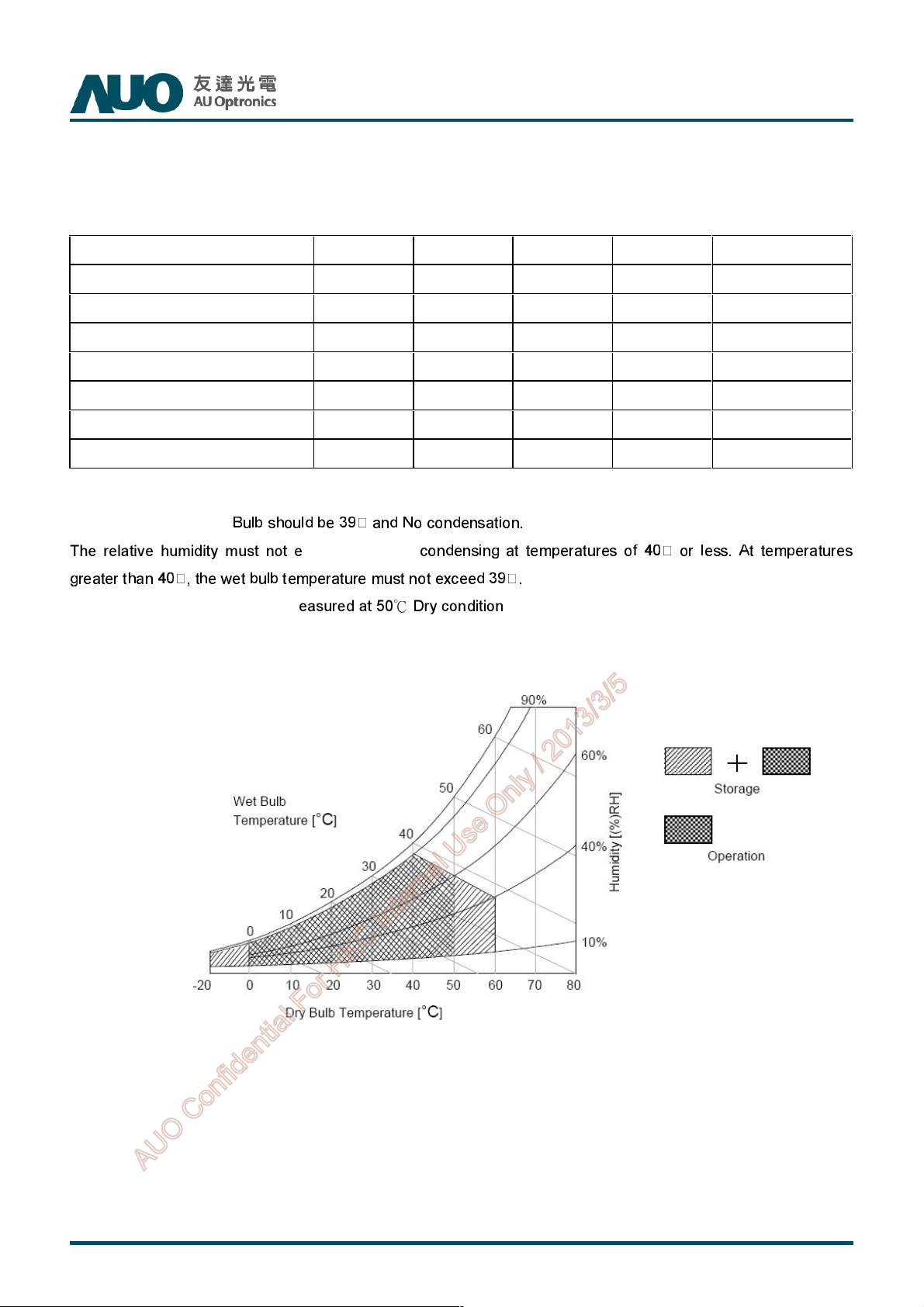

Note 2 : Maximum Wet-

u

s

ou

39

e

The relative humidity must not exceed 90% non-

h

40

t

grea

t

er

an

h

t



,

b

lb

t

ewe

t

u

empera

t

dN



an

uremus

t

d

ocon

d

con

t

no

excee

i

t

ensa

on

.

i

ens

tt

nga

d39

empera



.

t

f40

ureso

l

A



or

tt

ess

empera

.

Rev.00

t

ures

Note 3: Surface temperature is measured at 50℃ Dry condition

AUO Confidential For HKC Internal Use Only / 2013/3/5

T460HVN03.1 Product Specification

Rev.00

3. Electrical Specification

The T460HVN03.1 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT

array and liquid crystal. The other is to power Back Light Unit.

3.1 Electrical Characteristics

3.1.1: DC Characteristics

Parameter Symbol

LCD

Power Supply Input Voltage VDD 10.8 12 13.2 VDC

Power Supply Input Current IDD -- 0.85

Power Consumption PC -- 10.2

Inrush Current I

Permissible Ripple of Power Supply Input Voltage VRP -- -- VDD * 5% mV

Input Differential Voltage

LVDS

Interface

CMOS

Interface

Backlight Power Consumption PBL 64.1 72 76.5 Watt

Differential Input High Threshold Voltage

Differential Input Low Threshold Voltage

Input Common Mode Voltage V

Input High Threshold Voltage

Input Low Threshold Voltage

RUSH

∣VID∣

VTH +100 -- +300 mVDC 4

VTL -300 -- -100 mVDC 4

ICM

VIH

(High)

VIL

(Low)

Min. Typ.

-- -- 4 A 2

200 400 600 mVDC 4

1.1 1.25

2.7 -- 3.3 VDC 5

0 -- 0.6 VDC 5

Value

Unit Note

Max

1.2 A 1

12.24 Watt 1

pk-pk

1.4 VDC 4

3

Life time (MTTF) 30000

Hour 9,10

AUO Confidential For HKC Internal Use Only / 2013/3/5

s

µ

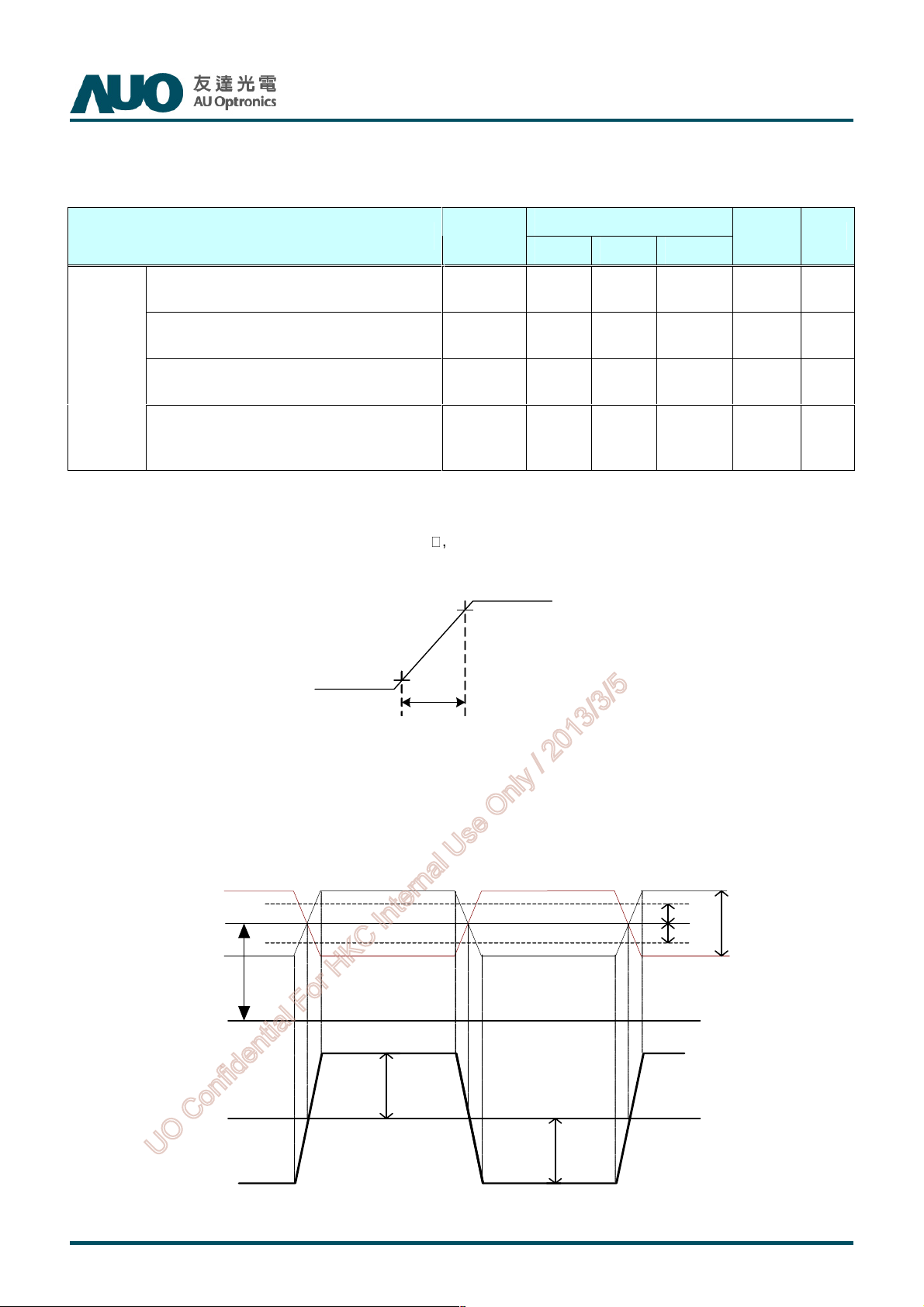

3.1.2: AC Characteristics

T460HVN03.1 Product Specification

Rev.00

Parameter Symbol

Input Channel Pair Skew Margin t

Receiver Clock : Spread Spectrum

LVDS Interface

Modulation range

Receiver Clock : Spread Spectrum Modulation frequency

Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHz

Note :

1. V

2. Measurement condition : Rising time = 400us

= 12.0V, Fv = 120Hz, Fclk= 82MHz , 25

DD

Value

Unit Note

Min. Typ. Max

SKEW (CP)

Fclk_ss

-500 -- +500 ps 6

Fclk

-3%

--

Fclk

+3%

MHz 7

Fss 30 -- 200 KHz 7

tRMG

-0.4

-0.5



, Test Pattern : White Pattern

V

90%

DD

--

0.4

ns 8

0.5

GND

10%

3. Test Condition: (1) The measure point of V

is in LCM side after connecting the System Board and LCM.

RP

(2) Under Max. Input current spec. condition.

4. V

= 1.25V

ICM

L V D S -

V

IC M

L V D S +

G N D

0 V

400

|VID|

V

T H

|VID|

V

T L

AUO Confidential For HKC Internal Use Only / 2013/3/5

|VID|

T460HVN03.1 Product Specification

5. The measure points of V

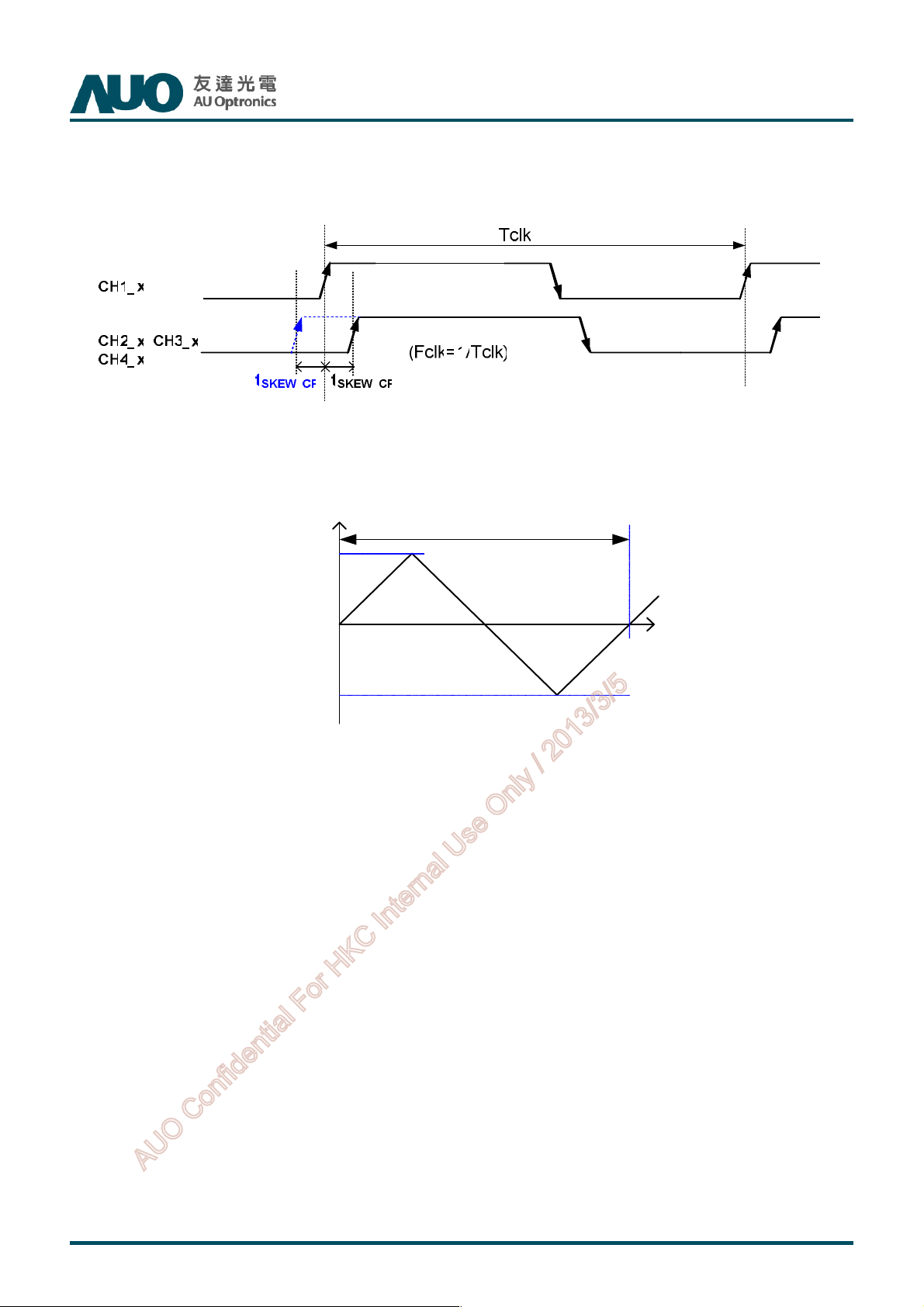

6. Input Channel Pair Skew Margin

Note: x = 0, 1, 2, 3, 4

and V

IH

are in LCM side after connecting the System Board and LCM.

IL

7. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures

Rev.00

Fclk_ss(max)

Fclk

Fclk_ss(min)

1/F

SS

AUO Confidential For HKC Internal Use Only / 2013/3/5

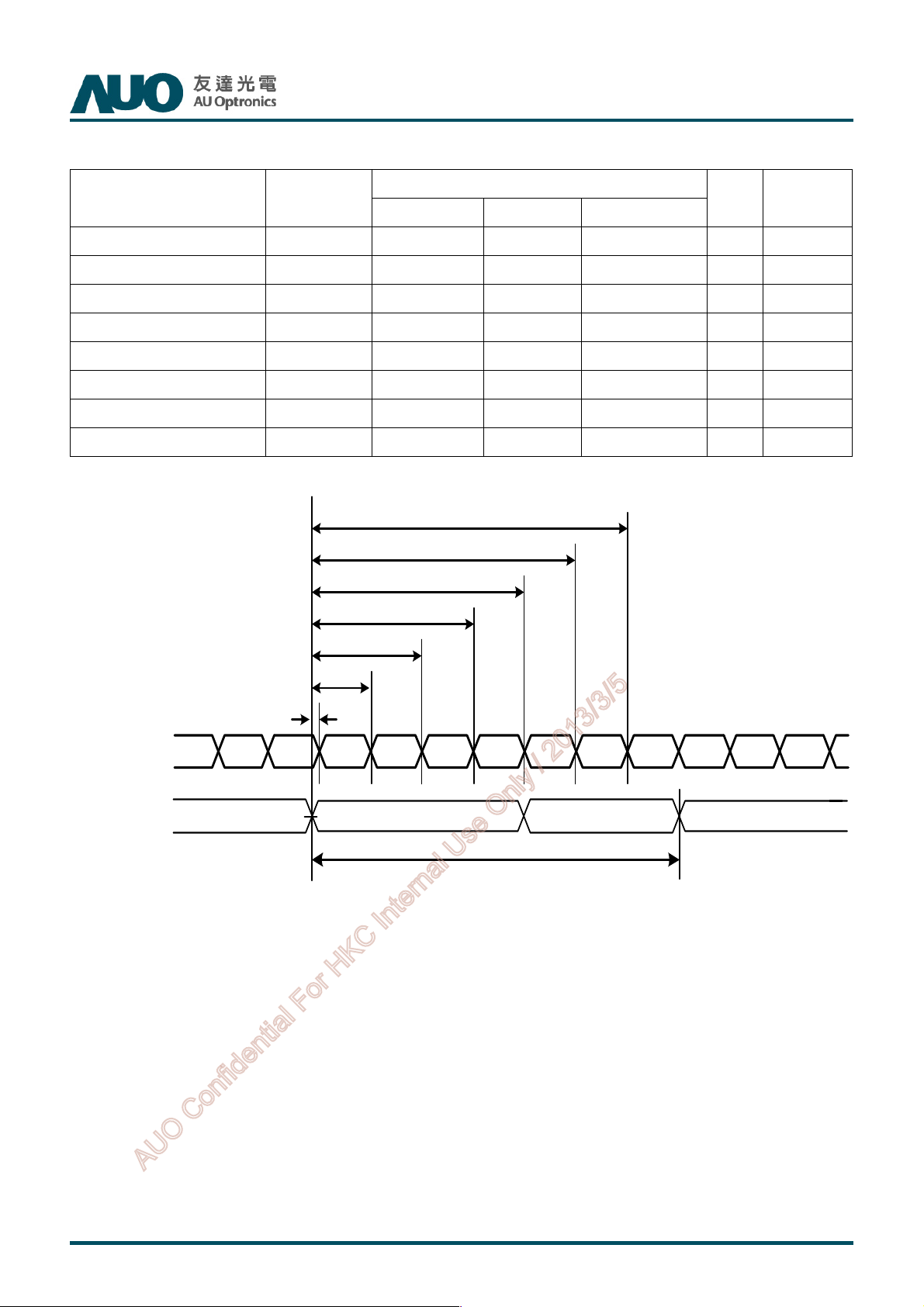

8. Receiver Data Input Margin

T460HVN03.1 Product Specification

Rev.00

Parameter Symbol

Min Type Max

Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz

Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns

Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns

Input Data Position2 tRIP6 2T/7-|tRMG|

Input Data Position3 tRIP5 3T/7-|tRMG|

Input Data Position4 tRIP4 4T/7-|tRMG|

Input Data Position5 tRIP3 5T/7-|tRMG|

Input Data Position6 tRIP2 6T/7-|tRMG|

Rating

Unit

2T/7 2T/7+|tRMG| ns

3T/7 3T/7+|tRMG| ns

4T/7 4T/7+|tRMG| ns

5T/7 5T/7+|tRMG| ns

6T/7 6T/7+|tRMG| ns

tRIP2

tRIP3

tRIP4

tRIP5

Note

T=1/Fclk

tRIP6

tRIP0

tRIP1 LVDS-Rx Input Data

Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3

LVDS-Rx

V

= 0V

Input Clock

diff

1/Fclk=T

9. The relative humidity must not exceed 80% non-condensing at temperatures of 40℃ or less. At

temperatures greater than 40℃, the wet bulb temperature must not exceed 39℃. When operate at low

temperatures, the brightness of LED will drop and the life time of LED will be reduced.

10. The lifetime (MTTF) is defined as the time which luminance of LED is 50% compared to its original value.

[Operating condition: Continuous operating at Ta = 25±2℃]

AUO Confidential For HKC Internal Use Only / 2013/3/5

3.2 Interface Connections

 LCD connector: 187059-51221-1 (P-TWO, LVDS connector)

187060-41221-1 (P-TWO, LVDS connector)

PIN Symbol Description PIN

1

N.C. No connection 21

T460HVN03.1 Product Specification

Symbol Description

CH3_3+

LVDS Channel 3, Signal 3+

Rev.00

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

CH3_CLK-

17

N.C. No connection 22

N.C. No connection 23

N.C. No connection 24

N.C. No connection 25

N.C. No connection 26

N.C. AUO Internal Use Only 27

N.C. No connection 28

GND Ground 29

CH3_0-

CH3_0+

CH3_1-

CH3_1+

CH3_2-

CH3_2+

GND

LVDS Channel 3, Signal 0- 30

LVDS Channel 3, Signal 0+ 31

LVDS Channel 3, Signal 1- 32

LVDS Channel 3, Signal 1+ 33

LVDS Channel 3, Signal 2- 34

LVDS Channel 3, Signal 2+ 35

Ground 36

LVDS Channel 3, Clock - 37

CH3_4-

CH3_4+

GND

CH4_0-

CH4_0+

CH4_1-

CH4_1+

CH4_2-

CH4_2+

GND

CH4_CLK-

CH4_CLK+

GND

CH4_3-

CH4_3+

LVDS Channel 3, Signal 4-

LVDS Channel 3, Signal 4+

Ground

LVDS Channel 4, Signal 0-

LVDS Channel 4, Signal 0+

LVDS Channel 4, Signal 1-

LVDS Channel 4, Signal 1+

LVDS Channel 4, Signal 2-

LVDS Channel 4, Signal 2+

Ground

LVDS Channel 4, Clock -

LVDS Channel 4, Clock +

Ground

LVDS Channel 4, Signal 3-

LVDS Channel 4, Signal 3+

CH3_CLK+

18

19

20

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).

GND

CH3_3-

LVDS Channel 3, Clock + 38

Ground 39

LVDS Channel 3, Signal 3- 40

41

CH4_4-

CH4_4+

GND Ground

LVDS Channel 4, Signal 4-

LVDS Channel 4, Signal 4+

AUO Confidential For HKC Internal Use Only / 2013/3/5

T460HVN03.1 Product Specification

Rev.00

1 2 3 4 5

Symbol Description PIN

N.C. AUO Internal Use Only 26 N.C. AUO Internal Use Only 27 N.C. AUO Internal Use Only 28 N.C. AUO Internal Use Only 29 N.C. AUO Internal Use Only 30

Symbol Description

N.C. AUO Internal Use Only N.C. AUO Internal Use Only

CH2_0- LVDS Channel 2, Signal 0-

CH2_0+ LVDS Channel 2, Signal 0+

CH2_1- LVDS Channel 2, Signal 1-

Panel Rotation Display Control

6

ROTATE

High(3.3V) : Rotate Enable

31

CH2_1+ LVDS Channel 2, Signal 1+

Open/Low(GND) : Rotate Disable

7 LVDS_SEL

8 9

10

11 12 13 14 15 16 17 18

N.C. No connection 33 N.C. AUO Internal Use Only 34 N.C. AUO Internal Use Only 35 CH2_CLK- LVDS Channel 2, Clock -

GND Ground 36 CH2_CLK+ LVDS Channel 2, Clock +

CH1_0- LVDS Channel 1, Signal 0- 37

CH1_0+ LVDS Channel 1, Signal 0+ 38

CH1_1- LVDS Channel 1, Signal 1- 39

CH1_1+ LVDS Channel 1, Signal 1+ 40

CH1_2- LVDS Channel 1, Signal 2- 41

CH1_2+ LVDS Channel 1, Signal 2+ 42

GND Ground 43 19 CH1_CLK- LVDS Channel 1, Clock - 44 20 CH1_CLK+ LVDS Channel 1, Clock + 45 21 22 23 24 25

GND Ground 46

CH1_3- LVDS Channel 1, Signal 3- 47

CH1_3+ LVDS Channel 1, Signal 3+ 48

CH1_4- LVDS Channel 1, Signal 4- 49

CH1_4+ LVDS Channel 1, Signal 4+ 50

Open/High(3.3V) for NS,

Low(GND) for JEIDA

51

32

CH2_2- LVDS Channel 2, Signal 2-

CH2_2+ LVDS Channel 2, Signal 2+

GND Ground

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

CH2_4- LVDS Channel 2, Signal 4-

CH2_4+ LVDS Channel 2, Signal 4+

N.C. AUO Internal Use Only N.C. AUO Internal Use Only

GND Ground GND Ground GND Ground

N.C. No connection

V

DD

V

DD

V

DD

V

DD

Power Supply, +12V DC Regulated Power Supply, +12V DC Regulated Power Supply, +12V DC Regulated Power Supply, +12V DC Regulated

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).

AUO Confidential For HKC Internal Use Only / 2013/3/5

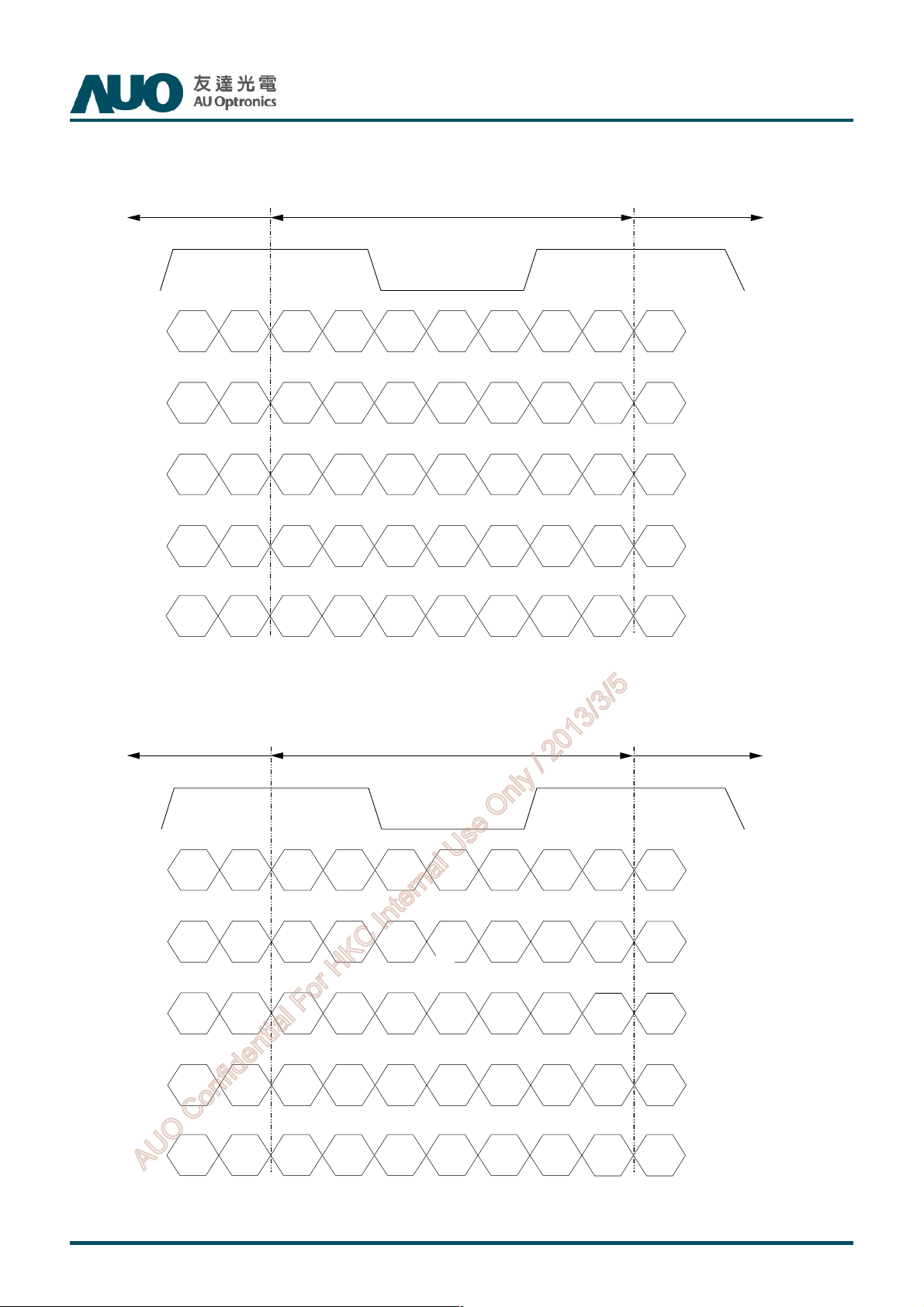

LVDS Option = High/OpenNS

P re v io u s C y c le C u rre n t C yc le N e x t C yc le

C l o ck

T460HVN03.1 Product Specification

Rev.00

C H x_ 0 + C H x_ 0 -

C H x_ 1 + C H x_ 1 -

C H x_ 2 + C H x_ 2 -

C H x_ 3 + C H x_ 3 -

C H x_ 4 + C H x_ 4 -

Note: x = 1, 2, 3, 4…

LVDS Option = LowJEIDA

P re v io us C y c le C urr e nt C y c le N e x t C ycle

R 0R 5 G 0G 0R 0R 1 R 2R 3R 4 R 1

G 1B 0 B 1B 1G 1G 2 G 3G 4G 5 G 2

B 2N A D ED EB 2B 3 B 4B 5N A B 3

R 6B 7 N AN AR 6R 7 G 6G 7B 6 R 7

R 8B 9 N AN AR 8R 9 G 8G 9B 8 R 9

C lo ck

C H x _ 0 + C H x _ 0 -

C H x _ 1 + C H x _ 1 -

C H x _ 2 + C H x _ 2 -

C H x _ 3 + C H x _ 3 -

C H x _ 4 + C H x _ 4 -

G7

AUO Confidential For HKC Internal Use Only / 2013/3/5

R 4R 9 G 4G 4R 4R 5 R 6R 7R 8 R 5

G 5B 4 B 5B 5G 5G 6 G 7G 8G 9 G 6

B 6N A D ED EB 6B 7 B 8B 9N A B 7

R 2B 3 N AN AR 2R 3 G 2G 3B 2 R 3

R 0B 1 N AN AR 0R 1 G 0G 1B 0 R 1

Note: x = 1, 2, 3, 4…

T460HVN03.1 Product Specification

Rev.00

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1096 1130 1392 Th

Vertical Section

Horizontal Section

Clock Frequency Fclk=1/Tclk 64.8 77.29 80.74 MHz

Vertical Frequency Frequency Fv 94 120 122 Hz

Horizontal Frequency Frequency Fh 120 135.6 139.2 KHz

Notes:

(1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the

left edge of the screen.

(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen.

Active Tdisp (v) 1080

Blanking Tblk (v) 16 50 312 Th

Period Th 520 570 580 Tclk

Active Tdisp (h) 480

Blanking Tblk (h) 40 90 100 Tclk

(3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

(4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

AUO Confidential For HKC Internal Use Only / 2013/3/5

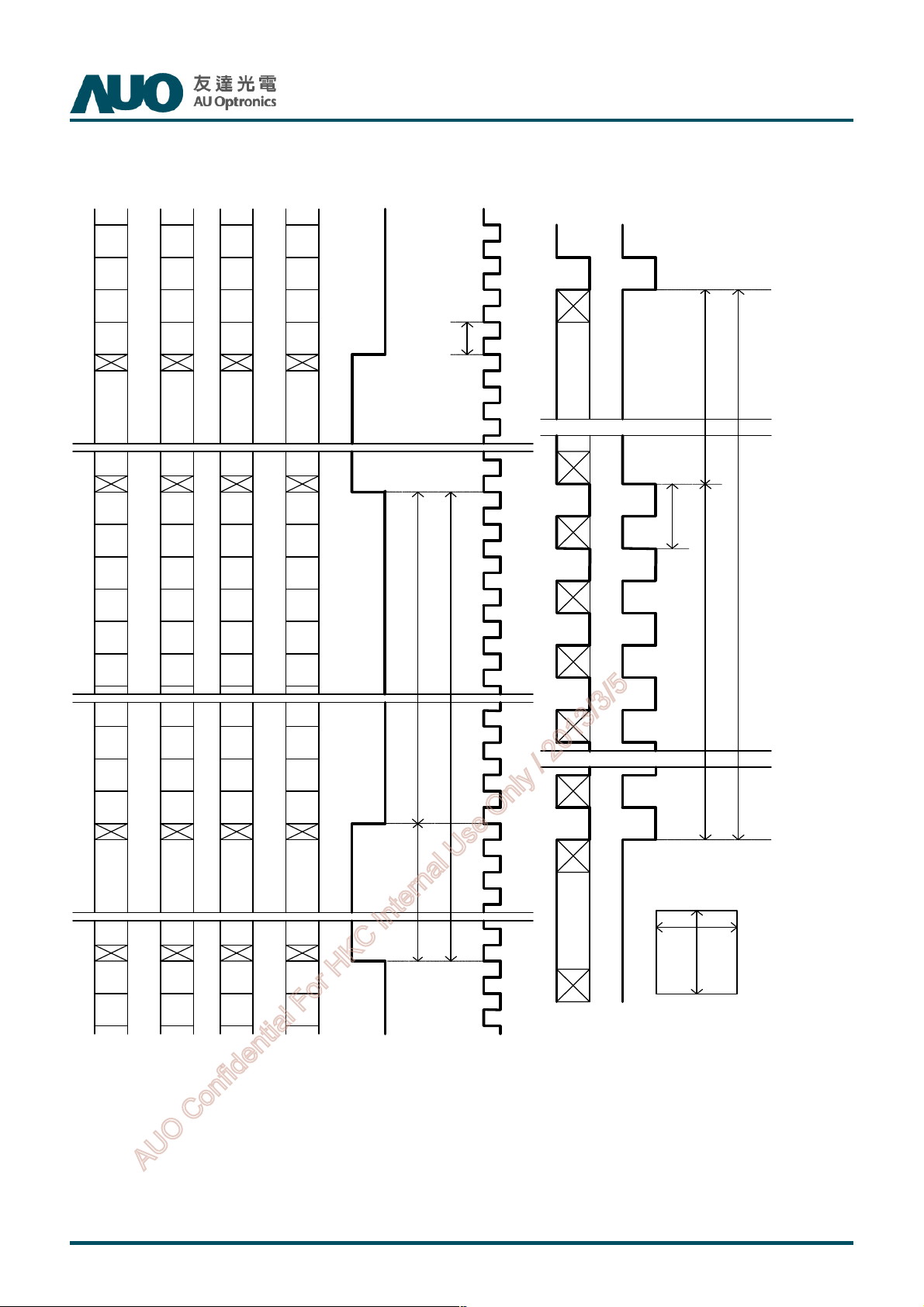

3.4 Signal Timing Waveforms

T460HVN03.1 Product Specification

Rev.00

CH4

M-12

M-8

M-4

M

Invalid Data

4

8

12

16

20

24

Pixel

CH3

M-13

M-9

M-5

M-1

Invalid Data

3

7

11

15

19

23

Pixel

CH2

M-14

M-10

M-6

M-2

Invalid Data

2

6

10

14

18

22

Pixel

CH1

M-15

M-11

M-7

M-3

Invalid Data

1

5

9

13

17

21

Pixel

DE

CLK

RGB

Data

Line

N

DE

Tclk

Invalid Data Invalid Data

Line

1

Th

Tv

Line

2

Tdisp(h) Tblk(h)

Th

Line

3

Line

4

Tdisp(v)Tblk(v)

M-8

M-4

M

Pixel

Invalid Data

M-9

M-5

M-1

Pixel

Invalid Data

M-10

M-6

M-2

Invalid Data

Pixel

M-11

M-7

M-3

Invalid Data

Pixel

Line

N

N L in e

M pixel

Pixel

4

Pixel

8

Pixel

3

Pixel

7

Pixel

2

Pixel

6

Pixel

1

Pixel

5

AUO Confidential For HKC Internal Use Only / 2013/3/5

Basic

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

T460HVN03.1 Product Specification

Rev.00

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 10 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Color

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

Blue(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

Color

Cyan 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

White 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

R

----

RED(1022) 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

G

----

GREEN(1022) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0

GREEN(1023)

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

----

BLUE(1022) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0

BLUE(1023) 0

AUO Confidential For HKC Internal Use Only / 2013/3/5

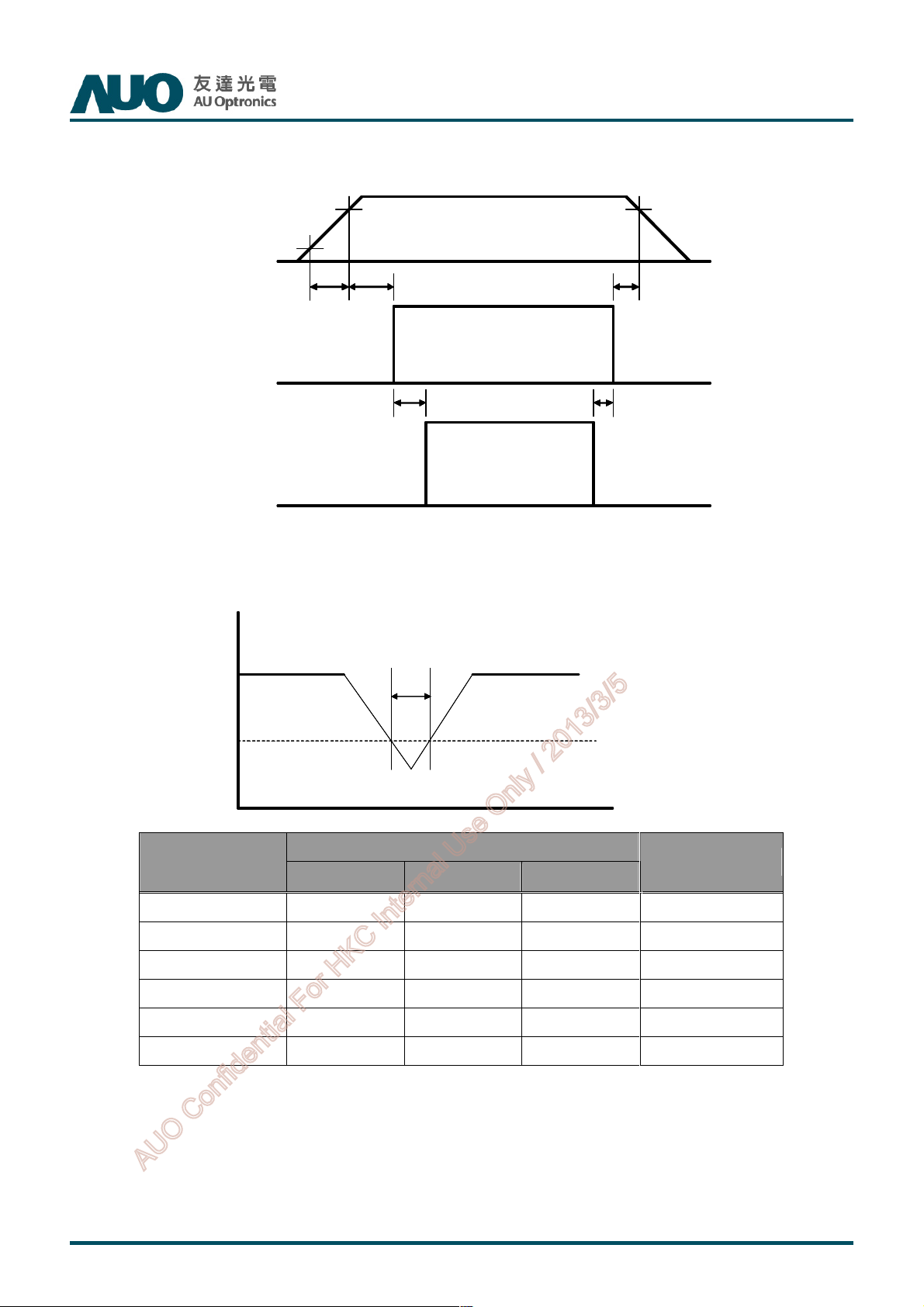

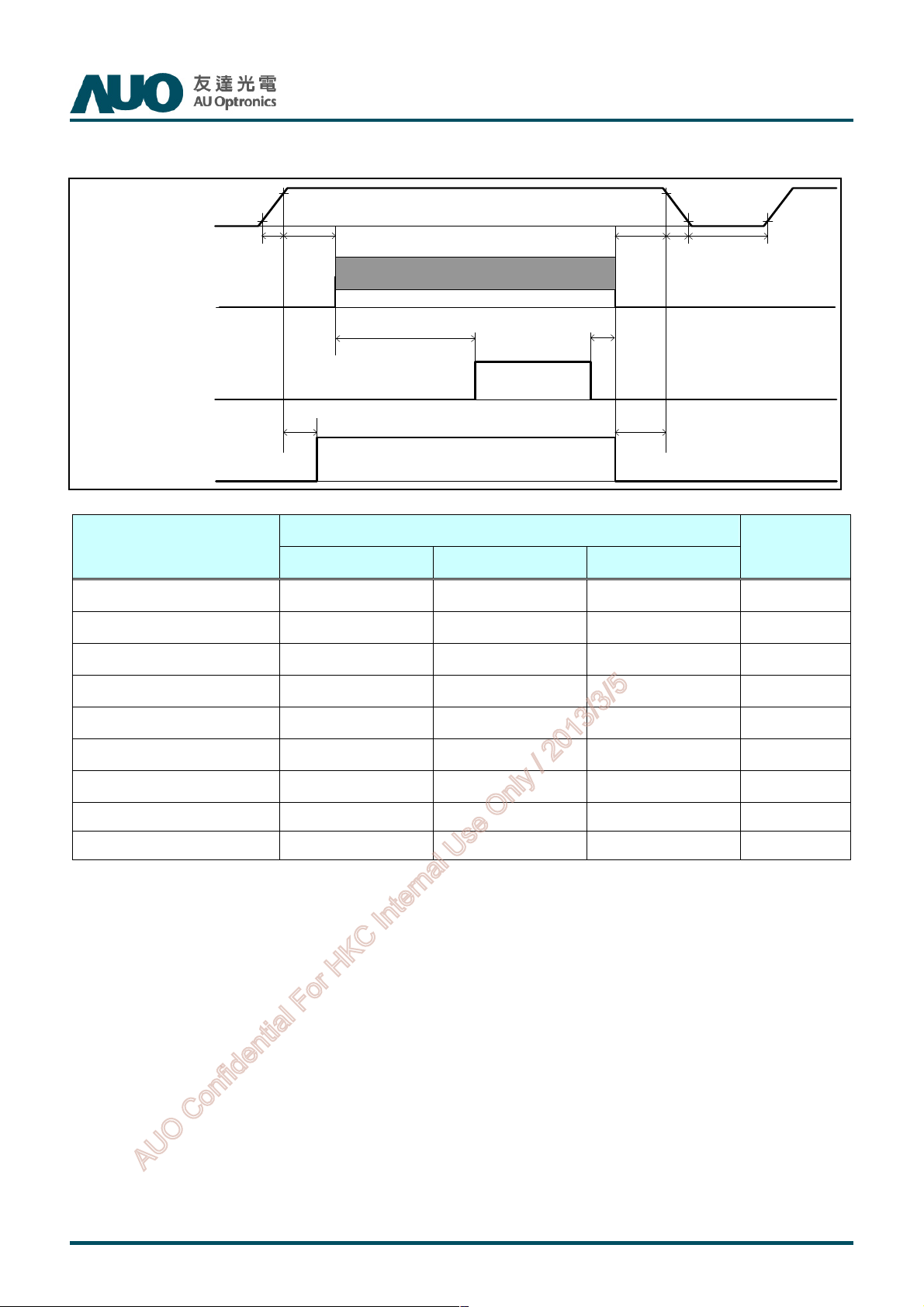

3.6 Power Sequence for LCD

10 %

90 %

t1

t2

Pow e r Supply For LCD VD D (+12V)

G ND

Interface Signa l (LV DS Da ta & CLK )

G ND

V alid Dat a

T460HVN03.1 Product Specification

Rev.00

90 %

10 %

t6

t5

10 %

t7

Backlig ht o n/off contro l signal (VB LON)

G ND

CM OS Interface S ignal

(LV DS_S EL,....... )

G ND

Parameter

t1 0.4 --- 30 ms

t2 0.1 --- 50 ms

t3 450 --- --- ms

t4 0*1 --- --- ms

t5 0 --- --- ms

t6 --- --- ---*2 ms

t3 t4

t8 t9

Values

Unit

Min. Type. Max.

t7 500 --- --- ms

t8

10*3

--- 50 ms

t9 0 --- --- ms

Note: (1) t4=0 : concern for residual pattern before BLU turn off. (2) t6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value) (3) When CMOS Interface signal is N.C. (no connection), opened in Transmitted end, t8 timing spec can be

negligible.

AUO Confidential For HKC Internal Use Only / 2013/3/5

3.7 Backlight Specification

The backlight unit contains 2pcs light bar.

3.7.1 Electrical specification

T460HVN03.1 Product Specification

Rev.00

Item Symbol Condition

1

2

3

4

5 Control signal voltage V

6 Control signal current I

7

8

9

Input Voltage VDDB - 22.8

Input Current I

Input Power P

Inrush Current I

Signal

External PWM Duty ratio

(input duty ratio)

External PWM

Frequency

DET status signal DET

VDDB=24V

DDB

VDDB=24V

DDB

VDDB=24V

RUSH

Hi 2 - 5.5 -

Low

VDDB=24V

Signal

D_EPWM VDDB=24V

F_EPWM VDDB=24V

HI Open Collector VDC 5

Lo

VDDB=24V

Spec

Min Typ Max

24 25.2

3.00 3.19

72.0 76.5

7 Apeak 2

0 - 0.8

- - 1.5 mA -

0 - 100 % 4

90 180 240 Hz 4

0 - 0.8 VDC 5

Unit Note

VDC -

ADC 1

W 1

VDC

3

10

Note 1: Dimming ratio= 100%,（Ta=25±5℃, Turn on for 45minutes）

Note 2: MAX input current at all operating mode, measurement condition Rising time = 20ms (VDDB: 10%~90%)

Note 3: When BLU off ( VDDB = 24V , VBLON = 0V) , IDDB (max) = 0.1A

Note 4: Less than 5% dimming control is functional well and no backlight shutdown happened

Note 5: Normal: 0~0.8V ; Abnormal : Open collector

Input Impedance Rin VDDB=24V 300 Kohm -

AUO Confidential For HKC Internal Use Only / 2013/3/5

T460HVN03.1 Product Specification

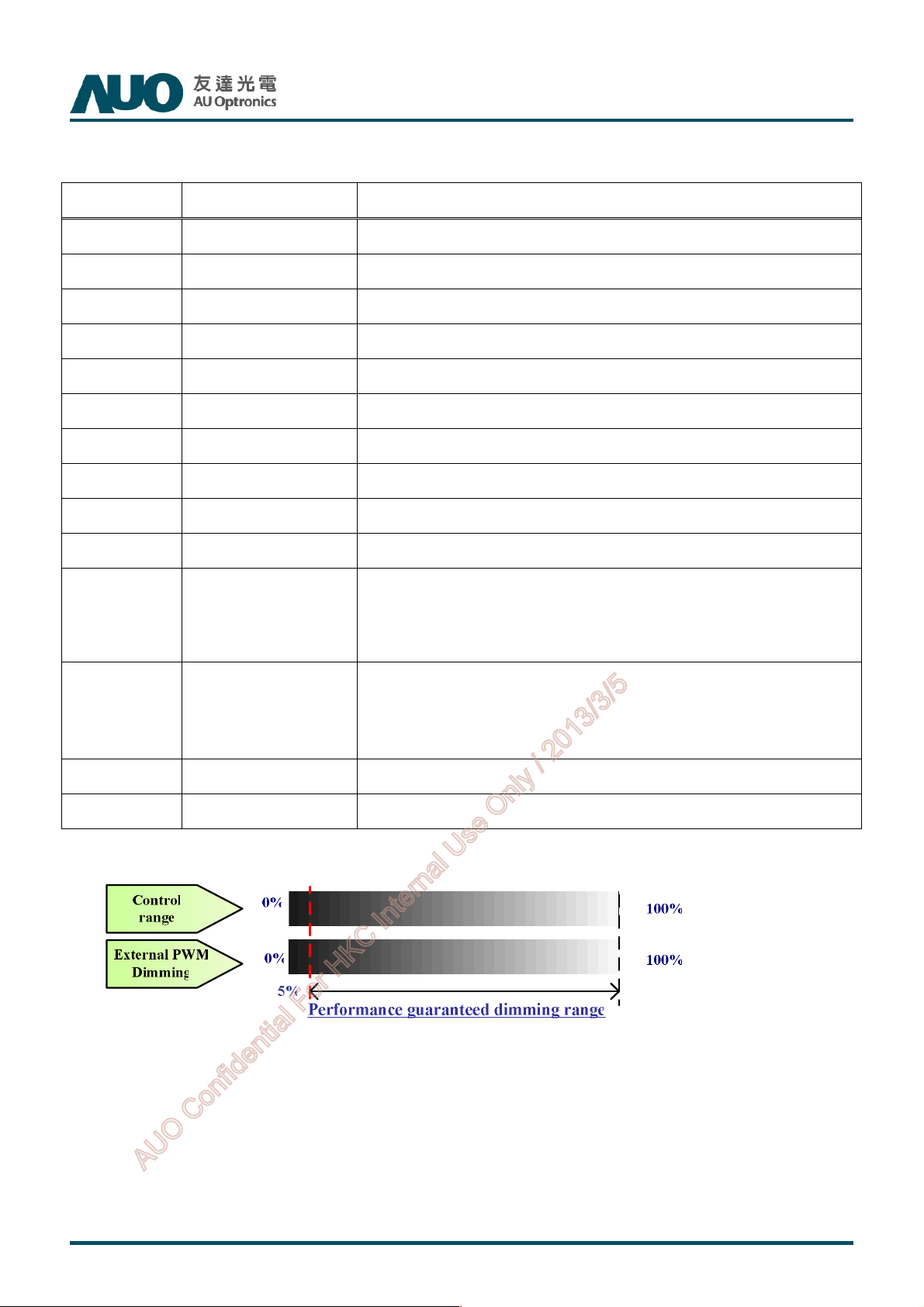

3.7.2 Input Pin Assignment

LED driver board connector : CI0114M1HR0-NH(CviLux)

Pin Symbol Description

1 VDDB Operating Voltage Supply, +24V DC regulated

2 VDDB Operating Voltage Supply, +24V DC regulated

3 VDDB Operating Voltage Supply, +24V DC regulated

4 VDDB Operating Voltage Supply, +24V DC regulated

5 VDDB Operating Voltage Supply, +24V DC regulated

6 BLGND Ground and Current Return

7 BLGND Ground and Current Return

8 BLGND Ground and Current Return

9 BLGND Ground and Current Return

Rev.00

10 BLGND Ground and Current Return

BLU status detection:

11 DET

12 VBLON

13 NC NC

14 PDIM(*) External PWM (0%~100% Duty, open for 100%)

Normal : 0~0.8V ; Abnormal : Open collector

(Recommend Pull high R > 10K, VDD = 3.3V)

BLU On-Off control:

High/Open (2~5.5V) : BL On ;

Low (0~0.8V/GND) : BL Off

IF External PWM function less than 5% dimming ratio, Judge condition as below: (1)Backlight module must be lighted ON normally. (2)All protection function must work normally. (3)Uniformity and flicker could not be guaranteed

AUO Confidential For HKC Internal Use Only / 2013/3/5

3.7.3 Power Sequence for Backlight

24V(typ.)

Power Input for BLU

(VDDB)

90% 90%

10%

T460HVN03.1 Product Specification

Rev.00

Dimming Control Signal

(V_IPWM,V_EPWM)

BLU On/Off Enable

(VBLON)

Dip condition for Inverter

Power Input for BLU

(VDDB)

VDDB(typ.)*0.8

T1 T2

T3

T6

T5

T4

Parameter

Min Typ Max

T1 20 - - ms

T2 500 - - ms

T3 250 - - ms

T4 0 - - ms

T5 1 - - ms

T6 - - 10 ms

Value

Units

AUO Confidential For HKC Internal Use Only / 2013/3/5

T460HVN03.1 Product Specification

Rev.00

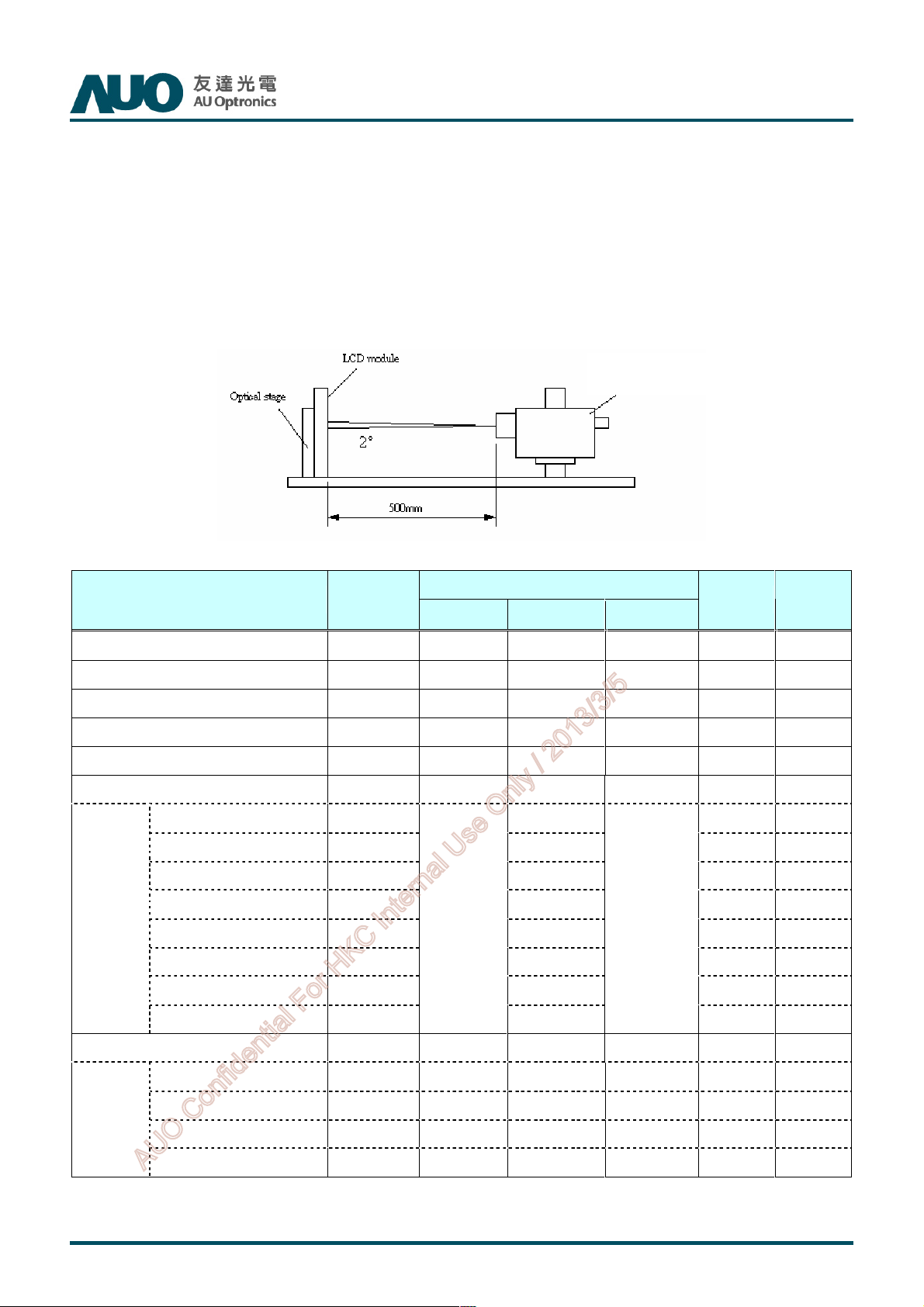

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a

dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max

Contrast Ratio CR 2400 3000 -- 1

Surface Luminance (White) LWH 280 350 -- cd/m2 2

Luminance Variation δ

Response Time (G to G) Tγ -- 5.5 -- Ms 4

Color Gamut NTSC 72 %

Color Coordinates

Red RX 0.640

RY 0.330

Green GX 0.320

GY 0.620

Blue BX 0.150

BY 0.050

WHITE(9P)

-- -- 1.33 3

Typ.-0.03

Values

Unit Notes

Typ.+0.03

White WX 0.280

WY

Viewing Angle 5

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θd -- 89 -- degree

AUO Confidential For HKC Internal Use Only / 2013/3/5

0.290

T460HVN03.1 Product Specification

Rev.00

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

Surface Luminance of L

L

on5

off5

displaying white. From more information see FIG 2. LED input VDDB =24V, I

is the luminance with all pixels displaying white at center 5 location.

3. The variation in surface luminance, δWHITE is defined (center of Screen) as:

δ

WHITE(9P)

4. Response time Tγ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=120Hz to optimize.

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

. = 3.00, LWH=Lon5 where Lon5

DDB

Target Measured

Response Time

0% 25% 50% 75% 100%

0% 0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% 25% to 0% 25% to 50%

Start

Tγ is determined by 10% to 90% brightness difference of rising or falling period. (As illustrated)

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of grey(bright) “ and “any level of gray(dark)”.

50% 50% to 0% 50% to 25%

75% 75% to 0% 75% to 25%

100% 100% to 0%

100% to 25% 100% to 50% 100% to 75%

50% to 75% 50% to 100%

75% to 50%

25% to 75% 25% to 100%

75% to 100%

Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)

AUO Confidential For HKC Internal Use Only / 2013/3/5

2 3

7

T460HVN03.1 Product Specification

Rev.00

0% , 25% , 50 % , 75 % , 100%

100%

90%

Photodetector

Output

10%

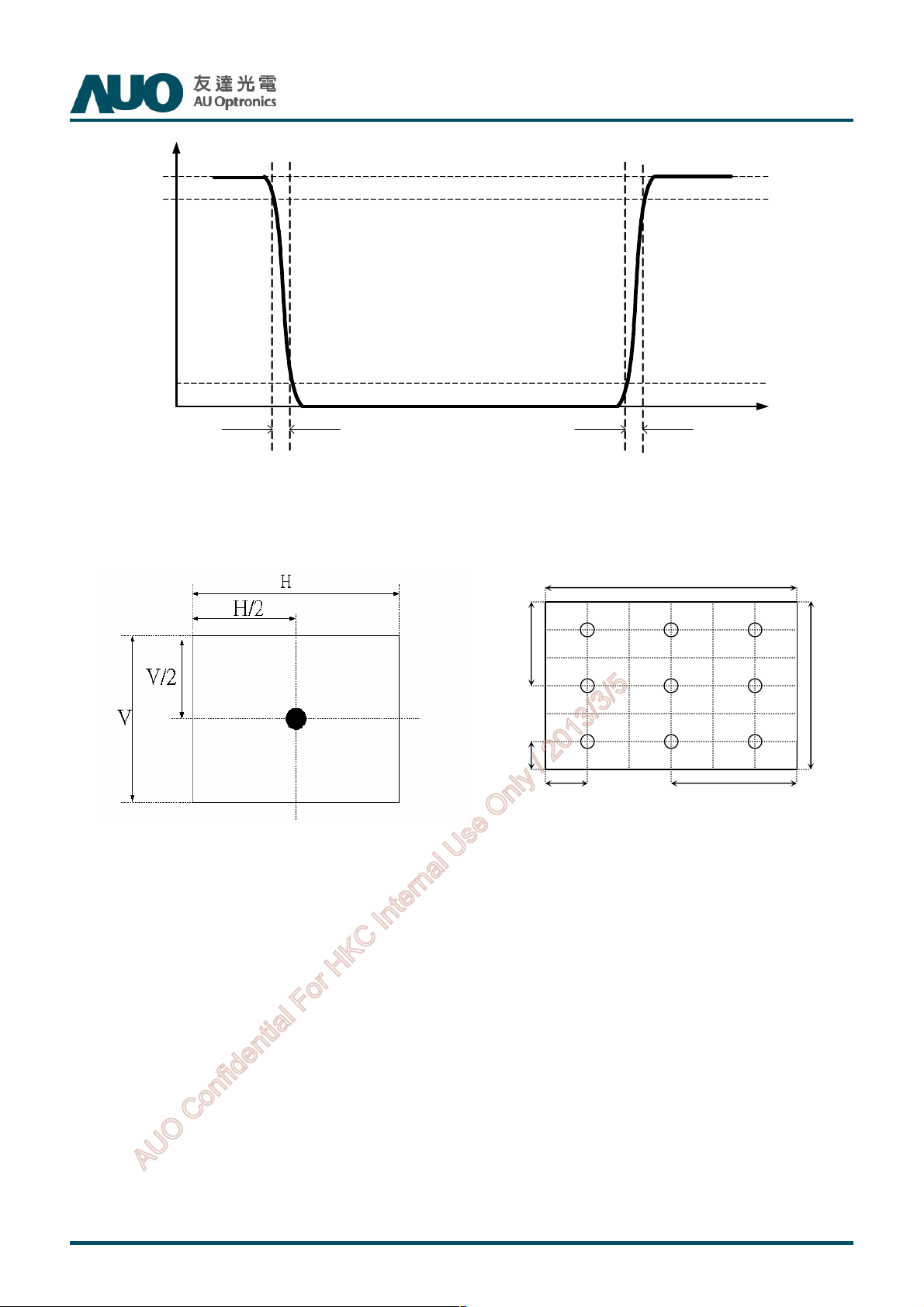

FIG. 2 Luminance

T

γγγγ(F)

0% , 25% , 50% , 75 % , 100%

0% , 25 % , 50 % , 75 % , 100%

Tim e

T

γγγγ(R)

V

H/2

H/6

1

H

V/2 V/6

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG3.

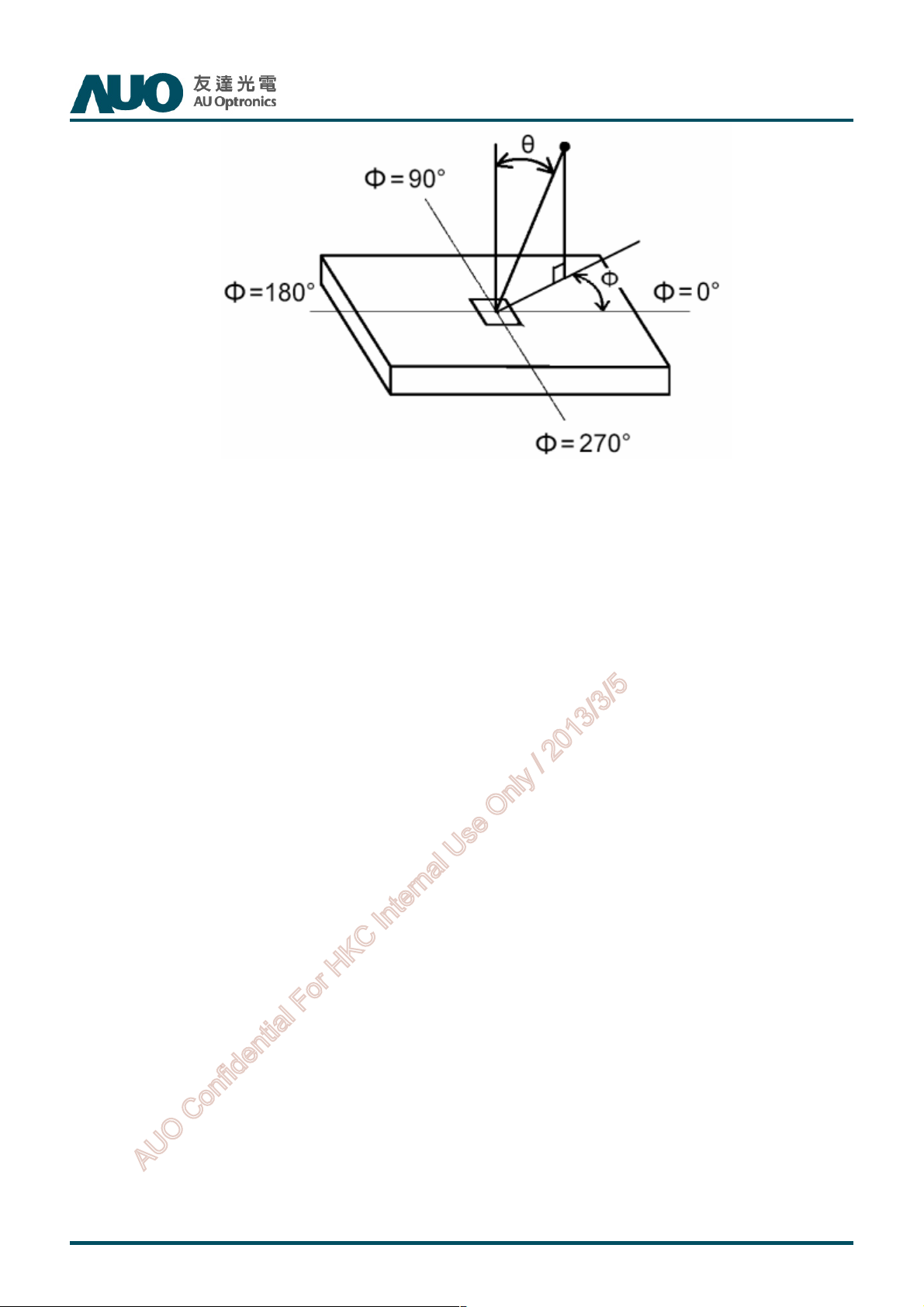

FIG.3 Viewing Angle

AUO Confidential For HKC Internal Use Only / 2013/3/5

T460HVN03.1 Product Specification

Rev.00

AUO Confidential For HKC Internal Use Only / 2013/3/5

T460HVN03.1 Product Specification

Rev.00

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T460HVN03.1. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Item Dimension Unit Note

Horizontal 1049.0 Mm

Vertical 604.6 mm

Outline Dimension

Depth (Dmin) 10.8 mm

Depth (Dmax) 27.4 mm to D/B cover

Weight 11000 g

AUO Confidential For HKC Internal Use Only / 2013/3/5

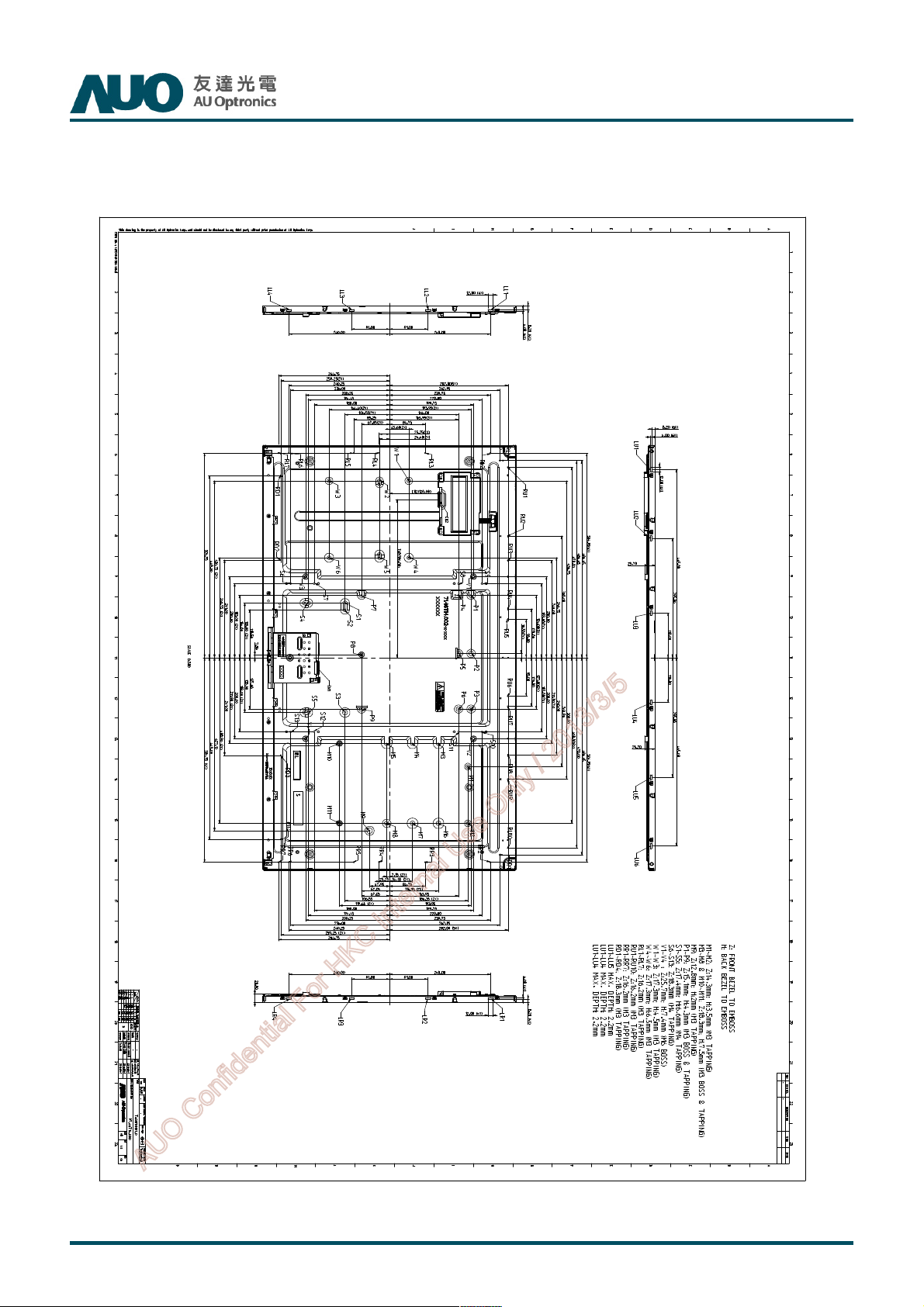

Front View

T460HVN03.1 Product Specification

Rev.00

AUO Confidential For HKC Internal Use Only / 2013/3/5

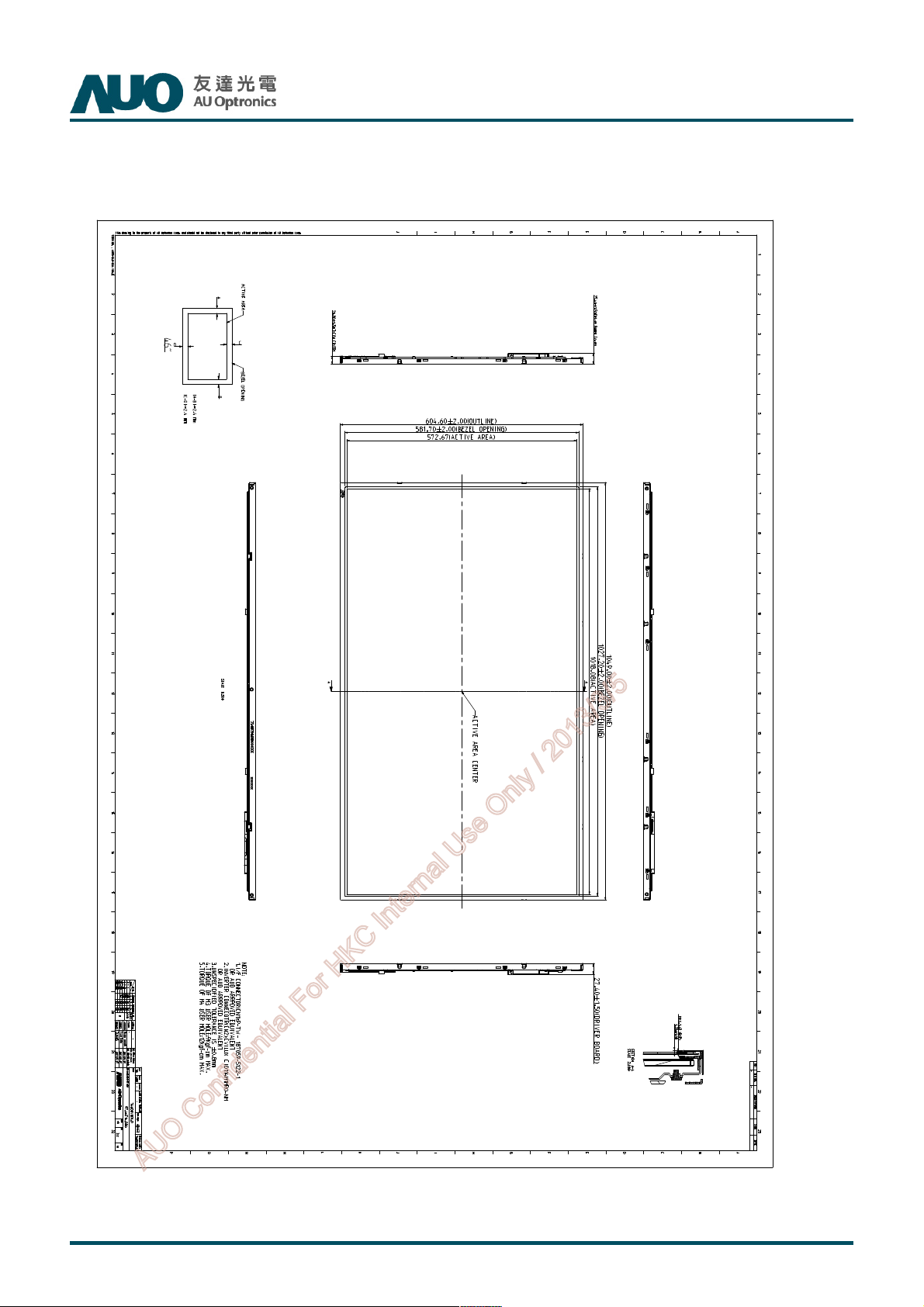

Back View

T460HVN03.1 Product Specification

Rev.00

AUO Confidential For HKC Internal Use Only / 2013/3/5

6. Reliability Test Items

T460HVN03.1 Product Specification

Rev.00

Test Item Q’ty Condition

1 High temperature storage test 3

2 Low temperature storage test 3 -

3 High temperature operation test 3

4 Low temperature operation test 3 -

5 Vibration test (non-operation) 3

6 Shock test (non-operation) 3

0

!

6

, 300hrs

0

!

, 300hrs

2

0

!

5

, 300hrs

!

, 300hrs

5

Wave form : Random

Overall average energy level : 1.0Grms

Bandwidth & Level : 10~300Hz

X axis, Horizontal, face up, 10min

Y axis, Horizontal, face up, 10min

Z axis, Horizontal, face up, 10min

one time each direction

Wave Form: Half Sine Wave

Shock Level,

50G, 11ms in ±X, ±Y axis

35G, 11ms in ±Z axis

7 Vibration test (With carton) 1(PKG)

8 Drop test (With carton) 1(PKG)

*One time each direction

Random wave (1.05G RMS, 10-200Hz)

10mins/ Per each X,Y,Z axes

Drop Height: 25.4 cm,

Surround four flats and bottom flat twice

(ASTMD4169-I)

AUO Confidential For HKC Internal Use Only / 2013/3/5

7. International Standard

7.1 Safety

(1) UL 60950-1, UL 60065; Standard for Safety of Information Technology Equipment Including

electrical Business Equipment.

(2) IEC 60950-1 : 2001, IEC 60065:2001 ; Standard for Safety of International Electrotechnical

Commission

(3) EN 60950 : 2001+A11, EN 60065:2002+A1:2006; European Committee for Electrotechnical

Standardization (CENELEC), EUROPEAN STANDARD for Safety of Information Technology

Equipment Including Electrical Business Equipment.

7.2 EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI),

T460HVN03.1 Product Specification

Rev.00

1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),

1998

AUO Confidential For HKC Internal Use Only / 2013/3/5

QTY : 7

Manufactured

XX/XX

MADE IN

XXXXX

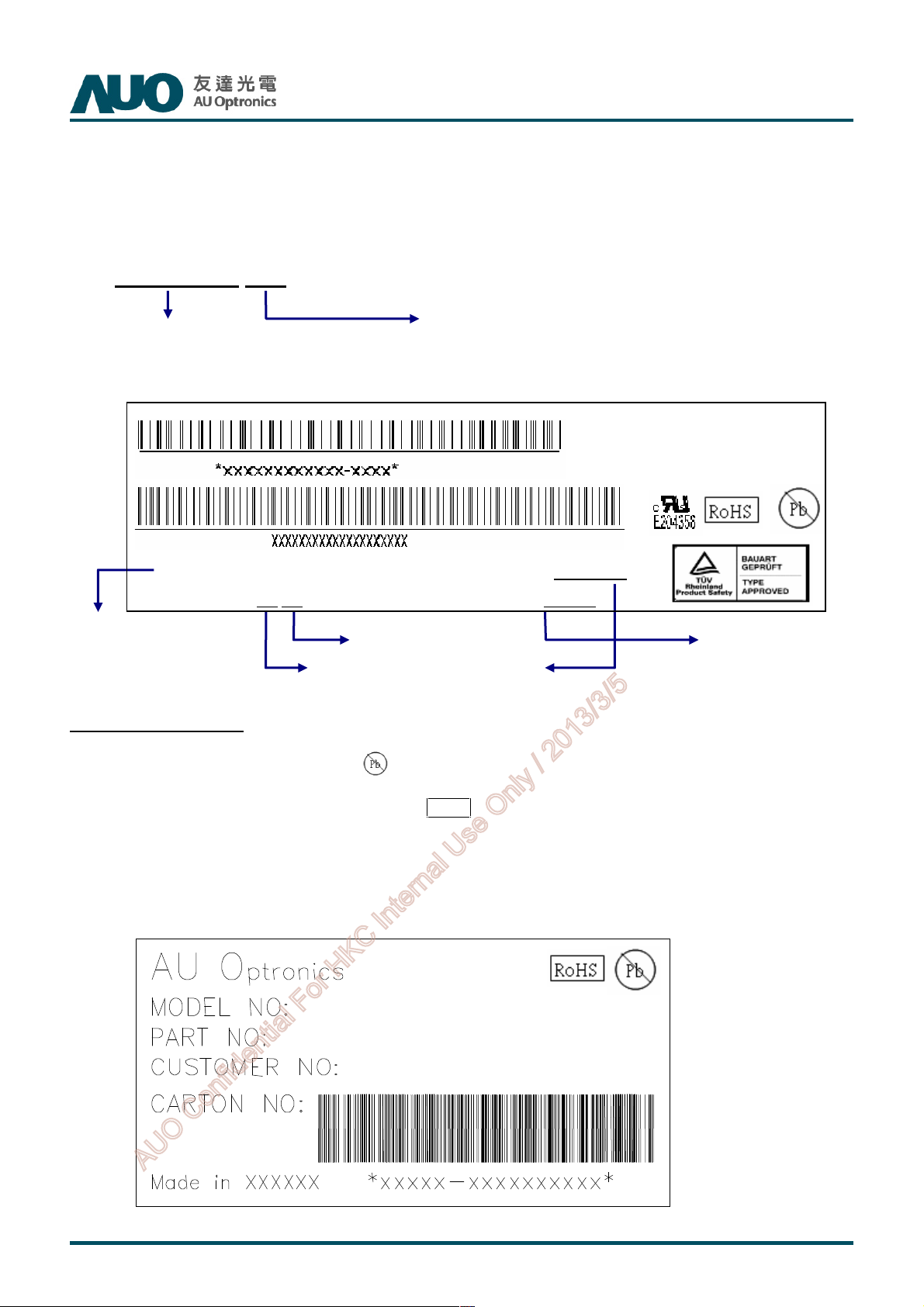

8. Packing

8-1 DEFINITION OF LABEL:

A. Panel Label:

*xxxxxxxxxxxx-xxxx*

T460HVN03.1 Product Specification

Rev.00

Panel Unique ID

XXXXX Model NO: T460HVN03.1 XXXXXXX

Green mark description

Year

AUO Internal Use

AU Optronics

Week Factory Location AUO Internal Use

AUO Internal Use

(1) For Pb Free Product, AUO will add

(2) For RoHs compatible products, AUO will add RoHS for identification.

Note: The green Mark will be present only when the green documents have been ready by AUO internal green

team. (definition of green design follows the AUO green design checklist.)

for identification.

B. Carton Label:

T460HVN03.1

97.46T17.1XX

AUO Confidential For HKC Internal Use Only / 2013/3/5

1pcs Module/ESD

Cushion top

Module

7pcs / 1 carton

”

H ” Tape

Cushion

7pcs Modules

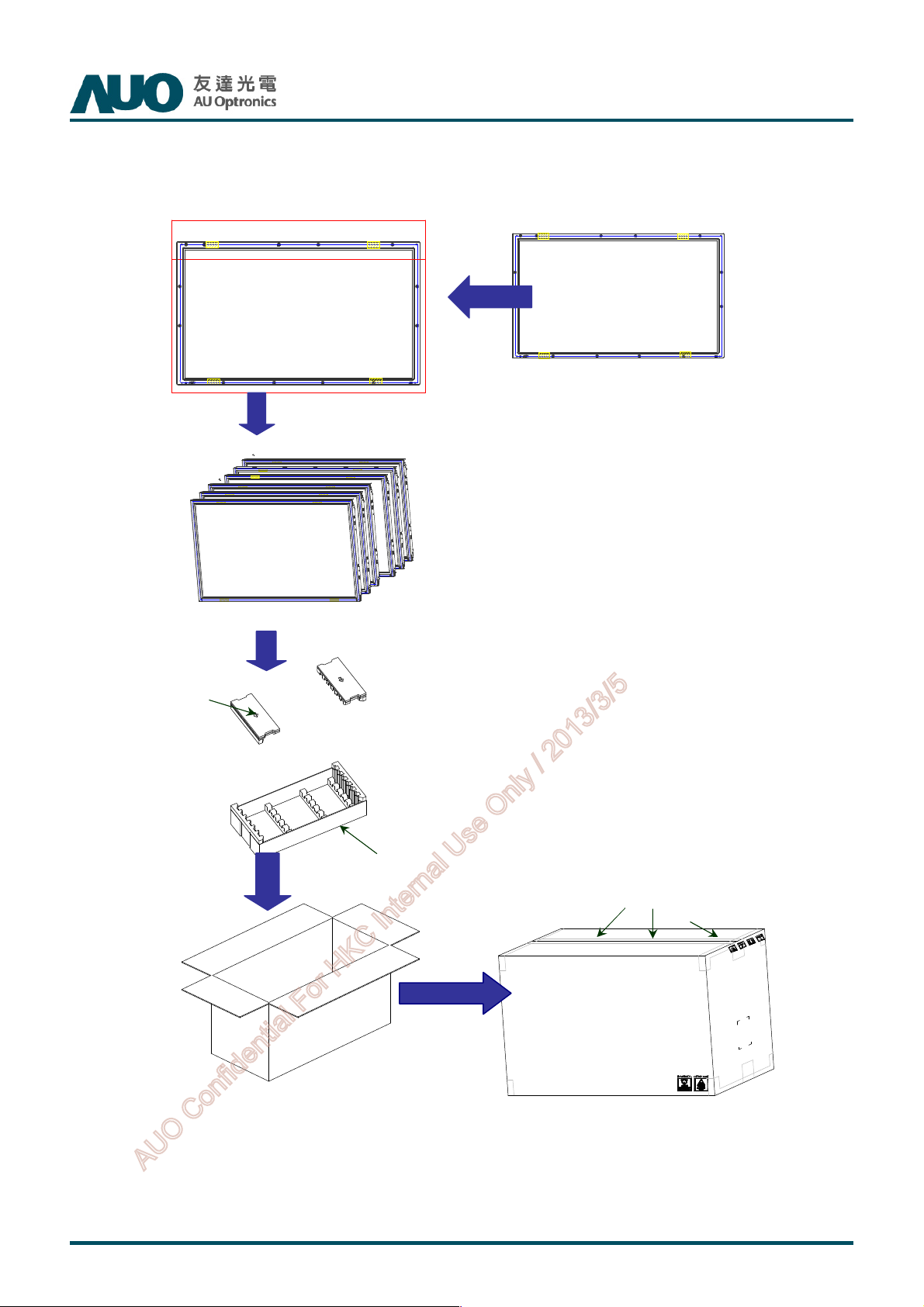

8-2 PACKING METHODS:

T460HVN03.1 Product Specification

Rev.00

AUO Confidential For HKC Internal Use Only / 2013/3/5

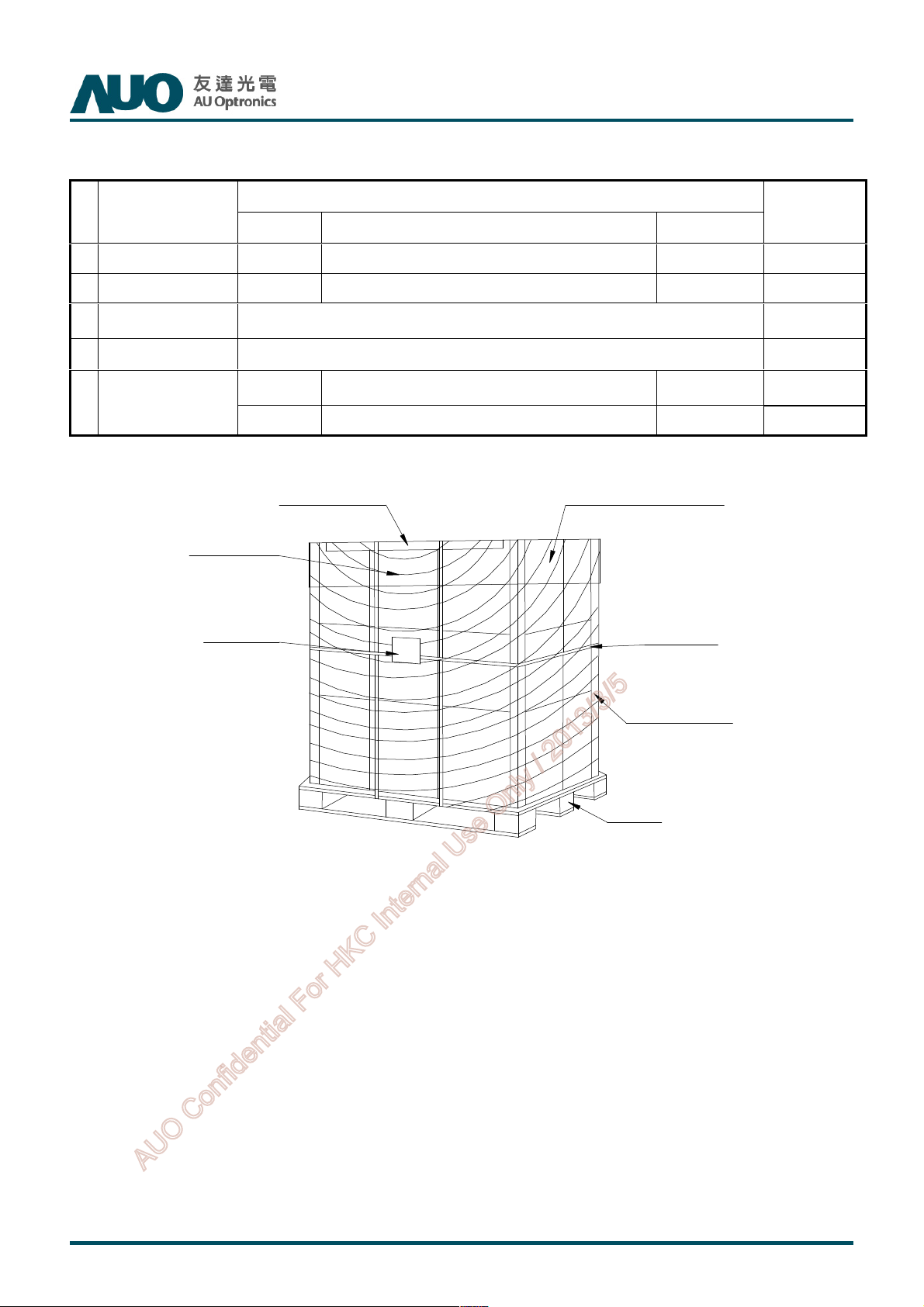

8-3 Pallet and Shipment Information

T460HVN03.1 Product Specification

Rev.00

Specification

Item

1 Packing Box 7pcs/box 1160(L)mm*375(W)mm*690(H)mm 83

2 Pallet 1 1180(L)mm*1150(W)mm*132(H)mm 18

3 Boxes per Pallet 3 boxes/Pallet (By Air) ; 3 Boxes/Pallet (By Sea)

4 Panels per Pallet 21pcs/pallet(By Air) ; 21 pcs/Pallet (By Sea)

after packing

Qty. Dimension Weight (kg)

21(by Air) 1180(L)mm*1150(W)mm*822(H)mm (by Air) 267(by Air) 5 Pallet

63(by Sea)

1180(L)mm*1150(W)mm*2466(H)mm (by Sea) 801(by Sea) 40ft HQ

Moisture-proof filmCorner angle

Stretch film

Label

PET band

Packing

Remark

Corner angle

Pallet

AUO Confidential For HKC Internal Use Only / 2013/3/5

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.

(2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied

to module. And the case on which a module is mounted should have sufficient strength so that

external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

T460HVN03.1 Product Specification

Rev.00

generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit

broken by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the

surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials

like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the

adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because

they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes

longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to

AUO Confidential For HKC Internal Use Only / 2013/3/5

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall

be done by system manufacturers. Grounding and shielding methods may be important to minimize

the interface.

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain

that treatment persons are connected to ground through wristband etc. And don’t touch interface pin

directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

t

empera

b

t

ure

e

5

t

ween

d35

/

an

t

/

a

lh

norma

um

T460HVN03.1 Product Specification

Rev.00

idi

t

y

.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or

in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.

AUO Confidential For HKC Internal Use Only / 2013/3/5
