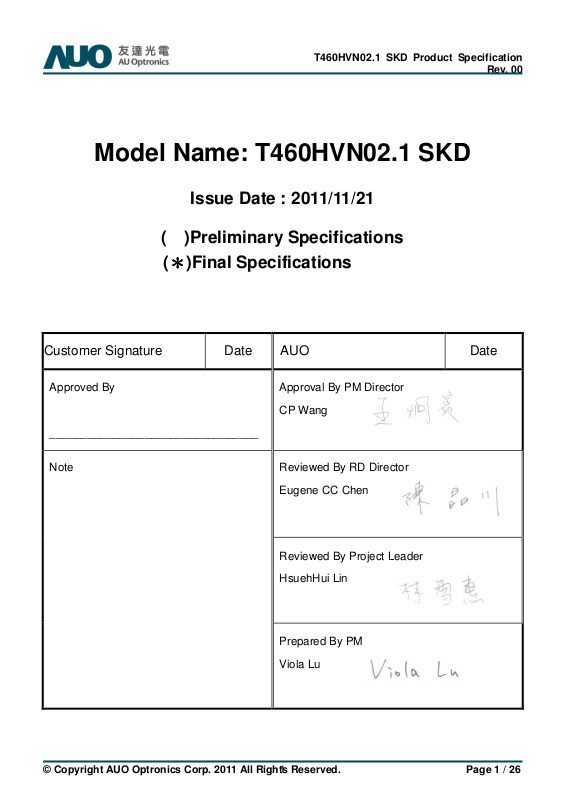

AUO T460HVN02.1 Specification

T460HVN02.1 SKD Product Specification

Rev. 00

Model Name: T460HVN02.1 SKD

Issue Date : 2011/11/21

( )Preliminary Specifications

(＊＊＊＊)Final Specifications

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director

CP Wang

Reviewed By RD Director

Eugene CC Chen

Reviewed By Project Leader

HsuehHui Lin

Prepared By PM

Viola Lu

1

T460HVN02.1 SKD Product Specification

Rev. 00

Contents

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

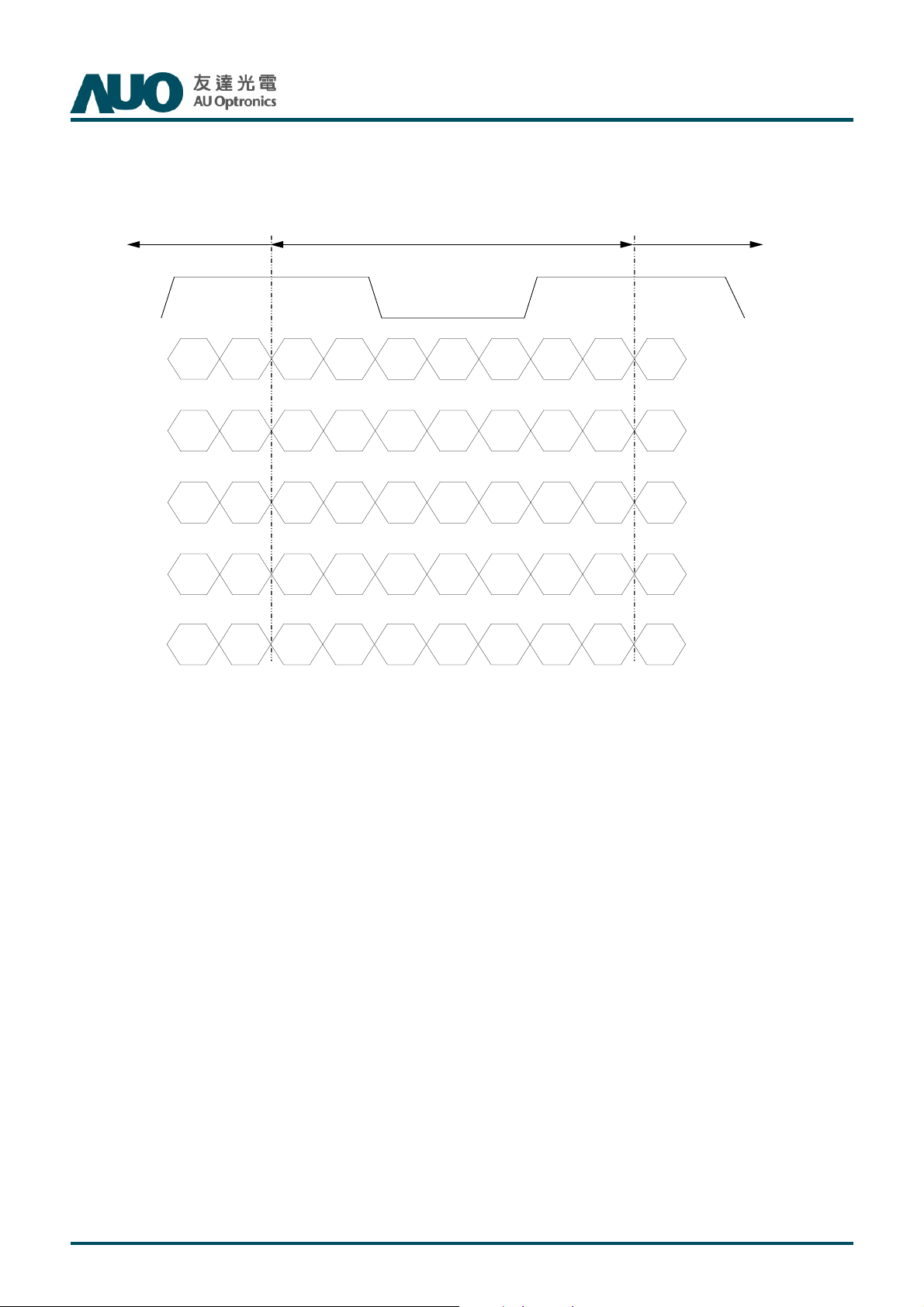

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

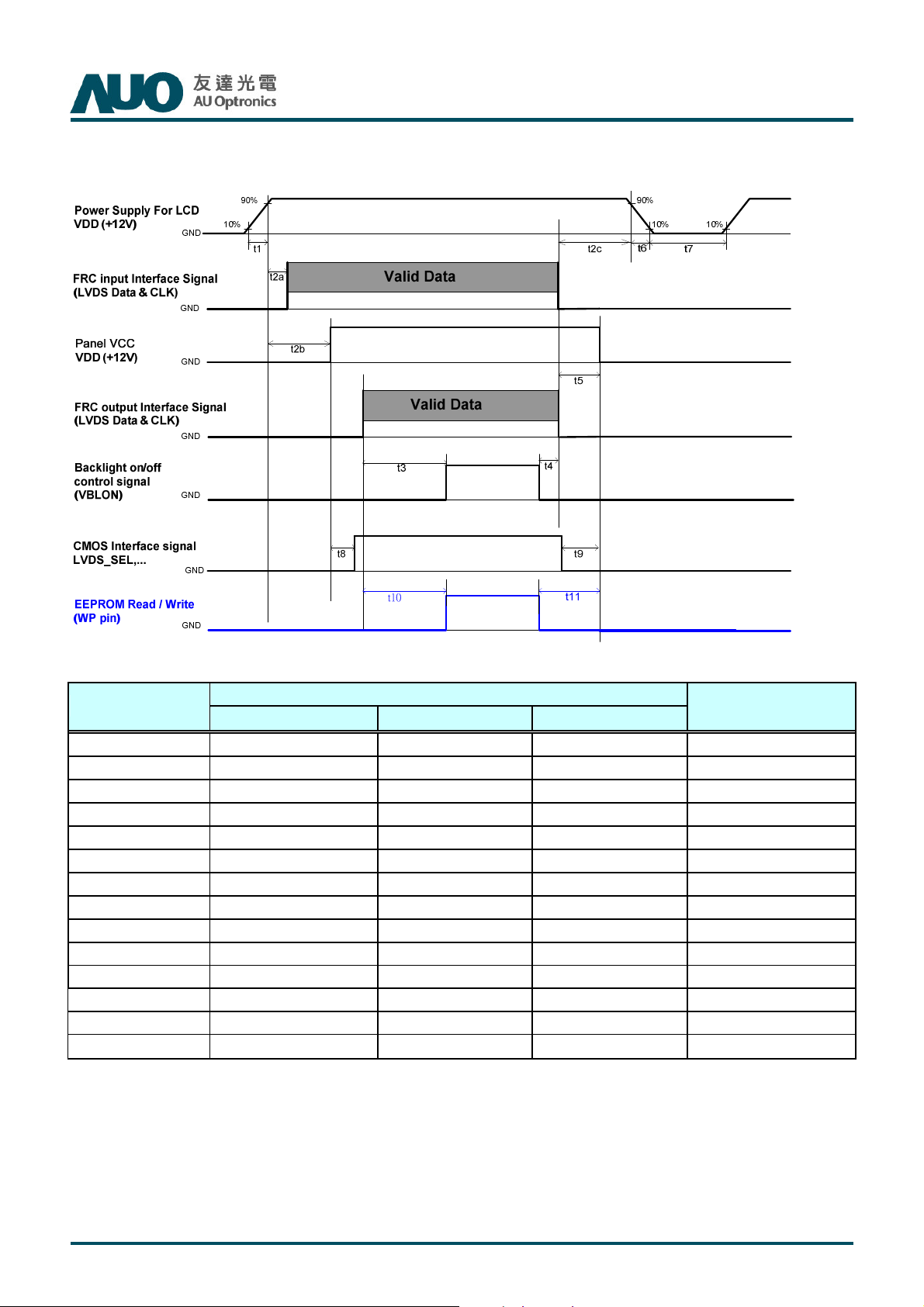

3-6 POWER SEQUENCE

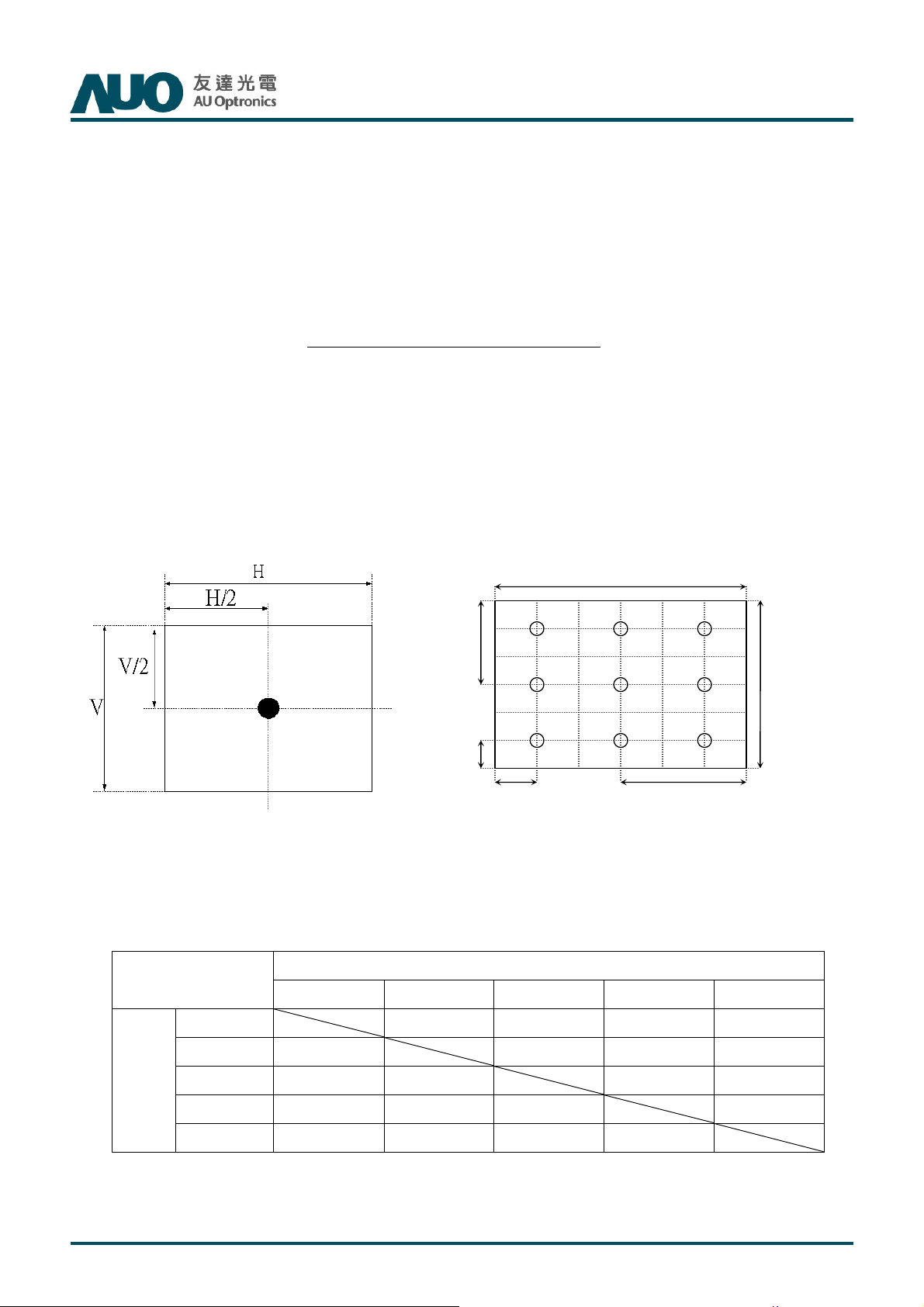

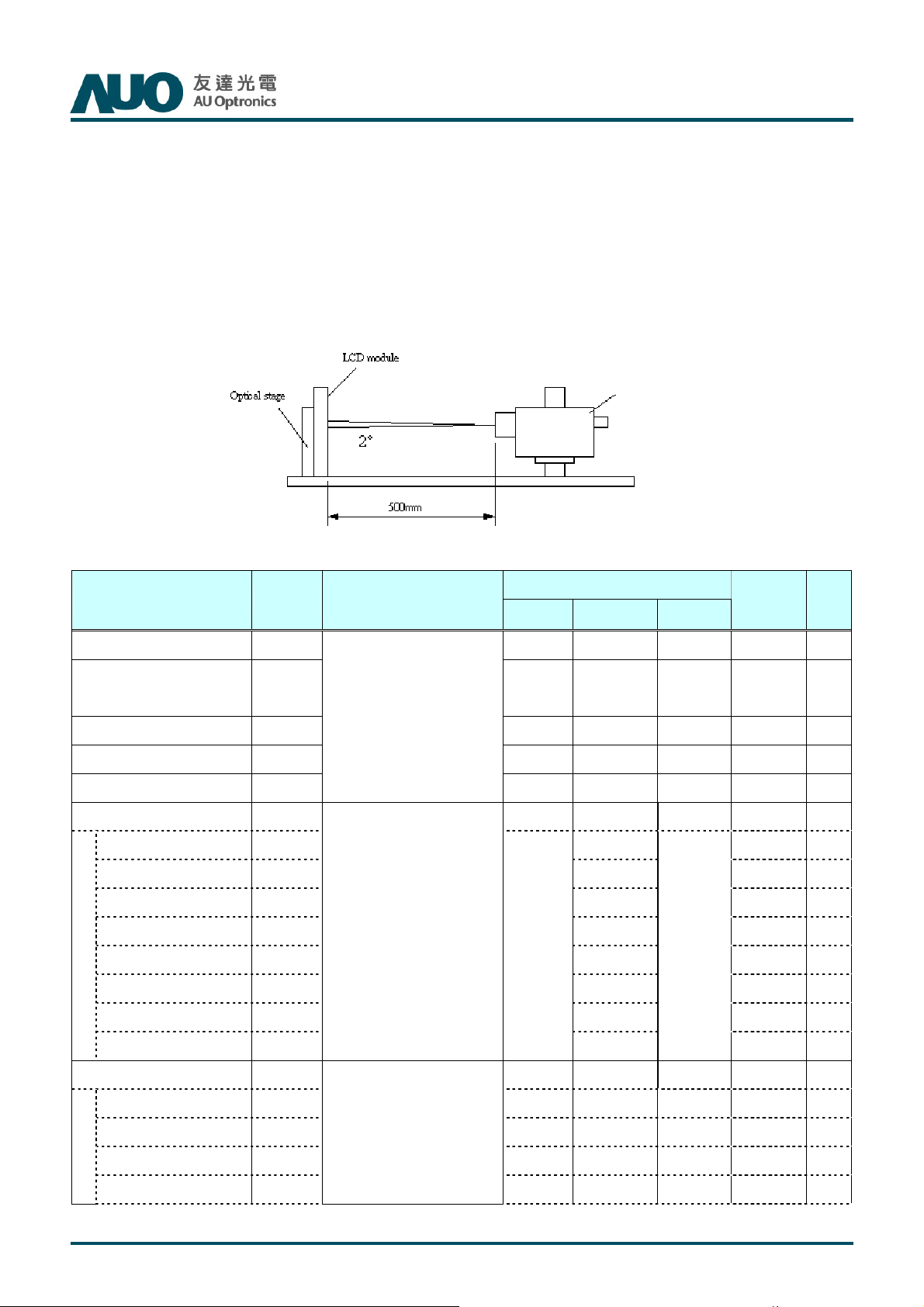

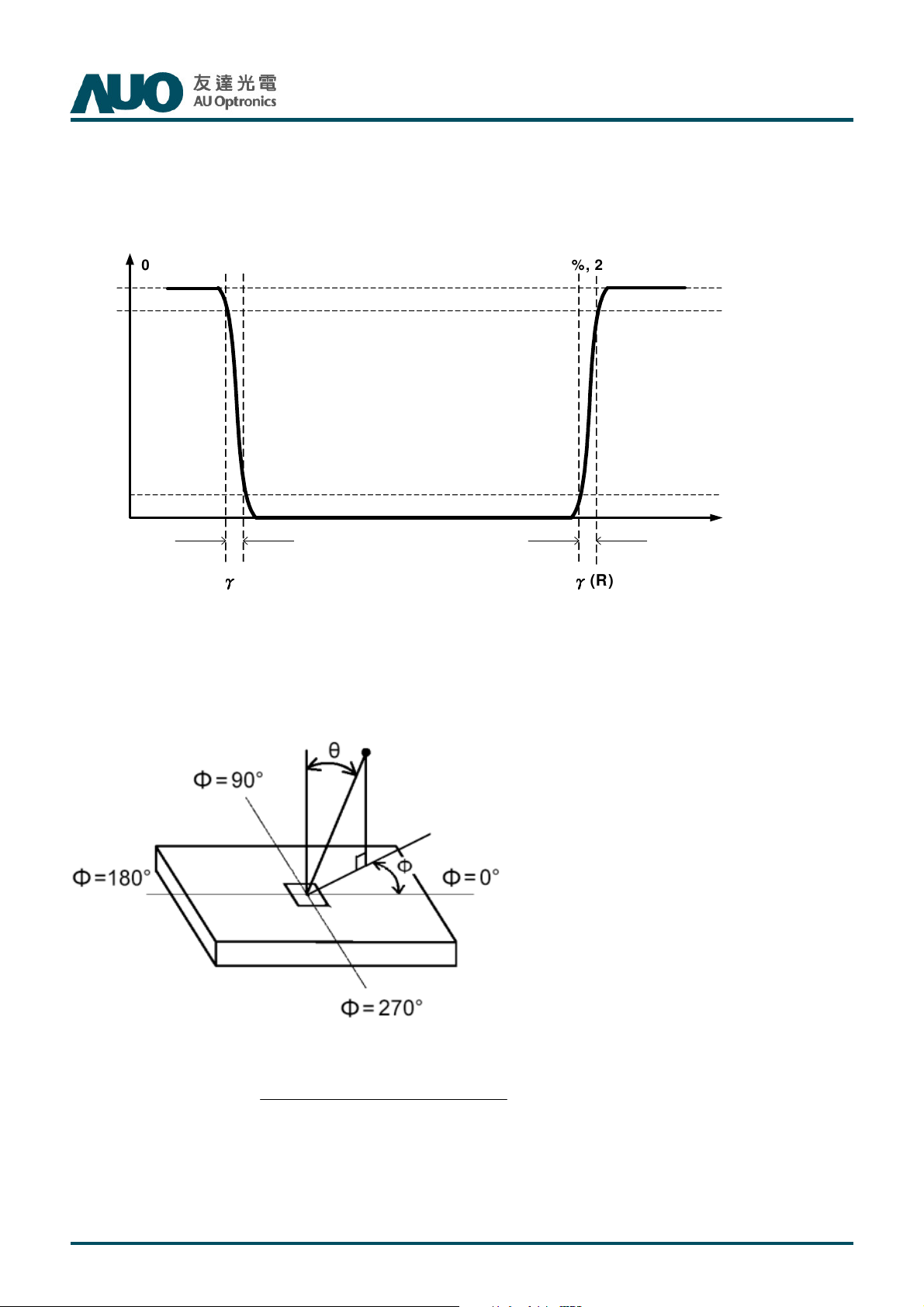

4 OPTICAL SPECIFICATION

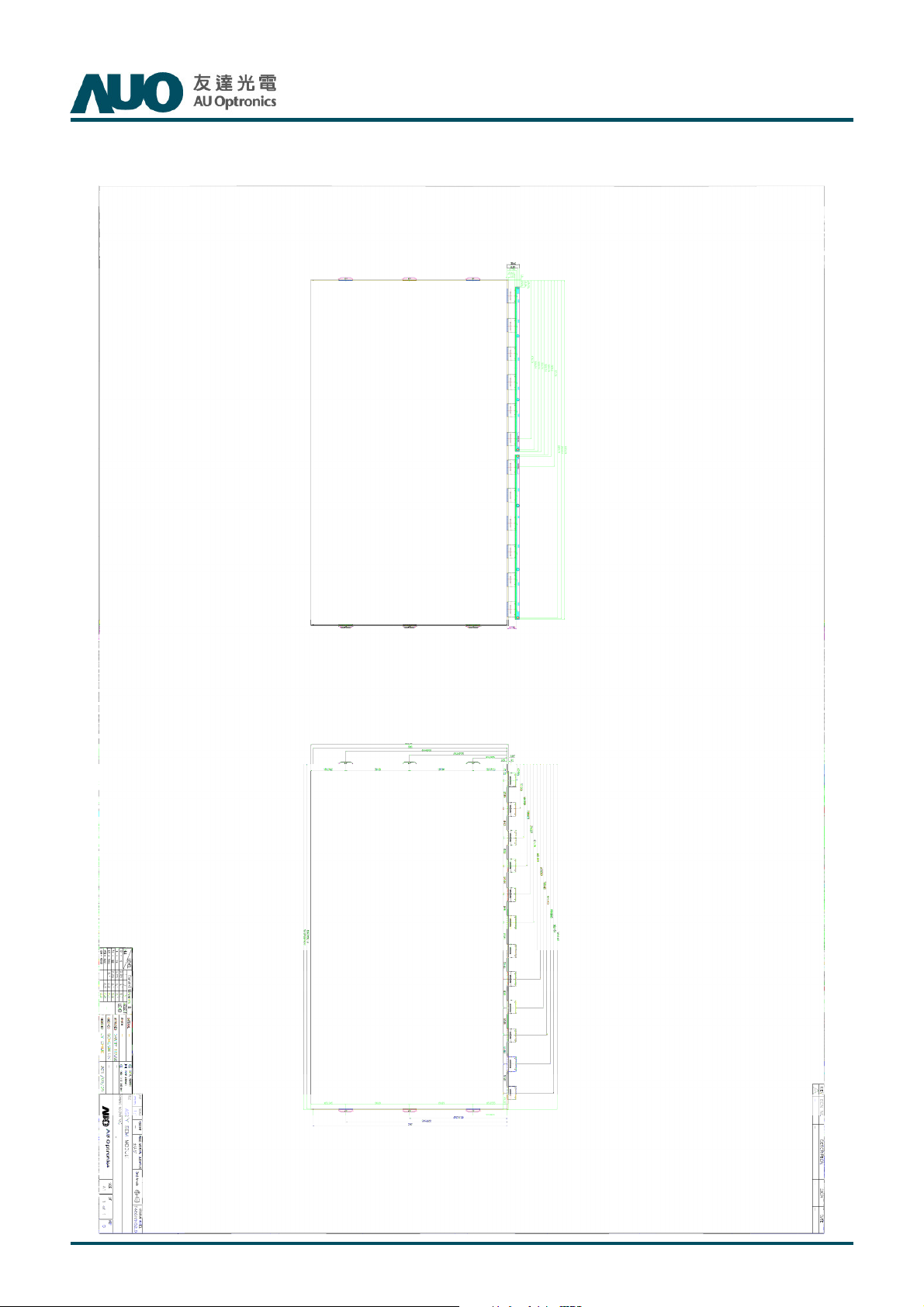

5 OPEN CELL DRAWING

6 RELIABILITY TEST ITEMS

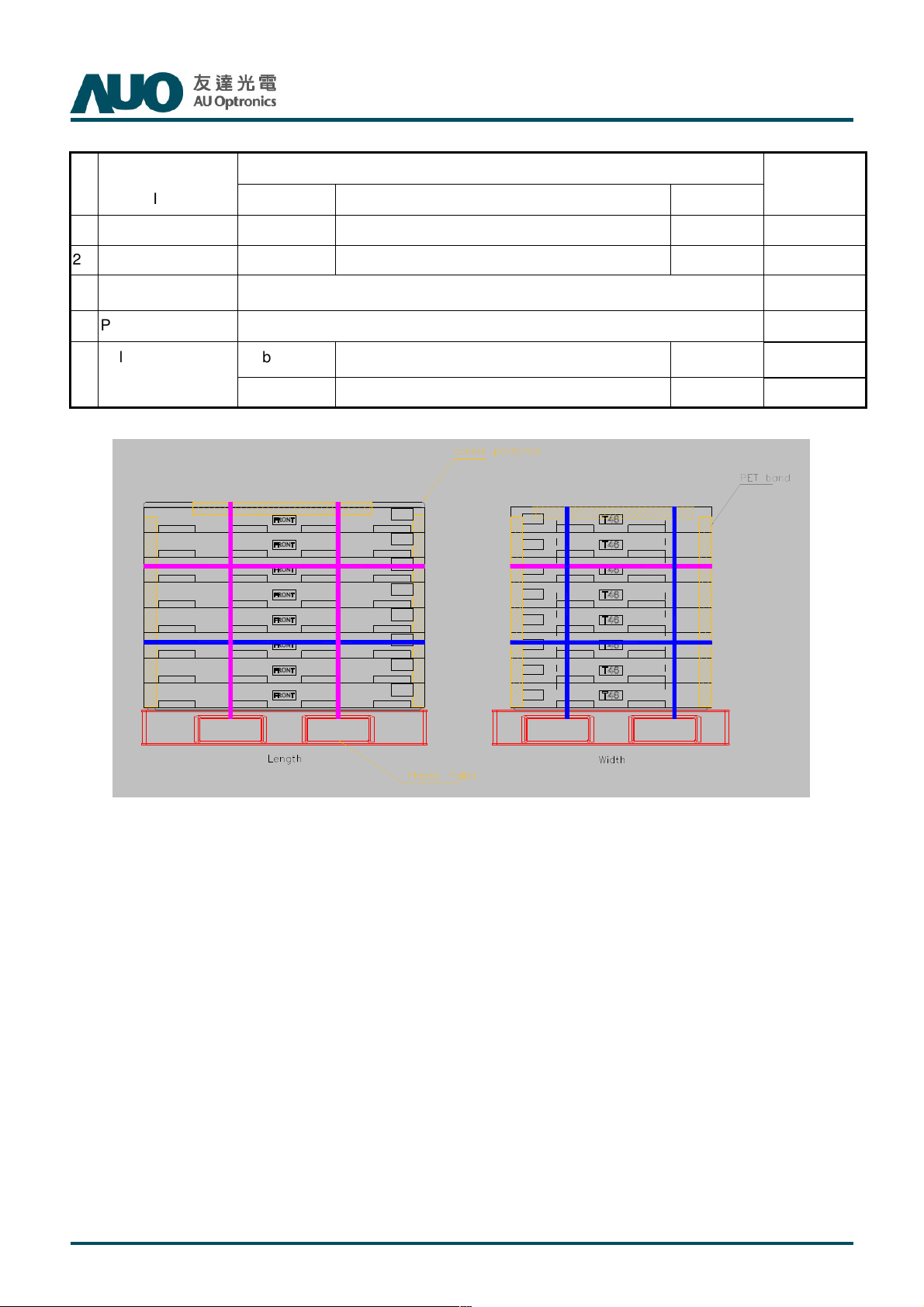

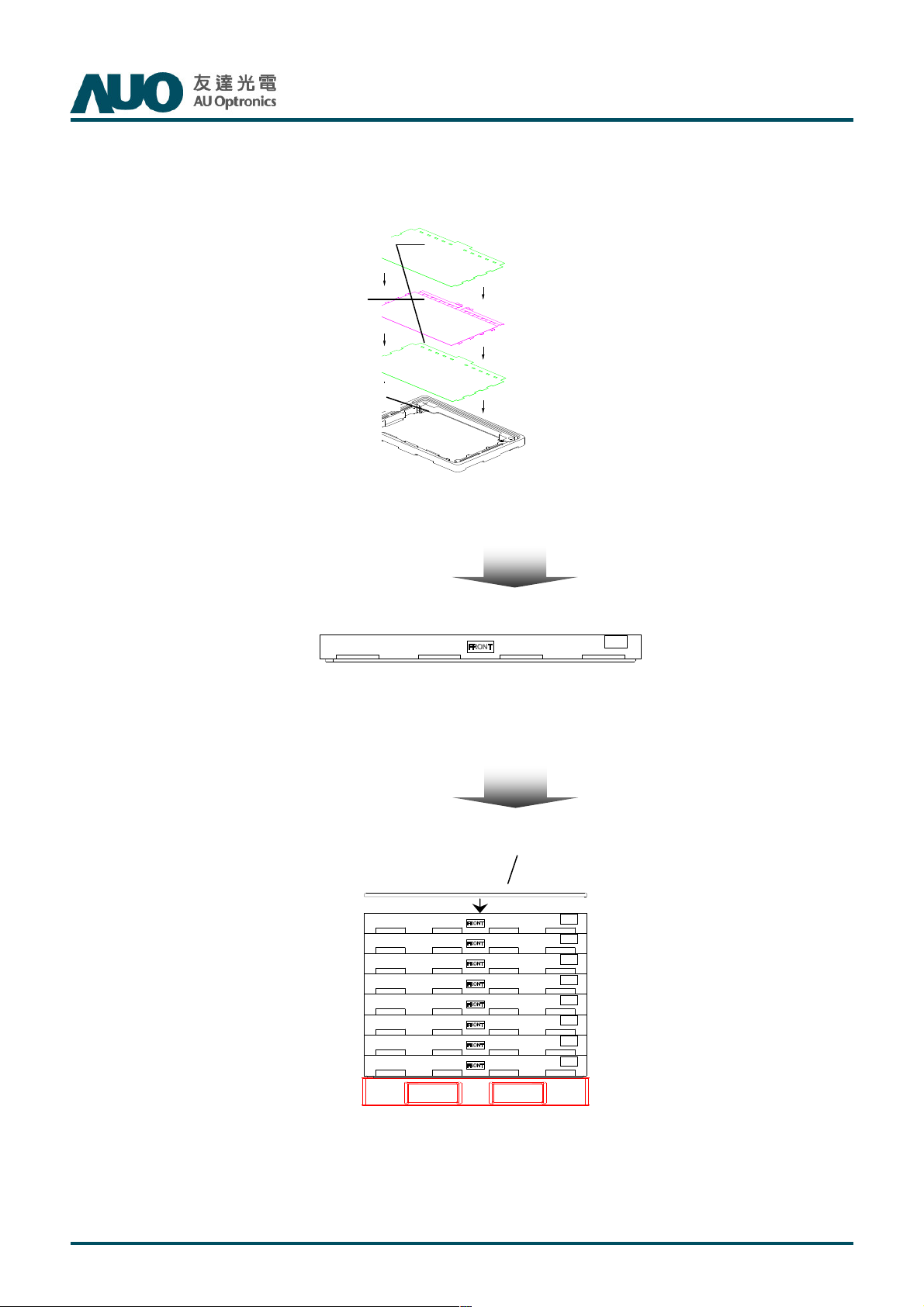

7 PACKING

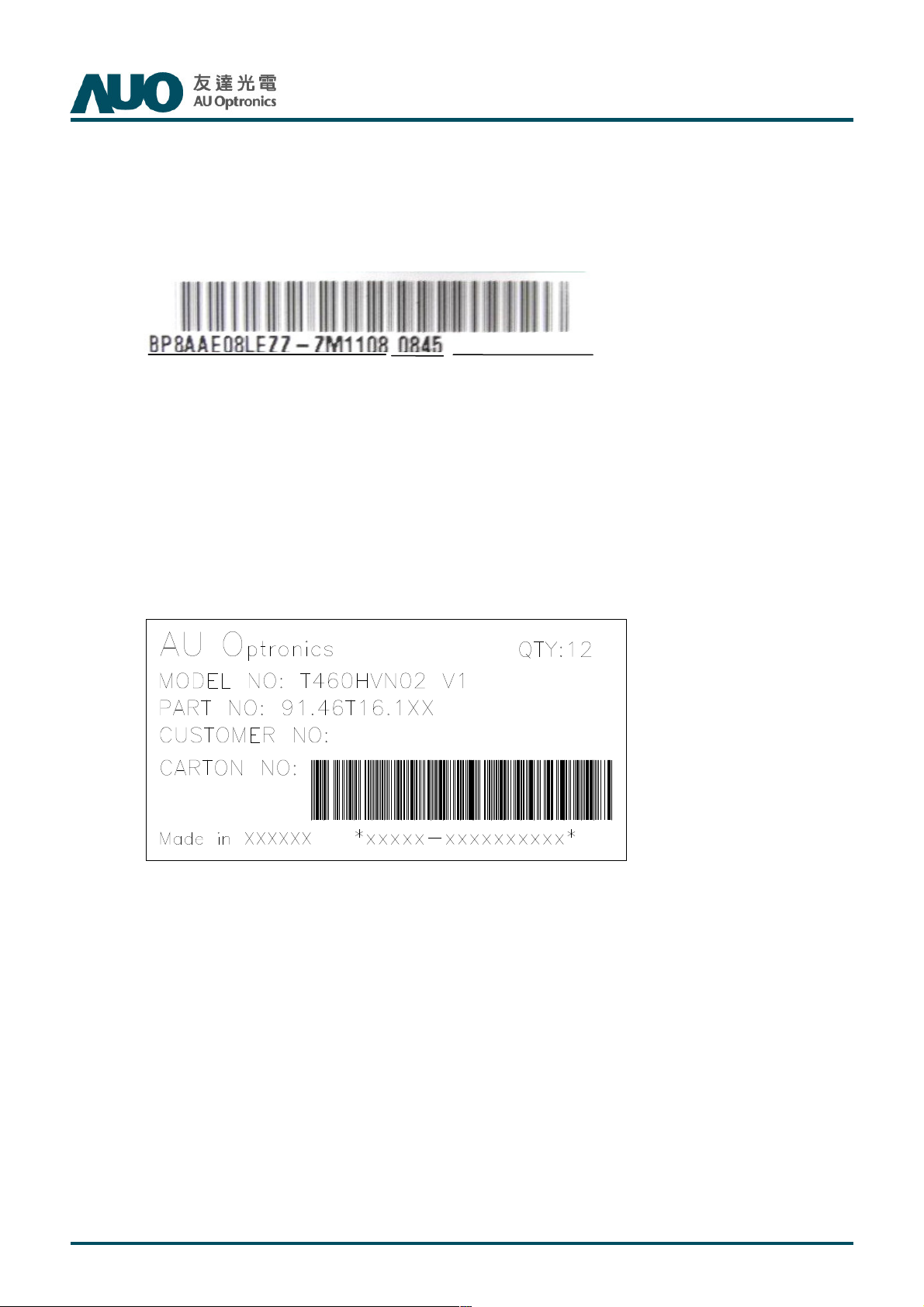

7-1 DEFINITION OF LABEL

7-2 PACKING METHODS

7-3 PALLET AND SHIPMENT INFORMATION

8 PRECAUTION

8-1 MOUNTING PRECAUTIONS

8-2 OPERATING PRECAUTIONS

8-3 ELECTROSTATIC DISCHARGE CONTROL

8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

8-5 STORAGE

8-6 HANDLING PRECAUTIONS FOR PROTECT FILM

2

Record of Revision

T460HVN02.1 SKD Product Specification

Rev. 00

Version

0.0 2011/11/21 First release

Date Page Description

3

T460HVN02.1 SKD Product Specification

Rev. 00

1. General Description

This specification applies to the 46.0 inch Color TFT-LCD Module T460HVN02.1. This LCD module has a TFT

active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 46.0 inch. This module supports

1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each

dot.

The T460HVN02.1 has been designed to apply the 10-bit 2 channel LVDS interface method. It is intended to

support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very

important.

* General Information

Items Specification Unit Note

Active Screen Size 46.00 inch

Display Area 1018.08(H) x 572.67(V) mm

Outline Dimension 1037.68(H) x 592.27(V) mm

Driver Element a-Si TFT active matrix

Display Colors 10 bit, 1073.7M Colors

Number of Pixels 1,920x1,080 Pixel

Pixel Pitch 0.53025 (H) x 0.53025 (W) mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze=2%

Rotate Function Unachievable Note 1

Note 1: Rotate Function refers to LCD display could be able to rotate.

4

T460HVN02.1 SKD Product Specification

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage VDD -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 4 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃

Rev. 00

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures

greater than 40 , the wet bulb temperature must not exceed 39 .

Note 3: Surface temperature is measured at 50℃ Dry condition

℃ ℃

℃

5

T460HVN02.1 SKD Product Specification

Rev. 00

3. Electrical Specification

The T460HVN02.1 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT

array and liquid crystal. The other is to power back light unit.

3.1 Electrical Characteristics

3.1.1: DC Characteristics

Parameter Symbol

Min. Typ.

Max

Unit Note

LCD

Power Supply Input Voltage VDD 10.8 12 13.2 VDC

Power Supply Input Current IDD -- 1.1 2.1 A 1

Value

Power Consumption PC -- 13.2

Inrush Current I

-- -- 4.2 A 2

RUSH

Permissible Ripple of Power Supply Input Voltage VRP -- -- V

∣

V

∣

ID

200 400 600 mVDC 4

VTH +100 -- +300 mVDC 4

VTL -300 -- -100 mVDC 4

1.1 1.25

ICM

VIH

(High)

VIL

(Low)

2.7 -- 3.3 VDC 5

0 -- 0.6 VDC 5

LVDS

Interface

CMOS

Interface

Input Differential Voltage

Differential Input High Threshold Voltage

Differential Input Low Threshold Voltage

Input Common Mode Voltage V

Input High Threshold Voltage

Input Low Threshold Voltage

25.2 Watt 1

DD

* 5% mV

pk-pk

1.4 VDC 4

3

LED lightbar and LED Backlight structure are designed by customers, AUO can not guarantee life time and

backlight power consumption.

6

s

µ

3.1.2: AC Characteristics

T460HVN02.1 SKD Product Specification

Rev. 00

Parameter Symbol

Receiver Clock : Spread Spectrum

LVDS

Interface

Modulation range

Receiver Clock : Spread Spectrum Modulation frequency

Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHz

Note :

1. V

2. Measurement condition : Rising time = 400us

= 12.0V, Fv = 120Hz, Fclk= 82MHz , 25 , Test ℃Pattern : White Pattern

DD

GND

GNDGND

10%

Fclk_ss

Fss

tRMG

90%

Value

Min. Typ. Max

Fclk

-3%

30

--

-0.4

-0.5

VVVV

DD

DDDD

--

Unit Note

Fclk

+3%

200

0.4

0.5

MHz

KHz

ns

6

7

400

400400

3. Test Condition:

(1) The measure point of VRP is in LCM side after connecting the System Board and LCM.

(2) Under Max. Input current spec. condition.

4. V

= 1.25V

ICM

L V D S -

L V D S +

V

IC M

G N D

0 V

V V

|VID|

T H

T L

|VID|

5. The measure points of V

and V

IH

are in LCM side after connecting the System Board and LCM.

IL

7

T460HVN02.1 SKD Product Specification

6. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures

1111////FFFF

SS

SSSS

Fclk

Fclk____ss

FclkFclk

ss((((max

ssss

Fclk

FclkFclk

Fclk

Fclk____ss

FclkFclk

ss((((min

ssss

max))))

maxmax

min))))

minmin

Rev. 00

8

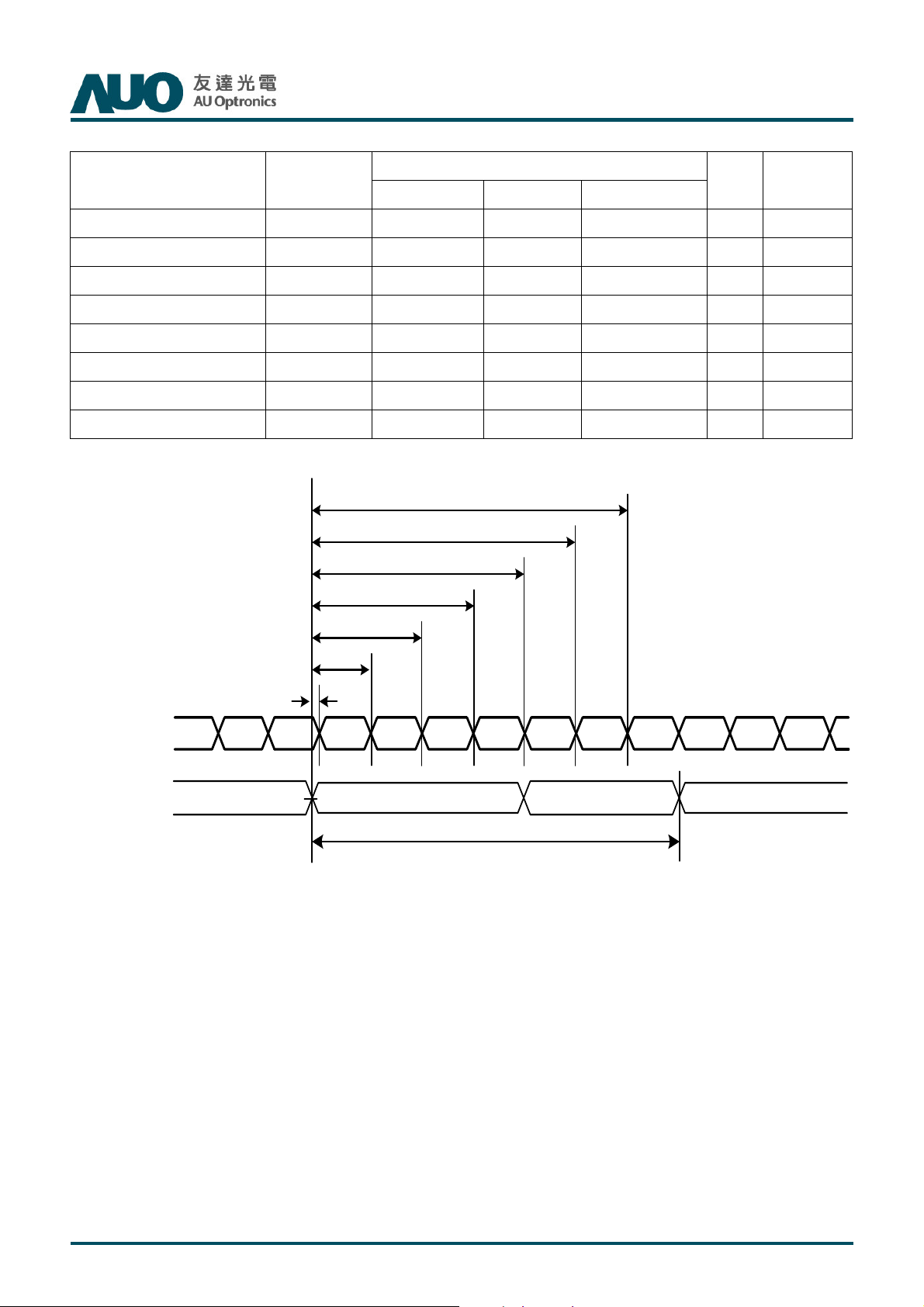

7. Receiver Data Input Margin

T460HVN02.1 SKD Product Specification

Rev. 00

Parameter Symbol

Min Type Max

Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz

Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns

Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns

Input Data Position2 tRIP6 2T/7-|tRMG|

Input Data Position3 tRIP5 3T/7-|tRMG|

Input Data Position4 tRIP4 4T/7-|tRMG|

Input Data Position5 tRIP3 5T/7-|tRMG|

Input Data Position6 tRIP2 6T/7-|tRMG|

Rating

Unit

2T/7 2T/7+|tRMG| ns

3T/7 3T/7+|tRMG| ns

4T/7 4T/7+|tRMG| ns

5T/7 5T/7+|tRMG| ns

6T/7 6T/7+|tRMG| ns

tRIP2

tRIP3

tRIP4

tRIP5

Note

T=1/Fclk

LVDS-Rx Input Data

LVDS-Rx Input Clock

tRIP6

tRIP0

tRIP1

Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3

VVVV

=

= 0000VVVV

= =

diff

diff diff

1/Fclk=T

9

3.2 Interface Connections

‧‧‧‧

Type: “ECHO-FS” FRC

LCD connector: FI-RE51S-HF (JAE, LVDS connector)

T460HVN02.1 SKD Product Specification

Rev.0 0

PIN Symbol Description PIN

1

2

3

4

5

6

7

8

9

10 CH1_0- LVDS Channel 1, Signal 0- 35

11 CH1_0+

12 CH1_1- LVDS Channel 1, Signal 1- 37

13 CH1_1+

14 CH1_2- LVDS Channel 1, Signal 2- 39

15 CH1_2+

16

17 CH1_CLK-

18 CH1_CLK+

19

20 CH1_3- LVDS Channel 1, Signal 3- 45

VDD Power Supply, +12V DC Regulated 26

VDD Power Supply, +12V DC Regulated 27

VDD Power Supply, +12V DC Regulated 28

VDD Power Supply, +12V DC Regulated 29

VDD Power Supply, +12V DC Regulated 30

Dimming_4

GND Ground 32

GND Ground 33

GND Ground 34

LVDS Channel 1, Signal 0+ 36

LVDS Channel 1, Signal 1+ 38

LVDS Channel 1, Signal 2+ 40

GND Ground 41

LVDS Channel 1, Clock - 42

LVDS Channel 1, Clock + 43 TCON_I2C_SW

GND Ground 44

Dimming_4

31

Symbol Description

CH2_0+ LVDS Channel 2, Signal 0+

CH2_1- LVDS Channel 2, Signal 1-

CH2_1+ LVDS Channel 2, Signal 1+

CH2_2- LVDS Channel 2, Signal 2-

CH2_2+ LVDS Channel 2, Signal 2+

GND Ground

CH2_CLK- LVDS Channel 2, Clock -

CH2_CLK+ LVDS Channel 2, Clock +

GND Ground

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

CH2_4- LVDS Channel 2, Signal 4-

CH2_4+ LVDS Channel 2, Signal 4+

GND Ground

SCL EEPROM Serial Clock

REF_Sync REF_Sync

BT_SYNC_OUT

SDA EEPROM Serial Data

Dimming_2 Dimming_2

BT_SYNC_OUT

High(3.3V) for Writable,

Low(GND) for Protection

21 CH1_3+

22 CH1_4- LVDS Channel 1, Signal 4- 47

23 CH1_4+

24

25 CH2_0- LVDS Channel 2, Signal 0- 50

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).

GND Ground 49

LVDS Channel 1, Signal 3+ 46

LVDS Channel 1, Signal 4+ 48

51

Dimming_3 Dimming_3

FRC_SCL FRC_SCL

Dimming_1 Dimming_1

FRC_SDA FRC_SDA

Main_Check_LVDS

Aging_EN

Main_Check_LVDS

Aging pattern control

High(3.3V) : Aging Enable

Open/Low(GND) : Aging Disable

26

28

29

30

‧‧‧‧

Type: “F-LED” FRC

LCD connector: FI-RE51S-HF (JAE, LVDS connector)

T460HVN02.1 SKD Product Specification

Rev.0 0

PIN Symbol Description PIN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

VDD Power Supply, +12V DC Regulated

N.C. No connection

GND Ground

CH1_0- LVDS Channel 1, Signal 0-

CH1_0+

CH1_1- LVDS Channel 1, Signal 1-

CH1_1+

CH1_2- LVDS Channel 1, Signal 2-

CH1_2+

LVDS Channel 1, Signal 0+

LVDS Channel 1, Signal 1+

LVDS Channel 1, Signal 2+

27

31

32

33

34

35

36

37

38

39

40

Symbol Description

CH2_0+ LVDS Channel 2, Signal 0+

CH2_1- LVDS Channel 2, Signal 1-

CH2_1+ LVDS Channel 2, Signal 1+

CH2_2- LVDS Channel 2, Signal 2-

CH2_2+ LVDS Channel 2, Signal 2+

GND Ground

CH2_CLK- LVDS Channel 2, Clock -

CH2_CLK+ LVDS Channel 2, Clock +

GND Ground

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

CH2_4- LVDS Channel 2, Signal 4-

CH2_4+ LVDS Channel 2, Signal 4+

GND Ground

SCL EEPROM Serial Clock

16

17

18

19

20

21

22

23

24

25

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).

GND Ground

CH1_CLK-

CH1_CLK+

GND Ground

CH1_3- LVDS Channel 1, Signal 3-

CH1_3+

CH1_4- LVDS Channel 1, Signal 4-

CH1_4+

GND Ground

CH2_0- LVDS Channel 2, Signal 0-

LVDS Channel 1, Clock -

LVDS Channel 1, Clock +

LVDS Channel 1, Signal 3+

LVDS Channel 1, Signal 4+

51

41

42

43

44

45

46

47

48

49

50

Update_check Update_check

BT_SYNC BT_SYNC

TCON_I2C_SW

SDA EEPROM Serial Data

Dimming_2 Dimming_2

FRC_RESET FRC_RESET

FRC_SCL FRC_SCL

Dimming_1 Dimming_1

FRC_SDA FRC_SDA

Main_Check_LVDS

Aging_EN

High(3.3V) for Writable,

Low(GND) for Protection

Main_Check_LVDS

Aging pattern control

High(3.3V) : Aging enable

Open/Low(GND) : Aging disable

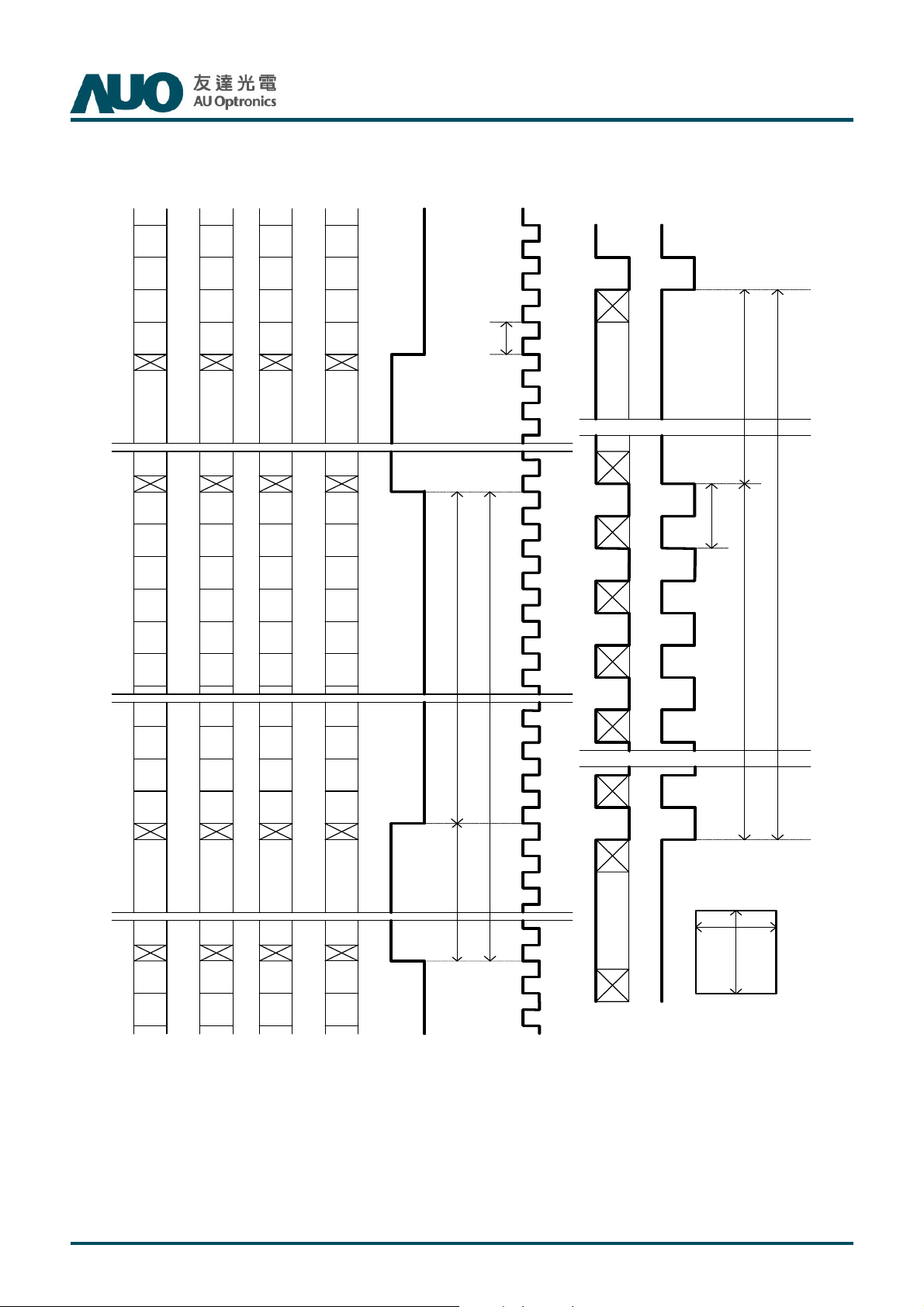

T460HVN02.1 SKD Product Specification

LVDS Option = Only JEIDA for “ECHO-FS” FRC Type and “F-LED” FRC Type

P re v io u s C yc le C u r r e n t C yc le N ex t C yc le

P re v io u s C yc le C u r r e n t C yc le N ex t C yc le P re v io u s C yc le C u r r e n t C yc le N ex t C yc le

C lo c k

C lo c kC lo c k

C Hx

C Hx ____ 0000 ++++

C HxC Hx C Hx

C Hx ____ 0000 ----

C HxC Hx

C Hx

C Hx ____ 1111 ++++

C HxC Hx C Hx

C Hx ____ 1111 ----

C HxC Hx

C Hx

C Hx ____ 2222 ++++

C HxC Hx C Hx

C Hx ____ 2222 ----

C HxC Hx

D EBBBB 6666BBBB 7777 BBBB 8888BBBB 9999N A

D ED E

N A D E

N AN A

N A BBBB 7777

N AN A

RRRR 4444RRRR 9999 GGGG 4444GGGG 4444RRRR 4444RRRR 5555 RRRR 6666RRRR 7777RRRR 8888 RRRR 5555

GGGG 5555BBBB 4444 BBBB 5555BBBB 5555GGGG 5555GGGG 6666 GGGG 7777GGGG 8888GGGG 9999 GGGG 6666

BBBB 6666N A

D ED E

Rev.0 0

C Hx

C Hx ____ 3333 ++++

C HxC Hx C Hx

C Hx ____ 3333 ----

C HxC Hx

C Hx

C Hx ____ 4444 ++++

C HxC Hx C Hx

C Hx ____ 4444 ----

C HxC Hx

N ARRRR 2222RRRR 3333 GGGG 2222GGGG 3333BBBB 2222 RRRR 3333

N AN A

N ARRRR 0000RRRR 1111 GGGG 0000GGGG 1111BBBB 0000 RRRR 1111

N AN A

Note: x = 1, 2, 3, 4…

RRRR 2222BBBB 3333 N A

RRRR 0000BBBB 1111 N A

N AN A

T460HVN02.1 SKD Product Specification

Rev.0 0

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode) for SEC FRC Input

Signal Item Symbol Type Type Unit

Period Tv

Vertical Section

Horizontal Section

Clock Frequency Fclk=1/Tclk

Vertical Frequency Frequency Fv

Horizontal Frequency Frequency Fh

Active Tdisp (v)

Blanking Tblk (v)

Period Th

Active Tdisp (h)

Blanking Tblk (h)

Timing Table (DE only Mode) for AUO Tcon Input

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1096 1130 1392 Th

Vertical Section

Active Tdisp (v) 1080

Blanking Tblk (v) 16 50 312 Th

Period Th 520 570 580 Tclk

1125 1125

1080 1080

45 45

1100 1320

960 960

140 360

74.25 74.25

60 50

67.5 56.25

Th

Tclk

MHz

Hz

KHz

Horizontal Section

Clock Frequency Fclk=1/Tclk 64.8 77.29 80.74 MHz

Vertical Frequency Frequency Fv 94 120 122 Hz

Horizontal Frequency Frequency Fh 120 135.6 139.2 KHz

Notes:

(1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the

left edge of the screen.

(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen.

(3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

(4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

Active Tdisp (h) 480

Blanking Tblk (h) 40 90 100 Tclk

3.4 Signal Timing Waveforms for AUO Tcon Input

T460HVN02.1 SKD Product Specification

Rev.0 0

CH4

M-12

Pixel

M-8

Pixel

M-4

Pixel

M

Invalid Data

Pixel

4

Pixel

8

Pixel

12

Pixel

16

Pixel

20

Pixel

24

CH3

M-13

Pixel

M-9

Pixel

M-5

Pixel

M-1

Invalid Data

Pixel

3

Pixel

7

Pixel

11

Pixel

15

Pixel

19

Pixel

23

CH2

M-14

Pixel

M-10

Pixel

M-6

Pixel

M-2

Invalid Data

Pixel

2

Pixel

6

Pixel

10

Pixel

14

Pixel

18

Pixel

22

CH1

M-15

Pixel

M-11

Pixel

M-7

Pixel

M-3

Invalid Data

Pixel

1

Pixel

5

Pixel

9

Pixel

13

Pixel

17

Pixel

21

DE

Tdisp(h) Tblk(h)

CLK

RGB

Data

Line

N

Tclk

Invalid Data Invalid Data

Line

1

Line

2

Th

Line

3

Line

4

DE

Th

Tv

Tdisp(v)Tblk(v)

M-10

Pixel

M-8

Pixel

M-4

Pixel

M

Invalid Data

Pixel

4

Pixel

8

Pixel

M-9

Pixel

M-5

Pixel

M-1

Invalid Data

Pixel

3

Pixel

7

Pixel

M-6

Pixel

M-2

Invalid Data

Pixel

2

Pixel

6

M-11

Pixel

M-7

Pixel

M-3

Invalid Data

Pixel

1

Pixel

5

Line

N

N L in e

N L in eN L in e

M

M p

p

p i

i

x

x e

e

e l

l

Basic

T460HVN02.1 SKD Product Specification

Rev.0 0

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 10 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Color

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

Blue(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

Color

Cyan 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

R

----

RED(1022) 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

G

----

GREEN(1022) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0

GREEN(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

----

BLUE(1022) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0

BLUE(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

T460HVN02.1 SKD Product Specification

Rev.0 0

3.6 Power Sequence for LCD (with “ECHO-FS” & “F-LED ” FRC_Input FHD:60Hz / Output

FHD:120Hz)

Parameter

Min. Type. Max.

t1 0.4 --- 30 ms

t2a 0.1 --- 50 ms

t2b 50 1000 ms

t2c 0 --- --- ms

t2 0.1 --- 50 ms

t3 670 --- --- ms

t4 0*2 --- --- ms

t5 0 --- --- ms

t6 --- --- ---*3 ms

t7 500 --- --- ms

T8 10*5 --- 50 ms

T9 0 --- --- ms

T10 450 --- --- ms

T11 150*4 --- --- ms

Note: (1) t2a, t2b, t2c is determined by customer (2) t4=0 : concern for residual pattern before BLU turn off. (3) t6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value) (4) t9: the min value is decided by the download finish time of EDID 2Kbits.(when SCL over 30KHz) (5) When CMOS Interface signal is N.C. (no connection), opened in Transmitted end, t8 timing spec can be

negligible.

Values

Unit

T460HVN02.1 SKD Product Specification

Rev.0 0

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a

dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Contrast Ratio CR

Surface Luminance

(White)

Luminance Variation δ

Response Time (G to G)

Center Transmittance T%

Color Chromaticity 5

Red RX 0.669

RY 0.323

Green GX 0.300

GY 0.605

Blue BX 0.138

LWH

WHITE(9P)

Tγ -- 5.5 -- Ms 4

Standard light source “C”

Condition

Min. Typ. Max

--

*

-- -- 1.33 3

6.2 % 7

With CS-1000T

Typ.-0.03

Values

5000 -- 1

300 -- cd/m2 2

Typ.+0.03

Unit Notes

BY 0.082

White WX 0.325

WY

Viewing Angle 6

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θd

With AUO Module

-- 89 -- degree

0.369

2 3

7

T460HVN02.1 SKD Product Specification

Rev.0 0

1. Light source here is the BLU of AUO T460HVN02 V4 module.

*

The typical values of contrast ratio, surface luminance, luminance variation, and color chromaticity are

based on the average value of DVT samples with T460HVN02.4 backlight.

*

T460HVN02.4 LED lightbar and LED backlight structure are designed by customers, AUO can not

guarantee the typical value of NTSC, RGBW, contrast ratio, luminance, and maximum value of luminance

variation.

2. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

Surface Luminance of

3. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

displaying white. For more information see FIG 2. LWH=Lon5 where Lon5 is the luminance with all pixels

displaying white at center 5 location.

FIG. 2 Luminance

L

on5

L

off5

V

H/2

H/6

1

H

V/2 V/6

4. The variation in surface luminance, δWHITE is defined (center of Screen) as:

δ

WHITE(9P)

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

5. Response time Tγ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=120Hz to optimize.

Target Measured

Response Time

0% 25% 50% 75% 100%

Start

0%

25%

50%

75%

100%

0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% to 0% 25% to 50% 25% to 75% 25% to 100%

50% to 0% 50% to 25%

75% to 0% 75% to 25% 75% to 50%

100% to 0% 100% to 25% 100% to 50% 100% to 75%

50% to 75% 50% to 100%

75% to 100%

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of grey(bright) “ and “any level of gray(dark)”.

T460HVN02.1 SKD Product Specification

FIG.3 Response Time

Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)

Rev.0 0

0% , 25% , 50% , 75%, 1 00%

0% , 25% , 50%, 75%, 100%

Photodetector

Output

0% , 25% , 50%, 75%, 100%

Time

T

(F)

γγγγ

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG4.

FIG.4 Viewing Angle

T

γγγγ

(R)

7. Definition of Transmittance (T%):

module LCD of Luminance

nceTransmitta ∗=

%001

backlight of Luminance

During transmittance measurement, the backlight of LCD module contains no brightness enhancement film.

Two diffuser sheets which diffuse the light source uniformly are suggested to use for transmittance

measurement.

5. Open Cell Drawing

T460HVN02.1 SKD Product Specification

Rev.0 0

T460HVN02.1 SKD Product Specification

Rev.0 0

6. Reliability Test Items (Reference Only)

Open cell reliability is based on T460HVN02.1 module RA result, except open cell packing vibration and

drop.

1 High temperature storage test 3 60℃, 300hrs

2 Low temperature storage test 3 -20℃, 300hrs

3 High temperature operation test 3 50℃, 300hrs

4 Low temperature operation test 3 -5℃, 300hrs

5 Vibration test (With carton) 1(PKG)

6 Drop test (With carton) 1(PKG)

Note: Test item 1~4Test item 1~4 RA tests are done on AUO T460HVN02.1 panels.

Test Item Q’ty Condition

Random wave (1.5G RMS, 10-200Hz)

30mins/ Per each X,Y,Z axes

Drop Height: 15.2 cm, 6 Flats

(Front→Rear→Left→Right→Top→Bottom)

(ASTMD4169-I)

7. Packing

7-1 DEFINITION OF LABEL:

A. Open cell shipping Label:

(1)

AUO internal code

(2)

Manufactured date

(3)

Model name

(1) (2) (3)

T460HVN02.1 SKD Product Specification

TTTT46

460000HVN02.

HVN02.1111

4646

HVN02.HVN02.

Rev.0 0

B. Carton Label:

7-2 PACKING METHODS:

T460HVN02.1 SKD Product Specification

Rev.0 0

EPE Spacer

Open Cell

Hybrid Box

1Box for 12 pcs cells & 13 pcs spacers

12 Pcs/Box,

EPP Top Cover

Pallet Dimension:1200*1000*145 mm

8 Boxes/Pallet, after stack 8 boxes, then put EPP top cover on it.

7-3 Pallet and Shipment Information

T460HVN02.1 SKD Product Specification

Rev.0 0

Specification

Item

1 Packing Box 12 pcs/box 1175(L)mm*860(W)mm*116(H)mm 28

2 Pallet 1 1200(L)mm*1000(W)mm*145(H)mm 13

3 Boxes per Pallet 8 boxes/Pallet (By Air) ; 8 Boxes/Pallet*Double Pallet (By Sea)

4 Panels per Pallet 96 pcs/pallet(By Air) ; 96 pcs/Pallet*Double Pallet (By Sea)

after packing

Qty. Dimension Weight (kg)

96(by Air) 1200(L)mm*1000(W)mm*1129(H)mm (by Air) 239 (by Air)

192(by Sea) 1200(L)mm*1000(W)mm*2268(H)mm (by Sea) 478 (by Sea) 40ft HQ

Packing

Remark

5 Pallet

T460HVN02.1 SKD Product Specification

8. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

8-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.

(2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied

to module. And the case on which a module is mounted should have sufficient strength so that

external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

Rev.0 0

generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit

broken by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the

surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials

like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the

adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because

they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

8-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes

longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall

be done by system manufacturers. Grounding and shielding methods may be important to minimize

the interface.

8-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain

that treatment persons are connected to ground through wristband etc. And don’t touch interface pin

directly.

8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

8-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

T460HVN02.1 SKD Product Specification

Rev.0 0

temperature between 5 and 35 at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

℃ ℃

8-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or

in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.
