T460HVN01.0
Specification
31 pgs1.45 Mb0
Specification
32 pgs904.84 Kb0

AUO T460HVN01.0 Specification

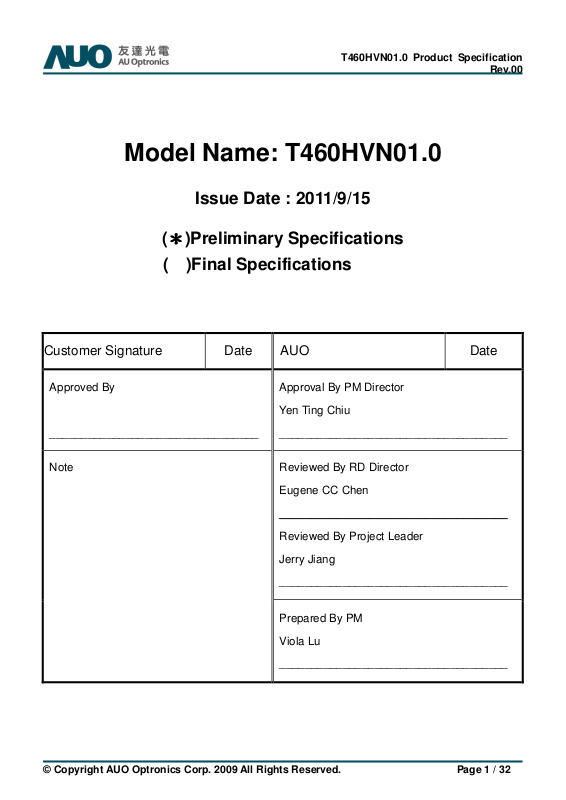

T460HVN01.0 Product Specification
Rev.00
Model Name: T460HVN01.0
(＊＊＊＊)Preliminary Specifications
( )Final Specifications
Customer Signature Date AUO Date
Approved By
_________________________________
Note
Approval By PM Director
Yen Ting Chiu
____________________________________
Reviewed By RD Director
Eugene CC Chen
____________________________________
Reviewed By Project Leader
Jerry Jiang
____________________________________
Prepared By PM
Viola Lu
____________________________________
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 1 / 32
T460HVN01.0 Product Specification
Rev.00
Contents
No
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATION
3-1 ELECTRIACL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATION
3-4 SIGNAL TIMING WAVEFORM
3-5 COLOR INPUT DATA REFERENCE
3-6 POWER SEQUENCE
3-7 BACKLIGHT SPECIFICATION
4 OPTICAL SPECIFICATION

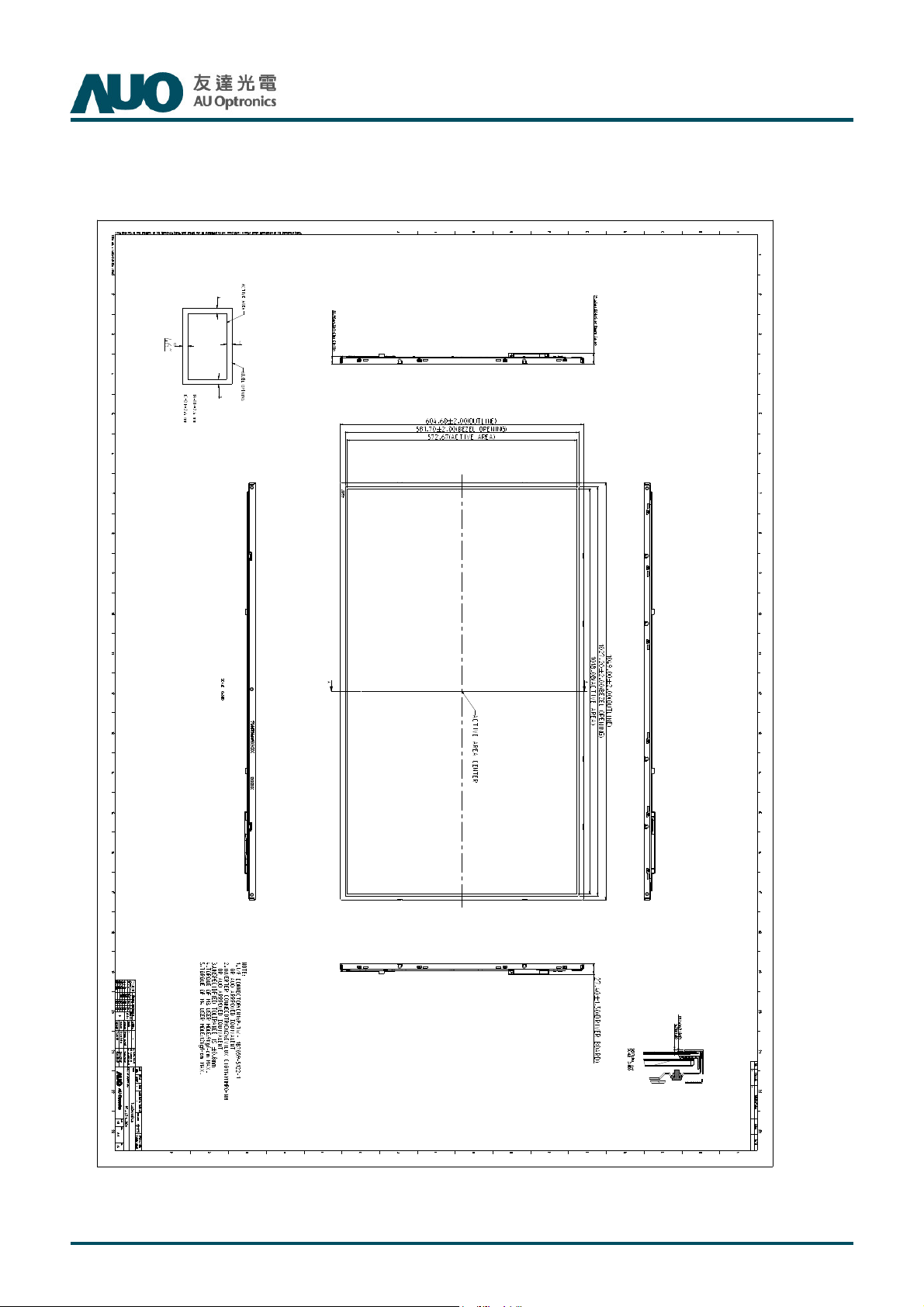

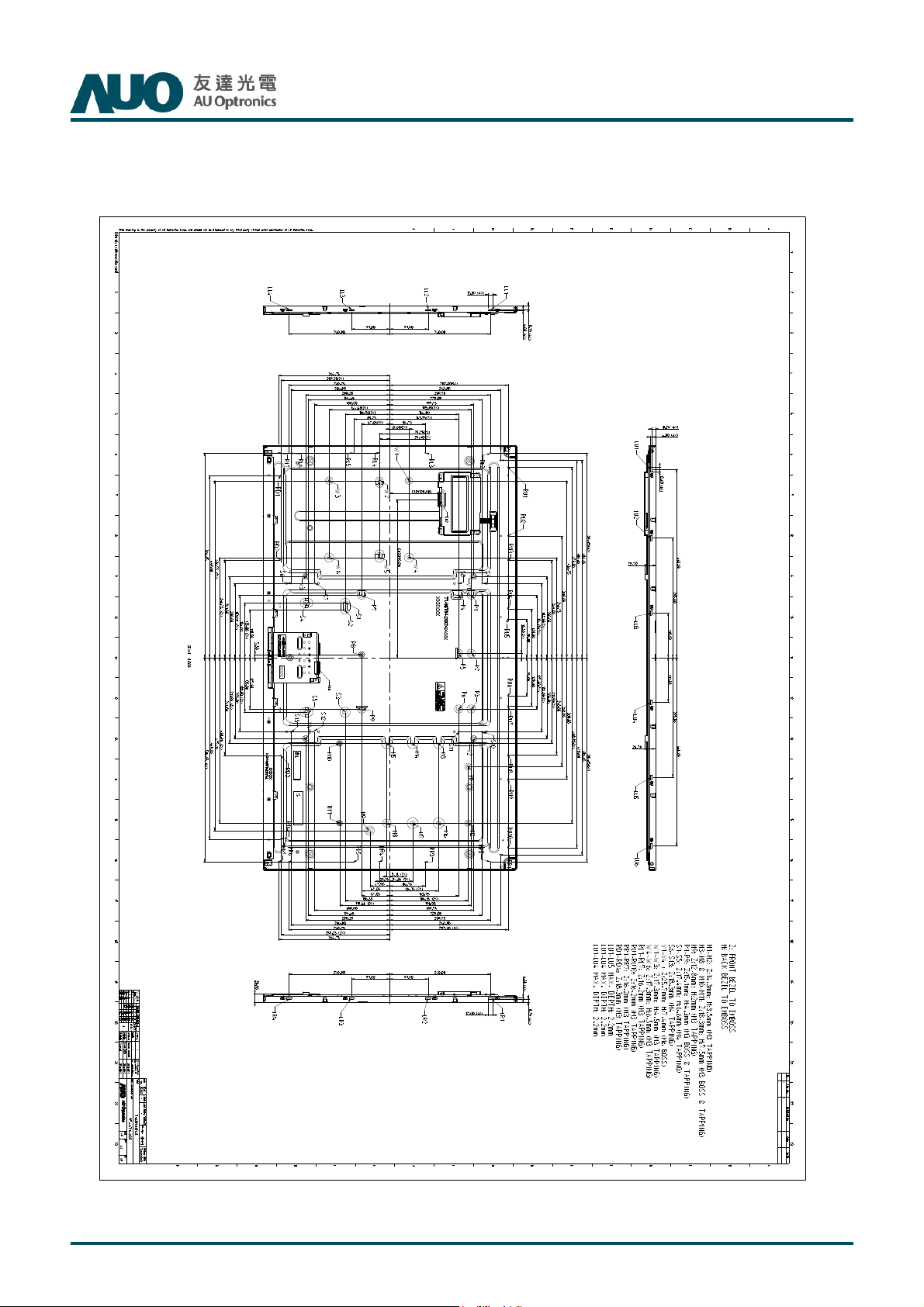

5 MECHANICAL CHARACTERISTICS
6 RELIABILITY TEST ITEMS
7 INTERNATIONAL STANDARD
7-1 SAFETY
7-2 EMC
8 PACKING
8-1 DEFINITION OF LABEL
8-2 PACKING METHODS
8-3 PALLET AND SHIPMENT INFORMATION
9 PRECAUTION
9-1 MOUNTING PRECAUTIONS
9-2 OPERATING PRECAUTIONS
9-3 ELECTROSTATIC DISCHARGE CONTROL
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE
9-6 HANDLING PRECAUTIONS FOR PROTECT FILM
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 2 / 32
Record of Revision
T460HVN01.0 Product Specification
Rev.00
Version
0.0 2011/9/15 First release
Date Page Description
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 3 / 32
T460HVN01.0 Product Specification
Rev.00
1. General Description
This specification applies to the 46.0 inch Color TFT-LCD Module T460HVN01.0. This LCD module has a TFT
active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 46.0 inch. This module supports
1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical
stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
The T460HVN01.0 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to
support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very
important.
* General Information
Items Specification Unit Note
Active Screen Size 46.00 inch
Display Area 1018.08(H) x 572.67(V) mm
Outline Dimension 1049(H) x 604.6(V) x 27.4(D) mm D: front bezel to D/B cover
Driver Element a-Si TFT active matrix
Bezel Opening 1027.2(H) x 581.7(V) mm
Display Colors 8 bit, 16.7M Colors
Number of Pixels 1,920x1,080 Pixel
Pixel Pitch 0.53025(H) x 0.53025(W) mm
Pixel Arrangement RGB vertical stripe
Display Operation Mode Normally Black
Surface Treatment Anti-Glare, 3H Haze=2%
Rotate Function Unachievable Note 1
Note 1: Rotate Function refers to LCD display could be able to rotate.
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 4 / 32
T460HVN01.0 Product Specification
2. Absolute Maximum Ratings
The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage VDD -0.3 14 [Volt] Note 1
Input Voltage of Signal Vin -0.3 4 [Volt] Note 1
Operating Temperature TOP 0 +50 [oC] Note 2
Operating Humidity HOP 10 90 [%RH] Note 2
Storage Temperature TST -20 +60 [oC] Note 2
Storage Humidity HST 10 90 [%RH] Note 2
Panel Surface Temperature PST 65 [oC] Note 3
Note 1: Duration:50 msec.
Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃
Rev.00
The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures
greater than 40 , the wet bulb temperatur℃e must not exceed 39 .℃
Note 3: Surface temperature is measured at 50℃ Dry condition
℃
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 5 / 32
T460HVN01.0 Product Specification
Rev.00
3. Electrical Specification
The T460HVN01.0 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT
array and liquid crystal. The other is to power Back Light Unit.
3.1 Electrical Characteristics
3.1.1: DC Characteristics
Parameter Symbol
LCD
Power Supply Input Voltage VDD 10.8 12 13.2 VDC
Power Supply Input Current IDD -- 0.85 0.97 A 1
Power Consumption PC -- 10.2 11.64 Watt 1
Inrush Current I
Input Differential Voltage
LVDS
Interface
CMOS
Interface
Backlight Power Consumption PBL 64.1 72 76.5 Watt
Differential Input High Threshold Voltage
Differential Input Low Threshold Voltage
Input Common Mode Voltage V
Input High Threshold Voltage
Input Low Threshold Voltage
RUSH
∣
V
∣
ID
VTH +100 -- +300 mVDC 3
VTL -300 -- -100 mVDC 3
ICM
VIH
(High)
VIL
(Low)
Min. Typ. Max
-- -- 4 A 2
200 400 600 mVDC 3
1.1 1.25 1.4 VDC 3
2.7 -- 3.3 VDC 4
0 -- 0.6 VDC 4
Value
Unit Note
Life time (MTTF) 30000
Hour 8, 9
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 6 / 32
s
µ
3.1.2: AC Characteristics
T460HVN01.0 Product Specification
Rev.00
Parameter Symbol
Receiver Clock : Spread Spectrum
LVDS Interface
Modulation range
Receiver Clock : Spread Spectrum Modulation frequency
Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHz
Note :
1. V
2. Measurement condition : Rising time = 400us
= 12.0V, Fv = 60Hz, Fclk= 82MHz , 25 ℃, Test Pattern : White Pattern
DD
GND
GND
GNDGND
10%
Fclk_ss
Fss
tRMG
90%
Value
Min. Typ. Max
Fclk
-3%
30
--
--
-0.4
-0.5
VVVV
DD
DD
DDDD
--
--
Unit Note
Fclk
+3%
200
0.4
0.5
MHz
KHz
ns
6
6
7
3. V
= 1.25V
ICM
L V D S -
V
IC M
L V D S +
G N D
0 V
4. The measure points of V
5. Input Channel Pair Skew Margin
and V
IH
400
400
400400
V
T H
|VID|
V
T L
|VID|
|VID|
are in LCM side after connecting the System Board and LCM.
IL
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 7 / 32
T460HVN01.0 Product Specification
Note: x = 0, 1, 2, 3, 4
6. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures
1111////FFFF
SS
SS
SSSS
Fclk
Fclk____ss
FclkFclk
ss((((max
max))))
ssss
maxmax
Rev.00
Fclk
Fclk
FclkFclk
Fclk
Fclk____ss
FclkFclk
ss((((min
ssss
min))))
minmin
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 8 / 32
7. Receiver Data Input Margin
T460HVN01.0 Product Specification
Rev.00
Parameter Symbol
Min Type Max
Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz
Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns
Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns
Input Data Position2 tRIP6 2T/7-|tRMG|
Input Data Position3 tRIP5 3T/7-|tRMG|
Input Data Position4 tRIP4 4T/7-|tRMG|
Input Data Position5 tRIP3 5T/7-|tRMG|
Input Data Position6 tRIP2 6T/7-|tRMG|
Rating
Unit
2T/7 2T/7+|tRMG| ns
3T/7 3T/7+|tRMG| ns
4T/7 4T/7+|tRMG| ns
5T/7 5T/7+|tRMG| ns
6T/7 6T/7+|tRMG| ns
tRIP2
tRIP3
tRIP4
tRIP5
Note
T=1/Fclk
tRIP6
tRIP0
tRIP1 LVDS-Rx Input Data
Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3
LVDS-Rx
VVVV
=
= 0000VVVV
= =
diff
diff
Input Clock
diff diff
1/Fclk=T
8. The relative humidity must not exceed 80% non-condensing at temperatures of 40℃ or less. At
temperatures greater than 40℃, the wet bulb temperature must not exceed 39℃. When operate at low
temperatures, the brightness of LED will drop and the life time of LED will be reduced.
9. The lifetime (MTTF) is defined as the time which luminance of LED is 50% compared to its original value.
[Operating condition: Continuous operating at Ta = 25±2℃]
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 9 / 32
T460HVN01.0 Product Specification
3.2 Interface Connections
LCD connector: FI-RE51S-HF_20.10510.001(JAPAN AVIATION ELECTRONICS INDUSTRY)
PIN
Symbol Description PIN
Symbol Description
Rev.00
1
2
3
4
5
6
7 LVDS_SEL
8
9
10
11
12
13
14
15
16
17
18
19 CH1_CLK- LVDS Channel 1, Clock - 44
20 CH1_CLK+ LVDS Channel 1, Clock + 45
21
22
23
24
25
Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal (Low/GND/High).
N.C. AUO Internal Use Only 26
N.C.
N.C. AUO Internal Use Only 28
N.C.
N.C.
N.C.
N.C. No connection 33
N.C. No connection 34
N.C. No connection 35 CH2_CLK- LVDS Channel 2, Clock -
GND Ground 36 CH2_CLK+ LVDS Channel 2, Clock +
CH1_0- LVDS Channel 1, Signal 0- 37
CH1_0+ LVDS Channel 1, Signal 0+ 38
CH1_1- LVDS Channel 1, Signal 1- 39
CH1_1+ LVDS Channel 1, Signal 1+ 40
CH1_2- LVDS Channel 1, Signal 2- 41
CH1_2+ LVDS Channel 1, Signal 2+ 42
GND Ground 43
GND Ground 46
CH1_3- LVDS Channel 1, Signal 3- 47
CH1_3+ LVDS Channel 1, Signal 3+ 48
N.C.
N.C.
AUO Internal Use Only 27
AUO Internal Use Only 29
AUO Internal Use Only 30
AUO Internal Use Only 31
Open/High(3.3V) for NS,
32
Low(GND) for JEIDA
AUO Internal Use Only 49
AUO Internal Use Only 50
51
N.C. AUO Internal Use Only
N.C.
CH2_0- LVDS Channel 2, Signal 0-
CH2_0+ LVDS Channel 2, Signal 0+
CH2_1- LVDS Channel 2, Signal 1-
CH2_1+ LVDS Channel 2, Signal 1+
CH2_2- LVDS Channel 2, Signal 2-
CH2_2+ LVDS Channel 2, Signal 2+
GND Ground
GND Ground
CH2_3- LVDS Channel 2, Signal 3-
CH2_3+ LVDS Channel 2, Signal 3+
N.C.
N.C.
N.C. AUO Internal Use Only
N.C. No connection
GND Ground
GND Ground
GND Ground
N.C. No connection
V
DD
V
DD
V
DD
V
DD
AUO Internal Use Only
AUO Internal Use Only
AUO Internal Use Only
Power Supply, +12V DC Regulated
Power Supply, +12V DC Regulated
Power Supply, +12V DC Regulated
Power Supply, +12V DC Regulated
© Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 10 / 32
