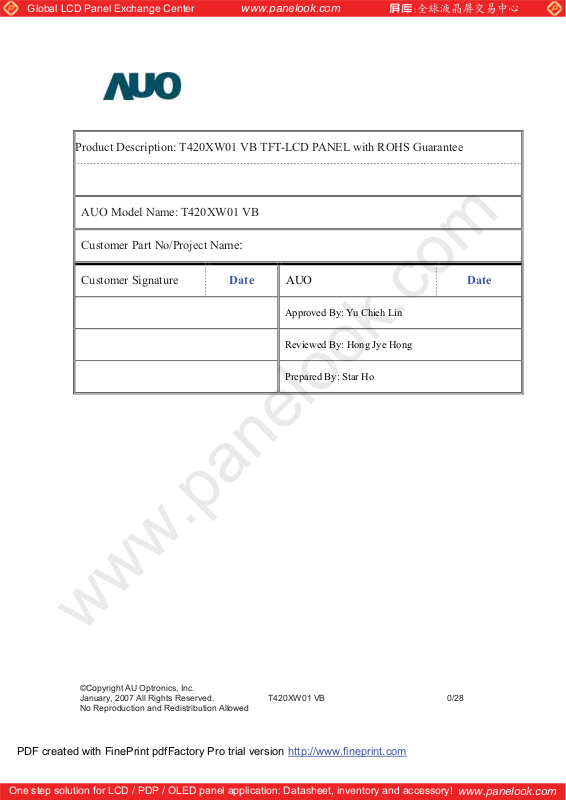

Product Description: T420XW01 VB TFT-LCD PANEL with ROHS Guarantee

AUO Model Name: T420XW01 VB

Customer Part No/Project Name:

Customer Signature Date AUO Date

www.panelook.com

Approved By: Yu Chieh Lin

Reviewed By: Hong Jye Hong

Prepared By: Star Ho

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 2

Global LCD Panel Exchange Center

www.panelook.com

Document Version: 1.0

Date:2007/3/06

Product Functional Specification

42” WXGA Color TFT-LCD Module

Model Name: T420XW01 VB

(*) Preliminary Specification

( ) Final Specification

Note : This specification is subject to change without notice.

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 3

Global LCD Panel Exchange Center

COVER

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION 1

www.panelook.com

Contents

ITEMNo

ABSOLUTE MAXIMUM RATINGS2

ELECTRICAL SPECIFICATIONS3

ELECTRICAL CHARACTREISTICS3-1

INTERFACE CONNECTIONS3-2

SIGNAL TIMING SPECIFICATIONS3-3

SIGNAL TIMING WAVEFORMS3-4

COLOR INPUT DATA REFERNECE 3-5

POWER SEQUENCE3-6

OPTICAL SFECIFICATIONS4

MECHANICAL CHARACTERISTICS5

INTERNATIONAL STANDARDS

SAFETY6-1

EMC6-2

PACKING7

PRECAUTIONS8

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 4

Global LCD Panel Exchange Center

Version Date No Old Description New Description Remark

1.0 2007/3/06 First release

www.panelook.com

Record of Revision

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 5

Global LCD Panel Exchange Center

1. General Description

This specification applies to the 42 inch Color TFT-LCD Module T420XW01 VB. This LCD module has

a TFT active matrix type liquid crystal panel 1366x768 pixels, and diagonal size of 42 inch. This

module supports 1366x768 WXGA mode (Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.

Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each

dot.

The T420XW01 VB has been designed to apply the 8-bit 1 channel LVDS interface method. It is

intended to support displays where high brightness, wide viewing angle, high color saturation, and

high color depth are very important.

www.panelook.com

* General Information

Items Specification Unit Note

Active Screen Size 42.02 inches

Display Area 930.25(H) x 523.01(V) mm

Outline Dimension 983.0(H) x 576.0(V) x 52.7(D) mm With inverter

Driver Element a-Si TFT active matrix

Display Colors 16.7M Colors

Number of Pixels 1366 x 768 Pixel

Pixel Arrangement RGB vertical stripe

Display Mode Normally Black

Lamp quantity, type 18pcs, Straight type pcs

Surface Treatment AG, 3H

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 6

Global LCD Panel Exchange Center

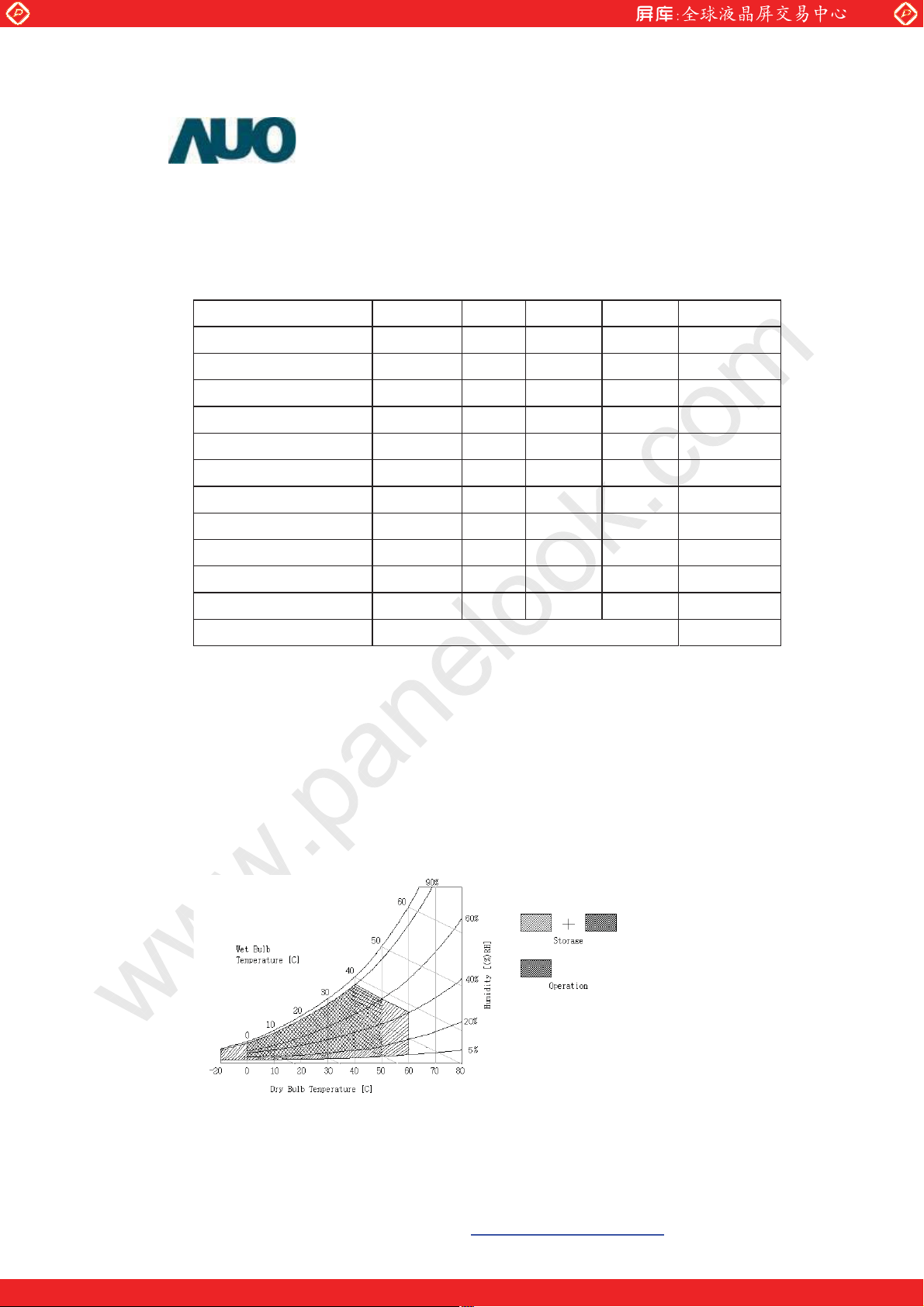

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the

unit.

Item Symbol Min Max Unit Note

Logic/LCD Drive Voltage VDD -0.3 14.0 [Volt] 1

Input Voltage of Signal Vin -0.3 3.6 [Volt] 1

BLU Input Voltage VDDB -0.3 27.0 [Volt] 1

BLU Brightness Control Voltage

Operating Temperature TOP 0 +50 [oC] 2

www.panelook.com

BLON -0.3 5.5 [Volt] 1

Operating Humidity HOP 10 90 [%RH] 2

Storage Temperature TST -20 +60 [oC] 2

Storage Humidity HST 10 90 [%RH] 2

Shock (non-operation) - 50 G 3

Vibration (non-operation) - 1.5 G 4

Thermal shock -20 60 C 5

Altitude test 50000feet (12Kpa)

Note 1 : Duration = 50msec

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.

Note 3 : Half sine wave, shock level : 50G(11ms), direction : ±x, ±y, ±z (one time each direction)

Note 4 : Wave form : random, vibration level : 1.5G RMS, Bandwidth : 10--300Hz

Duration : X,Y,Z 30min (one time each direction)

Note 5 : -20C/0.5hr ~ 60C/0.5hr, 10 cycles

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 7

Global LCD Panel Exchange Center

3. Electrical Specification

The T420XW01 requires two power inputs. One is employed to power the LCD electronics and to drive

the TFT array and liquid crystal. The second input, which powers the CCFL, is typically generated by

an inverter.

3-1 Electrical Characteristics

www.panelook.com

ValuesParameter Symbol

Min Typ Max

LCD:

Power Supply Input Voltage Vdd (11.4) 12 (12.6) Vdc

Power Supply Input Current Idd - (0.75) (0.875) A 1

Power Consumption Pc - 9 (10.5) Watt 1

Inrush Current I

LVDS

Interface

CMOS

Interface

Backlight Power Consumption - (174) (182) Watt 2

Life Time 50000 60000 Hours 3

Differential Input

High Threshold

oltage

Differential Input

Low Threshold

Voltage

Common Input

Voltage

Input High

Threshold Voltage

Input Low Threshold

Voltage

RUSH

TH +100 mV

TL -100 mV

CIM 1.10 1.25 1.40 V

VIH

(High)

(Low)

- - (5) A 5

2.4 3.3 Vdc

0 0.7 Vdc

Unit Notes

The performance of the Lamp in LCM, for example life time or brightness, is extremely influenced

by the characteristics of the DC-AC Inverter. So all the parameters of an inverter should be

carefully designed so as not to produce too much leakage current from high-voltage output of the

inverter. When you design or order the inverter, please make sure unwanted lighting caused by

the mismatch of the lamp and the inverter (no lighting, flicker, etc) never occurs. When you

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 8

Global LCD Panel Exchange Center

confirm it, the LCD Assembly should be operated in the same condition as installed in your

instrument.

Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting

tape, TFT-LCD Module have a low luminance and the inverter has abnormal action because

leakage current occurs between lamp wire and conducting tape.

The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At

temperatures greater than 40, the wet bulb temperature must not exceed 39. When operate

at low temperatures, the brightness of CCFL will drop and the lifetime of CCFL will be reduced.

Note :

1. Vdd=12.0V, fv=60Hz, f

www.panelook.com

CLK=81.5 Mhz , 25, Vdd Duration time= 400

, Test pattern : white

pattern

2. The Backlight power consumption shown above does include loss of external inverter at 25.

The used lamp current is the lamp typical current

3. The life is determined as the time at which luminance of the lamp is 50% compared to that of

initial value at the typical lamp current on condition of continuous operating at 252.

4. VCIM = 1.2V

VTH

VCIM

VTL

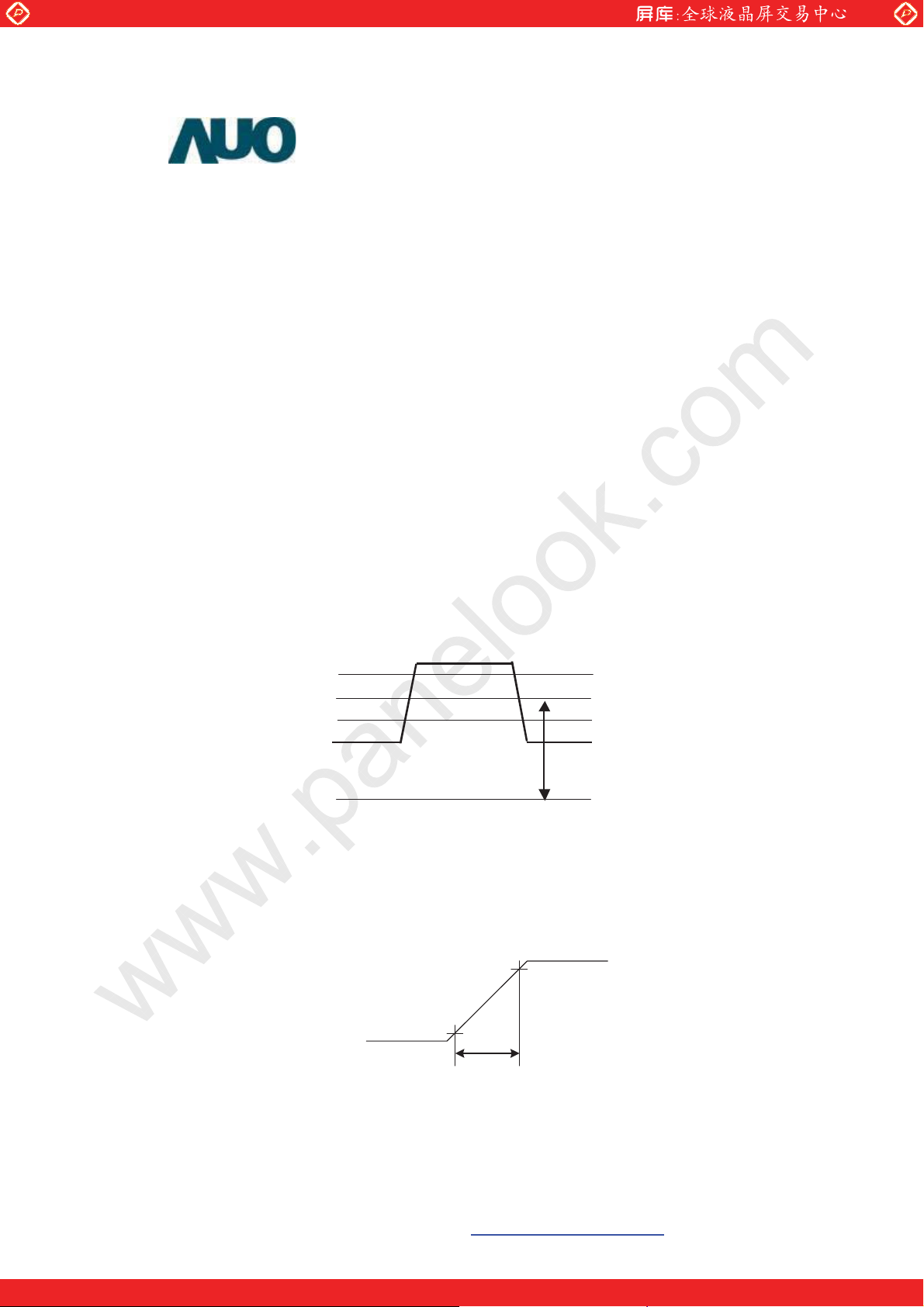

Figure : LVDS Differential Voltage

5. Measurement Condition: Rising time = 400s

0.9 Vdd

GND

0.1 Vdd

400

Vdd

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 9

Global LCD Panel Exchange Center

3-2 Interface Connections

- LCD connector: FI-X30SSL-HF (JAE) or equivalent

Note : AUO will notice customer if we change the LCD connector from JAE to others.

- Mating connector: FI-30C2L (JAE) or equivalent

Pin No Symbol Description Note

1 VCC +12V, DC, Regulated

2 VCC +12V, DC, Regulated

3 VCC +12V, DC, Regulated

4 VCC +12V, DC, Regulated

5 GND Ground and Signal Return

6 GND Ground and Signal Return

7 GND Ground and Signal Return

8 GND Ground and Signal Return

9 LVDS Option Low/Open for Normal (NS), High for JEIDA Default : NS mode

10 Reserved Open or High AUO internal test

11 GND Ground and Signal Return for LVDS

12 RXIN0- LVDS Channel 0 negative

13 RXIN0+ LVDS Channel 0 positive

14 GND Ground and Signal Return for LVDS

15 RXIN1- LVDS Channel 1 negative

16 RXIN1+ LVDS Channel 1 positive

17 GND Ground and Signal Return for LVDS

18 RXIN2- LVDS Channel 2 negative

19 RXIN2+ LVDS Channel 2 positive

20 GND Ground and Signal Return for LVDS

21 RXCLKIN- LVDS Clock negative

22 RXCLKIN+ LVDS Clock positive

23 GND Ground and Signal Return for LVDS

24 RXIN3- LVDS Channel 3 negative

25 RXIN3+ LVDS Channel 3 positive

26 GND Ground and Signal Return for LVDS

27 Reserved Open or High AUO internal test

28 Reserved Open or High AUO internal test

29 GND Ground and Signal Return

30 GND Ground and Signal Return

www.panelook.com

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 10

Global LCD Panel Exchange Center

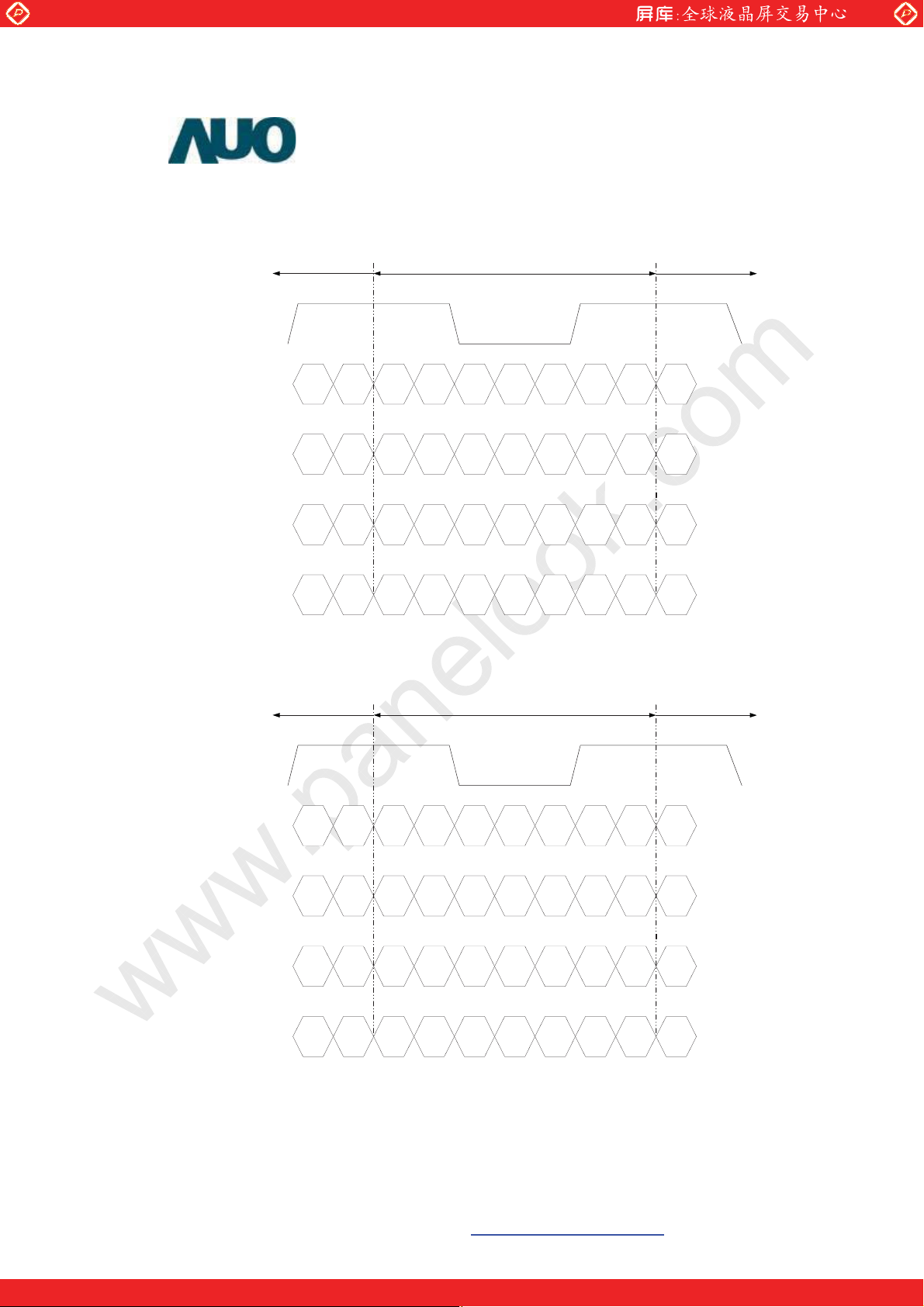

LVDS Option = HighJEIDA

Previous Cycle Current Cycle Next Cycle

Clock

www.panelook.com

RIN0+ RIN0-

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

LVDS Option = Low/OPENNS

Previous Cycle Current Cycle Next Cycle

Clock

RIN0+ RIN0-

R2R7 G2G2R2R3 R4R5R6 R3

G3B2 B3B3G3G4 G5G6G6 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

R0R5 G0G0R0R1 R2R3R4 R1

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA B4

R6B7 NANAR6R7 G6G7B6 R7

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 11

Global LCD Panel Exchange Center

Backlight Connector Pin Configuration

1. Electrical specification

No ITEM SYMBOL CONDITION MIN TYP MAX UNIT Note

www.panelook.com

1 Input Voltage V

2 Input Current I

3 Input Power P

4 Input inrush current I

DDB

RUSH

5 Output Frequency FBL V

ON/OFF Control

Voltage

BLON

ON V

OFF V

--- (22.8) 24.0 (26.4) V

=24V

DDB

100% Brightness

=24V

DDB

100% Brightness

=24V

DDB

100% Brightness

=24V --- 58 --- kHz

DDB

=24V 2.0 --- 3.3 V

DDB

=24V 0.0 --- 0.8 V

DDB

ON/OFF Control

Current

External PWM

Control Voltage

External PWM

Control Current

BLON

MAX --- 2.0 --- 3.3 V

PWM

MIN --- 0 --- 0.8 V

MAX PWM=100% 0 --- 2 mA

PWM

MIN PWM=30% 0 --- 2 mA

=24V 0 --- 2 mA

DDB

External PWM Duty

Ratio

PWM

--- (30) --- 100 %

(6.93) (7.3) (7.66) A

--- (174) (182) W 1

--- --- (11) A

External PWM

Frequency

PWM

--- 150 180 300 Hz

Ta=255, Turn on for 45minutes

Note 1 : V

DIM/Open = 1.6V; PDIM = Open/High

Note 2 : Duration = 20 ms

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 12

Global LCD Panel Exchange Center

2. Input specification

Master Board:

Connector 1: S14B-PH-SM3-TB(JST) or equivalent

Pin No Symbol Description

1 VDDB Operating Voltage Supply, +24V DC regulated

2 VDDB Operating Voltage Supply, +24V DC regulated

3 VDDB Operating Voltage Supply, +24V DC regulated

4 VDDB Operating Voltage Supply, +24V DC regulated

5 VDDB Operating Voltage Supply, +24V DC regulated

6BLGND Ground and Current Return

7BLGND Ground and Current Return

8BLGND Ground and Current Return

9BLGND Ground and Current Return

10 BLGND Ground and Current Return

11 Reserve Open

12 VBLON BL On-Off: Open/High (3.3V) for BL On as default

13 PDIM

(1)

DIM

Selection

www.panelook.com

External PWM or Analog Dimming Control input; External PWM : 0V min, 3.3V max (duty 20~100%) Analog dimming : 0V min brightness, 3.3V max brightness

GND: External PWM dimming;

(3)

Open/High: Analog dimming.

Note (1) P

DIM is PWM duty control Input for +3.3V TTL Level Signal. This Input Signal is Continuous

Pulse Signal with +3.3V, TTL Level Signal Spec. If this is Open or +3.3V, 100% Duty (i.e. +3.3V, DC level), Back Light should perform 100% Luminance. Duty Ratio of this Input signal should be proportional relationship in certain range of control without any kind of inherent side effect like Waterfall effect on Screen. Guaranteed Duty Range and Dimming Ratio should be specified with supplementary measurement result.

Note (2) 14 Pin is selection pin for PWM control method; if this pin is connected to GND, P

Pin should have Logic Level Duty Signal for PWM control. If this is set to High or

of 13 Open, 13 Wave Generator to generate internal PWM signal. Default setting is “Analog”, means when it is “Not Connected”, 13

Pin should have DC level signal therefore the Inverter should have Saw Tooth

pin of PWM control should be have DC Level signal for PWM.

Note (3) Pin 14 selection vs. Pin 13 control function table:

Pin 13

Default: Open/High: 100%

Pin 14 = GND

Pin 14 = Open/High(5.0V)

Analog dimming/Internal PWM

External PWM

(AC Signal Control Duty)

(DC Power Control Duty)

DIM input

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 13

Global LCD Panel Exchange Center

Slave Board:

Connector 2: S12B-PH-SM3-TB(JST) or equivalent

Pin No Symbol Description

1 VDDB Operating Voltage Supply, +24V DC regulated

2 VDDB Operating Voltage Supply, +24V DC regulated

3 VDDB Operating Voltage Supply, +24V DC regulated

4 VDDB Operating Voltage Supply, +24V DC regulated

5 VDDB Operating Voltage Supply, +24V DC regulated

6BLGND Ground and Current Return

7BLGND Ground and Current Return

8BLGND Ground and Current Return

9BLGND Ground and Current Return

10 BLGND Ground and Current Return

11 NC

12 NC

www.panelook.com

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 14

Global LCD Panel Exchange Center

3-3 Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing

should be satisfied with the following specifications for it’s proper operation.

Timing Table (DE only Mode)

Vertical Frequency Range A (60Hz)

Signal Item Symbol Min Type Max Unit

Vertical Section

www.panelook.com

Period Tv 789 822 Th

Active Tdisp (v) — 768 — Th

Blanking Tblk (v) 21 54 Th

Period Th 1414 1722 Tclk

Active Tdisp (h) — 1366 — Tc l k

Horizontal Section

Clock

Vertical Frequency Frequency Vs 58 60 62 Hz

Horizntal Frequency Frequency Hs 45.76 50.96 KHz

Vertical Frequency Range B (50Hz)

Signal Item Symbol Min Type Max Unit

Vertical Section

Horizontal Section

Blanking Tblk (h) 48 356 Tclk

Period CLK 11.36 — 15.38 ns

Frequency Freq 65 88 MHz

Period Tv 789 822 Th

Active Tdisp (v) — 768 — Th

Blanking Tblk (v) 21 54 Th

Period Th 1414 1722 Tclk

Active Tdisp (h) — 1366 — Tc l k

Blanking Tblk (h) 48 356 Tclk

Clock

Period CLK 13.51 — 18.52 ns

Frequency Freq 54 74 MHz

Vertical Frequency Frequency Vs 48 50 52 Hz

Horizntal Frequency Frequency Hs 37.87 42.74 KHz

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 15

Global LCD Panel Exchange Center

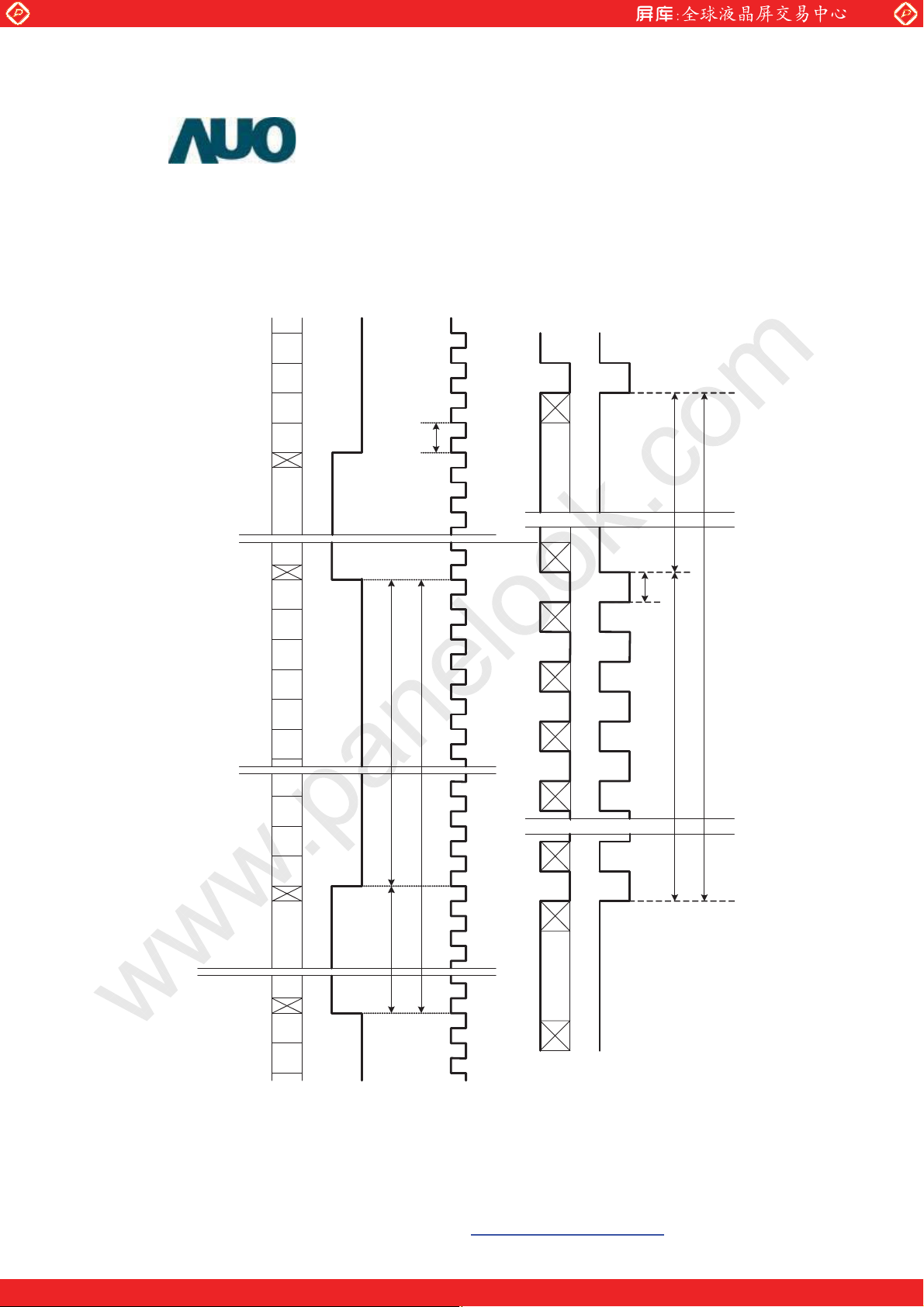

3-4 Signal Timing Waveforms

www.panelook.com

RGB Dat a

1366

Invalid Data

Pix el

Pi xel

Pixe l

Pix el

Tdisp(h)

CLK

Tcl k

RGB

Data

Line

768

Invalid Data Invalid Data

Line

Tdi sp(v)

1366

Pix el

Line

768

Invalid Data

Pix el

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 16

Global LCD Panel Exchange Center

3-5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input

for the color; the higher the binary input, the brighter the color. The table below provides a reference for

color versus data input.

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

www.panelook.com

COLOR DATA REFERENCE

Input Color Data

RED

MSB LSB

GREEN

BLUE

MSB LSB

Basic

Color

RED

GREEN

Black 0 0 0000000000000000000000

Red(255) 1 11111110000000000000000

Green(255) 000000001111111100000000

Blue(255) 0 00000000000000011111111

Cyan 0 00000001111111111111111

Magenta 1 11111110000000011111111

Yellow 1 11111111111111100000000

White 1 11111111111111111111111

RED(000) 0 00000000000000000000000

RED(001) 0 00000010000000000000000

----

RED(254) 1 11111100000000000000000

RED(255) 1 11111110000000000000000

GREEN(000) 000000000000000000000000

GREEN(001) 000000000000000100000000

----

GREEN(254) 000000001111111000000000

GREEN(255) 0 0 0000001111111100000000

BLUE(000) 0 00000000000000000000000

BLUE(001) 0 00000000000000000000001

BLUE

-------

BLUE(254) 0 00000000000000011111110

BLUE(255) 0 00000000000000011111111

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 17

Global LCD Panel Exchange Center

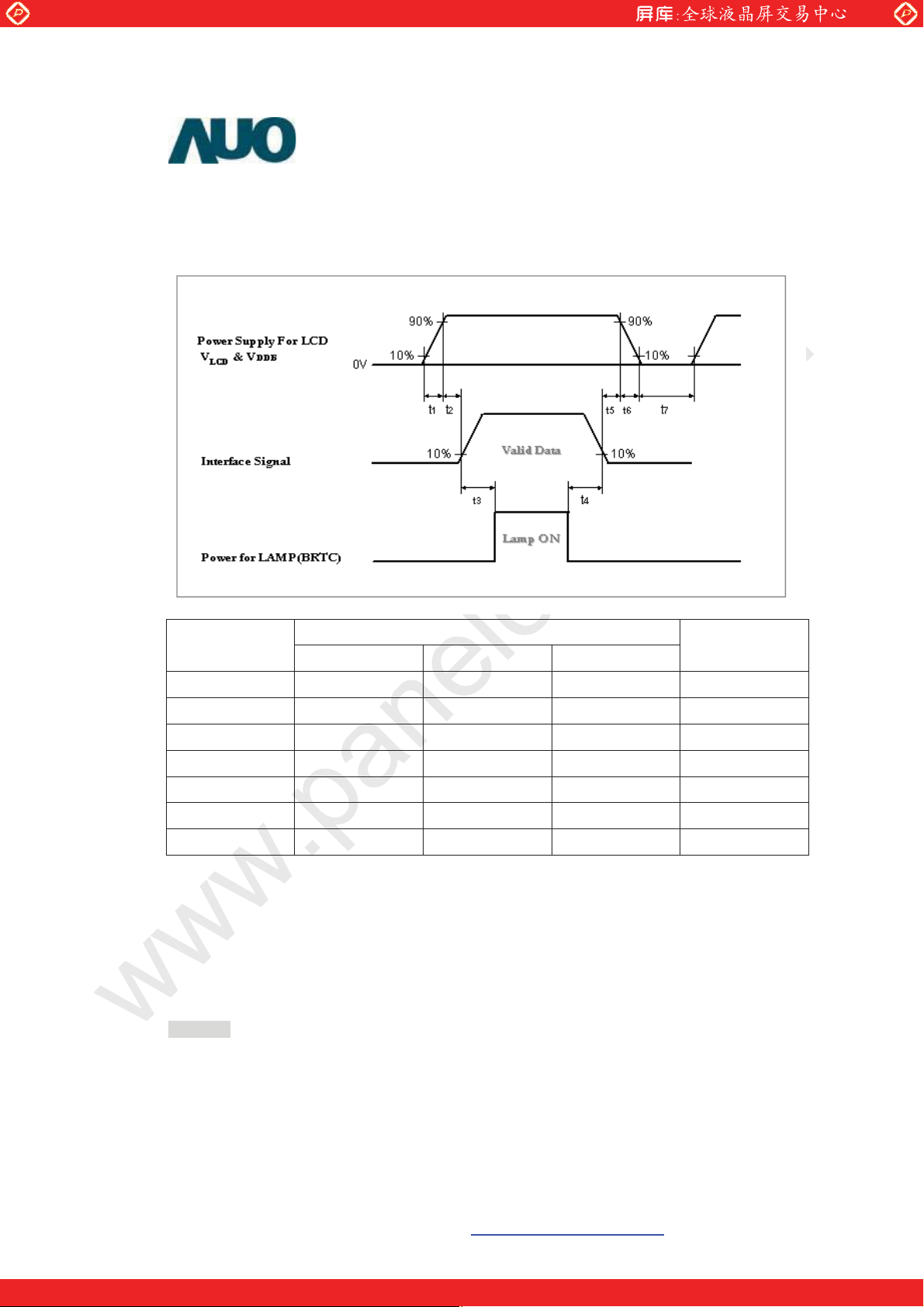

3-6 Power Sequence

1. Power sequence of panel

www.panelook.com

Values

Parameter

t1 400 - 5000 us

t2 20 - 50 ms

t3 700 or (200)* - - ms

t4 10 - - ms

t5 0 - 50 ms

t6 0.47 - 300 ms

t7 1 - - s

* : If t3=200ms, input black signal till 700ms from system is necessary. In case of t3<200ms, the

abnormal display will be happened. But it will not damage timing controller.

Apply the lamp voltage within the LCD operating range. When the backlight turns on before the LCD

operation or the LCD turns off before the backlight turns off, the display may momentarily become

abnormal.

Caution : The above on/off sequence should be applied to avoid abnormal function in the display. In

case of handling, make sure to turn off the power when you plug the cable into the input connector or

pull the cable out of the connector.

Min. Typ. Max.

Units

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 18

Global LCD Panel Exchange Center

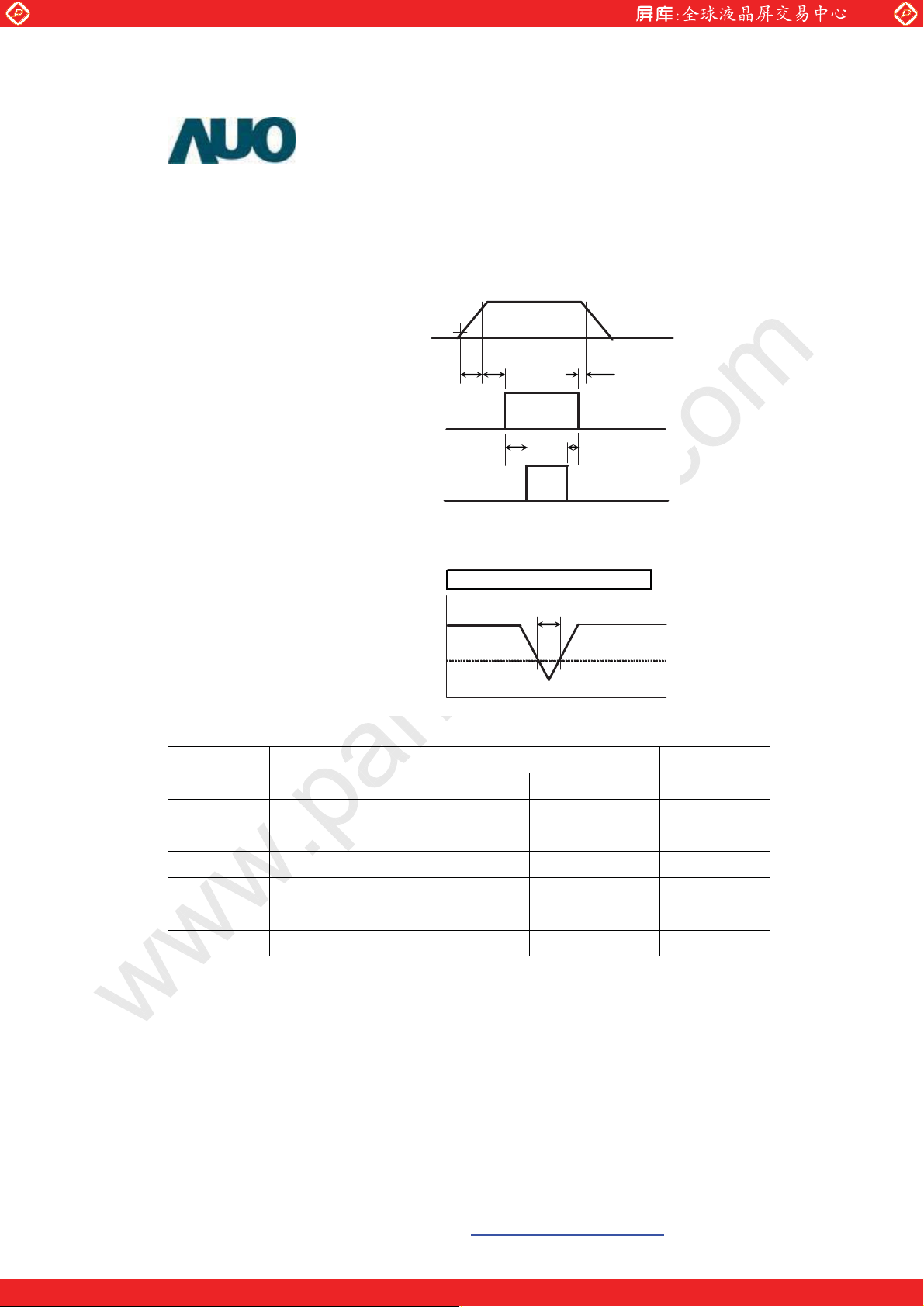

2. Power sequence of inverter

www.panelook.com

Power input for Backlight 10%

VDDB

Dimming control signal

VDIM

Back light on/of

(VBLON)

VDDB

VDDB(Typ) X 0.8

90%

24V(typ.)

T1 T2 T5

T3 T4

Deep condition for Inverter

90%

ValuesParameter

Units

Min. Typ. Max.

T1 20 - - ms

T2 50 - - ms

T3 0 - - ms

T4 0 - - ms

T5 0 - - ms

T6 - - 10 ms

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 19

Global LCD Panel Exchange Center

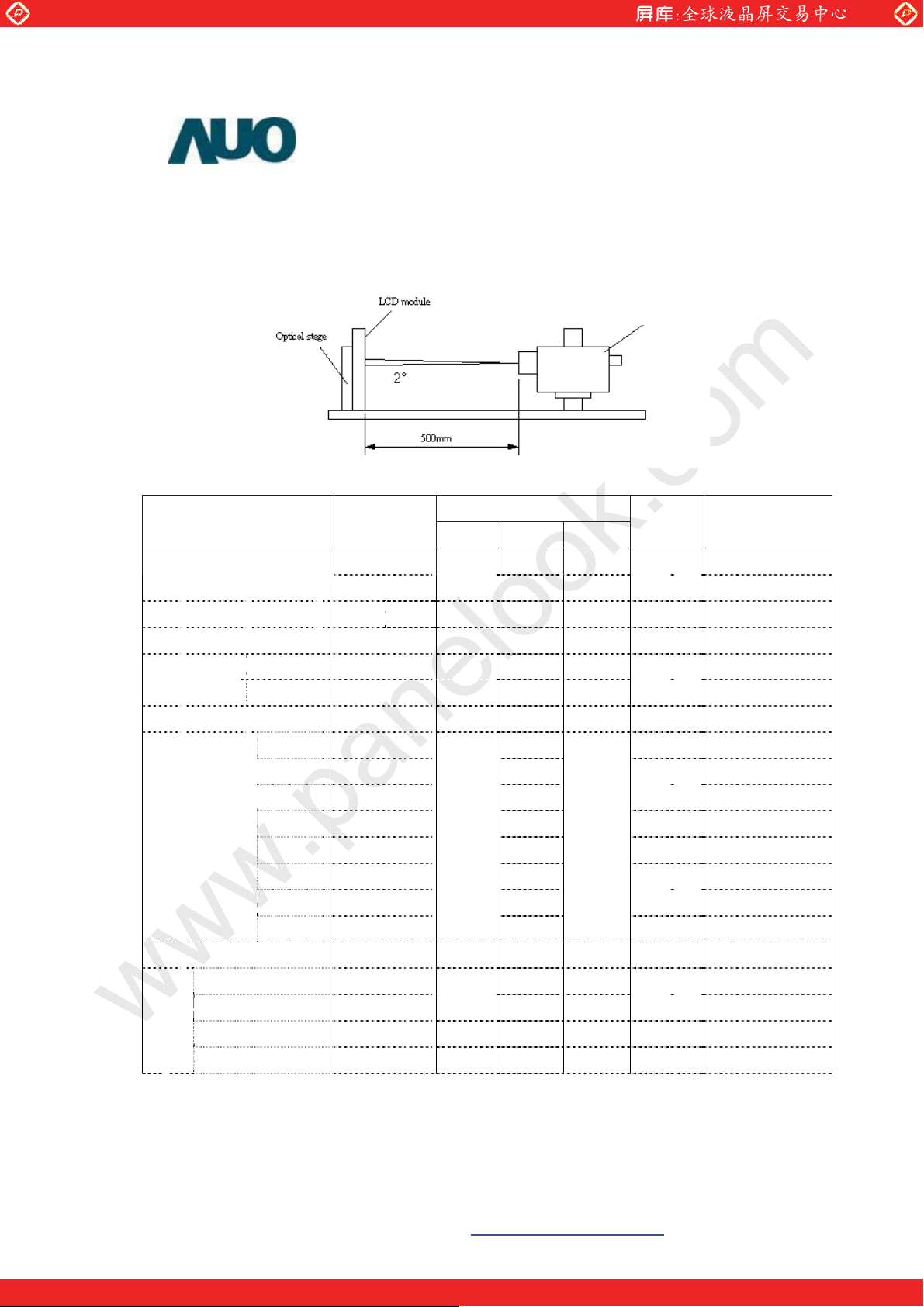

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45

minutes in a dark environment at 25. The values specified are at an approximate distance 50cm

from the LCD surface at a viewing angle of  and equal to 0.

www.panelook.com

SR3 or equivalent

Fig.4-1 Optical measurement equipment and method

Parameter

Symbol

Values

Units Notes

Min. Typ. Max.

Contrast Ratio CR 1000 1500 1

Surface Luminance, white LWH 400 500

Luminance Variation

Response Time (Average)



9 p 1.3 3

WHITE

T

8 25 ms 4,5 (Gray to Gray)

cd/

Rise Time Tr 15 ms

Decay Time Tf 5 ms

Color Coordinates

RED R

0.640

RY0.330

GREEN G

0.290

GY0.600

BLUE B

Typ.-0.03

0.150

Typ.+0.03

BY0.060

WHITE W

0.280

0.290

Viewing Angle Contrast Ratio>10

x axis, right(=0) 

x axis, left(=180) 

y axis, up(=90) 

y axis, down (=0) 

89 Degree 6

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 20

Global LCD Panel Exchange Center

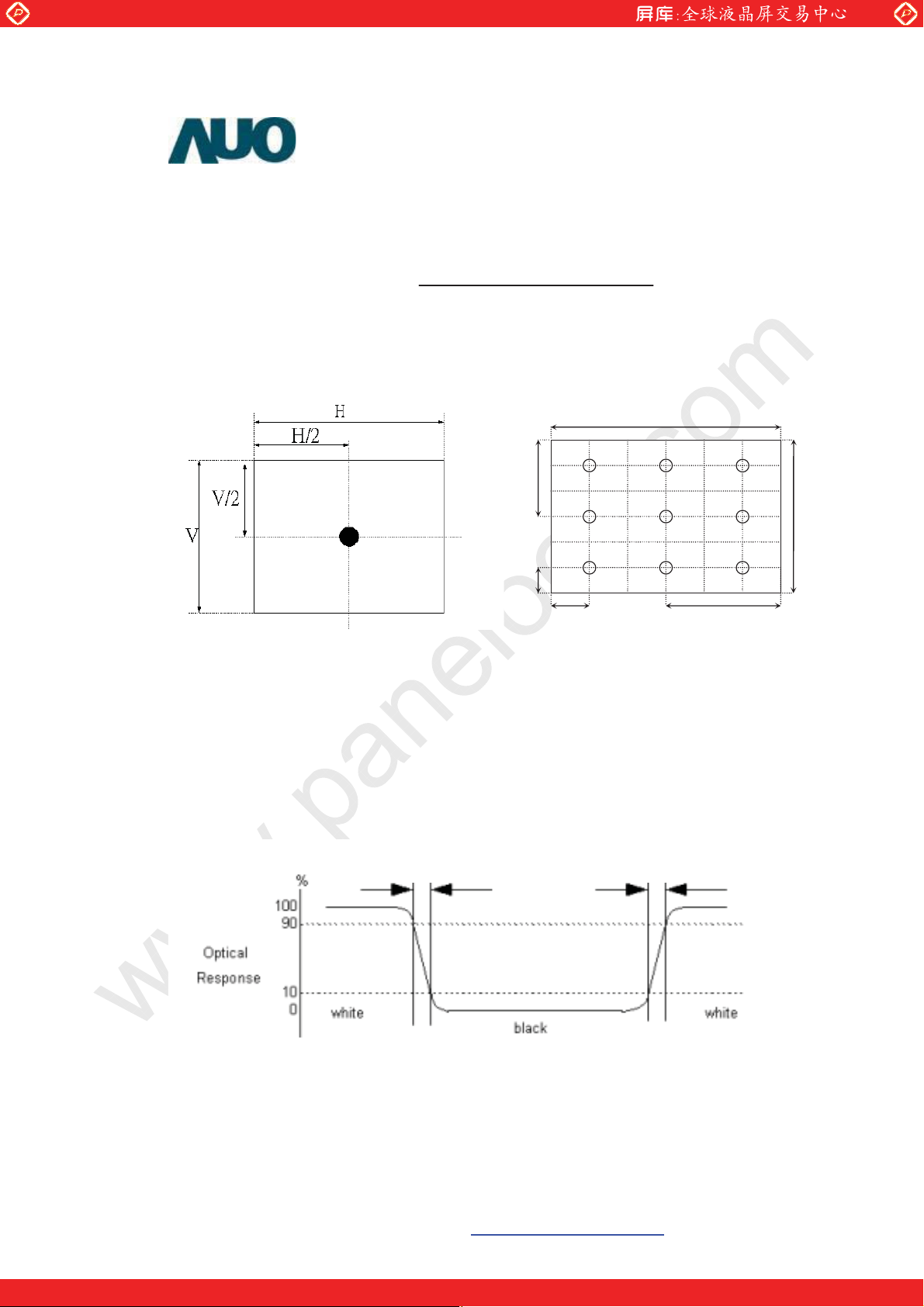

Note:

1. Contrast Ratio (CR) is defined mathematically as:

www.panelook.com

Contrast ratio (CR)=

Brightness on the "white" state Brightness on the "black" state

2. Surface luminance is luminance value at point 1 across the LCD surface 50cm from the surface with

all pixels displaying white. From more information see Fig. 4-2. When V

WH=Lon1

, Where L

is the luminance with all pixels displaying white at center 1 location.

on1

V/2

V/6

DDB = 24V, IDDB = (7.3A).

H/2H/6

Fig.4-2 Optical measurement point

3. The variation in surface luminance, 



WHITE(9P)

=Maximum(L

is defined under 100% brightness as:

WHITE

, L

on1

on2

,…,L

)/Minimum(L

on9

on1

, L

on2

,…L

on9

)

4. Response time is the time required for the display to transition from white(L255) to black(L0) (Decay

Time, Tr

=Tf) and from black(L0) to white(L255) (Rise Time, TrR=Tr). For additional information see

Fig. 4-3.

TrD

TrR

Fig.4-3 Response time

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 21

Global LCD Panel Exchange Center



5. The response time is defined as the following figure and shall be measured by switching the input

signal among 0%, 25%, 50%, 75%, 100% luminance. For additional information see Fig. 4-4.

www.panelook.com

100%

90%

L0,15,L31,.L255

L0,15,L31,

.L255

Luminance

10%

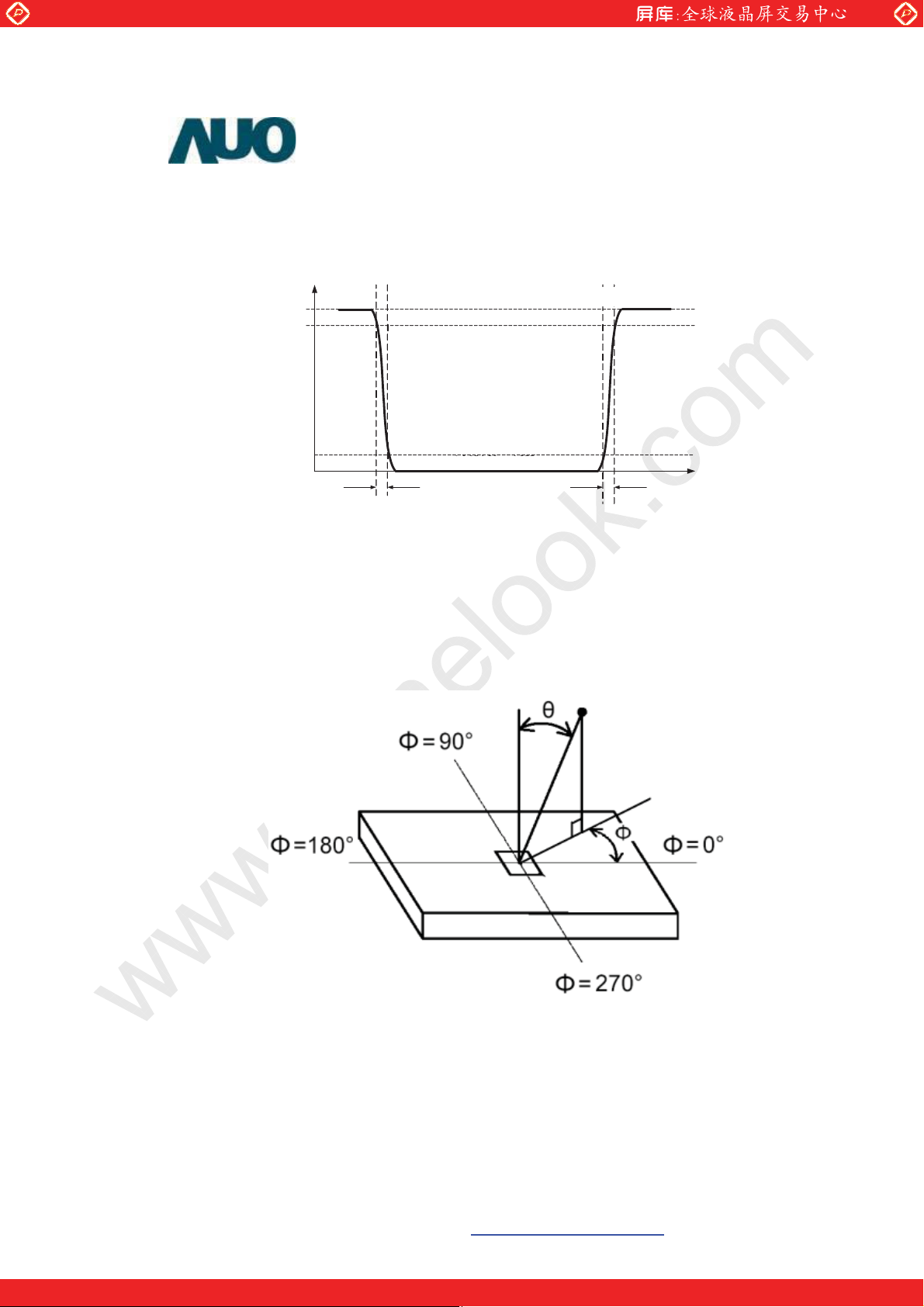

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined

for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the

LCD surface. For more information see Fig. 4-5.

L0,15,L31,.L255

Fig.4-4 Response time

Time

Fig.4-5 Viewing Angle Definition

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 22

Global LCD Panel Exchange Center

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T420XW01. In addition the

figures in the next page are detailed mechanical drawing of the LCD.

Outline Dimension

Active Display Area

Weight 15000g (Max)

Surface Treatment AG, 3H

www.panelook.com

Horizontal (typ.) 983.0mm

Vertical (typ.) 576.0mm

Depth (typ.) 52.7mm (with inverter)

Horizontal (typ.) 939.0mmBezel Area

Vertical (typ.) 531.3mm

Horizontal 930.25mm

Vertical 523.01mm

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 23

Global LCD Panel Exchange Center

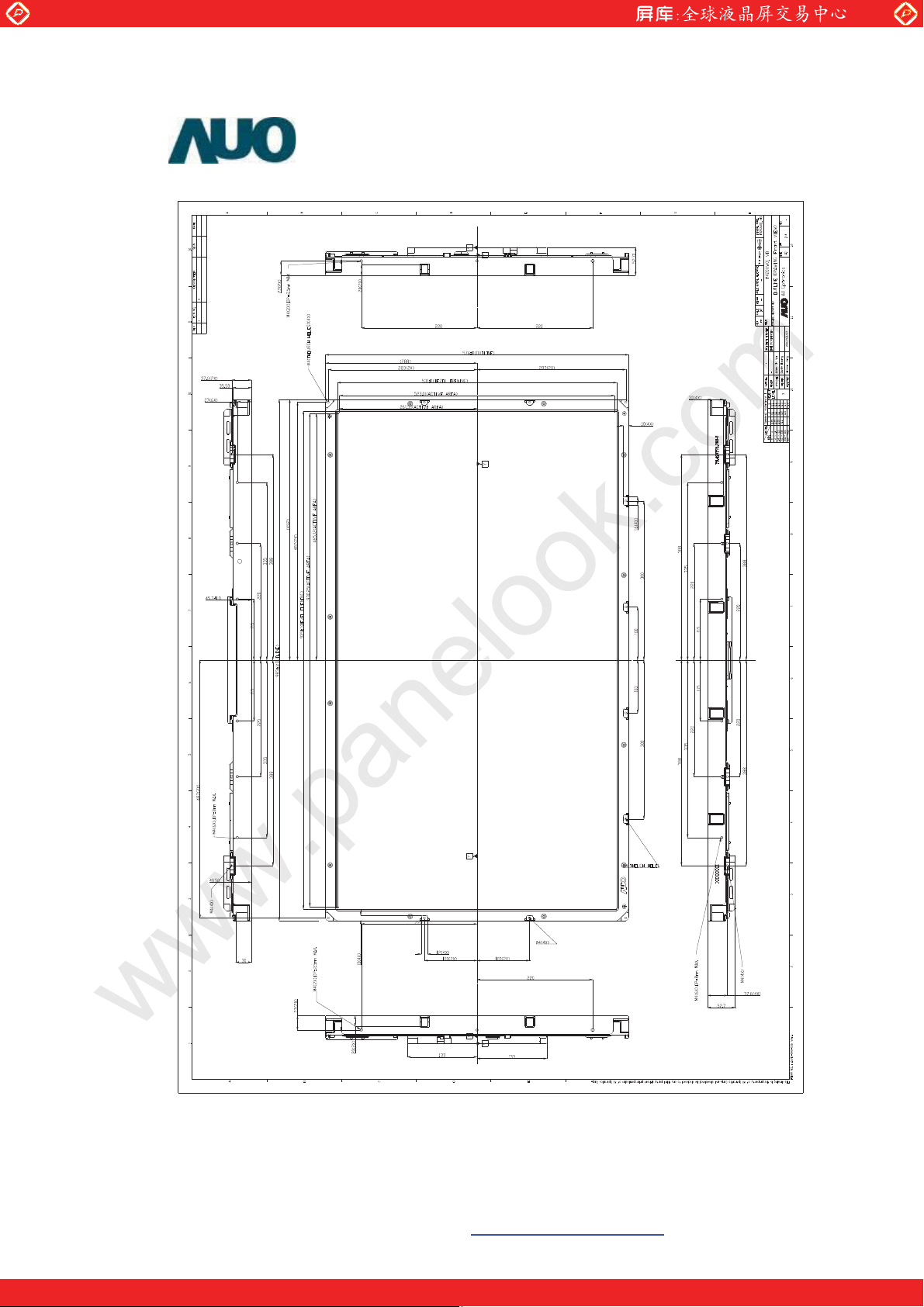

2D drawing

www.panelook.com

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 24

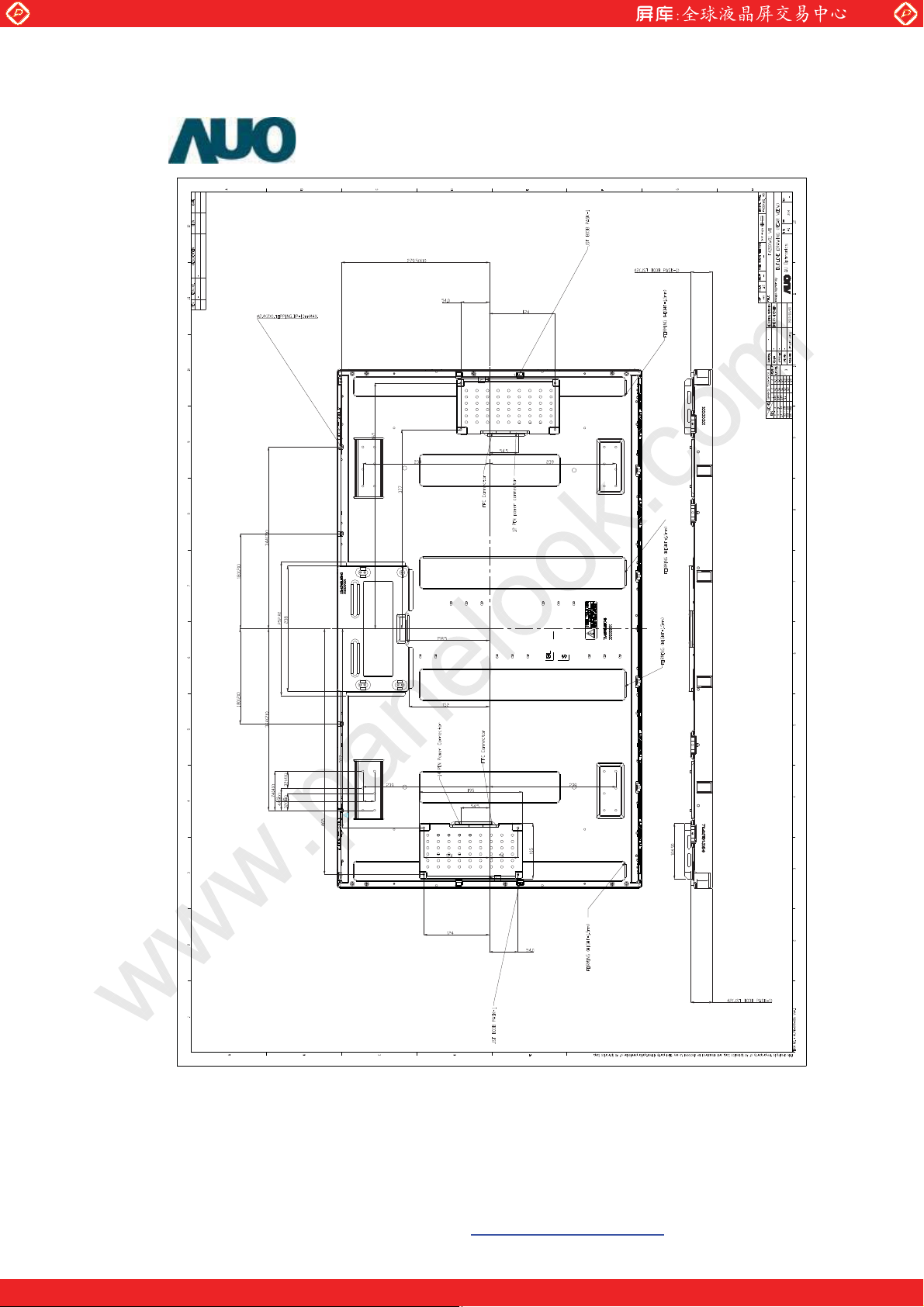

Global LCD Panel Exchange Center

www.panelook.com

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 25

Global LCD Panel Exchange Center

6. International Standard

6-1. Safety

(1) UL6500, UL 60065 Underwriters Laboratories, Inc. (AUO file number : E204356)

Standard for Safety of Information Technology Equipment Including electrical Business

Equipment.

(2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including Electrical Business

Equipment.

(3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

IEC 60065: version 7th

European Committee for Electro technical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical

Business Equipment.

www.panelook.com

6-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards

Institute(ANSI), 1992

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),

1998

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 26

Global LCD Panel Exchange Center

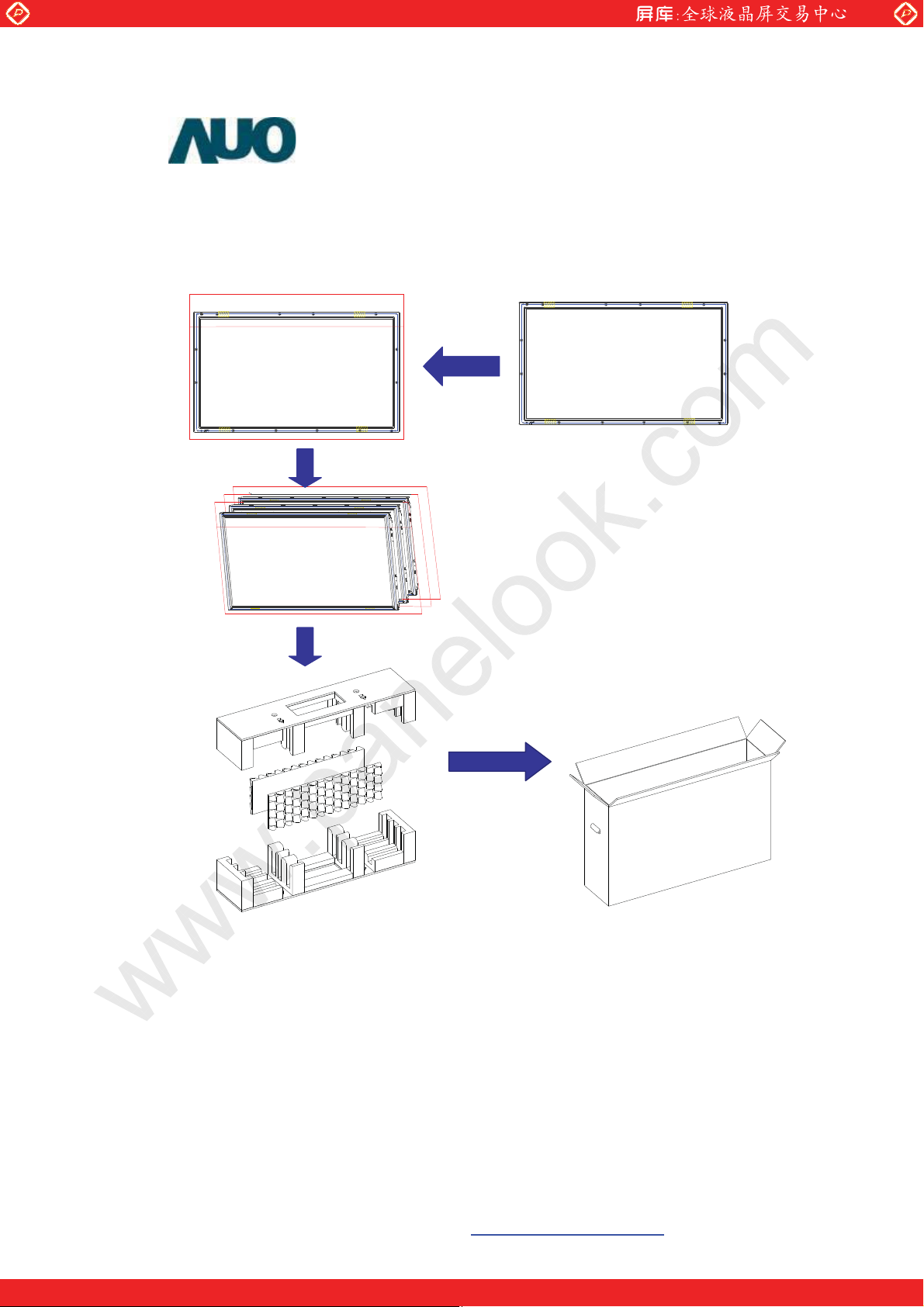

Module

1pcs Module/ESD Bag

3pcs Modules

Cushion set

pcs / 1 carton

7. Packing

Packing Instruction

www.panelook.com

Package information:

Carton outside dimension : 1087x285x716mm

Carton/Package weight : 3kg

Gross weight(per Box) : 48kg

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 27

Global LCD Panel Exchange Center

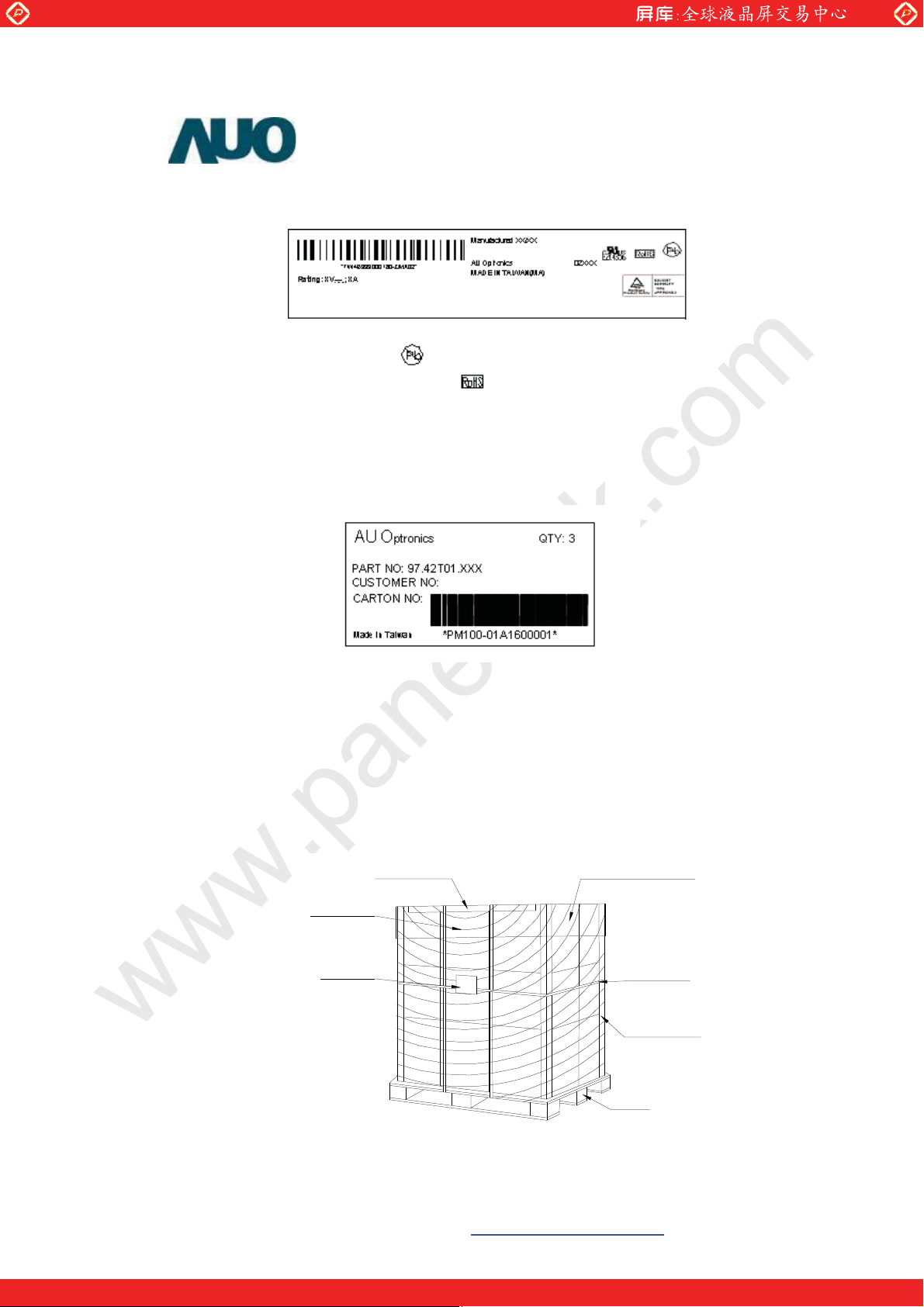

Shipping label

Green Mark Description:

www.panelook.com

Model No: T420XW01 VB

For Pb Free products, AUO will add

For RoHS compatible products, AUO will add

Note. The Green Mark will be present only when the green documents have been ready by AUO

Internal Green Team. (The definition of green design follows the AUO green design checklist.)

for identification.

Carton label

Model No: T420XW01 VB

Pallet information

By air cargo : : (4x1) x2 layers, one pallet put 8 boxes, total 24 pcs module.

By sea : (4x1) x3 layers, one pallet put 12 boxes, total 24 pcs module.

Pallet dimension : 1150x1100x120mm

Pallet weight : 10kg

By air total weight : 48 kg/box X 8 boxes=384 kg (with pallet weight 394kg)

By sea total weight : 48 kg/box X 12 boxes=576 kg (with pallet weight 586kg)

Corner angle

Stretch film

Label

Moisture-proof film

PET band

Corner angle

Pallet

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 28

Global LCD Panel Exchange Center

8. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

8-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged on back side of panel

(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not

applied to module. And the case on which a module is mounted should have sufficient strength

so that external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the

polarizer. Transparent protective plate should have sufficient strength in order to the resist

external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the

former generates corrosive gas of attacking the polarizer at high temperature and the latter

causes circuit break by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than

HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch

the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the

polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft

materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for

cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and

alcohol because they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer

causes deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

www.panelook.com

8-2 OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=200mV(Over and under shoot voltage)

(2) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on)

becomes longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 29

Global LCD Panel Exchange Center

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference

shall be done by system manufacturers. Grounding and shielding methods may be important

to minimize the interface.

8-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make

certain that treatment persons are connected to ground through wrist band etc. And don’t touch

interface pin directly.

www.panelook.com

8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

8-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5 and 35 at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that

they be stored in the container in which they were shipped.

8-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or

in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains

a very small amount of flue still on the Bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
