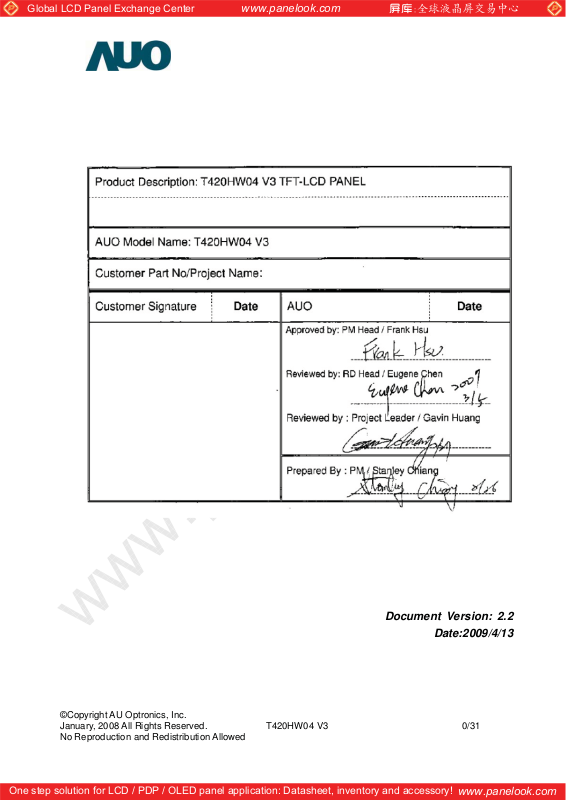

AUO T420HW04 V3 Specification
Global LCD Panel Exchange Center
www.panelook.com
Document Version: 2.2
Date:2009/4/13
©Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T420HW04 V3 0/31
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Functional Specification
42” Full-HD Color TFT-LCD Module
Model Name: T420HW04 V3
( ) Preliminary Specification
(*) Final Specification
Note : This specification is subject to change without notice.
©Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T420HW04 V3 1/31
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
COVER
www.panelook.com
Contents
ITEM No
CONTENTS
RECORD OF REVISIONS
GENERAL DESCRIPTION 1
ABSOLUTE MAXIMUM RATINGS 2
ELECTRICAL SPECIFICATIONS 3
ELECTRICAL CHARACTREISTICS 3-1
INTERFACE CONNECTIONS 3-2
SIGNAL TIMING SPECIFICATIONS 3-3

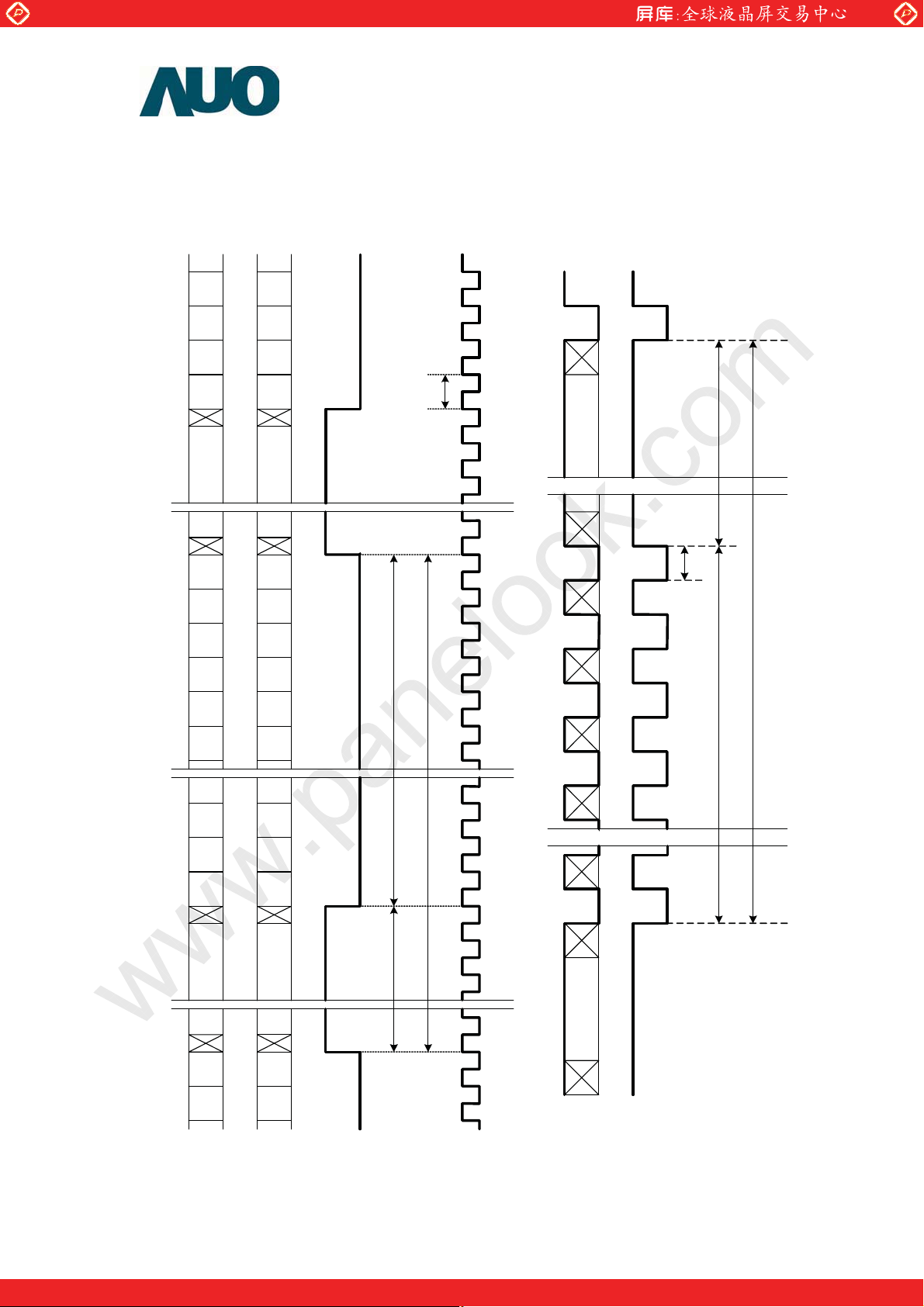

SIGNAL TIMING WAVEFORMS 3-4

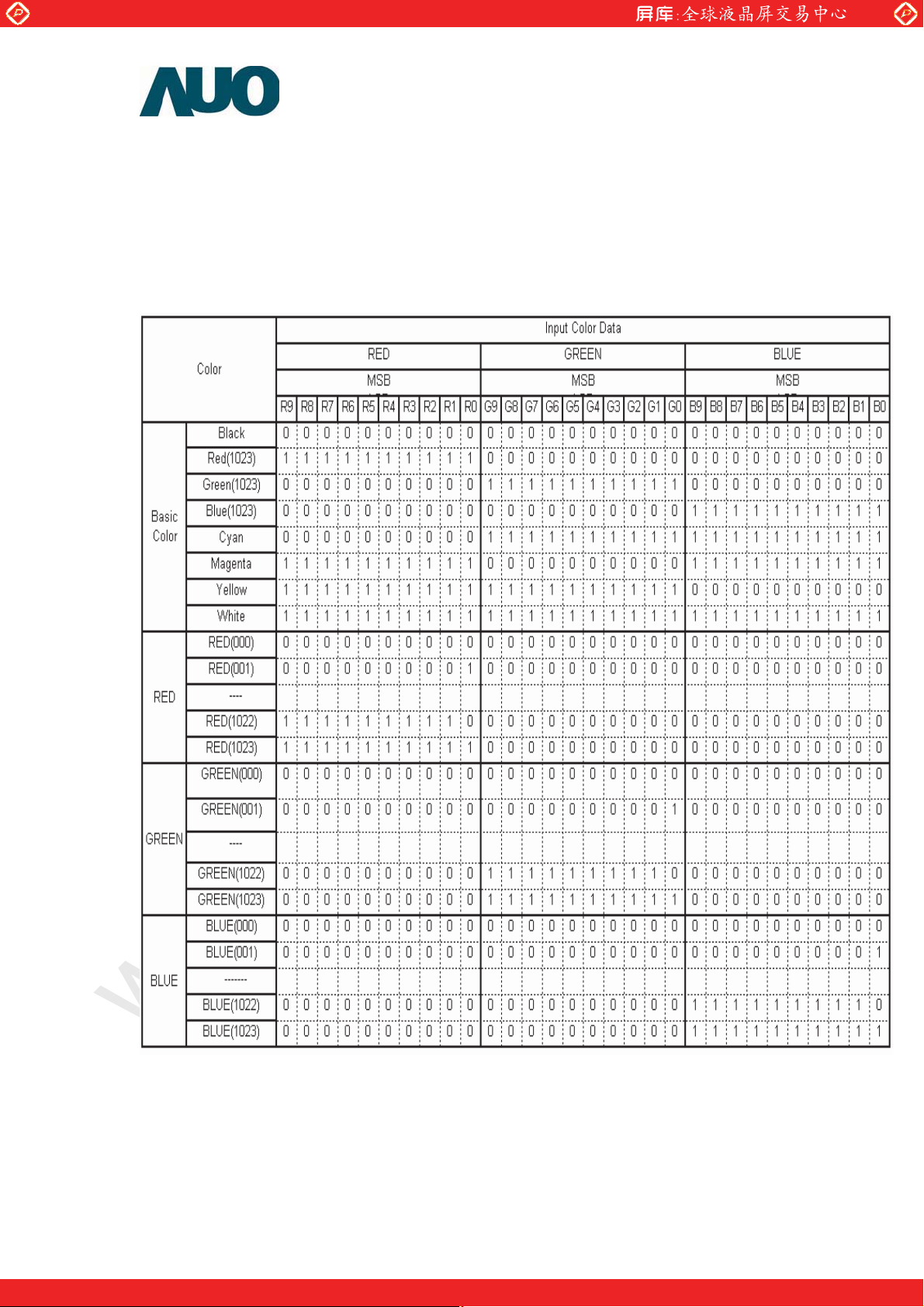

COLOR INPUT DATA REFERNECE 3-5
POWER SEQUENCE 3-6
RELIABILITY 6
7
INTERNATIONAL STANDARDS
SAFETY 7-1
EMC 7-2
8
PACKING
PRECAUTIONS 9
©Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T420HW04 V3 2/31
No Reproduction and Redistribution Allowed

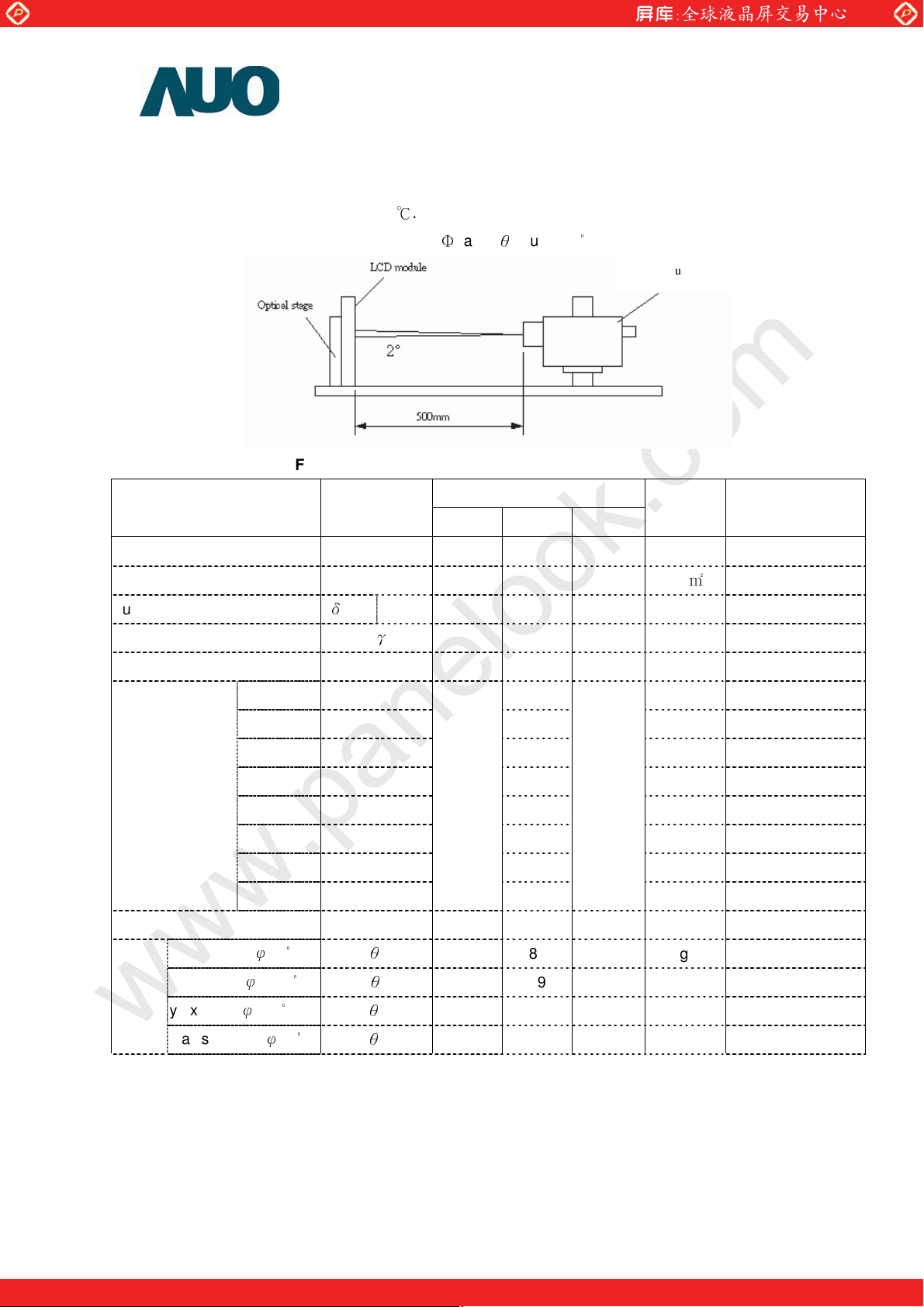

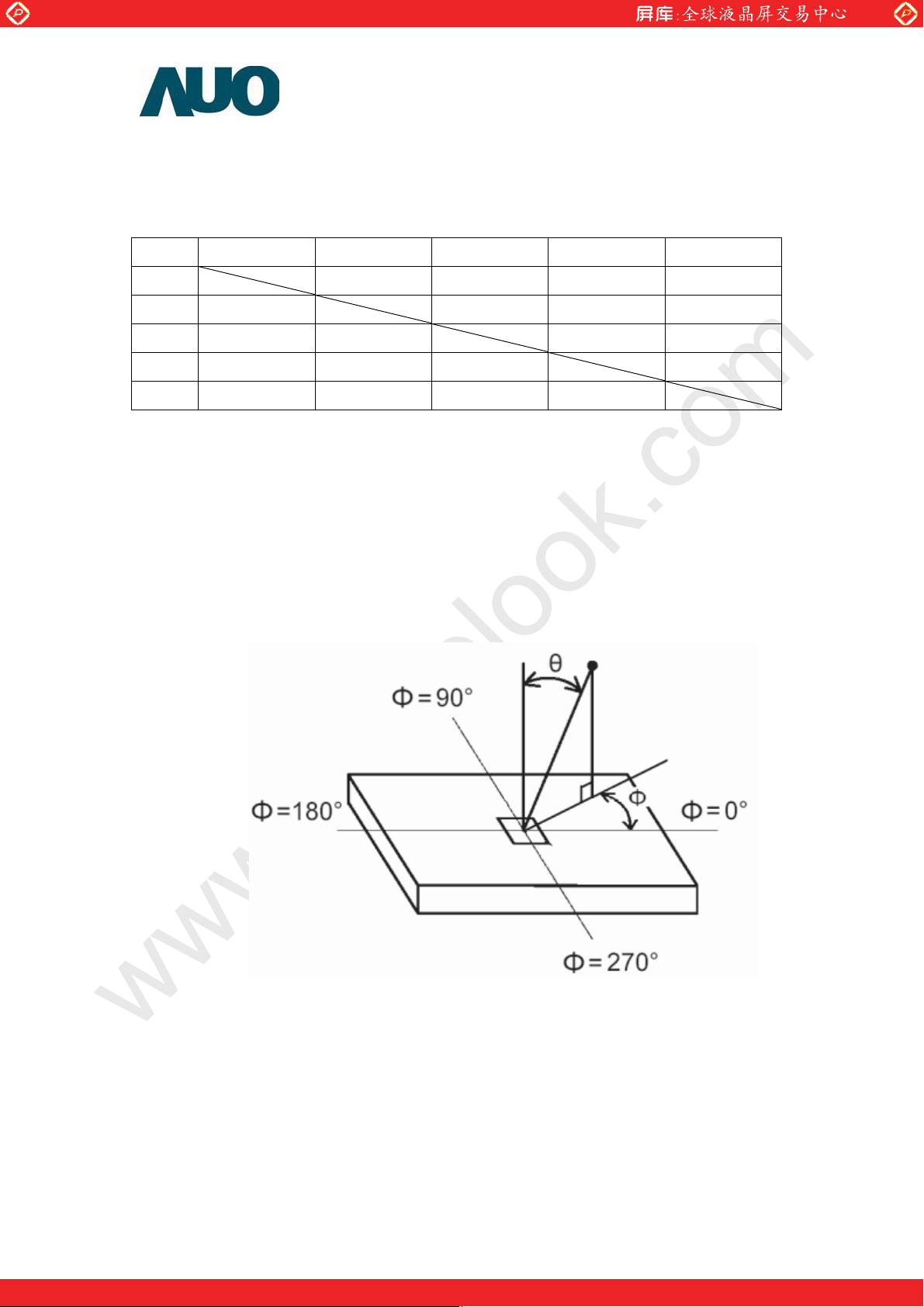

OPTICAL SPECIFICATIONS 4

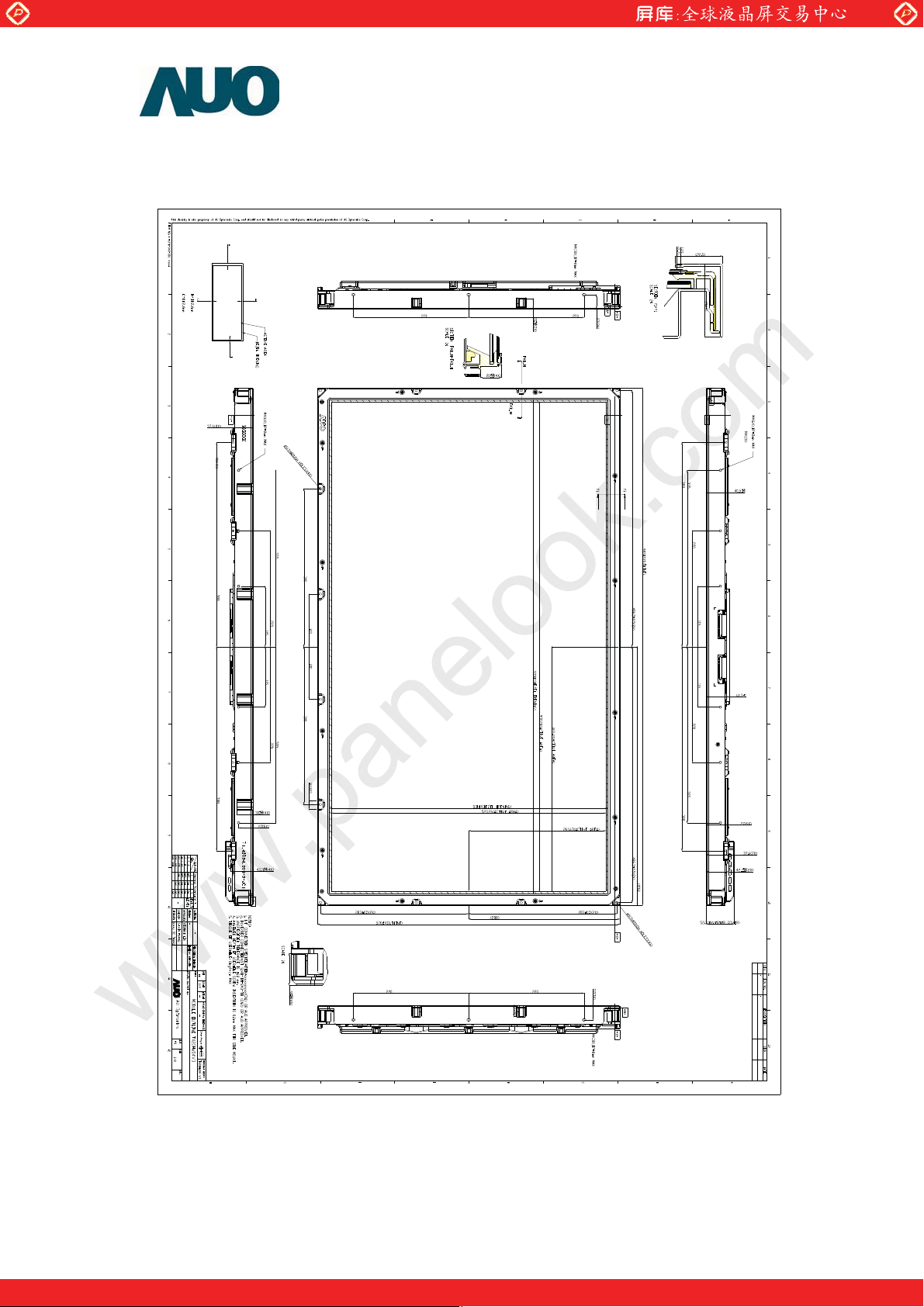

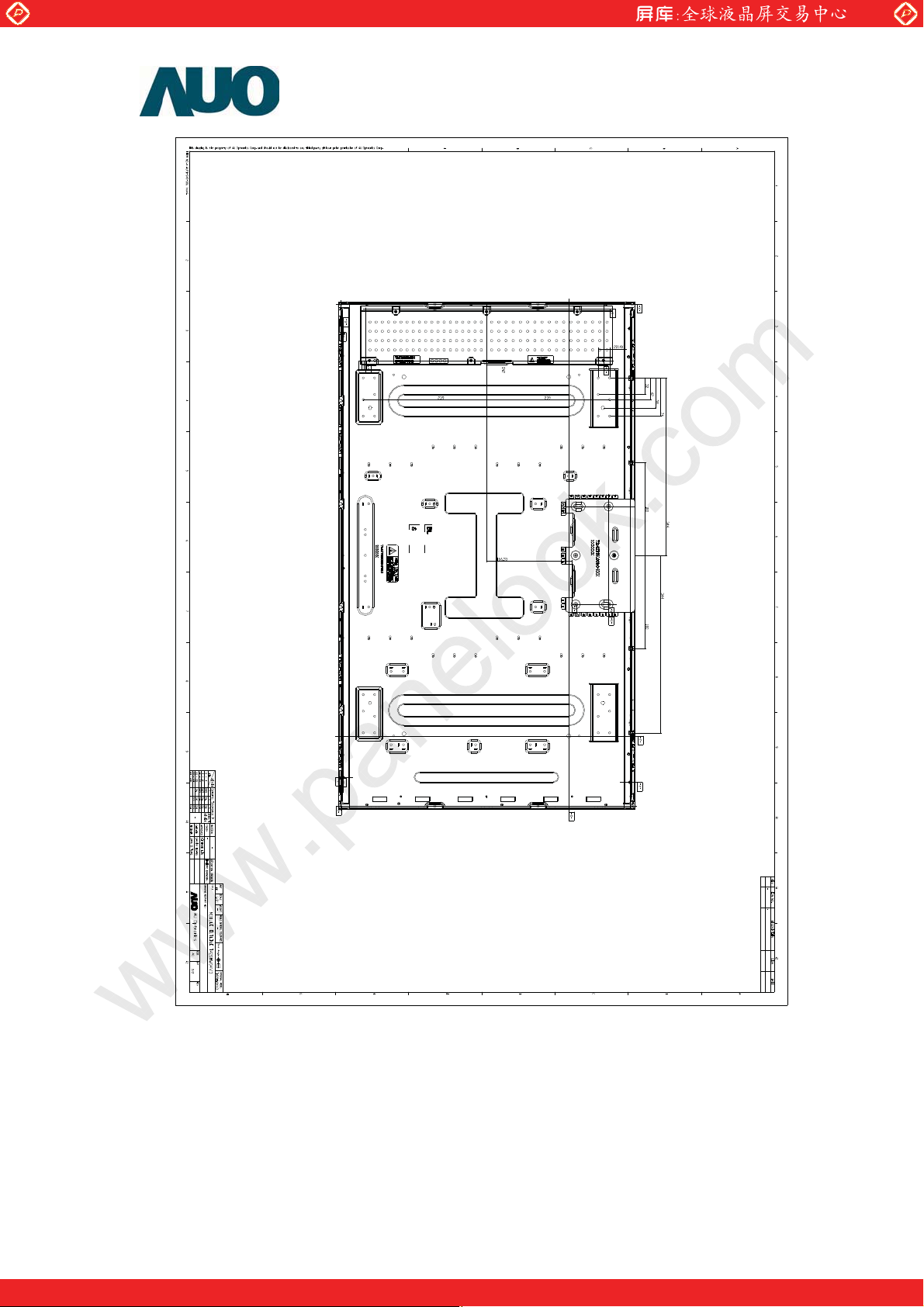

MECHANICAL CHARACTERISTICS 5
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Version Date Page Old Description New Description Remark
1.0 2008/9/18 Preliminary spec first release
www.panelook.com
Record of Revision
1.1 2008/12/25 6 I
(MAX) = TBD Update I
RUSH
(MAX) = 4A
RUSH
1.1 2008/12/25 12 input inrush current = TBD Update input inrush current
1.1 2008/12/25 14
1.1 2008/12/25 14
Range A(120Hz)
Horizontal Section :
Th(min) = 560
Tblk(min) = 80
Clock :
Freq = 73.65
Range B(100Hz)
Horizontal Section :
Th(min) = 560
Tblk(min) = 80
Clock :
Freq = 67.2
Vertical Frequency :
Vs = 98
= 5.915A
Range A(120Hz)
Horizontal Section :
Th(min) = 540
Tblk(min) = 60
Clock :
Freq = 71.02
Range B(100Hz)
Horizontal Section :
Th(min) = 540
Tblk(min) = 60
Clock :
Freq = 64.8
Vertical Frequency :
Vs = 94
DC
2.0 2009/2/26 Final specification fist release
6 Power Supply Input Current
Max:1.1A
Power Supply Input Current
Max:1.3A
6 Power Consumption Max:14.52W Power Consumption Max:15.6W
Ӵ
7
Rising time = 470
8&9 LCD connector vender : P-TWO LCD connector vender :
s Rising time = 400Ӵs
JAE or P-TWO
12
External PWM Frequency
Min: 140 Hz
External PWM Frequency
Min: 120 Hz

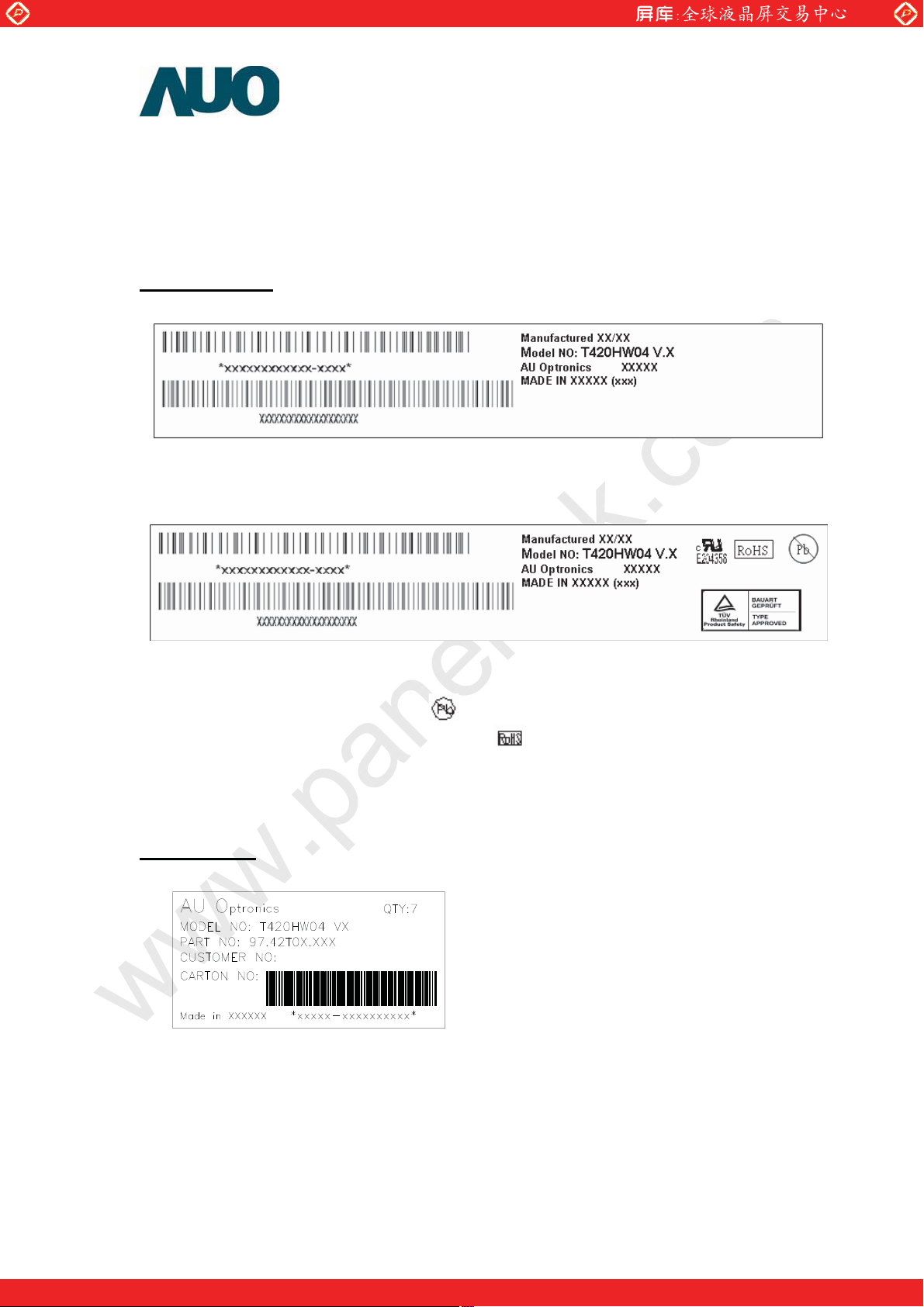

2.1 2009/3/9 28 Update shipping label

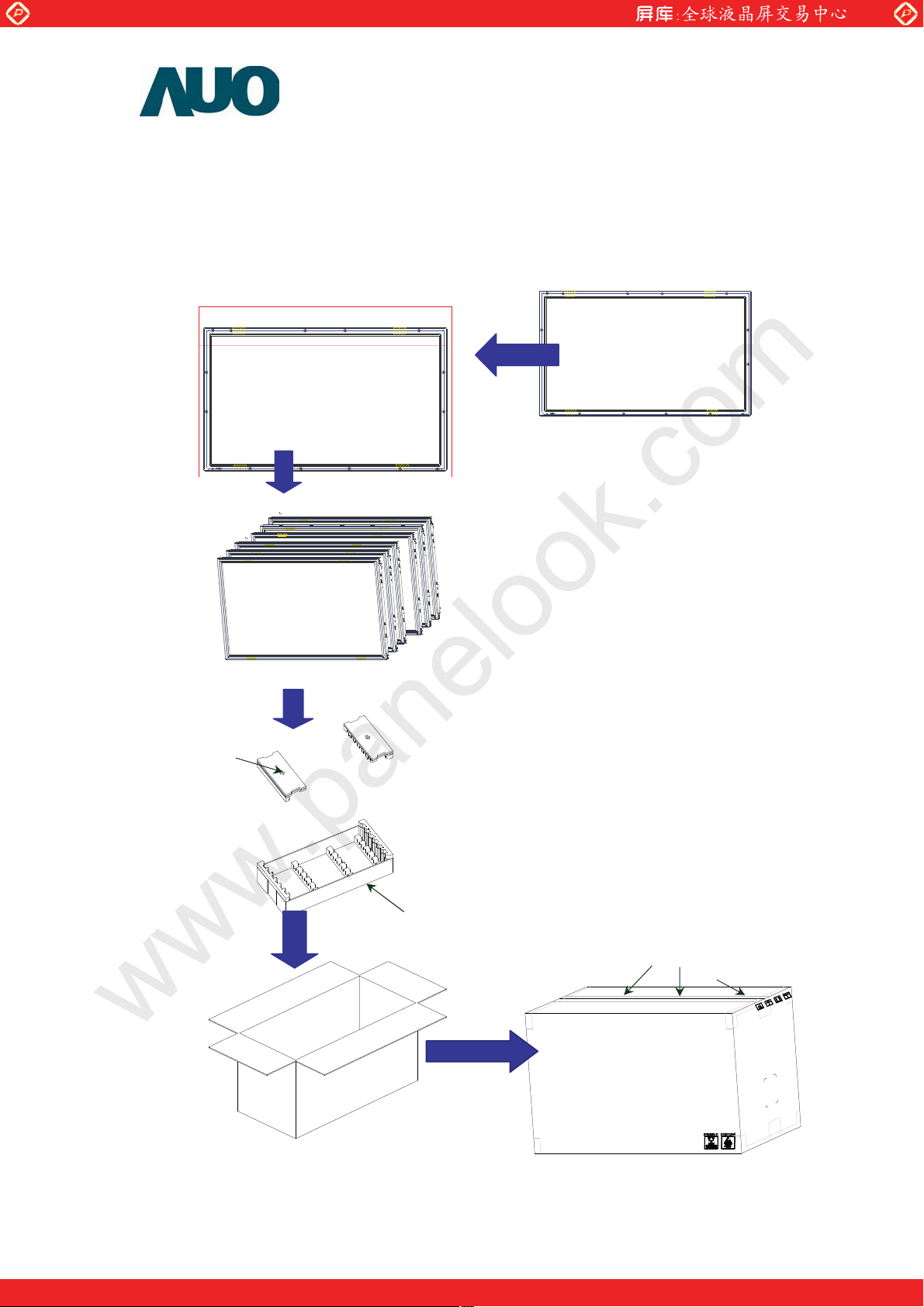

2.2 2009/4/13 27 3pcs packaging 7pcs packaging
28 Update sample and mass
production stage shipping label
©Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T420HW04 V3 3/31
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. General Description
This specification applies to the 42 inch Color TFT-LCD Module T420HW04 V3. This LCD module has
a TFT active matrix type liquid crystal panel 1920x1080 pixels, and diagonal size of 42 inch. This
module supports 1920x1080 Full-HD mode (Non-interlace).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit+FRC gray scale signal for
each dot.
The T420HW04 V3 has been designed to apply the 10-bit 4 channel LVDS interface method. It is
intended to support displays where high brightness, wide viewing angle, high color saturation, and
www.panelook.com
high color depth.
*
General Information
Items Specification Unit Note
Active Screen Size 42.02 inches
Display Area 930.24(H) x 523.26(V) mm
Outline Dimension 983.0(H) x 576.0(V) x 52.7(D) mm With inverter
Driver Element a-Si TFT active matrix
Display Colors 1073.7M Colors
Number of Pixels 1920 x 1080 Pixel
Pixel Pitch 0.4845 mm
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Lamp quantity, type 12 pcs, Straight type pcs
Surface Treatment Anti-Glare coating (Haze 11%)
Hard coating (3H)
©Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T420HW04 V3 4/31
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the
unit.
Item Symbol Min Max Unit Note
Power Supply Input Voltage VDD -0.3 14 [Volt] 1
Logic Input Voltage Vin -0.3 3.6 [Volt] 1
www.panelook.com
BLU Input Voltage V
BLU Brightness Control Voltage BLON -0.3 3.6 [Volt] 1
Ambient Operating
Temperature
Ambient Operating Humidity HOP 10 80 [%RH] 2
Storage Temperature TST -20 +60 [oC] 2
Storage Humidity HST 10 80 [%RH] 2
Shock (non-operation) - 50 G 3
Vibration (non-operation) - 1.5 G 4
Thermal shock -20 60 C 5
Note 1 : Duration = 50msec
Note 2 : Maximum Wet-Bulb should be 50
Note 3 : Half sine wave, shock level : 50G(11ms), direction : ±x, ±y, ±z (one time each direction)
Note 4 : Wave form : Random, vibration level : 1.5G RMS, Bandwidth : 10~300Hz
DDB
-0.3 26.4 [Volt] 1
TOP 0 +50 [oC] 2
к
and No condensation.
Duration : X,Y,Z 30min (one time each direction)
Note 5 : -20C/1hr ~ 60C/1hr, 100 cycles
©Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T420HW04 V3 5/31
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
g
g
3. Electrical Specification
The T420HW02 requires two power inputs. One is employed to power the LCD electronics and to drive
the TFT array and liquid crystal. The second input, which powers the CCFL, is typically generated by
an inverter.
3-1 Electrical Characteristics
www.panelook.com
Values Parameter Symbol
Min Typ Max
LCD:
Power Supply Input Voltage Vdd 10.8 12 13.2 Vdc
Power Supply Input Current Idd - 0.54 1.3 A 1
Power Consumption Pc - 6.48 15.6 Watt 1
Inrush Current I
LVDS
Interface
Differential Input
Hi
h Threshold
Volta
e
Differential Input
Low Threshold
Voltage
Common Input
Voltage
Input High
- - 4 A 5
RUSH
V
TH
+100 mV
V
TL
-100 mV
CIM
0.6 1.2 1.8 V
V
VIH
2.0 3.3 Vdc CMOS
Unit Notes
4
4
Interface
Backlight Power Consumption
Life Time 50000 60000 Hours 3
The performance of the Lamp in LCM, for example life time or brightness, is extremely influenced
by the characteristics of the DC-AC Inverter. So all the parameters of an inverter should be
carefully designed so as not to produce too much leakage current from high-voltage output of the
inverter. When you design or order the inverter, please make sure unwanted lighting caused by
the mismatch of the lamp and the inverter (no lighting, flicker, etc) never occurs. When you
confirm it, the LCD Assembly should be operated in the same condition as installed in your
instrument.
©Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T420HW04 V3 6/31
No Reproduction and Redistribution Allowed
Threshold Voltage
Input Low
Threshold Voltage
(High)
V
IL
(Low)
104 Watt 2
0 0.8 Vdc
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
μ
Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting
tape, TFT-LCD Module have a low luminance and the inverter has abnormal action because
leakage current occurs between lamp wire and conducting tape.
The relative humidity must not exceed 80% non-condensing at temperatures of 40
www.panelook.com
к
or less. At
temperatures greater than 40
at low temperatures, the brightness of CCFL will drop and the lifetime of CCFL will be reduced.
Note :
1. Vdd=12.0V, fv=120Hz, f
pattern
2. The Backlight power consumption shown above does include loss of external inverter at 25
The used lamp current is the lamp typical current
3. The life is determined as the time at which luminance of the lamp is 50% compared to that of
initial value at the typical lamp current on condition of continuous operating at 25
4. VCIM = 1.2V
VTH
VCIM
VTL
к
, the wet bulb temperature must not exceed 39к. When operate
CLK
=80 Mhz , 25к, Vdd Duration time= 400
s
, Test pattern : white
2к
.
к
.
0V
Figure : LVDS Differential Voltage
5. Measurement Condition: Rising time = 400
GND
0.1 Vdd
Ӵ
s
400Ӵs
0.9 Vdd
Vdd
©Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T420HW04 V3 7/31
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3-2 Interface Connections
LCD connector 1 : FI-RE51S-HF (JAE) or 187059-5122 (P-TWO INDUSTRIES INC.)
Pin No Symbol Description Note
www.panelook.com
1 NC No Connect (AUO internal use)
2 NC No Connect (AUO internal use)
3 NC No Connect (AUO internal use)
4 NC No Connect (AUO internal use)
5 NC No Connect (AUO internal use)
6 NC No Connect (AUO internal use)

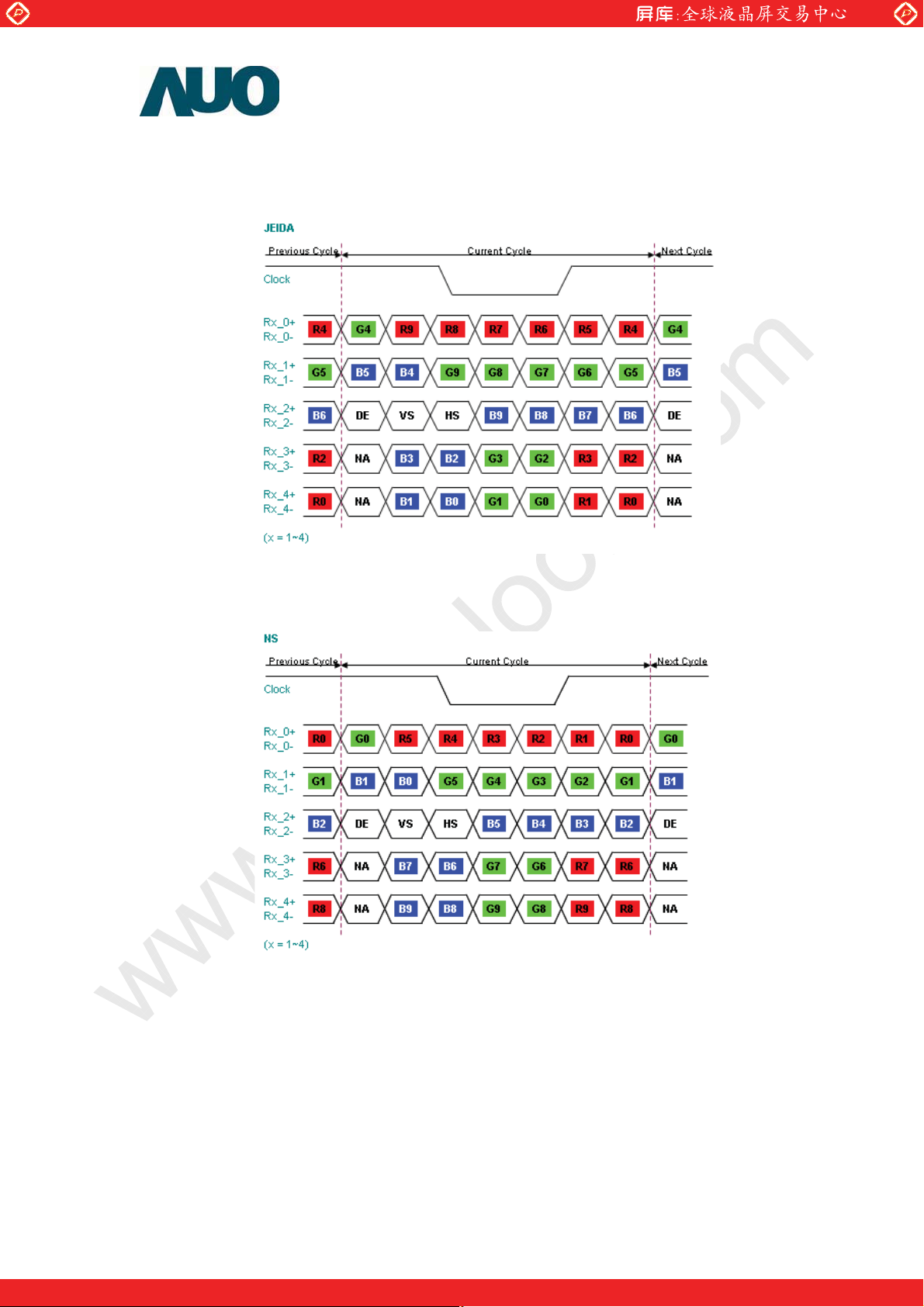

7 LVDS Option Low/Open for Normal (NS), High for JEIDA Default : NS mode
8 NC No Connect (AUO internal use)
9 NC No Connect (AUO internal use)
10 NC No Connect (AUO internal use)
11 GND Ground
12 R1_0- LVDS Channel 1, Signal 0-
13 R1_0+ LVDS Channel 1, Signal 0+
14 R1_1- LVDS Channel 1, Signal 1-
15 R1_1+ LVDS Channel 1, Signal 1+
16 R1_2- LVDS Channel 1, Signal 2-
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
17 R1_2+ LVDS Channel 1, Signal 2+
18 GND Ground
19 R1_CLK- LVDS Channel 1, Clock -
20 R1_CLK+ LVDS Channel 1, Clock +
21 GND Ground
22 R1_3- LVDS Channel 1, Signal 3-
23 R1_3+ LVDS Channel 1, Signal 3+
24 R1_4- LVDS Channel 1, Signal 4-
25 R1_4+ LVDS Channel 1, Signal 4+
26 NC or GND No Connect or Ground
27 NC or GND No Connect or Ground
28 R2_0- LVDS Channel 2, Signal 0-
29 R2_0+ LVDS Channel 2, Signal 0+
30 R2_1- LVDS Channel 2, Signal 1-
31 R2_1+ LVDS Channel 2, Signal 1+
©Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T420HW04 V3 8/31
No Reproduction and Redistribution Allowed
Channel 1
Channel 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
32 R2_2- LVDS Channel 2, Signal 2-
33 R2_2+ LVDS Channel 2, Signal 2+
34 GND Ground
35 R2_CLK- LVDS Channel 2, Clock -
36 R2_CLK+ LVDS Channel 2, Clock +
37 GND Ground
38 R2_3- LVDS Channel 2, Signal 3-
39 R2_3+ LVDS Channel 2, Signal 3+
40 R2_4- LVDS Channel 2, Signal 4-
41 R2_4+ LVDS Channel 2, Signal 4+
www.panelook.com
42 NC or GND No Connect or Ground
43 NC or GND No Connect or Ground
44 GND Ground
45 GND Ground
46 GND Ground
47 VDD Operating Voltage supply, +12V DC regulated
Power
48 VDD Operating Voltage supply, +12V DC regulated
49 VDD Operating Voltage supply, +12V DC regulated
50 VDD Operating Voltage supply, +12V DC regulated
51 VDD Operating Voltage supply, +12V DC regulated
LCD connector 2 : FI-RE41S-HF (JAE) or 187060-4122 (P-TWO INDUSTRIES INC.)
Pin No Symbol Description Note
1 NC No Connect (AUO internal use)
ʳ
2 NC No Connect (AUO internal use)
3 NC No Connect (AUO internal use)
4 NC No Connect (AUO internal use)
5 NC No Connect (AUO internal use)
6 NC No Connect (AUO internal use)
7 NC No Connect (AUO internal use)
8 NC No Connect (AUO internal use)
9 GND Ground
10 R3_0- LVDS Channel 3, Signal 0- Channel 3
©Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T420HW04 V3 9/31
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
www.panelook.com
Loading...
