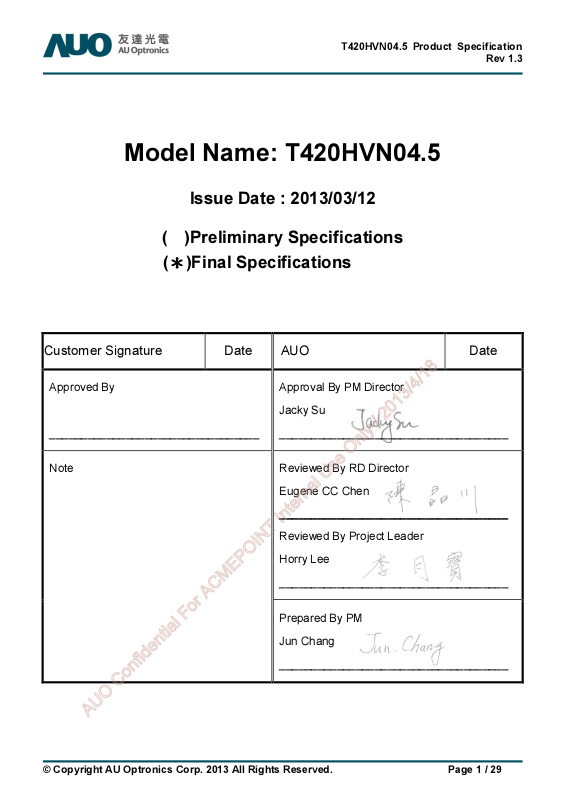

AUO T420HVN04.5 Specification

T420HVN04.5 Product Specification

Rev 1.3

Model Name: T420HVN04.5

Issue Date : 2013/03/12

( )Preliminary Specifications

(＊＊＊＊)Final Specifications

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director

Jacky Su

____________________________________

Reviewed By RD Director

Eugene CC Chen

____________________________________

Reviewed By Project Leader

Horry Lee

____________________________________

Prepared By PM

Jun Chang

____________________________________

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

Rev 1.3

CONTENTS

1. GENERAL DESCRIPTION............................................................................................................................................. 4

2. ABSOLUTE MAXIMUM RATINGS.............................................................................................................................. 5

3. ELECTRICAL SPECIFICATION.................................................................................................................................. 6

3.1 ELECTRICAL CHARACTERISTICS ............................................................................................................................. 6

3.1.1 DC Characteristics.............................................................................................................................................. 6

3.1.2 AC Characteristics.............................................................................................................................................. 7

3.1.3 DRIVER CHARACTERISTICS..................................................................................錯誤

3.2 INTERFACE CONNECTIONS ..................................................................................................................................... 11

3.2.1 T-Con Board Pin Map ...................................................................................................................................... 11

3.2.2 LVDS Option ..................................................................................................................................................... 14

3.3 SIGNAL TIMING SPECIFICATION............................................................................................................................. 15

3.4 SIGNAL TIMING WAVEFORMS ................................................................................................................................. 16

3.5 COLOR INPUT DATA REFERENCE ........................................................................................................................... 17

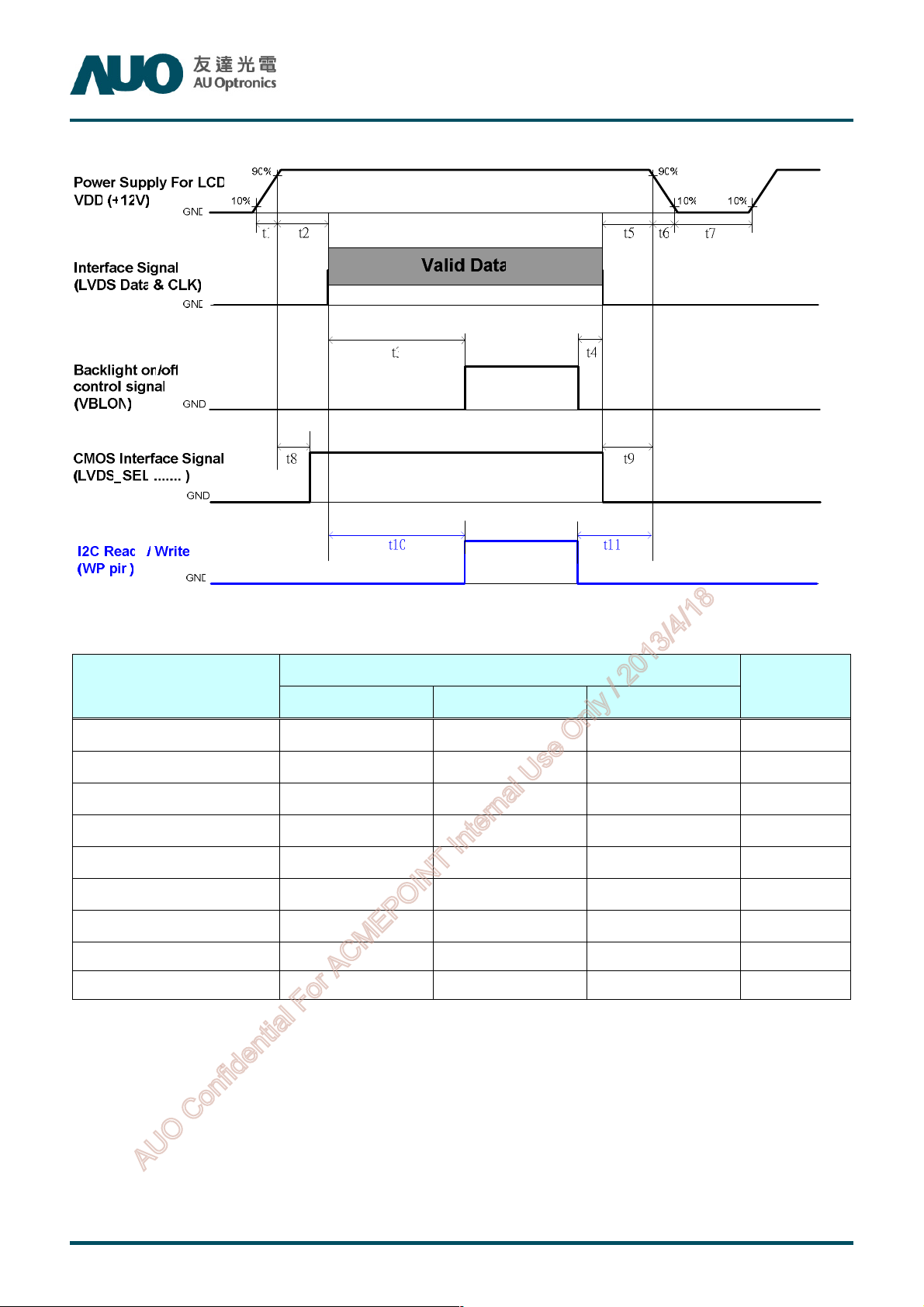

3.6 POWER SEQUENCE FOR LCD ................................................................................................................................. 18

3.7 VCOM ADJUST SOP .............................................................................................................................................. 19

3.7.1 VCOM I2C Tuning Step ................................................................................................................................... 19

3.7.2 Flicker Pattern .................................................................................................................................................. 19

3.7.3 WP (Write Protect) Disable.............................................................................................................................. 19

3.7.4 Adjust SOP ........................................................................................................................................................ 19

3.7.5 Interval of Step to Step ..................................................................................................................................... 20

3.8 3D SHUTTER GLASSES SYNCHRONOUS TIMING ................................................................. 錯誤

4. OPTICAL SPECIFICATION ........................................................................................................................................ 21

錯誤! 尚未定義書籤。

尚未定義書籤。

錯誤錯誤

尚未定義書籤。尚未定義書籤。

錯誤! 尚未定義書籤。

尚未定義書籤。

錯誤錯誤

尚未定義書籤。尚未定義書籤。

5. MECHANICAL CHARACTERISTICS....................................................................................................................... 25

6. PACKING ........................................................................................................................................................................ 26

7. PRECAUTIONS.............................................................................................................................................................. 28

7.1 MOUNTING PRECAUTIONS ...................................................................................................................................... 28

7.2 OPERATING PRECAUTIONS ..................................................................................................................................... 28

7.3 ELECTROSTATIC DISCHARGE CONTROL ............................................................................................................... 28

7.4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE..................................................................................................... 29

7.5 STORAGE ................................................................................................................................................................. 29

7.6 HANDLING PRECAUTIONS FOR PROTECTION FILM OF POLARIZER ..................................................................... 29

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

RECORD OF REVISION

T420HVN04.5 Product Specification

Rev 1.3

Version

1.0 2012/10/31

1.1 2012/12/26

1.2 2013/1/18

1.3 2013/3/12

Date Page Description

First release

7 Correct Power Supply Input Current and Power Consumption value

4 Correct Outline Dimension

4 Correct Weight

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

Rev 1.3

1. General Description

This specification applies to the 42.02 inch Color TFT-LCD SKD model T420HVN04.5. This Open Cell Unit has

a TFT active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 42.02 inch. This Open Cell

Unit supports 1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are

arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale

signal for each dot.

* General Information

Items Specification Unit Note

Active Screen Size 42.02 inch

Display Area 930.24(H) x 523.26(V) mm

Outline Dimension 946.24(H) x 540.06 (V) x 1.34(D) mm D: cell thickness

Driver Element a-Si TFT active matrix

Bezel Opening -- mm Recommend

Display Colors 8 bit, 16.7M Colors

Number of Pixels 1,920x1,080 Pixel

Pixel Pitch 0.4845 (H) x 0.4845(W) mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze=2%

Weight Typ. 1500 g

Rotate Function Unachievable Note 1

Display Orientation Signal input with “ABC” Note 2

Note 1: Rotate Function refers to LCD display could be able to rotate.

Note 2: LCD display as below illustrated when signal input with “ABC”.

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Rev 1.3

Logic/LCD Drive Voltage VDD -0.3 14 [Volt]

Input Voltage of Signal Vin -0.3 4 [Volt]DC Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Electro Statistic Voltage ESD

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures ℃

greater than 40 , the wet bulb temperature must not exceed 39 .℃ ℃

Note 3: Surface temperature is measured at 50℃ Dry condition

Note 4: ESD protection procedure must be applied during production process; especially polarizer protection films

remove process. Please directly contact AUO if module process advice is required.

±2

Note 1

DC

[KV] Note 4

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

Rev 1.3

3. Electrical Specification

The T420HVN04.5 Open Cell Unit requires power input which is employed to power the LCD electronics and to

drive the TFT array and liquid crystal.

3.1 Electrical Characteristics

3.1.1 DC Characteristics

Parameter Symbol

LCD

Power Supply Input Voltage VDD 10.8 12 13.2 VDC

Power Supply Input Current IDD -- 0.31 0.6 A 1

Power Consumption PC -- 3.72 7.2 Watt 1

Inrush Current I

Permissible Ripple of Power Supply Input Voltage

Input Differential Voltage

Differential Input High Threshold

LVDS

Interface

CMOS

Interface

Voltage

Differential Input Low Threshold

Voltage

Input Common Mode Voltage V

Input High Threshold Voltage

Input Low Threshold Voltage

RUSH

VRP -- -- VDD * 5%

∣VID∣

VTH +100 -- +300 mVDC 4

VTL -300 -- -100 mVDC 4

ICM

VIH

(High)

VIL

(Low)

Min. Typ. Max

-- -- 4 A 2

200 400 600 mVDC 4

1.1 1.25 1.4 VDC 4

2.7 -- 3.3 VDC 5

0 -- 0.6 VDC 5

Value

Unit Note

mV

pk-pk

3

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

s

µ

Rev 1.3

3.1.2 AC Characteristics

Parameter Symbol

Receiver Clock : Spread Spectrum Modulation range

LVDS Interface

Receiver Clock : Spread Spectrum Modulation frequency

Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHz SCL clock frequency F I2C clock high level T

I2C Interface

I2C clock low level T I2C data setup time T I2C data hold time T SDA and SCL rise time TR -- -- 1000 ns SDA and SCL fall time TF -- -- 300 ns

Note :

1. Test Condition:

(1) V

= 12.0V

DD

(2) Fv = Type Timing, 60Hz (3) Fclk= Max freq. (4) Temperature = 25 ℃ (5) Typ. Input current : White Pattern

Max. Input current: Heavy loading pattern defined by AUO

>> refer to “Section:3.3 Signal Timing Specification, Typical timing”

2. Measurement condition : Rising time = 400us

Value

Unit Note

Min. Typ. Max

Fclk_ss

Fclk

-3%

--

Fclk

+3%

MHz 7

Fss 30 -- 200 KHz 7

tRMG

-0.4

-0.5

0 -- 400 KHZ

SCL

0.6 -- -- us

SCHi

1.2 -- -- us

SCLo

100 -- -- ns

SDS

0 -- 900 ns

SDH

--

0.4

ns 8

0.5

V

DD

GND

90%

10%

400

3. Test Condition: (1) The measure point of V

is in LCM side after connecting the System Board and LCM.

RP

(2) Under Max. Input current spec. condition.

4. V

= 1.25V

ICM

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

L V D S -

V

IC M

L V D S +

G N D

0 V

5. The measure points of V

and V

IH

T420HVN04.5 Product Specification

V

T H

|VID|

V

T L

|VID|

are in LCM side after connecting the System Board and LCM.

IL

Rev 1.3

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

6. Input Channel Pair Skew Margin.

Note: x = 0, 1, 2, 3, 4

7. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures.

1/F

SS

Fclk_ss(max)

Rev 1.3

Fclk

Fclk_ss(min)

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

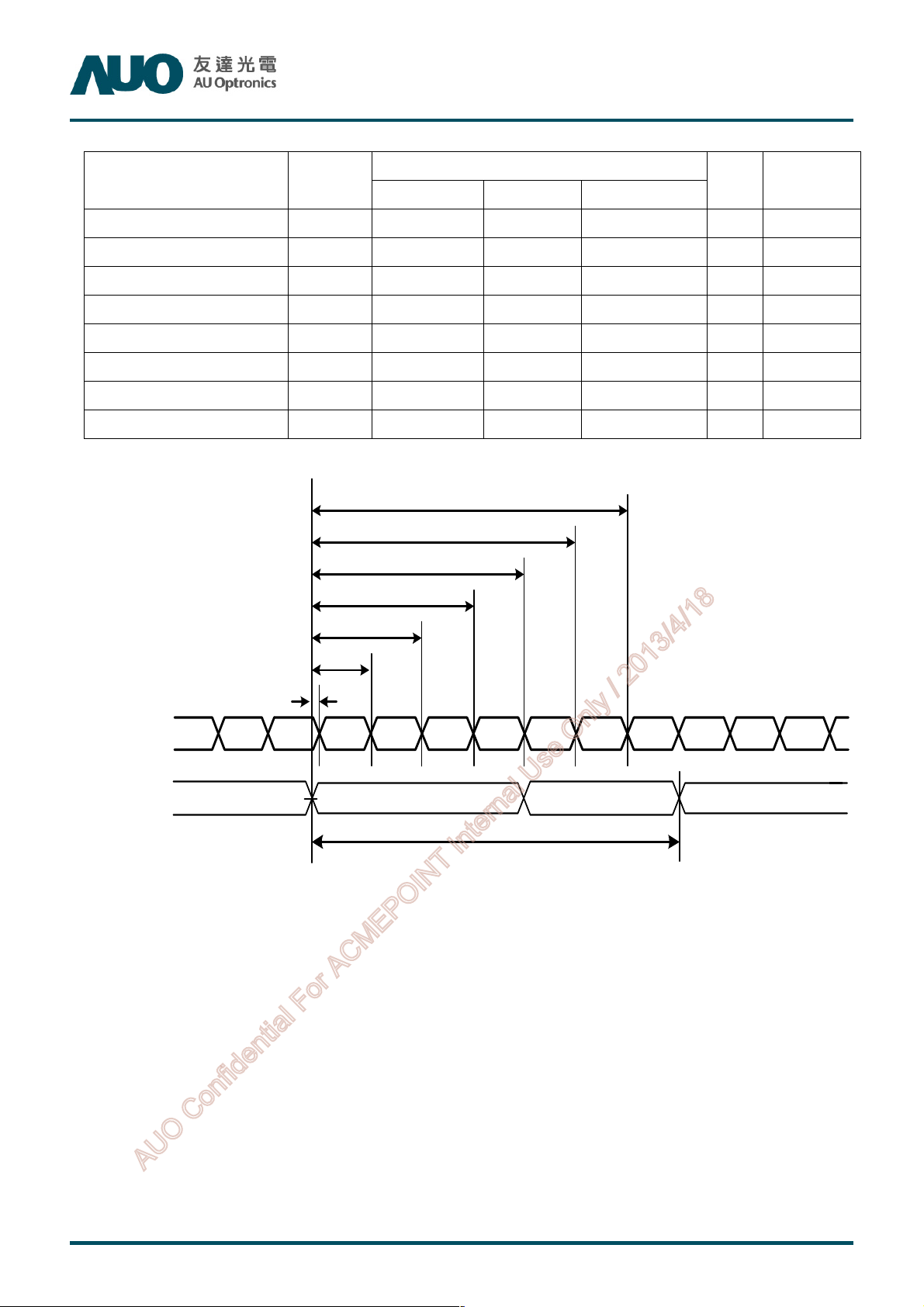

8. Receiver Data Input Margin

T420HVN04.5 Product Specification

Rev 1.3

Parameter Symbol

Min Type Max

Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz

Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns

Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns

Input Data Position2 tRIP6 2T/7-|tRMG|

Input Data Position3 tRIP5 3T/7-|tRMG|

Input Data Position4 tRIP4 4T/7-|tRMG|

Input Data Position5 tRIP3 5T/7-|tRMG|

Input Data Position6 tRIP2 6T/7-|tRMG|

Rating

Unit

2T/7 2T/7+|tRMG| ns

3T/7 3T/7+|tRMG| ns

4T/7 4T/7+|tRMG| ns

5T/7 5T/7+|tRMG| ns

6T/7 6T/7+|tRMG| ns

tRIP2

tRIP3

tRIP4

tRIP5

Note

T=1/Fclk

LVDS-Rx Input Data

LVDS-Rx Input Clock

tRIP6

tRIP0

tRIP1

Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3

V

= 0V

diff

1/Fclk=T

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

3.2 Interface Connections

3.2.1 T-Con Board Pin Map



LCD connector: FI-RE51S-HF (JAE,LVDS connector)

 Mating connector:

T420HVN04.5 Product Specification

Rev 1.3

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19 CH1_CLK- LVDS Channel 1, Clock - 44 GND Ground

20 CH1_CLK+ LVDS Channel 1, Clock + 45 GND Ground

21

22

23

Symbol Description PIN Symbol Description

N.C.

SCL EEPROM Serial Clock 27 N.C.

WP

SDA EEPROM Serial Data 29 CH2_0+ LVDS Channel 2, Signal 0+

N.C.

LVDS_SEL

N.C.

GND Ground 36 CH2_CLK+

CH1_0- LVDS Channel 1, Signal 0- 37 GND Ground

CH1_0+ LVDS Channel 1, Signal 0+ 38 CH2_3- LVDS Channel 2, Signal 3-

CH1_1- LVDS Channel 1, Signal 1- 39 CH2_3+ LVDS Channel 2, Signal 3+

CH1_1+ LVDS Channel 1, Signal 1+ 40 N.C.

CH1_2- LVDS Channel 1, Signal 2- 41 N.C.

CH1_2+ LVDS Channel 1, Signal 2+ 42 N.C.

GND Ground 43 N.C.

GND Ground 46 GND Ground

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

CH1_3- LVDS Channel 1, Signal 3- 47 N.C.

CH1_3+ LVDS Channel 1, Signal 3+ 48 V

No connection (for AUO test

only. Do not connect)

EEPROM Write Protection

High(3.3V) for Writable,

Low(GND) for Protection

No connection (for AUO test

only. Do not connect)

No connection (for AUO test

only. Do not connect)

Open/High(3.3V) for NS,

Low(GND) for JEIDA

No connection (for AUO test

only. Do not connect)

No connection (for AUO test

only. Do not connect)

No connection (for AUO test

only. Do not connect)

26 N.C.

28 CH2_0- LVDS Channel 2, Signal 0-

30 CH2_1- LVDS Channel 2, Signal 1-

31 CH2_1+ LVDS Channel 2, Signal 1+

32 CH2_2- LVDS Channel 2, Signal 2-

33 CH2_2+ LVDS Channel 2, Signal 2+

34 GND Ground

35 CH2_CLK-

DD

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

LVDS Channel 2, Clock -

LVDS Channel 2, Clock +

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

Power Supply, +12V DC Regulated

24

25

N.C.

No connection (for AUO test

only. Do not connect)

No connection (for AUO test

only. Do not connect)

51 V

49 V

50 V

T420HVN04.5 Product Specification

Rev 1.3

DD

Power Supply, +12V DC Regulated

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

Rev 1.3

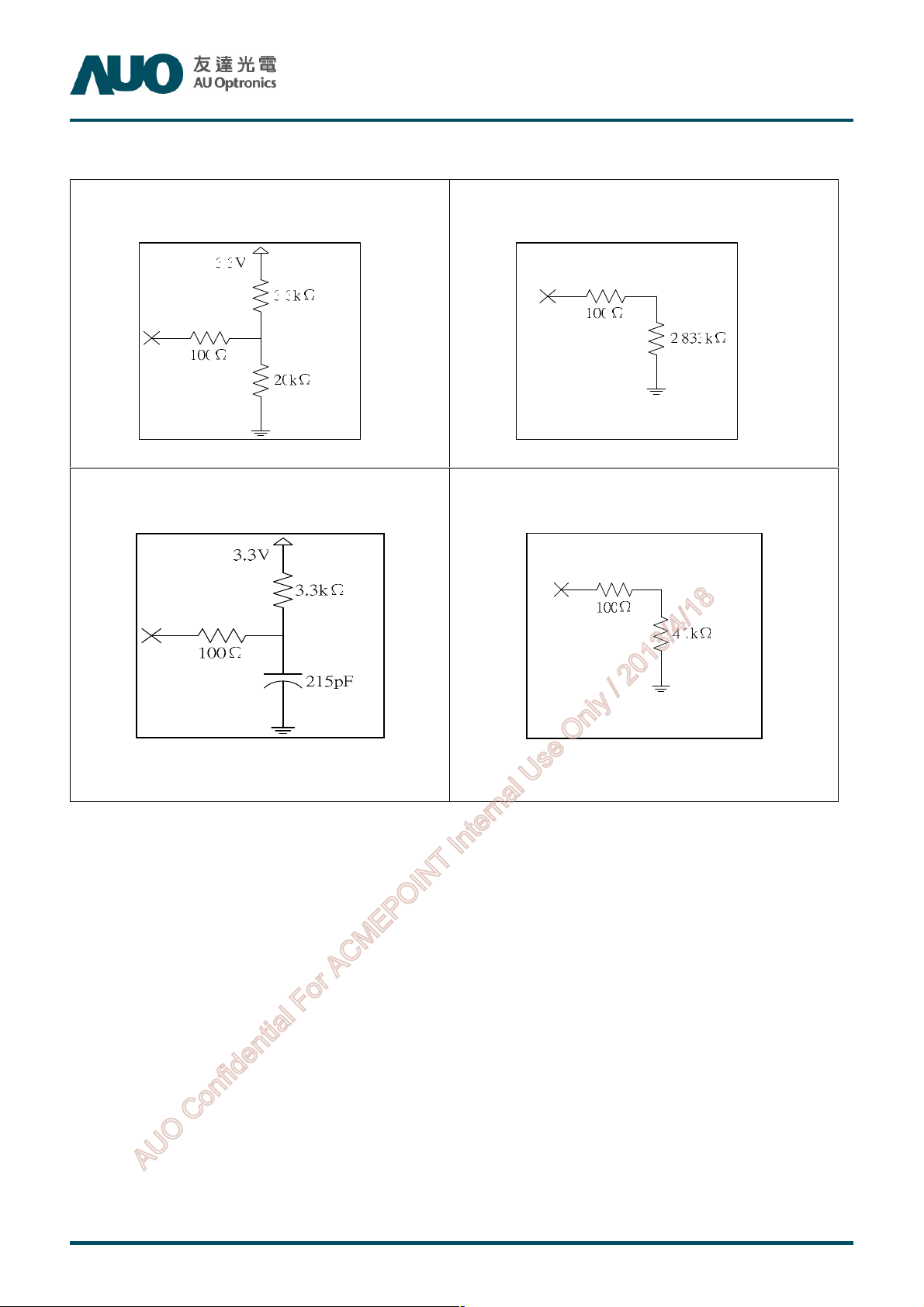

(Refer to SKD EE spec. Choose proper setting!!)

Note * : Open/High(3.3V)

Note **** : SCL/SDA

Note ** : Open/Low(GND)

Note ***** : WP

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

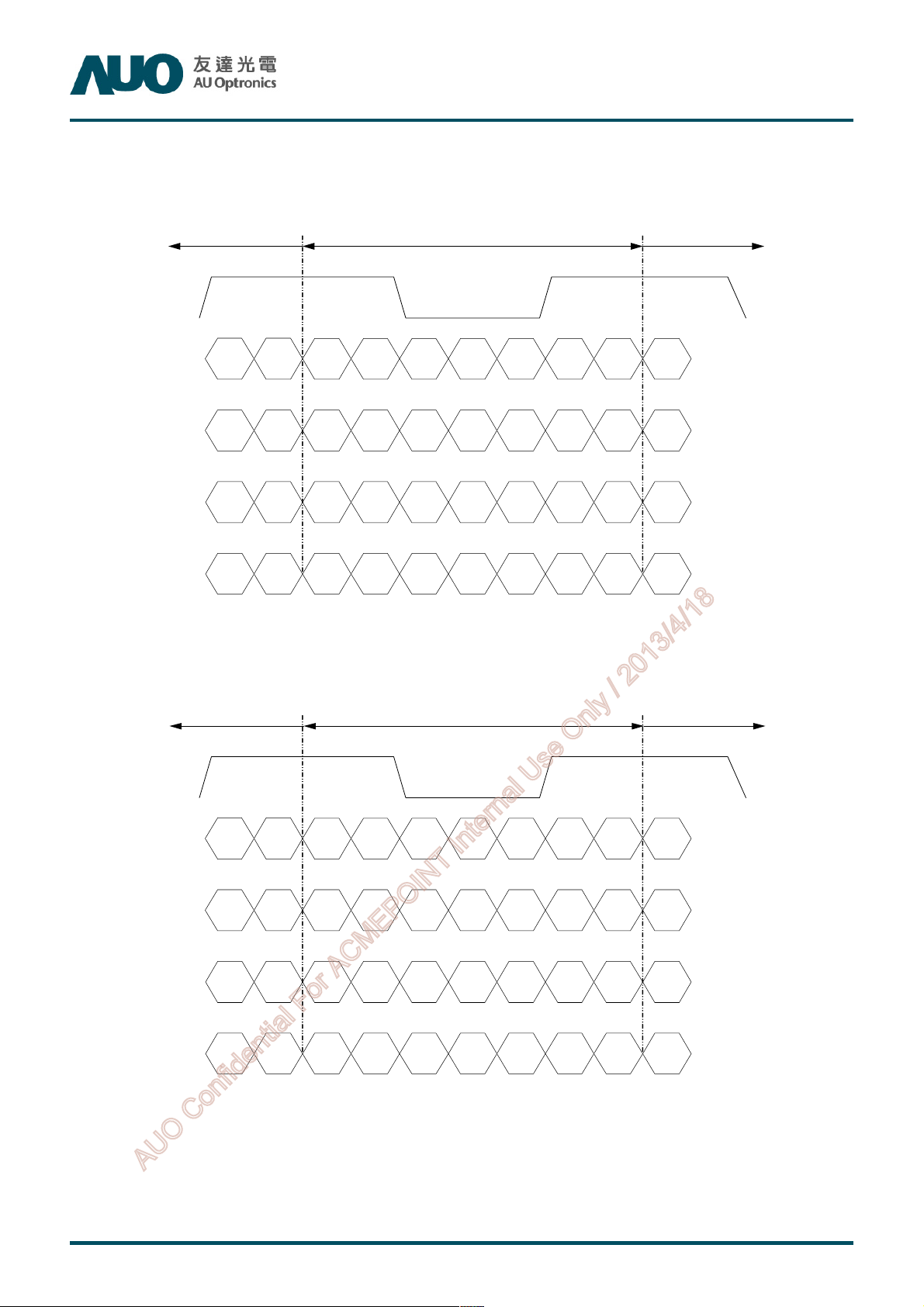

3.2.2 LVDS Option

LVDS Option = High/OpenNS

Prev io us C ycle C urrent C ycle Ne xt C ycle

Clo ck

T420HVN04.5 Product Specification

Rev 1.3

CHx _0+ CHx _0-

CHx _1+ CHx _1-

CHx _2+ CHx _2-

CHx _3+ CHx _3-

Note: x = 1, 2, 3, 4…

LVDS Option = LowJEIDA

Previous Cycle Cur re nt C ycle Ne xt Cyc le

Clock

R 0R 5 G 0G 0R0R 1 R 2R3R 4 R 1

G 1B 0 B1B 1G 1G2 G3G 4G5 G 2

B 2N A D ED EB2B3 B 4B 5NA B 3

R 6B 7 N ANAR6R 7 G 6G7B 6 R 7

CHx _0+ CHx _0-

CHx _1+ CHx _1-

CHx _2+ CHx _2-

CHx _3+ CHx _3-

R 2R 7 G 2G 2R2R 3 R 4R5R 6 R 3

G 3B 2 B3B 3G 3G4 G5G 6G7 G 4

B 4N A D ED EB4B5 B 6B 7NA B 5

R 0B 1 N ANAR0R 1 G 0G1B 0 R 1

Note: x = 1, 2, 3, 4…

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

Rev 1.3

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1100 1125 1480 Th

Vertical Section

Horizontal Section

Clock Frequency Fclk=1/Tclk 53 74.25 82 MHz

Vertical Frequency Frequency Fv 47 60 63 Hz

Horizontal Frequency Frequency Fh 60 67.5 73 KHz

Notes:

(1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the

left edge of the screen.

(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen.

Active Tdisp (v) 1080

Blanking Tblk (v) 20 45 400 Th

Period Th 1030 1100 1325 Tclk

Active Tdisp (h) 960

Blanking Tblk (h) 70 140 365 Tclk

(3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

(4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

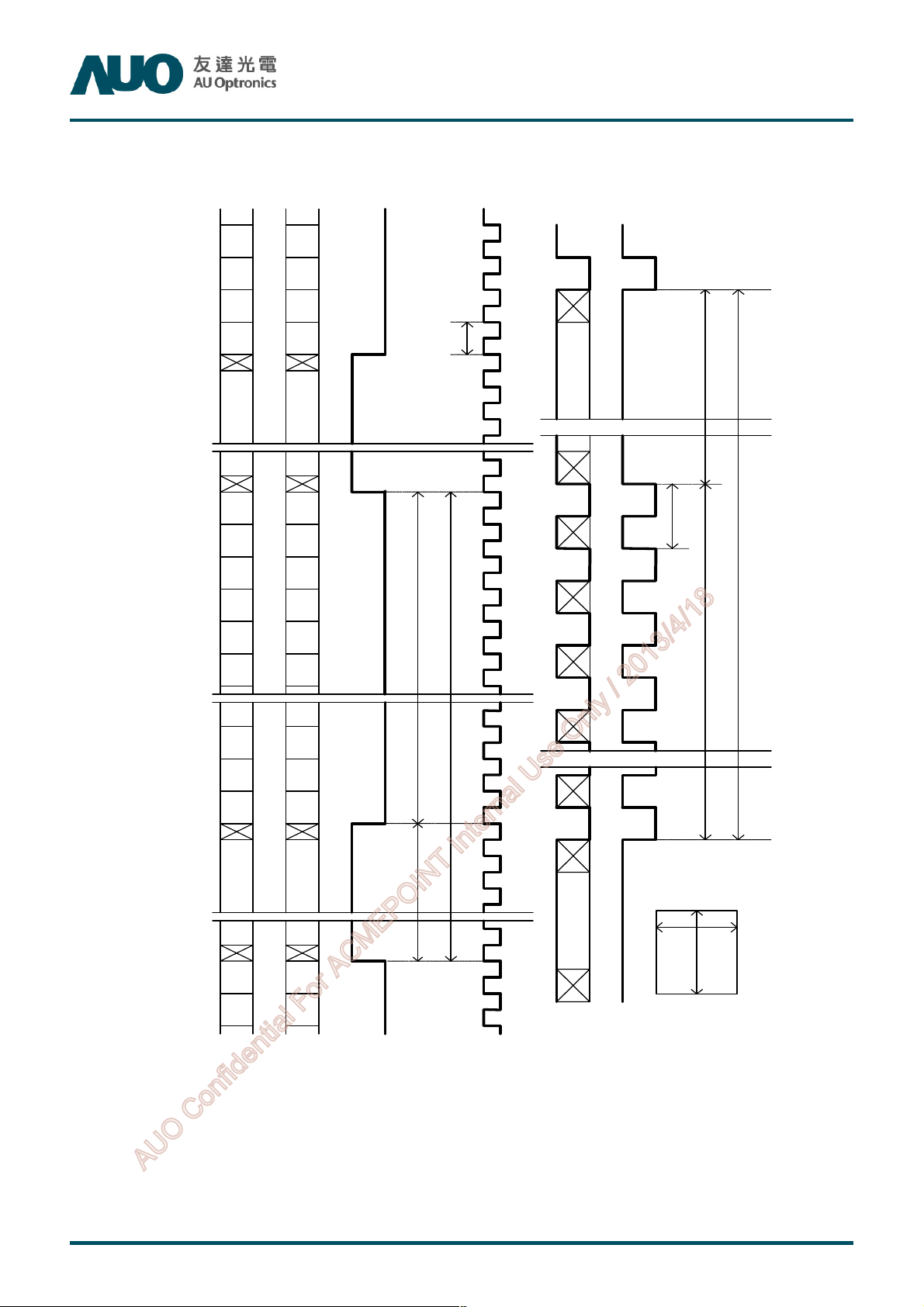

3.4 Signal Timing Waveforms

T420HVN04.5 Product Specification

Rev 1.3

M-6

M-4

M-2

M

2

4

6

8

10

12

M-7

M-5

M-3

M-1

1

3

5

7

9

11

CH1

Pixel

Invalid Data

Pixel

DE

Tdisp(h) Tblk(h)

CLK

RGB

Data

Line

N

Tclk

Invalid Data Invalid Data

Line

1

Line

2

Th

Line

3

Line

4

DE

Th

Tv

Tdisp(v)Tblk(v)

CH2

Pixel

Invalid Data

Pixel

M-4

M-2

M

Pixel

Invalid Data

M-5

M-3

M-1

Pixel

Invalid Data

Line

N

N L ine

M pixel

Pixel

2

Pixel

4

Pixel

1

Pixel

3

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Rev 1.3

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic

Color

R

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

G

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

----

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

3.6 Power Sequence for LCD

T420HVN04.5 Product Specification

Rev 1.3

Values

Parameter

Min. Type. Max.

t1 0.4 --- 30 ms

t2 0.1 --- 50 ms

t3 450 --- --- ms

t4 0*1 --- --- ms

t5 0 --- --- ms

t6 --- --- ---*2 ms

t7 500 --- --- ms

t8 10 --- 50 ms

t9 0 --- --- ms

Note: (1) t4=0 : concern for residual pattern before BLU turn off. (2) t6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value)

Unit

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

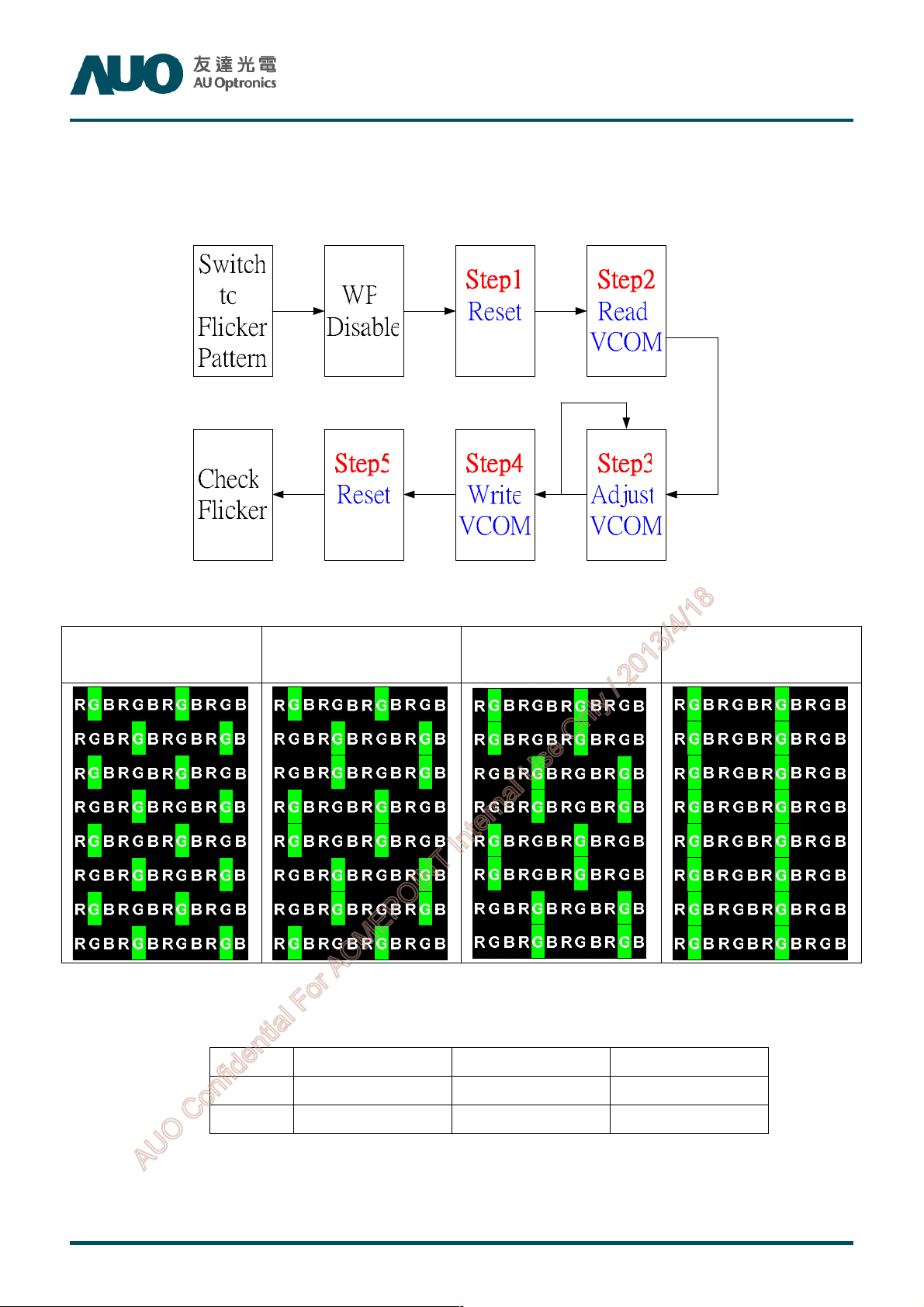

3.7 VCOM Adjust SOP

If you need below pattern or more detail information, please directly contact AUO for engineer service.

3.7.1 VCOM I2C Tuning Step

Rev 1.3

3.7.2 Flicker Pattern

□ Dot

Green (L128)

3.7.3 WP (Write Protect) Disable

□ 1+2Dot

Green (L128)

□ 2Dot

Green (L128)

■ V-stripe

Green (L128)

Disable Enable Default (NC)

□

■

L H H

H L L

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

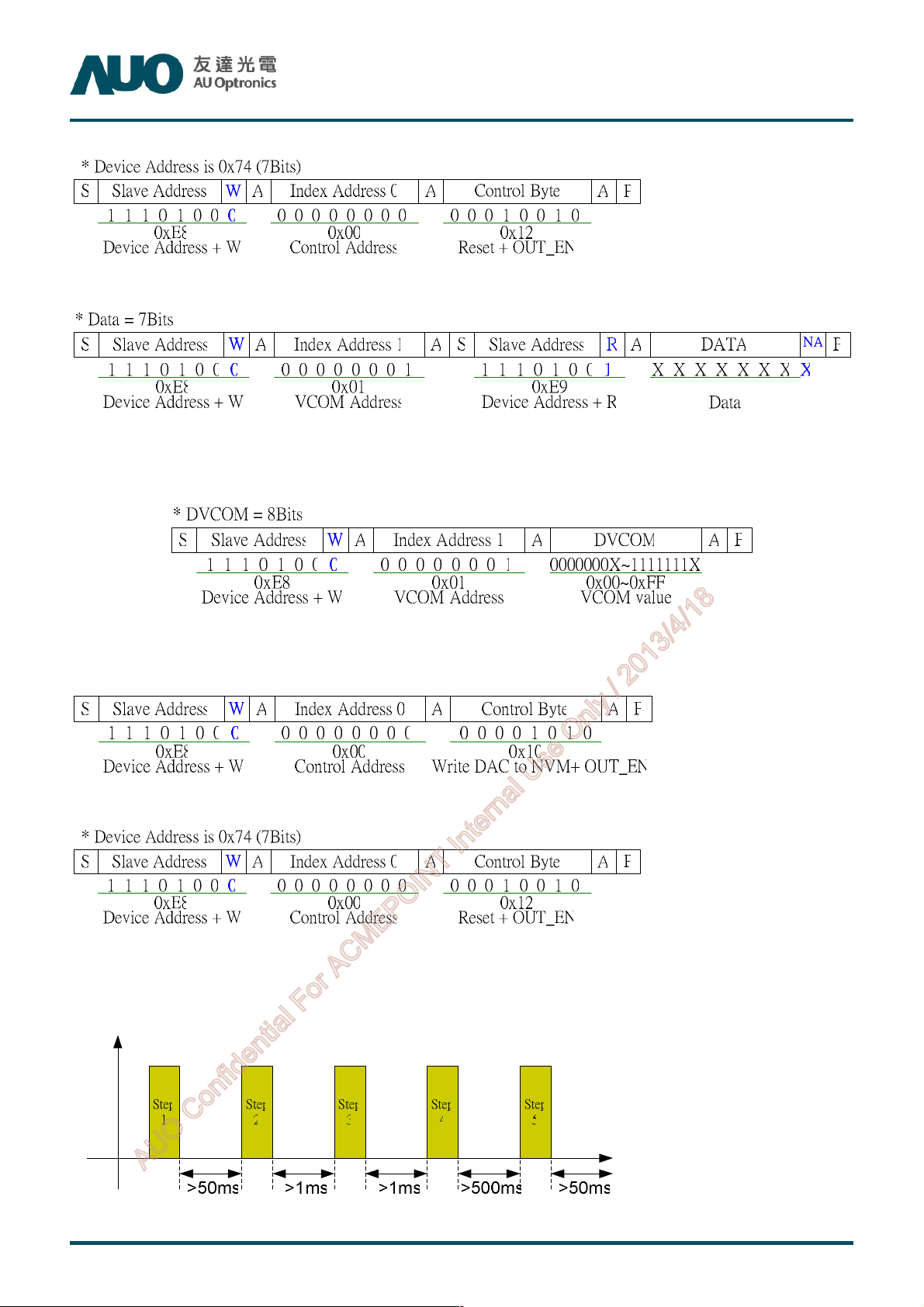

3.7.4 Adjust SOP

Step1 Reset

Step2 Read VCOM

Step3 Adjust VCOM

T420HVN04.5 Product Specification

Rev 1.3

Step4 Write VCOM

Step5 Reset

3.7.5 Interval of Step to Step

Step to step interval must follow below figure

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

Rev 1.3

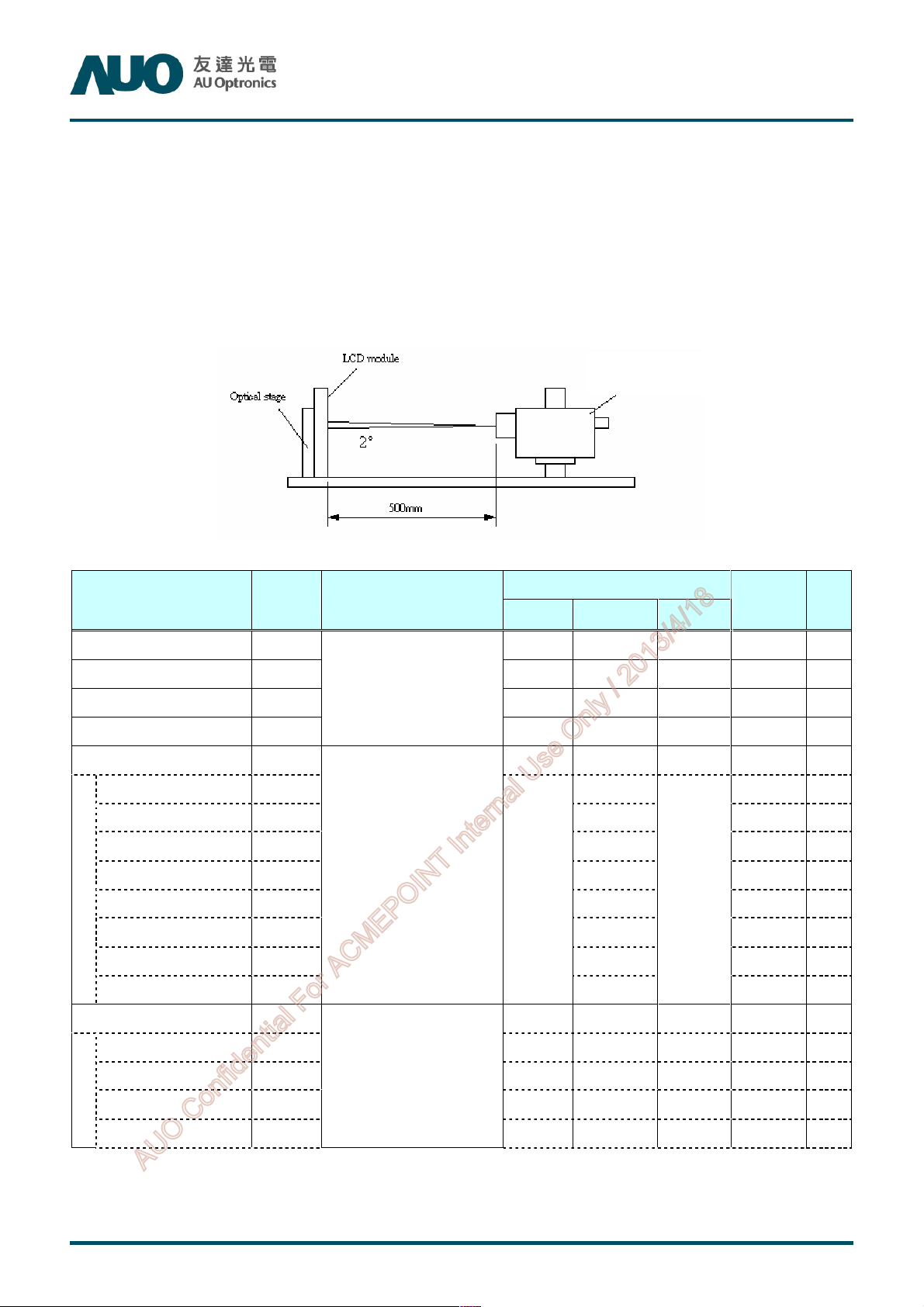

4. Optical Specification

Optical characteristics are determined after the open cell unit and light source has been ‘ON’ and stable for

approximately 45 minutes in a dark environment at 25°C. The values specified are at an approximate distance

50cm from the LCD surface at a viewing angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Contrast Ratio CR 2400 3000 -- 1, 2

White Variation δ

Response Time (G to G)

Center Transmittance T%

Color Chromaticity 5

Red RX 0.661

RY 0.325

Green GX 0.273

GY 0.595

Blue BX 0.139

BY 0.094

White WX 0.304

WHITE(9P)

Tγ -- 6.5 -- ms 4

Standard light source “C”

Condition

Min. Typ. Max

-- -- 1.33 1, 3

With AUO Module

5.0 % 1, 7

With CS-1000T

Typ.-0.03

Values

Unit Notes

Typ.+0.03

WY

Viewing Angle 1, 6

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θd

1. Light source here is the BLU of AUO T420HVD02.0 module.

2. Contrast Ratio (CR) is defined mathematically as:

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

With AUO Module

-- 89 -- degree

0.346

2 3

7

Surface Luminance of L

Contrast Ratio=

Surface Luminance of L

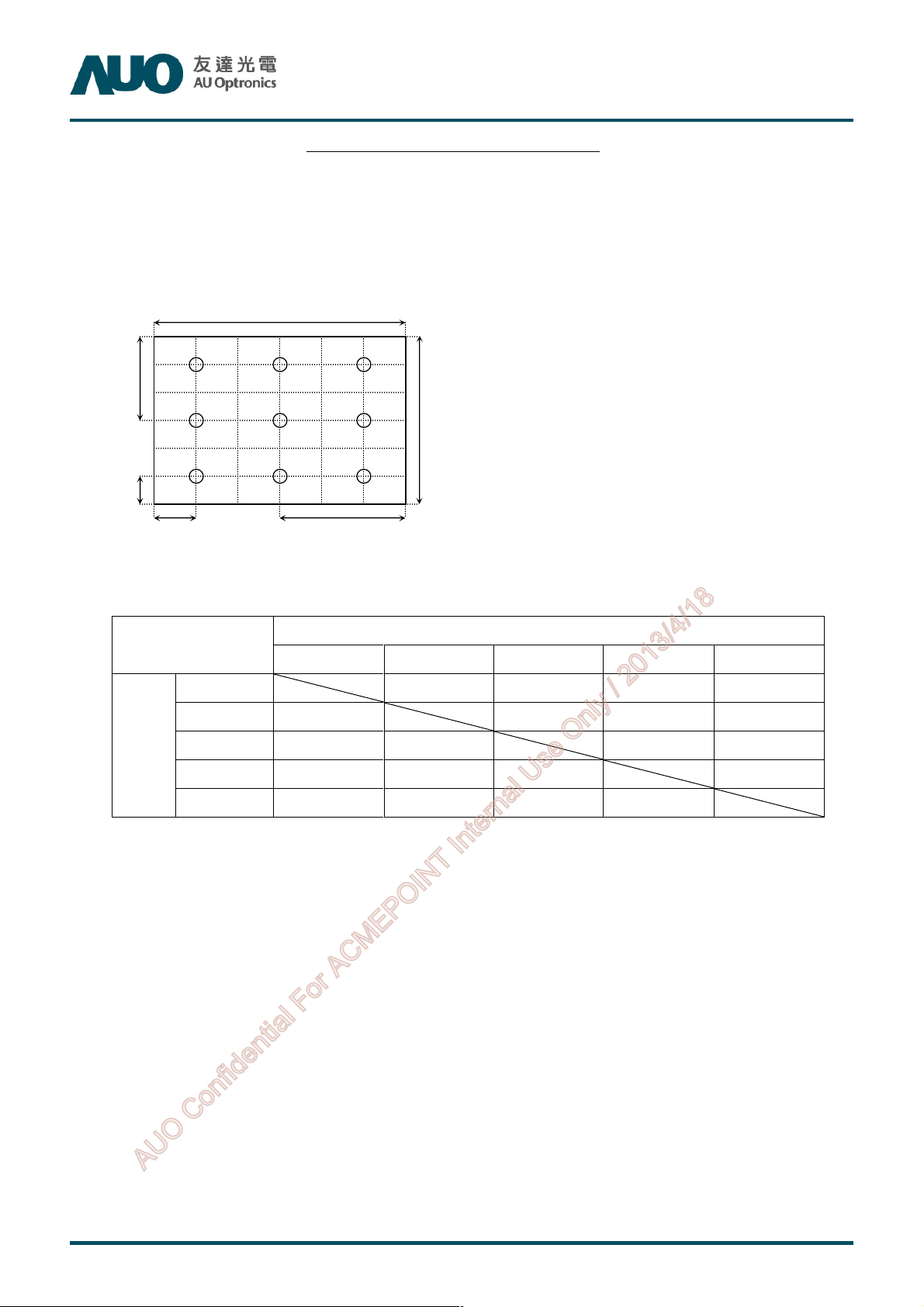

3. The white variation, δWHITE is defined as:

on5

off5

T420HVN04.5 Product Specification

Rev 1.3

δ

WHITE(9P)

H/2

H/6

= Maximum(L

1

on1

, L

,…,L

on2

V

)/ Minimum(L

on9

V/2 V/6

H

on1

, L

on2

,…L

on9

)

4. Response time Tγ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.

Target Measured

Response Time

0% 25% 50% 75% 100%

0% 0% to 25% 0% to 50% 0% to 75% 0% to 100%

Start

25% 25% to 0% 25% to 50%

50% 50% to 0% 50% to 25%

75% 75% to 0% 75% to 25%

100% 100% to 0%

100% to 25% 100% to 50% 100% to 75%

50% to 75% 50% to 100%

75% to 50%

25% to 75% 25% to 100%

75% to 100%

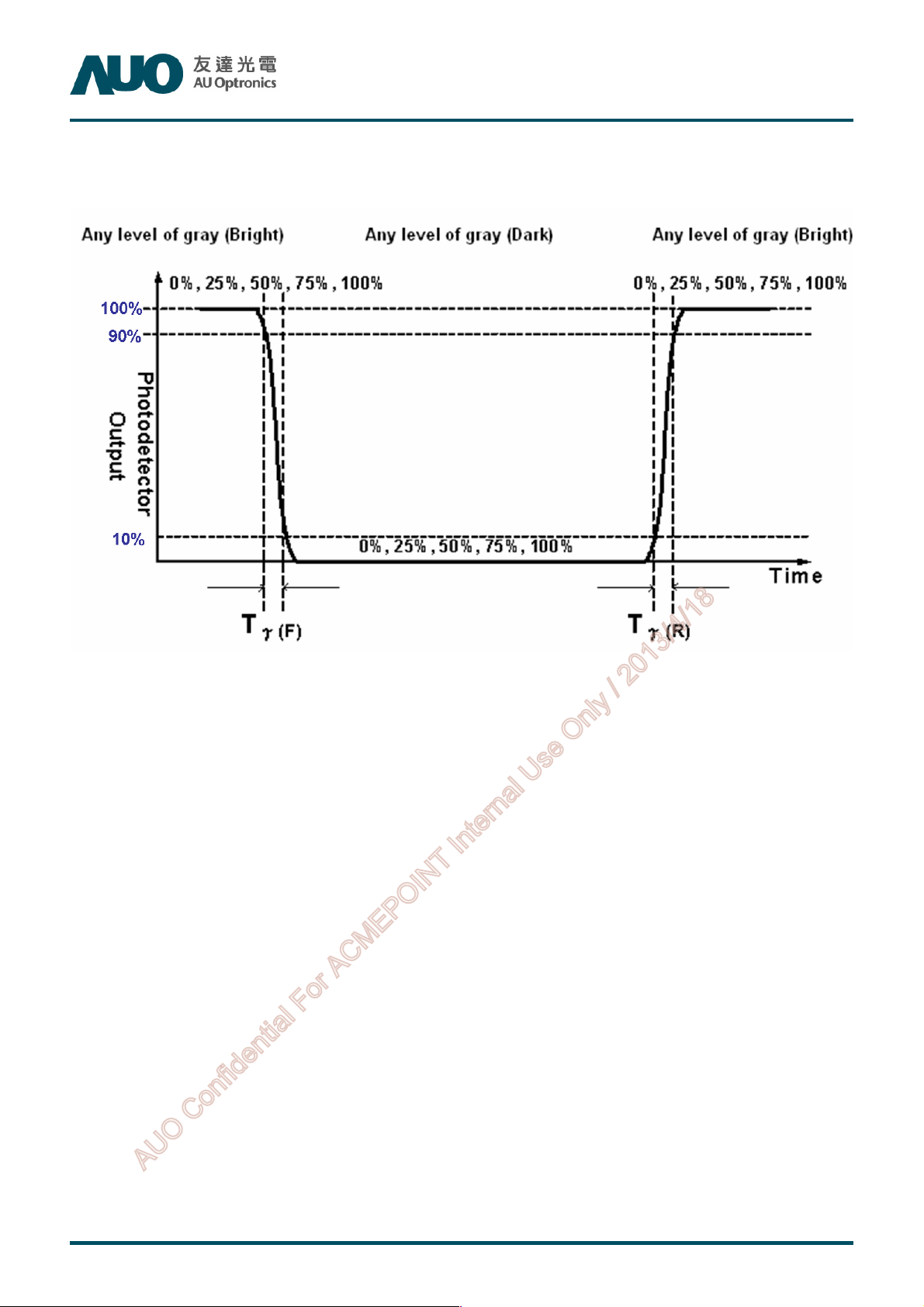

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of gray(bright) “ and “any level of gray(dark)”.

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

FIG.3 Response Time

T420HVN04.5 Product Specification

Rev 1.3

5. Light source here is the standard light source “C” which is defined by CIE and driving voltages are based on

suitable gamma voltages. The calculating method is as following：

A. Measure the “Module” and “BLU” optical spectrums (W, R, G, B).

B. Calculate cell spectrum from “Module” and “BLU” spectrums.

C. Calculate color chromaticity by using cell spectrum and the spectrum of standard light source “C”.

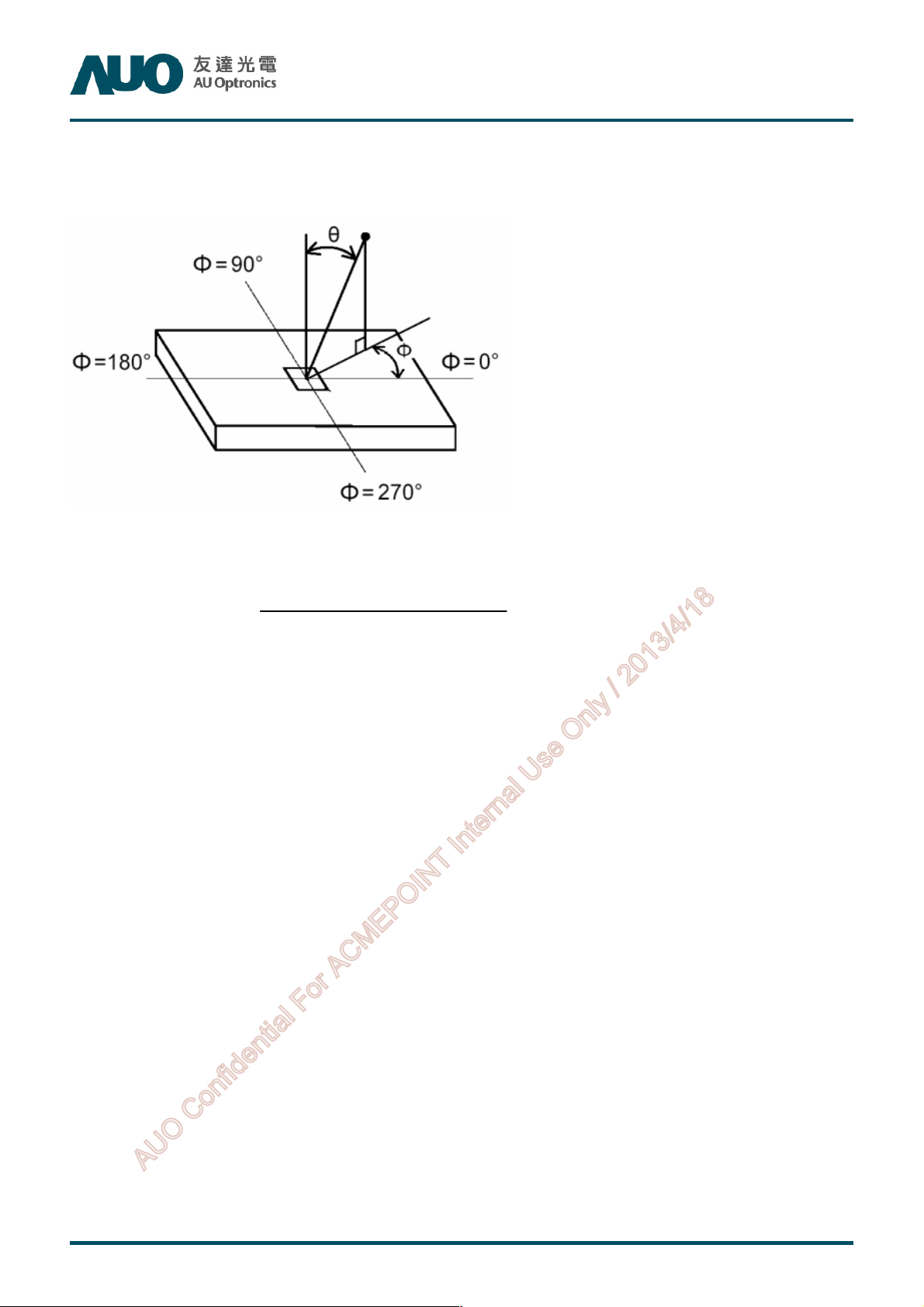

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG4.

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

FIG.4 Viewing Angle

T420HVN04.5 Product Specification

Rev 1.3

7. Definition of Transmittance (T%):

module LCD of Luminance

nceTransmitta ∗=

%001

backlight of Luminance

During transmittance measurement, the backlight of LCD module contains no brightness enhancement film.

Two diffuser sheets which diffuse the light source uniformly are suggested to use for transmittance

measurement.

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

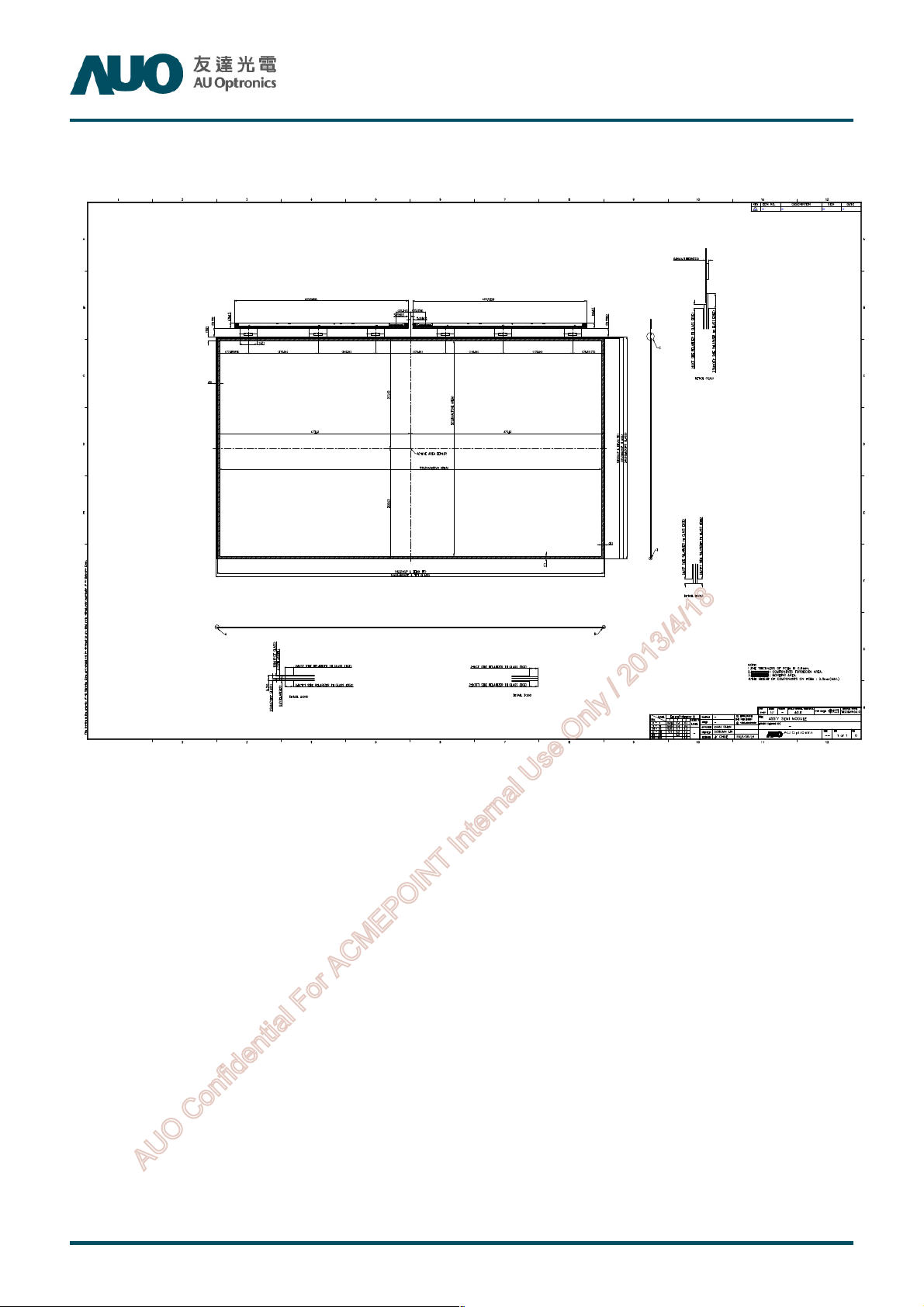

5. Mechanical Characteristics

T420HVN04.5 Product Specification

Rev 1.3

RUBBERRUBBERRUBBER RUBBERRUBBER

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

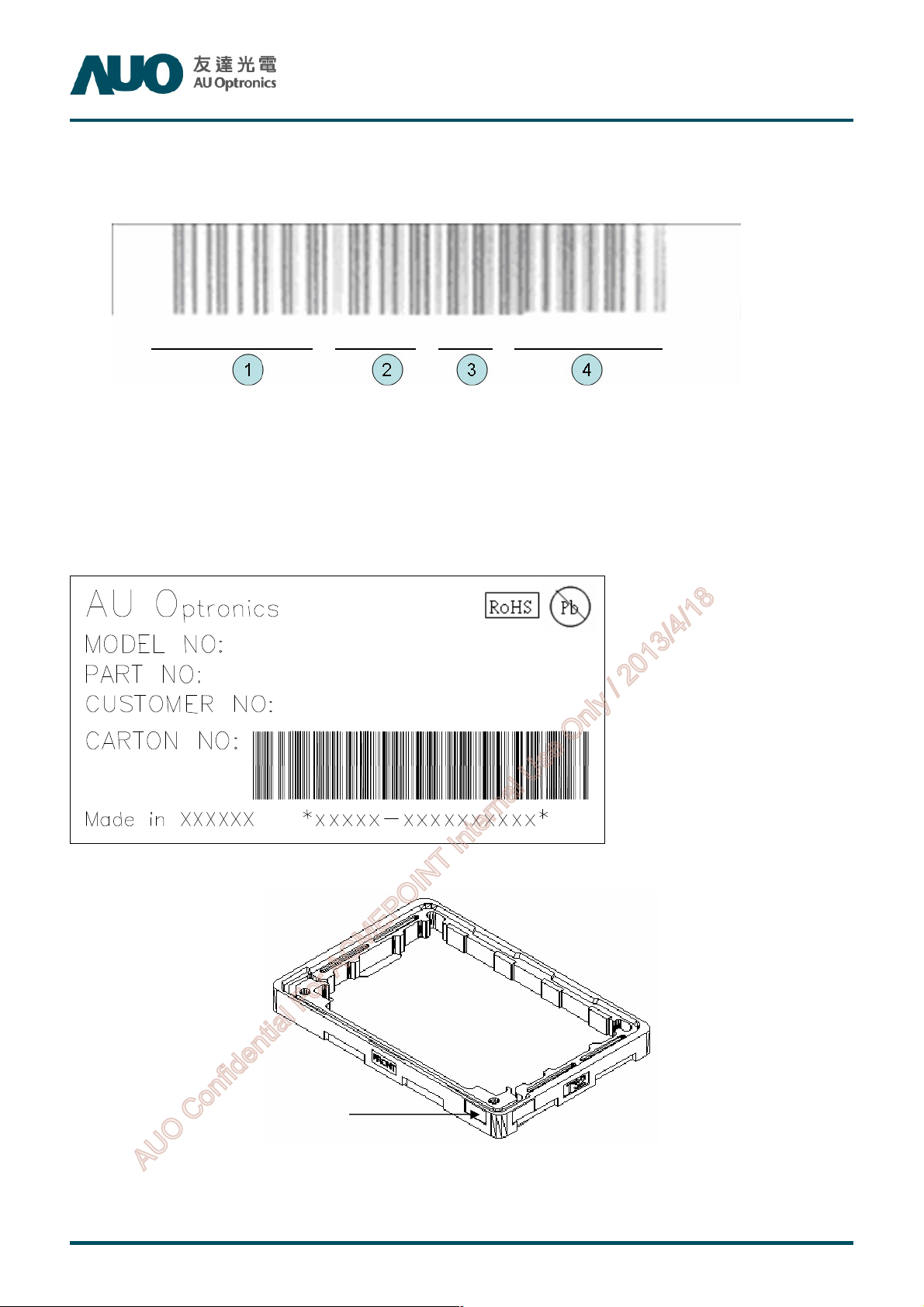

6. Packing

Open cell shipping label (35*7mm)

XXXXXXXXXXXX – XXXXXX – XXXX – XXXXXXXXXXX

1. S/N Number

2. AUO internal use

3. Manufactured week

4. Model name

T420HVN04.5 Product Specification

Rev 1.3

Carton Label:

T420HVN04.5

91.42T28.5XX

XXXXX–XXXXX–XXXXX

Carton label alignment mark

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

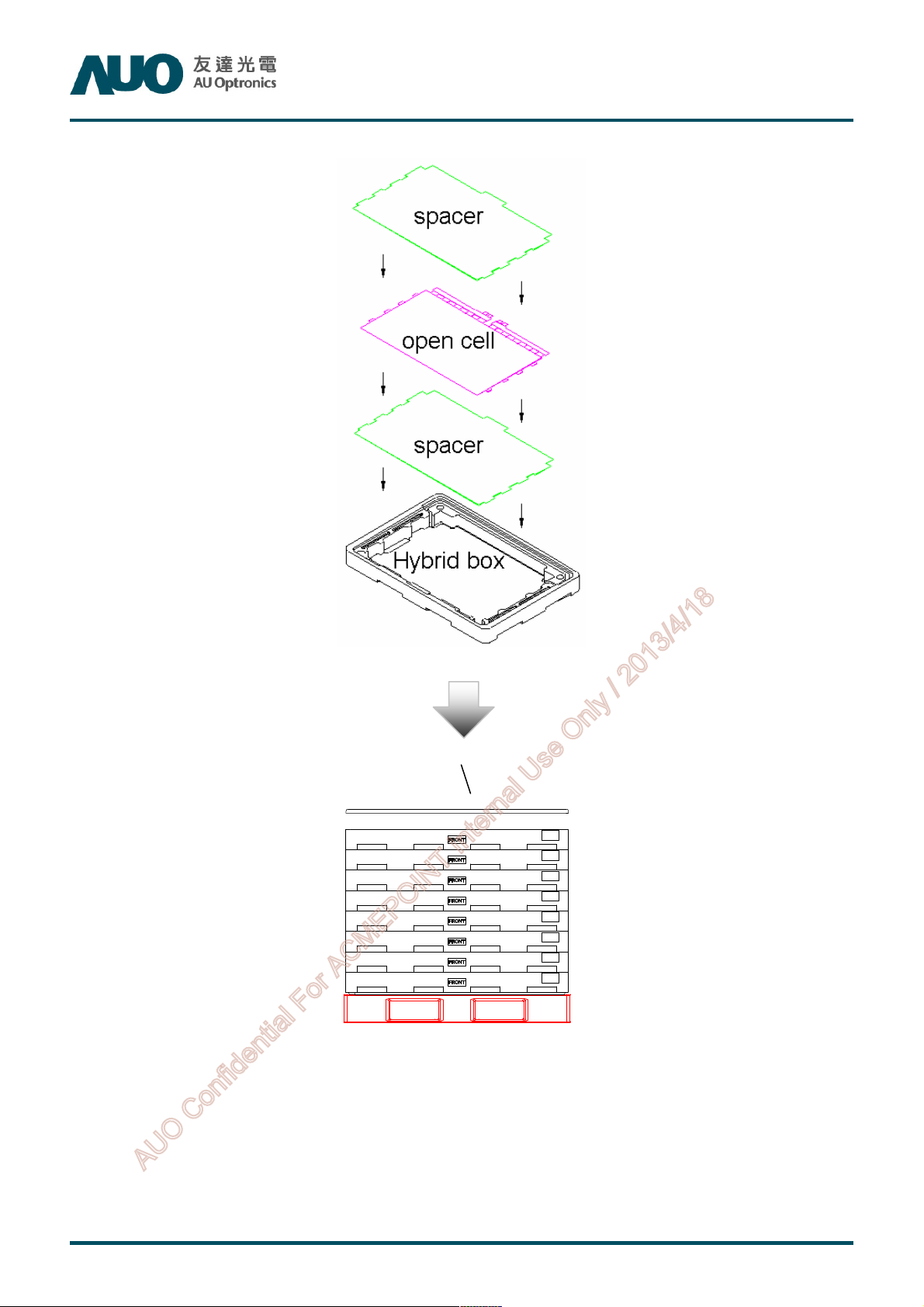

Packing Process:

T420HVN04.5 Product Specification

Rev 1.3

Box for 12pcs open cells & 13 pcs spacers

EPP Top Cover

Pallet Dimension:1100*800*140 mm

8 Boxes/Pallet, after stack 8 boxes, then put EPP top cover on it.

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

T420HVN04.5 Product Specification

7. Precautions

Please pay attention to the followings when you use this TFT LCD Open Cell unit and strongly recommended

to contact AUO if module process advice is required.

7.1 Mounting Precautions

(1) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the cell. And the frame on which a cell is mounted should have sufficient strength so that external force is not transmitted directly to the cell.

(2) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force.

(3) You should adopt radiation structure to satisfy the temperature specification.

(3) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction. (4) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.) (5) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer. (6) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading. (7) Do not open the case because inside circuits do not have sufficient strength.

Rev 1.3

7.2 Operating Precautions

(1) The open cell unit listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer.)

(4) Brightness/transmittance depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer

or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimize the

interface.

7.3 Electrostatic Discharge Control

Since a open cell unit is composed of electronic circuits, it is not strong to electrostatic discharge. Make

certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18

directly.

T420HVN04.5 Product Specification

7.4 Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

7.5 Storage

When storing open cell units as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the open cell unit to sunlight or fluorescent light. Keep the

temperature between 5 and 35 at normal humidity.℃ ℃

(2) The polarizer surface should not come in contact with any other object. It is recommended that they be

stored in the container in which they were shipped.

7.6 Handling Precautions for Protection Film of Polarizer

The protection film of polarizer is still attached on the surface as you receive open cell units. When the

Rev 1.3

protection film is peeled off, static electricity is easily generated on the polarizer surface. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a

condition, etc.

AUO Confidential For ACMEPOINT Internal Use Only / 2013/4/18
